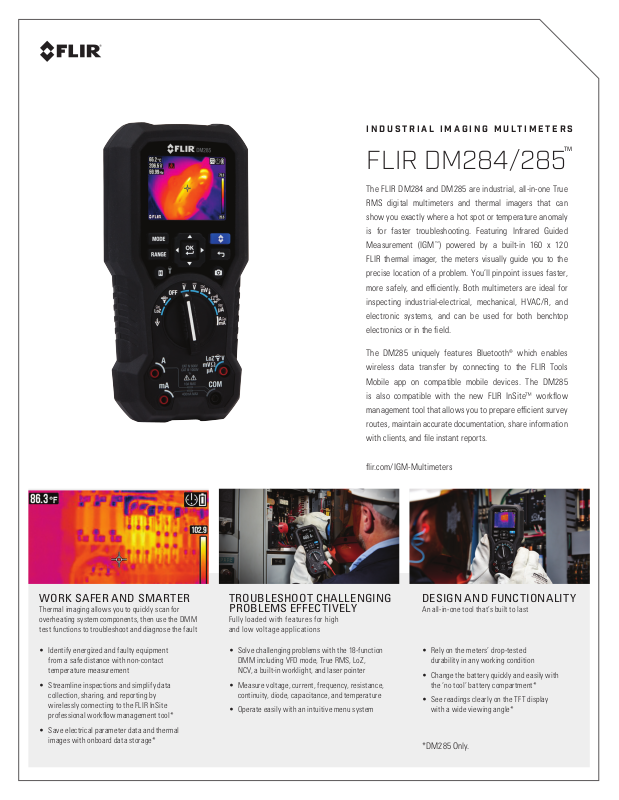

FLIR DM284, DM285 Specifications

INDUSTRIAL IMAGING MULTIMETERS

TM

FLIR DM284/285

The FLIR DM284 and DM285 are industrial, all-in-one True

RMS digital multimeters and thermal imagers that can

show you exactly where a hot spot or temperature anomaly

is for faster troubleshooting. Featuring Infrared Guided

Measurement (IGM™) powered by a built-in 160 x 120

FLIR thermal imager, the meters visually guide you to the

precise location of a problem. You’ll pinpoint issues faster,

more safely, and eciently. Both multimeters are ideal for

inspecting industrial-electrical, mechanical, HVAC/R, and

electronic systems, and can be used for both benchtop

electronics or in the field.

The DM285 uniquely features Bluetooth® which enables

wireless data transfer by connecting to the FLIR Tools

Mobile app on compatible mobile devices. The DM285

is also compatible with the new FLIR InSite™ workflow

management tool that allows you to prepare ecient survey

routes, maintain accurate documentation, share information

with clients, and file instant reports.

WORK SAFER AND SMARTER

Thermal imaging allows you to quickly scan for
overheating system components, then use the DMM
test functions to troubleshoot and diagnose the fault

• Identif y energized and faulty equipment
from a safe distance with non-contact
temperature measurement

• Streamline inspections and simplify data
collection, sharing, and reporting by
wirelessly connecting to the FLIR InSite
professional workow management tool*

• Save electrical parameter data and thermal
images with onboard data storage*

flir.com/IGM-Multimeters

TROUBLESHOOT CHALLENGING
PROBLEMS EFFECTIVELY

Fully loaded with features for high
and low voltage applications

• Solve challenging problems with the 18-function
DMM including VFD mode, True RMS, LoZ,
NCV, a built-in worklight, and laser pointer

• Measure voltage, current, frequency, resistance,
continuity, diode, capacitance, and temperature

• Operate easily with an intuitive menu system

DESIGN AND FUNCTIONALITY

An all-in-one tool that’s built to last

• Rely on the meters’ drop-tested
durabilit y in any working condition

• Change the battery quickly and easily with
the ‘no tool’ battery compartment*

• See readings clearly on the TF T display
with a wide viewing angle*

*DM285 Only.

SPECIFICATIONS

Thermal Imaging DM284 DM285

IR Resolution 160 x 120 (19,200 pixels) 160 x 120 (19,20 0 pixels)

Thermal Imaging Detector FLIR Lepton® microbolometer FLIR Lepton® microbolometer

Temperaturea Sensitivity ≤ 150 mK ≤ 150 mK

Emissivity Settings 4 presets with custom

adjustment

Temperature Accuracy 3°C or 3.5% 3°C or 3.5%

Temperature Range 14°F to 30 2°F (-10°C to 150°C) 14°F to 30 2°F (-10°C to 150°C)

Field of View 46° x 35° 50° x 38°

Laser Pointer Yes Yes

Focus Fixed Fixed

Thermal Imaging Palette Iron, Rainbow, Grayscale Iron, Rainbow, Grayscale

Level & Span Auto Auto

4 presets with custom
adjustment

Measurements-Both Models

Tru e RMS Yes

Range Basic Accuracy

AC / DC Volt s 1000 V ±1.0% / 0.09%

AC / DC mVolt 600.0 mV ±1.0% / 0.5%

VFD AC Volts 1000 V ±1.0%

AC / DC LoZ V 1000 V ±2.0%

AC / DC Amps 10.00 A ±1.5% / 1.0 %

AC / DC mA mps 400.0 mA ±1.5% / 1.0%

AC / DC μAmps 4,000 μA ±1.0%

Resistance 6.000 MΩ

Capacitance 10.0 0 mF ±1.9%

Dio de Tes t 1.500 V ±0.9%

Flex Clamp Range 300 0 A AC (Optional TA72 /74) ±3.0% + 5 digits

Frequency Counter 100.00 kHz ±0.1%

Temperat ure, Type -K
Thermocouple

50.0 0 MΩ

-40°F to 75 2.0°F

-40°C to 400°C

±0.9%
±3.0%

±1.0% + 5.4°F
±1.0% + 3°C

Additional Measurements DM284 DM285

Continuity Check 600 Ω 20 Ω and 200 Ω

Measuring Rate 3 samples per second 3 samples per second

Min /Max/Avg Yes Yes

General Information

Connectivity – Bluetooth®

Data Logging & Storage – 10 sets of 4 0K scalar

Auto Power O Yes Yes

Worklights Yes Yes

Display Size 2.8 in TF T screen 2.8 in TF T screen

Battery 4 AA A batteries;

optional TA04 Li-Poly
rechargeable battery

Drop Te st 3 m 3 m

IP Rating IP54 IP40

Safety Category Rating C AT III-1000 V, CAT IV-6 00V CAT III-1000V, CAT IV-600V

Size (L x W x H) 200 x 95 x 49 mm (7.9 × 3.7

× 1.9 in)

Weight 537 g (18.9 oz) 537 g (18.9 oz)

Warranty 10 year on product and

detector

measurements, 100 images

3 AA batteries; optional
TA04 Li-Poly rechargeable
battery

200 x 95 x 49 mm (7.9 × 3.7
× 1.9 in)

10 year on product and
detector

Box Contents

Multimeter, L91 lithium batteries, silicone test leads, test
lead storage/tripod accessory, Type-K thermocouple,
alligator probes, soft carrying case

Ordering Information Order #

FLIR DM285 Industrial Imaging Multimeter with Datalogging,
Connectivity, IGM

FLIR DM284 Imaging True RMS Industrial Multimeter with IGM 793950372845

For a complete list of available accessories, go to: flir.com/store/instruments/testaccessories

793950372876

Specifications are subject to change without notice. For the
most up -to-date specs, go to www.flir.com
