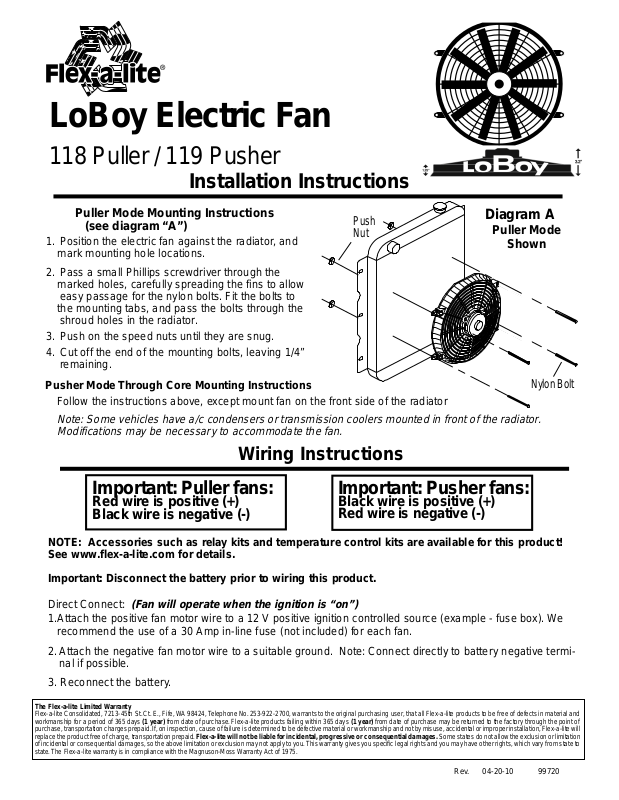

Flex-a-Lite 119 User Manual

LoBoy Electric Fan

118 Puller / 119 Pusher

Installation Instructions

Puller Mode Mounting Instructions

(see diagram “A”)

1. Position the electric fan against the radiator, and
mark mounting hole locations.

2. Pass a small Phillips screwdriver through the
marked holes, carefully spreading the fins to allow

easy passage for the nylon bolts. Fit the bolts to

the mounting tabs, and pass the bolts through the

shroud holes in the radiator.

3. Push on the speed nuts until they are snug.

4. Cut off the end of the mounting bolts, leaving 1/4”

remaining.

Pusher Mode Through Core Mounting Instructions

Follow the instructions above, except mount fan on the front side of the radiator

Note: Some vehicles have a/c condensers or transmission coolers mounted in front of the radiator.
Modifications may be necessary to accommodate the fan.

Push
Nut

Diagram A

Puller Mode

Shown

Wiring Instructions

Important: Puller fans:

Red wire is positive (+)
Black wire is negative (-)

Important: Pusher fans:

Black wire is positive (+)
Red wire is negative (-)

Nylon Bolt

NOTE: Accessories such as relay kits and temperature control kits are available for this product!
See www.flex-a-lite.com for details.

Important: Disconnect the battery prior to wiring this product.

Direct Connect:

1.Attach the positive fan motor wire to a 12 V positive ignition controlled source (example - fuse box). We
recommend the use of a 30 Amp in-line fuse (not included) for each fan.

2.Attach the negative fan motor wire to a suitable ground. Note: Connect directly to battery negative termi-

nal if possible.

3. Reconnect the battery.

The Flex-a-lite Limited Warranty

Flex-a-lite Consolidated, 7213-45th St. Ct. E., Fife, WA 98424, Telephone No . 253-922-2700, warrants to the original purchasing user, that all Flex-a-lite products to be free of defects in material and
workmanship for a period of 365 days (1 year) from date of purchase. Flex-a-lite products failing within 365 days (1 year) from date of purchase may be returned to the factory through the point of
purchase, transportation charges prepaid. If, on inspection, cause of f ailure is determined to be defective material or workman ship and not by misuse, accidental or improper installation, Flex-a-lite will
replace the product free of charge, transportation prepaid. Flex-a-lite will not be liable f or incidental, pr ogressive or consequential damages. Some states do not allo w the exclusion or limitation
of incidental or consequential damages, so the above limitation or exclusion ma y not apply to y ou. This warranty giv es y ou spec ific legal rights and you ma y ha ve other rights, which v ary from state to
state. The Flex-a-lite warranty is in compliance with the Magnuson-Moss Warranty Act of 1975.

(Fan will operate when the ignition is “on”)

Rev. 04-20-10 99720
