Flashforge Adventurer 3 User manual

SZ16-ZN/EN-A07

ADVENTURER 3 / 冒险家 3

Quick Start Guide

快速启动指南

中文P10

1. Hot! Avoid touching the heating nozzle and heating build plate in operation.

2. Moving parts in printer may cause injury. Do not wear gloves or other
sources of entanglement in operation.

Download

资料下载

This guide is only applicable to FLASHFORGE Adventurer3 3D printer

Please refer to FlashForge official website www.flashforge.com to download
the newest User's Guide, Software and Instruction Videos.
(Support-Support Center-Select a Product)

1. 高温危险！打印机喷嘴和打印平台在工作时会被加热，请避免接触!

2. 可动部件可能造成卷入挤压和切割伤害。操作机器时请不要佩戴手套或缠绕物。

前往闪铸科技官方网站 www.sz3dp.com ，可以在[ 技术支持 ] 页面下载用户使
用手册、切片软件等资料，或查看相关操作视频。

本手册仅适用于闪铸科技 Adventurer3 3D打印机

Kit Contents

3D Printer

SZ16-ZN/EN-A01

发明家

ADVENTURER 3

快速启动指南

9

1. 高温危险！打印机喷嘴和打印平台在工作时会被加热，请避免接触!

2. 可动部件可能造成卷入挤压和切割伤害。操作机器时请不要佩戴手套或缠绕物。

1. Hot! Avoid touching the heating nozzle and heating build plate in operation.

2. Moving parts in printer may cause injury. Do not wear gloves or other
sources of entanglement in operation.

最新版本说明书请前往闪铸科技官方网站www.sz3dp.com下载。
（技术支持 - 下载中心 - 说明书/快速启动指南下载）

Please refer to FlashForge official website www.flashforge.com to download
the newest User Guide and Quick Start Guide.
(SUPPORT-Support Center - Select a Product)

本手册仅适用于闪铸科技 Adventurer3 3D打印机

This guide is only applicable to FLASHFORGE Adventurer3 3D printer

Grease

Filament

Power Cable

After-sales

service card

3

Allen WrenchScrewdriverQuick Start Guide Unclogging Pin Tool

01

Getting to know your Adventurer 3

1

2

3

4

5

10

11

12

13

14

6

7

8

9

21

20

19

18

17

16

15

25

23

22

24

26

1. Filament guide tube 2. Filament guide tube joint 3. Extruder base 4.Cooling Fan

5. Removable nozzle 6. Extruder cables 7. Clip 8. Led light

9. Turbo Fan Baffle 10. Front door 11.Y-Axis sliding slot 12.Platform base

13. Removable build plate 14.Touch-screen 15.USB stick input 16.Power switch

17. Power input 18. Spool holder 19.Filament cover 20. Filament cover handle

21. Moto 22. Filament intake 23.Filament feeding wheel 24. Top cover

25. Air outlet 26. Ethernet input
02

Unpacking

The People's Insurance Company of China

KEEP DRY

HANDLE

WITH CARE

FRAGILE

The People's Insurance Company of China

KEEP DRY

HANDLE

WITH CARE

FRAGILE

FRAGILE

HANDLE

WITH CARE

KEEP DRY

1. Open the box. 2. Take out the wrapping paper box

on the top.

3. Be careful! Filament, tools kit and power
cable are all placed inside the wrapping

4

. Take out the printer from the box.

paper box.

03

Power Switch

5. Plug the power cable into the input on the
back and turn on the power switch, the touch
screen is turned on.

X: 20.00 Y: 45.00 Z: 36.00

Y

1/3

Language

<<

Status

Calibration Home

<

6. Click [tools]-[setting] on the touch screen as the picture showed above, Click[move].
Click the upper arrow in the moving page to make the extruder raises for removing the
paper box on the bottom easier.

Move Camera

FilamentCheck Led

2/3

<

7. Open the front door, take out the paper box inside
the printer, printer unpacking completed.

X

Z

04

First Print

Plug the power cable into the input on the
back and turn on the power switch, the touch
screen is turned on.

Power Switch

Load Filament

1. Open the filament cover, insert the filament into the
filament intake, push filament into the feeding wheel
until some resistance is sensed.

Note: Please make sure filament has been pushed into
the feeding wheel!

05

Build

Load

200

/235℃

Tools

Change

Filament

2. Tap [Filament]--Tap [Load]--After Load completed--Tap [OK]

/235℃

235

Preheat completed,

Begin loading...

ok

3. Load completed when you see filament come out of extruder, Tap [OK].
Put the spool of filament on the spool holder, close the filament cover.

Press ok when new color appears

ok

235

/235℃

Heating extruder...

Cancel

Mind the loading direction of filament, make sure
to be clockwise as the picture showed.

06

Model Print

Build

Tools

Filament

6.67GB

Not Available

No job

1. Tap [Build], choose the file path: Print from local memory card.

20mm_Box­PLA.gx

1/3

<

2. Locate the model file in the model list, Tap

<

on its right to start printing;

or tap model file picture or file name to enter model details page, tap to start printing.

20mm_Box-P...

0 h 10 min

0.70M

20mm_Box-PLA.gx

0h10

Time Remaining

min

Build completed!

ok

7.49

m

...

3. Extruder will heat up and printer will start printing after heating completed. After model

printing finished, printer will sound a beep and pop out notice on touch screen.

07

Model Remove

1. As showed in picture, press down dotted line area and draw out the
removable build plate.

Notices

When printing completed, extruder and build plate may still hot,
please start operating after cooling down!

2

. Bend the build plate, the plate will produce certain deformation, seperating the

plate away from the bottom of model (Please use a scraper to assist removing
when model is too small or big).

08

Change Filament

/235℃

200

Load

Heating extruder...

Change

Cancel

1. Tap [Filament]--Tap [Change], extruder will start preheating.

2

. Pull out the filament as the picture

showed above.

/235℃

220

Unloading the filament,

please wait...

4

. When new filament come out of extruder steadily, replace is completed, Tap [OK].

feed new filament, press [OK]

3. Insert new filament into the filament intake
and push the filament into the feeding wheel
until resistance is sensed.

/235℃

235

Pull out filament,

OK

09

Press ok when new color appears

OK

235

/235℃

装箱物品

3D打印机

SZ16-ZN/EN-A01

Quick Start Guide

9

1. 高温危险！打印机喷嘴和打印平台在工作时会被加热，请避免接触!

2. 可动部件可能造成卷入挤压和切割伤害。操作机器时请不要佩戴手套或缠绕物。

资料下载

前往闪铸科技官方网站 www.sz3dp.com ，可以在[ 技术支持 ] 页面下载用户使
用手册、切片软件等资料，或查看相关操作视频。

1. Hot! Avoid touching the heating nozzle and heating build plate in operation.

2. Moving parts in printer may cause injury. Do not wear gloves or other
sources of entanglement in operation.

Download

Please refer to FlashForge official website www.flashforge.com to download
the newest User's Guide, Software and Instruction Videos.
(Support-Support Center-Select a Product)

本手册仅适用于闪铸科技 Adventurer3 3D打印机

This guide is only applicable to FLASHFORGE Adventurer3 3D printer

润滑脂

3D打印耗材

电源线

售后服务卡

内六角扳手十字螺丝刀快速启动指南 通针

10

部件介绍

1

2

3

4

5

10

11

12

13

14

6

7

8

9

21

20

19

18

17

16

15

25

23

22

24

6. 喷头排线

11. Y轴滑槽

16. 电源开关

21. 电机

26. 网线接口

7. 夹扣

12. 平台座

17. 电源线接口

22. 进丝口

26

3. 喷头座

8. Led灯

13. 可移除平台板

18. 料盘架

23. 送丝轮

11

4. 风扇1. 导丝管 2. 导丝管接头

9. 导风嘴

14. 触摸屏

24. 上盖透明板

5. 可拆卸喷嘴

10. 前门

15 U盘接口

20. 丝盘盖把手19. 丝盘盖

25. 出风口

开 箱

The People's Insurance Company of China

KEEP DRY

HANDLE

WITH CARE

FRAGILE

The People's Insurance Company of China

KEEP DRY

HANDLE

WITH CARE

FRAGILE

1. 打开牛皮纸箱。 2. 取出顶部的纸塑盒。

FRAGILE

HANDLE

WITH CARE

KEEP DRY

. 请注意，在纸塑盒上附带有3D打印耗材

3
工具包和电源线。

12

4

. 从纸箱中取出打印机。

5. 通过电源线连接电源与打印机；
开启开关，屏幕点亮。

X: 20.00 Y: 45.00 Z: 36.00

Y

状态 语言

校准 回零

1/3

<

6. 在屏幕上依次点击[工具] - [设置]进入如上页面，翻至第二页，点击[移动]。在移动界面点
击向上的箭头，将喷头升起，方便取下下方的纸塑盒。

<

移动 相机

丝料检测 喷头灯

2/3

<

7. 喷头升起后，打开前门取出内部的纸塑盒，

开箱完成。

X

<

Z

13

初次打印

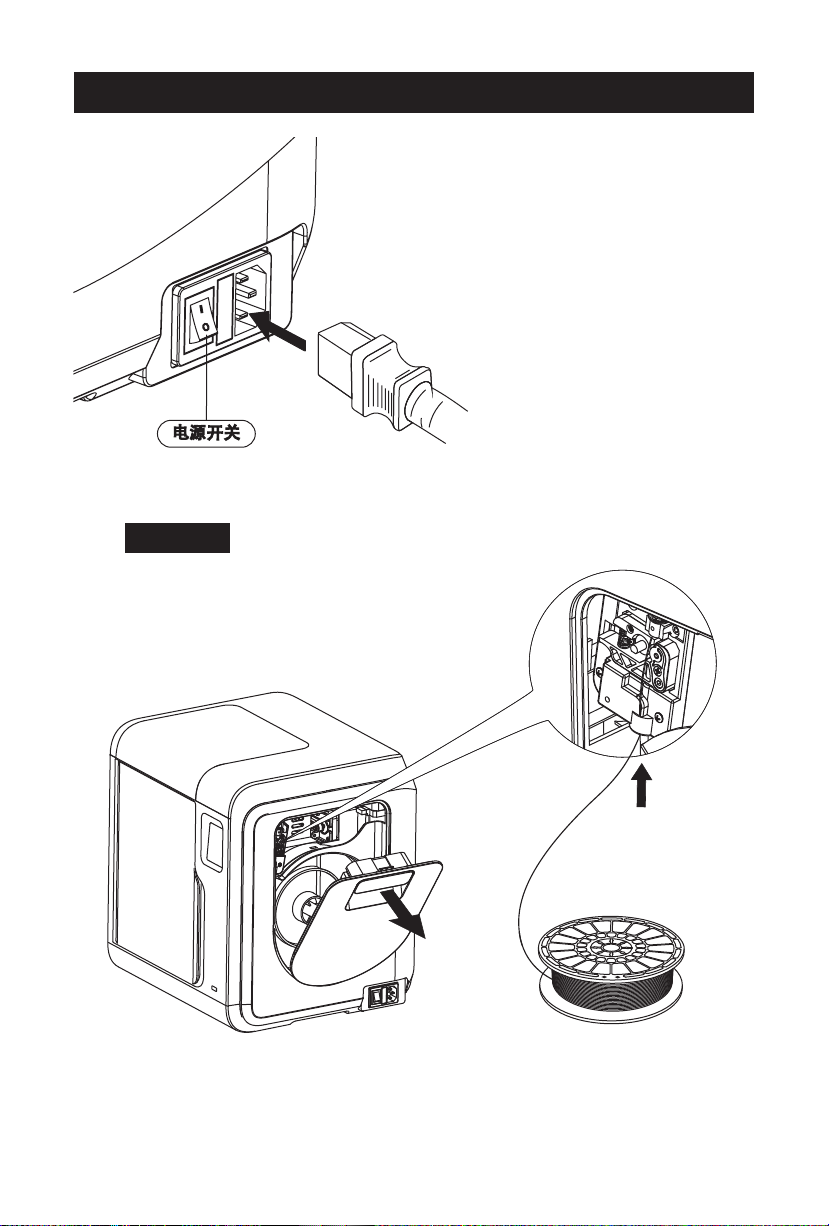

安装丝料

1. 打开料盘盖，将丝料插入进丝口，推入
送丝轮内，感受到一定阻力时即可。

注：请务必确认丝料已推入送丝轮！

通过电源线连接电源与打印机；
开启开关，屏幕点亮。

14

打印

进丝

200

/235℃

工具

换丝

换丝

2. 点击屏幕中的换丝按钮-选择进丝-进丝完成后-点击确定。

/235℃

235

加热完成，开始进丝...

取消

3. 喷嘴出丝，确认进丝完成，将料盘置于料盘架上，封闭料盘盖。

待喷头出丝时，表明换丝完成

确认

235

/235℃

喷头加热中...

取消

请务必注意丝盘的出丝方向，确保
按图中所示方向（顺时针）出丝。

15

模型打印

打印

工具

换丝

1. 选择打印 - 内存打印；

20mm_Box­PLA.gx

1/1

<

2. 在模型列表中选择 模型，点击 开始打印；或点击模型图片或文件名进入

<

6.67GB

U盘未插入

无任务

模型详情页，然后点击 开始打印。

20mm_Box-P...

0 h 10 min

0.70M

20mm_Box-PLA.gx

0h10

min

剩余时间

打印完成!

确认

7.49

m

...

. 打印时喷头将会升温，当温度达到目标值时开始打印。模型打印完成后，打印机将会发出

3
提示声，同时屏幕弹出完成提示。

16

模型移除

. 如上图所示，在虚线区域向下按压，同时向外抽出打印平台。

1

注意事项

打印完成时，喷嘴和打印平台可能仍处于高温状态，建议冷却后再进行操作！

2. 弯折平台板，平台板会有一定形变与模型底部脱离（模型较小或较大时
建议使用铲刀辅助）。

17

进丝

换丝

1. 点击丝料-换丝， 喷头将启动加温。

更换丝料

200

喷头加热中...

取消

/235℃

2

. 根据屏幕提示拔出丝料。

/235℃

235

退丝完成，将丝料拔出后，

请插入新的丝料，点击确定。

确认

4

. 新丝料从喷头出丝后，说明换丝完成，点击确认。

待喷头出丝时，表明换丝完成。

235

确认

18

3. 将新丝料插入进丝口，推入送丝轮内，
感受到一定阻力时即可。

/235℃

售后专线：[e-mail] After-Sales Service: [e-mail]
