Flame Gard MCD116-1.5 User Manual
Ultimate Protection Against Grease

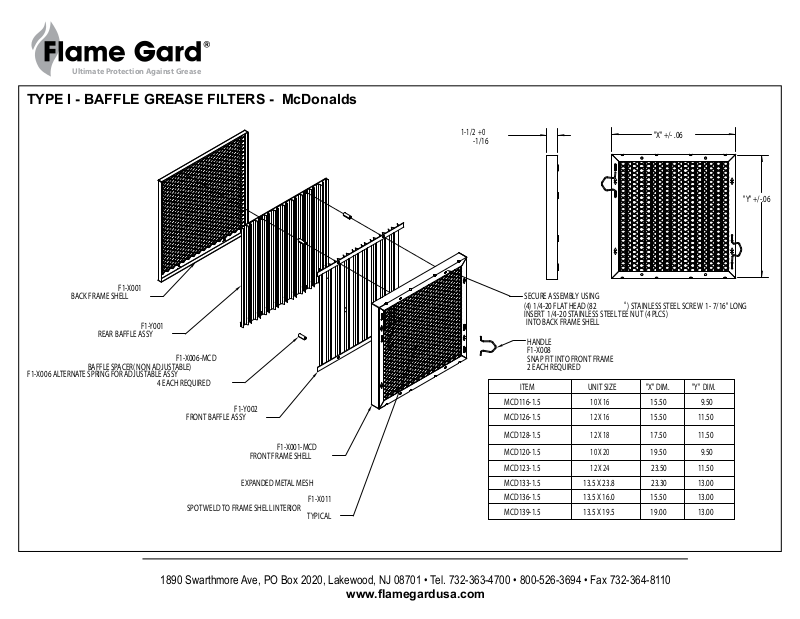

TYPE I - BAFFLE GREASE FILTERS - McDonalds
ITEM UNIT SIZE "X" DIM.
"Y" DIM.
MCD116-1.5
10 X 16
15.50 9.50
MCD126-1.5
12 X 16
15.50 11.50
MCD128-1.5
12 X 18
17.50 11.50
MCD120-1.5
10 X 20
19.50 9.50
MCD123-1.5
12 X 24
23.50 11.50
MCD133-1.5 13.5 X 23.8 23.30 13.00
MCD136-1.5 13.5 X 16.0 15.50 13.00
MCD139-1.5 13.5 X 19.5 19.00 13.00
"X" +/- .06
"Y" +/-.06
F1-X001
BACK FRAME SHELL
F1-Y001
REAR BAFFLE ASSY
F1-X006-MCD
BAFFLE SPACER( NON ADJUSTABLE)
F1-X006 ALTERNATE SPRING FOR ADJUSTABLE ASSY
4 EACH REQUIRED
F1-Y002
FRONT BAFFLE ASSY
F1-X001-MCD
FRONT FRAME SHELL
HANDLE
F1-X008
SNAP FIT INTO FRONT FRAME
2 EACH REQUIRED
SECURE ASSEMBLY USING
(4) 1/4-20 FLAT HEAD (82°) STAINLESS STEEL SCREW 1- 7/16" LONG
INSERT 1/4-20 STAINLESS STEEL TEE NUT (4 PLCS)
INTO BACK FRAME SHELL
EXPANDED METAL MESH
F1-X011
SPOT WELD TO FRAME SHELL INTERIOR
TYPICAL
-1/16
1-1/2 +0
1890 Swarthmore Ave, PO Box 2020, Lakewood, NJ 08701 • Tel. 732-363-4700 • 800-526-3694 • Fax 732-364-8110
www.amegardusa.com
