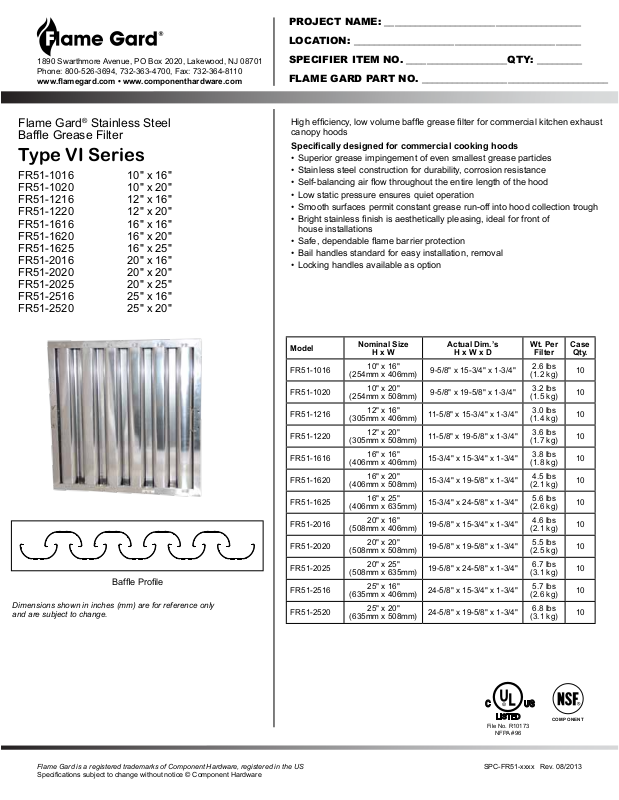

Flame Gard FR51-1016 User Manual
PROJECT NAME: _______________________________________
LOCATION: _____________________________________________
1890 Swarthmore Avenue, PO Box 2020, Lakewood, NJ 08701
Phone: 800-526-3694, 732-363-4700, Fax: 732-364-8110
www.amegard.com • www.componenthardware.com
Flame Gard® Stainless Steel
Bafe Grease Filter
Type VI Series
FR51-1016 10" x 16"
FR51-1020 10" x 20"
FR51-1216 12" x 16"
FR51-1220 12" x 20"
FR51-1616 16" x 16"
FR51-1620 16" x 20"
FR51-1625 16" x 25"
FR51-2016 20" x 16"
FR51-2020 20" x 20"
FR51-2025 20" x 25"
FR51-2516 25" x 16"
FR51-2520 25" x 20"
Bafe Prole
Dimensions shown in inches (mm) are for reference only
and are subject to change.
SPECIFIER ITEM NO. ____________________QTY: _________
FLAME GARD PART NO. _____________________________________
High efciency, low volume bafe grease lter for commercial kitchen exhaust
canopy hoods
Specically designed for commercial cooking hoods
• Superior grease impingement of even smallest grease particles
• Stainless steel construction for durability, corrosion resistance
• Self-balancing air ow throughout the entire length of the hood
• Low static pressure ensures quiet operation
• Smooth surfaces permit constant grease run-off into hood collection trough
• Bright stainless nish is aesthetically pleasing, ideal for front of
house installations
• Safe, dependable ame barrier protection
• Bail handles standard for easy installation, removal
• Locking handles available as option
Model
FR51-1016
FR51-1020
FR51-1216
FR51-1220
FR51-1616
FR51-1620
FR51-1625
FR51-2016
FR51-2020
FR51-2025
FR51-2516
FR51-2520
Nominal Size
H x W
10" x 16"
(254mm x 406mm)
10" x 20"
(254mm x 508mm)
12" x 16"
(305mm x 406mm)
12" x 20"
(305mm x 508mm)
16" x 16"
(406mm x 406mm)
16" x 20"
(406mm x 508mm)
16" x 25"
(406mm x 635mm)
20" x 16"
(508mm x 406mm)
20" x 20"
(508mm x 508mm)
20" x 25"
(508mm x 635mm)
25" x 16"
(635mm x 406mm)
25" x 20"
(635mm x 508mm)
Actual Dim.’s
H x W x D
9-5/8" x 15-3/4" x 1-3/4"
9-5/8" x 19-5/8" x 1-3/4"
11-5/8" x 15-3/4" x 1-3/4"
11-5/8" x 19-5/8" x 1-3/4"
15-3/4" x 15-3/4" x 1-3/4"
15-3/4" x 19-5/8" x 1-3/4"
15-3/4" x 24-5/8" x 1-3/4"
19-5/8" x 15-3/4" x 1-3/4"
19-5/8" x 19-5/8" x 1-3/4"
19-5/8" x 24-5/8" x 1-3/4"
24-5/8" x 15-3/4" x 1-3/4"
24-5/8" x 19-5/8" x 1-3/4"
Wt. Per
Filter
2.6 lbs
(1.2 kg)
3.2 lbs
(1.5 kg)
3.0 lbs
(1.4 kg)
3.6 lbs
(1.7 kg)
3.8 lbs
(1.8 kg)
4.5 lbs
(2.1 kg)
5.6 lbs
(2.6 kg)
4.6 lbs
(2.1 kg)
5.5 lbs
(2.5 kg)
6.7 lbs
(3.1 kg)
5.7 lbs
(2.6 kg)
6.8 lbs
(3.1 kg)
Case
Qty.
10
10
10
10
10
10
10
10
10
10
10
10
Flame Gard is a registered trademarks of Component Hardware, registered in the US
Specications subject to change without notice © Component Hardware
C US
®
LISTED
File No. R10173
NFPA #96
SPC-FR51-xxxx Rev. 08/2013
