Flame Gard FA30-2520-HD User Manual
Ultimate Protection Against Grease
MODEL DIM A DIM B
FRONT
BAFFLES BAFFLES
BACK
FA30-1016-HD
FA30-1216-HD
FA30-1616-HD
FA30-2016-HD
FA30-1020-HD
FA30-1220-HD
FA30-1620-HD
FA30-2020-HD
FA30-2520-HD
FA30-1625-HD
FA30-2025-HD
9.50 (241 mm)
11.50 (292 mm)
15.50 (394 mm)
19.50 (495 mm)
9.50 (241 mm)
11.50 (292 mm)
15.50 (394 mm)
19.50 (495 mm)
24.50 (622 mm)
15.50 (394 mm)
19.50 (495 mm)
15.50 (394 mm)
15.50 (394 mm)
15.50 (394 mm)
15.50 (394 mm)
19.50 (495 mm)
19.50 (495 mm)
19.50 (495 mm)
19.50 (495 mm)
19.50 (495 mm)
24.50 (622 mm)
24.50 (622 mm)
5
5
5
5
6
6
6
6
6
8
8
4
4
4
4
5
5
5
5
5
7
7
FRONT
1.84±.06
LOCKING HANDLE TAB
LOCKING HANDLE
LOCKING HANDLE
UNLOCK POSITION
LOCK POSITION
FA31-MODELS ONLY
FA31-MODELS ONLY
2 PLCS
LOCKING HANDLE KIT
F40-0002
F1-X010 BACK PLATE
F1-X009 FRONT PLATE
- .06
+ 0
DIM B
- .06
+ 0
DIM A
ALUMINUM COATED STEEL ALLOY 5052 .0196" THICK
CHANGE PREFIX (FA30) TO FA31 FOR FILTER WITH (2) LOCKING STYLE HANDLES
MATERIAL: ALUMINUM ALLOY 3003 H14 .030" THICK

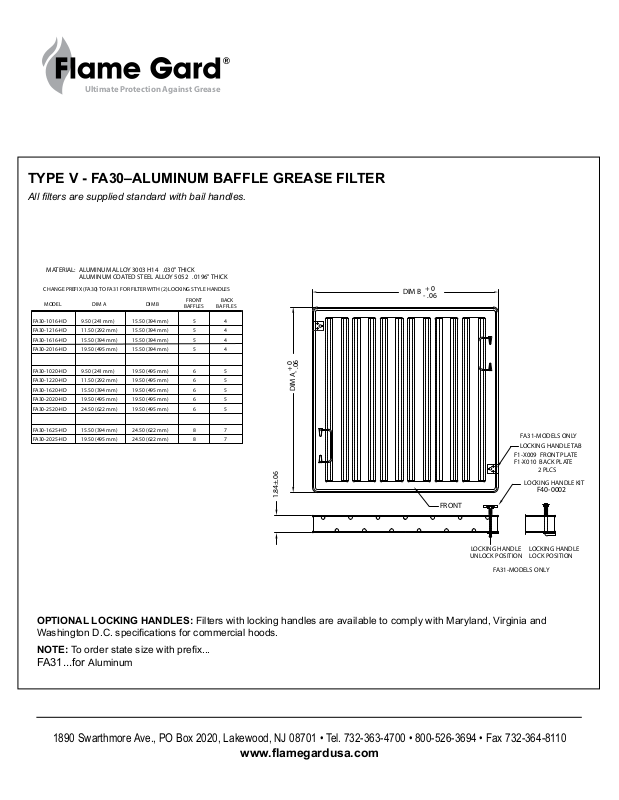

TYPE V - FA30–ALUMINUM BAFFLE GREASE FILTER
All lters are supplied standard with bail handles.
OPTIONAL LOCKING HANDLES: Filters with locking handles are available to comply with Maryland, Virginia and
Washington D.C. specications for commercial hoods.
NOTE: To order state size with prex...
FA31...for Aluminum
1890 Swarthmore Ave., PO Box 2020, Lakewood, NJ 08701 • Tel. 732-363-4700 • 800-526-3694 • Fax 732-364-8110
www.amegardusa.com
