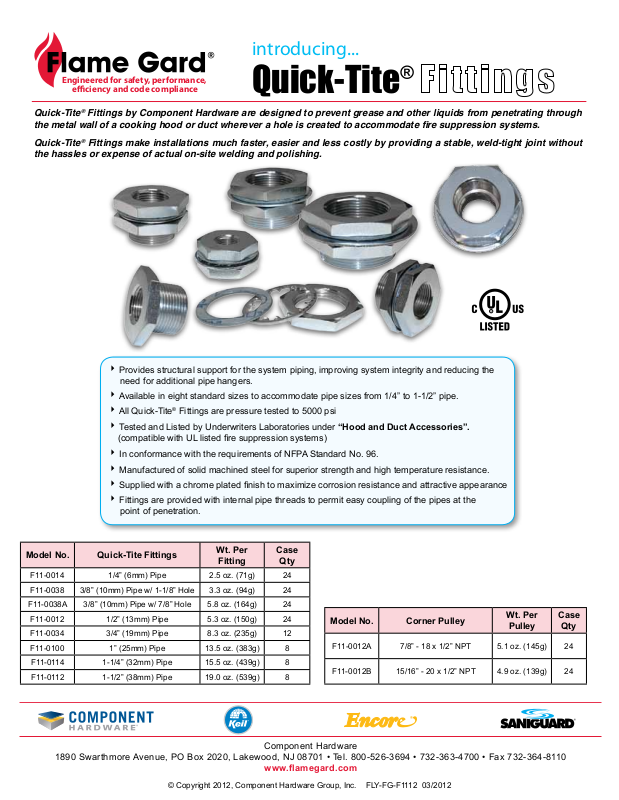

introducing...

Engineered for safety, performance,

eciency and code compliance

Quick-Tite® Fittings by Component Hardware are designed to prevent grease and other liquids from penetrating through

the metal wall of a cooking hood or duct wherever a hole is created to accommodate re suppression systems.

®

Quick-Tite

Fittings make installations much faster, easier and less costly by providing a stable, weld-tight joint without

the hassles or expense of actual on-site welding and polishing.

Quick-Tite®

4 Provides structural support for the system piping, improving system integrity and reducing the
need for additional pipe hangers.

4 Available in eight standard sizes to accommodate pipe sizes from 1/4” to 1-1/2” pipe.

®

4 All Quick-Tite
4 Tested and Listed by Underwriters Laboratories under “Hood and Duct Accessories”.

(compatible with UL listed re suppression systems)

4 In conformance with the requirements of NFPA Standard No. 96.

4 Manufactured of solid machined steel for superior strength and high temperature resistance.
4 Supplied with a chrome plated nish to maximize corrosion resistance and attractive appearance
4 Fittings are provided with internal pipe threads to permit easy coupling of the pipes at the

point of penetration.

Model No. Quick-Tite Fittings

F11-0014 1/4” (6mm) Pipe 2.5 oz. (71g) 24

F11-0038 3/8” (10mm) Pipe w/ 1-1/8” Hole 3.3 oz. (94g) 24

F11-0038A 3/8” (10mm) Pipe w/ 7/8” Hole 5.8 oz. (164g) 24

F11-0012 1/2” (13mm) Pipe 5.3 oz. (150g) 24

F11-0034 3/4” (19mm) Pipe 8.3 oz. (235g) 12

F11-0100 1” (25mm) Pipe 13.5 oz. (383g) 8

F11-0114 1-1/4” (32mm) Pipe 15.5 oz. (439g) 8

F11-0112 1-1/2” (38mm) Pipe 19.0 oz. (539g) 8

Fittings are pressure tested to 5000 psi

Wt. Per

Fitting

Case

Qty

Model No. Corner Pulley

F11-0012A 7/8” - 18 x 1/2” NPT 5.1 oz. (145g) 24

F11-0012B 15/16” - 20 x 1/2” NPT 4.9 oz. (139g) 24

Wt. Per

Pulley

Case

Qty

®

Component Hardware

1890 Swarthmore Avenue, PO Box 2020, Lakewood, NJ 08701 • Tel. [phone] • 732-363-4700 • Fax [phone]

www.flamegard.com

© Copyright 2012, Component Hardware Group, Inc. FLY-FG-F1112 03/2012

®

introducing...

Engineered for safety, performance,

eciency and code compliance

4 Quick-Tite® Hole Plugs are designed to provide a positive seal or patch for

existing penetrations that are no longer required.
4 Ideal to repair unwanted holes as a result of changes to a re protection system,

moving the location of a re suppression nozzle, drilling a hole at the wrong

location or using a hood/duct with previously drilled holes.

4 Quick-Tite

®

Hole Plugs are easy to install and provide an attractive, nished

appearance to match adapters

4 Available for ve standard hole sizes - 3/4”, 7/8”, 1-1/8”, 1-3/8”, and 1-5/8”.

Part No. Hole Size Wt. Per Hole Plug Case Qty

F12-0034

F12-0078

F12-0118

F12-0138

F12-0158

3/4” to 7/8”

(19mm) to (22mm)

7/8” to 1”

(22mm) to (25mm)

1-1/8” to 1-5/16”

(29mm) to (33mm)

1-3/8” to 1-9/16”

(35mm) to (40mm)

1-5/8” to 1-7/8”

(41mm) to (48mm)

12.8 oz. (363g) 12

21.6 oz. (612g) 6

Quick-Tite®

3.2 oz. (91g) 24

4.8 oz. (136g) 24

7.2 oz. (204g) 12

Quick-Tite® Assembly Breakdown

NUT

LOCK

WASHER

PLUG BODY

(Replaces adapter body

when ordering Hole Plug)

METAL WALL

GASKET

ADAPTER BODY

B

Part

No.

F11-0014

F11-0038

F11-0038A

F11-0012

F11-0034

F11-0100

F11-0114

F11-0112

C

D

Size of

Pipe

1/4”

(6mm)

3/8”

(10mm)

3/8”

(10mm)

1/2”

(13mm)

3/4”

(19mm)

1”

(25mm)

1-1/4”

(32mm)

1-1/2”

(38mm)

A

A = Cut Out Hole

Size

3/4” to 7/8”

(19mm) to (22mm)

1-1/8” to 1-5/16”

(29mm) to (33mm)

7/8” to 1”

(22mm) to (25mm)

1-1/8” to 1-5/16”

(29mm) to (33mm)

1-3/8” to 1-9/16”

(35mm) to (40mm)

1-5/8” to 1-7/8”

(41mm) to (48mm)

2” to 2-1/4”

(51mm) to (57mm)

2-1/4” to 2-1/2”

(57mm) to (64mm)

ADAPTER

BODY

GASKET

HOOD

or

DUCT

LOCK

WASHER

NUT

B C D

0.88 1.13 hex 0.25

1.00 1.50 hex 0.31

1.00 1.50 hex 0.31

1.14 1.50 hex 0.31

1.25 1.88 hex 0.31

1.50 2.25 hex 0.38

1.50 2.50 hex 0.38

1.50 2.75 hex 0.38

®

®
