Fishman PRF-HS6-RZ2, PRF-HS6-RR2 Install Guide

FLUENCE SIGNATURE SERIES RICHARD Z INSTALLATION GUIDE
ELLIE MITCHELL PHOTOGRAPHY
System Requirements
These instructions provide installation options for the Fishman Fluence series of multi-voice pickups, but these instructions are not comprehensive. A skilled electronics technician can simply interpret this overview to create a wide range of custom wiring options. Please consult with your installer for alternate switching and control components or options not specifically detailed in this guide or included with your pickup purchase. Please visit www. fishman.com for additional wiring diagrams.
Installation Warning!
By self-installing and/or misusing this product, you understand and agree that and such uses are high risk activities and, to the extent permitted by law, YOU EXPRESSLY AND VOLUN­TARILY ASSUME THE RISK OF DEATH OR OTHER PERSONAL INJURY SUSTAINED WHILE PARTICIPATING IN SUCH ACTIVITIES WHETHER OR NOT CAUSED BY THE NEGLIGENCE OR ANY OTHER FAULT of Fishman, including but not limited to equipment malfunction from whatever cause, or any other fault of Fishman. Additionally, you agree to indemnify, defend and hold Fishman harmless from any third party claims arising from such activities.
2
Getting Started
1. Determine the rotary controls (Volume, Tone, etc.) and switches to be used in your installation, including those included with your purchase. Test fit the components to make sure that each will fit in the allocated locations or modify the instrument until the fit is correct and all controls can be located without issue. Fishman Fluence Pickups are low impedance and perform ideally with 25K audio taper potentiometers.
2. Fishman Fluence multi-voice pickups require a 9V power supply.
• If using a standard 9V battery, test fit cavity locations for simple installations or consider installing an externally accessible battery compartment (available separately). Note that it is important the battery is not allowed to short contacts between controls in the instrument.
• If using a separately purchased Fishman rechargeable battery, refer to those instruc­tions to complete this part of your installation.
• Note that it may be possible to combine other active pickups with Fishman Fluence pickups, but all pickups will need to use the same 9V power source. Only low imped­ance pickup combinations are supported.
3
3. One or more of your Fluence pickups will have a preamp built into the base of the pickup assembly. Preamplified pickups each have their own switching capabilities. In setups controlled by a single preamp, such as the Fluence Single-Width set, optional switching on the preampli­fied pickup will alter the output of all pickups connected to that preamplifier. The preamps on Fishman Fluence pickups are not suitable for use with other brands of guitar pickups.
4. All Pickup Voicing, High Frequency Tilt (HF Tilt) and Gain reduction features are selected by connecting their leads to Ground. These features and their wire locations are described in the user guide accompanying each pickup. During installation, any of these selections can be made switchable (using the included push-pull pot or other preferred switch) or permanent by either connecting to Ground or leaving “open” (unconnected). Some switching scenarios are provided below, featuring the components provided with your purchase, but any schematic allowing connection to Ground can be used.
5. Review your planned scheme for errors, complete the soldering, mount and secure all your components, and test your completed installation before assembly. Consider a popular wiring option as shown on the reverse side of this guide.
4
+9-18V
GND
GND
Single Coil
GND
Voice 2
OUTPUT
V1 Lo Gain
GND
Modern 3 Ceramic
GND HFT
SCO
Single Coil Mode Select
Neck
Bridge
7
3
2
1
6
Fluence Signature Series Richard Z – Connection Points & Functions
1. Voice-2 Select - To select Voice-2, connect this pin either to ground through a switch contact, or permanently by soldering it to any ground or by using one of the included jumpers across the pins. This pin is an electronically controlled switch and has no signal on it. It can share a switch contact with other voice select wires without interaction. Note: the Single Coil / Voice-3 select pin (2) overrides Voice-2 select. Therefore, the Voice-3 pin must be disconnected (not grounded) to allow Voice-2 selection.
2. Single Coil / Voice-3 Select Wire - To select Voice-3, connect this pin to ground through a switch contact. In Single Coil mode, the default active coils are the inner ones when used as a Bridge/ Neck pair. (i.e. neck side coil active on Bridge pickup and bridge side coil active on Neck) See Note (4) to change default active coils in Single Coil mode. When selected, Single Coil / Voice-3 mode overrides the selec­tion status of Voice-1 or 2.
3. V1 Lo Gain - Reduces the output of Voice-1 by 6dB. To activate, connect this pin to ground. For full time (always on) activation, bridge the corresponding solder pads or install the provided jumper across header pins 5 & 6 (see wiring diagram). To activate selectively, use cable assembly ACC-FLU-WR5 or ACC-FLU-WR6 (sold separately) connected to a switch. Either of these cable assemblies are available at Fishmanstore.com. This pin is an electronically controlled switch and can share a switch contact with similar control wires without interaction.
5
4. Single Coil Mode Select - A row of three solder pads is used to select the active coil in Single Coil / Voice-3 mode. The active coil is selected by a solder bridge connecting the corresponding outer pad to the center one. The pickups ship from the factory with the inner coils (when used as a Bridge/Neck pair) set as the default. To change the active coils to the outer ones, remove the solder bridge and create a new one from the other outer pad to the center. To avoid damaging the pads, solder wick or a desoldering pump are strongly recommended for removing the solder bridge.
5. SCO (South Coil Out) - This solder pad is used to conveniently access the south coil output on each pickup for HSH (Humbucker, Single, Humbucker) and HSS pickup combinations using the Fluence SSA Single width pickup. The south coil is on the neck side of each pickup. The SSA pickup is a north coil, allowing hum cancelling combinations in the 2&4 positions on a 5-way pickup switch.
6. HFT (High Frequency Tilt) - This feature is for players who prefer a darker top end, similar to the effect of using passive pickups loaded by a long instrument cable. To activate, connect the HFT contact pad to ground either wired through a switch or permanently by creating a solder bridge to the GND pad next to it. The HFT pad has signal on it. To prevent unwanted interaction, it should not share a switch contact with any other HFT or voice select wire.
7. +9-18V - This is the + dc power input pin. Fluence pickups are designed to have a wide dynamic range running from a 9V supply, however they are 18V compatible for instruments already set up that way.
8. Output - The main output pin has a 2k ohm output impedance and is suitable for driving low impedance volume and tone pots, typically 25k.
6

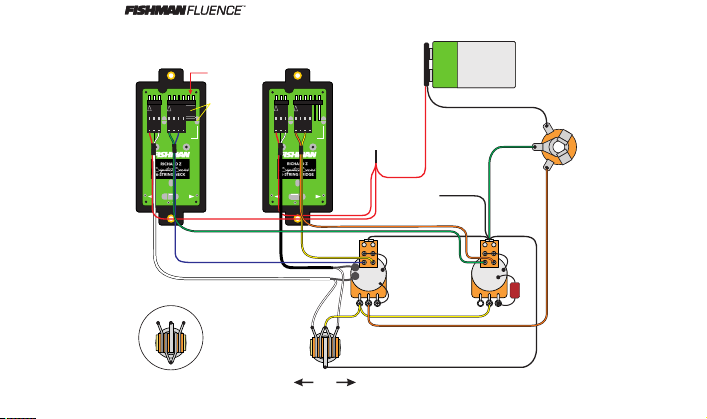

Signature Series Richard Z Humbucker Set - 6-String
Modern Humbucker Set - 6,7,8, 9- St ri ng (6- St ri ng set shown )
0 RGHUQ + X P EX FNHU 6 HW 6 WULQJ 6 WULQJ V HWVKRZ Q
Volume: Pull for Voice-3 (Single Coil) Bridge Neck Tone: Pull for Voice-2 Bridge Neck
Voice-1 Lo-Gain mode suggested when using in Neck position.
Select via jumper
Neck Pickup
1 HF N 3 LFNXS 0 RGHUQ $ OQLF R
Neck Pickup: Modern Alnico
GND HFT
OUTPUT
GND
Voice 2
+9-18V
SCO
Single Coil Mode Select
Neck
as shown or via solder bridge.
GND
GND
GND
Single Coil
V1 Lo Gain
Bridge
GND HFT
OUTPUT
GND
Voice 2
+9-18V
SCO
Single Coil Mode Select
Neck
GND
GND
GND
Single Coil
V1 Lo Gain
Bridge Pickup
Bridge
%UL GJ H 3 LF N X S 0 R G H UQ & H UD P LF
Bridge Ground
Regulator/Charger
Sleeve
Battery
Ring
Output Jack
Tip
GND/ Shield
Neck
Pickup Selector Switchcraft Style
Bridge
Pickup Selector "Import" Style Toggle
Neck Pickup
Pull Voice-3
25k
Volume
Neck
Bridge
Pull Voice-2
Tone
25k
.22uF
"224"
GND/Shield
Bridge Pickup
Both
7
Signature Series Richard Z Humbucker Set - 6-String
Modern Humbucker Set - 6,7,8, 9- St ri ng (6- St ri ng set shown )
0 RGHUQ + X P EX FNHU 6 HW 6 WULQJ 6 WULQJ V HWVKR Z Q
Volume: Pull for Voice-3 (Single Coil) Bridge Neck Tone: Pull for Voice-2 Bridge Neck
Voice-1 Lo-Gain mode suggested when using in Neck position.
Select via jumper
Neck Pickup
1 HF N 3 LFNXS 0 RGHUQ $ OQLFR
Neck Pickup: Modern Alnico
GND HFT
OUTPUT
GND
Voice 2
+9-18V
SCO
Single Coil Mode Select
Neck
as shown or via solder bridge.
GND
GND
GND
Single Coil
V1 Lo Gain
Bridge
GND HFT
OUTPUT
GND
Voice 2
+9-18V
SCO
Single Coil Mode Select
Neck
GND
GND
GND
Single Coil
V1 Lo Gain
Bridge Pickup
Bridge
%UL GJ H 3 LF N X S 0 R G H UQ & H UD P LF
(+)
Bridge Ground
9V Battery
(-)
Output
Ring
Jack
Sleeve
Tip
GND/ Shield
Neck
Pickup Selector Switchcraft Style
Bridge
Pickup Selector "Import" Style Toggle
Neck Pickup
Pull Voice-3
Volume
25k
Neck
Bridge
Pull Voice-2
Tone
25k
.22uF
"224"
GND/Shield
Bridge Pickup
Both
8
Signature Series Richard Z Humbucker Set - 6-String
0 RGHUQ + X P EX FNHU 6 HW 6 WULQJ 6 WULQJ V HWVKRZ Q
Modern Humbucker Set - 6,7,8, 9- St ring (6- St ring set s h own )
Neck Volume Bridge Volume: Pull for Voice-3 (Single Coil) Bridge Neck Tone: Pull for Voice-2 Bridge Neck
Voice-1 Lo-Gain mode suggested when using in Neck position.
Neck Pickup
Neck Pickup: Modern Alnico
1 HF N 3 LFNXS 0 RGHUQ $ OQLFR
Neck
Pickup Selector Switchcraft Style
GND HFT
OUTPUT
GND
Voice 2
+9-18V
SCO
Single Coil Mode Select
Neck
GND/ Shield
Select via jumper as shown or via solder bridge.
GND
GND
GND
Single Coil
V1 Lo Gain
Bridge
Bridge
GND HFT
OUTPUT
GND
Voice 2
+9-18V
SCO
Single Coil Mode Select
Neck
GND
Single Coil
Bridge
GND
GND
V1 Lo Gain
GND/Shield
Neck Pickup
Bridge Pickup
%ULGJ H 3 LFNXS 0 RGHUQ HUDPL F
Neck Volume
25k
Neck
Both
9
(-)
(+)
Bridge Ground
Pull Voice-3
25k 25k
Bridge Volume
Bridge
Pickup Selector "Import" Style Toggle
Bridge Pickup
9V Battery
Pull Voice-2
Sleeve
Tone
Output
Ring
Jack
Tip
.22uF
"224"
Signature Series Richard Z Humbucker Set - 6-String
0 RGHUQ + XP E XFNHU 6 HW 6 WULQJ 6 WULQJ VHWVKRZ Q
Modern Humbucker Set - 6,7,8, 9 -St ri ng (6- St ring set s h own)
2 x Volume Bridge Tone: Pull for Voice-2 Bridge Neck Neck Tone: Pull for Voice-3 (Single Coil) Bridge Neck
Neck Pickup
Neck Pickup: Modern Alnico
1 HF N 3 LFNXS 0 R GHUQ $ OQLFR
GND HFT
OUTPUT
GND
Voice 2
+9-18V
SCO
Single Coil Mode Select
Neck
Voice-1 Lo-Gain mode suggested when using in Neck position.
Select via jumper as shown or via solder bridge.
GND
GND
GND
Single Coil
V1 Lo Gain
Bridge
GND HFT
OUTPUT
GND
Voice 2
+9-18V
SCO
Single Coil Mode Select
Neck
GND
GND
GND
Single Coil
V1 Lo Gain
Bridge Pickup
Bridge
%ULGJ H 3 LFNXS 0 RGHUQ H UDPL F
9V Battery
(-)
(+)
Output
Ring
Jack
Sleeve
Bridge Ground
Tip
Neck Pickup
Both
Bridge Pickup
Neck
Bridge
Pickup Selector Switchcraft Style
Bridge Tone
Neck Tone
25k
Pull Voice-3
.22uF
"224"
25k
Pull Voice-2
.22uF
"224"
Neck Volume
25k
GND/ Shield
25k
Bridge Volume
10
Mute
Richard Z Humbucker Set w Killswitch
Voice-1 Lo-Gain mode suggested when using in Neck position.
Select via jumper
GND HFT
as shown or via solder bridge.
OUTPUT
GND
GND
GND
GND
Single Coil
V1 Lo Gain
Voice 2
+9-18V
SCO
Single Coil Mode Select
Bridge
Neck
Neck Pickup: Richard Z Alnico
Not Used
Normally
Closed
Contact
Push to Unmute
Push to
NC
NO
COM
Normally
Open
Contact
LP0115CCKW01A
Killswitch
Mode Select
SPDT On-On Mini Toggle
Momentary
Killswitch
Example:
9V Battery
(+)
GND HFT
OUTPUT
GND
GND
GND
GND
Single Coil
V1 Lo Gain
Voice 2
+9-18V
(-)
Output
Ring
Jack
Sleeve
Bridge Pickup: Richard Z Ceramic
SCO
Single Coil Mode Select
Neck
Bridge
Bridge Ground
Tip
Not Used
Neck
Pickup
Both
NKK
25k
Volume Pull for Voice-2
Bridge Pickup
11
