Fisher & Paykel RS4621FRJK1, RS6121SRK1, RS6121SLK1, RS7621FLJK1, RS7621SRK1 Installation Guide

INTEGRATED COLUMNS

RS4621F, RS6121F, RS7621F,

RS6121S & RS7621S models

INSTALLATION GUIDE

NZ AU

849164A 07.18

TABLE OF CONTENTS

1 SAFETY AND WARNINGS

2 INTEGRATED COLUMNS

3 COMPONENTS LIST

4 PRODUCT DIMENSIONS AND SPECIFICATIONS

5 CABINETRY OPTIONS

6 CAVITY DIMENSIONS

7 DOOR AND TOE KICK PANEL DIMENSIONS

8 CUSTOM DOOR PANEL DIMENSIONS

9 DOOR OPENING ROTATION

 ELECTRICAL AND PLUMBING

!0

 BEFORE INSTALLATION

!1

 UNPACKING AND MOVING YOUR PRODUCT

!2

 ATTACH THE ANTI-TIP BRACKET

!3

 CONNECT TO WATER AND POWER SUPPLY

!4

 SINGLE INSTALLATION

!5

 INSTALL BRACKETS TO DOOR PANEL

!8

(STAINLESS STEEL)

@4

 OPTIONAL — CHANGING OVER DOOR HINGES

@5

 INSTALL WATER FILTER

!7

 INSTALL DOOR PANELS

@0

 INSTALL TOE KICK

@1

 INSTALL TOE KICK GRILLE

@2

 INSTALL CABINET TRIMS

@3

 INSTALL FLOW DIVIDER AND DOOR TRIMS

@6

OR

OR

 FINAL CHECKLIST

 DUAL INSTALLATION

!6

 INSTALL BRACKETS TO DOOR PANEL

!9

(CUSTOM)

IMPORTANT!

SAVE THESE INSTRUCTIONS

The models shown in this installation guide may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please go to
our website fisherpaykel.com or contact your local Fisher & Paykel dealer.

1

1 SAFETY AND WARNINGS

2 INTEGRATED COLUMNS

!

WARNING!

Electric Shock Hazard
Read and follow the safety and warnings outlined in this installation
guide before operating this appliance.

Failure to do so can result in death, electric shock, fire or injury
topersons.

!

WARNING!

Cut Hazard
Take care — panel edges are sharp. Failure to use caution could result
in injury or cuts.

!

WARNING!

This appliance is top-heavy and must be secured to prevent the
possibility of tippingforward.

To ensure that the appliance is stable under all loading conditions, the
anti-tip bracket and fittings supplied must be installed according
tothe following installation instructions by a professional installer.

457mm 610mm 762mm

FREEZER

RS4621FJ RS6121FJ RS7621FJ

REFRIGERATOR

RS6121S RS7621S

2

Note: Interchangeable door hinges available for each model.

Installation kit — included with the appliance

Door panel attachment kit

3 COMPONENTS LIST

Side bracket
(6x)

Anti-tip bracket assembly

Anti-tip bracket
(1x)

Supplied in separate bag Supplied in separate bag Supplied in separate bag

Hinge limiting bolt
(3x)

Bracket slider
(6x)

10x30mm Masonry plug
(5x)

Side spacer bracket
(6x)

10-12x35mm Pan head screw
(5x)

Air toe kick seal
(1x)

M4 Hex key
(1x)

Install fasteners kit

Cabinet depth alignment
gauge (4x)

For SS door panels:

8Gx16 Mush washer screw
(30x)

8Gx16 Countersunk screw
(7x)

Flow divider cap
(1x)

For Custom door panels:

M5x12 Cross-head screw
(30x)

Barbed plug
(2x)

3

3 COMPONENTS LIST

MI (miscellaneous items) pack — included with the appliance.

INTEGRATED COLUMNS

RS4621F, RS6121F, RS7621F,

RS6121S & RS7621S models

USER GUIDE

NZ AU

User guide
(1x)

SERVICE & WARRANTY

SERVICE ET GARANTIE

ΣΈΡΒΙΣ ΚΑΙ ΕΓΓΎΗΣΗ

SERVIZIO E GARANZIA

SERVICE & GARANTIE

HUOLTO JA TAKUU

SERVICE OG GARANTI

保修和维修

服務和保修

Service & Warranty
(1x)

Installation guide
(1x)

Water filter installation kit — included in MI pack of Freezer models only

Water filter
(1x)

Collet locking clip
(2x)

Adaptor
(1x)

Stainless steel braided hose
(1x)

INTEGRATED COLUMNS

RS4621F, RS6121F, RS7621F,

RS6121S & RS7621S models

INSTALLATION GUIDE

NZ AU

849164A 07.18

Toe kick installation kit — Fisher & Paykel (Stainless steel) toe kick is not included with the
appliance.

Toe kick
(1x)

Standard toe kick height is 102mm with the optional stainless door panel.

For Custom door panel installation, a custom toe kick 50–152mm can be manufactured and fitted by cabinetmaker.
The Custom door panel height needs to be adjusted accordingly.

An extra bottom grille is required for a 50mm toe kick installation.

Install parts — included with the appliance. Attached to back of appliance.

Door panel side extrusion
(2x)

Alcove side trim assembly
(1x)

4

3 COMPONENTS LIST

Door panels

Fisher & Paykel (Stainless steel)
door panel is not included
with the appliance and must
be purchased separately.

Stainless steel door panel (1x) Custom door panel

Door handle kit — not included with the appliance and must be purchased separately.

EVO1 handle kit (CA: 24980) F&P (D3) handle kit (CA: 24979)

Customers can supply their
own Custom door panel to
match their cabinetry.

Dual install joiner kit (CA: 24985) — included with the appliance (Freezer model only). Attached
to back of appliance. Used for any of the dual install options shown below.

Left/Right Left/Left Right/Right

Included in each joiner kit:

Top joiner fastener kit

M5x20 Cap screw
(1x)

Bottom joiner fastener kit

M5x16x1 Plain washer
(1x)

EVO1 Handle
(1x)

EVO2 (U handle) (CA: 24982) S handle (RD3) kit (CA: 24981)

EVO2 (U handle)
(1x)

M5x25 Hex screw
(4x)

M5x25 Hex screw
(4x)

F&P (D3) Handle
(1x)

S handle (RD3)
(1x)

M5x25 Hex screw
(4x)

M5x25 Hex screw
(4x)

M6x16 Washer screw
(1x)

Top joiner bracket kit

8Gx16 Mush washer screw
(2x)

M6x12x3.2 Plastic washer
(1x)

Central spacer
(1x)

M6 Hex nut
(1x)

Centre trim assembly
(1x)

5

3 COMPONENTS LIST

Hinge change kit — not included with the appliance and must be purchased separately.

MODEL LEFT HINGE TO RIGHT HINGE RIGHT HINGE TO LEFT HINGE

RS46 848186 848185

RS61 848188 848187

RS76 848190 848189

Each kit includes: Hinge change assembly (1x), Top (fixed) grille assembly (1x)

Hinge change assembly

Hinge top pocket
(1x)

M5 Nut
(2x)

Top (fixed) grille assembly

Top (fixed) grille
(1x)

6

K05 Top adapter bracket
(2x)

Alcove top bracket
(2x)

Lower hinge bracket
(2x)

K05 Bottom adapter bracket
(2x)

A

4 PRODUCT DIMENSIONS AND SPECIFICATIONS

C

B

PROFILE VIEWFRONT VIEW

RS46 RS61 RS76

PRODUCT DIMENSIONS mm mm mm

Overall height of product 2134 2134 2134

A

Overall width of product 451 603 756

B

Overall depth of product (excluding front door panel) 610 610 610

C

PRODUCT SPECIFICATIONS

Door clearance 508 660 813

Weight

Door hinge Hettich K05 Hettich K05 Hettich K05

(including packaging) 118kg 137kg 156kg

7

5 CABINETRY OPTIONS

FRAMELESS CABINETRY

(Frameless: Aligns the product/s with the cabinetry)

Frameless

FRAMED CABINETRY

(Framed: Aligns the product/s with the frame of the cabinetry)

Framed

Note: Images shown for single install. These options are also applicable for dual install.

8

Note: These dimensions are intended for ‘Flush Installation’ only.

E

D

E

D

D

E

D

E

6 CAVITY DIMENSIONS

D

Frameless: finished return
cavity sides and top

PLAN VIEW

Flush with front
of cabinetry

Framed: finished return
cavity sides and top

A

B

C

C

A

B

SINGLE INSTALL DUAL INSTALL

CAVITY DIMENSIONS mm mm mm mm mm mm mm mm

Overall height of cavity 2134 2134 2134 2134 2134 2134 2134 2134

A

Overall width of cavity 457 610 762 1067 1219 1219 1372 1524

b

Minimum overall depth of cavity* if the plug

c

is located in adjacent cabinet

Minimum overall depth of cavity* if the plug
is located behind the product

Minimum cabinetry gap clearance from edge

d

of door panels

Minimum required finished return 102 102 102 102 102 102 102 102

e

* Assumes a door panel thickness of 19mm.

RS46 RS61 RS76 RS46 + RS61 RS46 + RS76 RS61 + RS61 RS61 + RS76 RS76 + RS76

635 635 635 635 635 635 635 635

650 650 650 650 650 650 650 650

3 3 3 3 3 3 3 3

9

7 DOOR AND TOE KICK PANEL DIMENSIONS

RS46  RS61  RS76

DOOR PANEL DIMENSIONS (STAINLESS STEEL) mm mm mm

Height of door panel 2029 2029 2029

A

Width of door panel 451 603 756

B

Depth of door panel (excluding door handle) 19 19 19

C

DOOR PANEL DIMENSIONS (CUSTOM)*

Height of door panel 1978 – 2080 1978 – 2080 1978 – 2080

A

Width of door panel 451 603 756

B

Depth of door panel min 16 – max 25 min 16 – max 25 min 16 – max 25

C

DOOR PANEL WEIGHT kg kg kg

Maximum weight of Stainless steel/Custom door panel

* Custom door panels to be manufactured and fitted by cabinetmaker.

† Door handle kit is available as an optional accessory for both Stainless Steel door panels and Custom door panels and must be purchased separately.

TOE KICK DIMENSIONS mm mm mm mm mm mm mm mm

Width of toe kick

D

Stainless steel panel/Custom panel 454 606 759 1064 1216 1216 1368 1521

Height of toe kick

E

#

Stainless steel panel 102 102 102 102 102 102 102 102

Custom panel** 51–152 51–152 51–152 51–152 51–152 51–152 51–152 51–152

Depth of toe kick

F

(measured from front of door)

Stainless steel panel/Custom panel 73–102 73–102 73–102 73–102 73–102 73–102 73–102 73–102

#

Standard toe kick height is 102mm with the optional Stainless door panel. For Custom door panel installation, a custom toe kick 50 – 152mm can be manufactured and fitted by cabinetmaker. The Custom door panel height needs to be adjusted

accordingly.

** Extra lower grilles are required for a 50mm toe kick installation.

(including handle/brackets)† 20 25 30

SINGLE INSTALL DUAL INSTALL

RS46 RS61 RS76 RS46 + RS61 RS46 + RS76 RS61 + RS61 RS46 + RS76 RS76 + RS76

10

7 DOOR AND TOE KICK PANEL DIMENSIONS

A

C

D

B

E

SINGLE INSTALL

A

C

B

D

DUAL INSTALL

B

E

E

(with extra lower grille attached)

E

E

F

102mm toe kick height 152mm toe kick height51mm toe kick height

73–102mm toe kick depth

measured from the from

rear of door panel

11

8 CUSTOM DOOR PANEL DIMENSIONS

Custom door panel dimensions

Dimensions apply for the preparation and installation of Custom door
panels. For Dwg and Dxf files of the below panel preparation download the
folder on http://thekitchentools.fisherpaykel.com

IMPORTANT!



The thickness of the custom door panel can vary provided that the screws
do not penetrate beyond the full depth of the door panel. Refer to ‘Door
panel dimensions (Custom)’ table on page 10 for thickness limitations of
door panel.



Measurements of screw hole locations can vary depending on the height
of toe kick 50–152mm.

1778mm

1978 – 2080mm

270mm

127mm

508mm

50mm

50mm

50mm50mm

378mm

203mm

51mm

22mm x Ø2mm

90mm

20mm

60mm

Do not place handle holes in
marked areas to avoid clashing
with panel attachment brackets

12

33mm

756mm

RS76

127mm

8 CUSTOM DOOR PANEL DIMENSIONS

302mm

203mm

51mm

225mm

51mm

127mm

1778mm

1978 – 2080mm

1270mm

508mm

50mm

50mm

50mm

22mm x Ø2mm

90mm

20mm

60mm

Do not place handle holes in
marked areas to avoid clashing
with panel attachment brackets

1778mm

1978 – 2080mm

1270mm

508mm

50mm

50mm

50mm

18mm x Ø2mm

Do not place handle holes in
marked areas to avoid clashing
with panel attachment brackets

20mm

90mm

60mm

50mm

603mm

RS61

33mm

50mm

33mm

450.8mm

RS46

13

9 DOOR OPENING ROTATION

Z

B

C

For 90° door swing a hinge limiting bolt is supplied with your

AA

appliance. This pin fits in the boreholes of the top hinge (Z).

WARNING!



Before opening the doors, ensure that the appliance is stable.



Follow these instructions to avoid risks that can cause serious
injury or death.

Wall Wall

115° DOOR OPENING

(FULL ROTATION)

DOOR OPENING AND CLEARANCE DIMENSIONS mm mm mm

Width of door (90° open) measured from front of door 508 660 813

A

Minimum door clearance* to adjacent wall** (115° — full internal access) 292 356 419

b

Minimum door clearance* to adjacent wall** (90° — reduced internal access) 110 110 110

c

90° DOOR OPENING

1 Open door to 90°.
2 Align the hinge limiting bolt vertically with the bore hole.
3 Insert the pin through the bore hole. Use a hammer to drive the pin

through the hole.

RS46 RS61 RS76

* Measured from front cabinetry edge.

** Does not include the Custom door panels or handles to be manufactured and fitted by a cabinetmaker.

14

!0 ELECTRICAL AND PLUMBING

Model no:

RS24W84RJ1

IMPORTANT!
For ease of installation, ensure cavity has consistent dimensions
top to bottom and left to right.

Minimum Cavity Dimensions

m

m

a Overall height of cavity

213

4

B Overall width of cavity

61

0

c Overall depth of cavity

63

5

Electrical / Plumbing Supply Dimensions mm

d Overall height of supply area

229

E Overall depth of supply area

25

F Width of notch in supply area (both sides)

13

G Height of sides of supply area (both sides)

12

7

Specifications

Electrical

Supply

AUS/NZ 230 VAC, 50 Hz / US/CA 115 VAC, 60 Hz

Service

10 amp circuit

Plumbing

Supply

1/4" (6mm) comp. stainless steel braided hose

Pressure

min 150 kPa (22 psi

)

max 827 kPa (120 psi) @ 20°C (68°F)

NOTE: Electrical connection can be located an adjacent cabinet to either side

of the fridge or above the fridge cavity.

DATE: 01.03.2018

IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Please read the installation manual for detailed information on installing the
product. For full installation instructions & specifications visit fisherpaykel.com

CAVITY PREPARATION - FRAMELESS

610mm Columns Built-In Fridge

ISO VIEW OF CAVITY

D

B

Model no:

RS24W84RJ1

IMPORTANT!
For ease of installation, ensure cavity has consistent dimensions
top to bottom and left to right.

Minimum Cavity Dimensions

m

m

a Overall height of cavity

213

4

B Overall width of cavity

61

0

c Overall depth of cavity

63

5

Electrical / Plumbing Supply Dimensions mm

d Overall height of supply area

229

E Overall depth of supply area

25

F Width of notch in supply area (both sides)

13

G Height of sides of supply area (both sides)

12

7

Specifications

Electrical

Supply

AUS/NZ 230 VAC, 50 Hz / US/CA 115 VAC, 60 Hz

Service

10 amp circuit

Plumbing

Supply

1/4" (6mm) comp. stainless steel braided hose

Pressure

min 150 kPa (22 psi

)

max 827 kPa (120 psi) @ 20°C (68°F)

CAVITY PREPARATION - FRAMELESS

610mm Columns Built-In Fridge

WARNING!

Electric shock hazard! Assume all parts live. Disconnect supply before servicing
and installation.

Left side of cavity

C

REAR OF CAVITY

A

Floor

Electrical and water connections must be within this space if located

behind the appliance and must not protrude from the back wall.

Electrical
Plumbing

Electrical
Plumbing

Image shown is for single install.

B

For dual install, each appliance should have a separate
power supply connection with only the freezer having
a water connection.

ELECTRICAL SPECIFICATIONS FREEZER REFRIGERATOR

Supply 230 VAC, 50 Hz 230 VAC, 50 Hz

Service 10 amp circuit 10 amp circuit

Socket 3-pin earthing-type 3-pin earthing-type

Note: We recommend to use an isolating switch that is easily accessible to the user after the
appliance is installed.

ELECTRICAL AND PLUMBING DIMENSIONS mm

Overall height of supply area 229

A

Overall depth of supply area 25

B

Width of notch in supply area (both sides) 13

C

Height of sides of supply area (both sides)

D

Note: Dimensions are based on minimum depth of cavity.

Power cord (excluding plug) 2190mm 2190mm

PLUMBING SPECIFICATIONS FREEZER REFRIGERATOR

Supply 1/2” BSP threaded water connection 6.35mm PEX tubing NA

Pressure psi (kPa) min 22 (150) / max 827 (120) @ 68°F (20°C) NA

Water inlet hose 2121mm 2121mm

127

15

!1 BEFORE INSTALLATION

IMPORTANT!



Ensure your appliance is not exposed to any heat generating appliance eg cooktop, oven or dishwasher.



The appliance has front and rear rollers for moving the appliance forward and backward. Do not move the appliance sideways to avoid damaging the rollers or the floor covering/surface.



The appliance must be installed by a qualified installer, or Fisher & Paykel trained and supported service technician to avoid faulty electrical connection and water leaks.



All connections for water, electrical power and earthing must comply with local codes and ordinances and be made by licensed personnel when required.



Avoid installation of the appliance/s under a ground fault circuit interrupter (GFCI).



Ensure the appliance is installed properly. Improper installation that results in appliance failure is not covered under the appliance warranty.

Check the installation location

Check the cabinetry



Check the dimensions of the cabinetry (width, depth, height, floor level, finished alcove returns).



Ensure that the ventilation openings in the cabinetry are clear of obstruction.

Check the power supply connection



Ensure that there is a separate power socket for each appliance.



Avoid sharing the power point with other appliances to prevent accidental switching off of the appliance.



For power requirements, please refer to the information on the serial plate.



Ensure your appliance is properly grounded (earthed).



Connect your appliance to an electrical supply with the fitted plug and lead.



We recommend to use an isolating switch that is easily accessible to the user after the appliance is installed.



Follow local codes and ordinances when installing the appliance.

Check the water supply connection (for Freezer models only)



We recommend connecting the hose to exit at an angle if there is not enough clearance between the cabinet wall and back of appliance.



Fisher & Paykel is not liable for damage (including water damage) caused by faulty installation or plumbing.

Check your appliance



Ensure that your appliance is the correct model as per your order.



Ensure that the packaging is not damaged upon delivery.



Check that the components and install kits are complete.



You have the option to change the door hinge side of your appliance from right hand hinge to left hand hinge or vice versa.
A hinge change kit is required for this installation. Refer to ‘Optional — Changing over door hinges’ for more information.

16

!2 UNPACKING AND MOVING YOUR PRODUCT

IMPORTANT!



Be careful when unpacking to prevent damage to the surface of your appliance.



Ensure that the appliance is stable to prevent from tipping over when unpacking.



Do not open the doors to prevent the appliance from tipping over.



The appliance is heavy and requires a minimum of 2persons to unpack and install.



Ensure that the feet of the appliance are retracted.



If the appliance is damaged, contact your Fisher & Paykel dealer.



Take note of your model and registration numbers located at the lower right side of the

WARNING!



Follow these instructions to avoid risks that can cause serious injury or death.



Keep doors closed until the appliance has been moved to its installation location.

Required components/tools:



Cross-head screwdriver



Cutter or scissors



Two-wheeled cart with restraining straps

appliance. You will need these to request for servicing or repair of your appliance.

Unpacking your product Moving your product

Side trim

1 Remove the top of the packaging

carton. Cut along the cut lines
and remove the carton and EPS
(Expanded Polystyrene) foam.

2 Remove pre-packed install parts

(door panel side extrusion and side
trim assembly, centre trim assembly,
dual install joiner kit) taped to the
back panel of the appliance.

Door panel
side extrusion

assembly

1 Remove the angled brackets (A) from one side of the appliance

(preferably, non-hinge side).

2 Tape the door shut and then tilt (B) the appliance slightly forward

to slide a two-wheeled cart (C) between the appliance andEPS.

– Do not insert the cart from the back or front side!
– Taping the door shut prevents the possible opening of the

doors when tilting.

3 Remove the top screws of the remaining angled brackets (D). Do

not remove the screws fixed to the pallet.

4 Restrain the appliance to the cart with straps, and then tilt the

appliance backward (E) onto the cart.

5 Set aside the pallet and push the cart to the installation location.

Centre trim
assembly

– Make sure the door stays closed until the appliance is

positioned inside the cabinet.

A

3 Remove the pre-installed parts.

– Top (fixed) grille
– Bottom grille
– Top trim
– Top door panel extrusion
– Bottom flow door divider

Note: Set aside the screws to use
later when reinstalling the removed
parts.

Top (fixed) grille

Bottom grille

Top trim

Top door panel extrusion

Flow door divider

B

D

E

C

17

!3 ATTACH THE ANTI-TIP BRACKET

IMPORTANT!

Ensure the door of the appliance is closed when rolling into the cabinetry. DO NOT attempt to open the door until the
appliance is fully installed. The anti-tip bracket and fittings supplied must be fitted to the wall of the finished enclosure
to withstand a 100kg load. Ensure that the anti-tip bracket is installed correctly to prevent the possibility of the appliance
tipping forward when the door is open.

WARNING!

Read the following reminders before fastening with masonry plugs and/or screws to avoid serious injury or possible death:



Ensure the screws avoid electrical, gas and water conduits.



Ensure that the surface where the bracket is fastened can withstand a 100kg load.



Ensure light-weight masonry material such as cinder block and new concrete (no curing time) are not used in installation.



Do not use metallic materials that may corrode, stain and/or damage the enclosure.

1 Project horizontally from the bottom end of the

alcove return towards the back wall (A).

– This will locate the contact surface between

the bracket and the appliance.

A

Bracket

Projection must be from
the alcove return towards
the bottom of the bracket

Wall
board

B

Wall
stud

C

Required components/tools:



Anti-tip bracket assembly

– 1x Anti-tip bracket
– 4x 10x30mm Masonry plugs
– 4x 10-12x35mm Pan head screws



Cross-head screwdriver



Marker/pencil

IMPORTANT!

Make sure the bracket overlaps the appliance
by a minimum 180mm for a secure hold (E).

Appliance Wall

min 180mm

E

Bracket

2 Mark the screw locations of the anti-tip bracket on

the wall based on the most central wall stud (B).

– If there are no wall studs, the bracket can be

installed to solid brick walls with masonry
plugs. (It is not recommended for use with
perforated brick or hollow concrete bricks).

3 Drill screw holes to the marked locations.
4 For wooden/plaster board wall installation:

Skip to step 5.
For solid wall installation: Hammer 10x30mm

masonry plugs (4x) into the wall until flush.

5 Fix the bracket to the wall with 10-12x35mm pan

head screws (4x), and screw tightly (C).

18

SINGLE INSTALL DUAL INSTALL

If the minimum 180mm overlap cannot be
achieved, install a solid spacer to the wall
stud behind the bracket (F).

min 180mm

Bracket

Spacer

Appliance

F

Wall

!4 CONNECT TO WATER AND POWER SUPPLY

WARNING!



The water connection instructions below are intended only for the professional
installer.



WARNING — connect to potable drinkable water supply only.



DO NOT install on line pressure above 120psi (827kPa) or below 22psi (150kPa).



DO NOT use on hot water supply (100°F [38°C max.]).

1 Flush water through the hose prior to connection to the

appliance to remove any debris in the hose.

2 Move the appliance in front of the cabinetry close

enough that you can access behind for power and water
connections.

3 Connect a braided water hose to the water supply valve

(A), and insert the free end of the hose through a hole
at the rear of the plinth (B).

B

Rear view of
appliance

IMPORTANT!



Old water fittings (hose-sets) should not be reused.



The appliance includes a stainless braided water
line hose.



The shut off valve should be accessible.



Make sure each appliance is connected to a
separate power socket.

A

Required components/tools:



Water filter installation kit

– 2x Collet locking clip
– 1x 6mm Brass adaptor
– 1x 13mm Comp. Stainless steel

braided hose

4 Push the hose all the way to the front and connect a

brass adaptor (C).
Note: The adaptor is not required for installation if

6.35mm PEX plastic tubing (optional) is used.

5 Insert the tube end of the adaptor fully into the PRV (D).
6 Secure the connection with a locking clip between the

PRV and hose end of the adaptor (E).

7 At the back of your appliance, connect the power cable

to the power supply (230 VAC, 50 Hz) (F).

– You will hear a chime sound when the appliance is

powered on and automatically goes into ‘Installer
(standby) mode’.

– Refer to ‘User guide’ for more details on activating

the appliance.

8 Check the connection and open the water supply to test

for leaks.
Note:



The water supply connection is only used for freezer
models.



For dual installation, follow the instructions above for
both first and second appliances.

F

D

E

C

19

Required components/tools:



4x Cabinet depth alignment gauges



Cross-head screwdriver

Installing depth alignment gauges

Note: The alignment gauges are only temporary and removable after installation.

!5 SINGLE INSTALLATION

1 Loosen the screws at the right

and left, top and bottom corners
of the door (A).

B

A

3 Attach the alignment gauges

so that the screw head passes
through the keyhole (C).

C

B

4 Lock the position of the

alignment brackets in the
keyhole, and tighten the screws
just enough to firmly hold the
gauges (D).

D

2 Locate the alignment gauge

to the screws with the correct
orientation (B).

20

!5 SINGLE INSTALLATION

IMPORTANT!



Ensure that the hose is not run over when moving the appliance/s to prevent
damage and possible water leaks.



Use low speed, low torque setting when using powered drill.



Ensure power cord is not damaged during installation.

Positioning the appliance inside the cabinetry

1 Coil the water hose flat behind the appliance.
2 Before rolling the appliance, insert a barbed plug into a large hole on each side of the

appliance to protect the inside of the cabinetry from being damaged by screws on
the sides of the appliance (A).

3 Roll the appliance slowly into the cabinetry. Ensure that the water hose is not run

over to prevent damage that can cause a water leak.

4 Continue rolling the appliance into the cabinetry until the anti-tip bracket overlaps

(minimum 180mm) the back top surface of the appliance. Refer to ‘Attach the anti-tip
bracket’.

5 Check the clearance between the floor and the feet. Ensure the rollers of the

appliance can roll freely on the floor.

Required components/tools:



Cross-head screwdriver or power driver (PH2 bit) at minimum torque setting



Ruler



2x Barbed plugs

Aligning the appliance inside the cabinetry

6 Mark the step on each alignment gauge based on the thickness of the door panel to be

installed to the door (B).

7 Align the marked steps of the gauges flush with the front surface of the cabinetry.

– Place a ruler on the steps of the alignment gauges to check if they are in line (C)

relative to the thickness of the door panel.

8 Check if the gaps between appliance and cabinetry side walls are even on both sides.

Mark the step on each
alignment gauge
based on the thickness
of the door panel to be
installed to the door.

B

B

A

C

C

21

!5 SINGLE INSTALLATION

IMPORTANT!



Ensure the doors are in line with the cabinetry front and the appliance is centred.



All four corners of the appliance must be supported firmly onto the floor to
eliminate any movement. Installing the appliance on a soft, uneven, or not level
floor may cause twisting and poor door sealing.

Required components/tools:



Cross-head screwdriver or power driver (PH2 bit) at minimum torque setting

Adjusting height of the appliance inside the cabinetry

1 Turn the front and rear adjustment

screws using a Cross-head screwdriver
(or powered driver) to extend the feet
until it engages the floor.

– One turn of height adjusting nuts

is equivalent to 0.5mm of height
adjustment. Clockwise turn raises
the height and counter-clockwise
turn lowers height (A).

Front foot
adjustment

A

Rear foot
adjustment

IMPORTANT!



Make sure to remove the depth alignment brackets before fixing the appliance inside
the cabinetry.



Open the appliance door to remove the alignment brackets from both sides of the
appliance, and then re-tighten the screws.

Required components/tools:



Cross-head screwdriver or power driver



6x 8Gx16 Countersunk screws

Fixing the appliance inside the cabinetry

B

B B

1 Fix each top bracket to the ceiling

surface with two 8Gx16 countersunk
screws (B).

– 457mm column = 1 bracket
– 610mm column = 2 brackets
– 762mm column = 2 brackets

Rear footFront foot

2 Continue turning the adjusting screws alternately between front and rear feet until

you achieve the correct alignment.

3 Once you are satisfied with the alignment, raise the height of the appliance by

alternately adjusting the front and rear feet until the top surface contacts the
alcove ceiling.



Check the alignment gauges while adjusting the screws to make sure you
maintain the alignment of the appliance.

4 Ensure all feet are positively engaged with the floor.

22

Note: Make sure the appliance does not
move as you open the door when you
install the screws.

C

2 Fix the alcove side brackets (1x per

each side) to the alcove side surface
with 8Gx16 countersunk screws (C).

C C

!6 DUAL INSTALLATION

Dual installation includes two appliances installed side by
side. Refer to ‘Cavity dimensions’ section for cabinetry
overall width for dual install. A joiner kit is required for
dual installation and is available through an authorised
Fisher&Paykel dealer. Please visit fisherpaykel.com for
more information.

Attach central spacer to cabinetry

Note: The spacer must be attached between the first
and second appliances. The attachment location of the
spacer to the alcove ceiling depends on the model of
eachappliance.

Central spacerDepth alignment gauge

1 Measure from the alcove side towards the centre.

Note: The alcove width for each side depends on the size
of the appliance to be installed. For example,



left side alcove width (A) = 457mm model



right side alcove width (B) = 762mm model

IMPORTANT!



We recommend to place the appliance (Freezer) with water
connection first into the cabinetry to allow you to check the
connection before placing the second appliance.



Follow the instructions carefully for the correct installation
of first and second appliances inside the cabinetry.

A

B

Required components/tools:



1x Depth alignment gauge



Cross-head screwdriver (powered drill)



Top joiner bracket

– 2x 8Gx16 Mush washer screw
– 1x Central spacer

Refer to ‘Cavity dimensions’ section for dual install options.

2 Using one depth alignment gauge, mark the location and

depth position of the central spacer on the alcove ceiling
depending on the door panel thickness (C).

– Make sure to follow the marked depth of the

alignment gauge relative to the door panel (D).

3 Fix the central spacer to the alcove ceiling with two 8Gx16

countersunk screws. Tighten the screws with a screwdriver
or powered drill) (E).

C

E

23

D

Required components/tools:



4x Depth alignment gauges



Cross-head screwdriver

Installing depth alignment gauges

Note: The alignment gauges are only temporary and removable after installation.

!6 DUAL INSTALLATION

1 Loosen the screws at the right

and left, top and bottom corners
of the door (A).

B

A

3 Attach the alignment gauges

so that the screw head passes
through the keyhole (C).

C

B

alignment brackets in the
keyhole, and tighten the screws
just enough to firmly hold the
gauges (D).

4 Lock the position of the

D

2 Locate the alignment gauge

to the screws with the correct
orientation (B).

24

!6 DUAL INSTALLATION

IMPORTANT!

Make sure that all feet engage the floor and evenly support the product.
Tighten the adjustment screw with screwdriver (do not use powered driver).

Positioning and aligning the first appliance inside the cabinetry

1 Coil the water hose flat behind the appliance. (Refer to ‘Connect to water and power supply’).
2 Before rolling the appliance, insert a barbed plug into a large hole on the cabinetry side of

the first appliance to protect the inside of the cabinetry from being damaged by screws on
the side of the appliance (A).

3 Roll the first appliance (preferably, Freezer) inside the cabinetry (B).

– Ensure that the water hose is not run over to prevent damage and possible water leak.

4 Continue rolling the appliance into the cabinetry until the anti-tip bracket overlaps [minimum

180mm the back top surface of the appliance. (Refer to ‘Attach the anti-tip bracket’).

5 Check the clearance between the floor and the feet. Ensure the rollers of the appliance can

roll freely on the floor.

A

Required components/tools:



Ruler



1x Barbed plug

6 Align the top cap of the first appliance flush with the front of the spacer (C).
7 Mark the step (D) of each alignment gauge based on the thickness of the door panel to be

installed to the door.

8 Align the marked steps of the gauges flush with the front surface of the cabinetry.

– Place a ruler on the steps of the alignment gauges to check if they are in line (E)

relative to the thickness of the door panel.

9 Check if the gaps between appliance and cabinetry side wall are even.

C

B

Note: The appliance can be rolled first into the left side or right side
of the cabinetry depending on your preference.

D

E

25

!6 DUAL INSTALLATION

IMPORTANT!



Ensure the doors are in line with the cabinetry front and the appliance is centred.



All four corners of the appliance must be supported firmly onto the floor to eliminate
any movement. Installing the appliance on a soft, uneven, or not level floor may cause
twisting and poor door sealing.

Adjusting height of the appliance inside the cabinetry

1 Turn the front and rear adjustment

screws using a Cross-head screwdriver
(or powered driver) to extend the feet
until it engages the floor.

– One turn of height adjusting nuts

is equivalent to 0.5mm of height
adjustment. Turn clockwise to
raise the height and counter­clockwise to lower height (A).

Front foot
adjustment

A

Rear foot
adjustment

Required components/tools:



Cross-head screwdriver or power driver



5x 8Gx16 Countersunk screws

Fixing the first appliance inside the cabinetry

1 Fix each top bracket of first appliance to ceiling surface with two (2x) 8Gx16 countersunk

screws (B).

– 457mm column = 1 bracket
– 610mm column = 2 brackets
– 762mm column = 2 brackets

Note: Ensure the appliance does not move as you open the door when you install the screws.

2 Fix the alcove side bracket to alcove side surface with one 8Gx16 countersunk screw (C).

B

B

Rear footFront foot

2 Continue turning the adjusting screws alternately between front and rear feet until

you achieve the correct alignment.

3 Once you are satisfied with the alignment, raise the height of the appliance by

alternately adjusting the front and rear feet until the top surface contacts the
alcove ceiling.



Check the alignment gauges while adjusting the screws to make sure you
maintain the alignment of the appliance.

4 Ensure all feet are positively engaged with the floor.

26

C

Alcove side bracket

C

Note: Image shows 457mm (first appliance) with 1 top bracket.

Required components/tools:



Ruler



1x Barbed plug

Positioning and aligning the second appliance inside the cabinetry

A

!6 DUAL INSTALLATION

C

5 Align the top cap of the second appliance flush with the central spacer and top cap of

first appliance (C).

B

1 Roll the second appliance into the cabinetry side by side with the first appliance. (A)
2 Before rolling the appliance, insert a barbed plug into a large hole on the cabinetry side of

the second appliance to protect the inside of the cabinetry from being damaged by screws
on the side of the appliance (B).

3 Continue rolling the appliance into the cabinetry until the anti-tip bracket overlaps

(minimum 180mm) the back top surface of the appliance. (Refer to ‘Attach the anti-tip
bracket’).

4 Check the clearance between the floor and the feet. Ensure the rollers of the appliance can

roll freely on the floor.

D

E

6 Mark the step (D) of each alignment gauge based on the thickness of the door panel to be

installed to the door.

7 Align the marked steps of the gauges flush with the edges of the cabinetry side walls.

– Place a ruler on the steps of the alignment gauges to check if they are in line (E)

relative to the thickness of the door panel.

8 Check if the gaps between appliance and cabinetry side wall are even.

27

!6 DUAL INSTALLATION

IMPORTANT!



Ensure the door is in line with the cabinetry front and the appliance is centred.



All four corners of the appliance must be supported firmly onto the floor to eliminate
any movement. Installing the appliance on a soft, uneven, or not level floor may cause
twisting and poor door sealing.

Adjusting height of the second appliance inside the cabinetry

1 Turn the front and rear adjustment screws using a Cross-head screwdriver (or powered

driver) to extend the feet until it engages the floor.

– One turn of height adjusting nuts is equivalent to 0.5mm of height adjustment.

Clockwise turn raises the height and counter-clockwise turn lowers height (A).

A

Front foot
adjustment

Rear foot
adjustment

Required components/tools:



Cross-head screwdriver or power driver (PH2 bit) at minimum torque setting

Rear footFront foot

2 Continue turning the adjusting screws alternately between front and rear feet until you

achieve the correct alignment of the second appliance with the first appliance.

3 Once you are satisfied with the alignment, raise the height of the appliance by alternately

adjusting the front and rear feet until the top surface contacts the alcove ceiling.

– Check the alignment gauges while adjusting the screws to make sure you maintain the

alignment of both appliances.

4 Ensure all feet are positively engaged with the floor.

28

!6 DUAL INSTALLATION

Required components/tools:



Top joiner fastener kit

– 1x M5x20 Cap screw
– 1x M5x16x1 Plain washer

Fixing the second appliance inside
the cabinetry

1 Fix the top caps of first and second

appliances to the central spacer with
the top joiner fastener kit (A).

2 Fix the bottom joiner brackets of both

appliances together with the bottom
joiner kit (B).

– Place the plastic washers

between the bottom joiner
brackets before fixing with the
screw and nut. Tighten with M4
hex key.

3 Fix the top brackets (C) and bottom

alcove side bracket (D) of the second
appliance to the cabinetry with 8Gx16
countersunk screws.

4 Do final alignment check. Ensure the

feet of both appliances are positively
engaged with the floor.



Bottom joiner fastener kit

– 1x M6x16 Washer screw
– 2x M6x12x3.2 Plastic washer
– 1x M6 Hex nut

A

Top joiner brackets
with central spacer



5x 8Gx16 Countersunk screw



M4 Hex key

C

A

C

C

B

Bottom joiner brackets

B

D

D

Alcove side bracket

Note: Image shows 762mm (second appliance) with 2 top brackets.

29

Required components/tools:



1x Water filter



1x Water filter removal tool (included with appliance)

!7 INSTALL WATER FILTER

1 Remove the water filter packaging.
2 Pull the filter tool gently to dislodge from the front of the appliance (A).
3 Insert the water filter all the way into the filter casing and press firmly until the filter head is pushed further inside the casing (B).
4 Using the filter tool, rotate the filter head 90° to lock in place (C).
5 Return the filter tool to its storage position (D).
6 Turn on the water supply to check for leaks.

A

C

Flushing the water filter

Before turning on your automatic ice maker, the water
filter must be flushed to remove any impurities or
trapped air in the water tank and filter system.

Refer to the user guide ‘Operating instructions—
Automatic ice maker (freezer only)’.

30

B

D

!8 INSTALL BRACKETS TO DOOR PANEL (STAINLESS STEEL)

IMPORTANT!

Ensure to protect the finish of the Fisher & Paykel Stainless Steel door panels.
Leave the protective film on the panels when hanging and remove the film only
when the installation is complete.

Attach the top and side hanging brackets to (Stainless steel) door panel

Required components/tools:



Door panel attachment kit

– 6x Side panel brackets
– 6x Bracket slider
– 6x Side spacer bracket
– 30x 8Gx16 Mush washer screws (for

SS door panels only)



Drill with 2.55mm bit



Cross-head driver on battery drill



M4 Hex key



13mm Spanner

4 Align the screw holes of the bracket with the screw holes of the door panel, and fix the

hanging bracket to the door panel with 8Gx16 mush washer screws (D).

– 6x screws for 457mm
– 10x screws for 610mm and 762mm

A

D

C

3mm

1 Remove the M8 washer and M8 nut fromthe M8 screws at the top the door (A).

2 Remove the top hanging bracket from the

top of the door and set aside (B).

3 Unscrew the adjustment screws by 3mm

to move close to the middle of adjustment
range (C).

E

E

B

5 Align the side panel bracket assembly (bracket, slider and spacer) to the screw holes on the

side of the door panel and fix with 8Gx16 mush washer screws (E).

31

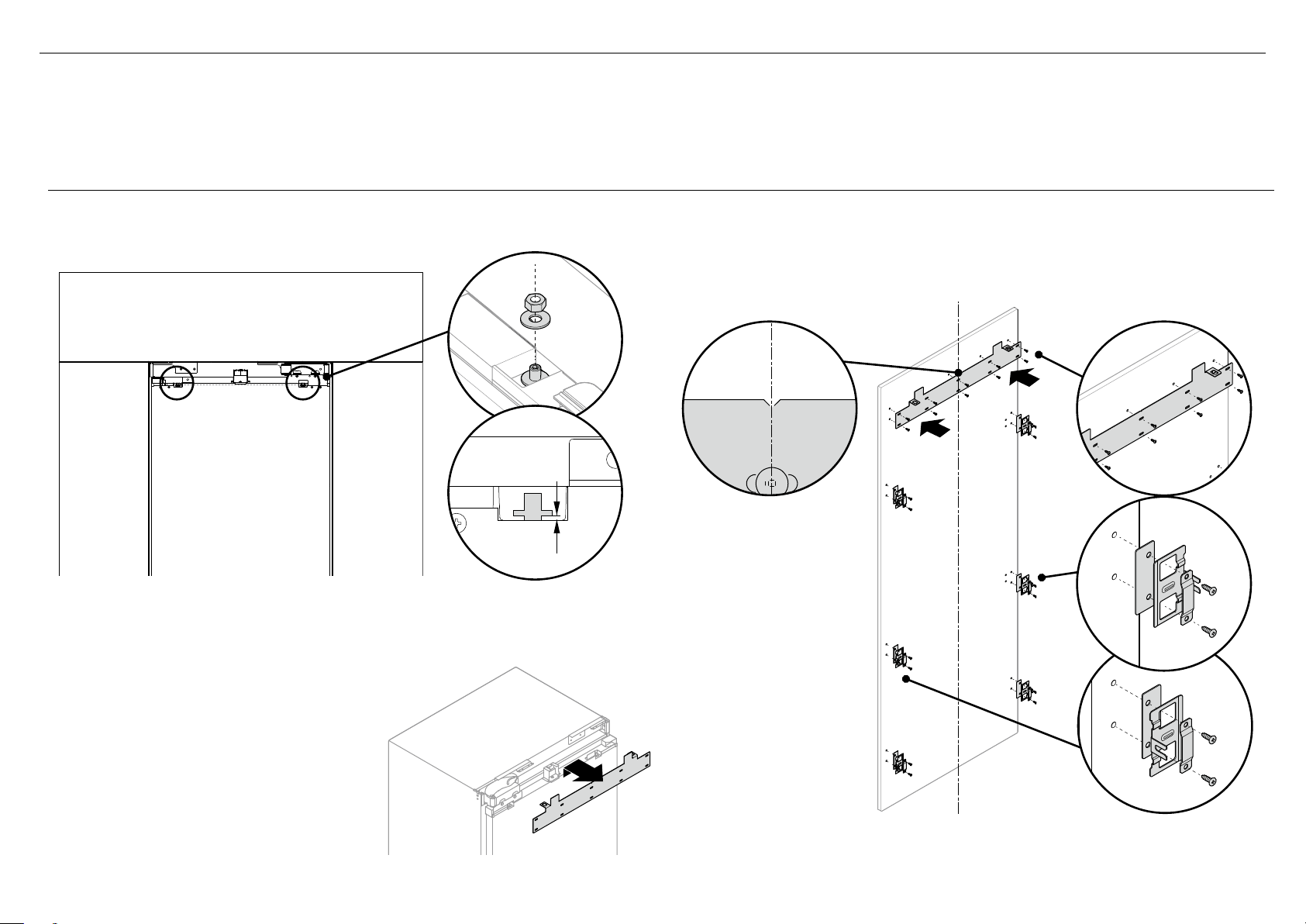

!9 INSTALL BRACKETS TO DOOR PANEL (CUSTOM)

IMPORTANT!



Ensure the screw pilot holes do not penetrate the full depth of the panel.



Do not place the handle holes in marked areas to avoid clashing with panel
attachment brackets.



Minimum panel thickness where screw hole is drilled must be 16mm.

Attach the top and side hanging brackets to (Custom) door panel

Required components/tools:



Door panel attachment kit

– 6x Side panel brackets
– 6x Bracket slider
– 6x Panel bracket spacer
– 30x M5x12 Cross-head screws (for

Custom door panel only)



Drill with 2.55mm bit



Powered driver (Cross-head)



M4 Hex key (supplied)

5 Mark the centreline from the top of the Custom panel and align with the ‘V’ notch in the

bracket (D).

6 Align the screw holes of the bracket with the screw holes of the door panel and fix the

hanging bracket to the door panel with M5x12 Cross-head screws (E).

– 6 screws for 457mm
– 10 screws for 610mm and 762mm

A

D

E

C

3mm

1 Remove the M8 washer and M8 nut fromthe M8 screws at the top the door (B).

2 Remove the top hanging bracket from the top

of the door and set aside (A).

3 Unscrew the adjustment screws by 3mm to move

close to the middle of adjustment range (C).

4 Mark the location of the screw holes and drill

pilot holes to the marked location. Refer to the
custom panel template in the ‘Custom door
panel dimensions’ section.

32

F

F

B

7 Align the side panel bracket assembly (bracket, slider and spacer) to the screw holes on the

side of the door panel and fix with M5x12 Cross-head screws (F).

@0 INSTALL DOOR PANELS

IMPORTANT!



The assembly of Fisher & Paykel (Stainless steel) door
panels and Custom door panels are outlined below.



Ensure to protect the finish of the Fisher&Paykel
Stainless steel door panels. Leave the protective film on
the panels when hanging. Remove the film only when
the installation is complete.



If using Custom door panels, ensure they are prepared
as per ‘Custom door panel dimensions’ section.

Attach the door handle

1 For Stainless steel door panel:



Remove the plastic plugs from handle holes (x4).



Align the handle to the holes and secure with M5x25
hex screws (A).

For Custom panels:



Fix the handle with M5x25 hex screws from the inner
edge of the panel.



Refer to ‘Custom door panel dimensions’ section
to ensure door handle does not interfere with side
attachment brackets.

Hang the door panel

2 Open the door and loosen the screws at both sides of

the door (do not remove) (B).

3 Hang the door panel with a small angle to the door by

locating the holes of the top bracket to the M8 studs
(C), and rotate the door panel down so that the side
attachment brackets slide onto the side screws of the
door. (D)

4 Screw the M8 washer and nut to the stud (E), and

re-tighten the side screws (B) to fix the door panel
(do not fully tighten). This will allow opening the door
without affecting adjustment of the door panel.

IMPORTANT!

We recommended to load the shelves in the
appliance door with weights to ensure an
accurate door panel gap width.

Weight recommendations:

– 457mm appliance: 10kg
– 610mm appliance: 15kg
– 762mm appliance: 20kg

A

Required components/tools:



4x M5x25 Hex screws



1x Drill with 2.55mm bit



1x Cross-head driver on battery drill



M4 Hex key



13mm Spanner

B

C

E

D

33

Required components/tools:



1x Cross-head screwdriver



M4 Hex key



13mm Spanner

@0 INSTALL DOOR PANELS

Adjust the door panel

Note: All door panels have full axis adjustment to ensure they are flush with adjacent walls.

1 To adjust the height of the door panel relative to the door, use M4 hex key to turn the top

M8 screw (A) clockwise to lower or counter-clockwise to raise the door panel until the gap
with the cabinetry above is 3mm.

2 To adjust the depth of the door panel, loosen the side screws (B) from each side and slide

the panel forward/backward. Re-tighten once satisfied.

3 To adjust the door panels further, remove the door panels then loosen the fixing screws for

the hanging bracket and move the bracket sideways to suit. (C)

4 Once satisfied with the door panel position, fully tighten M8 washer and nut to the stud

using a M4 hex key (A).

A

Fix the locking brackets

1 Loosen the screw at the bottom of the door, and slide the locking bracket out until it

touches the panel (D).

2 Fix the locking bracket to the door panel with 8Gx16 countersunk screw (E).
3 Re-tighten the screw at the bottom of door (F).

D

E

34

C

B

F

@1 INSTALL TOE KICK

IMPORTANT!

Two magnets are pre-installed to the bottom corners of the toe kick mounting plate. Each
magnet has double-sided tape to be attached to the toe kick. This allows both Stainless
steel and Custom panels to be attached to the magnet.

Installing the toe kick mounting plate and toe kick

1 If the toe kick depth is less than 92mm, attach the air toe kick seal (A) to the middle of the

back side of the mounting plate (B).

2 Attach the toe kick mounting plate (C) to the plinth.

B

C

Required components/tools:



1x Air toe kick seal



1x Toe kick

4 Place the toe kick in front of the mounting plate. Ensure that the spacers at back of the toe

kick are aligned with the magnets (E).

– For custom toe kick, skip step 3 as spacers are not needed.

5 Attach the toe kick by pressing onto the mounting plate (F).

– For stainless steel: Ensure the adhesive tape of the magnets adhere to the spacers of

the toe kick.

– Ensure the bottom of the toe kick contacts the floor as you attach to the mounting plate.

F

A

3 Peel off the adhesive tape backing of the magnets located at the front bottom

corners of the toe kick mounting plate (D).

D

E

IMPORTANT!



For toe kick heights 114–127mm, shorten the lower grille by cutting along the
vertical ribs.



For 51mm toe kick height, an additional lower grille can be ordered.



For toe kick heights greater than 127mm, lower grille is not required.



Refer to ‘Door and toe kick panel dimensions’ for more information.

35

@2 INSTALL TOE KICK GRILLE

Required components/tools:



Hex key (supplied)



1x Fixed (top) grille



1x Bottom (movable) grille



8x16mm Pan head screws

Adjusting the toe kick grille

1 Loosen the cap screws of the adjustment brackets from both sides of the plinth using a

hex key (A).

2 Adjust the toe kick to the desired depth by moving it forward/backward (B).
3 Re-tighten the cap screws of the adjustment brackets on both sides using the hex key.

IMPORTANT!



For toe kick heights 114–127mm, shorten the lower grille by cutting along the vertical ribs.



For 51mm toe kick height, an additional lower grille can be ordered.



For toe kick heights greater than 127mm, lower grille is not required.



Refer to ‘Door and toe kick panel dimensions’ for more information.

Attach the top and bottom grilles

4 Install the top (fixed) grille

(C) with 8x16mm pan head
screws and reinstall bottom
hinge pocket cover (D).

D

C

5 Install the bottom

(movable) grille (E) with
8x16mm pan head screws.

36

E



For toe kick heights 114–127mm,
shorten the bottom grille by

F

cutting along the vertical ribs (F).

BA

Toe kick and toe kick grille
complete installation

Required components/tools:



1x Alcove side trim assembly

Install the side trims

Note: Four (4) dual-lock strips are pre-installed along each side trim.

@3 INSTALL CABINET TRIMS

1 Peel off the liners from the dual-lock strips. (A)

A

2 Position the trim on the throat with anangle. (B)

3 Slide the trim behind the lower hinge (C), then the top

hinge (D). Hold the same angle when sliding the trim.

D

4 Slot trim in behind top hinge pocket

(E), then press (F) adhesive to
cavity ensuring trim is also tight
against appliance inner face.

Note: Press firmly on the
dual-lock strip locations to
ensure the side trims are
securely attached.

E

B B

F

C

37

@3 INSTALL CABINET TRIMS

Required components/tools:



1x Top trim

Install the top trim

1 Slide the top trim into hinge pocket of the cabinet (A),

and then engage the dual lock at the non-hinge side (B).

A

B

Required components/tools:



1x Centre trim

Install the centre trims (for dual install only)

Note: Four (4) dual-lock strips are pre-installed along the centre trim.

1 Peel off the liners from the dual-lock strips. (C)

C

2 Position the trim between the throats of both cabinets. (D)

D

38

3 Push and press the trim on the appliances/throat (E).

Note: Make sure the top end of the trim is pushed up
against the alcove ceiling before fixing the position

E

4 Press the centre trim to fix the position. (F)

F

@4 INSTALL FLOW DIVIDER AND DOOR TRIMS

IMPORTANT!

The door flow divider is pre-assembled to the door of the appliance. It blocks the air flow
from bypassing in front of the bottom grille.

Install the flow divider

1 Peel the adhesive layer off the flow divider (A).
2 Remove the 8Gx16 countersunk screw from the bottom of the door and

re-install the flow divider using the same screw. (Do not tighten fully) (B).

3 Press the flow divider firmly against the door panel (C). Make sure the

adhesive layer contacts the door panel.

4 Re-tighten the screw fully.

Required components/tools:



1x Door flow divider



1x Flow divider cap



1x 8Gx16 Countersunk screw



2x Trim caps

Install the door trims

1 Insert two (2) trim caps (E) into the top door

A

panel extrusion.

2 Align the notch on the top door panel extrusion

(F) with the magnet housing at the top of the
door (G) and clip door top trim assembly into the
magnet housing.

3 Press the top door panel extrusion down into the

top of the door (H) so that the dual lock strips
engage together.



Top door panel extrusion



2x Door panel side extrusion



Saw



File

E

F

E

G

H

H

I

C

B

5 Attach the flow divider cap to the flow divider (D).

Note: When fitting the air flow divider to the door
for a toe kick height greater than 102mm, the
divider requires shortening. This is done by cutting
along the cutline on both the divider and divider
cover (E) before installation to the door. Ensure to
file the cut portions of the divider and cover.

I

D

I

I

E

4 Press the door panel side extrusion (I) into the gap between the door and door panel. Align

the top of the door panel side extrusion with the top door panel extrusion. Do on each side.

39

@5 OPTIONAL — CHANGING OVER DOOR HINGES

You have the option to change the door hinge side of your appliance from right hand
hinge to left hand hinge or vice versa. A hinge change kit is required for this installation.

IMPORTANT!

Ensure that you remove all the shelves, covers and trims from the appliance before
changing the hinges. Take care not to damage the door. We recommend to lay the
appliance (door closed) onto its back on the pallet when removing the door hinges.

Removing the door

1 Release the hinge spring by turning the star T20 screws in the hinge to the “0” position (A).

A

Required components/tools:



Star T20 screwdriver



Flat head screwdriver



M4 Hex key

2 Close the door and lay the appliance on its back on the pallet.

3 Detach the door from the appliance by unscrewing the door hinge M6x10 hex screws (4x)

at the top (B) and bottom (C) hinges.

40

B

Top hinge

C

Bottom hinge

@5 OPTIONAL — CHANGING OVER DOOR HINGES

Required components/tools:



Star T20 screwdriver



Flat head screwdriver

Removing the top door hinge

1 Rotate the top hinge (A) outwards and remove

the top hinge pocket cover (B) using the flat
head screwdriver in the slot of the cover.

2 Remove the hinge by unscrewing the M5x12

pan head screws (2x) (C), and set aside for
later use.

3 Remove the hinge pocket and top alcove

bracket by unscrewing M5x12 pan head screws
(2x) (D) from the hinge pocket.

4 Remove the top hinge bracket and spacer (E)

by unscrewing the M5x12 countersunk screws
(2x) from the top hinge bracket.

5 For the non-hinge side, remove the top alcove

bracket by unscrewing the M5x12 pan head
screws (2x) (F). (Not applicable for RS46).

Removing the bottom door hinge

6 Rotate the bottom hinge (G) outwards and

remove bottom hinge pocket cover (H) using a
flat head screwdriver in theslot.

7 Remove the hinge by unscrewing the M6x16

countersunk screws (2x) (I).

8 Open the water filter hatch on the bottom

(fixed) grille and unscrew the #8x16 screw (J)
while holding the grille in place.

9 Remove the bottom grille by unscrewing the

#8x16 screws (K) from the bottom left and
right of the grille.

Remove bottom hinge bracket by unscrewing

!0

M6x16 countersunk screws (L).

A

B

D

C

E

F

G

H

I

J

K

L

K

Do not remove!

IMPORTANT!

Do not remove plinth-to-cabinet retention
brackets!

Do not remove!

41

Required components/tools:



Star T20 screwdriver



Flat head screwdriver

Moving the sensor housing (RS46 & RS61 only)

@5 OPTIONAL — CHANGING OVER DOOR HINGES

E

D

A

B

C

1 Unclip the reed switch from the housing (A).
2 Unhook the interceptor board harness from sensor

housing so harness is loose (B).

3 Remove the #8x16 screws (2x) from the sensor housing (C).

42

4 Move the sensor housing so that the opposite reed switch

clip is aligned with the centre of the cabinet (D).

F

G

5 Reinstall the sensor housing using #8x16 screws (2x)

into the pre-drilled holes in the cabinet top panel (E).

6 Clip the reed switch into the sensor housing in the

pocket closest to the centreline of the cabinet (F).

7 Press the harness from the interceptor board into the

forks on the sensor housing (G).

Required components/tools:



Left/right hinge change kit (refer to
‘Components list’ for part numbers)

– 1x Top (fixed) grille assembly
– Hinge change assembly

@5 OPTIONAL — CHANGING OVER DOOR HINGES



Star T20 screwdriver



Flat head screwdriver

E

Top hinge installation

1 Reinstall the hinge top bracket and bracket

spacer with M5x12 countersunk screws (A) on
the new hinge side at the other side of the
appliance.

2 Install the new hinge pocket and alcove top

bracket on the new hinge side using two (2x)
M5x12 pan head screws (B).

Note: The new hinge pocket and alcove top

bracket are supplied with the hinge kit.

3 Install the new hinge in the new hinge pocket

by screwing M5x12 pan head screws (2x) (C).

(Not applicable to RS46).

4 Open the hinge and reinstall the top hinge

pocket cover (D) to the top hinge pocket.

5 Install a new alcove top bracket on the new

non-hinge side. (Not applicable to RS46) (E).

Bottom hinge installation

6 Install a new lower hinge bracket on the new

hinge side with M6x16 screws (2x) (F).

– Ensure that the tab on the top of the

bracket inserts into the slot in the plinth
front bracket.

7 Use the hinge that was removed from the top of

the appliance and insert the tabs into the hinge
lower bracket. Rotate the hinge into place and
fix with M5x12 countersunk screws (2x) (G).

8 Open the hinge (H), and install the new top

(fixed) grille assembly.

9 Fasten in place with #8x16 screws (3x) (I). One

each at the bottom left and right of the grille
and one behind the water filter hatch.
Reinstall the bottom hinge pocket cover to the

!0

new hinge pocket (J).

C

A

D

B

E

H

G

J

I

I

F

I

43

@5 OPTIONAL — CHANGING OVER DOOR HINGES

Required components/tools:



2x K05 Top adapter bracket



2x K05 Bottom adapter bracket



Star T20 screwdriver



Flat head screwdriver

Door brackets

1 Remove the top adapter bracket from the top of the door by unscrewing

M5x10 screws (4x) (A).

2 Install the new top adapter bracket into the other side of the top of the door

with M5x10 screws (4x) (B).

3 Remove the door panel locking bracket and washer from the bottom of the

door by unscrewing M6x25 screw (1x) (C).

4 Remove the bottom adapter bracket and spacer from the bottom of the door

by unscrewing M6x25 screws (2x) and M5x30 screw (1x) (D).

5 Install the new bottom adapter bracket and existing spacer to the other side

of the door with M6x25 screws (2x) and M5x30 screw (1x) (E).

6 Install the existing door panel locking bracket and washer to the other side of

the door with M6x25 screw (1x) (F).

A

(use new top adaptor bracket)

B

44

C

D

E

(use new bottom adaptor
bracket and spacer)

F

(use existing locking bracket)

Required components/tools:



Star T20 screwdriver



Flat head screwdriver



Hex driver

Door installation

@5 OPTIONAL — CHANGING OVER DOOR HINGES

1 Reinstall the door to the appliance by fixing M6x10 hex screws (4x) into the hinges (A).

A

Top hinge

A

Bottom hinge

2 Activate the hinge spring by turning the star T20 screws to the “I” position (B).

B

3 Return the appliance to the upright position.
4 Reinstall all covers and trims.

45

@6 FINAL CHECKLIST

TO BE COMPLETED BY THE INSTALLER

All models

Check all parts are installed.

Ensure the appliance is level.

Ensure the appliance is securely fastened to the cabinetry with the supplied

anti-tip bracket and fittings.

Ensure the door/drawer can open and close freely with no resistance from

surrounding cabinetry.

Ensure hinge limiting bolt is fitted for 90° door swing.

Ensure all internal and external packaging is removed from the appliance

before use.

Ice models only

Ensure the water filtration system has been flushed.

Ensure a manual ice maker cycle has been forced.

Complete and keep for safe reference:

Model

Serial No.

Purchase Date

Purchaser

Dealer Address

Installer’s Name

Installer’s Signature

Installation Company

Installation Date

46

FISHERPAYKEL.COM

The product specifications in this booklet apply to the specific products
and models described at the date of issue. Under our policy of continuous
product improvement, these specifications may change at any time. You
should therefore check with your Dealer to ensure this booklet correctly

© Fisher & Paykel Appliances 2018. All rights reserved.

describes the product currently available.

NZ AU

849164A 07.18
