Fisher Paykel RS36W80RU1N Quick Guide

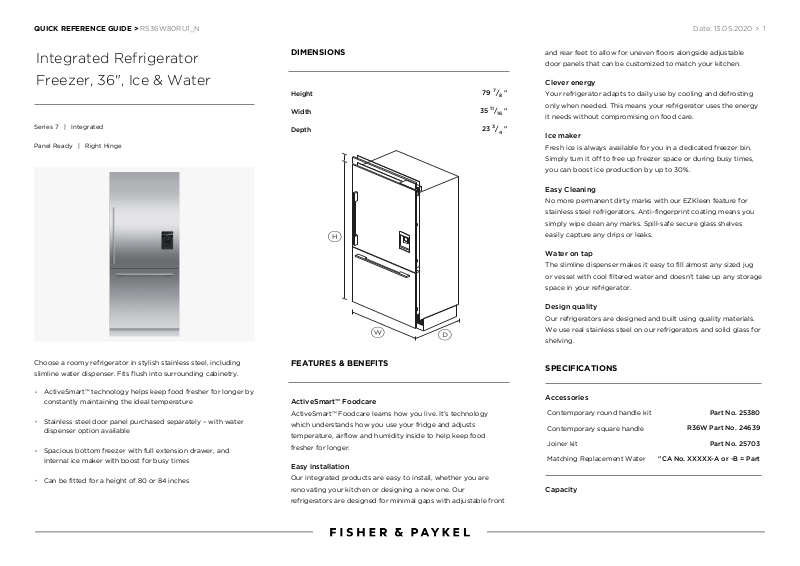

QUICK REFERENCE GUIDE > RS36W80RU1_N Date: 13.05.2020 > 1
Integrated Refrigerator
Freezer, 36", Ice & Water
Series 7 | Integrated
Panel Ready | Right Hinge
DIMENSIONS
Height
Width
Depth
79 7/8 "
35 11/16 "
23 3/4 "
and rear feet to allow for uneven floors alongside adjustable
door panels that can be customized to match your kitchen.
Clever energy
Your refrigerator adapts to daily use by cooling and defrosting
only when needed. This means your refrigerator uses the energy
it needs without compromising on food care.
Ice maker
Fresh ice is always available for you in a dedicated freezer bin.
Simply turn it off to free up freezer space or during busy times,
you can boost ice production by up to 30%.
Easy Cleaning
No more permanent dirty marks with our EZKleen feature for
stainless steel refrigerators. Anti-fingerprint coating means you
simply wipe clean any marks. Spill-safe secure glass shelves
easily capture any drips or leaks.
Water on tap
The slimline dispenser makes it easy to fill almost any sized jug
or vessel with cool filtered water and doesn’t take up any storage
space in your refrigerator.
Design quality
Our refrigerators are designed and built using quality materials.
We use real stainless steel on our refrigerators and solid glass for
shelving.
Choose a roomy refrigerator in stylish stainless steel, including
slimline water dispenser. Fits flush into surrounding cabinetry.
ActiveSmart™ technology helps keep food fresher for longer by
constantly maintaining the ideal temperature
Stainless steel door panel purchased separately – with water
dispenser option available
Spacious bottom freezer with full extension drawer, and
Internal ice maker with boost for busy times
Can be fitted for a height of 80 or 84 inches
FEATURES & BENEFITS
ActiveSmart™ Foodcare
ActiveSmart™ Foodcare learns how you live. It’s technology
which understands how you use your fridge and adjusts
temperature, airflow and humidity inside to help keep food
fresher for longer.
Easy installation
Our integrated products are easy to install, whether you are
renovating your kitchen or designing a new one. Our
refrigerators are designed for minimal gaps with adjustable front
SPECIFICATIONS
Accessories
Contemporary round handle kit Part No. 25380
Contemporary square handle
Joiner kit Part No. 25703
Matching Replacement Water "CA No. XXXXX-A or -B = Part
Capacity
R36W Part No. 24639
QUICK REFERENCE GUIDE > RS36W80RU1_N Date: 13.05.2020 > 2
Freezer 5.1cu ft
Refrigerator 11.7cu ft
Consumption
Energy star rating Yes
Energy usage 534kWh/year
Freezer features
Automatic ice maker •
Bottle chill •
Fast freeze •
Ice Boost •
Large plastic bin •
Performance
ActiveSmart™ Foodcare •
Adaptive defrost •
Automatic defrost •
Frost free freezer •
Humidity control system •
Inverter controlled compressor •
Sabbath mode •
Adjustable glass shelves 3
Covered door shelves 2
Deli storage bins 1
Door alarm •
Fruit and vegetable bins 2
LED lighting •
SmartTouch control panel •
Soft close doors •
Stackable bottle holders 4
Ultra slim water dispenser •
Warranty
Parts and labor 2 years
Sealed system parts only 5 years
SKU 25107
The product dimensions and specifications in this page apply to the specific product
and model. Under our policy of continuous improvement, these dimensions and
specifications may change at any time. You should therefore check with Fisher &
Paykel's Customer Care Centre to ensure this page correctly describes the model
currently available. © Fisher & Paykel Appliances Ltd 2019.
Other product downloads available at fisherpaykel.com
User Guide
Service & Warranty Booklet
Installation Guide
ActiveSmart" Integrated Refrigerator Freezer Dual Installation Guide
Resources (zip)
A PEACE OF MIND SALE
24 Hours 7 Days a Week Customer Support
T 1300 650 590 W www.fisherpaykel.com
Product dimensions
Depth 23 3/4 "
Height 79 7/8 "
Width 35 11/16 "
Refrigerator features
Adjustable door shelves 6
