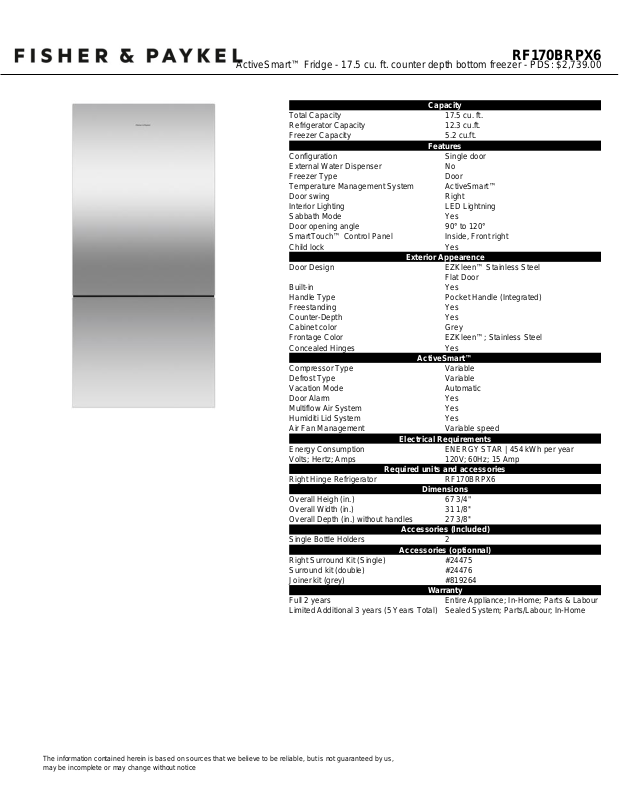

Fisher & Paykel RF170BRPX6N PRODUCT SPECIFICATIONS
RF170BRPX6
ActiveSmart™ Fridge - 17.5 cu. ft. counter depth bottom freezer - PDS: $2,739.00
Capacity |
|
Total Capacity |
17.5 cu. ft. |
Refrigerator Capacity |
12.3 cu.ft. |
Freezer Capacity |
5.2 cu.ft. |
Features |
|
Configuration |
Single door |
External Water Dispenser |
No |
Freezer Type |
Door |
Temperature Management System |
ActiveSmart™ |
Door swing |
Right |
Interior Lighting |
LED Lightning |
Sabbath Mode |
Yes |
Door opening angle |
90° to 120° |
SmartTouch™ Control Panel |
Inside, Front right |
Child lock |
Yes |
Exterior Appearence |
|
Door Design |
EZKleen™ Stainless Steel |
|
Flat Door |
Built-in |
Yes |
Handle Type |
Pocket Handle (Integrated) |
Freestanding |
Yes |
Counter-Depth |
Yes |
Cabinet color |
Grey |
Frontage Color |
EZKleen™; Stainless Steel |
Concealed Hinges |
Yes |
ActiveSmart™ |
|
Compressor Type |
Variable |
Defrost Type |
Variable |
Vacation Mode |
Automatic |
Door Alarm |
Yes |
Multiflow Air System |
Yes |
Humiditi Lid System |
Yes |
Air Fan Management |
Variable speed |
Electrical Requirements |
|
Energy Consumption |
ENERGY STAR | 454 kWh per year |
Volts; Hertz; Amps |
120V; 60Hz; 15 Amp |
Required units and accessories |
|
Right Hinge Refrigerator |
RF170BRPX6 |
Dimensions |
|
Overall Heigh (in.) |
67 3/4" |
Overall Width (in.) |
31 1/8'' |
Overall Depth (in.) without handles |
27 3/8'' |
Accessories (Included) |
|
Single Bottle Holders |
2 |
Accessories (optionnal) |
|
Right Surround Kit (Single) |
#24475 |
Surround kit (double) |
#24476 |
Joiner kit (grey) |
#819264 |
Warranty |
|
Full 2 years |
Entire Appliance; In-Home; Parts & Labour |
Limited Additional 3 years (5 Years Total) |
Sealed System; Parts/Labour; In-Home |
The information contained herein is based on sources that we believe to be reliable, but is not guaranteed by us, may be incomplete or may change without notice
Powered by TCPDF (www.tcpdf.org)
DATA SHEET |
790MM ACTIVESMART™ FRIDGE |
L
D
K
N
M |
PLAN VIEW |
|
B 31 1/8''
J
I
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
H |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
G |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
FRONT VIEW |
||
0 |
5 |
10 |
20 |
|
|
||||||
|
|
|
|
|
|||||||
inches
DATUM : FRONT OF CHASSIS
DATUM : FRONT OF CHASSIS
C E
A
67 3/4''
F
DATUM :
BOTTOM OF CHASSIS
|
PROFILE VIEW |
M |
Model no:
RF170BRPW6, RF170BRPX6, RF170BRZW6, RF170BRZX6
(refer page 2 for metric measurements)
Product Dimensions |
|
|
in |
|
|
|
|
A Overall height* of fridge |
|
67 |
3/4'' |
B Overall width of fridge |
31 1/8'' |
||
|
|
|
|
C Depth of fridge door and gasket |
2 |
3/4'' |
|
|
|
|
|
D Depth of fridge door and chassis |
|
27 3/8'' |
|
E Depth of fridge chassis (does not include fridge door) |
24 |
5/8'' |
|
|
|
|
|
F Height of feet (adjustable) |
15/16'' |
||
|
|
|
|
G Height from bottom of chassis to bottom of bottom door |
|
|
5/8'' |
H Height from bottom of chassis to top of bottom door |
24 |
5/8'' |
|
|
|
|
|
I Gap between doors |
|
|
3/8'' |
|
|
|
|
J Height of top door |
|
41 |
3/4'' |
K Depth of door gasket |
9/16'' |
||
|
|
|
|
L Depth of evaporator tray behind chassis |
|
1 3/16'' |
|
M Depth of door (open at 90°) (measured from front of door) |
29 5/16'' |
||
|
|
|
|
N Rotation of door (open) |
|
|
138° |
|
|
|
|
* Includes mounted feet |
|
|
|
Minimum Clearances |
|
|
in |
Minimum height of cavity |
68 |
5/16'' |
|
|
|
|
|
Minimum side clearance installed flush with chassis |
|
|
13/16'' |
|
|
|
|
Side clearance (hinge side) installed flush with door - full rotation |
|
5 |
5/16'' |
Rear clearance (including evaporator tray) |
1 |
3/16'' |
|
|
|
|
|
INDICATES PRODUCT DATUM --------------------------------------------
INDICATES CABINETRY CLEARANCES ---------------------------------
DATE: 22.10.2015
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (3/32''). Please read the installation manual for detailed information on installing the product. www.fisherpaykel.com
