SOFTLINE
FREE STANDING RANGE
MODELS RA610 SERIES
230 Volt 50 Hz
517647
December 1995
Fisher & Paykel Ltd
Whiteware Spare Parts
PO Box 58-732, Greenmount
80 Springs Rd, East Tamaki
New Zealand
Tel: (09) 272 0261
Fax: (09) 272 0219
Email: parts@fp.co.nz
COPYRIGHT Ó FISHER & PAYKEL LTD 2003
Fisher & Paykel Customer Services Pty Ltd
A.C.N. 003 3335 171
19 Enterprise Street, Cleveland, QLD 4163
PO Box 798,
Cleveland, QLD 4163
Phone 07 3826 9100
Fax 07 3826 9164
2
C O N T E N T S
SPLASHBACK AREA – CURVED SOFT-TOUCH...............................................................5
MODELS RA610MTDS, RA610MTWS ............................................................................5
SOFT TOUCH CONTROL PANEL & MOUNTING ..............................................................7
MODELS RA610MTDS, RA610MTWS ............................................................................7
CURVED SPLASHBACK AREA CLASSIC ANALOG / F&P ELECTRONIC CLOCK...........9
MODELS RA610MADS, RA610MAWS, RA610MAD, RA610PAW, RA610AWP,
RA610AW, RA610EDS, RA610EWS, RA610MED, RA610H, RA610MEW .....................9
CURVED SPLASHBACK AREA CLASSIC ANALOG / ELECTRONIC CLOCK.................11
MODELS RA610MADS, RA610MAWS, RA610MAD, RA610PAW, RA610AWP,
RA610AW, RA610MEDS, RA610MEWS, RA610MED, RA610H, RA610MEW .............11
ELECTRONIC CONTROL PANEL & MOUNTING.............................................................13
MODELS RA610MEDS, RA610MEWS, RA610MED, RA610MEW ...............................13
CLASSIC ANALOGUE CONTROL PANEL & MOUNTING................................................15
MODELS RA610MADS, RA610MAWS, RA610MAD, RA610PAW, RA610AWP,
RA610AW, RA610H.......................................................................................................15
SMOOTHTOP HOB...........................................................................................................17
MODELS RA610MTDS, RA610MTWS, RA610MADS, RA610MAWS, RA610MEDS,
RA610MEWS .................................................................................................................17
RADIANT ELEMENT HOB ................................................................................................19
MODELS RA610MAD, RA610PAW, RA610MED, RA610MEW, RA610AWP, RA610AW,
RA610H..........................................................................................................................19
MAIN OVEN DOOR AREA ................................................................................................21
MODELS RA610MTDS, RA610MTWS, RA610MADS, RA610MAWS, RA610MAD,
RA610PAW, RA610MEDS, RA610MEWS, RA610MED, RA610MEW, RA610AWP,
RA610AW, RA610H.......................................................................................................21
LOWER OVEN DOOR AREA ............................................................................................23
MODELS RA610MTDS, RA610MADS, RA610MAWS, RA610MAD, RA610MEDS,
RA610MED ....................................................................................................................23
SINGLE OVEN WITH WARMER DRAWER ......................................................................25
MODELS RA610MTWS, RA610MAWS, RA610PAW, RA610MEWS, RA610MEW,
RA610AWP, RA610AW, RA610H..................................................................................25
WARMER DRAWER AREA...............................................................................................29
MODELS RA610MTWS, RA610AWS, RA610PAW, RA610MEWS, RA610MEW,
RA610AWP, RA610AW, RA610H..................................................................................29
DUAL OVEN AREA ...........................................................................................................31
MODELS RA610MTDS, RA610MADS, RA610MAD, RA610MEDS, RA610MED..........31
ACCESSORIES.................................................................................................................35
MODELS RA610MTDS, RA610MTWS, RA610MADS, RA610MAWS, RA610MAD,
RA610PAW, RA610MEDS, RA610MEWS, RA610MED, RA610MEW, RA610AWP,
RA610AW, RA610H.......................................................................................................35
3
4
SPLASHBACK AREA – CURVED SOFT-TOUCH
MODELS RA610MTDS, RA610MTWS
REF PART NO DESCRIPTION
1 572424
2 260160 Ring Compression Knob
3 572420 Endcap Splashback LH No Outlet White
572421 Endcap Splashback RH No Outlet White
4 572232 Endcap Splashback LH White
572233 Endcap Splashback RH White
5 571283 Switch Outlet White
6 572236 Outlet Socket Face Brown
572204 Outlet Socket Face White
7 75220 Outlet Contact
8 572205 Outlet Socket Retainer
9 556012 Screw ST 1024 x ½ T23 HXW PH HS
10 556060 Screw ST 8 x ¼ TAB PH MS NIPL
11 572206 Rail Panel Control Mounting 6106 (Top)
12 572459 Rail Panel Control Mounting 6106 (Bottom)
13 572309 Splashback Top Trim 6106 White
14 471526 Energy Regulator Incl. MTG Nut
15 471443 Energy Regulator Dual Circuit
16 447582 Button Soft Touch White
17 556052 ‘screw 4 x 3/8 Plastic CSK PH NIPL
18* 572340 Insert Console Double Oven Part of item 21
572341 Insert Console Single Oven Part of item 21
19 572323 Controller Console Assy 662XD & 664XDS
572245 Controller Console Assy 661TW & 663TWS
20 572311 Splashback LWR Trim 6106 White
21 Refer Page 6
22 572684 Neon Assy 180mm SGF
23 572619 Gasket splashback Anti Rattle
24 Refer Page 6
25 Refer Page 6
Knob Assy White + Sirocco Insert D 0°
5
6
SOFT TOUCH CONTROL PANEL & MOUNTING
MODELS RA610MTDS, RA610MTWS
REF PART NO DESCRIPTION
1 572314 Panel Control Mounting Energy Regulator
2 572584 Panel Control Mounting Electronic Polycarbonate
3 572583 Bracket Soft Touch Mounting
4 572343 Panel Control & Lense WH RA610MTWS
5 572342 Panel Control & Lense WH RA610MTDS
NOTE:
The number printed on the polycarbonate control panels under the control knob is NOT the
part number for the replacement control panel.
7
8
CURVED SPLASHBACK AREA CLASSIC ANALOG / F&P ELECTRONIC
CLOCK
MODELS RA610MADS, RA610MAWS, RA610MAD, RA610PAW, RA610AWP, RA610AW, RA610EDS, RA610EWS, RA610MED, RA610H, RA610MEW
REF PART NO DESCRIPTION
1 572424
572425
2 260160 Ring Compression Knob
3 572421 Endcap Splashback RH White No Outlet
572420 Endcap Splashback LH White No Outlet
4 572233 Endcap Splashback RH White
572234 Endcap Splashback LH Brown
572235 Endcap Splashback RH Brown
572232 Endcap Splashback LH White
5 572392 Switch Outlet Brown
571283 Switch Outlet White
6 572236 Outlet Face Brown
572204 Outlet Face White
7 75220 Outlet Contact
8 572205 Outlet Socket Retainer
9 556012 Screw ST 1024 x ½ T23 HXW PH HS
10 556060 Screw ST 8 x ¼ TAB MSH PH HS NIPL
11 572206 Rail Panel Control Mounting 6106 Top
12 572459 Rail Panel Control Mounting 6106 Bottom
13 572242 Switch Classic Multifunction EGO 46.37966.503
14 556020 Screw MC M4 x 5 PAN PH MS NIPL
15 571071 Thermostat EGO
16 471526 Energy Regulator Incl. MTG Nut
17 471443 Energy Regulator Dual Circuit
18 471026 Rotary Switch NZC TR205
19 572284 Knob Analog Clock White
572286 Knob Analog Clock Brown
Knob Assy White + Sirocco Insert D 0°
Knob Assy Brown + Sirocco Insert D 0°
9
10
CURVED SPLASHBACK AREA CLASSIC ANALOG / ELECTRONIC
CLOCK
MODELS RA610MADS, RA610MAWS, RA610MAD, RA610PAW, RA610AWP, RA610AW, RA610MEDS, RA610MEWS, RA610MED, RA610H, RA610MEW
REF PART NO DESCRIPTION
20 572197 Insert Analog Clock Black
572196 Insert Analog Clock White
21 572237 Clock Analog Diehl Classic White
572238 Clock Analog Diehl Classic Black
22 572198 Cover Analog Clock
23 572642 Clock Electronic Diehl Orbit Six
24 572671 Button Clock Diehl
25 572309 Splashback Top Trim 6106 White
572310 Splashback Top Trim 6106 Brown
26 572311 Splashback LWR Trim 6106 White
572312 Splashback LWR Trim 6106 Brown
27 MED/MEW/MEDS Models Refer Page 12
ADS-AWS Models Refer Page 14
28 MED MEW MEDS EWR Models Refer Page 12
ADS-AWS Models Refer Page 14
29 572684 Neon Assy 180mm SGF
30 572618 Gasket Splashback Glass
572619 Gasket Splashback Polycarbonate
NI 556018 Screw MC M4 x 8 HEX PH MS NIPL
11
12
ELECTRONIC CONTROL PANEL & MOUNTING
MODELS RA610MEDS, RA610MEWS, RA610MED, RA610MEW
REF PART NO DESCRIPTION
1 572765 Panel Control Mounting MEW-MED Models
2 572645 Panel Control WH Polycarbonate MEWS Models
3 572649 Panel Control WH Polycarbonate MEW Models
4 572643 Panel Control WH Polycarbonate MEDS Models
5 572647 Panel Control WH Polycarbonate MED Models
NOTE:
The number printed on the polycarbonate control panels under the control knob is NOT the
part number for the replacement control panel.
13
14
CLASSIC ANALOGUE CONTROL PANEL & MOUNTING
MODELS RA610MADS, RA610MAWS, RA610MAD, RA610PAW, RA610AWP, RA610AW, RA610H
REF PART NO DESCRIPTION
1 572767 Panel Control Mounting H
2 572762 Panel Control Mounting MADS MAWS MAD PAW AWP
AW
3 572774 Panel Control Polycarbonate WH Models AW AWP
572775 Panel Control Polycarbonate BR Models AW AWP
572628 Panel Control Polycarbonate WH Model PAW
4 572300 Panel Control Glass WH Models MADS
572301 Panel Control Glass BR Models MADS
5 572302 Panel Control Glass WH Models MAWS
572303 Panel Control Glass BR Models MAWS
6 572304 Panel Control Glass WH Models MAD
572305 Panel Control Glass BR Models MAD
572306 Panel Control Glass WH Models MAW
572307 Panel Control Glass BR Models MAW
7 572778 Panel Polycarbonate WH Model H
NOTE:
The number printed on the polycarbonate control panels under the control knob is NOT the
part number for the replacement control panel.
15
16
SMOOTHTOP HOB
MODELS RA610MTDS, RA610MTWS, RA610MADS, RA610MAWS, RA610MEDS, RA610MEWS
REF PART NO DESCRIPTION
1 572395 Vent Cap Brown
2 556011 Screw ST 8 x 12mm TAB MTS PH HS NIPL
3 556504 Washer 4.0 x 10.0 x 0.4 Fibre
4 471879 Trim Oven – Hob 610 Brown
5 571933 Bracket Heat Indicator Mounting
6 355567 Neon Assy Residual Heat Indicator
7 556028 Screw ST 6 x ¾ TAB PAB PH HS NIPL
8 556104 Nut M4 HEX FS MS NIPL
9 556018 Screw MC M4 x 8 HEX PH MS NIPL
10 556513 Washer Lock 5/32 EXT SERR ST Blued
11 355533 Spring Element Retainer
12 571786 Retainer Element Smoothtop 6105
13 355591 Element Assy 165mm Smoothtop
355592 Element Assy 200mm Smoothtop
355556 Element Assy 120/210mm Smoothtop
355557 Element Assy 165/270mm Smoothtop
14 355669 Limiter O/Heat 165mm Element
355670 Limiter O/Heat 200mm Element
355671 Limiter O/Heat 120-210mm Element
355669 Limiter O/Heat 165-270mm Element
15 Part of Item 14
16 Not used
17 572534 Hob & Glass Assy 6106 Rings Non Textured
18 572533 Hob & Glass Assy 6106 Textured
17
18
RADIANT ELEMENT HOB
MODELS RA610MAD, RA610PAW, RA610MED, RA610MEW, RA610AWP, RA610AW, RA610H
REF PART NO DESCRIPTION
1 556011 Screw ST 8 x 12 TAB MTS PH HS NIPL
2 556504 Washer 4.0 x 10.0 x 0.4 Fibre
3 471879 Trim Oven – Hob 610 DK Brown
4 556012 Screw ST 1024 x ½ T23 HXW PH HS
5 556511 Washer Lock 3/16 EXT SERR ST BLU
6 461222 Channel Hob Reinforcement
7 571003 Hob Enamel Radiant Brown
8 572395 Vent Cap Brown
9 571861 Bridge Element 150mm
571862 Bridge Element 200mm
10 571925 Strap Earthing
11 998551 Bowl Element 150mm (incl. items 4, 9, 10)
998550 Bowl Element 200mm (incl. items 4, 9, 10)
12 571831 Liner Bowl 200mm
571833 Liner Bowl 150mm
13 571032 Support Element 150mm
571033 Support Element 200mm
14 83287 Element 150mm (Blow)
83288 Element 200mm (Calm)
998549 Bowl & Element Assy 150mm
998548 Bowl & Element Assy 200mm
15 556513 Washer Lock 5/32 EXT SERR ST BLU
16 556018 Screw MC M4 x 8 HEX PH MS NIPL
17 471947 Washer Sealing
18 471948 Washer Thrust
19 471949 Spring Element
20 556104 Nut M4 HEX FS MS NIPL
21 556040 Screw MC M4 x 20 HEX PH MS NIPL
22 471951 Clamp Element Tails (2 per element)
23 556009 Screw ST 8x 3/8 TAB MSH PH HS NIP
24 572127 Bracket Vent
25 572125 Vent Transition
26 572126 Vent Elbow
19
20

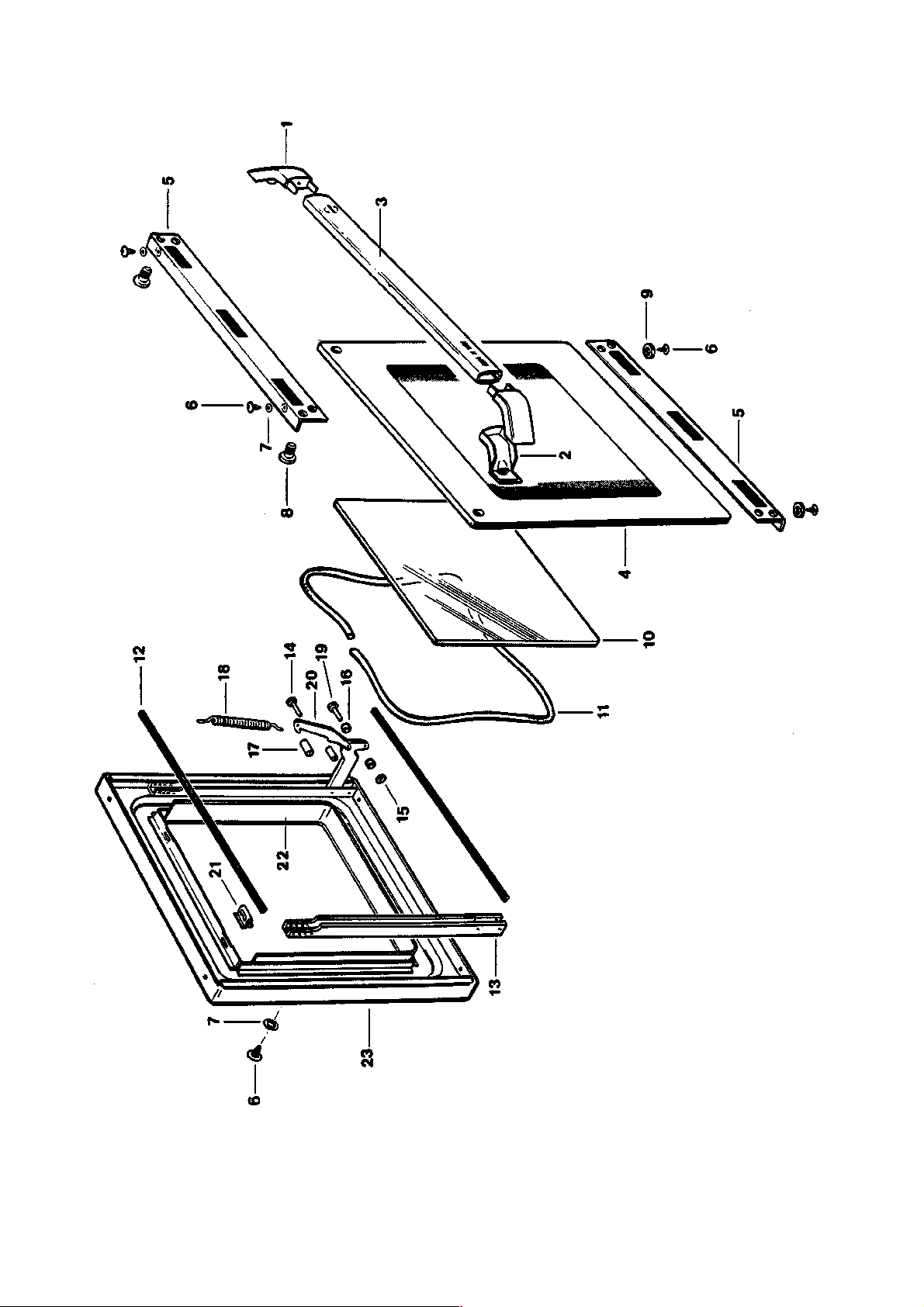

MAIN OVEN DOOR AREA
MODELS RA610MTDS, RA610MTWS, RA610MADS, RA610MAWS, RA610MAD, RA610PAW, RA610MEDS, RA610MEWS, RA610MED, RA610MEW, RA610AWP, RA610AW, RA610H
REF PART NO DESCRIPTION
1 572230 Endcap Handle Curved Brown
572231 Endcap Handle Curved White
2 572226 Grommet Endcap Curved Brown
572227 Grommet Endcap Curved White
3 572451 Handle Curved F&P BR
572478 Handle Curved F&P Classic BR
572432 Handle Curved F&P Multi BR
572375 Handle Curved F&P Multi WH
572376 Handle Curved F&P WH
572477 Handle Curved F&P Classic WH
572476 Handle Curved F&P Soft Touch WH
4 572169 Glass Door Outer 3 Piece Handle White
572170 Glass Door Outer 3 Piece Handle Brown
5 572093 Bracket Inner Door
6 556034 Screw ST 8 x 8mm TAB MTS PH HS NIPL
7 556504 Washer 4.0 x 10.0 x 0.4 Fibre
8 572710 Screw Limit Handle Door
9 75321 Shield Screw Head
10 572113 Glass Door Inner 610 Heat Reflect
11 572240 Gasket Window 1.600m
12 572241 Gasket Door 0.590m
13 471009 Hinge Track
14 471008 Hinge Pin Roller
15 260162 Fastener Push on 6mm SFO2985
16 74143 Spacer Hinge
17 74145 Hinge Roller
18 471150 Spring Door Oven
19 471007 Hinge Pin
20 471043 Hinge Slide Arm Assy
21 571733 Clip Window Pack 610
22 572408 Trim Window Powder Coated
23 572239 Door Inner Enamel 6106 DK Brown
21
22
LOWER OVEN DOOR AREA
MODELS RA610MTDS, RA610MADS, RA610MAWS, RA610MAD, RA610MEDS, RA610MED
REF PART NO DESCRIPTION
1 572219 Handle Curved 6106 White
572220 Handle Curved 6106 Brown
2 572231 End Cap Curved White
572230 End Cap Curved Brown
3 572227 Grommet Endcap Curved White
572226 Grommet Endcap Curved Brown
4 556034 Screw ST 8 x 8 TAB MTS PH HS NIPL
5 556504 Washer 4.0 x 10.0 x 0.4 Fibre
6 75321 Shield Screw Head
7 572175 Glass Door Handle LWR 3 Piece White
572176 Glass Door Handle LWR 3 Piece Brown
8 572509 Bracket Inner Door Lower 6106
9 471045 Insulation
10 572710 Screw Limit Handle Door
11 572046 Vent Lower Oven Brown
12 572241 Gasket Door 0.590m
13 471010 Hinge Track Lower
14 471008 Hinge Pin Roller
15 260162 Fastener Push on 6mm SFO2985
16 74143 Spacer Hinge
17 74145 Hinge Roller
18 471043 Hinge Slide Arm Assy
19 471384 Spring Door Lower Oven
20 471007 Hinge Pin
21 572352 Door Inner Lower Enamel DK Brown
23
24
SINGLE OVEN WITH WARMER DRAWER
MODELS RA610MTWS, RA610MAWS, RA610PAW, RA610MEWS, RA610MEW, RA610AWP, RA610AW, RA610H
REF PART NO DESCRIPTION
1 556003 Screw ST 6 x 3/8 T25 PAN PH HS NIP
2 572075 Panel Sub Hob 6106
3 572327 Cover Wiring Splashback Curved
4 572718 Cover Wiring Back 6106
572884 Cover Wiring Back 610AWP
5 572076 Stanchion Rear LH Curved White
572077 Stanchion Rear RH Curved White
6 556002 Screw ST 6 x ½ TAB HXW PH NIP
7 571297 Plug Stanchion White
8 461189 Fuse Carrier
9 556019 Screw MC M4 HEX FS MS NIPL
10 556019 Nut M4 HEX FS MS NIPL
11 556511 Washer Lock 3/16 EXT SERR ST BLU
12 471156 Fuse Base
13 556012 Screw ST 1024 x ½ T23 HXW PH HS
14 572086 Fuse Mounting
15 572117 Controller Power Electronic
16 75243 Clip Element Locking
17 571715 Clip Cable Retainer
18 471884 Bracket Hob Locking Front 610
19 556022 Screw MC M5 x 20 PAN PH MS NIPL
20 556105 Nut M5 HEX FS MS NIPL
21 556015 Screw ST 1024 X 7/8 T23 HXW PH HS
22 74152 Clamp Cable Entry
23 75017 Plate Cable Entry
24 12195 Grommet Wiring
25 354072 Cover Inspection
26 571293 Cap Trim White
27 471973 Trim Cabinet
28 556017 Screw MC M6 x 16 FS HEX MS NIPL
29 556516 Washer Spring 6mm ST ZN PL
30 556107 Nut M6 HEX 10AF FS MS ZN PL
31 572850 Foot Protector M8
32 472059 Foot Levelling M8
25
26
REF PART NO DESCRIPTION
33 556509 Washer 8.0 x 21.0 x 1.0 MS NIPL
34 471014 Foot Moulding M8
35 471020 Stanchion
36 556046 Screw SD No12 x 20mm HEX ZNPL
37 571644 Probe Meat
38 461017 Trim Seam
39 571645 Socket Probe Meat Diehl 13904-11
40 572633 Gasket Main Oven 1200mm
41 571630 Probe TEM Sensor HY CAL
42 571872 Mains Terminal Block 004-1
43 571460 Bracket Transit Rail
44 461332 Hook Bolt
45 461286 Hook Bolt Washer
46 461592 Axle Roller Plated
47 260080 Roller Cabinet
48 461287 Bracket Wheel Mounting
49 572526 Frame Top Oven Enamel Brown
50 572138 Oven Enamel Brown 6106
572139 Oven Enamel Brown 6106 Electro
51 571673 Harness Meat Probe
52 75045 Hinge Guide Anchor
53 572045 Hinge Guide
54 572129 Casing Lower Insulation 6106
55 246152 Bearing Rear Drawer Pan
56 572271 Drawer Pan 6106 Brown
57 *Drawer Front Refer Page 28
*Door Glass LWR Refer Page 28
58 *Handle Warmer Drawer Refer Page 28
59 74123 Clip Element Warmer Drawer
60 471328 Element Warmer Drawer 600W
61 246153 Bearing Front Drawer Slide
62 572107 Slide Drawer LH Pressing
572108 Slide Drawer RH Pressing
63 572036 Panel Side White
64 572089 Panel Rear
*NOTE: - Used on Model RA610TWS only
27
28
WARMER DRAWER AREA
MODELS RA610MTWS, RA610AWS, RA610PAW, RA610MEWS, RA610MEW, RA610AWP, RA610AW, RA610H
REF PART NO DESCRIPTION
1 556002 Screw ST 6 x ½ TAB HXW PH HS NIP
2 556504 Washer 4.0 x 10.0 x 0.4 Fibre
3 571370 Drawer Front White
572101 Drawer Front Brown
4 572223 Handle Warmer Drawer White – Curved
572224 Handle Warmer Drawer Brown – Curved
5 556064 Screw MC M5 x 12 MSH SL MS NIPL
* 556024 Screw MC M5 x 16 MSH SL MS NIPL
6 571373 Spacer Handle Square White
461456 Spacer Handle Square Brown
7 556515 Washer Spring 3/16 ST ZNPL
8 556105 Nut M5 HEX FS MS NIPL
9 572444 Drawer Front Inner Enamel
10 75321 Shield Screw Head
11 572241 Gasket Door 0.590m
12 572093 Bracket Inner Door 6106
13* 572219 Handle Curved 6106 White
14* 572231 End Cap Handle Curved White
15* 572227 Grommet Endcap Curved White
16* 572710 Screw Limit Handle Door
17* 572579 Glass Door LWR 3 Piece Handle White
18 556034 Screw ST 8 x 8 TAB MTS PH HS NIPL
*Used on Model RA610TWS
29
30

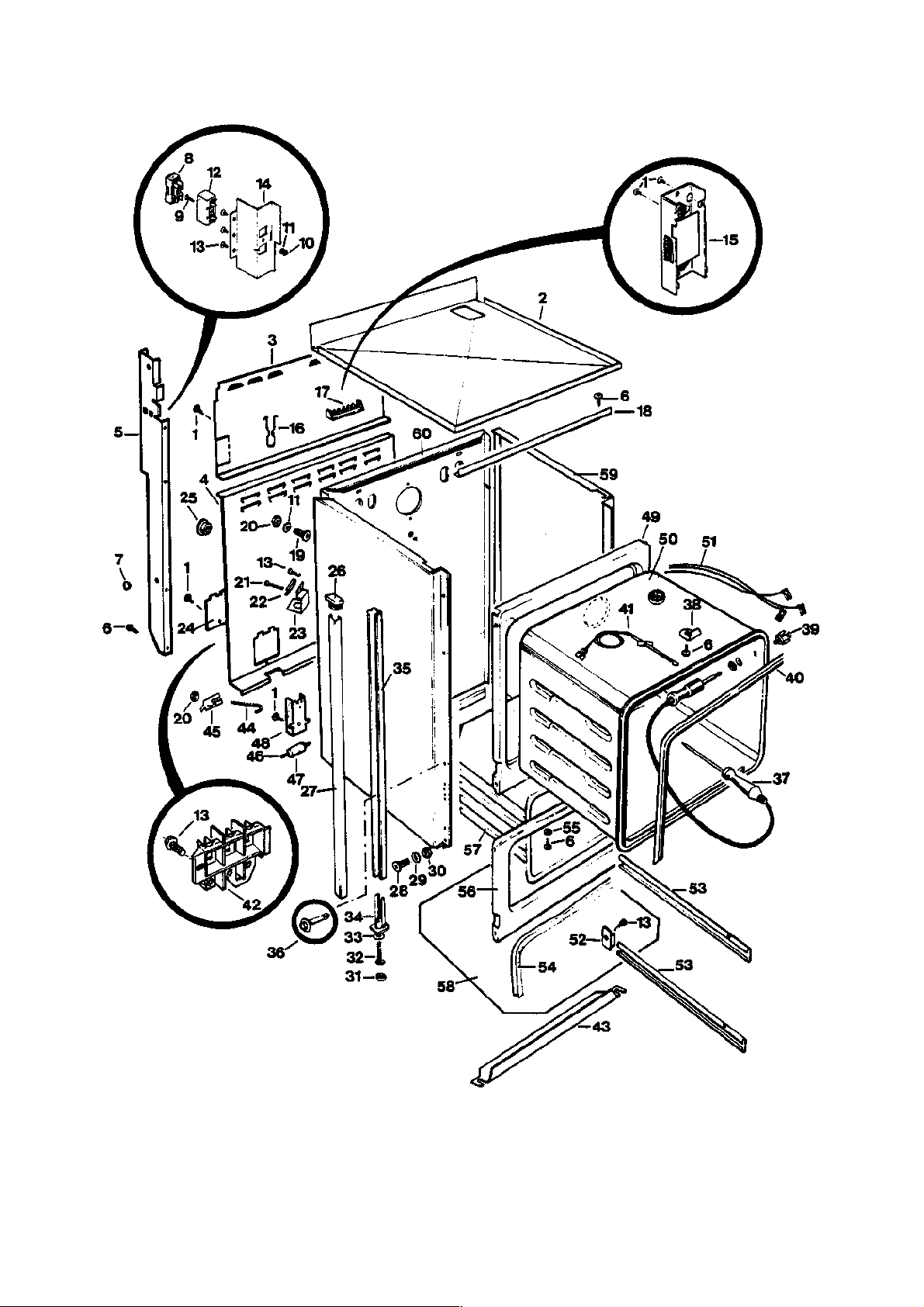

DUAL OVEN AREA
MODELS RA610MTDS, RA610MADS, RA610MAD, RA610MEDS, RA610MED
REF PART NO DESCRIPTION
1 556011 Screw ST 8 x 12mm TAB MTS PH HS NIPL
2 572075 Panel Sub Hob 6106
3 572327 Cover Wiring Splashback Curved
4 572718 Cover Wiring Back 6106
5 572076 Stanchion Rear LH Curved White
572077 Stanchion Rear RH Curved White
6 556002 Screw ST 6 x 1/2 TAB HXW PH HS NIP
7 571297 Plug Stanchion White
8 461189 Fuse Carrier
9 556019 Screw MC M4 x 16 CSK PH MS NIPL
10 556104 Nut M4 HEX FS MS NIPL
11 556511 Washer Lock 3/16 EXT SERB ST BLU
12 471156 Fuse Base
13 556012 Screw ST 1024 x 1/2 T23 HXW PH HS
14 572086 Fuse Mounting
15 572117 Controller Power Electronic
16 74123 Clip Element Lock
17 571077 Clip Cable Retainer
18 471884 Bracket Hob Locking Front 610
19 556022 Screw MC M5 x 20 PAN PH MS NIPL
20 556105 Nut HEX FS MS NIPL
21 556015 Screw ST 1024 x 7/8 T23 HXW PH HS
22 74152 Clamp Cable Entry
23 75017 Plate Cable Entry
24 354072 Cover Inspection
25 12195 Grommet Wiring
26 571293 Cap Trim White
27 471973 Trim Cabinet
28 556017 Screw ST MC M6 x 16mm ST ZNPL
29 556516 Washer Spring 6MM ST ZNPL
30 556107 Nut M6 HEX 10AF FS MS ZNPL
31 572850 Foot Protector
32 473059 Foot Leveling M8
31
32
REF PART NO DESCRIPTION
33 556509 Washer 8.0 21.0 1.0 MS NIPL
34 471014 Foot Moulding M8
35 471020 Stanchion
36 556046 Screw SD NO 12 x 20mm HEX ZN PL
37 571644 Probe Meat
38 461017 Trim Seam
39 571645 Socket Meat Probe
40 572633 Gasket Main Oven 1200MM
41 571630 Temperature Sensor
42 571872 Mains Terminal Block 004-1
43 571460 Bracket Transit Rail
44 461332 Hook Bolt
45 461286 Hook Bolt Washer
46 461592 Axle Roller Plated
47 260080 Roller Cabinet
48 461287 Bracket Wheel Mounting
49 572526 Frame Top Oven Enamel
50 572138 Oven Enamel DK Brown 6106
572139 Oven Enamel DK Brown 6106 Electronic
51 571673 Harness Meat Probe
52 75045 Hinge Guide Anchor
53 572045 Hinge Guide
54 471035 Gasket Lower Oven 810MM
55 556503 Washer 3/16 1/2 20BG MS NIPL
56 572527 Frame Lower Oven Enamel
57 572281 Oven Lower Enamel DK Brown
572336 Oven Lower Enamel DK Brown Electronic
58 572283 Cover Insulation LWR Oven
59 572036 Panel Side
60 572089 Panel Rear
33
34
ACCESSORIES
MODELS RA610MTDS, RA610MTWS, RA610MADS, RA610MAWS, RA610MAD, RA610PAW, RA610MEDS, RA610MEWS, RA610MED, RA610MEW, RA610AWP, RA610AW, RA610H
1 571909 Lamp Assy Oven
2 761001 Glass Cover
3 404000 Lamp 40W/240V SES
4 571630 Probe Temp Sensor HY CAL
5 556002 Screw ST 6 x 1/2 TAB HXW PH HS NIP
6 471651 Clip Thermostat Tube 3MM
7 572396 Element Assy Grill & Bridge Elect
8 572203 Hanger Element Mounting
9 572020 Element Assy Grill/Bake Assist
10 572015 Element Assy Bake 6106
11 572860 Element Assy LWR OVEN
12 572278 Guard Element Enamel Brown
13 461369 Retainer Element micro Tube
14 556018 Screw MC M4X8 HEX PH MS NIPL
15 556513 Washer Lock 5/32 EXT SERB ST BLU
16 572524 Grill Plate Enamel Brown
17 572523 Grill Dish Enamel Brown
18 471344 Rack Grill Plated
19 572023 Tray Oven 610
20 461417 Rack Bake Plated
21 461484 Rack Lower Oven Plated
22 556037 Screw ST 8 x 5/8 TAB PAN PH SER NIPL
23 572063 Motor Fan
24 471532 Blade Fan
25 471533 Nut Lock Fan
26 572525 Shroud Fan Brown
27 244070 Retainer Element 3/8
28 471426 Plug Oven
NI 872885 Card Sales Registration
NI 571972 Card Warranty
NI 572672 Book Use & Care Multifunction
35
Loading...
