Installation instructions and user guide

Slideout rangehood

HS60CSW1, HS60CSX1, HS60CIW1, HS60CIX1 models

NZ AU

Contents

Safety and warnings

1

Installation instructions

2

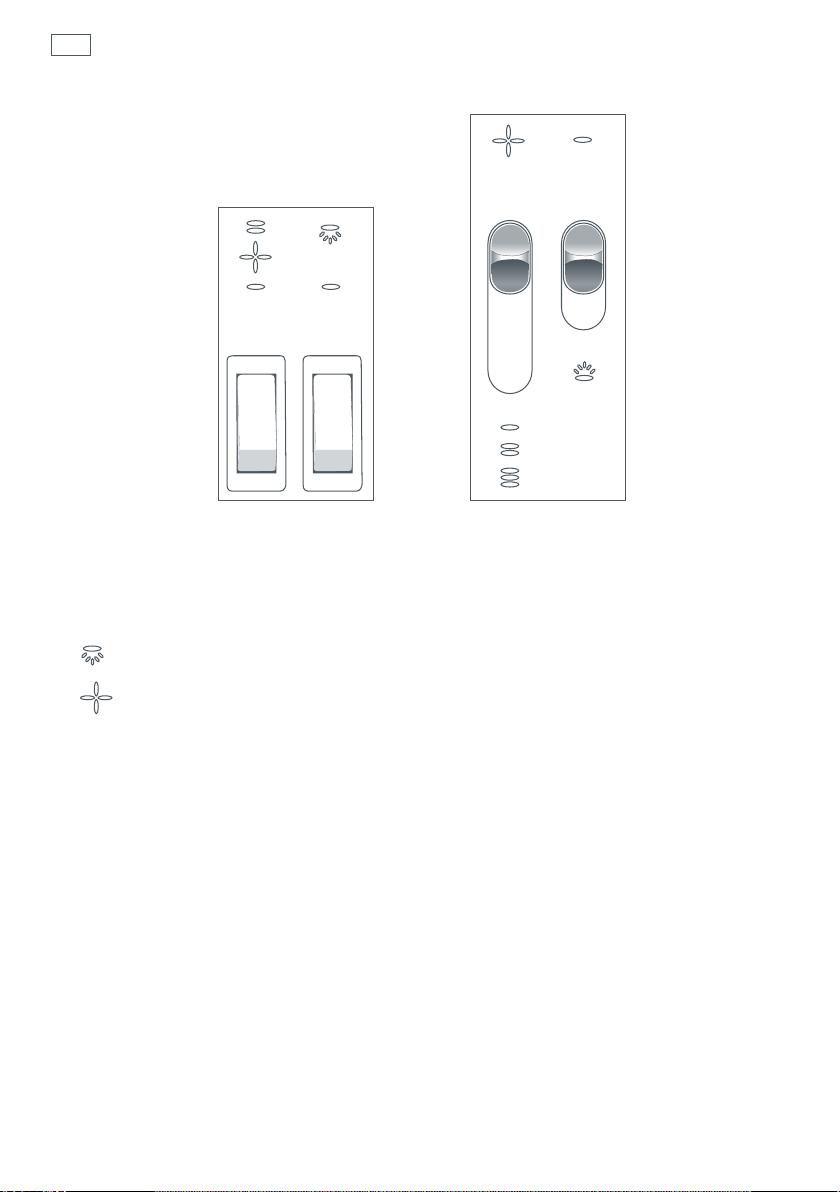

Getting started quickly

6

Cleaning and maintenance

7

Manufacturer’s warranty

8

Customer care

9

Important!

SAVE THESE INSTRUCTIONS

The models shown in this user guide may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please visit our local website listed on the back cover or contact your local Fisher & Paykel dealer.

Safety and warnings 1

Important!

Please read the entire set of instructions before installing the rangehood.

This rangehood is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the rangehood. There must be adequate ventilation of the room when the rangehood is used at the same time

as appliances burning gas or other fuels. (A partial vacuum in the room could result in too high a concentration of gas in the air).

You must read the details concerning the method and frequency of cleaning. There is a fire risk if cleaning is not carried out in accordance with the instructions. Do not flambé under the rangehood.

Exhaust air must not be discharged into an existing flue that is used for exhausting fumes from appliances burning gas or other fuels.

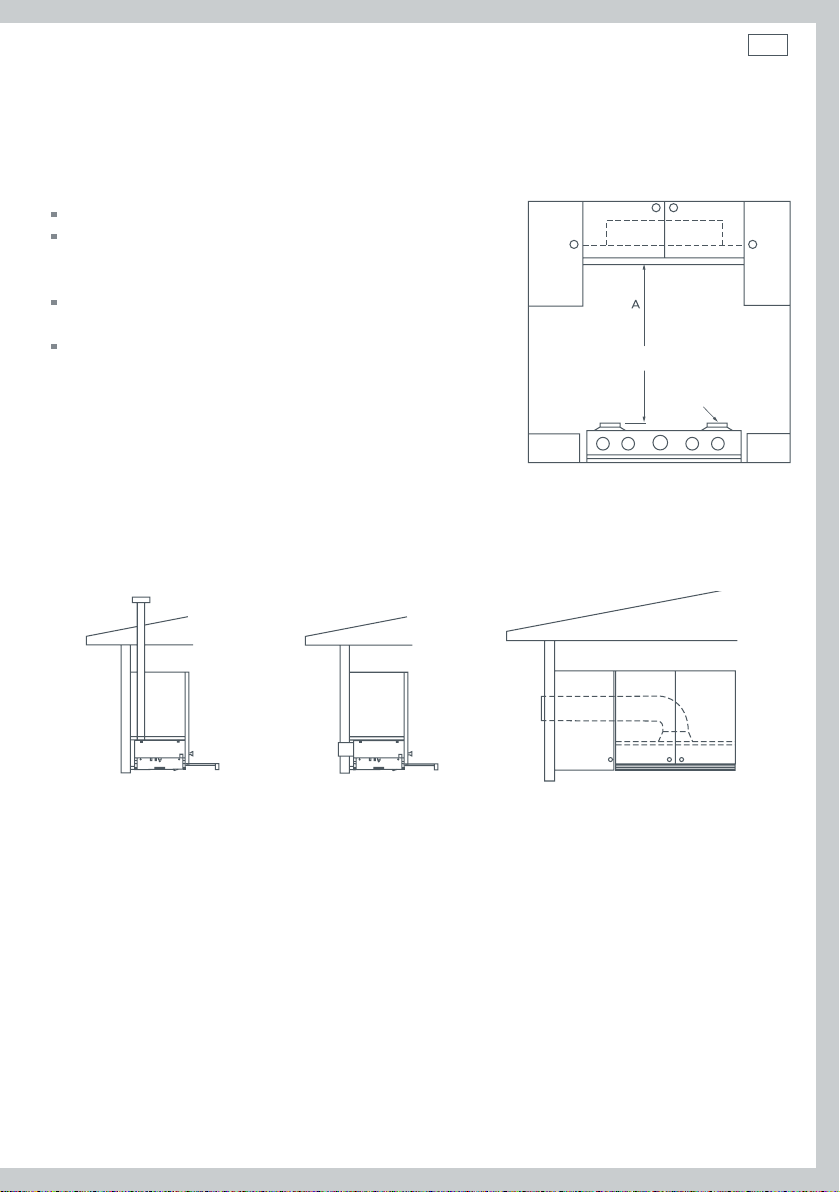

The minimum distance between the cooktop surface and the filters of the rangehood shall be 600 mm, or 650 mm if installed over a gas cooktop.

Attention should be given to ensure that any applicable regulations concerning the discharge of exhaust air is fulfilled.

If the supply cord of this equipment is damaged it must only be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

Always switch the power off prior to installation, servicing or cleaning the rangehood. Never use the rangehood without the filters in place.

Stainless steel or powdercoat is very easily damaged during installation if abraded or knocked by tools. It is recommended to protect the top of the rangehood with cardboard or plastic bag during the installation to minimise the risk of damage occurring.

A power outlet should be within 750 mm of the motor assembly and can be either on the wall, behind the chimney or in the ceiling.

To comply with electrical safety regulations, this rangehood must be plugged into a socket near the appliance. The socket must be accessible, or have an accessible isolating switch, to enable the end user to isolate the rangehood from the power for the purpose of internal cleaning or maintenance. Ducting accessories are not supplied. All ducting must comply with local requirements and building codes.

WARNING!

Electrical Shock Hazard

All electrical work must be done in accordance with local and/or national electrical codes as applicable. For safety, this product must be earthed. If you are unfamiliar with methods of installing electrical wiring, employ the services of a qualified electrician. Turn off power at service entrance before installing wiring or servicing this product.

WARNING!

Weight Hazard

The rangehood is heavy. Please ensure adequate care is taken when installing the rangehood to prevent personal injury. The rangehood must be installed onto a solid wall, stud, beam or truss. Weight of the product is 6.5 kg.

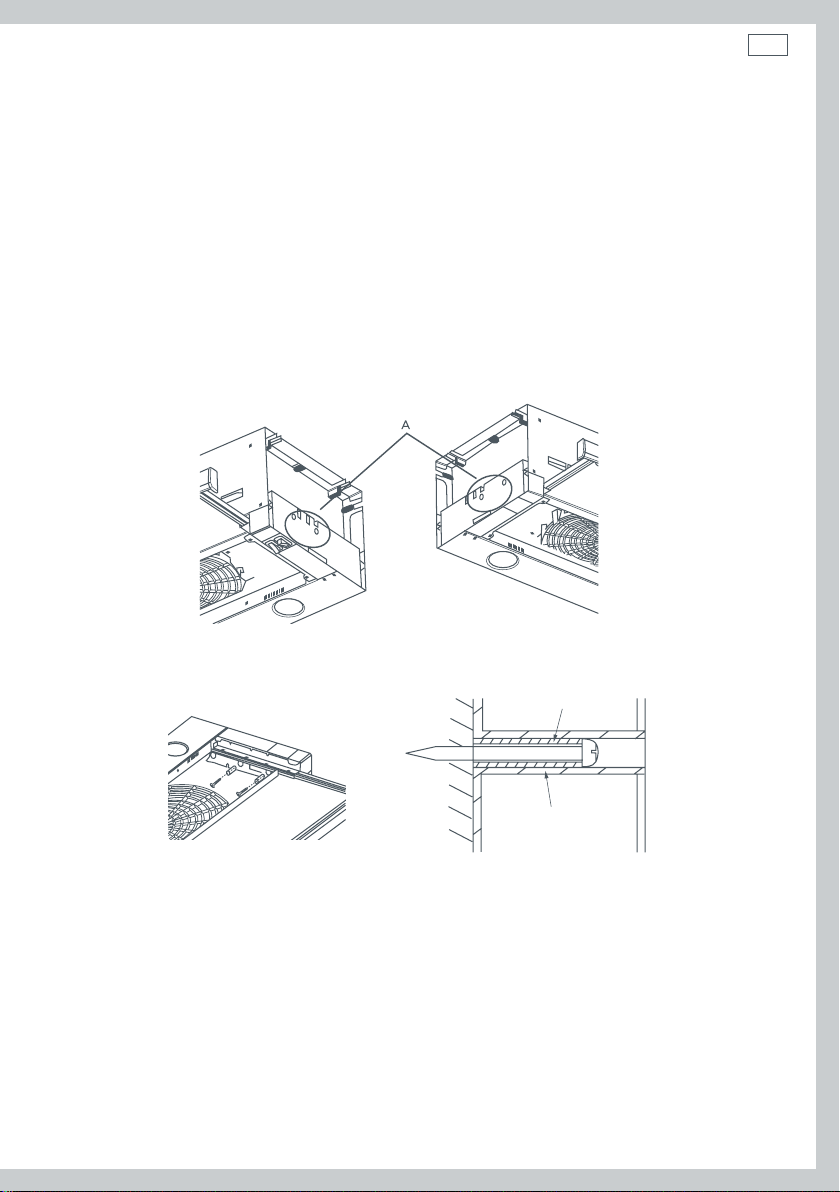

2 Installation instructions

Thank you for purchasing a quality Fisher & Paykel rangehood. Each rangehood is tested and approved before it leaves the factory, ensuring our high standard of quality control is met.

Contents of packaging



1 x rangehood



1 x installation instructions



4 x Spacer Tube 25.4 mm



4 x Screw 8x1.5”



4 x Screw 8x1”



Typical equipment required:



Electric drill



Screwdriver



Duct tape (if ducting)



Jig saw (if ducting)



Ladder (if ducting)

Fig.1 Slideout rangehood

Ducting



Tape measure



Drill bits



Spirit level



Accessories



Accessory

Part Number

Replacement aluminium filter

R103794

Charcoal filter

R103794C

Light bulb

R111020
