INSTALLATION INSTRUCTIONS
USER GUIDE
Built-In Integrated Rangehood
HP60IDCHX2, HP90IDCHX2,
HP60IDCHX3 and HP90IDCHX3 models
NZ AU ROW
CONTENTS
Introduction 3
Safety and warnings 4
Installation instructions 7
Operating instructions 15
Cleaning and maintenance 16
Parts and accessories 18
Manufacturer’s Warranty 19
Customer Care 21
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may
not be available in all markets and are
subject to change at any time. For current
details about model and specification
availability in your country, please go to
our website www.fisherpaykel.com or
contact your local Fisher & Paykel dealer.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
www.fisherpaykel.com
1
INTRODUCTION
Thank you for purchasing a Fisher & Paykel product.
Thousands of hours go into the design, engineering, testing and perfecting of each
Fisher & Paykel appliance. The care and attention given to creating these beautiful
products doesn’t stop once it has found its home with you.
This use and care manual will answer most of your questions about the set-up, use and
on-going maintenance of your Fisher & Paykel product; however if you require further
information about your product and its use please consult our website for solutions
and further contact information to discuss with a service representative.
To ensure you receive all relevant product updates and the best service possible,
please register your Fisher & Paykel products through our website.
3
8.2 kg
(HP60)
11.5 kg
(HP90)
SAFETY AND WARNINGS
!
WARNING!
Weight Hazard
The appliance is heavy. Please ensure adequate care is taken when
installing the appliance to prevent personal injury. The appliance must be
installed onto a solid wall, stud, beam or truss. Weight of the product is
8.2 kg (HP60)/ 11.5 kg (HP90).
!
WARNING!
Electric Shock Hazard
Always disconnect the appliance from the mains power supply before
carrying out any maintenance or repairs. Alterations to the domestic wiring
system must only be made by a qualified electrician.
Failure to follow this advice may result in electrical shock or death.
4
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
When using this appliance always exercise basic safety precautions including
thefollowing:
Please read the entire set of instructions before installing or using this appliance.
Please make this information available to the person installing the appliance – doing
so could reduce your installation costs.
Always switch the power off prior to installation, servicing or cleaning of
therangehood.
This appliance must be installed and connected to the mains power supply only
by a suitably qualified person according to these installation instructions and in
compliance with any applicable local building and electricity regulations. Failure
toinstall the appliance correctly could invalidate any warranty or liability claims.
To comply with electrical safety regulations, the rangehood must be plugged into
a socket near the appliance. The socket must be accessible, or have an accessible
isolating switch, to enable the end user to isolate the rangehood from the power for
the purpose of internal cleaning or maintenance.
A power outlet should be within 750 mm of the motor assembly and can either be
onthe wall, behind the chimney or in the ceiling.
If the supply cord of this equipment is damaged, it must only be replaced by the
manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
Ducting accessories are not supplied. All ducting must comply with local requirements
and building codes.
Attention should be given to ensure that any applicable regulations concerning the
discharge of exhaust air are fulfilled.
Before connecting any pipes, consult municipal ordinances to ensure that any
applicable regulations concerning the discharge of exhaust air are adhered to and
request permission from the person in charge of the building.
Exhaust air must not be discharged into an existing flue that is used for exhausting
fumes from appliances burning gas or other fuels.
There shall be adequate ventilation of the room when the rangehood is used at the
same time as appliances burning gas or other fuels.
The minimum distance between the supporting surface for cooking vessels on the
cooktop and the lowest part of the rangehood shall be 600 mm or 650 mm ifinstalled
over a gas cooktop.
Stainless steel is very easily damaged during installation if abraded or knocked by
tools. It is recommended to protect the top of the rangehood with cardboard or
polystyrene during the installation to minimise the risk of damage occurring.
To reduce the risk of damage occurring to the cooktop, it is recommended that
the surface of the cooktop is protected with cardboard or a similar object during
installation of the rangehood.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning the use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure they do not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
5
SAFETY AND WARNINGS
You must read the details concerning the method and frequency of cleaning.
There is a fire risk if cleaning is not carried out in accordance with the instructions.
Never leave frying food unattended since grease can overheat and catch fire. The risk
of fire is even greater in the case of used oil.
Do not flambé under the rangehood.
Never use the rangehood without the filters in place.
During an electrostatic discharge (ESD) it is possible that the device will stop
working. By switching the device off and on the device will again work as intended.
CAUTION: accessible parts may become hot when used with cooking appliances.
Remove all packaging, including protective wrappings, before use.
6
Contents of packaging
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
USER GUIDE
Built-In Integrated Rangehood
HP60IDCHX2, HP90IDCHX2,
HP60IHCB3 and HP90IHCB3 models
NZ AU ROW
Rangehood
(1)
125mm ducting
adapter (1)
Installation instructions
User guide manual
(1)
13mm screw
(2)
150mm ducting adapter
with non return flap
(1)
7
INSTALLATION INSTRUCTIONS
Product and cabinetry cutout dimensions
Ducting adapter
(A)
A
K
J
L
Ø
Power cord location
H
I
D
F
C
O
E
B
G
M
N
N
M
HP60 HP90
8
INSTALLATION INSTRUCTIONS
HP60 HP90
PRODUCT DIMENSIONS mm mm
Overall height of product
A
(with ducting adapter)
Overall width of product 530 830
B
Overall depth of product 280 280
C
Thickness of flange 2 2
D
Width of chassis 492 792
E
Depth of chassis 255 255
F
Height of side of chassis 120 120
G
Width of top surface of chassis 220 220
H
Length of angled surface of chassis 260 335
I
Distance from centre of ducting outlet
J
toback of chassis
Distance from centre of ducting outlet
K
toside of chassis
Diameter of ducting outlet 150 150
L
Distance between centre of lights 80 285
M
Distance from centre of light to back
N
ofproduct
Length of power cord 950 950
CABINETRY CUTOUT DIMENSIONS
Overall width of cutout 500 800
Overall depth of cutout 260 260
Base of brackets/clips to bottom of chassis min. 15 – max. 40 min. 15 – max. 40
O
350
(395)
145 145
245 395
70 115
(360)
315
IMPORTANT!
Actual product dimensions may vary by ± 2mm.
Please read the entire instructions before installing the rangehood.
9
Height of rangehood
INSTALLATION INSTRUCTIONS
P
MINIMUM CLEARANCES mm
Height top of cooktop to base of product
P
Electric cooktop
Gas cooktop
Rangehood installation height above the cooktop is the user’s preference. Lower
installation heights will improve the efficiency of capturing cooking odours, grease,
and smoke. This rangehood must be installed between the minimum and maximum
dimensions indicated in the table above.
10
min. 600 – max. 750
min. 650 – max. 750
INSTALLATION INSTRUCTIONS
Venting options
Attention should be given to ensure that any applicable regulations concerning the
discharge of exhaust air are fulfilled.
The rangehood can be installed to operate with the exhaust air ducted externally from
the kitchen, or installed to operate with the exhaust air recirculating within the kitchen.
Ducted
For ducted installation it is recommended that 150mm diameter, rigid or semi-rigid
ducting is used. This will require a 160mm (min) round hole in the ceiling or wall. Care
should be taken to position the hole correctly.
For optimal efficiency use the shortest and straightest duct route possible and use rigid
or semi-rigid ducting for reduced noise and increased airflow. Flexible metal ducting
should only be used as a last resort (ie in difficult installations) and if used ensure that it
is straight and smooth and extended as much as possible.
Recirculating
Where ducting outside is not a practical option, this rangehood can be installed to
operate with the air recirculating. Carbon filters are required to remove odours from
the air before it is channelled through the ducting back into the room or overhead
bulkhead (refer to ‘Parts and accessories’ section). Ensure that the ducting outlet is not
obstructed, even a partial obstruction will restrict the efficiency of the rangehood.
11
INSTALLATION INSTRUCTIONS
2.3
2.2
2.1
WARNING!
This appliance is heavy and requires two persons for unpacking and installation
Installation work and electrical wiring must be done by qualified person(s) in
accordance with all applicable codes and standards.
Failure to install the screws or fixing device in accordance with these instructions
mayresult in electrical hazards
IMPORTANT!
Wear gloves to protect against sharp edges.
The manufacturer is not liable for any damage caused by not following these instructions.
Installation
Prepare for installation.
1
Before installing your rangehood:
Please read the instructions carefully.
Unpack the rangehood and check that all functions are working.
Ensure that the voltage (V) and the frequency (Hz) indicated on the serial plate
match the voltage and frequency at the installation site.
The stainless steel and glass surfaces of the rangehood are very easily damaged
during installation if grazed or knocked by tools. Please take care to protect the
surfaces during installation.
Protect the cooktop surface below with cardboard, or the like, to prevent damage
occurring whilst the rangehood is being installed above.
Fit the 150mm ducting adapter with non return flap to the rangehood using the
2
screwssupplied.
Provide an opening on the underside of the cupboard (see product and cabinetry
3
cutout dimensions).
width
depth
12
INSTALLATION INSTRUCTIONS
360˚
Remove the filters and face plate of the rangehood.
4
1
3 4
2
360˚
5
6
13
INSTALLATION INSTRUCTIONS
width
depth
2.3
2.2
2.1
2.2
2.1

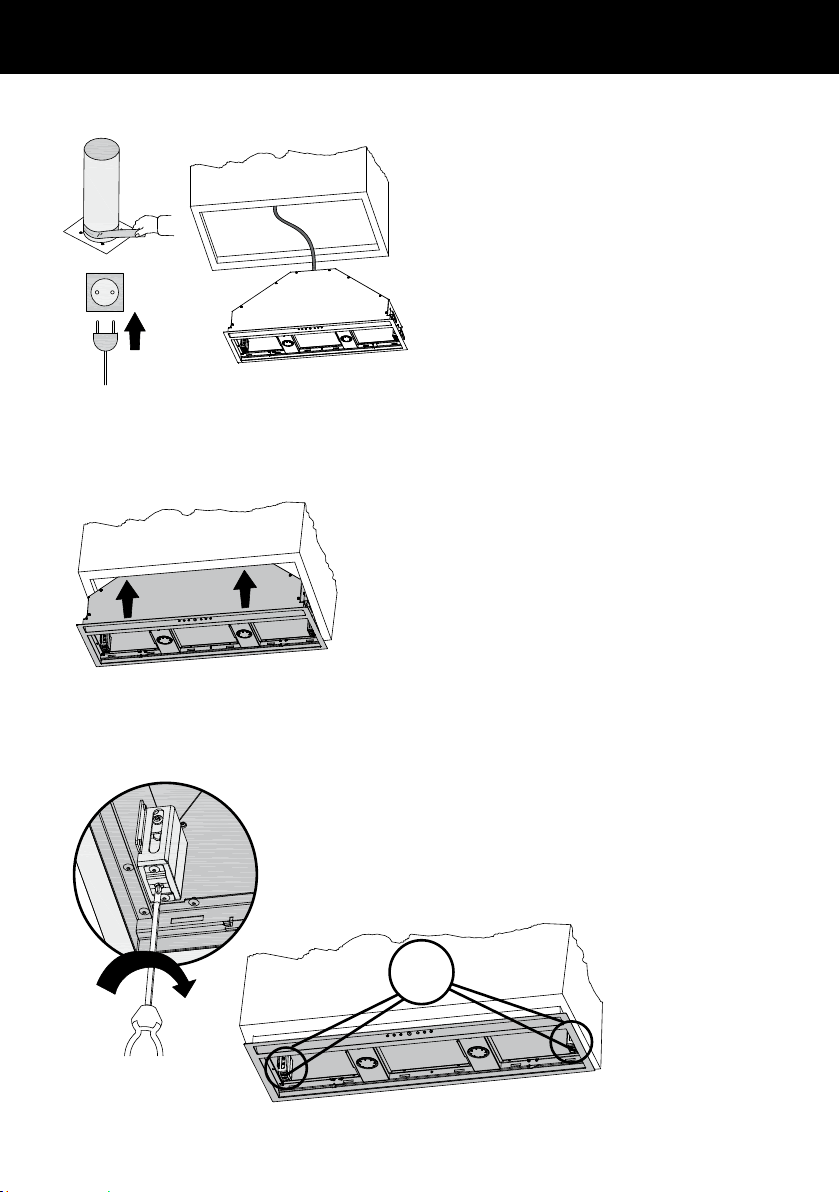

Connect duct and plug rangehood in.
5
Lift the rangehood and fit through the opening of the cupboard till the spring loaded
6
brackets / clips hold the product in place.
Secure rangehood while tightening the 4 brackets / clips.
7
x4
14
OPERATING INSTRUCTIONS
Touch control panel
CONTROL PANEL FEATURES
Filter
cleaning alert
Timer Turn the timer on. The fan operates for
Lights Turn the lights on or off. The lights turn on
Power on/off Turn the rangehood on or off. The fan
Fan speed 1 – 3 Adjust the fan speed levels from 1 – 3 with 1
Activated regularly to alert of the need to
clean filters. It can be deactivated with a
singlepress.
5minutes at the current speed and each
descending speed before turning off.
tothe last level selected.
Press and hold to adjust the level of light.
automatically turns on to operate at level 1.
being the lowest level and 3 being the highest.
The fan speed level icon illuminates red
whenselected.
15
CLEANING AND MAINTENANCE
WARNING!
Unplug or disconnect the appliance from the power supply before servicing
orcleaning.
When replacing the bulb, let the bulb cool, and assure that power to the
rangehoodhas been turned off. Use new bulbs according to that indicated
ontherangehood nameplate.
IMPORTANT!
Never use abrasive or oil based cleaners
Wear gloves to protect against sharp edges
Maintenance
The rangehood should be cleaned regularly using a
mild, liquid detergent and a clean soft cloth to avoid a
build-up of grease occurring. Avoid the use of corrosive
chemicals, abrasive cleaning products, hard brushes
and steel wool pads. Grease deposits are corrosive
which can cause damage to your rangehood.
Note: in areas of high humidity or coastal environments,
cleaning should be carried out more frequently.
Aluminium filters
Depending on use, and at least once a month, the aluminium grease filters should be
removed and cleaned with hot soapy water or in a dishwasher.
If washed in a dishwasher, the filters should be placed in an upright position to prevent
food from falling on them.
After rinsing and drying, replace the filters.
Note: some discolouration of the frames may occur.
Removing the aluminium filters:
Open the glass panel.
1
Pull the relative filter catch, tilting it downwards until it disengages from the supports.
2
Reverse these instructions when refitting the filters.
3
Carbon filters – for use in recirculation mode
Active carbon filters are disposable items designed to remove grease and odours from
cooking vapours before the air is channelled back into the kitchen. The active carbon
filters must be replaced periodically to work properly, at least once every three months,
depending on the frequency with which the rangehood is used.
Note: fully saturated carbon filters can become a barrier to air movement therefore
limiting rangehood performance. In the event of fire, grease laden filters could be
flammable and therefore regular replacement is recommended.
16
CLEANING AND MAINTENANCE

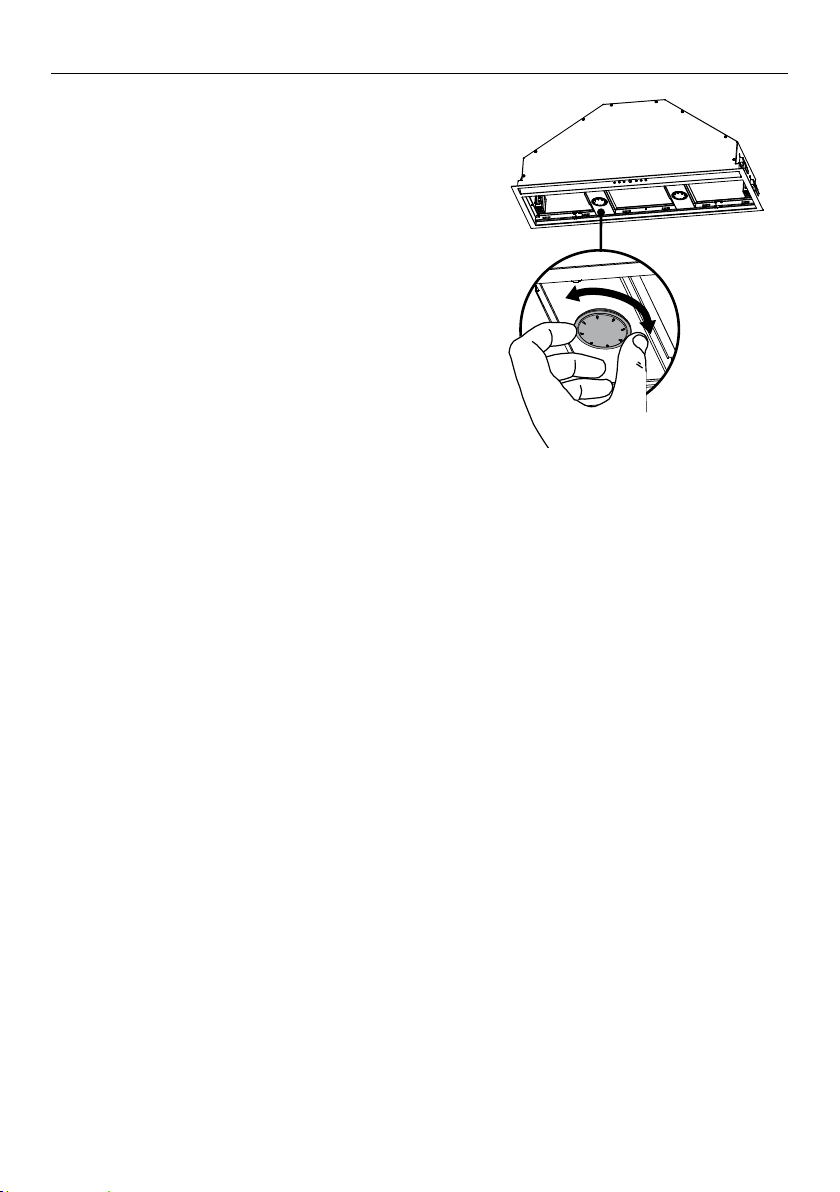

Light bulb replacement
Note: replacement bulbs are not covered
bywarranty.
Open the glass panel.
1
Remove the aluminium filters.
2
Unscrew the light bulb.
3
Insert the replacement bulb into the lamp socket.
4
Replace the aluminium filters.
5
Replace the glass panel.
6
Bulb replacement
17
PARTS AND ACCESSORIES
ITEM REFERENCE NUMBER
LED bulb x2 792393
Aluminium filter 792429
Recirculation carbon filter x2 792481
Ducting 150mm kit (eaves) PD-RHK150E
Ducting 150mm kit (wall) PD-RHK150W
18
MANUFACTURER’S WARRANTY
You automatically receive a 2 year Manufacturer’s Warranty with the purchase ofthis
Built-In Integrated Rangehood covering parts and labour for servicing within the country
of purchase.
Fisher & Paykel undertakes to:
Repair or, at its option, replace without cost to the owner either for material or labour
any part of the product, the serial number of which appears on the product, which is
found to be defective within TWO YEARS of the date of purchase.
Note: this Manufacturer’s Warranty is an extra benefit and does not affect your
legalrights.
This Manufacturer’s Warranty DOES NOT cover
Service calls which are not related to any defect in the product. The cost of a service
A
call will be charged if the problem is not found to be a product fault. For example:
Correcting the installation of the product.
1
Instructing you how to use the product.
2
Replacing house fuses or correcting house wiring or plumbing.
3
Correcting fault(s) caused by the user.
4
Noise or vibration that is considered normal, eg drain/fan sounds, refrigeration
5
noises oruserwarning beeps.
Correcting damage caused by pests, eg rats, cockroaches, etc.
6
Replacement light bulbs.
7
Defects caused by factors other than:
B
Normal domestic use; or
1
Use in accordance with the product’s user guide.
2
Defects to the product caused by accident, neglect, misuse or ‘act of God’.
C
The cost of repairs carried out by non-trained and supported service technicians or the
D
cost of correcting such repairs.
Normal recommended maintenance as set out in the product’s user guide.
E
Repairs when the appliance has been dismantled, repaired or serviced by other than
F
aFisher&Paykel trained and supported service technician or the selling dealer.
Pick-up and delivery.
G
Transportation or travelling costs involved in the repair when the product is installed
H
outside the Fisher&Paykel trained and supported service technician’s normal service area.
Nothing in this manufacturer’s warranty is intended to, or does, limit any rights you may
have under law to recover the costs of inspecting or returning the goods to us.
This product has been designed for use in a normal domestic (residential) environment.
This product is not designed for commercial use (whatsoever). Any commercial use by
acustomer will affect this product’s Manufacturer’s Warranty.
Service under this Manufacturer’s Warranty must be provided by a Fisher&Paykel
trained and supported service technician (refer to the ‘Customer Care’ section at the
back of this book). Suchservice shall be provided during normal business hours. This
Manufacturer’s Warranty certificate should be shown when making any claim.
19
MANUFACTURER’S WARRANTY
For Australian Customers
This Manufacturer’s Warranty is an extra benefit and does not affect your legal rights.
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure and
for compensation for any other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.
Please keep this user guide in a safe place.
20
CUSTOMER CARE
Before you call for service or assistance...
Check the things you can do yourself. Refer to your user guide and check that:
Your product is correctly installed.
1
You are familiar with its normal operation.
2
If after checking these points you still need assistance or parts, please refer to your
nearest Fisher & Paykel trained and supported service technician, Customer Care, or
contact us through our local website listed on the back cover.
In New Zealand if you need assistance…*
Call your Fisher & Paykel retailer who is trained to provide information on your
appliance, or if we can be of any further help, please contact our Customer Care Centre.
Toll free: 0800 FP CARE or 0800 372 273
Fax: (09) 273 0656
Website: www.fisherpaykel.com
Postal address: Fisher & Paykel Appliances Ltd, PO Box 58550, Botany, Auckland 2163
If you need service…*
Fisher & Paykel has a network of Fisher & Paykel trained and supported service technicians
that can carry out any service necessary on your appliance. Our Customer Care Centre
can recommend a Fisher & Paykel trained and supported service technician in your area.
In Australia if you need assistance…*
Call the Fisher & Paykel Customer Care Centre and talk to one of our Customer Care
Consultants.
Toll free: 1300 650 590
Fax: (07) 3826 9298
Website: www.fisherpaykel.com
Postal address: Fisher & Paykel Appliances Ltd, PO Box 798, Cleveland QLD 4163
If you need service…*
Fisher & Paykel has a network of Fisher & Paykel trained and supported service technicians
that can carry out any service necessary on your appliance. Our Customer Care Centre
can recommend a Fisher & Paykel trained and supported service technician in your area.
For rest of the world…*
Call your Fisher & Paykel retailer/dealer from whom you purchased the product. They
are trained to provide information on your appliance. If we can be of any further help,
please contact use on:
Phone: +64 9 273 0660
Fax: +64 9 273 0580
Website: www.fisherpaykel.com
Postal address: Fisher & Paykel Appliances Ltd, PO Box 58550, Botany, Auckland 2163,
New Zealand.
21
CUSTOMER CARE
*If you call, write or contact our website please provide: your name and address, model
number, serial number, date of purchase and a complete description of the problem.
This information is needed in order to better respond to your request for assistance.
Product details can be found on the inside of the chassis. The filter needs to be
removed to be able to see them.
Registration
Register your product with us so we can provide you with the best service possible.
To register your product visit our website: www.fisherpaykel.com
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer
Suburb
Town
Country
22
www.fisherpaykel.com
The product specifications in this booklet apply to the specific products
and models described at the date of issue. Under our policy of continuous
product improvement, these specifications may change at any time. You
should therefore check with your dealer to ensure this booklet correctly
© Fisher & Paykel Appliances 2015. All rights reserved.
describes the product currently available.
NZ AU ROW
104077 B 12.15
Loading...
