Fisher & Paykel HPB9048-2 Datasheet

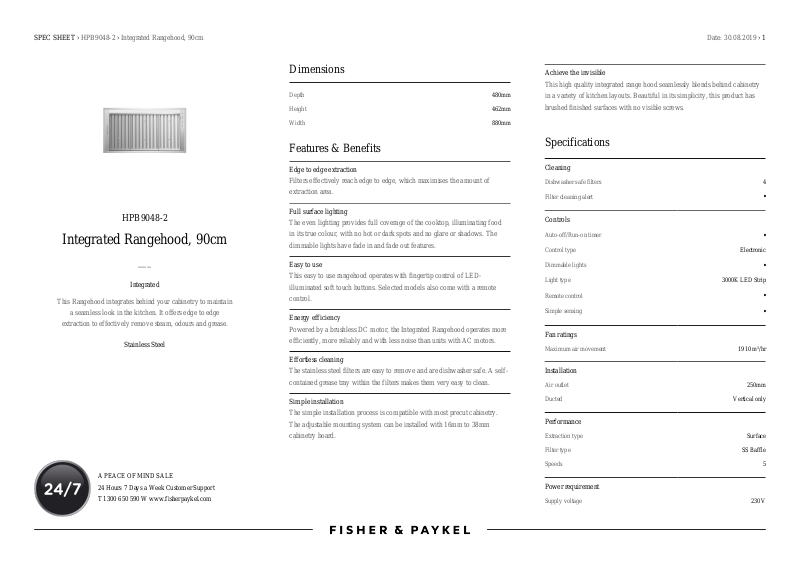

SPEC SHEET › HPB9048-2 › Integrated Rangehood, 90cm Date: 30.08.2019 › 1

HPB9048-2

Integrated Rangehood, 90cm

___

Integrated

This Rangehood integrates behind your cabinetry to maintain

a seamless look in the kitchen. It offers edge to edge

extraction to effectively remove steam, odours and grease.

Stainless Steel

A PEACE OF MIND SALE 24 Hours 7 Days a Week Customer Support T 1300 650 590 W www.fisherpaykel.com

Dimensions

Depth 480mm

Height 462mm

Width 880mm

Features & Benefits

Edge to edge extraction

Filters effectively reach edge to edge, which maximises the amount of extraction area.

Full surface lighting

The even lighting provides full coverage of the cooktop, illuminating food in its true colour, with no hot or dark spots and no glare or shadows. The dimmable lights have fade in and fade out features.

Easy to use

This easy to use rangehood operates with fingertip control of LEDilluminated soft touch buttons. Selected models also come with a remote control.

Energy efficiency

Powered by a brushless DC motor, the Integrated Rangehood operates more efficiently, more reliably and with less noise than units with AC motors.

Effortless cleaning

The stainless steel filters are easy to remove and are dishwasher safe. A selfcontained grease tray within the filters makes them very easy to clean.

Simple installation

The simple installation process is compatible with most precut cabinetry. The adjustable mounting system can be installed with 16mm to 38mm cabinetry board.

Achieve the invisible

This high quality integrated range hood seamlessly blends behind cabinetry in a variety of kitchen layouts. Beautiful in its simplicity, this product has brushed finished surfaces with no visible screws.

Specifications

Cleaning

Dishwasher safe filters 4

Filter cleaning alert

Controls

Auto-off/Run-on timer

Control type Electronic

Dimmable lights

Light type 3000K LED Strip

Remote control

Simple sensing

Fan ratings

Maximum air movement 1910 m³/hr

Installation

Air outlet 250mm

Ducted Vertical only

Performance

Extraction type Surface

Filter type SS Baffle

Speeds 5

Power requirement

Supply voltage 230 V

•

SPEC SHEET › HPB9048-2 › Integrated Rangehood, 90cm Date: 30.08.2019 › 2

Style And Series

Product Style Integrated

Warranty

Warranty 2 years

SKU 50143

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. © Fisher & Paykel Appliances Ltd 2019
