CONTENTS
Safety and warnings 4
Before you begin 7
Control panel 8
Accessories 9
First use 10
Coffee making guide 17
Steaming milk 22
Hot water 27
Custom drink settings 28
Customizing drinks 30
Settings 31
Auto start 33
Care and cleaning 34
Descaling 44
Water filter 47
Alerts 49
Troubleshooting 52
Warranty and service 54
Registration
To register your product visit our website: fisherpaykel.com/register
3
Page 4
SAFETY AND WARNINGS
WARNING!
Cut Hazard
Failure to use caution could result in injury.
• Take care – some edges are sharp.
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be followed,
including the following:
WARNING!
To reduce the risk of fire, electrical shock, injury to persons or damage when using the
appliance, follow the important safety instructions listed below. Read all the instructions
carefully before use. Use only for its intended purpose as described in these instructions.
To avoid the risk of injury, do not open the brew chamber during the brew process.
General
z
This appliance is for household use only.
z
Make sure the voltage of your electrical system corresponds to the voltage shown on
the bottom of the machine.
z
Do not touch hot surfaces. Use handles or knobs.
z
To protect against fire, electrical shock and personal injury, do not immerse cord, plug
or appliance in water or other liquid.
z
Keep the appliance out of reach of children and do not leave appliance unattended
while in operation.
z
Do not operate with a damaged cord or plug, or after the appliance malfunctions,
or has been damaged in any manner. Return the appliance to the nearest authorized
service facility for examination, repair or adjustment.
z
The use of accessory attachments not recommended by the manufacturer may result in
fire electrical shock, or personal injury.
z
Do not use outdoors.
z
Make sure the power cord does not hang over the edge of the table or counter-top to
avoid getting accidentally caught or entangled.
z
Do not place the appliance or its electrical parts on or near electric stoves, cooking
surfaces, or gas burners.
z
Plug cord into the wall outlet. To disconnect, first turn machine “off”, then remove plug
from wall outlet.
z
Do not use the appliance for other than the intended use. This appliance is to be
utilized for domestic use only. The manufacturer declines all responsibility for any
damage caused by improper, incorrect, or irresponsible use.
z
WARNING: To reduce the risk of fire or electric shock, do not remove the cover or the
exterior of the unit. Do not attempt to repair or modify the machine, doing so will void
the warranty. Repair should be done by authorized service personnel only!
4
Page 5
SAFETY AND WARNINGS
z
A short power cord is provided to reduce risks resulting from becoming entangled in or
tripping over a longer cord.
z
Longer, detachable power supply cords or extension cords are available and may be
used if care is exercised in their use.
z
If an extension cord is used, the marked electrical rating should be at least as great
as the electrical rating of the appliance. If the appliance is provided with 3- wire,
grounding type cord, the extension should be a GROUNDING TYPE 3 - WIRE CORD. The
longer cord should be arranged so that it will not drape over the counter-top or table
top where it can be pulled on by children or tripped over.
z
The coffee system must be maintained daily to prevent the growth of harmful bacteria
and mold. Please refer to ‘Care and cleaning’ section of the booklet.
z
Important! Do not look directly or with an optical instrument into the lighting.
z
Danger of burns! Risk of burns when dispensing hot beverages, they are extremely hot.
z
Persons which lack physical, sensory or mental abilities or experience with the machine
should not use it without supervision or instruction by a responsible person.
z
Close supervision is necessary when any appliance is used by or near children.
z
To avoid injuries allow the coffee system to cool before cleaning or putting on
and taking off parts. Turn the machine off at the main switch when not in use and
before cleaning.
z
Only fill the water tank with cold, fresh tap water. Warm or hot water, or any other
liquids may damage the machine.
z
The water should be changed daily to prevent bacteria or mold growth.
z
Do not use mineral water. Mineral water leads to heavy calcium build-up in the machine
that can damage the unit.
z
Do not fill anything but coffee beans into the beans container. Do not fill ground coffee
in the beans container, it will damage the grinding unit.
z
Sugar can damage the appliance! Caramelized or otherwise pre-treated coffee beans or
other sugar containing beverages must not be put in the machine.
z
Never place a cup with an alcohol-coffee mixture underneath the coffee dispenser.
Plastic parts of the unit could catch fire!
z
The hot water and steam dispensed could cause scalding. These functions must be used
carefully. Never hold any parts of the body under the steam nozzle or the hot water
dispenser. The machine must never be used to clean objects.
z
Never use a steam cleaner to clean the appliance. Pressurized steam could damage
electrical components and cause a short circuit.
z
The appliances must be descaled regularly with the supplied descaling solution.
In areas with very hard water the machine may need to be descaled more
often. The manufacturer cannot be held responsible for damages resulting from
insufficient descaling.
z
Only use the supplied descaling solution. Take care to use the correct mixture of water
and descaler, otherwise it may cause damage.
z
Never make coffee, hot water or steam when the appliance is extracted. Always make
sure the appliance is inactive before extracting it. Failure to observe this precaution
could lead to damage to the appliance! The only exception is adjusting the coffee mill
which must be done with the machine out (see the section ‘Adjusting the coffee mill’).
z
Do not place on or near a hot gas or electric burner, or in a heated oven.
z
To reduce the risk of fire, do not mount unit over or near any portion of a heating or
cooking appliance.
z
To reduce the risk of electric shock, do not mount over a sink.
5
Page 6
SAFETY AND WARNINGS
z
Do not allow children and animals to stop or linger near the appliance when it is pulled
out of the cabinet.
z
Do not leave the machine pulled out of the cabinet when it is being used.
z
Do not leave the machine pulled out of the cabinet when it is not needed.
z
Unplug from outlet when not in use and before cleaning. Allow to cool before putting
on or taking off parts, and before cleaning the appliance.
z
Do not let cord hang over edge of table or counter, or touch hot surfaces.
z
Scalding may occur if the lid is removed during the brewing cycles.
z
To disconnect, turn any control to “off,” then remove plug from wall outlet.
Your product is equipped with a polarized alternating current line plug (a plug having
one blade wider than the other). This plug will fit into the power outlet only one way.
This is a safety feature. If you are unable to insert the plug fully into the outlet, try
reversing the plug. If the plug should still fail to fit, contact your electrician to replace
your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
SAVE THESE INSTRUCTIONS
6
Page 7
BEFORE YOU BEGIN
z
Make sure the installer has completed the ‘Final checklist’ in the Installation instructions.
z
Read this guide, taking special note of the ‘Safety and warnings’ section.
z
Remove all internal and external packaging and dispose of it responsibly. Recycle items
that you can.
z
After removing the packaging, make sure the product is complete. If the appliance is
damaged, contact customer support.
z
Coffee has been used to factory test the appliance, so there may be traces of coffee in
the mill.
z
We recommend customising water hardness as soon as possible following the
instructions in the section ‘Setting water hardness’.
1
2
3
4
5 7
6 9

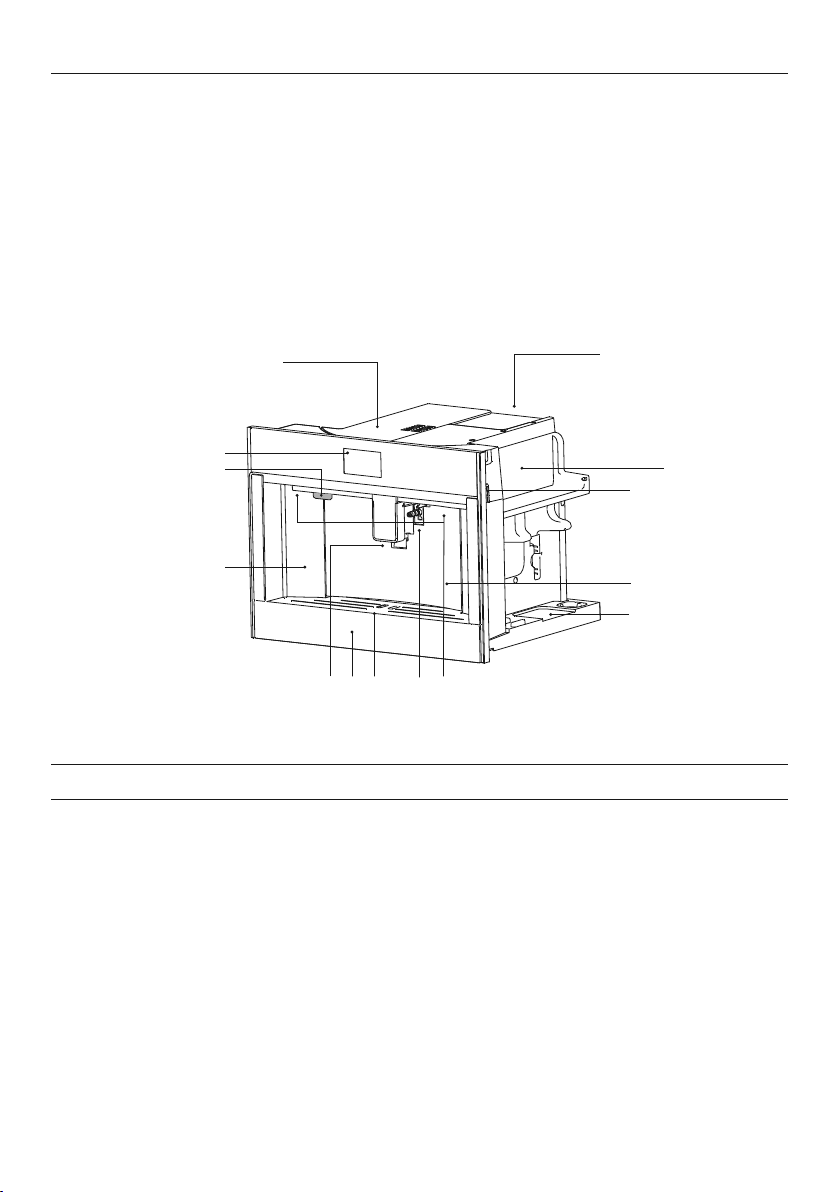

Coffee machine features
1 Beans container/Ground coffee funnel
2 Control panel
3 Standby button
4 Door
5 Coffee dispenser spouts
6 Lower door panel
7 Drip tray
!4
!3
!2
!1
!0
8
8 Hot water/steam connection
9 Lights
!0 Accessories storage
!1 Water tank (internal)
!2 Main power switch
!3 Cup warmer
!4 Power plug
7
Page 8
CONTROL PANEL
5 6 7 8 9
1
2
3

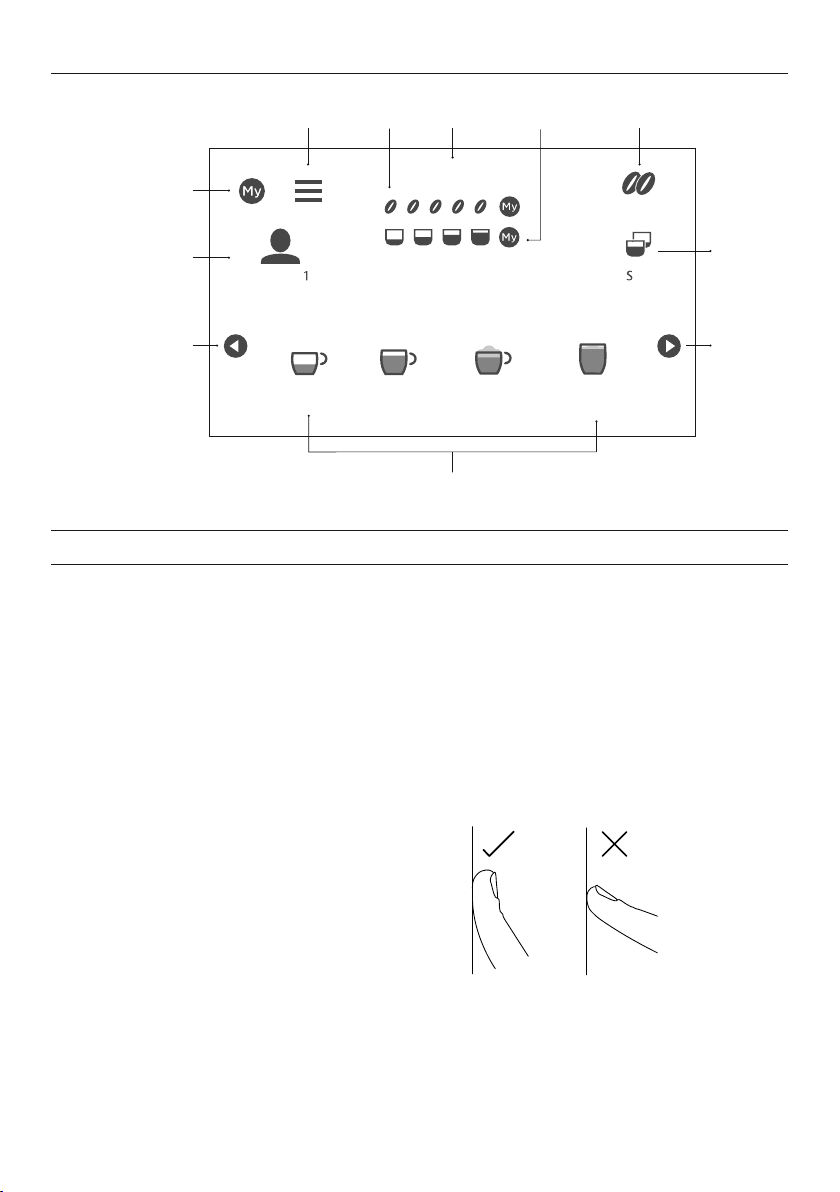

Control panel features
1 My menu
2 Customisable profiles
3 Scroll arrows
4 Beverage selection
5 Settings menu
00:00
STRENGTH
PROFILE IZE
ESPRESSO COFFEE
CAPPUCCINO
LATTE
MACCHIAT0
4
6 Coffee strength
7 Clock
8 Coffee size
9 Strength selection
!0 Size selection
!0
3
Using the touch controls
Your coffee machine is operated using a
touch keypad and display. To use the keypad
to navigate between functions and settings,
use the ball of your finger, not its tip. The
controls respond to touch, so pressure is
not needed.
8
Page 9

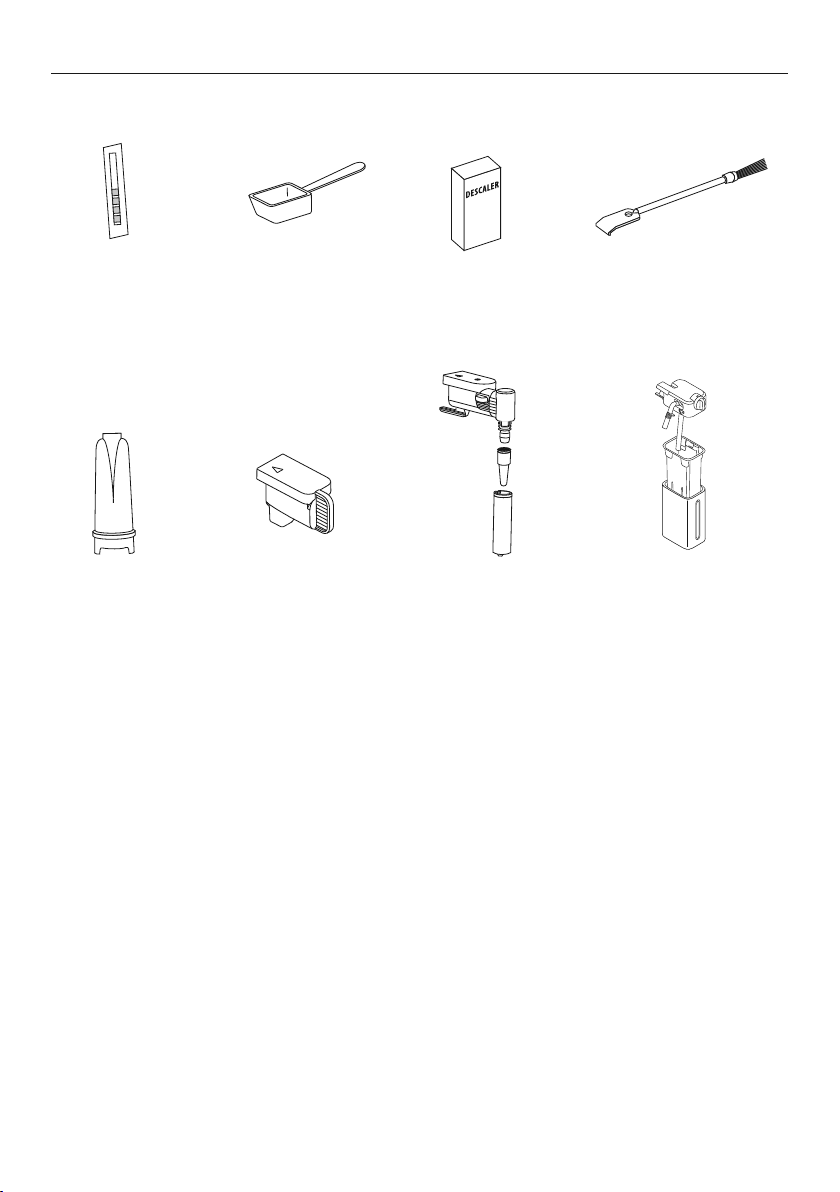

ACCESSORIES
Water hardness
indicator paper
(included with
printed Safety Guide)
Water softener
filter
Ground coffee
measure
Connection
nozzle cover
Descaler
Steam wand/
Hot water spout
Cleaning brush
Milk container
9
Page 10
FIRST USE
Setting a language
You’ll need to select a language when your appliance is first turned on, or after a power cut.
1
2
3

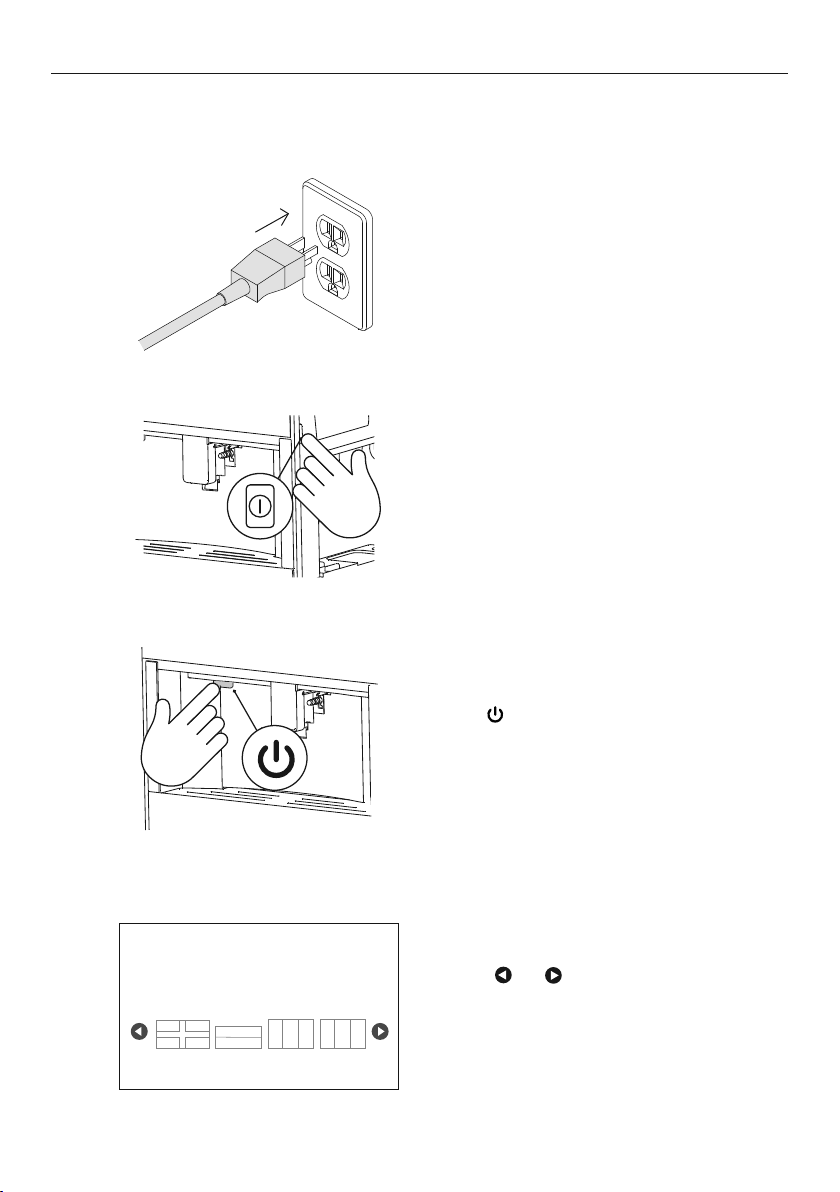

Connect the appliance to the mains
electricity supply.

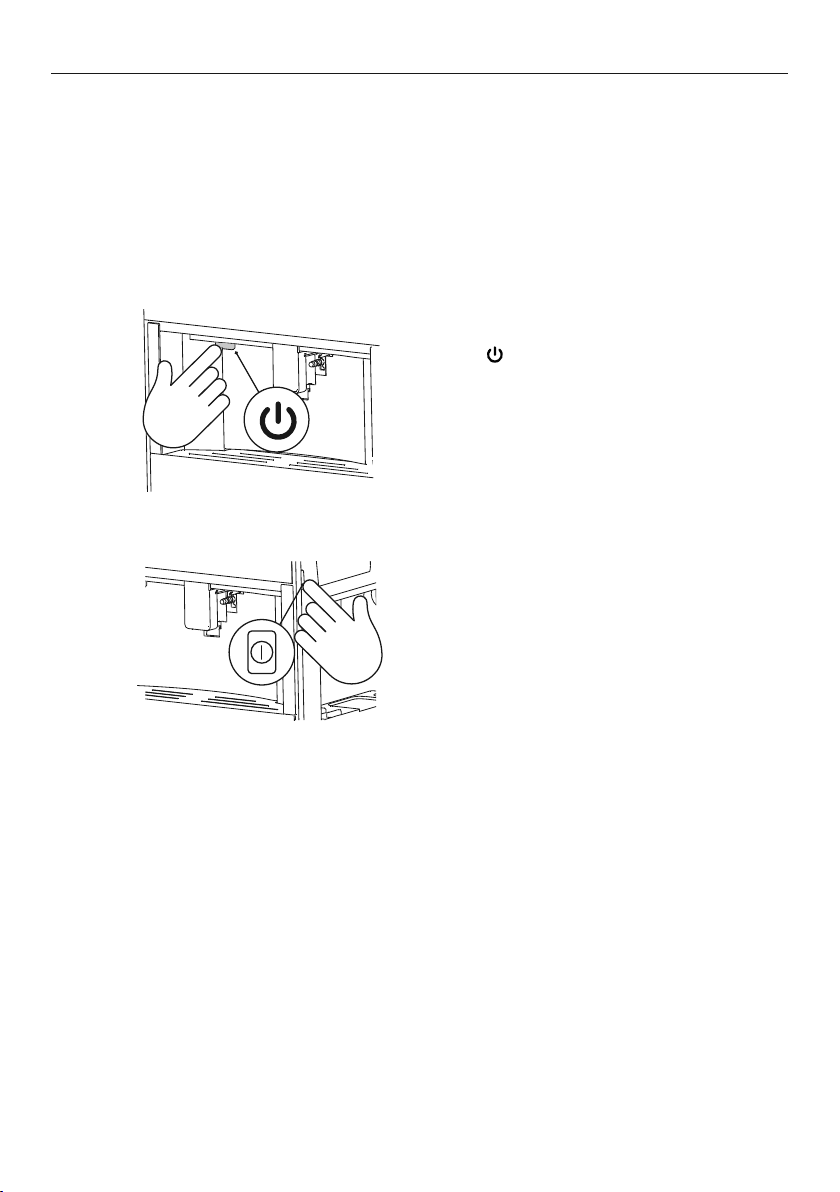

Ensure the main power switch at the side
of the appliance is turned on.
Press to turn on the coffee maker.
HEATING UP UNDERWAY PLEASE WAIT will
appear on the display.
10
4
Select
language
English Deutsch
Back
Italiano Français
Touch
corresponding to the required language
appears on the display.
Touch the flag to select.
or until the flag
Page 11
FIRST USE
Filling the water tank
Before making any coffee, you’ll need to fill the water tank. For best results, we recommend
filling the tank with fresh water each day.

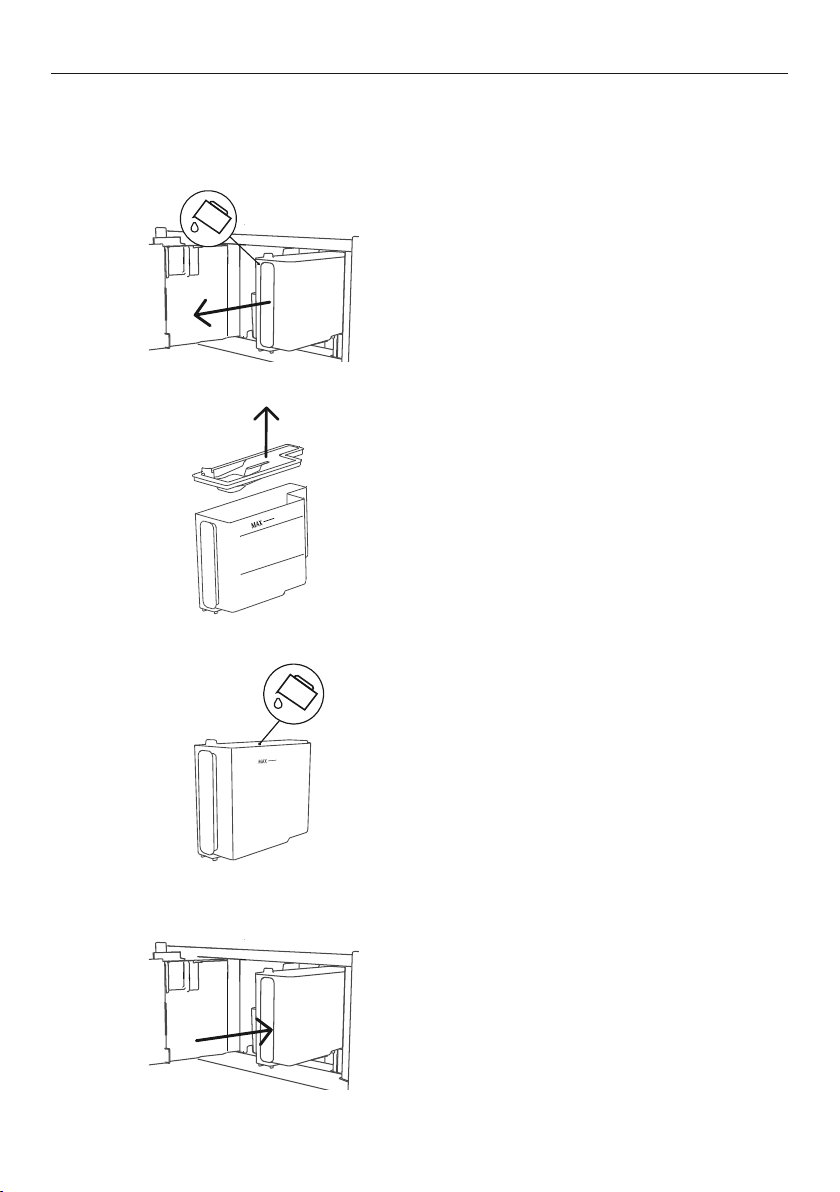

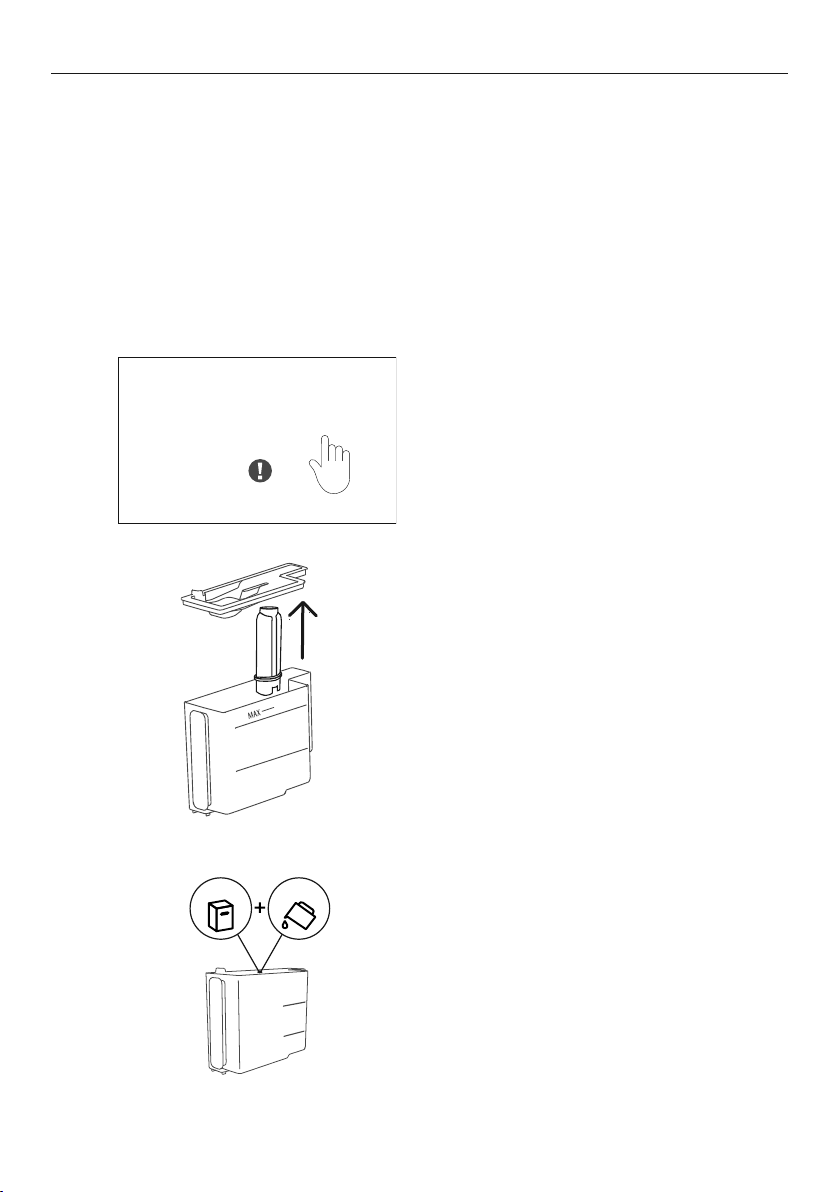

Pull the coffee dispenser forward to open
1
the door.
Remove the water tank.
2
3
4
Remove the lid.
Fill with fresh water to the
replace the lid.

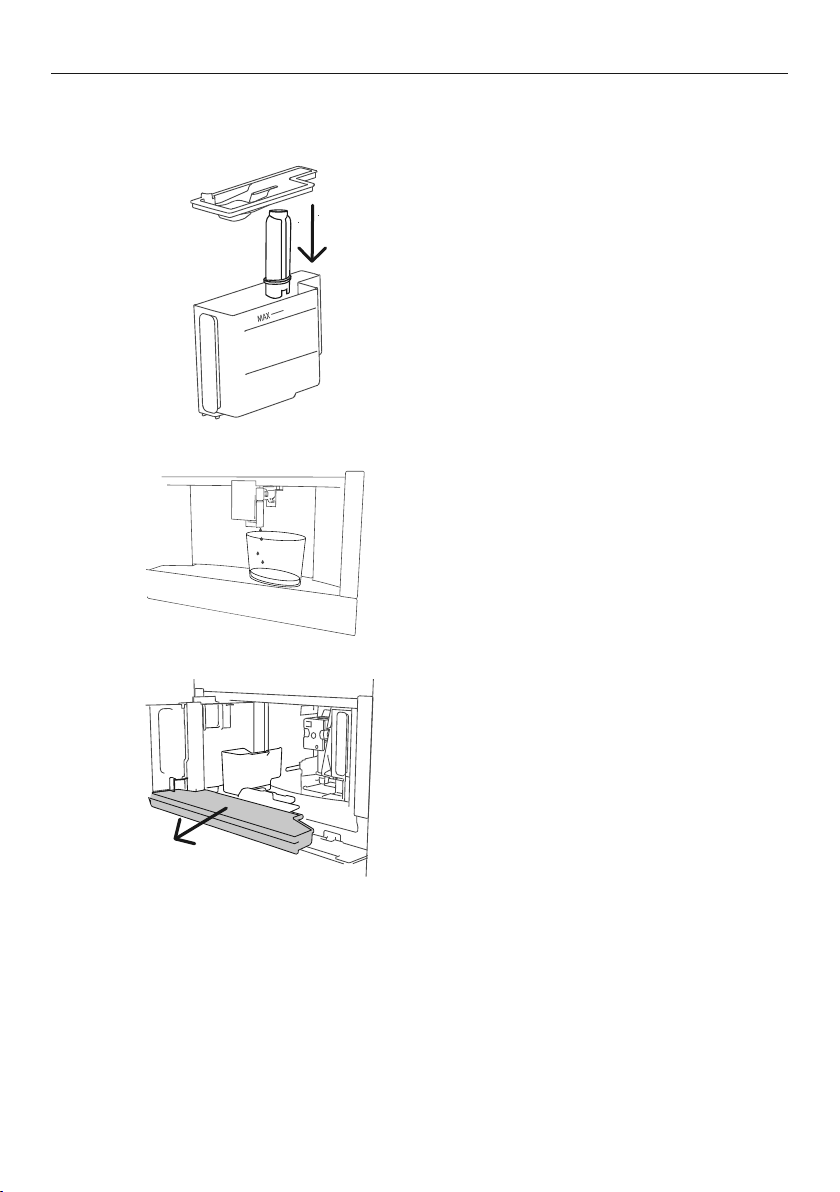

Place the water tank back inside the coffee
maker, then close the door.
MAX line, then
11
Page 12
FIRST USE
Preparing the water circuit
The first time you fill the water tank, you’ll also need to prepare the water circuit.
5
6
z
When using the appliance for the first time, the water circuit is empty and the appliance
could be noisy. This level of noise will reduce as the circuit fills.
z
To improve the performance of your appliance, we recommend installing a water softener
filter. If your model is not provided with a filter, you can request one from Customer Care.

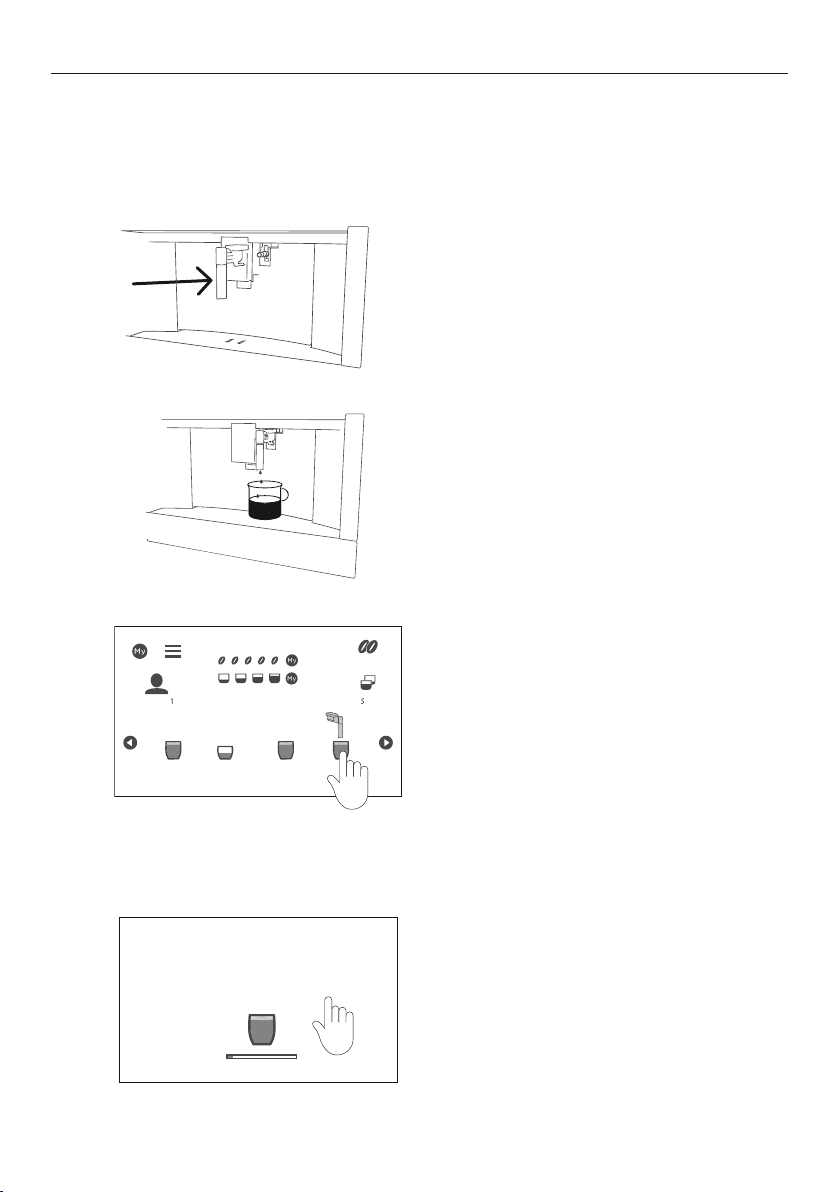

Connect the hot water spout to
the appliance.
Place a container underneath the steam
wand to catch any water.
Press
Water will flow through the steam wand
until the circuit is filled.
to start filling the water circuit.
12
Page 13
FIRST USE

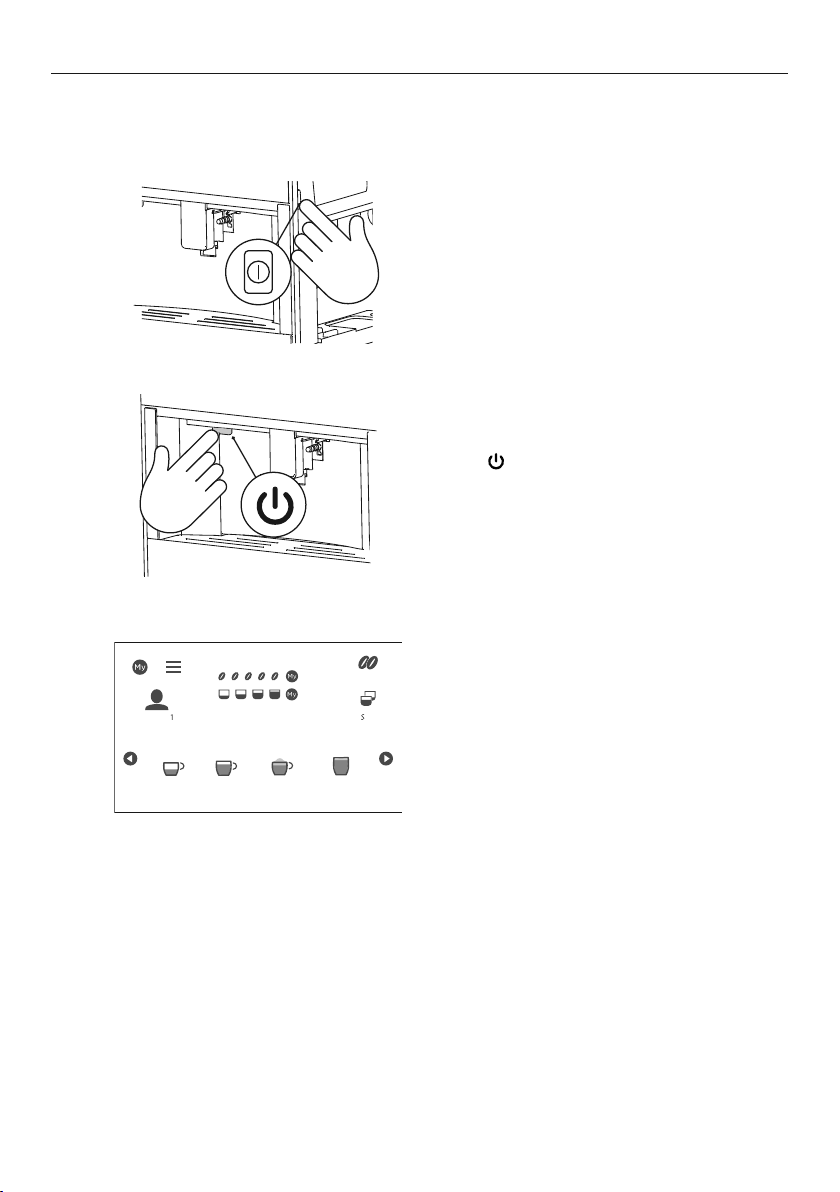

Turning the coffee maker on
When the coffee maker is turned on, it will run an automatic preheat and rinse cycle.
1
2
3
00:00
STRENGTH
PROFILE IZE
ESPRESSO COFFEE
CAPPUCCINO
LATTE
MACCHIAT0
Ensure the main power switch at the side
of the appliance is turned on.
Press to turn on the coffee maker.
HEATING UP UNDERWAY PLEASE WAIT will
appear on the display.
After preheating and rinsing, the display
will return to the home screen.
The coffee maker is now ready to use.
During rinsing, some hot water will come out from the coffee spout and collect in the drip
tray underneath. Keep hands clear of the spout to avoid contact with the hot water.
13
Page 14
FIRST USE
Turning the coffee maker off
When the coffee maker is turned off, it will run an automatic rinse cycle.
To ensure that cleaning message prompts appear on the display as scheduled, we
recommend leaving the coffee maker in standby mode.
If you will not be using the coffee maker for an extended period of time, turn the appliance
off by pressing the main power switch.
Never press the main power switch while the appliance is running.
1
2
Press
standby mode.
TURNING OFF, PLEASE WAIT will appear on
the display.
The appliance will perform a rinse cycle
before turning off.
After the rinse cycle is finished, press the
main power switch at the side of
the appliance.
to put the coffee maker into
14
Page 15
FIRST USE
Measuring and setting water hardness
Your coffee maker comes supplied with a water hardness indicator paper in the front cover
of the Safety Guide to test the water hardness level in your home.
For best results, the water hardness level should be set before making coffee for the
first time.
Measuring water hardness

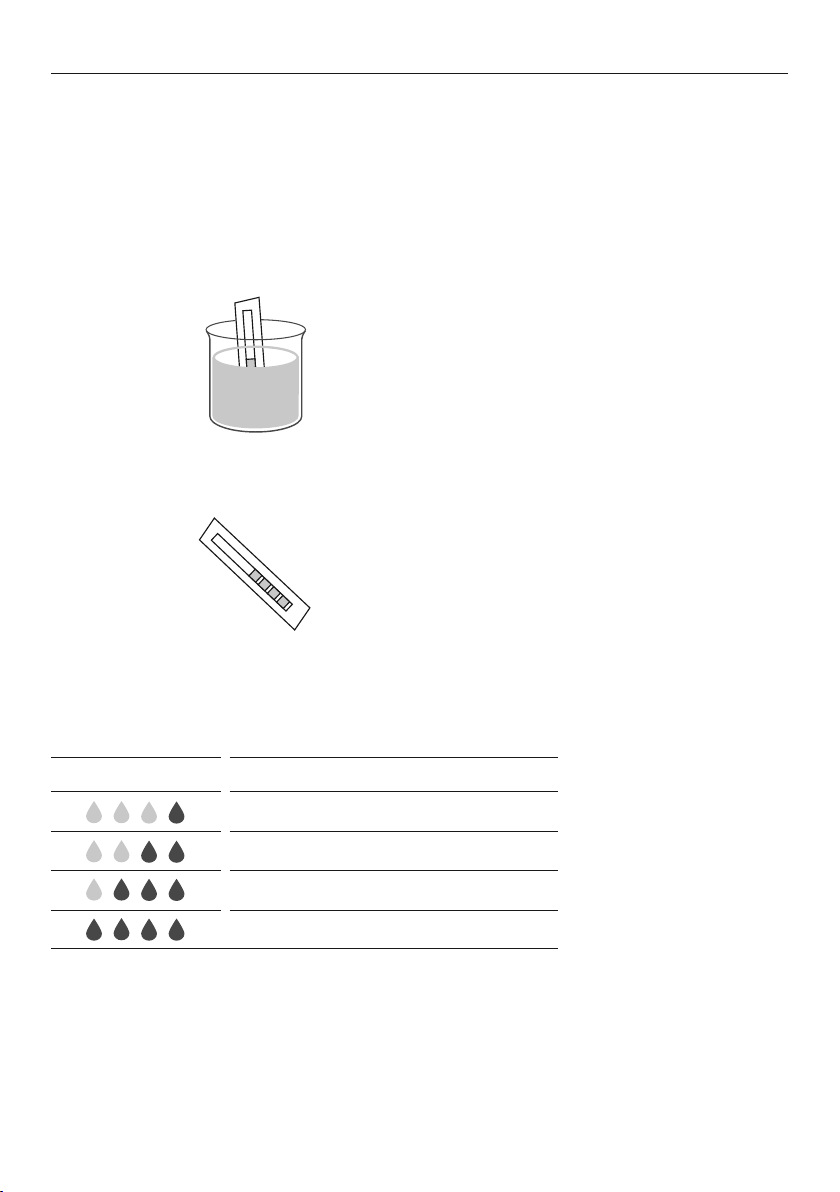

Remove the indicator paper from its pack.
1
2
Immerse completely in glass of water for
1 second.
Remove the paper and shake lightly. Wait
for 1 minute for the paper to develop.
The number of red squares on the paper
indicate the water hardness level.
Water hardness level
STRENGTH
Level 1 (Soft water)
Level 2 (Slightly hard water)
Level 3 (Hard water)
Level 4 (Very hard water)
15
Page 16
FIRST USE
Setting water hardness
Once you have measured the water hardness in your home, you may need to adjust the
water hardness level on your coffee maker.
The default setting is Level 4.
00:00
STRENGTH
1
2
3
PROFILE IZE
ESPRESSO COFFEE
Set time Auto-start
Water hardness Set language
CAPPUCCINO
14:25
14:35
Level: 1 English
LATTE
MACCHIAT0
Back
3:00
OFF
Back

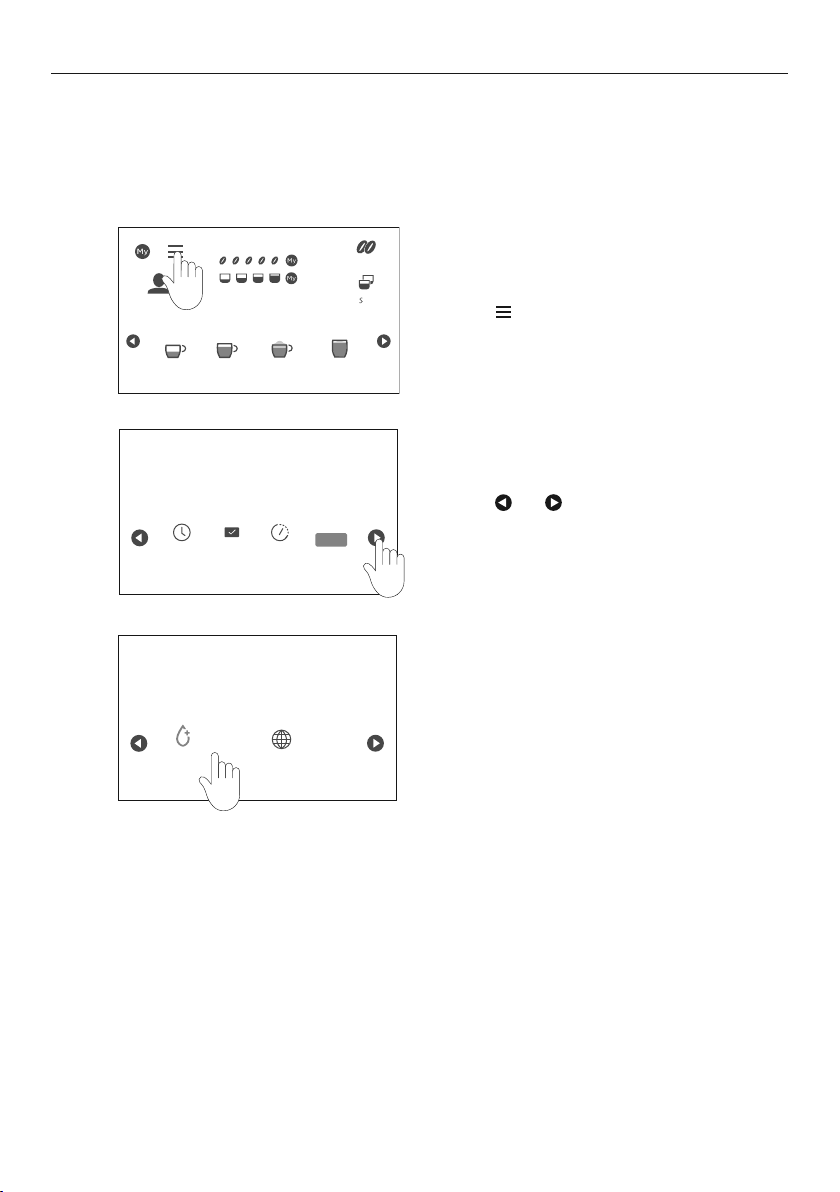

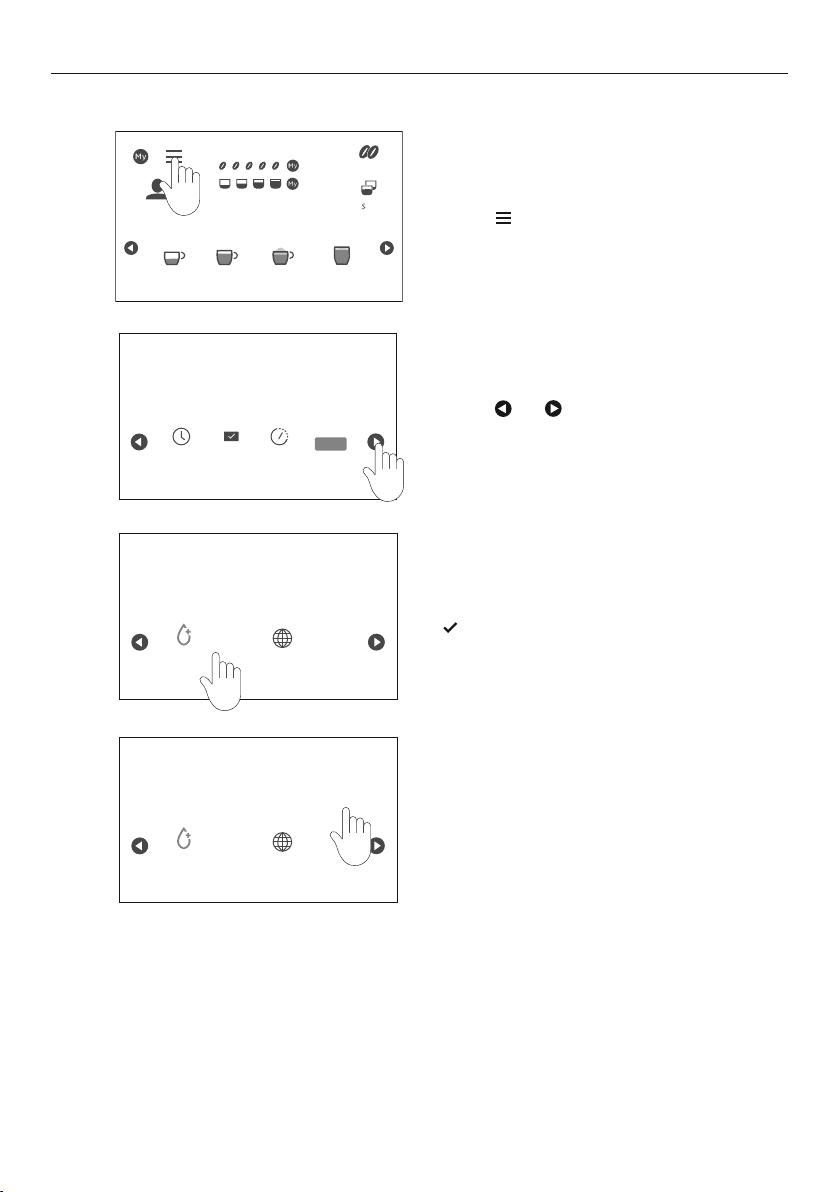

Touch to enter the settings menu.
Touch
WATE R HARDNESS setting.
or to scroll to the
To change the level selected, touch
WATER HARDNESS until the required level
is displayed.
Touch
BACK to confirm and return to the
home screen.
16
Page 17
COFFEE MAKING GUIDE
For best results, you’ll need to condition your coffee maker before you start using it. To do
this, make four to five coffees, until the appliance starts delivering a consistent result. While
conditioning the coffee maker, it is normal to hear the sound of boiling water. After making
a few coffees this noise should reduce.
You can make coffee using either whole beans or pre-ground coffee. You can make up to
two coffees at a time using whole beans, or one cup at a time using pre-ground coffee.
For a creamier coffee, adjust the height of the coffee dispenser as close to the cup
as possible.
Tips for a hotter coffee
z
Perform a rinse cycle by selecting the RINSING function in the settings menu.
z
Warm the cups with hot water (see section ‘Hot water’).
z
Increase the coffee temperature in the settings menu (see section ‘Settings’).

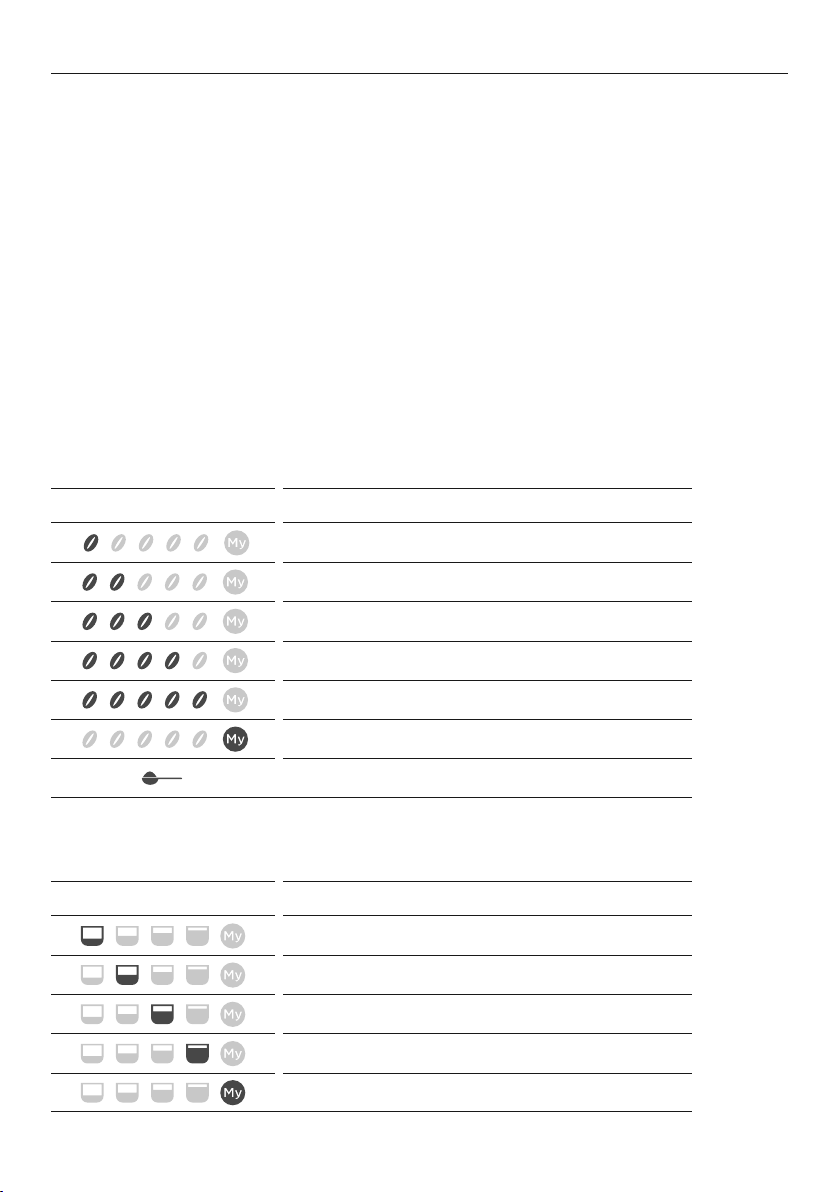

Coffee strength
Adjust coffee strength according to your preference.
Select the required strength by pressing
STRENGTH
Very Light
Light
Medium
STRENGTH.
Strong
Extra Strong
Customized strength (if programmed)
Pre-ground coffee
Coffee size
Select the required size of coffee delivered by pressing
SIZE
Small
Medium
Large
Extra Large
Customized size (if programmed)
SIZE.
17
Page 18
COFFEE MAKING GUIDE

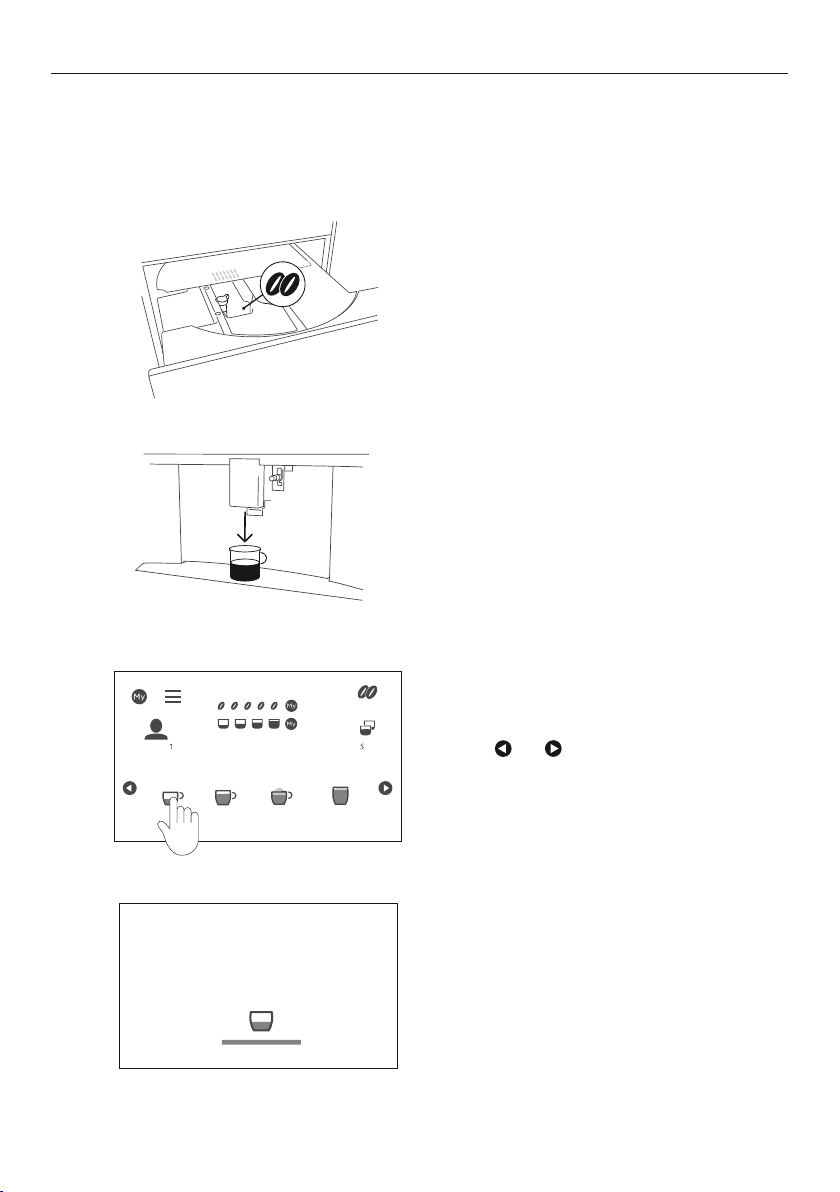

Using whole coffee beans
If using whole beans, you’ll need to fill the beans container before making your coffee.
When the container is empty,
Do not use green, caramelised or candied coffee beans as they may stick in the coffee mill
and damage it.
1
FILL BEANS CONTAINER will appear on the display.
Pull the coffee maker out. Open the beans
container cover and fill with coffee beans.
Close the cover and push the coffee maker
back into place.
2
3
4
00:00
STRENGTH
PROFILE IZE
ESPRESSO COFFEE
Extra Stop
CAPPUCCINO
ESPRESSO
Original recipe
LATTE
MACCHIAT0

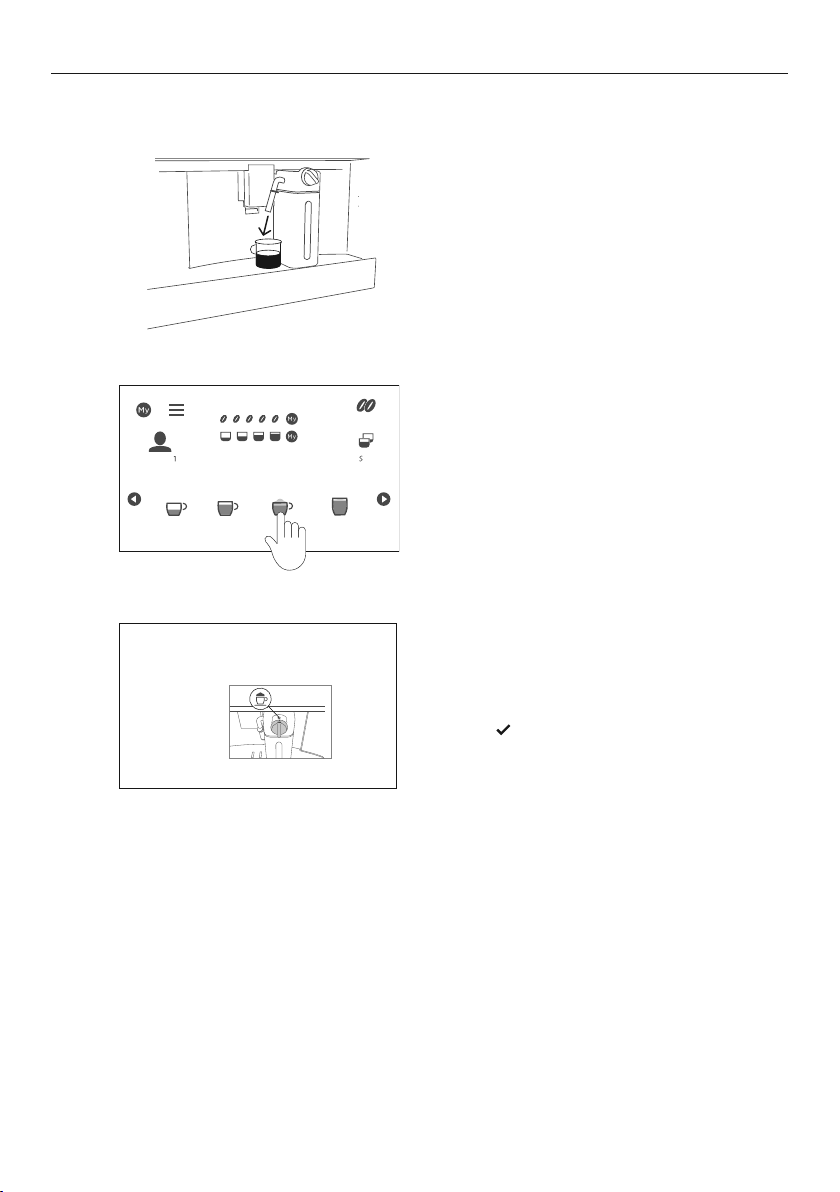

Place a cup under the coffee dispenser and
adjust the dispenser height.
Touch
or to scroll through the drink
options. Touch the drink option to select.
Your coffee is now being made.
When your coffee is ready, the display will
revert back to the home screen.
18
Page 19
COFFEE MAKING GUIDE

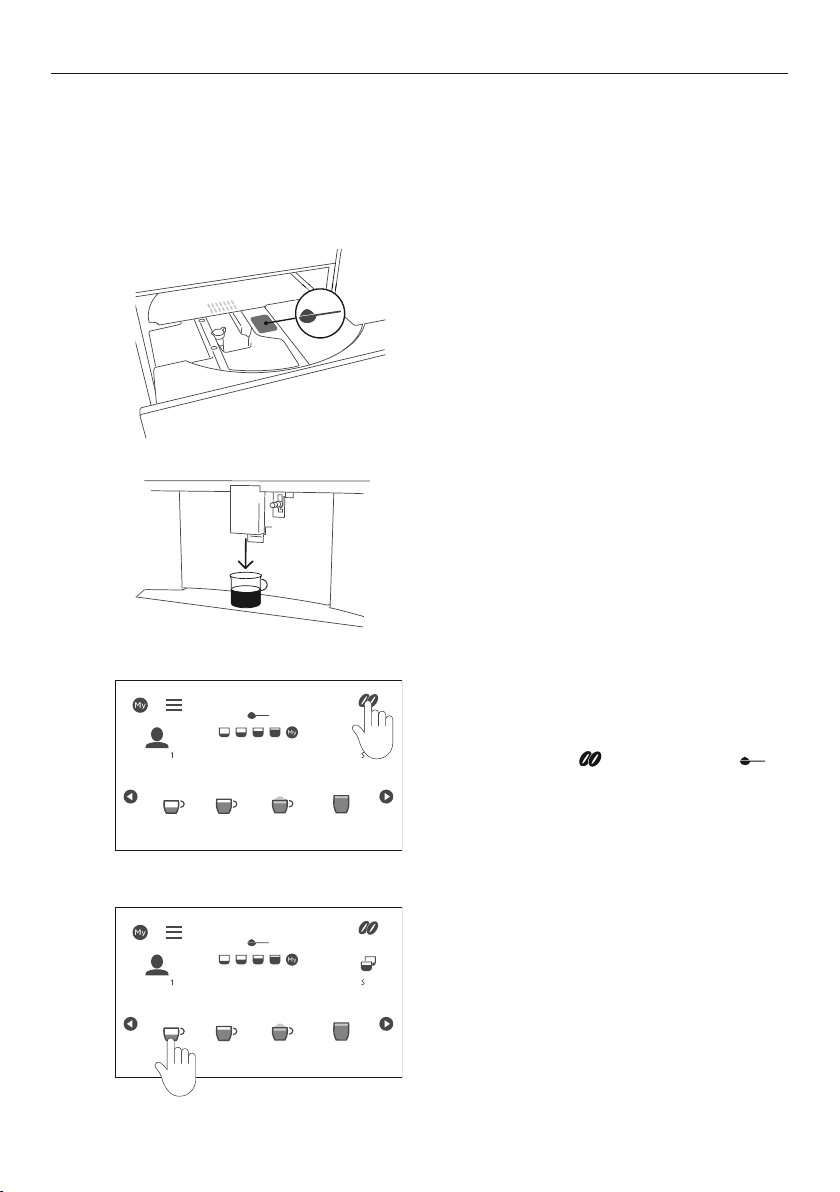

Using pre-ground coffee
If using pre-ground coffee, you’ll need to add coffee each time you make a drink. Before
adding ground coffee, ensure the funnel isn’t blocked.
Never add ground coffee when the machine is off.
Never use more than one level measure as this may block the funnel.
Pull the coffee maker out. Open the
container cover and then the funnel cover.
1
Add one level measure of ground coffee.
Close the cover and push the coffee maker
back into place.
2
3
4
00:00
STRENGTH
PROFILE IZE
ESPRESSO COFFEE
PROFILE IZE
ESPRESSO COFFEE
CAPPUCCINO
00:00
CAPPUCCINO
LATTE
MACCHIAT0
STRENGTH
LATTE
MACCHIAT0
Place a cup under the coffee dispenser and
adjust the dispenser height.
Touch STRENGTH repeatedly until
appears on the display.
Select your coffee and touch to start.
19
Page 20
COFFEE MAKING GUIDE
If using pre-ground coffee to make a long coffee, you may need to add an extra measure of
coffee partway through the drink dispensing.
Add pre-ground coee
1
2
maximum one measuring cup
Back
Halfway through dispensing,
GROUND COFFEE, MAXIMUM ONE MEASURE
will appear on the display.
Pull the coffee maker out and add one level
measure of ground coffee.
Close the cover and push the coffee maker
back into place.
Coffee dispensing will resume.
ADD PRE-
20
Page 21
1
To top up
1
COFFEE MAKING GUIDE
ESPRESSO
Original recipe
Extra Stop
ESPRESSO
Original recipe
Extra Stop
Touch STOP at any point to stop.
At the end of coffee dispensing, touch
EXTRA to top up your drink. When the
desired size is reached, press CANCEL.
Adjusting the coffee mill
z
The grinding adjustment dial must only be turned when the coffee mill is in operation
during the initial phase of coffee preparation.
z
If coffee is dispensed too slowly or not at all, turn one position clockwise towards 7.
z
For fuller-bodied, creamier coffee, turn one position counterclockwise towards 1.
z
When adjusting, do not turn the dial more than one position at a time.
z
These adjustments will only be evident until after making at least two cups of coffee. If
this adjustment does not obtain the desired result, repeat the process and adjust the dial
to the next position.
The coffee mill is set by default to prepare
N
I
R
D
G
E
R
A
D
1
J
U
3
S
T
5
M
E
7
N
T
coffee correctly and should not require
adjusting initially.
If after making the first few drinks you find
that the coffee is too weak, not creamy
enough or delivery is too slow (a drop at
a time), this can be corrected by adjusting
the grinding adjustment dial.
21
Page 22
STEAMING MILK
Steaming milk
To make cappuccinos, lattes and other milk-based drinks, you can steam milk either
automatically using the milk container attachment, or manually using the steam
wand attachment.
For best results, use refrigerated, skimmed milk at about 41°F (5°C) temperature. The
warmer the milk, the less foam is produced.
Steaming milk automatically
z
Use the milk container attachment to automatically make cappucinos, lattes and other
milk-based drinks.
z
Do not leave the milk container out of the refrigerator for long periods of time.
z
To avoid milk with poor foam or large bubbles, always clean the milk container lid and
connection nozzle as described in sections ‘Cleaning the milk container’ and ‘Cleaning
the steam wand’.
z
If ENERGY SAVING mode is enabled, you may have to wait a few seconds before the milk
begins heating.
Adjusting the foam level
Turn the froth adjustment dial on the milk container lid to adjust the amount
of foam delivered while making milk-based coffees. Follow the recommendations
in the table below:
DIAL POSITION FROTH RECOMMENDED FOR
None Latte / Hot milk
22
Minimum Latte or Macchiato
Maximum Cappuccino
Page 23

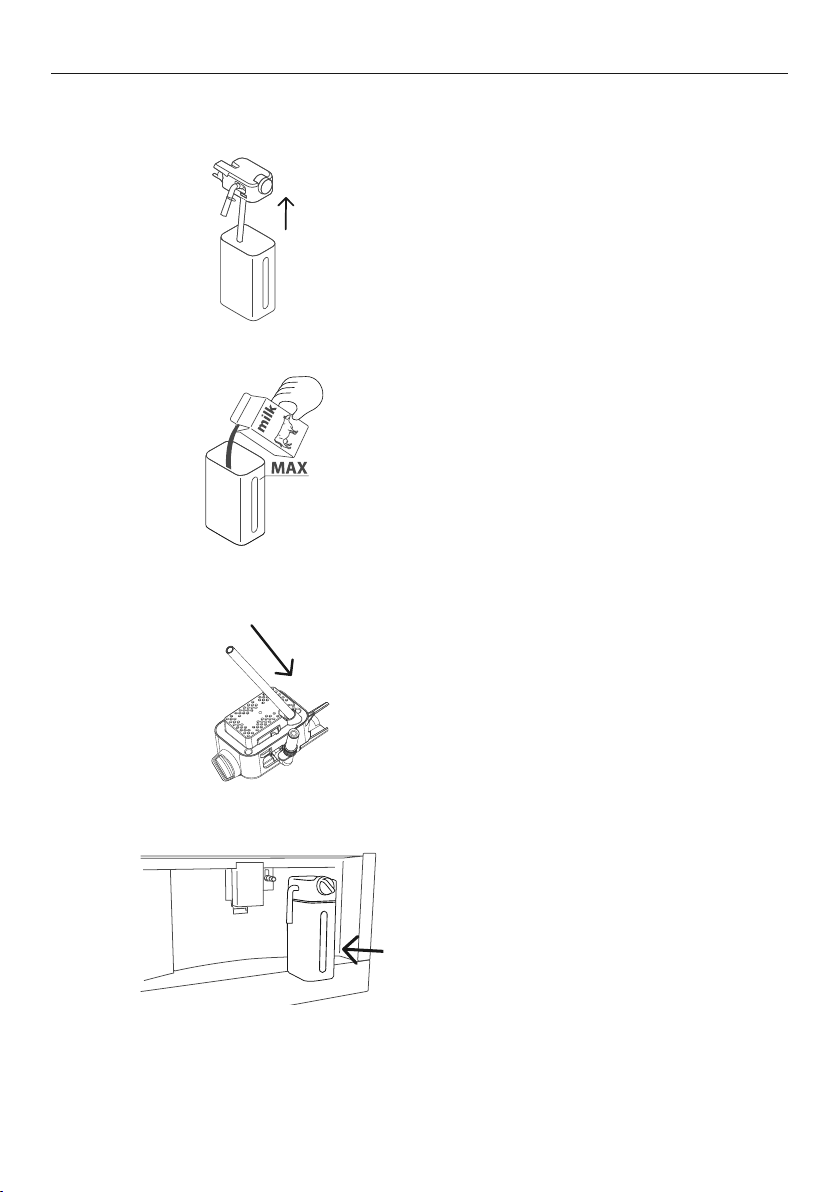

Filling the milk container
STEAMING MILK
1
2
3
Remove the lid of the milk container.
Fill the milk container with a sufficient
quantity of milk, not exceeding the
level marked on the container. Each mark
on the side of the container corresponds to
about 3.38 fl. oz. of milk.
Make sure the milk intake tube is correctly
inserted in the bottom of the milk
container lid.
Replace the lid on the milk container.
MAX
4
Remove the steam wand if it is attached.
Attach the milk container to the steam
wand connection. Push in until the
container clicks into place.
23
Page 24
STEAMING MILK
Making milk-based coffees automatically
1
00:00
STRENGTH
Fill the milk container and attach it.
Position the cup under both the coffee
dispenser and the milk spout.
Adjust the length of the milk spout
if needed.
2
3
PROFILE IZE
ESPRESSO COFFEE
Turn the milk froth adjustment knob
to position 3 - max. froth
Back
CAPPUCCINO
LATTE
MACCHIAT0
Select the desired drink option.
Turn the dial on the milk container lid to
the corresponding drink option.
Touch
to confirm.
24
Page 25
1
To cancel
To top up
1
CAPPUCINO
Original recipe
Extra Stop
CAPPUCINO
Original recipe
Extra Stop
STEAMING MILK
Touch BACK to exit the drink selection.
Touch
At the end of coffee dispensing, touch
EXTRA to top up your drink. When the
desired size is reached, press STOP.
STOP at any point to stop.
25
Page 26
STEAMING MILK
Steaming milk manually
z
Use the steam wand attachment to manually make cappucinos, lattes and other
milk-based drinks.
z
Choose an appropriately-sized container. The milk will double or triple in volume as it is
steamed.
z
For best results, use refrigerated, skimmed milk at about 41°F (5°C) temperature. The
warmer the milk, the less foam is produced.
z
For a creamier froth, rotate the container with slow movements in an upward direction.
z
To avoid milk with poor foam or large bubbles, always clean the spout as directed.
z
The steam wand can also be used to heat water.
Do not leave the appliance unattended while steam is being delivered. Always stop steam
delivery before extracting the container filled with liquid to avoid burns from splashes.
1
2
3
00:00
STRENGTH
PROFILE IZE
Hot
Espresso
milk
macchiato
STEAM
Hot
water
Steam
Make sure the steam wand is attached
correctly to the coffee maker.
Fill a container with milk or water to be
and immerse the spout in the liquid.
STEAM from the drink options. After
Select
a few seconds, steam will start to dispense
and heat the liquid.
26
4
Stop
When the desired temperature or level of
foam is reached, touch
STOP to stop.
Page 27

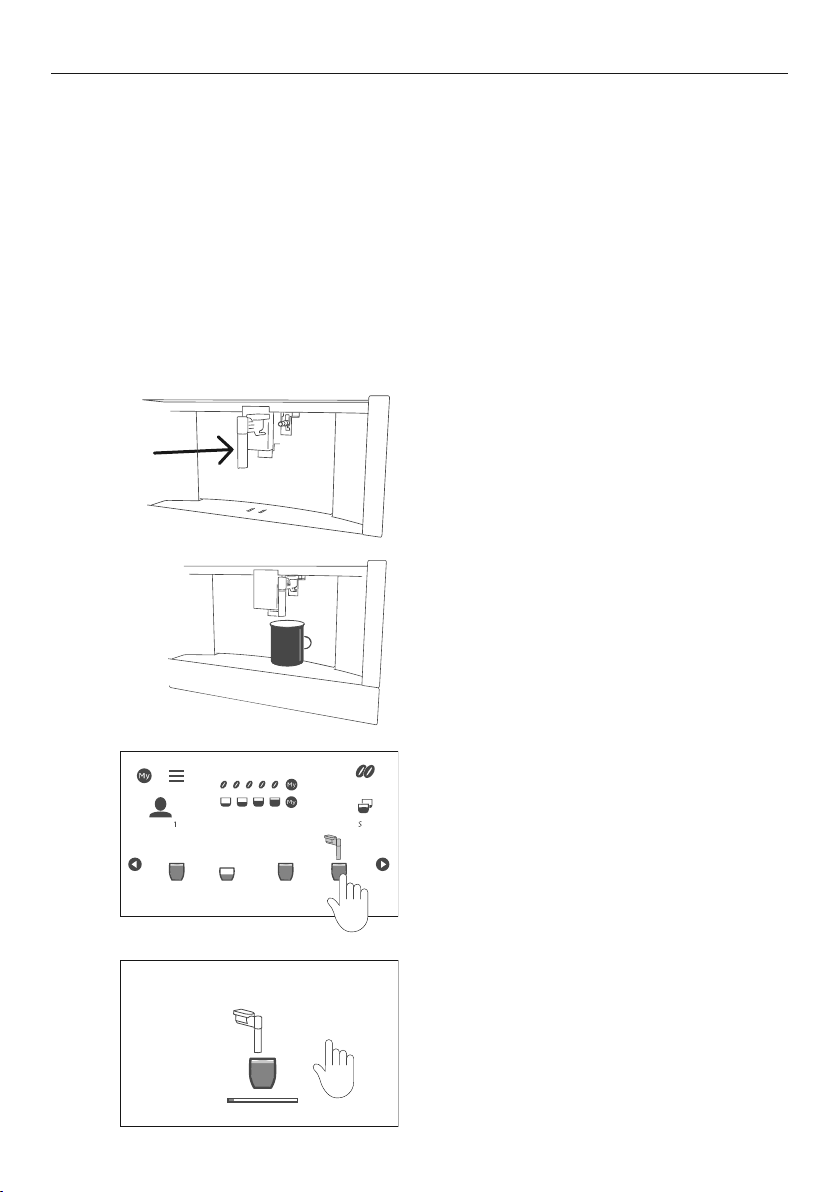

HOT WATER
Dispensing hot water
Use the steam wand to dispense hot water.
Do not leave the appliance unattended while dispensing hot water.
1
2
3
00:00
STRENGTH
PROFILE IZE
Hot
milk
Espresso
macchiato
Hot
water
Steam
Make sure the steam wand is attached
correctly to the coffee maker.
Place a container under the spout. Position
it as close as possible to avoid splashes.
Select HOT WATER from the drink options.
Hot water will begin dispensing from the
spout and will stop automatically.

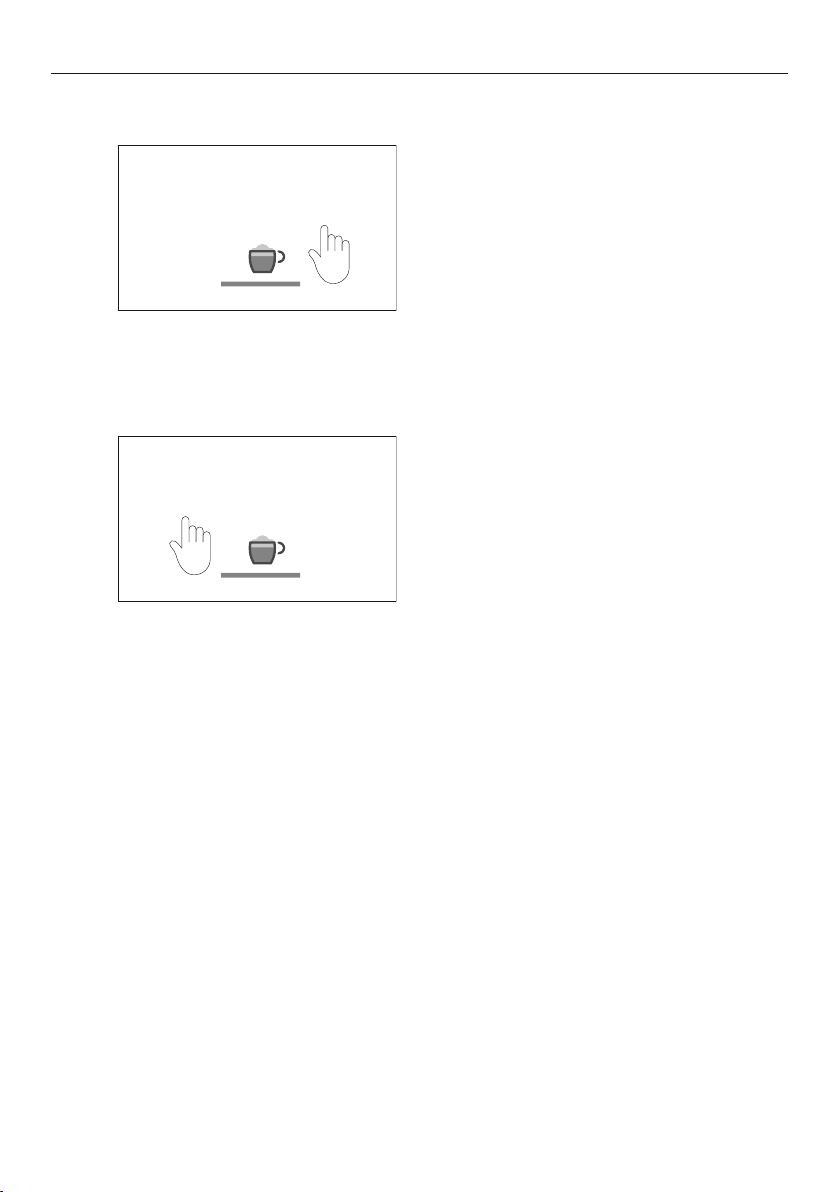

To cancel
1
HOT WATER
Stop
Touch STOP at any point to stop.
27
Page 28
CUSTOM DRINK SETTINGS
Drinks can be customized by altering the strength and size of coffee delivered. You can
save custom drink settings for up to six MY profiles.

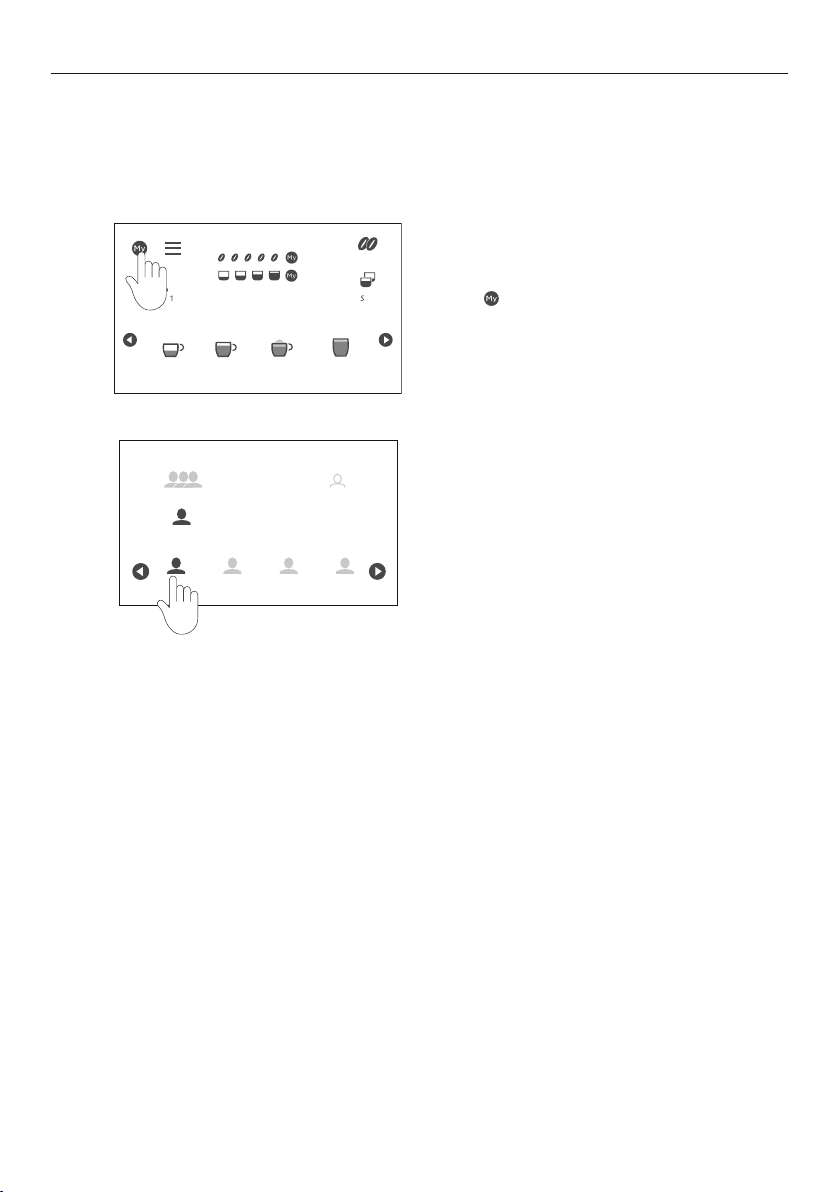

Select the
Selecting a profile
GUEST profile to make drinks using the default settings.
00:00
STRENGTH
1
2
PROFILE IZE
ESPRESSO COFFEE
Customise
User 1
User 1 User 1 User 1 User 1
CAPPUCCINO
Select a
profile
LATTE
MACCHIAT0
Guest
Back
Press
Select the desired profile, then press
BACK
to return to the home screen.
You can now modify drink options for the
selected profile.
28
Page 29
CUSTOM DRINK SETTINGS
Customizing a profile
Make sure the profile you want to customize is active. The current profile will be displayed
on the home screen.
00:00
STRENGTH
1
2
3
4
PROFILE IZE
ESPRESSO COFFEE
User 1
Coee
User 1
Customising coee size
Back Stop
CAPPUCCINO
Select
beverage
to customise
Americano
Doppio+
Choose coee
strength level
Extra light strength
Press stop to save
LATTE
MACCHIAT0
Back
Espresso
OK
Back

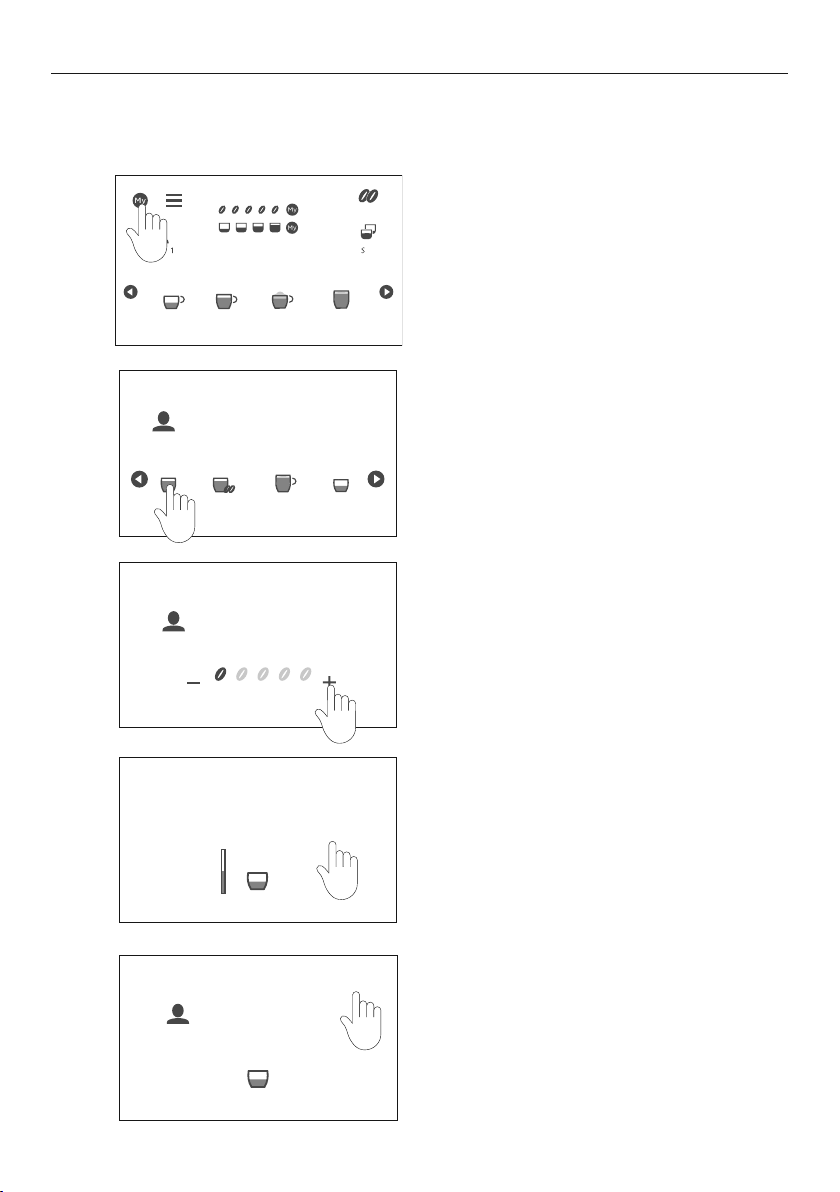

From the home screen, press
MY.
Select a drink to customize.
The corresponding accessories must
be attached.
Set the desired coffee strength, then
press
OK.
Set the desired coffee size, and for milkbased drinks the desired amount of milk.
When the desired size is reached,
press
ST OP.
5
User 1
Save new
settings?
Yes
No
YES to save new settings, then OK
Press
to return to the home screen.
29
Page 30
Custom drink sizes
CUSTOMIZING DRINKS
BEVERAGE
Espresso 1.35 (40) 0.68 – 2.71 (20 – 80)
Long 5.41 (160) 3.89 – 8.45 (115 – 250)
Coffee 6.07 (180) 3.38 – 8.12 (100 – 240)
Double espresso 4.06 (120) 2.71 – 6.09 (80 – 180)
Hot water 8.45 (250) 0.68 – 14.20 (20 – 420)
STANDARD CUSTOM
fl oz (ml) fl oz (ml)
30
Page 31
SETTINGS
The settings menu allows you to:
z
Rinse the coffee spouts with water
z
Descale the coffee maker
z
Install or replace the water filter
z
View custom drink settings and reset back to default
z
Change the time
z
Set AUTO START to turn the appliance on at a certain time each day
z
Adjust AUTO OFF to turn the appliance off after a certain amount of time
z
Turn the cup warmer on or off
z
Enable or disable ENERGY SAVING to reduce energy consumption
z
Adjust the temperature of the water used to make coffee
z
Adjust the water hardness setting
z
Change the language of the display
z
Turn audio tones on or off
z
Turn coffee lights on or off
z
Adjust the display background
z
Enable or disable DEMO MODE (for servicing only)
z
Restore all settings to factory original defaults
z
View your appliance statistics
31
Page 32
Changing the settings
SETTINGS
00:00
STRENGTH
1
2
3
PROFILE IZE
ESPRESSO COFFEE
Set time Auto-start
Water hardness Set language
CAPPUCCINO
14:25
14:35
Level: 1 English
14:35
MACCHIAT0
Back
3:00
OFF
Back
LATTE
Touch
Touch
to enter the settings menu.
or to scroll to the
desired setting.
Either touch the setting to adjust or select
to turn on or off.
32
4
Back
Level: 1 English
Water hardness Set language
BACK to exit the menu and return to
Touch
the home screen.
Page 33

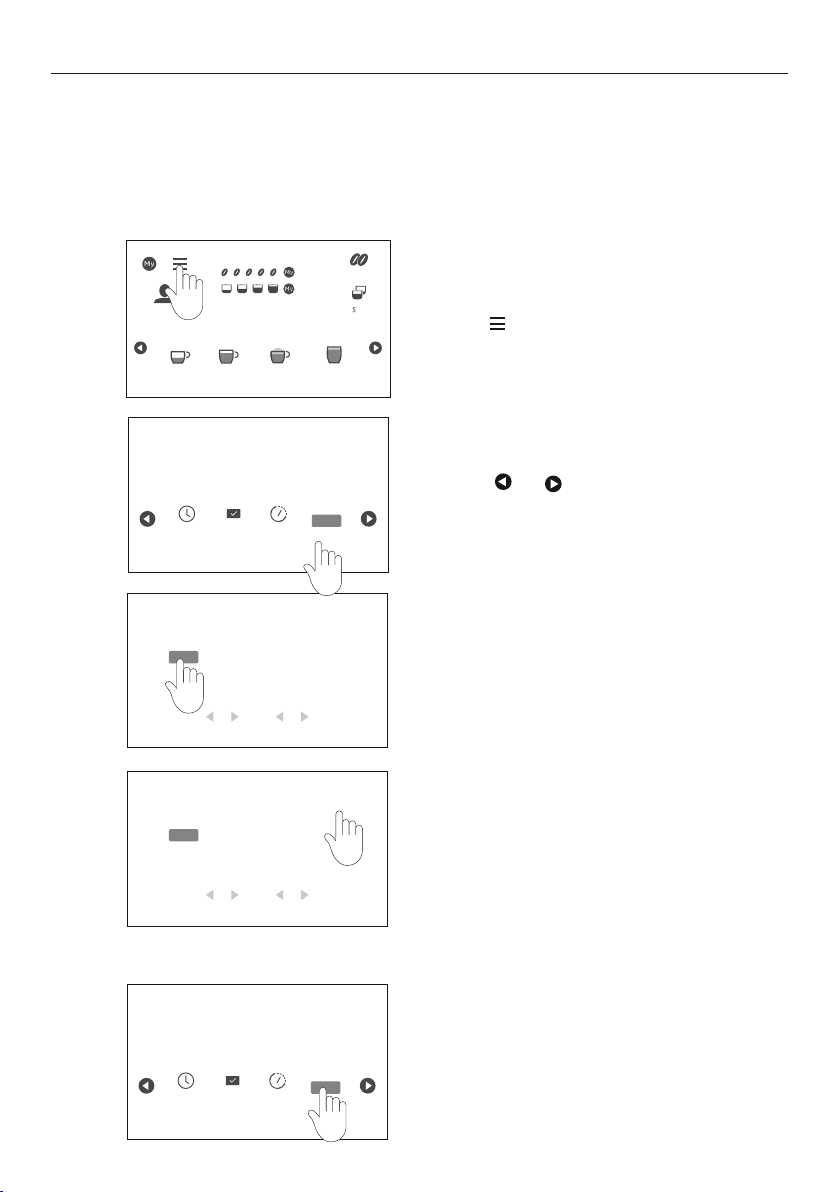

AUTO START
Auto-start
You can set
morning), so that the appliance is ready to make coffee immediately.
To enable
If the mains power switch is turned off,
AUTO START to have the appliance ready at a certain time of day (eg in the
AUTO START, the time must already be set correctly.
AUTO START will be cancelled.
00:00
STRENGTH
1
2
3
4
PROFILE IZE
ESPRESSO COFFEE
Set time Auto-start
OFF
CAPPUCCINO
14:25
Auto-start
LATTE
MACCHIAT0
Back
3:00
OFF
OK
Back
07:00
Hour Minute
Auto-start
ON
OK
Back
07:00
Hour Minute
Press to enter the settings menu.
Touch
or until AUTO START appears
on the display.
Select
AUTO START.
Touch OFF to enable AUTO START, then
set a time of day. The coffee maker will
automatically turn on and preheat at the
set time.
Touch OK to confirm, then BACK to exit the
settings menu.
1
14:25
3:00
Set time Auto-start
ON
Back
Enter the settings menu and select
AUTO START.
Touch ON to turn off AUTO START, then
BACK to exit.
33
Page 34
CARE AND CLEANING
z
Do not use solvents, abrasive detergents or alcohol to clean the coffee maker.
You do not need to use chemical products to clean the machine.
z
None of the components of the appliance can be washed in a dishwasher with the
exception of the milk container.
z
Do not use metal objects to remove coffee deposits as they could scratch metal or
plastic surfaces.
Emptying the coffee grounds container and drip tray
When the coffee grounds container is full, you’ll need to empty and clean it before you can
continue using the appliance. Even if the grounds container isn’t full, it will still need to be
emptied and cleaned regualrly. We recommend doing this every couple of days.
To empty
1
2
EMPTY GROUNDS CONTAINER will appear
on the display.

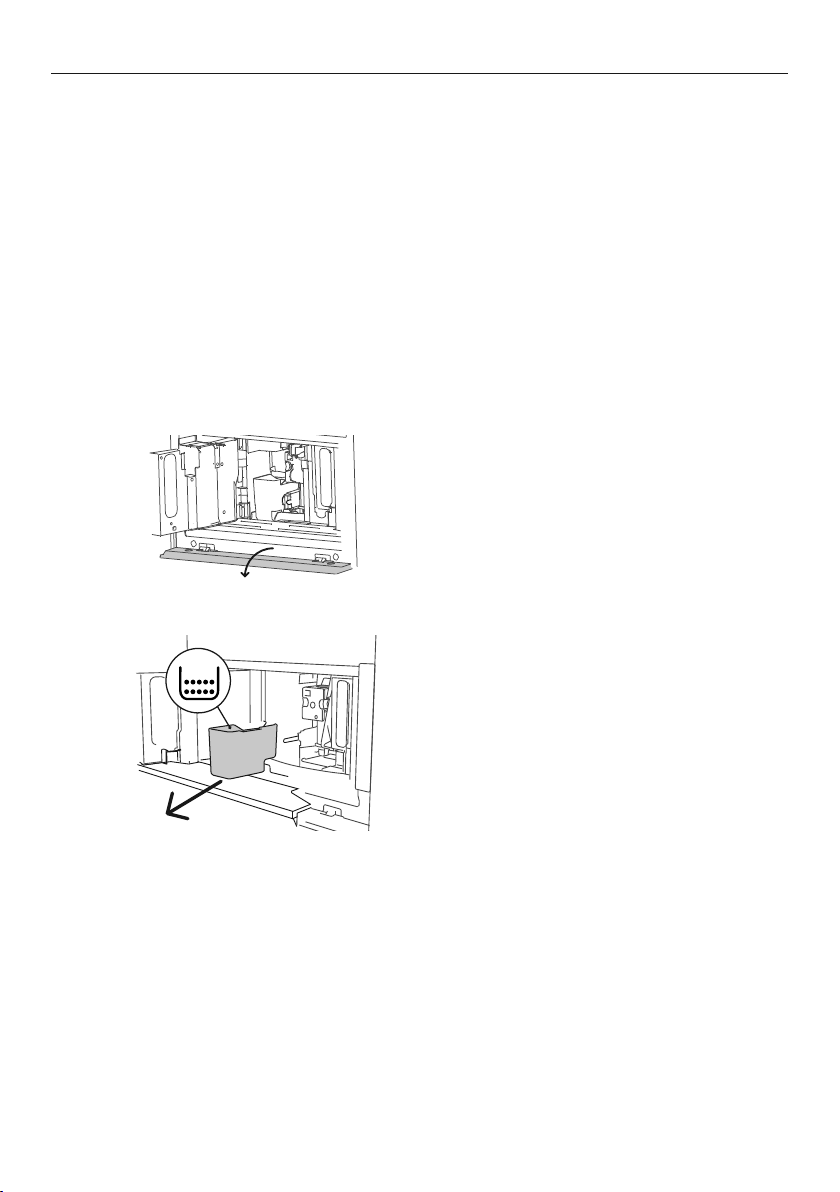

Open the door and bottom door panel to
access the drip tray and grounds container.
Remove the grounds container, empty and
clean. Ensure all coffee residue is removed,
using the spatula or the brush provided.
Replace the drip tray and coffee grounds
container and close the appliance door.
34
Page 35
CARE AND CLEANING
Emptying the drip tray
The drip tray is fitted with a red level indicator. When the indicator protrudes, the drip tray
must be emptied and cleaned, otherwise the water may overflow with further use.
1
2
3
Check the drip tray. If the red indicator is
protruding, it will need to be emptied.
Open the door and bottom door panel to
access the drip tray and grounds container.
Remove the drip tray and grounds
container, empty and clean.
When removing the drip tray, the grounds container must be emptied too, even if it only
contains a few grounds. If this is not done, the grounds container may fill up more than
expected the next time the appliance is used.
35
Page 36
CARE AND CLEANING
Cleaning the inside of the coffee maker
Before cleaning internal parts, the appliance must be turned off (see section ‘Turning the
coffee maker off’) and unplugged from the mains power supply. Never immerse the the
appliance in water.

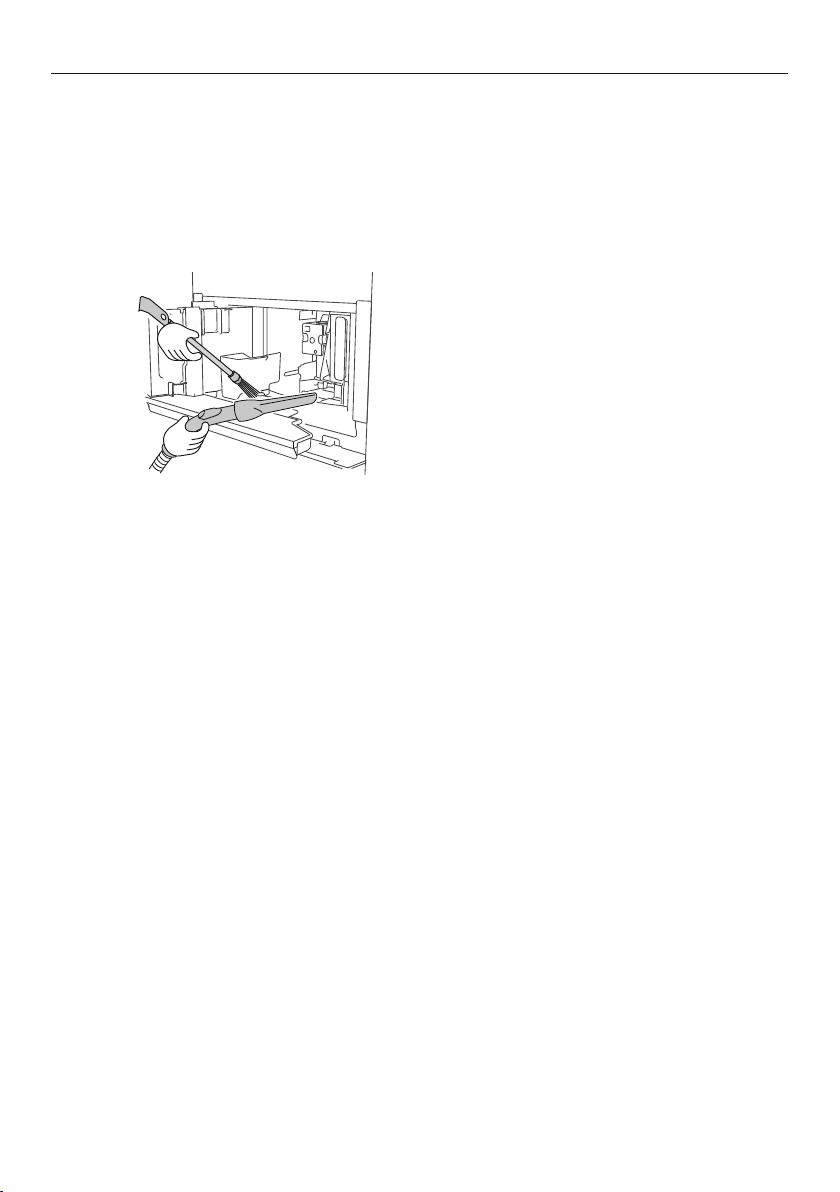

Check regularly (about once a month) that the inside of the appliance is not dirty. To access
the inside of the coffee maker, remove the grounds container and drip tray.
If necessary, remove coffee deposits with
1
Cleaning the pre-ground coffee funnel
Check regularly (about once a month) that the pre-ground coffee funnel is not blocked. If
necessary, remove coffee deposits with the brush supplied.
Cleaning the water tank
Clean the water tank regularly (about once a month) and whenever you replace the water
softener filter (if fitted).
Clean with a damp cloth and dishwashing liquid, then rinse thoroughly before refilling and
replacing back in the appliance.

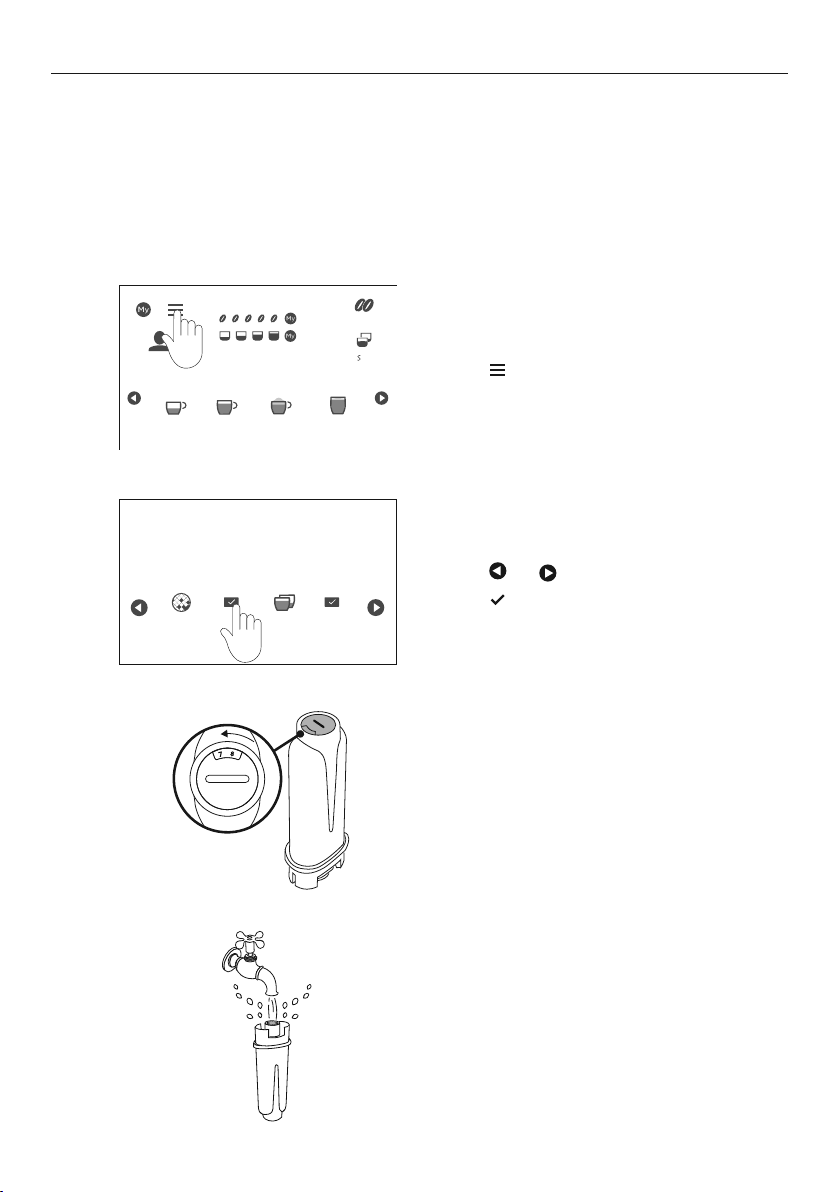

If the water filter is fitted, remove and rinse with fresh running water. After replacing, you’ll
need to run the machine once to reactivate the filter.
the brush supplied and a sponge. Remove
remaining residue with a vacuum cleaner.
36
Page 37
Cleaning the coffee spouts
CARE AND CLEANING
1
2

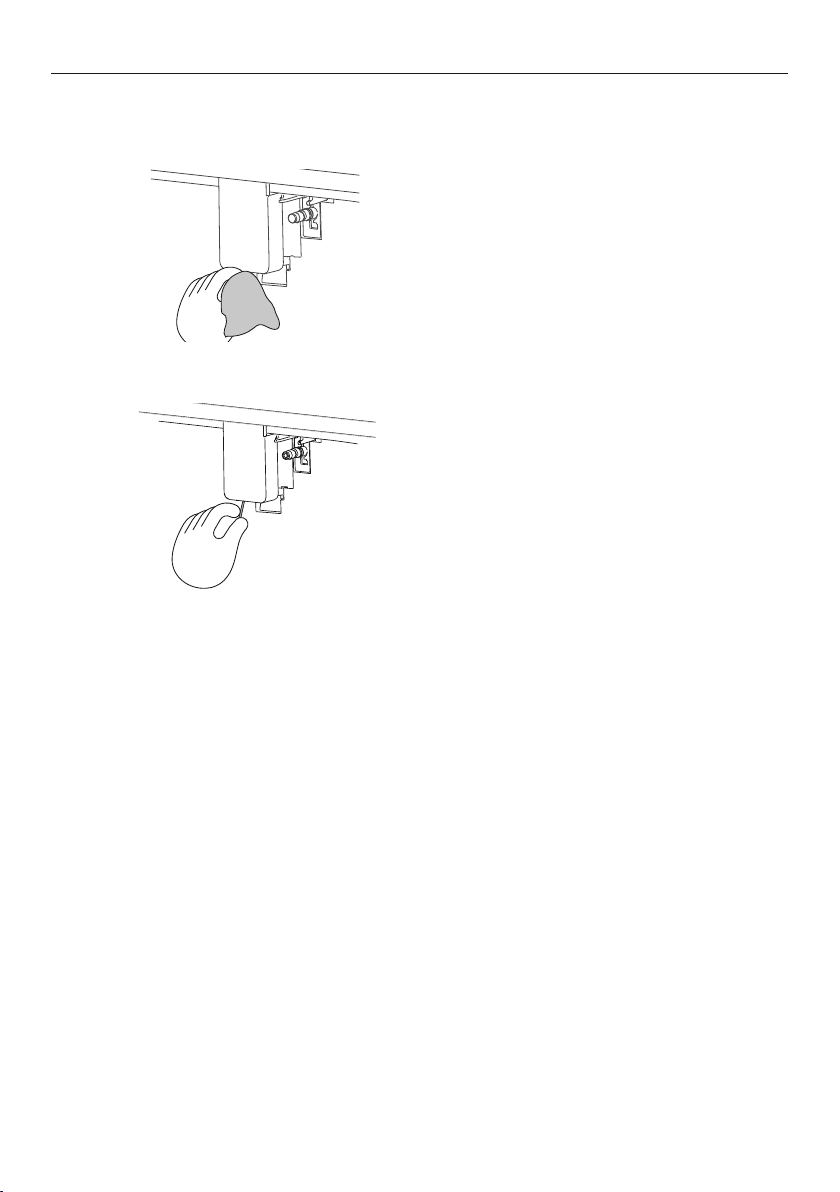

Clean the coffee spouts regularly with a
sponge or cloth.
Check that the holes in the coffee spouts
are not blocked. If necessary, remove
coffee deposits with a toothpick.
37
Page 38
CARE AND CLEANING
Cleaning the infuser
The infuser must be cleaned at least once a month.
1
2
3
Remove the drip tray and coffee
grounds container.

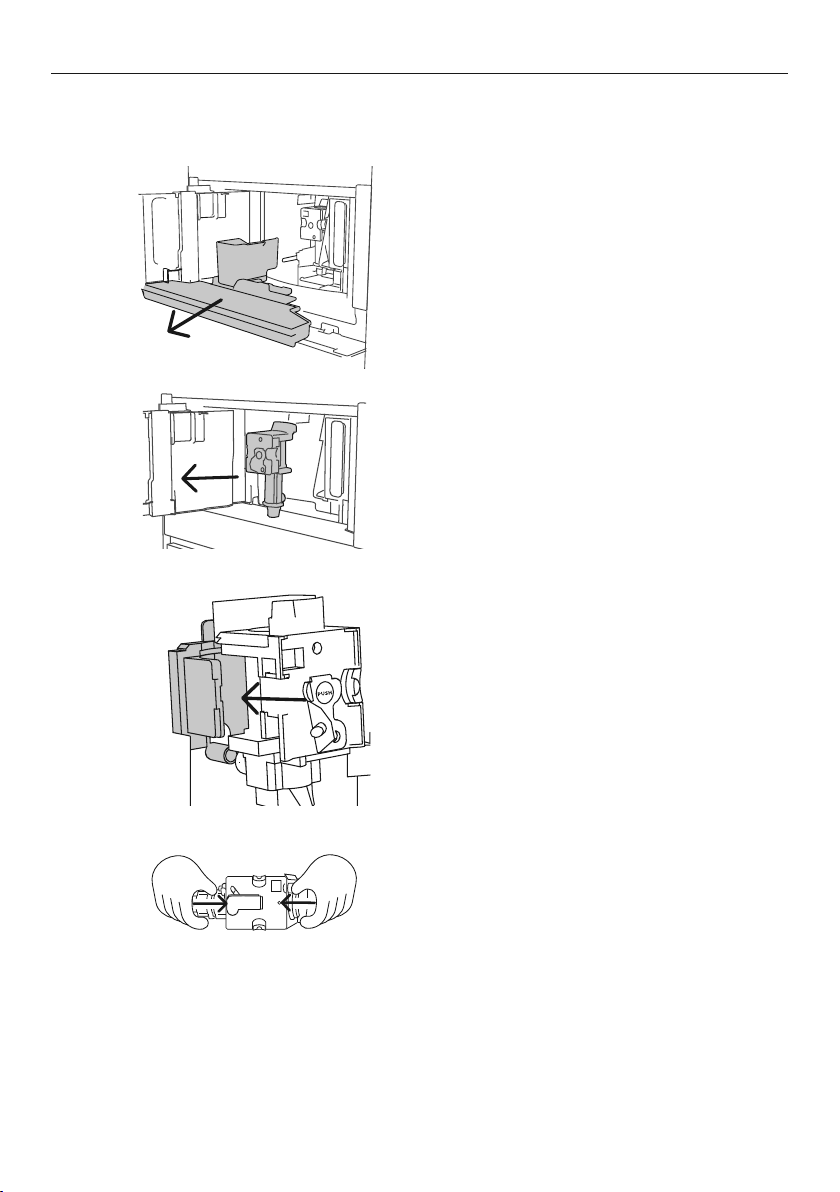

Press the two coloured release buttons on
the infuser inwards and pull to remove.
Soak the infuser in water for about five
minutes, then rinse.
After cleaning, replace the infuser by
sliding it onto the internal support and pin
at the bottom, then push the PUSH symbol
fully in until it clicks into place.
Replace the drip tray and coffee
grounds container.
If you are having difficulty reinserting the
4
z
The infuser must not be removed when the appliance is on. Do not use force to remove
the infuser.
z
Do not use dishwashing liquid to clean the infuser as it will remove the lubricant inside
the piston.
z
When reinserting, ensure the two release buttons have snapped back out into place.
38
infuser, you may need to adjust it slightly
by pushing from the top and bottom.
Page 39
CARE AND CLEANING
Cleaning the milk container
Each time the milk container needs to be refilled, take it apart and clean the components.
Wash all components thoroughly with hot water and dishwashing liquid. All components
except for the thermal casing are dishwasher safe.
Each time you refill the milk container, also clean the steam connection nozzle with a
sponge to remove any milk residue.
When making a number of cappuccinos or milk based coffees, clean the milk
container after you have prepared the last beverage.
The thermal casing must not be filled with or immersed in water. Clean with a damp
cloth only.

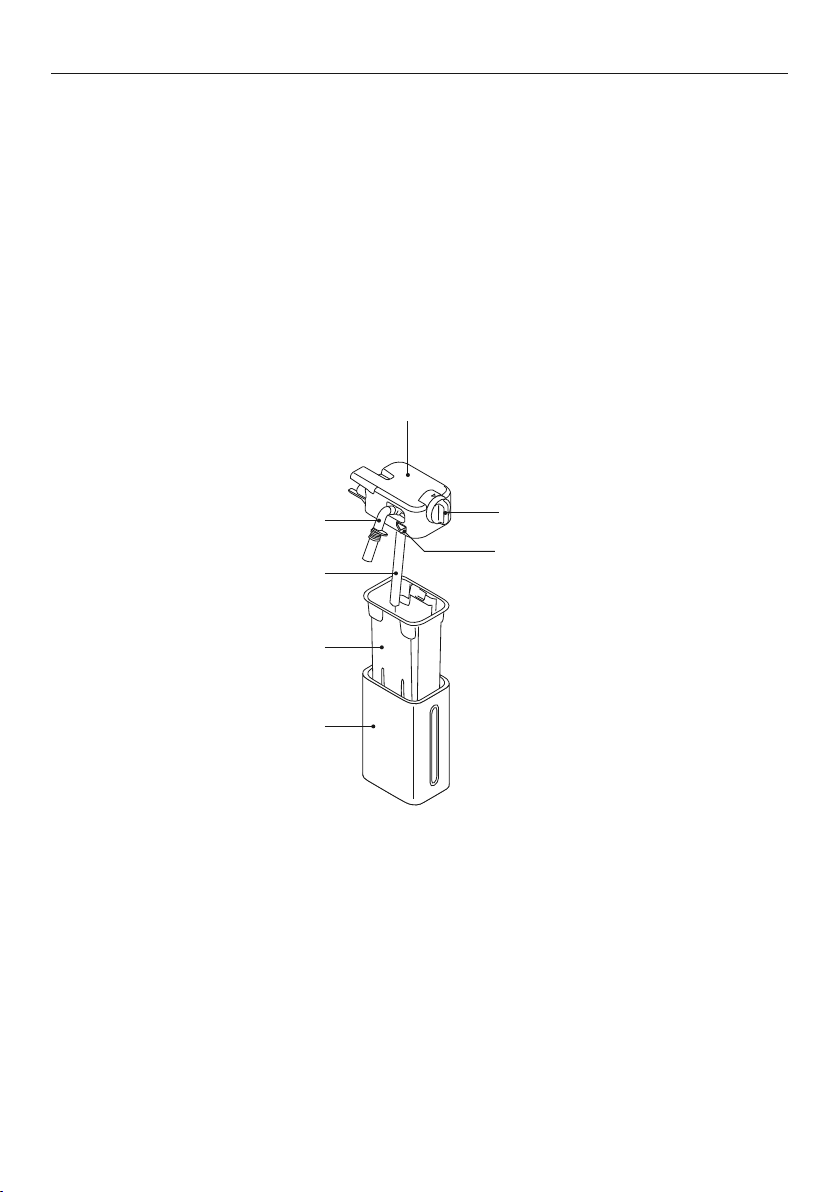

Lid with milk frother
Frothed milk spout
(adjustable)
Frothed milk
intake tube
Milk container
Thermal casing
Froth adjustment
and clean dial
Lid release buttons
39
Page 40
1
2
CARE AND CLEANING

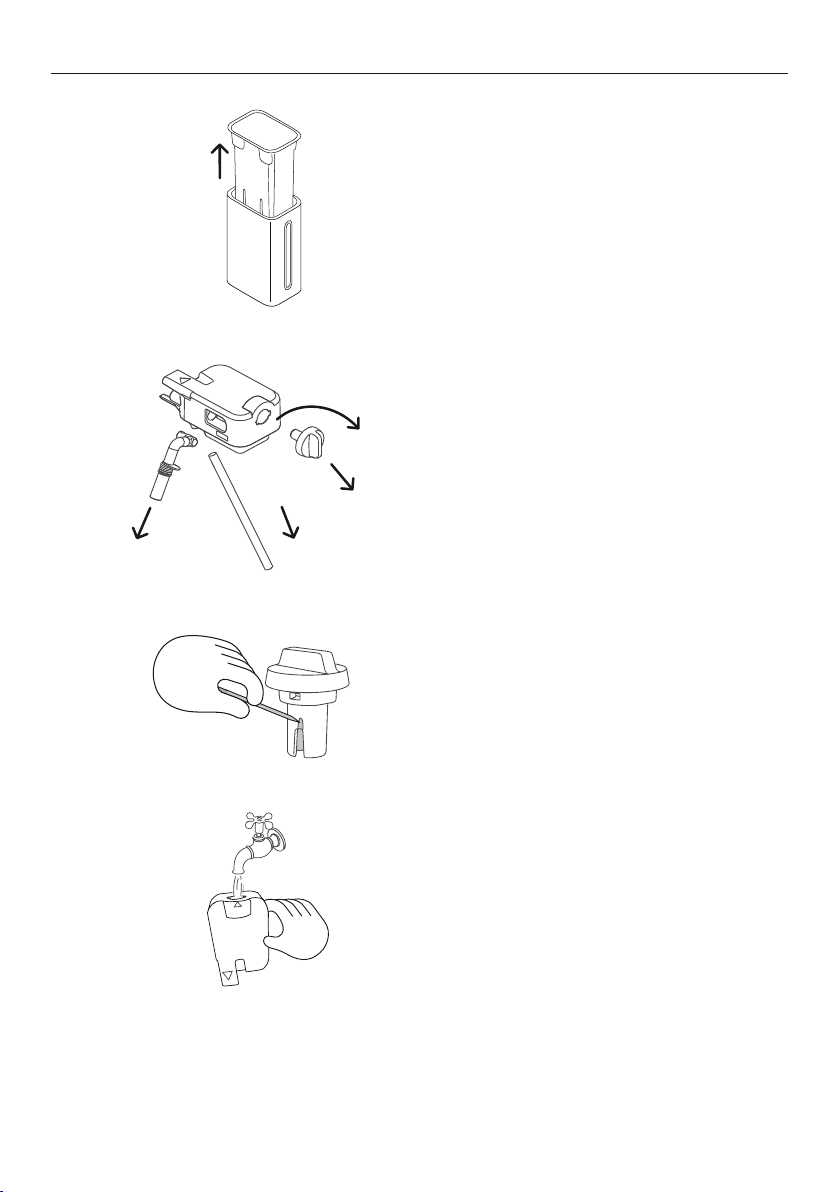

Remove the milk container from the
thermal casing, holding it by the two
side grips.
Remove the milk spout and intake tube.
Turn the froth adjustment dial clockwise to
the
INSERT position and pull off.
Ensure there is no milk residue
in the hollow and groove under the dial. If
3
4
Replace all components. Reposition the dial (lining up the arrow with the INSERT marker),
and reinsert the spout and milk intake tube.
40
needed, scrape with a toothpick to remove.
Rinse inside the froth adjustment dial seat
and the milk frother connector hole.
Check that the intake tube and spout are
not clogged.
Page 41
CARE AND CLEANING
Cleaning the milk frother
Each time you use the milk container, you’ll need to run a clean cycle afterwards to clean
the milk frother components.

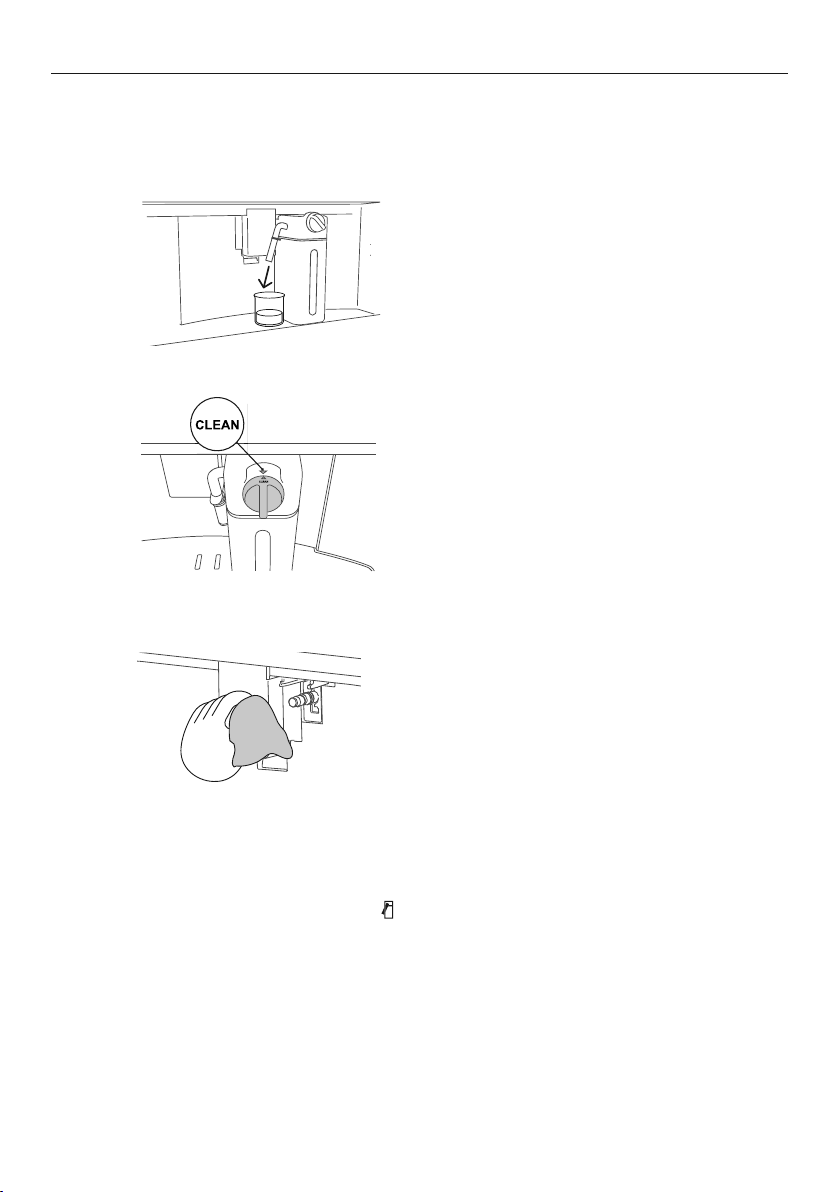

Leave the milk container in the machine
2
(you do not need to empty it).
Place a cup or other container under
the spout.
Turn the adjustment dial to
3
4
z
When making a number of cappuccinos or milk based coffees, clean the milk
container after you have prepared the last beverage only. To proceed with making
the next beverages, when the CLEAN message is displayed, press BACK.
z
If you do not clean the milk container, will appear on the screen to remind you
that it needs cleaning.
z
In some cases, before cleaning you must wait for the appliance to heat up.
When cleaning the internal tubes of the milk container, a little hot water and steam may
leak out of the frothed milk spout. Take care to avoid burns from hot splashes
of water.
CLEANING MILK CONTAINER UNDERWAY
will appear on the screen.
When the clean cycle is finished, remove
the milk container and clean the steam
connection nozzle with a sponge.
The milk container can be stored in the
refrigerator, or if empty taken apart for
further cleaning.
CLEAN.
41
Page 42
CARE AND CLEANING
Cleaning the steam wand
Clean the steam wand after every use to avoid the build-up of milk residue and prevent it
from clogging.
Wash all parts of the spout thoroughly with a sponge and warm water.

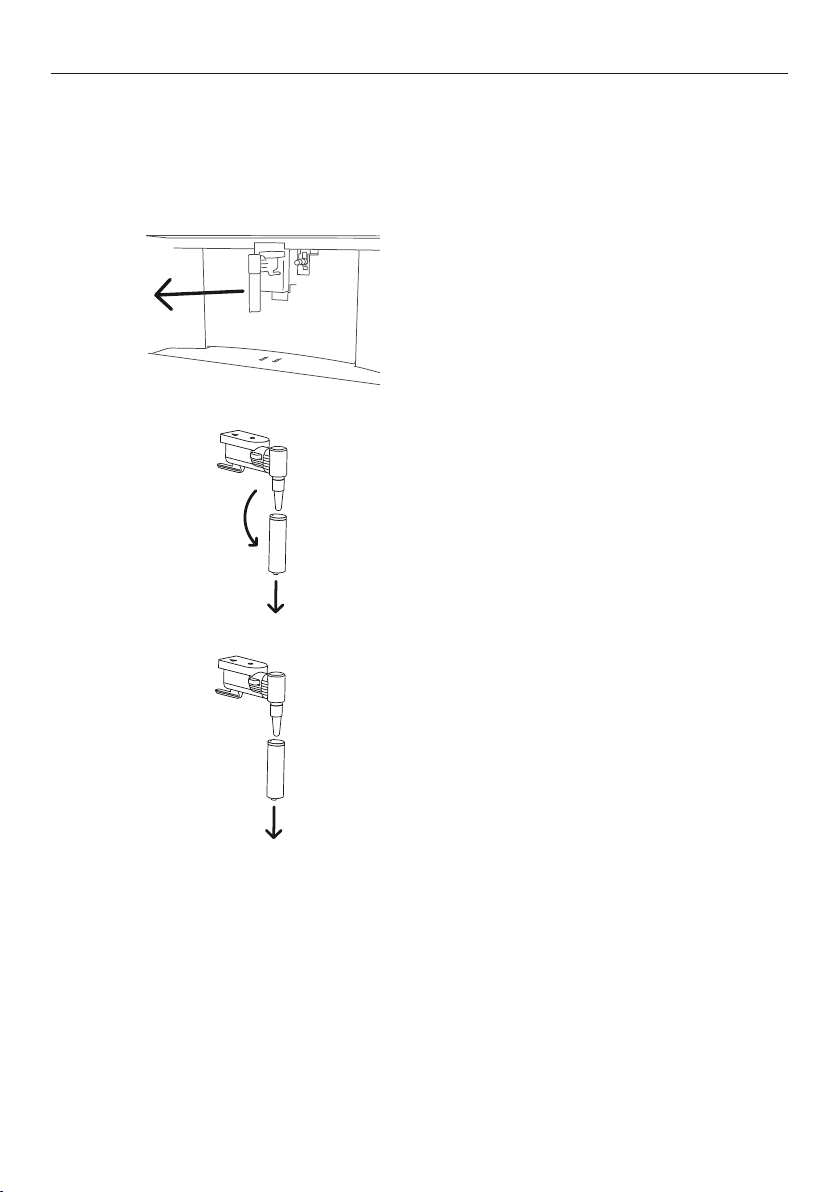

1
2
3

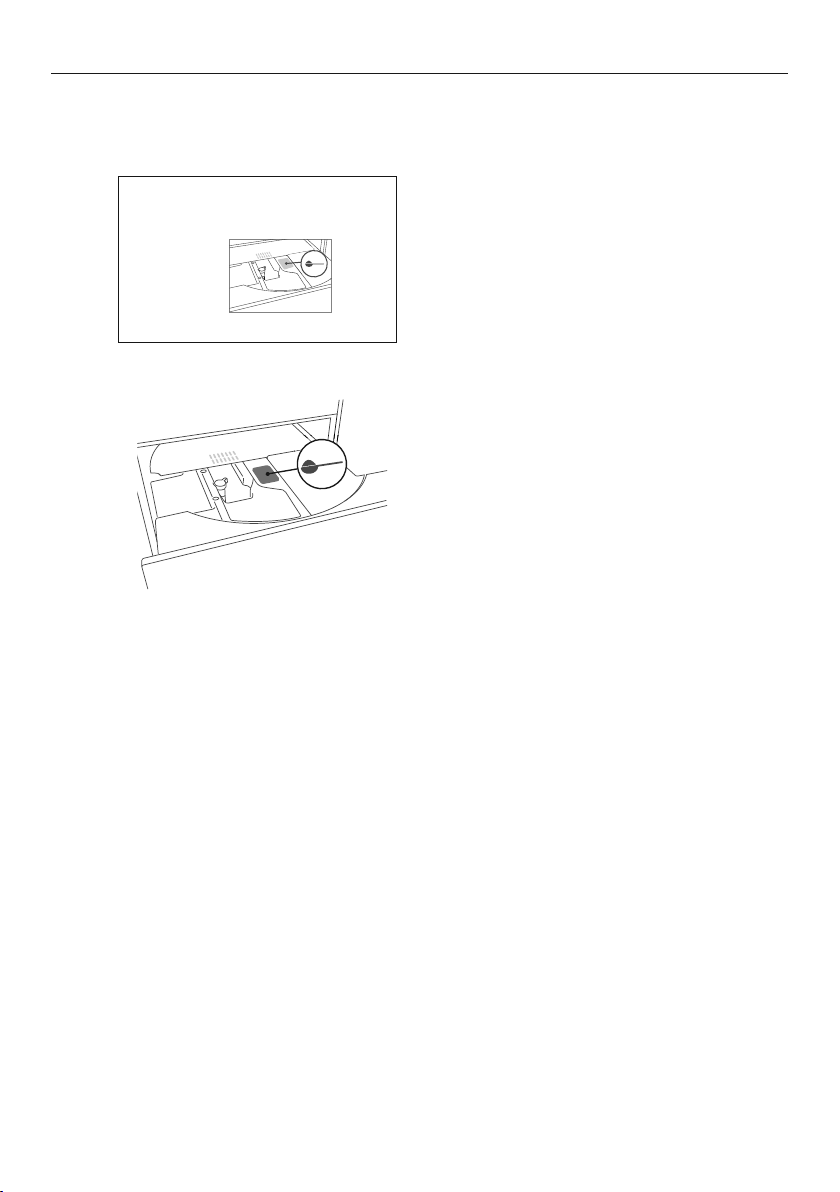

Place a container under the steam wand
and dispense a small amount of water.
Wait a few minutes for the spout to cool
down, then extract.

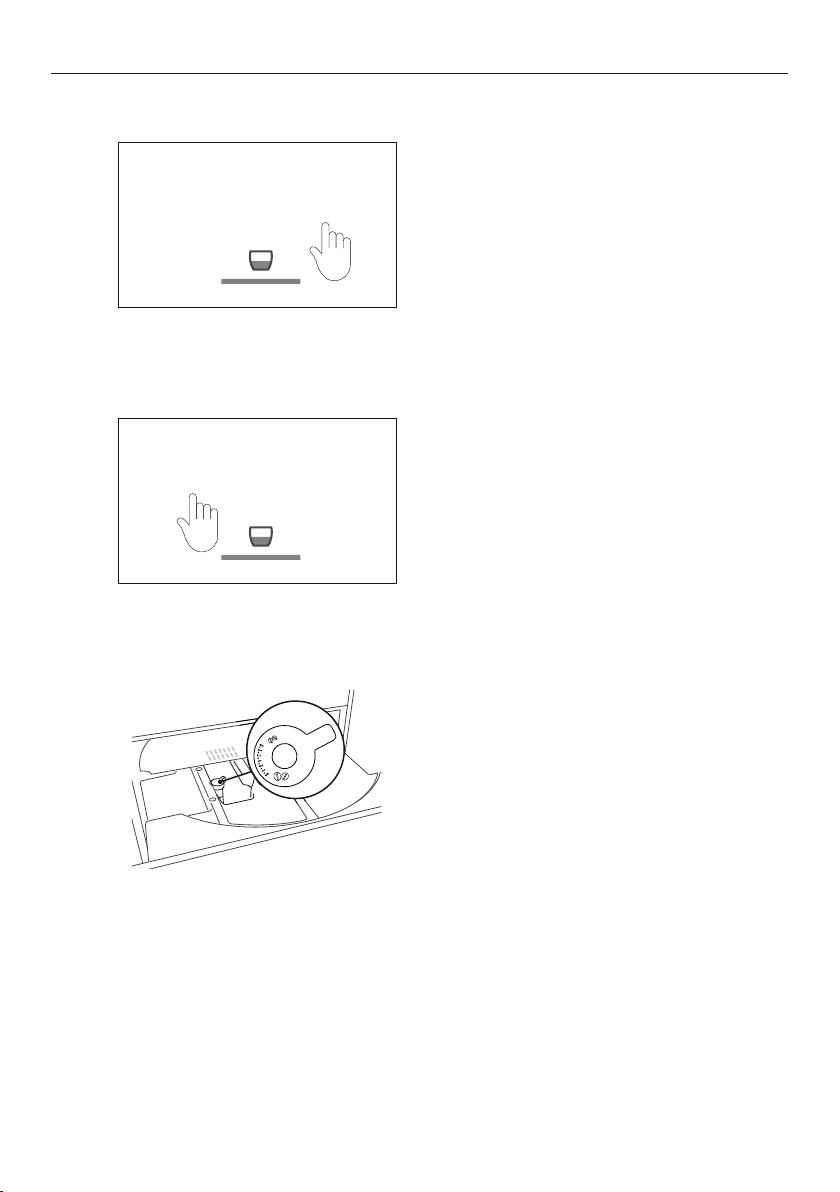

Hold the spout with one hand and with the
other, turn the end of the spout and pull
it downwards.
Remove the steam connection nozzle by
pulling it downwards.
Check the hole in the connection nozzle is
not blocked. If necessary, clean using
a toothpick.
Replace all components. Insert the steam connection nozzle, then the steam wand spout by
pushing it upwards and turning it clockwise until firmly in place.
42
Page 43
CARE AND CLEANING
Rinsing the coffee maker
Use the
clean and heat the appliance’s internal circuit.
If the appliance is not used for more than four days, when switched on again, we
recommend performing three rinses before use.
After cleaning, it is normal for the grounds container to contain water.
Do not run this cycle without a container placed under the coffee and water spouts.
Do not leave the appliance unattended while dispensing hot water.
RINSING cycle to dispense hot water from the coffee spouts and steam wand, to

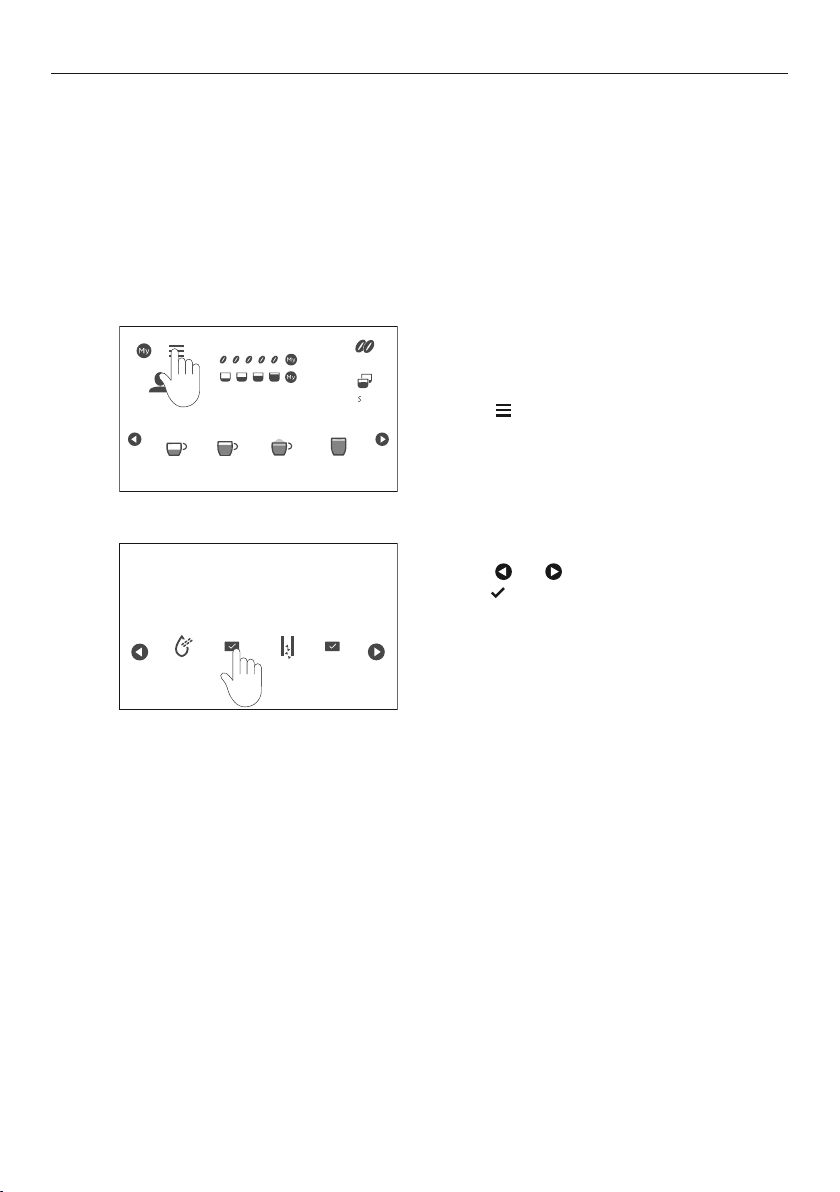

00:00
STRENGTH
1
PROFILE IZE
ESPRESSO COFFEE
CAPPUCCINO
14:25
LATTE
MACCHIAT0
Back
2
Rinsing Descaling
To cancel
Touch
CANCEL at any point to stop the rinsing cycle.
Touch to enter the settings menu.
Touch
or to scroll to RINSING, then
press to start.
After a few seconds, hot water will be
dispensed from the coffee spouts.
When the cycle has finished the display will
revert to the home screen.
43
Page 44
DESCALING
For best results, descale the coffee maker as soon as possible after the descale alert is
shown. The descale process takes approximately 45 minutes.
You will need a 85 fl oz (2.5L) container for the water to empty into. Make sure the water
dispensing spout is fitted during this process.
Take care while handling descaling solution and while running the descale cycle. We
recommend wearing gloves during this process and to avoid contact with the skin.
Do not leave the appliance unattended while rinsing or emptying.
To descale
Descaling needed
1
Press OK to start (~45min)
Back OK
DESCALING NEEDED will appear on screen.
Press OK to start immediately, or BACK to
start later.
To start the cycle later, go to the
settings menu.
44
2
3
Follow the instructions on the screen.
Remove the water tank and water filter
(if fitted) and empty.
Press
NEXT.
A
B
Add descaling solution to the water tank,
following the instructions on the screen.
B
A
Place water tank back in the appliance.
Press
NEXT.
Page 45
DESCALING
4
5
Rinsing
After descaling, the coffee maker will need to run at least two rinse cycles to ensure the
descaling solution has been completely flushed from the internal circuits.
1

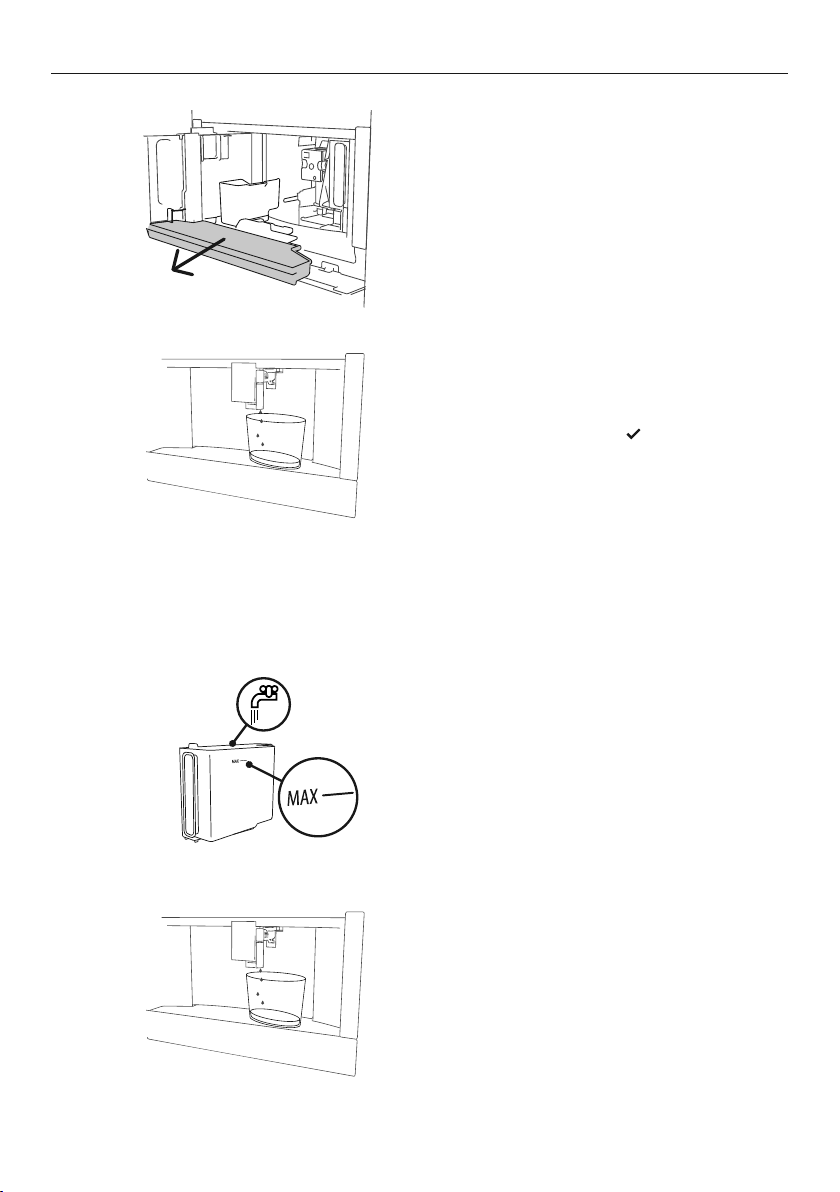

Empty the grounds container and drip tray,
then replace.
Place a 85 fl oz (2.5L) container under the
coffee and water spouts.
OK to start, then to confirm
Press
descaling solution has been added.
The coffee maker will begin descaling.
After approximately 25 minutes, descaling
will stop.
Empty out the container and remove and
rinse the water tank.
Fill the tank with fresh clean water up to
MAX level and replace.
2

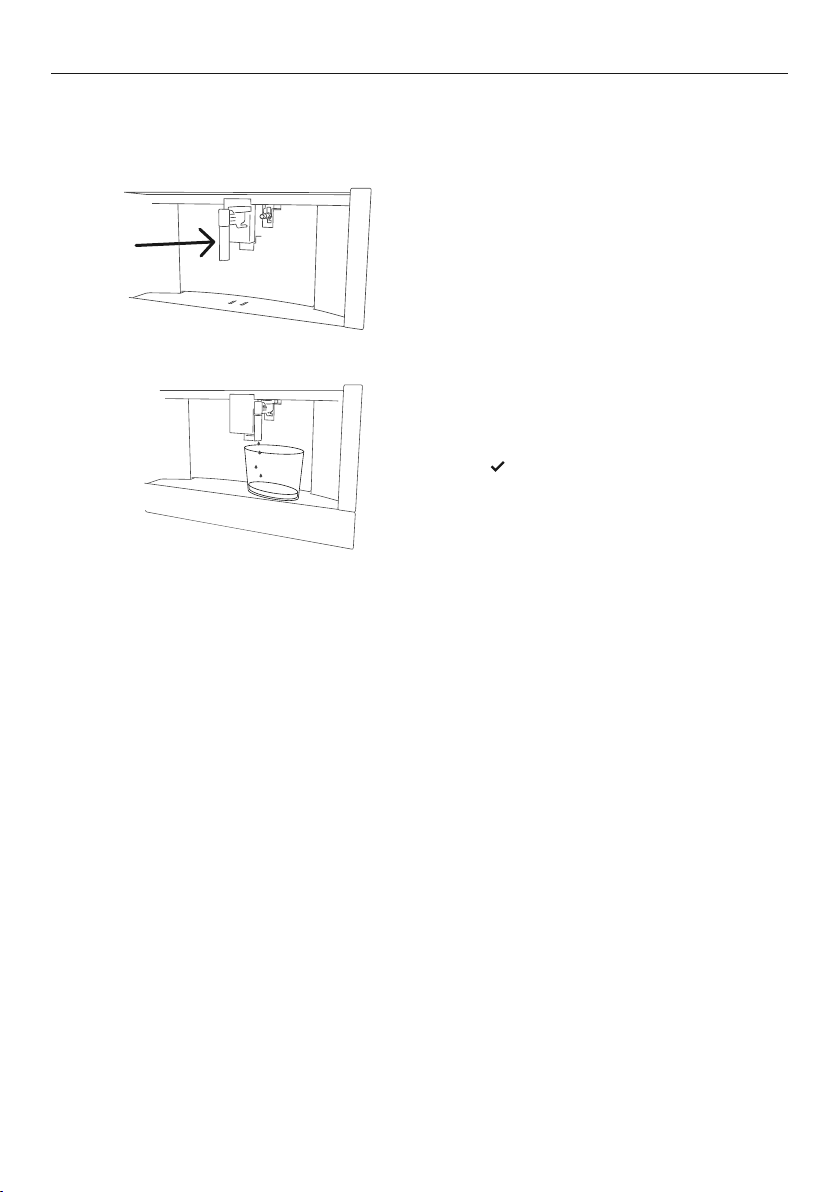

Place the 85 fl oz (2.5L) container back
under the coffee and water spouts.
OK to start.
Press
The coffee maker will begin rinsing.
45
Page 46
DESCALING
When the water in the tank has run out, empty out the container before running the second
rinse cycle.
Remove and rinse the water tank.
1
2
Replace the water filter (if using) and fill
the tank up to
Press NEXT.
Place the 85 fl oz (2.5L) container back
under the coffee and water spouts.
Press
OK to start.
The coffee maker will begin rinsing again.
MAX level.
At the end of rinsing, empty the grounds
3
z
If the descaling cycle is not completed correctly, eg due to a power cut, we recommend
repeating the cycle.
z
If the water tank has not been filled to the MAX level, you may need to do a third rinse to
ensure the descaling solution has been completely flushed from the machine’s internal
circuits. Before starting the rinse cycle, remember to empty the drip tray.
z
After descaling, it is normal for the grounds container to contain water.
z
If you live in an area with very hard water, the descaling alert may appear at very short
intervals. This is part of normal operation.
46
container and drip tray then replace.
Descaling is now complete and the coffee
maker is ready to use again.
Page 47
WATER FILTER
Certain models are fitted with a water softener filter. If this is not the case with your model,
we recommend purchasing one from an approved supplier.
The filter lasts approximately two months if the appliance is used regularly. If the coffee
maker is left unused with the filter installed, it will last a maximum of three weeks.
Installing the filter
Remove the filter from the packaging.
00:00
STRENGTH
1
2
3
PROFILE IZE
ESPRESSO COFFEE
Water filter Drink settings
CAPPUCCINO
14:25
LATTE
MACCHIAT0
Back
Press
Press
Press
.
or until WATER FILTER appears.
to enter.
Follow the instructions on the screen.
Turn the date indicator disk until the next
two months of the year are displayed.
NEXT.
Press
4
To activate the filter, run tap water through
the hole in the filter, until water comes out
of the openings at the side for more than
a minute.
Press
NEXT.
47
Page 48
5
6
7
WATER FILTER

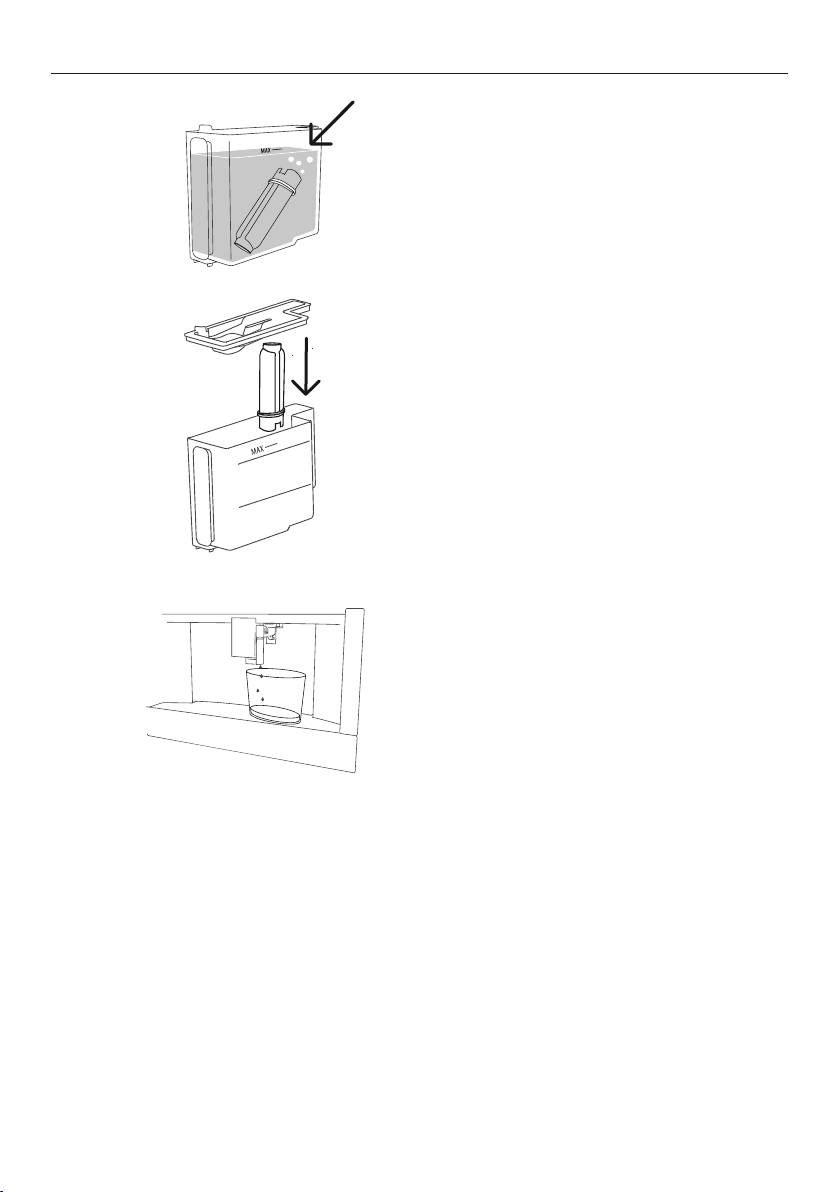

Remove the water tank and fill with
fresh water. Place the filter in the
tank, immersing completely for about
ten seconds.
Allow any air bubbles to escape, then
press
Insert the filter into the filter housing,
pushing in as far as it will go.
Replace the tank lid, then place the tank
back in the appliance.
Press
Place a 85 fl oz (2.5L) container under the
coffee and water spouts.
Press
The coffee maker will begin rinsing. Once
rinsing is complete, the coffee maker is
ready to use.
NEXT.
NEXT.
OK to start.
Replacing the filter
REPLACE WATER FILTER will apear on the screen when a new filter is needed. Remove the old
filter, then follow the instructions above to install a new one.
We recommend replacing the filter every two months or if the appliance has not been used
for three weeks, even if
to the WATER FILTER setting and select REPLACE WATER FILTER, then follow the instructions
on the screen.
Removing the filter
To remove the filter, go to the
Follow the instructions on the screen to remove.
48
REPLACE WATER FILTER hasn’t appeared on the screen. To do this, go
WATER FILTER setting and select REMOVE WATER FILTER.
Page 49
ALERTS
DISPLAYED MESSAGE POSSIBLE CAUSE WHAT TO DO
Fill tank with
fresh water
Insert water tank The tank is not
Empty grounds
container
Insert grounds container After cleaning, the
Add pre-ground coffee,
coffee max. 1 Measure
Add coffee, coffee max.
1 Measure
Fill beans container The coffee beans
Select a milder taste
or reduce pre-ground
coffee quantity
Insufficient water
in the tank.
correctly in place.
The grounds
container is full.
grounds container
has not been
re-inserted.
The ‘pre-ground
coffee’ function
has been selected
without placing any
pre-ground coffee
in the funnel.
The pre-ground
coffee funnel
is clogged.
A long coffee
with pre-ground
coffee has been
requested.
have run out.
Too much coffee has
been used.
Fill the tank with water and ensure that
it is inserted correctly, pushing it as far
as it will go until it clicks into place.
Insert the tank correctly and press as far
as it will go.
Empty the grounds container and drip
tray, clean and place it back in the
appliance. Note: when removing the
drip tray, the grounds container must be
emptied, even if it contains few grounds.
If this is not done, when you make the
next drinks, the grounds container may
fill up more than expected and clog
the machine.
Remove the drip tray and insert
the grounds container.
Place pre-ground coffee in the
funnel and repeat delivery.
Empty the funnel. See section ‘Cleaning
the pre-ground coffee funnel’.
Place pre-ground coffee in the
funnel and press
and complete delivery.
Fill the beans container.
Select a milder strength by
pressing
STRENGTH or reduce the
quantity of pre-ground coffee
(maximum one measure).
OK to continue
49
Page 50
ALERTS
!
DISPLAYED MESSAGE POSSIBLE CAUSE WHAT TO DO
Ground too fine.
Adjust mill 1 click
while in operation
The grinding is
too fine and the
coffee is delivered
too slowly or
not at all.
Repeat coffee delivery and turn the
grinding adjustment dial one click
clockwise towards
mill is in operation. If after making at
least two coffees, delivery is still too
slow, repeat the correction procedure,
turning the grinding adjustment dial
another click until delivery is correct (see
section ‘Adjusting the coffee mill’). If the
problem persists, make sure the water
tank is fully inserted.
7 while the coffee
GENERAL ALARM:
REFER TO
USER MANUAL
If you’re using a
water softener filter,
an air bubble may
have been released
inside the circuit,
obstructing delivery.
The inside of
the appliance is
very dirty.
The appliance
needs descaling and/
or the filter must
be replaced.
The tubes inside
the milk container
must be cleaned.
The filter must
be replaced.
The machine must
be descaled.
Deliver some water through the
hot water spout until the flow
becomes regular.
Clean the inside of the appliance
thoroughly, as described in section
‘Care and cleaning’. If the message is
still displayed after cleaning, contact
Customer Care.
The descaling procedure described
in the ‘Descaling’ section, needs to
be performed and/or the filter needs
replacing or removing as described
in section ‘Water filter’.
Turn the froth adjustment dial
to CLEAN.
Replace the filter or remove it as
described in section ‘Water filter’.
The descaling procedure described
in section ‘Descaling’ needs to
be performed.
50
The auto-start
function is enabled.
Energy saving
is enabled.
To disable the function, refer to the
instructions under ‘Auto start’.
To disable energy saving, refer to
instructions under ‘Settings’.
Page 51
ALERTS
DISPLAYED MESSAGE POSSIBLE CAUSE WHAT TO DO
Insert water spout The hot water
spout is not inserted
or is not inserted
correctly.
Insert milk container The milk container
is not inserted
correctly.
Insert infuser assembly The infuser has
not been replaced
after cleaning.
Water circuit empty
press ok to start
The water circuit
is empty.
filling process
Press ok to start
cleaning process
or turn milk froth
adjustment dial
Turn dial to
CLEAN position to
start cleaning
The milk container
has been inserted
with the froth
adjustment dial in
CLEAN position.
the
Milk has been
delivered recently
and the tubes
inside the milk
container must
be cleaned.
Turn the milk froth
adjustment dial to
milk position
The milk container
has been inserted
with the froth
adjustment dial in
CLEAN position.
the
Descaling needed press
ok to start (~45min)
Replace water filter
OK to start
press
The machine must
be descaled.
The water softener
filter is exhausted.
Insert the water spout as far as
it will go.
Insert the milk container as far as
it will go.
Insert the infuser as described in section
‘Cleaning the infuser’.
OK to deliver water from the spout
Press
until it flows out normally. Delivery stops
automatically.
If the problem persists, make sure
the water tank is fully inserted.
To proceed with the CLEAN function,
press OK or turn the froth adjustment
dial to one of the milk positions.
Turn the froth adjustment dial
to CLEAN.
Turn the dial to the required
froth position.
OK to start descaling or BACK
Press
to descale later. The descaling procedure
described in section ‘Descaling’ needs to
be performed.
Press OK to replace or remove
the filter, or BACK to carry out the
procedure later. Follow the instructions
in section ‘Water filter’.
51
Page 52
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE WHAT TO DO
The coffee
is not hot
The coffee
is weak or not
creamy enough
The coffee
is delivered
too slowly or
a drop at a time
Coffee does
not come out
of one or both
of the spouts
The appliance
will not
make coffee
The cups were
not preheated.
The infuser has cooled
down because two to three
minutes have elapsed since
the last coffee was made.
A low coffee temperature
is set.
The coffee is ground
too coarsely.
The coffee is ground
too finely.
The coffee spouts
are blocked.
The appliance has
detected impurities in
its internal circuits.
CLEANING UNDERWAY is
displayed on the screen.
Warm the cups by rinsing them with
hot water (Note: you can use the hot
water function).
Before making the coffee, heat the
infuser by rinsing using the rinse function
(see section ‘Rinsing the coffee maker’).
Set a hotter coffee temperature in the
menu (see section ‘Settings’).
Turn the grinding adjustment dial one
click counter clockwise towards
the coffee mill is in operation. Continue
one click at a time until you reach the
desired coffee delivery. The effect is only
visible after delivering two coffees (see
section ‘Adjusting the coffee mill’). If
coffee is still not to your preference, try
using a different brand of coffee.
Turn the grinding adjustment dial one
click clockwise towards
mill is in operation above figure. Continue
one click at a time until you reach the
desired coffee delivery.
The effect is only visible after delivering
two coffees (see section ‘Adjusting the
coffee mill’).
Clean the spouts with a toothpick.
Wait for the appliance to be ready for
use again and reselect the required
drink. Contact Customer Care if the
problem persists.
1 while
7 while the coffee
52
Page 53
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE WHAT TO DO
The appliance
does not turn on
The infuser cannot
be extracted
At the end of
descaling, the
appliance requests
a third rinse
The milk does not
come out of the
milk spout
The milk contains
large bubbles
and squirts out of
the milk spout or
there is little froth
The machine
emits noises or
small puffs of
steam while not
in use
It is not plugged into
the mains socket.
The main switch is not
turned on.
The appliance has not been
turned off correctly.
During the two rinse cycles,
the water tank has not been
filled to the
The lid of the milk container
is dirty.
The milk is not cold
enough, or is not light or
skimmed milk.
The froth adjustment dial
is incorrectly adjusted.
The milk container lid or
froth adjustment dial
is dirty.
The hot water/steam
connection nozzle is dirty.
The machine is ready
for use, or has recently
been turned off, and
condensation is dripping
into the hot vaporiser.
MAX level.
Plug into the mains socket.
Press the main switch.
Turn the appliance off by pressing
the standby button (see section ‘Turning
the coffee maker off’).
Follow the instructions displayed by
the appliance, but first empty the drip
tray to avoid the water overflowing.
Clean the milk container lid as described
in the ‘Cleaning the milk container’
section.
Use light or skimmed milk at refrigerator
temperature (about 41°F (5°C)). If the
result is not as you wished, try using a
different brand of milk.
Adjust following the instructions in the
‘Adjusting the foam level’ section.
Clean the milk container lid and froth
adjustment dial as described in the
‘Cleaning the milk container’ section.
Clean the connection nozzle.
See ‘Care and cleaning’.
This is part of normal operation.
To limit this occurring, empty
the drip tray.
53
Page 54
WARRANTY AND SERVICE
Before you call for service or assistance
Check the things you can do yourself. Refer to the installation instructions and your
user guide and check that:
1 Your product is correctly installed.
2 You are familiar with its normal operation.
If after checking these points you still need assistance or parts, please refer to the Service
& Warranty book for warranty details and your nearest Authorized Service Centre,
Customer Care, or contact us through our website fisherpaykel.com.
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer
City
State
Zip
Country
54
Page 55
FISHERPAYKEL.COM
© Fisher & Paykel Appliances 2023. All rights reserved.
The models shown in this guide may not be available in all markets
The product specifications in this guide apply to the specific products and
models described at the date of issue. Under our policy of continuous product
improvement, these specifications may change at any time.
For current details about model and specification availability in your country,
please go to our website or contact your local Fisher&Paykel dealer.
and are subject to change at any time.
41016A 02.2
Loading...
