Electronic 680 Quantum
Refrigerator / Freezer
Models
E440TL E440TR E442BL
E442BR
Series
B
517728
MANUAL 517728 July 1999 Reprinted 25 September, 2000
PRODUCTS
Brand Fisher & Paykel
Voltage 220-240V 50Hz, 220V 60Hz+, 110-115v 60Hz*
Model Code
E440TL 11677 11685 11770 11799
E440TR 11676 11684 11700 11712 11771 11800 11811 11823 11827+
11840 12378*
E442BL 11679 11687 11772 11801
E442BR 11678 11686 11701 11713 11773 11802 11812 11824 11828+
11841 12377*
Fisher & Paykel Customer Services
PO Box 798
19 Enterprise St
Cleveland, Queensland 4163
Australia
Tel: (07) 3826 9122
Fax: (07) 3826 9164
Email: parts@fp.com.au
A.C.N 003 335 171
COPYRIGHT FISHER & PAYKEL LTD 2000 1
Fisher & Pa ykel Ltd
Whiteware Spare Parts
PO Box 14-148, Panmure.
80 Springs Rd, E ast Tamaki
New Zealand
Tel: (09) 272 0261
Fax: (09) 272 0219
Email: parts@fp.co.nz
MANUAL 517728
CONTENTS
DOOR ASSEMBLIES TOP FREEZER.................................................................................................................................... 4
DOOR ASSEMBLIES BOTTOM FREEZER .......................................................................................................................... 8
CABINET TOP FREEZER..................................................................................................................................................... 12
CABINET BOTTOM FREEZER............................................................................................................................................ 16
FAN AND EVAPORATOR ASSEMBLIES ..........................................................................................................................20
ACTV SMART ST4 TERMINALS PLUGS & SOCKETS.................................................................................................... 24
ELECTRONIC MODULE AND DUCT COVERS................................................................................................................26
COMPRESSOR AND POWER MODULE............................................................................................................................ 28
NOTES.................................................................................................................................................................................... 33
REFRIGERATION ABBREVIATION KEY ......................................................................................................................... 35
GUIDE TO USING THIS MANUAL
The model(s) and/or series covered by this manual are listed on the front cover.
The information detailed in this manual is subject to change without notice, the latest version is
indicated by the reprint date and replaces any earlier editions.
The front cover picture shows the type of product and may not necessarily be an exact image of the
models covered by the manual.
Part References
Where a Model is shown, the part is exclusive to the Model(s) stated. Common parts relating to a part
reference are applicable to all other Model(s) which use the particular item.
Kit Parts
The components shown in italics are those parts in the kit which are available also as separate items. In
addition, some parts may be supplied with this kit which are not available as separate items and are
therefore not listed in this manual.
All details relating to Technical Bulletins or Notes are shown on a dedicated page. The Technical
Bulletin Number shown relates to the bulletin version which is produced for New Zealand Service
Centres.
Parts List Key
NOT USED As a part, indicates the diagram part reference is not used in this manual.
# Beside the part number, indicates the part is no longer available.
italics Kit components shown in italics are also available separately.
* Indicates a technical bulletin or note exists for the part or part reference.
NI As a part reference, indicates the part is not illustrated on the diagram.
3
MANUAL 517728
DOOR ASSEMBLIES TOP FREEZER
4
MANUAL 517728
DOOR ASSEMBLIES TOP FREEZER
REF PART DESCRIPTION MODEL
1 881350
881351
2 881358
3 881348
881349
4 * 315102P
* 315103P
5 874706
6 876507
7 882177P
8 881463
881464
877955
881358
877955
881358
COVER ENDCAP LHB RHT CH 680/790
COVER ENDCAP LHT RHB CH 680/79
CAP DOOR END OUTER CH 680
BEARING HINGE LHB RHT CH 680/790
BEARING HINGE LHT RHB CH 680/7
DOOR ASSY FC SS CH CAP 680 RH
MAGNET DOOR SWITCH
CAP DOOR END OUTER CH 680
DOOR ASSY FC SS CH CAP 680 LH
MAGNET DOOR SWITCH
CAP DOOR END OUTER CH 680
LABEL FREEZER GUIDE BLU 55X150
BIN DOOR FC 635/680T MODEL
GASKET FC MD GY PUSHIN 680X415
BEARING DR CLOSE RH CH 680/790
BEARING DR CLOSE LH CH 680/790
9 871123
10 882692
11 882691
12 882690
13 882671
14 882689
15 * 315077P
* 315078P
16 871129
17 883121
883146
18 881356
877955
881358
877955
881358
PLUG/PIN HINGE DAIRY COVER
COVER COMP 680 RH MOULDED P42
COVER DOOR SHELF 680 LH
SHELF DOOR SMALL 680 LH
SHELF EGG RACK 680
SHELF DOOR SMALL 680 RH
DOOR ASSY PC SS CH CAP 680 RH
MAGNET DOOR SWITCH
CAP DOOR END OUTER CH 680
DOOR ASSY PC SS CH CAP 680 LH
MAGNET DOOR SWITCH
CAP DOOR END OUTER CH 680
BIN EGG/ICE MOULD ALL BRANDS
DIVIDER BOTTLE RAIL WHITE
DIVIDER BOTTLE RAIL HS Q SILVR
RAIL BOTTLE SUPPORT SC 680
19 876281
20 881354
882688
21 882176P
22 881044
PLUG DOOR SHELF WHITE
SHELF DOOR LGE HSM882688 Q 680
SHELF DOOR LARGE WHITE 680
GASKET PC MDGY PUSHIN 680X1172
SCREW #8X22 WAFER PHIL STZP
5
MANUAL 517728
DOOR ASSEMBLIES TOP FREEZER
6
MANUAL 517728
DOOR ASSEMBLIES TOP FREEZER
REF PART DESCRIPTION MODEL
23 881391
24 878985
25 878984
26 871141
881160
27 881575
NI 479151
NI 479186
NI 882163
PLATE HANDLE SUPPORT PLATED
HANDLE DR SS SHORT
HANDLE DR SS LONG
SCREW 8X25 PAN NIB PH ZNPL
SCREW 8X3/4 PAN PH ST ZNPL
BOOKLET USE & CARE QUANTUM SS
LEAFLET SMART CARE NZ
LEAFLET SM/CARE WARRTY REG AUS
LEAFLET UK PLUG REPLACEMENT
7
MANUAL 517728
DOOR ASSEMBLIES BOTTOM FREEZER
8
MANUAL 517728
DOOR ASSEMBLIES BOTTOM FREEZER
REF PART DESCRIPTION MODEL
1 881350
881351
2 881358
3 881348
881349
4 871123
5 882692
6 882671
7 882689
8 882691
9 882690
10 * 315079P
* 315099P
877955
881358
877955
COVER ENDCAP LHB RHT CH 680/790
COVER ENDCAP LHT RHB CH 680/79
CAP DOOR END OUTER CH 680
BEARING HINGE LHB RHT CH 680/790
BEARING HINGE LHT RHB CH 680/7
PLUG/PIN HINGE DAIRY COVER
COVER COMP 680 RH MOULDED P42
SHELF EGG RACK 680
SHELF DOOR SMALL 680 RH
COVER DOOR SHELF 680 LH
SHELF DOOR SMALL 680 LH
DOOR ASSY PC SS CH CAP 680 RH
MAGNET DOOR SWITCH
CAP DOOR END OUTER CH 680
DOOR ASSY PC SS CH CAP 680 LH
MAGNET DOOR SWITCH
11 883121
883146
12 881356
13 876281
14 881354
882688
15 882174P
16 881463
881464
17 874706
18 * 315100P
* 315101P
881358
877955
881358
877955
CAP DOOR END OUTER CH 680
DIVIDER BOTTLE RAIL WHITE
DIVIDER BOTTLE RAIL HS Q SILVR
RAIL BOTTLE SUPPORT SC 680
PLUG DOOR SHELF WHITE
SHELF DOOR LGE HSM882688 Q 680
SHELF DOOR LARGE WHITE 680
GASKET PC MDGY PUSHIN 680X1001
BEARING DR CLOSE RH CH 680/790
BEARING DR CLOSE LH CH 680/790
LABEL FREEZER GUIDE BLU 55X150
DOOR ASSY FC SS CH CAP 680 RH
MAGNET DOOR SWITCH
CAP DOOR END OUTER CH 680
DOOR ASSY FC SS CH CAP 680 LH
MAGNET DOOR SWITCH
19 882175P
20 871129
21 881044
22 881391
881358
CAP DOOR END OUTER CH 680
GASKET FC MD GY PUSHIN 680X585
BIN EGG/ICE MOULD ALL BRANDS
SCREW #8X22 WAFER PHIL STZP
PLATE HANDLE SUPPORT PLATED
9
MANUAL 517728
DOOR ASSEMBLIES BOTTOM FREEZER
10
MANUAL 517728
DOOR ASSEMBLIES BOTTOM FREEZER
REF PART DESCRIPTION MODEL
23 878984
24 878985
25 871141
881160
HANDLE DR SS LONG
HANDLE DR SS SHORT
SCREW 8X25 PAN NIB PH ZNPL
SCREW 8X3/4 PAN PH ST ZNPL
11
MANUAL 517728
CABINET TOP FREEZER
12
MANUAL 517728
CABINET TOP FREEZER
REF PART DESCRIPTION MODEL
1 881314
2 610312
3 880526
4 882355
5 881244
6 881243
7 877909
8 882706
9 880656
10 881283
881286
11 881270
881271
12 881295
13 880655
14 880820
COVER TOP HINGE CH
SCREW MC M5X20 HEX PH MS ZNPL
BRACKET TOP HINGE ASSY (PLATED
GASKET TOP HINGE
PLUG TAPPED HOLE CHARCOAL
TRIM CORNER CHARCOAL
SHELF TOP FC WHITE 680
TRIM SHELF FCT 680 WHITE
SCREW 10GX25CSK SQ SS
BRACKET CTR HINGE RH PLATED
BRACKET CTR HINGE LH PLATED
CAP DOOR CLOSING RH HINGE BRKT
CAP DOOR CLOSING LH HINGE BRKT
CAP SCREW CROSS RAIL CHARCOAL
SCREW #10X19 AB #2 SQ ZN
FAN & HOUSING PC ASSY ST3
* 878582
* 878583
881438P
* 878582
* 878583
15 880542
881420
16 900475
17 900101
18 880643P
872956
878545
881147
881408
881592
881598
AMP HOUSING FEMALE 172233-1
AMP PIN 16-20AWG 171680-1
SPRING FAN SUSPENDED
HOUSING FAN SUSPENDED
MOTOR FAN ASSY DC SUSP PC ST3
FAN & HOUSING PC ASSY ST4
SPRING FAN SUSPENDED
HOUSING FAN SUSPENDED
MOTOR FAN ASSY DC SUSP PC ST4
MOLEX CAP FEMALE 51139-0200
MOLEX PIN 20-26AWG 50600-8100 (20-26AWG)
COVR REED SW CTR X/R A IL WH ST3
COVER REED SW X/R & B TM WH ST4
SCREW 8X16.4MM SP PAN NIB ST
WASHER LOCK NO 10 EXT SP ZP
SWITCH REED+HARN XTN X/RAIL ST3
* 883253P
881223P
19 874017
20 875318
SWITCH REED X/RAIL FIELD FIX KIT ST3
SWITCH REED FIELD FIX KIT ST 4
LAMP HALOGEN PC 12VOLT/10W
COVER LAMP PC
13
MANUAL 517728
CABINET TOP FREEZER
14
MANUAL 517728
CABINET TOP FREEZER
REF PART DESCRIPTION MODEL
21 881298
22 881265
23 881269
24 881300
25 876538
26 876537
27 882352
28 880657P
881223P
881253
881256
881259
881261
881262
881302
881303
SHELF GLASS PC SC ASSY 680
SHELF GLASS PC 680
EXTRUSN FRT GLASS SHELF SC 680
EXTRUSN REAR GLAS SHELF SC 680
PLUG REAR EXTRUSN RH ALL MODLS
PLUG REAR EXTRUSN LH ALL MODLS
PLUG FRONT EXTRUSN RH 680/790
PLUG FRONT EXTRUSN LH 680/790
EXTRUSION HCL SUPPORT 635/680
BRACKET HCL SUPPORT T GL SH
LID HUMIDITY CONTROL T 635/680
TRAY CRISPER 'T' 63 5
BIN CRISPER 635/680 T MODEL
FOOT RUNNER CRISP 'T' 790
SWITCH REED BASE PANEL ST3
SWITCH REED FIELD FIX KIT ST 4
29 881296
881422
30 871132
31 871017
32 881274
881277
33 880959
34 880512
35 880545
36 871041
37 872963
38 874108
39 874107
880519
COVR REED SWITCH B/PANL CH ST3
COVR REED SWITCH B/PANL CH ST4
FOOT ROLLER
PIN ROLLER PLATED
BRACKET BTTM HINGE RH PLATED
BRACKET BTTM HINGE LH PLATED
BOLT BOTTOM HINGE BRACKET
FOOT LEVELLING ASSEMBLY
BASE LEVELLING FOOT
ROLLER FOOT
CLIP ROLLE R
TRAY ICE HOLDER
TRAY ICE LID
TRAY ICE BASE
15
MANUAL 517728

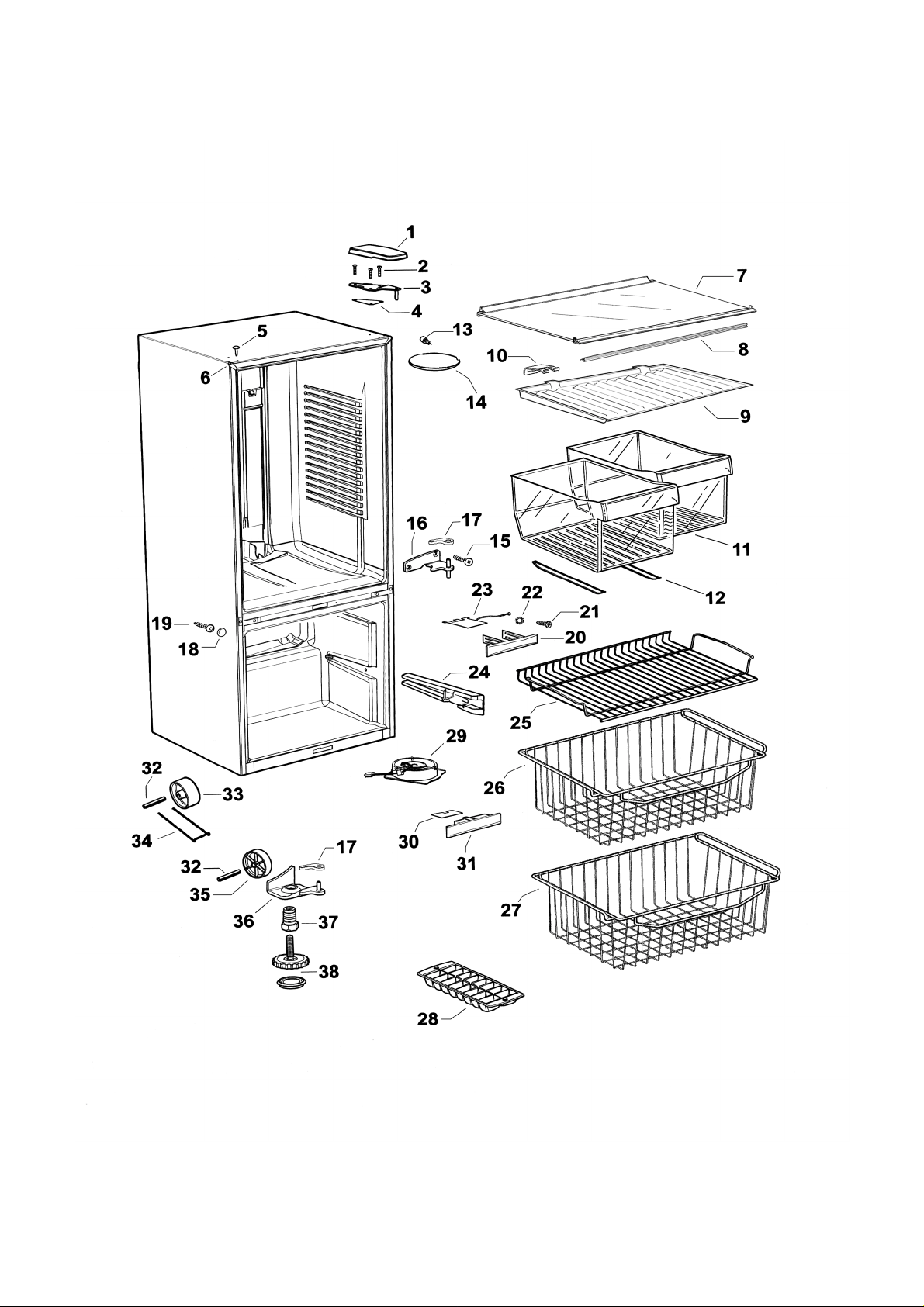

CABINET BOTTOM FREEZER
16
MANUAL 517728
CABINET BOTTOM FREEZER
REF PART DESCRIPTION MODEL
1 881314
2 610312
3 880526
4 882355
5 881244
6 881243
7 881298
8 881265
9 881301
881253
881256
881259
881261
881262
881302
881303
COVER TOP HINGE CH
SCREW MC M5X20 HEX PH MS ZNPL
BRACKET TOP HINGE ASSY (PLATED
GASKET TOP HINGE
PLUG TAPPED HOLE CHARCOAL
TRIM CORNER CHARCOAL
SHELF GLASS PC SC ASSY 680
SHELF GLASS PC 680
EXTRUSN FRT GLASS SHELF SC 680
EXTRUSN REAR GLAS SHELF SC 680
PLUG REAR EXTRUSN RH ALL MODLS
PLUG REAR EXTRUSN LH ALL MODLS
PLUG FRONT EXTRUSN RH 680/790
PLUG FRONT EXTRUSN LH 680/790
EXTRUSION HCL SUPPORT 635/680
LID HUMIDITY CONTROL B 635/680
10 881268
11 876536
12 875287
13 874017
14 875318
15 880656
16 881283
881286
17 881270
881271
18 881295
19 880655
20 880542
881420
21 900475
22 900101
BRACKET HCL SUPPORT B MODEL
BIN CRISPER B MODEL 635/680
FOOT CRISPER RUNNER B
LAMP HALOGEN PC 12VOLT/10W
COVER LAMP PC
SCREW 10GX25CSK SQ SS
BRACKET CTR HINGE RH PLATED
BRACKET CTR HINGE LH PLATED
CAP DOOR CLOSING RH HINGE BRKT
CAP DOOR CLOSING LH HINGE BRKT
CAP SCREW CROSS RAIL CHARCOAL
SCREW #10X19 AB #2 SQ ZN
COVR REED SW CTR X/R A IL WH ST3
COVER REED SW X/R & B TM WH ST4
SCREW 8X16.4 MM SP PAN NIB ST
WASHER LOCK NO 10 EXT SP ZP
23 880643P
* 883253P
881223P
SWITCH REED+HARN XTN X/RAIL ST3
SWITCH REED X/RAIL FIELD FIX KIT ST3
SWITCH REED FIELD FIX KIT ST 4
17
MANUAL 517728
CABINET BOTTOM FREEZER
18
MANUAL 517728
CABINET BOTTOM FREEZER
REF PART DESCRIPTION MODEL
24 871145
871146
25 877929
26 877935
27 877932
28 874107
29 880820
* 878582
* 878583
855143
901323
855143
901323
872956
878545
881147
RUNNER FC BASKET ASSY B RH
WHEEL BASKET SUPPORT B VF
PIN FC BASKET RUNNER
RUNNER FC BASKET ASSY B LH
WHEEL BASKET SUPPORT B VF
PIN FC BASKET RUNNER
SHELF FC 680 B MODEL 579X361
BASKET FC TOP WHITE MODL 680B
BASKET FC BTTM WHITE MODL 680B
TRAY ICE BASE
FAN & HOUSING PC ASSY ST3
AMP HOUSING FEMALE 172233-1
AMP PIN 16-20AWG 171680-1
SPRING FAN SUSPENDED
HOUSING FAN SUSPENDED
MOTOR FAN ASSY DC SUSP PC ST3
881438P
* 878582
* 878583
30 880657P
881223P
31 881296
881422
32 871017
33 871132
34 871041
35 880545
36 881274
881277
881408
881592
881598
FAN & HOUSING PC ASSY ST4
SPRING FAN SUSPENDED
HOUSING FAN SUSPENDED
MOTOR FAN ASSY DC SUSP PC ST4
MOLEX CAP FEMALE 51139-0200
MOLEX PIN 20-26AWG 50600-8100 (20-26AWG)
SWITCH REED BASE PANEL ST3
SWITCH REED FIELD FIX KIT ST 4
COVR REED SWITCH B/PANL CH ST3
COVR REED SWITCH B/PANL CH ST4
PIN ROLLER PLATED
FOOT ROLLER
CLIP ROLLE R
ROLLER FOOT
BRACKET BTTM HINGE RH PLATED
BRACKET BTTM HINGE LH PLATED
37 880959
38 880512
880519
BOLT BOTTOM HINGE BRACKET
FOOT LEVELLING ASSEMBLY
BASE LEVELLING FOOT
19
MANUAL 517728

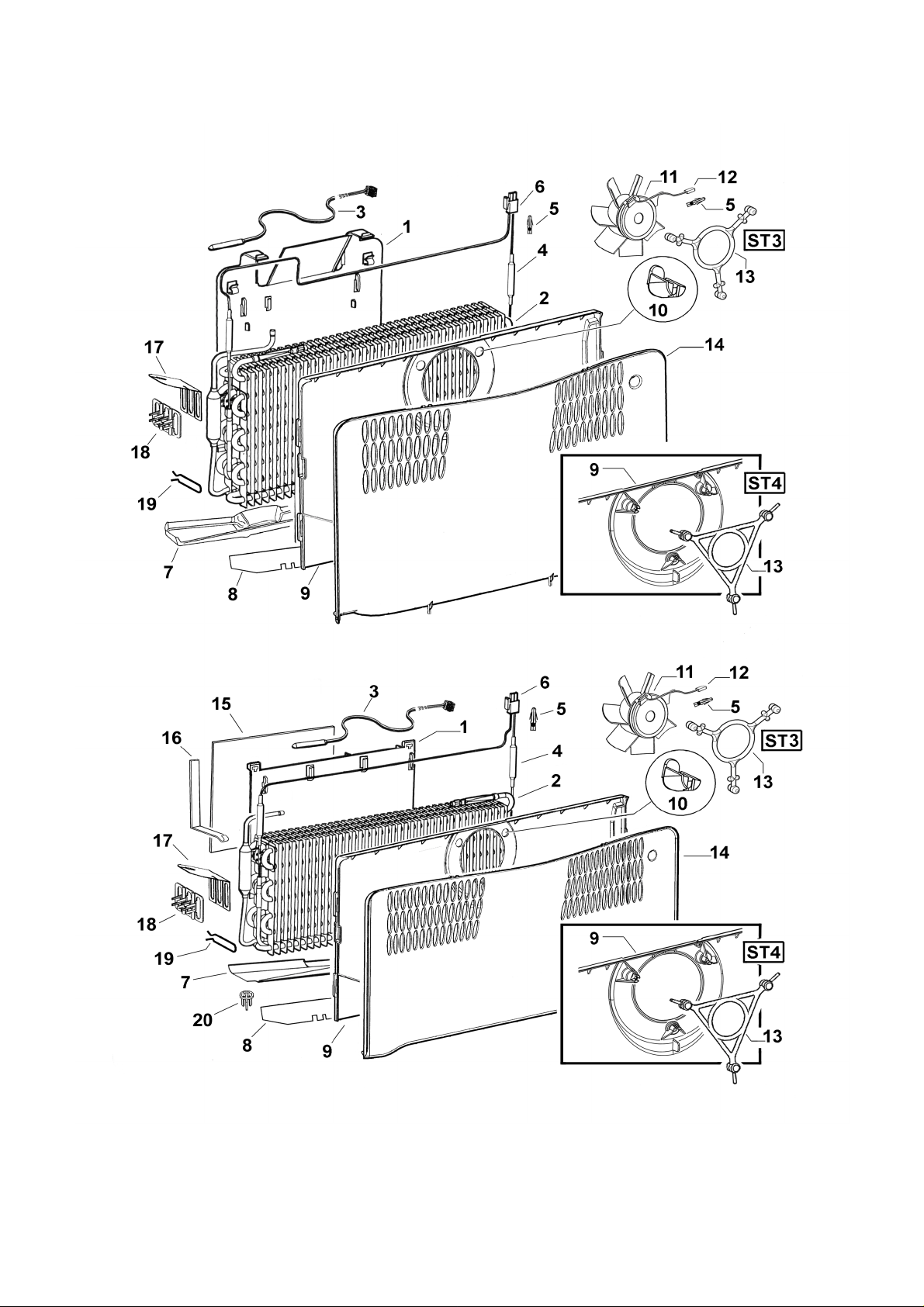

FAN AND EVA PORATOR ASSEMBLIES
20
MANUAL 517728
FAN AND EVAPORATOR ASSEMBLIES
REF PART DESCRIPTION MODEL
1 880495
880495
874109
874109
2 872947
872948
881432P
881433P
881430P
881431P
3 855203P
4 874170
881413P
872957
873988
881592
CHASSIS EVAP ELECT 635/680T
CHASSIS EVAP ELECT 635/680T
CHASSIS EVAP ELECT 635/680B
CHASSIS EVAP ELECT 635/680B
EVAP SERV KIT 680T 240V ST3
EVAP SERV KIT 680B 240V ST3
EVAP SERV KIT 680T 240V ST4
EVAP SERV KIT 680B 240V ST4
EVAP SERV KIT 680T 110V ST4
EVAP SERV KIT 680B 110V ST4
SENSOR KIT ASSY
HEATER DEF ASSY 680 ST3 240V
AMP SKT 16-20AWG 171639-1
PLUG 2WAY HSG AMP MATE-N-LOK
HEATER DEF ASSY 680 ST4 240V
MOLEX CAP FEMALE 51139-0200
E440TL
E440TR
E442BL
E442BR
881412P
5 872957
6 873988
7 877966
877966
880637
880637
881593
881594
881595
881597
881592
881593
881594
881595
881597
MOLEX PLUG MALE 51138-0200
MOLEX RETAINER 51140-0205
MOLEX SKT 16-22AWG 50597-8100 (16-22AWG)
MOLEX PIN 16-22AWG 50599-8100 (16-22AWG
HEATER DEF ASSY 680 ST4 110V
MOLEX CAP FEMALE 51139-0200
MOLEX PLUG MALE 51138-0200
MOLEX RETAINER 51140-0205
MOLEX SKT 16-22AWG 50597-8100 (16-22AWG)
MOLEX PIN 16-22AWG 50599-8100 (16-22AWG
AMP SKT 16-20AWG 171639-1
PLUG 2WAY HSG AMP MATE-N-LOK
SHIELD DRAIN HTR DEFROST 680T
SHIELD DRAIN HTR DEFROST 680T
SHIELD DRAIN HTR DEFROST 680B
SHIELD DRAIN HTR DEFROST 680B
E440TL
E440TR
E442BL
E442BR
8 880691
9 * 880954
* 882844
10 * 880543
* 880544
SHEILD FC COVER 680
COVER FAN FC REAR 680
COVER ASSY FAN FC REAR 680
CLIP FAN SUSPENDED FC LONG TOP
CLIP FAN SUSPEND FC SHORT BTTM
21
MANUAL 517728
FAN AND EVAPORATOR ASSEMBLIES
22
MANUAL 517728
FAN AND EVAPORATOR ASSEMBLIES
REF PART DESCRIPTION MODEL
11 * 880923
881409P
12 872956
13 880952
* 882956
14 878934
14 878934
878933
878933
15 880423
880423
872956
878545
881409
881592
881598
MOTOR ASSY FAN FC SUSP 12V ST 3
AMP HOUSING FEMALE 172233-1
AMP PIN 16-20AWG 171680-1
MOTOR ASSY FAN FC SUSP 12V ST 4
MOTOR ASSY FAN FC SUSP 12V ST4
MOLEX CAP FEMALE 51139-0200
MOLEX PIN 20-26AWG 50600-8100 (20-26AWG)
AMP HOUSING FEMALE 172233-1
SPRING FAN SUSPENEDED FC
SPRING FAN SUSPD FC TRIANGULAR
COVER FAN FRONT FC 680 T
COVER FAN FRONT FC 680 T
COVER FAN FRONT FC 680 B
COVER FAN FRONT FC 680 B
DEFLECTOR CHASSIS 635/680
DEFLECTOR CHASSIS 635/680
E440TL
E440TR
E442BL
E442BR
E442BL
E442BR
16 880585
17 880724
18 871463
19 855299
855299
20 876771
876771
CLIP CHASSIS HEATER B MODEL
DEFLECTOR AIR FLOW
CLIP TUBE EVAP PLASTIC
CLIP HEATER 20MM EVAP FIN
CLIP HEATER 20MM EVAP FIN
FILTER 'P' CATCHER DRAIN
FILTER 'P' CATCHER DRAIN
E442BL
E442BR
E442BL
E442BR
23
MANUAL 517728
ACTV SMART ST4 TERMINALS PLUGS & SOCKETS
24
MANUAL 517728
ACTV SMART ST4 TERMINALS PLUGS & SOCKETS
REF PART DESCRIPTION MODEL
1 881595
881596
2 881597
881598
3 881592
4 881593
5 881594
6 881588
881589
881590
7 881591
8 873243
873247
873248
873250
873251
MOLEX SKT 16-22AWG 50597-8100 (16-22AWG)
MOLEX SKT 20-26AWG 50598-8100 (20-26AWG)
MOLEX PIN 16-22AWG 50599-8100 (16-22AWG)
MOLEX PIN 20-26AWG 50600-8100 (20-26AWG)
MOLEX CAP FEMALE 51139-0200
MOLEX PLUG MALE 51138-0200
MOLEX RETAINER 51140-0205
STOCKO 9290-02-AB01-000-960 (MAINS CORD)
STOCKO 9290-02-BA01-960 (DEFROST HEATER)
STOCKO 9290-02-EE01-000-960 (RUN CAP)
STOCKO 9290-04-EF02-000-960 (COMP CABLE)
STOCKO 7234-012-500-450
STOCKO 7234-006-500-450
STOCKO 7234-010-500-450
STOCKO 7234-004-500-450
STOCKO 7234-003-500-450
873279
881135
881136
881137
STOCKO 7234-008-500-450
STOCKO 7234-005-500-450
STOCKO 7234-014-500-450
STOCKO 7234-017-500-450
25
MANUAL 517728

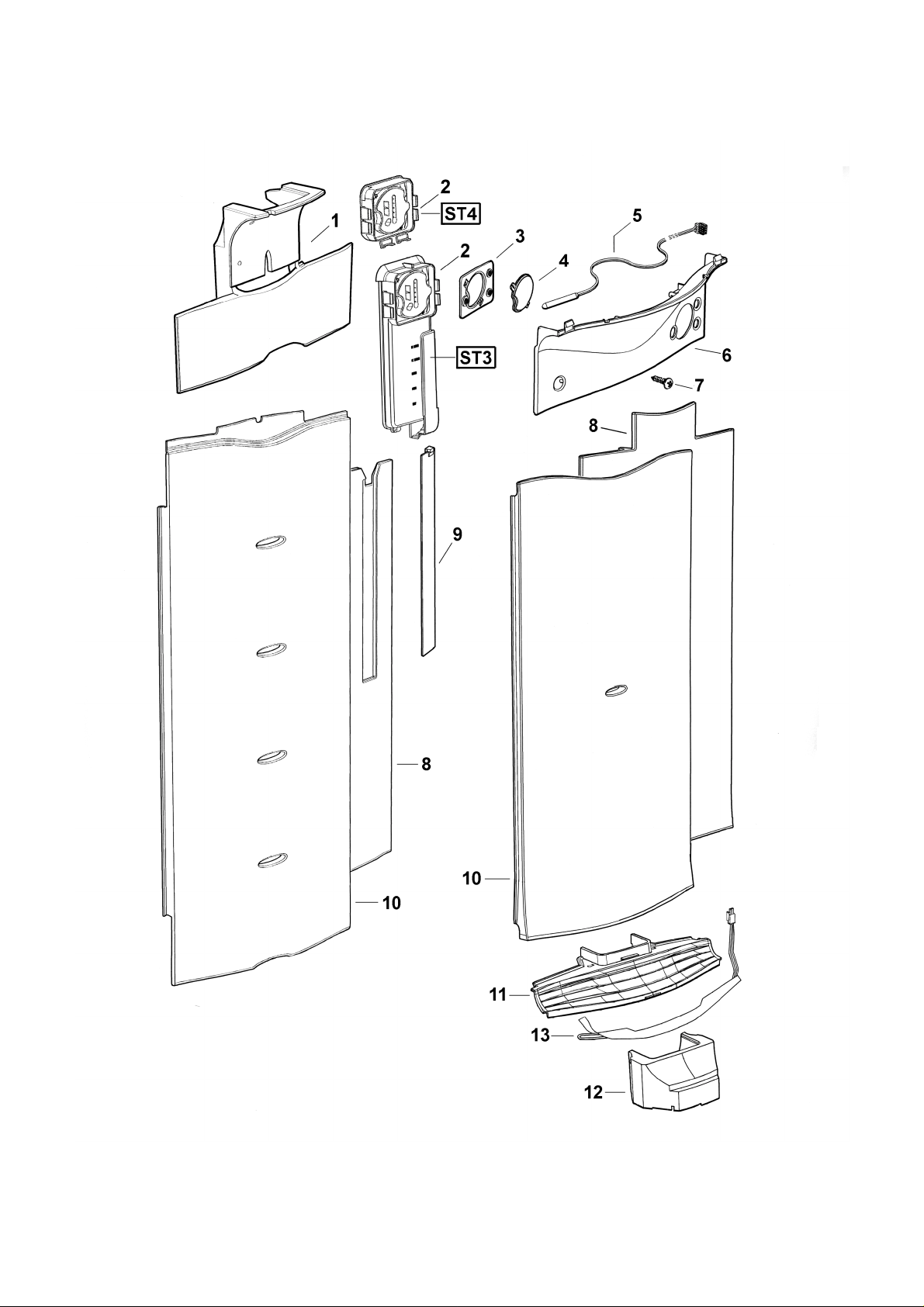

ELECTRONIC MODULE AND DUCT COVERS
26
MANUAL 517728
ELECTRONIC MODULE AND DUCT COVERS
REF PART DESCRIPTION MODEL
1 880759
880759
2 881219P
882780P
3 880779
4 874723
5 855203P
6 881325
881325
881336
881336
7 900475
8 880259
880259
873950
873950
INSULATN COVR DUCT TOP T&H MOD
INSULATN COVR DUCT TOP T&H MOD
MODULE CONTRL/DISP NON BC ST4
MODULE CONTRL/DISP NON BC ST3
GASKET CONTROL MODULE ELECTRON
LENS LED PRINTED ELECT NON BC
SENSOR KIT ASSY
COVR DUCT TOP T&H MOD HS MD GY
COVR DUCT TOP T&H MOD HS MD GY
COVER DUCT TOP B MODL HS MD GY
COVER DUCT TOP B MODL HS MD GY
SCREW 8X16.4MM SP PAN NIB ST
INSULATION COVER DUCT LONG T
INSULATION COVER DUCT LONG T
INSULATION COVER DUCT LONG B
INSULATION COVER DUCT LONG B
E440TL
E440TR
E440TL
E440TR
E442BL
E442BR
E440TL
E440TR
E442BL
E442BR
9 880571
881482
10 873583
873583
881191
881191
11 880196
880196
12 872833
872833
13 880407
880407
HTR PCB LO AMB T&H MODELS ST4
HTR PCB LO AMB T&H MODELS ST3
COVER DUCT T MODEL LONG
COVER DUCT T MODEL LONG
COVER DUCT B MODEL LONG
COVER DUCT B MODEL LONG
GRILLE PC AIR RETURN 635/680B
GRILLE PC AIR RETURN 635/680B
INSULATION INSERT B MODL
INSULATION INSERT B MODL
HEATER LOW AMBIENT B MODEL
HEATER LOW AMBIENT B MODEL
E440TL
E440TR
E442BL
E442BR
E442BL
E442BR
E442BL
E442BR
E442BL
E442BR
27
MANUAL 517728

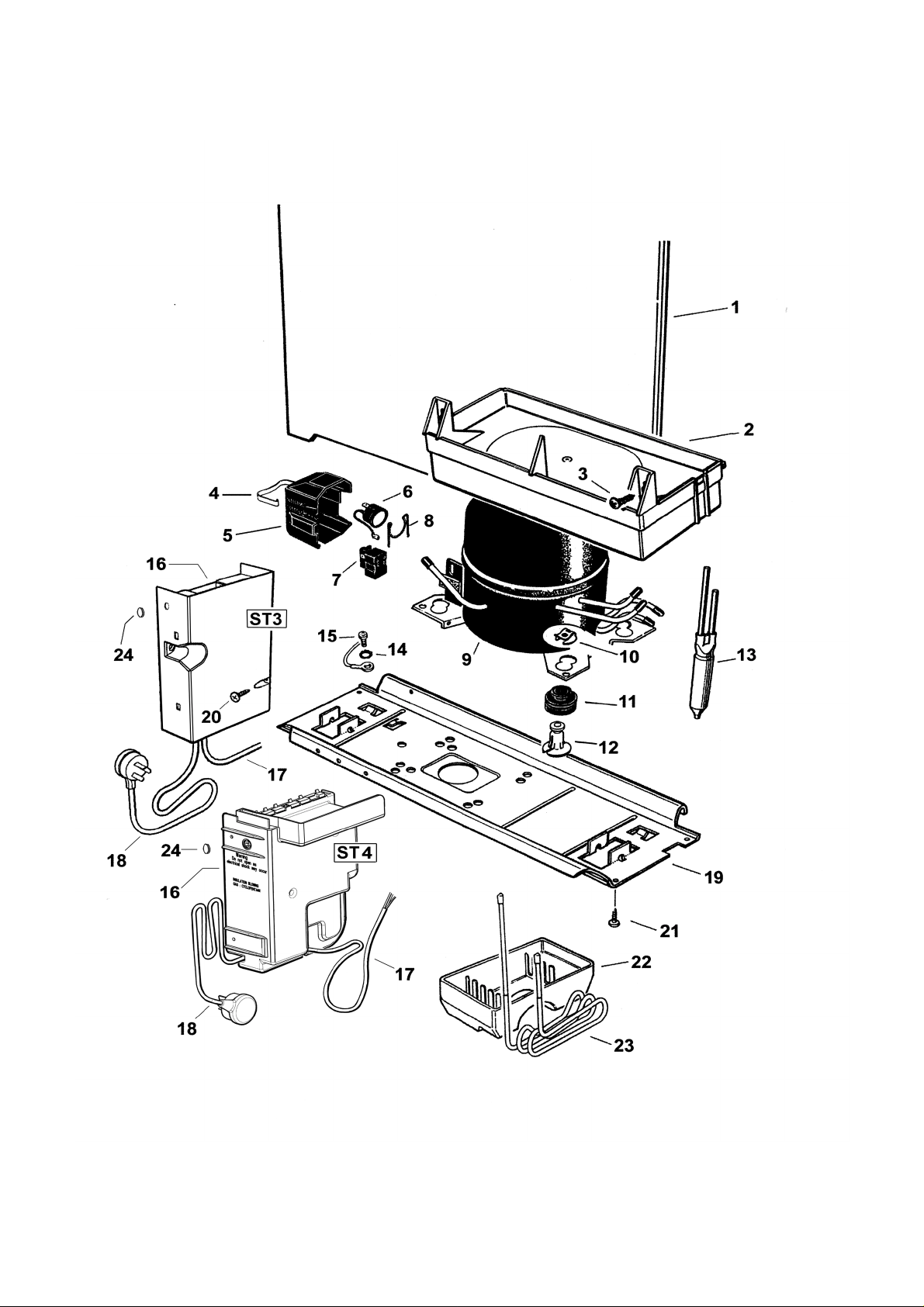

COMPRESSOR AND POWER MODULE
28
MANUAL 517728
COMPRESSOR AND POWER MODULE
REF PART DESCRIPTION MODEL
1 873044
2 876653
880884
3 SP0201P
4 209673#
5 209078
209995
6 209080
209083
209994
7 209988
209993
8 209674
9 209492P
209078
209083
PANEL BACK & COND ENSER ASSY
TRAY WATER EVAPORATOR NOTCHED
TRAY WATER EVAP TOP HAT
SCREW 8X12 PAN PH NIB PKT10
CLAMP PROTECTOR COVER MAT
COVER PROTECTOR COMPRESSOR MAT
PROTECTOR COVER EMBRACO
O/LOAD MM3-19ECF
O/LOAD MM3-18GCF
OVERLOAD COMPR 283KFBYY FGS90
RELAY PTC D SERIES MM8-5DDT33M
RELAY PTC EMBRACO 8EA 503
CLIP O/LOAD 01-246801
COMPR PKD MAT DB77C14R 240V50H
COVER PROTECTOR COMPRESSOR MAT
O/LOAD MM3-18GCF
209999P
10 855270
11 872838
12 850265
209673#
209674
209988
502173
872838
209674
209993
209994
209995
209996
502173
872838
CLAMP PROTECTOR COVER MAT
CLIP O/LOAD 01-246801
RELAY PTC D SERIES MM8-5DDT33M
FILTER DRIER 12 GR DUAL BRAZED
GROMMET COMPRESSOR MOUNTING
COMPR EMB FGS90HAW 240V 60HZ
CLIP O/LOAD 01-246801
RELAY PTC EMBRACO 8EA 503
OVERLOAD COMPR 283KFBYY FGS90
PROTECTOR COVER EMBRACO
RETAINER CABLE EMBRACO
FILTER DRIER 12 GR DUAL BRAZED
GROMMET COMPRESSOR MOUNTING
CLIP COMPRESSOR MOUNTING
GROMMET COMPRESSOR MOUNTING
PIN COMPRESSOR MOUNTING
13 502173
14 900101
15 900377
900475
FILTER DRIER 12 GR DUAL BRAZED
WASHER LOCK NO 10 EXT SP ZP
SCREW #8X32X8 TY T PAN PH ZP
SCREW 8X16.4MM SP PAN NIB ST
29
MANUAL 517728
COMPRESSOR AND POWER MODULE
30
MANUAL 517728
COMPRESSOR AND POWER MODULE
REF PART DESCRIPTION MODEL
16 880815P
881212P
881215P
17 871388
871389
881234
881235
18 873354
873356
881400
881401
881402
881403
881404
881405
874329
POWER & SWITCH MODULE 240V ST3
MODULE POWER CONTROL 240V ST4
MODULE POWER CONTROL 110V ST4
HARNESS COMPRESSO R 3 CORE ST3
HARNESS COMPRESSO R 4 CORE ST3
HARNESS COMPRESSO R 3 CORE ST4
HARNESS COMPRESSO R 4 CORE ST4
CABLE MAIN 3 FLAT PIN 230V ST3
CABLE MAIN 3PIN FUSED 230V ST3
CABLE MAIN 3 FLAT PIN 230V ST4
CABLE MAIN 3PIN FUSED 230V ST4
CABLE MAIN 2 PIN EURO 230V ST4
CABLE MAIN 3 PIN RD EARTH 110V ST4
CABLE MAIN ASSY 2FLAT PIN 220V ST4
CABLE MAIN 2 FLAT PIN 220V ST4
CABLE LEAD EARTH
19 878488
20 871452
880564
21 901525
22 873228
23 873040
24 875861
NI 207058
207062
NI 880771
NI 875113
875113
874810
874810
877642
LABEL WARNING 220V ONLY
TRAY COMP MOUNTING 680
SCREW 4X20 PH ST
SCREW 7 X 20 RD HD NO 2 SQ DR
SCREW 8X16 PAN NIB STZP PHOS C
TRAY WATER OVERFLOW
TUBE HEATER SHEATHED 4.2MM
PLUG PLASTIC LT GY 14MM
CAPACITOR RUN 4UF 400V ST3
CAPACITOR RUN 4UF 400V ST4
LABEL WIRING DIAGRAM 220-240V
SUCTION & CAPILLY ASSY E440T
SUCTION & CAPILLY ASSY E440T
SUCTION & CAPILLY ASSY E442B
SUCTION & CAPILLY ASSY E442B
E440TL
E440TR
E442BL
E442BR
31
MANUAL 517728
32
NOTES
DOOR ASSEMBLIES TOP FREEZER
Technical Bulletins
315077P RF020
315078P RF020
315102P RF020
315103P RF020
DOOR ASSEMBLIES BOTTOM FREEZER
Technical Bulletins
315079P RF020
315099P RF020
315100P RF020
315101P RF020
MANUAL 517728
CABINET TOP FREEZER
Notes
878582 Only available as complete assembly please order part number 880820
878583 Only available as complete assembly please order part number 880820
CABINET BOTTOM FREEZER
Notes
878582 Only available as complete assembly please order part number 880820
878583 Only available as complete assembly please order part number 880820
CABINET TOP & BOTTOM FREEZER
Technical Bulletins
883253P RF025
FAN AN D EVAPO RATOR AS S E M BL IES
Technical Bulletins
880543 RF008
880544 RF008
880923 RF008
880954 RF008
882844 RF021
882956 RF021
33
MANUAL 517728
34
REFRIGERATION ABBREVIATION KEY
MANUAL 517728
35
Loading...
