Electronic 635
Refrigerator / Freezer
Models
E331TL E331TR E372B L
E372BR E381TL E381TR
E402BL E402BR E411TL
E411TR E415HL E415HR
Series
B
517715
MANUAL 517715 March 1999 Reprinted: September 2000
PRODUCTS
Brand Fisher & Paykel, Frigidaire, Kelvinator, Shacklock
Voltage 220-240V 50Hz, 220V 60Hz*, 110-115V 60Hz+, 230-240V 50Hz
Model Code
E331TL 11081 11131 11491 11587
E331TR 11057 11132 11233 11239 11240 11241 11242 11243 11244
11245 11247 11248 11249 11250 11251 11252 11253 11342*
11588 11647 11716
E372BL 11085 11133 11502 11589
E372BR 11069 11134 11237 11255 11256+ 11257 11258 11259 11261
11262 11263* 11541* 11555 11590 11645 11695 11723 12381+
E381TL 11082 11135 11493 11591
E381TR 11060 11136 11234 11264 11265 11266 11267 11268 11269
11271 11272 11273 11274 11275 11276 11277 11278 11280
11282 11542* 11561 11563 11564 11592 11646 11718
E402BL 11086 11137 11503 11593
E402BR 11072 11138 11238 11284 11285 11286 11287 11289 11290
11291 11292 11293 11295 11296 11297 11299 11300 11301*
11302+ 11543* 11565 11566 11594 11642 11696 11706 11724
11739 12367+
E411TL 11084 11139 11497 11595
E411TR 11066 11124 11235 11246* 11320 11321 11322 11323 11324
11325 11326 11327 11328 11330 11331 11332 11334 11335
11337 11339 11340* 11341+ 11343+ 11545* 11558 11567 11568
11571 11596 11644 11707 11736 12368+
E415HL 11083 11125 11501 11597
E415HR 11063 11126 11236 11303 11304 11305 11306 11307 11308
11309 11310 11311 11312 11314 11315 11316 11319+ 11598
11643 11719 12369+
Fisher & Paykel Customer Services
PO Box 798
19 Enterprise St
Cleveland, Queensland 4163
Australia
Tel: (07) 3826 9122
Fax: (07) 3826 9164
Email: parts@fp.com.au
A.C.N 003 335 171
COPYRIGHT FISHER & PAYKEL LTD 2001 3
Fisher & Paykel Ltd
Whiteware Spare Parts
PO Box 14-148, Panmure.
80 Springs Rd, East Tamaki
New Zealand
Tel: (09) 272 0261
Fax: (09) 272 0219
Email: parts@fp.co.nz
MANUAL 517715
4
MANUAL 517715
CONTENTS
DOORS TOP FZR-WITH BOW METAL HANDLE................................................................................................................6
DOORS BTM FZR-WITH BOW METAL HANDLE...............................................................................................................8
DOORS TOP FZR-WITH CURVED PLASTIC HANDLE.....................................................................................................10
CABINET TOP FREEZER.......................................................................................................................................................18

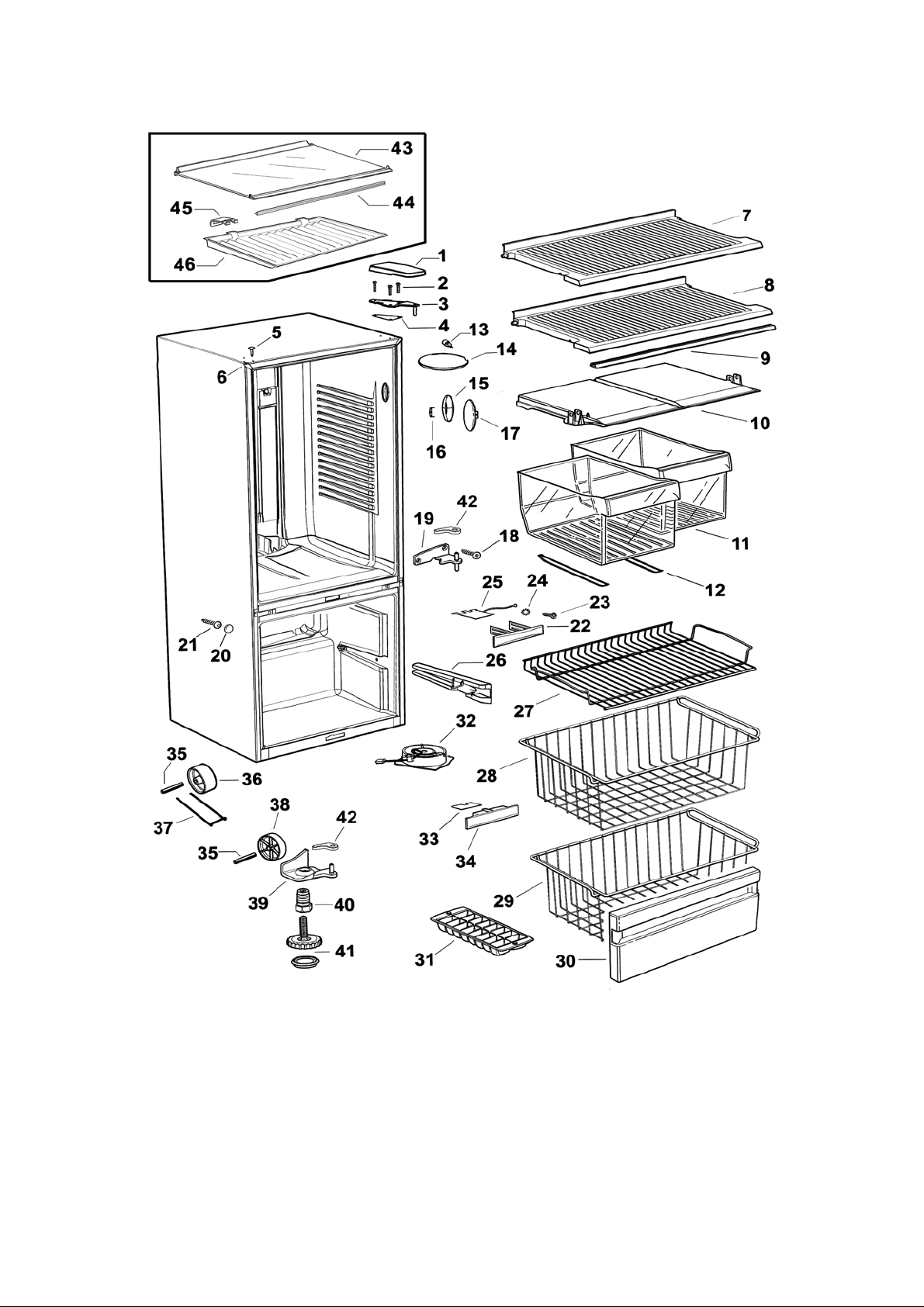

CABINET BOTTOM FREEZER.............................................................................................................................................22
DRAWER ASSEMBLY HUMIDITY......................................................................................................................................26
FAN AND EVAPORATOR ASSEMBLIES............................................................................................................................28
ACTV SMART ST4 TERMINALS PLUGS & SOCKETS.....................................................................................................32
ELECTRONIC MOD ULE AND DUCT COVERS..................................................................................................................34
COMPRESSOR AND POWER MODULE..............................................................................................................................36
NOTES......................................................................................................................................................................................41
REFRIGERATION ABBREVIATION KEY...........................................................................................................................43
GUIDE TO USING THI S MANUAL
The model(s) and/or series covered by this manual are listed on the front cover.
The information detailed in this manual is subject to change without notice, the latest version is
indicated by the reprint date and replaces any earlier editions.
The front cover picture shows the type of product and may not necessarily be an exact image of the
models covered by the manual.
Part References
Where a Model is shown, the part is exclusive to the Model(s) stated. Common parts relating to a part
reference are applicable to all other Model(s) which use the particular item.
Kit Parts
The components shown in italics are those parts in the kit which are available also as separate items. In
addition, some parts may be supplied with this kit which are not available as separate items and are
therefore not listed in this manual.
All details relating to Technical Bulletins or Notes are shown on a dedicated page. The Technical
Bulletin Number shown relates to the bulletin version which is produced for New Zealand Service
Centres.
Parts List Key
NOT USED As a part, indicates the diagram part reference is not used in this manual.
# Beside the part number, indicates the part is no longer available.
italics Kit components shown in italics are also available separately.
* Indicates a technical bulletin or note exists for the part or part reference.
NI As a part reference, indicates the part is not illustrated on the diagram.
5
MANUAL 517715
DOORS TOP FZR-WITH BOW METAL HANDLE
6
MANUAL 517715
DOORS T OP FZR-WITH BOW METAL HANDLE
REF PART DESCRIPTION MODEL
1 880346
2 881004
3 881050
4 880343
5 315121P
877955
881004
6 874706
7 874364
876507
8 876702P
9 881453
10 871123
11 315017
876503
876504
12 876503
881188
13 874973
14 876719
15 874974
16 315124P
877955
881004
315125P
877955
881004
315120P
16 877955
881004
315127P
877955
881004
17 871129
18 883121
883122
19 882651
20 876281
21 874361
874961
22 876706P
876707P
876708P
876705P
23 881499
24 881391
25 881044
26 881484
COVER ENDCAP LHT RHB WH 635
CAP DOOR END OUTER WH 635
NAMEPLATE F&P ACTIVE SMART
BEARING HINGE LHB RHT WH 635
DOOR FC WW635X442 RH BS HANP/C
MAGNET DOOR ALARM
CAP DOOR END OUTER WH 635
LABEL FREEZER GUIDE RF BLUE
BIN DR FC T HSM876507 635 BLUE
BIN DOOR FC 'T' 635
PACK GASK ASSY PUSHIN 635X 416
BEARING DR CLOSING RH WH 635
PLUG/PIN HINGE DAIRY COVER
KIT COVE R DOO R SHE LF 635
COVER DOOR SHELF CLEAR LH
COVER DOOR SHELF CLEAR RH
COVER DOOR SHELF CLEAR LH
COVER DOOR SHELF 635 LH HSM 87
SHELF DOOR SML LH 635 WHITE
SHELF EGG RACK 635
SHELF DOOR SML RH 635 WHITE
DOOR PC WW635X929 RH BS HANP/C
MAGNET DOOR ALARM
CAP DOOR END OUTER WH 635
DOOR PC WW635X1099RH BS HANP/C
MAGNET DOOR ALARM
CAP DOOR END OUTER WH 635
DOOR PC WW635X1199RH BS HANP/C
MAGNET DOOR ALARM
CAP DOOR END OUTER WH 635
DOOR PC WW635X748 RH BS HANP/C
MAGNET DOOR ALARM
CAP DOOR END OUTER WH 635
BIN EGG/ ICE M O ULD ALL BRAN DS
DIVIDER BOTTLE RAIL WHITE
DIVIDER BOTTLE RAIL HS BLUE
RAIL BOTTLE SUPPORT 635
PLUG DO OR SHE LF WHITE
SHELF DR LGE HSM874961 BLUE 63
SHELF DOOR LGE 635 WHITE MOULD
PACK GASK ASSY PUSHIN 635X 903
PACK GASK ASSY PUSHIN 635X1075
PACK GASK ASSY PUSHIN 635X1175
PACK GASK ASSY PUSHIN 635X 721
HANDLE DR SHORT BOW P/COAT SILV
PLATE HA ND LE S UPP ORT PLAT E D
SCREW #8X22 WAFER PHIL STZP
HANDLE DR LONG BOW P/COAT SILV
E331TR
E381TR
E411TR
E415HR
E331TR
E381TR
E411TR
E415HR
7
MANUAL 517715
DOORS BTM FZR-WIT H BOW METAL HANDLE
8
MANUAL 517715
DOORS BTM FZR-WITH BOW METAL HANDLE
REF PART DESCRIPTION MODEL
1 880346
2 881004
3 881050
4 880343
5 871123
6 315017
7 876719
8 874974
9 876503
10 874973
11 315118P
12 883121
876503
876504
877955
881004
COVER ENDCAP LHT RHB WH 635
CAP DOOR END OUTER WH 635
NAMEPLATE F&P ACTIVE SMART
BEARING HINGE LHB RHT WH 635
PLUG/PIN HINGE DAIRY COVER
KIT COVE R DOO R SHE LF 635
COVER DOOR SHELF CLEAR LH
COVER DOOR SHELF CLEAR RH
SHELF EGG RACK 635
SHELF DOOR SML RH 635 WHITE
COVER DOOR SHELF CLEAR LH
SHELF DOOR SML LH 635 WHITE
DOOR PC WW635X1029RH BS HANP/C
MAGNET DOOR ALARM
CAP DOOR END OUTER WH 635
DIVIDER BOTTLE RAIL WHITE
883122
13 882651
14 876281
15 874361
874961
16 873386P
17 881453
18 874706
19 315119P
20 876703P
21 871129
22 881484
23 881391
24 881044
877955
881004
DIVIDER BOTTLE RAIL HS BLUE
RAIL BOTTLE SUPPORT 635
PLUG DO OR SHE LF WHITE
SHELF DR LGE HSM874961 BLUE 63
SHELF DOOR LGE 635 WHITE MOULD
PACK GASK ASSY PUIN 635X1003LG
BEARING DR CLOSING RH WH 635
LABEL FREEZER GUIDE RF BLUE
DOOR FC WW635X612 RH BS HANP/C
MAGNET DOOR ALARM
CAP DOOR END OUTER WH 635
PACK GASK ASSY PUSHIN 635X 585
BIN EGG/ ICE M O ULD ALL BRAN DS
HANDLE DR LONG BOW P/COAT SILV
PLATE HA ND LE S UPP ORT PLAT E D
SCREW #8X22 WAFER PHIL STZP
25 881499
HANDLE DR SHORT BOW P/COAT SILV
9
MANUAL 517715
DOORS TOP FZR-WI TH CURVED PLASTIC HANDLE
10
MANUAL 517715
DOORS T OP FZR-WITH CURVED PLAST IC HANDLE
REF PART DESCRIPTION MODEL
1 880345
880346
880664
880665
2 881004
881007
3 881050
881051
881052
881054
881055
881056
881478
881479
4 880343
880344
880662
880663
5 * 311024P
* 312028P
6 874706
7 874364
876507
8 876702P
9 881453
881454
881457
881458
10 871123
11 315017
12 876503
12 881188
13 882786
14 871125
15 880267
16 874973
17 876719
18 874974
19 * 311016P
312020P
877955
881004
877955
881007
876503
876504
878950
882783
882787
882788
882789
877955
881004
877955
COVER ENDCAP LHB RHT WH 635
COVER ENDCAP LHT RHB WH 635
COVER ENDCAP LHB RHT SA 635
COVER ENDCAP LHT RHB SA 635
CAP DOOR END OUTER WH 635
CAP DOOR END OUTER SA 635
NAMEPLATE F&P ACTIVE SMART
NAMEP L ATE KE L V BY F &P
NAMEPLATE FRIG BY F&P
NAMEP L ATE KE L V
NAMEPLATE FRIG
NAMEPLATE SHACK
NAMEPLATE KE LV EXPORT
NAMEPLATE FRIG EXPORT
BEARING HINGE LHB RHT WH 635
BEARING HINGE LHT RHB WH 635
BEARING HINGE LHB RHT SA 635
BEARING HINGE LHT RHB SA 635
DOOR FC WH635X 443 BS 'T'
MAGNET DOOR ALARM
CAP DOOR END OUTER WH 635
DOOR FC SA635X 443 BS
MAGNET DOOR ALARM
CAP DOOR END OUTER SA 635
LABEL FREEZER GUIDE RF BLUE
BIN DR FC T HSM876507 635 BLUE
BIN DOOR FC 'T' 635
PACK GASK ASSY PUSHIN 635X 416
BEARING DR CLOSING RH WH 635
BEARING DR CLOSING LH WH 635
BEARING DR CLOSING RH SA 635
BEARING DR CLOSING LH S/STONE
PLUG/PIN HINGE DAIRY COVER
KIT COVE R DOO R SHE LF 635
COVER DOOR SHELF CLEAR LH
COVER DOOR SHELF CLEAR RH
COVER DOOR SHELF CLEAR LH
COVER DOOR SHELF 635 LH HSM 87
SHELF DR BC ASSY 10V 10W WH
TERMINAL SHELF BUTTER
HEATER BUTTER COND 10W
SHELF DOOR SMALL BC WHITE
BASE BC SHELF
TAPE TRANSFER 25.4MM WIDE
COVER BUTTER TRAY ALL BRANDS
TRAY BUTTER SHELF WHITE
SHELF DOOR SML LH 635 WHITE
SHELF EGG RACK 635
SHELF DOOR SML RH 635 WHITE
DOOR PC WH635X 930 BS E331T
MAGNET DOOR ALARM
CAP DOOR END OUTER WH 635
DOOR PC SA635X 930 BS
MAGNET DOOR ALARM
E331TL/R
E331TL/R
11
MANUAL 517715
DOORS T OP FZR-WITH CURVED PLAST IC HANDLE
12
MANUAL 517715
DOORS T OP FZR-WITH CURVED PLAST IC HANDLE
REF PART DESCRIPTION MODEL
311018P
312022P
19 311019P
312023P
311020P
312024P
20 871129
21 883121
883122
22 882651
23 876281
24 874361
874961
25 876706P
876707P
876708P
25 876705P
26 881035
881037
881086
881088
881485
881487
27 * 880654
SP0008
28 880581
881010
29 881036
881038
881082
881084
881486
881488
30 881044
31 881075
881398
881533
32 881365
881560
881561
NI 479151
NI 479186
881007
877955
881004
877955
881007
877955
881004
877955
881007
877955
881004
877955
881007
CAP DOOR END OUTER SA 635
DOOR PC WH635X1100 BS E381T
MAGNET DOOR ALARM
CAP DOOR END OUTER WH 635
DOOR PC SA635X1100 BS E381T
MAGNET DOOR ALARM
CAP DOOR END OUTER SA 635
DOOR PC WH635X1200 BS E411T
MAGNET DOOR ALARM
CAP DOOR END OUTER WH 635
DOOR PC SA635X1200 BS E411T
MAGNET DOOR ALARM
CAP DOOR END OUTER SA 635
DOOR PC WH635X 749 BS E415H
MAGNET DOOR ALARM
CAP DOOR END OUTER WH 635
DOOR PC SA635X 749 BS E415H
MAGNET DOOR ALARM
CAP DOOR END OUTER SA 635
BIN EGG/ ICE M O ULD ALL BRAN DS
DIVIDER BOTTLE RAIL WHITE
DIVIDER BOTTLE RAIL HS BLUE
RAIL BOTTLE SUPPORT 635
PLUG DO OR SHE LF WHITE
SHELF DR LGE HSM874961 BLUE 63
SHELF DOOR LGE 635 WHITE MOULD
PACK GASK ASSY PUSHIN 635X 903
PACK GASK ASSY PUSHIN 635X1075
PACK GASK ASSY PUSHIN 635X1175
PACK GASK ASSY PUSHIN 635X 721
HAND LE DR SM L MOULD LHT/ R HB WH
HAND LE DR SM L MOULD RHT/L HB WH
HANDLE DR SMALL LHB RHT SL
HANDLE DR SMALL LHT RHB SL
HANDLE DR SML S/STONE LHT/RHB
HANDLE DR SML S/STONE LHB/RHT
SCREW M4X10 TRUSS PH SS
SCREW #6X12 AB TRUSS PH ST ZP
PLUG HA ND LE WHI TE
PLUG HA ND LE SANDS T ONE
HANDLE DR LGE MOULD LHT/RHB WH
HANDLE DR LGE MOULD LHB/RHT WH
HANDLE DR LARGE LHT RHB SL
HANDLE DR LARGE LHB RHT SL
HANDLE DR LGE S/STO NE LHT/RHB
HANDLE DR LGE S/STO NE LHB/RHT
SCREW 8X22 WAFER PHIL STZP
CAP HANDLE SCREW WHITE
CAP HANDLE SCREW SILVER (MOULDED)
CAP HANDLE SCREW COVER S/STONE
BOOK USE & CARE ELECT FRENCH
BOOK USE & CARE ACT I VE S MAR T
BOOK USE &C ARE ACT V S MAR T XPORT
LEAFLET SMART CARE NZ
LEAFLET SM/CARE WARRTY REG AUS
E381TL/R
E381TL/R
E411TL/R
E411TL/R
E415HL/R
E415HL/R
E331T
E381T
E411T
E415H
13
MANUAL 517715
DOORS BTM FZR-WITH CURVED PLASTIC HANDLE
14
MANUAL 517715
DOORS BTM FZR-WITH CURVED PLASTIC HANDLE
REF PART DESCRIPTION MODEL
1 880345
880346
880664
880665
2 881004
881007
3 881050
881051
881052
881054
881055
881056
881478
881479
4 880343
880344
880662
880663
5 871123
6 315017
7 876719
8 874974
9 876503
881188
10 882786
11 874973
12 871125
13 880267
14 * 311017P
312021P
311021P
312025P
15 883121
883122
16 882651
17 876281
876503
876504
878950
882783
882787
882788
882789
877955
881004
877955
881007
877955
881004
877955
881007
COVER ENDCAP LHB RHT WH 635
COVER ENDCAP LHT RHB WH 635
COVER ENDCAP LHB RHT SA 635
COVER ENDCAP LHT RHB SA 635
CAP DOOR END OUTER WH 635
CAP DOOR END OUTER SA 635
NAMEPLATE F&P ACTIVE SMART
NAMEP L ATE KE L V BY F &P
NAMEPLATE FRIG BY F&P
NAMEP L ATE KE L V
NAMEPLATE FRIG
NAMEPLATE SHACK
NAMEPLATE KE LV EXPORT
NAMEPLATE FRIG EXPORT
BEARING HINGE LHB RHT WH 635
BEARING HINGE LHT RHB WH 635
BEARING HINGE LHB RHT SA 635
BEARING HINGE LHT RHB SA 635
PLUG/PIN HINGE DAIRY COVER
KIT COVE R DOO R SHE LF 635
COVER DOOR SHELF CLEAR LH
COVER DOOR SHELF CLEAR RH
SHELF EGG RACK 635
SHELF DOOR SML RH 635 WHITE
COVER DOOR SHELF CLEAR LH
COVER DOOR SHELF 635 LH HSM 87
SHELF DR BC ASSY 10V 10W WH
TERMINAL SHELF BUTTER
HEATER BUTTER COND 10W
SHELF DOOR SMALL BC WHITE
BASE BC SHELF
TAPE TRANSFER 25.4MM WIDE
SHELF DOOR SML LH 635 WHITE
COVER BUTTER TRAY ALL BRANDS
TRAY BUTTER SHELF WHITE
DOOR PC WH635X 930 BS E372B
MAGNET DOOR ALARM
CAP DOOR END OUTER WH 635
DOOR PC SA635X 930 BS E372B
MAGNET DOOR ALARM
CAP DOOR END OUTER SA 635
DOOR PC WH635X1030 BS E402B
MAGNET DOOR ALARM
CAP DOOR END OUTER WH 635
DOOR PC SA635X1030 BS
MAGNET DOOR ALARM
CAP DOOR END OUTER SA 635
DIVIDER BOTTLE RAIL WHITE
DIVIDER BOTTLE RAIL HS BLUE
RAIL BOTTLE SUPPORT 635
PLUG DO OR SHE LF WHITE
E372BL/R
E372BL/R
E402BL/R
E402BL/R
15
MANUAL 517715
DOORS BTM FZR-WITH CURVED PLASTIC HANDLE
16
MANUAL 517715
DOORS BTM FZR-WITH CURVED PLASTIC HANDLE
REF PART DESCRIPTION MODEL
18 874361
874961
19 876706P
873386P
20 881453
881454
881457
881458
21 874706
22 311026P
312030P
23 876703P
24 871129
25 881036
881038
881082
881084
881486
881488
26 * 880654
SP0008
27 880581
881010
28 881035
881037
881086
881088
881485
881487
29 881044
30 881075
881398
881533
877955
881004
877955
881007
SHELF DR LGE HSM874961 BLUE 63
SHELF DOOR LGE 635 WHITE MOULD
GASKET PUSHIN LTGY 635X 903
GASKET PUSHIN LTGY 635X1003
BEARING DR CLOSING RH WH 635
BEARING DR CLOSING LH WH 635
BEARING DR CLOSING RH SA 635
BEARING DR CLOSING LH SA 635
LABEL FREEZER GUIDE RF BLUE
DOOR FC WH635X 613 BS E372B,40
MAGNET DOOR ALARM
CAP DOOR END OUTER WH 635
DOOR FC SA635X 613 BS
MAGNET DOOR ALARM
CAP DOOR END OUTER SA 635
GASKET PUSHIN LTGY 635X 585
BIN EGG/ ICE M O ULD
HANDLE DR LGE MOULD LHT/RHB WH
HANDLE DR LGE MOULD LHB/RHT WH
HANDLE DR LARGE LHT RHB SL
HANDLE DR LARGE LHB RHT SL
HANDLE DR LGE S/STO NE LHT/RHB
HANDLE DR LGE S/STO NE LHB/RHT
SCREW M4X10 TRUSS PH SS
SCREW 6X12 AB TRUSS PH ST ZP
PLUG HA ND LE WHI TE
PLUG HA ND LE SANDS T ONE
HAND LE DR SM L MOULD LHT/ R HB WH
HAND LE DR SM L MOULD RHT/L HB WH
HANDLE DR SMALL LHB RHT SL
HANDLE DR SMALL LHT RHB SL
HANDLE DR SML S/STONE LHT/RHB
HANDLE DR SML S/STONE LHB/RHT
SCREW 8X22 WAFER PHIL STZP
CAP HANDLE SCREW WHITE
CAP HANDLE SCREW SILVER (MOULDED)
CAP HANDLE SCREW S/STONE
E372B
E402B
17
MANUAL 517715
CABINET TO P FREEZ ER
18
MANUAL 517715
CABINET TOP FREEZER
REF PART DESCRIPTION MODEL
1 880490
880681
2 610312
3 880526
4 882355
5 855260
855261
6 871503
871504
7 877925
8 880583
9 880656
10 881283
881286
11 880595
880684
12 880655
13 880820
* 878582
* 878583
881438P
* 878582
* 878583
14 880542
881420
15 SP0201P
16 900101
17 880643P
* 883253P SWITCH REED X/RAIL FIELD FIX KIT ST3
881223P
18 874017
19 875318
20 878952
21 881066
22 878954
23 * 881166
24 876682
25 882753
26 876538
27 874141
28 876667
872956
878545
881147
881408
881592
881598
876682
881165
COVER TOP HINGE WHITE
COVER TOP HINGE S/STONE
SCR E W MC M5 X2 0 HE X P H MS ZN P L
BRACKET TOP HINGE ASSY (PLATE D
GASKET TOP HINGE
PLUG TAPPED HOLE SANDSTONE
PLUG TAPPED HOLE WHITE
TRIM CORNER S/STONE
TRIM CORNER WHITE
SHELF TOP FC WH 635T 526 X 263
TRIM SHELF WHITE 528MM 635 T
SCREW 10GX25CSK SQ SS
BRACKET CTR HI NGE RH PLATE D
BRACKET CTR HI NGE LH PLATE D
CAP SCREW CROSS RAIL WHITE
CAP SCREW CROSS RAIL SANDSTONE
SCREW 10X19 AB 2 SQ ZN
FAN & HOUSING PC ASSY ST3
AMP HOUSI N G FEM AL E 172233-1
AMP PIN 16-20AWG 171680-1
SPRING FAN SUSPENDED
HOUSING FAN SUSPENDED
MOTOR FAN ASSY DC SUSP PC ST3
FAN & HOUSING PC ASSY ST4
SPRING FAN SUSPENDED
HOUSING FAN SUSPENDED
MOTOR FAN ASSY DC SUSP PC ST4
MOLEX CAP FEMALE 51139-0200
MOLEX PIN 20-26AWG 50600-8100 (20-26AWG)
COVER REED SW CENTER X-RAIL WH ST3
COVER REED SW X/R & BTM WH ST4
SCREW 8X12 PAN PH NIB PKT10
WASHER LOCK NO 10 EXT SP ZP
SWITCH REED+HARN XTN X/RAIL ST3
SWITCH REED FIELD FIX KIT ST4
LAMP HALOGEN PC 12VOLT/10W
COVER LAMP PC
TERMINAL BUTTER COND SHELF DR
HOUSING TERMINAL PC LINER BC
CAP NO BC LINER
SHELF PC STIFFENER ASSY 635
EXTRUSION PC SHELF 635 STIFFEN
SHELF BARE 560 X 340
EXTRUSION PC SHELF 635 STIFFEN
LID HUMIDITY CONTROL 635 T MOD
TRAY CRISPER 'T' 635
BIN CRISP 635 T HSM876537 BLUE
FOOT CR ISPE R R UNNE R 'T'
19
MANUAL 517715
CABINET TOP FREEZER
20
MANUAL 517715
CABINET TOP FREEZER
REF PART DESCRIPTION MODEL
29 880657P
881223P
30 314147P
314148P
881420
881421
31 872963
32 874108
33 874107
34 871132
35 871017
36 871041
37 880545
38 881274
881277
39 880959
40 880512
41 881270
881271
42 881297
882205
43 881265
44 881269
45 881300
880657
881062
880657
881064
880519
881252
881255
881258
881261
881262
881263
881264
881261
881262
881263
881264
882206
882207
SWITCH REED BASE PANEL ST3
SWITCH REED FIELD FIX KIT ST4
KIT REED SW BTTM COVER WH ST3
REED SWITCH PCB BASE PANEL ST3
COVER REED SWITCH B/PANEL WH ST3
KIT REED SW BTTM COVER SA ST3
REED SWITCH PCB BASE PANEL ST3
COVER REED SW PCB B/PANEL SA ST3
COVER REED SW X/R & BTM WH ST4
COVER REED SW BTTM SA ST4
TRAY ICE HO LDER
TRAY ICE LID
TRAY ICE BASE
FOOT ROLLER
PIN ROLLER PLATED
CLIP ROLLER
ROLLER FOOT
BRACKET BTTM HINGE RH
BRACKET BTTM HINGE LH
BOLT BOTTOM HINGE BRACKET
FOOT LE VEL LI NG ASSEMB LY
BASE LEVELLING FOOT
CAP DOOR CLOSING RH
CAP DOOR CLOSING LH
SHELF GLASS PC SC ASSY 635
SHELF GLASS PC 635
EXTRUSN FRT GLASS SHELF SC 635
EXTRUSN REAR GLAS SHELF SC 635
PLUG REAR EXTRUSN RH ALL MODLS
PLUG REAR EXTRUSN LH ALL MODLS
PLUG FRONT EXTRUSION RH 635
PLUG FRONT EXTRUSION LH 635
SHELF GLASS PC ASSY WH 635
PLUG REAR EXTRUSN RH ALL MODLS
PLUG REAR EXTRUSN LH ALL MODLS
PLUG FRONT EXTRUSION RH 635
PLUG FRONT EXTRUSION LH 635
EXTRUSN FRT GLASS SHELF WH 635
EXTRUSN REAR GLAS SHELF WH 635
EXTRUSION HCL SUPPORT 635/680
BRACKET HCL SUPPORT T GL SH
LID HCL T 635/680 GLASS SHELF
21
MANUAL 517715
CABINET BOTT OM FREEZER
22
MANUAL 517715
CABINET BOTTOM FREEZER
REF PART DESCRIPTION MODEL
1 880490
880681
2 610312
3 860012
4 882355
5 855260
855261
6 871503
871504
7 * 881166
8 * 877222
9 876682
10 880784
11 874142
12 875287
13 874017
14 875318
15 881066
16 878592
17 878954
18 880656
19 881283
881286
20 880595
880684
21 880655
22 880542
881420
23 SP0201P
24 900101
25 880643P
* 883253P
881223P
26 871145
871146
27 877928
28 877934
29 877931
30 882766
31 874107
876682
881165
876682
855143
901323
855143
901323
COVER TOP HINGE WHITE
COVER TOP HINGE S/STONE
SCR E W MC M5 X2 0 HE X P H MS ZN P L
BRACKET TOP HINGE B MODE L PLA
GASKET TOP HINGE
PLUG TAPPED HOLE SANDSTONE
PLUG TAPPED HOLE WHITE
TRIM CORNER S/STONE
TRIM CORNER WHITE
SHELF PC STIFFENER ASSY 635
EXTRUSION PC SHELF 635 STIFFEN
SHELF BARE 560 X 340
SHELF PC STIFFENER ASSY 635
EXTRUSION PC SHELF 635 STIFFEN
EXTRUSION PC SHELF 635 STIFFEN
LID HUMIDITY CONTROL 635B
BIN CRISP 635 B HSM875536 BLUE
FOOT CR ISPE R R UNNE R B
LAMP HALOGEN PC 12VOLT/10W
COVER LAMP PC
HOUSING TERMINAL PC LINER BC
TERMINA L BUTTON BUTTER COND
CAP NO BC LINER
SCREW 10GX25CSK SQ SS
BRACKET CTR HI NGE RH PLATE D
BRACKET CTR HI NGE LH PLATE D
CAP SCREW CROSS RAIL WHITE
CAP SCREW CROSS RAIL SANDSTONE
SCREW 10X19 AB 2 SQ ZN
COVER REED SW CENTER X-RAIL WH ST3
COVER REED SW X/R & BTM WH ST4
SCREW 8X12 PAN PH NIB PKT10
WASHER LOCK NO 10 EXT SP ZP
SWITCH REED+HARN XTN X/RAIL ST3
SWITCH REED X/RAIL FIELD FIX KIT ST3
SWITCH REED FIELD FIX KIT ST4
RUNNER FC BASKET ASSY B RH
WHEEL BASKET SUPPORT B VF
PIN FC BASKET RUNNER
RUNNER FC BASKET ASSY B LH
WHEEL BASKET SUPPORT B VF
PIN FC BASKET RUNNER
SHELF FC TOP 534X361 635 B MOD
BASKET FC TOP 635 B MODEL
BASKET FC BOTTOM 635 B MODEL
TRIM FC BASKET FRONT 635 WHITE
TRAY ICE BASE
23
MANUAL 517715
CABINET BOTTOM FREEZER
24
MANUAL 517715
CABINET BOTTOM FREEZER
REF PART DESCRIPTION MODEL
32 880820
* 878582
* 878583
881438P
* 878582
* 878583
33 880657P
881223P
34 314147P
314148P
881420
881421
35 871017
36 871132
37 871041
38 880545
39 881274
881277
40 880959
41 880512
42 881270
881271
43 881297
882205
44 881265
45 881268
46 881301
872956
878545
881147
881408
881592
881598
880657
881062
880657
881064
880519
881252
881255
881258
881261
881262
881263
881264
881261
881262
881263
881264
882206
882207
FAN & HOUSING PC ASSY ST3
AMP HOUSI N G FEM AL E 172233-1
AMP PIN 16-20AWG 171680-1
SPRING FAN SUSPENDED
HOUSING FAN SUSPENDED
MOTOR FAN ASSY DC SUSP PC ST3
FAN & HOUSING PC ASSY ST4
SPRING FAN SUSPENDED
HOUSING FAN SUSPENDED
MOTOR FAN ASSY DC SUSP PC ST4
MOLEX CAP FEMALE 51139-0200
MOLEX PIN 20-26AWG 50600-8100 (20-26AWG)
SWITCH REED BASE PANEL ST3
SWITCH REED FIELD FIX KIT ST4
KIT REED SW BTTM COVER WH ST3
REED SWITCH PCB BASE PANEL ST3
COVER REED SWITCH B/PANEL WH ST3
KIT REED SW BTTM COVER SA ST3
REED SWITCH PCB BASE PANEL ST3
COVER REED SW PCB B/PANEL SA ST3
COVER REED SW X/R & BTM WH ST4
COVER REED SW BTTM SA ST4
PIN ROLLER PLATED
FOOT ROLLER
CLIP ROLLER
ROLLER FOOT
BRACKET BTTM HINGE RH PLATED
BRKT BTTM HINGE LH ASSY PLATED
BOLT BTTM HINGE BRKT
FOOT LE VEL LI NG ASSEMB LY
BASE LEVELLING FOOT
CAP DOOR CLOSING RH
CAP DOOR CLOSING LH
SHELF GLASS PC ASSY 635
SHELF GLASS PC 635
EXTRUSN FRT GLASS SHELF SC 635
EXTRUSN REAR GLAS SHELF SC 635
PLUG REAR EXTRUSN RH ALL MODLS
PLUG REAR EXTRUSN LH ALL MODLS
PLUG FRONT EXTRUSION RH 635
PLUG FRONT EXTRUSION LH 635
SHELF GLASS PC ASSY WH 635
PLUG REAR EXTRUSN RH ALL MODLS
PLUG REAR EXTRUSN LH ALL MODLS
PLUG FRONT EXTRUSION RH 635
PLUG FRONT EXTRUSION LH 635
EXTRUSN FRT GLASS SHELF WH 635
EXTRUSN REAR GLAS SHELF WH 635
EXTRUSION HCL SUPPORT 635/680
BRACKET HCL SUPPORT B GL SH
LID HCL B 635/680 GLASS SHELF
25
MANUAL 517715
DRAWER A SSEMBLY HUMIDITY
26
MANUAL 517715
DRAWER ASSEMBLY HUMIDITY
REF PART DESCRIPTION MODEL
1 873501
2 880253
3 855293
402520
880783
880782
882284
882285
4 880656
5 881288
881290
6 880595
7 880655
8 880730P
881223P
9 880542
881420
10 SP0201P
11 877643
877644
12 873510
13 871377
14 873240
15 900792
16 880449
17 875114
18 874965
19 871654
20 871233
21 880765
881040
881389
22 876702P
23 311028P
877955
881004
312032P
CONTR O L SLIDE HC WH ITE
COVER FINSHED HC H/S BLUE 635
HEATER X/RAIL HC 110V ST3
LABEL 110-115V
HEATER X/RAIL HC 110V ST3
HEATER X-RAIL HC 230V P42 ST3
HEATER X/RAIL HC 240V ST4
HEATER X/RAIL HC 110V ST4
SCREW 10GX25CSK SQ SS
BRACKE T H- RA I L HINGE RH PLAT E D
BRACKE T H- RA I L HINGE LH PL ATE D
CAP SCREW CROSS RAIL WHITE
SCREW #10X19 AB #2 SQ ZN
SWITCH REED H/RAIL ST3
SWITCH REED FIELD FIX KIT ST4
COVER REED SW CENTER X-RAIL WH ST3
COVER REED SW X/R & BTM WH ST4
SCREW 8X12 PAN PH NIB PKT10
RAIL GUIDE ASSY WHITE LH
RAIL GUIDE ASSY WHITE RH
WASHER HINGE BEARING 4.8MM WH
BEARING IDS-26-SB5S
RAIL FRAME ASSY HC WHITE
SCREW #10.32X17MM RSC CSK TY 2
RUNNER SUPPORT TRAY DIVIDER HC
TRAY DIVIDER PC 635 WHITE
TRAY HC WHIT E
PARTITION PLASTICISED HC
BIN HC
HANDLE DOOR SILVER HC
HAND LE DR HC MOUL D WH
HANDLE DOOR S/STONE HC
PACK GASK ASSY PUSHIN 635X 416
DOOR HC WH635X 443 BS C365H,41
MAGNET DOOR ALARM
CAP DOOR END OUTER WH 635
DOOR HC SA635X 443 BS
23 877955 MAGNET DOOR ALARM
881007
24 881270
881271
CAP DOOR END OUTER SA 635
CAP DOOR CLOSING RH
CAP DOOR CLOSING LH
27
MANUAL 517715
FAN AND EVAPORATOR ASSEMBLIES
28
MANUAL 517715
FAN AND EVAPORATOR ASSEMBLIES
REF PART DESCRIPTION MODEL
1 874109
874109
874109
874109
880495
880495
2 874094
874095
874096
874097
881426P
881427P
881428P
881429P
3 855203P
4 874175
CHASSIS EVAP ELECT 635/680B
CHASSIS EVAP ELECT 635/680B
CHASSIS EVAP ELECT 635/680B
CHASSIS EVAP ELECT 635/680B
CHASSIS EVAP T ELECT
CHASSIS EVAP T ELECT
EVAP SERV KIT 635T&H ST3 240V
EVAP SERV KIT 635B ST3 240V
EVAP SERV KIT 635T&H ST3 110V
EVAP SERV KIT 635B ST3 110V
EVAP SERV KIT 635B ST4 115V
EVAP SERV KIT 635T&H ST4 115V
EVAP SERV KIT 635T&H ST4 240V
EVAP SERV KIT 635B ST4 240V
SENSOR KIT ASSY
HEATER DEF ASSY 635 ST3 240V
E372BL
E372BR
E402BL
E402BR
E411TL
E411TR
877999
881410
881411
5 872957
6 873988
7 874724
872831
872831
872957
873988
872957
873988
881593
881595
881593
881595
AMP SKT 16-20AWG 171639-1
PLUG 2 WAY HSG AMP M ATE- N-LOK
HEATER DEF ASSY 635 ST3 110V
AMP SKT 16-20AWG 171639-1
PLUG 2 WAY HSG AMP M ATE- N-LOK
HEATER DEF ASSY 635 ST4 110V
MOLEX PLUG MALE 51138-0200
MOLEX SKT 16-22AWG 50597-8100 (16-22AWG)
HEATER DEF ASSY 635 ST4 240V
MOLEX PLUG MALE 51138-0200
MOLEX SKT 16-22AWG 50597-8100 (16-22AWG)
AMP SKT 16-20AWG 171639-1
PLUG 2WAY HSG AMP MATE-N-LOK
SHIEL D DRA IN HTR 635 T
SHIEL D DRA IN HTR DEF R OST 635 B
SHIEL D DRA IN HTR DEF R OST 635 B
E372BL
E372BR
872831
872831
8 880409
9 * 880955
* 882845
SHIEL D DRA IN HTR DEF R OST 635 B
SHIEL D DRA IN HTR DEF R OST 635 B
SHIELD HEATER FC COVER 635T
COVER FAN FC REAR 635
COVER ASSY FAN FC REAR 635
E402BL
E402BR
29
MANUAL 517715
FAN AND EVAPORATOR ASSEMBLIES
30
MANUAL 517715
FAN AND EVAPORATOR ASSEMBLIES
REF PART DESCRIPTION MODEL
10 * 880543
* 880544
11 * 880923
881409P
12 872956
13 880952
* 882956
14 873399
873398
873398
873398
872956
878545
881592
881598
881409
CLIP FAN SUSPENDED FC LONG TOP
CLIP FAN SUSPENDED FC SHORT BTTM
MOTOR ASSY FAN FC SUSP 12V ST3
AMP HOUSI N G FEM AL E 172233-1
AMP PIN 16-20AWG 171680-1
MOTOR ASSY FAN FC SUSP 12V ST4
MOLEX CAP FEMALE 51139-0200
MOLEX PIN 20-26AWG 50600-8100 (20-26AWG)
FAN MOTOR DC SUSP FC ASSY
AMP HOUSING FEMALE 172233-1
SPRING FAN SUSPENEDED FC
SPRING FAN SUSP FC TRIANGULAR
COVER FAN FC FRONT 635 T P42
COVER FC FRONT 635 B ELECT
COVER FC FRONT 635 B ELECT
COVER FC FRONT 635 B ELECT
E372BL
E372BR
E402BL
873398
15 880423
880423
880423
880423
16 880448
880448
880448
880448
17 880724
18 871463
19 855299
20 876771
876771
876771
876771
COVER FC FRONT 635 B ELECT
DEFLECTOR CHASSIS 635/680
DEFLECTOR CHASSIS 635/680
DEFLECTOR CHASSIS 635/680
DEFLECTOR CHASSIS 635/680
CLIP CHASSIS HEATER B MODE L
CLIP CHASSIS HEATER B MODE L
CLIP CHASSIS HEATER B MODE L
CLIP CHASSIS HEATER B MODE L
DEFLECTOR AIR FLOW
CLIP TUBE EVAP PLASTIC
CLIP HEATER 20MM EVAP FIN
FILTER 'P' CATCHER DRAIN
FILTER 'P' CATCHER DRAIN
FILTER 'P' CATCHER DRAIN
FILTER 'P' CATCHER DRAIN
E402BR
E372BL
E372BR
E402BL
E402BR
E372BL
E372BR
E402BL
E402BR
E372BL
E372BR
E402BL
E402BR
31
MANUAL 517715
ACTV SMART S T4 TERMINAL S P LUG S & SOCKETS
32
MANUAL 517715
ACTV SMART S T4 TERMINAL S P LUG S & SOCKETS
REF PART DESCRIPTION MODEL
1 881595
881596
2 881597
881598
3 881592
4 881593
5 881594
6 881588
881589
881590
7 881591
8 873243
873247
873248
873250
873251
MOLEX SKT 16-22AWG 50597-8100 (16-22AWG)
MOLEX SKT 20-26AWG 50598-8100 (20-26AWG)
MOLEX PIN 16-22AWG 50599-8100 (16-22AWG)
MOLEX PIN 20-26AWG 50600-8100 (20-26AWG)
MOLEX CAP FEMALE 51139-0200
MOLEX PLUG MALE 51138-0200
MOLEX RETAINER 51140-0205
STOCKO 9290-02-AB01-000-960 (MAINS CORD)
STOCKO 9290-02-BA01-960 (DEFROST HEATER)
STOCKO 9290-02-EE01-000-960 (RUN CAP)
STOCKO 9290-04-EF02-000-960 (COMP CABLE)
STOCKO 7234-012-500-450
STOCKO 7234-006-500-450
STOCKO 7234-010-500-450
STOCKO 7234-004-500-450
STOCKO 7234-003-500-450
873279
881135
881136
881137
STOCKO 7234-008-500-450
STOCKO 7234-005-500-450
STOCKO 7234-014-500-450
STOCKO 7234-017-500-450
33
MANUAL 517715
ELECTRONIC MODULE AND DUCT COVERS
34
MANUAL 517715
ELECTRONIC MODULE AND DUCT COVERS
REF PART DESCRIPTION MODEL
1 880759
2 880733P
881218P
3 880779
4 874720
874723
5 855203P
6 881325
881336
7 SP0056P
8 881014
873971
881013
873950
881012
9 880571
INSULATN COVR DUCT TOP T&H MOD
MODULE CONTRL ELEC-WITH BC ST3
MODULE DISPLAY ELEC-WITH BC ST4
GASKET CONTROL MODULE ELECTRON
LENS LED PRINTED ELECT WITH BC
LENS LED PRINTED ELECT NON BC
SENSOR KIT ASSY
COVR DUCT TOP T&H MOD HS MD GY
COVER DUCT TOP B MODL HS MD GY
SCREW 8X12 TAB PAN PH SS PKT10
INSULATION COVER DUCT SHORT T
INSULATION COVER DUCT E372B
INSULATION COVER DUCT MED T
INSULATION COVER DUCT LONG B
INSULATION COVER DUCT LONG T&H
HTR PCB LO AMB T&H MODELS ST4
E331T
E331T
E372B
E381T
E402B
E411T
881482
10 877878
873264
877877
881191
873583
873583
11 880196
12 872833
13 880407
HTR PCB LO AMB T&H MODELS ST3
COVER DUCT T MODEL SHORT
COVER DUCT B MODELS SHORT
COVER DUCT T MODEL MEDIUM
COVER DUCT B MODEL LONG
COVER DUCT T MODEL LONG
COVER DUCT T MODEL LONG
COVER PC RET URN AIR B MODEL
INSULATN INSERT PLUG-IN 635 B MODL
HEATER LOW AMBIENT B MODEL
E331T
E372B
E381T
E402B
E411T
E415H
35
MANUAL 517715
CO MPRESSOR AND POWER MODU LE
36
MANUAL 517715
COM PRESSOR AND POWER MODULE
REF PART DESCRIPTION MODEL
1 874881
874879
874880
874880
2 872349
876653
3 SP0201P
4 209673#
5 209078
209995
6 207055
209042
209080
209082
209890
7 209715
209988
209993
8 209674
9 209490P
209053P
9 209491P
209770P
209078
209080
209673
209674
209988
502173
872838
209042
209993
209995
209674
209996
502173
872838
209078
209082
209673#
209674
209988
502173
872838
209674
209890
209993
209995
209996
502173
872838
PANEL BACK ASSY 400H,395B,N388
PANEL BACK ASSY C370, C335T
PANEL BACK ASSY N375T, C380B
PANEL BACK ASSY N375T, C380B
TRAY WATER EVAP TOP HAT MOULD
TRAY WATER EVAPORATOR NOTCHED
SCREW 8X12 PAN PH NIB PKT10
CLAMP PROTECTOR COVER MAT
COVER PROTEC T OR COMPR ESS O R MAT
PROTECTOR COVER EMBRACO
OVERLOAD 4TM 283ULBYY53 115V
OVERLOAD 189RHBYY FGS80
OVERLOAD MM3-19ECF
OVERLOAD MM3-22FCF
OVERLOAD 189NFBYY FGS70
RELAY PTC EMB 8EA-103 115V60HZ
RELAY PTC D SERIES MM8-5DDT33M
RELAY PTC EMBRACO 8EA 503
CLIP O/ LOAD 01- 246801
COMPR MAT DC66C12R 240V 50H Z
COVER PROTECTOR COMPRESSOR MAT
O/LOAD MM3-19ECF
CLAMP PROTECTOR COVER MAT
CLIP O/LOAD 01-246801
RELAY PTC D SERIES MM8-5DDT33M
FILTER DRIER 12 GR DUAL BRAZED
GROMMET COMPRESSOR MOUNTING
COMPR EMB FGS80HAW 240V 50HZ
O/LOAD 189RHBYY FGS80
RELAY PTC EMBRACO 8EA 503
PROTECTOR COVER EMBR ACO
CLIP O/LOAD 01-246801
RETAINER C ABLE EMBRACO
FILTER DRIER 12 GR DUAL BRAZED
GROMMET COMPRESSOR MOUNTING
COMPR MAT DB73C13R 240V 50H Z
COVER PROTECTOR COMPRESSOR MAT
O/LOAD MM3-22FCF
CLAMP PROTECTOR COVER MAT
CLIP O/LOAD 01-246801
RELAY PTC D SERIES MM8-5DDT33M
FILTER DRIER 12 GR DUAL BRAZED
GROMMET COMPRESSOR MOUNTING
COMPR EMB FGS70HAW 240V 60HZ
CLIP O/LOAD 01-246801
O/LOAD COMPR 189NFBYY FGS70
RELAY PTC EMBRACO 8EA 503
PROTECTOR COVER EMBR ACO
RETAINER C ABLE EMBRACO
FILTER DRIER 12 GR DUAL BRAZED
GROMMET COMPRESSOR MOUNTING
E331T
E372B
E381TL
E331T
E372B
E381T
E381T
37
MANUAL 517715
COM PRESSOR AND POWER MODULE
REF PART DESCRIPTION MODEL
207054P
209053P
9 207054P
209053P
209770P
9 207054P
207055
209673#
209674
209715
209995
209996
502173
872838
209042
209674
209993
209995
209996
502173
872838
207055
209673#
209674
209715
209995
209996
502173
872838
209042
209674
209993
209995
209996
502173
872838
209674
209890
209993
209995
209996
502173
872838
207055
209673#
209674
209715
209995
209996
502173
872838
COMPR EMB FGS270 115V 60HZ
OVERLAOD 4TM 283ULBYY53 115V
CLAMP PROTECTOR COVER MAT
CLIP O/LOAD 01-246801
RELAY PTC EMB 8EA-103 115V60HZ
PROTECTOR COVER EMBR ACO
RETAINER C ABLE EMBRACO
FILTER DRIER 12 GR DUAL BRAZED
GROMMET COMPRESSOR MOUNTING
COMPR EMB FGS80HAW 240V 50HZ
O/LOAD 189RHBYY FGS80
CLIP O/LOAD 01-246801
RELAY PTC EMBRACO 8EA 503
PROTECTOR COVER EMBR ACO
RETAINER C ABLE EMBRACO
FILTER DRIER 12 GR DUAL BRAZED
GROMMET COMPRESSOR MOUNTING
COMPR EMB FGS270 115V 60HZ
OVERLAOD 4TM 283ULBYY53 115V
CLAMP PROTECTOR COVER MAT
CLIP O/LOAD 01-246801
RELAY PTC EMB 8EA-103 115V60HZ
PROTECTOR COVER EMBR ACO
RETAINER C ABLE EMBRACO
FILTER DRIER 12 GR DUAL BRAZED
GROMMET COMPRESSOR MOUNTING
COMPR EMB FGS80HAW 240V 50HZ
O/LOAD 189RHBYY FGS80
CLIP O/LOAD 01-246801
RELAY PTC EMBRACO 8EA 503
PROTECTOR COVER EMBR ACO
RETAINER C ABLE EMBRACO
FILTER DRIER 12 GR DUAL BRAZED
GROMMET COMPRESSOR MOUNTING
COMPR EMB FGS70HAW 240V 60HZ
CLIP O/LOAD 01-246801
O/LOAD COMPR 189NFBYY FGS70
RELAY PTC EMBRACO 8EA 503
PROTECTOR COVER EMBR ACO
RETAINER C ABLE EMBRACO
FILTER DRIER 12 GR DUAL BRAZED
GROMMET COMPRESSOR MOUNTING
COMPR EMB FGS270 115V 60HZ
OVERLAOD 4TM 283ULBYY53 115V
CLAMP PROTECTOR COVER MAT
CLIP O/LOAD 01-246801
RELAY PTC EMB 8EA-103 115V60HZ
PROTECTOR COVER EMBR ACO
RETAINER C ABLE EMBRACO
FILTER DRIER 12 GR DUAL BRAZED
GROMMET COMPRESSOR MOUNTING
E402B
E402B
E411T
E411T
E411T
E415H
38
COM PRESSOR AND POWER MODULE
REF PART DESCRIPTION MODEL
209053P
209042
209674
209993
209995
502173
872838
209996
10 855270
11 872838
12 850265
13 502173
14 900101
15 900377
16 880815P
880816P
880817P
881210P
881212P
881215P
17 871388
871389
881234
881235
18 855274
855275
18 873354
873356
812249
881400
881401
881402
881403
881405
19 878487
20 871452
880564
21 901525
22 873228
23 882775
24 875861
I 207058
207062
207061
209299
880944
875113
874810
874810
874810
874810
COMPR EMB FGS80HAW 240V 50HZ
O/LOAD 189RHBYY FGS80
CLIP O/LOAD 01-246801
RELAY PTC EMBRACO 8EA 503
PROTECTOR COVER EMBR ACO
FILTER DRIER 12 GR DUAL BRAZED
GROMMET COMPRESSOR MOUNTING
RETAINER C ABLE EMBRACO
CLIP COMPRESSOR MOUNTING
GROM MET COMPRE SS OR MO UNTING
PIN COMPRE SSO R MO UNTING
FILTER DRIER 12 GR DUAL BRAZED
WASHER LOCK NO 10 EXT SP ZP
SCREW 8X32X8 TY T PAN PH ZP
POWER & SWITCH MODULE 240V ST3
POWER & SWITCH MODULE 110V ST3
POWER & SWITCH MODL BC 240V ST3
MODULE PWR CONTL BC 230V ST4
MODULE PWR CONTROL 230V ST4
MODULE PWR CONTROL 110V ST4
HARNESS COMPRESSOR 3 CORE ST3
HARNESS COMPRESSOR 4 CORE ST3
HARNESS COMPRESSOR 3 CORE ST4
HARNESS COMPRESSOR 4 CORE ST4
CABLE MAINS 2PIN EURO 230V ST3
CABLE MAIN 3PIN ULSTD 110V ST3
CABLE MAIN 3 FLAT PIN 230V ST3
CABLE MAIN 3PIN FUSED 230V ST3
CABLE MAIN 2 FLAT PIN 240V ST3
CABLE MAIN 3 FLAT PIN 230V ST4
CABLE MAIN 3PIN FUSED 230V ST4
CABLE MAINS 2PIN EURO 230V ST4
CABLE MAIN 3PIN ULSTD 110V ST4
CABLE MAIN 2 FLAT PIN 240V ST4
TRAY CO MP MOUNT I NG 635
SCREW 4X20 PH ST
SCREW 7 X 20 RD HD NO 2 SQ DR
SCREW 8X16 PAN NIB STZP PHOS C
TRAY WATER OVERFLO W
TUBE HEATER SHEATHED 4.76MM
PLUG PLASTIC LT GY 14MM
PARTS NOT ILLUSTRATED
CAPACITOR RUN 4UF 400V ST3
CAPACITOR RUN 4UF 400V ST4
CAPACITOR RUN 20UF 250V ST4
CAPACITOR RUN 20UF 250V ST3
LABEL WIRING DIAGRAM ELECT ST3
SUCTION & CAPILLARY E440T
SUCTION & CAPIL ASSY E442B
SUCTION & CAPIL ASSY E442B
SUCTION & CAPIL ASSY E442B
SUCTION & CAPIL ASSY E442B
E415H
E372BL
E372BR
E402BL
E402BR
MANUAL 517715
39
MANUAL 517715
40
NOTES
DOORS TOP FZR-WITH CURVED PLASTIC HANDLE
Notes
19 Doors Are Not Supplied With Gaskets
27 Prior To Serial Number AKR 208492 Use Part # 880654. From Serial Number AKR
208492 Use Part # SP0008
311024P Doors Are Not Supplied With Gaskets
312028P Doors Are Not Supplied With Gaskets
DOORS BTM FZR-WITH CURVED PLAS TIC HANDLE
Notes
14 Doors Are Not Supplied With Gaskets
26 Prior To Serial Number AKR 208492 Use Part # 880654. From Serial Number AKR
208492 Use Part # SP0008
CA BINET TOP FREEZ ER
MANUAL 517715
Notes
878582 Only available as complete assembly please order part number 880820
878583 Only available as complete assembly please order part number 880820
881166 Shelf Assembly PT No.881166 used in all 635 cabinets manufactured in N.Z from Serial
Number NHR143029 onwards,this shelf will fit all positions within the provision
compart ment.
CABINET BOTTOM FREEZER
Notes
877222 Model C370 manufactured in Australia, use only shelf assembly PT No 877222, also used
in 635 cabinets manufactured in N.Z up to Serial Number NHR143029
878582 Only available as complete assembly please order part number 880820
878583 Only available as complete assembly please order part number 880820
881166 Shelf Assembly PT No.881166 used in all 635 cabinets manufactured in N.Z from Serial
Number NHR143029 onwards,this shelf will fit all positions within the provision
compart ment.
CABINET TOP & BO TTOM FREEZER
Technical Bulletins
883253P RF025
FAN AND EVAPORATOR ASSEMBLIES
Technical Bulletins
880543 RF008
880544 RF008
880923 RF008
880955 RF008
882845 RF021
882956 RF021
41
MANUAL 517715
42
REFRIG ERAT ION ABBREVIATION KEY
DESCRIP TION KEY
PC PROVISION COMPARTMENT
FC FREEZER COMPARTM ENT
HCL HUMIDI TY CONTROL L ID
HC HUMIDI TY COMPARTMENT
CZ CHILL ZONE
HS HOT STAMPE D
X/RAI L CROSS RAIL
BC BUTTER CONDITIONER
BS “B” SERIES CABI NE T
CH CHARCOAL COL OUR
LT GY LIGHT GREY COLOUR
MD GY MID GREY COLOUR
DK GY DARK G REY COL OUR
SATIN or SC SATI N CHROME F INISH
S/STONE SANDSTONE COLOUR
SS STAINLESS ST EEL
SL or SI L SILVER
HAN P/C HANDLE POW DER CO ATED
MANUAL 517715
F&P FI SHE R & P AYKEL
PUSHIN PUSHIN TYPE GASKET
LH LEF T HAND
RH RIGHT HAND
LHT LEFT HAND TOP
RHT RIGHT HAND T OP
LHB LEFT HAND BOT TOM
RHB RIGHT HAND BOTTOM
SML SMALL
DC DIRECT CURRE NT
10W 10 WATTS
12V 12 VOLTS
XH9 TYPE OF DESSICANT WI THIN A F ILTER DRYER
M5 5 MILLIMETER
43
Loading...
