USA
DS602 (Prefinished)
Part No. 599066/D
DS602I (Integrated)
Models DS602 DS602I
Single DishDrawer
Table of Contents
Section 1 General Information
1.1 Preparation
1.2 Product Specifications & Cavity Dimensions
1.3 Options for Installing Multiple Products
1.4 Electrical, Plumbing & Drainage Information
1.5 Product Parts
1.6 Additional Product Parts for Integrated DishDrawer
Section 2 Fitting the DishDrawer
2.1 DishDrawer Mounting Hole Locations
2.2 Connecting the Services
2.3 Flexible Extrusion Attachment for 24 Cavity
Section 3 Inserting DishDrawer Into Cavity
Section 4 Information for Cabinet Maker for Integrated DishDrawer
4.1 Integrated Drawer Front Dimensions
Section 5 Integrated Drawer Front Installation
5.1 Changing the Integrated Badge Enclosure
5.2 Disassembling the Integrated Badge Assembly
5.3 Assembling the Integrated Badge
5.4 Fitting the Badge, Handle & Mounting Panel to the Drawer Front
5.5 Fitting the Drawer Front to the DishDrawer
Section 6 Final Fitting For Single DishDrawer
Section 7 Final Checks
7.1 Installation Wet Test
7.2 Troubleshooting
Page DS_01
GENERAL INFORMATION
STEP 1.1 PREPARATION
NOTE TO THE INSTALLER
n Be sure to leave these instructions with the Customer.
n Ensure this appliance is properly grounded.
NOTE TO THE CONSUMER
n Keep these Installation Instructions with your Use & Care Manual for future
reference.
IMPORTANT
n Read these Instructions completely and carefully.
n Observe all governing Codes and Ordinances.
WARNING
n These Instructions are intended as a guide only.
n It is the responsibility of the plumber and electrician to ensure that each installation
complies with all Codes and Ordinances.
n Installation of this DishDrawer requires basic mechanical and electrical skills.
n The installer is responsible for the DishDrawer installation.
Improper installation is not covered under the Express Warranty Form.
IMPORTANT
n At the completion of the DishDrawer installation, the Installer must perform Final
Checks as per Section 7 of these Installation Instructions.
n Ensure the DishDrawer enclosure is prepared for installation.
n Remove all packaging and materials supplied with the DishDrawer.
n If you have any questions concerning the installation of this DishDrawer, contact:
Fisher & Paykel Customer Care Centre 27 Hubble
TOLL FREE 1-888-9-FNP USA Irvine
TOLL FREE 1-888-9-367 872 CA 92618
Fax (949) 829 8699 USA
WWW.FISHERPAYKEL.COM
SECTION 1
WARNING
Before installing the
DishDrawer, remove the
house fuse or open the
circuit breaker.
Ensure all water
connections are turned
OFF.
WARNING
The DishDrawer MUST
be installed to allow for
future removal from the
enclosure if service is
required.
STEP 1.2 PRODUCT SPECIFICATIONS & CAVITY DIMENSIONS
Weight - Full 93lb (42kg) Prefinished
- Empty 62lb (28kg) Prefinished
Electrical 110-120VAC
3 pin socket outlet
Drying Residual Heat &
Fan Assisted
Water Connection Recommended Hot
140°F (60°C) Max.
Water Pressure Maximum 139 p.s.i. (960 kpa)
Minimum 4.3 p.s.i. (30 kpa)
(Water pressure below 7 p.s.i. (50 kpa)
may require the electronics to be
re-programmed by a Service Person
at the time of installation.)
Page DS_02
IMPORTANT
Where the DishDrawer is
in an under counter
situation, i.e. built into a
kitchen unit, it is
recommended that bare
wood surrounding the
DishDrawer is sealed with
an oil based paint or
polyurethane to prevent
possible steam damage.
IMPORTANT
If mounting the
DishDrawer near the
bottom of the cabinet,
ensure there is adequate
room underneath the
supporting cabinet to
tighten bolts.
IMPORTANT
Ensure the cavity sides are
plumb (vertical) as this will
assist with leveling the
DishDrawer.

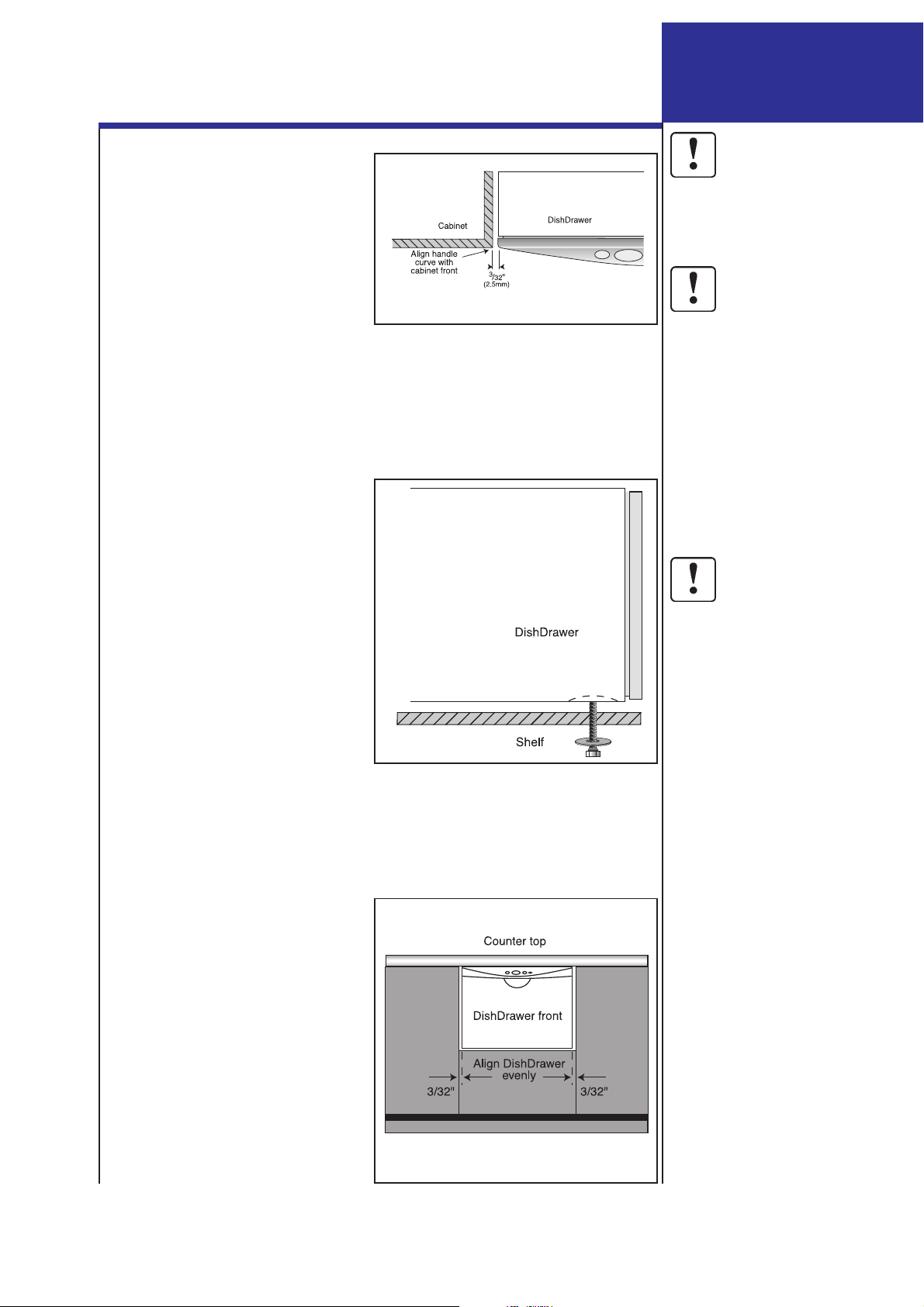

STEP 1.3 OPTIONS FOR INSTALLING MULTIPLE PRODUCTS
STEP 1.4 ELECTRICAL, PLUMBING & DRAINAGE INFORMATION
ELECTRICAL
Care should be exercised when the appliance is installed or removed, to
reduce the likelihood of damage to the power supply cord.
If the power supply cord is damaged, it must be replaced by the Manufacturer, its Service
Agent or a similarly qualified person, in order to avoid a hazard.
The power supply receptacle for the appliance should be installed in a cabinet or on a wall
adjacent to the under counter space in which the appliance is to be installed.
IMPORTANT
Ensure the Services Hole is
as close as possible to the
rear corner of the cabinet.
The hole can be located
on either side depending
on the location of the
services.
IMPORTANT
On corner installations
ensure that there is a gap
of 2" (50mm) minimum
between the adjacent
cabinetry and sides of
drawers.
Page DS_03
The power supply receptacle should be positioned between 6" and 18" (150mm and
450mm) from the cabinet opening of the DishDrawer.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of malfunction or breakdown,
grounding will reduce the risk of electric shock by providing a path of least
resistance for electric current.
This appliance is equipped with a cord having an equipment-grounding conductor and a
grounding plug. The plug must be plugged into an appropriate outlet that is installed and
grounded in accordance with all local Codes & Ordinances.
PLUMBING - WATER SUPPLY
a) The water connection is to be made to a hot water supply only. Ensure the water
temperature is not greater than 140°F (60°C).
b) A readily accessible shut off valve must be installed in the supply pipe.
c) The water supply pressure is to be between 4.3 p.s.i. minimum and
139 p.s.i. maximum.
d) The inlet supply hose must be connected to the water supply using a 3/8"
compression type water supply fitting.
e) Ensure sealing washer supplied with connection hose is fitted.
PLUMBING - DRAINAGE OPTIONS
Option 1
Option 2
WARNING
Improper connection of
the equipment-grounding
conductor can result in a
risk of electric shock.
Check with a qualified
electrician or service
representative if you are
in doubt as to whether the
appliance is properly
grounded.
Do not modify the plug
provided with the
appliance - if it will not fit
the outlet, have a proper
outlet installed by a
qualified electrician.
WARNING
The Drain Hose Support
must be at least 133/4"
(350mm) above the base
of the DishDrawer to
prevent siphoning of the
water during the wash
cycle.
Option 3
Note: DS602 Prefinished Model is shown. There is no variation in
plumbing between DS602 Prefinished Model and DS602I
Integrated Model.
Options 1 and 2 are the preferred options.
It is recommended that
the Drain Hose Support is
secured in place using the
screw tab.
Ensure that the drain
hoses are fully extended.
Page DS_04
Tools Needed To
Install DishDrawer
Wooden Chopping Board
Level
Safety Glasses
Utility Knife
Pencil
Drill & Drill Bits
(3/32", 9/16" & 11/32")
(2.5mm, 12mm, 14mm)
Sandpaper
Tape Measure
Square
Ruler
Phillips Screwdriver
Pliers
Adjustable Wrenches(x2)
7/32" (6mm) Allen Key
(Integrated Models)
Router (Integrated Models)
Jigsaw (Integrated Models)
STEP 1.5 PRODUCT PARTS
1.
5.
4.
8.
2.
3.
6.
7.
9.
10.
11.
1. Template (Single 1)
2. Drain Hose Support (1)
3. Screw (1)
4. Wire Clip (1)
5. M8 Bolts (4)
6. Washers (4)
12.
7. Single Connector (1)
8. Edge Protector (1)
9. Flexible Extrusion 2)
10. Solderless Lug & Washer (1)
11. Inlet Hose Washer (1)
12. Hose Clamp (1)
STEP 1.6 ADDITIONAL PRODUCT PARTS FOR INTEGRATED
DISHDRAWER
13. Mounting Bracket Nuts (4)
14. Seal (1)
15. Door Screws (4)
16. Badge Kit (2)
13.
16.
Page DS_05
15.
14.
STEP 2.1 DISHDRAWER MOUNTING HOLE LOCATIONS
2.1.1
Draw the cavity center line on the
supporting cabinetry.
2.1.2
Center Template in cavity using V-notch
on the front of the Template.
2.1.3
Align front of Template to suit surround of
cabinetry.
SECTION 2FITTING THE DISHDRAWER
TIP
Ensure the cavity is at
least 227/8" (580mm) deep.
IMPORTANT
For Integrated product
with door thickness other
than 3/4 (18mm), the
Template position must be
adjusted forward or back
to allow for this
difference.
2.1.4
Mark and drill four 15/32" - 9/16"
(12mm-14mm) diameter holes as
described on Template.
Page DS_06
WARNING
STEP 2.2 CONNECTING THE SERVICES
Ensure the edges of the
Service Hole are smooth
or covered. (See Step 1.2 -
Product Specifications &
Cavity Dimensions.) If the
Services Hole is through a
metal partition, the hole
must be protected with the
Edge Protector provided.
WARNING
DO NOT adjust the length
of the Inlet Hose.
TIP
2.2.1
Feed the Power Cord, Inlet Hose and Drain
Hose through the Services Hole. Position
the DishDrawer in front of the opening.
2.2.2
Connect the Inlet Hose to the HOT WATER
SUPPLY. Ensure the sealing washer
supplied with the accessories is fitted.
Hose coupling must be tightened a further
half turn after seal contact.
2.2.3
If required, the Drain Hose may be
trimmed to a suitable length.
Turn the water valve ON
to check for any leaks,
before pushing the
DishDrawer back into its
cavity.
WARNING
Attach the Drain Hose
Support to the cabinet
cabinetry to prevent
siphoning and to keep the
Drain Hose from kinking.
2.2.4
If an air break option is not chosen, then
the Drain Hose Support must be used and
positioned at least 133/4 (350mm) above
the base of the DishDrawer to prevent
siphoning of the water during the wash
program. (See Step 1.4 - Electrical,
Plumbing & Drainage Information.)
2.2.5
When using a standpipe option, hose
should not extend further than 2 (50mm)
down the standpipe in order to prevent
siphoning.
Page DS_07
2.2.6
If required, trim the Single Connector to
the size which matches the waste tee or air
break to be used. There are ribs provided
to guide cutting.
When using the Single Connector, the hose
should be pushed in firmly, 5 clicks.
Remember to slip the Wire Clip over the
Drain Hose before connecting to the Single
Connector.
The supplied Wire Clip should be installed
between the two positioning ribs on the
Single Connector.
2.2.7
Attach Single Connector to waste tee.
Ensure snug fit using the supplied hose
clamp.
WARNING
The Product MUST NOT
be plugged in at this
stage.
Ensure there is a power outlet in reach of
the supplied flex. If there is not a suitable
outlet available then have one installed by
a qualified electrician.
DO NOT modify the power plug supplied
with the DishDrawer or use an extension
cord, adaptor plug or multiple outlet box.
2.2.8
Alternatively, the DishDrawer may be
permanently connected to flexible conduit.
Remove the flex and cable clamp. Fit
suitable cable clamp for the conduit and
terminate the wiring as shown.
Use the solderless lug and washer supplied
with the product parts to terminate the
ground wire.
WARNING
If permanently connecting,
ensure power is isolated.
Page DS_08
TIP
Wiring, Plumbing and
Services should be
completed before
attaching the flexible
extrusion.
STEP 2.3 FLEXIBLE EXTRUSION ATTACHMENT FOR
24 (610mm) CAVITY
2.3.1
Flexible Extrusions are supplied to enable
the installer to help fill any excess space
between the sides of the DishDrawer and
the cavity. The two lengths of Flexible
Extrusion (supplied) should be attached
before pushing the DishDrawer into the
cavity for final installation. This Extrusion
is designed to fit a 24 (610mm) width
cavity.
2.3.2
Open the drawers, exposing the chassis
trim.
2.3.3
Remove backing from adhesive tape on
Flexible Extrusion.
2.3.4
Apply as per drawings, ensuring the
curved edge of the Flexible Extrusion
fits around the corner of the chassis trim.
2.3.5
When checking final fit, ensure
DishDrawer is centered and there are even
tolerances between DishDrawer and
cavity.
Page DS_09
INSERTING DISHDRAWER INTO CAVITY
SECTION 3
3.1.1
Position product to suit joinery ensuring
hoses are not kinked or cut.
3.1.2
Insert M8 bolts and washers through holes
in shelf.
WARNING
DO NOT push against
the middle of the drawer.
IMPORTANT
Make sure the inlet and
drain hose and main flex
are not restricted or
damaged by carefully
pulling them through the
Services Hole as the
DishDrawer is being
pushed back into the
cavity.
WARNING
3.1.3
Ensure product is correctly positioned and
aligned before tightening.
Refer to Step 7.1 - Installation Wet
Test.
The DishDrawer should
not support any part of
the kitchen cabinetry.
Page DS_10
INFORMATION FOR CABINET MAKER FOR
SECTION 4
I
N
Recommended Drawer
Front thickness for
T
Integrated product is
5
/8" to 3/4" (16mm - 18mm).
E
G
R
Drawer Front material
A
must be suitable for damp
conditions or adequately
sealed to withstand
T
moisture.
E
Additional protection can
be provided by using a
Moisture Resistant
D
Board.
IMPORTANT
IMPORTANT
INTEGRATED DISHDRAWER
STEP 4.1 INTEGRATED DRAWER FRONT DIMENSIONS
4.1.1
Use the following diagrams to work out the dimensions for the Integrated Panels for Drawer
Fronts.
P
IMPORTANT
R
Allow for any
obstructions at the top of
O
the cavity when allowing
for space between the
D
countertop and
DishDrawer.
U
C
T
O
N
L
Y
Page DS_11
IMPORTANT
A minimum clearance of
3
/32 (2.5mm) must be
maintained between the
Drawer Front and existing
cabinetry, except
between the underside of
the Drawer Front and the
shelf, where a 1/4 (6mm)
clearance is needed for
product venting.
I
N
T
E
G
R
A
T
4.1.2
Use the following diagrams if installing the DishDrawer at floor level.
Drawer Front Air Flow
Chamfer
Chamfer the back of the
Drawer Front Panel at the
bottom as shown, to
enhance air flow.
E
D
P
R
O
D
U
C
T
Page DS_12
O
N
L
Y
I
IMPORTANT
All marking out to be
done on the back surface
N
of the Drawer Front.
T
E
G
R
A
4.1.3
Control Badge Position
Badge can be located anywhere within the Mounting Zone shown. Handle position will need
to be taken into account.
T
E
When mounting the
handle, ensure fastenings
do not protrude beyond
D
the back surface of the
Drawer Front.
IMPORTANT
P
R
O
Accuracy is essential
D
when cutting the Badge
Mounting Hole to ensure
U
a neat fit to hold the
badge.
IMPORTANT
C
T
4.1.4
Badge Cutout Dimensions
Cut out Badge Mounting Hole in the chosen position (see Control Badge Mounting Zone on
diagram above). A Control Badge Template (Part No. 526253) is available on request from
Fisher & Paykel or alternatively, a Template can be found on the Mounting Bracket enclosed
with the product.
O
N
L
Y
The Badge Mounting Hole is an ellipse shape.
Page DS_13
4.1.5
Drawer Front Mounting Bracket Nut Holes
Using a 11/32 (8.5mm) diameter drill bit, drill out the four screw holes in each door
panel to a depth of 9/16 (14mm). Remove burrs.
I
N
T
* These dimensions are important to ensure a 1/4 (6mm) airflow gap.
WARNING
Use of a depth gauge is
recommended when
drilling out holes for
Drawer Front Mounting
Panel.
CAUTION
Ensure the drill does not
damage the face of the
Drawer Front.
E
G
R
A
T
E
D
P
R
O
Page DS_14
D
U
C
T
O
N
L
Y
SECTION 5
I
N
To avoid electric shocks
and damage to electronic
components, the
T
integrated badge should
be disconnected from the
E
DishDrawer when
changing the badge
enclosure.
G
R
IMPORTANT
INTEGRATED DRAWER FRONT INSTALLATION
STEP 5.1 CHANGING THE INTEGRATED BADGE ENCLOSURE
There are several different colored Integrated badges to choose from. They
include black, chrome, satin & brass. Two color options are provided with
your machine, other options are available from your local Dealer.
There are five parts to the
Integrated Badge Assembly.
They are as follows:
1. Integrated Badge
2. Button Badge
3. Light Pipe
4. Electronics Board
5. Badge Cover
6. Wires
1.
5.
3.
2.
4.
6.
A
T
E
D
P
R
O
D
U
C
Button Badge
STEP 5.2 DISASSEMBLING THE INTEGRATED BADGE ASSEMBLY
5.2.1
Remove Badge Cover from the Integrated Badge.
At the back of the Integrated Badge, slide the Badge Cover away from the wire terminals.
5.2.2
Remove Electronics Board.
Gently hold the wires to remove the Electronics Board. Care should be taken not to
handle the front or back of the Electronics Board or touch inside the wire terminals.
5.2.3
Remove the Light Pipe.
Gently tap the Integrated Badge upside down on a hard surface until the Light Pipe comes
away or insert a pen or pencil into the front side of the Integrated Badge to either one of
the two small holes.
5.2.4
Once you have removed the Electronics Board, Badge Cover and Light Pipe, you can
assemble the electronics board into a badge of another color.
STEP 5.3 ASSEMBLING THE INTEGRATED BADGE
5.3.1
Insert the Button Badge into the back of the Integrated Badge. Do not break any of the
buttons away from the Connection Runner.
T
O
N
L
Y
Connection Runner
á
Page DS_15
5.3.2
Insert the Light Pipe into the Integrated Badge.
Insert the Light Pipe with the circular ends into the small holes.
5.3.3
Insert the Electronics Board with care, behind the Button Badge.
When installing the Electronics Board, handle only the wires and do not touch the face or
back of the Electronics Board or inside the wire terminals.
5.3.4
Slide the Badge Cover into the slot on top of the Integrated Badge.
STEP 5.4 FITTING THE BADGE, HANDLE & MOUNTING
PANEL TO THE DRAWER FRONT
5.4.1
Remove Drawer Front Mounting Panel by
withdrawing pins from sides of drawers
using long nosed pliers.
5.4.2
Slide Mounting Panel off in a downwards
and outwards motion.
WARNING
Care should be taken in
the following steps.
CAUTION
Take care not to damage
front surface of panel.
Ensure all cuts are
straight and care is taken
to avoid damage to the
Drawer Front.
I
N
T
E
G
R
A
T
E
5.4.3
Using an Allen Key, screw in Mounting
Bracket Nuts. Remove Burrs. Screw in
flush with back surface.
5.4.4
Fit the Door Mounting Panels using the
screws supplied.
5.4.5
Feed wires through to the back and press
badge into hole. If needed, adhere badge
to Drawer Front with a glue or silicon
sealant.
CAUTION
Overtightening will
damage the Drawer
Front.
D
P
R
O
D
U
C
T
5.4.6
Fit the customer supplied handle.
Refer to Step 4.1.3 - Control Badge
Position.
O
N
L
Y
Page DS_16
I
TIP
Use a small amount of
liquid soap along the lip
N
of the seal to aid the
Drawer Front to slide on
T
easily against the seal.
E
CAUTION
G
The rubber seal between
the Drawer and Drawer
R
Front must be kept in
place.
A
STEP 5.5 FITTING THE DRAWER FRONT TO THE DISHDRAWER
5.5.1
Fit seal to Drawer.
T
E
The Electronics Board is
an electrostatic sensitive
device. Ensure you are
D
adequately grounded
when connecting or
disconnecting the badge
by wearing a grounding
P
strap or by grounding
yourself to the
DishDrawer.
R
WARNING
O
WARNING
D
Ensure the product is not
plugged in.
U
C
View of Slide Hooks
T
CORRECT
O
N
ü
5.5.2
Plug the grounding wire into the panel.
Connect badge wires to integrated badge
port on Electronics Board.
5.5.3
Fit Drawer Front by sliding in an upwards
and inwards motion.
5.5.4
Ensure the slide hooks (on slide) are as far
forward as possible as shown, then insert
pins to lock in place, ensuring that the rib
on the pin is vertical.
Check fit of the Drawer Front and adjust if
required.
L
Y
Page DS_17
INCORRECT
û
6.1.1
Check final fit of DishDrawer in cavity.
SECTION 6FINAL FITTING FOR SINGLE DISHDRAWER
6.1.2
Tighten M8 bolts.
Page DS_18
SECTION 7
FINAL CHECKS
STEP 7.1 INSTALLATION WET TEST
Ensure product is level, securely fastened to the floor and opens
1.
and closes freely.
Ensure inlet hose to faucet connection is tightened to specification.
2.
3.
Ensure any knockouts or plugs in the drain connection have been
drilled out and the drain connection made correctly.
4.
Plug in and turn ON the power and water supply. The DishDrawer
should "beep" and light up.
5.
Open the drawers of the DishDrawer and check operation of
Secondary Control Panel and check sprayarm is in place and
free to rotate.
6.
Select Rinse program on the Secondary Control Panel and close the
drawer.
7.
Start the Program by pressing the Start/Pause button.
8.
After the program has finished, check underneath the DishDrawer
for water leakage. Ensure machine has run and drained correctly.
SECTION 12
Check water supply and drainage connection for leakage.
9.
STEP 7.2 TROUBLESHOOTING
Water underneath DishDrawer, check the hose connections
1.
and hose for leaks.
Water around water supply and drainage connections - check
2.
connections, existing plumbing and hoses for leaks.
3.
Excessive water remaining above the filter plate, after the rinse cycle,
check for kinked drain hoses or blocked waste connection.
No water supply, check water is on and there is water pressure.
4.
If a fault occurs, consult the Problem Solver Section of the
5.
Use & Care Manual.
6.
If unable to resolve, contact Customer Care Center.
Page DS_19
Ensure Power is connected and is switched ON.
Ensure the water supply is connected and ON.
LEAVE ALL LITERATURE WITH THE CUSTOMER.
Loading...
