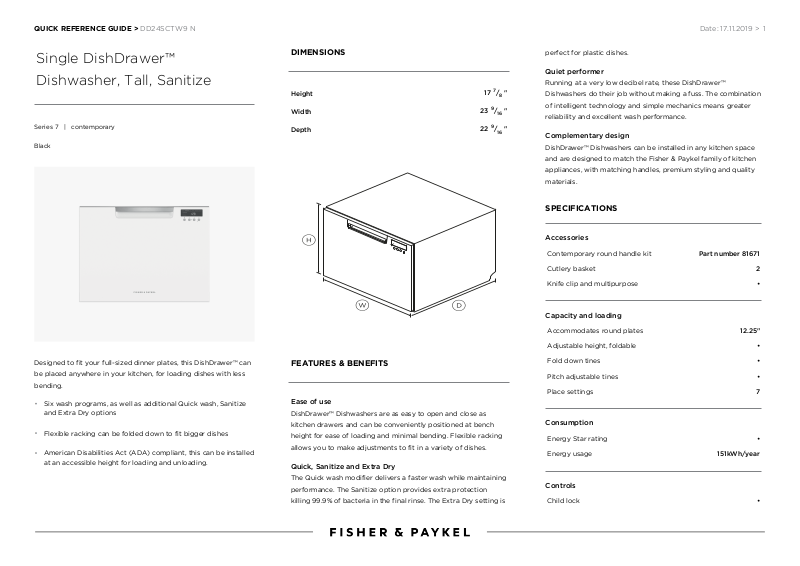

QUICK REFERENCE GUIDE > DD24SCTW9 N Date: 17.11.2019 > 1
Single DishDrawer™
Dishwasher, Tall, Sanitize
Series 7 | contemporary
Black
Designed to fit your full-sized dinner plates, this DishDrawer™ can
be placed anywhere in your kitchen, for loading dishes with less
bending.
Six wash programs, as well as additional Quick wash, Sanitize
and Extra Dry options
Flexible racking can be folded down to fit bigger dishes
American Disabilities Act (ADA) compliant, this can be installed
at an accessible height for loading and unloading.
DIMENSIONS
Height
Width
Depth
17 7/8 "
23 9/16 "
22 9/16 "
FEATURES & BENEFITS
Ease of use
DishDrawer™ Dishwashers are as easy to open and close as
kitchen drawers and can be conveniently positioned at bench
height for ease of loading and minimal bending. Flexible racking
allows you to make adjustments to fit in a variety of dishes.
Quick, Sanitize and Extra Dry
The Quick wash modifier delivers a faster wash while maintaining
performance. The Sanitize option provides extra protection
killing 99.9% of bacteria in the final rinse. The Extra Dry setting is
perfect for plastic dishes.
Quiet performer
Running at a very low decibel rate, these DishDrawer™
Dishwashers do their job without making a fuss. The combination
of intelligent technology and simple mechanics means greater
reliability and excellent wash performance.
Complementary design
DishDrawer™ Dishwashers can be installed in any kitchen space
and are designed to match the Fisher & Paykel family of kitchen
appliances, with matching handles, premium styling and quality
materials.
SPECIFICATIONS
Accessories
Contemporary round handle kit Part number 81671
Cutlery basket 2
Knife clip and multipurpose
Capacity and loading
Accommodates round plates
Adjustable height, foldable
Fold down tines •
Pitch adjustable tines •
Place settings 7
Consumption
Energy Star rating •
Energy usage 151kWh/year
Controls
Child lock •
12.25"
•
•
QUICK REFERENCE GUIDE > DD24SCTW9 N Date: 17.11.2019 > 2
Electronic fault/Diagnostic
End of cycle beeps •
Energy saving delay start
Energy saving delay start
Rinse aid indicator light •
Features
Fan assisted drying •
Flow through detergent
Quiet operation •
SmartDrive™ technology •
Performance
Noise on gentle cycle top
Water usage 1.81
Power requirements
Amperage 5A
Electric circuit 3
Rated current 15A
Supply frequency 60Hz
Supply voltage 120V
44
•
ADA compliant •
Other product downloads available at fisherpaykel.com
•
•
Warranty
Parts and labor Limited 3 Year Parts & Labor
Quick Start Guide
User Guide
Service & Warranty Booklet
Wash programs
Delicate •
Extra Dry •
•
Fast •
Installation Guide
Resources (zip)
Heavy •
Medium •
Normal eco •
Number of wash programs 15
Quick •
A PEACE OF MIND SALE
24 Hours 7 Days a Week Customer Support
T 1300 650 590 W www.fisherpaykel.com
Rinse •
Sanitise •
Sanitize •
Wash modifiers 3
SKU 81604
Product dimensions
Depth 22 9/16 "
Dimensions (excluding
H17 7/8 "
Height 17 7/8 "
Width 23 9/16 "
Safety and compliance
The product dimensions and specifications in this page apply to the specific product
and model. Under our policy of continuous improvement, these dimensions and
specifications may change at any time. You should therefore check with Fisher &
Paykel's Customer Care Centre to ensure this page correctly describes the model
currently available. © Fisher & Paykel Appliances Ltd 2019.
