70515 - MAY 2006 REPRINT - OCTOBER 2007
PRODUCT
Brand DCS
Voltage 1.5V DC
Model BGB131N
Product Code 70515
Fisher & Paykel Appliances
5900 Skylab Road, Huntington
Beach, CA 92647
Customer Care: (888) 281-5698
Fax: (714) 372-7003
www.dscappliances.com
support@dscappliances.com
COPYRIGHT © FISHER & PAYKEL LTD 2006 - ALL RIGHTS RESERVED
3
Page 3
70515
CONTENTS
SIDE BURNER COMPONENTS........................................................................................................................6
GUIDE TO USING THIS MANUAL
The model covered by this manual is listed on the front cover.
The information detailed in this manual is subject to change without notice. The latest version is indicated by
the reprint date and replaces any earlier editions.
The front cover picture shows the type of product and may not necessarily be an exact image of the model
covered by the manual.
Kit Parts
The components shown in italics with a part numbe
separate items. In addition, some parts may be supplied with this kit which are not available as separate
items and are therefore either not listed or a part number is not shown against the part description in this
manual.
Parts List Key
NOT USED As a part, indicates the diagram part reference is not used in this manual.
italics
NI As a part reference, indicates the part is not illustrated on the diagram.
Kit components or parts included are shown in italics, refer to above notes: Kit Parts
r are those parts in the kit which are available also as
5
Page 4
70515

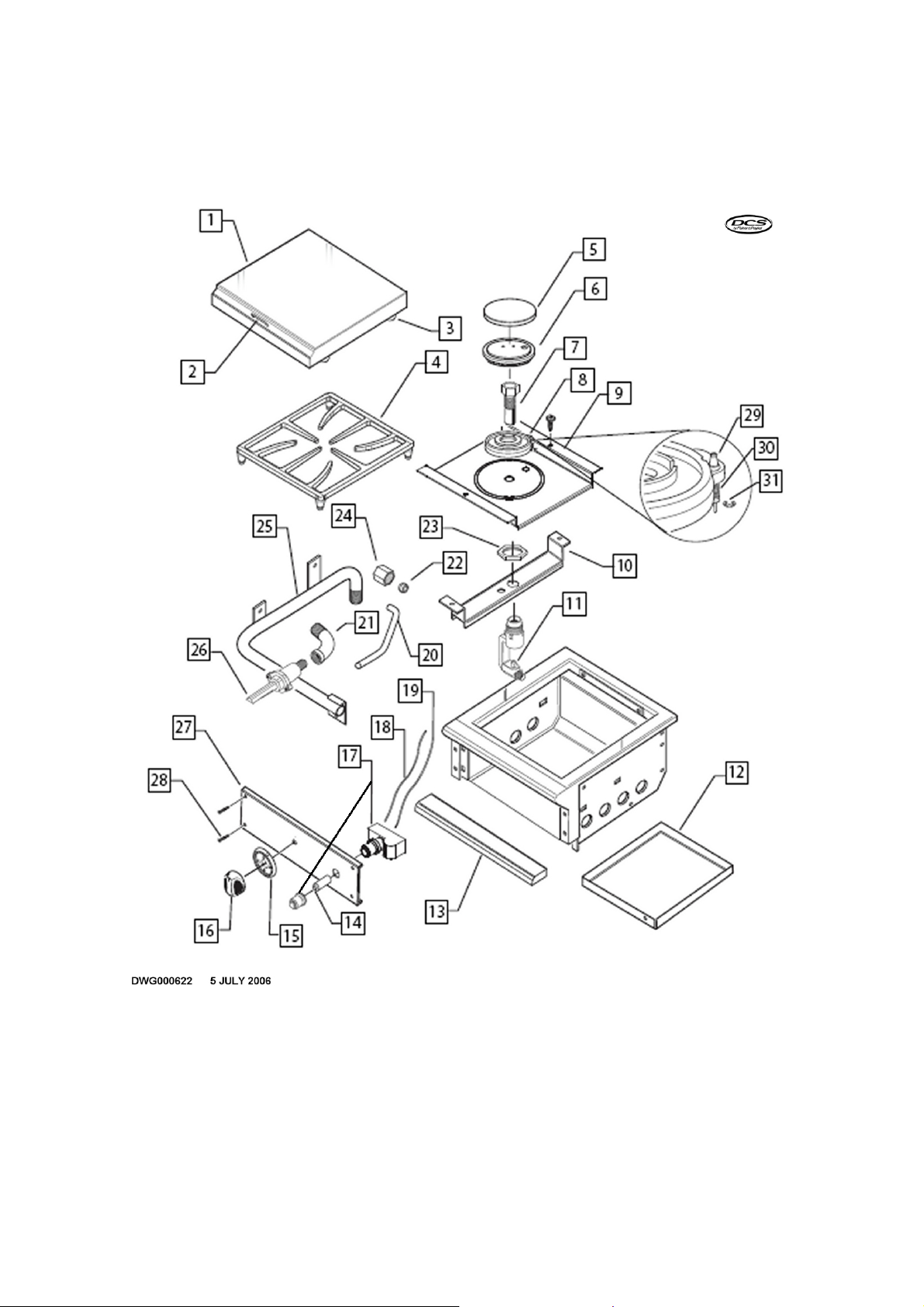

SIDE BURNER COMPONENTS
6
Page 5
SIDE BURNER COMPONENTS
REF PART DESCRIPTION
1 214430 COVER SIDE BURNER BGB131
2 212278 PULL HANDLE 36/48D BBQ 131/132
3 212359 RUBBER BUMPER
4 220496 GRATE BGB131
5 210608 D BURNER CAP
6 210644 PORT RING ASSY D BURNER DCS
7 210643 VENTURI SINGLE FLOW BURNER
8 210639 BASE D BURNER DCS
9 224833 PLATE SUPPORT BURNER BGB131
10 224834 HANGER BURNER BGB131
11 210543P JET HOLDER MAIN D 17K LP (PKD)
210536 JET HOLDERS D 17K
12 224825 DRIP PAN BGB131
13 214428 HANDLE DRIP PAN BGB131/132
14 221154 BATTERY 1.5V 2A
15 210935 BEZEL, CHROME PLATED
16 211188 KNOB BGB GRILLS
17 211872 MODULE IGNITION BATT AA
18 211823 WIRES BK WITH TERMINALS 8 INCH
19 211826 WIRE BLACK WITH TERM 12.5 INCH
20 212399 TUBING FRONT BURNER BGB131/132
21 212396 ELBOW 1/8 NPT X 5/16 TOD
22 212313 SLEEVES 5/16
23 210468 NUT M22 JET HOLDER
24 212312 B-NUTS 5/16
25 221924 MANIFOLD BGB131
26 210734 GAS VALVE 24 & SMOKER
27 224839 VALVE PANEL BGB131 PAINTED
28 211300 SCREW 8-32X1 TORX FL HD
29 217994 KIT IGNITOR, SPRING AND CLIP
30 217994 KIT IGNITOR, SPRING AND CLIP
31 217994 KIT IGNITOR, SPRING AND CLIP
NI 214435 BRACKET SUPPORT L/H
NI 214434 BRACKET SUPPORT R/H
NI 212168 TEE FLARE 3/8
NI 210781 LP HOSE 30
NI 210780 LP HOSE
NI 210819 90 DEH HOSE ASSY QCC-1
NI 210765 REGULATOR – 4.0 WC
70515
7
