Fisher & Paykel AquaSmart WL37T26KW2, AquaSmart WL37T26DW2, AquaSmart WL42T26DW1 Installation Instructions And User Manual
AquaSmart™ clothes washer
Installation instructions
and user guide US CA (EN)
Laveuse AquaSmart™
Instructions d’installation
et guide de l’utilisateur US CA (FR)
Lavadora AquaSmart™
Instructivo de instalación
y guía de usuario US CA (ES)
Please Note: To obtain maximum efficiency, your AquaSmart™ washer has the ability to learn
and adapt to the local environment. This may take several wash cycles, therefore maximum
energy efficiency may not be achieved until a number of wash cycles have been completed.
This usually takes about 5 cycles.
As an ENERGY STAR® Partner Fisher & Paykel Limited has determined
that this product meets ENERGY STAR® guidelines for energy efficiency.
WARNING!
Electric Shock Hazard
Read and follow the IMPORTANT SAFETY INSTRUCTIONS outlined in this
User Guide before operating this appliance, pages 3 – 5.
Failure to do so can result in death, electric shock, fire or injury to persons.
English Page 1 – 41
Español Pág 42 – 77
Français Page 78 – 113
1
Important safety instructions 3
Installation instructions 6
Before you do your first wash 12
Checklist, Water consumption, Capacity 12
The first time you turn your washer on 13
Getting started quickly 14

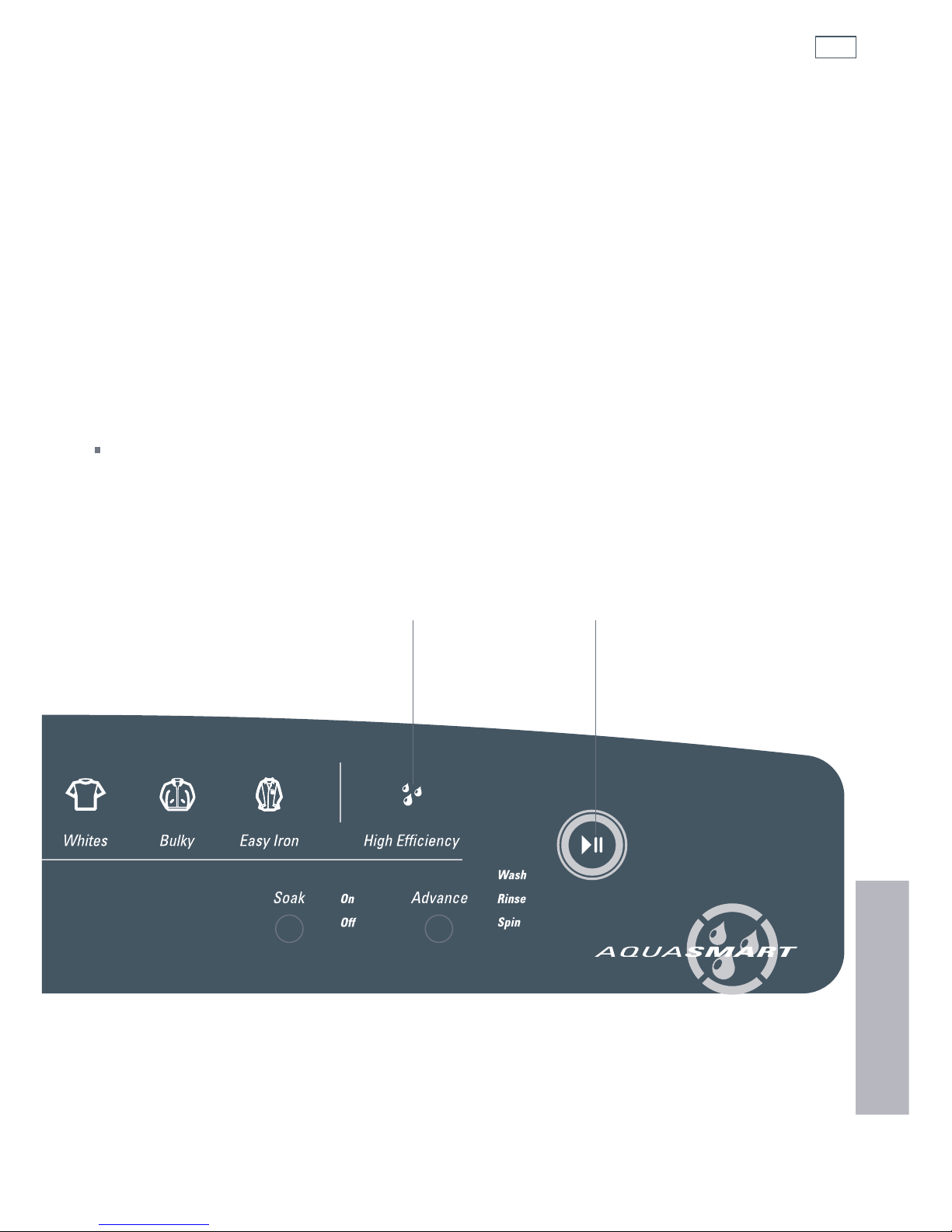

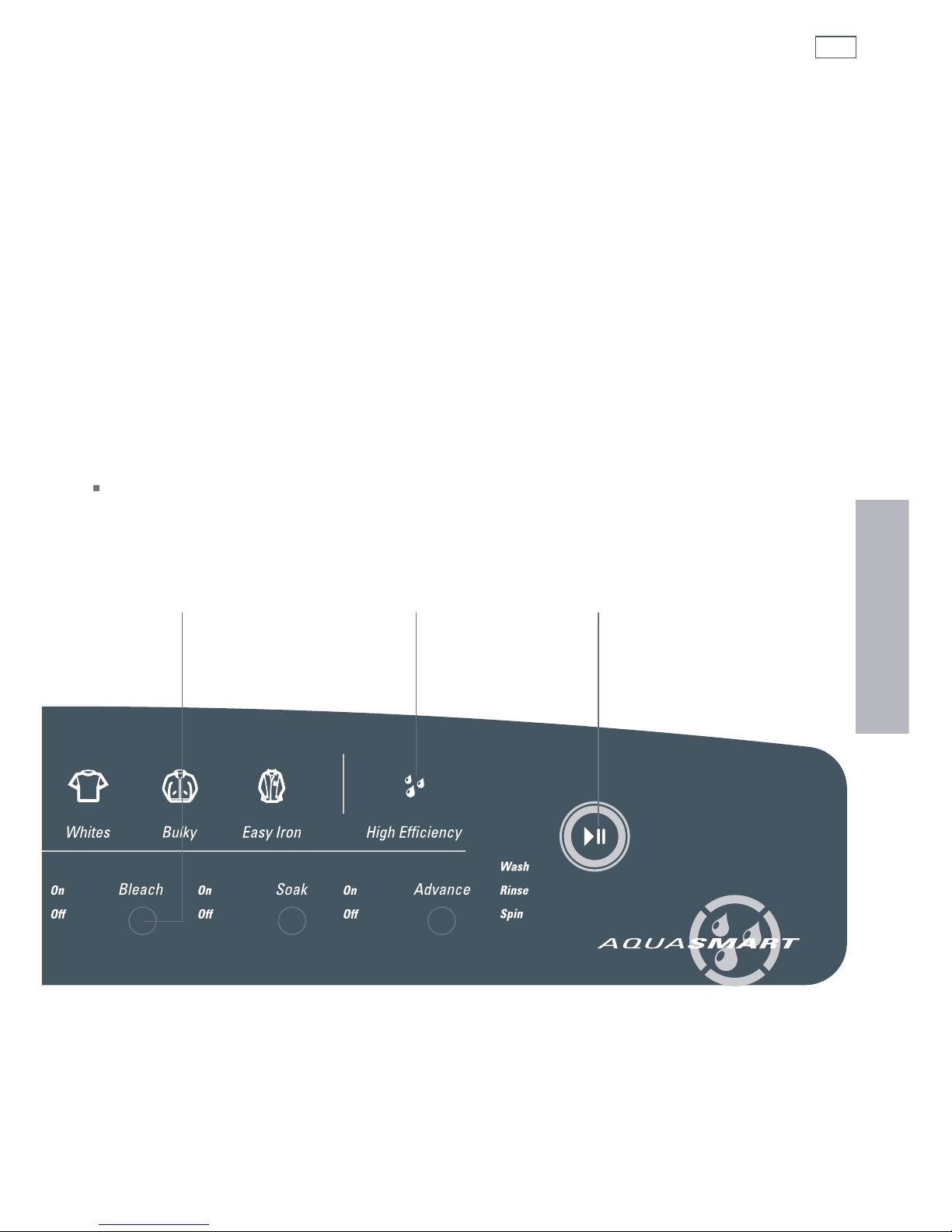

Dispensing model 14
Non-dispensing model 16
The unique AquaSmart™ wash 18
Sorting and loading 19
Detergent 21
Fabric Softener 22
Bleach 23
AquaSmart™ safety features 24
Choosing your wash cycle 25
Changing the wash cycle options 26
Customizing the wash cycles 27
Changing pre-set options 28
Controlled cold 28
AquaPlus rinse/End of cycle beeps 29
Out-of-balance recovery routine/Reset back to factory settings 30
Caring for your AquaSmart™ washer 31
Before you call for service 33
If your AquaSmart™ beeps for help 33
Solving operating problems 35
Solving wash problems 37
Limited warranty 38
How to get service 40
Contents
Important!
SAVE THESE INSTRUCTIONS
The models shown in this User Guide may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please visit our local website listed on the back cover
or contact your local Fisher & Paykel dealer.
EN
2
Welcome to AquaSmart™
Thank you for buying a Fisher & Paykel AquaSmart™ clothes washer. We are very proud of this
washer and trust it will serve you well for many years.
At Fisher & Paykel we aim to provide innovative products that are simple to use, ergonomic and
kind to the environment. Thousands of tonnes of washing and 70 years of laundry experience
have been programmed into your clothes washer to help give you the best possible performance.
Your AquaSmart™ clothes washer works differently from a conventional washer. It is a “High
Efficiency” washer utilizing innovative technology to wash in less water and take great care of
your clothes.
The revolutionary, super water efficient wash action of your AquaSmart™ washer means that it
is no longer necessary to wash using a full bowl of water. This innovative wash action relies on
maintaining a small volume of water for the wash load to ensure the best wash results. Please be
aware that the water level for this model is fully automatic, with the machine ‘smarts’ choosing
the appropriate water volume for you. This means that there is no option to select your
water level.
It is important that you take the time to read these instructions carefully before you begin using
your washer. Like all High Efficiency washers, a little extra care in how you sort your clothes and
choose your cycle and detergent will ensure that you get the best possible wash result.
We hope you enjoy your new washer, we have certainly enjoyed designing it for you.
Introduction

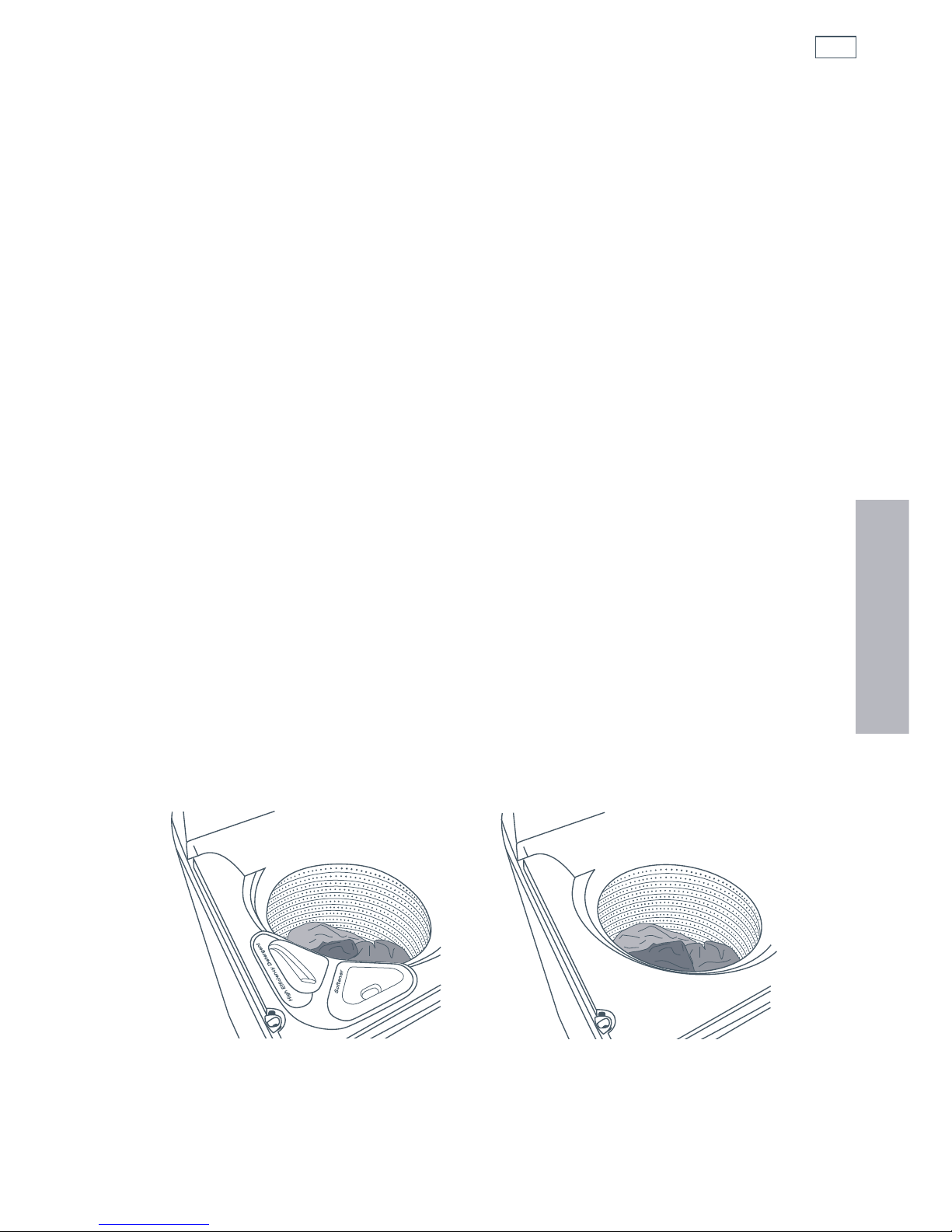

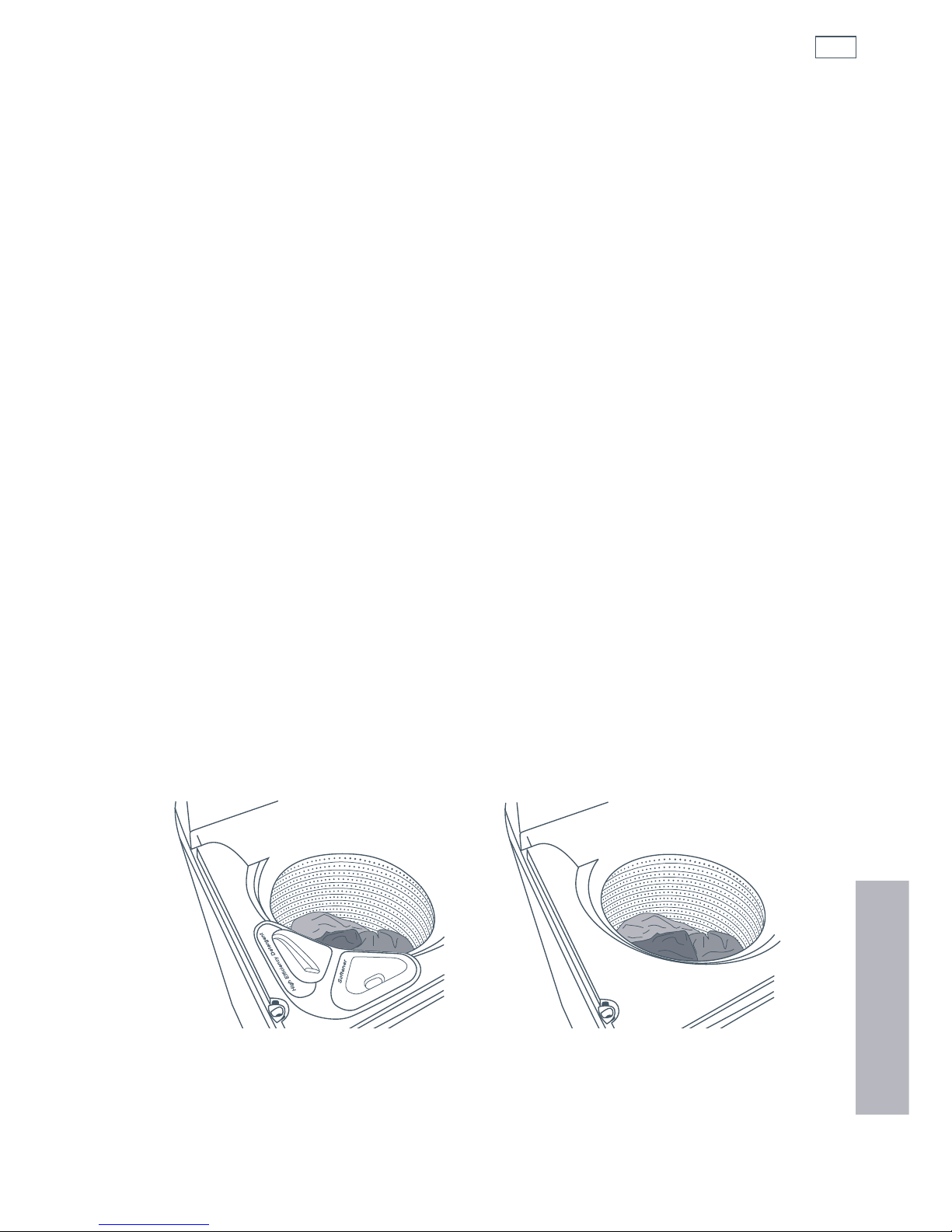

Dispensing model Non-dispensing model
3
Important Safety Instructions
Read all safety information before using
Many washers are located near a gas dryer or a water heater in the home.
WARNING!
Fire Hazard
For your safety the information in this manual must be followed to
minimize the risk of fire or explosion or to prevent property damage,
personal injury or loss of life.
Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
Installation and service must be performed by a qualified installer, service
agency or the gas supplier.
What to do if you smell gas
DO NOT try to light any appliance.
DO NOT touch an electrical switch; do not use any phone in your building.
Clear the room, building or area of all occupants.
Immediately call your gas supplier from your neighbor’s phone.
Follow the gas supplier’s instructions.
If you cannot reach your gas supplier, call the fire department.
Water heater safety
Under certain conditions Hydrogen gas may be produced in a water heater that has not been
used for two weeks or more.
HYDROGEN GAS CAN BE EXPLOSIVE UNDER THESE CIRCUMSTANCES.
If the hot water has not been used for two weeks or more, prevent the possibility of damage or
injury by turning on all hot water faucets and allowing them to run for several minutes before
using any electrical appliance which is connected to the hot water system. This will allow any
hydrogen gas to escape. Since the gas is flammable, do not smoke or use an open flame or
appliance during this process.
EN
4
WARNING!
Electric Shock Hazard
Follow the safety precautions outlined in this User Guide.
Failure to do so can result in death, electric shock, fire or injury to persons.
Important safety precautions
Read all instructions before using the appliance.
Use this appliance only for its intended purpose as described in this User Guide.
This washer must be properly installed and located in accordance with the Installation Instructions
before it is used.
This washer must be properly grounded to conform with all governing codes and ordinances. Follow
details in the Installation Instructions.
Do not install or store washer where it will be exposed to temperatures below freezing or exposed to
the weather.
Connect to a properly rated, protected and sized power supply circuit to avoid electrical overload.
Connect to adequate plumbing and drain facilities as described in the Installation Instructions.
Turn off water faucets when the washer is not in use to relieve pressure on hoses and valves and to
minimize leakages if a hose or valve should break or rupture.
Do not repair or replace any part of the appliance or attempt any servicing unless specifically
recommended in this User Guide or in published user repair instructions that you understand, and
have skills to carry out.
When disconnecting the appliance pull by the plug rather than the cord or junction of cord to avoid
damage to the cord or junction of the cord and plug.
Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subject
to damage or stress.
Keep all laundry aids (such as detergents, bleach, fabric softener, etc.) out of the reach of children,
preferably in a locked cabinet. Observe all warnings on container labels to avoid personal injury.
Do not tamper with the controls.
Keep the area around/underneath your appliance free from the accumulation of combustible
materials, such as lint, paper, rags, chemicals, etc.
Keep the floor around your appliance clean and dry to reduce the possibility of slipping.
Never reach into the washer if the tub or agitator is moving.
Before loading, unloading or adding clothes, press START/PAUSE and wait until the washer has
completely stopped before opening the lid.
Close supervision is necessary if this appliance is used by or near children. Do not allow children to
play inside, or on, or with this appliance or any discarded appliance.
Important Safety Instructions
5
Important Safety Instructions
Dispose of discarded appliances and shipping/packing materials properly. Before discarding a
washer, or removing from service, remove the washer lid.
Do not leave the washer lid up during the cycle. The washer will not function. To start, close lid and
press START/PAUSE.
Do not wash or dry articles that have been cleaned in, washed in, soaked in, or spotted with
combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning
solvents, kerosene, etc.) which may ignite or explode. Do not add these substances to the wash
water. Do not use these substances around your washer and/or dryer during operation, as they give
off vapors that could ignite or explode.
The laundry process can reduce the flame retardancy of fabrics. To avoid such a result, the garment
manufacturer’s care instructions should be followed very carefully.
Do not mix chlorine bleach with ammonia or acid such as vinegar and/or rust remover. Mixing can
produce a toxic gas which may cause death.
Never climb on or stand on the washer top or lid.
Do not wash fibreglass articles in your washer. Skin irritation could result from the remaining
particles that may be picked up by clothing during subsequent washer use.
To minimize the possibility of electric shock, unplug this appliance from the power supply or
disconnect the washer at the household distribution panel by removing the fuse or switching off the
circuit breaker before attempting any maintenance or cleaning.
Note: Pressing the POWER button does NOT disconnect the appliance from the power supply, even
though the lights are out.
Do not operate this appliance if it is damaged, malfunctioning, partially disassembled or has
missing or broken parts, including a damaged cord or plug.
Do not operate this appliance if the lid has been incorrectly fitted.
If you are using an extension cord or a portable electrical outlet device (eg. multi-socket outlet box),
ensure that it is positioned so that it does not come into contact with water or moisture.
SAVE THESE INSTRUCTIONS
EN
Before you begin – read these instructions completely and carefully.
WARNING!
Electric Shock Hazard
Read and follow the IMPORTANT SAFETY INSTRUCTIONS outlined in this
User Guide before operating this appliance, pages 3 – 5.
Improper connection of an equipment-grounding conductor can result in a
risk of electric shock. Check with a qualified electrician or serviceman if you
are in doubt as to whether the appliance is properly grounded.
Do not modify the plug provided with the appliance – if it will not fit the
outlet, have a proper outlet installed by a qualified electrician.
Failure to do so can result in death, electric shock, fire or injury to persons.
Important!
Observe all governing codes and ordinances.
Installation Requirements

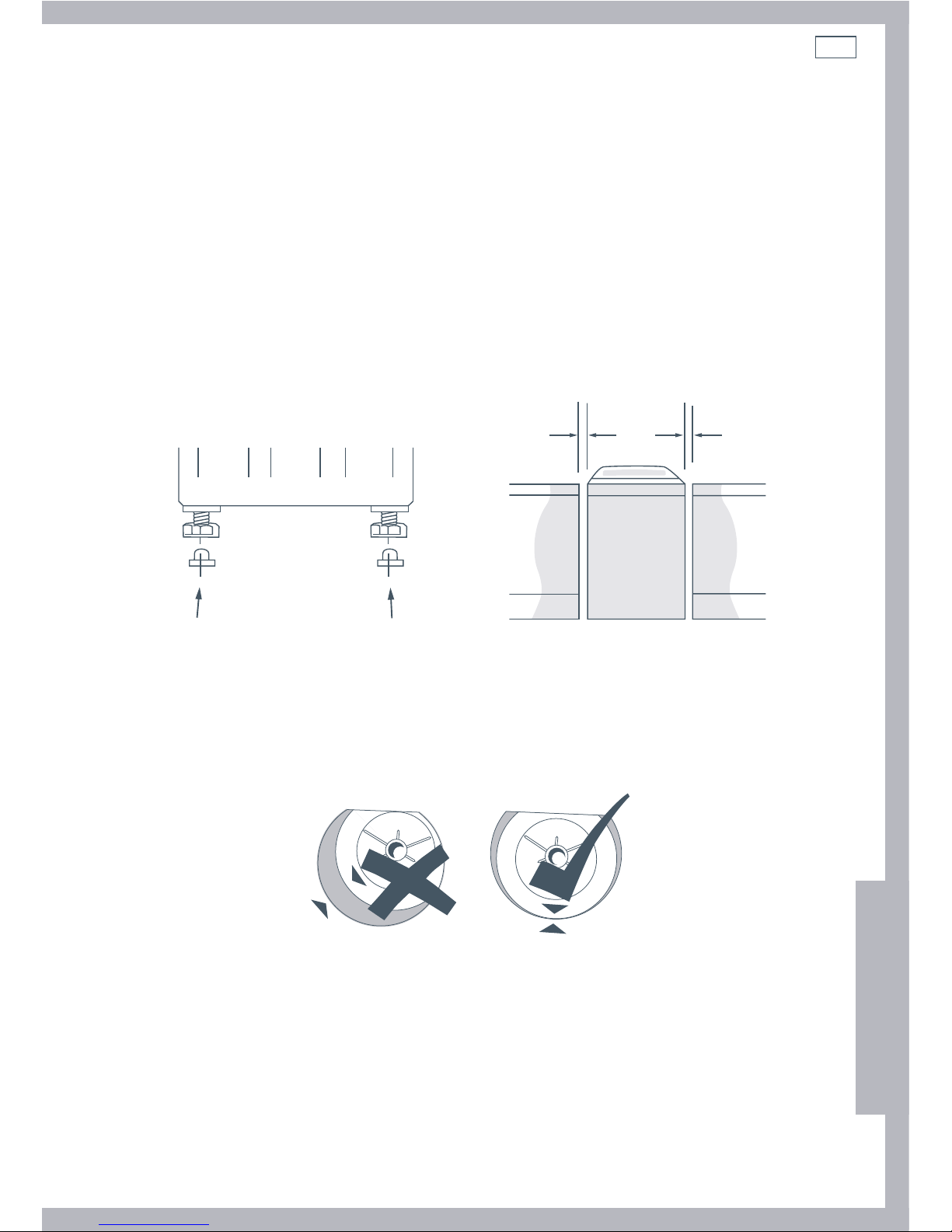

Location
Your washer must be installed on firm flooring to minimize vibration during spin cycles. Concrete
flooring is best, but a wood base is sufficient providing the floor support meets FHA standards.
Your washer should not be installed on rugs or exposed to the weather.
Plumbing
Water Temperature
Your cold water should not exceed 95˚F (35˚C) or your hot water exceed 149˚F (65˚C).
Temperatures above this may damage your washer.
Shut Off Valves
Both hot and cold shut-off valves (faucets) should be available in the laundry area.

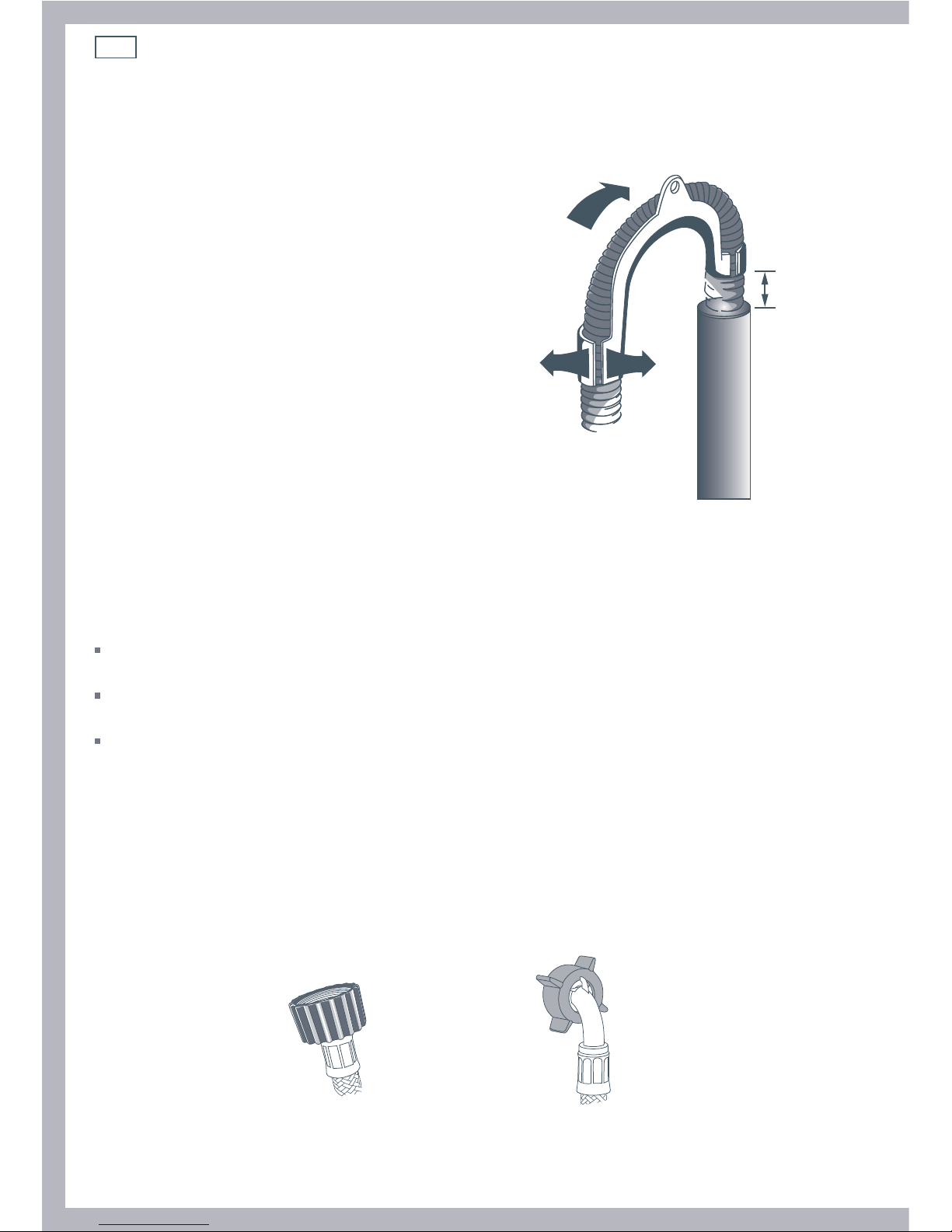

Drain

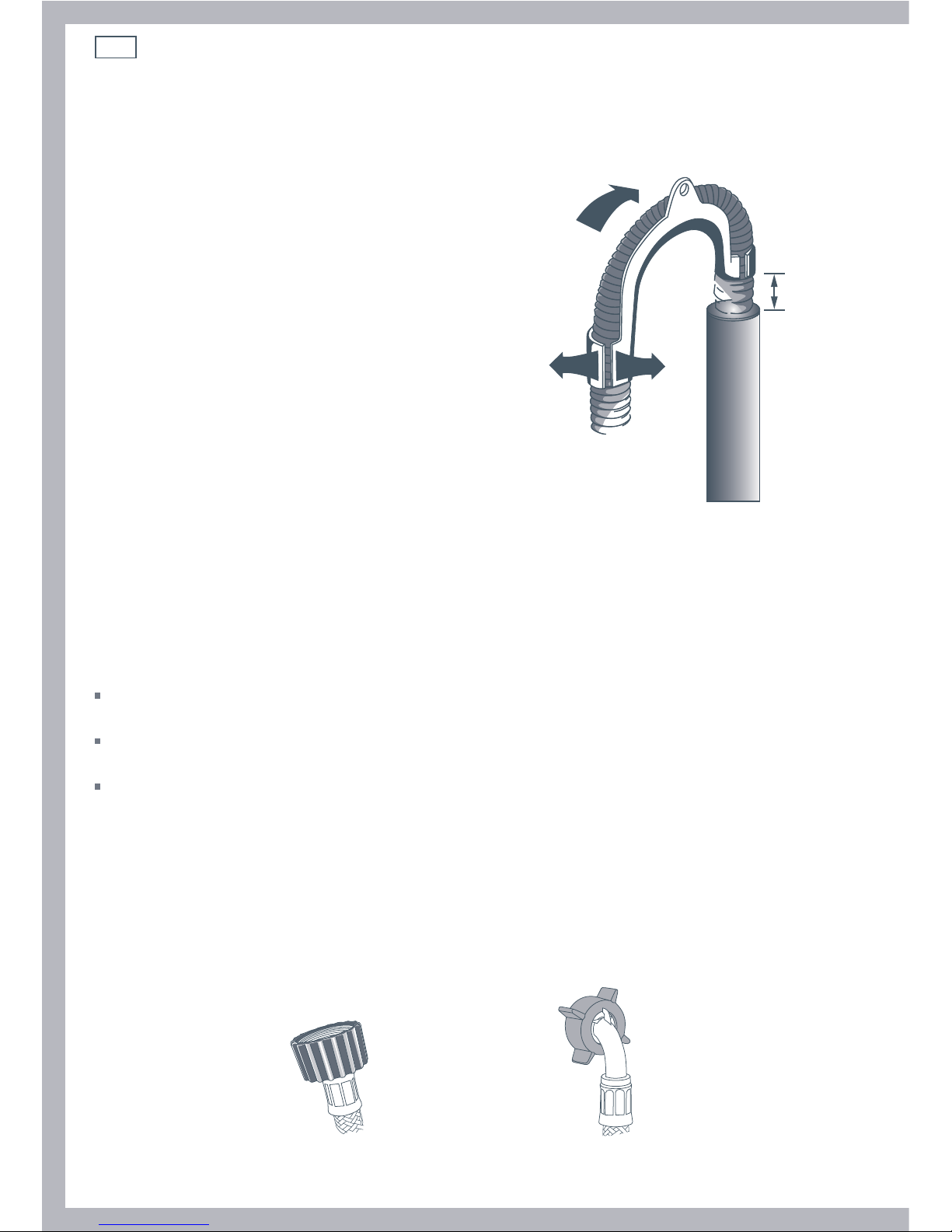

Water may be drained into a standpipe or set tub/sink. The standpipe must be 1 ½” (38 mm)
minimum interior diameter and must be open to the atmosphere.
Electrical
This appliance must be supplied with 110V – 120V, 60Hz electrical supply and connected to an
individual, properly grounded branch circuit, protected by a 15 or 20 amp circuit breaker or time
delay fuse.
Installation instructions
6
7
Water supply
This washer must be plumbed into both a hot and cold water supply or it will not work
correctly. Please ensure that both hot and cold water are connected to the washer.
If you have an uncontrolled water-heating source (eg. a wet back or solar heating) you should
have a tempering device fitted. This will ensure the hot water temperature remains within
safe limits. For the most suitable type of tempering device we recommend you contact a local
plumber or plumbing supply merchant.
Inlet Water Static Pressure 5psi (35kPa) to 150psi (1MPa) (If using a header tank then the top of
the header tank must be at least 39” (2 m) above the top of your clothes washer).
Minimum flow rate from the faucet supplying the clothes washer should be greater than
1 ½ gallons/min (6 liters/min) (assumes ½” (12.7 mm) diameter pipes).
Minimum height of faucets to clear the top of the washer is 45” (1150 mm).
Draining
Regularly check that your standpipe or set tub/sink is free from lint or other obstructions, which
may affect how your washer works or may cause flooding.
In multi-storey apartments or any upper floor, the washer should be installed on a drained floor.
Draining must comply with local by-laws.
Clothes washer safety
This clothes washer is not intended for use by young children or infirm persons without
supervision.
Please supervise young children to ensure they do not play with this clothes washer.
Important!
If you are using an extension cord or a portable electrical outlet device (eg. multi-socket outlet
box), ensure that it is positioned so that it does not come into contact with water or moisture.
Accessories and spare parts
Available from your Fisher & Paykel Dealer or Authorized Service Center.
Drain Hose Extension Part No. 425627p
Power Cord If the Power Cord of your clothes washer is damaged it must be
replaced by a Fisher & Paykel Authorized Service Center, as it
is not a standard power cord.
Installation instructions
EN
8

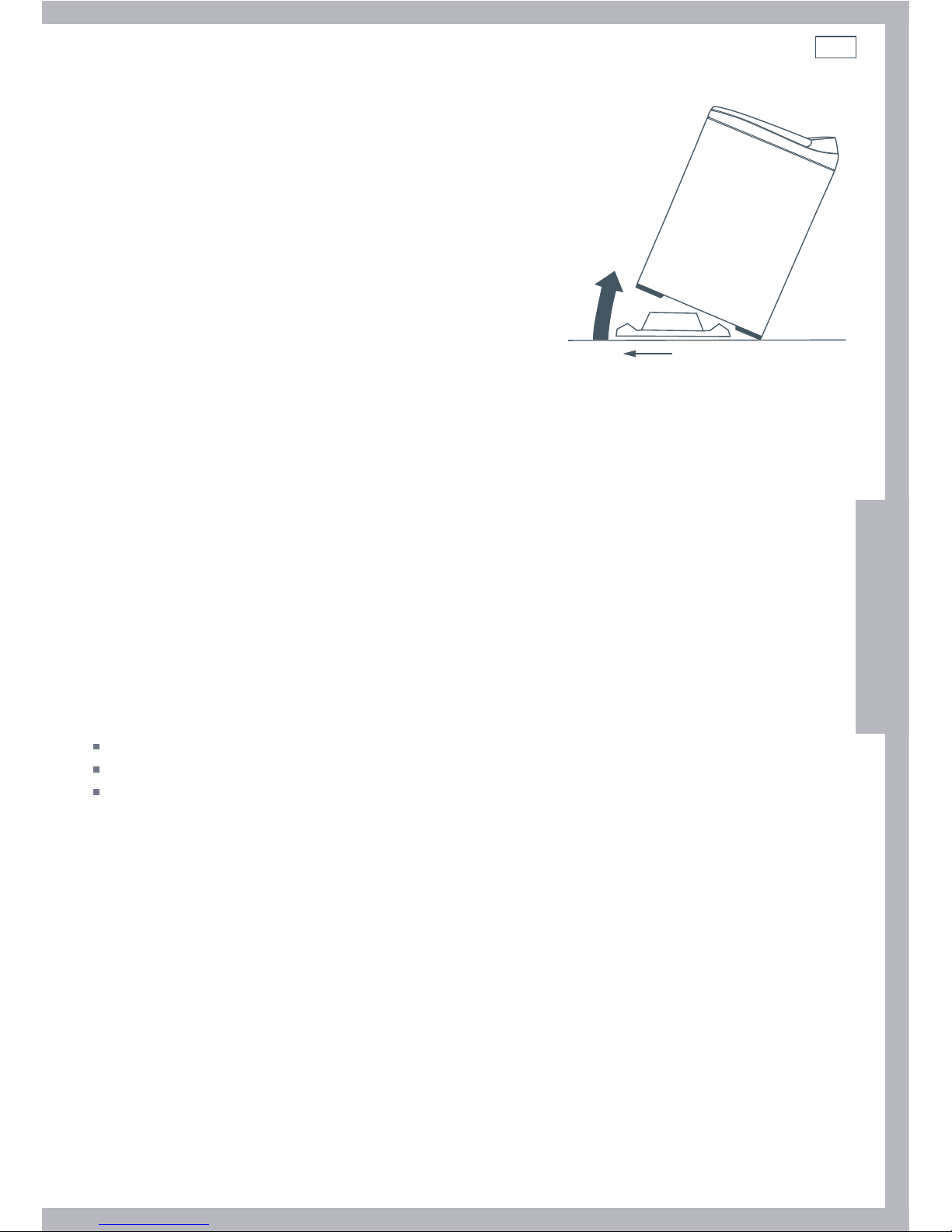

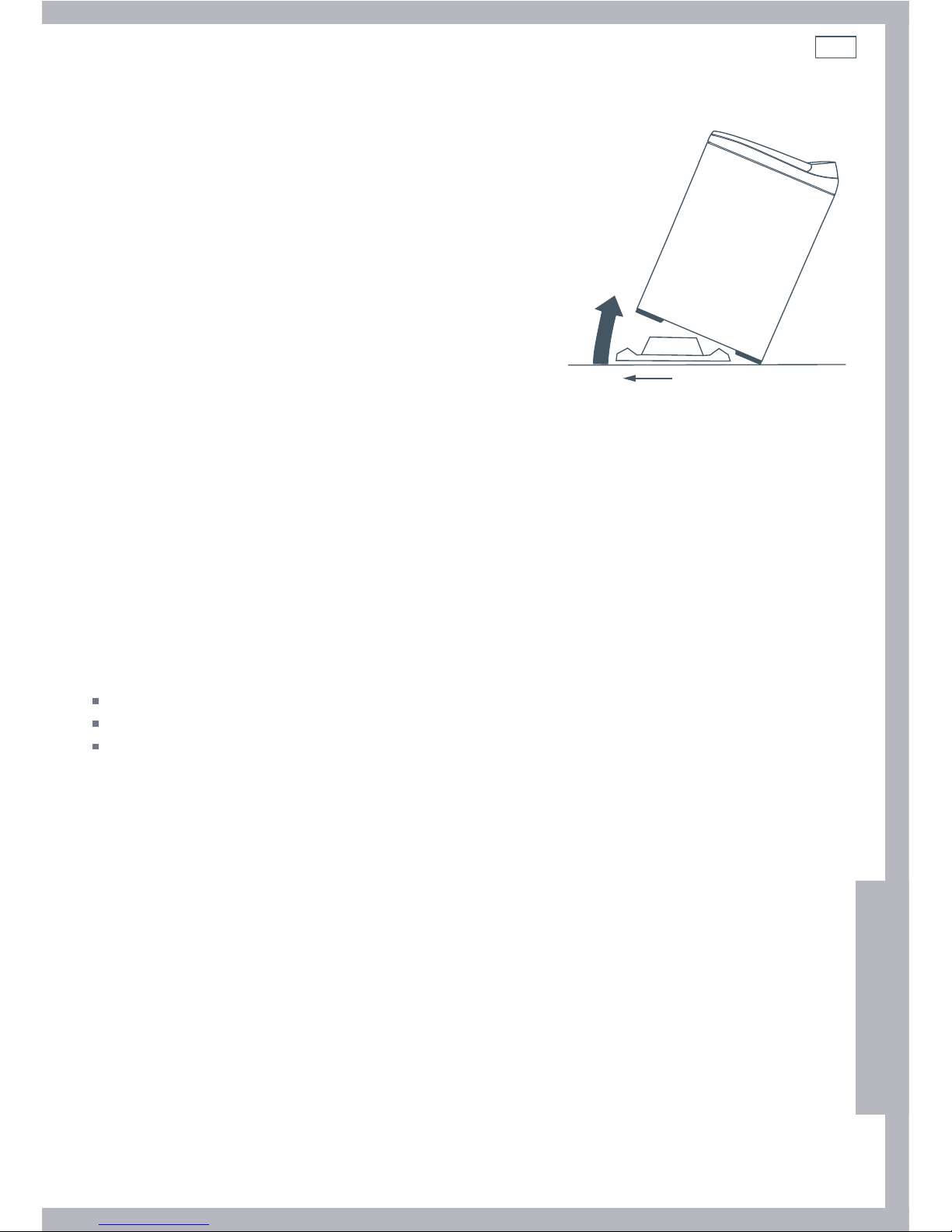

Fig.1 Tilt washer backwards
to remove packer
Unpacking
To ensure the best performance from your new AquaSmart™
clothes washer please follow the instructions below.
Removing the packaging
1
Remove the outer packaging.
2
Tilt the washer backwards and walk it off the bottom
packer one foot at a time.
3
Remove the bottom packer from under the washer by
pulling it out the front.
Caution!
Operating the washer when the bottom packer is in
place can result in damage to the washer.
4
Lift the lid and remove the basket packer from the basket.
5
Remove the hoses and accessories.
6
Keep the bottom packer and basket packer in case they are required for future transit.
Please ensure that the bottom packer has been removed before operating your washer.
Installation
In your clothes washer you will find:
4 rubber inserts for the levelling feet (joined together).
1 hose guide.
2 inlet hoses.
Installation instructions
9
Drain hose
1
Carefully pull the drain hose out from the
back of the washer by pulling the exposed
part of the hose downwards and outwards.
2
To guide the drain hose over the set tub/sink
or standpipe the hose guide MUST be fitted
to the drain hose.
To prevent siphoning:
The drain hose should not extend more than
¾” (20 mm) from the end of the guide.
The height of the standpipe or set tub/sink
should be between 33 ½” to 78” (850 – 1200 mm).
The drain hose can be trimmed to length.
3
Place the drain hose in the set tub/sink or
standpipe.
Important!
In multi-storey apartments or any upper floor installation, the washer should be installed on a
drained floor.
Check that the tub or standpipe is free from lint or other obstructions before operating the washer.
In a basement installation do not exceed a standpipe height of 96” (2438 mm).
Inlet hoses
1
Install hoses with the straight end (with filters) fitted to the faucets (refer to Fig.3).
2
Install elbow ends onto clothes washer (inlet valves are marked on the back of the washer
H=hot, C=cold) (refer to Fig.4).
Fig.3 Faucet end of hose Fig.4 Washer end of hose
Installation instructions
Fig.2 Fitting the drain hose guide
Flex hose
guide apart
Standpipe 33 ½” to 78” (850 – 1200 mm)
¾” (20 mm)
maximum
Pull hose
through guide
EN
10
Levelling your washer
It is IMPORTANT to level the washer to ensure good spin performance and effective detergent,
softener and bleach dispensing.
1
Separate the 4 rubber foot inserts from the moulding and fit into the feet on the base of
the washer.
2
Move the washer to its final position. (We suggest a minimum clearance of 1” (25 mm) each side).
3
Adjust the feet so the washer is level and cannot rock.
4
Use the walls and adjacent counter tops as a sight guide to check to see if washer appears level.
Readjust the feet if necessary.
5
Open the lid and check the washer tub to see that it sits slightly forward of centre. (See Fig. 7).
Correct
adjustment
Incorrect
adjustment
Fig.7
6
Turn on the water and check all hose connections for leaks. Make sure there are no kinks in the hoses.
7
Uncoil power cord and plug into wall socket.
8
Check for leaks, noise, vibration, correct water temperatures and proper operation in spin. Check
that the lid locks during spin.
Adjustable feet
Rubber insert

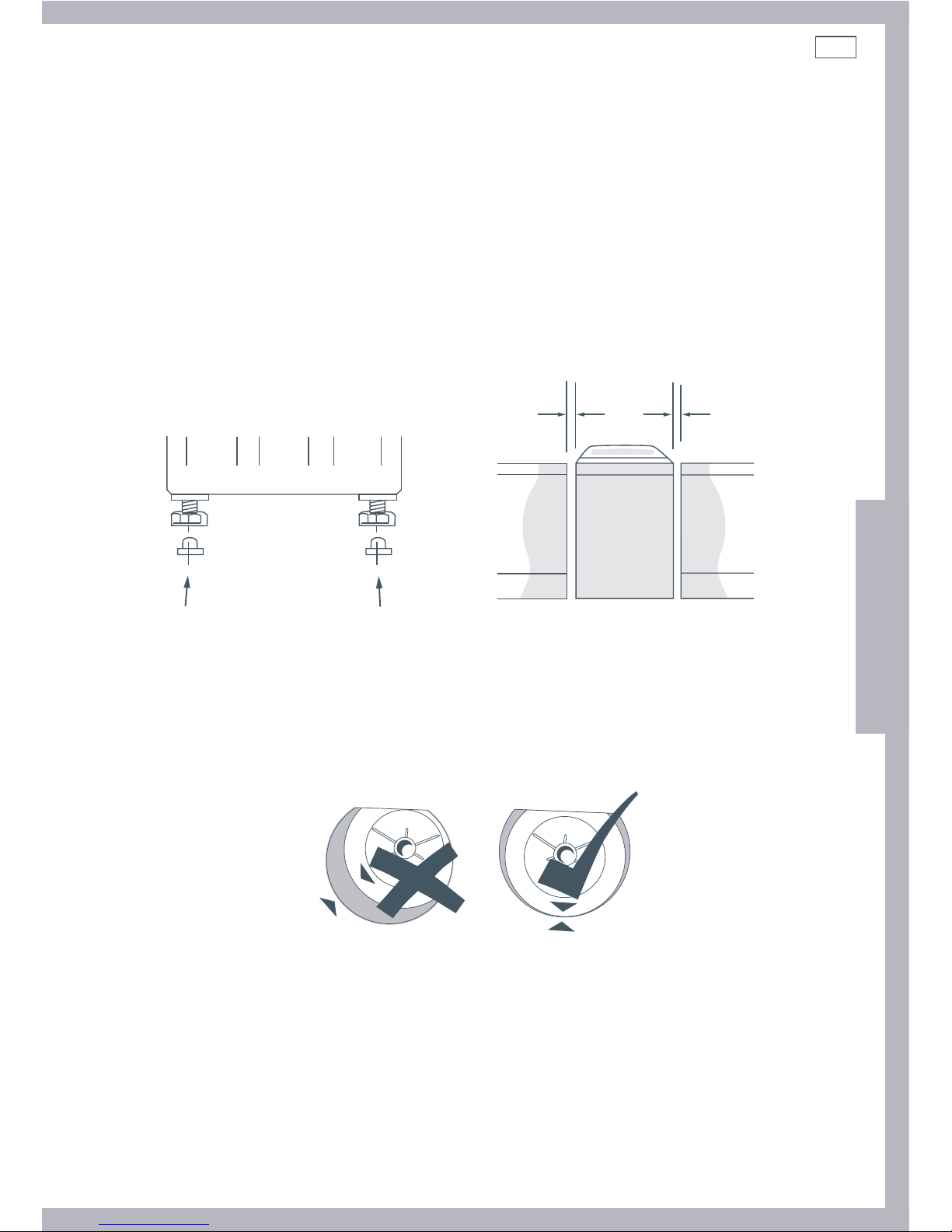

Fig.5 Levelling your washer
1” (25 mm) 1” (25 mm)
Fig.6 Minimum clearances
Installation instructions
11
Special requirements for alcove or closet installation
The minimum ventilation clearance between the washer and adjacent walls or other surfaces is:
1” (25mm) minimum either side and front
3” (75mm) minimum rear
Consideration must be given to providing adequate
clearance for installation and servicing.
The minimum vertical space required from floor
to overhead shelves, cabinets, ceilings etc is 59”
(1500 mm).
Closet doors must be louvered or otherwise
ventilated and have at least 60 square inches open
area for a washer only, or if the closet contains both
a washer and dryer, doors must contain at least 120
square inches of open area equally distributed.
Caution!
Do not install this appliance in a closet with a solid door.
Mobile home installation
Installation must conform to the STANDARD FOR MOBILE HOMES, ANSI A119.1 and NATIONAL
MOBILE HOME CONSTRUCTION & SAFETY STANDARDS ACT OF 1974 (PL93-383).
Grounding instructions
This appliance must be grounded. In the event of malfunction or break down, grounding will
reduce the risk of electric shock by providing a path of least resistance for electric current.
This appliance is equipped with a cord that has an equipment-grounding conductor and a
grounding plug. The plug must be plugged into an appropriate outlet that is properly installed
and grounded in accordance with all local codes and ordinances.
Specification subject to change without notice.
Installation instructions
60 Sq. In
(388 Sq. cm)
60 Sq. In
(388 Sq. cm)

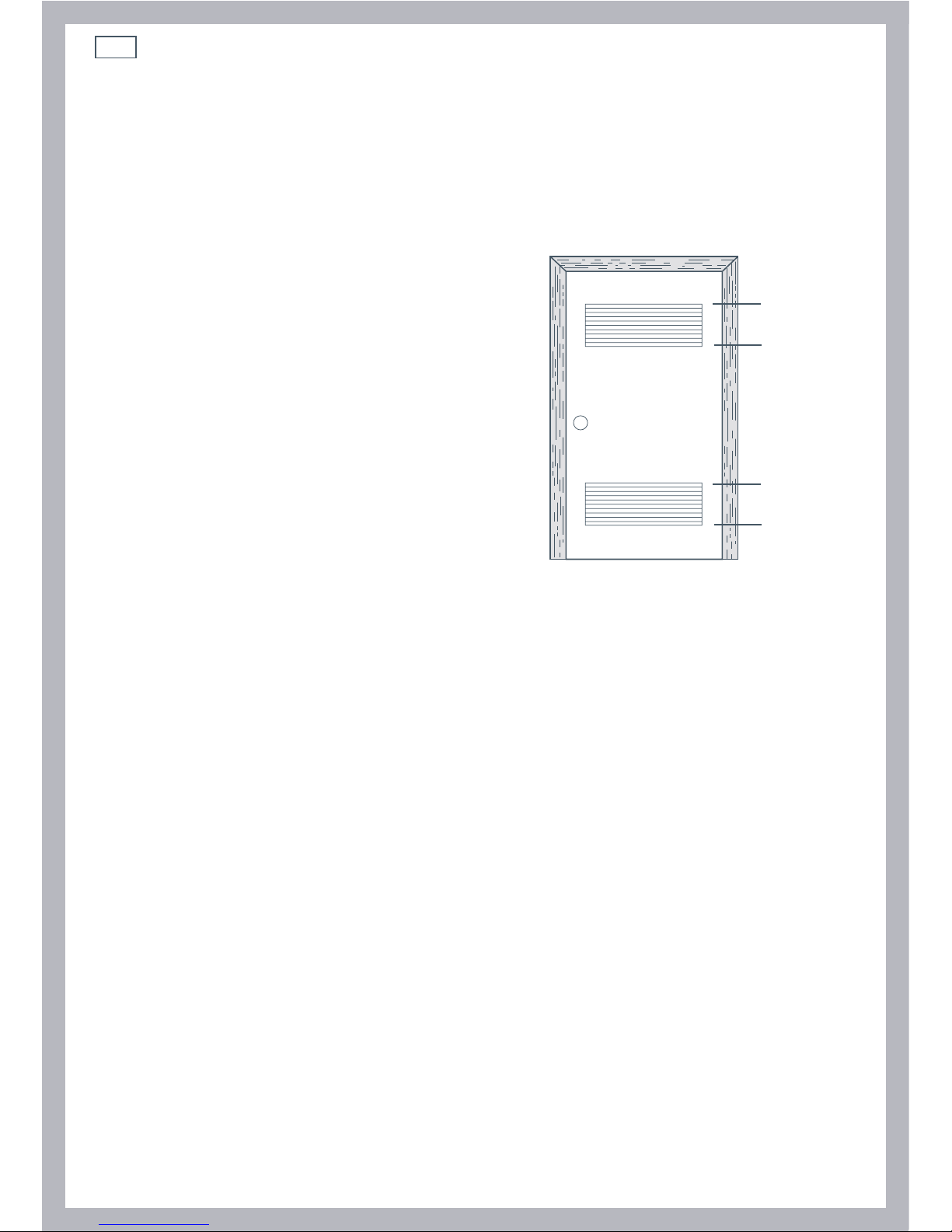

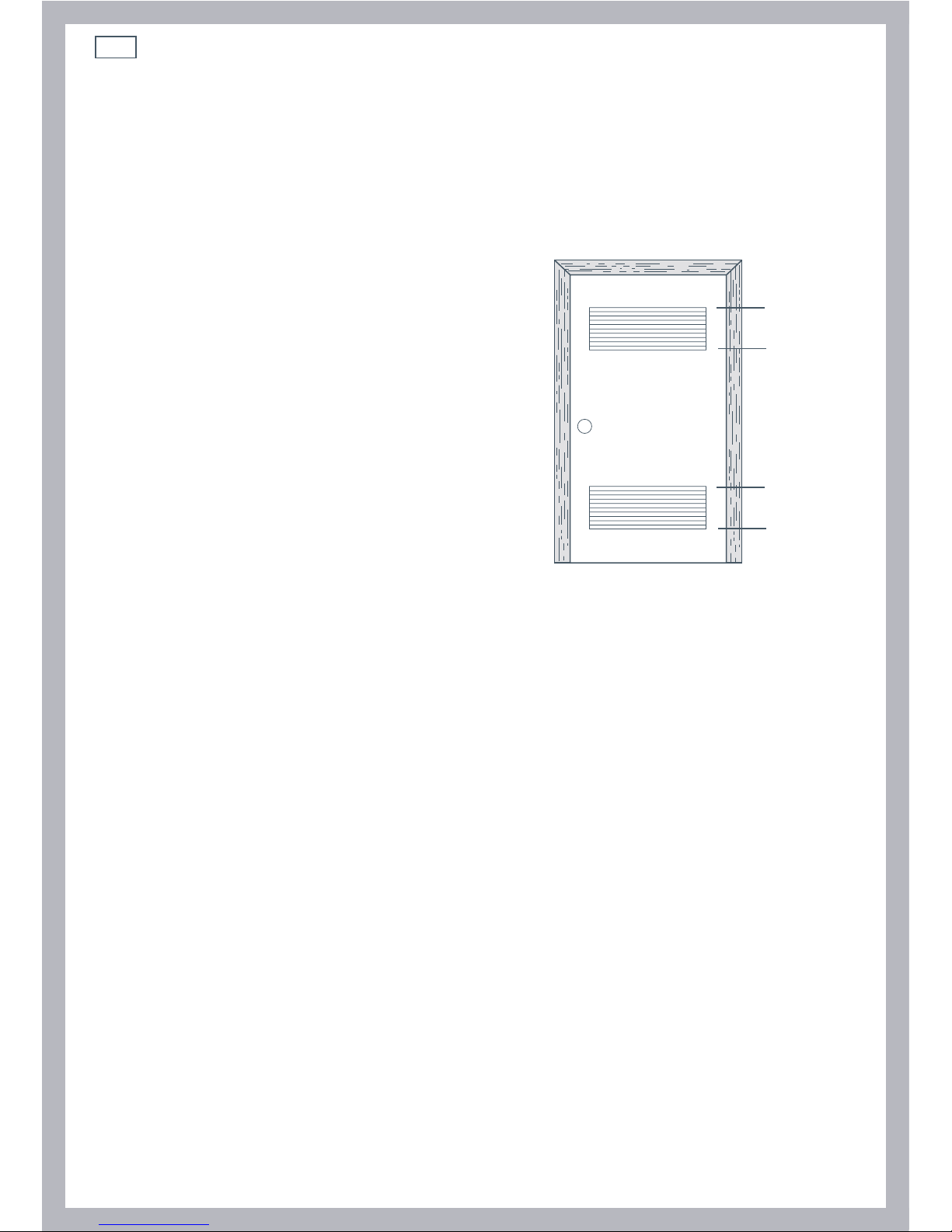

Fig.8 Louvered door Washer & Dryer
EN
12
You owe it to yourself and your AquaSmart™ to have it installed correctly by an authorized
service agent.
Before you start, it is a good idea to go through the following checklist:
1
Has the basepacker been removed?
2
Is the hot hose connected to the hot valve marked ‘H’?
Is the cold hose connected to the cold valve marked ‘C’?
3
Is the drain hose threaded through the ‘U bend’ hose guide
(with no more than ¾” extended) and on to your standpipe?
4
Are the rubber inserts secured into the feet on the base of your
washer and is the washer levelled?
Refer to Installation instructions, pages 6 – 11.
AquaSmart™ water consumption
Load Size Regular High Efficiency*
15.5 lb (7 kg) 20 G (76 L)
11 lb (5 kg) 17 G (64 L)
7 lb (3 kg) 15 G (57 L)
2 lb (1 kg) 13 G (49 L)
*Regular High Efficiency is the default wash cycle for AquaSmart™.
Note: Water consumptions are based on the AquaSmart™ default settings.
AquaSmart™ capacity
AquaSmart™ offers a generous 15.5 lb (7 kg) capacity. The list below outlines what is included in
a 15.5 lb (7 kg) wash load (in accordance with ANSI/AHAM HLW-1-2002).
3 Bed sheets (double)
2 Tablecloths
4 Shirts
6 Bath towels
4 T-shirts
4 Pillow cases
6 Shorts
6 Washcloths
5 Handkerchiefs
We recommend for everyday use that you separate out your bed sheets and wash them on the
specially designed SHEETS cycle.
Before you do your rst wash
13
The rst time you turn your washer on
WARNING!
Electric Shock Hazard
Read and follow the IMPORTANT SAFETY INSTRUCTIONS outlined in this
User Guide before operating this appliance, pages 3 – 5.
Failure to do so can result in death, electric shock, fire or injury to persons.
Control Panel Lighting
The panel lighting of your AquaSmart™ washer can be adjusted to suit the environment that
your washer is located in. For a low lighting situation you may need more lighting contrast and
for installations where there is a lot of ambient light, you may need less.
To adjust the control panel lighting:
1
Turn the washer on.
2
Press and hold the High Efficiency button for 2 seconds until you hear a quick beep. You will
then see a subtle change in the lighting contrast.
3
To change the setting again simply repeat the process.
Your AquaSmart™ washer leaves the factory set for low ambient light conditions.
EN
14
Getting started quickly – Dispensing model
Getting started quickly
It is important to sort your clothes, particularly by color, as well as separating out bed sheets and
washing them on the SHEETS cycle (refer to page 19 for more details on sorting and loading).
Close bra clasps, do up zippers and check pockets.
Place your clothes directly into the wash basket.
Detergent
Your AquaSmart™ has been designed for use with High Efficiency (HE) detergent. For example
Tide® HE liquid or powder, Wisk® HE liquid or powder.
AquaSmart™ offers a detergent dispenser for your convenience, located on the front, left hand
side of the top deck.
For detergent dose, please follow the manufacturers directions, outlined on the detergent
package.

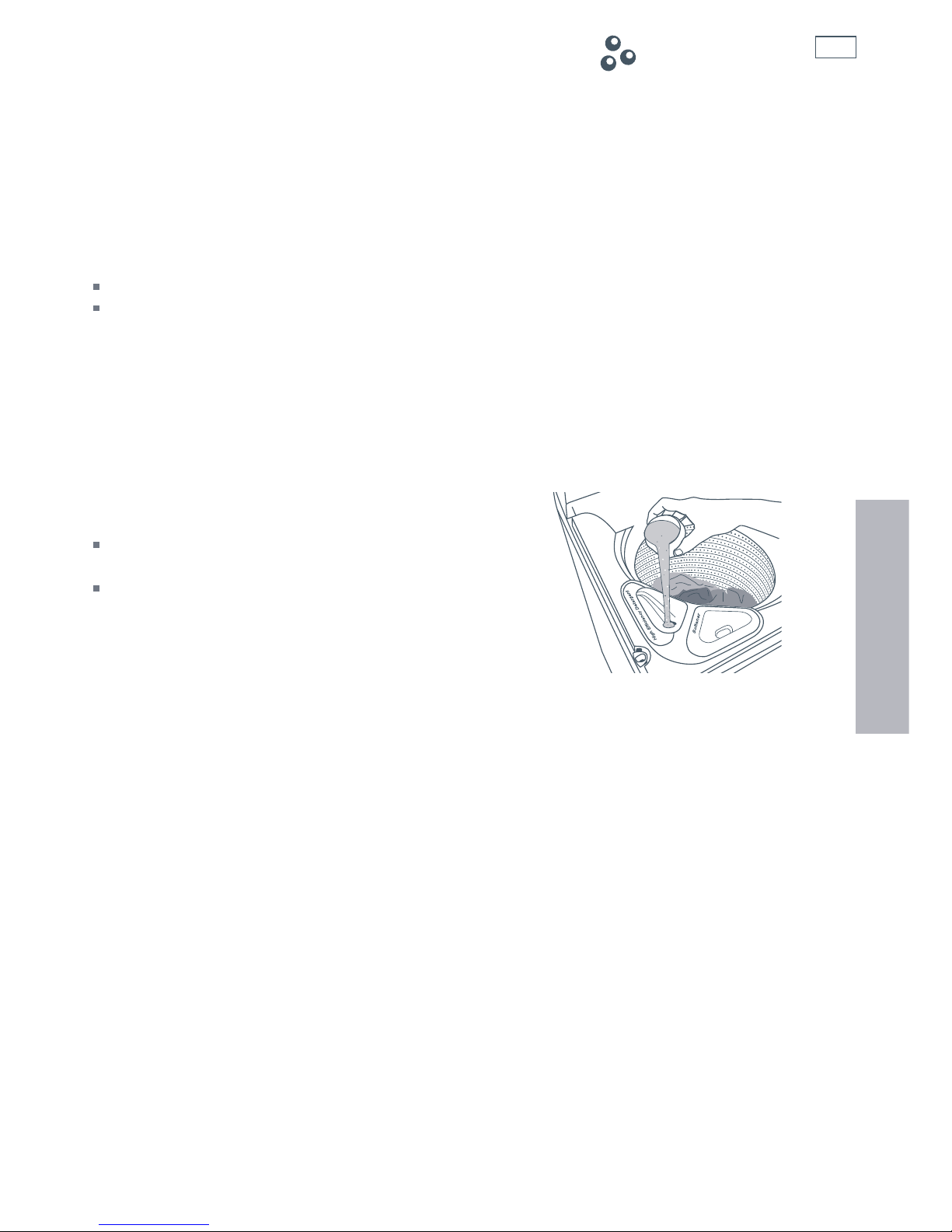

Pour the detergent down the detergent dispenser.
For more information on detergent, fabric softener or bleach please refer to pages 21 – 23.

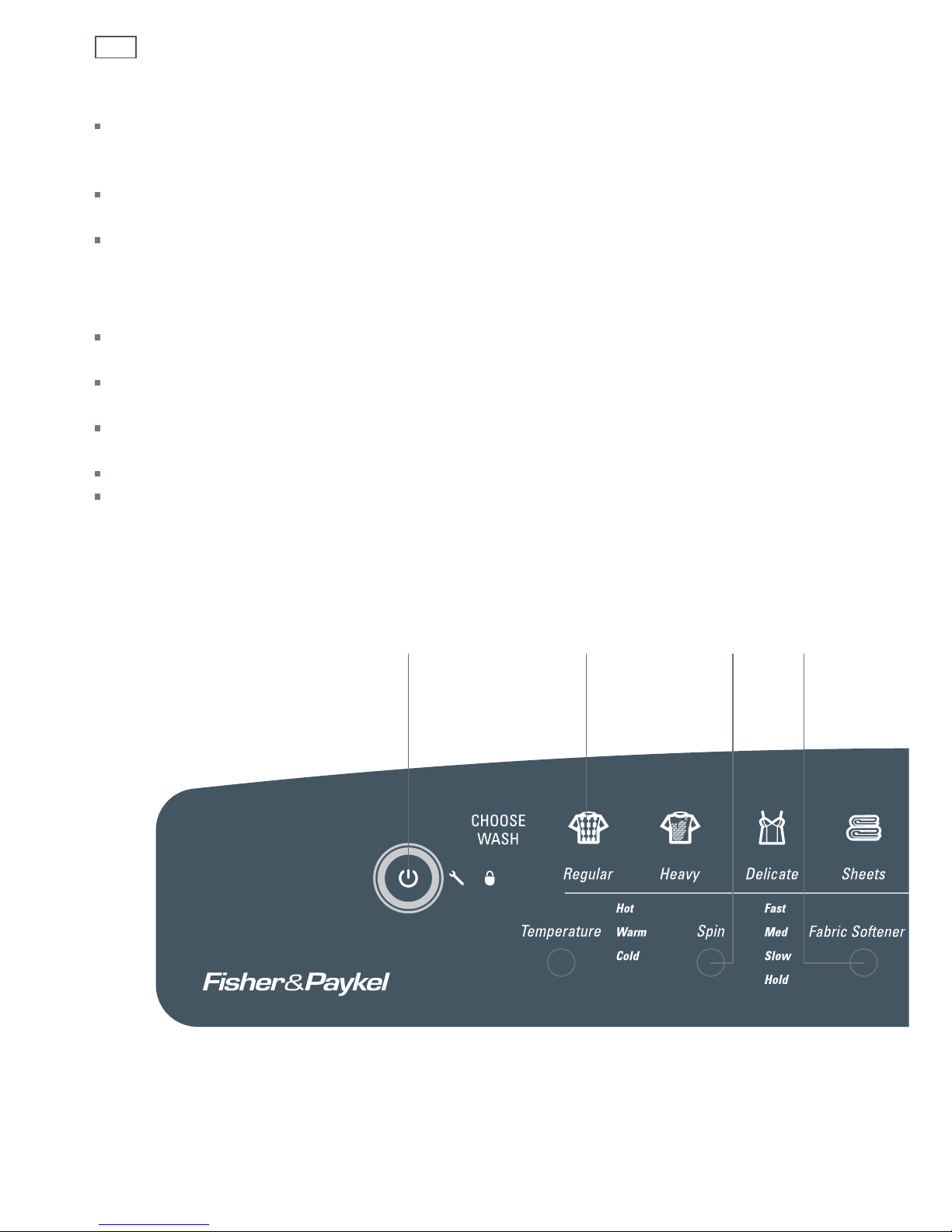

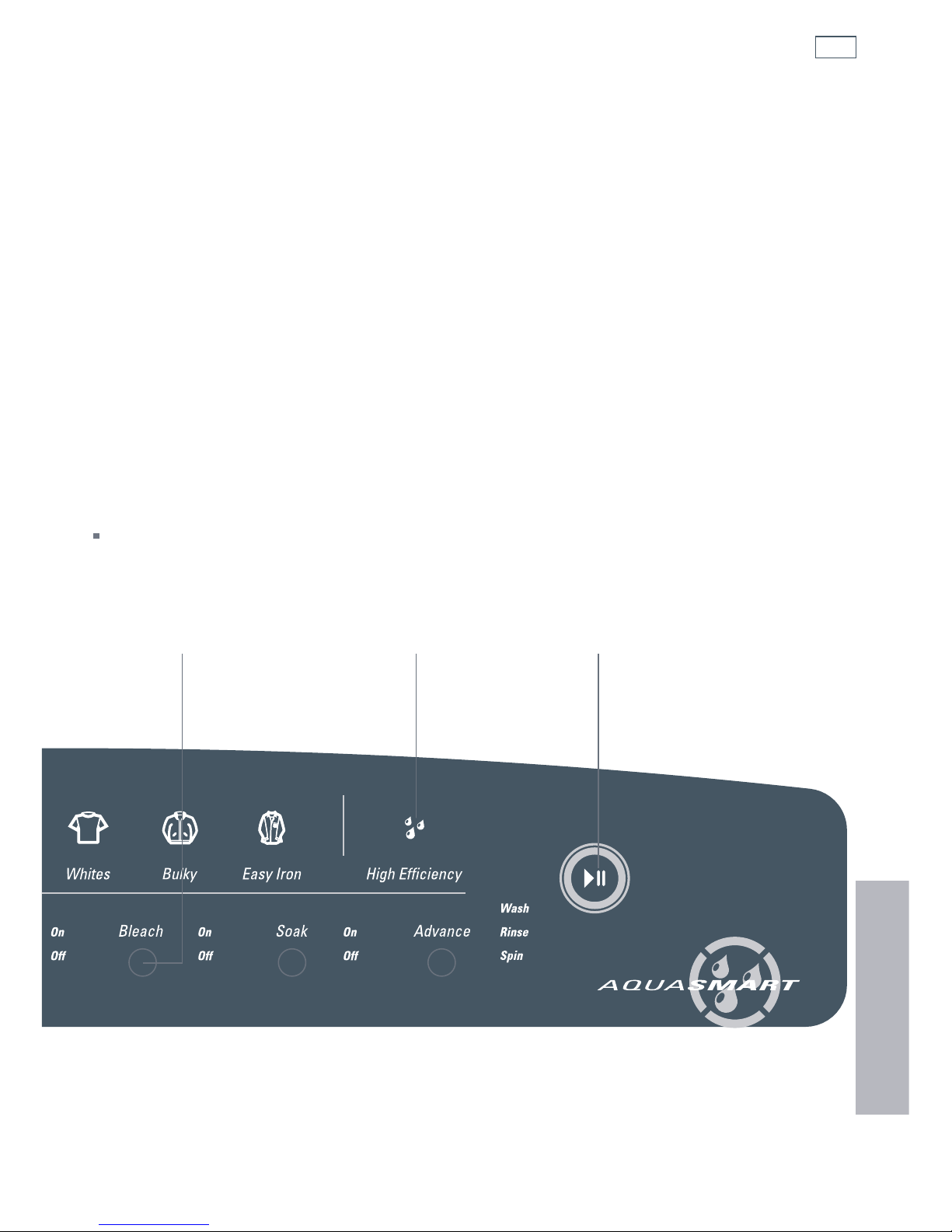

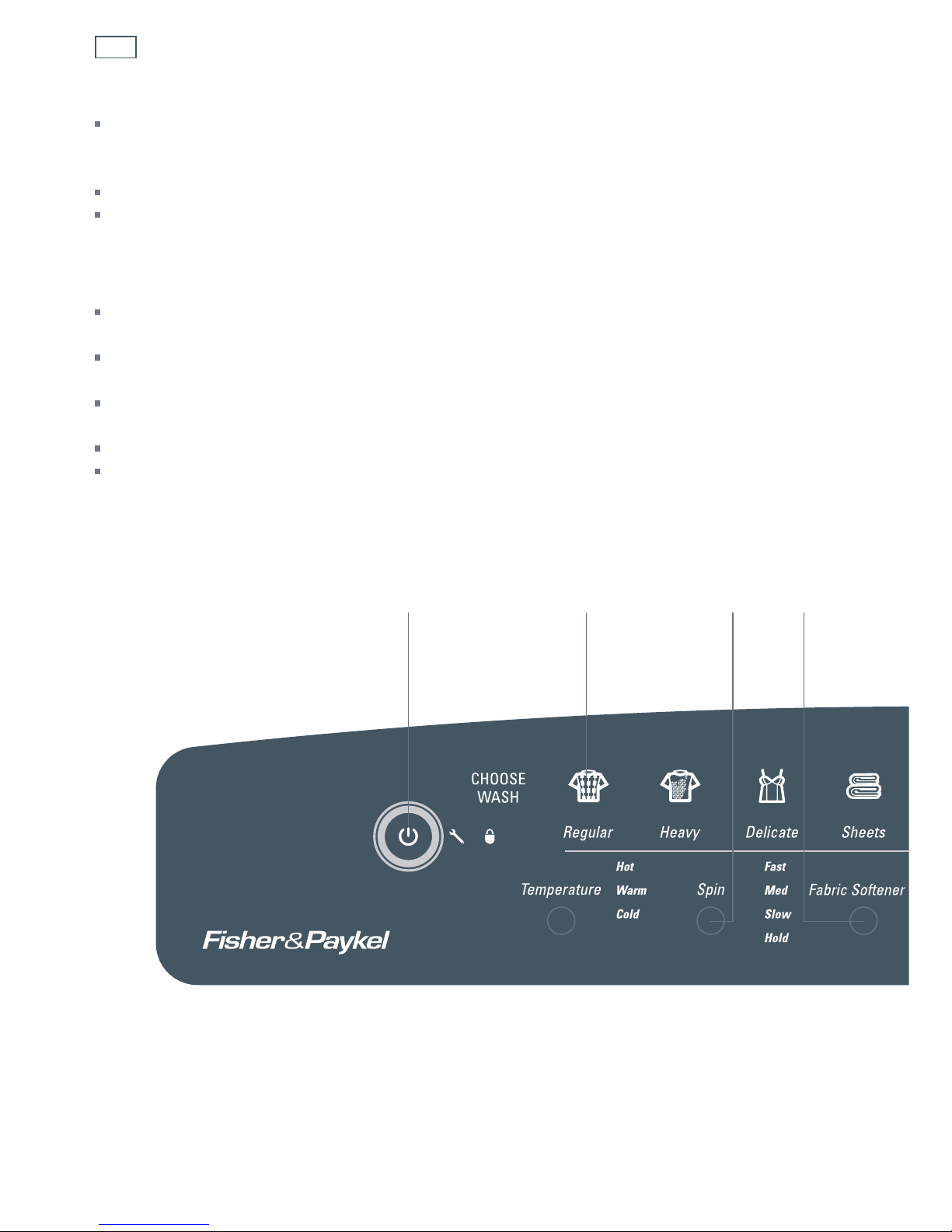

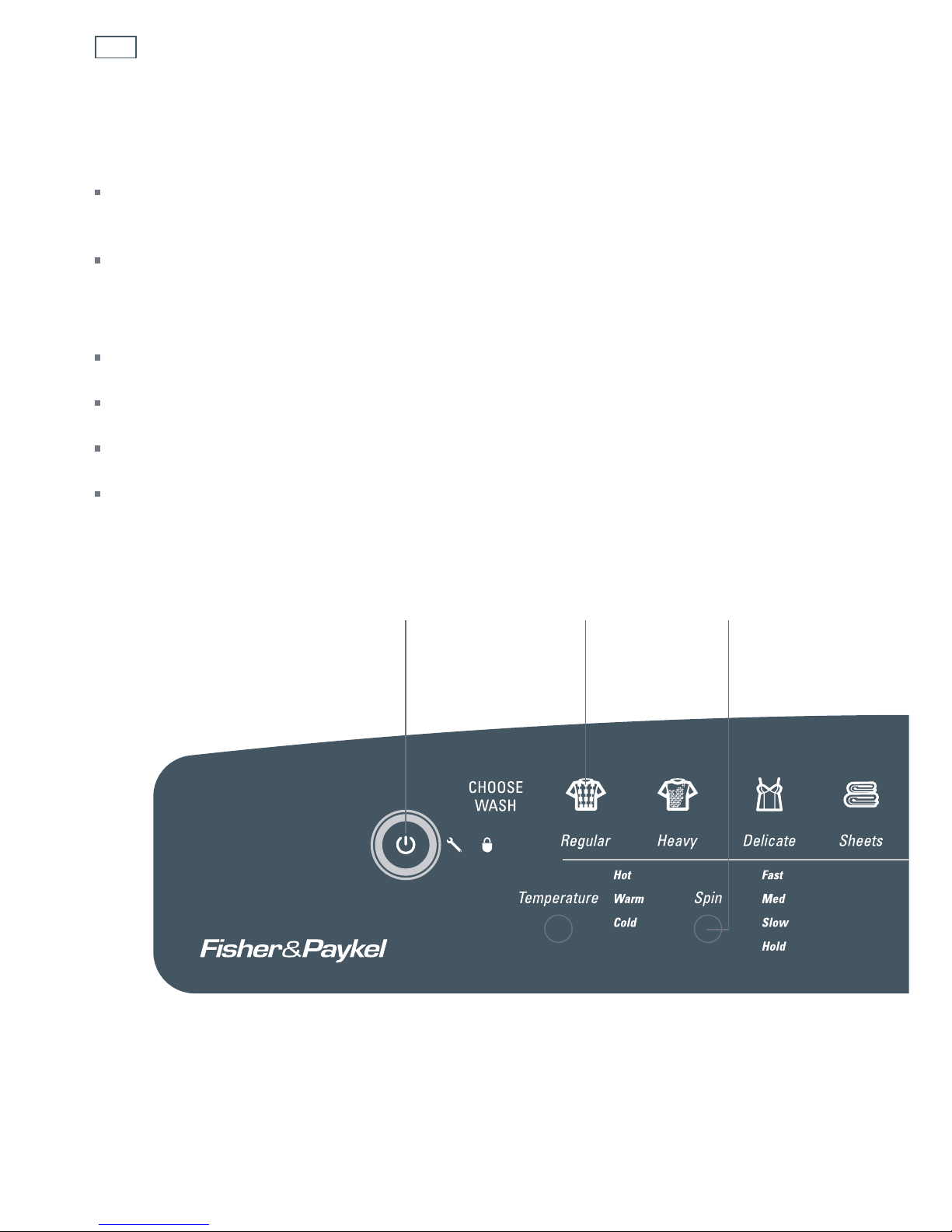

Fig.9 AquaSmart™ control panel (dispensing model).
For the non-dispensing model refer to page 16.
142 5
15
Getting started quickly
1
PRESS POWER to activate your AquaSmart™ washer.
2
Select the desired WASH CYCLE that most closely matches your wash load.
3
HIGH EFFICIENCY – this light tells you when ‘High Efficiency’ mode is recommended, and
the button allows you to switch between High Efficiency and Conventional modes (refer to
page 18).
4

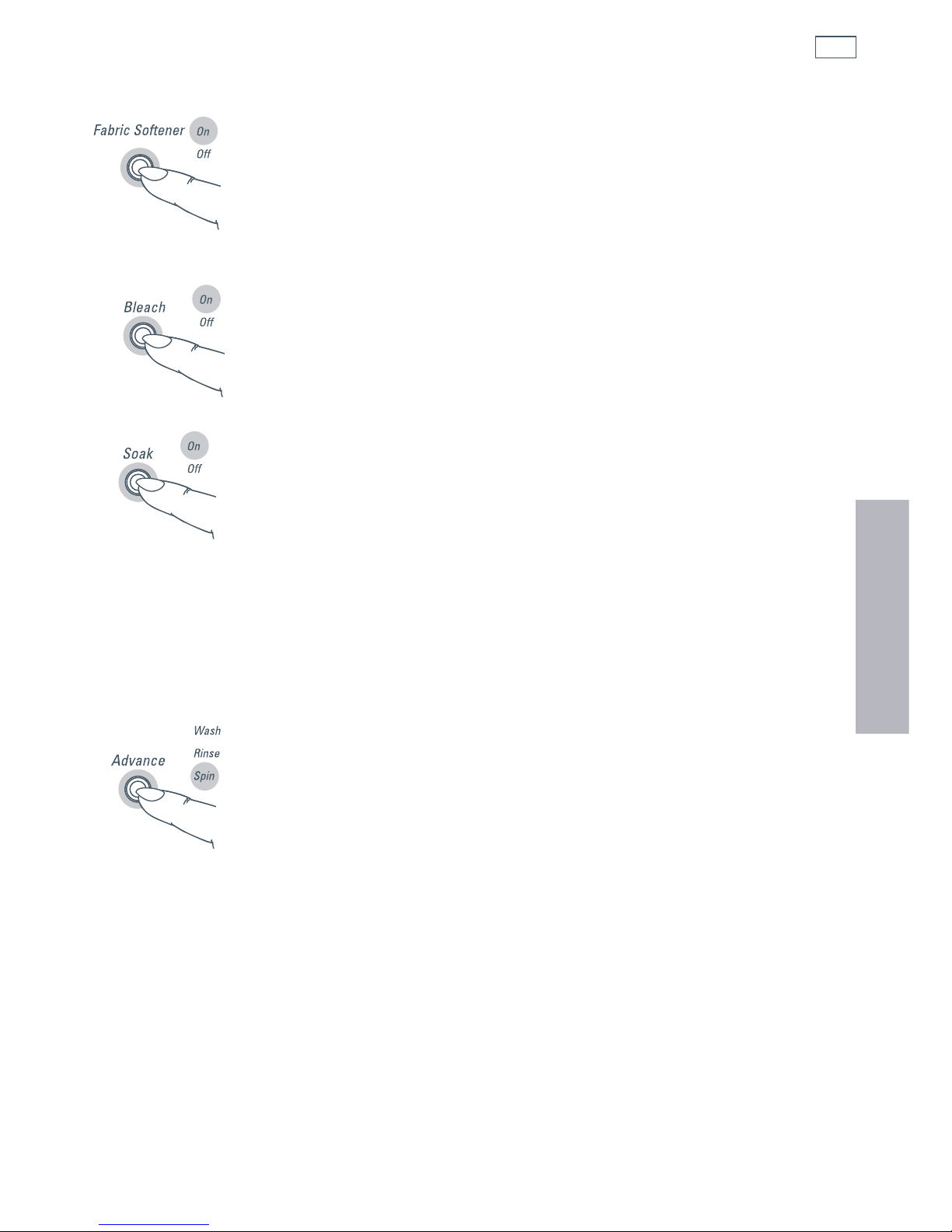

Select any additional WASH OPTIONS that you may require (refer to page 26).
5
If you wish to use fabric softener, place into Softener dispenser and select FABRIC SOFTENER
to turn the fabric softener option ON.
6
If you wish to use liquid bleach, place into the bleach dispenser and select BLEACH to turn
the bleach option ON.
7
PRESS START – your AquaSmart™ will start to fill with water, and will automatically select the
correct water level and wash action for your load. To pause your AquaSmart™ at any time,
simply touch START/PAUSE.
For best fabric and color care remove your clothes as soon as the cycle has finished.
3 7
Important!
Failure to follow the advice in this User Guide may result in damage to your garments, and
your expectations of wash performance may not be met.
6
EN
16
Getting started quickly – Non-dispensing model
Note: This model DOES NOT have detergent, fabric softener or bleach dispensing abilities. Fabric
softener and bleach should not be used.
It is important to sort your clothes, particularly by color, as well as separating out bed sheets and
washing them on the SHEETS cycle (refer to page 19 for more details on sorting and loading).
Close bra clasps, do up zippers and check pockets.
Detergent
Your AquaSmart™ has been designed for use with High Efficiency (HE) liquid detergent. For
example, Tide® HE, Wisk® HE.
For detergent dose, please follow the manufacturers directions, outlined on the detergent
package.
Pour the liquid detergent onto the outer edge of the basket before adding your clothes. For
more information on detergent please refer to page 21.
Place your clothes directly into the wash basket.

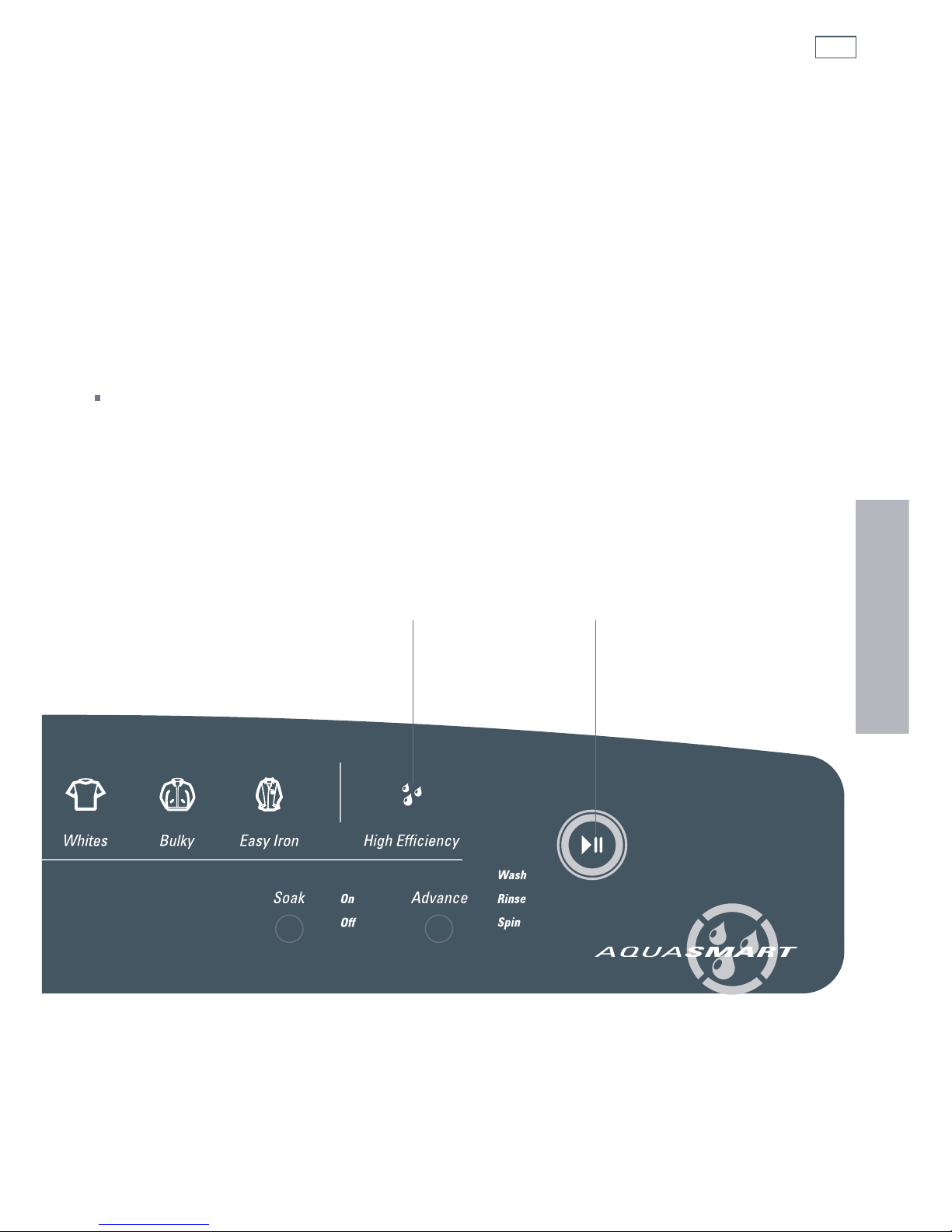

Fig.10 AquaSmart™ control panel (non-dispensing model).
For the dispensing model refer to page 14.
142
17
Getting started quickly
1
PRESS POWER to activate your AquaSmart™ washer.
2
Select the desired WASH CYCLE that most closely matches your wash load.
3
HIGH EFFICIENCY – this light tells you when ‘High Efficiency’ mode is recommended, and the
button allows you to switch between High Efficiency and Conventional modes on selected
cycles (refer to page 18).
4
Select any additional WASH OPTIONS that you may require eg. spin speed.
5
PRESS START – your AquaSmart™ will start to fill with water, and will automatically select the
correct water level and wash action for your load. To pause your AquaSmart™ at any time,
simply touch START/PAUSE.
For best fabric and color care remove your clothes as soon as the cycle has finished.
3 5
Important!
Failure to follow the advice in this User Guide may result in damage to your garments, and
your expectations of wash performance may not be met.
EN
18

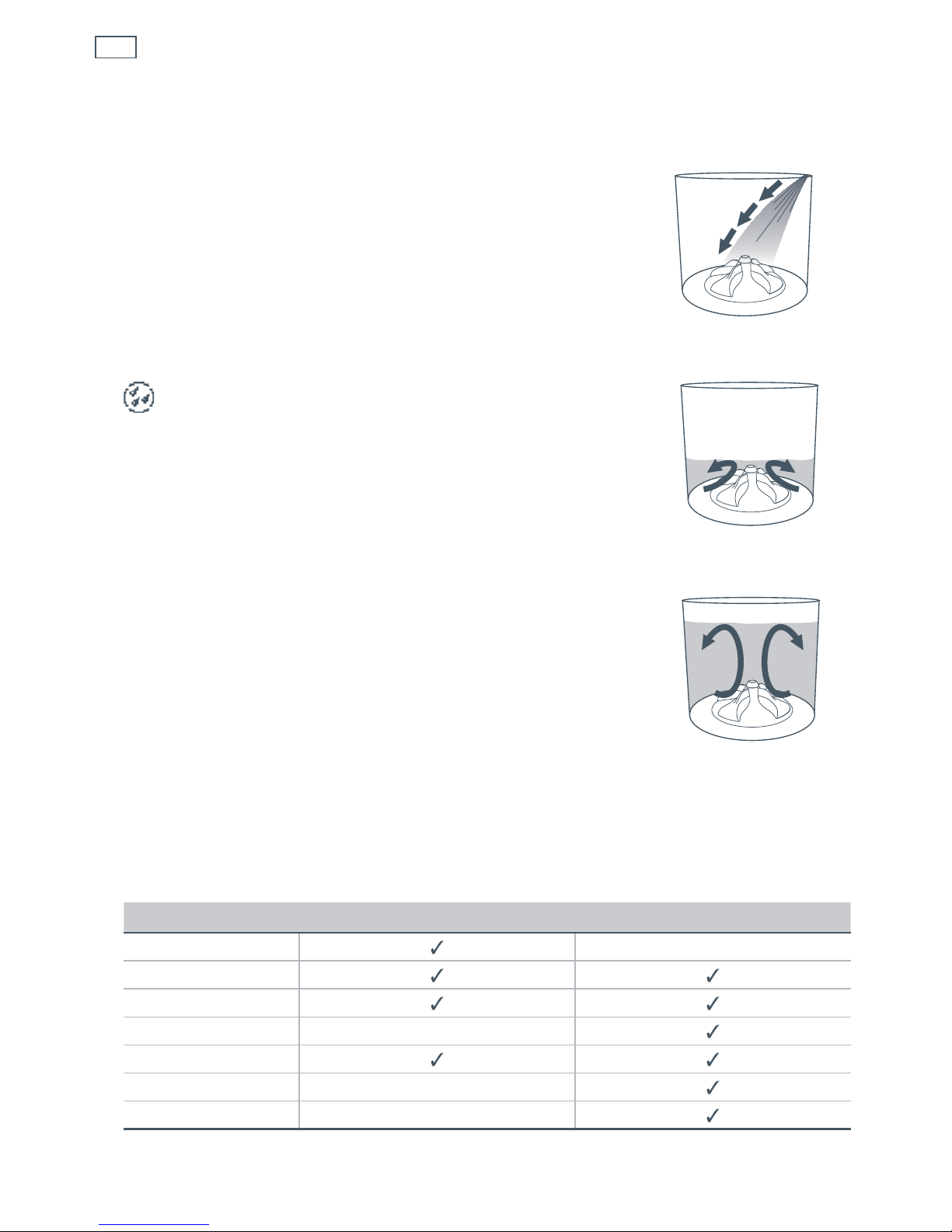

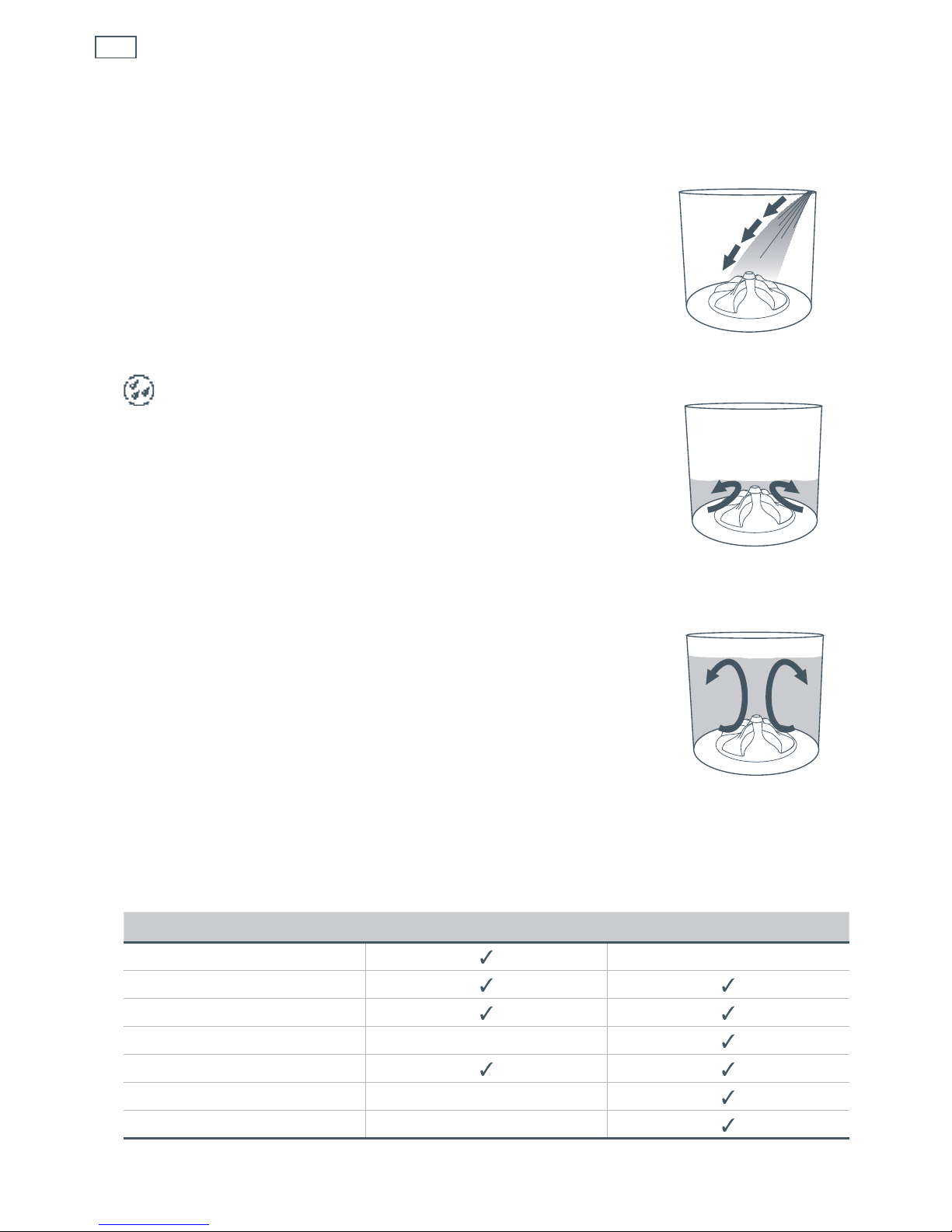

The unique AquaSmart™ wash
The AquaSmart™ washer has two modes of washing, High Efficiency and Conventional. Both
modes start the same way, with a Detergent Activating wash.
Detergent Activating wash
AquaSmart™ fills the basket at the selected water temperature,
with just enough water so the clothes are saturated. This small
amount of sudsy water flows through the clothes, up a specially
designed portal and back onto the clothes in a waterfall effect.
This thoroughly dissolves and activates the detergent.
High Efficiency mode
In the High Efficiency mode the AquaSmart™ then fills with just
enough water to lift the clothes off the low profile agitator so when
it rotates, the clothes gently roll over each other. This wash uses
similar quantities of water to most Front Loaders and so, not only
do you get the benefits of water savings but the higher detergent
concentrations give you optimum soil removal.
Conventional mode
The Conventional mode is the immersion wash all Top Loader users
are familiar with. After the Detergent Activating wash the AquaSmart™
fills with cooler water until the clothes are submerged, and gently
turns the clothes over. We recommend this mode when the dilution
effect of water can solve or prevent common wash problems. For
example, when dye or color run can be a problem, or when washing
sandy towels. The SHEETS cycle uses the Conventional mode.
Some cycles can be used in both modes, whilst others work in only one.
High Efficiency Conventional
Regular
–
Heavy
Delicate
Sheets –
Whites
Bulky –
Easy Iron –
These two wash modes mean that your AquaSmart™ washer gives you the best of both worlds,
to suit any laundry situation.
Fig.12 High Efficiency wash
Fig.13 Conventional wash
Fig.11 Detergent Activating wash
19
Sorting and loading
Fully automatic water level
You may notice that your AquaSmart™ clothes washer behaves differently from your previous
washer.
Your AquaSmart™, like all High Efficiency washers, has a fully automatic water level. This means
that, like Front Loaders, the selection of the water level is left entirely up to the washer. This
ensures optimum wash performance and water savings.
Should you wish to use more water, simply select a Conventional cycle (refer to Conventional
mode page 18).
Sorting and loading explained
It is important to sort your wash load to ensure optimum wash performance.
BED SHEETS – Separate out bed sheets and comforter covers and use the SHEETS cycle
which has been especially designed for these items. Ensure that comforter covers are
buttoned or zipped up. To get the best possible wash for bed sheets, drop these items
directly into the washer, do not wrap them around the low profile agitator.
COLORED ITEMS – Dye or color run can be a problem with High Efficiency washers,
so separate highly colored garments (especially when they are new) and choose a
conventional cycle. Most dye transfer occurs when clothes are left too long in the
machine at the completion of the cycle, so try not to leave your colored clothes lingering
in the washer.
BULKY ITEMS – Comforter inners, sleeping bags, ski jackets, blankets and throws are all
items which tend to behave unusually in a clothes washer. The lighter ones can float,
while a large blanket can get very heavy and make spinning difficult. Your AquaSmart™
offers a BULKY cycle designed to take care of these washing challenges.
ITEMS THAT WRINKLE – When you are concerned about creasing or wrinkling we
recommend you use the EASY IRON cycle. Alternatively select one of the Conventional
cycles. The extra water used by these cycles will help to reduce wrinkling. Reducing the
spin speed of the wash may also help.
SOIL – Very dirty, sandy, or linty loads are best washed separately to prevent transfer
onto other garments. It may be that you have new towels that create lots of lint or very
sandy beach gear. We suggest using the Conventional mode in this circumstance, eg. on
a heavy cycle.
DELICATES – To take extra special care of delicate items, we suggest using the DELICATE
cycle.
EN
20
Sorting
Care Labels
Care labels will tell you about the fabric of the
garment and how it should be washed.
Soil
Sort clothes according to the type and amount
of soil. Some soils suit warmer washes eg. oily
soils, while others are best washed in cold water
eg. mud, blood.
Color
Sort white fabrics from colored fabrics.
Lint
Wash lint givers and lint collectors separately.
Where possible, turn lint collectors inside out.
Before you load
Check pockets
Loose items can damage both your
AquaSmart™ and your clothes.
Close zippers, hooks and eyes
This is to make sure that these items do not snag on other clothes. We recommend putting
lingerie in a lingerie bag prior to washing for best care of these items.
Mend any torn garments or loose buttons
Tears or holes may become larger during washing. Remove any loose bra wires as they can
damage your washing machine and/or dryer.
Pretreat any stains
Use an appropriate surface to apply treatments. Please do not use the lid of the washer as
damage may occur.
For a balanced load
Place items directly into the basket.
Do not wrap large items, such as bed sheets, around the low profile agitator. Drop them straight
into the washer.
A mixture of small and large items will wash the best (remember to separate out bed sheets and
select the SHEETS cycle for these).
When washing a single large item, add a large beach towel to the wash to ensure that the load
is balanced for an effective spin.
Important!
Please do not, under any circumstances, attempt to wash an electric blanket in your AquaSmart™
washer. We do not recommend washing curtains in your washer. Sunlight makes them brittle so
they may disintegrate during washing.
Lint Givers Lint Collectors
Towels Synthetics
Chenille Corduroy
Nappies Polyester cottons
Socks

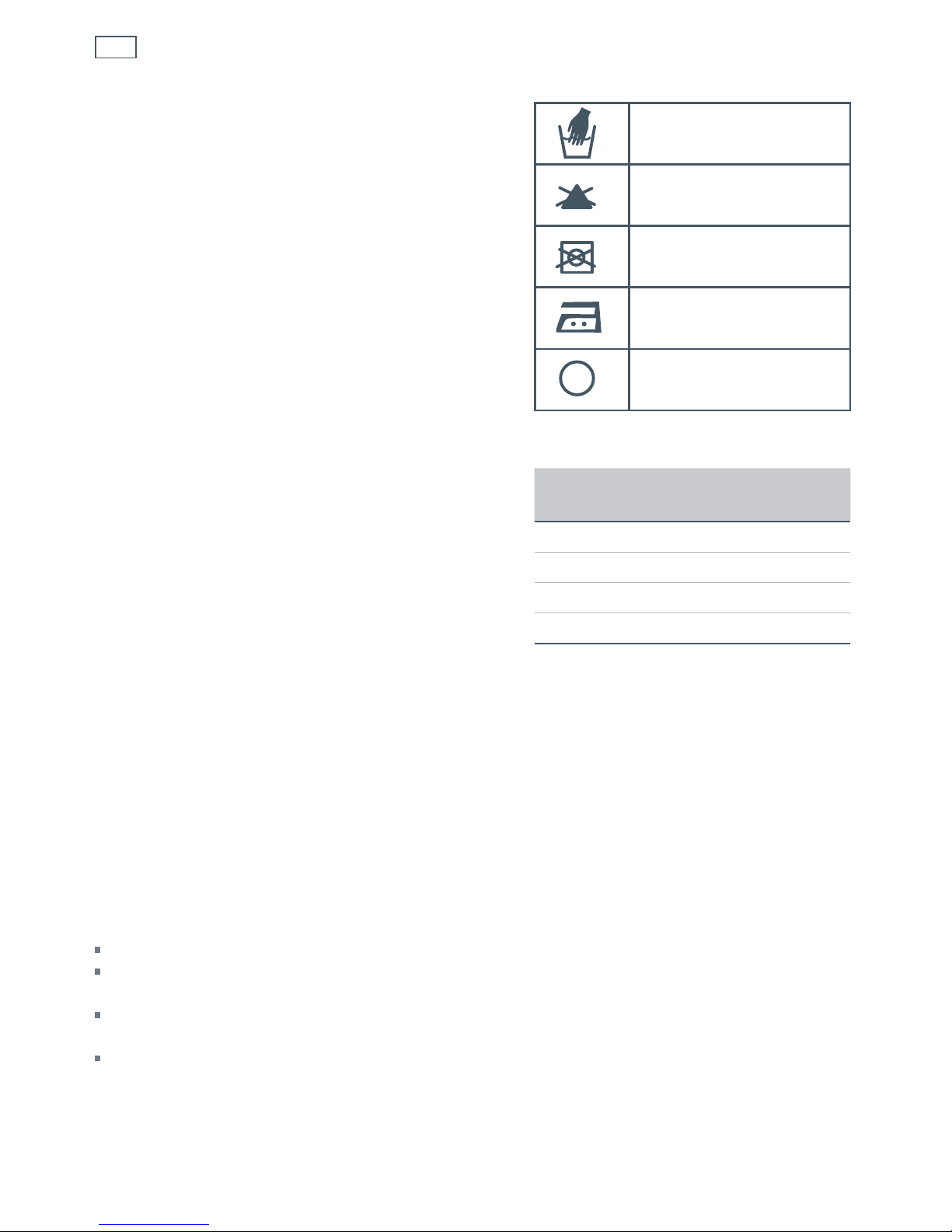

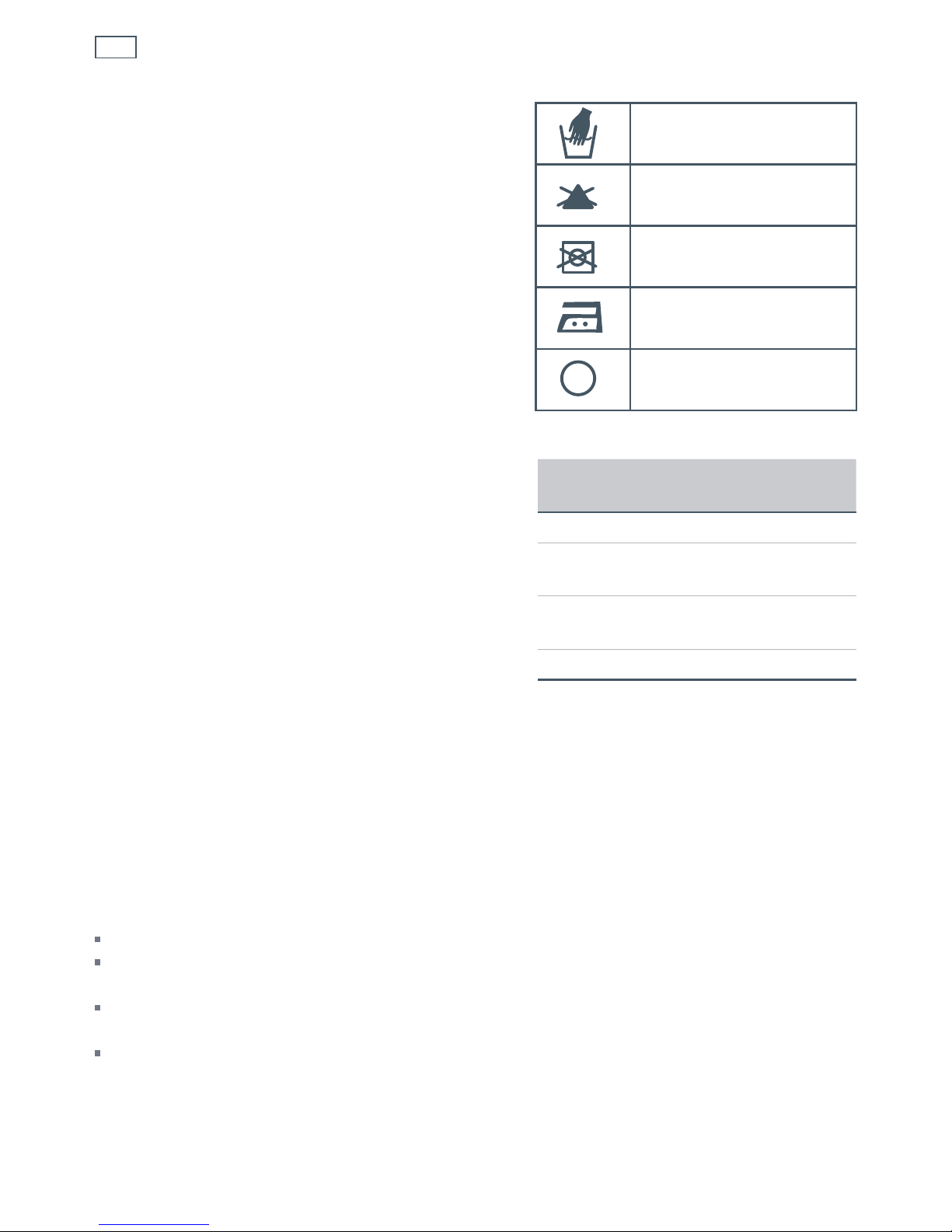

Examples of care label symbols.
Sorting and loading
Hand Wash
Do not bleach
Do not tumble dry
Medium iron
Dryclean
21
Detergent
Choosing the right detergent
Your AquaSmart™ is a High Efficiency clothes washer and needs Low Sudsing Detergent to
prevent oversudsing problems. This is the same type of detergent Front Loaders use and is
labelled “High Efficiency” (HE).
We recommend the use of liquid detergent for best results. If you wish to use powdered
detergent, dissolve in water first before adding to the dispenser.
There are both liquid and powdered Low Sudsing detergents. Some examples are:
Tide® HE liquid or powder
Wisk® HE liquid or powder
When washing woollens use a wool detergent but use it sparingly as these are usually very high
foaming. Do not use soap flakes or soap powders.
How much detergent?
Use the instructions on the back of the detergent packet as a guide to the correct amount to use.
The correct amount of detergent will vary depending on the amount of soil in your clothes and
the size of your load. Jeans and work clothes may need more and towels less.
As a starting point:
Use one cap full for a large load and reduce or increase
the dosage as required.
For a small load (eg. 4 – 5 t-shirts) use ¼ cap.
If you have oversudsing problems reduce your dosage.
If your clothes are not clean enough, try using a bit more.
Where do I put my detergent?
Note: Only dispensing models have detergent
dispensing ability.
For models with dispensing ability, pour your detergent into the detergent dispenser
located on the left side of the washer. We recommend that you measure your detergent first.
If you use powdered detergent, we recommend that you dissolve it in water before adding it to
the dispenser.
You will notice that most of the detergent placed in the dispenser will fall into the machine. It
will remain in an area separated from your clothes until the machine begins to fill. As the washer
fills, the dispenser will be flushed of any residue. The detergent is then mixed with water, and
specially designed ribs at the bottom of the outer tub help to rapidly dissolve the detergent to
ensure optimum wash performance.
When washing in very cold water or on the quicker cycles (eg. DELICATE) dissolving the
detergent in warm water before pouring it down the dispenser will improve wash performance.
When needed, wipe out the detergent dispenser with a damp cloth.
Important!
If you have a non-dispensing model of washer we strongly recommend you use liquid detergent
only. Pour the detergent onto the outer edge of the basket before adding your clothes.

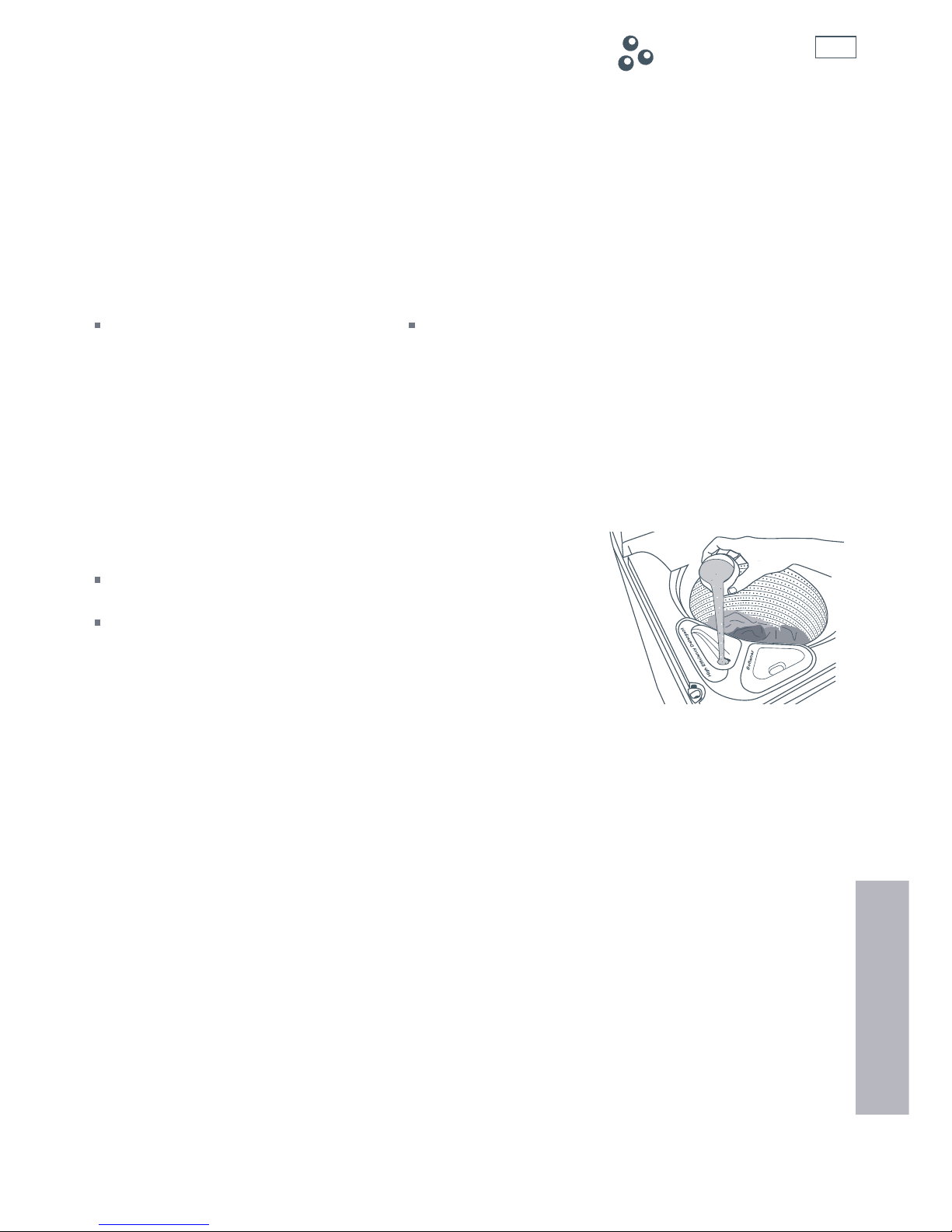

Fig.14 Adding detergent to
the detergent dispenser
EN
22
Important!
Only dispensing models have softener dispensing ability. Fabric softener should NOT be used
unless your machine has fabric softener dispensing ability.
Choosing the right cycle
If you wish to use fabric softener you will need to select the FABRIC SOFTENER option which will
give you a deep rinse. If FABRIC SOFTENER is not selected, the softener will not be dispensed. To
have fabric softener dispensed select the FABRIC SOFTENER option to ON.
Adding the fabric softener
Measure the fabric softener out into the cap and pour into
the Fabric Softener Dispenser. It will remain in the top of the
dispenser until the deep rinse when water flushes it into the tub.
Note: If you fill beyond the MAX mark, the overflow will pour
fabric softener into the basket prematurely and contribute to
scrud (refer below).
Cleaning the dispenser
The funnel of the fabric softener (the top) clicks off easily. Simply place a finger down the center
and lift. The remaining siphon tube and Fabric Softener well is not removable and needs to be
wiped clean periodically with hot water and an old toothbrush. If the siphon tube looks partially
blocked use a cotton bud to clean.
Scrud
Scrud is the name given to the waxy build-up that can occur within any washer when fabric
softener comes into contact with detergent. This build-up is not brought about by a fault in the
washer. If scrud builds up in the washer it can result in stains on the clothes or an unpleasant
smell in your washer.
If you wish to use fabric softener we recommend you:
Use it sparingly.
Measure it carefully to ensure you do not fill above the MAX level.
Clean the dispenser as soon as the cycle has finished.
Clean your washer regularly using the CLEAN ME cycle (see page 32).
Cold water washing increases the chance of this build-up occurring. We recommend a warm or
hot wash at regular intervals, eg. every 5th wash.

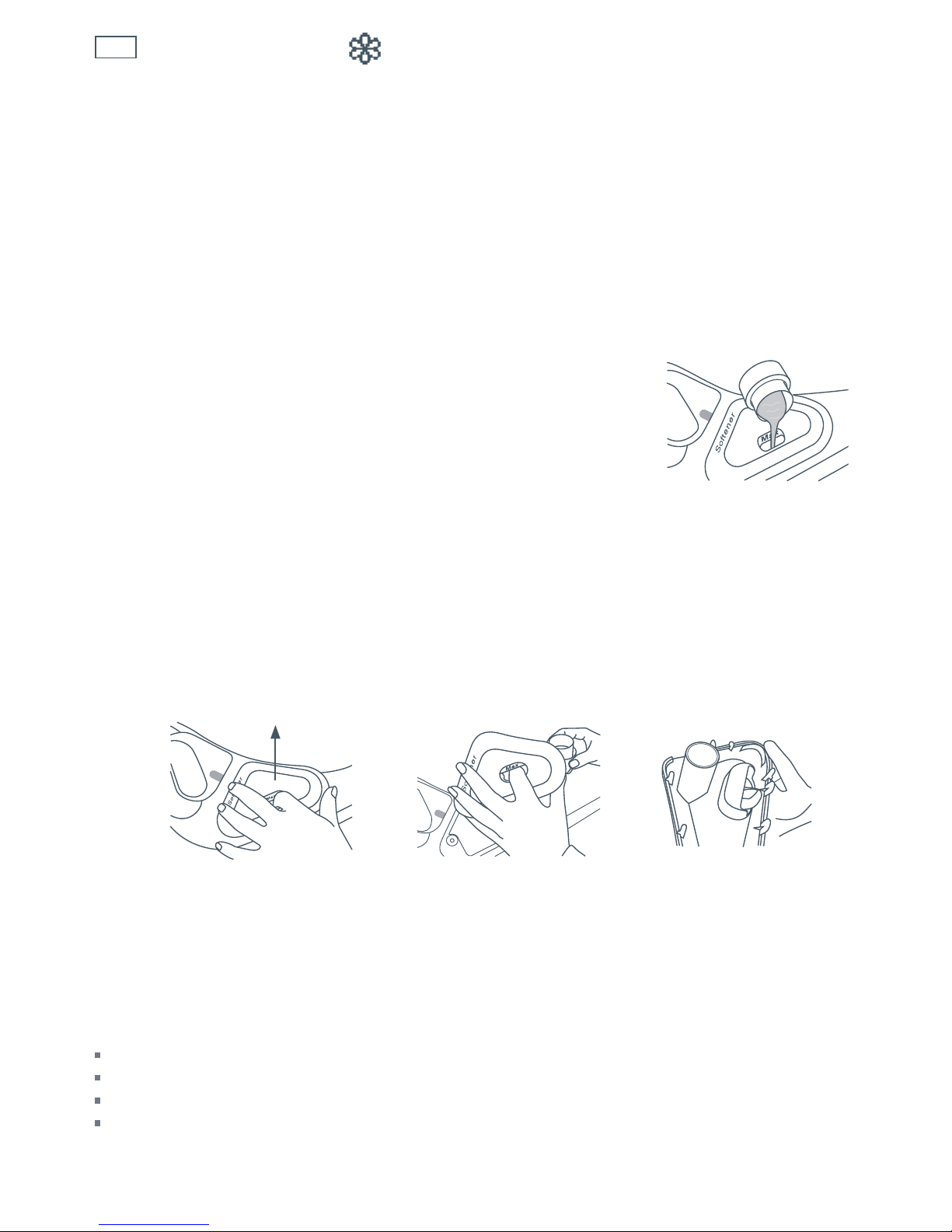

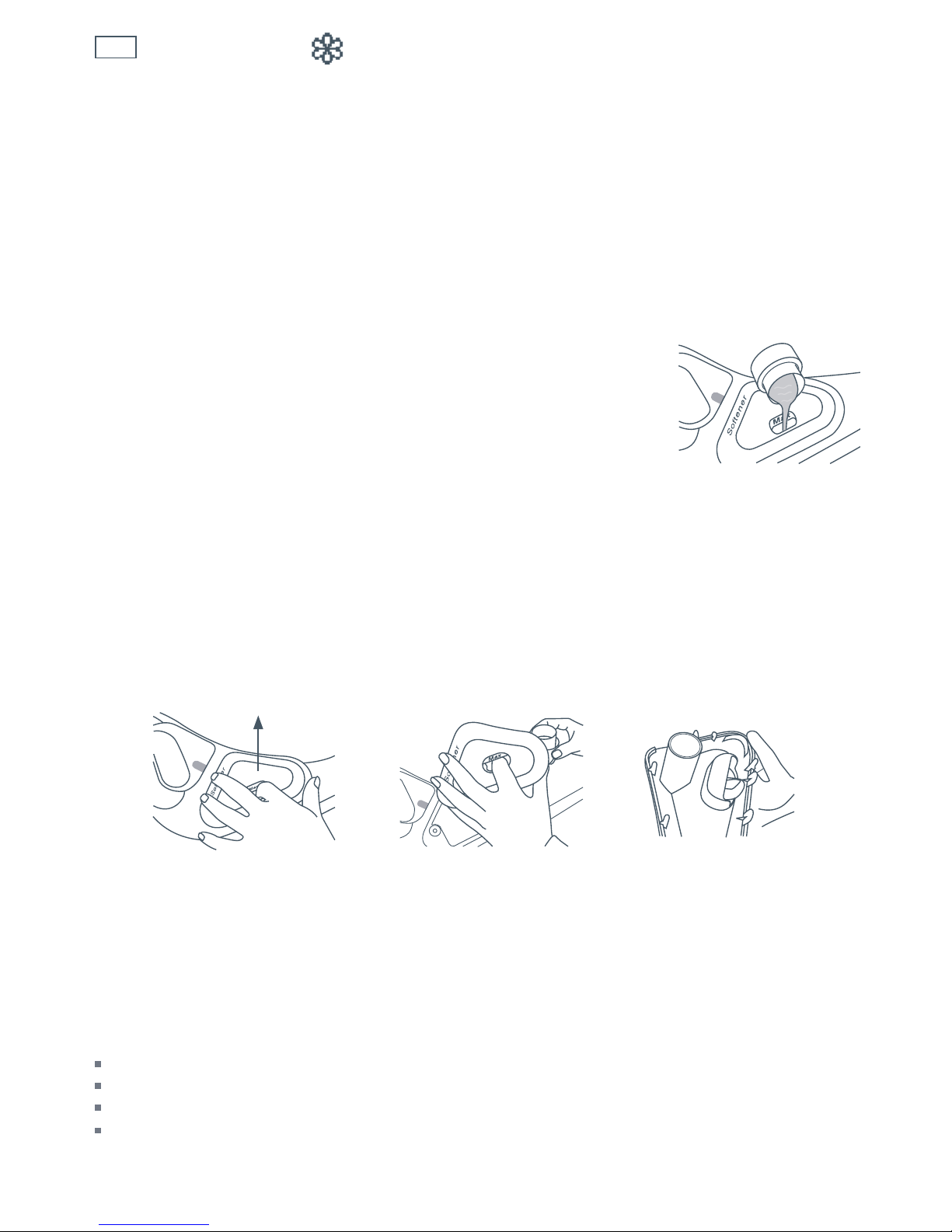

Fig.15 Adding softener into
the Fabric Softener dispenser
Fabric Softener
Fig.16 Removing the Fabric Softener funnel
23
Important!
Only dispensing models have Bleach dispensing ability. Bleach should NOT be used unless your
machine has bleach dispensing ability.
Choosing the right cycle
Remember to check clothing labels before you begin to ensure that garments are bleach
compatible.
If you wish to use bleach please select the BLEACH option to ON. The bleach will be diluted and
automatically released into the wash at the correct point in the cycle. This ensures maximum
bleach efficiency and optimum clothes care. If the Bleach option is not selected, bleach will not
be dispensed into the wash and will drain safely away.
When washing white items select the WHITES cycle for best performance with bleach. When
washing colors use color-safe bleach.
Note: For best clothes care, the Bulky cycle does not offer a bleach dispensing option.
How much bleach do I use and where do I put it?
Liquid Bleach
Your AquaSmart™ washer requires less bleach than traditional top
loading washers, no more than 100 ml. Pour bleach into a measuring cup
with a spout, then carefully pour this into the bleach dispenser ensuring
that it does not fill higher than the MAX level. Adjust the amount of
bleach you use to the load size, eg. for smaller loads use less bleach.
Cleaning the dispenser
The funnel of the bleach dispenser clicks off easily. Simply place a
finger down the center and lift. The remaining siphon tube and bleach
receptacle is not removable and needs to be wiped clean periodically
with hot water and an old toothbrush. If the siphon tube looks partially
blocked use a cotton bud to clean.
Important!
Do not fill the bleach dispenser beyond the MAX fill mark.
Do not pour undiluted, liquid chlorine bleach directly onto clothes.
Use only liquid chlorine bleach in this dispenser.
To avoid splashing and spills we recommend the use of a cup with a pouring spout.
Note: Both liquid and powdered color-safe bleach can be used in your AquaSmart™ washer.
If you use a powdered detergent, use a powdered color-safe bleach (however add this to the
detergent dispenser NOT the bleach dispenser. Follow the manufacturers instructions).
If you are using liquid detergent, use a liquid color-safe bleach (add the bleach to the bleach
dispenser. Follow the manufacturers instructions).
Failure to follow the instructions above could result in damage to clothing.
Bleach

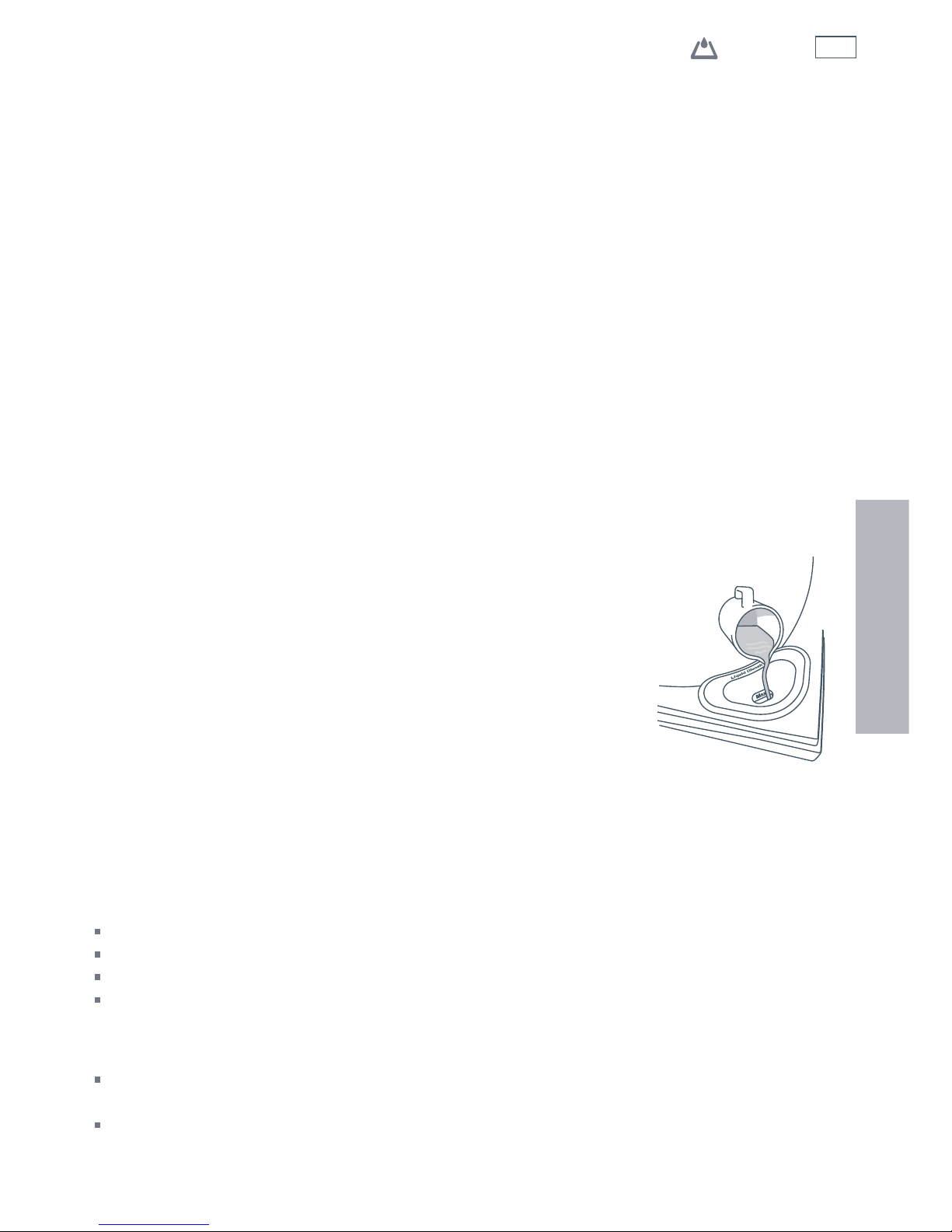

Fig.17 Adding bleach into
the bleach dispenser
EN
24
AquaSmart™ safety features
Auto Drain
Unsupervised clothes washers filled with water can present a drowning hazard to small children.
In order to minimize any risk of this type of accident, your AquaSmart™ has been
pre-programmed to know when this hazard is created, and drain the wash water to a safe level.
If you pause your AquaSmart™ at any time during the wash cycle when there is water in the
basket, the machine will activate the AUTO DRAIN function after 3 minutes. This will drain the
water in the wash basket to an acceptable level, removing any potential hazard.
Your washer will beep to warn you prior to AUTO DRAIN being activated.
If you wish to soak clothing items during the wash process please select the SOAK option. This
will provide you with a two hour soak.
Lid Lock
Your AquaSmart™ washer is able to lock its lid during the wash cycle, to provide extra safety for
you and your family while it is operating.
The Lid Lock symbol
appears illuminated in the left hand side of the control panel, letting you
know at a glance if you can open the lid or not.
To unlock the lid at any time press START/PAUSE.
If the lid is left open, your AquaSmart™ washer will be unable to lock the lid, and the cycle will
be halted. The machine will beep and the Lid Lock symbol will flash to alert you. If this occurs,
ensure that the lid is closed and press START/PAUSE.
Important!
Do not put anything down the Lid Lock slot in the top deck.
Do not try to disable the Lid Lock.
25
Choosing your wash cycle

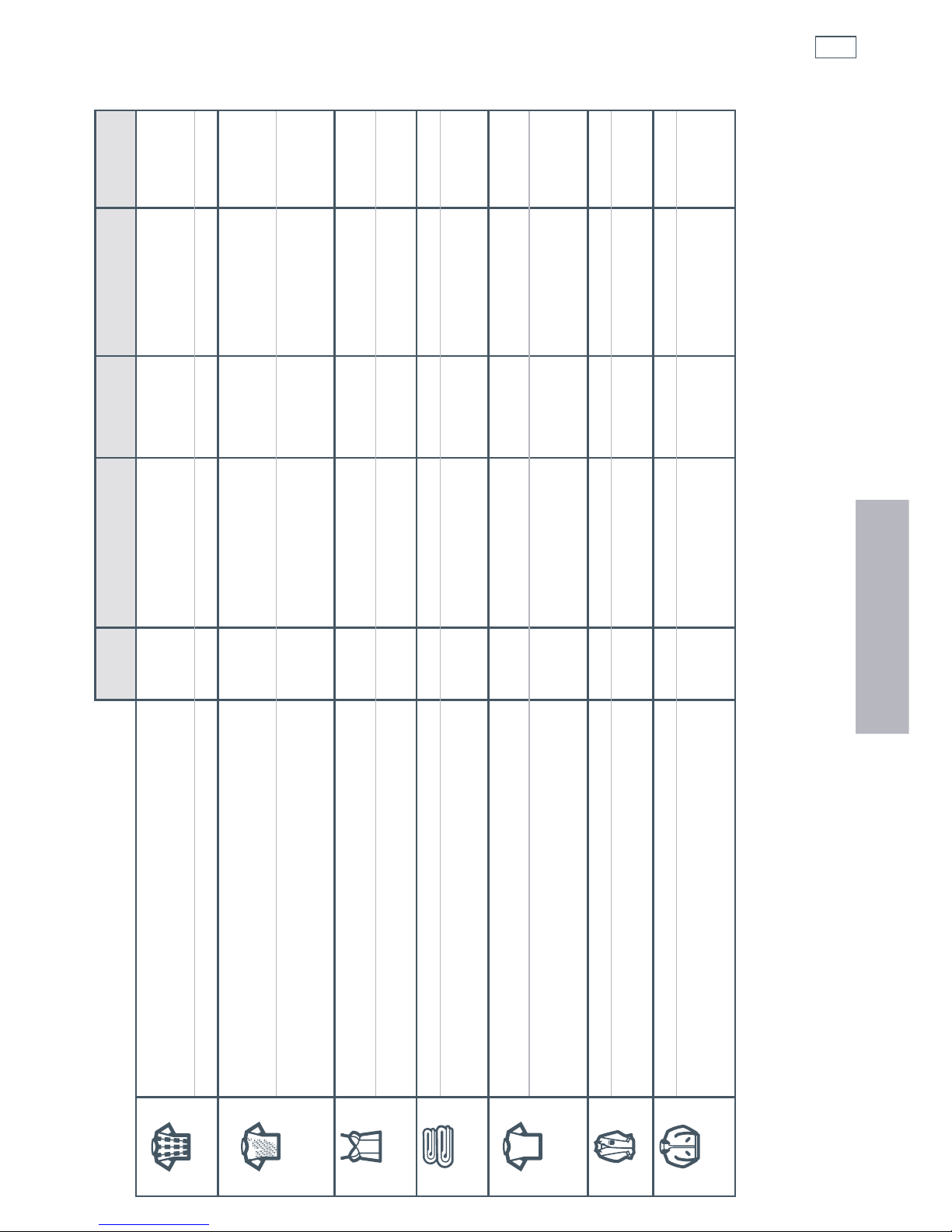

Wash cycles explained
Wash Time Wash Action Wash Temp
Rinse
Sequence
Spin
Regular
HE Mode ON (default) – For normally soiled everyday
loads, eg. towels, t-shirts, shorts, shirts.
12 – 15 mins
Regular High
Efficiency
Warm
Aqua Rinse
(shower)
Fast
(1000 rpm)
HE Mode OFF – Unavailable. n/a n/a n/a n/a n/a
Heavy
HE Mode ON (default) – For heavily soiled items, eg.
tea towels, sports gear, children’s clothes.
15 mins Heavy Duty HE Warm
Aqua Rinse
(shower)
Fast
(1000 rpm)
HE Mode OFF – For heavily soiled durable garments
when using more water would be an advantage.
15 mins
Heavy Duty
Conventional
Warm Spray/Deep
Fast
(1000 rpm)
Delicate
HE Mode ON – For delicate lightly soiled clothes. 6 mins
Delicate High
Efficiency
Warm/Cold
Aqua Rinse
(shower)
Slow
(300 rpm)
HE Mode OFF (default) – For washing your delicates in
more water.
6 mins
Delicate
Conventional
Warm/Cold Spray/Deep
Slow
(300 rpm)
Sheets
HE Mode ON – Unavailable. n/a n/a n/a n/a n/a
HE Mode OFF (default) – Recommended for bed
sheets, tablecloths, comforter covers.
15 – 17 mins
Bed Sheets
Conventional
Warm Spray/Deep
Fast
(1000 rpm)
Whites
HE Mode ON – Cycle for washing white garments. 12 – 15 mins
Regular High
Efficiency
Warm/Hot
Aqua Rinse
(shower)
Fast
(1000 rpm)
HE Mode OFF (default) – For washing white garments.
Additional water used will help to keep whites looking
whiter.
12 – 15 mins
Regular
Conventional
Warm/Hot Spray/Deep
Fast
(1000 rpm)
Easy Iron
HE Mode ON – Unavailable. n/a n/a n/a n/a n/a
HE Mode OFF (default) – For minimizing wrinkling. 12 mins
Regular
Conventional
Warm/Cold Spray/Deep
Slow
(300 rpm)
Bulky
HE Mode ON – Unavailable. n/a n/a n/a n/a n/a
HE Mode OFF (default) – Recommended cycle for
washing bulky items.
6 mins + soak
Bulky
Conventional
Warm Double Deep
Slow
(300 rpm)
The BULKY cycle takes special care of bulky items. These items wash most effectively when they can move freely. Ensure that there is sufficient room in
the basket for the wash load to move during the wash.
Some bulky items may float during the wash (eg. comforters and sleeping bags). Ensure that bulky items are pushed as far down into the basket as
possible, prior to spin (the washer will alert you when to do this). To continue the cycle simply press START/PAUSE.
Note: When washing a single bulky item add a large beach towel to the wash, to ensure the load is balanced for an effective spin.
Note: HE = High Efficiency
EN
26

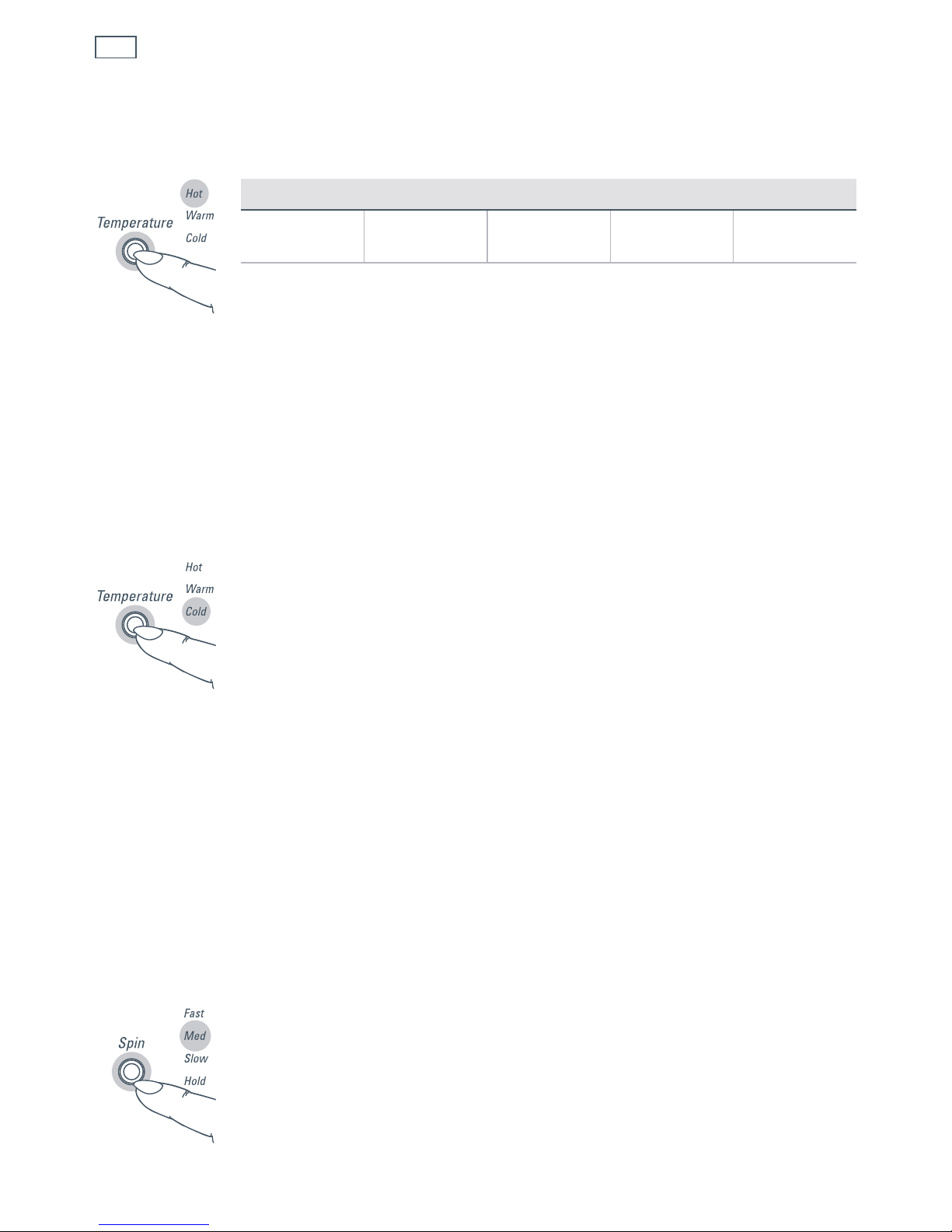

Simply increase or decrease your wash temperature by pressing the
TEMPERATURE button to scroll through the options available.
Note: Some temperatures are not available on some cycles for best clothes care
(e.g DELICATE cycle).
The temperature option selects the temperature of the first phase of the two-part
wash system, the Detergent Activating Wash.
Hint: If a hot wash is required, where both phases of the wash system are hot,
select SHEETS cycle, and “hot” temperature.
Controlled Cold (Cold+)
The temperature of cold water varies, depending on your location and the season.
The lower the water temperature, the less effective the wash becomes. To help
with this issue we have developed Controlled Cold as a secondary option, which
adds a small amount of warm water, when necessary, to raise your cold water
wash to 60°F (15.6°C). To access this secondary option please refer to page 28.
Spin Speed
Your AquaSmart™ washer offers three spin speeds: Fast (1000rpm), Medium
(700rpm) and Slow (300rpm), plus an additional Spin Hold option.
Simply increase or decrease your spin speed by pressing the SPIN button to scroll
through the options available. When Spin Hold is selected the washer will stop
the cycle before the final spin. This option is ideal for drip dry items.
Fabric Softener (available on dispensing models only)
If you wish to use fabric softener in your AquaSmart™ clothes washer, please
select the FABRIC SOFTENER option. Press the FABRIC SOFTENER button to turn
this option to ON. This will adjust the wash to ensure that the fabric softener is
dispensed correctly.
Bleach (available on dispensing models only)
If you wish to use bleach in your AquaSmart™ clothes washer, please select the
BLEACH option. Press the BLEACH button to turn this option to ON. This will
adjust the wash to ensure that the bleach is dispensed correctly.
Changing the wash cycle options
Cold Warm/Cold Warm Warm/Hot Hot
Incoming water
from faucet
91°F
(33°C)
102°F
(39°C)
115°C
(46°C)
Incoming water
from faucet
Temperature
AquaSmart™ offers five wash temperatures.
27

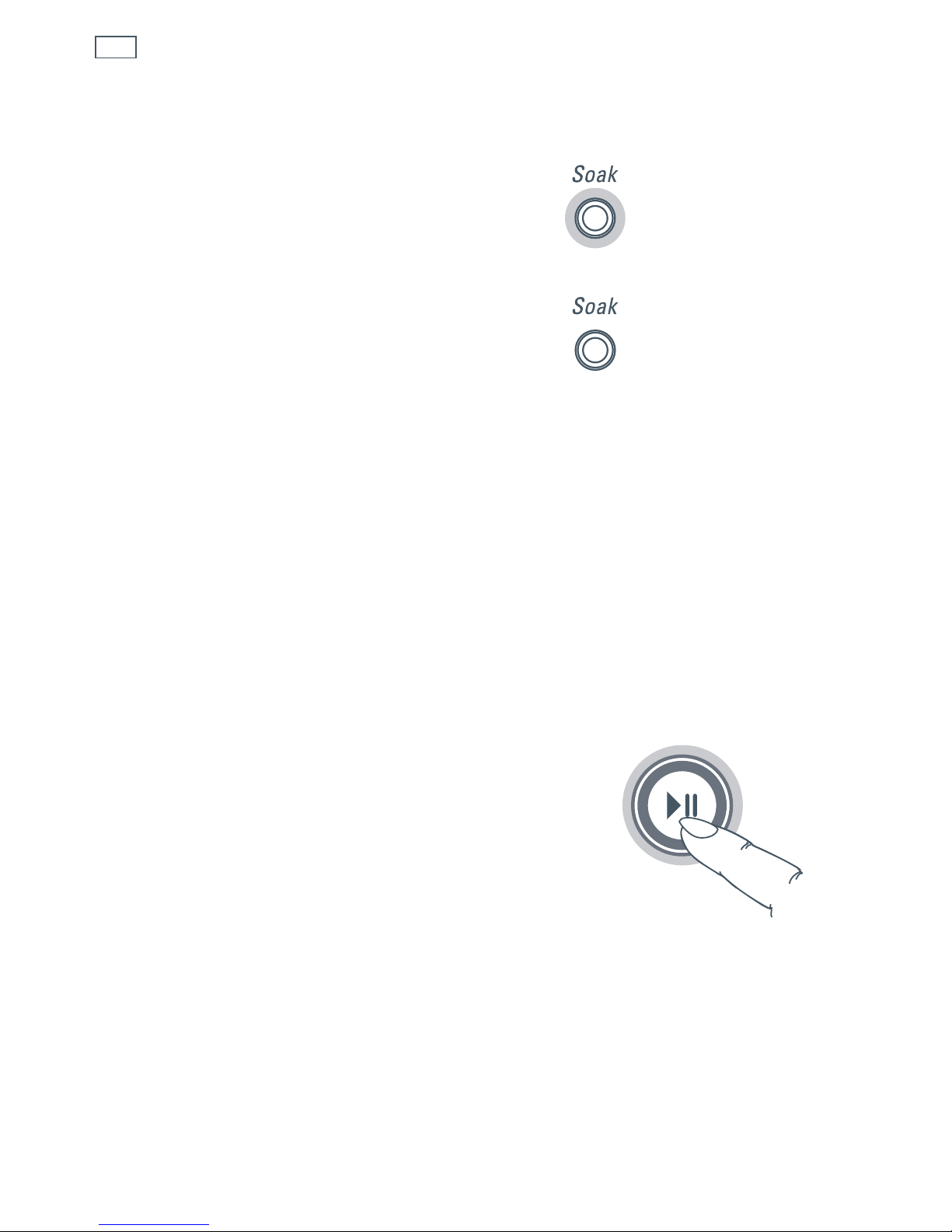

Soak
The Soak option adds a 2 hour soak into the middle of the wash phase of the
cycle. During the soak, the washer will agitate for a few seconds every minute.
At the completion of the soak period the AquaSmart™ will then complete the
rest of the wash cycle. To select Soak, press the SOAK button once to select
Soak ON.
Note: Once the Soak is under way you can exit out at any time by pressing
the SOAK button. This does not apply to BULKY cycle. For BULKY cycle to exit
SOAK press ADVANCE.
Wash Advance
There may be times when you wish to use the rinse and spin or spin only
portions of the wash cycle. The Advance option allows you to fast forward
your cycle to the desired location. Press the ADVANCE button repeatedly to
advance the cycle to the desired position, then press START.
Changing the wash cycle options
Note: If you wish to change any of the wash options while your AquaSmart™ is running please
press START/PAUSE then change the required option.
Customizing the wash cycles
To customize a cycle
You can program your AquaSmart™ to remember the wash options you prefer for each wash
cycle. For instance, you may want to set the Regular cycle to a cold wash.
1
Press POWER.
2
Press the wash cycle button.
3
Select your wash options (eg. cold wash).
4
Press and hold down the wash cycle button for 2 seconds, until you hear a beep. This will store
your customized cycle for future washes.
To change your customized wash cycle simply repeat the steps above. Note: You will be unable
to customize a wash cycle to start at the rinse or spin stage.
Fig.18 Customizing the wash cycle
EN
28
Changing pre-set options
Option Adjustment mode
After using your AquaSmart™ you may want to fine tune some of the options to suit your
wash needs. There are a number of preset options, which can be altered. (Note: not all options
are available on the non-dispensing model).
The rinse option.
Changing the cold wash to Controlled Cold.
The number of beeps at the end of the cycle.
The Out of Balance recovery routine.
Resetting the washer back to the settings it left the factory with.
To enter Option Adjustment mode
1
Turn machine on at the wall but do not press POWER.
Press START/PAUSE and hold down, then press POWER.
You will hear three quick beeps and the machine will show an
unusual pattern of lights. Pages 28 –30 explain the different
options in more detail.
2
Use the buttons on the panel to make your changes to the pre-set
options.
3
Press POWER to return to normal mode.
4
AquaSmart™ will automatically remember your changes.
Controlled Cold
The temperature of cold water varies widely, depending on your location and the season. The
lower the water temperature, the less effective the wash becomes. To help with this issue we
have developed Controlled Cold. This adds a small amount of warm water, when necessary, to
raise your cold water wash to 60°F (15.6°C). This will ensure that you receive the most effective
wash in cold water.
1
Enter Option Adjustment mode (refer above).
2
Select COLD wash temperature.
3
The wash cycle buttons show the temperature adjustment possible.
4
When the REGULAR cycle light is on, the machine will fill with cold water only.
5
Press the SHEETS cycle button and your AquaSmart™ will control the temperature to
approximately 60°F (15.6°C).
Note: If you always use cold or controlled cold water, we recommend that a warm or hot wash is
used regularly, eg. every 5th wash should be at least a warm one.
Fig.19 Press START/PAUSE and
hold down, then press POWER.
Fig.20 Select Cold Wash temperature
Loading...
