Fisher PLV-60HT User Manual

Owner's Manual

PLV-60HT

Multimedia Projector

2

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-

SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS
VOLTAGE CONSTITUTING A RISK OF ELECTRIC
SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT
OPERATING AND MAINTENANCE INSTRUCTIONS IN THE
OWNER'S MANUAL WITH THIS UNIT.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Before operating this projector, read this manual thoroughly and operate the projector properly.
This projector provides many convenient features and functions. Operating the projector properly enables you to
manage those features and maintains it in better condition for a considerable time.
Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other
accidents.
If your projector seems to operate improperly, read this manual again, check operations and cable connections and try
the solutions in the “Trouble-shooting” section of the end of this booklet. If the problem still persists, contact the sales
dealer where you purchased the projector or the service center.

TO THE OWNER

SAFETY PRECAUTIONS

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO

RAIN OR MOISTURE.

● This projector produces intense light from the projection lens. Do not stare directly into the lens as possible.
Eye damage could result. Be especially careful that children do not stare directly into the beam.

● This projector should be set in the way indicated. If not, it may result in a fire hazard.

● Take appropriate space on the top, sides and rear of the projector

cabinet for allowing air circulation and cooling the projector.
Minimum distance should be taken. If the projector is to be built
into a compartment or similarly enclosed, the minimum distances
must be maintained. Do not cover the ventilation slot on the
projector. Heat build-up can reduce the service life of your
projector, and can also be dangerous.

● Do not put any flammable object or spray can near the projector, hot air is exhausted from the ventilation
holes.

● If the projector is not to be used for an extended time, unplug the projector from the power outlet.

READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.

20cm

50cm 50cm

50cm

SIDE and TOP REAR

3

SAFETY INSTRUCTIONS

All the safety and operating instructions should be read before
the product is operated.

Read all of the instructions given here and retain them for later
use. Unplug this projector from AC power supply before
cleaning. Do not use liquid or aerosol cleaners. Use a damp
cloth for cleaning.

Follow all warnings and instructions marked on the projector.
For added protection to the projector during a lightning storm,

or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet. This will prevent damage
due to lightning and power line surges.

Do not expose this unit to rain or use near water... for
example, in a wet basement, near a swimming pool, etc...

Do not use attachments not recommended by the
manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table.
The projector may fall, causing serious injury to a child or
adult, and serious damage to the projector. Use only with a
cart or stand recommended by the manufacturer, or sold with
the projector. Wall or shelf mounting should follow the
manufacturer's instructions, and should use a mounting kit
approved by the manufacturers.

An appliance and cart combination should
be moved with care. Quick stops,
excessive force, and uneven surfaces
may cause the appliance and cart
combination to overturn.

Slots and openings in the back and bottom of the cabinet are
provided for ventilation, to insure reliable operation of the
equipment and to protect it from overheating.

The openings should never be covered with cloth or other
materials, and the bottom opening should not be blocked by
placing the projector on a bed, sofa, rug, or other similar
surface. This projector should never be placed near or over a
radiator or heat register.

This projector should not be placed in a built-in installation
such as a book case unless proper ventilation is provided.

Never push objects of any kind into this projector through
cabinet slots as they may touch dangerous voltage points or
short out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the projector.

This projector should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supplied, consult your authorized dealer or
local power company.

Do not overload wall outlets and extension cords as this can
result in fire or electric shock. Do not allow anything to rest on
the power cord. Do not locate this projector where the cord
may be damaged by persons walking on it.

Do not attempt to service this projector yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service
personnel.

Unplug this projector from wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or water.
d. If the projector does not operate normally by following the

operating instructions. Adjust only those controls that are
covered by the operating instructions as improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the projector to normal operation.

e. If the projector has been dropped or the cabinet has been

damaged.

f. When the projector exhibits a distinct change in

performance-this indicates a need for service.

When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer that have the same characteristics as the
original part. Unauthorized substitutions may result in fire,
electric shock, or injury to persons.

Upon completion of any service or repairs to this projector, ask
the service technician to perform routine safety checks to
determine that the projector is in safe operating condition.

Voor de klanten in Nederland

Bij dit product zijn batterijen
geleverd.
Wanneer deze leeg zijn,
moet u ze niet weggooien
maar inleveren als KCA.

4

COMPLIANCES

Federal Communication Commission Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generated, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures :

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada :

AC Power Cord used in the United States and Canada is listed by the Underwriters
Laboratories (UL) and certified by the Canadian Standard Association (CSA).
AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure
that the plug will fit into the power outlet. Do not try to defeat this safety feature.
Should you be unable to insert the plug into the outlet, contact your electrician.

GROUND

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.

AC POWER CORD REQUIREMENT

5

TABLE OF CONTENTS

FEATURES AND DESIGN 6

BEFORE OPERATION 14

COMPUTER MODE 23

VIDEO MODE 31

SETTING 36

APPENDIX 38

PREPARATION 7

NAME OF EACH PART OF PROJECTOR 7
SETTING-UP PROJECTOR 8

CONNECTING AC POWER CORD 8
POSITIONING PROJECTOR 9
ADJUSTABLE FEET 10
MOVING PROJECTOR 10

CONNECTING PROJECTOR 11

TERMINALS OF PROJECTOR 11
CONNECTING TO VIDEO EQUIPMENT 12
CONNECTING TO COMPUTER 13

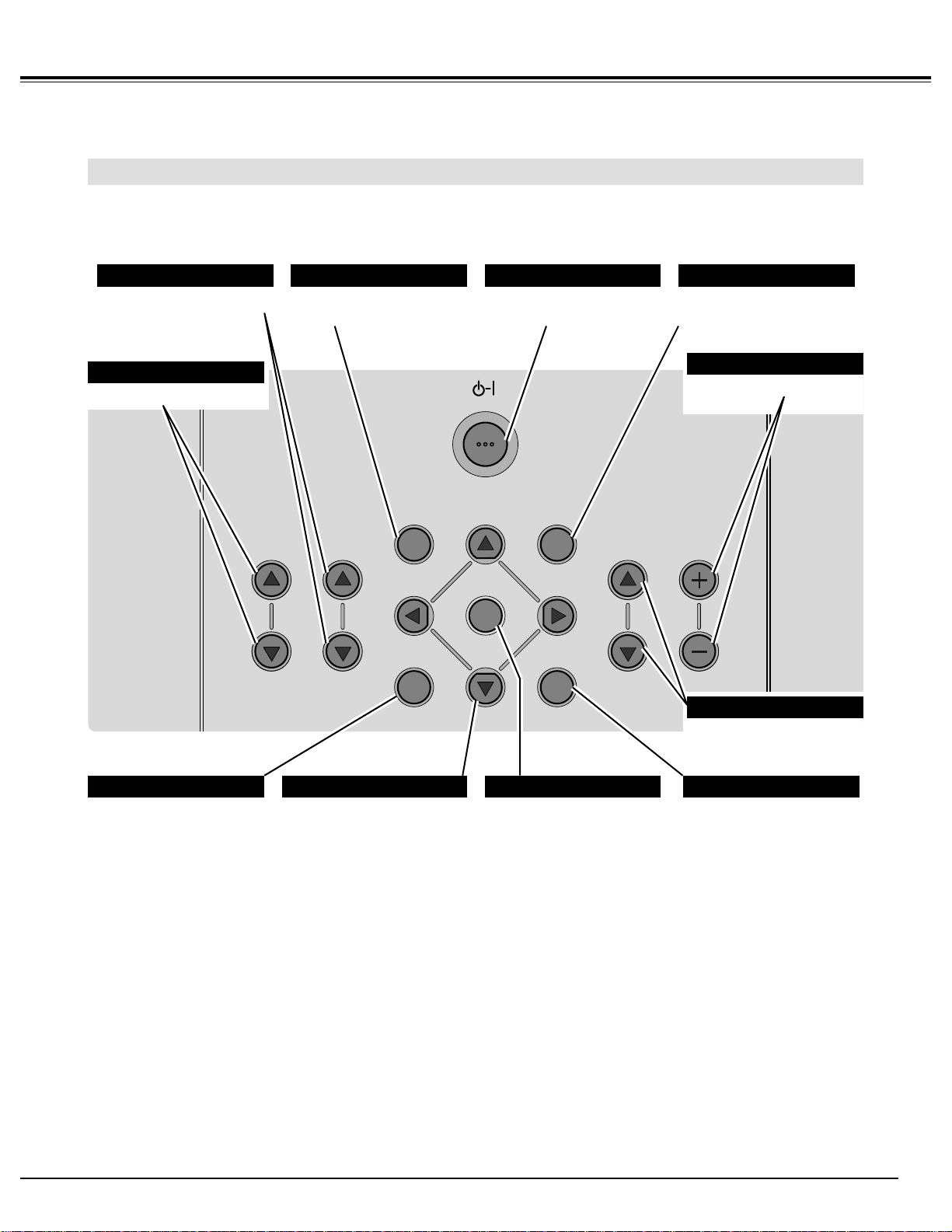

TOP CONTROLS AND INDICATORS 14

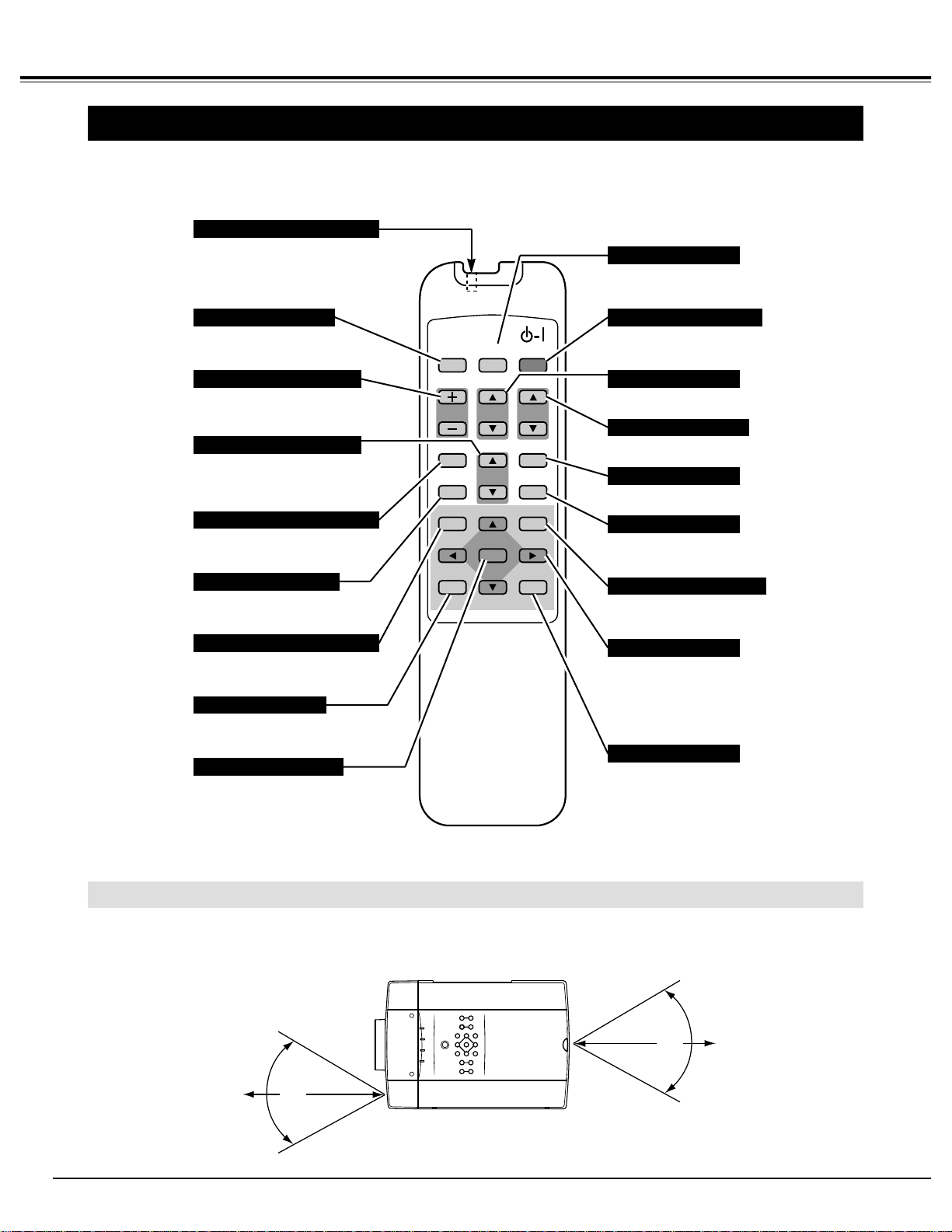

OPERATION OF REMOTE CONTROL 16

OPERATING RANGE 16

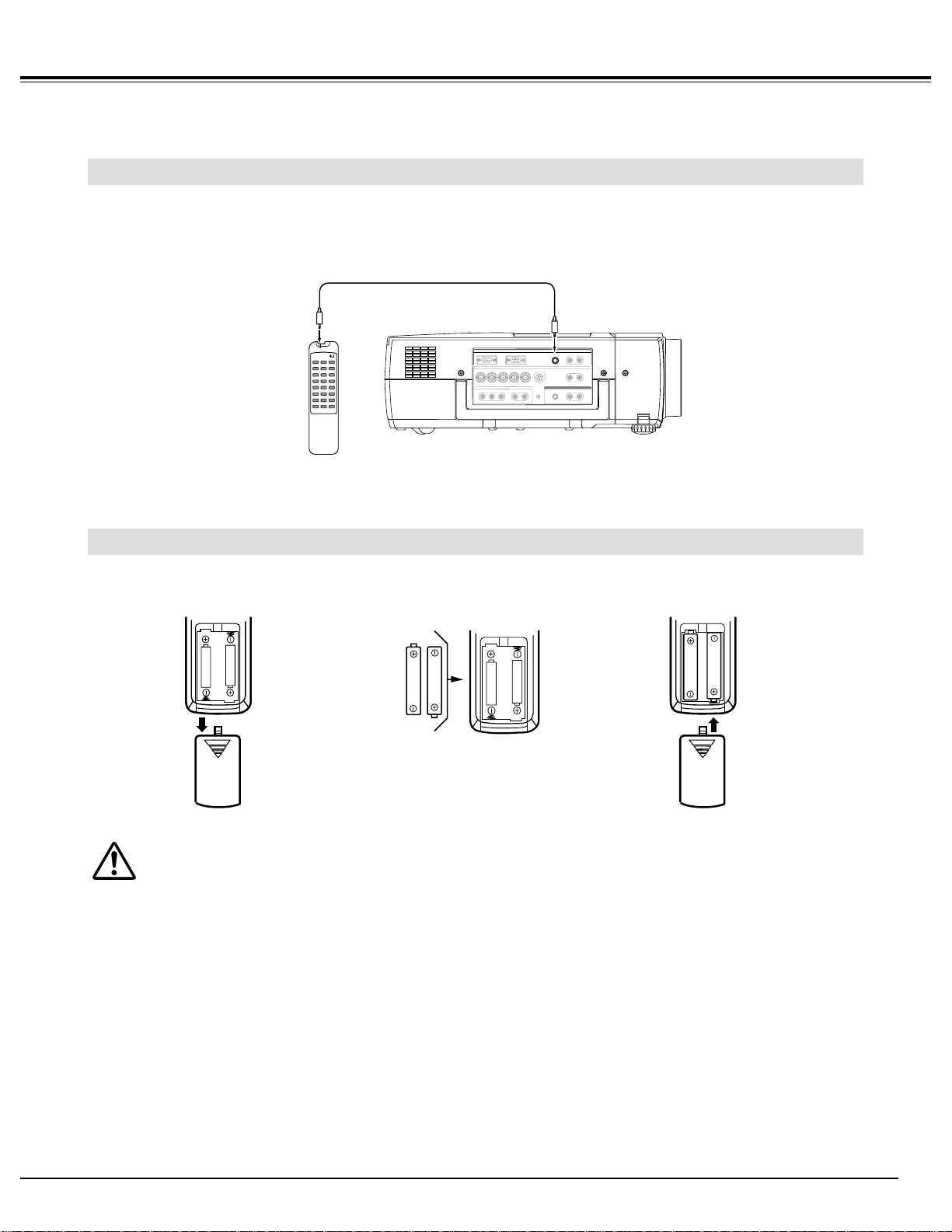

WIRED REMOTE CONTROL OPERATION 17
REMOTE CONTROL BATTERIES INSTALLATION 17

OPERATING ON-SCREEN MENU 18

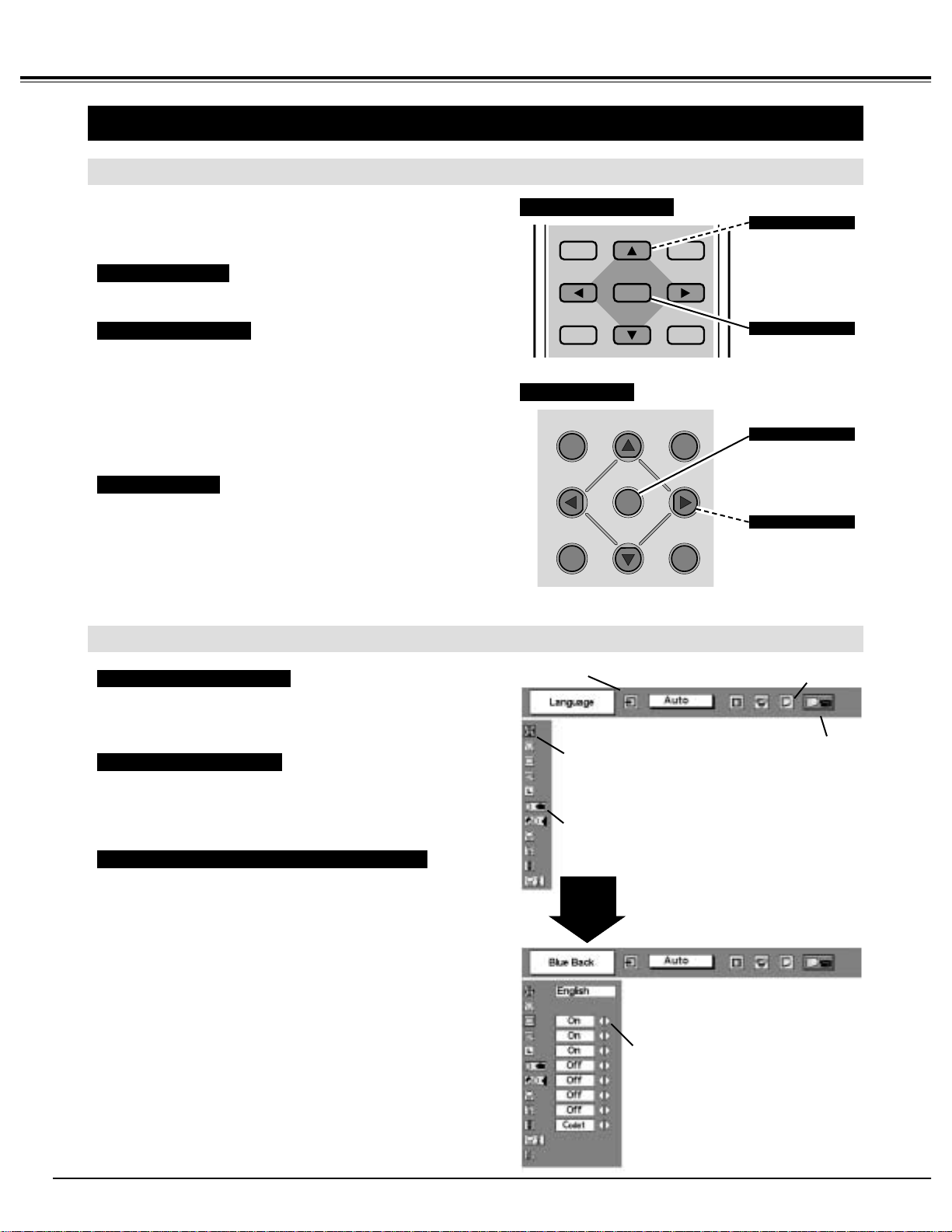

HOW TO OPERATE ON-SCREEN MENU 18
FLOW OF ON-SCREEN MENU OPERATION 18

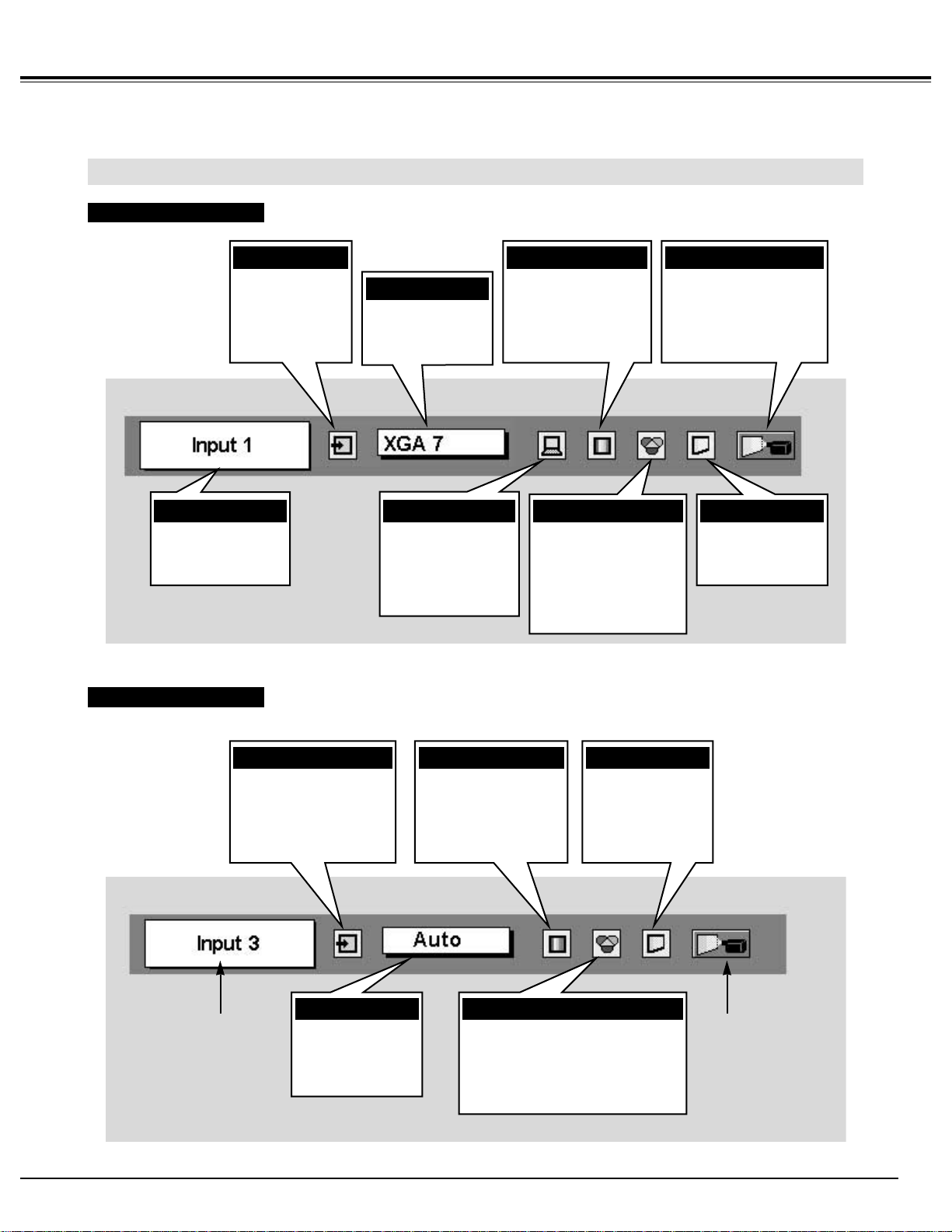

MENU BAR 19

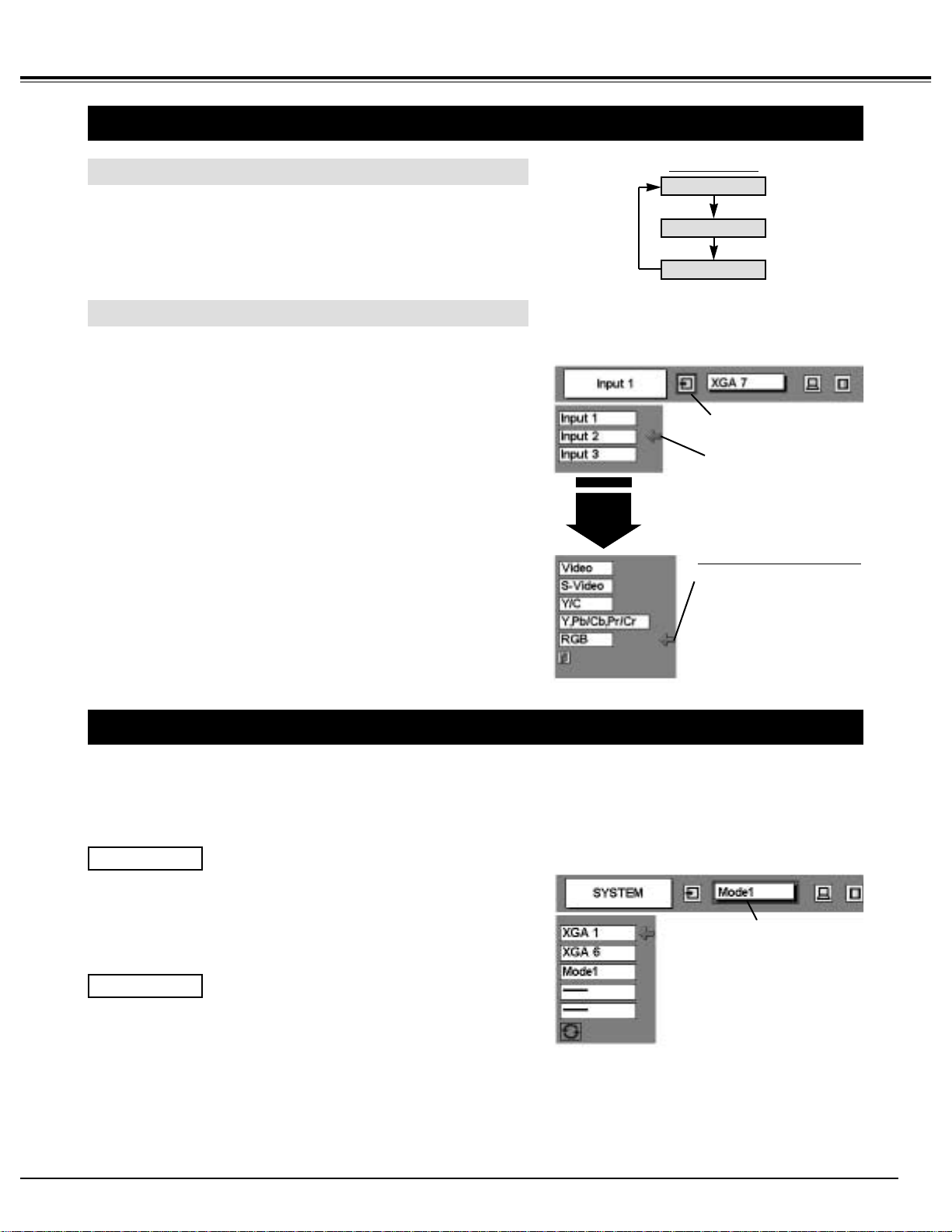

SELECTING INPUT SOURCE 23

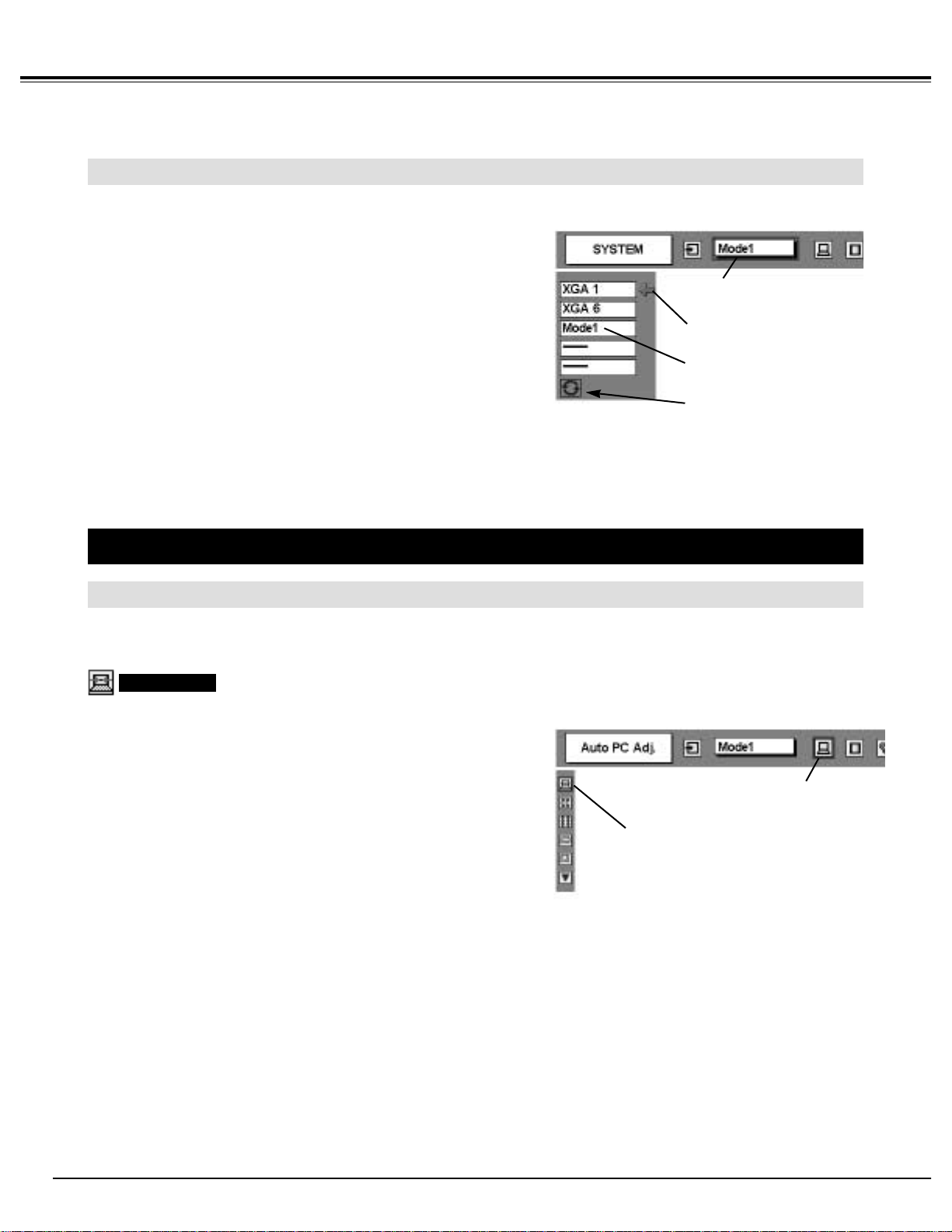

SELECTING COMPUTER SYSTEM 23
PC ADJUSTMENT 24

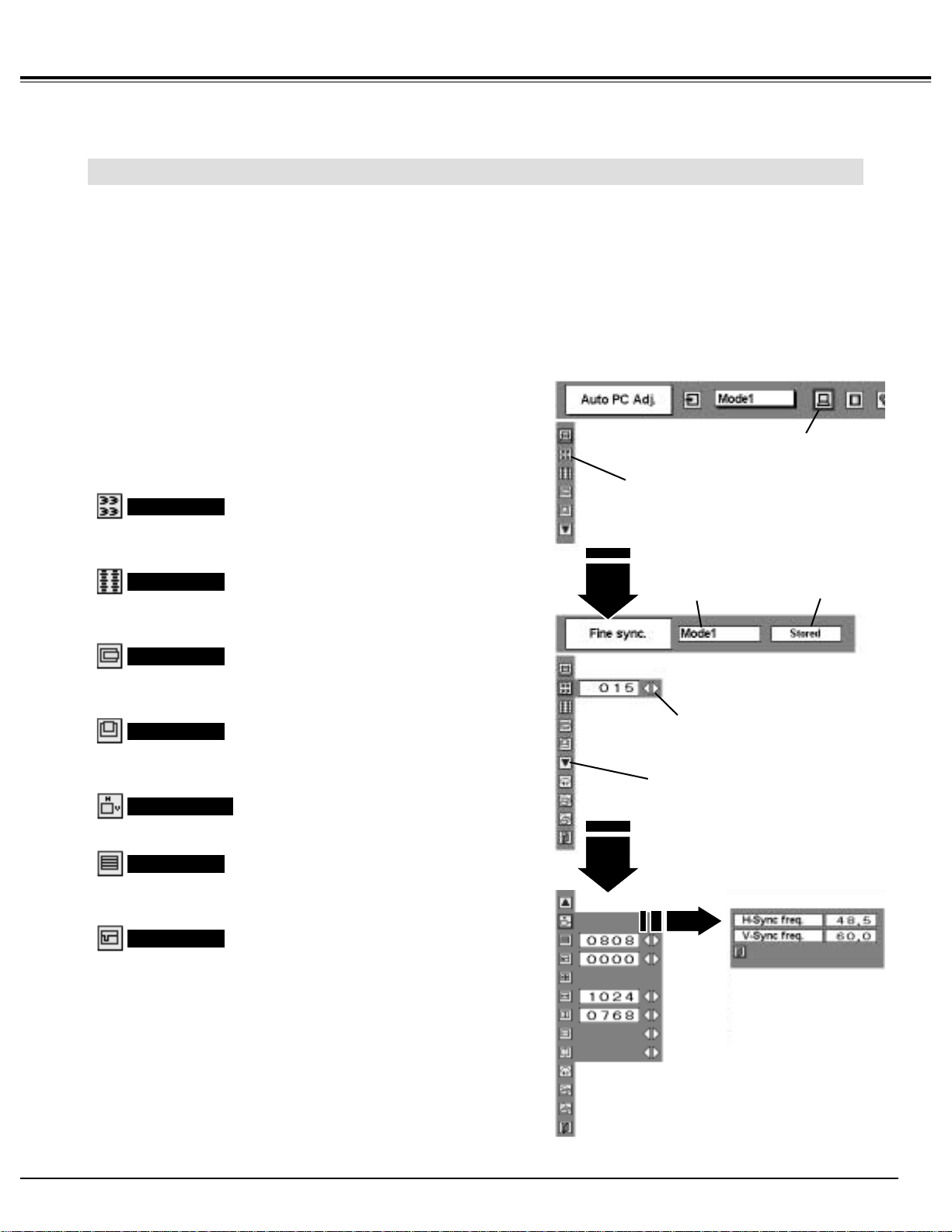

AUTO PC ADJUSTMENT 24

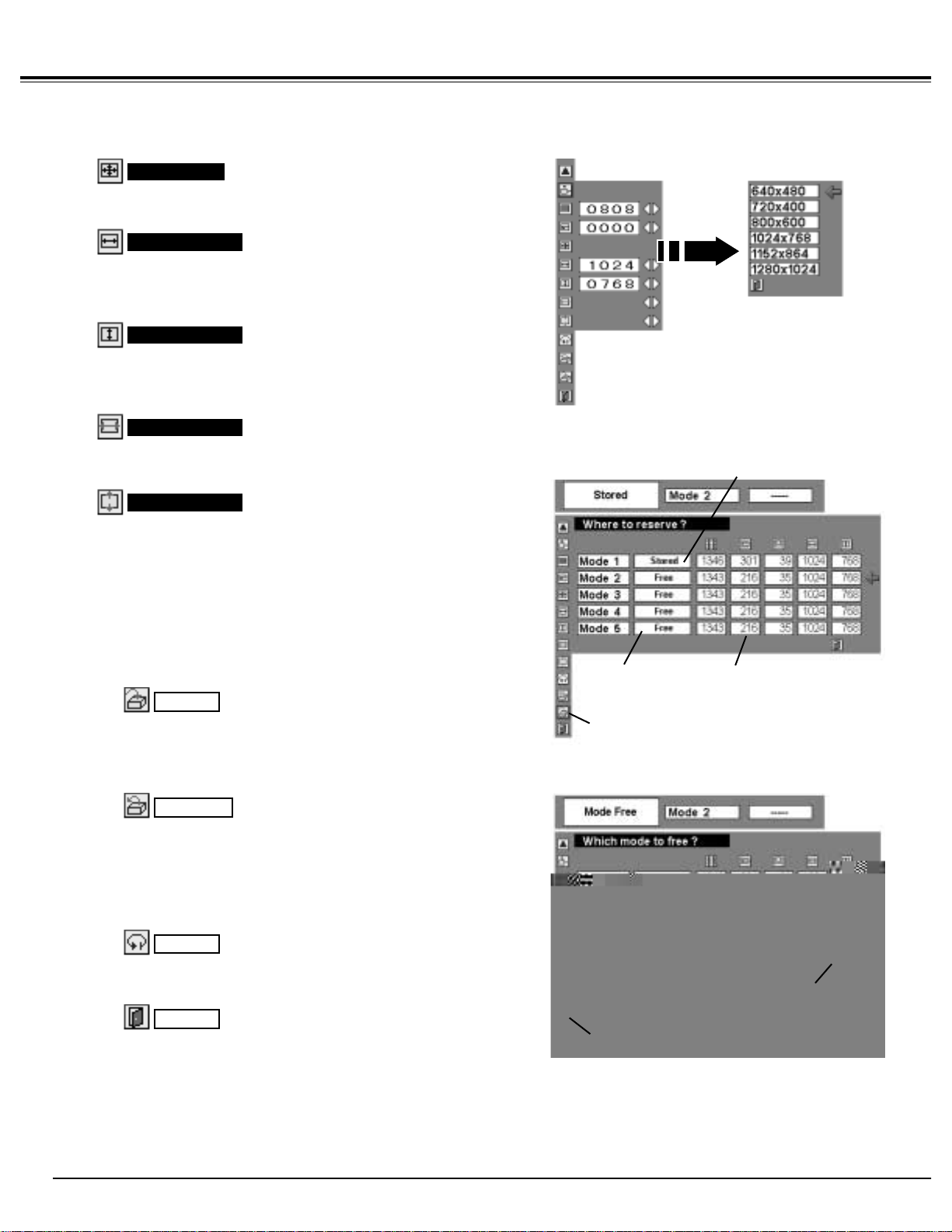

MANUAL PC ADJUSTMENT 25
COMPATIBLE COMPUTER SPECIFICATIONS 27

PICTURE IMAGE ADJUSTMENT 28

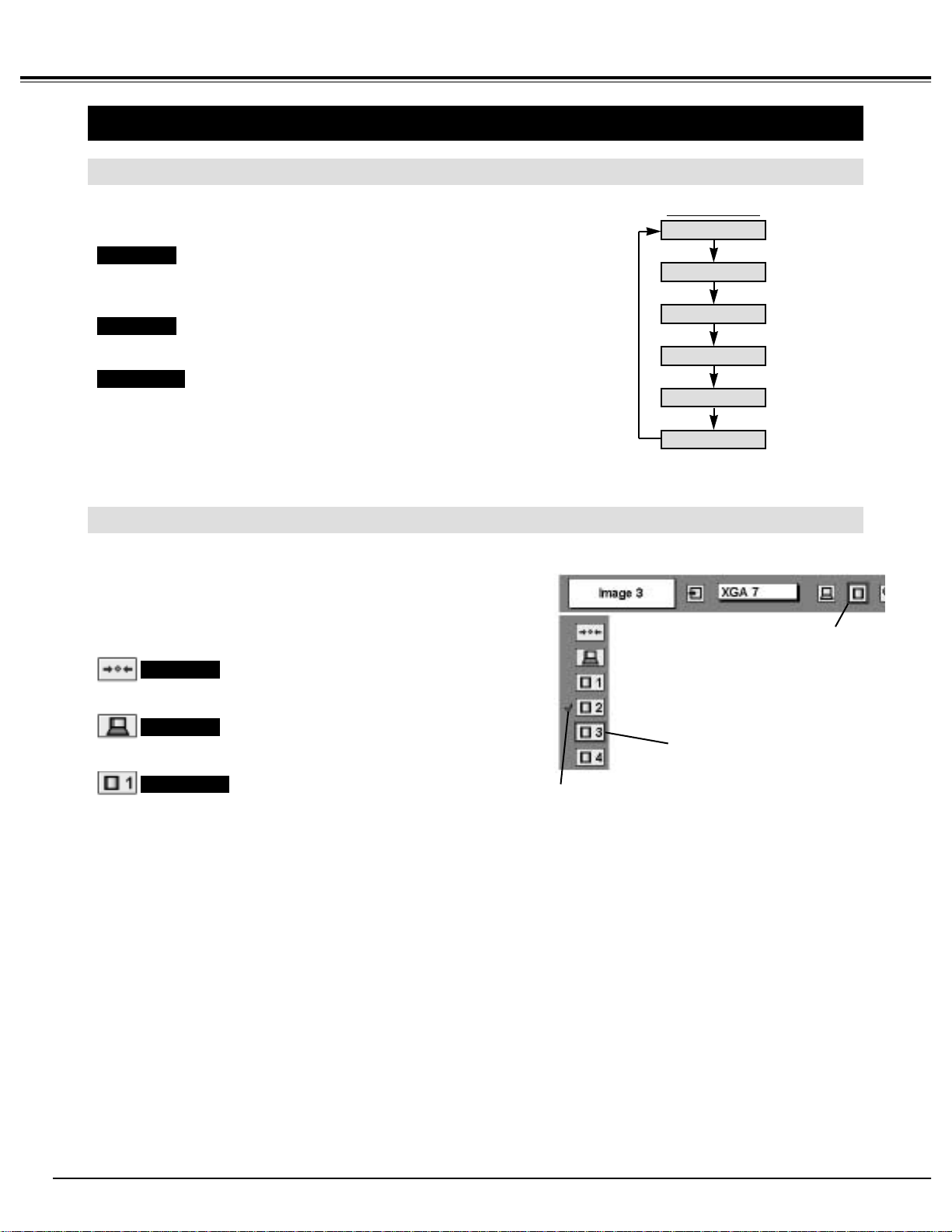

IMAGE LEVEL SELECT 28

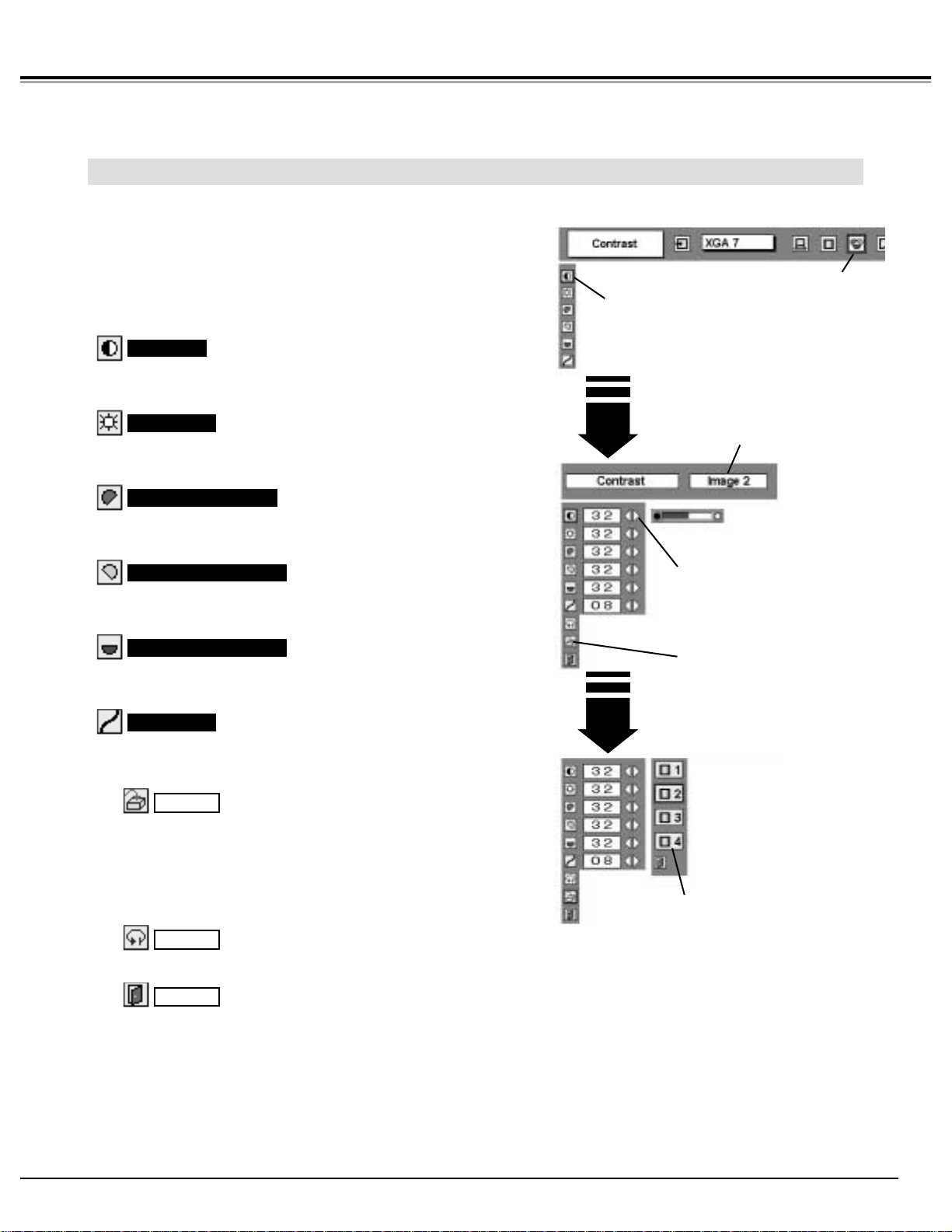

IMAGE LEVEL ADJUSTMENT 29

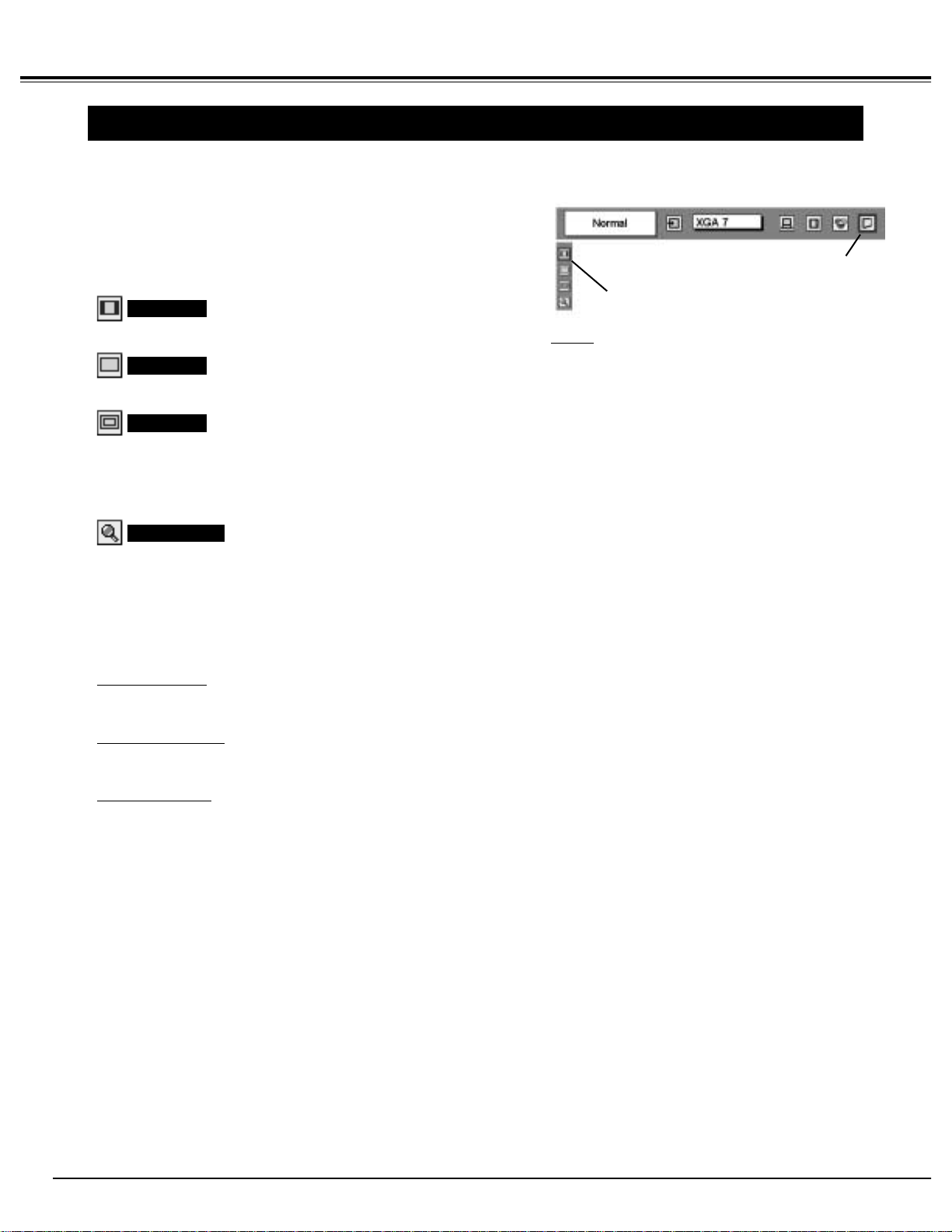

PICTURE SCREEN ADJUSTMENT 30

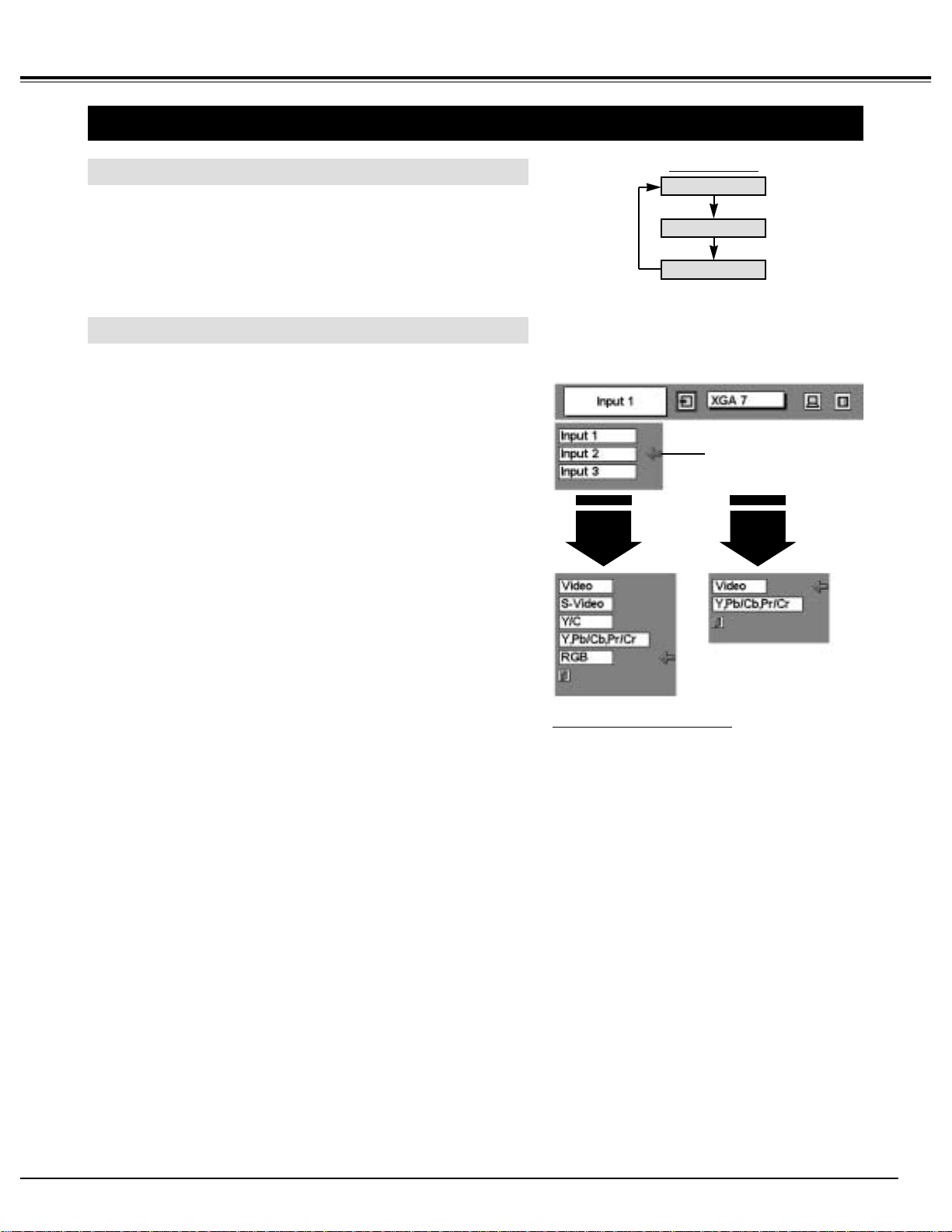

SELECTING INPUT SOURCE 31

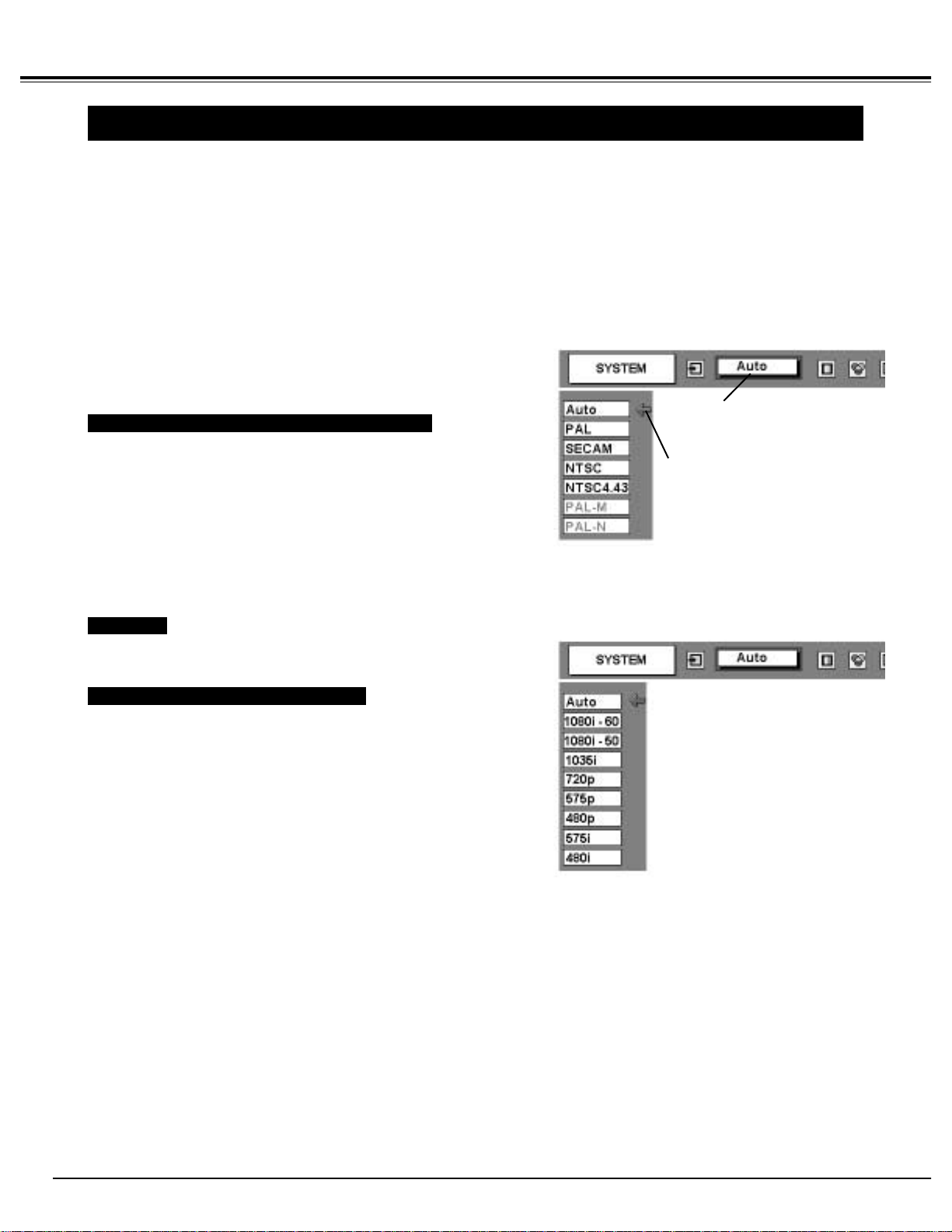

SELECTING VIDEO SYSTEM 32
PICTURE IMAGE ADJUSTMENT 33

IMAGE LEVEL SELECT 33

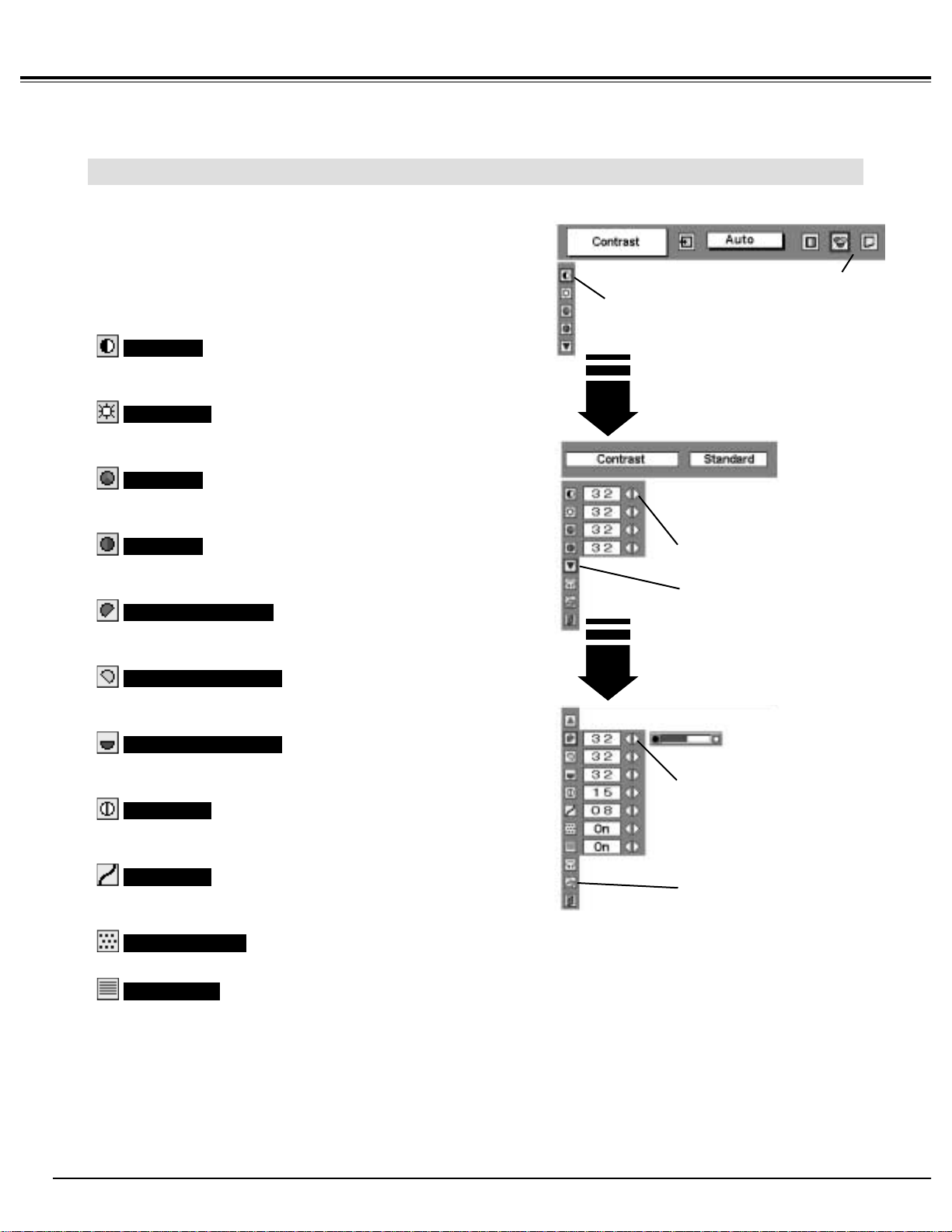

IMAGE LEVEL ADJUSTMENT 34

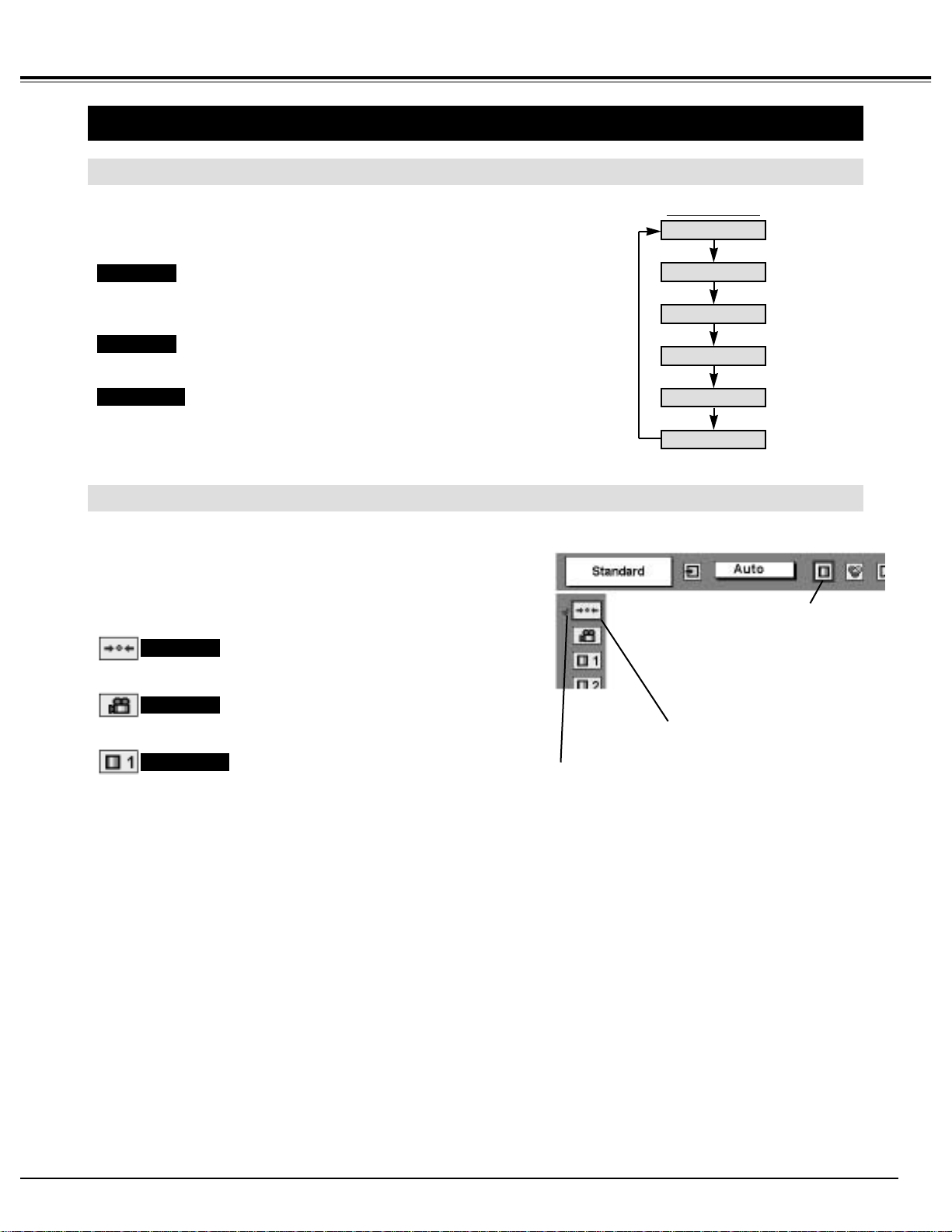

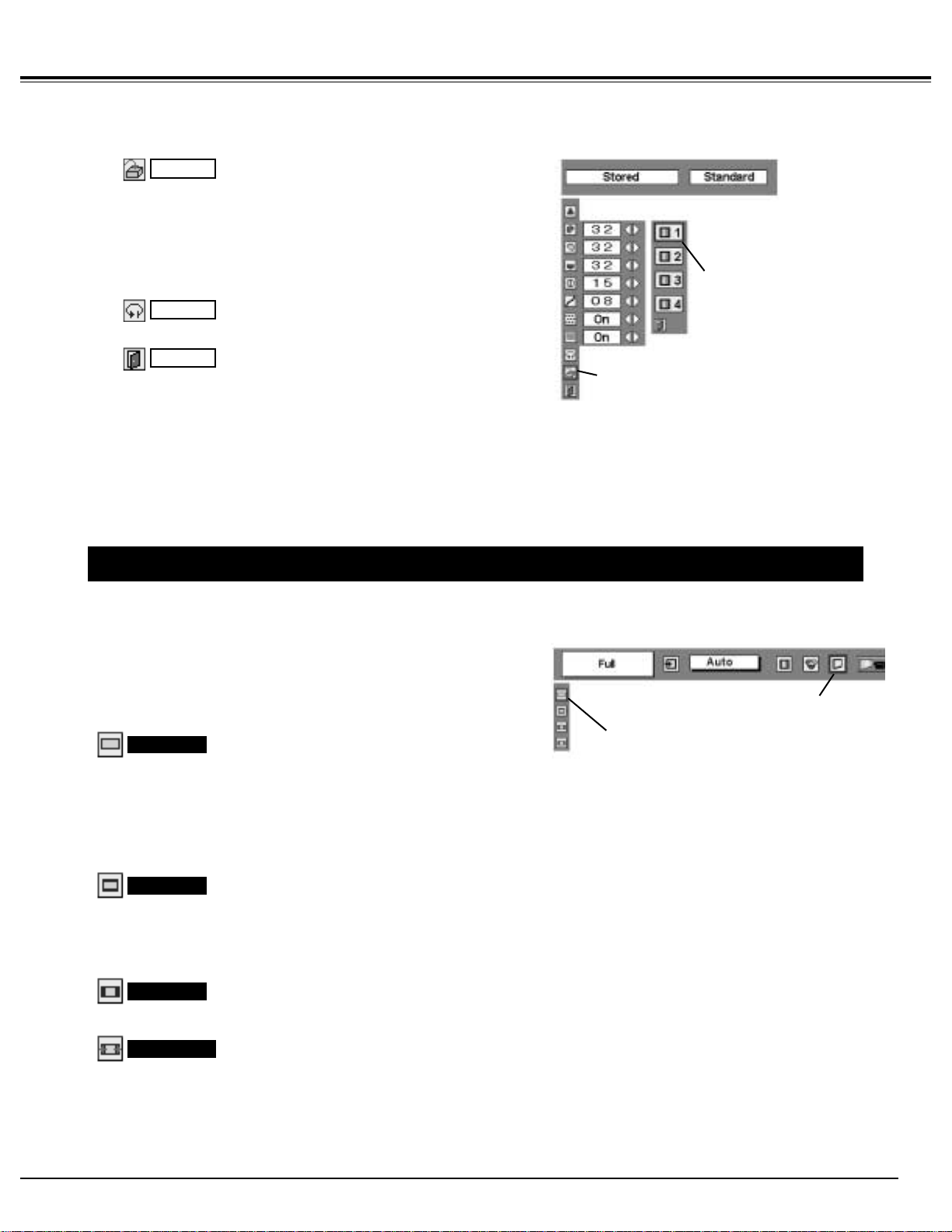

PICTURE SCREEN ADJUSTMENT 35

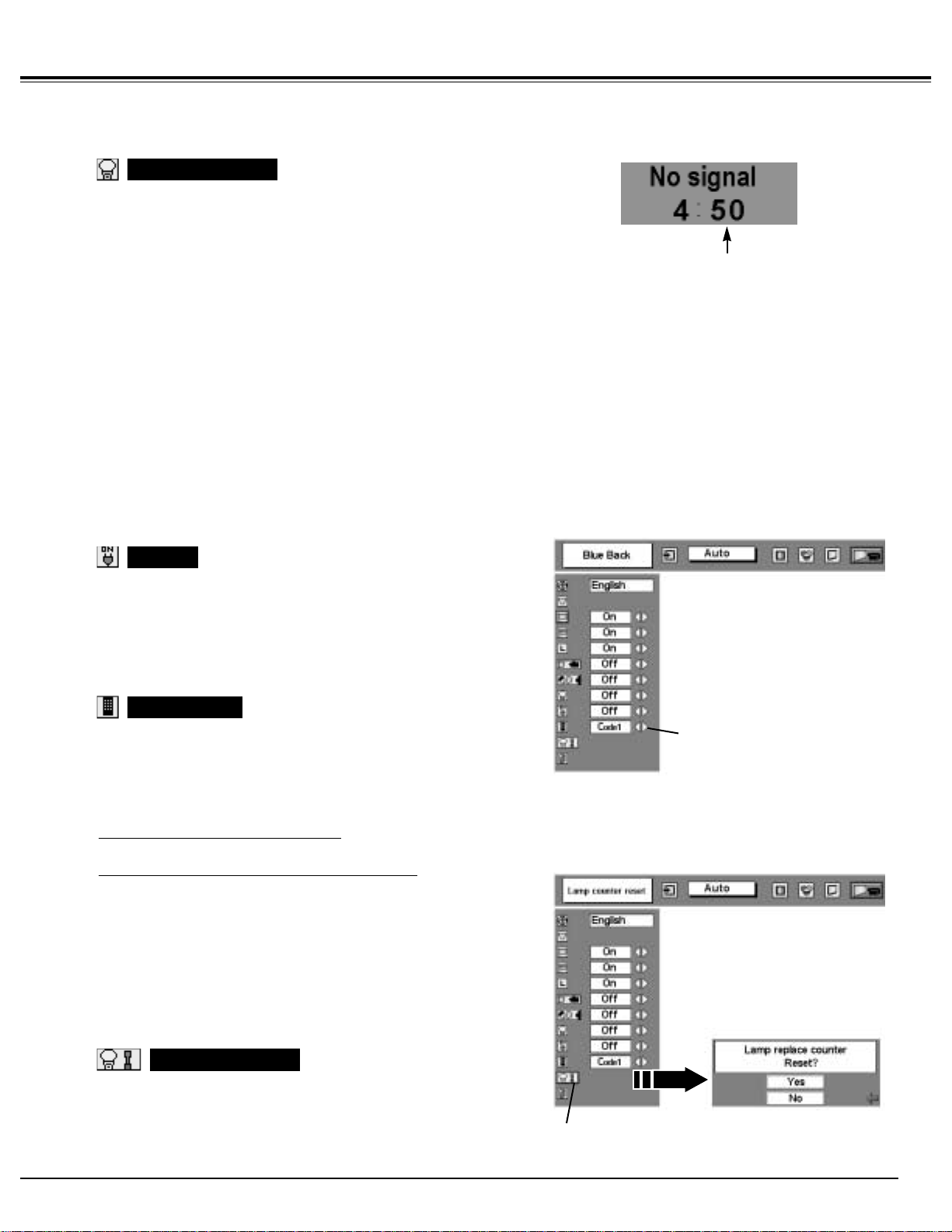

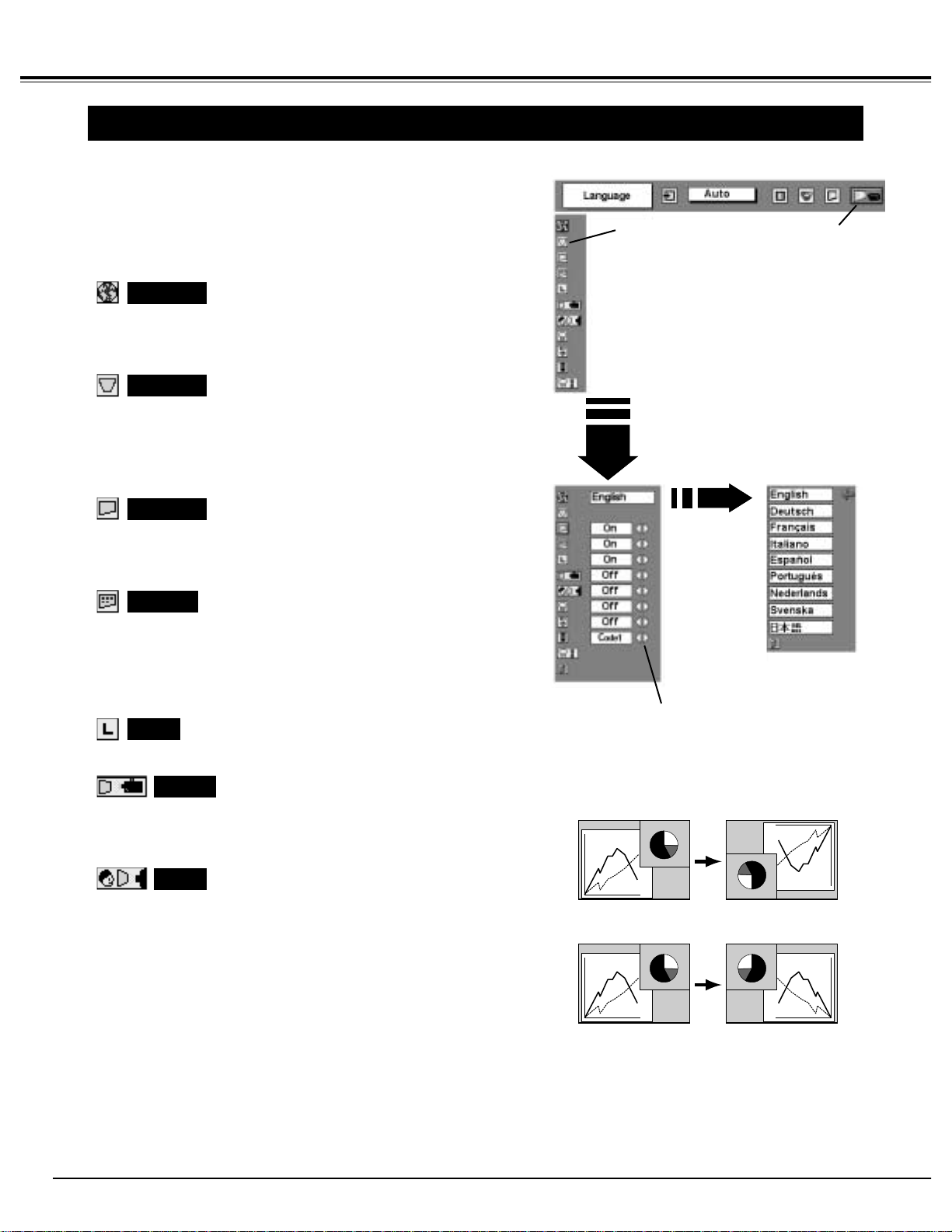

SETTING MENU 36

MAINTENANCE 38

WARNING TEMP. INDICATOR 38

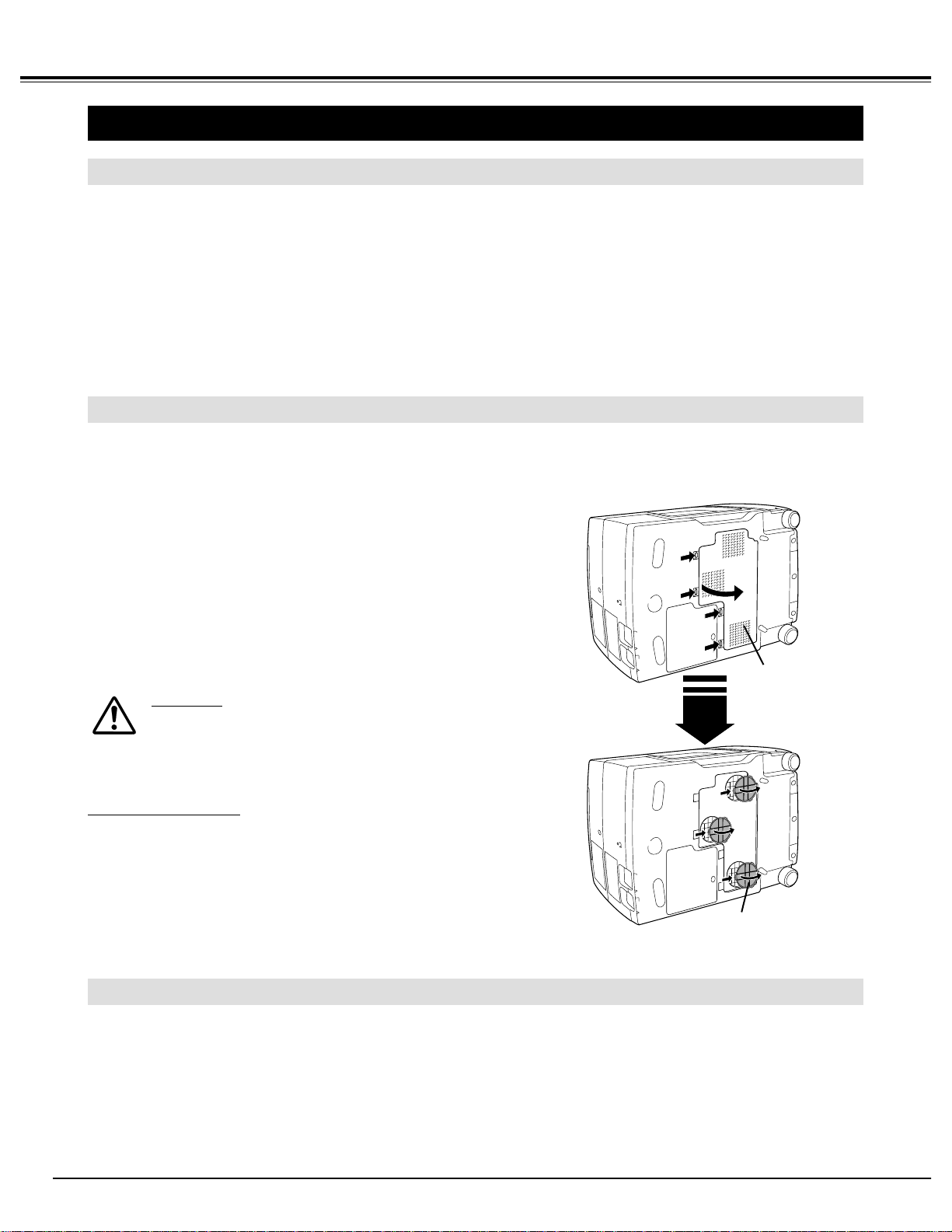

AIR FILTER CARE AND CLEANING 38
CLEANING THE PROJECTION LENS 38

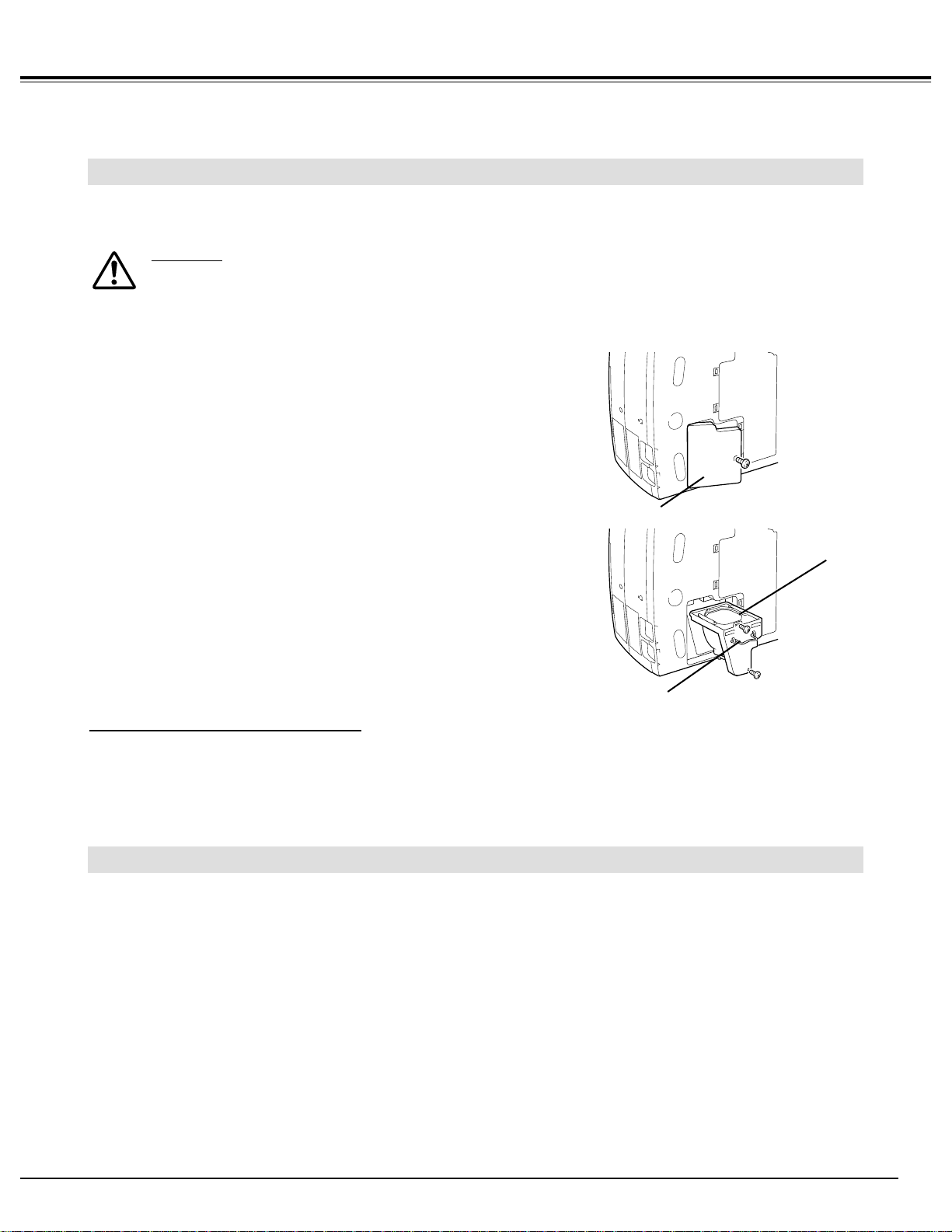

LAMP REPLACEMENT 39
LAMP REPLACE COUNTER 39

TROUBLESHOOTING 40
TECHNICAL SPECIFICATIONS 42

BASIC OPERATION 20

TURNING ON / OFF PROJECTOR 20

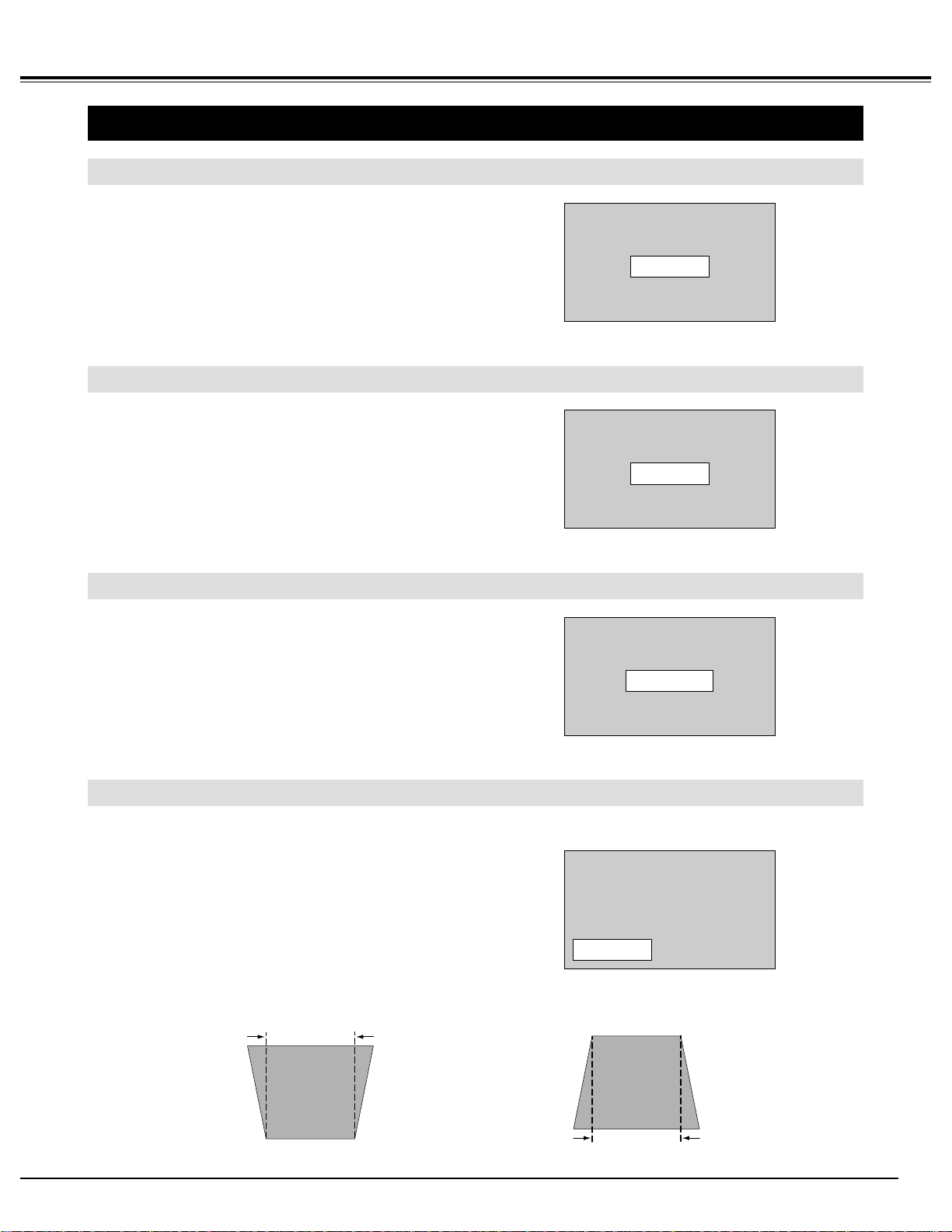

ADJUSTING SCREEN 21

ZOOM ADJUSTMENT 21
FOCUS ADJUSTMENT 21
LENS SHIFT ADJUSTMENT 21
KEYSTONE ADJUSTMENT 21
NO SHOW FUNCTION 22
PICTURE FREEZE FUNCTION 22

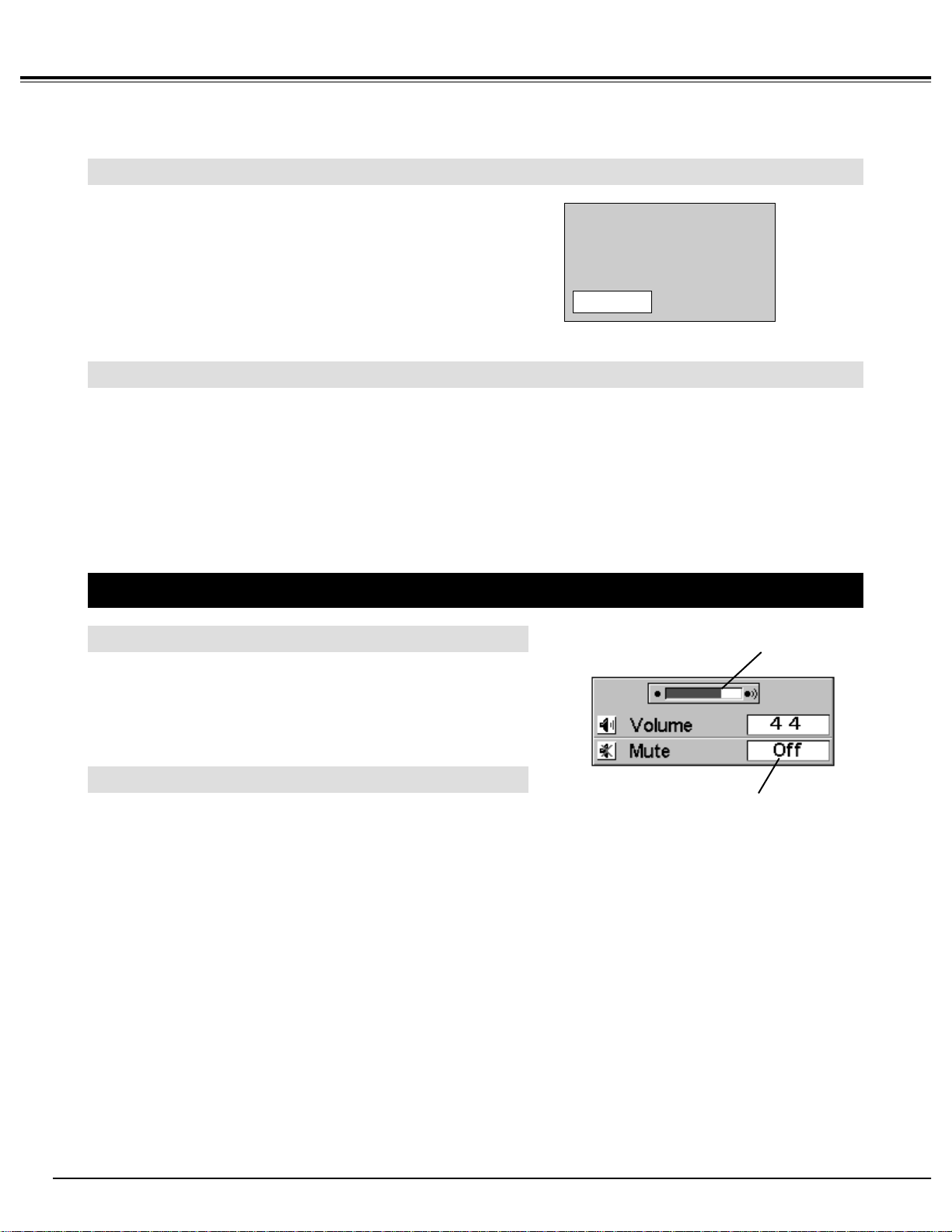

SOUND ADJUSTMENT 22

VOLUME ADJUSTMENT 22
MUTE SETTING 22

TRADEMARKS

● Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer,Inc.

● IBM and PS/2 are trademarks or registered trademarks of International Business Machines, Inc.

● Windows and PowerPoint are registered trademarks of Microsoft Corporation.

● Each name of corporations or products in the owner's manual is a trademark or a registered trademark of its

respective corporation.

6

FEATURES AND DESIGN

This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of
use. The projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal
display (LCD) technology.

◆ Compatibility

This projector widely accepts various video and
computer input signals including;

● 6 Color Systems

NTSC, PAL, SECAM, NTSC 4.43, PAL-M or PAL­N color system can be connected.

● Component Video

Component video signals, such as a DVD player
output high definition TV signals including 480i,
480p, 575i, 575p, 720p, 1035i, 1080i-50 or 1080i­60, can be connected.

● S-Video

S-Video signals, such as a S-VHS VCR output
signals, can be connected.

● Computers

IBM-compatible and Macintosh computers up to
1280 x 1024 resolution.

◆ High Resolution Image

This projector provides 1366 x 768 dots resolution for
computer input and 800 horizontal TV lines. The
resolution from computer between XGA (1024 x 768)
and SXGA (1280 x 1024) is compressed into 1024 x 768
dots. This projector cannot display image of over 1280 x
1024 dots. When the resolution of your computer is over
than 1280 x 1024, reset computer output for lower
resolution.

◆ Multi-Scan System

This projector has Multi-Scan System to conform to
almost all computer output signals quickly. There is no
need for complicated manual adjustment of frequency
and other settings.

◆ Keystone Correction

Positioning height of projector may result in distorted
images being displayed in a trapezoid shape. Keystone
Correction solves this problem by digitally altering
projection to produce undistorted images.

◆ Multilanguage Menu Display

Operation menu is displayed in; English, German,
French, Italian, Spanish, Portuguese, Dutch, Swedish or
Japanese.

◆ One-Touch Auto PC Adjustment

Incoming computer video signals are recognized and the
best adjustment is automatically set by Auto PC
Adjustment. No complicated setup is necessary and
projection is always precise.

◆ Digital Zoom (for Computer)

Digital Zoom function magnifies the image up to 16
times, allowing you to focus on crucial information at a
presentation.

◆ Power Management

Power Management function is provided to reduce power
consumption while the projector is not in use.
This Power Management function operates to turn
Projection Lamp off when the projector detects signal
interruption and any button is not pressed over 5
minutes. Projection Lamp is automatically turned on
again when the projector detects the signal or any
operation button is pressed.
This projector is shipped with this function ON.

◆ Motor-driven Lens Shift

Projection Lens can be moved up and down with Motor­driven Lens Shift function. This function makes it easy to
provide projected image where you want.
Zoom and Focus can be also adjusted with Motor-driven
operation.

◆ Progressive Scan (for Video)

Progressive Scan function converts interlace video
signals into progressive scan signals and provide fine
picture quality.

7

PREPARATION

NAME OF EACH PART OF PROJECTOR

BOTTOM

BACK

HOT AIR EXHAUSTED !

Air blown from Exhaust Vents is hot. When
using or installing projector, the following
precautions should be taken.

● Do not put any flammable object near these
vents.

● Keep the rear grills at least 3’(1m) away from
any object, especially heat-sensitive object.

● Do not touch this area, especially screws and
metallic parts. This area will become hot
while projector is used.

This projector detects internal temperature
and automatically controls operating power
of Cooling Fans.

FRONT

LAMP COVER

ADJUSTABLE FEET

AND

FEET LOCK LATCHES

This projector is equipped with Cooling
Fans for protection from overheating.
Pay attention to the following to ensure
proper ventilation and avoid a possible
risk of fire and malfunction.

● Do not cover vent slots.

● Keep bottom clear of any object.

Obstructions may block cooling air.

AIR INTAKE VENTS

(Side and Bottom)

PROJECTION LENS

SPEAKERS

INFRARED

REMOTE RECEIVERS

LENS COVER

POWER CORD CONNECTOR

EXHAUST VENTS

TERMINALS

AND CONNECTORS

MAIN ON / OFF SWITCH

TOP CONTROLS

AND INDICATORS

SETTING-UP PROJECTOR

8

PREPARATION

This projector uses nominal input voltages of 100-120 V
or 200-240 V AC. The projector automatically selects the
correct input voltage. It is designed to work with single­phase power systems having a grounded neutral
conductor. To reduce the risk of electrical shock, do not
plug into any other type of power system.
Consult your authorized dealer or service station if you
are not sure of the type of power supply being in use.
Connect projector with the peripheral equipment before
turning projector on. (Refer to pages 11 ~ 13 for
connection.)

CAUTION

For safety, unplug the AC Power Cord when the
appliance is not used.

CONNECTING AC POWER CORD

Connect AC Power Cord (supplied) to
projector.
The AC outlet must be near this
equipment and must be easily
accessible.

MAIN ON / OFF SWITCH

To the POWER CORD
CONNECTOR on the
projector.

Projector side AC Outlet side

Ground

NOTE ON THE POWER CORD

The AC Power Cord must meet the requirement of the country where you use the projector.
Confirm the AC plug type with the chart below. The proper AC power cord must be used.
If the supplied AC Power Cord does not match the AC outlet, contact your sales dealer.

To the AC Outlet.

(120 V AC)

For Continental Europe

For the U.S.A. and Canada

To the AC Outlet.

(200 - 240 V AC)

9

PREPARATION

POSITIONING THE PROJECTOR

This projector is designed to project on a flat projection surface and it can be focused from 4.43’ (1.35m) ~ 45.9’
(14.0m). Refer to the figure below to adjust the screen size.

Width x Height

886 x 498 mm

40”

100”

200”

300”

400”

308”

231”

154”

77”

31”

45.9’ (14.0m)

34.1’ (10.4m)

22.9’ (7.0m)

11.5’ (3.5m)

4.43’ (1.35m)

Max. Zoom

Min. Zoom

2215 x 1245 mm 4430 x 2490 mm 6644 x 3736 mm 8860 x 4980 mm

LENS SHIFT ADJUSTMENT

Projection Lens can be moved up and down with Motor-driven Lens Shift function. This function makes it easy
to provide the projected image where you want. Refer to P 21 for operation.

Highest Lens Shift Lowest Lens Shift

H1

H3

H4

Screen Size

40” 100” 200” 300” 400

”

H2

H1 : H2 = 10.9 : 1 H3 : H4 = 1 : 3.9

RECOMMENDATION

Brightness in the room has a great influence on picture quality. It is recommended to limit ambient lighting in
order to provide the best image.

NOTE
Screen size and lens shift ratio on the above charts are standard values and they may change by positioning
conditions.

10

PREPARATION

CAUTION IN CARRYING OR TRANSPORTING THE PROJECTOR

● Do not drop or bump projector, otherwise damages or malfunctions may result.

● When carrying projector, use a suitable carrying case.

● Do not transport projector by using a courier or transport service in an unsuitable transport case. This

may cause damage to projector. To transport projector through a courier or transport service, consult your
dealer for best way.

MOVING PROJECTOR

Use Carry Handle when moving projector.
When moving projector, replace Lens Cover and retract
Adjustable Feet to prevent damage to Projection Lens
and cabinet.
When this projector is not in use for an extended period,
put it into the case (Dust Cover) supplied with this
projector.

ADJUSTABLE FEET

Picture tilt and projection angle can be adjusted by
rotating Adjustable Feet. Projection angle can be
adjusted to 9.0 degrees.

Lift the front of projector and pull Feet Lock Latches on
both sides of projector.

1

ADJUSTABLE FEET

FEET LOCK
LATCHES

Release Feet Lock Latches to lock Adjustable Feet and
rotate Adjustable Feet to fine tune position and tilt.

2

To shorten Adjustable Feet, lift the front of projector and
pull and undo Feet Lock Latches.

Position and keystone distortion of the image can be
adjusted using Menu Operation. (Refer to P 21 and 36.)

3

INPUT 1

RGB SERIAL PORT R/C JACK R

-

AUDIO-L(MONO)

R

-

AUDIO-L(MONO)

S-VIDEO

VH/VRB

INPUT 2

G

VIDEO/Y

INPUT 3

C/Pb (Cb) Pr (Cr)

VIDEO/Y Pb (Cb) Pr (Cr)

R

-

AUDIO-L

(MONO)

R-AUDIO-LRESET EXT.SP(8Ω)

AUDIO OUT

11

CONNECTING PROJECTOR

TERMINALS OF PROJECTOR

Connect S-VIDEO output
from video equipment to
this jack. (Refer to P12.)

Connect audio output from
computer or video equipment to
these jacks. (Refer to P12, 13.)

AUDIO INPUT JACKS

VIDEO INPUT JACKS

S-VIDEO INPUT JACK

Connect video output to these
jacks.
Connect composite video
output to VIDEO/Y or connect
component video outputs to
VIDEO/Y, Pb(Cb) and Pr(Cr).
(Refer to P12.)

Connect computer or video output to
these jacks.
Connect composite video output to
VIDEO/Y, separate video outputs to
VIDEO/Y and C/Pb(Cb) or component
video outputs to VIDEO/Y, C/Pb(Cb) and
Pr(Cr). (Refer to P12, 13.)

BNC JACKS

Connect computer output to
this terminal. (Refer to P13.)

RGB TERMINAL

This projector has INPUT TERMINALS and OUTPUT TERMINALS on its side for connecting computers and
video equipment. Refer to the figure on pages 11 to 13 and connect properly.

Connect an external audio
amplifier to these jacks.
(Refer to P12, 13.)

AUDIO OUTPUT JACKS

This projector uses a micro processor to
control the unit. Occasionally, the micro
processor may malfunction and need to
be reset. This can be done by pressing
RESET button with a pen, which will
shut down and restart the unit. Do not
use RESET function excessively.

RESET BUTTON

When using Remote Control Unit as
Wired Remote Control, Connect
Remote Control Unit to this jack with
Remote Control Cable (supplied).
(Refer to page 16, 17.)

R/C JACK

When controlling this projector
by computer, connect your
computer to this terminal.

SERIAL PORT TERMINAL

Connect an external speaker
system to this jack.
(Refer to P12, 13.)

EXTERNAL SPEAKER JACK

INPUT / OUTPUT

TERMINALS

INPUT 1

-

AUDIO-L(MONO)

INPUT 2

S-VIDEO

-

AUDIO-L(MONO)

R

AUDIO OUT

R-AUDIO-LRESET EX T.SP(8Ω)

RGB SERIAL PORT R/C JACK R

VH/VRB

G

VIDEO/Y

C/Pb (Cb) Pr (Cr)

INPUT 3

VIDEO/Y Pb (Cb) Pr (Cr)

R

-

AUDIO-L

(MONO)

12

CONNECTING PROJECTOR

CONNECTING TO VIDEO EQUIPMENT

R-AUDIO-L(MONO)

S-VIDEO

VH/VRB

INPUT 2

G

VIDEO/Y

INPUT 3

C/Pb (Cb) Pr (Cr)

VIDEO/Y Pb (Cb) Pr (Cr)

R

-

AUDIO-L

(MONO)

R-AUDIO-L

INPUT 1

RGB SERIAL PORT R/C JACK R-AUDIO-L(MONO)

RESET EXT.SP(8Ω)

AUDIO OUT

Video Source (example)

Video Cassette Recorder Video Disc Player

Video Cable
(RCA x 3) ✽

S-VIDEO

Cable

Audio Amplifier

Audio Speaker

(stereo)

Audio Cable ✽

(RCA x 2)

S-VIDEO

Output

Audio Amplifier

Cables used for connection (✽ = Cables are not supplied with this projector.)

• Video Cable (RCA x 1)

• Video Cable (RCA x 3)✽, (BNC x 1)✽, (BNC x 2)✽ or (BNC x 3)✽

• S-VIDEO Cable

• Audio Cable (RCA x 2)

• Speaker Cable (Mini x 1 (stereo))

✽

NOTE :
When connecting projector, AC Power Cords of
both projector and external equipment should be
disconnected from AC outlet.

Audio Output

External Audio

Equipment

R L

S-VIDEO

Y Pb/Cb Pr/Cr

VIDEO

R L

Component video output equipment.

(such as DVD player or

high-definition TV source.)

Composite

Video Output

Audio Cable

(RCA x 2)

VIDEO

Y Pb/Cb Pr/Cr Y C

Component Video

Output

Separate

Video Output

Component Video

Output

EXT. SP

Speaker (8Ω / 2W)

Speaker Cable

(Mini / stereo) ✽

Video
Cable

(RCA x 1)

Video
Cable

(BNC x 1)✽

Video Cable

(BNC x 2) ✽

Video Cable
(BNC x 3) ✽

13

CONNECTING PROJECTOR

INPUT 1

RGB R

-

AUDIO-L(MONO)

R

-

AUDIO-L(MONO)

VH/VRB

INPUT 2

G

VIDEO/Y

C/Pb (Cb) Pr (Cr)

R

-

AUDIO-LEXT.SP(8Ω)

AUDIO OUT

SERIAL PORT R/C JACK

S-VIDEO

INPUT 3

VIDEO/Y Pb (Cb) Pr (Cr)

R

-

AUDIO-L

(MONO)

RESET

CONNECTING TO COMPUTER

IBM-compatible computers or Macintosh computers (VGA / SVGA / XGA / SXGA)

VGA Cable

Desktop type Laptop type

Audio Output

MAC Adapter ✽

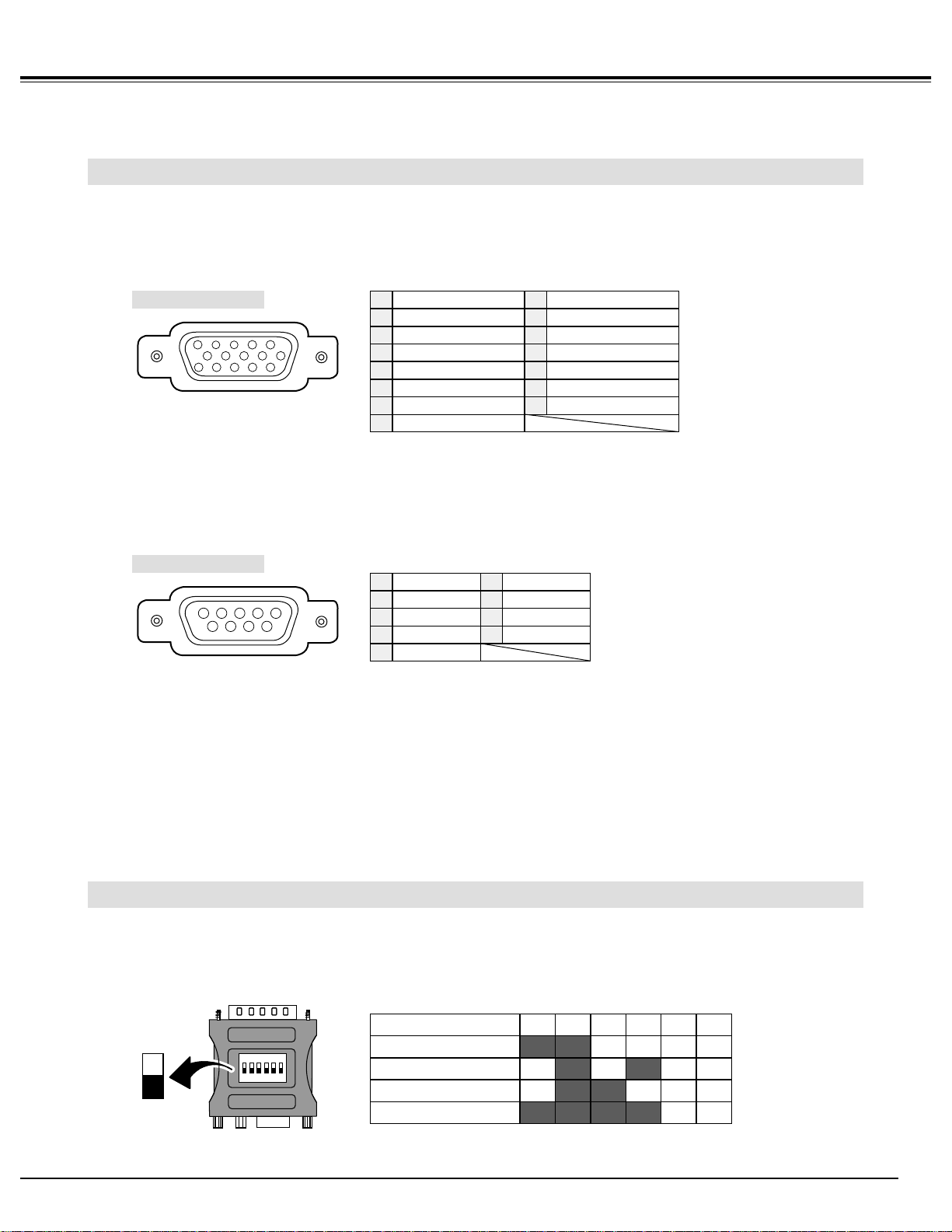

Set the slide
switches accord­ing to the chart
on page 43.

Cables used for connection (✽ = Cables are not supplied with this projector.)

• VGA Cable (HDB 15 pin)

✽

• Video Cable (BNC x 5) ✽

• MAC Adapter (in the case of connecting Macintosh computer) ✽

• Audio Cables (RCA x 2) or (RCA x 1 - Mini Plug (mono)) ✽

• Speaker Cable (Mini Plug (stereo)) ✽

Audio Cable

(RCA x 2)

NOTE :

When connecting the cable, AC Power Cords of
both projector and external equipment should be
disconnected from AC outlet. Turn projector and
peripheral equipment on before your computer is
switched on.

RGB

Monitor Output

Use either RGB Terminal or
G, B, R, H/V and V jacks.

Audio Cable

(RCA-Mini Plug) ✽

Audio Amplifier

Audio Speaker

(stereo)

Audio Cable ✽

(RCA x 2)

Audio Amplifier

External Audio

Equipment

R LEXT. SP

Speaker (8Ω / 2W)

Speaker Cable

(Mini / stereo)

✽

R L

MONO (L)G B R H/V V

Monitor Output

Video Cable

(BNC x 5) ✽

Mini Plug

RCA

14

LAMP

REPLACE

WARNING

TEMP.

LAMP

READY

ON-OFF

BEFORE OPERATION

TOP CONTROLS AND INDICATORS

READY INDICATOR

WARNING TEMP. INDICATOR

LAMP INDICATOR

LAMP REPLACE INDICATOR

This indicator lights green
when projector is ready to
be turned on. And it
flashes green in Power
Management mode. (P37)

This indicator is dim when
projector is turned on. And
bright when projector is in
stand-by mode.

This indicator turns to
yellow when the life of
Projection Lamp draws to
an end. (P39)

This indicator flashes red
when internal projector
temperature is too high.
(P38)

INDICATORS

This projector has CONTROL BUTTONS (TOP CONTROLS) and INDICATORS on its top.

TOP CONTROLS AND

INDICATORS
