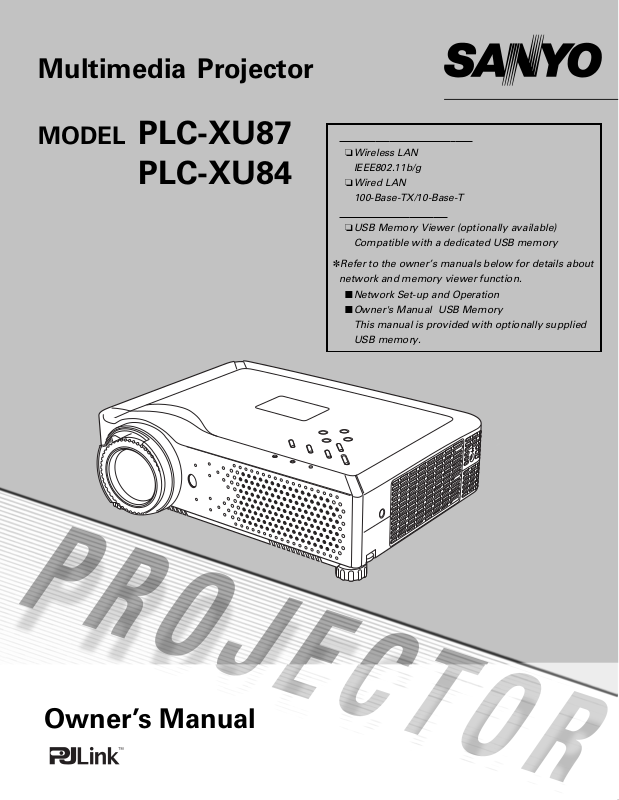

Fisher PLC-XU87 User Manual

Multimedia Projector

MODEL PLC-XU87

PLC-XU84

Owner’s Manual

Network Supported

❏Wireless LAN

IEEE802.11b/g

❏Wired LAN

100-Base-TX/10-Base-T

Memory Viewer

❏USB Memory Viewer (optionally available)

Compatible with a dedicated USB memory

✽Refer to the owner’s manuals below for details about

network and memory viewer function.

■Network Set-up and Operation

■Owner's Manual USB Memory

This manual is provided with optionally supplied USB memory.

Features and Design

◆ Compact Design

This projector is designed compact in size and weight. It is easy to carry and installed anywhere you wish to use.

◆ Compatibility

The projector widely accepts various video and computer input signals including; Computers, 6 Color systems (PAL, SECAM, NTSC, NTSC4.43, PAL-M, PAL-N), Component video, S-video and RGB scart.

◆ Simple Computer System Setting

The projector has the Multi-scan system to conform to almost all computer output signals quickly (p.30). Up to UXGA resolution can be accepted.

◆ Useful Functions for Presentations

- The digital zoom function allows you to focus on the crucial information during a presentation (p.37).

- Blackboards* can be used as a projection screen. *The board color is limited to Green (pp.34, 41).

◆

Power Management

The Power management function reduces power consumption and maintains the lamp life (p.50).

◆ Lamp Control

Brightness of the projection lamp can be selected (p.51).

◆ Logo Function

The Logo function allows you to customize the screen logo (pp.47-48). You can capture an image for the screen logo and use it for the starting-up display or between presentations.

◆ Multilanguage Menu Display

Operation menu is available in 16 languages; English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Finnish, Polish, Hungarian, Romanian, Russian, Chinese, Korean, and Japanese (p.45).

◆ Security Function

The Security function helps you to ensure security of the projector. With the Key lock function, you can lock the operation on the top control or remote control (p.52). PIN code lock functions prevents unauthorized use of the projector (pp.21, 52–53).

◆

Helpful Maintenance Functions

Lamp and filter maintenance functions provide for better and proper maintenance of the projector.

◆ LAN Network Function

This projector is loaded with the Wired and Wireless LAN network function. You can project an image on a computer as well as operate and manage the projector via network. For details, refer to the owner’s manual “Network Set-up and Operation.”

◆ Memory Viewer Function (Optional Function)

Insert the dedicated USB memory (optionally supplied: POA-USB02) into the projector to project images or presentation data stored within. You do not have to carry computers or other equipment for a presentation

For details, refer to the owner’s manual provided with optionally supplied USB memory.

This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.

✔Notes:

•The On-Screen Menu and figures in this manual may differ slightly from the product.

•The contents of this manual are subject to change without notice.

Tr ademarks

Each name of corporations or products in this book is either a registered trademark or a trademark of its respective corporation.

Features and Design . . . . . . . . . . . . . . . . . . .2

Table of Contents . . . . . . . . . . . . . . . . . . . . . .3

To the Owner . . . . . . . . . . . . . . . . . . . . . . . . .4

Safety Instructions . . . . . . . . . . . . . . . . . . . .5

Air Circulation 6 Moving the Projector 6 Installing the Projector in Proper Directions 7

Compliance . . . . . . . . . . . . . . . . . . . . . . . . . .8

Part Names and Functions . . . . . . . . . . . . . .9

Front 9 Back 9 Bottom 9 Rear Terminal / Side Terminal 10 Top Control 11 Remote Control 12 Laser Pointer Function 13 Pointer Function 13 Wireless Mouse Operation 14 Remote Control Code 14 Remote Control Battery Installation 15 Remote Control Operating Range 15 Adjustable Feet 15

Installation . . . . . . . . . . . . . . . . . . . . . . . . . .16

Positioning the Projector 16 Connecting to a Computer 17 Connecting to Video Equipment 18 Connecting to Component Video Equipment 19 Connecting the AC Power Cord 20

Basic Operation . . . . . . . . . . . . . . . . . . . . . .21

Turning On the Projector 21 Turning Off the Projector 22 How to Operate the On-Screen Menu 23 Menu Bar 24 Sound Adjustment 25 Zoom and Focus Adjustment 25 Auto Setup Function 26 Keystone Correction 26 Remote Control Operation 26

Computer Input . . . . . . . . . . . . . . . . . . . . .28

Input Source Selection

(RGB: Computer 1 (Analog)/Computer 2 ) 28

Input Source Selection

(RGB(PC digital), RGB(AV HDCP)) 29 Computer System Selection 30 Auto PC Adjustment 31 Manual PC Adjustment 32 Image Mode Selection 34 Image Adjustment 35 Screen Size Adjustment 36

Video Input . . . . . . . . . . . . . . . . . . . . . . . . . .38

Input Source Selection (Video, S-video) 38 Input Source Selection

(Component, RGB Scart 21-pin) 39 Video System Selection 40 Image Mode Selection 41 Image Adjustment 42 Screen Size Adjustment 44

Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Setting 45

Maintenance and Cleaning . . . . . . . . . . . . .56

Warning Indicator 56 Cleaning the Filter 57 Resetting the Filter Counter 57 Lamp Replacement 58 Resetting the Lamp Counter 59 Attaching the Lens Cover 60 Cleaning the Projection Lens 60 Cleaning the Projector Cabinet 60

Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Indicators and Projector Condition 61 Troubleshooting 62 Menu Tree 64 Compatible Computer Specifications 66 Technical Specifications 68 Optional Parts 69 PJ Link Notice 70 Configurations of Terminals 71 PIN Code Number Memo 72

To the Owner

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE OWNER'S MANUAL WITH THIS UNIT.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Before installing and operating this projector, read this manual thoroughly. This projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintains it in good condition for many years to come. Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other accidents. If your projector seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the “Troubleshooting” section in the back of this booklet. If the problem still persists, contact the dealer where you purchased the projector or the service center.

Safety Precaution

NOTE: This symbol and recycle system are applied only to EU

countries and not applied to the countries in the other area of the world.

Your SANYO product is designed and manufactured with high quality materials and components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-oflife, should be disposed of separately from your household waste.

Please dispose of this equipment at your local community waste collection/recycling centre. In the European Union there are separate collection systems for used electrical and electronic products.

Please help us to conserve the environment we live in!

CAUTION

Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.

Ne peut être utilisé dans une salle d’ordinateurs telle que définie dans la norme ANSI/NFPA 75 Standard for Protection of Electronic Computer/Data Processing Equipment

CAUTION ON HANGING FROM THE CEILING

When hanging the projector from the ceiling, clean air intake vents, filters, or top of the projector periodically with a vacuum cleaner. If you leave the projector unclean for a long time, the cooling fans can be clogged with dust, and it may cause a breakdown or a disaster.

DO NOT SET THE PROJECTOR IN GREASY, WET, OR SMOKY CONDITIONS SUCH AS IN A KITCHEN TO PREVENT A BREAKDOWN OR A DISASTER. IF THE PROJECTOR COMES IN CONTACT WITH OIL OR CHEMICALS, IT MAY BECOME DETERIORATED.

READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

– This projector produces intense light from the projection

lens. Do not stare directly into the lens, otherwise eye damage could result. Be especially careful that children do not stare directly into the beam.

– Install the projector in a proper position. Otherwise it

may result in fire hazard.

– Allowing the proper amount of space on the top, sides,

and rear of the projector cabinet is critical for proper air circulation and cooling of the unit. The dimension shown here indicate the minimum space required. If the projector is to be built into a compartment or similarly enclosed, these minimum distances must be maintained.

– Do not cover the ventilation slot on the projector. Heat

build-up can reduce the service life of your projector, and can also be dangerous.

– If the projector is unused for an extended time, unplug

the projector from the power outlet.

SIDE and TOP REAR

0.7' (20 cm)

1.5' (50 cm)

3' (1 m)

1.5' (50 cm)

Safety Instructions

All the safety and operating instructions should be read before the product is operated.

Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

Follow all warnings and instructions marked on the projector.

For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.

Do not expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool, etc...

Do not use attachments not recommended by the manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer’s instructions, and should use a mounting kit approved by the manufacturers.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Slots and openings in the back and bottom of the cabinet are provided for ventilation, to ensure reliable operation of the equipment and to protect it from overheating.

The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.

This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.

Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.

Do not install the projector near the ventilation duct of airconditioning equipment.

This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.

Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.

Do not attempt to service this projector yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the projector. c. If the projector has been exposed to rain or water. d. If the projector does not operate normally by following

the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.

e. If the projector has been dropped or the cabinet has

been damaged.

f. When the projector exhibits a distinct change in

performance-this indicates a need for service.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.

Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.

Voor de klanten in Nederland

Bij dit produkt zijn batterijen geleverd. Wanneer deze leeg zijn, moet u ze niet weggooien maar inleveren als KCA.

Safety Instructions

Openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered.

CAUTION

Hot air is exhausted from the exhaust vent. When using or installing the projector, the following precautions should be taken. – Do not put any flammable object or spray can near the

projector, hot air is exhausted from the air vents.

– Keep the exhaust vent at least 3’ (1 m) away from any

objects.

– Do not touch a peripheral part of the exhaust vent,

especially screws and metallic parts. These areas will become hot while the projector is being used.

– Do not put anything on the cabinet. Objects put on

the cabinet will not only get damaged but also may cause fire hazard by heat.

Cooling fans are provided to cool down the projector. The fans’ running speed is changed according to the temperature inside the projector.

CAUTION IN CARRYING OR TRANSPORTING THE PROJECTOR

– Do not drop or bump the projector, otherwise damages

or malfunctions may result. –When carrying the projector, use a suitable carrying case. –Do not transport the projector by courier or any other

transport service in an unsuitable transport case. This

may cause damage to the projector. For information

about transporting the projector by courier or any other

transport service, consult your dealer. –Do not put the projector in a case before the projector is

cooled enough.

Moving the Projector

Safety Instructions

Use the projector properly in specified positions. Improper positioning may reduce the lamp life and result in severe accident or fire hazard.

Installing the Projector in Proper Directions

Avoid positioning the projector as described below when installing.

Positioning Precautions

Do not tilt the projector more than 20 degrees from side to side.

Do not point the projector up to project an image.

Do not point the projector down to project an image.

Do not put the projector on either side to project an image.

20˚

AC Power Cord for the United Kingdom:

This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating, marked thus

. If the fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the plug (i.e. red or orange). Fuse covers are available from the Parts Department indicated in your User Instructions. If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed. The end of the flexible cord should be suitably prepared and the correct plug fitted.

WARNING: A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET OUTLET.

The Wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow ············ Earth Blue ································· Neutral

Brown ······························ Live As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured green or green-and-yellow. The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

WARNING: THIS APPARATUS MUST BE EARTHED.

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada:

AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA). AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet, contact your electrician.

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.

AC Power Cord Requirement

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules. Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or modifications should be made, you could be required to stop operation of the equipment.

Model Number(s) : PLC-XU87, PLC-XU84 Trade Name : Sanyo Responsible party : SANYO FISHER COMPANY Address : 21605 Plummer Street, Chatsworth, California 91311 U.S.A.

Telephone No. : (818)998-7322

Compliance

ASA

GROUND

✽ Kensington Security Slot

This slot is for a Kensington lock used to deter theft of the projector.

* Kensington is a registered trademark of ACCO Brands

Corporation.

Bottom

Back

q USB Terminal w LAN Connection Terminal e Zoom Lever r Projection Lens t Focus Ring y Lens Cover

(See page 60 for attaching.)

u Infrared Remote Receiver

i Top Controls and Indicators o Speaker !0 Air Intake Vent !1 Power Cord Connector !2 Terminals and Connectors

!3 Lamp Cover !4 Air Intake Vents (back and bottom) !5 Filters !6 Adjustable Feet !7 Exhaust Vent

!3!5!4

CAUTION

Hot air is exhausted from the exhaust vents. Do not put heat-sensitive objects near this side.

Part Names and Functions

Rear Terminal / Side Terminal

q w e r t yiu

t S-VIDEO IN

Connect the S-VIDEO output from video equipment to this jack. (p.18)

y AUDIO IN

Connect the audio output from video equipment connected to t or o to this jack. (When the audio output is monaural, connect it to L (MONO) jack.) (p.18)

i COMPUTER/ COMPONENT AUDIO IN

Connect the audio output (stereo) from a computer or video equipment connected to e or r to this jack. (pp.17, 19)

o VIDEO IN

Connect the composite video output from video equipment to VIDEO jack. (p.18)

r COMPUTER IN 2 /COMPONENT IN /

MONITOR OUT

This terminal is switchable and can be used for input from a computer, video equipment (Component or RGB Scart) or output to the other monitor. Optional cables are required when using this terminal as component input or RGB Scart 21Pin Video input. (p.69) Set the terminal up as either Computer input or Monitor output properly. (Used for Monitor out, this terminal outputs only incoming RGB analog signals from COMPUTER IN 1 / DVI-I terminal.) (pp.17, 19, 49)

u AUDIO OUT(VARIABLE)

Connect an external audio amplifier to this jack. (pp.17- 19) This terminal outputs sound from AUDIO IN terminal (y or i).

q USB (Series B)

In order to operate the computer with the remote control and use the PAGE ed buttons on the remote control during a presentation, connect the USB port of the computer to the USB terminal with a USB cable. (pp.14, 17)

w SERVICE PORT

This jack is used to service the projector.

e COMPUTER IN 1 / DVI-I

Connect computer output (Digital / Analog DVI-I type) to this terminal. (p.17)

USB

SERVICE PORT

COMPUTER IN

DVI-I

COMPUTER IN

/ COMPONENT IN

MONITOR OUT

VIDEO IN

S-VIDEO IN

(MONO)

AUDIO IN

(VARIABLE)

AUDIO OUT

COMPUTER COMPONENT

USB

Part Names and Functions

- OFF

POWER

AUTO SET UP

INPUT

WARNING

LAMP REPLACE

- VOLUME

+ VOLUME

SELECT

e t

u LAMP REPLACE indicator

Turn yellow when the life of the projection lamp draws to an end. (pp.58, 61)

y WARNING indicator

Emit a red light when the projector detects abnormal condition. This also blinks red when the internal temperature of the projector exceeds the operating range. (pp.56, 61)

w POWER ON–OFF button

Turn the projector on or off. (pp.21, 22)

r POWER indicator

Emit a red light until the projector gets ready to be turned on. It turns red when the projector is in the stand-by mode. It remains green while the projector is under operation. (pp.21, 22, 61)

t INPUT button

Select input source. (pp.28, 29, 38, 39)

e MENU button

Open or close the On-Screen Menu. (p.23)

o POINT (ed7 8 ) buttons

– Select an item or adjust the value in the On-

Screen Menu. (p.23) – Pan the image in Digital zoom + mode. (p.37) – Adjust the volume level. (Point 7 8 buttons)

(p.25)

q SELECT button

– Execute the selected item. (p.23) – Expand or compress the image in Digital zoom

mode. (p.37)

Top Control

i AUTO SETUP button

Correct vertical keystone distortion and adjust computer display parameters including Fine sync., Total dots and Picture position. (pp.26, 45)

To ensure safe operation, please observe the following precautions:

– Do not bend, drop, or expose the remote

control to moisture or heat.

– For cleaning, use a soft dry cloth. Do not

apply benzene, thinner, splay, or any chemical material.

Remote Control

Part Names and Functions

w POWER ON-OFF button

Turn the projector on or off. (pp.21, 22)

r VIDEO button

Select the VIDEO input source. (p.38)

t COMPUTER button

Select the COMPUTER input source. (pp.28, 29, 39)

o MENU button

Open or close the On-Screen Menu. (p.23)

!2 PAGE ed buttons

Scroll back and forth the pages on the screen when giving a presentation. To use these buttons, connect the projector and your computer with a USB cable. (pp.10, 17)

!4 D.ZOOM ed buttons

Zoom in and out the images. (pp.27, 37)

y AUTO PC button

Automatically adjust the computer image to its optimum setting. (pp.27, 31, 45)

!6 IMAGE button

Select the image mode. (pp.27, 34, 41)

!0 FREEZE button

Freeze the picture on the screen. (p.27)

MUTE button

Mute the sound. (p.25)

P-TIMER button

Operate the P-timer function. (p.27)

NO SHOW button

Temporarily turn off the image on the screen. (p.27)

KEYSTONE button

Correct keystone distortion. (pp.26, 46)

i Point ed 7 8 ( VOLUME

+ / –

)

buttons

– Select an item or adjust the value in the On-Screen Menu. (p.23) – Pan the image in the Digital zoom + mode. (p.37) – Adjust the volume level. (Point 7 8 buttons) (p.25)

@1 SELECT button

– Execute the selected item. (p.23) – Expand or compress the image in Digital zoom mode. (p.37)

!3 LAMP CONTROL button

Select a lamp mode. (pp.27, 51)

q L-CLICK button

Act as the left mouse button for wireless mouse operation. (p.14)

e SIGNAL EMISSION indicator

Lights red while the laser beam is being emitted from the laser light window or a signal is being sent from the remote control to the projector.

!1 LASER button

– Operate the Laser pointer function. Laser beam is emitted while pressing this

button within 1 minute. When using this laser pointer for more than 1 minute, release the LASER button and press it again. (p.13)

– Display the Pointer on the screen. (p.13)

!5 RESET/ON/ALL-OFF switch

When using the remote control, set this switch to “ON.” Set it to “ALL OFF” for power saving when it is not used. Slide this switch to "RESET" to initialize the remote control code or switch Spotlight and Pointer to the Laser pointer function. (pp.13, 14)

@0 R-CLICK button

Act as the right mouse button for wireless mouse operation. (p.14)

@2 PRESENTATION POINTER button

Move a pointer of the projector or a pointer for wireless mouse operation. (pp.13.14)

AUTO SET button

Correct vertical keystone distortion and adjust the PC display parameters. (pp.26, 45)

NETWORK button

Select the Network input or Memory viewer input. See owner's manual “Network Set-up and Operation” and owner's manual of Memory viewer (optionally available).

Part Names and Functions

Spotlight

Pointer Function

Pointer

Laser Light Window

Signal Emission Indicator

Laser Pointer Function

LASER button

PRESENTATION POINTER button

MENU button NO SHOW button

This remote control emits a laser beam from the laser light window. Press the LASER button to activate the laser pointer. The signal emission indicator lights red and the red laser beam is emitted. If the LASER button is pressed for more than one minute or if it is released, the laser light goes off. The laser emitted is a Class II laser. Do not look into the laser light window or point the laser beam at yourself or other people. The following is the caution label for the laser beam. CAUTION: Use of controls, adjustments or performance of procedures other than those specified herein may

result in hazardous radiation exposure. Never look directly into the laser light window while a laser is emitted, otherwise eye damage may result.

The caution label is put on the remote control.

You can move the Spotlight or Pointer of the projector with the remote control to emphasize a part of the projected image.

Press and hold the MENU and NO SHOW buttons for more than 10 seconds to activate the Pointer function. (The Laser pointer has switched to the Pointer function.)

Press the LASER button on the remote control pointing toward the projector. The Spotlight or Pointer is displayed on the screen with the LASER button lighting green. Then move the Spotlight or Pointer with the PRESENTATION POINTER button. If the LASER button does not light green and continues to emit a laser beam, try the abovementioned procedure until the LASER button lights green.

To clear the Spotlight or Pointer out the screen, press the LASER button pointing toward the projector and see if the LASER button lighting is turned off. To switch to the Laser pointer again, press and hold the NO SHOW and MENU buttons for more than 10 seconds or slide the RESET/ON/ALL-OFF switch to “RESET” and then to “ON”. When you reset the Pointer function, the remote control code will be reset, as well.

✔Note:

•You can choose the size of Spotlight (Large/Middle/Small) and the pattern of Pointer (Arrow/Finger/Dot) in the Setting Menu. See “Pointer” on page 51.

Press and hold the MENU and NO SHOW buttons for more than 10 seconds.

PRESENTATION POINTER button

After the Laser pointer has switched to the Pointer, use the LASER button as the Pointer function ON-OFF switch. Press the LASER button pointing toward the projector and see if it lights green.

PRESENTATION POINTER button

R-CLICK button

L-CLICK button

While pressing the MENU button, press the IMAGE button number of times corresponding to the remote control code.

MENU button

IMAGE button

RESET/ON/ALL-OFF switch

Remote Control Code

Number of Times Pressing IMAGE

Button

Code 1 1

Code 2

Code 3 3

Code 4 4

Code 5 5

Code 6 6

Code 7 7

Code 8 8

Wireless Mouse Operation

The remote control can be used as a wireless mouse for your computer. Before operating the wireless mouse, connect your computer and the projector with the supplied USB cable. See “Connecting to a Computer” on page 17. When the Pointer function is used, the wireless mouse is not available.

Acts as left (click) mouse button while the projector and a computer are connected with a USB cable.

Move the pointer on the screen with this button.

Acts as right (click) mouse button while the projector and a computer are connected with a USB cable.

The eight different remote control codes (Code 1–Code 8) are assigned to this projector. Switching the remote control codes prevents interference from other remote controls when several projectors or video equipment next to each other are operated at the same time. Change the remote control code for the projector first before changing that for the remote control. See “Remote control” in the Setting Menu on page 51.

Press and hold the MENU and IMAGE buttons for more than five seconds to switch between the codes. The code switches sequentially for one pressing the IMAGE button. See the list below.

To initialize the remote control code, slide the RESET/ ON/ALL-OFF switch to “RESET,” and then to “ON.” The initial code is set to Code 1.

Part Names and Functions

Adjustable Feet

Positioning the Projector

For projector positioning, see the figures below. The projector should be set perpendicularly to the plane of the screen.

✔Notes:

•The brightness in the room has a great influence on picture quality. It is recommended to limit ambient lighting in order to obtain the best image.

•All measurements are approximate and may vary from the actual sizes.

Installation

43.0' (13.1m)

27.5' (8.4m)

18.4' (5.6m)

13.8' (4.2m)

Max. Zoom Min. Zoom

A : B = 9 : 1

Screen Size

(W x H) mm

4 : 3 aspect ratio

Zoom (min)

40”

Zoom (max)

813 x 610

5.6' (1.7m)

3.6' (1.1m)

100”

2032 x 1524

14.4' (4.4m)

9.2' (2.8m)

150”

3048 x 2286

21.6' (6.6m)

13.8' (4.2m)

200”

4064 x 3048

28.9' (8.8m)

18.4' (5.6m)

300”

6096 x 4572

43.0' (13.1m)

27.5' (8.4m)

(Inch Diagonal)

9.2' (2.8m)

(Center)

3.6' (1.1m)

USB

40"

100"

64"

150"

96"

200"

128"

300"(wide)

300"(tele)

192"

Installation

Cables used for connection

• VGA Cable (Mini D-sub 15 pin) ✽

• DVI Cable ✽

• DVI-VGA Cable

• USB Cable

• Audio Cables ✽ (✽ = Not supplied with this projector.)

External Audio Equipment

DVI-VGA cable

DVI cable ✽

USB cable

Audio cable (stereo) ✽

Audio cable ✽ (stereo)

Monitor Output

Monitor Input

USB portAudio Output

USB

COMPUTER/ COMPONENT AUDIO IN

AUDIO OUT (stereo)

Audio Input

COMPUTER IN 2 /COMPONENT IN /MONITOR OUT

Monitor Output

COMPUTER IN 1/ DVI-I

VGA cable ✽

This terminal is switchable. Set up the terminal as either Computer input or Monitor output. (See Page 49.)

Connecting to a Computer

Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables.

✔

Notes:

•Input sound to the COMPUTER / COMPONENT AUDIO IN terminal when using the COMPUTER IN 1 / DVI-I and the COMPUTER IN 2 / COMPONENT IN / MONITOR OUT terminal as input.

• When connecting the AUDIO OUT to external audio equipment, the projector's built-in speaker is disconnected.

• When the cable is

of the longer variety

, it is advisable to use the COMPUTER IN 1 / DVI-I and not the COMPUTER IN 2 / COMPONENT IN / MONITOR OUT.

• USB cable connection is needed when operating the computer with

the remote control or using the PAGE ed buttons on the remote control.

COMPUTER IN

/ COMPONENT IN

USB

SERVICE PORT

COMPUTER IN

DVI-I

ONON

MONITOR OUT

(VARIABLE)

AUDIO OUT

VIDEO IN

S-VIDEO IN

(MONO)

AUDIO IN

COMPUTER

COMPONENT

Installation

Cables used for connection

• Video and Audio Cable (RCA x 3) ✽

• S-VIDEO Cable ✽

• Audio Cable ✽ (✽ = Not supplied with this projector.)

External Audio Equipment

Audio cable ✽

(stereo)

VIDEO IN

S-VIDEO

S-video cable ✽

Video and audio cable ✽

Composite Video and Audio OutputS-video Output

AUDIO IN

Audio Input

AUDIO OUT (stereo)

(R) (L)

(R) (L) (Video)

(Video)

Connecting to Video Equipment

Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables.

✔

Notes:

•When connecting AUDIO OUT to external audio equipment, the projector's built-in speaker is disconnected.

•The S-VIDEO jack connection overrides the VIDEO jack connection when selecting AUTO in the Input Menu (p.38).

USB

SERVICE PORT

COMPUTER IN

DVI-I

COMPUTER IN

/ COMPONENT IN

MONITOR OUT

VIDEO IN

S-VIDEO IN

(VARIABLE)

AUDIO OUT

COMPUTER COMPONENT

AUDIO IN

(MONO)

Installation

S-VIDEO IN

COMPUTER

COMPONENT

AUDIO IN

VIDEO IN

(MONO)

(VARIABLE)

AUDIO OUT

USB

SERVICE PORT

MONITOR OUT

COMPUTER IN

/ COMPONENT IN

COMPUTER IN

DVI-I

Cables used for connection

• Audio Cables ✽

• Scart-VGA Cable ✽

• Component Cable ✽

• Component-VGA Cable ✽ (✽ = Not supplied with this projector.)

External Audio Equipment

COMPUTER/ COMPONENT AUDIO IN

Audio cable ✽ (stereo)

Audio Input

Component Video Output

(Y, Pb/Cb, Pr/Cr)

RGB Scart 21-

pin Output

Audio Output

Scart-VGA cable ✽

Component-VGA cable✽

AUDIO OUT (stereo)

Component cable✽

COMPUTER IN 2 /COMPONENT IN /MONITOR OUT

This terminal is switchable. Set up the terminal as either Computer input or Monitor output. (See Page 49.)

Connecting to Component Video Equipment

✔Notes:

•When connecting the AUDIO OUT to external audio equipment, the projector’s built-in speaker is disconnected.

•See page 69 for ordering optional cables.

Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables.

Installation

Connecting the AC Power Cord

NOTE ON THE POWER CORD

AC power cord must meet the requirements of the country where you use the projector. Confirm the AC plug type with the chart below and proper AC power cord must be used. If supplied the AC power cord does not match your AC outlet, contact your sales dealer.

To power cord connector on your projector.

Projector side AC outlet side

Ground

To the AC outlet.

(120 V AC)

For Continental EuropeFor the U.S.A. and Canada

This projector uses nominal input voltages of 100–120 V or 200–240 V AC and it automatically selects the correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system. If you are not sure of the type of power being supplied, consult your authorized dealer or service station. Connect the projector with all peripheral equipment before turning the projector on.

CAUTION

For safety, unplug the AC power cord when the projector is not in use. When the projector is connected to an outlet with the AC power cord, it is in stand-by mode and consumes a little electric power.

For the U.K.

To the AC outlet.

(200–240 V AC)

To the AC outlet.

(200–240 V AC)

Connect the AC power cord (supplied) to the projector. The AC outlet must be near this equipment and must be easily accessible.

The preparation display will disappear after 30 seconds.

(See page 51 for Lamp control status.)

Lamp control status

Tu r ning On the Projector

Connect the projector’s AC power cord into an AC outlet. The POWER indicator lights red.

Press the POWER ON-OFF button on the top control or on the remote control. The POWER indicator lights green and the cooling fans start to operate. The preparation display appears on the screen and the count down starts.

After the countdown, the input source that was selected the last time and the lamp control status icon (see page 51) appear on the screen.

If the projector is locked with a PIN code, PIN code input dialog box will appear. Enter the PIN code as instructed below.

Complete peripheral connections (with a computer, VCR, etc.) before turning on the projector.

What is PIN code?

PIN (Personal Identification Number) code is a security code that allows the person who knows it to operate the projector. Setting a PIN code prevents unauthorized use of the projector.

A PIN code consists of a four-digit number. Refer to the PIN code lock function in the Setting Menu on pages 52–53 for locking operation of the projector with your PIN code.

Enter a PIN code

Use the Point ed buttons to enter a number. Press the Point

8 button to fix the number and move the red frame pointer to

the next box. The number changes to “✳.” If you fixed an incorrect number, use the Point 7 button to move the pointer to the number you want to correct, and then enter the correct number.

Repeat this step to complete entering a four-digit number.

After entering the four-digit number, move the pointer to “Set.” Press the SELECT button so that you can start to operate the projector.

If you entered an incorrect PIN code, “PIN code” and the number (✳✳✳✳) will turn red for a moment. Enter the correct PIN code all over again.

CAUTION ON HANDLING PIN CODE

If you forget your PIN code, the projector can no longer be started. Take a special care in setting a new PIN code; write down the number in a column on page 72 of this manual and keep it at hand. Should the PIN code be missing or forgotten, consult your dealer or service center.

Selected Input Source and Lamp Control

After the OK icon disappears, you can operate the projector.

PIN Code Input Dialog Box

✔Notes:

•When the Logo select function is set to “Off,” the logo will not be shown on the screen (p.47).

•When the “Countdown off” or “Off” is selected in the Display function, the countdown will not be shown on the screen (p.46).

•During the countdown period, all operations are invalid.

•If the correct PIN code number is not entered within three minutes after the PIN code dialog box appeared, the projector will be turned off automatically.

•The “1234” is set as the initial PIN code at the factory.

•When the Input Search function is set to “On2”, the input signal will be searched automatically (p.49)

✔Note:

•The Filter warning and Lamp replacement icons may appear on the screen depending on the usage state of the projector.

Basic Operation

TO MAINTAIN THE LIFE OF THE LAMP, ONCE YOU TURN THE PROJECTOR ON, WAIT AT LEAST FIVE MINUTES BEFORE TURNING IT OFF.

“Power off?” disappears after 4 seconds.

Tu r ning Off the Projector

Press the POWER ON-OFF button on the top control or on the remote control, and “Power off?” appears on the screen.

Press the POWER ON-OFF button again to turn off the projector. The POWER indicator starts to blink red, and the cooling fans keep running. (You can select the level of fans’ quietness and speed. See “Fan” on page 54.) At this time, you can unplug the AC power cord even if the fans are still running.

When the projector has cooled down enough, the POWER indicator stops blinking and you can turn on the projector. After it is cooled down completely, unplug the AC power cord.

✔Notes:

•When the On start function is set to “On,” the projector will be turned on automatically by connecting the AC power cord to an AC outlet (p.51).

•Do not operate the projector continuously without rest. Continuous use may result in shortening the lamp life. Turn off the projector and let stand for about an hour in every 24 hours.

•The running speed of cooling fans is changed according to the temperature inside the projector.

•Do not put the projector in a case before the projector is cooled enough.

•If the WARNING indicator blinks or lights red, see “Warning Indicators” on page 56.

•While the POWER indicator is blinking, the lamp is being cooled down and the projector cannot be turned on. Wait until the POWER indicator stops blinking to turn on the projector again.

Basic Operation

+ 51 hidden pages
