Multimedia Projector

MODEL PLC-XU41

Owner’s Manual

Features and Design

This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.

Compact Design

Selectable Lamp Mode









This projector is designed compact in size and weight. It is easy to carry and work anywhere you wish to use.

Brightness of the projection lamp can be selected in the Setting menu. (See page 42.)

Compatibility

The projector widely accepts various video and computer input signals including; Computers, 6 Color systems, Component video, S-video and RGB scart.

Blackboard Function

Blackboard can be used as a projection screen.

The board color is limited to Green.

(See page 29 and 35.)

Simple Computer System Setting

The projector has the Multi-scan system to conform to almost all computer output signals quickly. (See page 26.)

Film Function

The Film function reproduces pictures faithful to the original film quality from 3:2 pull-down video contents.

(See page 37.)

Digital Zoom (for Computer)

The digital zoom function expands (to approx. 16 times of screen size) or compress the image size, allowing you to focus on crucial information at a presentation. (See page 31.)

PIN Code Lock Function

The PIN code lock function prevents others except users from using the projector. (See page 18 and 43.)

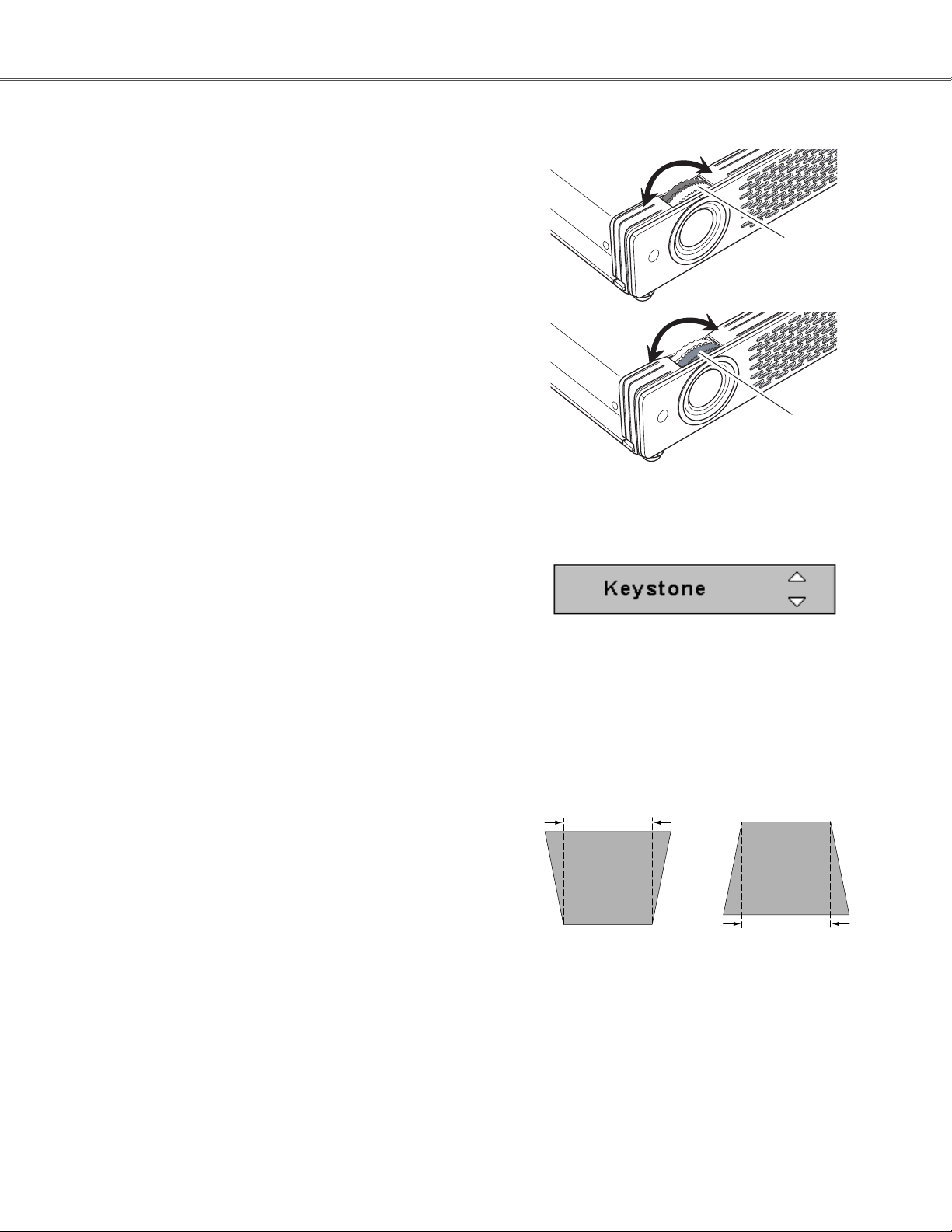

Keystone Adjustment

The keystone correction function is provided to correct distortion of the projected image allowing you to use the projector without locational constraints. (See page 22 and 39.)

Multilanguage Menu Display

Operation menu is available in 12 languages; English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Russian, Chinese, Korean, or Japanese. (See page 39.)

Power Management

The Power management function reduces power consumption and maintain the lamp life. (See page 41.)

Switcheable Interface Terminal

The projector provides a switcheable interface terminal. You can use the terminal as computer input or monitor output conveniently. (See page 41.)

User’s Logo

A projected image can be captured and used for the starting display of the projector with the Capture function. You can also display the captured image in an interval during your presentation instead of blackout image with the No show function. (See page 23 and 40.)

2

Table of Contents

Features and Design . . . . . . . . . . . . . . . . . . .2

Table of Contents . . . . . . . . . . . . . . . . . . . . . .3

To the Owner . . . . . . . . . . . . . . . . . . . . . . . . .4

Safety Instructions . . . . . . . . . . . . . . . . . . . .5

Air Circulation

6

Installing the Projector in Proper Position

6

Moving the Projector

6

Compliance . . . . . . . . . . . . . . . . . . . . . . . . . .7

Part Names and Functions . . . . . . . . . . . . . .8

Front

8

Back

8

Bottom

8

Rear Terminal

9

Top Control

10

Remote Control

11

Operating Range

11

Remote Control Battery Installation

12

Installation . . . . . . . . . . . . . . . . . . . . . . . . . .13

Positioning the Projector

13

Adjustable Feet

13

Connecting the AC Power Cord

14

Connecting to a Computer

15

Connecting to Video Equipment

16

Connecting to Component Video Equipment

17

Basic Operation . . . . . . . . . . . . . . . . . . . . . .18

Turning On the Projector

18

Turning Off the Projector

19

How to Operate the On-Screen Menu

20

Menu Bar

21

Zoom and Focus Adjustment

22

Keystone Adjustment

22

Picture Freeze Function

22

No Show Function

23

P-Timer Function

23

Sound Adjustment

23

Computer Input . . . . . . . . . . . . . . . . . . . .

.24

Input Source Selection

24

Computer System Selection

25

Auto PC Adjustment

26

Manual PC Adjustment

27

Image Level Selection

29

Image Level Adjustment

30

Screen Size Adjustment

31

Video Input . . . . . . . . . . . . . . . . . . . . . . . . . .

32

Input Source Selection (Video, S-Video)

32

Input Source Selection (Component, RGB Scart 21-Pin)

33

Video System Selection

34

Image Level Selection

35

Image Level Adjustment

36

Screen Size Adjustment

38

Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

39

Setting

39

Maintenance and Cleaning . . . . . . . . . . . . .

45

Warning Indicator

45

Cleaning the Air Filters

46

Attaching the Lens Cover

46

Cleaning the Projection Lens

47

Cleaning the Projector Cabinet

47

Lamp Replacement

48

Lamp Replace Counter

49

Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . .

50

Troubleshooting

50

Indicators and Projector Condition

52

Menu Tree

53

Compatible Computer Specifications

55

Technical Specifications

56

Configurations of Terminals

58

Optional Parts

58

PIN Code Number Memo

59

Trademarks

Each name of corporations or products in this book is either a registered trademark or a trademark of its respective corporation.

3

To the Owner

Before operating this projector, read this manual thoroughly and operate the projector properly.

This projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintains it in better condition for a considerable time.

Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other accidents.

If your projector seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the “Troubleshooting” section in the end of this booklet. If the problem still persists, contact the dealer where you purchased the projector or the service center.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE OWNER'S MANUAL WITH THIS UNIT.

Safety Precaution

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

This projector produces intense light from the projection lens. Do not stare directly into the lens as possible. Eye damage could result. Be especially careful that children do not stare directly into the beam.

Install the projector in a proper position. If not, it may result in a fire hazard.

Provide appropriate space on the top, sides and rear of the projector cabinet for allowing air circulation and cooling the projector. Minimum clearance must be maintained. If the projector is to be built into a compartment or similarly enclosed, the minimum distances must be maintained. Do not cover the ventilation slot on the projector. Heat buildup can reduce the service life of your projector, and can

also be dangerous.

SIDE and TOP REAR

20cm





















50cm



50cm







50cm















Do not put any flammable object or spray can near the projector, hot air is exhausted from the ventilation holes.

If the projector is not to be used for an extended time, unplug the projector from the power outlet.

READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.

CAUTION

Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.

Ne puet être utillisé dans une salle d’ordinateurs telle que définie dans la norme ANSI/NFPA 75 Standard for Protection of Electronic Computer/Data Processing Equipment

4

Safety Instructions

All the safety and operating instructions should be read before the product is operated.

Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

Follow all warnings and instructions marked on the projector.

For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.

Do not expose this unit to rain or use near water... for

example, in a wet basement, near a swimming pool, etc...

Do not use attachments not recommended by the manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturers.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Slots and openings in the back and bottom of the cabinet are provided for ventilation, to ensure reliable operation of the equipment and to protect it from overheating.

The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.

This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.

Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.

Do not install the projector near the ventilation duct of airconditioning equipment.

This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.

Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.

Do not attempt to service this projector yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions:

a.When the power cord or plug is damaged or frayed.

b.If liquid has been spilled into the projector.

c.If the projector has been exposed to rain or water.

d.If the projector does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.

e.If the projector has been dropped or the cabinet has been damaged.

f.When the projector exhibits a distinct change in performance-this indicates a need for service.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.

Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.

Voor de klanten in Nederland

Bij dit product zijn batterijen geleverd.

Wanneer deze leeg zijn, moet u ze niet weggooien maar inleveren

NL als KCA.

5

Safety Instructions

Air Circulation

Openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered.

CAUTION

Hot air is exhausted from the exhaust vent. When using or installing the projector, the following precautions should be taken.

Do not put any flammable objects near the vent.

Keep the exhaust vent at least 3’(1m) away from any objects.

Do not touch a peripheral part of the exhaust vent, especially screws and metallic part. This area will become hot while the projector is being used.

Do not put anything on the cabinet. The materials put on the cabinet will not only get damaged but also cause fire hazard by heat.

Cooling fans are provided to cool down the projector. This projector monitors internal temperature and control the running speed of the cooling fans.

Air Intake Vent

Exhaust Vent

Air Intake Vent

(Hot air exhaust)



Installing the Projector in Proper Position

Install the projector properly. Improper Installation may reduce

the lamp life and cause a fire hazard.

20˚

Do not tilt the projector more than 20 degrees above and below.

20˚

Do not point the projector up to

project an image.

Do not point the projector down to

project an image.

Do not put the projector on either

side to project an image.

Moving the Projector

When moving the projector, replace the Lens Cover and retract Adjustable Feet to prevent damage to the lens and cabinet.

USE CAUTION IN CARRYING OR

TRANSPORTING THE PROJECTOR

Do not drop or bump a projector, otherwise damages or malfunctions may result.

When carrying a projector, use a suitable carrying case.

Do not transport a projector by using a courier or transport service in an unsuitable transport case. This may cause damage to a projector. To transport a projector through a courier or transport service, consult your dealer for their information.

6

Compliance

Federal Communication Commission Notice

Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures :

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.

Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or modifications should be made, you could be required to stop operation of the equipment.

Model Numbers

: PLC-XU41

Trade Name

: Sanyo

Responsible party

: SANYO FISHER COMPANY

Address

: 21605 Plummer Street, Chatsworth, California 91311

Telephone No.

: (818)998-7322

AC Power Cord Requirement

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada :

AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA).

AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the

outlet, contact your electrician.

GROUND



AC Power Cord for the United Kingdom :

This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating, marked thus ASA . If the fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the plug (i.e. red or orange). Fuse covers are available from the Parts Department indicated in your User Instructions.

If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed. The end of the flexible cord should be suitably prepared and the correct plug fitted. (See Over)

WARNING : A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET OUTLET.

The Wires in this mains lead are coloured in accordance with the following code: Green-and-yellow ············ Earth

Blue ································· Neutral Brown ······························ Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured green or green-and-yellow.

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

WARNING : THIS APPARATUS MUST BE EARTHED.

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.

7

Part Names and Functions

Front











q Power Cord Connector











w Infrared Remote Receiver











e Projection Lens











r Lens Cover (See page 46 for attaching.)











t Air Intake Vent











y Top Controls and Indicators











u Focus Ring











i Zoom Ring











o Air Intake Vent











!0Terminals and Connectors











!1Speaker



q

w e

r

t













!2Lamp Cover

Back









!3Air Intake Vent (back and bottom)

!6 y

u i

o

!0

!4Air Filter













!5Adjustable Feet











!6Exhaust Vent











CAUTION











Hot air is exhausted from the exhaust vent.











Do not put heat-sensitive objects near this











side.

!1

Bottom

!2 !3

!4

!5

8

Part Names and Functions

Rear Terminal

q

w

e



r



t

y

COMPUTER IN 1

AUDIO IN



VIDEO

USB



/ COMPONENT IN

R

L (MONO)



















SERVICE PORT

S-VIDEO

COMPUTER /













COMPONENT





RESET









AUDIO IN





























AUDIO OUT



COMPUTER IN 2 /













MONITOR OUT























(VARIABLE)



qCOMPUTER IN 1/ COMPONENT IN

Connect output signal from a computer (Analog RGB) or video equipment (Component or RGB Scart) to this terminal. Optional cables are required when using this terminal as component input or RGB Scart 21-Pin Video input. (p15, 17)

wSERVICE PORT

This jack is used to service this projector.

eAUDIO IN

Connect the audio output from video equipment connected to r or i to this jack. (When the audio output is monaural, connect it to L (MONO) jack.) (p16)

rVIDEO

Connect the composite video output from video equipment to VIDEO jack. (p16)

tUSB (Series B)

Connect the USB port of your computer to this port when you wish to use the PAGE ed buttons on the remote control to scroll back and forth pages on the screen of the connected computer. (p15)

oi u

yAUDIO IN COMPUTER/ COMPONENT

Connect the audio output (stereo) from a computer or video equipment connected to q or u to this jack. (p15, 17)

uAUDIO OUT(VARIABLE)

Connect an external audio amplifier to this jack. (p15,

16, 17)

This terminal outputs sound from AUDIO IN terminal (e or y).

iS-VIDEO

Connect the S-VIDEO output from video equipment to this jack. (p16)

oCOMPUTER IN 2/ MONITOR OUT

This terminal is switcheable and can be used for input from a computer or output to the other monitor. Set the terminal up as either Computer input or Monitor output properly. (Used for Monitor out, this terminal outputs only incoming signal from COMPUTER IN 1/ COMPONENT IN terminal.) (p15, 41)

A built-in micro processor which controls this unit may occasionally malfunction and need to be reset. This can be done by pressing the RESET

button with a pen, which will shut down and restart the unit. Do not use the RESET function excessively.

Functions and Names Part

9

Part Names and Functions

Top Control

q w

e

r



ON - OFF



INPUT





KEYSTONE

E



M





U





L

SELECT



O



V



MENU





ty

POWER

WARNING

V

LAMP

O

L

REPLACE

U



M



E



+



o

qKEYSTONE button

Corrects keystone distortion. (p22, 39)

w INPUT button

Selects input source. (p24, 32 )

ePOWER ON–OFF button

Turns the projector on or off. (p18, 19)

rSELECT button

Executes the item selected. It is also used to expand/ compress the image in Digital zoom +/– mode. (p31)

tPOWER indicator

Blinks red until the projector gets ready to be turned on. It turns red when the projector is in the stand-by mode. It remains green while the projector is under operation.

iu

yWARNING indicator

Lights red when the projector detects abnormal condition. This also blinks red when the internal temperature of the projector exceeds the operating range. (p45)

uLAMP REPLACE indicator

Turns yellow when the life of the projection lamp draws to an end. (p48)

iPOINT (ed78 ) button

Selects an item or adjusts value in the On-Screen Menu. These are also used to pan the image in the Digital zoom +/– mode. (p31)

Point 7 8 button are used as VOLUME +/– button. (p23)

oMENU button

Opens or closes the On-Screen Menu. (p20)

10

Part Names and Functions

Remote Control

e



w



q



COMPUTER VIDEO

ON-OFF







!5

r





!4



MENU

VOLUMESELECT VOLUME+

t





!3







y





!2

D.ZOOM

PAGE

KEYSTONE NO SHOW

!1

u

i o !0

qPOWER ON-OFF button

Turns the projector on or off. (p18, 19)

wVIDEO button

Selects VIDEO input source. (p32, 33)

eCOMPUTER button

Selects COMPUTER input source. (p24)

rMENU button

Opens or closes the On-Screen Menu. (p20)

tPAGE ed button

Scroll back and forth pages on the screen when giving a presentation. (p9, 15, 42) Connect the projector and your computer with a USB cable to use these buttons.

y D.ZOOM ed button

Select the Digital zoom +/– mode and resize the image. (p31)

uAUTO PC button

Automatically adjusts a computer image to its optimum setting. (p26)

iIMAGE button

Selects image level. (p29, p35)

oFREEZE button

Freezes the picture. (p22)

!0MUTE button

Mutes the sound. (p23)

!1P-TIMER button

Operates the P-timer function. (p23)

!2NO SHOW button

Temporarily turns off the image on the screen. (p23)

!3KEYSTONE button

Corrects the keystone distortion. (p22, p39)

!4Point ed 78( VOLUME + / – ) buttons

Select an item or adjust value in the On-Screen Menu. (p20)

Pan the image in Digital zoom +/– mode. (p31)

Adjust volume level. (Point 78 buttons)(p23)

!5Select button

Executes the selected item. (p20)

Expands / compresses the image in Digital zoom mode. (p31)

Functions and Names Part

Operating Range

Point the remote control toward the projector (Infrared Remote Receiver) when pressing any button. Maximum operating range for the remote control is about 16.4’ (5m) and 60° in front of the projector.

16.4’ (5 m)

30°

30°

11

Part Names and Functions

Remote Control Battery Installation

1 2 3 Replacelid. the compartment

Pull up and remove the lid.

Two AAA size batteries

For correct polarity (+ and

–), be sure battery terminals are in contact with pins in compartment.

To ensure safe operation, please observe the following precautions :

Use (2) AAA, SUM-4 or R03 type alkaline batteries.

Replace two batteries at the same time.

Do not use a new battery with a used battery.

Avoid contact with water or liquid.

Do not expose the remote control to moisture, or heat.

Do not drop the remote control.

If a battery has leaked on remote control, carefully wipe case clean and install new batteries.

Risk of explosion if battery is replaced by an incorrect type.

Dispose of used batteries according to the instructions.

12

Installation

Positioning the Projector

This projector is designed to project on a flat projection surface and can be focused from 4.3’(1.3m) - 32.8’(10.0m). Refer to the figure and the table below for the screen size and the distance between the projector and the screen.

A : B = 9 : 1







32.8' (10.0m)

















300”

(Inch Diagonal)





22.0' (6.7m)











16.4' (5.0m)





Max. Zoom









200”







10.8' (3.3m)



247”













150”









4.3' (1.3m)





Min. Zoom

A







166”

















100”











124”





















40”

82”

































(Center)



33”









B













Screen Size

33”

40”

100”

150”

200”

300”

(W x H) mm

671 x 503

813 x 610

2032 x 1524

3048 x 2286

4064 x 3048

6096 x 4572

4 : 3 aspect ratio

Zoom (min)

4.3' (1.3m)

5.2' (1.6m)

13.1' (4.0m)

20.0' (6.1m)

26.6' (8.1m)

–––––

Zoom (max)

–––––

4.3' (1.3m)

10.8' (3.3m)

16.4' (5.0m)

22.0' (6.7m)

32.8' (10.0m)

Note:

The brightness in a room has a great influence on picture quality. It is recommended to limit ambient lighting in order to obtain the best image.

The values shown above are approximate and may vary from the actual size.

Adjustable Feet

Projection angle can be adjusted up to 11.8 degrees with the adjustable feet.

1

Lift the front of the projector and pull upward the feet lock



latches on both sides of the projector.

2

Release the feet lock latches to lock the adjustable feet and



rotate the adjustable feet to adjust the position and tilt.

3

To retract the adjustable feet, lift the front of the projector

and pull and undo the feet lock latches.

Keystone distortion of the projected image can be adjusted by menu operation. (p22, 39)

Feet Lock Latches

Adjustable Feet

Installation

13

Installation

Connecting the AC Power Cord

This projector uses nominal input voltages of 100-120 V or 200-240 V AC. This projector automatically selects the correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce risk of electrical shock, do not plug into any other type of power system.

Consult your authorized dealer or service station if you are not sure of the type of power being supplied.

Connect the projector with all peripheral equipment before turning the projector on. (See page 15-17 for connection.)

CAUTION

For safety, unplug AC power cord when the projector is not in use. When this projector is connected to an outlet with AC power cord, it is in Stand-by mode and consumes a little electric power.

Connect AC power cord (supplied) to the projector.

The AC outlet must be near this equipment and must be easily accessible.

NOTE ON THE POWER CORD

AC power cord must meet requirement of the country where you use a projector.

Confirm an AC plug type with the chart below and proper AC power cord must be used.

If supplied AC power cord does not match your AC outlet, contact your sales dealer.

Projector side









AC outlet side









































For the U.S.A. and Canada



For Continental Europe



For the U.K.











































Ground









To power cord











To the AC outlet.



To the AC outlet.





connector on your





To the AC outlet.



(200 - 240 V AC)



(120 V AC)





projector.





(200 - 240 V AC)

























































14

Installation

Connecting to a Computer

Cables used for connection

VGA Cable (HDB 15 pin) (Only a cable is supplied.)

USB Cable

Audio Cables (Mini Plug: stereo)

( = Not supplied with this projector.)

Audio Output

USB port

VGA cable

Monitor Output

Audio cable (stereo)

USB cable

External Audio Equipment

Audio Input

Monitor Input

COMPUTER IN 1/ COMPONENT IN (or COMPUTER IN 2/ MONITOR OUT)

USB

COMPUTER IN 1

AUDIO IN

VIDEO

USB

R

L (MONO)

/ COMPONENT IN









SERVICE PORT S-VIDEO

COMPUTER

/ COMPONENT



RESET

VGA cable

AUDIO IN

AUDIO OUT



COMPUTER IN 2



/ MONITOR OUT



(VARIABLE)

COMPUTER IN 2/ MONITOR OUT

This terminal is switcheable. Set up the terminal as either Computer input or Monitor output. (See Page 41.)

Note:

If you wish to use Page ed buttons on the remote control, connect USB port of your computer to the USB socket of the projector. (p9 and 42)

When connecting AUDIO OUT to external audio equipment, the projector's built-in speaker is disconnected.

Note:

When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet.

COMPUTER/ COMPONENT

AUDIO IN

Audio cable (stereo)

AUDIO OUT (stereo)

Installation

15

Installation

Connecting to Video Equipment

Cables used for connection

Video and Audio Cable (RCA x 3)

S-VIDEO Cable

Audio Cables (Mini Plug: stereo)

( = Not supplied with this projector.)

S-Video Output

S-Video cable

Composite Video and

Audio Output

(R)

(L)

(Video)

External Audio Equipment

Video and audio cable

Audio Input

(R)

(L)

S-VIDEO

AUDIO IN





VIDEO



COMPUTER IN 1

AUDIO IN









COMPUTER IN 1

R

L (MONO)

VIDEO USB



DVI - I



/ COMPONENT IN















SERVICE PORT

S-VIDEO

COMPUTER /













/COMPONENTE T



RESET











AUDIO IN

AUDIO OUT

COMPUTER IN 2 /





COMPUTER IN 2





COMPONENT IN /





/ MONITOR OUT

(VARIABLE)



MONITOR OUT

AUDIO OUT





(stereo)

Note:

The S-VIDEO jack has priority over the VIDEO jack under the condition of connecting both the S-VIDEO jack and the VIDEO jack when selecting AUTO in the Input Menu.

Input sound to the COMPUTER/COMPONENT AUDIO IN terminal when using the COMPUTER IN 2/ MONITOR OUT terminal as input.

When connecting AUDIO OUT to external audio equipment, the projector's built-in speaker is disconnected.

Note:

When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet.

Audio cable (stereo)

16

Connecting to Component Video Equipment

Cables used for connection

Audio Cables (Mini Plug (stereo) x 2 or RCA x 2)

Scart-VGA Cable

Component-VGA Cable

( = Not supplied with this projector.)



















































































































































































































RGB Scart 21-pin Output Component Video Output

Audio Output













(Y, Pb/Cb, Pr/Cr)



















































































































































































External Audio Equipment

Scart-VGA cable

Component-VGA

Audio cable



































cable

(stereo)









































































































COMPUTER IN 1/ COMPONENT IN

Audio Input







COMPUTER IN 1/







COMPONENT IN

COMPUTER IN 1

AUDIO IN





R

L (MONO) VIDEO USB

/ COMPONENT IN











SERVICE PORT

S-VIDEO

COMPUTER









/



RESET







AUDIO AUDIO OUT

COMPUTER IN 2

/ MONITOR OUT

(VARIABLE)

COMPUTER/ COMPONENT AUDIO IN

AUDIO OUT (stereo)

Audio cable (stereo)

Installation

Installation

Note:

When connecting AUDIO OUT to external audio equipment, the projector's built-in speaker is disconnected.

Note:

When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet.

17

Basic Operation

Turning On the Projector

1

Complete peripheral connections (with a computer, VCR,



etc.) before turning on the projector.

2

Connect the projector's AC power cord into an AC outlet.



The POWER indicator blinks red in a moment and lights red.

3

Press the POWER ON-OFF button on the top control or on



the remote control. The POWER indicator turns green



lighting and the cooling fans start to operate. The



preparation display appears on the screen and the count



down starts.

4

After the count-down, the input source that was selected

last and the Lamp mode status icon (see page 42) appear on the screen.

If the projector is locked with a PIN code, PIN code Input Dialog Box will appear. Enter the PIN code as instructed below.

Enter a PIN code

Select a number by pressing the Point 78 button and fix the number with the SELECT button. The number will change to " ". If you fixed a wrong number, move the pointer to "Set" or "Clear" once by pressing the Point d button, then return to "PIN code". Enter the correct number again.

Repeat this step to complete entering a four-digit number.

When the four-digit number is fixed, the pointer will automatically move to "Set". Press the SELECT button so that you can start to operate the projector.

If you entered a wrong PIN code, "PIN code" and the number ( ) will turn red and disappear. Enter a correct PIN code all over again.

What is PIN code?

PIN code is a security code using Personal Identification Number that allows the person who knows it to operate the projector. Setting PIN code prevents others except the specific users from operating the projector.

A PIN code consists of a four-digit number. Refer to PIN Code Lock function in Setting on page 43 for locking operation of the projector with your PIN code.

CAUTION ON HANDLING PIN CODE

If you forget your PIN code, the projector can no longer be started. Set a new PIN code with special care, write it down in column on page 59 of this manual, and keep it at hand. Should the PIN code be missing or forgotten, consult your dealer or service center.

16

The preparation display disappears after 20 seconds.

Selected Input Source and Lamp Mode

Lamp mode

(See page 42 for Lamp mode.)

PIN code Input Dialog Box

Pointer

After the OK icon disappears, you can operate the projector.

18

Basic Operation

Turning Off the Projector

1

Press the POWER ON-OFF button on the top control or on











the remote control, and a message "Power off?" appears on











the screen.









2

Press the POWER ON-OFF button again to turn off the

















projector. The POWER indicator starts to blink red, and it





















continues while the cooling fans are operating for about 90











seconds. (About 120 seconds when the fan mode is L2. See











page 44.)











The message disappears after 4 seconds.





3

When the projector has cooled down enough to be turned on



again, the POWER indicator lights red. Then you can

disconnect the AC power cord.

TO MAINTAIN THE LIFE OF LAMP, ONCE YOU TURN

PROJECTOR ON, WAIT AT LEAST 5 MINUTES BEFORE

TURNING IT OFF.

DO NOT DISCONNECT AC POWER CORD WHILE

COOLING FANS ARE RUNNING OR BEFORE POWER

INDICATOR LIGHTS RED. OTHERWISE IT WILL

RESULT IN SHORTENING LAMP LIFE.

Note:

The projector cannot be turned on during the cooling period with the POWER indicator blinking red. You can turn it on again after the POWER indicator lights red.

When the On start function is on, this projector is turned on automatically by connecting the AC power cord to an AC outlet. (See page 41 for the On start function.)

Do not operate the projector continuously without rest. Continuous use may result in shortening the lamp life. Turn off the projector and give it a rest about an hour in every 24 hours.

This projector monitors internal temperature and automatically controls the running speed of the cooling fans.

If the WARNING indicator blinks or lights red, see “Warning Indicator” on page 45.

Operation Basic

19

Basic Operation

How to Operate the On-Screen Menu

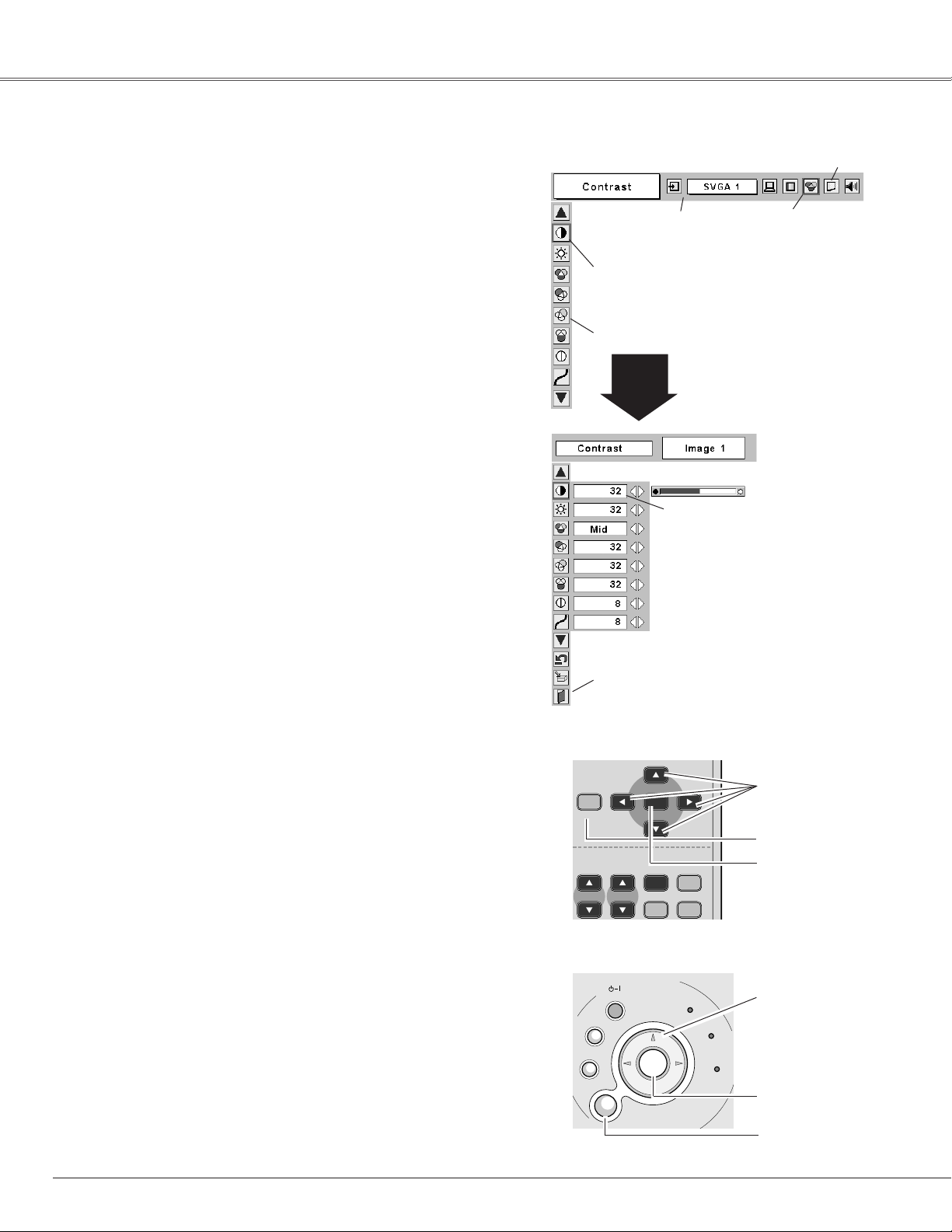

The projector can be adjusted or set via the On-Screen Menu. Refer to the following pages regarding each adjustment and setting procedure.

1

Press the MENU button to display the On-Screen Menu.

2

Press the Point 78 buttons to select a Menu icon to adjust.



Press the Point ed buttons to select an item to adjust.

3

Press the SELECT button to show the item data. Press the



Point 7 8 buttons to adjust the data. Refer to the following

pages for respective adjustment.

Note:

The selected item is not in effective until the SELECT button is pressed.

On-Screen Menu

Menu icon

Menu bar

Pointer



(red frame)

Pointer (red frame)

Press the Point d button to move the pointer.

Item

SELECT button

Item data

Press the Point 7 8 buttons to adjust value.

Quit to exit this menu.

Remote Control





POINT buttons

MENU VOLUMESELECT VOLUME+





MENU button





SELECT button

D.ZOOM

PAGE

KEYSTONE NO SHOW

Top Control



ON - OFF





POINT button







POWER









(outer ring)

INPUT















WARNING









EYSTONE

E



V

LAMP

M



O



U

SELECT

L

REPLACE



L

U



O



M





V











E









+



MENU

SELECT button

MENU button

20

Basic Operation

Menu Bar

For computer source

Guide Window

PC System Menu

Image Select Menu

Screen Menu

Shows the selected

Used to select

Used to select an

Used to adjust size

Menu of the On-

computer system.

image level among

of image. [Normal

Screen Menu.

(p25)

Standard, Real,

/ True / Wide /











Blackboard(Green),

Digital zoom +/–]





















and Image 1 ~ 4.

(p31)











(p29)























































Setting Menu

Used to change settings of the projector or reset lamp replace counter. (p39-44)

Operation Basic

Input Menu

PC Adjust Menu

Image Adjust Menu

Sound Menu

Used to select

Used to adjust

Used to adjust computer image.

Used to adjust

input source

parameters to

[Contrast / Brightness / Color

volume or mute

either Computer

match with input

temp. / White balance (R/G/B) /

sound. (p23)

or Video. (p24)

signal format.

Sharpness / Gamma] (p30)





(p26-28)





For video source























Input Menu

Image Select Menu

Screen Menu









Used to select

Used to select an

Used to set size









input source

image level among

of image to









either Video or

Standard, Cinema,

Normal or Wide.









Computer.

Blackboard(Green)

(p38)









(p33)

and Image 1 ~ 4.





















(p35)



































































































































































































































Same function as

AV System Menu

Image Adjust Menu

menu for computer

Used to select

Used to adjust picture image.

source.

system of selected

[Contrast / Brightness / Color / Tint /





video source.

Color temp. / White balance (R/G/B) /



(Refer to p34)

Sharpness / Gamma / Progressive /





Film]





(Refer to p36, 37)

Same function as menu for computer source.

21

Basic Operation

Zoom and Focus Adjustment

Rotate the Zoom Ring to zoom in and out.

Rotate the Focus Ring to adjust the projected picture focus.

Zoom Ring

Focus Ring

Keystone Adjustment

If a projected picture has keystone distortion, correct the image with KEYSTONE adjustment.

1

Press the KEYSTONE button on the top control, the remote



control or select Keystone in the Setting Menu (p39). The



keystone dialog box appears.

2

Correct keystone distortion by pressing the Point ed button.



Keystone adjustment can be memorized. (p39)

The arrows are white when there is no correction.

The arrows disappear at the maximum correction.

The direction of the arrow being corrected turns red.

If you press the KEYSTONE button on the top control or on the remote control once more while the keystone dialog box is being displayed, the keystone adjustment will be canceled.

Reduce the upper width

Reduce the lower width

with Point e button.

with Point d button.













Picture Freeze Function

Press the FREEZE button on the remote control to freeze the picture on the screen. To cancel the FREEZE function, press the FREEZE button again or press any other button. (p11)

22

Basic Operation

No Show Function

Press the NO SHOW button on the remote control to black out the image. To restore to normal, press the NO SHOW button again or press any other button. When a projected image is captured and set as “User” in the Logo item in the Setting Menu (p40), the screen changes each time you press the NO SHOW button as follows.

black out the captured image normal • • • • •

The message disappears after 4 seconds.

P-Timer Function

Press the P-TIMER button on the remote control. The timer display “00 : 00” appears on the screen and the timer starts to count time (00 : 00 ~ 59 : 59).

To stop the P-Timer, press the P-TIMER button. And then, press the P-TIMER button again to cancel the P-Timer function.

Sound Adjustment

Direct Operation

Volume

Press the VOLUME (+/–) button on the top control or on the remote control to adjust volume. The volume dialog box appears on the screen for a few seconds.

(+) button to turn up the volume and (–) button to turn down the volume.

Mute

Press the MUTE button on the remote control to cut off sound. To restore sound to its previous level, press the MUTE button again or press the VOLUME (+/–) button.

Menu Operation

1

Press the MENU button and the On-Screen Menu will



appear. Press the Point 7 8 button to move the red frame



pointer to the Sound Menu icon.

2

Press the Point d button to move the red frame pointer to



the item that you want to select, and then press the SELECT

button.

Volume

Press the Point 8 button to turn up the volume, and press the Point 7 button to turn down the volume.

Mute

Press the Point 78 button to cut off sound. Dialog box display is changed to “On” and sound is cut off. To restore sound to its previous level, press the Point 78 button again.

indicates approximate level of volume.

Press the MUTE button to set the Mute function On or Off.

The display disappears after 4 seconds.

Sound Menu

Sound Menu icon

indicates approximate level of volume.

closes the Sound Menu.

Operation Basic

23

Computer Input

Input Source Selection

Direct Operation

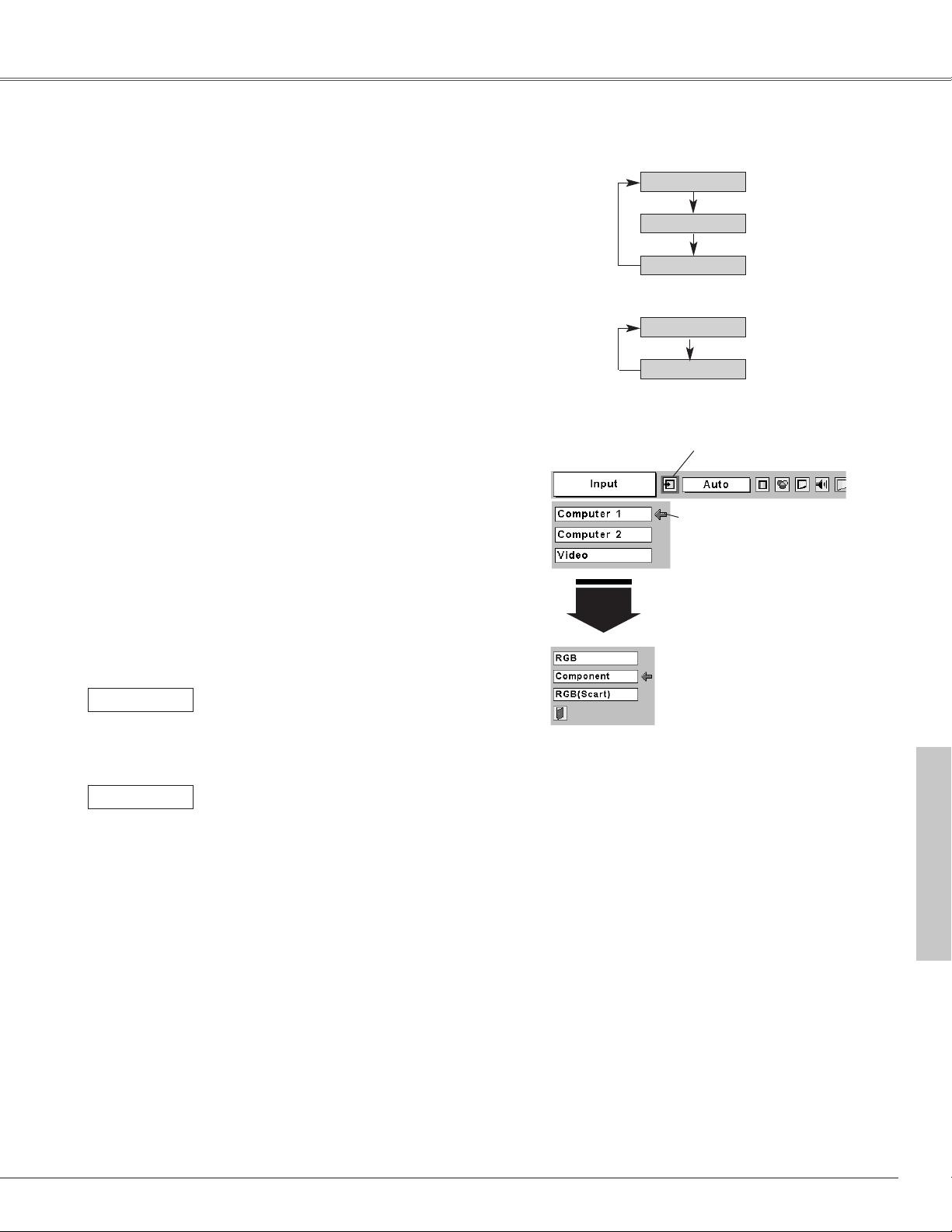

Choose either Computer 1 or Computer 2 by pressing the INPUT button on the top control or press the COMPUTER button on the remote control.

Before using these buttons, correct input source should be selected through menu operation as described below.

INPUT button

Computer 1

Computer 2

Video

Menu Operation

1

Press the MENU button and the On-Screen Menu will



appear. Press the Point 7 8 button to move the red frame



pointer to the Input Menu icon.

2

Press the Point d button to move the red arrow pointer to



either Computer 1 or Computer 2, and then press the



SELECT button.

3

After the Source Select Menu appears for Computer 1,



move the pointer to RGB and then press the SELECT button.

RGB

Component

RGB (Scart)

When the input source is analog coming from a computer through the COMPUTER IN 1/ COMPONENT IN terminal, select RGB.

See "Selecting Input Source (Component / RGBScart 21-pin )" on p33.

See "Selecting Input Source (Component / RGBScart 21-pin )" on p33.

Note:

Computer 2 is not displayed when the COMPUTER IN 2/ MONITOR OUT terminal is used as Monitor out. (p41)

COMPUTER button

Computer 1

Computer 2

See Note on the bottom of this page.

Input Menu icon

Input Menu

Move the pointer (red arrow) to Computer 1 and press the SELECT button.

Computer

1

Source Select Menu

Move the pointer to RGB and press the SELECT button.

Input Menu

Move the pointer (red arrow) to Computer 2 and press the SELECT button.

24

Computer Input

Computer System Selection

This projector automatically tunes to various types of computers based on VGA, SVGA, XGA or SXGA with its Multi-scan system and Auto PC Adjustment. If Computer is selected as a signal source, this projector automatically detects the signal format and tunes to project a proper image without any additional setting. (Signal formats provided in this projector is shown on page 55 )

Note:

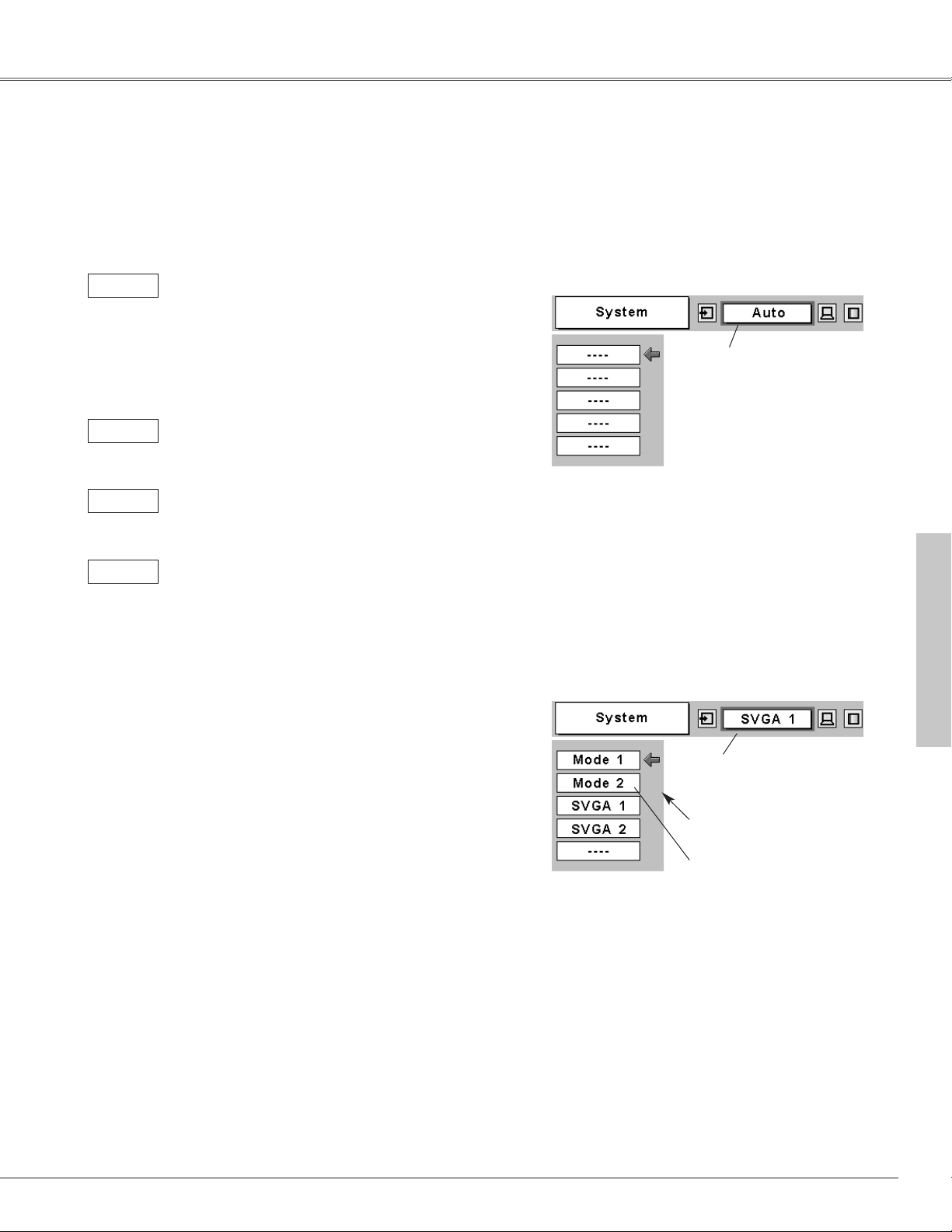

The projector may display one of the following messages.

Auto

When the projector cannot recognize connected

PC System Menu



signal conforming to PC Systems provided in this









projector, Auto PC Adjustment function works to





display proper images and the message “Auto” is





displayed on the PC System menu box. When the





image is not projected properly, manual adjustment is





required. (p27, 28 )





There is no signal input from computer. Check the



-----





connection of your computer and the projector. ( "









Troubleshooting" p50 )





User preset system manually adjusted in PC Adjust



Mode 1





menu. Adjustment data can be stored in Mode 1 - 5.









( p27, 28 )



The Auto PC Adjustment function operates to adjust the projector.

SVGA 1 PC Systems provided in the projector. The projector chooses a proper system and displays it.

*Mode 1 and SVGA 1 are examples.

Selecting Computer System Manually

PC system can also be selected manually.

1

Press the MENU button and the On-Screen Menu will



appear. Press the Point 7 8 buttons to move the red frame



pointer to the PC System Menu icon.

2

Press the Point d button to move the red arrow pointer to



the system that you want to set, and then press the SELECT

button.

PC System Menu

The PC System Menu icon displays the system being selected.

The systems on this dialog box can be selected.

Custom Mode (1~5) set in the

PC Adjust Menu. (p27, 28)

Input Computer

25

Computer Input

Auto PC Adjustment

Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal, and Vertical to conform to your computer. Auto PC Adjustment function can be operated as follows.



Auto PC Adj.

PC Adjust Menu





1

Press the MENU button to display the On-Screen Menu.





Press the Point 78 button to move the red frame pointer to





PC Adjust Menu icon.



2

Press the Point d button to move the red frame pointer to



Auto PC Adj. icon and then press the SELECT button twice. This Auto PC Adjustment can be also executed by pressing the Auto PC button on the remote control unit.

To store adjustment parameters

Adjustment parameters from Auto PC Adjustment can be memorized in this projector. Once parameters are memorized, the setting can be done just by selecting Mode in the PC System Menu (p25). See “Store” on page 28.

PC Adjust Menu icon

Move the red frame pointer to the Auto PC Adj. icon and press the SELECT button.

Note:

Fine sync, Total dots and Picture Position of some computers can not be fully adjusted with this Auto PC Adjustment function. When the image is not provided properly with this operation, manual adjustments are required. (p27, 28)

The Auto PC Adjust cannot be operated when 480i, 575i, 480p, 575p, 720p,1035i, or 1080i is selected in the PC System Menu.

26

Computer Input

Manual PC Adjustment

Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector. Manual PC Adjustment enables you to precisely adjust several parameters to match those signal formats. The projector has 5 independent memory areas to memorize those parameters manually adjusted. It allows you to recall the setting for a specific computer.

1

Press the MENU button and the On-Screen Menu will



appear. Press the Point 7 8 button to move the red frame



pointer to the PC Adjust Menu icon.

2

Press the Point d button to move the red frame pointer to



the item that you want to adjust and then press the SELECT

button. An adjustment dialog box will appear. Press the Point 78 button to adjust value.

Fine sync

Eliminates flicker from the image displayed. Press the Point 7 8 button to adjust value. (From 0 to 31)

Total dots

Adjusts the number of total dots in one horizontal period. Press the Point 78 button and adjust number to match your PC image.

Horizontal

Adjusts horizontal picture position. Press the Point 7 8 button to adjust the position.

Vertical

Adjusts vertical picture position. Press the Point 7 8 button to adjust the position.

Current mode

Press the SELECT button to show H-Freq. and V-Freq. of the connected computer.

Clamp

Adjusts clamp level. When the image has dark bars, try this adjustment.

PC Adjust Menu icon

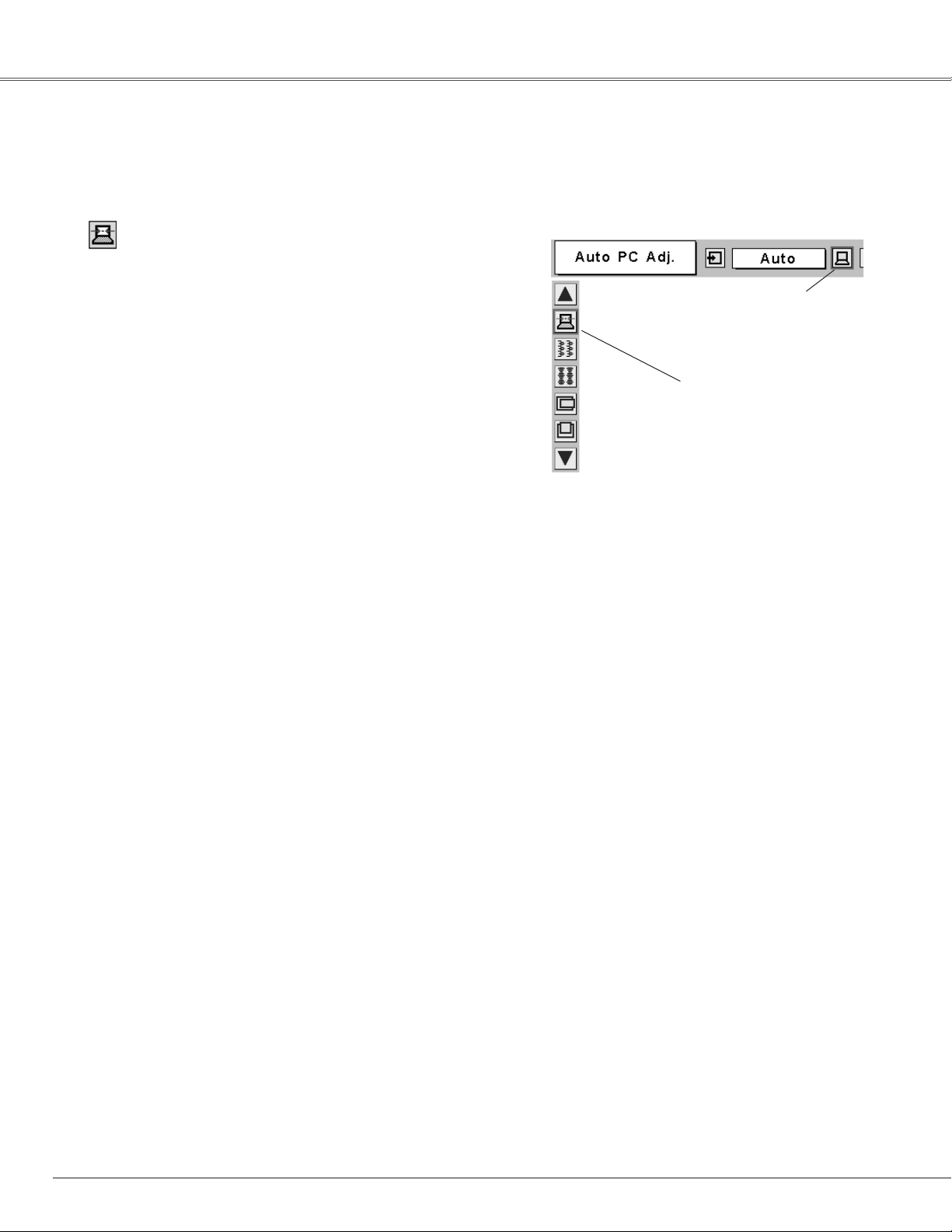

PC Adjust Menu

Move the red frame pointer to an item and press the SELECT button.





Shows status







Selected Mode

(Stored / Free) of the



selected Mode.





Press the Point 78 button to adjust the value.

Press the SELECT button at this icon to adjust the other items.

Current mode

Press the SELECT button at the Current mode icon to show the information of the connected computer.

Input Computer

27

Computer Input

Display area

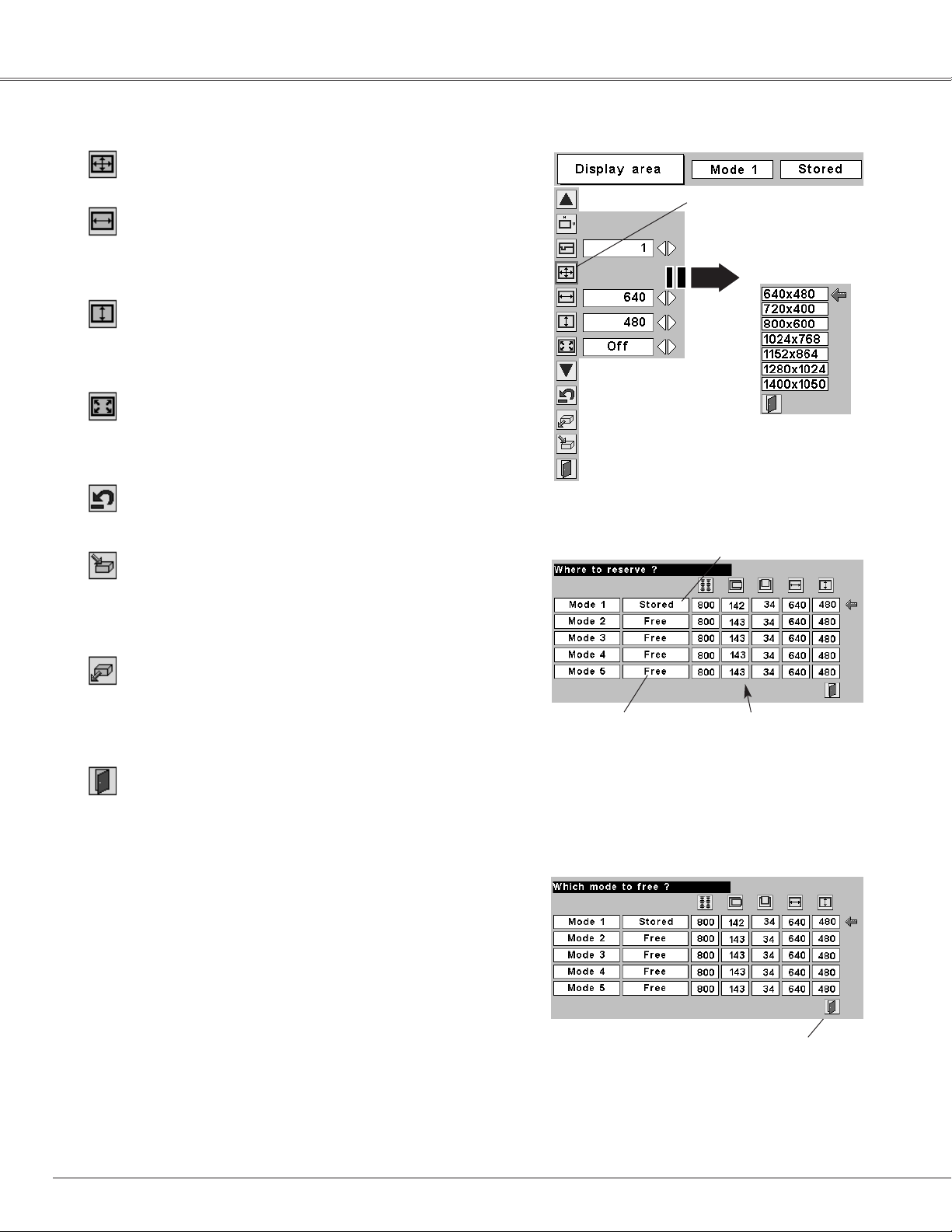

Select the resolution at the Display area dialog box.

Display area H

Adjusts the horizontal area displayed by this projector. Press the Point 7 8 button to decrease/increase value and then press the SELECT button.

Display area V

Adjusts the vertical area displayed by this projector. Press the Point 7 8 button to decrease/increase value and then press the SELECT button.

Full screen

With this function on, SXGA image is fully displayed at 4 : 3 aspect ratio. It is displayed at 5 : 4 aspect ratio with this function off.

Reset

Resets all adjustment to their previous levels.

Store

To store adjustment data, move the red frame pointer to the Store icon and then press the SELECT button. Move the red arrow pointer to any of Mode 1 to 5 in which you want to store and then press the SELECT button.

Mode free

To clear adjustment data previously set, move the red frame pointer to the Mode free icon and then press the SELECT button. Move the red arrow pointer to the Mode that you want to clear and then press the SELECT button.

Quit

Exits the PC Adjust Menu.

Note:

Auto PC Adjust, Display area, Display area (H/V), and Full screen cannot be selected when “480i”, “575i”, “480p”, “575p”, “720p”, “1035i”, or “1080i” is selected in the PC System Menu (p25).

Press the SELECT button at the Display area icon and the Display area dialog box appears.

Display area

To store adjustment data

This Mode has parameters being stored.

Vacant Mode

shows values of “Total



dots,” “Horizontal,”



“Vertical,” “Display area



H,” and “Display area V.”

To clear adjustment data

closes this dialog box.

28

Computer Input

Image Level Selection

Direct Operation

Select an image level among Standard, Real, Blackboard(Green), Image 1, Image 2, Image 3, and Image 4 by pressing the IMAGE button on the remote control.

Standard

Normal picture level preset on this projector.

Real

Picture level with improved halftone for graphics.

Blackboard(Green)

Picture level suitable for the image projected on a blackboard (Green).

This mode assists to enhance the image projected on a blackboard. This is mainly effective on a green colored board, not truly effective on a black colored board.

Image 1~4

User preset image in the Image Adjust Menu (p30).

Menu Operation

1

Press the MENU button and the On-Screen Menu will



appear. Press the Point 7 8 button to move the red frame



pointer to the Image Select Menu icon.

2

Press the Point d button to move the red frame pointer to



the level that you want to set and then press the SELECT

button.

Standard

Normal picture level preset on this projector.

Real

Picture level with improved halftone for graphics.

Blackboard(Green)

Picture level suitable for the image projected on a blackboard (Green). See above for further description.

Image 1~4

User preset image in the Image Adjust Menu (p30).

IMAGE button

Standard

Real

Blackboard(Green)

Image 1

Image 2

Image 3

Image 4

Image Select Menu icon

Image Select Menu

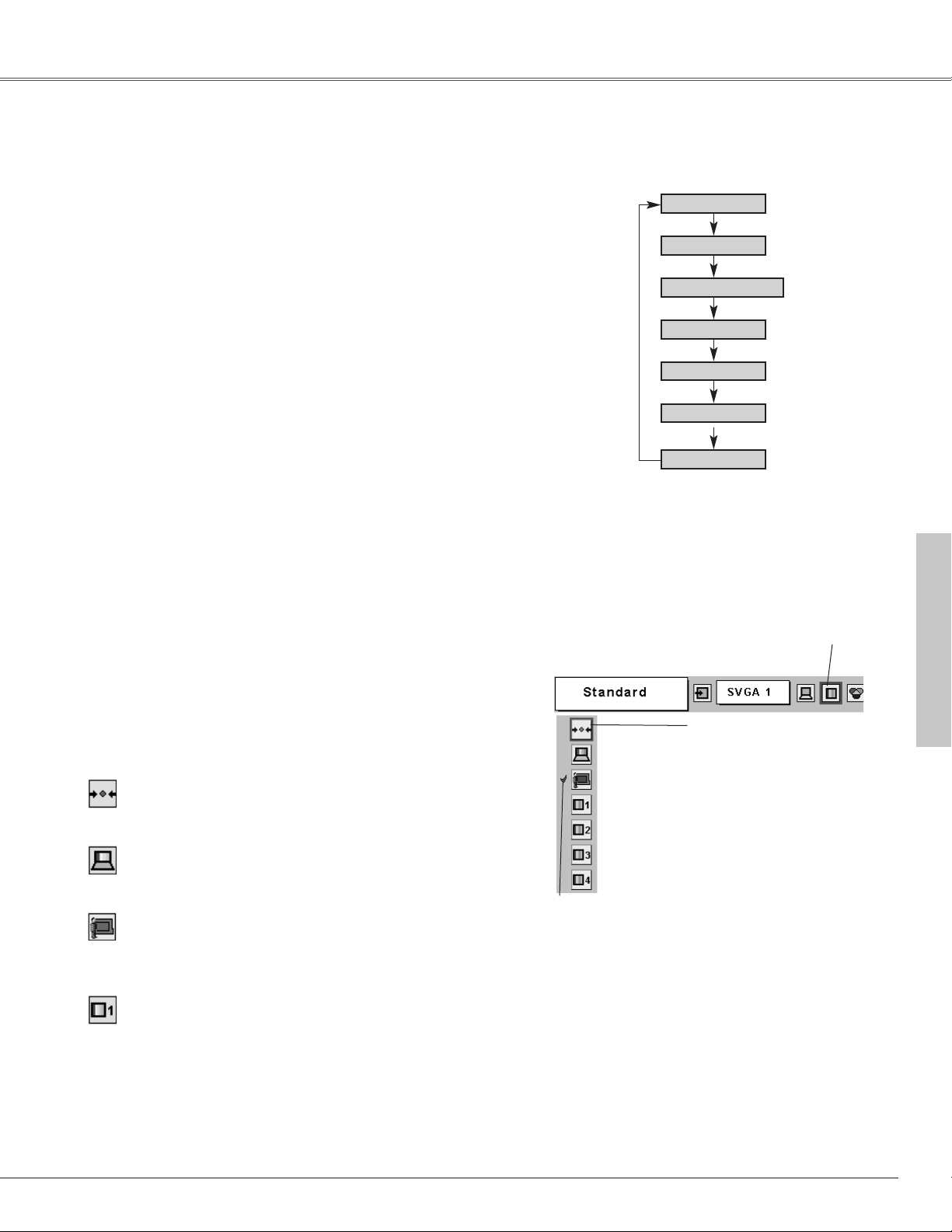

Move the red frame pointer to the level and press the SELECT button.

The level being selected.

Input Computer

29

Computer Input

Image Level Adjustment

1

Press the MENU button and the On-Screen Menu will



appear. Press the Point 7 8 button to move the red frame



pointer to the Image Adjust Menu icon.

2

Press the Point d button to move the red frame pointer to



the item that you want to adjust, and then press the SELECT

button. The level of each item is displayed. Adjust each level by pressing the Point 78 button.

Contrast

Press the Point 7 button to decrease contrast and the Point 8 button to increase contrast. (From 0 to 63.)

Brightness

Press the Point 7 button to adjust image darker and the Point 8 button to adjust image brighter. (From 0 to 63.)

Color temp.

Press the Point 7 button or the Point 8 button for Color temp. level that you want to select. (XLow, Low, Mid, or High)

White balance (Red)

Press the Point 7 button to lighten red tone and the Point 8 button to deepen red tone. (From 0 to 63.)

White balance (Green)

Press the Point 7 button to lighten green tone and the Point 8 button to deepen green tone. (From 0 to 63.)

White balance (Blue)

Press the Point 7 button to lighten blue tone and the Point 8 button to deepen blue tone. (From 0 to 63.)

Sharpness

Press the Point 7 button to soften the image and the Point 8 button to sharpen the image. (From 0 to 15.)

Gamma

Press the Point 7 8 button to obtain better balance of contrast. (From 0 to 15.)

Reset

Resets all adjustment to their previous levels.

Store

To store the image data adjusted manually, move the red frame pointer to the Store icon and press the SELECT button. The Image Level Menu will appear. Move the red frame pointer to the Image 1 to 4 where you want to set and then press the SELECT button.

Quit

Closes the Image Adjust Menu.

Image Adjust Menu

Image Adjust Menu icon

Move the red frame pointer to the item to be selected and then press the SELECT button.

Selected Image level

Press the Point 78button to adjust value.

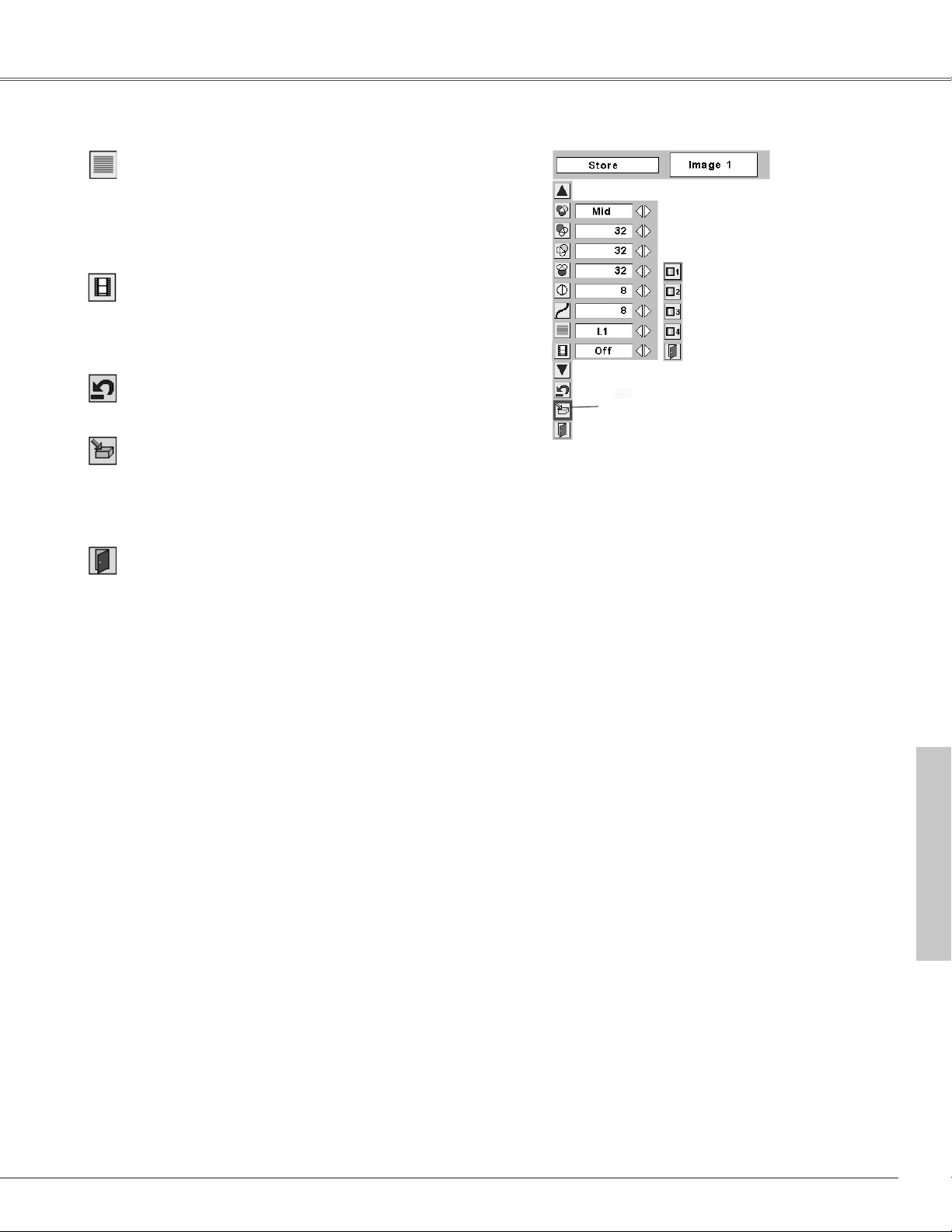

Store icon

Press the SELECT button at this icon to store the adjustment.

Image Level Menu

Move the red frame pointer to any of Image 1 to 4 where you want to set and then press the SELECT button.

30

Computer Input

Screen Size Adjustment

This projector has a picture screen resize function, which enables you to display the desirable image size.

1

Press the MENU button and the On-Screen Menu will



appear. Press the Point 7 8 button to move the red frame



pointer to the Screen Menu icon.

2

Press the Point d button and move the red frame pointer to



the function that you want to select and then press the

SELECT button.

Normal

Provides image to fit screen size.

True

Provides image in its original size. When the original image size is larger than the screen size (1024 x 768), this projector enters “Digital zoom +” mode automatically.

Wide

Provides image to fit wide video aspect ratio (16 : 9) by expanding image width uniformly. This function can be used for providing a squeezed video signal at 16 : 9.

Digital zoom +

When the Digital zoom + is selected, the On-Screen Menu disappears and the message “D. Zoom +” is displayed. Press the SELECT button to expand the image size. And press the Point ed7 8 button to pan the image. The Panning function can work only when the image is larger than the screen size.

A projected image can be also expanded by pressing the D.ZOOM ▲ button on the remote control.

Digital zoom –

When the Digital zoom – is selected, the On-Screen Menu disappears and the message “D. Zoom –” is displayed. Press the SELECT button to compress the image size.

A projected image can be also compressed by pressing the D.ZOOM ▼ button on the remote control.

To exit the Digital Zoom +/– mode, press any button except the D.ZOOM ▲/▼, SELECT, and Point button.

To return to the normal screen, press the KEYSTONE button twice, press the D.ZOOM ▲▼ button or select Normal from the Screen menu.

Screen Menu

Screen Menu icon

Move the red frame to the function and press the SELECT button.

Note:

This Screen Menu cannot be operated when “720p(HDTV)”, “1035i (HDTV)”, or “1080i (HDTV)” is selected in the PC System Menu (p25).

The True and Digital zoom +/– cannot be selected when “480i”, “575i”, “480p”, or “575p” is selected in the PC System Menu (p25).

This projector cannot display any resolution higher than 1280 X 1024. If your computer’s screen resolution is higher than 1280 X 1024, reset the resolution to the lower before connecting to the projector.

The image data in other than XGA (1024 x 768) is modified to fit the screen size in initial mode.

The panning function may not operate properly if the computer system prepared in the PC Adjust Menu is used.

Input Computer

31

Video Input

Input Source Selection (Video, S-Video)

Direct Operation

Choose Video by pressing the INPUT button on the top control or the VIDEO button on the remote control.

Before using these buttons, correct input source should be selected through menu operation as described below.

Menu Operation

1

Press the MENU button and the On-Screen Menu will



appear. Press the Point 7 8 button to move the red frame



pointer to the Input Menu icon.

2

Press the Point d button to move the red arrow pointer to



Video and then press the SELECT button. The Source Select



Menu will appear.

3

Move the pointer to the source that you want to select and



then press the SELECT button.





When selecting Auto, the projector automatically



Auto



detects incoming video signal, and adjusts itself to









optimize its performance. The projector selects





connection in the following order:





1st S-Video





2nd Video





The S-VIDEO jack has priority over the VIDEO jack





under the condition of connecting both the S-VIDEO





jack and the VIDEO jack.





When video input signal is connected to the VIDEO



Video



jack, select Video.









When video input signal is connected to the S-VIDEO

S-Video

jack, select S-Video.





Note:

When Monitor out is selected at the Terminal item in the Setting Menu, Computer 2 is not displayed. (p41)

INPUT button

Video

Computer 1

Computer 2

VIDEO button

Video

See Note on the bottom of this page.

Input Menu icon

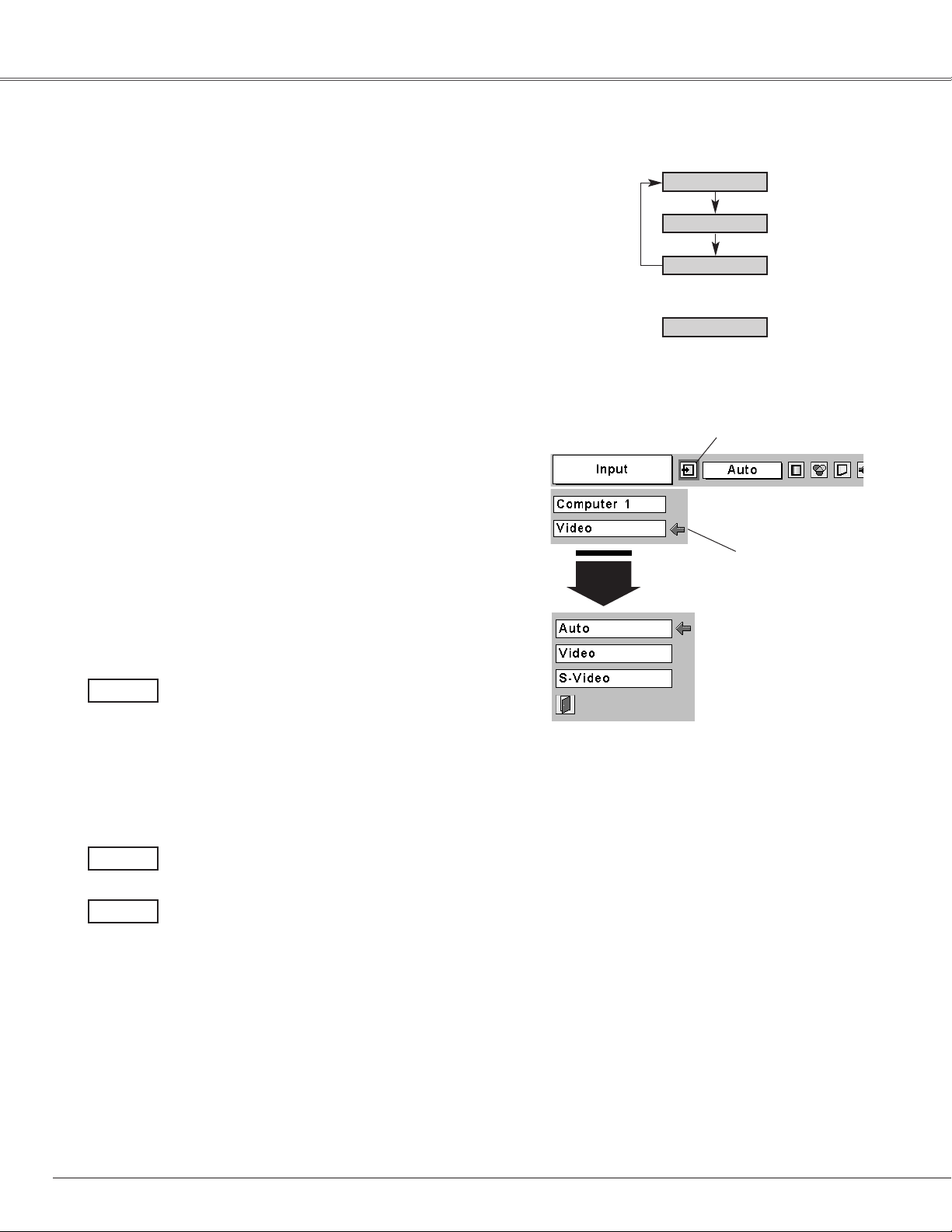

Input Menu



Move the pointer to





VIDEO

Video and press the

SELECT button.



Source Select Menu (VIDEO)



Move the pointer to the



source that you want to



select and press the



SELECT button.

32

Video Input

Input Source Selection (Component, RGB Scart 21-Pin)

Direct Operation

Choose Computer 1 by pressing the INPUT button on the top control or press the COMPUTER button on the remote control. Before using these buttons, correct input source should be selected through menu operation as described below.

Menu Operation

1

Press the MENU button and the On-Screen Menu will



appear. Press the Point 7 8 button to move the red frame



pointer to the Input Menu icon.

2

Press the Point d button to move the red arrow pointer to



Computer 1, and then press the SELECT button. The Source



Select Menu will appear.

3

Move the pointer to the correct input source and then press



the SELECT button.



When the input source is coming from video

Component





equipment connected to the COMPUTER IN 1/









COMPONENT IN terminal with a Component-





VGA Cable, select Component.



When the input source is coming from video

RGB (Scart)





equipment connected to the COMPUTER IN 1/









COMPONENT IN terminal with a Scart-VGA





Cable, select RGB (Scart).

INPUT button

Computer 1

Computer 2

Video

COMPUTER button

Computer 1

Computer 2

See Note on the bottom of this page.

Input Menu icon

Input Menu

Move the pointer (red arrow) to Computer 1 and press the SELECT button.

Computer

1

Source Select Menu

Move the pointer to Component or RGB (Scart) and press the SELECT button.

Note:

Component-VGA Cable and Scart-VGA Cable are optionally supplied. See page 58 for order.

Computer 2 is not displayed when the COMPUTER IN 2/ MONITOR OUT terminal is used as Monitor out. (p41)

Input Video

33

Video Input

Video System Selection

1

Press the MENU button and the On-Screen Menu will



appear. Press the Point 7 8 button to move the red frame



pointer to the AV System Menu icon.

2

Press the Point d button to move the red arrow pointer to



the system that you want to select and then press the

SELECT button.

Video or S-Video

Auto

The projector automatically detects incoming video system, and adjusts itself to optimize its performance.

When Video System is PAL-M or PAL-N, select system manually.

PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N

If the projector cannot reproduce proper video image, it is necessary to select a specific broadcast signal format among PAL, SECAM, NTSC, NTSC 4.43, PAL-M, and PAL-N.

Component

Auto

The projector automatically detects incoming video signal, and adjusts itself to optimize its performance.

COMPONENT VIDEO SIGNAL FORMAT

If the projector cannot reproduce proper video image, it is necessary to select a specific component video signal format among 480i, 575i, 480p, 575p, 720p, 1035i, and 1080i.

Note:

The AV System Menu cannot be selected when selecting RGB(Scart).

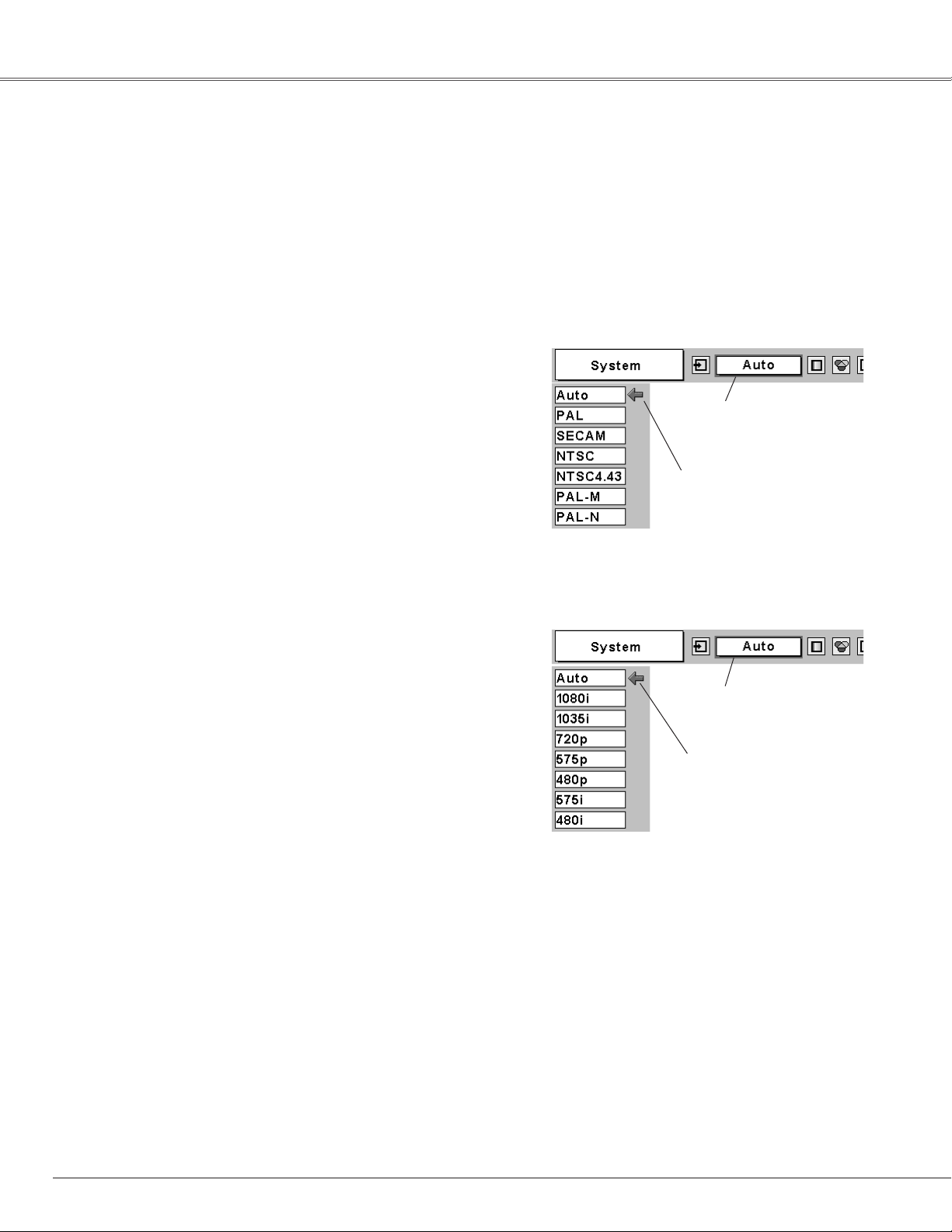

AV System Menu (Video or S-Video)

AV System Menu icon

This box indicates the system being selected.

Move the pointer to a system and press the SELECT button.

AV System Menu (Component)

AV System Menu icon

This box indicates the system being selected.

Move the pointer to a system and press the SELECT button.

34

Video Input

Image Level Selection

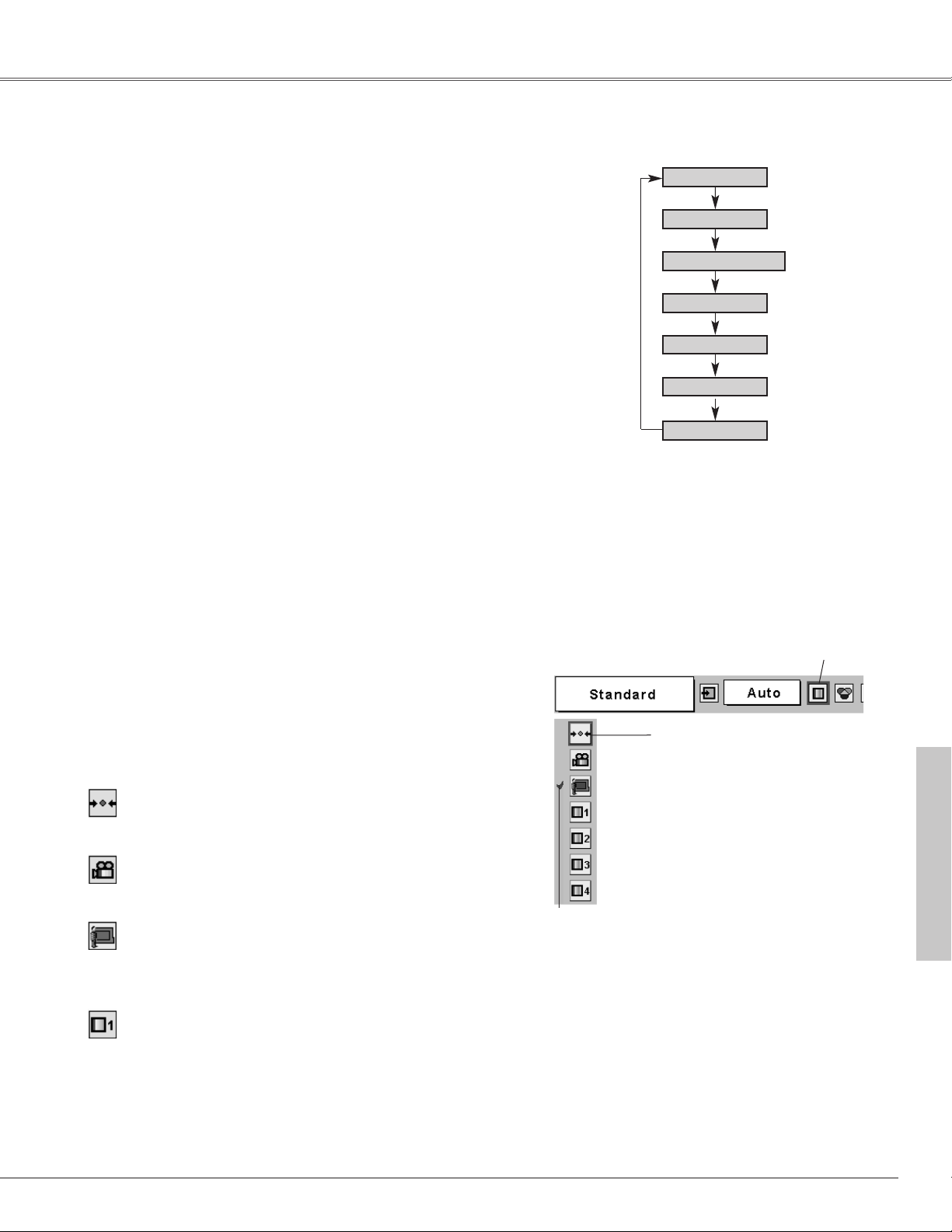

Direct Operation

Select a desired image level among Standard, Cinema, Blackboard (Green), Image 1, Image 2, Image 3, and Image 4 by pressing the IMAGE button on the remote control.

Standard

Normal picture level preset on this projector.

Cinema

Picture level adjusted for the picture with fine tone.

Blackboard(Green)

Picture level suitable for the image projected on a blackboard (Green).

This mode assists to enhance the image projected on a blackboard. This is mainly effective on a green colored board, not truly effective on a black colored board.

Image 1~4

User preset image in the Image Adjust Menu (p36, 37).

Menu Operation

1

Press the MENU button and the On-Screen Menu will



appear. Press the Point 7 8 button to move the red frame



pointer to the Image Select Menu icon.

2

Press the Point d button to move the red frame pointer to



the level that you want to set and then press the SELECT

button.

Standard

Normal picture level preset on this projector.

Cinema

Picture level adjusted for the picture with fine tone.

Blackboard(Green)

Picture level suitable for the image projected on a Blackboard (Green). See above for further description.

Image1~4

User preset image in the Image Adjust Menu (p36, 37).

IMAGE button

Standard

Cinema

Blackboard(Green)

Image 1

Image 2

Image 3

Image 4

Image Select Menu icon

Image Select Menu

Move the red frame pointer to a level and press the SELECT button.

The level being selected.

Input Video

35

Video Input

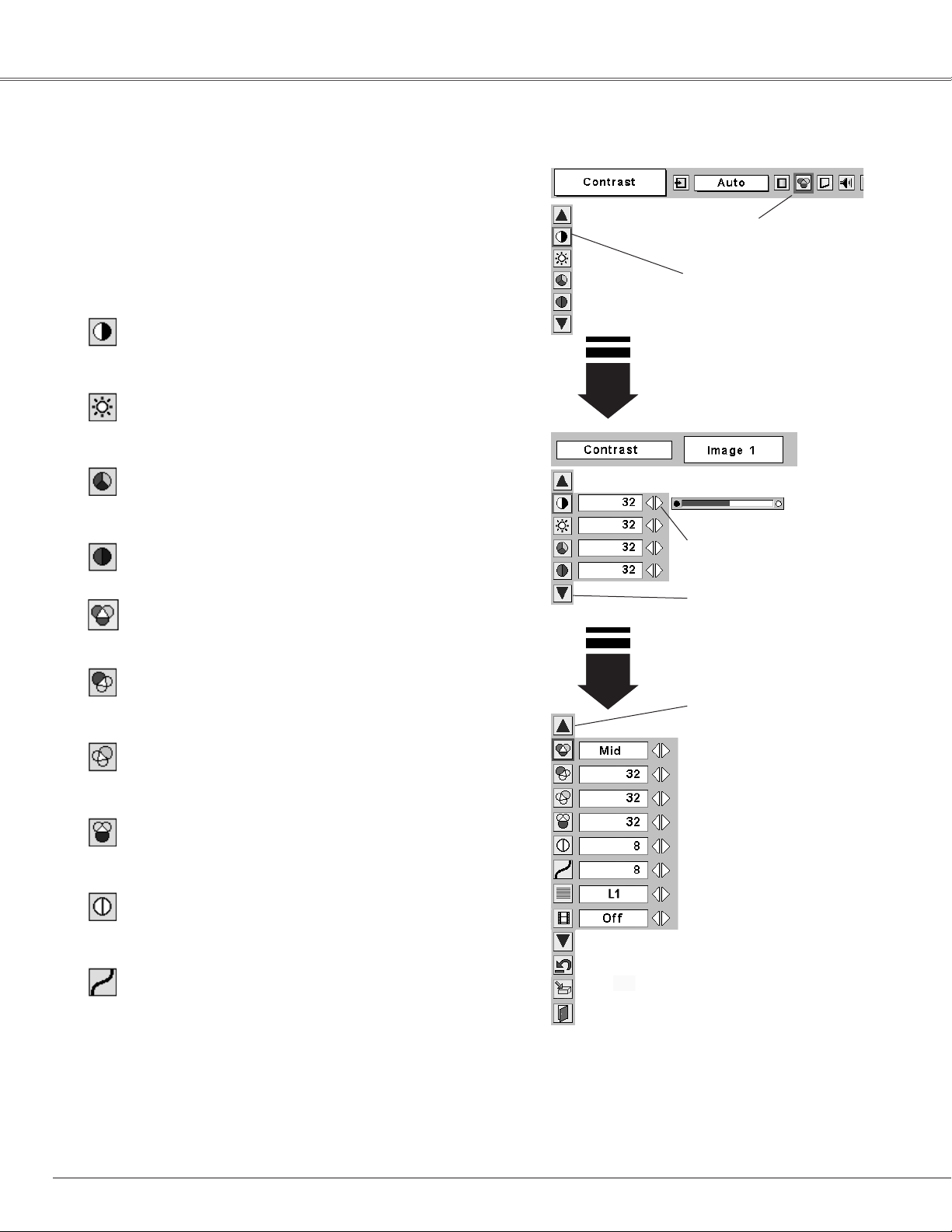

Image Level Adjustment

1

Press the MENU button and the On-Screen Menu will



appear. Press the Point 7 8 button to move the red frame



pointer to the Image Adjust Menu icon.

2

Press the Point d button to move the red frame pointer to



the item that you want to adjust and then press the SELECT

button. The level of each item is displayed. Adjust each level by pressing the Point 78 button.

Contrast

Press the Point 7 button to decrease contrast and the Point 8 button to increase contrast. (From 0 to 63.)

Brightness

Press the Point 7 button to adjust image darker and the Point 8 button to adjust image brighter. (From 0 to 63.)

Color

Press the Point 7 button to lighten color and the Point 8 button to deepen color. (From 0 to 63.)

Tint

Press the Point 78 button to obtain proper color. (From 0 to 63.)

Color temp.

Press the Point 7 8 button for Color temp. level that you want to select. (XLow, Low, Mid, or High)

White balance (Red)

Press the Point 7 button to lighten red tone and the Point 8 button to deepen red tone. (From 0 to 63.)

White balance (Green)

Press the Point 7 button to lighten green tone and the Point 8 button to deepen green tone. (From 0 to 63.)

White balance (Blue)

Press the Point 7 button to lighten blue tone and the Point 8 button to deepen blue tone. (From 0 to 63.)

Sharpness

Press the Point 7 button to soften the image and the Point 8 button to sharpen the image. (From 0 to 15.)

Gamma

Press the Point 7 8 button to obtain better balance of contrast. (From 0 to 15.)

Note:

The Tint cannot be adjusted when the video system is PAL, SECAM, PAL-M, or PAL-N.

Image Adjust Menu

Image Adjust Menu icon

Move the red frame pointer to the item to be selected and then press the SELECT button.

Press the Point 78 button to adjust value.

Press the SELECT button at this icon to display other items.

Press the SELECT button at this icon to display previous items.

36

Video Input

Progressive

Interlaced video signal can be displayed in a progressive picture.

Off . . . .Not activated.

L1 . . . . .Select “L1” for an active picture.

L2 . . . . .Select “L2” for a still picture.

Film

This function is effective on 3:2 pulldown video source. With this function On, the projector reproduces pictures faithful to the original film quality.

Reset

Resets all adjustment to their previous figure.

Store icon



Store

To store the adjustment data, move the red frame pointer to the Store icon and press the SELECT button. The Image Level Menu will appear. Move the red frame pointer to the Image Level 1 to 4 and then press the SELECT button.

Image Level Menu

Move the red frame pointer to an image icon to be set and then press the SELECT button.

Quit

Closes the Image Adjust Menu.

Note:

Progressive cannot be selected when 480p, 575p, 720p, 1035i, or 1080i is selected.

Film can only be activated when selecting NTSC for Video System and L1/ L2 for Progressive.

3:2 Pulldown or Telecine transfer is the process of changing images from film mode to video mode. While film runs at 24 frames per second (fps), NTSC television signals (or video) have a run rate of 30fps so the 24 fps film needs to be speeded up to 30fps and transferred using a proper field pattern to get the best film-like images.

Input Video

37

Video Input

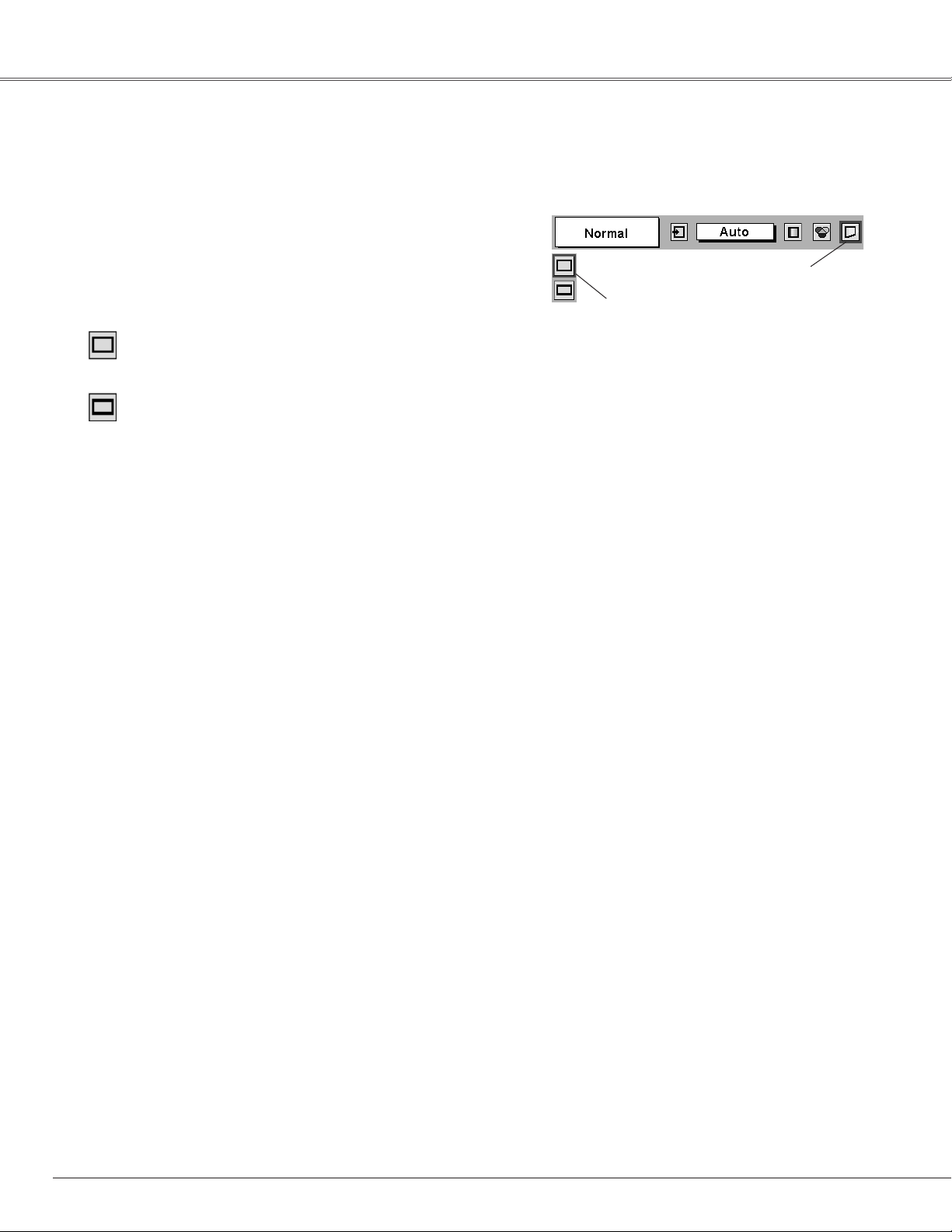

Screen Size Adjustment

This projector has a picture screen resize function, which enables you to display the desirable image size.

1

Press the MENU button and the On-Screen Menu will



appear. Press the Point 7 8 button to move the red frame



pointer to the Screen Menu icon.

2

Press the Point d button and move the red frame pointer to



the function that you want to select and then press the

SELECT button.

Normal

Provides image at a normal video aspect ratio of 4 : 3.

Wide

Provides image at a wide screen ratio of 16 : 9.

Note:

Screen Menu cannot be operated when “720p”, “1035i”, or “1080i” is selected in the AV System Menu (p34).

Screen Menu

Screen Menu icon

Move the red frame to a function and press the SELECT button.

38

Setting

Setting

This projector has Setting menu that allows you to set up the other various functions described as follows;

1

Press the MENU button to display the On-Screen Menu.



Press the Point 78 button to move the red frame pointer to



the Setting Menu icon.

2

Press the Point d button to move the red frame pointer to



the item that you want to set and then press the SELECT

button. The Setting dialog box appears.

Language

The language used in the On-Screen Menu is available in English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Russian, Chinese, Korean, or Japanese.

Keystone

This function corrects distortion of a projected image. Select either Store or Reset with the Point 7 8 button, and then press the Select button. The keystone dialog box appears. Adjust keystone with the Point ed button.

Store . . . . stores the keystone adjustment even if the AC power cord is disconnected.

Reset . . . . .resets the keystone adjustment when the AC power cord is disconnected.

Blue back

When this function is “On,” the projector produces a blue image while input signal is not detected.

Display

This function decides whether to display On-Screen Displays. On . . . . . . . shows all the On-Screen Displays.

Off . . . . . . . does not show On-Screen Displays except;

On-Screen Menu

“Power off?” message

P-Timer

“No signal” message

”Wait a moment!” message

Logo PIN Code Lock

This function prevents others except specific users from changing the Logo setting.

Off . . . . .the Logo setting can be changed freely from the Logo menu. (p40)

On . . . . . .the Logo setting cannot be changed without the Logo PIN code.

If you want to change the Logo PIN Code Lock setting, enter a Logo PIN code along the following steps. The initial Logo PIN code is set "4321" at the factory.

Setting Menu (Language)

Set the red frame

Setting Menu icon

pointer to the item



and press the



SELECT button.



























When pressing the SELECT button at Language, the Language Menu appears.

Logo PIN Code Lock

Setting

39

Setting

Enter a Logo PIN code

Select a number by pressing the Point 7 8 button and fix the number with the SELECT button. The number will change to " ". If you fixed a wrong number, move the pointer to "Set" or "Clear" once by pressing the Point d button, then return to "Logo PIN code". Enter the correct number again.

Repeat this step to complete entering a four-digit number.

When the four-digit number is fixed, the pointer will automatically move to "Set". Press the SELECT button so that you can change the Logo PIN code lock setting.

If you entered a wrong Logo PIN code, "Logo PIN code" and the number ( ) will turn red and disappear. Enter a correct Logo PIN code all over again.

Change the Logo PIN code

Logo PIN code can be changed to your desired four-digit number. Select "Logo PIN code change" with the Point d button and press the SELECT button. Set a new Logo PIN code.

Be sure to note the new Logo PIN code and keep it at hand. If you lost the number, you could no longer change the Logo PIN code setting. For details on PIN code setting, refer to relevant instructions of the PIN Code Lock function on page 43.

Logo

This function decides what to be displayed on the starting-up display as follows:

User . . . . . .the image you captured Default . . . .the factory-set logo

Off . . . . . . .count-down only

Capture

This function enables you to capture the image being projected and use it for a starting-up display or interval of presentations. After capturing the projected image, go to the Logo function and set it to “User”. Then the captured image can be displayed when turning on the projector next time or pressing the NO SHOW button. (p23)

To capture the image, select [Yes]. To cancel the Capture function, select [No].

Note:

Before capturing an image, select Standard in the Image Select Menu to capture a proper image. (See page 29, 35.)

A signal from a computer can be captured up to XGA(1024 x 768). A signal from video equipment can be captured except for 720p, 1035i, and 1080i.

When capturing the image that has been adjusted by the Keystone function, the adjustment data is automatically reset and the projector captures an image without keystone adjustment.

When the Logo PIN code lock function is On, the Logo and Capture menu cannot be selected.

Logo PIN Code Lock Dialog Box

Pointer

Quit

After a correct Logo PIN code is entered, the following dialog box will appear.

Select On/OFF by pressing the Point 78 button or change the Logo PIN code.

Capture

Select [Yes] to capture the projected image.

Select [Yes] to stop capturing.

40

Setting

Ceiling

When this function is “On,” the picture is top/bottom and left/right reversed. This function is used to project the image from a ceiling mounting the projector.

Rear

When this function is “On,” the picture is left/right reversed. This function is used to project the image to a rear projection screen.

Terminal

The COMPUTER IN 2/MONITOR OUT terminal on the back of the projector is switcheable for computer input or monitor output. (See page 9) Select Computer 2 or Monitor Out with the Point 78 button.

Computer 2 . . . . .computer input

Monitor Out . . . . .monitor out

Terminal item is not available when selecting Computer 2 to the input source. Change the input source to the others (Computer1 or Video) so that the Terminal item will be available. (p24, 32, 33)

Power management

For reducing power consumption as well as maintaining the lamp life, the Power Management function turns off the projection lamp when the input signal is interrupted and no button is pressed for 30 seconds or more.

If the input signal is interrupted and no button is pressed for 30 seconds or more, the timer display with the message "No signal" appears on the screen. The count-down of the set time will get started. The count-down time can be set between 1 and 30 minutes.

When the count-down time has been elapsed, the lamp will be turned off to cool itself down. The POWER indicator is blinking red during this cooling-off period. The next operation depends on the setting as follows :

Ready . . . . . .When the lamp has been fully cooled down, the POWER indicator changes to green blinking. In this condition, the projection lamp will be turned on if the input signal is reconnected or any button on the top control or remote control unit is pressed.

Shutdown . . .When the lamp has been fully cooled down, the power will be turned off.

Off . . . . . . . . .The Power Management function is canceled.

On start

When this function is “On,” the projector is automatically turned on just by connecting the AC power cord to a wall outlet.

Note:

Be sure to turn the projector off properly (see “Turning Off the Projector” on page 19). If the projector is turned off in the wrong steps, the On start function does not operate properly.

Ceiling

Rear

Power management

Time left until Lamp off

Press the SELECT button at Power management and this box appears. Choose one of three settings with the Point 7 8 button, and go to the timer with the Point ed button and set time with the Point 7 8 button.

Setting

41

Setting

Lamp mode

This function allows you to change brightness of the screen.

···· normal brightness

···· the controlled brightness according with input signal

···· lower brightness reduces the lamp power consumption and extends the lamp life

Note:

Lamp mode is not switched into Eco mode ( ) within 2 minutes after the projector is turned on.

Remote control

This projector provides two different remote control codes; the factory-set, initial code (Code 1) and the secondary code (Code 2). This switching function prevents remote control interference when operating several projectors or video equipment at the same time.

When operating the projector in “Code 2”, both the projector and the remote control must be switched to “Code 2”.

To change the code for the projector;

Select either “Code 1” or “Code 2” in this Setting Menu.

To change the code for the remote control;

Press and hold both the MENU and IMAGE buttons together for 10 seconds or more. After changing the code, make sure the remote control operates properly.

USB

This projector is equipped with the USB port for interactive operation between the projector and computer. Selects either of the followings as needed.

···· When using the PAGE ed buttons on the remote

control unit. (p11)

···· When controlling the projector with a computer.

This item is provided for future use. Not available now.

Key lock

This function locks operation of the top control and remote control. It is useful to prevent operation by an unauthorized person.

···· not locked.

···· locks operation of the top control. To unlock, use the remote control.

···· locks operation of the remote control. To unlock, use the top control.

If the top control accidentally becomes locked and you do not have the remote control nearby, disconnect the AC power cord from the AC outlet, and then while pressing the SELECT button, reinsert the AC power cord. This will release the top control lock.

Remote control

MENU VOLUMESELECT VOLUME+

D.ZOOM PAGE KEYSTONE NO SHOW

AUTO PC P-TIMER

IMAGE FREEZE MUTE

Key lock

Press and hold MENU and IMAGE buttons for 10 seconds or more.

Select Key lock and this box appears. Choose one of these with the Point ed button and select [Yes] to activate it.

42

Setting

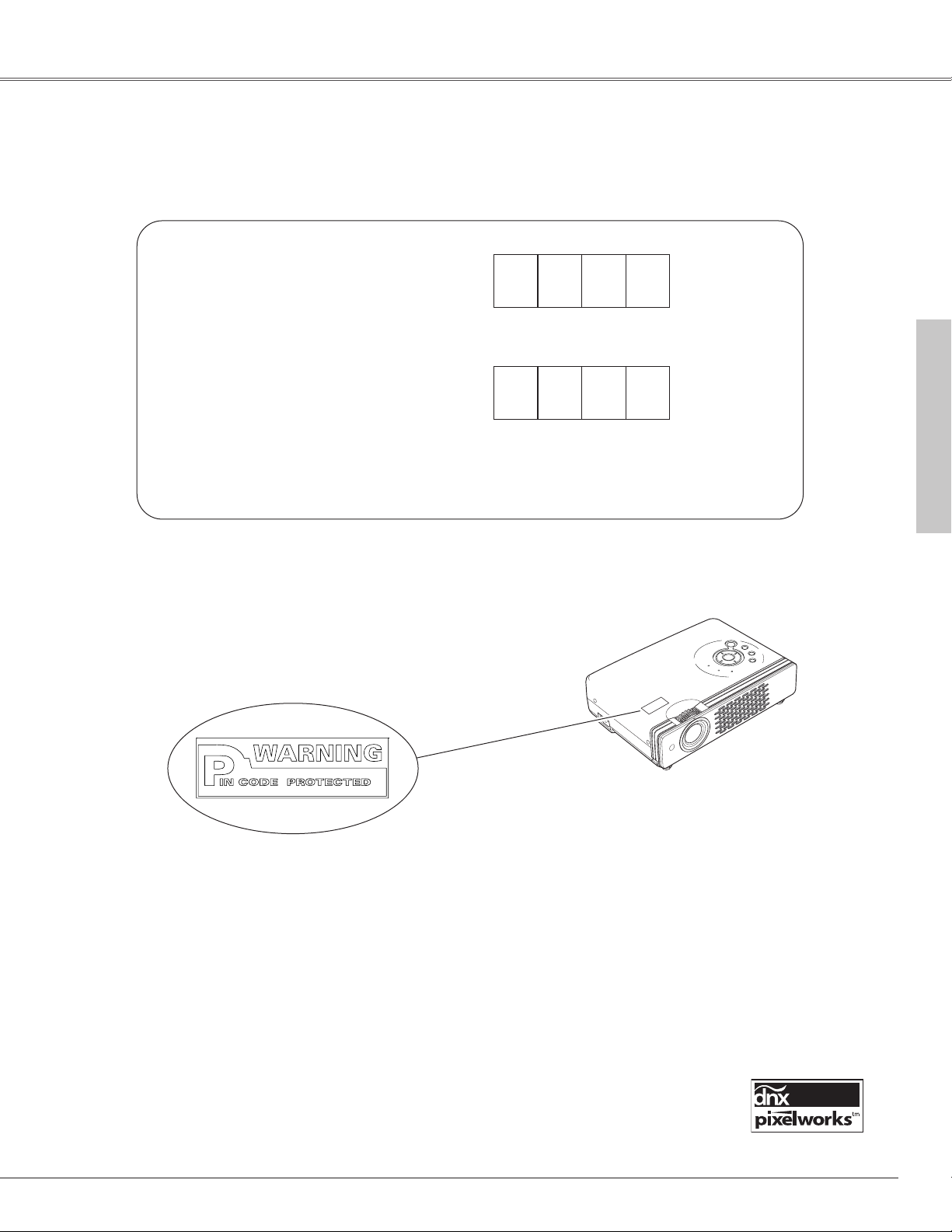

PIN code lock

This function prevents the projector from being operated by an unauthorized person and provides the following settings for security options.

Off...............

the projector is unlocked with the PIN code.

On1 .............

requires to enter the PIN code every time turning on



the projector.

On2...........

requires to enter the PIN code to operate the



projector once the power cord is disconnected; as



long as the AC power cord is connected, the



projector can be operated without the PIN code.

To change the PIN Code Lock setting or the PIN code (the fourdigit number), you are required to enter the PIN code. "1234" is set as the initial PIN code at the factory.

Enter a PIN code

Select a number by pressing the Point 7 8 button and fix the number with the SELECT button. The number will change to " ". If you fixed a wrong number, move the pointer to "Set" or "Clear" once by pressing the Point d button, then return to "PIN code". Enter the correct number again.

Repeat this step to complete entering a four-digit number.

When the four-digit number is fixed, the pointer will automatically move to "Set". Press the SELECT button so that you can change the following PIN code lock settings.

If you entered a wrong PIN code, "PIN code" and the number ( ) will turn red and disappear. Enter a correct PIN code all over again.

To Change the PIN Code Lock setting

Select Off, On1, or On2 with the Point 7 8 button and then "Quit" with the Point d button and press the SELECT button to close the dialog box.

To Change the PIN Code

The PIN code can be changed to your desired four-digit number.

Select "PIN code change" with the Point d button, and press the SELECT button. The New PIN code input dialog box will appear.

Select a number with the Point 7 8 button and fix the number with the SELECT button. Repeat it to complete entering a four-digit number. When the four-digit number is fixed, the pointer will automatically move to "Set". Then press the SELECT button.

CAUTION:

WHEN YOU HAVE CHANGED PIN CODE, WRITE DOWN THE NEW PIN CODE IN COLUMN OF THE PIN CODE NO. MEMO ON PAGE 59, AND KEEP IT SECURELY. SHOULD THE PIN CODE BE LOST OR FORGOTTEN, THE PROJECTOR CAN NO LONGER BE OPERATED.

PIN code lock

When the projector is locked with the PIN code, the PIN code lock mark appears on the menu bar.

Enter a PIN code

Pointer

Quit

The input numbers change to “ ” for security.

When the pointer automatically move

to "Set", press the SELECT button.

Change the PIN Code Lock setting

Select a desired setting with the Point 78 button.

Change the PIN code

Select PIN code change and press the SELECT button. The New PIN code input dialog box will appear.

The input numbers are being displayed for confirmation.

Setting

43

Setting

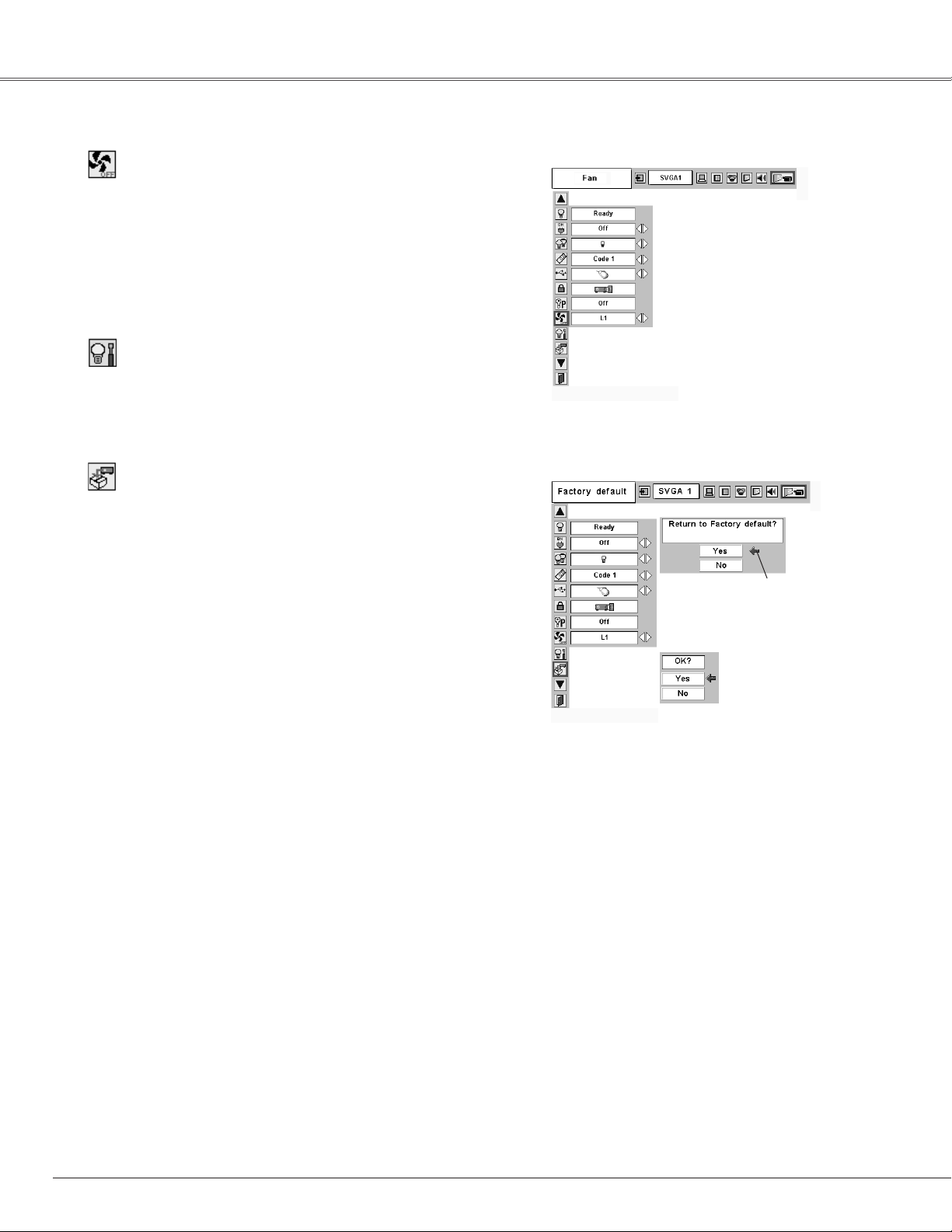

Fan

This function provides you the following alternatives in the cooling fans operation after turning off the projector.

L1 . . . . . . . .normal operation

L2 . . . . . .slower operation than the normal (L1) , but takes longer to cool down the projector. In this mode, cooling time after turning off the projector will be extended longer than in the normal mode.

Lamp counter reset

This function is used to reset the lamp replace counter. When replacing the projection lamp, reset the lamp replace counter by using this function. See page 49 for operation.

Factory default

This function returns all setting values except for the user logo, PIN code lock, logo PIN code lock and the lamp counter to the factory default settings.

Fan

Factory default

Select Factory default and this box appears. Select [Yes] , and the next box appears.

Select [Yes] to activate it.

44

Maintenance and Cleaning

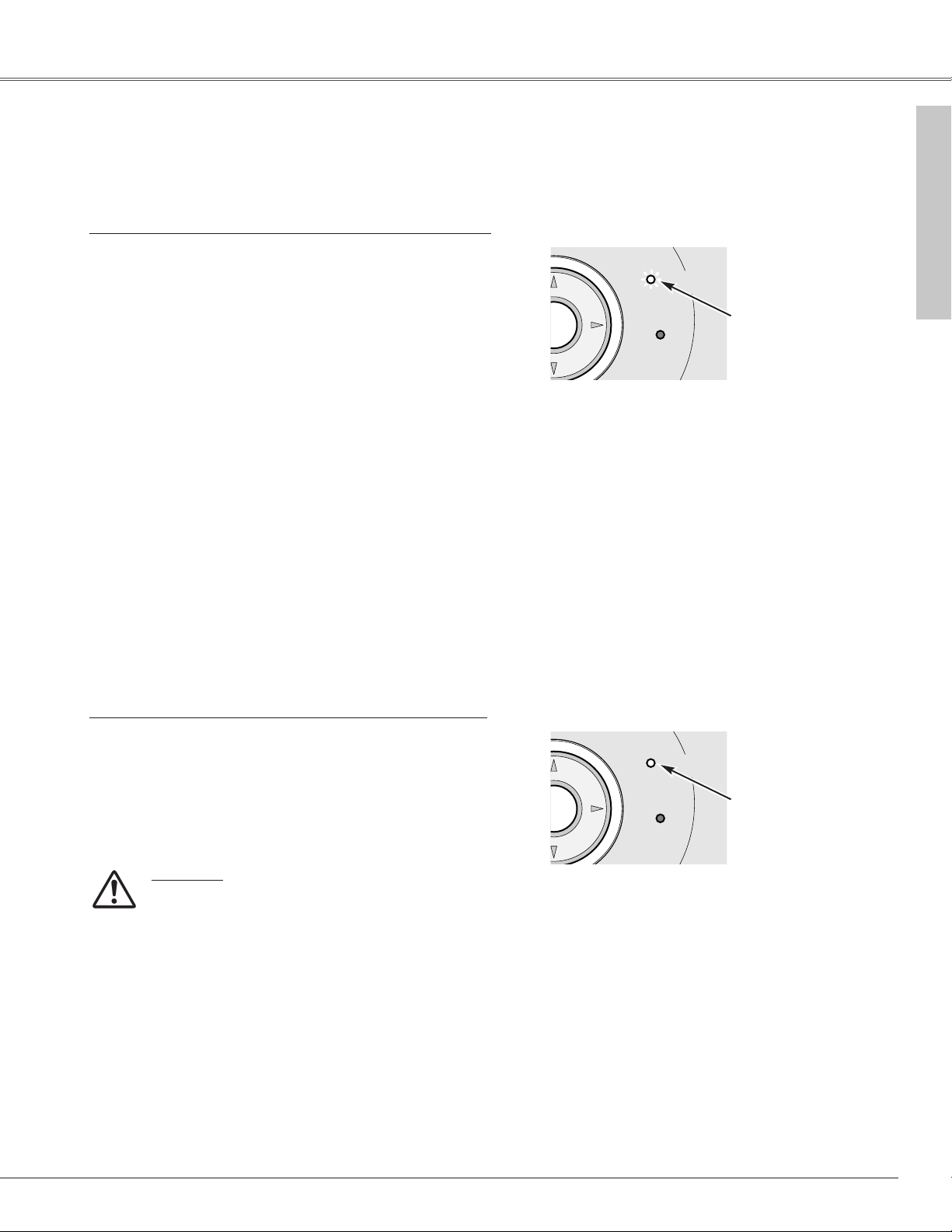

Warning Indicator

The WARNING indicator shows the state of the function which protects the projector. Check the state of the WARNING indicator and the POWER indicator to take proper maintenance.

The projector is shut down and the WARNING indicator is blinking red.

When the temperature inside the projector exceeds the normal temperature, the projector is automatically shut down to protect the inside of the projector. The POWER indicator is blinking and the projector is being cooled down. When the temperature inside the projector returns to normal, the POWER indicator lights red and the projector can be turned on.

Note:

After the temperature inside the projector returns to normal, the WARNING indicator still continues to blink. When the projector is turned on again, the WARNING indicator stops blinking.

Then check the matters below:

Did you provide appropriate space for the projector to be ventilated? Check the installing condition to see if ventilation slots are not blocked.

Is the projector not installed near the ventilation duct of airconditioning equipment which may be hot? Install the projector away from the ventilation duct of air-conditioning equipment.

Are the air filters clean? Clean the air filters periodically.

TOP CONTROL

WARNING



V

LAMP



O



L

REPLACE

LECT

U

M









E





+



The projector is shut down and the WARNING indicator lights red.

When the projector detects an abnormal condition, it is automatically shut down to protect the inside and the WARNING indicator lights red. In this case, disconnect the AC power cord and reconnect it, and then turn the projector on once again for check. If the projector is still turned off and the WARNING indicator lights red, disconnect the AC power cord and contact the service station for check and repair.

CAUTION

DO NOT LEAVE THE PROJECTOR WITH THE AC POWER CORD CONNECTED UNDER THE ABNORMAL CONDITION. IT MAY RESULT IN FIRE OR ELECTRIC SHOCK.

TOP CONTROL

WARNING



V

LAMP



O



L

REPLACE

LECT

U

M









E





+



WARNING blinking red

WARNING lights red

Cleaning and Maintenance

45

Maintenance and Cleaning

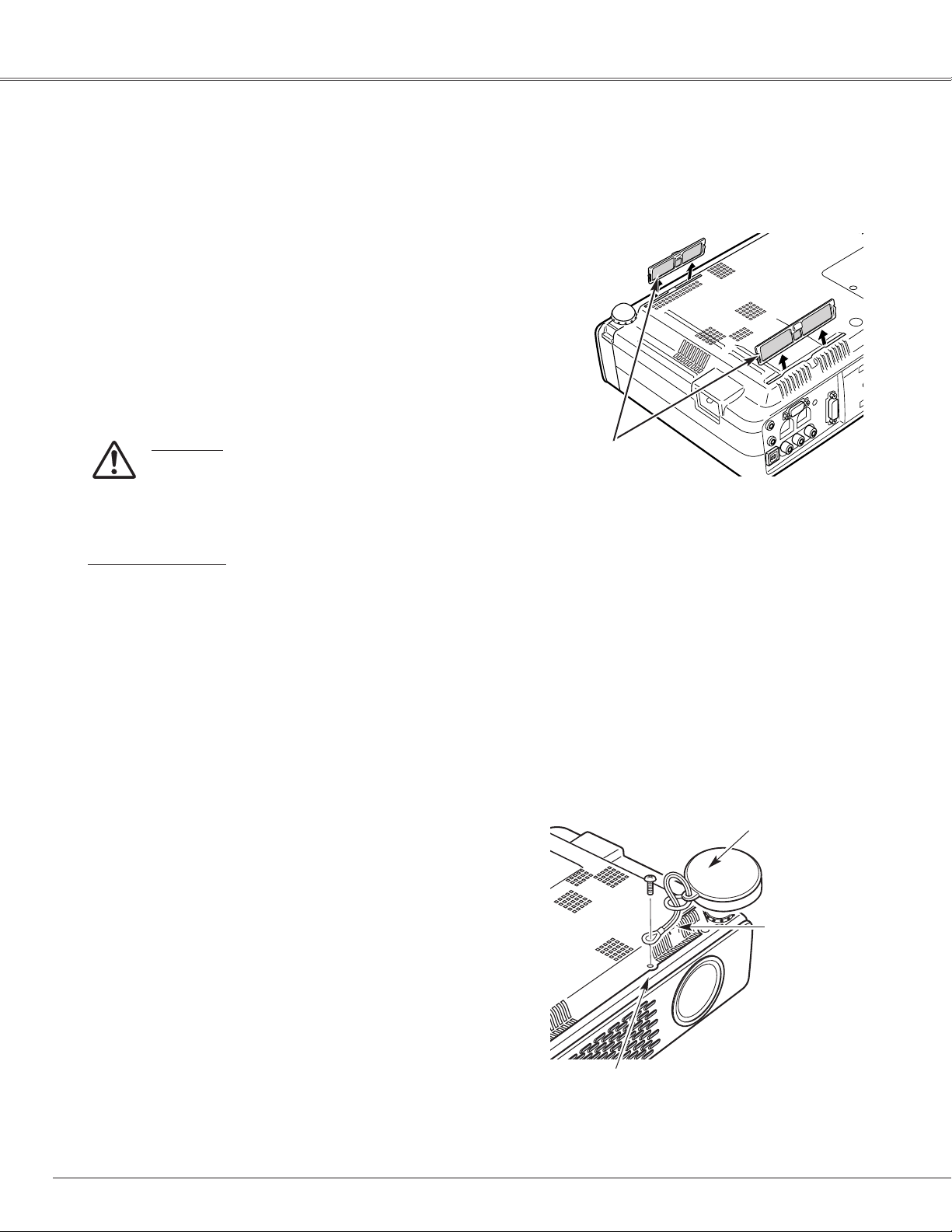

Cleaning the Air Filters

Air filters prevent dust from accumulating on the surface of the optical elements inside the projector. Should the air filters become clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in internal heat build up and adversely affect the life of the projector. Clean the air filters following the steps below.

1

Turn off the projector, and disconnect the AC power cord



from the AC outlet.

2

Turn the projector upside down and remove the air filters by



pulling the latches upward.

3

Clean the air filters with a brush or rinse them softly.

4

When cleaning the air filters by rinsing, dry them well.

Replace the air filters properly. Make sure that the air filters are fully inserted.

CAUTION

Do not operate the projector with the air filters removed. Dust may accumulate on the LCD panel and the projection mirror degrading picture quality.

Do not put small parts into the air intake vents. It may result in malfunction of the projector.

Air Filter

Pull up and remove.

RECOMMENDATION

We recommend avoiding dusty/smoky environments when operating the projector. Usage in these environments may cause poor image quality.

When using the projector under dusty or smoky conditions, dust may accumulate on a lens, LCD panels, or optical elements inside the projector. This condition may degrade the quality of a projected image.

When the symptoms above are noticed, contact your authorized dealer or service station for proper cleaning.

Attaching the Lens Cover

When moving this projector or while not using it over an extended period of time, replace the lens cover.

1

Pass the string through a hole of the lens cover.

2

Turn the projector upside down.

3

Attach the string with lens cover to a hole on the bottom of



the projector and secure it with a screw.

Lens Cover

String for the lens cover

Secure it to the hole with a screw.

Hole

46

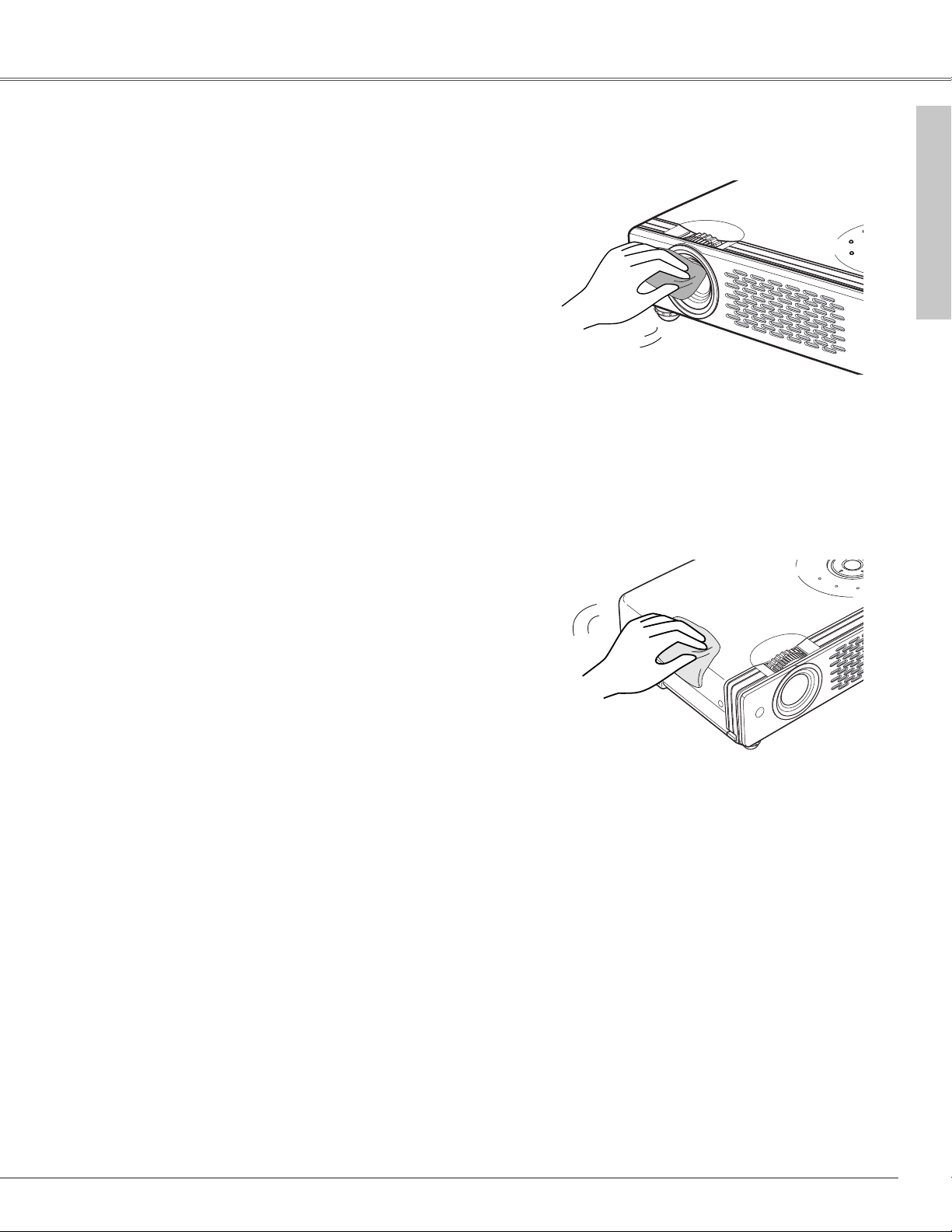

Cleaning the Projection Lens

Follow these steps to clean the projection lens.

1

Disconnect the AC power cord before cleaning.

2

Softly wipe the projection lens with a cleaning cloth that



contains a small amount of non-abrasive camera lens



cleaner, or use lens cleaning paper or a commercially



available air blower to clean the lens. Avoid using an



excessive amount of cleaner. Abrasive cleaners, solvents, or



other harsh chemicals might scratch the surface.

3

When the projector is not in use, replace the lens cover.

Cleaning the Projector Cabinet

Follow these steps to clean the projector cabinet.

1

Disconnect the AC power cord before cleaning.

2

Softly wipe the projector body with a soft, dry cleaning cloth.



When it is heavily soiled, use a small amount of mild



detergent and finish with a soft, dry cleaning cloth. Avoid



using an excessive amount of cleaner. Abrasive cleaners,



solvents, or other harsh chemicals might scratch the surface.

3

When the projector is not in use, put the projector in an



appropriate carrying case to protect it from dust and

scratches.

Maintenance and Cleaning

Cleaning and Maintenance

47

Maintenance and Cleaning

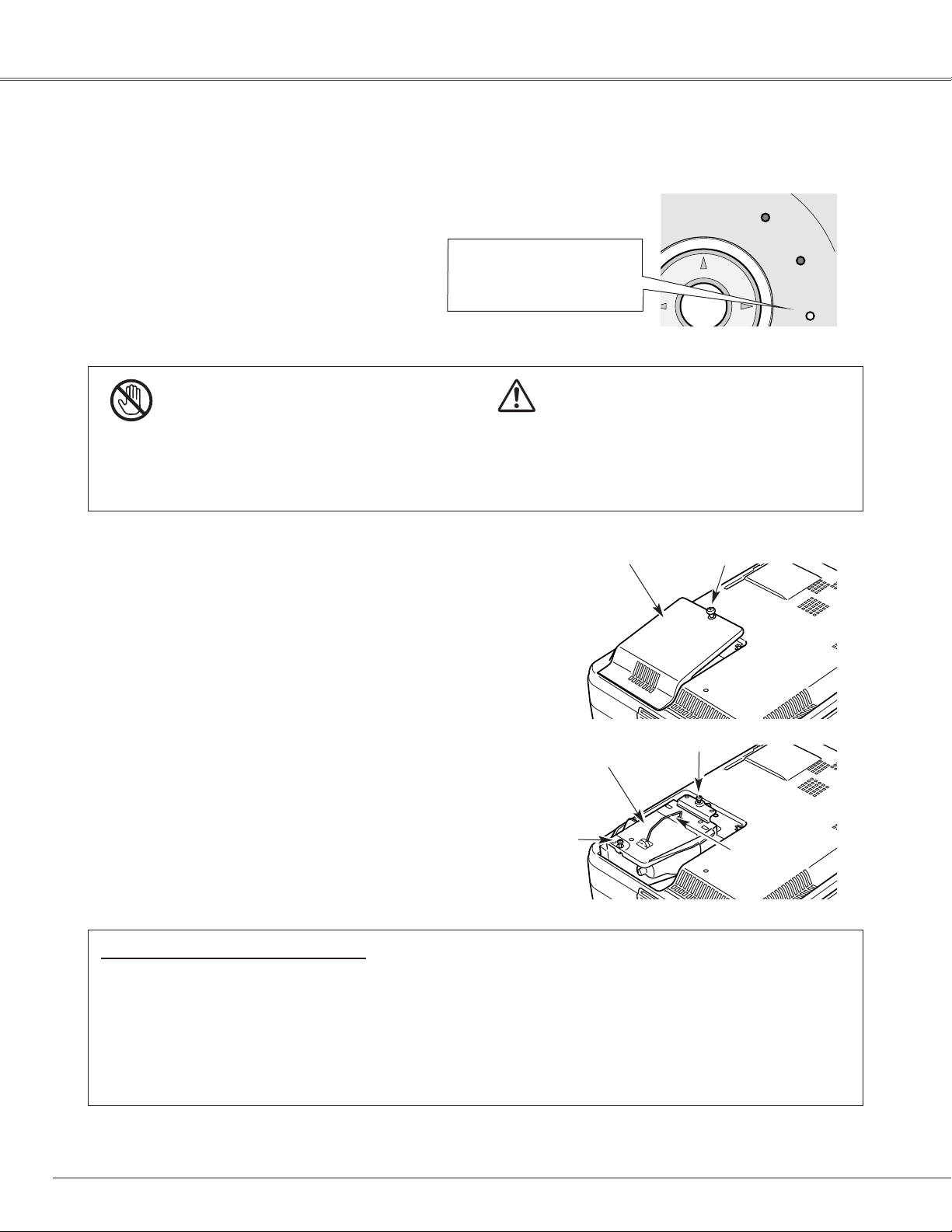

Lamp Replacement

When the life of the projection lamp of this projector draws to an end, the LAMP REPLACE indicator lights yellow. If this indicator lights yellow, replace the lamp with a new one promptly.

This indicator lights yellow when the life of the projection lamp draws to an end.

Top Control

POWER

ARNING

LAMP

REPLACE

M

E

CAUTION

CAUTION

Allow a projector to cool, for at least 45 minutes before

For continued safety, replace with a lamp of the same

you open the Lamp cover. The inside of the projector

type. Do not drop a lamp or touch a glass bulb! The

can become very hot.

glass can shatter and may cause injury.

Follow these steps to replace the lamp.

1

Turn off the projector and disconnect the AC plug. Allow the



projector to cool for at least 45 minutes.

2

Loosen the screw with a screwdriver, and remove the lamp



cover.

3

Loosen 2 screws of the lamp with a screwdriver and pull out



the lamp by grasping the handle.

4

Replace the lamp with a new one and tighten the 2 screws



back into position. Make sure that the lamp is set properly.



Replace the lamp cover and tighten the screw.

5

Connect the AC power cord to the projector and turn on the



projector.

6

Reset the Lamp replace counter.



See “Lamp Replace Counter” on the next page .

Lamp Cover

Screw

Screw

Lamp

Screw

Handle

ORDER REPLACEMENT LAMP

Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give the following information to the dealer.

Model No. of your projector

:

PLC-XU41

Replacement Lamp Type No.

:

POA-LMP79







(Service Parts No. 610 315 5647)

48

Maintenance and Cleaning

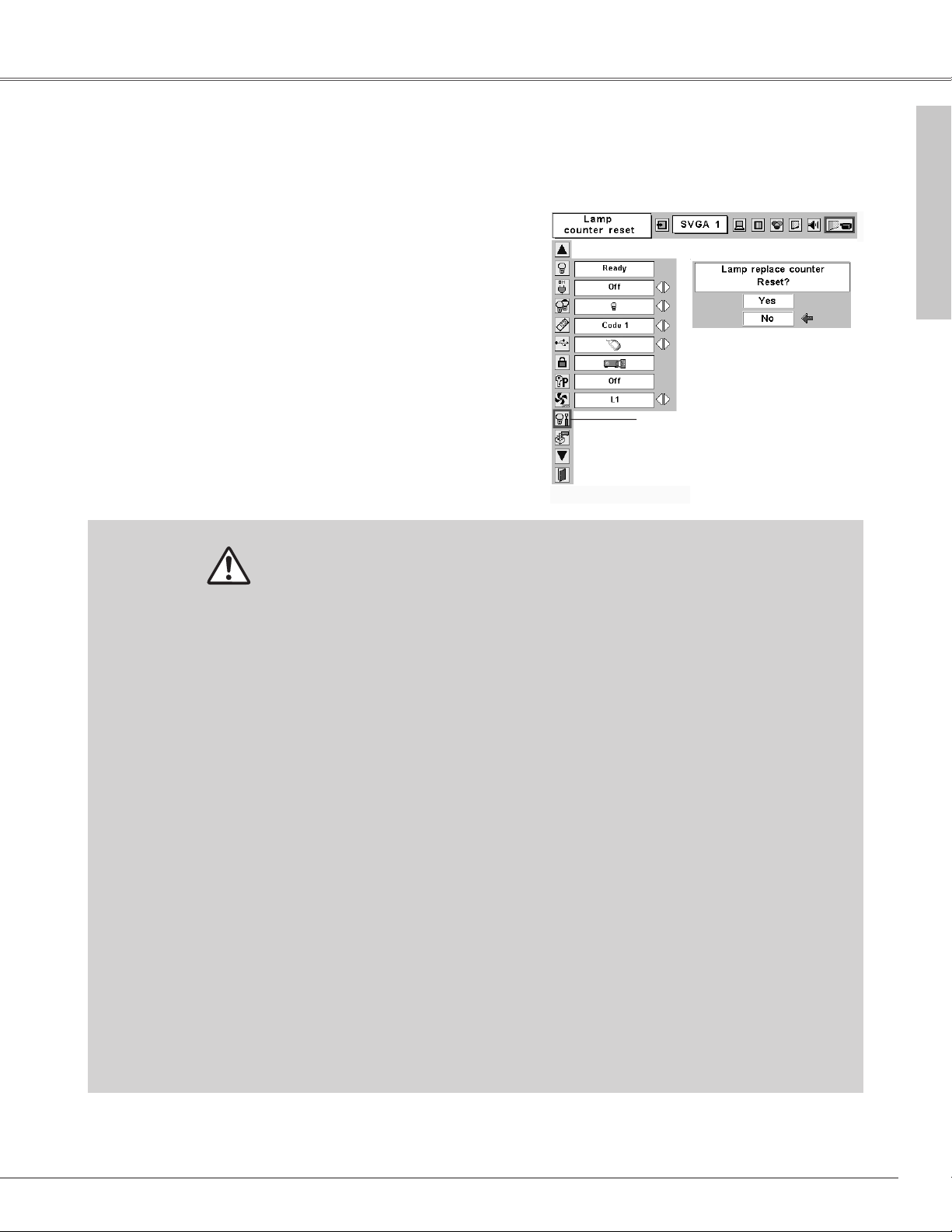

Lamp Replace Counter

Be sure to reset the lamp replace counter after the lamp is replaced. REPLACE indicator stops lighting.

1

Turn the projector on, press the MENU button and the On-



Screen Menu will appear. Press the Point 7 8 button to



move the red frame pointer to the Setting Menu icon.

2

Press the Point d button to move the red frame pointer to



the Lamp counter reset item and then press the SELECT



button. The message "Lamp replace counter Reset?" is



displayed. Move the pointer to [Yes] and then press the



SELECT button.

3

Another confirmation dialog box appears and select [Yes] to



reset the Lamp replace counter.

Note:

Do not reset the Lamp replace counter without implementation of lamp replacement. Be sure to reset the Lamp replace counter only after replacing the lamp.

When the lamp replace counter is reset, the LAMP

Move the pointer to Lamp counter reset and then press the SELECT button. The message “Lamp replace counter Reset?” is displayed.

LAMP HANDLING PRECAUTIONS

This projector uses a high-pressure lamp which must be handled carefully and properly. Improper handling may result in accidents, injury, or create a fire hazard.

Lamp life may differ from lamp to lamp and according to the environment of use. There is no guarantee of the same life for each lamp. Some lamps may fail or terminate their life in a shorter period of time than other similar lamps.

If the projector indicates that the lamp should be replaced, i.e., if the LAMP REPLACE indicator lights up, replace the lamp with a new one IMMEDIATELY after the projector has cooled down.

( Follow carefully the instructions in the Lamp Replacement section of this manual. ) Continuous use of the lamp with the LAMP REPLACE indicator lighted may increase the risk of lamp explosion.

A Lamp may explode as a result of vibration, shock or degradation as a result of hours of use as its lifetime draws to an end. Risk of explosion may differ according to the environment or conditions in which the projector and lamp are being used.

IF A LAMP EXPLODES, THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE TAKEN.

If a lamp explodes, disconnect the projector’s AC plug from the AC outlet immediately. Contact an authorized service station for a checkup of the unit and replacement of the lamp. Additionally, check carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one should check the inside of the projector except those who are authorized trained technicians and who are familiar with projector service. Inappropriate attempts to service the unit by anyone, especially those who are not appropriately trained to do so, may result in an accident or injury caused by pieces of broken glass.

Cleaning and Maintenance

49

Appendix

Troubleshooting

Before calling your dealer or service center for assistance, check the items below once again.

Make sure you have properly connected the projector to peripheral equipment as described in "Connecting to a Computer" and “Connecting to Video Equipment” on page15–17.

Make sure all equipment is connected to AC outlet and the power is turned on.

If the projector does not project an image being operated with a computer, restart the computer.

Problem:

– Solutions





No power

– Plug the power cord of the projector into the AC outlet.



– See if the POWER indicator lights red.



– Wait 90-120 seconds after the projector is turned OFF when turning the



projector back on. The projector can be turned on after the POWER



indicator turns red. (See “Turning Off the Projector” on page 19.)



– Check the WARNING indicator. If the WARNING indicator lights red, the



projector cannot be turned on. (See "Warning Indicator" on page 45.)



– Check the projection lamp. (See page 48.)



– Unlock Key lock for the projector in the Setting Menu. (See page 42.)

Image is out of focus.

Adjust focus of the projector. (See page 22.)

Provide proper distance between the projector and the projection screen. (See page 13.)

Check the projection lens to see if it needs cleaning. (See page 47.)

Moving the projector from a cool to a warm place may result in moisture condensation on the projection lens. In such cases, leave the projector OFF and wait until condensation disappears.

No image

– Check the connection between your computer or video equipment





and the projector. (See page 15–17)



– See if the input signal is correctly output from your computer. Some





laptop computers may need to change the setting for monitor output when





connecting to a projector. See your computer’s instruction manual for the





setting.



– It takes about 20 seconds to display an image after turning on the projector.



– See if the selected system is corresponding with your computer or video





equipment. (See page 25 and 34)



– Select correct input source once again through menu operation.





(See page 24, 32 and 33)



– Make sure the temperature is not out of the specified Operating





Temperature (5°C ~ 35°C).





Image is Left/Right reversed.

– Check the Ceiling / Rear item. (See “Setting” on page 41.)

image is Top/Bottom reversed.

– Check the Ceiling item. (See “Setting” on page 41.)







No sound

Check audio cable connection from audio input source.



Adjust the audio source.



Press the Volume (+) button. (See page 23)



Press the Mute button. (See page 23)







50

Appendix

Some displays are not seen

– Check the Display item. (See “Setting” on page 39.)

during the Operation.



PIN code dialog box appears at start-up. – PIN code lock is being set. Input a PIN code (1234 or numbers you have



set). (See “PIN code lock” on page 18 and 43.)





Computer 2 cannot be selected.

– Select Computer 2 at the Terminal item in the Setting Menu. (See “Setting”



on page 41.)





The Terminal item cannot be selected.

– The Terminal item in the Setting Menu cannot be selected after Computer 2



is selected. Select other input source such as Computer 1 or Video with the



INPUT button on the top control, the COMPUTER button or the VIDEO



button on the remote control so that the Terminal item can be selected.





The Remote Control does not work.

– Check the batteries.



– Make sure no obstruction is between the projector and remote control.



– Make sure you are not too far from the projector when using the remote



control. Maximum operating range is 16.4’ (5m).



– Make sure the code of the remote control is conformed to the projector.



(See page 42.)



– Unlock Key lock for the remote control in the Setting Menu. (See page 42.)

Page Up/Down function does not work. – Make sure your computer is connected to the projector with a USB cable. (See page 15.)

Check cable connection between the projector and your computer. (See page 15.)

WARNING :

High voltages are used to operate this projector. Do not attempt to open the cabinet.

If problems still persist after following all operating instructions, contact the dealer where you purchased the projector or the service center. Give the model number and explain about the problem. We will advise you how to obtain service.

Appendix

The CE Mark is a Directive conformity mark of the European Community (EC).

This symbol on the nameplate means the product is Listed by Underwriters Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards.

51

Appendix

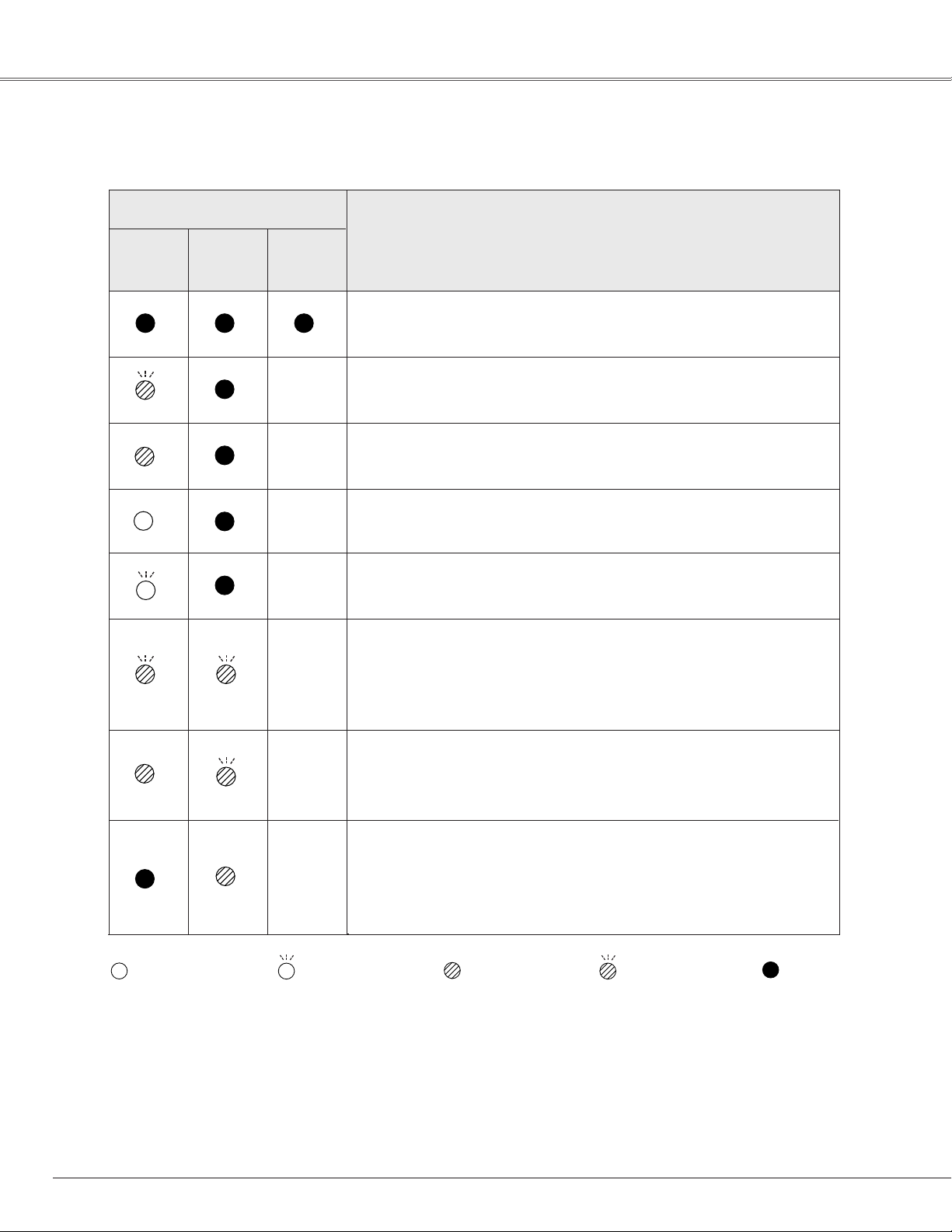

Indicators and Projector Condition

Check the indicators to see the projector condition.

Indicators





WARNING

LAMP

Projector Condition

POWER

REPLACE



red/green

red

yellow









The projector is OFF. (The AC power cord is unplugged.)







The projector is preparing for stand-by or the projection lamp is being





cooled down. The projector cannot be turned on until cooling is completed.













The projector is ready to be turned on with the POWER ON-OFF button.







The projector is operating normally.







The projector is in the Power management mode.







The temperature inside the projector is abnormally high. The projector







cannot be turned on. When the projector is cooled down enough and the







temperature returns to normal, the POWER indicator lights red and the







projector can be turned on. (The WARNING indicator keeps blinking.)







Check and clean the Air filter.







The projector has been cooled down enough and the temperature returns







to normal. When turning on the projector, the WARNING indicator stops







blinking. Check and clean the air filters.







The projector detects an abnormal condition and cannot be turned on.







Unplug the AC power cord and plug it again to turn on the projector. If the







projector is turned off again, disconnect the AC power cord and contact the







dealer or the service center for service and checkup. Do not leave the







projector on. It may cause electric shock or a fire hazard.

• • • lights green.

• • • blinks green.

• • • lights red.

• • • blinks red.

• • • off

When the life of the projection lamp draws to an end, the LAMP REPLACE indicator lights yellow. When this indicator lights yellow, replace the projection lamp with a new one promptly. Reset the Lamp replace counter after replacement of the lamp. See page 48 and 49.

52

Appendix

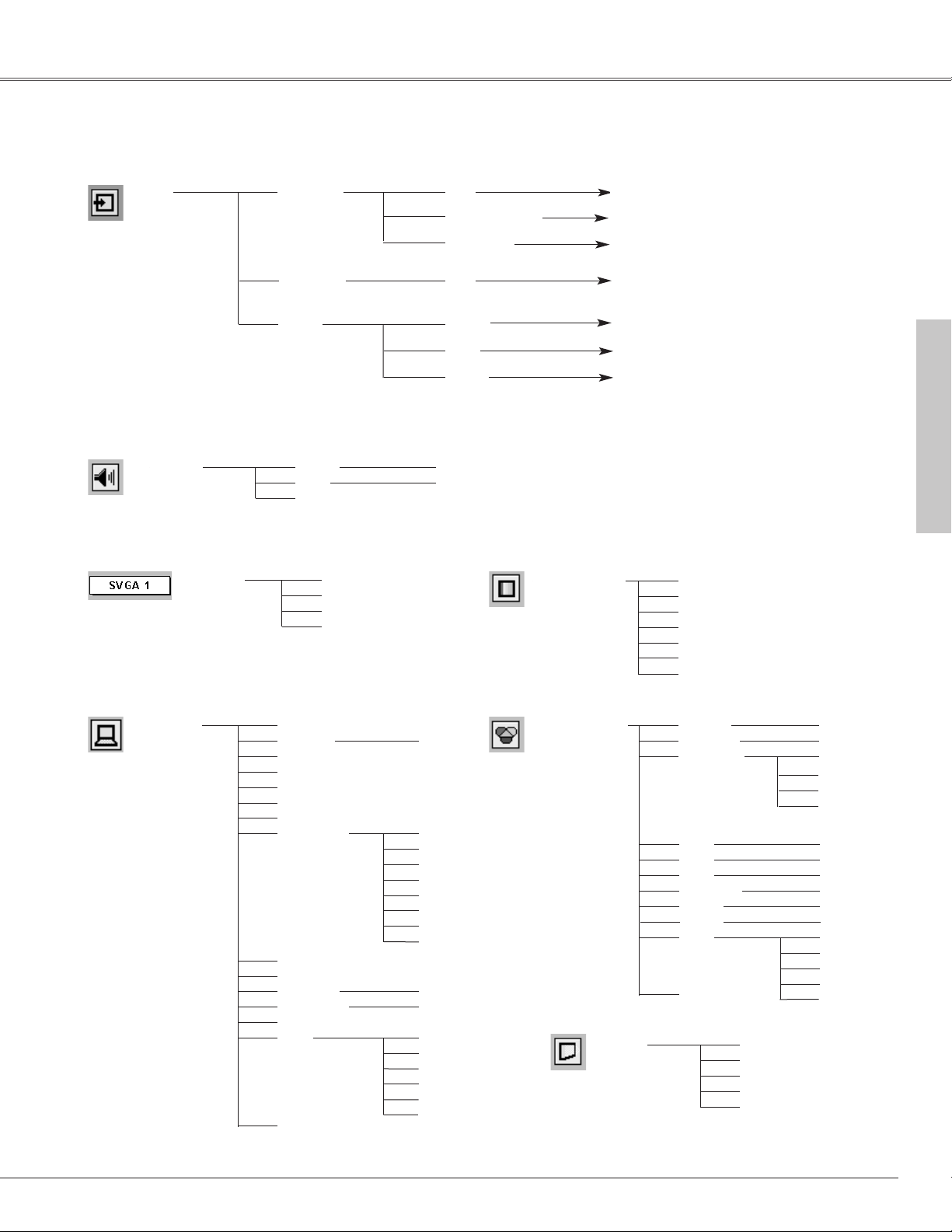

Menu Tree

Computer Input / Video Input

Input









Computer 1









RGB























Go to System (1)



































Component



























































Go to System (2)











































































































RGB( Scart )

























































N/A













































































































































































RGB

































Computer 2



























Go to System (1)

















































































































Video





































Go to System (3)





























Auto















































































































Go to System (3)













































































































































Video

































































































































Go to System (3)

































S-Video

































































































































N/A - - - not applicable

Sound









































































































Sound





































































Volume









0 - 63





































































































































Mute











On / Off





























































































































Quit

































































































Computer Input

System (1)





MODE 1



















MODE 2





















SVGA 1





















- - - -







Systems displayed in the System Menu vary depending on an input signal.

PC Adjust





Auto PC Adj.























































Fine sync.















0 - 31



















































Total dots













































Horizontal













































Vertical













































Current mode













































Clamp









































Display area











640 x 480

































































720 x 400











































































800 x 600











































































1024 x 768











































































1152 x 864











































































1280 x 1024











































































1400 x 1050











































































Quit



























































Display area - H









































Display area - V













































Full screen













On / Off







































Reset



























Yes / No











































Mode free





































Store

















Mode 1































































Mode 2











































































Mode 3



















































Mode 4











































































Mode 5



















































Quit































Quit





































Image Select

Image Adjust

Screen

Standard

Real

Blackboard(Green)

Image 1

Image 2

Image 3

Image 4



Contrast

















0 - 63

















































Brightness















0 - 63



















































Color Temp





















High























































































Mid











































































































Low











































































































XLow











































































Red



























0 - 63































































Green



























0 - 63



























































Blue



























0 - 63





































Sharpness



















0 - 15











































Gamma























0 - 15



















































Reset

























Yes / No































































Store





























Image 1































































































Image 2







































































































Image 3







































































































Image 4



































Quit





































































Quit

















































































Normal

























































True

























































Wide























































Digital zoom +























































Digital zoom –















Appendix

53

Appendix

Video Input









Setting



















System (2)









Setting







Auto















































1080i













































1035i













































720p













































575p













































480p













































575i













































480i







































System (3)

















Auto









































PAL













































SECAM













































NTSC













































NTSC 4.43













































PAL-M













































PAL-N





















Image Select





Standard























Cinema





















Blackboard(Green)























Image 1























Image 2























Image 3























Image 4







Image Adjust





Contrast















0 - 63































































Brightness















0 - 63

































































Color

0 - 63





































































Tint

0 - 63



































































Color Temp

















High























































































Mid





























































Low































































XLow











































































Red



















0 - 63











































































Green



















0 - 63











































































Blue



















0 - 63







































































Sharpness















0 - 15





































































Gamma

















0 - 15



































































Progressive

















Off





















































L1





























































































L2







































































Film





















On/ Off







































































Reset





















Yes / No





































































Store





















Image 1





























































































Image 2

































































































Image 3











































































Quit

















Image 4

























































































Quit

































































Screen









































Normal



























































































Wide























































Language



























English































































































German







































































































French







































































































Italian







































































































Spanish







































































































Portuguese







































































































Dutch







































































































Swedish



































































Russian









































































































Chinese







































































































Korean







































































































Japanese







































































































Quit



































































Keystone













Store / Reset

















































Blue back

























On / Off



























































Display































On / Off



















































Logo PIN code lock















Off



















































On







































































PIN code change





































































Quit





































Logo































Off



































































































User









































































































Default









































































Capture































Yes/No



























































Ceiling































On / Off

































































Rear































On / Off































Terminal































Computer 2







































































































Monitor out





































































Power management













Off

















































































Ready









































































































Shut down





































































Timer(1-30 Min)









































































































Quit







































































On start



























On / Off



















































Lamp mode























Normal



























































































Auto









































































































Eco









































































Remote control





















Code 1





















































Code 2



























































USB



























Mouse / Projector

























































Key lock























Off

























































Projector







































































Remote Control





































































Quit





























































PIN code lock

















Off





















































On1







































































On2





































































PIN code change





































































Quit



























































Fan



























L1 / L2

























































Lamp counter reset













Yes / No

































Yes / No



Factory default

















































Quit















54

Appendix

Compatible Computer Specifications

Basically this projector can accept the signal from all computers with the V, H-Frequency below mentioned and less than 130 MHz of Dot Clock.

ON-SCREEN

RESOLUTION

H-Freq.

V-Freq.

DISPLAY

(kHz)

(Hz)



VGA 1

640 x 480

31.47

59.88

VGA 2

720 x 400

31.47

70.09

VGA 3

640 x 400

31.47

70.09

VGA 4

640 x 480

37.86

74.38

VGA 5

640 x 480

37.86

72.81

VGA 6

640 x 480

37.50

75.00

VGA 7

640 x 480

43.269

85.00

MAC LC13

640 x 480

34.97

66.60

MAC 13

640 x 480

35.00

66.67

575i

––––––––

15.625

50.00

(Interlace)

480i

––––––––

15.734

60.00

(Interlace)

SVGA 1

800 x 600

35.156

56.25

SVGA 2

800 x 600

37.88

60.32

SVGA 3

800 x 600

46.875

75.00

SVGA 4

800 x 600

53.674

85.06

SVGA 5

800 x 600

48.08

72.19

SVGA 6

800 x 600

37.90

61.03

SVGA 7

800 x 600

34.50

55.38

SVGA 8

800 x 600

38.00

60.51

SVGA 9

800 x 600

38.60

60.31

SVGA 10

800 x 600

32.70

51.09

SVGA 11

800 x 600

38.00

60.51

MAC 16

832 x 624

49.72

74.55

XGA 1

1024 x 768

48.36

60.00

XGA 2

1024 x 768

68.677

84.997

XGA 3

1024 x 768

60.023

75.03

XGA 4

1024 x 768

56.476

70.07

XGA 5

1024 x 768

60.31

74.92

XGA 6

1024 x 768

48.50

60.02

XGA 7

1024 x 768

44.00

54.58

XGA 8

1024 x 768

63.48

79.35

XGA 9

1024 x 768

36.00

87.17

(Interlace)

XGA 10

1024 x 768

62.04

77.07

ON-SCREEN

RESOLUTION

H-Freq.

V-Freq.

DISPLAY

(kHz)

(Hz)



XGA 11

1024 x 768

61.00

75.70



XGA 12

1024 x 768

35.522

86.96



(Interlace)



XGA 13

1024 x 768

46.90

58.20



XGA 14

1024 x 768

47.00

58.30



XGA 15

1024 x 768

58.03

72.00



MAC 19

1024 x 768

60.24

75.08



MAC 21

1152 x 870

68.68

75.06

Appendix

SXGA 1

1152 x 864

64.20

70.40



SXGA 2 1280 x 1024

62.50

58.60



SXGA 3 1280 x 1024

63.90

60.00



SXGA 4 1280 x 1024

63.34

59.98



SXGA 5 1280 x 1024

63.74

60.01



SXGA 6 1280 x 1024

71.69

67.19



SXGA 8 1280 x 1024

63.98

60.02



SXGA 10

1280 x 960

60.00

60.00



SXGA 11

1152 x 900

61.20

65.20



SXGA 12

1152 x 900

71.40

75.60



SXGA 13 1280 x 1024

50.00

86.00



(Interlace)



SXGA 14 1280 x 1024

50.00

94.00



(Interlace)



SXGA 15 1280 x 1024

63.37

60.01



SXGA 16 1280 x 1024

76.97

72.00



SXGA 17

1152 x 900

61.85

66.00



SXGA 18 1280 x 1024

46.43

86.70



(Interlace)



SXGA 19 1280 x 1024

63.79

60.18



SXGA 21 1400 x 1050

63.90

60.00



MAC

1280 x 960

75.00

75.08



480p

––––––––

31.47

59.88



575p

––––––––

31.25

50.00



720p

––––––––

45.00

60.00



1035i

––––––––

33.75

60.00



(Interlace)



1080i

––––––––

33.75

60.00



(Interlace)



1080i

––––––––

28.125

50.00



(Interlace)



55

Appendix

Technical Specifications

Mechanical Information

Projector Type

Multi-media Projector

Dimensions (W x H x D)

11.73" x 2.8" x 8.39" (298mm x 71mm x 213mm) (Not including adjustable feet)

Net Weight

6.0 lbs (2.7kgs)

Feet Adjustment

0˚ to 11.8˚

Panel Resolution

LCD Panel System

0.8" TFT Active Matrix type, 3 panels

Panel Resolution

1,024 x 768 dots

Number of Pixels

2,359,296 (1,024 x 768 x 3 panels)

Signal Compatibility

Color System

PAL, SECAM, NTSC, NTSC4.43, PAL-M, PAL-N

High Definition TV Signal

480i, 480p, 575i, 575p, 720p, 1035i, and 1080i

Scanning Frequency

H-sync. 15 ~ 100 KHz, V-sync. 50 ~ 100 Hz

Optical Information

Projection Image Size (Diagonal)

Adjustable from 33" to 300"

Projection Lens

F 1.7 ~ 2.1 lens with f 26.7 mm ~ 32.0 mm with manual zoom and focus

Throw Distance

4.3' ~ 32.8' (1.3m ~ 10.0m)

Projection Lamp

200W

Interface

Video Input Jacks

RCA Type x 1

(Video) and Mini DIN 4 pin x 1 (S-Video)

Audio Input Jacks

RCA Type x 2



Computer Input1/ Component Input Terminal

(VGA) HDB15 Terminal X 1

Computer Input 2/ Monitor Output Terminal

(VGA) HDB15 Terminal X 1 (In / Out switcheable)

Computer/ Component Audio Input Jacks

Mini Jack (stereo) x 1

Service Port Connector

Mini DIN 8 pin x 1

USB Connector

USB Series B receptacle x 1

Audio Output Jack

Mini Jack (stereo) x 1 (Variable)

Audio

Internal Audio Amp

1.0W RMS

Built-in Speaker

1 speaker, ø1.1" (28mm)

Power

Voltage and Power Consumption

AC 100 ~ 120 V (3.6 A

Max. Ampere), 50 / 60 Hz

(The U.S.A and Canada)



AC 200 ~ 240 V (1.8 A

Max. Ampere), 50 / 60 Hz

(Continental Europe and The U.K.)

Operating Environment

Operating Temperature

41

˚F ~ 95 ˚F (5 ˚C ~ 35 ˚C)

Storage Temperature

14

˚F ~ 140 ˚F (-10˚C ~ 60 ˚C)

Remote Control

Battery

AAA, SUM-04 or R03 Type x 2

Operating Range

16.4’ (5m) / ±30˚

Dimensions

2.0” x 0.91” x 4.8” (51.5mm x 23.2mm x 123mm)

Net Weight

2.11 oz (60g) (including batteries)

56

Appendix

Accessories

Owner's Manual

AC Power Cord

Remote Control and Batteries

VGA Cable

Lens Cover with String and Screw

PIN Code Label

The specifications are subject to change without notice.

LCD panels are manufactured to the highest possible standards. Even though 99.99% of the pixels are effective, a tiny fraction of the pixels (0.01% or less) may be ineffective by the characteristics of the LCD panels.

The On-Screen Menu and figures in this manual may differ slightly from the product.

Appendix

57

Appendix

Configurations of Terminals

COMPUTER INPUT/COMPONENT INPUT/MONITOR OUTPUT TERMINAL (ANALOG)

Terminal : HDB15-PIN

Pin Configuration



1

Red (R/Cr) Input / Output

9

-----

























2

Green (G/Y) Input / Output

10

Ground (Vert.sync.)













5

4

3

2

1



3

Blue (B/Cb) Input / Output

11

Ground / -----















10

9

8

7

6

4

-----

12

-----













15

14

13

12

11



























5

Ground (Horiz.sync.)

13

Horiz. sync. Input/Output (Composite H/V sync.)

























6

Ground (Red)

14

Vert. sync. Input / Output

























7

Ground (Green)

15

-----

























8

Ground (Blue)





SERVICE PORT CONNECTOR











Terminal : Mini DIN 8-PIN











Pin Configuration

















Serial































1

R X D































2

-----







8

7



6











3

-----







5



4

3





























4

GND







2

1











































5

RTS / CTS































6

T X D































7

GND































8

GND







USB CONNECTOR (Series B)











Pin Configuration













1

Vcc































2

- Data































3

+ Data











2



1





































4

Ground









































3



4





















































Optional Parts

The parts listed below are optionally available. When ordering those parts, give the item name and Model No. to the sales dealer.



Model No.

COMPONENT-VGA Cable

: POA-CA-COMPVGA

SCART-VGA Cable

: POA-CA-SCART



(This cable is used for RGB Scart 21-Pin



Video output of video equipment.)

58

Appendix

PIN Code Number Memo

Write

lost the

number



PIN Code Lock No.

Factory default set No: 1 2 3 4*

Logo PIN Code Lock No.

Factory default set No: 4 3 2 1*

*Should the four-digit number be changed, the factory set number will be invalid.

While the projector is locked with the PIN code...

Put a label below on in a prominent place of the projector's body while it is locked with a PIN code.

The label is provided with the product to identify the projector locked with a PIN code.

Appendix

Pixelworks ICs used.

59

Printed in Japan



Part No. 610 315 6095 (1AA6P1P4571-- MY7A)

SANYO Electric Co., Ltd.
