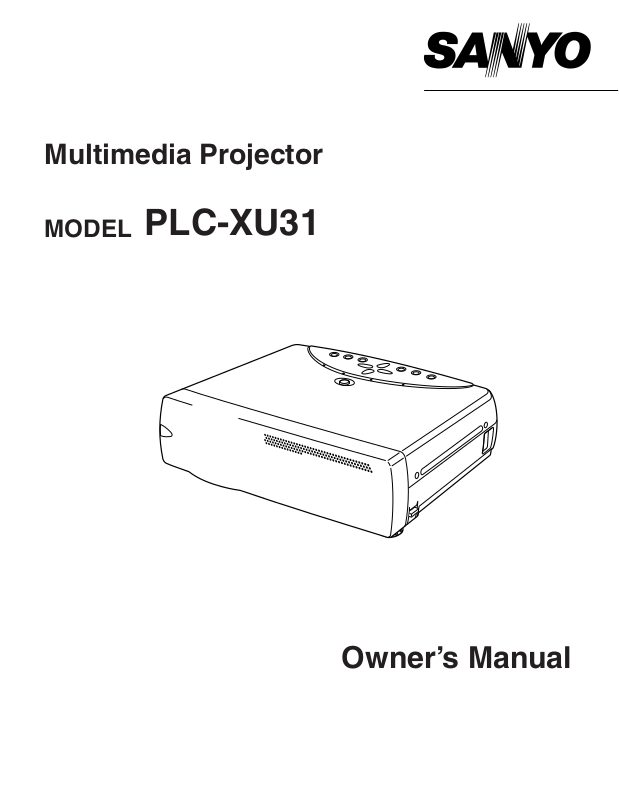

Fisher PLC-XU31 User Manual

Owner’s Manual

PLC-XU31

Multimedia Projector

MODEL

2

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-

SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS
VOLTAGE CONSTITUTING A RISK OF ELECTRIC
SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT
OPERATING AND MAINTENANCE INSTRUCTIONS IN THE
OWNER'S MANUAL WITH THIS UNIT.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Before operating this projector, read this manual thoroughly and operate the projector properly.
This projector provides many convenient features and functions. Operating the projector properly enables you to
manage those features and maintains it in better condition for a considerable time.
Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other
accidents.
If your projector seems to operate improperly, read this manual again, check operations and cable connections and try
the solutions in the “Trouble-shooting” section of the end of this booklet. If the problem still persists, contact the sales
dealer where you purchased the projector or the service center.

TO THE OWNER

SAFETY PRECAUTIONS

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO

RAIN OR MOISTURE.

● This projector produces intense light from the projection lens. Do not stare directly into the lens as possible. It
could damage your eyes. Be especially careful that children do not stare directly into the beam.

● This projector should be set in the way indicated. If not, it may result in a fire hazard.

● Take appropriate space on the top, sides and rear of the projector

cabinet for allowing air circulation and cooling the projector.
Minimum distance should be taken. If the projector is to be built
into a compartment or similarly enclosed, the minimum distances
must be maintained. Do not cover the ventilation slot on the
projector. Heat build-up can reduce the service life of your
projector, and can also be dangerous.

● Do not put any flammable object or spray can near the projector, hot air is exhausted from the ventilation
holes.

● If the projector is not to be used for an extended time, unplug the projector from the power outlet.

READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.

20cm

50cm 50cm

50cm

SIDE and TOP REAR

3

SAFETY INSTRUCTIONS

All the safety and operating instructions should be read before
the product is operated.

Read all of the instructions given here and retain them for later
use. Unplug this projector from AC power supply before
cleaning. Do not use liquid or aerosol cleaners. Use a damp
cloth for cleaning.

Follow all warnings and instructions marked on the projector.

For added protection to the projector during a lightning storm,
or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet. This will prevent damage
due to lightning and power line surges.

Do not expose this unit to rain or use near water... for
example, in a wet basement, near a swimming pool, etc...

Do not use attachments not recommended by the
manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table.
The projector may fall, causing serious injury to a child or
adult, and serious damage to the projector. Use only with a
cart or stand recommended by the manufacturer, or sold with
the projector. Wall or shelf mounting should follow the
manufacturer's instructions, and should use a mounting kit
approved by the manufacturers.

An appliance and cart combination should
be moved with care. Quick stops,
excessive force, and uneven surfaces
may cause the appliance and cart
combination to overturn.

Slots and openings in the back and bottom of the cabinet are
provided for ventilation, to insure reliable operation of the
equipment and to protect it from overheating.

The openings should never be covered with cloth or other
materials, and the bottom opening should not be blocked by
placing the projector on a bed, sofa, rug, or other similar
surface. This projector should never be placed near or over a
radiator or heat register.

This projector should not be placed in a built-in installation
such as a book case unless proper ventilation is provided.

Never push objects of any kind into this projector through
cabinet slots as they may touch dangerous voltage points or
short out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the projector.

This projector should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supplied, consult your authorized dealer or
local power company.

Do not overload wall outlets and extension cords as this can
result in fire or electric shock. Do not allow anything to rest on
the power cord. Do not locate this projector where the cord
may be damaged by persons walking on it.

Do not attempt to service this projector yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service
personnel.

Unplug this projector from wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or water.
d. If the projector does not operate normally by following the

operating instructions. Adjust only those controls that are
covered by the operating instructions as improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the projector to normal operation.

e. If the projector has been dropped or the cabinet has been

damaged.

f. When the projector exhibits a distinct change in

performance-this indicates a need for service.

When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer that have the same characteristics as the
original part. Unauthorized substitutions may result in fire,
electric shock, or injury to persons.

Upon completion of any service or repairs to this projector, ask
the service technician to perform routine safety checks to
determine that the projector is in safe operating condition.

Voor de klanten in Nederland

Bij dit product zijn batterijen
geleverd.
Wanneer deze leeg zijn,
moet u ze niet weggooien
maar inleveren als KCA.

4

COMPLIANCES

AC Power Cord for the United Kingdom :

This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of
the plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating,
marked thus . If the fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse
cover is required, ensure it is of the same colour as that visible on the pin face of the plug (i.e. red or orange). Fuse
covers are available from the Parts Department indicated in your User Instructions.
If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed.
The end of the flexible cord should be suitably prepared and the correct plug fitted. (See Over)

WARNING : A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET
OUTLET.

The Wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow ············ Earth
Blue ································· Neutral
Brown ······························ Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings
identifying the terminals in your plug proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the
letter E or by the safety earth symbol or coloured green or green-and-yellow.
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

WARNING : THIS APPARATUS MUST BE EARTHED.

ASA

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada :

AC Power Cord used in the United States and Canada is listed by the Underwriters
Laboratories (UL) and certified by the Canadian Standard Association (CSA).
AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the
plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be
unable to insert the plug into the outlet, contact your electrician.

GROUND

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.

AC POWER CORD REQUIREMENT

Federal Communication Commission Notice

Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures :

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such

changes or modifications should be made, you could be required to stop operation of the equipment.

Model Numbers : PLC-XU31
Trade Name : Sanyo
Responsible party : SANYO FISHER COMPANY
Address : 21605 Plummer Street, Chatsworth, California 91311

Telephone No. : [phone]

5

TABLE OF CONTENTS

FEATURES AND DESIGN 6

BEFORE OPERATION 14

COMPUTER INPUT 22

VIDEO INPUT 30

SETTING 35

APPENDIX 37

PREPARATION 7

NAME OF EACH PART OF PROJECTOR 7
SETTING-UP PROJECTOR 8

CONNECTING AC POWER CORD 8
POSITIONING PROJECTOR 9
ADJUSTABLE FEET 9
MOVING PROJECTOR 10

CONNECTING PROJECTOR 11

TERMINALS OF PROJECTOR 11
CONNECTING TO COMPUTER 12
CONNECTING TO VIDEO EQUIPMENT 13

OPERATION OF REMOTE CONTROL 14

REMOTE CONTROL BATTERIES INSTALLATION 15

TOP CONTROLS AND INDICATORS 16
OPERATING ON-SCREEN MENU 17

HOW TO OPERATE ON-SCREEN MENU 17
FLOW OF ON-SCREEN MENU OPERATION 17
MENU BAR 18

SELECTING INPUT SOURCE 22
SELECTING COMPUTER SYSTEM 22

COMPATIBLE COMPUTER SPECIFICATIONS 23

PC ADJUSTMENT 24

AUTO PC ADJUSTMENT 24
MANUAL PC ADJUSTMENT 25

PICTURE IMAGE ADJUSTMENT 27

IMAGE LEVEL SELECT 27
IMAGE LEVEL ADJUSTMENT 28

PICTURE SCREEN ADJUSTMENT 29

SELECTING INPUT SOURCE 30
SELECTING VIDEO SYSTEM 31
PICTURE IMAGE ADJUSTMENT 32

IMAGE LEVEL SELECT 32
IMAGE LEVEL ADJUSTMENT 33

PICTURE SCREEN ADJUSTMENT 34

SETTING MENU 35

OPERATING WIRELESS MOUSE 37
MAINTENANCE 38

WARNING TEMP. INDICATOR 38
AIR FILTER CARE AND CLEANING 38
CLEANING PROJECTION LENS 38
LAMP REPLACEMENT 39
LAMP REPLACE COUNTER 39

TROUBLESHOOTING 40
TECHNICAL SPECIFICATIONS 42

BASIC OPERATION 19

TURNING ON / OFF PROJECTOR 19
ADJUSTING SCREEN 20

ZOOM ADJUSTMENT 20
FOCUS ADJUSTMENT 20
KEYSTONE ADJUSTMENT 20
PICTURE FREEZE FUNCTION 20
NO SHOW FUNCTION 21
P-TIMER FUNCTION 21

SOUND ADJUSTMENT 21

TRADEMARKS

● Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer,Inc.

● IBM and PS/2 are trademarks or registered trademarks of International Business Machines, Inc.

● Windows and PowerPoint are registered trademarks of Microsoft Corporation.

● Each name of corporations or products in the owner's manual is a trademark or a registered trademark of its

respective corporation.

6

FEATURES AND DESIGN

This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This
projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD)
technology.

◆ Compatibility

This projector widely accepts various video and
computer input signals including;

● Computers

IBM-compatible or Macintosh computer up to 1280
x 1024 resolution.

● 6 Color Systems

NTSC, PAL, SECAM, NTSC 4.43, PAL-M or PAL­N color system can be connected.

● Component Video

Component video signal, such as a DVD player
output high definition TV signals including 480i,
480p, 575i, 575p, 720p, 1035i or 1080i, can be
connected.

● S-Video

S-Video signal, such as a S-VHS VCR output
signal, can be connected.

◆ High Resolution Image

This projector provides 1024 x 768 dots resolution for
computer input and 800 horizontal TV lines. Resolution
from a computer between XGA (1024 x 768) and SXGA
(1280 x 1024) is compressed into 1024 x 768 dots. This
projector cannot display image of over 1280 x 1024 dots.
When resolution of your computer is over than 1280 x
1024, reset a computer output for lower resolution.

◆ Multi-Scan System

This projector has Multi-Scan System to conform to
almost all computer output signals quickly. There is no
need for troublesome manual adjustment of frequency
and other settings.

◆ Keystone Correction

Positioning height of a projector may result in a distorted
image being displayed in a trapezoid shape. Keystone
Correction solves this problem by digitally altering
projection to produce undistorted images.

◆ Multilanguage Menu Display

Operation menu is displayed in; English, German,
French, Italian, Spanish, Portuguese, Dutch, Swedish,
Chinese, Korean or Japanese.

◆ One-Touch Auto PC Adjustment

Incoming computer video signals are recognized and the
best adjustment is automatically set by Auto PC
Adjustment. No complicated setup is necessary and
projection is always precise.

◆ Digital Zoom (for Computer)

Digital Zoom function adjusts the image size to approx.
1/4 ~ 49 times of original image size, allowing you to
focus on crucial information at a presentation.

◆ Compact Design

This projector is extremely compact in size and weight.
It is designed to carry and work anywhere you wish to
use.

◆ Power Management

Power Management function is provided to reduce power
consumption while a projector is not in use.
This Power Management function operates to turn
Projection Lamp off when a projector detects signal
interruption and any button is not pressed over 5
minutes. Projection Lamp is automatically turned on
again when a projector detects signal or any operation
button is pressed.
This projector is shipped with this function ON.

◆ Wireless Mouse

Remote Control Unit supplied with this projector has
Wireless Mouse function for a connected computer. This
function enables you to operate both projector and
computer with Remote Control Unit only.

7

PREPARATION

NAME OF EACH PART OF PROJECTOR

NOTE ON THE POWER CORD

AC Power Cord must meet requirement of the country where you use a projector.
Confirm an AC plug type with the chart below and proper AC Power Cord must be used.
If supplied AC Power Cord does not match your AC outlet, contact your sales dealer.

SETTING-UP PROJECTOR

8

PREPARATION

To POWER CORD
CONNECTOR on your
projector.

Projector side AC Outlet side

Ground

To the AC Outlet.

(120 V AC)

For Continental Europe

For the U.S.A. and Canada

This projector uses nominal input voltages of 100-120 V or 200-240
V AC. This projector automatically selects the correct input
voltage. It is designed to work with single-phase power systems
having a grounded neutral conductor. To reduce risk of electrical
shock, do not plug into any other type of power system.
Consult your authorized dealer or service station if you are not sure
of the type of power supply being in use.
Connect a projector with a peripheral equipment before turning a
projector on. (Refer to pages 11 ~ 13 for connection.)

CAUTION

For safety, unplug AC Power Cord when an appliance is not
used.
When this projector is connected to the outlet with AC Power
Cord, an appliance is in Stand-by Mode and consumes a little
electric power.

CONNECTING AC POWER CORD

Connect AC Power Cord (supplied) to a projector.
The AC outlet must be near this equipment and
must be easily accessible.

For the U.K.

To the AC Outlet.

(200 - 240 V AC)

To the AC Outlet.

(200 - 240 V AC)

9

PREPARATION

POSITIONING PROJECTOR

● This projector is designed to project on a flat projection surface.

● The projector can be focused from 3.0’(0.9m) ~ 22.6’(6.9m).

● Refer to the figure below to adjust a screen size.

Screen Size
(W x H) mm

Height (H1)

40”

Height (H2)

812.8 x 609.6

21.6”(548.64mm)

2.4”(60.96mm)

100”

2032 x 1524

54”(1371.6mm)

6”(152.4mm)

150”

3048 x 2286

81”(2057.4mm)

9”(228.6mm)

200”

4064 x 3048

108”(2743.2mm)

12”(304.8mm)

300”

6096 x 4572

162”(4114.8mm)

18”(457.2mm)

ADJUSTABLE FEET

Picture tilt and projection angle can be adjusted by rotating
ADJUSTABLE FEET. Projection angle can be adjusted up to 15.6
degrees.

Lift the front of the projector and pull FEET LOCK LATCHES
on the both sides of the projector.

1

ADJUSTABLE FEET

FEET LOCK
LATCHES

40”

100”

150”

200”

300”

249”

167”

124”

84”

34”

H1

H2

22.6’ (6.9m)

15.1’ (4.6m)

11.2’ (3.4m)

7.5’ (2.3m)

3.0’ (0.9m)

Release FEET LOCK LATCHES to lock ADJUSTABLE FEET
and rotate ADJUSTABLE FEET to adjust the position and tilt.

2

To retract ADJUSTABLE FEET, lift the front of the projector
and pull and undo FEET LOCK LATCHES.
Keystone distortion of the projected image can be adjusted
by Menu Operation. (Refer to P20 and 35.)

3

ROOM LIGHT

The brightness in a room has a great influence on
picture quality. It is recommended to limit
ambient lighting in order to provide the best
image.

Max. Zoom

Min. Zoom

CAUTION

Avoid positioning a projector with the angle of more than 20
degrees. Projection Lamp may malfunction.

34”

690.9 x 518.2

18.4”(466.38mm)

2.0”(51.82mm)

10

PREPARATION

CAUTION IN CARRYING OR TRANSPORTING THE PROJECTOR

● Do not drop or bump a projector, otherwise damages or malfunctions may result.

● When carrying a projector, use a suitable carrying case.

● Do not transport a projector by using a courier or transport service in an unsuitable transport case. This may cause

damage to a projector. To transport a projector through a courier or transport service, consult your dealer for best
way.

MOVING PROJECTOR

CAUTION

Carrying Bag (supplied) is intended for protection from dust and
scratches on the surface of a cabinet, and it is not designed to
protect an appliance from external forces. Do not transport a
projector through a courier or transport services with this bag. The
projector can be damaged. When handling a projector, do not
drop, bump, subject it to strong forces or put other things on the
cabinet.

Use Carry Handle when moving a projector.
When moving a projector, replace Lens Cover and retract
Adjustable Feet to prevent damage to the lens and cabinet.
When a projector is not in use for an extended period, put it into
the case (carrying bag) supplied with a projector.

CONTROL PORT

USB

RESET

Y – Pb / Cb – Pr / Cr

R – AUDIO IN – L

(MONO)

S – VIDEO

COMPUTER INMONITOR OUT

EXT.SP(8Ω)

(STEREO)

AUDIO IN

COMPUTER

VIDEO

11

CONNECTING PROJECTOR

TERMINALS OF PROJECTOR

When controlling the computer
with Remote Control Unit of
this projector, connect the
mouse port of your personal
computer to this connector.
(Refer to P12.)

Connect the S-VIDEO
output from video
equipment to this
jack. (Refer to P13.)

Connect the audio output
(stereo) from computer to
this jack. (Refer to P12.)

Connect the audio output
from video equipment to
these jacks.
(Refer to P13.)

● When the audio output
is monaural, connect it
to L (MONO) jack.

CONTROL PORT CONNECTOR

COMPUTER AUDIO

INPUT JACK

AUDIO INPUT JACKS

VIDEO INPUT JACKS

S-VIDEO INPUT JACK

Connect the composite video
output from video equipment
to VIDEO/Y jack or connect
the component video outputs
to VIDEO/Y, Pb/Cb and
Pr/Cr jacks. (Refer to P13.)

Connect a computer output
to this terminal.
(Refer to P12.)

COMPUTER INPUT

TERMINAL

This projector has input and output terminals on its back for connecting computers and video equipment. Refer to figures on
pages 11 to 13 and connect properly.

Connect an external
speaker system to this jack.
(Refer to P12, 13)

EXTERNAL SPEAKER JACK

This projector uses a micro
processor to control this unit,
and occasionally, this micro
processor may malfunction
and need to be reset. This
can be done by pressing
RESET button with a pen,
which will shut down and
restart the unit. Do not use
RESET function excessively.

RESET BUTTON

When controlling the computer
with Remote Control Unit of
this projector, connect USB
port of your personal computer
to this connector. (Refer to
P12.)

USB CONNECTOR (Series B)

Connect a monitor to this
terminal. This terminal
outputs a computer input
signal. (Refer to P12.)

MONITOR OUTPUT

TERMINAL

12

CONNECTING PROJECTOR

ON

1

DIP

ON

OFF

2 3 4 5 6

13" MODE (640 x 480)
16" MODE (832 x 624)
19" MODE (1024 x 768)

OFFON ON

ON ON
ON ON

OFF OFF OFF

OFFOFF OFF OFF

OFF OFF OFF OFF

123456

OFF OFFON ONON ON21" MODE (1152 x 870)

CONTROL PORT

USB

RESET

Y – Pb / Cb – Pr / Cr

R – AUDIO IN – L

(MONO)

S – VIDEO

13

CONNECTING PROJECTOR

CONNECTING TO VIDEO EQUIPMENT

CONTROL PORT

USB

RESET

Y – Pb / Cb – Pr / Cr

R – AUDIO IN – L

(MONO)

S – VIDEO

COMPUTER INMONITOR OUT

EXT.SP(8Ω)

(STEREO)

AUDIO IN

COMPUTER

VIDEO

Video Source (example)

Video Cassette Recorder Video Disc Player

Video Cable
(RCA x 1) ✽

S-VIDEO
Cable ✽

Audio Cable
(Stereo)

✽

Terminals

of the Projector

Use any of VIDEO jack Y-Pb/Cb­Pr/Cr jacks or S-VIDEO jack.

• When both VIDEO jack and S­VIDEO jack are connected, S­VIDEO jack has priority over
VIDEO jack.

• When both Y-Pb/Cb-Pr/Cr jacks
and S-VIDEO jack are connected,
Y-Pb/Cb-Pr/Cr jacks has priority
over S-VIDEO jack.

S-VIDEO Output

Audio Input

Cables used for connection (✽ = Cable is not supplied with this projector.)

• Video Cable (RCA x 1 or RCA x 3)

✽

• S-VIDEO Cable ✽

• Audio Cable (RCA x 2 and Mini Plug (stereo) x 1) ✽

NOTE :
When connecting the cable, the power
cords of both the projector and the external
equipment should be disconnected from
AC outlet.

Audio Output

(R, L)

Audio Cable
(RCA x 2) ✽

Speaker Terminal

AUDIO IN S-VIDEO

Y - Pb/Cb - Pr/Cr

VIDEO

Component video output equipment.

(such as DVD player or high-definition TV source.)

Composite

Video Output

Component Video Output

(Y, Pb/Cb, Pr/Cr)

Video Cable
(RCA x 3) ✽

EXT. SP(8Ω)(STEREO)

External Speaker
