Owner’s Manual

PLC-XP50

Multimedia Projector

MODEL

PLC-XP50L (Lensless)

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-

SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE OWNER'S MANUAL WITH THIS UNIT.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Before operating this projector, read this manual thoroughly and operate the projector properly. This projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintains it in better condition for a considerable time. Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other accidents. If your projector seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the “Trouble-shooting” section of the end of this booklet. If the problem still persists, contact the sales dealer where you purchased the projector or the service center.

TO THE OWNER

SAFETY PRECAUTIONS

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO

RAIN OR MOISTURE.

● This projector produces intense light from the projection lens. Do not stare directly into the lens as possible. Eye damage could result. Be especially careful that children do not stare directly into the beam.

● This projector should be set in the way indicated. If not, it may result in a fire hazard.

● Take appropriate space on the top, sides and rear of the projector

cabinet for allowing air circulation and cooling the projector. Minimum distance should be taken. If the projector is to be built into a compartment or similarly enclosed, the minimum distances must be maintained. Do not cover the ventilation slot on the projector. Heat build-up can reduce the service life of your projector, and can also be dangerous.

● Do not put any flammable object or spray can near the projector, hot air is exhausted from the ventilation holes.

● Remote Control Unit, supplied to this projector, emits the laser beam as the laser pointer function from Laser Light Window while pressing LASER button (for 1 minute / LASER POINTER INDICATOR lights red to indicate laser emission). Do not look into Laser Light Window or shine the laser beam on yourself or other people. Eye damage may result.

● If the projector is not to be used for an extended time, unplug the projector from the power outlet.

READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.

SIDE and TOP REAR

20cm

50cm 50cm

50cm

SAFETY INSTRUCTIONS

All the safety and operating instructions should be read before the product is operated.

Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

Follow all warnings and instructions marked on the projector.

For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.

Do not expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool, etc...

Do not use attachments not recommended by the manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturers.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Slots and openings in the back and bottom of the cabinet are provided for ventilation, to insure reliable operation of the equipment and to protect it from overheating.

The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.

This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.

Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.

This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.

Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.

Do not attempt to service this projector yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the projector. c. If the projector has been exposed to rain or water. d. If the projector does not operate normally by following the

operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.

e. If the projector has been dropped or the cabinet has been

damaged.

f. When the projector exhibits a distinct change in

performance-this indicates a need for service.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.

Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.

Voor de klanten in Nederland

Bij dit product zijn batterijen geleverd. Wanneer deze leeg zijn, moet u ze niet weggooien maar inleveren als KCA.

COMPLIANCES

AC Power Cord for the United Kingdom :

This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating, marked thus . If the fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the plug (i.e. red or orange). Fuse covers are available from the Parts Department indicated in your User Instructions. If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed. The end of the flexible cord should be suitably prepared and the correct plug fitted. (See Over)

WARNING : A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET OUTLET.

The Wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow ············ Earth Blue ································· Neutral Brown ······························ Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured green or green-and-yellow. The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

WARNING : THIS APPARATUS MUST BE EARTHED.

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada :

AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA). AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet, contact your electrician.

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.

AC POWER CORD REQUIREMENT

Federal Communication Commission Notice

Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures :

– Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules. Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such

changes or modifications should be made, you could be required to stop operation of the equipment.

Model Number : PLC-XP50/PLC-XP50L Trade Name : Sanyo Responsible party : SANYO FISHER COMPANY Address : 21605 Plummer Street, Chatsworth, California 91311

Telephone No. : (818)998-7322

ASA

GROUND

FEATURES AND DESIGN 6

BEFORE OPERATION 15

PREPARATION 7

NAME OF EACH PART OF PROJECTOR 7 SETTING-UP PROJECTOR 8

CONNECTING AC POWER CORD 8 POSITIONING PROJECTOR 9 ADJUSTABLE FEET 10 INSTALLING PROJECTOR IN PROPER POSITION 10 MOVING PROJECTOR 11

CONNECTING PROJECTOR 12

TERMINALS OF PROJECTOR 12 CONNECTING TO COMPUTER 13 CONNECTING TO VIDEO EQUIPMENT 14

OPERATION OF REMOTE CONTROL 15

LASER POINTER FUNCTION 15 REMOTE CONTROL BATTERIES INSTALLATION 16

TOP CONTROLS AND INDICATORS 17 OPERATING ON-SCREEN MENU 18

HOW TO OPERATE ON-SCREEN MENU 18 FLOW OF ON-SCREEN MENU OPERATION 18 MENU BAR 19

BASIC OPERATION 20

TURNING ON / OFF PROJECTOR 20 ADJUSTING SCREEN 21

ZOOM ADJUSTMENT 21 FOCUS ADJUSTMENT 21 LENS SHIFT ADJUSTMENT 21 KEYSTONE ADJUSTMENT 21 PICTURE FREEZE FUNCTION 22 NO SHOW FUNCTION 22 P-TIMER FUNCTION 22

SOUND ADJUSTMENT 22

TRADEMARKS

● Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer,Inc.

● IBM and PS/2 are trademarks or registered trademarks of International Business Machines, Inc.

● Windows and PowerPoint are registered trademarks of Microsoft Corporation.

● Each name of corporations or products in the owner's manual is a trademark or a registered trademark of its

respective corporation.

COMPUTER INPUT 23

VIDEO INPUT 30

SETTING 37

APPENDIX 41

SELECTING INPUT SOURCE 23 SELECTING COMPUTER SYSTEM 23 PC ADJUSTMENT 25

AUTO PC ADJUSTMENT 25 MANUAL PC ADJUSTMENT 26

PICTURE IMAGE SELECT 28

IMAGE LEVEL SELECT 28

PICTURE SCREEN ADJUSTMENT 29

SELECTING INPUT SOURCE 30 SELECTING VIDEO SYSTEM 31 PICTURE IMAGE SELECT 32

IMAGE LEVEL SELECT 32

PICTURE SCREEN ADJUSTMENT 33

SETTING MENU 37

OPERATING WIRELESS MOUSE 41 MAINTENANCE 42

WARNING TEMP. INDICATOR 42 AIR FILTER CARE AND CLEANING 43 CLEANING PROJECTION LENS 43 LAMP REPLACEMENT 44 LAMP REPLACE COUNTER 45

TROUBLESHOOTING 46

INDICATORS AND PROJECTOR CONDITION 48 COMPATIBLE COMPUTER SPECIFICATION 49 MENU TREE 50

TECHNICAL SPECIFICATIONS 52

CONFIGURATIONS OF TERMINALS 53 OPTIONAL PARTS 54 LENS REPLACEMENT 54

PICTURE IMAGE 34

PICTURE IMAGE ADJUSTMENTS 34

FEATURES AND DESIGN

This Multimedia Projector is designed with most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.

◆ Compatibility

This projector widely accepts various video and computer input signals including;

● Computers

IBM-compatible or Macintosh computer up to 1280 x 1024 resolution.

● 6 Color Systems

NTSC, PAL, SECAM, NTSC 4.43, PAL-M or PALN color system can be connected.

● Component Video

Component video signal, such as a DVD player output high definition TV signals including 480i, 480p, 575i, 575p, 720p, 1035i or 1080i, can be connected.

● S-Video

S-Video signal, such as a S-VHS VCR output signal, can be connected.

◆ High Resolution Image

This projector provides 1024 x 768 dots resolution for computer input and 800 horizontal TV lines. Resolution from a computer between XGA (1024 x 768) and SXGA (1280 x 1024) is compressed into 1024 x 768 dots. This projector cannot display image of over 1280 x 1024 dots. When resolution of your computer is over than 1280 x 1024, reset a computer output for lower resolution.

◆ Multi-Scan System

This projector has Multi-Scan System to conform to almost all computer output signals quickly. There is no need for troublesome manual adjustment of frequency and other settings.

◆ Keystone Correction

Positioning of a projector may result in distorted image being displayed in a trapezoid shape. Keystone Correction solves this problem by digitally altering projection to produce undistorted images.

◆ Multilanguage Menu Display

Operation menu is displayed in; English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Russian, Chinese, Korean or Japanese.

◆ One-Touch Auto PC Adjustment

Incoming computer video signals are recognized and best adjustment is automatically set by Auto PC Adjustment. No complicated setup is necessary and projection is always precise.

◆ Digital Zoom (for Computer)

Digital Zoom function adjusts image size to approx. 1/4 ~ 49 times of original image size, allowing you to focus on crucial information at a presentation.

◆ Compact Design

This projector is extremely compact in size and weight. It is designed to carry and work anywhere you wish to use.

◆ Power Management

Power Management function is provided to reduce power consumption while a projector is not in use. This Power Management function operates to turn Projection Lamp off when a projector detects signal interruption and any button is not pressed. Projection Lamp is automatically turned on again when a projector detects signal or any operation button is pressed. This projector is shipped with this function ON.

◆ Wireless Mouse

Remote Control Unit supplied with this projector has Wireless Mouse function for a connected computer. This function enables you to operate both projector and computer with Remote Control Unit only.

◆ Digital Visual Interface

This projector is equipped with DVI 24-pin terminal for connecting DVI output from a computer.

◆ Laser Pointer Function

Remote Control Unit supplied with this projector includes Laser Pointer function. This function helps you to make a smart presentation on a projected screen.

◆ Motor-driven Lens Shift

Projection lens can be moved up and down with motordriven lens shift function. This function makes it easy to provide projected image where you want. Zoom and focus can be also adjusted with motor-driven operation.

◆ PJ-Net Organizer (Optional)

PJ-Net Organizer enables the projector to display the image of the computer screen and the data image stored in the computer via a network. The projector can be also controlled and maintained through a web browser.

PREPARATION

NOTE ON POWER CORD

AC Power Cord must meet requirement of country where you use a projector. Confirm an AC plug type with chart below and proper AC Power Cord must be used. If supplied AC Power Cord does not match your AC outlet, contact your sales dealer.

SETTING-UP PROJECTOR

PREPARATION

POSITIONING PROJECTOR

● This projector is designed to project on a flat projection surface.

● Projector can be focused from 4.6’ (1.4m) ~ 47.3’ (14.4m).

● Refer to figure below to adjust screen size.

Screen Size

Distance

40”

31”

4.6’ (1.4m)

ROOM LIGHT

11.8’(3.6m)

4.6’(1.4m)

100”

77”

40”

31”

23.6’(7.2m)

200”

154”

35.4’(10.8m)

300”

231”

47.3’(14.4m)

Max. Zoom

Min. Zoom

400”

308”

PREPARATION

ADJUSTABLE FEET

Picture tilt and projection angle can be adjusted by rotating ADJUSTABLE FEET. Projection angle can be adjusted to 10.5 degrees.

Lift front of a projector and pull FEET LOCK LATCHES on both sides of a projector.

Release FEET LOCK LATCHES to lock ADJUSTABLE FEET and rotate ADJUSTABLE FEET to fine tune position and tilt.

To shorten ADJUSTABLE FEET, lift front of a projector and pull and undo FEET LOCK LATCHES.

Position and keystone distortion of image can be adjusted using Menu Operation. (Refer to P 21 and 37.)

INSTALLING PROJECTOR IN PROPER POSITION

Install the projector properly. Improper installation may reduce the lamp lifetime and cause a fire hazard.

Do not tilt the projector more than 10 degrees above and below.

PREPARATION

CAUTION IN CARRYING OR TRANSPORTING A PROJECTOR

● Do not drop or bump a projector, otherwise damages or malfunctions may result.

● When carrying a projector, use a suitable carrying case.

● Do not transport a projector by using a courier or transport service in an unsuitable transport case. This

may cause damage to a projector. To transport a projector through a courier or transport service, consult your dealer for best way.

MOVING PROJECTOR

Use Carry Handle when moving a Projector. When moving a projector, replace lens cover and retract feet to prevent damage to lens and cabinet. When this projector is not in use for an extended period, put it into case (dust cover) supplied with this projector.

CONNECTING PROJECTOR

TERMINALS OF PROJECTOR

When controlling computer with Remote Control Unit of this projector, connect mouse port of your personal computer to this connector. (Refer to P13.)

Connect S-VIDEO output from video equipment to this jack. (Refer to P14.)

Connect an audio output from video equipment to these jacks. (Refer to P14.)

CONTROL PORT CONNECTOR

COMPUTER AUDIO

INPUT 1/AUDIO MONITOR

OUTPUT JACK

AUDIO INPUT JACKS

VIDEO INPUT JACKS

S-VIDEO INPUT JACK

Connect composite video output from video equipment to VIDEO/Y jack or connect component video outputs to VIDEO/Y, Cb/Pb and Cr/Pr jacks. (Refer to P14.)

This terminal is switchable and can be used as computer input or monitor output. Set the terminal up as either Computer input or Monitor output properly before using this terminal. Refer to P13, P23.) Note; This terminal outputs from 5 BNC type computer input on INPUT 2 jacks only.

COMPUTER INPUT/MONITOR

OUTPUT TERMINAL (ANALOG)

This projector has input and output terminals on its back for connecting computers and video equipment. Refer to figures on pages 12 to 14 and connect properly.

This projector uses a micro processor to control this unit, and occasionally, this micro processor may malfunction and need to be reset. This can be done by pressing RESET button with a pen, which will shut down and restart unit. Do not use RESET function excessively.

RESET BUTTON

When controlling computer with Remote Control Unit of this projector, connect USB terminal of your personal computer to this terminal. (Refer to P13.)

USB CONNECTOR (Series B)

✽ Do not press this button. This button

is used for our optional accessories.

Connect component video output (Y, Cb, Cr or Y, Pb, Pr) from video equipment to VIDEO/Y, Cb/Pb and Cr/Pr jacks or connect computer output {5 BNC Type (Green, Blue, Red, Horiz. Sync and Vert. Sync.)} from computer to G, B, R, H/V and V jacks. (Refer to P13 and 14.)

5 BNC INPUT JACKS

When using Wired/Wireless Remote Control Unit as Wired Remote Control, Connect Wired Remote Control Unit to this jack with Remote Control Cable (supplied).

R/C JACK

Connect an audio output (stereo) from computer to this jack. (Refer to P13.)

COMPUTER AUDIO

INPUT 2 JACK

Connect computer output (Digital DVI-D type) to this terminal. HD (HDCP Compatible) signal can also be connected. Refer to P13.)

COMPUTER INPUT

TERMINAL (DIGITAL)

This terminal is switchable and can be used as computer audio input 1 or audio monitor output (variable). Set the terminal up as either Computer audio input 1 or Audio Monitor output properly before using this terminal. Refer to P13, P23.)

INPUT 1

ANALOG IN/OUT

AUDIO 1

IN/OUT

G B R H/V V

VIDEO/Y Cb/Pb Cr/Pr

DIGITAL(DVI-D)

RESET

USB

AUDIO 2

INPUT 2

R–AUDIO–L

INPUT 3

R/C JACK

CONTROL PORT

S–VIDEO

(

)

MONO

CONNECTING PROJECTOR

CONNECTING TO COMPUTER

IBM-compatible computer or Macintosh computer (VGA / SVGA / XGA / SXGA)

VGA Cable

Monitor Output

Desktop type Laptop type

Control Cable for Serial Port

Terminal

Serial port

PS/2 port

Audio Output

CONTROL

PORT

COMPUTER

AUDIO IN 1 or 2

COMPUTER IN ANALOG

Use one of these Control Cables corresponding with terminal of your computer.

ADB port

Cables used for connection (✽ = Cable or adapter is not supplied with this projector.)

Control Cable

for PS/2 Port ✽

Control Cable

for ADB Port ✽

Audio Cable

✽

(stereo)

NOTE :

When connecting cable, power cords of both a projector and external equipment should be disconnected from AC outlet. Turn a projector and peripheral equipment on before computer is switched on.

USB port

MAC Adapter ✽

Set slide switches according to chart below.

• VGA Cable (HDB 15 pin)

• DVI-Digital Cable (for Single Link T.M.D.S.)

✽

• BNC Cable ✽

• Control Cable for Serial Port

• Control Cable for PS2 Port ✽, or ADB Port ✽

• USB Cable

• MAC Adapter (When connecting to Macintosh computer)

✽

• Audio Cables (Mini Plug (stereo) x 2) ✽

Terminals

of a Projector

Terminal

DVI Cable

✽

Monitor Output

USB

COMPUTER IN DIGITAL

Set switches as shown in table below depending on RESOLUTION MODE that you want to use before you turn on projector and computer.

◆ MAC ADAPTER ✽

USB Cable

BNC Cable

✽

Audio Speaker

(stereo)

Audio Amplifier

Audio Cable

(stereo)

✽

Audio Input

AUDIO OUT

External Audio Equipment

Monitor Output

Monitor Input

NOTE;

This terminal is switchable. Set the terminal up as either Computer input or Monitor output before using this terminal. (See page 23.)

NOTE;

This terminal is switchable. Set the terminal up as either Computer audio input 1 or audio monitor output (variable) before using this terminal. (See page 23.)

13" MODE (640 x 480) 16" MODE (832 x 624) 19" MODE (1024 x 768)

ANALOG IN/OUT

USB

AUDIO 1

IN/OUT

G B R H/V V

VIDEO/Y Cb/Pb Cr/Pr

OFF

1234 56

OFFON ON OFFOFF OFF OFF

ON ON ON ON

OFF OFF OFF OFF

INPUT 1

DIGITAL(DVI-D)

RESET

AUDIO 2

INPUT 2

R–AUDIO–L

(

MONO

INPUT 3

2 3 4 5 6

OFF OFF OFF

OFF OFFON ONON ON21" MODE (1152 x 870)

R/C JACK

CONTROL PORT

S–VIDEO

)

DIP

CONNECTING PROJECTOR

CONNECTING TO VIDEO EQUIPMENT

INPUT 1

ANALOG IN/OUT

AUDIO 1

G B R H/V V

VIDEO/Y Cb/Pb Cr/Pr

DIGITAL(DVI-D)

RESET

USB

AUDIO 2

INPUT 2

R–AUDIO–L

INPUT 3

(

MONO

R/C JACK

CONTROL PORT

S–VIDEO

)

BEFORE OPERATION

FOCUS BUTTON

Used to adjust focus. (P21)

AUTO PC ADJ. BUTTON

Use to operate AUTO PC Adjustment function. (P25)

KEYSTONE BUTTON

Used to correct keystone distortion. (P21, 37)

IMAGE BUTTON

Used to select image level. (P28, 32)

BEFORE OPERATION

To insure safe operation, please observe following precautions :

● Use (2) AA, UM3 or R06 type alkaline batteries.

● Replace two batteries at same time.

● Do not use a new battery with an used battery.

● Avoid contact with water or liquid.

● Do not expose Remote Control Unit to moisture, or heat.

● Do not drop Remote Control Unit.

● If a battery has leaked on Remote Control Unit, carefully wipe case clean and install new batteries.

● Danger of explosion if battery is incorrectly replaced.

● Dispose of used batteries according to batteries manufacturers instructions and local rules.

Press lid downward and slide it.

Remove battery compartment lid.

Slide batteries into compartment.

Replace compartment lid.

Two AA size batteries

For correct polarity (+ and –), be sure battery terminals are in contact with pins in compartment.

Remote Control Batteries Installation

1 2 3

Used to operate PTIMER function. (P22)

BEFORE OPERATION

TOP CONTROLS AND INDICATORS

Used to open or close MENU operation. (P18,

19)

MENU BUTTON

IMAGE BUTTON

READY INDICATOR

SELECT BUTTON

POWER ON–OFF BUTTON

INPUT BUTTON

WARNING TEMP. INDICATOR

LAMP INDICATOR

POINT (VOLUME + / – ) BUTTONS

LAMP REPLACE INDICATOR

Used to select image level. (P28, 32)

Lights green when a projector is ready to be turned on. And it flashes green in Power Management mode. (P39)

Becomes dim when a projector is turned on. And bright when a projector is in stand-by mode.

Turns to yellow when life of projection lamp draws to an end. (P44)

Flashes red when internal projector temperature is too high. (P42)

Used to select input source. (P23, 24, 30)

Used to select an item or adjust value in ON-SCREEN MENU. They are also used to pan image in DIGITAL ZOOM

+/– mode. (P29)

POINT LEFT/RIGHT buttons are also used as VOLUME +/– buttons.

Used to execute the selected item. It is also used to expand/compress image in DIGITAL ZOOM mode. (P29)

Used to turn a projector on or off. (P20)

Used to adjust zoom. (P21)

FOCUS BUTTON

Used to adjust focus. (P21)

ZOOM BUTTON

This projector has CONTROL BUTTONS (TOP CONTROLS) and INDICATORS on its top.

LENS SHIFT BUTTON

Used to select LENS SHIFT function. (P21)

AUTO PC ADJ. BUTTON

Used to operate AUTO PC Adjustment function. (P25)

BEFORE OPERATION

HOW TO OPERATE ON-SCREEN MENU

You can control and adjust this projector through ON-SCREEN MENU. Refer to following pages to operate each adjustment on ON-SCREEN MENU.

2 MOVING POINTER

3 SELECT ITEM

Move pointer (✽ see below) or adjust value of item by pressing POINT button(s) on Top Control or on Remote Control Unit.

Select item or set selected function by pressing SELECT button.

OPERATING ON-SCREEN MENU

✽ Pointer is icon on ON-SCREEN MENU to select item. See fig-

ures on section "FLOW OF ON-SCREEN MENU OPERATION" below.

Used to select item.

SELECT BUTTON

Used to move Pointer UP/ DOWN/ RIGHT/ LEFT.

POINT BUTTONS

TOP CONTROL

MENU BAR

MENU ICON

SELECT

BUTTON

1 DISPLAY MENU

Press MENU button to display ON-SCREEN MENU.

Used to select the item.

SELECT BUTTON

Used to move the Pointer UP/ DOWN/ RIGHT/ LEFT.

POINT BUTTONS

REMOTE CONTROL UNIT

FLOW OF ON-SCREEN MENU OPERATION

Display ON-SCREEN MENU

Press MENU button to display ON-SCREEN MENU (MENU BAR). A red frame is POINTER.

Move POINTER (red frame) to MENU ICON that you want to select by pressing POINT RIGHT / LEFT buttons.

Adjust ITEM DATA by pressing POINT RIGHT / LEFT buttons. Refer to following pages for details of respective adjustments.

Press POINT UP/DOWN button and move POINTER (red frame or red arrow) to ITEM that you want to adjust, and then press SELECT button to show ITEM DATA.

Select Menu to be adjusted

Control or adjust item through ON-SCREEN MENU

POINTER (red frame) Press POINT UP/DOWN button to move POINTER.

POINTER (red frame)

ITEM

ITEM DATA Press POINT LEFT/RIGHT buttons to adjust value or set function.

MENU BUTTON

AUTO PC

D.ZOOM

FREEZE

LOCK

MUTE

VOLUME

SELECT

ON-OFF

NO SHOW


VOLUME

KEYSTONE

BEFORE OPERATION

MENU BAR

FOR PC SOURCE

Press MENU BUTTON while connecting to PC input source.

FOR VIDEO SOURCE

Press MENU BUTTON while connecting to VIDEO input source.

PC SYSTEM MENU

Used to select computer system. (Refer to P23, 24)

SETTING MENU

Used to change settings of projector or reset Lamp Replace Counter. (Refer to P37-40)

IMAGE SELECT MENU

Used to select image level among Standard, Real and Image 1 ~ 4. (Refer to P28)

GUIDE WINDOW

Shows selected item of ONSCREEN MENU.

SCREEN MENU

Used to adjust size of image. [Normal / True / Wide / Digital zoom +/–] (Refer to P29)

SOUND MENU

Used to adjust volume or mute sound. (Refer to P22)

INPUT MENU

Used to select input source (Input 1, Input 2 or Input

3). (Refer to P23)

IMAGE ADJUST MENU

Used to adjust computer image. [Contrast/Brightness/Color /Tint/Color management /Auto picture control /Color temp. /White balance (R/G/B) /Sharpness/Gamma/Noise reduction/Progressive] (Refer to P34-36)

PC ADJUST MENU

Used to adjust parameters to match with input signal format. (Refer to P25-27)

INPUT MENU

Used to select input source (Input 1, Input 2 or Input 3). (Refer to P30)

IMAGE SELECT MENU

Used to select image level among Standard, Cinema and Image 1 ~ 4. (Refer to P32)

SCREEN MENU

Used to set size of image to Normal or Wide. (Refer to P33)

AV SYSTEM MENU

Used to select system of selected video source. (Refer to P31)

IMAGE ADJUST MENU

Used to adjust picture image.

[Contrast/Brightness/Color/Tint /Color management /Auto picture control/Color temp. /White balance (R/G/B) /Sharpness/Gamma /Noise reduction/Progressive]

(Refer to P34-36)

Same function as Menu for PC source.

BASIC OPERATION

TURNING ON PROJECTOR

Connect a projector's AC Power Cord into an AC outlet. LAMP Indicator lights RED, and READY Indicator lights GREEN.

Press POWER ON-OFF button on Top Control or on Remote Control Unit to ON. LAMP Indicator dims, and Cooling Fans start to operate. Preparation Display appears on a screen and count-down starts. Signal from PC or Video source appears after 30 seconds. Current Input position and Lamp mode status are also displayed on screen for 5 seconds. (Refer to "LAMP MODE" on page 37.)

BASIC OPERATION

ADJUSTING SCREEN

Message disappears after 4 seconds.

ZOOM ADJUSTMENT

FOCUS ADJUSTMENT

Press ZOOM button on Top Control or ZOOM ▲/▼ button on Remote Control Unit. Message “Zoom” is displayed.

Press ZOOM ▲ button or POINT UP button to make image larger, and press ZOOM ▼ button or POINT DOWN button to make image smaller.

Press FOCUS button on Top Control or FOCUS ▲/▼ button on Remote Control Unit. Message “Focus” is displayed.

Adjust focus of image by pressing FOCUS ▲/▼ button or POINT UP/DOWN button(s) .

LENS SHIFT ADJUSTMENT

Press LENS SHIFT button on Top Control or LENS SHIFT ▲/▼ button on Remote Control Unit. Message “Lens shift” is displayed.

Press POINT UP button or LENS SHIFT ▲ button to move image up, press POINT DOWN or LENS SHIFT

▼ button to

move image down.

KEYSTONE ADJUSTMENT

Press KEYSTONE button on Remote Control Unit or select Keystone on SETTING menu. (Refer to page 37.) Keystone dialog box appears.

Correct keystone distortion by pressing POINT UP/DOWN/LEFT/RIGHT button(s). Press POINT UP button to reduce the upper part of the image, and press POINT DOWN button to reduce the lower part. Press POINT LEFT button to reduce the left part, and press POINT RIGHT button to reduce the right part.

Reduce the upper width with POINT UP button.

Reduce the lower width with POINT DOWN button.

If a projected picture has keystone distortion, correct the image with KEYSTONE adjustment.

Reduce the left part with POINT LEFT button.

Reduce the right part with POINT RIGHT button.

• Arrows are white in no correction.

• Arrow(s) of direction being corrected turn(s) red.

• Arrow(s) disappear(s) at the maximum

correction.

• If you press the KEYSTONE button on Top Control or on Remote Control Unit once more while the keystone dialog box is being displayed, the keystone adjustment will be canceled.

NOTE; Focus adjustment may not function properly if the image is corrected by KEYSTONE adjustment.

BASIC OPERATION

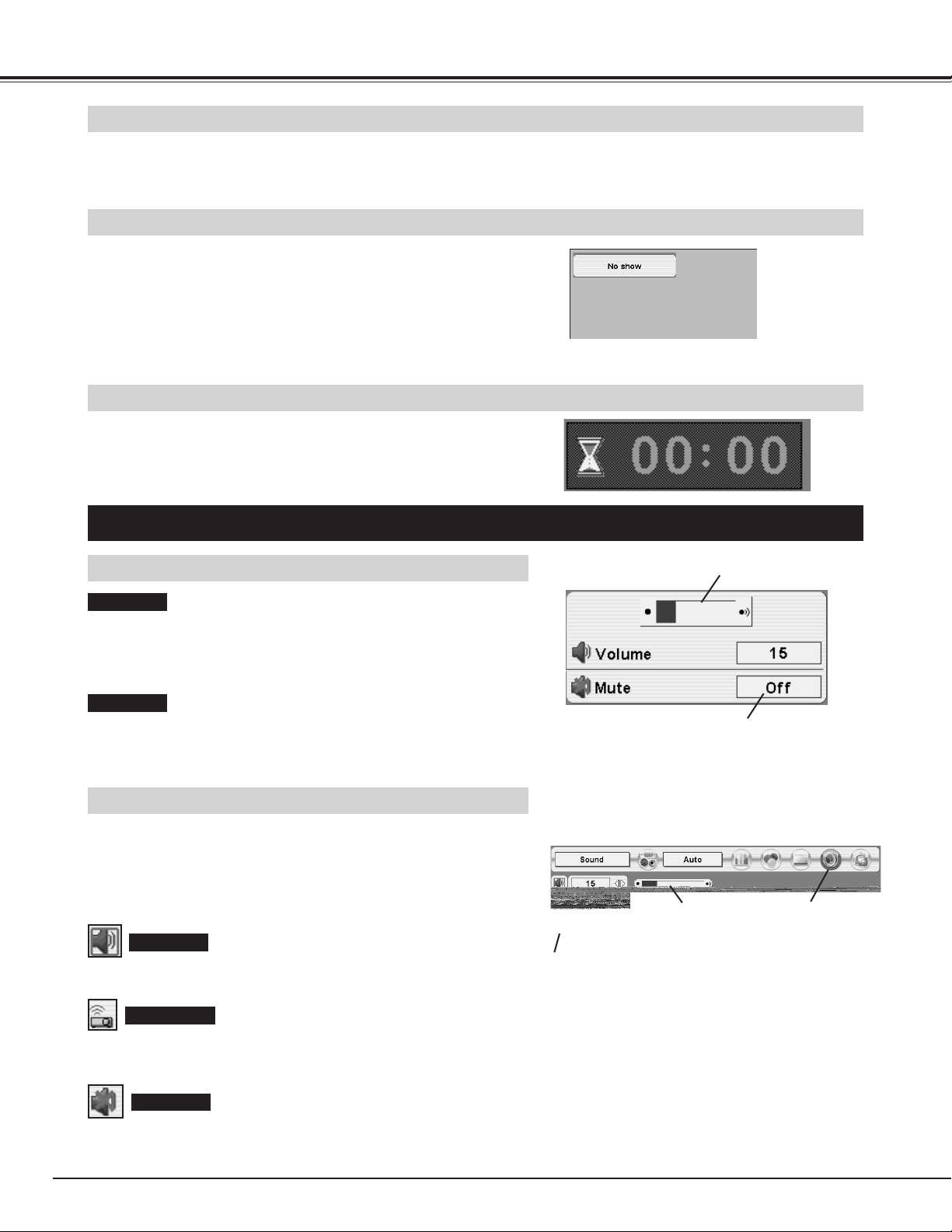

Press FREEZE button on Remote Control Unit to freeze picture on-screen. To cancel FREEZE function, press FREEZE button again or press any other button.

Press NO SHOW button on Remote Control Unit to black out image. To restore to normal, press NO SHOW button again or press any other button.

NO SHOW FUNCTION

PICTURE FREEZE FUNCTION

Message disappears after 4 seconds.

Press P-TIMER button on Remote Control unit. Timer display “00 : 00” appears on screen and timer starts to count time (00 : 00 ~ 59 : 59). To stop P-TIMER display, press P-TIMER button. And then, press PTIMER button again to cancel P-TIMER function.

P-TIMER FUNCTION

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move a red frame pointer to SOUND Menu icon.

Volume

Press VOLUME (+/–) button(s) on Top Control or on Remote Control Unit to adjust volume. Volume dialog box appears on screen for a few seconds. (+) button to increase volume, and (–) button for decreasing.

Mute

Press MUTE button on Remote Control Unit to cut off sound. To restore sound to its previous level, press MUTE button again or press Volume (+/–) button(s).

To increase volume, press POINT RIGHT button, and press POINT LEFT button for decreasing.

Press POINT UP/DOWN button to move a red frame pointer to item that you want to select, and then press SELECT button.

Close SOUND Menu.

SOUND ADJUSTMENT

DIRECT OPERATION

MENU OPERATION

Volume

Built-in SP.

Indicates roughly level of volume.

Press MUTE button to set Mute function On or Off.

Display disappears after 4 seconds.

SOUND MENU

SOUND Menu icon

Indicates roughly level of volume.

Press POINT LEFT/RIGHT button(s) to cut off sound. Dialog box display is changed to “On” and sound is cut off. To restore sound to its previous level, press POINT LEFT/RIGHT button(s) again.

Mute

Press POINT LEFT/RIGHT button(s) to switch built-in speaker on and off.

COMPUTER INPUT

SELECTING INPUT SOURCE

DIRECT OPERATION

Select INPUT source by pressing INPUT button on Top Control. Select INPUT source by pressing INPUT 1, INPUT 2 or INPUT 3 button on Remote Control Unit. If projector cannot reproduce proper image, select correct input source through MENU OPERATION (see below).

INPUT button

Input 1

Input 2

Input 3

SELECTING COMPUTER SYSTEM

WHEN SELECT INPUT 1 (COMPUTER INPUT TERMINALS )

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button to move a red frame pointer to INPUT Menu icon.

Press POINT UP/DOWN button to move a red arrow pointer to Input 1 and then press SELECT button. Source Select Menu will appear.

Input 1

INPUT MENU

Move a pointer to source that you want to select and then press SELECT button.

When your computer is connected to INPUT 1 (DIGITAL) terminal, select RGB(PC Digital).

RGB(AV HDCP)

When your computer is connected to INPUT 1 (ANALOG) terminal, select RGB(Analog).

RGB(Analog)

MENU OPERATION

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move a red frame pointer to INPUT Menu icon.

Press POINT UP/DOWN button and a red-arrow icon will appear. Move arrow to INPUT source that you want to select, and then press SELECT button.

Move a pointer to source and press SELECT button.

Source Select Menu

INPUT Menu icon

Move a pointer (red arrow) to Input 1 and press SELECT button.

RGB(PC Digital)

RGB(Scart)

Monitor out

When video equipment is connected to INPUT 1 (ANALOG) terminal, select RGB(Scart).

Input 1 is not displayed when the Input 1 is used as Monitor out.

✽

NOTE

● Input 1 terminal is switchable and can be used as computer input or monitor output.

✽

If a HDCP-compatible signal source is connected to the INPUT 1 (DIGITAL) terminal, select RGB(AV HDCP).

If the INPUT 1 ANALOG terminal is being used as a MONITOR OUT terminal, select Monitor out.

NOTE; HDCP (High-bandwidth Digital Content Protection) is a system for protecting digital entertainment content which is delivered by DVI (Digital Visual Interface) from being copied. The specification of HDCP is decided and controlled by Digital Content Protection, LLC. Should the specification be changed, this projector may not display the digital content protected by HDCP.

COMPUTER INPUT

This projector automatically tunes to most different types of computers based on VGA, SVGA, XGA or SXGA (refer to “COMPATIBLE COMPUTER SPECIFICATION” on page 49). When a computer is selected, this projector automatically tunes to incoming signal and projects the proper image without any special setting. (Some computers need to be set manually.)

The projector displays one of the Auto, -----, Mode 1/2/3/4/5, or the system provided in the projector.

When projector cannot recognize connected signal as PC system provided in this projector, Auto PC Adjustment function operates to adjust projector and message “Auto” is displayed on SYSTEM Menu icon. When image is not provided properly, manual adjustment is required. (Refer to P26 and 27.)

There is no signal input from computer. Make sure connection of computer and a projector is set correctly. (Refer to TROUBLESHOOTING on page 46.)

Auto

––––

PC SYSTEM Menu icon Displays system being selected.

PC SYSTEM MENU

SELECT COMPUTER SYSTEM MANUALLY

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move a red frame pointer to PC SYSTEM Menu icon.

Press POINT UP/DOWN button to move a red arrow pointer to system that you want to set, and then press

SELECT button.

PC SYSTEM MENU

This projector automatically selects PC system among those provided in this projector and PC system can be also selected manually.

AUTOMATIC MULTI-SCAN SYSTEM

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button to move a red frame pointer to INPUT Menu icon.

Press POINT UP/DOWN button and a red-arrow icon will appear. Move arrow to "RGB", and then press SELECT button.

When connect a computer output [5 BNC Type (Green, Blue, Red, Horiz. Sync and Vert. Sync.)] from a computer to G, B, R, H/HV and V jacks.

WHEN SELECT INPUT 2 (5 BNC INPUT JACKS )

Input 2

INPUT MENU

Move a pointer to RGB and press SELECT button.

Source Select Menu

Press POINT UP/DOWN button to move a red arrow pointer to Input 2 and then press SELECT button. Source Select Menu will appear.

INPUT Menu icon

Move a pointer (red arrow) to Input 2 and press SELECT button.

PC SYSTEM Menu icon Displays system being selected.

Systems on this dialog box can be selected.

Custom Mode (1~5) set in PC ADJUST Menu. (P26, 27)

User preset adjustment in MANUAL PC ADJUSTMENT. Adjustment data can be stored in the Mode 1-5.

Mode 1

Computer systems provided in the projector. The projector chooses proper system and displays it.

SVGA 1

Mode 1 and SVGA 1 are examples.

✽

COMPUTER INPUT

PC ADJUSTMENT

AUTO PC ADJUSTMENT

Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots and Picture Position to conform to your computer. Auto PC Adjustment function can be operated as follows.

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button to move a red frame pointer to PC ADJUST Menu icon.

Press POINT UP/DOWN button to move a red frame pointer to AUTO PC Adj. icon and then press SELECT button. This Auto PC Adjustment can be also executed by pressing AUTO PC ADJ. button on Top Control or on Remote Control Unit.

PC ADJUST MENU

Auto PC Adj.

Store adjustment parameters. Adjustment parameters from Auto PC Adjustment can be memorized in this projector. Once parameters are memorized, setting can be done just by selecting Mode in PC SYSTEM Menu (P24). Refer to step 3 of MANUAL PC ADJUSTMENT section (P27).

NOTE

● Fine sync, Total dots and Picture Position of some computers can not be fully adjusted with this Auto PC Adjustment function. When image is not provided properly through this function, manual adjustments are required. (Refer to page 26,

27.)

● Auto PC Adjustment function cannot be operated in Digital Signal input on DVI terminal and “480p”, “575p”, “480i”, “575i” “720p (HDTV)”, “1035i (HDTV)” or “1080i (HDTV)” is selected on PC SYSTEM Menu.

PC ADJUST Menu icon

Move a red frame pointer to AUTO PC Adj. icon and press SELECT button.

COMPUTER INPUT

MANUAL PC ADJUSTMENT

This projector can automatically tune to display signals from most personal computers currently distributed. However, some computers employ special signal formats which are different from standard ones and may not be tuned by Multi-Scan system of this projector. If this happens, projector cannot reproduce a proper image and image may be recognized as a flickering picture, a non-synchronized picture, a non-centered picture or a skewed picture. This projector has a Manual PC Adjustment to enable you to precisely adjust several parameters to match with those special signal formats. This projector has 5 independent memory areas to memorize those parameters manually adjusted. This enables you to recall setting for a specific computer whenever you use it.

Note : This PC ADJUST Menu cannot be operated when in digital signal input on DVI terminal is selected on PC SYSTEM

MENU (P24).

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button to move a red frame pointer to PC ADJUST Menu icon.

Press POINT UP/DOWN button to move a red frame pointer to item that you want to adjust and then press SELECT button. Adjustment dialog box will appear. Press POINT LEFT/RIGHT button to adjust value.

Adjusts an image as necessary to eliminate flicker from display. Press POINT LEFT/RIGHT button to adjust value. (From 0 to 31.)

Fine sync

Adjust the number of total dots in one horizontal period. Press POINT LEFT/RIGHT button(s) and adjust number to match your PC image.

Total dots

Adjusts horizontal picture position. Press POINT LEFT/RIGHT button(s) to adjust position.

Horizontal

Adjusts vertical picture position. Press POINT LEFT/RIGHT button(s) to adjust position.

Vertical

Press SELECT button to show information of computer selected.

Current mode

Adjusts clamp position. When image has a dark bar(s), try this adjustment.

Clamp

Shows status (Stored / Free) of selected Mode.

Selected Mode

Press SELECT button at Current mode icon to show information of computer connected.

Current mode

PC ADJUST MENU

PC ADJUST Menu icon

Move a red frame icon to item and press SELECT button.

Press POINT LEFT/RIGHT button to adjust value.

Press SELECT button at this icon to adjust “Clamp,” “Display area (H/V)” or set “Full screen.”

Press SELECT button at this icon to display previous items.

COMPUTER INPUT

Selects area displayed with this projector. Select resolution at Display area dialog box.

Display area

Adjustment of horizontal area displayed with this projector. Press POINT LEFT/RIGHT button(s) to decrease/increase value and then press SELECT button.

Display area H

Adjustment of vertical area displayed with this projector. Press POINT LEFT/RIGHT button(s) to decrease/increase value and then press SELECT button.

Display area V

Full screen

Reset

Store

Closes PC ADJUST MENU.

Quit

Other icons operates as follows.

To store adjustment parameters, move a red frame pointer to Store icon and then press SELECT button. Move a red arrow pointer to any of Mode 1 to 5 that you want to store and then press SELECT button.

Reset all adjust parameters on adjustment dialog box to previous figure.

Mode free

Vacant Mode

Shows values of “Total dots,” “Horizontal,” “Vertical,” “Display area H,” and “Display area V.”

Store icon

Mode free icon

Close this dialog box.

To store adjustment data.

To clear adjustment data.

To clear adjustment parameters previously set, move a red frame pointer to Mode free icon and then SELECT button. Move a red arrow pointer to Mode that you want to clear and then press SELECT button.

Display area

Press SELECT button at Display area icon and Display area dialog box appears.

This Mode has parameters being stored.

Press POINT LEFT /RIGHT button(s) to adjust value and then press SELECT button.

NOTE : Fine sync, Display area, Display area H, Display area V and

Full screen cannot be adjusted when “480p”, “575p”, “480i”, “575i”, “720p (HDTV)”, “1035i (HDTV)” or “1080i (HDTV)” is selected on PC SYSTEM Menu (P24).

Press POINT LEFT/RIGHT button(s) to switch Full screen function to “On” or “Off.” Set “On” to resize image with 4 x 3 aspect ratio to fit screen. This function cannot be adjusted when “ON” is selected on Anamorphic function (P38).

COMPUTER INPUT

PICTURE IMAGE SELECT

IMAGE LEVEL SELECT (MENU)

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button to move a red frame pointer to IMAGE SELECT Menu icon.

Press POINT UP/DOWN button to move a red frame pointer to level that you want to set and then press SELECT button.

Level being selected.

IMAGE SELECT MENU

Normal picture level preset on this projector.

Standard

Picture level with improved halftone for graphics.

Real

User preset picture adjustment in IMAGE ADJUST Menu (P36).

IMAGE 1~4

IMAGE LEVEL SELECT (DIRECT)

Select image level among Standard, Real, Image 1, Image 2, Image 3 and Image 4 by pressing IMAGE button on Top Control or on Remote Control Unit.

IMAGE button

Standard

Real

Image 1

Image 2

Image 3

Image 4

Normal picture level preset on this projector.

Picture level with improved halftone for graphics.

User preset picture adjustment in IMAGE ADJUST Menu (P36).

Standard

Real

IMAGE 1~4

Move a red frame icon to level and press SELECT button.

IMAGE SELECT Menu icon

COMPUTER INPUT

PICTURE SCREEN ADJUSTMENT

This projector has a picture screen resize function, which enables you to display desirable image size.

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button(s) to move a red frame pointer to SCREEN Menu icon.

When Digital zoom + is selected, ON-SCREEN MENU disappears and message “D. Zoom +” is displayed. Press SELECT button to expand image size. And press POINT UP/DOWN/LEFT/RIGHT button(s) to pan image. Panning function can work only when image is larger than screen size. A projected image can be also expanded by pressing D.ZOOM ▲ button on Remote Control Unit.

To cancel Digital Zoom +/– mode, press any button except D.ZOOM ▲/▼, SELECT, POINT and LASER buttons.

Press POINT UP/DOWN button and move a red frame pointer to function that you want to select and then press SELECT button.

Wide

Digital zoom +

NOTE

● True and Digital zoom +/– cannot be operated when “480i”, “575i”, “480p”, “575p”, “1035i (HDTV)” or “1080i (HDTV)” is selected on PC SYSTEM Menu (P24).

● Wide cannot be selected when “720p (HDTV)”, “1035i (HDTV)” or “1080i (HDTV)” is selected on

PC SYSTEM Menu (P24).

● This projector cannot display any resolution higher than 1280 X 1024. If your computer’s screen resolution is higher than 1280 X 1024, reset resolution to lower before connecting projector.

● Image data in other than XGA (1024 x 768) is modified to fit screen size in initial mode.

● Panning function may not operate properly if computer system prepared on PC ADJUST Menu is used.

Provides image to fit screen size.

Normal

True

SCREEN MENU

When Digital zoom – is selected, ON-SCREEN MENU disappears and message “D. Zoom –” is displayed. Press SELECT button to compress image size. A projected image can be also compressed by pressing D.ZOOM reW nBT/F7 1 Tf9 0 0 9 359.9998 472.454 Tm/Cs9 cs 0 0 0 1 scn/GS2 gs0 Tc0 Tw()TjE9 371.338415 3size.

VIDEO INPUT

When video input signal is connected to Y-Pb/CbPr/Cr jacks, select Y, Pb/Cb, Pr/Cr.

Y,Pb/Cb,Pr/Cr

SELECTING INPUT SOURCE

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button to move a red frame pointer to INPUT Menu icon.

Move a pointer to source and press SELECT button.

Source Select Menu (VIDEO)

Move a pointer to source that you want to select and then press SELECT button.

When video input signal is connected to VIDEO jack, select Video.

Video

When video input signal is connected to S-VIDEO jack, select S-Video.

S-Video

When connecting to those equipment, select a type of Video source in SOURCE SELECT (VIDEO) Menu.

WHEN SELECT INPUT 3 (AV TERMINALS )

WHEN SELECT INPUT 2 (5 BNC INPUT JACKS )

INPUT MENU

Move a pointer to Video or Y, Pb/Cb, Pr/Cr and press SELECT button.

Source Select Menu

Press POINT UP/DOWN button to move a red arrow pointer to Input 3 and then press SELECT button. Source Select Menu will appear.

When video input signal is connected to Y-Pb/CbPr/Cr jacks, select Y, Pb/Cb, Pr/Cr.

Y,Pb/Cb,Pr/Cr

When video input signal is connected to VIDEO jack, select Video.

Video

When connecting to those equipment, select a type of Video source in SOURCE SELECT Menu.

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button to move a red frame pointer to INPUT Menu icon.

Move a pointer to source that you want to select and then press SELECT button.

Press POINT UP/DOWN button to move a red arrow pointer to Input 2 and then press SELECT button. Source Select Menu will appear.

Input 2

INPUT Menu icon

Move a pointer (red arrow) to Input 2 and press SELECT button.

Input 3

INPUT Menu icon

Move a pointer (red arrow) to Input 3 and press SELECT button.

INPUT MENU

VIDEO INPUT

AV SYSTEM MENU (VIDEO OR S-VIDEO)

AV SYSTEM MENU (COMPONENT VIDEO)

SELECTING VIDEO SYSTEM

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move a red frame pointer to AV SYSTEM Menu icon.

Press POINT UP/DOWN button to move a red arrow pointer to system that you want to select and then press SELECT button.

If projector cannot reproduce proper video image, it is necessary to select a specific broadcast signal format among PAL, SECAM, NTSC, NTSC 4.43, PAL-M, and PAL-N.

PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N

Projector automatically detects incoming Video signal, and adjusts itself to optimize its performance. When Video System is 1035i or 1080i, select system manually first.

If projector cannot reproduce proper video image, it is necessary to select a specific component video signal format among 480i, 575i, 480p, 575p, 720p, 1035i and 1080i.

Auto

COMPONENT VIDEO SIGNAL FORMAT

VIDEO JACK OR S-VIDEO JACK

Y, Pb/Cb, Pr/Cr JACKS

Projector automatically detects incoming Video system, and adjusts itself to optimize its performance. When Video System is PAL-M or PAL-N, select system manually first.

Auto

AV SYSTEM Menu icon This box indicates system being selected.

Move pointer to system and press SELECT button.

AV SYSTEM Menu icon This box indicates system being selected.

Move pointer to system and press SELECT button.

VIDEO INPUT

PICTURE IMAGE SELECT

IMAGE LEVEL SELECT (MENU)

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button to move a red frame pointer to IMAGE SELECT Menu icon.

Press POINT UP/DOWN button to move a red frame pointer to

VIDEO INPUT

PICTURE SCREEN ADJUSTMENT

This projector has a picture screen resize function, which enables you to display desirable image size.

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button(s) to move a red frame pointer to SCREEN Menu icon.

Press POINT UP/DOWN button and move a red frame pointer to function that you want to select and then press SELECT button.

NOTE : SCREEN Menu cannot be operated when

“720p,” “1035i,” or “1080i” is selected on AV SYSTEM Menu (P31).

SCREEN MENU

Provides image at a wide screen ratio of 16 : 9.

Wide

Provides image at a normal video aspect ratio of 4 : 3.

Normal

Move red frame to function and press SELECT button.

SCREEN Menu icon

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move a red frame pointer to IMAGE ADJUST Menu icon.

Press POINT UP/DOWN button to move a red frame pointer to item that you want to adjust and then press SELECT button. Level of each item is displayed. Adjust each level by pressing POINT LEFT/RIGHT button(s).

IMAGE ADJUST MENU

Press POINT LEFT button to decrease contrast, and POINT RIGHT button to increase contrast. (From 0 to 63.)

Press POINT LEFT button to adjust image darker, and POINT RIGHT button to adjust brighter. (From 0 to 63.)

Contrast

Brightness

Press POINT LEFT button to lighten color, and POINT RIGHT button to deeper color. (From 0 to 63.)

Press POINT LEFT button or POINT RIGHT button to obtain proper color. (From 0 to 63.)

Color

Tint

Color Management

The Color management function can be used to adjust the level, phase and gamma of the selected display colors on the screen, and to replace these colors with other colors if required. The projector lets you replace up to eight colors for each image. There are four preset images for VIDEO mode and four preset images for PC, giving a total of eight images.

Press the POINT UP/DOWN button to move the red frame pointer to "COLOR MANAGEMENT", and then press the SELECT button. The COLOR MANAGEMENT menu will appear and pointer mode will be enabled. The image that was being projected when the button was pressed will be paused, and the COLOR MANAGEMENT POINTER will appear.

Use the POINT buttons to move the pointer to a section of the paused image that contains the color that you would like to adjust, and then press the SELECT button. The mode will change to COLOR SELECTION mode, and the color in the center of the pointer will be selected and adjustment will be possible.

Use the POINT buttons to adjust the level and phase of the color, and then press the SELECT button to confirm the setting. Next, use the POINT buttons to adjust the gamma correction for the color, and then press the SELECT button to accept the setting. When the SELECT button is pressed, the mode will change to LIST mode.

Press the COLOR M. button on the remote control to display the COLOR MANAGEMENT menu. If you would like to check or re-adjust a color management setting that has already been made, press the COLOR M. button on the remote control once more to change to LIST mode.

NOTE;

COLOR MANAGEMENT POINTER

POINTER MODE

Move a red frame pointer to item to be selected and then press SELECT button.

IMAGE ADJUST Menu icon

Press POINT LEFT/RIGHT buttons to adjust value.

PICTURE IMAGE

PICTURE IMAGE ADJUSTMENTS

PICTURE IMAGE

Auto picture control

Press either POINT LEFT button or POINT RIGHT button to Auto picture control position that you want to select . (Off, L1 or L2) Off ······· Auto picture control OFF position. L1 ········ Auto picture control LEVEL 1 position. L2 ········ Auto picture control LEVEL 2 position.

To move the red frame pointer to "MENU", and then press the SELECT button. The message "OK"? is displayed. Move the pointer to

[Yes] and then press SELECT button.

The COLOR MANAGEMENT menu will be exited and the display will return to the IMAGE ADJUST menu. (At this time, the image will stop being paused and normal projection will resume.) After changing the COLOR MANAGEMENT settings, use the IMAGE ADJUST menu to store the changed settings.

The check mark will be cleared and the effect of the setting adjustment for that line on the projected images will be momentarily canceled.

CANCEL

COLOR SELECTION MODE

The mode will return to the pointer mode (even if you press the MENU key on the projector or the remote control). (You will need to reselect and re-adjust the color in this case.)

QUIT

The COLOR MANAGEMENT menu will be exited and the display will return to the normal projection screen, but any settings that have been changed will not be stored. To store the changed settings, be sure to select "LIST" using the POINT buttons and change to the next mode (LIST mode).

If you press the COLOR M. button on the remote control, the COLOR MANAGEMENT menu will be exited and the display will return to the normal projection screen, but any settings that have been changed will not be stored. To store the changed settings, be sure to select "MENU" using the POINT buttons and store the settings.

LIST MODE

The mode will return to COLOR SELECTION mode so that you can re-adjust the setting for the color in that line. This option is not available if the check mark has been cleared by the operation immediately above.)

COLOR PALETTE

The setting adjustment for the color in that line will be canceled.

DEL

ALL DEL

The setting adjustment for the colors in all lines will be canceled.

COLOR M.

The mode will return to POINTER mode.

NOTE;

COLOR SELECTION MODE

CANCELLIST

QUIT

Level and phase adjustment palette.

Gamma adjustment palette.

LIST MODE

COLOR PALETTE

DEL

ALL DEL

COLOR M.MENU

PICTURE IMAGE

Reset all adjustment to previous figure.

Reset

Store

Closes IMAGE MENU.

Quit

Other icons operates as follows.

To store manually preset image, move a red frame pointer to Store icon and press SELECT button. Image Level Menu will appear. Move a red frame pointer to Image 1 to 4 where you want to set and then press SELECT button.

Press either POINT LEFT button or POINT RIGHT button to obtain better balance of contrast. (From 0 to 15.)

Gamma

Press POINT LEFT button to soften the image, and POINT RIGHT button to sharpen the image. (From 0 to 31.)

Sharpness

Press POINT LEFT button to lighten red tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

White balance (Red)

Press POINT LEFT button to lighten green tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

White balance (Green)

Press POINT LEFT button to lighten blue tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

White balance (Blue)

Press POINT LEFT/RIGHT button(s) to change progressive scan mode. Dialog box display is changed to “Off”, “L1”, “L2”.

Off ··· Progressive scan mode to OFF. L1 ···· Progressive scan mode to ON (for active picture). L2 ···· Progressive scan mode to ON (for still picture).

Press POINT LEFT/RIGHT button(s) to change noise reduction mode. Dialog box display is changed to “On” to reduce noise (rough parts) of image. Press POINT LEFT/RIGHT button(s) again, to change noise reduction mode to off.

Noise reduction

Progressive scan

Color temp.

Press either POINT LEFT button or POINT RIGHT button to Color temp. level that you want to select. (XLow, Low, Mid or High)

Press SELECT button at this icon to display other items.

Press SELECT button at this icon to display previous items.

Press POINT LEFT/RIGHT buttons to adjust value.

Image Level Menu Move a red frame pointer to any of Image 1 to 4 where you want to set and then press SELECT button.

Store icon Press SELECT button at this icon to store the adjustment.

NOTE :

Tint cannot be adjusted when the video system is PAL, SECAM, PAL-M or PAL-N.

Progressive cannot be operated when “480p”, “575p” or “720p” is selected on AV SYSTEM MENU (P31).

Aspect V

Aspect H

Store ··· Store the adjustment data when disconnect AC Power

Cord from an AC outlet.

Reset ··· Reset the adjustment data when disconnect AC Power Cord

from an AC outlet.

Keystone

SETTING MENU

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button(s) to move a red-frame pointer to SETTING icon.

Language

Press POINT DOWN button to move a red-frame pointer to item that you want to set and then press

SELECT button. Setting

dialog box appears.

When pressing SELECT button at Language, Language Menu appears.

Move a pointer to item and then press POINT LEFT/RIGHT button(s).

SETTING MENU

When the image is distorted, select Keystone. ON-SCREEN MENU disappears and Keystone dialog box is displayed.

Store ··· Store the keystone adjustment data when disconnect AC

Power Cord from an AC outlet.

Reset ··· Reset the keystone adjustment data when disconnect AC

Power Cord from an AC outlet.

When a SELECT button is pressed, the mode changes to keystone adjustment mode. Correct keystone distortion by pressing POINT UP/DOWN/LEFT/RIGHT button(s). Refer to KEYSTONE ADJUSTMENT on page 21.

Language used in ON-SCREEN MENU is selectable from among English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Russian, Chinese, Korean and Japanese.

SETTING Menu icon

Set a red frame pointer to item and press SELECT button.

Lamp mode

When selecting the Lamp mode, the projector reduce the brightness and set into the low power consumption mode.

Normal mode

Auto mode

Eco mode

The brightness is adjusted automatically to a level that is suitable for the screen.

The brightness is reduced to 80% of Normal mode.

These adjust the vertical and horizontal scale and position of the screen. Use the POINT RIGHT/LEFT button(s) to select Store or Reset.

When a SELECT button is pressed, the mode changes to Scale or Position adjustment mode. Use the POINT LEFT/RIGHT button(s) to select whether you wish to adjust Scale or Position, and then use the POINT UP/DOWN button(s) to adjust the values.

SETTING

NOTE :

When the Aspect H/V is adjusted and the keystone adjustment is made, the adjustment data for the Aspect H/V is cleared.

To maintain the adjustment data, perform keystone adjustment first, and then adjust the Aspect H/V.

SETTING

Anamorphic

Display

This function decides whether to display On-Screen Displays.

On ··· shows all the On-Screen Displays. Off ···· sets On-Screen Displays disappeared except;

● ON-SCREEN MENU

● “Power off?” message

● P-TIMER

● “No signal” message

● “Wait a moment” message

Blue back

When this function is “On,” this projector will produce a blue image instead of the video noise on the screen when any input source is unplugged or turned off.

Logo

When this function is “On,” projector displays logo when starting up.

Menu position

Ceiling

When this function is “On,” picture is top / bottom and left / right reversed. This function is used to project the image from a ceiling mounting the projector.

Rear

When this function is “On,” picture is left / right reversed. This function is used to project the image to a rear projection screen.

Ceiling function

Rear function

Press SELECT button at this icon to display other items.

Press SELECT button at this icon to display previous items.

When this function is “On,” the screen image is forcibly changed to a 4:3 image, even if the input signal is HDTV.

This function is used to adjust the on-screen menu display position. When a SELECT button is pressed, the adjustment screen is displayed (arrows appear). Use the POINT UP/DOWN/LEFT/RIGHT button(s) to adjust the position. After making the adjustment, press a SELECT button to return to the Menu screen.

SETTING

On start

When this function is “On,” projector is automatically turned on just by connecting AC Power cord to a wall outlet.

Note ; Be sure to turn projector off properly (refer to section

“TURNING OFF PROJECTOR” on P20). If projector is turned off in wrong steps, On Start function does not operate properly.

Power management

Time left until Lamp off.

Remote control

This projector has eight different remote control codes; the factoryset normal code (Code 1) and the other seven codes (Code 2 to Code 8). This switching function prevents remote control operation mixture (jam) when operating several projectors or video equipment together. For example operating projector in “Code 7,” both projector and Remote Control Unit must be switched to “Code 7.”

To change the code of Projector;

To change the Remote control code of the projector used in ONSCREEN MENU is selectable from Code 1 to Code 8.

To change the code of the Remote Control Unit;

To change the remote control code of the Remote Control Unit, set the DIP switches 1-3 inside the battery compartment box of the Remote Control Unit. (Refer to P15.)

When pressing SELECT button at Remote control, Remote control code Menu appears.

This projector is equipped with a power management function. When the input signal is interrupted and any button is not pressed for 30 seconds or more, the power management function operates in order to reduce power consumption and conserve lamp operating time. The factory default settings for power management are "Ready" and "5 Min".

The power management function is canceled.

When a SELECT button is pressed, the adjustment screen is displayed.

Use the POINT LEFT/RIGHT button(s) to select the power management function mode ("Off", "Ready" or "Shut down").

Use the POINT DOWN button to move the pointer to the time setting, and then use the POINT LEFT/RIGHT button(s) to set the time (1 minute to 30 minutes).

If "Shut down" is selected

If "Off" is selected

If "Ready" is selected

OPERATION

1) If the input signal is interrupted and any button is not pressed for 30 seconds or more, the message "No signal" and the timer display appears on the screen. Then the count-down starts for the time being set.

2) When the set time is elapsed, the lamp will be switched off and lamp cooling starts. The READY indicator will be switched off while the lamp cooling is in progress, and the projector cannot be operated during this time.

3) When the lamp cooling is completed, the READY indicator starts flashing to notify the operator that power management mode is active. In this condition, the lamp will turn on and images will be projected if a signal starts being input or the projector is operated.

3) When the lamp cooling is completed, the power switches off.

SETTING

USB

Projector mode

Select " " when controlling a projector with computer.

NOTE: This is provided not for basic operation but for future use.

This Projector is equipped with USB port for interactive operation between a projector and computer. Set mode following steps below.

Wireless Mouse mode

Select " " when controlling a computer with Remote Control of this projector.

Lamp counter reset

Key lock

Factory default

This function is used to reset Lamp Replace Counter. When replacing Projection Lamp, reset Lamp Replace Counter by using this function. Refer to page 45 for operation.

Press POINT UP/DOWN button to move a red frame pointer to “Factory default” and then press

SELECT button. The message "Return to Factory default?" is displayed. Move the pointer to [Yes] and then press SELECT button.

Another confirmation dialog box appears and select [Yes]

and then

press SELECT button.

Return the projector to Factory default.

This function returns all setting values except for the lamp counter to the factory default settings.

This function locks the operation of the projector's control panel and the remote control.

This locks operation of the projector's control panel.

This locks operation of the remote control.

This cancels the Key lock function.

If the projector's control panel accidentally becomes locked and you do not have the remote control nearby, disconnect the AC cord to turn off the power, and then while pressing a SELECT button, reinsert the AC cord, This will cancel the projector's control panel lock.

APPENDIX

OPERATING WIRELESS MOUSE

INSTALLATION

Wireless Remote Control Unit is not only able to operate this projector but also function as a wireless mouse for most Personal Computers. POINT button, drag ON/OFF button and two CLICK buttons are used for wireless mouse operation. This Wireless Mouse function is available only when PC mouse pointer is displayed on a projected screen.

Connect the mouse port (or USB port) of your computer to Control Port (or USB connector) of this projector with Control Cable (or USB cable). (Refer to page 12, 13 for connection.)

Turn the projector on first, and then turn on your computer. When the computer is switched on first, Wireless Mouse may not work properly.

To use Wireless Remote Control Unit as Wireless Mouse for a Personal Computer, installation of the mouse driver (not supplied) is required. Make sure that the mouse driver is properly installed in your computer. And make sure that the mouse port (or USB port) of a Personal Computer is activated.

OPERATING WIRELESS MOUSE

When controlling a PC mouse pointer, operate Wireless Mouse with POINT button, Drag ON/OFF button, LEFT CLICK button and RIGHT CLICK button on Wireless Remote Control Unit.

Used to move PC mouse pointer. The pointer is moved corresponding with the direction you are pressing.

POINT button

This button has the same function as the left button in a PC mouse. Press this button and the POINT button to drag a selected screen object.

LEFT CLICK button

This button has the same function as the right button in a PC mouse.

RIGHT CLICK button

Note : When your computer has no mouse

port, connect Serial Port of your computer to Control Port of the projector with Control Cable for Serial Port (supplied).

FREEZE

SELECT

D.ZOOM

MUTE

VOLUME

NO SHOW


VOLUME

KEYSTONE

AUTO PC

ON-OFF

POINT button (Move the pointer)

LEFT CLICK button (left button of the mouse)

RIGHT CLICK button (right button of the mouse)

DRAG ON/OFF button

Use this button and the POINT button to drag a selected screen object. Press and release the Drag ON/OFF button, DRAG ON INDICATOR lights green and the remote control is in Drag mode. Use the POINT button in the direction that you want to drag the screen object. Press and release the Drag ON/OFF button again or press any other button, to drop the object at the new screen location.

DRAG ON/OFF button

DRAG ON INDICATOR

APPENDIX

MAINTENANCE

WARNING TEMP. INDICATOR

Ventilation Slots of a projector may be blocked. In such an event, reposition a projector so that Ventilation Slots are not obstructed.

Air Filter may be clogged with dust particles. Clean Air Filter by following section AIR FILTER CARE AND CLEANING on next page.

If WARNING TEMP. Indicator remains on after performing above checks, Cooling Fans or Internal Circuits may be malfunctioning. Contact the service station.

The Warning Temp. Indicator flashes red to let you know the internal temperature of the projector exceeds the normal level. If the temperature goes up further, the projector will be turned off automatically and the Ready indicator will go out. (The Warning Temp. Indicator continues flashing.) After the cooling-off period, the Ready Indicator lights on again and the projector can be turned on by pressing the On/Off button on the remote control unit or on the top control. When you turn on the projector, the Warning Temp. Indicator will go out. If the Warning Temp. Indicator is still flashing, check the followings;

TOP CONTROL

When both of the Warning Temp. and Ready indicators are flashing:

Warning Temp. Indicator

Ready Indicator

When the projector detects an internal problem, it will shut down automatically and both of the Warning temp. and Ready Indicators starts flashing. In this condition, the projector cannot be turned on even if you press the On/Off button on the remote control unit or on the top control. If this case happenes, disconnect and reconnect the AC power cord, and then turn on the projector again to check its operation. If the projector shuts down again or fails to be turned on, the internal check and repair will be required. Plug off the AC power cord and contact service station.

APPENDIX

CLEANING PROJECTION LENS

Apply a non-abrasive camera lens cleaner to a soft, dry cleaning cloth. Avoid using an excessive amount of cleaner. Abrasive cleaners, solvents or other harsh chemicals might scratch a surface.

When a projector is not in use, replace Lens Cover.

Lightly wipe a cleaning cloth over Projection Lens.

Follow these steps to clean Projection Lens:

AIR FILTER CARE AND CLEANING

AIR FILTER Pull up and remove.

Turn off a projector, and disconnect AC power cord from AC outlet.

Turn a projector upside down and remove Air Filter (2 used) by pulling latches upward.

Air Filter prevents dust from accumulating on surface of Projection Lens and Projection Mirror. Should Air Filter become clogged with dust particles, it will reduce Cooling Fans’ effectiveness and may result in internal heat build up and adversely affect life of a projector. Clean Air Filter following steps below:

Clean Air Filter with a brush or wash out dust and particles.

Replace Air Filter properly. Make sure that Air Filter is fully inserted.

CAUTION

Do not operate a projector with Air Filter removed. Dust may accumulate on LCD Panel and Projection Mirror degrading picture quality. Do not put small parts into Air Intake Vents. It may result in malfunction of a projector.

RECOMMENDATION

We recommend avoiding dusty/smoky environments when operating a projector. Usage in these environments may cause poor image quality.

When using under dusty or smoky conditions, dust may accumulate on a lens, liquid crystal panels, or optical elements inside a projector. This condition may degrade quality of a projected image. When above symptoms are noticed, contact your authorized dealer or service station for proper cleaning.

APPENDIX

Turn off a projector and disconnect AC plug. Allow a projector to cool for at least 45 minutes.

Loosen 2 screws with a screwdriver and pull out Lamp Assembly by grasping Handle.

Replace Lamp Assembly with a new one and tighten 2 screws back. Make sure that Lamp Assembly is set properly. Replace Lamp Cover and tighten 2 screws.

Loosen 2 screws with a screwdriver and open Lamp Cover.

Connect AC Power Cord to a projector and turn it on.

Follow these steps to replace lamp assembly.

Reset Lamp Replace Counter (refer to next page “Lamp Replace Counter” section).

APPENDIX

LAMP REPLACE COUNTER

Be sure to reset the Lamp Replace Counter after the Lamp Assembly is replaced. When the Lamp Replace Counter is reset, the LAMP REPLACE Indicator stops lighting.

NOTE : Do not reset the Lamp Replace Counter until after the Projection Lamp is replaced.

Turn projector on, press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button(s) to move a red frame pointer to SETTING Menu icon (refer to page 40).

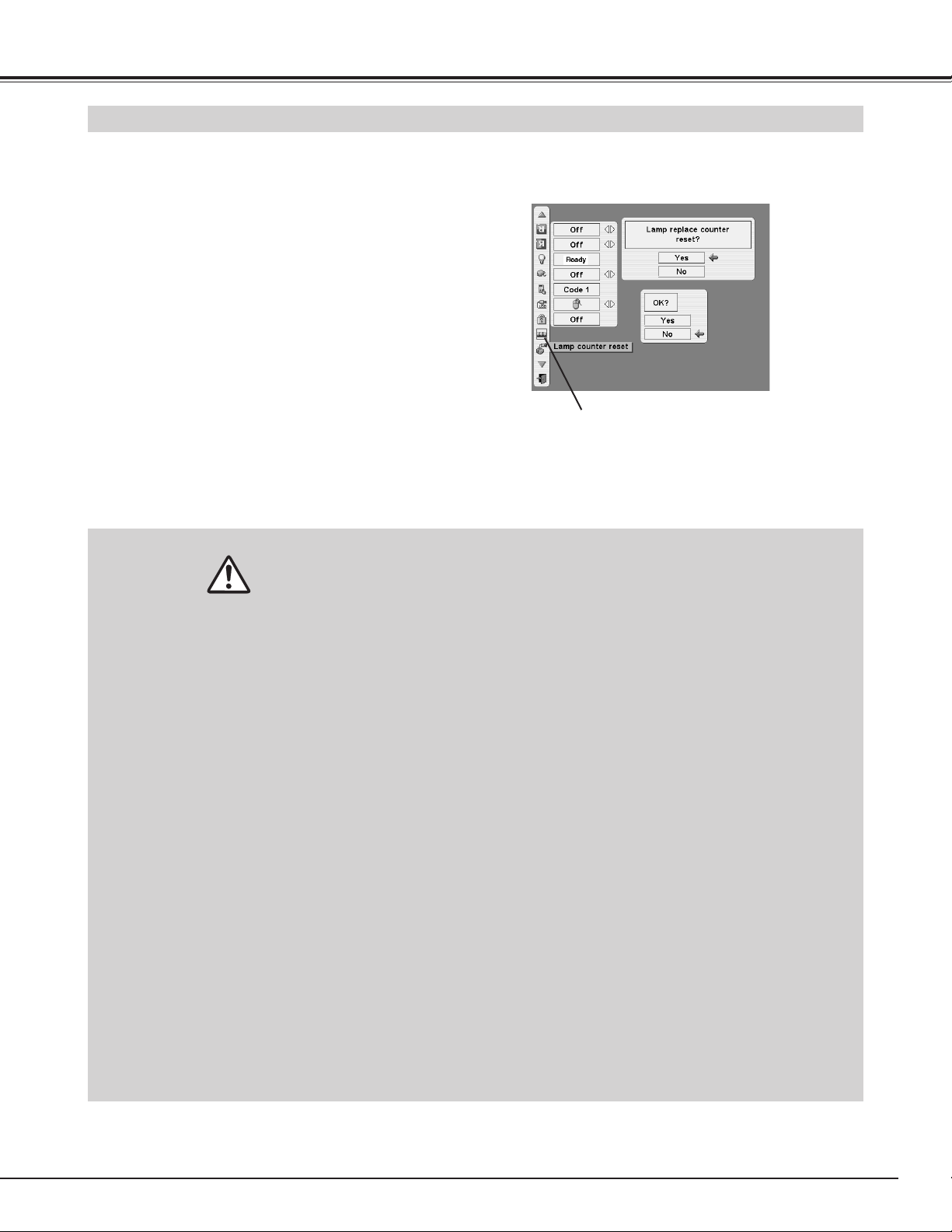

Press POINT UP/DOWN button to move a red frame pointer to “Lamp counter reset” and then press

SELECT button. The message "Lamp replace counter reset?" is displayed. Move the pointer to [Yes] and then press SELECT button.

Another confirmation dialog box appears and select [Yes] to reset Lamp Replace Counter.

This projector uses a high-pressure lamp which must be handled carefully and properly. Improper handling may result in accidents, injury, or create a fire hazard.

● Lamp lifetime may differ from lamp to lamp and according to the environment of use. There is no

guarantee of the same lifetime for each lamp. Some lamps may fail or terminate their lifetime in a shorter period of time than other similar lamps.

● If the projector indicates that the lamp should be replaced, i.e., if the LAMP REPLACE INDICATOR

lights up, replace the lamp with a new one IMMEDIATELY after the projector has cooled down. ( Follow carefully the instructions in the LAMP REPLACEMENT section of this manual. ) Continuous use of the lamp with the LAMP REPLACE INDICATOR lighted may increase the risk of lamp explosion.

● A Lamp may explode as a result of vibration, shock or degradation as a result of hours of use as its

lifetime draws to an end. Risk of explosion may differ according to the environment or conditions in which the projector and lamp are being used.

IF A LAMP EXPLODES, THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE TAKEN.

If a lamp explodes, disconnect the projector’s AC plug from the AC outlet immediately. Contact an authorized service station for a checkup of the unit and replacement of the lamp. Additionally, check carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one should check the inside of the projector except those who are authorized trained technicians and who are familiar with projector service. Inappropriate attempts to service the unit by anyone, especially those who are not appropriately trained to do so, may result in an accident or injury caused by pieces of broken glass.

LAMP HANDLING PRECAUTIONS

Move the pointer to Lamp counter reset and then press SELECT button. The message “Lamp replace counter reset?” is displayed.

APPENDIX

TROUBLESHOOTING

Before calling your dealer or service center for assistance, check matters below once again.

1. Make sure you have connected a projector to your computer or video equipment as described in section "CONNECTING PROJECTOR" on pages 12 ~ 14.

2. Check cable connection. Verify that all computer, video and power cord are properly connected.

3. Verify that all power is switched on.

4. If a projector still does not produce an image, re-start your computer.

5. If an image still does not appear, unplug a projector from your computer and check your computer monitor's display. Problem may be with your graphics controller rather than with a projector. (When you reconnect a projector, be sure to turn computer and monitor off before you power up a projector. Power equipment back on in order of : Projector and computer.)

6. If problem still exists, check following chart.

No power.

● Plug a projector into your AC outlet.

● Make sure READY Indicator lights.

● Wait 90 seconds after a projector is turned OFF when turning a projector back on.

NOTE : After pressing Power ON-OFF button to OFF, make sure a projector works as

follows:

1. LAMP indicator lights bright and READY indicator turns off.

2. After 90 seconds, READY indicator lights green again and a projector may be turned on by pressing Power ON-OFF button.

● Check WARNING TEMP. and READY indicator. If both WARNING TEMP. and READY indicator flashes, a projector cannot be turned on. (See "TURNING ON/OFF PROJECTOR" section on page 20.)

● Check Projection Lamp. (Refer to page 44.)

Image is out of focus.

● Adjust focus of a projector.

● Make sure a projection screen is at least 4.6’ (1.4m) from a projector.

● Check Projection Lens to see if it needs cleaning.

NOTE : Moving a projector from a cool temperature location to a warm temperature location

may result in moisture condensation on Projection Lens. In such an event, leave a projector OFF and wait until condensation disappears.

Picture is Left/Right reversed.

● Check Ceiling/Rear feature. (See “SETTING” section on page 38.)

Problem: Try these Solutions

Picture is Top/Bottom reversed.

● Check Ceiling feature. (See “SETTING” section on page 38.)

Some displays are not seen during Operation.

● Check Display feature.(See “SETTING” section on page 38.)

No image.

● Check connection between your computer or video equipment and a projector.

● When turning a projector on, it takes about 30 seconds to display an image.

● Check system that you select is corresponding with your computer or video equipment.

● Make sure temperature is not out of Operating Temperature (5°C ~ 35°C).

No sound.

● Check audio cable connection from audio input source.

● Adjust audio source.

● Press VOLUME (+) button.

● Press MUTE button.

APPENDIX

Remote Control Unit does not work.

● Check batteries.

● Check ALL-OFF switch on Remote Control Unit is set to “ON”.

● Make sure nothing is between Infrared Remote Receiver and Remote Control Unit.

● Make sure you are not too far from a projector when using Remote Control Unit.

Maximum operating range is 16.4’ (5m).

● Check transmitted signal mode from Remote Control Unit.

(See“SETTING” section on page 39.)

Problem: Try these Solutions

Wireless Mouse function does not work.

● Check cable connection between a projector and your computer.

● Check mouse setting on your computer.

● Turn a projector on before turning on a computer.

SERVICE

WARNING: High voltages are used to operate this projector. Do not attempt to open cabinet.

You can often correct operating problems yourself. If a projector fails to work properly, see "TROUBLESHOOTING" section on pages 46, 47. To correct failure, try "Solutions".

If after following all operating instructions, you find that service is necessary, contact Sanyo Service Station or store where you purchased unit. Give model number and explain difficulty. We will advise you how to obtain service.

This symbol on the nameplate means the product is Listed by Underwriters Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards.

The CE Mark is a Directive conformity mark of the European Community (EC).

APPENDIX

INDICATORS AND PROJECTOR CONDITION

Check the Indicators for projector condition.

• • • on • • • dim • • • off• • • flashing

✽ When the life of the projection lamp draws to an end, the LAMP REPLACE indicator lights yellow. When this indicator lights yellow,

replace the projection lamp with a new one promptly. Reset the Lamp Replace Counter after replacement of the lamp.

The projector is OFF. (The AC Power Cord is unplugged.)

The projector is READY to be turned on with the POWER ONOFF button.

The Warning Temp. Indicator flashes red to let you know the internal temperature of the projector exceeds the normal level. If the temperature goes up further, the projector will be turned off automatically and the Ready indicator will go out. When the projector is cooled down enough and the temperature returns to normal, the READY indicator lights green and the projector can be turned on. (The WARNING TEMP. indicator keeps flashing.) Check and clean the Air Filter.

The projector is being cooled down. It cannot be turned on until the READY indicator lights green.

Projector Condition

The projector is operating normally.

The projector is cooled down enough and the temperature returns to normal. When turning on the projector, the WARNING TEMP. indicator stops flashing. Check and clean the Air Filter.

LAMP

REPLACE

yellow

Indicators

READY

green

LAMP

red

WARNING

TEMP.

red

The projector detects an abnormal condition and cannot be turned on. Unplug the AC Power Cord and plug it again to turn on the projector. If the projector is turned off again, disconnect the AC Power Cord and contact the dealer or the service center for service and checkup. Do not leave the projector on. It may cause electric shock or a fire hazard.

The projector is in the Power management mode.

✽

APPENDIX

1080i (HDTV)

XGA 9

COMPATIBLE COMPUTER SPECIFICATIONS

Basically this projector can accept a signal from all computers with V, H-Frequency mentioned below and less than 180 MHz of Dot Clock.

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

VGA 1

640 x 480 31.47 59.88 VGA 2 720 x 400 31.47 70.09 VGA 3 640 x 400 31.47 70.09 VGA 4 640 x 480 37.86 74.38 VGA 5 640 x 480 37.86 72.81 VGA 6 640 x 480 37.50 75.00

MAC LC13

640 x 480 34.97 66.60

MAC 13 640 x 480 35.00 66.67

MAC 16 832 x 624 49.72 74.55

MAC 19 1024 x 768 60.24 75.08 MAC 21

1152 x 870

68.68 75.06

SVGA 1 800 x 600

35.156 56.25 SVGA 2 800 x 600 37.88 60.32 SVGA 3 800 x 600 46.875 75.00 SVGA 4 800 x 600 53.674 85.06 SVGA 5 800 x 600 48.08 72.19 SVGA 6 800 x 600 37.90 61.03 SVGA 7 800 x 600 34.50 55.38 SVGA 8 800 x 600 38.00 60.51 SVGA 9 800 x 600 38.60 60.31

SVGA 11 800 x 600 38.00 60.51

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

XGA 11 1024 x 768

XGA 13

1024 x 768

XGA 14 1024 x 768

61.00

XGA15 1024 x 768

46.90 58.20

XGA 8 1024 x 768

47.00 58.30

1024 x 768

(Interlace)

58.03 72.0

SXGA 1 1152 x 864 SXGA 2 1280 x 1024

63.48 79.35

SXGA 3

1280 x 1024

36.00 43.59

SXGA 4

1280 x 1024

64.20 70.40

62.50 58.60

63.90 60.00

63.34 59.98

XGA 1 1024 x 768 XGA 2 1024 x 768 XGA 3 1024 x 768 XGA 4 1024 x 768

48.36 60.00

68.677 84.997

XGA 6 1024 x 768

60.023 75.03

XGA 7 1024 x 768

56.476 70.07

48.50 60.02

44.00 54.58

XGA 5 1024 x 768 60.31 74.92

VGA 7 640 x 480 43.269 85.00

575i

–––––––– (Interlace)

15.625 25.00

480i

–––––––– (Interlace)

15.734 30.00

SVGA 10 800 x 600 32.70 51.09

XGA 10

1024 x 768 62.04 77.07

SXGA 5 1280 x 1024 SXGA 6 1280 x 1024 SXGA 7

1280 x 1024

SXGA 8 1280 x 1024

63.74 60.01

SXGA 11 1152 x 900

71.69 67.19

81.13 76.107

63.98 60.02

61.20

65.20

720p (HDTV)

––––––––

(Progressive)

45.00 60.00

SXGA 9 1280 x 1024

SXGA 10 1280 x 960

79.976 75.025

60.00 60.00

––––––––

(Interlace)

33.75 30.00

1035i (HDTV)

–––––––– (Interlace)

33.75 30.00

SXGA 12

1152 x 900

SXGA 13

1280 x 1024

(Interlace)

SXGA 14

1280 x 1024

(Interlace)

71.40 75.60

50.00 43.00

50.00 47.00 SXGA 15 1280 x 1024 SXGA 16 1280 x 1024 SXGA 17 1152 x 900 SXGA 18

1280 x 1024

(Interlace)

63.37 60.01

76.97 72.00

61.85 66.00

46.43 43.35 SXGA 19

1280 x 1024 63.79 60.18

MAC

1280 x 960 75.00 75.08

MAC

1280 x 1024

80.00 75.08

XGA 12

1024 x 768

(Interlace)

35.522 43.48

75.70

480p

––––––––

(

Progressive

)

31.47 59.88

575p

––––––––

(

Progressive

)

31.25 50.00

SXGA 21

1400 x 1050

63.9

60.00

1080i (HDTV)

––––––––

(Interlace)

28.125

25.00

NOTE : Specifications are subject to change without notice.

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

D-VGA

640 x 480 31.47 59.94

D-480p

720 x 480

(

Progressive

)

31.47 59.88

D-575p

768 x 575

(

Progressive

)

31.25 50.00

D-SVGA

800 x 600 37.879 60.32

D-XGA

1024 x 768 43.363 60.00

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

D-SXGA1

1280 x 1024

63.98

60.02

D-SXGA2

1280 x 1024

60.276 58.069

D-SXGA3

1280 x 1024 31.65 29.8

D-720p

1280 x 720

(

Progressive

)

45.00 60.00

D-1035i

1920 x 1035

(Interlace)

33.75 30.00

When a input signal is digital from DVI terminal, refer to chart below.

D-1080i

1920 x 1080

(

Interlace

)

33.75 30.00

D-1080i

1920 x 1080

(Interlace)

28.125 25.00

APPENDIX

RGB

RGB( Scart)

SYSTEM

Input 2

Video

Y, Pb/Cb, Pr/Cr

SYSTEM

Input 1

RGB(PC Digital)

RGB( AV HDCP )

SYSTEM

1) SYSTEM

Monitor out

RGB

Input

Video source

Normal


Screen

System

VGA 1

SVGA 1

Mode 1

Mode 2

XGA 1

Auto PC Adj.

Fine sync

Total dots

Horizontal

Vertical

Current mode

Clamp

Display area

Display area H

Display area V

Store

Quit

Standard

Real

Image 1

Image 2

Image 3

Image 4

Normal

True

Wide

Digital zoom +

Digital zoom -

0 - 31

On/Off

PC source

PC adjust

720 x 400

800 x 600

1024 x 768

1152 x 864

1280 x 1024

1400 x 1050

Mode 2


Screen

1600 x 1200

Yes/No

Mode 3

Mode 4

Mode 5

Quit

Mode free

1035i

720p

Auto

1080i

480p

575i

575p

480i

SECAM

NTSC

Auto

PAL

PAL-M

PAL-N

NTSC 4.43

Image 1

Image 2

Standard

Cinema

Image 4

Image 3

Mode 1

640 x 480

Full screen

Reset

Input

SYSTEM

Input 3

Video

Y, Pb/Cb, Pr/Cr

SYSTEM

S-Video

SYSTEM

System

D-480p

MENU TREE

Wide

APPENDIX

Image adjust

Contrast

Brightness

Color

Red

Green

Blue

Sharpness

Store

Quit

0 - 63

0 - 31

Image 1

Image 2

Image 3

Image 4

Quit

Tint 0 - 63

Gamma

Noise reduction

0 - 15

On/Off

Reset Yes/No

Color management 0 - 63

Auto picture control Off/L1/L2

Progressive

Off/L1/L2

Sound

Mute

Quit

Volume

Built-in SP.

On/Off

0 - 63

Language

Setting

English

German

French

Italian

Spanish

Portuguese

Dutch

Swedish

Chinese

Korean

Japanese

Store/Reset

On/Off

Off/Ready/Shut down

On/Off

Normal/Auto/Eco

Yes/No

Keystone

Menu position

Ceiling

Power management

On start

Lamp mode

Remote control code

Lamp counter reset

Code 1

Code 3

Code 4

Code 5

Code 6

Code 7

Code 8

Quit

Russian

Mouse

Projector

Store/Reset

Aspect V

Aspect H

On/OffAnamorphic

Logo

Control panel

Key lock

Remote control

Off

Yes/NoFactory default

Scale

Position

Store/Reset

Scale

Position

Blue back On/Off

Display

Rear

Code 2

USB

Color temp.

XLow/Low/Mid/High

System

Owner’s Manual AC Power Cord Wireless/Wired Remote Control Transmitter and Batteries Remote Control Cable VGA Cable USB Cable Control Cable for Serial port Protective Dust Cover Lens Cover (PLC-XP50) Lens Attachment (PLC-XP50L)

APPENDIX

Multi-media Projector

Accessories

● Specifications are subject to change without notice.

TECHNICAL SPECIFICATIONS

1.3" TFT Active Matrix type, 3 panels

19.2 lbs (8.7 kg) PLC-XP50, 16.3 lbs (7.4 kg) PLC-XP50L

12.6" x 6.6" x 16.8" (319 mm x 168 mm x 429.5 mm)

1024 x 768 dots

2,359,296 (1024 x 768 x 3 panels)

PAL, SECAM, NTSC, NTSC4.43, PAL-M and PAL-N

Up and Down

800 TV lines (HDTV)

INT. SP. Stereo (R and L), 2 watt RMS (T.H.D. 10%)

41 ˚F ~ 95 ˚F (5 ˚C ~ 35 ˚C)

14 ˚F ~ 140 ˚F (-10 ˚C ~ 60 ˚C)

Projector Type

Net Weight

Dimensions

(W x H x D)

Panel Resolution Number of Pixels Color System

Scanning Frequency

Horizontal Resolution

Built-in Speakers

Operating Temperature Storage Temperature

LCD Panel System

300 watt type

Projection Lamp

0˚ to 10.5˚

Feet Adjustment

Power Source : AA, UM3 or R06 Type x 2 Operating Range : 16.4’ (5m) / ±30˚ Dimensions : 2.0” x 1.4” x 7.6” (50mm x 36mm x 193mm) Net Weight : 0.35 lbs (160 g) (including batteries) Laser Pointer : Class II Laser

APPENDIX

CONFIGURATIONS OF TERMINALS

COMPUTER INPUT-1 and MONITOR OUT TERMINALS (ANALOG)

Terminal : HDB15-PIN

Red Input

Ground (Horiz.sync.)

Green Input

Sense 2

Blue Input

Ground (Red) Ground (Green) Ground (Blue)

6 7 8

+5V Power

Horiz. sync.

Ground (Vert.sync.)

DDC Data

Sense 0

Vert. sync. DDC Clock

14 15

Pin Configuration

Terminal : Mini DIN 8-PIN

Pin Configuration

CONTROL PORT CONNECTOR

-----

CLK

DATA

GND

-----

GND

-----

R X D

-----

GND

RTS / CTS

T X D

GND GND

-----

ADB

-----

GND

-----

GND

PS/2 Serial

ADB 1 2 3 4 5 6 7 8

COMPUTER INPUT-1 TERMINAL (DIGITAL)

Terminal : DVI 24-pin

T.M.D.S. Data2–

No Connect

T.M.D.S. Data2+

No Connect

T.M.D.S. Data2 Shield

DDC Clock DDC Data No Connect

6 7 8

Pin Configuration

T.M.D.S. Data1–

No Connect

T.M.D.S. Data1+

No Connect

T.M.D.S. Data1 Shield

+5V Power Ground (for +5V) Hot Plug Detect

14 15 16

T.M.D.S. Data0–

No Connect

T.M.D.S. Data0+

No Connect

T.M.D.S. Data0 Shield

T.M.D.S. Clock Shield T.M.D.S. Clock+ T.M.D.S. Clock–

22 23 24

Vcc

- Data

+ Data

Ground

1 2 3 4

USB CONNECTOR (Series B)

Pin Configuration

9 678

5 9 17

8 7 6

APPENDIX

OPTIONAL PARTS

The parts listed below are optionally supplied. When ordering those parts, give the name and Type No. to the sales dealer.

● Control Cable (PS2 Port) Type No. : POA-MCPS2

● Control Cable (ADB Port) Type No. : POA-MCMAC

● MAC Adapter Type No. : POA-MACAP

● DVI Cable Type No. : KA-DV20

● HDB 15 pin-SCART 21 pin Cable Type No. : POA-CA-SCART

● Long Zoom Lens Type No. : LNS-T31A

● Ultra Long Zoom Lens Type No. : LNS-T32

● Short Zoom Lens Type No. : LNS-W31A

● Short Fixed Lens Type No. : LNS-W32

● PJ-Net Organizer Type No. : POA-PN02

LENS REPLACEMENT

The lens of this projector can be replaced with other optional lens which are sold separately. This feature enables you to use the projector for wide variety of uses. For installation and replacement of the lens, always contact the sales dealer. The projector lens must be installed or replaced by well-trained sales or service engineers. Do not attempt to do by yourself as it may cause injury.

To the sales and service engineer;

Referring to the attached lens replacement and installation manual, replace or install the lens properly.

After installing the lens, attach the lens cap to the lens when setting up the projector. Do not hold the lens when carrying or lifting the projector. It may cause serious damage to the projector.

APPENDIX

Printed in Japan Part No. 610 306 0910 (1AA6P1P3972-- MS3A)

SANYO Electric Co., Ltd

Fisher PLC-XP50L User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

SAFETY PRECAUTIONS

SAFETY INSTRUCTIONS

COMPLIANCES

TABLE OF CONTENTS

FEATURES AND DESIGN

PREPARATION

POSITIONING PROJECTOR

INSTALLING PROJECTOR IN PROPER POSITION

MOVING PROJECTOR

CONNECTING PROJECTOR

TERMINALS OF PROJECTOR

CONNECTING TO COMPUTER

CONNECTING TO VIDEO EQUIPMENT

BEFORE OPERATION

TOP CONTROLS AND INDICATORS

HOW TO OPERATE ON-SCREEN MENU

OPERATING ON-SCREEN MENU

FLOW OF ON-SCREEN MENU OPERATION

MENU BAR

FOR PC SOURCE

FOR VIDEO SOURCE

BASIC OPERATION

ADJUSTING SCREEN

ZOOM ADJUSTMENT

FOCUS ADJUSTMENT

KEYSTONE ADJUSTMENT

NO SHOW FUNCTION

PICTURE FREEZE FUNCTION

P-TIMER FUNCTION

SOUND ADJUSTMENT

DIRECT OPERATION

MENU OPERATION

COMPUTER INPUT

DIRECT OPERATION

SELECTING COMPUTER SYSTEM

MENU OPERATION

SELECT COMPUTER SYSTEM MANUALLY

AUTOMATIC MULTI-SCAN SYSTEM

WHEN SELECT INPUT 2 (5 BNC INPUT JACKS )

PC ADJUSTMENT

AUTO PC ADJUSTMENT

PICTURE SCREEN ADJUSTMENT

VIDEO INPUT

WHEN SELECT INPUT 3 (AV TERMINALS )

WHEN SELECT INPUT 2 (5 BNC INPUT JACKS )

SELECTING VIDEO SYSTEM

IMAGE LEVEL SELECT (MENU)

PICTURE SCREEN ADJUSTMENT

PICTURE IMAGE

PICTURE IMAGE ADJUSTMENTS

SETTING MENU

SETTING

APPENDIX

OPERATING WIRELESS MOUSE

INSTALLATION

OPERATING WIRELESS MOUSE

MAINTENANCE

WARNING TEMP. INDICATOR

AIR FILTER CARE AND CLEANING

LAMP HANDLING PRECAUTIONS

TROUBLESHOOTING

INDICATORS AND PROJECTOR CONDITION

COMPATIBLE COMPUTER SPECIFICATIONS

MENU TREE

TECHNICAL SPECIFICATIONS

OPTIONAL PARTS

LENS REPLACEMENT
