Please read this manual and accompanying “IMPORTANT SAFETY INSTRUCTIONS” sheet carefully before
connecting your VCR and operating it for the first time.
Be sure to read carefully and follow all the PRECAUTIONS on page 1.
Keep the manual in a safe place for future reference.
NOTE: Locate serial number (shown on rear panel of unit) and record it here ➡
SC4H/UF (FVH-T610 GB) Fri. Jan., 07/2000
PRECAUTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilater al triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the product.
WARNING:
To reduce the risk of fire or electric
shock, do not expose this ap pliance to rain or
moisture.
CAUTION:
To prevent electric shock, match wid e
blade of plug to wide slot of electrical outlet and
insert fully.
CAUTION:
Changes or modifications no t ex pressly
approved by the manufacturer may void the user’s
authority to operate this VCR.
Location
For safe operation and satisfactory performance of your
VCR, keep the following in mind when selecting a place
for its installation:
œ
Shield it from direct sunlight and keep it away from
sources of intense heat.
œ
Avoid dusty or humid places.
œ
Avoid places with insufficient ventilation for proper heat
dissipation. Do not block the ventilation holes of the
VCR. Do not place the unit on a carpet because this
will block the ventilation holes.
œ
Install the VCR in a horizontal position only.
œ
Avoid locations subject to strong vibrations.
œ
Avoid moving the VCR between cold and hot locations
(see “Moisture Condensation Problems”, this page).
œ
Do not place the VCR directly on top of the TV, as this
may cause playback or recording problems.
WARNING:
Unauthorized recording or use of
television broadcast, video tape, film or other
copyrighted material may violate applicable
copyright laws. The manufacturer assumes no
responsibility for unauthorized du plic ation, use or
other acts that infringe upon the rights of copyright
owners.
Declaration of Conformity
Model Number: FVH-T610
Trade Name: Fisher
Responsible party: SANYO FISHER COMPANY
Address: 21605 Plummer Street,
Chatsworth, California 91311
Telephone No.: (818) 998-7322
œ
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
Moisture Condensation Problems
Cause:
When the VCR is first installed, moved from a cold area
to a warm area or placed in a location with high humidity,
dew (moisture) may form inside the unit. If you operate
the VCR with dew inside, damage may result.
Prevention:
Avoiding Electric Shock or Fire
œ
Do not handle the power cord with wet hands.
œ
Do not pull on the power cord when disconnecting it
from an AC wall outlet. Grasp it by the plug.
œ
If any liquid is spilled on the VCR, unplug the power
cord immediately and have the unit inspected at a
factory-authorized service center.
œ
Do not place anything directly on top of the VCR.
1
Make all necessary connections.
2
Plug the power cord into a 120 V AC wall outlet.
3
Turn on the power.
4
Do not operate the VCR or insert a cassette for
approximately 2 hours.
This allows the VCR to warm up to the temperature of the
room where it will be used.
Technology licensed by
Laboratories Inc.
This VCR has a Y/C filtering
technique incorporated under license
from Faroudja Laboratories Inc.
1
SC4H/UF (FVH-T610 GB) Fri. Jan., 07/2000
FEATURES
TIMER/CLOCK
œ Selectable standard/daylight saving time
œ 1-year/8-event program timer with daily/weekly settings
œ Smart Time Recor d function
œ Smart Speed Record function
œ Remaining tape duration display
œ Quick timer recording (QTR)
œ Off timer (up to 6 hours)
AUDIO/VIDEO
œ VHS Hi-Fi stereo audi o recording and play ba ck
œ MTS stereo/second audio program (SAP) recording and
playback
œ Digital picture control
SPECIAL PLAYBACK/SEARCH
œ Ad JUMP
®
œ Recording contents on-screen list (Rec. List Super)
œ Double-Azimu th 4- h ea d vi de o recording/play ba ck sys te m for
clean special pl ay back:
Forward/re ve rs e search, double-speed playback, cle an sti ll
image, fram e ad va nc e, variable-spee d sl ow m ot io n
œ Zero search
œ Index search
AUTOMATIC FUNCTIONS
œ Automatic clock setting and adjustment
œ Automatic head cleaner
œ Endless playback
œ Automatic digi tal tracking
œ Automatic channel programming
œ Full auto play back function s: power-on, rewind, eject, record
auto cancel, power-off eject
GENERAL
œ Multilanguage, multicolor on-screen menu
œ Multibrand universal remote control with Moonlight
œ Vibration- su pp re ss in g m id - m o un t de si gn
œ Child lock
œ Front/rea r au dio/video inputs
®
buttons
ACCESSORIES
Make sure that all the accessories listed below have been
included with your VCR.
œ Do not expose video cassettes to extreme heat, high
humidity or strong magnetic fields.
œ Do not tamper with the cassette mechanism.
œ Do not touch the tape with your fingers.
œ Always store an unused cassette in its case.
Arrow mark ( )Label side up
(Arrow pointing toward slot)
Loading
1
Gently push the center of the cassette until it is drawn
in automatically.
The clock display changes to the tape counter
display automatically and the Tape-In icon
lights.
NOTES:
œ If the cassette is not inserted correctly, it will be ejected
in approximately 3 seconds.
œ Do not try to pull the cassette out once automatic
loading starts.
œ Do not force the cassette into the VCR.
(o)

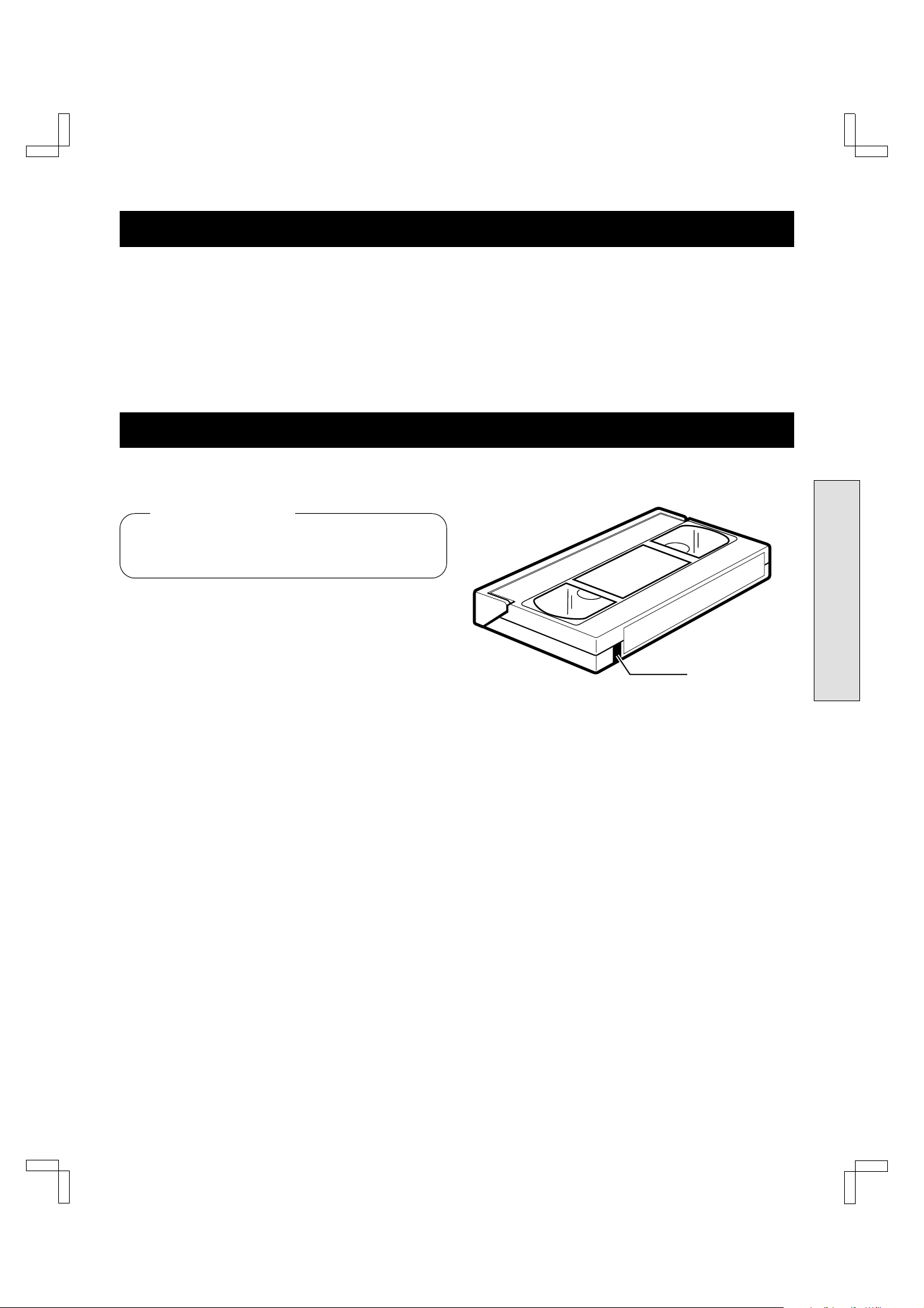

Safety Tab
To prevent accidental
erasure, remove the
tab after recording.
To record again, cover
the hole with vinyl tape.
Unloading
1
When in the STOP mode, press the STOP/EJECT
button on the front panel. In any other mode, press
the button twice.
The tape counter display changes to the clock
display automatically.
2
After the cassette appears in the loading slot, gently
pull it out.
AUTO POWER-OFF/EJECT: The cassette is ejected
when the STOP/EJECT button on the front panel is
pressed, even if the VCR’s power is off. (The power cord
must be connected to an AC wall outlet.)
CAUTION: To avoid possible injury or accident, keep
children away from this unit. Do not put your hand or
other objects into the cassette loading slot.
3
SC4H/UF (FVH-T610 GB) Fri. Jan., 07/2000
LOCATIONS OF CONTROLS AND INDICATORS
Front Panel
1
AV INPUT
VIDEOL-AUDIO-R
POWER
CHANNEL
REC
PAUSE
STILL
PLAY c
STOP
FF ef REW
EJECT
H
Reference pages are shown in square brackets.
1
Cassette loading slot
2
STOP/EJECT button [3, 23]
3
FF (fast forward) button [31]
This button is used both for fast forward and
forward picture search.
4
PLAY button [23]
5
REW (rewind) button [31]
This button is used both for rewind and reverse
picture search.
6
Indicator panel [5]
7
Remote control sensor
8
PAUSE/STILL button [25, 31]
œ Press this button in the record mode to
temporarily stop a recording (PAUSE).
œ Press this button in the playback mode to view a
still frame (STILL).
œ Press this button repeatedly in the still mode to
advance the picture one frame at a time.
34256789FG
9
REC (record) button [25, 37]
F
CHANNEL selection buttons (l and j) [15, 24, 37]
G
POWER button
H
Front-panel AUDIO/VIDEO input jacks [25, 39]
Connect the audio and video outputs from an
external unit (i.e. a video camera, second VCR) to
these jacks. To record the signals coming from the
external unit, press the INPUT button on the
remote control to display “L2” instead of a channel
number (see page 25). If only one audio jack is to
be used, connect it to the L (left) jack.
Auto A/V Selection [18]
There is no need to unplug the VCR from the TV to
view another video source on-screen. When the
VCR power is off and the output cable from an
external unit is connected to these front A/V input
jacks, the signal from the external unit is
automatically sent to the connected TV screen.
4
SC4H/UF (FVH-T610 GB) Fri. Jan., 07/2000
LOCATIONS OF CONTROLS AND INDICAT ORS
Indicator Panel
1234
1
2
C
SAP
ST
8F9G
REC
OFF
AMLR
VCR
PM
SP LP SLP
567
3
4
5
Operation Icons (see below).
VCR indicator
Use the
this indicator ON or OFF.
ON:for playback, VCR programming or watching
OFF: for watching TV programs through TV tuner
Audio output indicators (Left and Right)
Tape-In icon
Tape Speed indicators
Input source indicator:
Channel number or audio/video input (L1 or L2)
F
SAP (Second Audio Program) indicator
G
CATV indicator
CATV
indicator
Channel indicator
POWER OFFPOWER ON
ClockAudio output
indicators
AM
Tape speed indicator
CATV
indicator
CAMLR
Channel indicator
ClockAudio output
Tape speed indicator
5
indicators
SP
SC4H/UF (FVH-T610 GB) Fri. Jan., 07/2000
LOCATIONS OF CONTROLS AND INDICAT ORS
Back Panel
213
AC IN
1
AC power input
2
Rear-panel AUDIO/VIDEO input jacks
Connect the audio and video outputs from an
external unit (i.e. a video camera, second VCR) to
these jacks. To record the signals coming from the
external unit, press the
INPUT
remote control to display “L1” instead of a channel
number (see page 25). If only one audio jack is to
be used, connect it to the L (left) jack.
3
VHF/UHF antenna input jack
button on the
INOUT
VIDEO
L
AUDIO
R
4
VHF/UHF antenna output jack
5
VIDEO output jack (yellow)
6
AUDIO output jacks (Red for right and white for left)
VHF/UHF
FROM ANT.
56
TO TV
4
IN
OUT
6
SC4H/UF (FVH-T610 GB) Fri. Jan., 07/2000
MULTIBRAND UNIVERSAL REMOTE CONTROL
This universal remote control will operate the basic functions of TVs and cable (CATV) converters/decoders, when the
brand matches one of those shown on pages 8 and 9.
Locations of Controls
1
2
3
4
6
7
8
9
F
G
H
5
123
456
7809
100/ENTER
DISPLAY
TYPE
Ad JUMPSLOW
POWERREC
REWFF
MENU
SET
SP/SLP
DPC RESET0
PAUSE/STILL
PLAY
OK
STOP
VCR
TV
CATV/
DSS
TV/VCR
VOLUMECH/TRACKINPUT
INDEX2
CLEAR
I
J
K
L
M
N
O
P
Q
R
S
Reference pages are shown in square brackets.
1
Number buttons (0 – 9) [15, 20]
2
100/ENTER button [15]
3
INPUT button [25]
4
DISPLAY button [16, 32]
5
SP/SLP button [25]
6
TYPE button [28]
7
DPC button [23]
8
Ad JUMP button [38]
9
x2 button [31]
F
POWER button [14]
G
Control stick
H
MENU button [17]
I
VCR, CATV/DSS and TV remote control mode
buttons [8, 9, 14]
Lets you select the unit to be operated (VCR, TV or
cable converter/DSS receiver).
J
TV/VCR mode button [14]
Lets you select TV or VCR mode. When VCR mode
is selected, the VCR indicator lights on the front panel.
NOTE
: The shaded buttons are used for VCR operation
only.
Notes on using the control stick
Front
Right
Left
Rear
The control stick has five functions depending on the
direction it is moved. In this manual, since the
explanations are based on the displayed menu screens
and the indications on the indicator panel, similar
operations may be described differently.
Example:
Tilt towards the front
œ It is recommended to
control the stick using
your thumb.
K
SET button [15]
L
VOLUME buttons [8]
Increases (+) or decreases (–) TV volume.
Described below are the uses of the control stick to
command the tape movement and indicated in brackets
are the operations for on-screen menus.
Press straight down:
Tilt towards the front:
Tilt towards the back:
Tilt toward the left:
PLAY (OK
PAUSE/STILL
STOP
(<) button
REW
Tilt towards the right: FF (>) button
Control the stick using your thumb.
) button
(û) button
(ù) button
7
SC4H/UF (FVH-T610 GB) Fri. Jan., 07/2000
MULTIBRAND UNIVERSAL REMOTE CONTROL
Battery Installation and Operation
1
Install the two supplied AA batteries as shown.
2
Aim the remote control at the VCR and press the
desired buttons to operate.
IMPORTANT NOTE:
SPENT OR DISCHARGED BATTERIES MUST BE
RECYCLED OR DISPOSED OF IN A SAFE
MANNER IN COMPLIANCE WITH ALL
APPLICABLE LAWS.
FOR DETAILED INFORMATION, CONTACT YOUR
LOCAL COUNTY SOLID WASTE AUTHORITY.
Using the remote control
1
Before using the remote control, press the
or
TV
CATV/DSS
operated.
2
To switch the remote control mode (to operate a
different device), be sure to press the
CATV/DSS
button to select the device to be
button first.
NOTES:
œ The remote control will not operate properly if
something comes between the VCR and the remote
control.
œ The
œ
POWER, 0
CH/TRACK
VCR, TV, cable box and DSS receiver.
VOLUME
remote control mode selected.
– 9,
100/ENTER, INPUT
l and j buttons are used to operate the
buttons operate TV volume regardless of the
VCR
VCR, TV
and
,
or
Setting the remote control code
The multibrand universal remote control can operate the
basic functions of TVs and cable (CATV)
converters/decoders made by the manufacturers listed
below.
To enter the remote control code for your brand of TV or
cable converter/decoder, follow the steps below.
For TV operation
1
In the chart below, find the code corresponding to
your brand of TV.
2
While holding down the TV button, enter the 2-digit
code using the number buttons (0 – 9).
cannot be operated with this remote control. If this is
the case, use the original remote control supplied with
the TV.
There may be some older TV models that
05, 10, 13
17
03
07
01
02
15
08
12, 18
14
12, 18
12, 18
06
16
03
00, 13
11
05
04
09, 10
8
SC4H/UF (FVH-T610 GB) Fri. Jan., 07/2000
MULTIBRAND UNIVERSAL REMOTE CONTROL
For cable (CATV) converter/decoder or DSS
(Digital Satellite System) receiver operation
1
In the chart, find the code corresponding to your
brand of cable converter/decoder or DSS receiver.
2
While holding down the
CATV/DSS
2 number buttons (0 – 9) to enter the code.
The remote control is now set to operate your
converter/decoder or DSS receiver.
Cable converter/decoder
ARCHER
CABLE CINEMA
CABLETENNA
CABLEVIEW
CENTURY
CITIZEN
CURTIS
DIAMOND
EAGLE
EXPLORER
GC ELECTRONICS
GEMINI
GENERAL ELECTRIC
GENERAL INSTRUMENT
GERRARD
HAMLIN
HITACHI
JASCO
JERROLD
MACOM
MAESTRO
MAGNAVOX
MATSUSHITA
NEC
NEXT LEVEL
NOVAVISION
NSC
OAK
OAK SIGNA
PANASONIC
PHILIPS
PIONEER
PULSER
QUEST
RADIO SHACK
RCA
REALISTIC
RECOTON
REGAL
REMBRANDT
SAMSUNG
SCIENTIFIC ATLANTA
SHERITECH
SIGNAL
SL MARX
SPRUCER
œ Only remote-controlled products can be operated using
this remote control. (Refer to the instruction manuals
for your TV, CATV converter/decoder or DSS receiver
instruction manual for more details.)
œ There may be some TV, CATV converter/decoder or
DSS receiver models that cannot be operated with this
remote control. If this is the case, use the original
remote control supplied with your equipment.
œ Cable companies may charge an extra monthly fee to
activate the remote control feature of a rented CATV
converter/decoder. If this is the case, this remote
control will not operate the cable converter/decoder
unless such arrangements are made with the cable
company.
IMPORTANT NOTE: If the batteries in the remote
control are replaced, the codes for the TV , CATV
converter/decoder and DSS receiver must be reset.
Write your code numbers below for future reference.
TV: ______ CATV: ______ DSS: ______
Place the supplied label on the back of the remote control.
9
SC4H/UF (FVH-T610 GB) Fri. Jan., 07/2000
BASIC ANTENNA/CABLE CONNECTIONS
Antenna
75 ohm
antenna
cable
or
AC Wall
1
outlet
CABLE TV
4
1
Connect an antenna (or a cable TV system) to the
VCR.
2
Connect the VCR to the TV with the 75 ohm coaxial
cable (supplied).
3
Plug the power cord (supplied) into the AC power
input (AC IN ~) on the VCR back panel. Insert the
plug firmly.
3
VCR
(Back panel)
AC IN
VHF/UHF
FROM ANT.
TO TV
IN
OUT
TV
(Back panel)
VHF/UHF
ANTENNA
IN
(supplied)
NOTES:
œ If you have a cable converter connected to your TV,
see “ALTERNATIVE CABLE TV CONNECTIONS”,
next page.
œ If your antenna has a twin-lead cable or your TV has
screw-type antenna terminals, use a matching
transformer (not supplied).
2
4
Insert the plug end of this power cord into a wall
outlet.
300 ohm
Twin-lead Cable
Matching Transformer
(not supplied)
10
SC4H/UF (FVH-T610 GB) Fri. Jan., 07/2000
ALTERNATIVE CABLE TV CONNECTIONS
Your VCR can receive all unscrambled cable channels
without the use of an external converter. If you wish to
view and record scrambled cable channels, you must
connect a converter/decoder as described below.
Your local cable TV company will advise you of the
channels available in your area.
We recommend that you consult your cable TV company
to make sure that the cable is properly connected.
When the TV does not have a built-in cable converter
Connect the cable TV converter between the VCR and
the TV so that you can watch a cable TV program while
recording another program.
VCR
CATV
(Back panel)
75 ohm
coaxial
cable
AC IN
VHF/UHF
FROM ANT.
TO TV
IN
OUT
(supplied)
NOTE:
channel (CH02 ~ 07).
Set the TV channel to the cable converter output
Cable
converter
INOUT
TV
(Back panel)
VHF/UHF
ANTENNA
IN
(not supplied)
When you have both cable and pay TV (scrambled channels)
NOTES:
œ With this method the TV and VCR receive the same
channel. Recording one program while watching
another is not possible.
Cable
converter/
VCR
(Back panel)
Decoder
CATV
75 ohm
coaxial cable
NOTE TO CATV SYSTEM INSTALLER (USA only): This
reminder is provided to call the CATV system installer’s
attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and, in particular,
AC IN
œ With this connection, the VCR must be set to the cable
converter/decoder output channel. (See next page.)
VHF/UHF
FROM ANT.
IN
TO TV
OUT
(supplied)
specifies that the cable ground shall be connected to the
grounding system of the building, as close to the point of
cable entry as practicable.
TV
(Back panel)
VHF/UHF
ANTENNA
IN
11
SC4H/UF (FVH-T610 GB) Fri. Jan., 07/2000
ALTERNA TIVE CABLE TV CONNECTIONS
Cable converter/decoder output channel setup
1
Be sure the cable connections are correct.
(See page 11.)
2
Turn on the TV, VCR and cable converter/decoder.
3
Set the TV to channel 3 or 4.
4
Press the
the VCR operation mode.
5
If the VCR indicator is off, press the
on the remote control.
button on the remote control to select
VCR
TV/VCR
The VCR indicator lights.
NOTE:
completed, the “Auto Setup” and “RF Channel Setting
Ch03 (or RF Channel Setting Ch04)” message will
appear. In that case, first follow steps 5 – 7 under
“INITIAL SETUP” on page 14.
Press the ù (or û) button to select the Cable box
option.
9
Press the > (or <) button to set your cable
converter/decoder output channel. The output
channel should be indicated on the cable
converter/decoder back panel. If not, please refer to
the cable converter/decoder instruction manual for
details.
Press the > (or <) button repeatedly. Each time
you press the button, the selection changes:
NoCh02Ch03 ... Ch07
The selection is indicated by the “
NOTE:
F
When finished, press the
menu display.
Select “No” if you are not using the cable box.
MENU
z
” next to it.
button to exit the
IMPORTANT NOTES:
When the cable converter/decoder output channel is
selected as described above,
œ The VCR tuner remains set to receive the same
channel as the output channel of the cable
converter/decoder. Auto channel programming and
manual channel selection using the VCR tuner are
not possible.
œ If you turn on the cable converter/decoder after
turning on the VCR, no image will appear on the TV
screen. In this case, turn off the VCR, then turn it on
again.
œ Leave the cable converter/decoder on until timer
recording is complete.
œ For timer recordings, you must select the channel to
be recorded using the channel selector on the cable
converter/decoder.
[ùû]†Option
[<>]†Select@@@[MENU]†TV
12
Loading...
+ 29 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
