N5943-5 6195

Previous Menu

FAI34OC/FA134OC-UL Security *stem

-2-

SYSTEM OVERVlEW

ENTRY/EXIT DELAYS ABOUT THE FUNCTIONS OF THE CHECKING FOR OPEN ZONES DISPLAYING ALL ZONE DESCRIPTORS ARMING PERIMETER ONLY (STAY) ARMING PERIMETER ONLY (INSTANT) ARMING ALL PROTECTION (AWAY) ARMING ALL PROTECTTON (MAXIMUM) DISARMING AND SILENCING ALARMS BYPASSING PRCTECTION ZONES

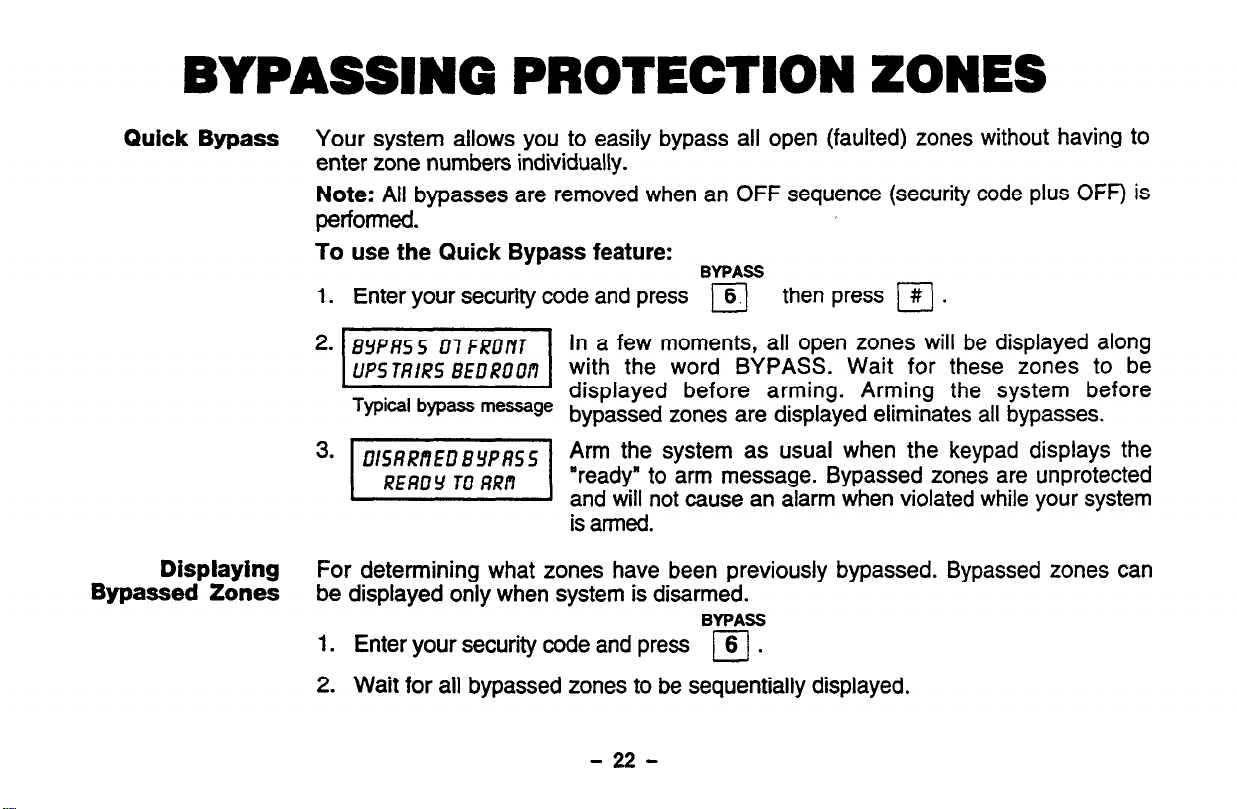

Quick Bypass Displaying Bypassed Protection Zones

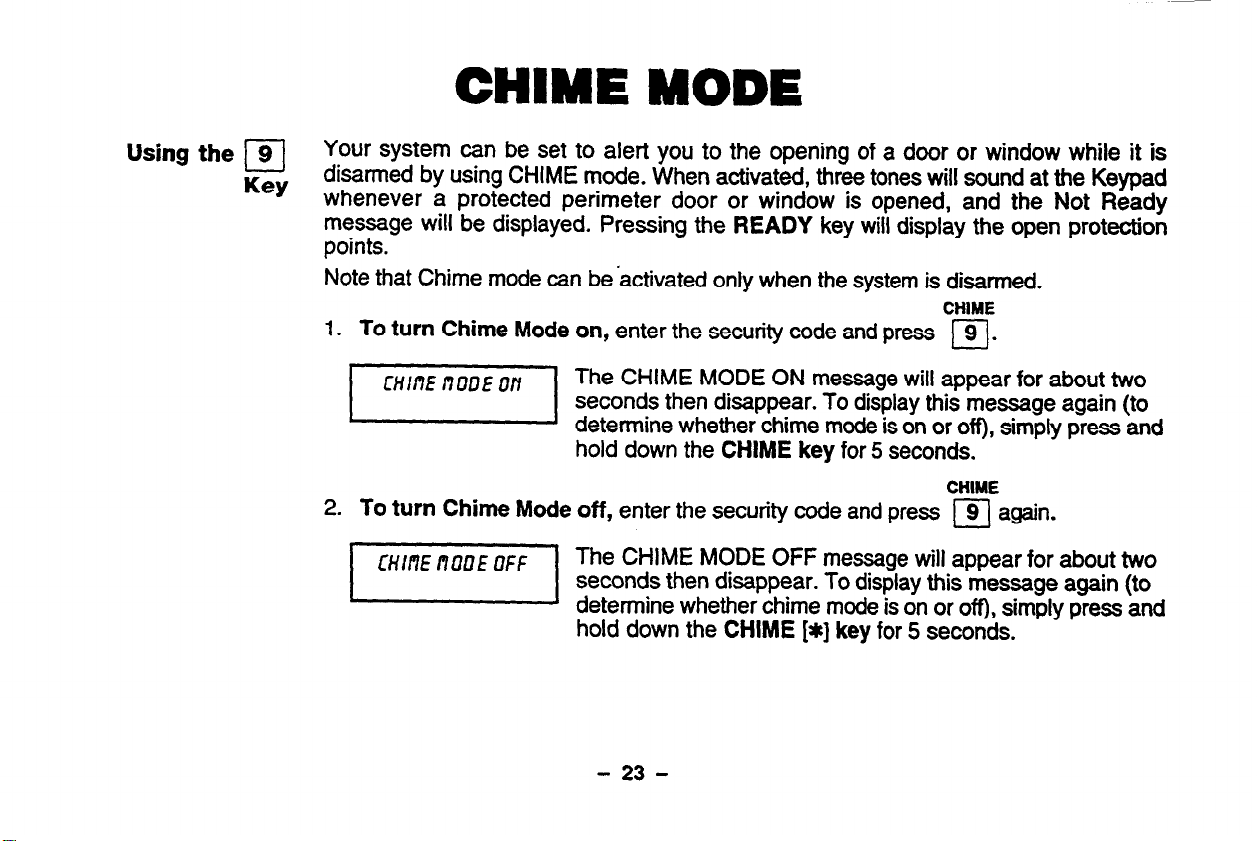

CHIME MODE

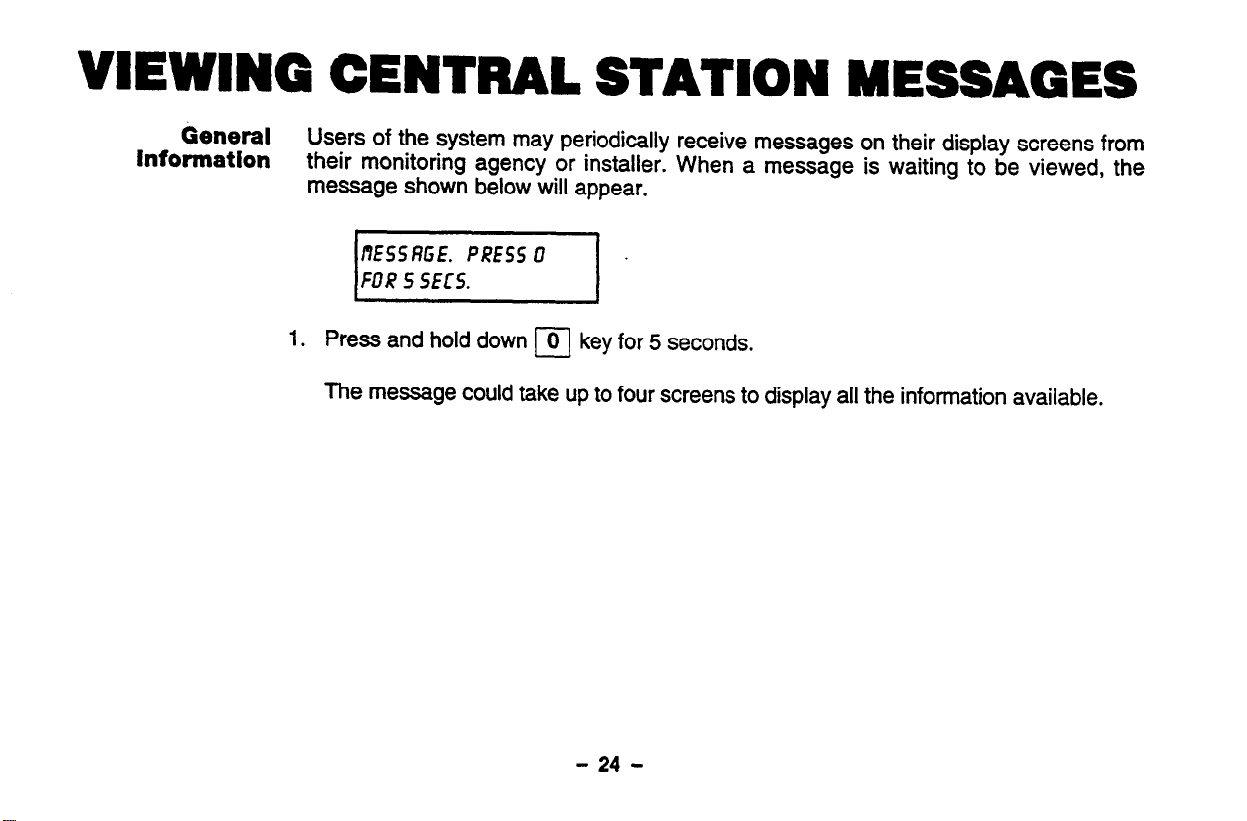

VIEWING CENTRAL

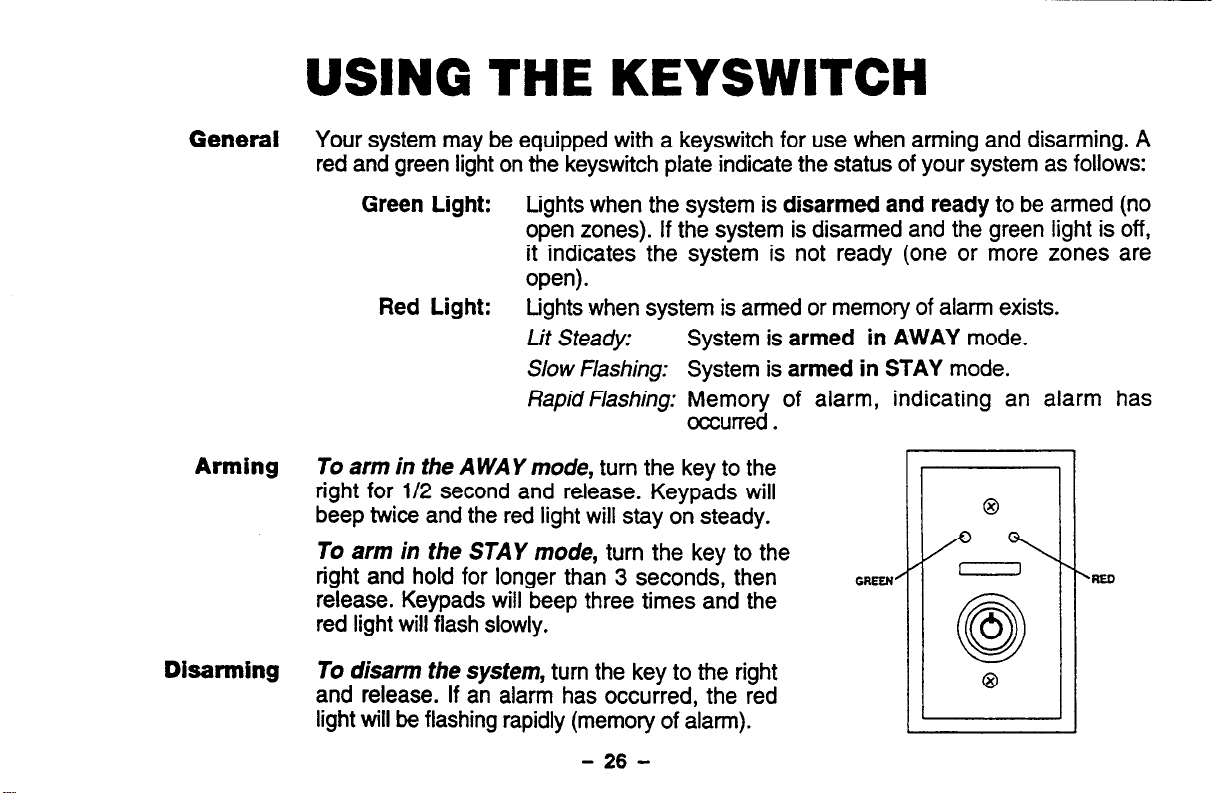

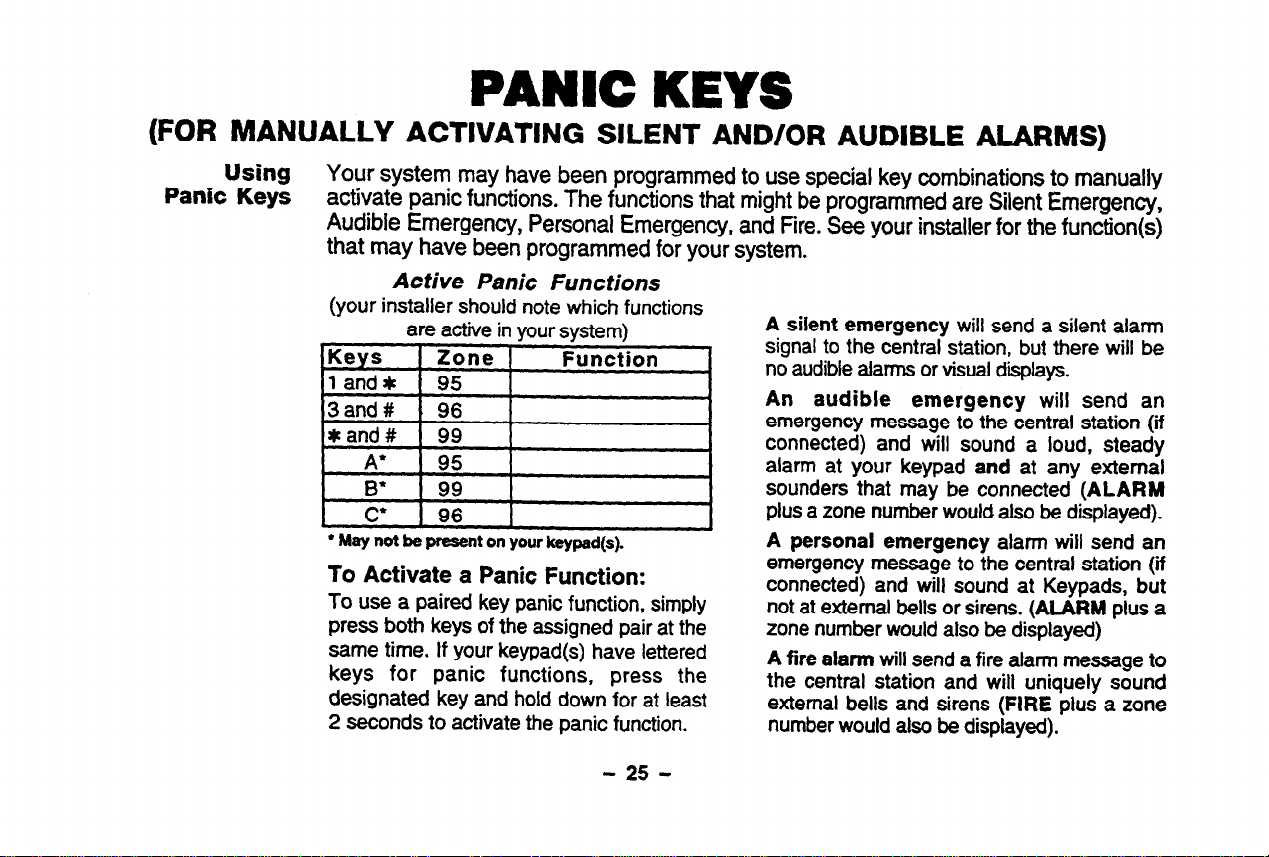

PANIC KEYS USING THE KEYSWlTCH

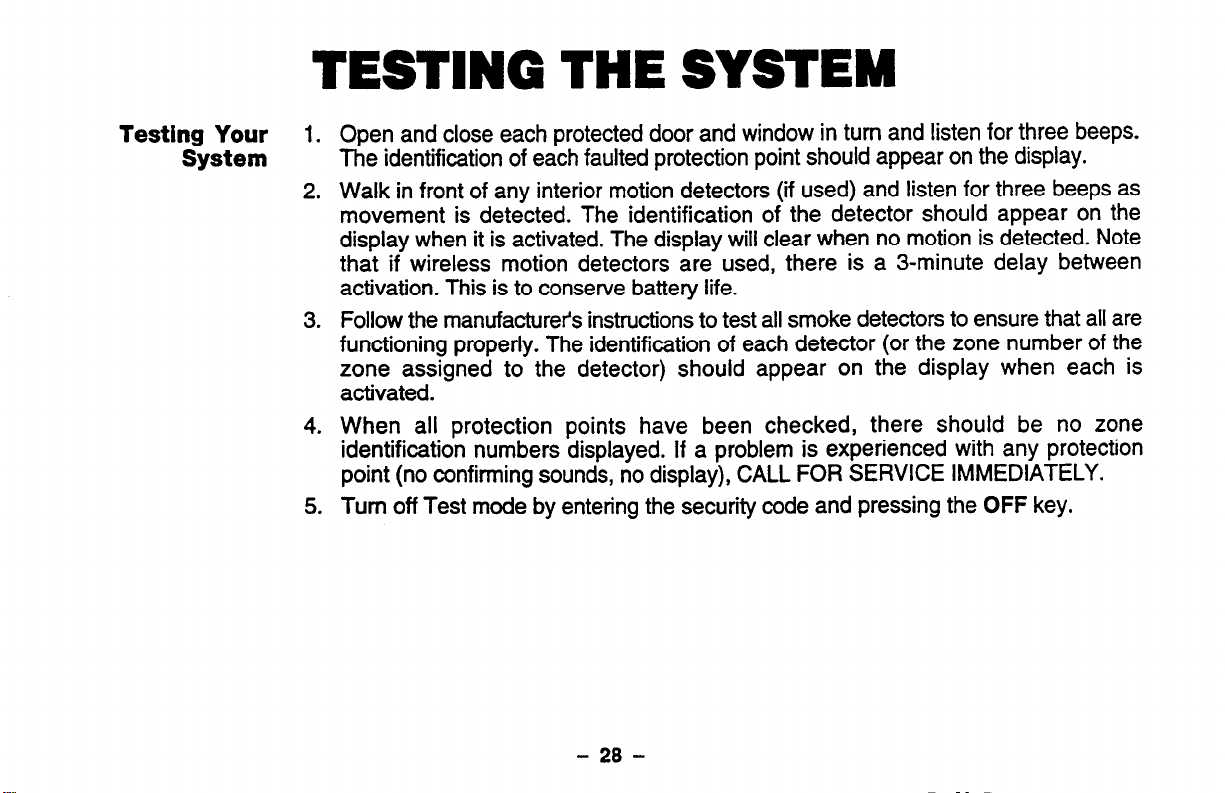

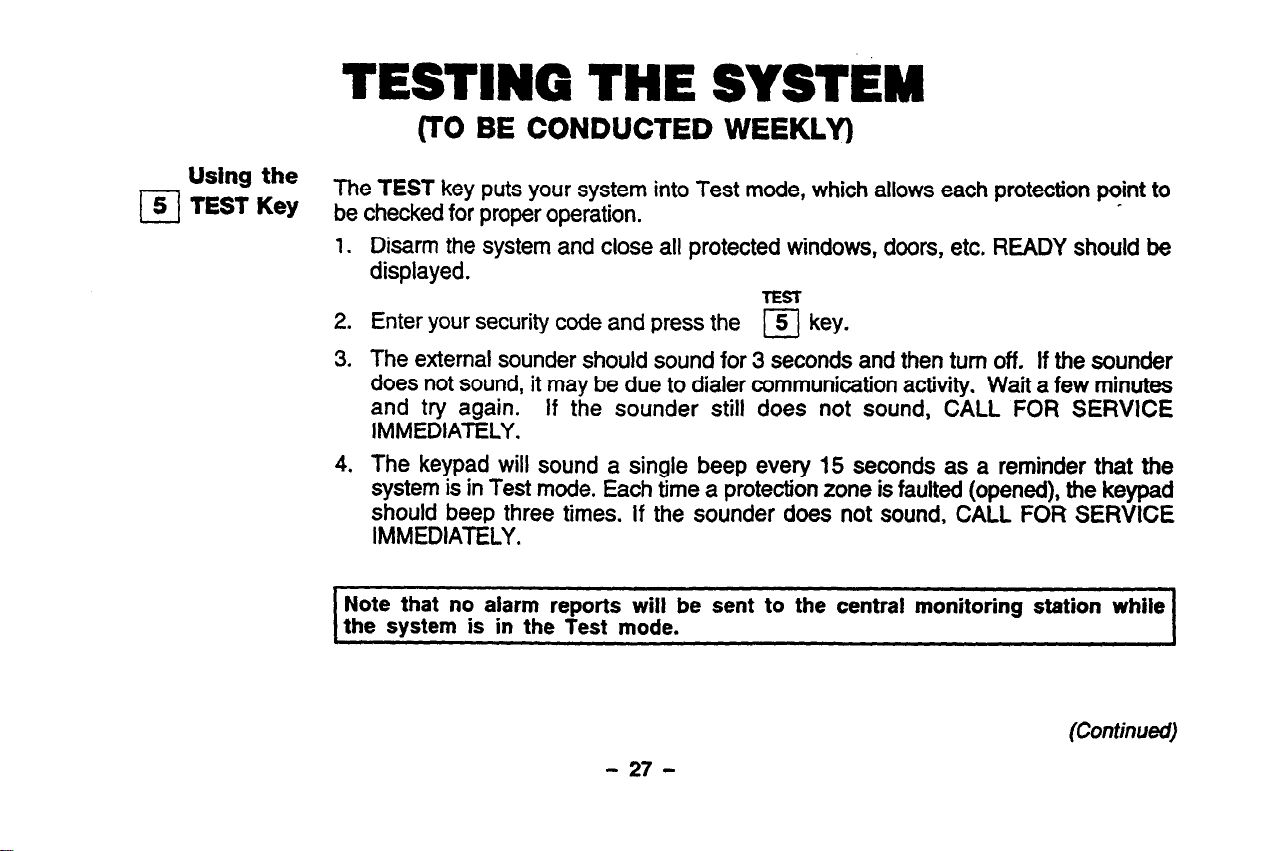

TESTING THE SYSTEM

SPEClAL SYSTEM FUNCTIONS

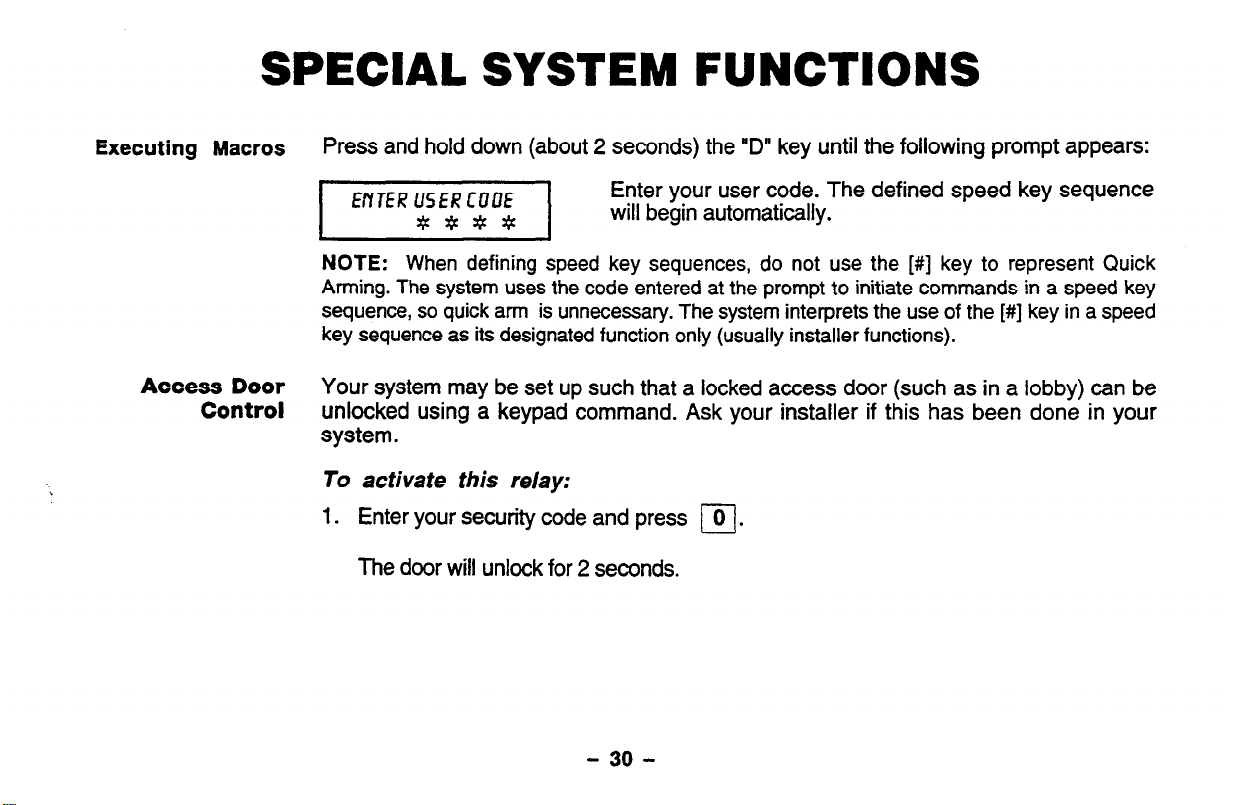

Speed Key (Macros) Access Door Control

KEYPADS

..........................................................................

...............................................................

.............................................................

...........................................................

KEYPADS

...................................................................

........................................................................

STATlON

........................................................

.........................................................

..........................................

...........................................

...................................

.............................

..................................

............................

....................................

MESSAGES

.....................................................

..........................................

.......................................................

12 14

...........................

........................

......................

15 16 17 18 19 20 21

22 22

.24

25 26 27 29

29 30

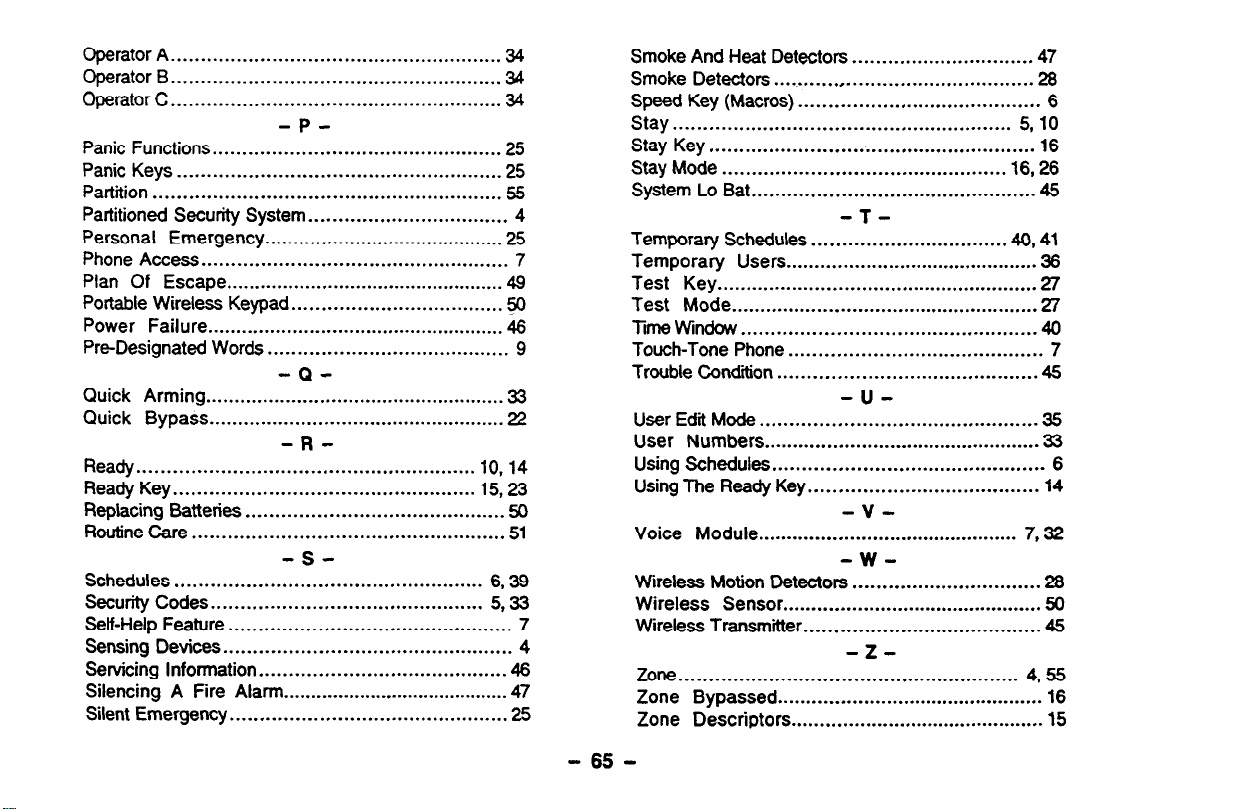

Index on page 63

4 8 9

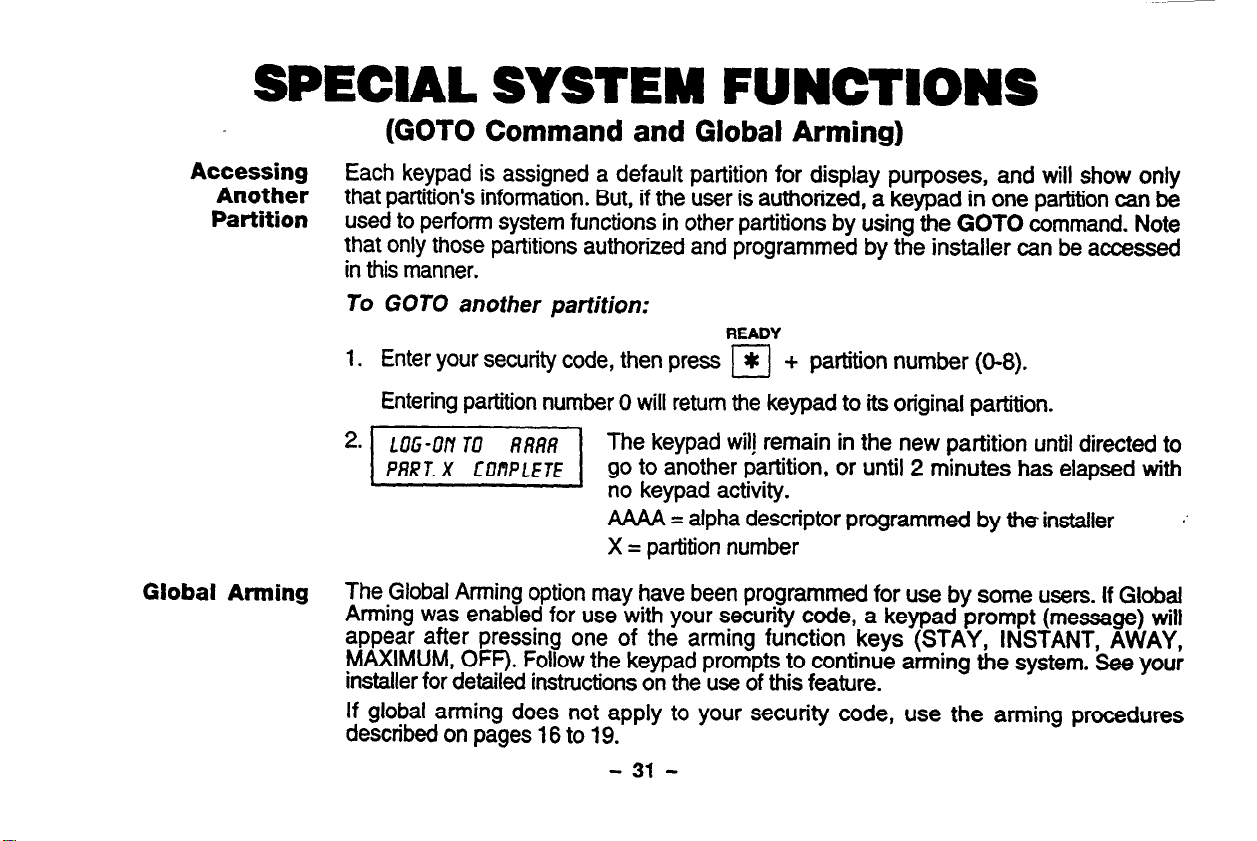

GOT0 Command/Global Arming

#70 Relay Menu Mode

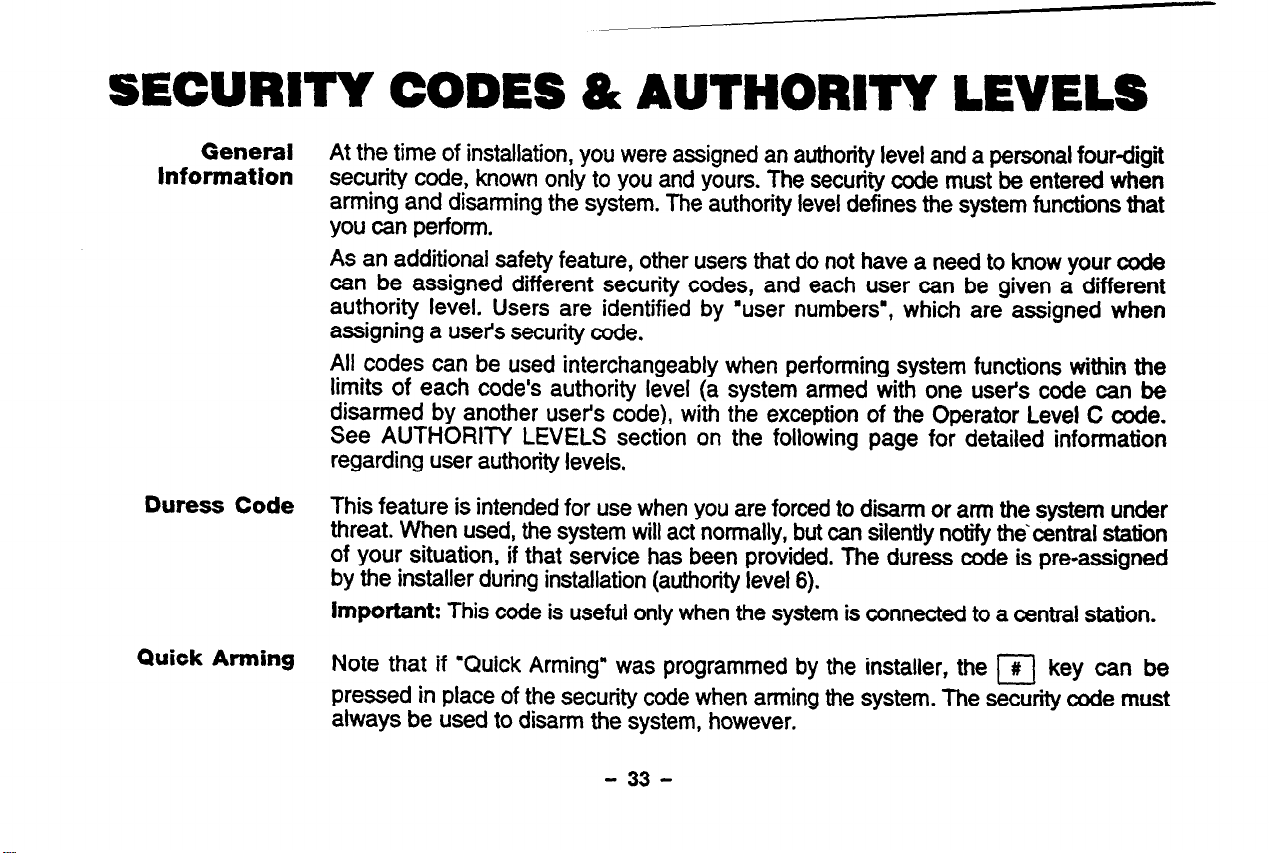

SECURITY

Duress Code ....................................................................

Quick Arming Authority Levels

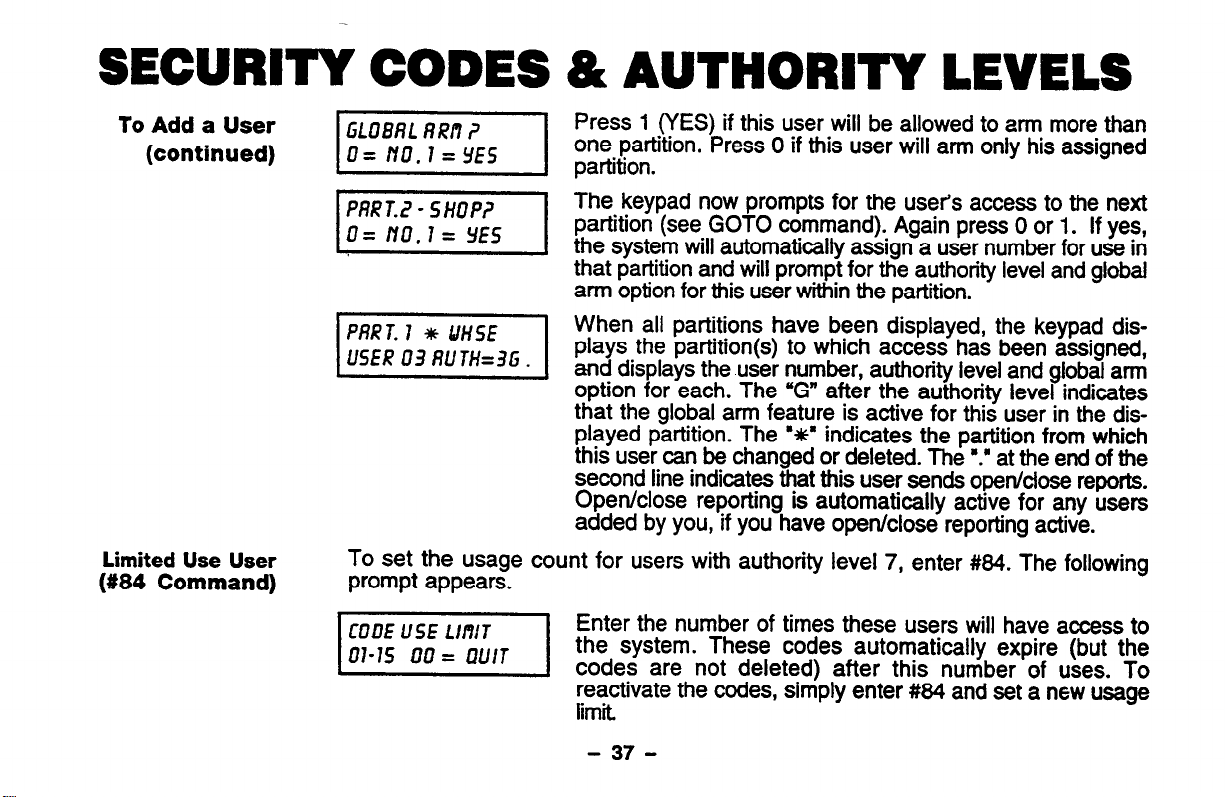

To Add A User ..................................................................

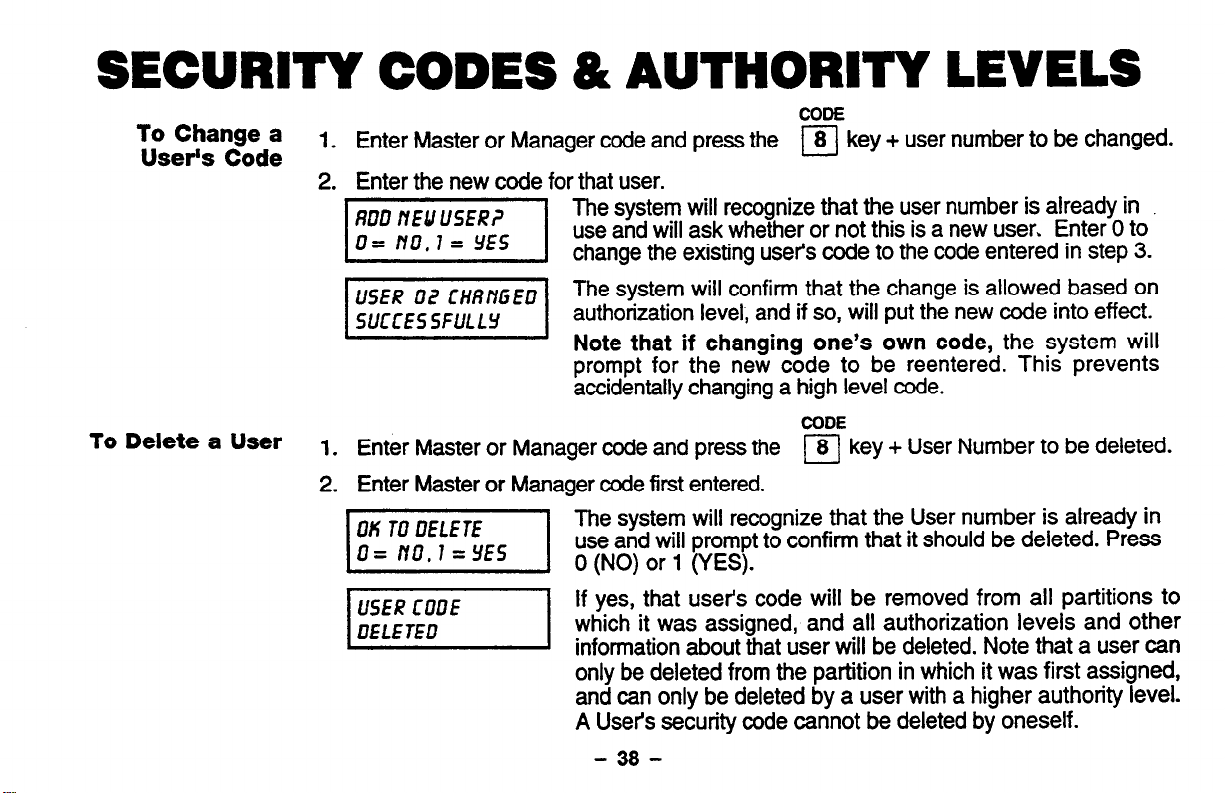

Limited Use User (#84 Command) To Change A User’s

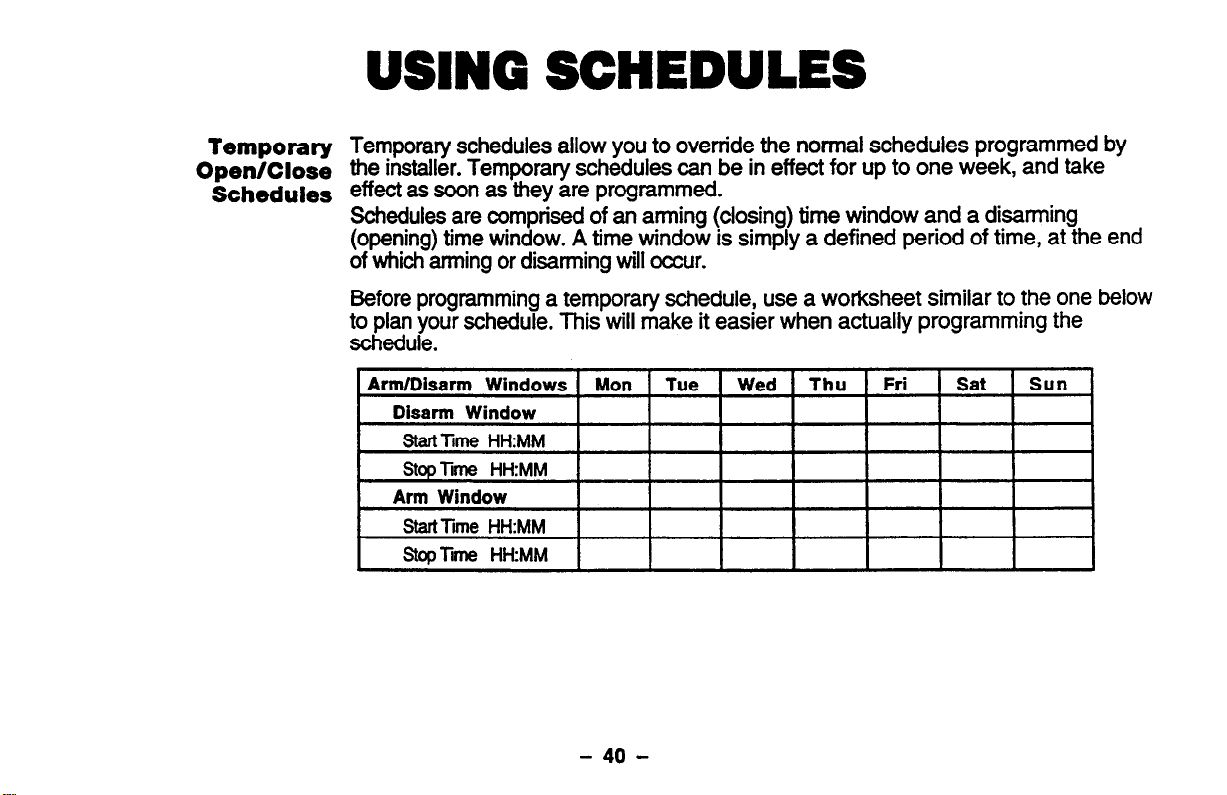

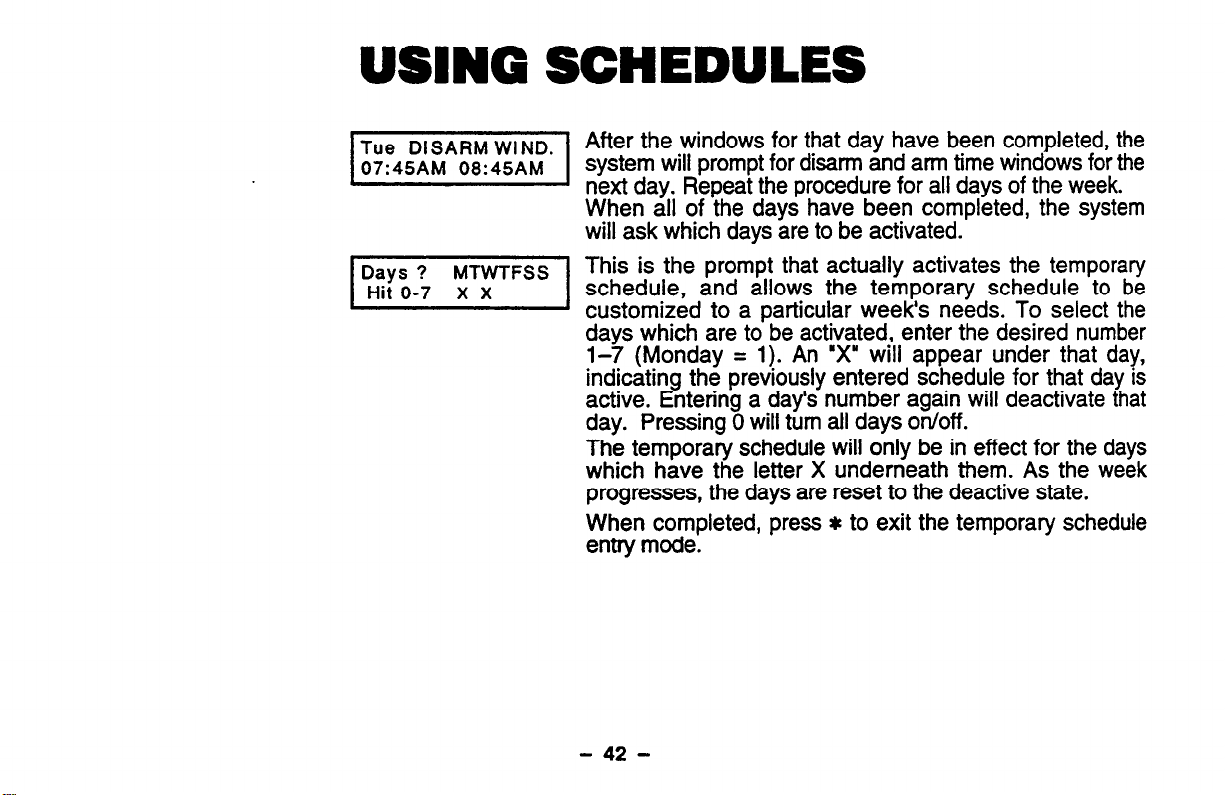

USING SCHEDULES

Delaying The Closing Time Temporary Open/Close Schedules

Programming Temporary Schedules

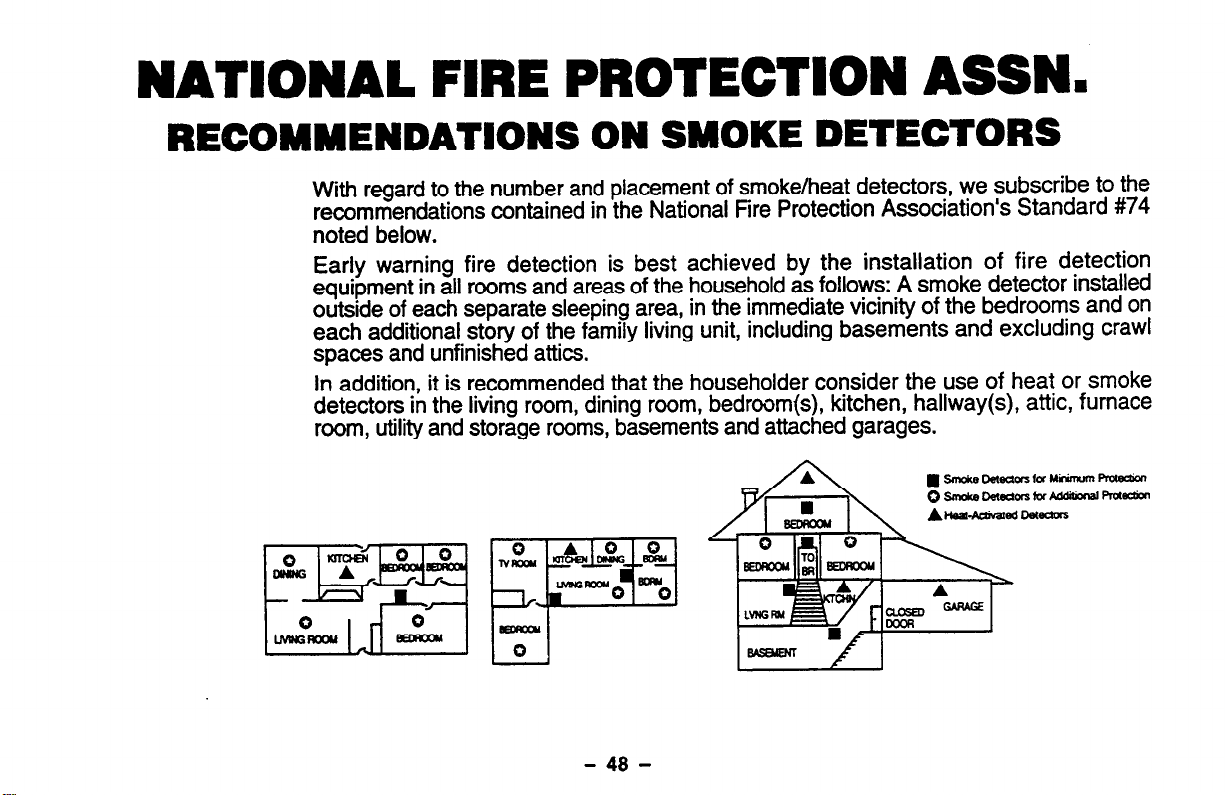

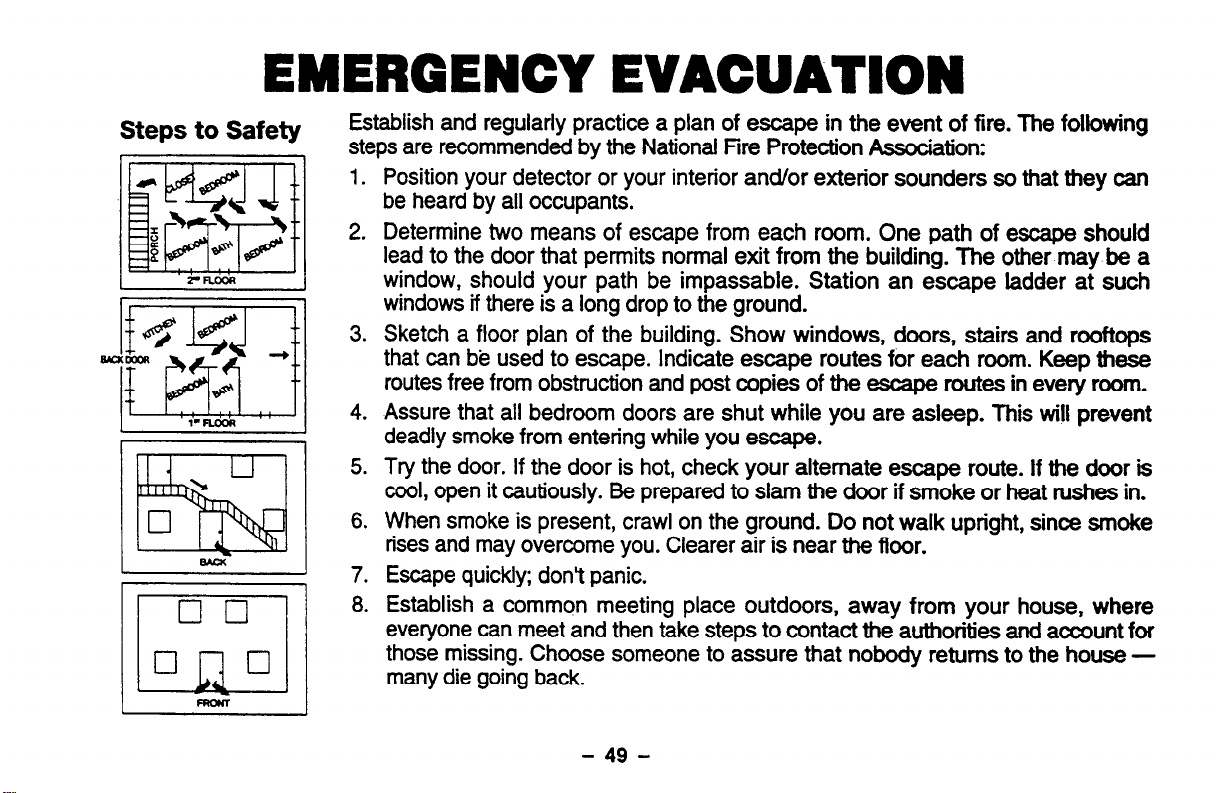

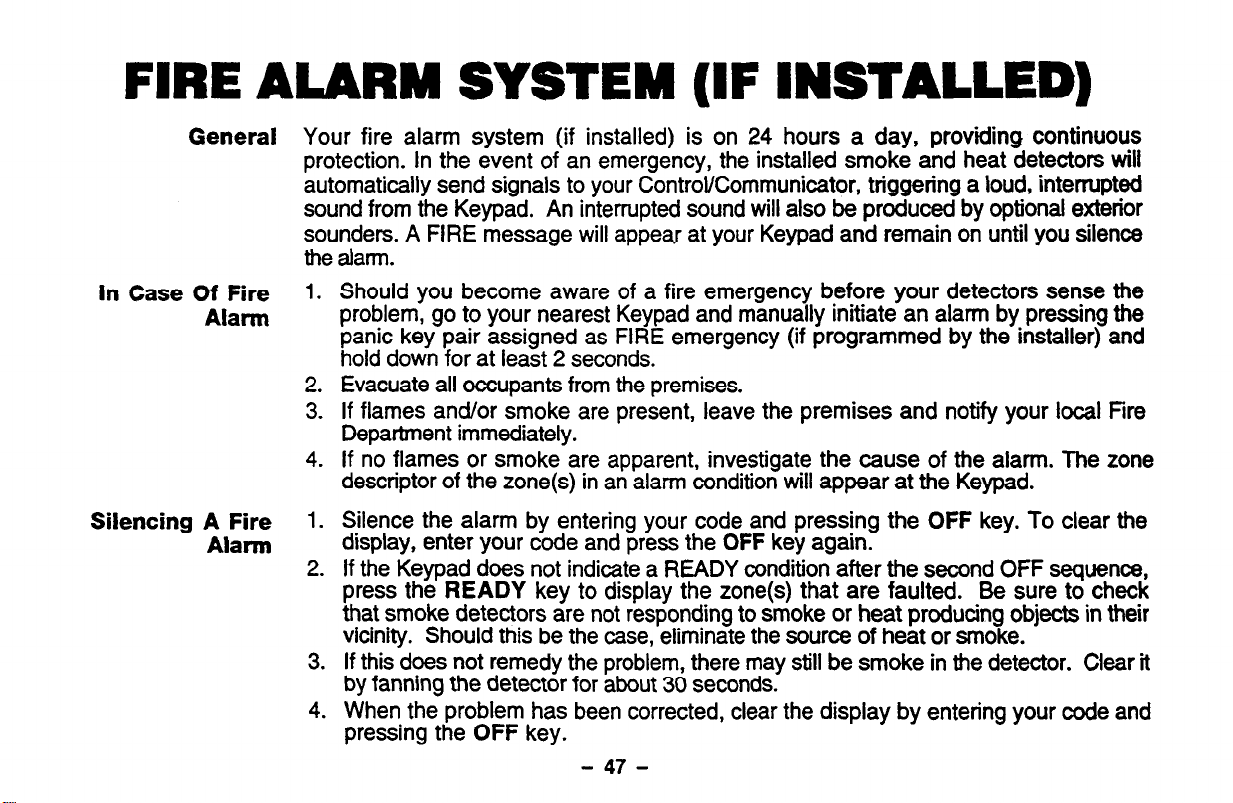

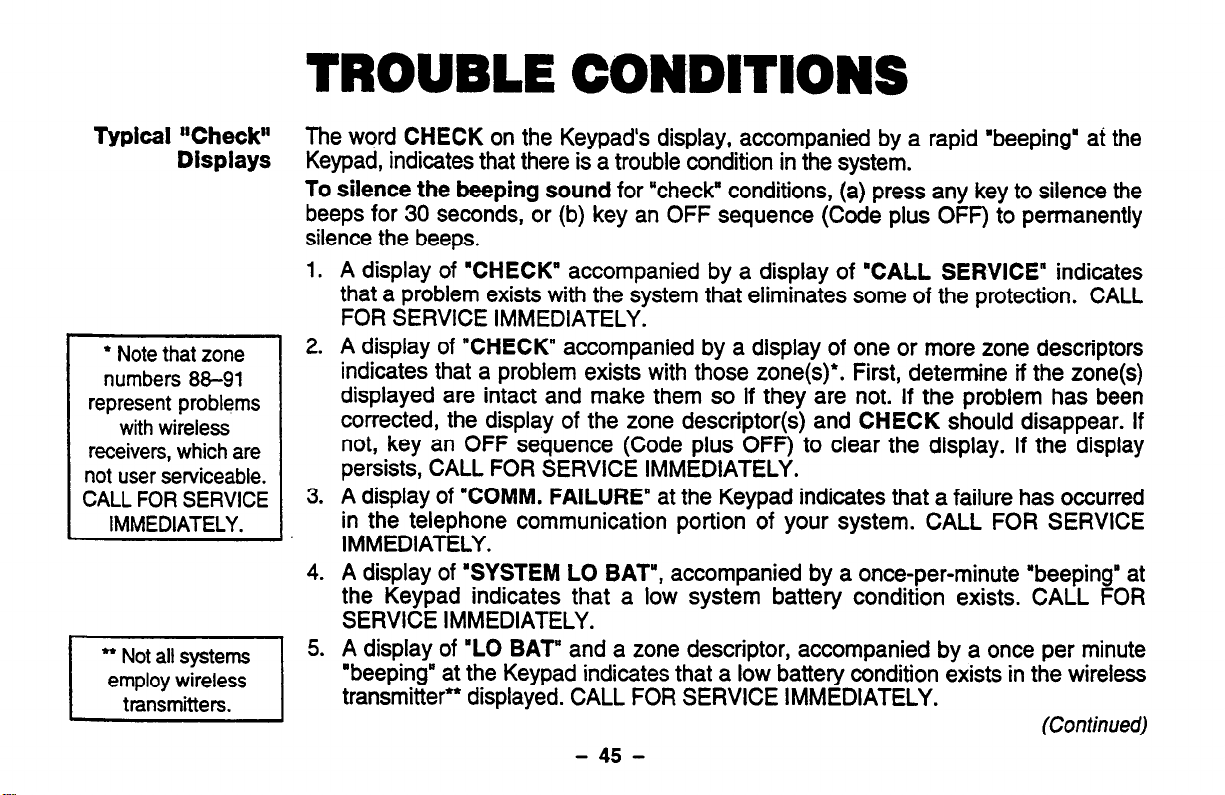

PROGRAMMING DEVlCE TlMERS TROUBLE CONDITIONS FIRE ALARM NFPA RECOMMENDATIONS EMERGENCY EVACUATION MAINTAINING YOUR SYSTEM QUICK GUIDE TO SYSTEM FUNCTIONS

SUMMARY

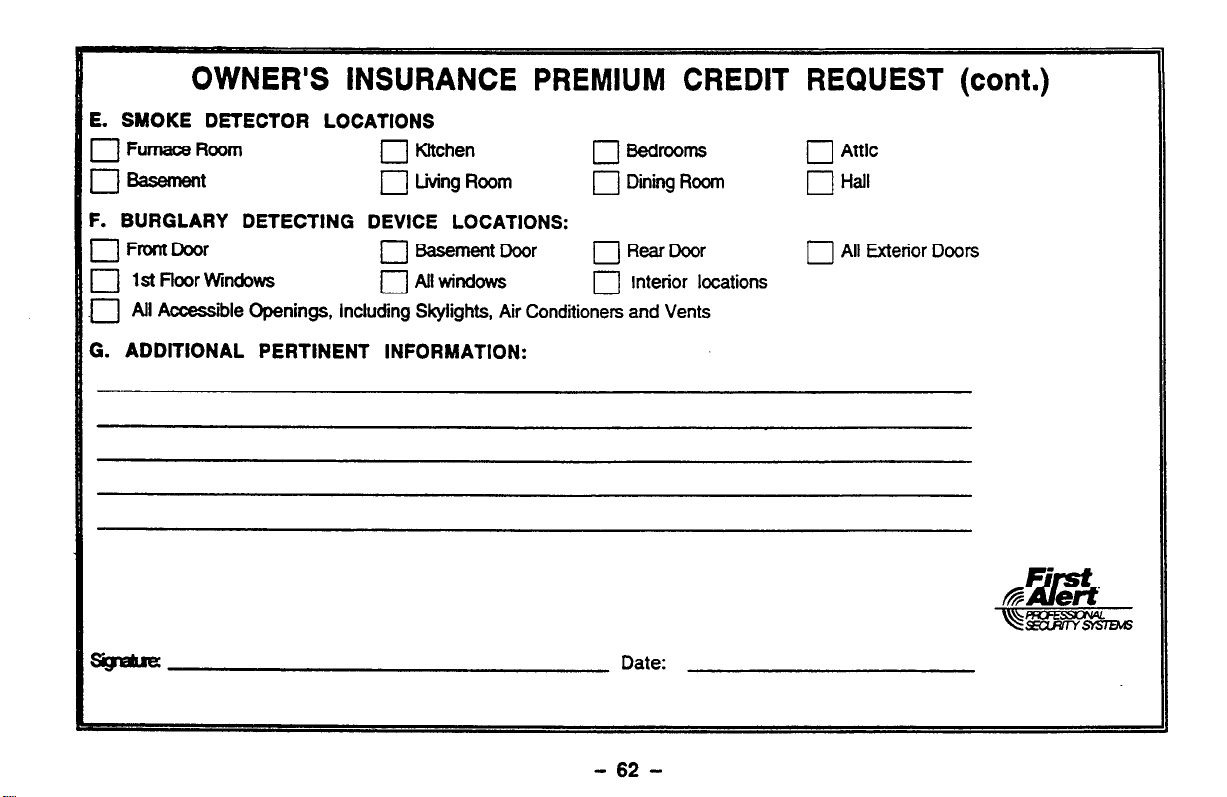

GLOSSARY INSURANCE CREDIT REQUEST FORM

CODES 8 AUTHORITY LEVELS

...................................................................

SYSTEM

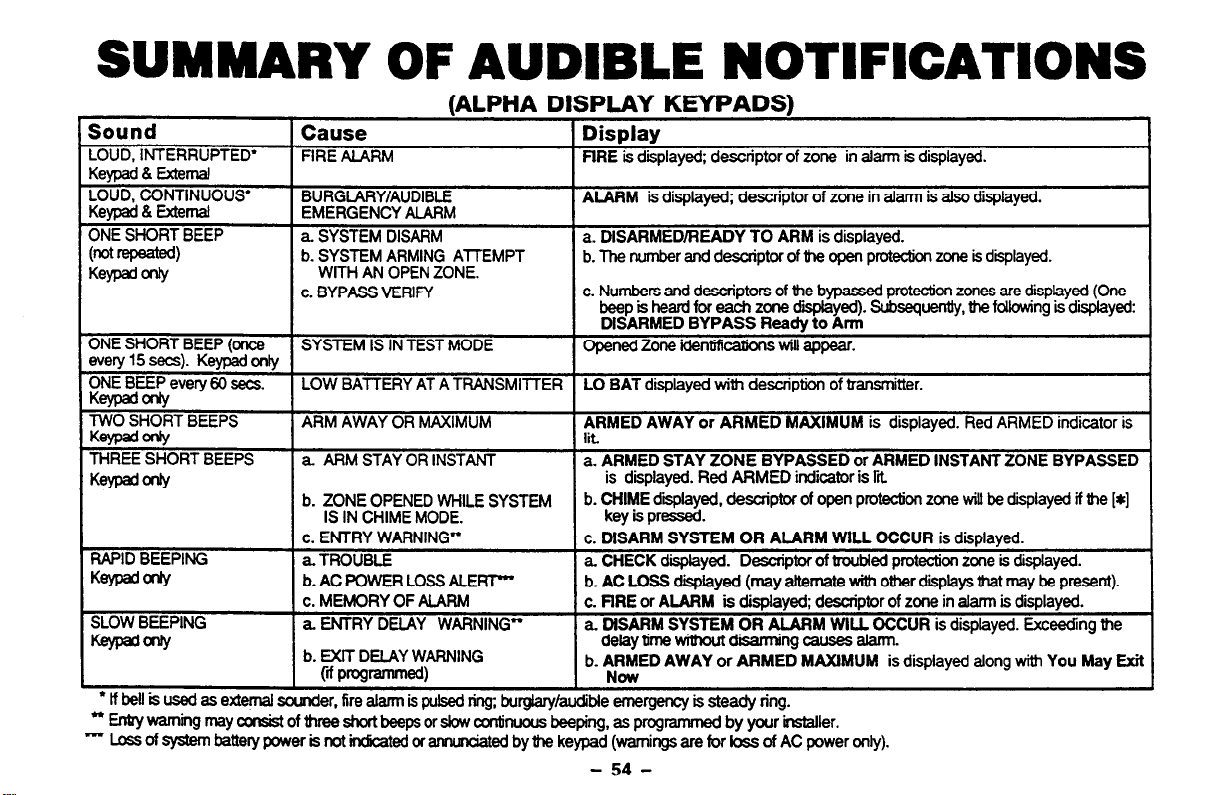

OF AUDIBLE NOTlFlCATlONS

............................................................................

.....................................................

...............................................................

Code/To

.............................................................

......................................................

..........................................................

...................................

......................

................................. 37

Delete A User..

.............................................

................................

............................. 41

...................................... 43

..............................................

...............................................

............................................

...........................

.............

.......................

............................. 61

31 32

.33

33 33 34 38

.38

39 39 40

45 47 48

.54

-3-

General

Congratulations on your ownership of a First Alert Professional Partitioned Security System. You’ve made a wise decision in choosing it, for it represents the latest in security protection technology today.

This system offers you three forms of protection: burglary, fire and emergency. Your system consists of at least one Keypad which provides full control of system operation, various sensors which provide perimeter and interior burglary protection, plus smoke or combustion detectors designed to provide early warning in case of fire.

The system uses microcomputer technology to monitor all protection zones and system status and provides appropriate information for display on the Keypad(s) used with the system, and initiates appropriate alarms. Your system may also have been programmed to automatically transmit alarm or status messages over the phone lines to a central alarm monitoring station.

A Partitioned

System independent areas of protection intended for use by independent users. For the most

Zones Your system’s sensing devices have been assigned to various “zones.” For example,

Simply stated, a partitioned system is a single physical alarm system that provides part, you as a user need not know about other users and their structure in the system,

but from time to time, you may see display messages which indicate the system is in use by another user. Do not be concerned, this is normal. Refer to the ACCESS/h/G

OTHER PARTITIONS section for additional information.

the sensing device on your Entry/Exit door may have been assigned to zone 01, sensing devices on windows in the master bedroom to zone 02, and so on. These

numbers will appear on the display, along with an alpha descriptor for that zone (if programmed), when an alarm or trouble condition occurs.

-4-

SYSTEM OVERVIEW

Burglary

Protection

Security Codes

Your system provides four modes of burglary protection: STAY, AWAY, INSTANT and MAXIMUM, and allows you to BYPASS selected zones while leaving the rest of the system armed. You must turn on or “arm” the burglary protection portion of your system before it will sense burglary alarms. The system also provides a CHIME mode, for alerting users to the opening of doors and windows while the system is disarmed. Refer to the other sections of this manual for procedures for using these features.

The following table lists the four different arming modes and the results of each.

Arming

Mode

AWAY

. STAY

INSTANT MAXIMUM

At the time of installation, you were assigned a personal four-digit security code, known only to you. You must enter the security code when arming and disarming the system, and when performing other system functions. As an additional safety feature, other users who do not have a need to know your code can be assigned different security codes. Refer to the SECURITY CODES section for procedures on adding additional security codes to the system.

Exit Delay

Yes YeS Yes YC?S Yt?S Yes No YeS No YC?!S Yt3.S

Features For Each Arming Mode

Entry Delay

Yes

Perimeter Armed

Yes Yes

Interior Armed

No No

-5-

SYSTEM OVERVIEW

Fire Protection

Alarms

Memory of

Alarm

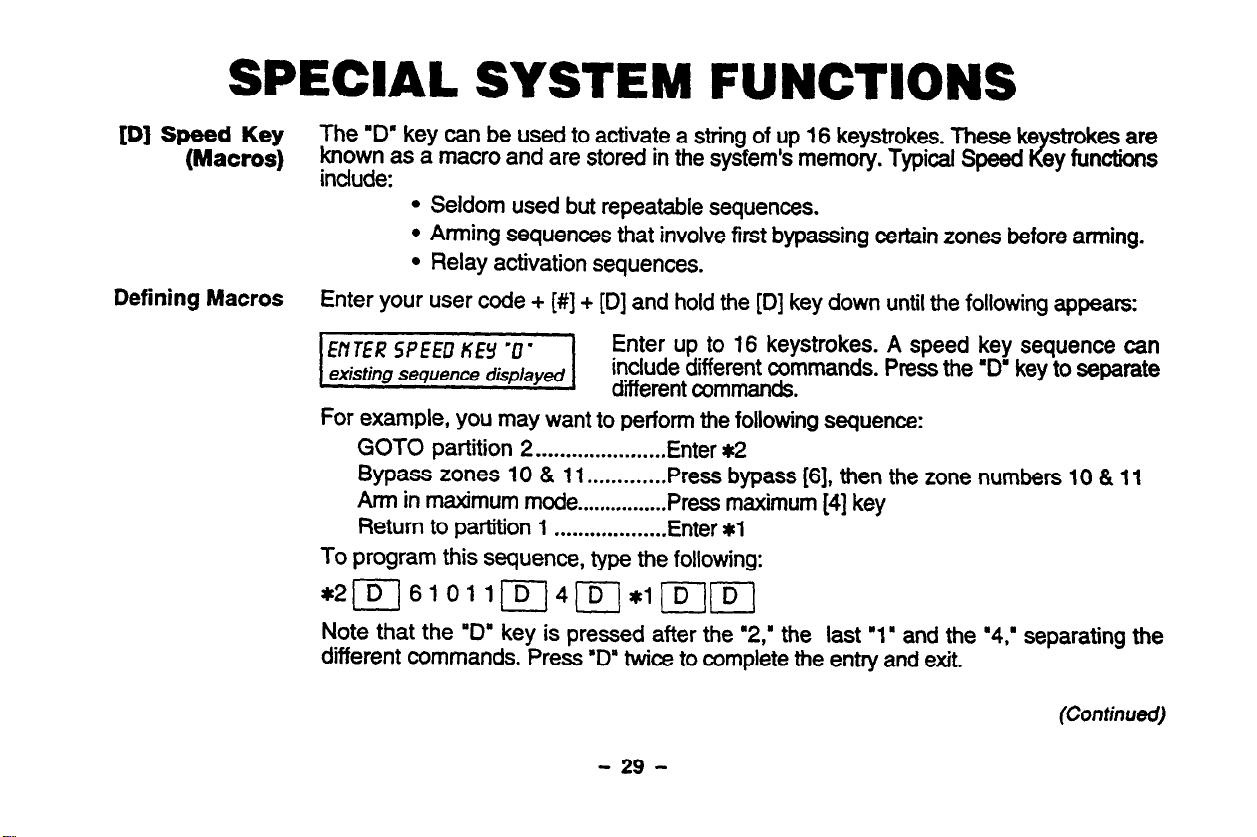

Speed Key The system can store a string of up to 16 keystrokes, which can be activated anytime

(Macros)

Using Schedules

The fire protection portion of your security system (if used) is always on and will sound an alarm if a fire condition is detected. Refer to the FlRE ALARM SYSTEM section for

important information concerning fire protection, smoke detectors and planning

emergency exit routes from the premises. When an alarm occurs, both the keypad and external sounders will sound, and the

keypad will display the zone(s) causing the alarm. If your system is connected to a central monitoring station, an alarm message will also be sent. To stop the alarm

sounding, simply disarm the system. When an alarm condition occurs, the keypad displays the number(s) of the zone(s) that

caused the problem, and displays the type of alarm (ex. FIRE, ALARM). It remains displayed until it is cleared by disarming the system (see DlSARMlNG THE SYSTEM section).

by simply pressing the D key. This feature can be used to complicated procedure (such as going to another partition to bypass a zone), or it can be used to simplify an everyday, repeated procedure. Refer to the SPEED KEY section for procedures for using this feature.

Your system may have been programmed with schedules for automatically arming,

disarming and activating various devices and/or performing other system functions at predetermined times. Users can modify some of these schedules by manually delaying a closing time, using temporary schedules, or by programming special user schedules. Refer to the US/A/G SCHEDULES section at the end of this manual for scheduling related procedures.

make

it easy to perform a

-6-

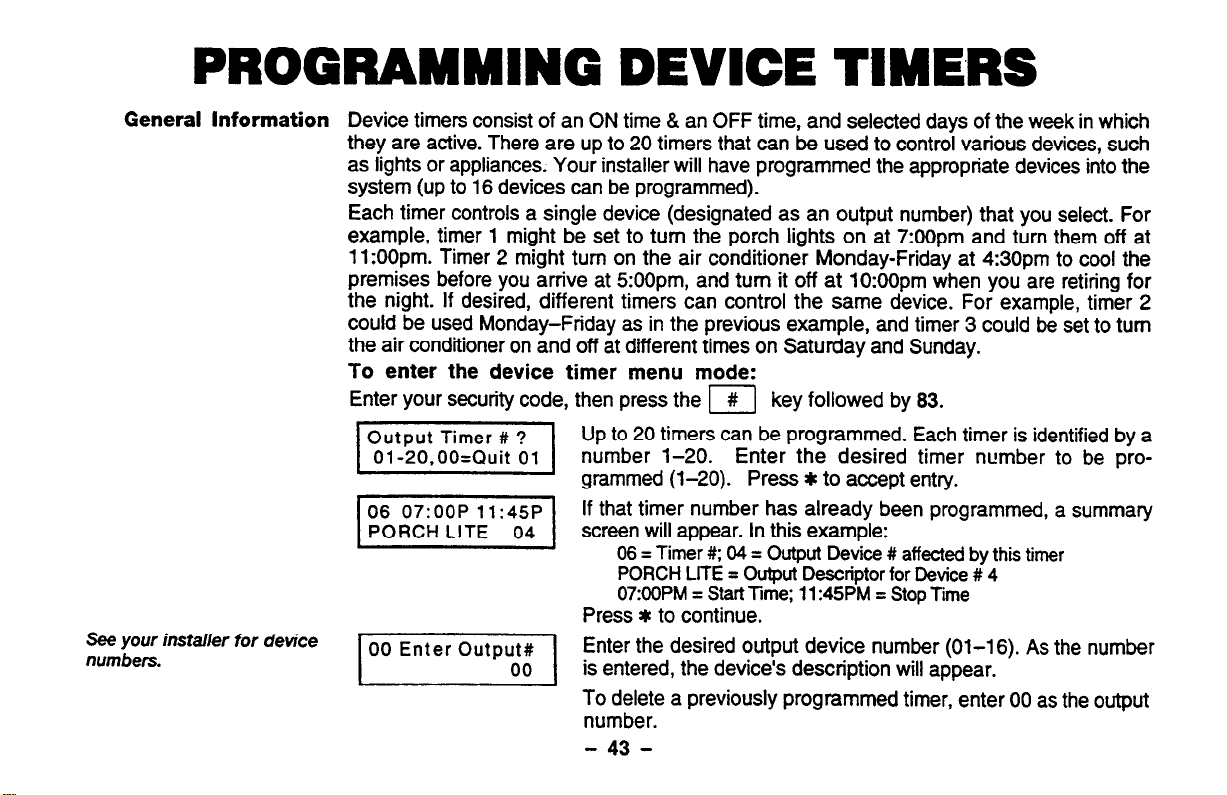

Device Timers

The system provides up to 20 “timers” which can be used to control various devices, such as lights or appliances. These timers are similar in concept to the individual appliance timers that might be purchased at a department store. The devices that can be controlled (up to 16) are programmed into the system by the installer. Refer to the

PROGRAMMING DEVICE TIMERS section for procedures.

Self-Help

Feature

Phone Access &

Voice Touch-tone phone, either on-premises or by call-in when away. The phone access Response Capability

Abbreviated user’s instructions are built into the system that can be easily viewed on the alpha keypad’s message display screen. This feature will prove particularly useful if this manual is not conveniently accessible when you need to perform a system

procedure with which you are not familiar.

To view the abbreviated instructions:

1. Simply press and hold down the function key of interest until the description starts to appear (about 5 seconds) and then release it.

Refer to FUNCTlONS Of THE KEYPAD for descriptions of each key function.

Your system may include a voice module that will permit you to access the system via a feature will enable you to do the following:

Receive synthesized voice messages over the telephone regarding the status of the security system.

Arm and disarm the system and perform most function commands via the telephone, with voice confirmation provided after each command entry.

Complete information regarding the use of this feature is provided in a separate manual entitled PHONE ACCESS USER‘S GUIDE, which accompanies the voice module.

-?-

ENTRY/EXIT DELAYS

General

Information

Your system has preset time delays, known as exit delay and entry delay. Whenever you arm your system, exit delay gives you time to leave through the designated exit door without setting off an alarm, Exit delay begins immediately after entering any am-ring command, and applies to all modes of arming protection. If programmed, a slow beeping will sound throughout the exit delay period.

Entry Delay gives you time to disarm the system when you reenter through the designated entrance door. But the system must be disarmed before the entry delay period ends, or an alarm will occur. The keypad beeps during the entry delay period, reminding you to disarm the system. There are two entry delays (if programmed). The first is for your primary entrance and the second can be used for a secondary entrance, where a longer delay is required to walk to the keypad to disarm the system.

You can also arm the system with no entry delay at all by using either INSTANT or

MAXIMUM arming modes. These modes provide greater security while on the premises

or whileaway for extended periods of time. See your installer for your delay times.

-8-

ABOUTTHEKEYPADS

General

Your keypads allow you to control all system functions. The keypads feature a telephone style (digital) keypad and a Liquid Crystal Display (LCD) which shows the

IMPORTANT: If the keypad beeps rapidly upon entering the premises, it indicates that an alarm has occurred during your absence and an intruder may still be on the premises. LEAVE

IMMEDIATELY and CONTACT THE POLICE from a nearby safe location.

nature and location of all occurrences. Keypad display back lighting is programmable to always stay on or to light only when a key is pressed, then turn off a few minutes later.

The keypads also feature a built-in sounder which will sound during alarms and troubles. It will also “beep” during certain system functions, such as during entry/exit delay times, during CHIME mode, and when depressing keys to arm and disam the system (to acknowledge the key press). These sounds can be optionally suppressed

in some of your keypads (so as not to disturb other users of the system). Ask your installer if this has been done.

There are two basic types of keypads -

a FIXED-WORD (non-Alpha) keypad and an ALPHA keypad (both described below). The keys on these keypads are located behind a flip-down cover which can be removed, if desired.

The Alpha

Keypad

Alpha keypads feature a 24ine, 32 character alphanumeric Liquid Crystal Display (LCD) which can display system messages in friendly English. Abbreviated user’s instructions can also be displayed (see Self Help paragraph in the SYSTEM OVERVlEWsection). These keypads can also be programmed with custom zone descriptors.

The Fixed-Word Fixed-Word keypads are functionally identical to alpha keypads, but the LCD display

Keypad

uses pre-designated words to identify nature and location of occurrences.

-9-

ABOUT THE KEYPADS

Fixed-Word Keypad Displays

AWAY: STAY:

INSTANT: BYPASS: NOT READY: Appears when burglary portion of the system is not BEADY:

NO AC: AC:

CHIME: BAT:

ALARM:

CHECK:

FIRE:

All burglary zones, interior & perimeter, are armed. Perimeter burglary zones, such as windows & doors, are

armed. Perimeter burglary zones armed and entry delay is

turned off. One or more burglary protection zones have been

bypassed. ready for arming (due to open protection zones).

The burglary system is ready to be armed. Appears when AC power has been cut off. System is

operating on backup battery power. Appears when AC power is present. Appears when the CHIME feature is activated.

Low battery condition in a wireless sensor (if ID number displayed) or low system battery (if no ID number displayed).

Appears when an intrusion has been detected and the system is armed (also appears during a fire alarm

or audible emergency alarm). Accompanied by the protection zone ID in alarm.

Appears when a malfunction is discovered in the system at any time or if a trouble is detected in a FIRE

zone at any time or in a DAY/NIGHT burglary zone during a disarmed period. Accompanied by a display

of zone number in trouble.

Appears when a fire alarm is present. Accompanied by a display of the zone in alarm.

- 10 -

ABOUT THE KEYPADS

FA21 OKP

Fixed-Word Keypad

FA250KP

Fixed-Word Keypad

(shown with cover removed)

- 11 -

FASSOKP

Alpha Keypad

(shown with cover removed)

FUNCTIONS OF THE KEYPADS

ALPHA DISPLAY WINDOW: A 2-line, 32-character Liquid Crystal Display (LCD). Displays protection point identification and system status, messages, and user instructions.

1 OFF/ KEY: Disarms the burglary portion of the system,

2. silences alarms and audible trouble indicators, and clears

visual alamr trouble after the problem has been corrected.

AWAY KEY: Completely arms both perimeter and

3. interior burglary protection for backup protection by

sensing an intruder’s movements through protected

interior areas as well as guarding protected doors,

windows, etc. Late arrivals can enter through an entry

delay zone without causing an alarm if the system is clii before the entry delay time expires.

STAY KM: Arms the perimeter burglary protection,

4. guarding protected doors, windows and other perimeter

protection points, and sounds an alarm if one is opened. Interior protection is not armed, which allows movement within your house without causing an alarm. Late arrivals can enter through an entry delay zone without causing an

alam if the system is disarmed before the entry delay time expires.

lMAXlMUMl KEY: Arms in manner similar to AWAY

5. mode, but eliminates the entry delay period, thus providing

maximum protection. An alarm will occur immediately upon opening any protection point, including entry delay zones.

6. 1-1 KEY: Tests the system and alarm sounder if disarmed.

7. ( BYPASS] KEY: Removes individual protection zones from being monitored by the system. Displays previously

bypassed protection zones.

8. -1 KEY: Arms in manner similar to STAY mode, but turns off the entry delay period, offering greater

security while inside and not expecting any late arrivals. An alarm will occur immediately upon opening any perimeter protection point, including entry delay zones.

9. 1 CODE1 KEY: Allows the entry of additional user codes that can be given to other users of the system.

10. -1 KEY: Turns on & off the CHIME mode. When on, any entry through a protected delay or perimeter zone

while the system is disarmed will cause a tone to sound at the Keypad(s).

11. F\ KEY: When depressed prior to arming the system, the keypad will display all open protection zones

within the keypad’s home partition. This key is also used to

display all zone descriptors that have been programmed for your system, by holding the key down for at least 5 seconds.

12. q KEY: Permits ARMING of the system without use of a security code (“Quick Am?‘, if programmed).

- 12 -

KEYS O-9: Used to enter your individual security

13. access code(s).

14.

POWER/READY INDICATOR: (GREEN) On some keypads, thii lights when primary power is on. If off, system is operating on its backup battery power. YOUR INSTAUER IMMEDIATELY. keypads, lii indicates system is ready to be amxo,

while unlit indicates system not ready.

15.

ARMED INDICATOR: (RED) Lit when the system has been armed (STAY, AWAY, INSTANT or MAXIMUM).

INTERNAL SOUNDER: Source of audible internal

16. warning and confirmation sounds, as well as alarms (see

“Summary of Audible Notifications’).

17.

A-B-C PANIC KEYS: Refer to the PANIC KEYS section for descriptions of these keys.

18.

SPEED KEY [D]: The ‘D” key can be used to activate a string of up 16 keystrokes. These keystrokes are known as a macro and are stored in the system’s memory. Refer to the SPEED KEY section f procedures for using thii key.

On other types of

L.~ .

CALL

‘or

jequentid, key 1

Note: Unless stated otherwise, most procedures in this manual apply to all keypad types and styles. Some procedures, however, are specifiicaliy intended for use by alpha keypads only (typical alpha keypad shown above).

The screen displays depicted throughout this manual are examples of typical displays that would appear on a P-line Alpha keypad.

- 13 -

Uslng the

READY Key

Before arming your system, all protected doors, windows and other protection zones must be closed or bypassed (see BYPASSING section). Otherwise the keypad will display a “Not Ready’ message. Using the READY key will display all zones that are

faulted, making it easier for you to secure any open zones. To show faulted zones:

DIsRRI1ED - PRESS

* TO SHU6lFRLll rs is readv. If not lit, the svstem is not ready to be armed.

1. Do not enter security code, but simply press

FRULT OS FROM

UPSTRIRS BEDROopl

Note: Some keypads light a green LED when the system

READY

Typical fault display

Secure or bypass the zones displayed before arming the system. The “Ready’ message will be displayedt when all

protection zones have been either closed or bypassed.

t NOTE: All or part of this message may be replaced by a customized

message programmed by the installer. Bear this in mind whenever the instructions indicate that the ‘DISARMED’ or ‘READY” message will be displayed.

- 14 -

DISPLAYING ALL ZONE DESCRIPTORS

Using the

READY Key

The Alpha Keypads can also display all the zone descriptors that are programmed in your system. The abbreviated instructions for the READY key will appear first, followed by the zone descriptors. Displaying all descriptors is useful when you need to

know the zone number of a particular zone, as when bypassing zones. The “Disarmed-Ready to arm” message must be displayed before zone

descriptors can be displayed.

READY

1. Press the

key and hold down for at least 5 seconds.

- 15 -

(With Entry Delay ON)

Using the 131

STAY key

Use this key when you are staying home, but might expect someone to use the entrance door later.

When armed in STAY mode, the system sounds an alarm if a protected door or window is opened, but you may otherwise move freely throughout the premises. Entrance can be made through the entrance door without causing an alarm, but the system must be disarmed within the entry delay period or an alarm will occur.

Close all perimeter windows and doors before arming (see CHECKING FOR OPEN ZONES section)

STAY

1. Enter your security code and press )3j. The keypad will beep three times and will display the armed

Note: “ZONE BYPASSED” in this display simply indicates

that the interior zones of protection are not armed when using

STAY mode.

ARMING PERIMETER ONLY

(With Entry Delay OFF)

Using the

7 INSTANT entrance dwr*

Key When armed in INSTANT mode, the system will sound an alarm if a protected door or

Use this key when you are staying home and do not expect anyone to use the

window is opened, but you may othennrise move freely throughout the premises. The

alarm will also sound immediately if anyone opens the entrance door.

Close all perimeter windows and doors before arming (see CHECKING FOR OPEN ZONES section)

1. Enter your security code and press

2.1 RR~~ED l I tis T#R T l The keypad will beep three times and will display the armed

INSTANT

171

message.

Note: “ZONE BYPASSED’ in this display simply indicates that the interior zones of protection are not armed when using STAY mode.

- 17 -

ARMING ALL PROTECTION

(With Entry Delay ON)

Using the

2 AWAY Key

Use this key when no one will be staying on the premises.

When armed in AWAY mode, the system will sound an alarm if a protected door or window is opened, or if any movement is detected inside the premises. You may leave through the entrance door during the exit delay period without causing an alarm. You may also reenter through the entrance door, but must disarm the system within the entry delay period or an alarm will occur.

Close all perimeter windows and doors before arming (see CHECKING FOR OPEN ZONES section)

AWAY

1. Enter your security code and press 121 . The keypad will beep twice and will display the armed

Note: The ‘YOU MAY EXIT NOW“ portion of the message disappears when the exit delay expires.

- 18 -

ARMING ALL PROTECTION

(With Entry Delay OFF)

Using the

4 MAXIMUM

Key

Use this key when the premises will be vacant for extended periods of time such as vacations, etc., or when no one will be moving through protected interior areas.

When armed in MAXIMUM mode, the system will sound an alann if a protected door or window is opened, or if any movement is detected inside the premises. You may leave through the entrance door during the exit delay period without causing an alarm, but an alarm will be sounded as soon as someone reenters.

Close all peiimeter windows and doors before arming (see CHECKING FOR OPEN ZONES section)

MAXIMUM

1. Enter your security code and press 141 . The keypad will beep twice and will display the armed

Note: The “YOU MAY EXIT NOW’ portion of the message

disappears when exit delay expires.

- 19 -

Using the

1 OFF Key

The OFF key is used to disarm the system and to silence alarm and trouble sounds.

See ‘SUMMARY OF AUDIBLE NOTIFICATION” section for information which will help

you to distinguish between FIRE and BURGLARY alarm sounds.

IMPORTANT: If you return and the main burglary sounder is on, DO NOT enter the premises, but call the police from a nearby safe location. If you return after an alarm has occurred and the main sounder has shut itself off, the keypad will beep rapidly upon entering, indicating that an alarm has occurred during your absence and an intruder may still be on the premises. LEAVE IMMEDIATELY and CONTACT THE POLICE from a

nearbv safe location. To disarm the system and silence burglary or fire alarms:

1. Enter your security code and press E. The “Ready” message will be displayed (if no alarms have

p%L-l

occurred while armed) and the keypad will beep once to confirm that the system is disarmed.

Memory of

Alarm

The keypad displays the zone number and type of alarm for any zone that has an alarm condition. These messages will remain displayed until cleared by a user. If an alarm has occurred, note the zone number displayed on the keypad and repeat step 1 above to clear the ‘Memory of Alarm” and restore the Ready message display. If the Ready message will not display, go to the displayed zone and remedy the fault (close windows, etc.). If the fault cannot be remedied, notify the alarm agency.

BYPASSING PROTECTION

ZONES

Using the 1

BYPASS Key

This key is used when you want to arm your system with one or more zones intentionally unprotected. Bypassed zones are unprotected and will not cause an alarm when violated while your system is armed. All bypasses are removed when an OFF sequence (security code plus OFF) is performed. Bypasses are also removed if the arming procedure that follows the bypass command is not successful.

Note: The system will not allow fire or emergency zones to be bypassed.

To bypass zones, the system must be disarmed first.

BYPASS

1. Enter your security code and press

2. Enter zone number(s) for the zones to be bypassed (e.g., 01,02,03, etc.). Important! All single-digit numbers must be preceded by a zero (for example,

enter 01 for zone 1).

When finished, the keypad will display the word BYPASS along with each bypassed zone number. Wait for these

Typical bypass message

4- UISRRREU BYPRSS

zones to be displayed before arming. Arming the system before bypassed zones are displayed eliminates all bypasses.

Arm the system as usual when the keypad displays the “ready to arm” message.

1 .

- 21 -

BYPASSING PROTECTION ZONES

Quick Bypass

Displaying

Bypassed Zones

Your system allows you to easily bypass all open (faulted) zones without having to enter zone numbers individually.

Note: All bypasses are removed when an OFF sequence (security code plus OFF) is

p3fO~ed.

To use the Quick Bypass feature:

BYPASS

Enter your security code and press

-1

Typical bypass message

In a few moments, all open zones will be displayed along with the word BYPASS. Wait for these zones to be displayed before arming. Arming the system before

ypassed

Arm the system as usual when the keypad displays the

)

zones are displayed eliminates all bypasses.

then press I#I .

“ready” to arm message. Bypassed zones are unprotected and will not cause an alarm when violated while your system is armed.

For determining what zones have been previously bypassed. Bypassed zones can be displayed only when system is disarmed.

BYPASS

1. Enter your security code and press

161 .

2. Wait for all bypassed zones to be sequentially displayed.

- 22 -

Using the

Key

Your system can be set to alert you to the opening of a door or window while it is disarmed by using CHIME mode. When activated, three tones will sound at the Keypad whenever a protected perimeter door or window is opened, and the Not Ready message will be displayed. Pressing the READY key will display the open protection points.

Note that Chime mode can be’activated only when the system is disarmed.

CHIME

To turn Chime Mode on, enter the security code and press

The CHIME MODE ON message will appear for about two seconds then disappear. To display this message again (to determine whether chime mode is on or off), simply press and

hold down the CHIME key for 5 seconds.

2. To turn Chime Mode off, enter the security code and press m again. The CHIME MODE OFF message will appear for about two

seconds then disappear. To display this message again (to determine whether chime mode is on or off), simply press and hold down the CHIME [*I key for 5 seconds.

CHIME

- 23 -

VIEWING

CENTRAL STATION

MESSAGES

General

Information

Users of the system may periodically receive messages on their display screens from

their monitoring agency or installer. When a message is waiting to be viewed, the

message shown below will appear.

/TESS Rt E. PRESS 0

FOR S SECS.

Press and hold down

1. The message could take up to four screens to display all the information available.

key for 5 seconds.

- 24 -

(FOR MANUALLY ACTIVATING SILENT AND/OR AUDIBLE ALARMS)

Using

Panic Keys

Your system may have been programmed to use special key combinations to manually activate panic functions. The functions that might be programmed are Silent Emergency, Audible Emergency, Personal Emergency, and Fire. See your installer for the function(s) that may have been programmed for your system.

Active Panic Functions

(your installer should note which functions

are active in your system)

A silent emergency will send a silent alarm signal to the central station, but there will be no audible alarms or visual displays.

audible emergency will send an

emergency message to the central station (if

connected) and will sound a loud, steady alarm at your keypad and

at any external

sounders that may be connected (ALARM

May not be prfsent on your keypad(s).

To Activate a Panic Function: To use a paired key panic function, simply

press both keys of the assigned pair at the same time. If your keypad(s) have lettered

keys for panic functions, press the

designated key and hold down for at least

seconds to activate the panic function.

plus a zone number

A personal emergency alarm will send an

emergency message to the central station (if

connected) and will sound at Keypads, but

not at external bells or sirens. (ALARM plus a

zone number would also be displayed)

A fire alarm will send a fire alarm message to

the central station and will uniquely sound

external bells and sirens (FIRE plus a zone

number would also be displayed).

would also be displayed).

- 25 -

USING THE KEYSWITCH

General

Arming To arm in the AWAY mode, turn the key to the

Disarming To disarm the system, turn the key to the right

Your system may be equipped with a keyswitch for use when arming and disarming. A red and green light on the keyswitch plate indicate the status of your system as follows:

Green Light: Lights when the system is disarmed and ready to be armed (no

open zones). If the system is disarmed and the green light is off, it indicates the system is not ready (one or more zones are open).

Red Light:

right for l/2 second and release. Keypads will beep twice and the red light will stay on steady.

To arm in the STAY mode, turn the key to the right and hold for longer than 3 seconds, then release. Keypads will beep three times and the red light will flash slowly.

and release. If an alarm has occurred, the red light will be flashing rapidly (memory of alarm).

tights when system is armed or memory of alarm exists.

Lit Steady: Slow Flashing: System is armed in STAY mode. Rapid Flashing: Memory of alarm, indicating an alarm has

System is armed in AWAY mode.

occurred.

P@\

TESTING THE SYSTEM

(TO BE CONDUCTED WEEKLY)

Using the

5 TEST Key

The TEST key puts your system into Test mode, which allows each protection point to be checked for proper operation.

Disarm the system and close all protected windows, doors, etc. READY should be displayed.

TEST

Enter your security code and press the The external sounder should sound for 3 seconds and then turn off.

does not sound, it may be due to dialer communication activity. Wait a few minutes and try again. If the sounder still does not sound, CALL FOR SERVICE

IMMEDIATELY.

The keypad will sound a single beep every 15 seconds as a reminder that the system is in Test mode. Each time a protection zone is faulted (opened), the keypad should beep three times. If the sounder does not sound, CALL FOR SERVICE

IMMEDIATELY.

Note that no alarm reports will be sent to the central monitoring station while

the system is in the lest mode.

151 key.

If the sounder

(Ctmtinoed)

- 27 -

TESTING THE SYSTEM

Testing Your 1. Open and close each protected door and window in turn and listen for three beeps.

System The identification of each faulted protection point should appear on the display.

2. Walk in front of any interior motion detectors (if used) and listen for three beeps as movement is detected. The identification of the detector should appear on the display when it is activated. The display will clear when no motion is detected. Note that if wireless motion detectors are used, there is a 3-minute delay between activation. This is to conserve battery life.

3. Follow the manufacturer’s instructions to test all smoke detectors to ensure that all are functioning properly. The identification of each detector (or the zone number of the zone assigned to the detector) should appear on the display when each is activated.

4. When all protection points have been checked, there should be no zone

identification numbers displayed. If a problem is experienced with any protection point (no confirming sounds, no display), CALL FOR SERVICE IMMEDIATELY.

5. Turn off Test mode by entering the security code and pressing the OFF key.

SPECIAL SYSTEM FUNCTIONS

The ‘D’ key can be used to activate a string of up 16 keystrokes. These ke strokes are

;,Wdneas a macro and are stored in the system’s memory. Typical Speed x

Seldom used but repeatable sequences.

Arming sequences that involve first bypassing certain zones before arming.

Relay activation sequences.

ey functions

Defining Macros

Enter your user code + [#] + [D] and hold the [D] key down until the following appears:

Enter up to 16 keystrokes. A speed key sequence can

Press the ‘D’ key to separate

For example, you may want to perform the following sequence:

GOT0 Bypass zones Arm in maximum mode

Return to partition 1

partition

2 . . . . . . . . . . . . . . . . . . . . . . Enter 112

10 & 11

. . . . . . . . . . . . . Press bypass [6], then the zone numbers 10 & 11

. . . . . . . . . . . . . . . . Press

. . . . . . . . . . . . . . . . . . . Enter

maximum

[4] key

To program this sequence, type the following: *2~61011~4~~l~~j

Note that the ‘D” key is pressed after the “2,” the last “1’ and the ‘4,’ separating the

different commands. Press ‘D’ twice to complete the entry and exit.

(Continued)

- 29 -

SPECIAL SYSTEM FUNCTIONS

Executing Macros

Access Door Your system may be set up such that a locked access door (such as in a lobby) can be

Control

Press and hold down (about 2 seconds) the “D” key until the following prompt appears:

Enter your user code. The defined speed key sequence

NOTE: When defining speed key sequences, do not use the [#] key to represent Quick Arming. The system uses the code entered at the prompt to initiate commands in a speed key sequence, so quick an-n is unnecessary. The system interprets the use of the [#I] key in a speed key sequence as its designated function only (usually installer functions).

unlocked using a keypad command. Ask your installer if this has been done in your

system.

To activate this relay;

1. Enter your security code and press m. The door will unlock for 2 seconds.

will begin automatically.

- 30 -

SPECIAL SYSTEM FUNCTIONS

(GOT0 Command and Global Arming)

Accessing

Another

Partition

Global Arming

Each keypad is assigned a default partition for display purposes, and will show only

that partition’s information. But, if the user is authorized, a keypad in one partition can be

used to perform system functions in other partitions by using the GOT0 command. Note

that only those partitions authorized and programmed by the installer can be accessad

in this manner.

To GOT0 another partition:

READY

Enter your security code, then press Entering partition number 0 will return the keypad to its original partition.

The keypad wilj remain in the new partition until directed to

AAAA = alpha descriptor programmed by the installer X = partition number

The Global Arming option may have been programmed for use by some users. If Global Arming was enabled for use with your security code, a keypad prompt (message) will appear after pressing one of the arming function keys (STAY, INSTANT, AWAY,

MAXIMUM, OFF). Follow the keypad prompts to continue arming the system. See your

installer for detailed instructions on the use of this feature.

If global arming does not apply to your security code, use the arming procedures described on pages 16 to 19.

+ partition number (O-8).

or until 2 minutes has elapsed with

- 31 -

SPECIAL SYSTEM FUNCTIONS

1170 Relay Menu

Mode

(USING #70 RELAY MENU MODE)

Your system may be set up so that certain lights or other devices can be turned on or off by using the #70 command from either a keypad or a telephone keypad (if voice module is used).

Ask your installer if this has been done in your system. To activate relays from a keypad, enter security code + [#] +70. Follow the prompts. To activate relays using a telephone and voice podule, first dial the 2-digit phone

access code. When the system acknowledges the access, enter 4-digit security code + [#] +

70. The following prompts/voice responses will begin.

Voice:

“ENTER DEVICE CODE NOW

Enter the 2digit number of the device to be activated. Note that if an invalid number is entered, the system will simply ask

YOU to reenter the number.

Voice:

‘voice descdptor DEVICE nn ON/OFF. FOR voice descriptorON

ENTER 1, FOR voice descriptor

Press 0 or 1 to turn the device off or on respectively. ‘nn’ represents

voice

descriptor programmed by the installer.

Voice:

‘voice descriptor DEVICE nn ON/OFF. TO EXIT ENTER 00 NOW

the 2-digit device

From a keypad, press $ to continue. The ENTER DEVICE NO. prompt will appear.

From a telephone keypad, enter 00 to exit, or enter the next

relay number to be programmed. The current on/off state of that relay will be annunciated as described above. Alternatively, if 6 seconds elapses with no key depression, the voice module will annunciate the

‘ENTER DEVICE CODE NOW” message.

- 32 -

OFF ENTER 0

number and

voice descriptor is the relay

SECURITY CODES & AUTHORITY LEVELS

General

Information

Duress Code

Quick Arming

At the time of installation, you were assigned an authority level and a personal fourdigit security code, known only to you and yours. The security code must be entered when arming and disarming the system. The authority level defines the system functions that you can perform.

As an additional safety feature, other users that do not have a need to know your code can be assigned different security codes, and each user can be given a different authority level. Users are identified by ‘user numbers’, which are assigned when assigning a user’s security code.

All codes can be used interchangeably when perfom-ring system functions within the

limits of each code’s authority level (a system armed with one user’s code can be

disarmed by another user’s code), with the exception of the Operator Level C code.

See AUTHORITY LEVELS section on the following page for detailed information regarding user authority levels,

This feature is intended for use when you are forced to disarm or arm the system under threat. When used, the system will act normally, but can silently notify the’central station

of your situation, if that service has been provided. The duress code is pre-assigned by the installer during installation (authority level 6).

important: This code is useful only when the system is connected to a central station.

Note that if ‘Quick Arming” was programmed by the installer, the m key can be

pressed in place of the security code when arming the system. The security code must always be used to disarm the system, however.

- 33 -

SECURITY CODES & AUTHORITY LEVELS

Authority Levels Authority levels define the system functions a particular user can perform. Depending on

the authority assigned to you, there are certain system functions you may be prohibited from performing. In summary, there are six authority levels, each having certain system

restrictions as shown below. Level 1 Master: Can perform all system functions in assigned partitions, and

can add, delete or change Manager and Operator level users.

Master codes are added by the Installer.

Level 2 Manager: Level 3 Operator A: Level 4 Operator B:

Level 5 Operator C:

Level 6 Duress:

To view your authority level and system capabilities:

Can perform system functions in assigned partitions, and can add, delete or change Operator level users.

Can perform system functions in assigned partitions, but cannot add or delete other users.

Same as Operator A, except Operator B cannot bypass zones of protection.

Can arm the system in assigned partitions, but cannot disarm the system unless the system was armed with this code. This code is typically assigned to someone who has a need to arm/disarm the system only at certain times (such as a baby-sitter).

Can arm and disarm the system, but also sends a silent panic alarm to the central station, if that service is connected.

1. Enteryourcode+m +/tl. The keypad will display the partition(s) that you are authorized to operate, and your

user number and authority level in each partition.

-34-

SECURITY CODES & AUTHORITY LEVELS

General Rules

on Authority

Levels and

Changes

To Exit User Edit

Mode

A user may not delete or change the user code of the SAME or HIGHER authority than which he is assigned.

A user may only ADD users to a LOWER authority level. A user may assign access codes only to those partitions to which the user adding the

code has access. (ex. a user with access to only partition 1 cannot assign codes in

partition 2.)

The only way to assign a user’s authority level is by using the ‘Add A User’

procedure. To change a users authority level, that user must first be deleted, then

added again. A user can only be DELETED or CHANGED from within the partition he is assigned.

User numbers must be entered as 2-digit entries. Single digit user numbers must be ;;;g;d by a “0” (example, 03, 04, etc.). Security codes are entered as 4-digit

Before assigning a security code, be sure it does not conflict with any DURESS code.

Note: When adding, changing or deleting users, all other alpha keypads in that partition will display “User Edit Mode Panic) at those keypads will be ignored. Panic key depressions will cause an alarm and terminate user entry.

You can exit any of the user edit modes described on the following pages at any time by doing the following:

1. Press either

or I#I , or do not press any key for 10 seconds.

Please Stand By’, and key depressions (except

SECURITY CODES & AUTHORITY LEVELS

To Add a User

IMPORTANT: Temporary users should not be shown how to use any system function they do not need to know (e.g. bypassing protection zones).

CODE

Enter Master or Manager code and press the

Enter the new user’s 2-digit User Number (01-99).

Enter 4-digit security code for that user. The following prompts will appear.

Enter 1 to add a new user code. Entering 0 will change the existing user’s code to the code entered in step 3. See Changing A User’s Code section.

Enter the authority level, l-6, for this user within this partition.

1 = master 2 = manager

This prompt will appear if a 5600 series button transmitter has been supplied and has not yet been assigned to a user.

Press 1 if a button transmitter will be assigned to this user. Othenrvise press 0.

If assigning a button transmitter, this prompt will appear. Enter the button’s zone number (see your installer for zone number).

If you have access to other partitions, the keypad will prompt for ability of this new user to access (GOTO) those partitions. Press 0 (NO) or 1 (YES). If no, the system activates this user code and exits ‘Add a User” mode. If yes, the keypad prompts for the Global Arm option for this user.

3 = operator A

4 = operator B

key.

5 = operator C

6 = duress code

- 36 -

SECURlTi CODES

& AUTHORITY LEVELS

To Add a User

(continued)

Limited Use User

(#84 Command)

Press 1 (YES) if this user will be allowed to am more than

-1

pgfq

To set the usage count for users with authority level 7, enter #84. The following prompt appears.

one partition. Press 0 if this user will arm only his assigned partition.

The keypad now prompts for the user’s access to the next partition (see GOT0 command). Again press 0 or 1. If yes, the system will automatically assign a user number for use in that partition and will prompt for the authority level and global arm option for this user within the partition.

When all partitions have been displayed, the keypad displays the partition(s) to which access has been assigned, and displays the user number, authority level and global arm option for each. The ‘G” after the authority level indicates that the global arm feature is active for this user in the dis-

played partition. The ‘+I? indicates the partition from which

this user can be changed or deleted. The “.’ at the end of the

second line indicates that thii user sends open/close reports. Open/close reporting is automatically active for any users added by you, if you have open/close reporting active.

Enter the number of times these users will have access to the system. These codes automatically expire (but the codes are not deleted) after this number of uses. To

reactivate the codes, simply enter #&I and set a new usage

limit

- 37 -

SECURITY

To Change a

User’s Code

To Delete a User

2. Enter the new code for that user.

1. Enter Master or Manager code and press the

2. Enter Master or Manager code first entered.

CODES & AUTHORITY LEVELS

CODE

Enter Master or Manager code and press the

The system will recognize that the user number is already in

pEEq

use and will ask whether or not this is a new user. change the existing user’s code to the code entered in step 3.

The system will confirm that the change is allowed based on authorization level, and if so, will put the new code into effect.

Note that if changing one’s own code, the system will prompt for the new code to be reentered. This prevents accidentally changing a high level code.

The system will recognize that the User number is already in

use and will prompt to confirm that it should be deleted. Press

O(,,Qorl (YES). If yes, that user’s code will be removed from all partitions to

which it was assigned, and all authorization levels and other information about that user will be deleted. Note that a user can only be deleted from the partition in which it was first assigned, and can only be deleted by a user with a higher authority level. A Usets security code cannot be deleted by oneself.

key + user number to be changed.

CODE

181 key + User Number to be deleted.

Enter 0 to

Delaying the Closing Your system’s programmed schedules may automatically arm the system at a

Time predetermined time. In the event a user must stay on the premises later than usual,

users with master or manager authority levels can manually delay the automatic arming (dosing) time up to 2 hours.

To delay the closing time

1. Enter your security code (master or manager authority levels only).

2. Press the B key, followed by 82.

3. A menu prompt will be displayed, asking for the number of hours of delay.

-1

Enter the desired number of hours of delay, 1 or 2. The system will automatically exit this mode after entry.

Note that the delay is from the scheduled closing time, not from the time the

command is entered.

Important: The selected delay cannot be reduced once it is set. A l-hour

delay can be increased to 2 hours, though.

4. The system will automatically send a message to the central station informing them that the programmed schedule has been changed.

- 39 -

Temporary

Open/Close

Schedules

Temporary schedules allow you to override the normal schedules programmed by the installer. Temporary schedules can be in effect for up to one week, and take effect as soon as they are programmed.

Schedules are comprised of an arming (closing) time window and a disarming (opening) time window. A time window is simply a defined period of time, at the end of which arming or disarming will occur.

Before programming a temporary schedule, use a worksheet similar to the one below

to plan your schedule. This will make it easier when actually programming the

schedule.

StopTune HH:MM

- 40 -

I I I

USING SCHEDULES

Temporary

Programming

Schedules schedules can be reused at later dates simply by scrolling (by pressing #) to the

Temporary schedules only affect the partition from which it is entered. Temporary DAYS? prompt (described below) and activating the appropriate days. This should

be considered when defining daily time windows. Note that only users with authority level of manager or higher can program temporary schedules.

To program temporary schedules:

Enter your security code.

1. Press the

2. The following prompts will appear.

key followed by 81.

The cursor will be positioned on the tens of hours digit of the start time for Monday’s disarm window. Enter the

desired hour. Press l to move to the minutes field. The minutes are entered in the same manner. The AM/PM indication is changed by hitting any key, O-9, while the cursor is under the letter A/P position. Repeat for the stop trme entry. Press the l key to move to the arming window for Monday.

Press # to move to the next screen display without making changes.

The cursor will be positioned on the tens of hours digit of the start time for the arm window. Repeat the previous

swt;ro; enter the start and stop time for Monday’s arming

- 41 -

USING SCHEDULES

After the windows for that day have been completed, the system will prompt for disarm and arm time windows for the next day. Repeat the procedure for all days of the week. When all of the days have been completed, the system will ask which days are to be activated.

This is the prompt that actually activates the temporary schedule, and allows the temporary schedule to be customized to a particular weeks needs. To select the days which are to be activated, enter the desired number

l-7 (Monday = 1). An ‘X” will appear under that day, indicating the previously entered schedule for that day is active. Entering a day’s number again will deactivate that day. Pressing 0 will turn all days on/off.

The temporary schedule will only be in effect for the days which have the letter X underneath them. As the week

progresses, the days are reset to the deactive state. When completed, press * to exit the temporary schedule

entry mode.

General Information Device timers consist of an ON time & an OFF time, and selected days of the week in which

they are active. There are up to 20 timers that can be used to control various devices, such

as lights or appliances. Your installer will have programmed the appropriate devices into the system (up to 16 devices can be programmed).

Each timer controls a single device (designated as an output number) that you select. For example, timer 1 might be set to turn the porch lights on at 7:OOpm and turn them off at 11:OOpm. Timer 2 might turn on the air conditioner Monday-Friday at 4:30pm to cool the premises before you arrive at 5:00pm, and turn it off at 1O:OOpm when you are retiring for

the night. If desired, different timers can control the same device. For example, timer 2

could be used Monday-Friday as in the previous example, and timer 3 could be set to turn the air conditioner on and off at different times on Saturday and Sunday.

To enter the device timer menu mode:

Enter your security code, then press the [#I

key followed by 83.

Up to 20 timers can be programmed. Each timer is identified by a number l-20. Enter the desired timer number to be programmed (l-20).

Press * to accept entry.

If that timer number has already been programmed, a summary screen will appear. In this example:

06 = Timer #; 04 = Output Device # affected by this timer PORCH LITE = Output Descriptor for Device # 4 07:00PM = Start Time; 11:45PM = Stop Time

Press * to continue.

See your installer for device numbers.

Enter the desired output device number (01-l 6). As the number is entered, the device’s description will appear.

To delete a previously programmed timer, enter 00 as the output

number.

- 43 -

PROGRAMMING DEVICE TIMERS

Enter the time you want the device turned on using 0O:Ol 1159 format. When the display shows the desired time, press the * key to move to the AM/PM field. Press any key O-9 to change the AM/PM indication.

Enter 0O:OO if this timer is not being used to turn something ON for the days selected below. (ex. using one timer to turn lights on one day and using another timer to turn them off on another day).

Enter the time you want the device turned off using 0O:Ol -

1159 format. When the display shows the desired time, press the $ key to move to the AM/PM field. Press any key O-9 to change the AM/PM indication.

Enter 0O:OO if this timer is not being used to turn something OFF for the days selected below. (ex. using one timer to turn lights on one day and using another timer to turn them off on another day).

Select the days on which the device is to be activated by entering l-7 (Monday =l). An ‘x” will appear under that day, indicating the output for that day is active. Entering a day’s number again will deactivate that day. Pressing 0 will turn all days on/off. The outputs will only be in effect for the days which have the letter x

underneath them. As the week progresses, the selected days are reset to the deactive state, unless the permanent option is selected (next screen prompt). When completed, press $ to continue.

00 Permanent ?

O=NO,l =YESO

Answering 1 (yes) means the system will continue executing this timer on a continuous basis. An answer of 0 means execute each

day’s output only once.

- 44 -

TROUBLE CONDITIONS

Typical “Check”

Displays

Note that zone

numbers 88-91

represent problems

with wireless

receivers, which are not user serviceable. CALL FOR SERVICE

IMMEDIATELY.

M Not all systems

employ wireless

transmitters.

The word CHECK on the Keypad’s display, accompanied by a rapid ‘beeping’ at the

Keypad, indicates that there is a trouble condition in the system.

To silence the beeping sound for “check” conditions, (a) press any key to silence the

beeps for 30 seconds, or (b) key an OFF sequence (Code plus OFF) to permanently silence the beeps.

A display of “CHECK” accompanied by a display of “CALL SERVICE” indicates that a problem exists with the system that eliminates some of the protection. CALL

FOR SERVICE IMMEDIATELY.

A display of “CHECK” accompanied by a display of one or more zone descriptors

indicates that a problem exists with those zone(s)*. First, determine if the zone(s) displayed are intact and make them so if they are not. If the problem has been corrected, the display of the zone descriptor(s) and CHECK should disappear. If not, key an OFF sequence (Code plus OFF) to clear the display. If the display persists, CALL FOR SERVICE IMMEDIATELY.

A display of “COMM. FAILURE” at the Keypad indicates that a failure has occuned in the telephone communication portion of your system. CALL FOR SERVICE IMMEDIATELY.

A display of “SYSTEM LO BAT”, accompanied by a once-per-minute “beeping” at the Keypad indicates that a low system battery condition exists. CALL FOR SERVICE IMMEDIATELY.

A display of “LO BAT” and a zone descriptor, accompanied by a once per minute

“beeping” at the Keypad indicates that a low battery condition exists in the wireless

transmitter** displayed. CALL FOR SERVICE IMMEDIATELY.

(Continued)

- 45 -

TROUBLE CONDITIONS

A display of “MODEM COMM” indicates that the control is on-line with the central station’s remote computer. The control will not operate while on-line.

Power Failure

Non-Alpha

Keypad Displays

If the POWER indicator is off, operating power is not present and the system is inoperative. CALL FOR SERVICE IMMEDIATELY. If the POWER indicator is on, but

the message ‘AC LOSS” is displayed, the system is operating on battery power only.

If only some lights are out on the premises, check circuit breakers and fuses and reset or replace as necessary. CALL FOR SERVICE IMMEDIATELY if AC power cannot be restored.

The following displays will appear on non-alpha keypads when the associated trouble

condition (previously described) is present. 97 = CALL SERVICE

FC = COMM FAILURE

BAT = SYSTEM LO BAT

CC = MODEM COMM NO AC = AC LOSS

Your local Ademco dealer

some kind of regular service program with him is advisable. Your local Ademco dealer is:

Phone:

(if no zone number) or LO BAT (if zone number shows)

SERVICING INFORMATION

is the person best qualified to service your alarm system. Arranging

- 46 -

FIRE ALARM SYSTEM (IF INSTALLED)

General Your fire alarm system (if installed) is on 24 hours a day, providing continuous

protection. In the event of an emergency, the installed smoke and heat detectors will automatically send signals to your Control/Communicator, triggering a loud, interrupted sound from the Keypad. An interrupted sound will also be produced by optional exterior sounders. A FIRE message will appear at your Keypad and remain on until you silence the alarm.

In Case Of Fire 1.

Alarm

Silencing A Fire 1.

Alam

Should you become aware of a fire emergency before your detectors sense the problem, go to your nearest Keypad and manually initiate an alarm by pressing the panic key pair assigned as FIRE emergency (if programmed by the installer) and

hold down for at least 2 seconds. Evacuate all occupants from the premises. If flames and/or smoke are present, leave the premises and notify your local Fire

Department immediately. If no flames or smoke are apparent, investigate the cause of the alarm. The zone

descriptor of the zone(s) in an alarm condition will appear at the Keypad. Silence the alarm by entering your code and pressing the OFF key. To clear the

display, enter your code and press the OFF key again.

If the Keypad does not indicate a READY condition after the second OFF sequence, press the READY key to display the zone(s) that are faulted. Be sure to check

that smoke detectors are not responding to smoke or heat producing objects in their

vicinity. Should this be the case, eliminate the source of heat or smoke.

If this does not remedy the problem, there may still be smoke in the detector. Clear it

by fanning the detector for about 30 seconds. When the problem has been corrected, clear the display by entering your code and

pressing the OFF key.

- 47 -

NATIONAL FIRE PROTECTION ASSN.

RECOMMENDATIONS ON SMOKE DETECTORS

With regard to the number and placement of smoke/heat detectors, we subscribe to the recommendations contained in the National Fire Protection Association’s Standard #74 noted below.

Early warning fire detection is best achieved by the installation of fire detection equipment in all rooms and areas of the household as follows: A smoke detector installed outside of each separate sleeping area, in the immediate vicinity of the bedrooms and on each additional story of the family living unit, including basements and excluding crawl spaces and unfinished attics.

In addition, it is recommended that the householder consider the use of heat or smoke

detectors in the living room, dining room, bedroom(s), kitchen, hallway(s), attic, furnace

room, utility and storage rooms, basements and attached garages.

Steps to Safety

clcl

cl Cl

liiiJl

Establish and regularly practice a plan of escape in the event of fire. The following steps are recommended by the National Fire Protection Association:

Position your detector or your interior and/or exterior sounders so that they can

be heard by all occupants.

Determine two means of escape from each room. One path of escape should lead to the door that permits normal exit from the building. The other may be a window, should your path be impassable. Station an escape Ladder at such windows if there is a long drop to the ground.

Sketch a floor plan of the building. Show windows, doors, stairs and rooftops that can be used to escape. Indicate escape routes for each room. Keep these

routes free from obstruction and post copies of the escape routes in every room.

Assure that all bedroom doors are shut while you are asleep. This will prevent deadly smoke from entering while you escape.

Try the door. If the door is hot, check your alternate escape route. If the door is

cool, open it cautiously. Se prepared to slam the door if smoke or heat rushes in.

When smoke is present, crawl on the ground. Do not walk upright, since smoke

rises and may overcome you. Clearer air is near the floor.

Escape quickly; don’t panic.

Establish a common meeting place outdoors, away from your house, where everyone can meet and then take steps to contact the authorities and account for

those missing. Choose someone to assure that nobody returns to the house -

many die going back.

- 49 -

MAINTAINING

Taking Care of

Your System

Replacing

Batteries in

Wireless

Sensors

Wireless sensors

may not have been

used in your

secwit~ system

YOUR SYSTEM

The components of your security system are designed to be as free of maintenance as possible. However, there are some things you can do to make sure that your system is in reliable working condition.

1. Test your system weekly.

2. Test the system after any alarm occurs (see Each wireless sensor in your system has a battery. The system detects a low battery

in any wireless sensor, including smoke detectors, the optional personal emergency

transmitter, and the optional portable wireless keypad. (A low battery in a portable

wireless keypad is detected as soon as one of its keys is pressed, and the keypad will display 00.)

Alkaline batteries provide a minimum of 1 year of operation, and in most units and applications, provide 2-4 years of service. Actual battery life will depend on the environment in which the sensor is used, the number of signals that the transmitter in the sensor has had to send, and the specific type of sensor. Factors such as humidity, high or low temperatures or large swings in temperature, may all lead to the reduction of actual battery life in an installation.

if you have a low battery in a wireless sensor, a low battery message is displayed on the keypad.

In addition, a battery-operated smoke detector with a low battery also emits a single

‘chirp” sound once approximately every 20-30 seconds, identifying itself as the smoke detector with the weak battery. If you do not replace a smoke detector’s low battery, the smoke detector may sound continuously, as if there were a fire alarm.

Note:

The low battery sensor(s) is due within indication is still fully operational.

important: Use only batteries recommended by your installer as replacement.

message comes on as a warning

days. In the meantime, the sensor(s) causing the low battery

- 50 -

TESTING THE SYSTEM).

that battery replacement in indicated

MAINTAINING YOUR SYSTEM

Silencing Low The keypad’s warning tones can be silenced by performing an OFF sequence (code

Battery Warning plus OFF key), but the Keypad’s low battery message display will remain on as a

Tones at the

Keypad

reminder that you have a low battery condition in one or more of your sensors. When you replace the weak battery with a fresh one, the sensor will send a ‘good battery” signal to the control as soon as the sensor is activated (opening/closing of door, window, etc.), causing the low battery display to turn off. If the sensor is not activated, the display will automatically clear within approximately 1 hour.

Routine Care

Treat the components of your security system as you would any other electrical

equipment. Do not slam sensor-protected doors or windows.

Keep dust from accumulating on the keypad and all protective sensors, particularly on

motion sensors and smoke detectors.

The keypad and sensors should be cleaned carefully with a dry soft cloth. Do not

spray water or any other fluid on the units.

- 51 -

QUICK GUIDE TO SYSTEM FUNCTIONS

Function

Check Zones

Display All Descriptors

Arm System

Disarm System Bypass zones

Quick Bypass

Chime Mode Test Mode

Press TEST [5] View Messages View User

Capabilities

Limited Use User

Procedure

Press [*] Press and hold [$] for 5 seconds

Enter code Press arming key desired (AWAY, STAY, INSTANT, MAXIMUM

Enter code Press OFF [I]

Enter code Press BYPASS [6] Enter zone numbers to be bypassed (use 2-digit entries)

Enter code Press BYPASS [S]

Enter code Press CHIME [9]

Enter code Press and hold [0] for at least 5 sets.

Enter users code Press [*] + [*]

Enter your code + [#] + 64. Enter the number of uses 01-l 5.

Comments

To view faulted zones when system not ready.

Displays all alpha descriptors programmed by installer.

Arms system in mode selected.

Disarms system and silences alarms. Bypassed zones are unprotected and will not cause an

alarm if violated.

Bypasses all faulted zones automatically.

Keypad will sound if doors or windows are violated while the system disarmed.

Sounds alarm sounder and allows sensors to be tested. Message from central station will appear.

Displays partitions & authority levels assigned to the user.

Master or manager level codes only.

- 52 -

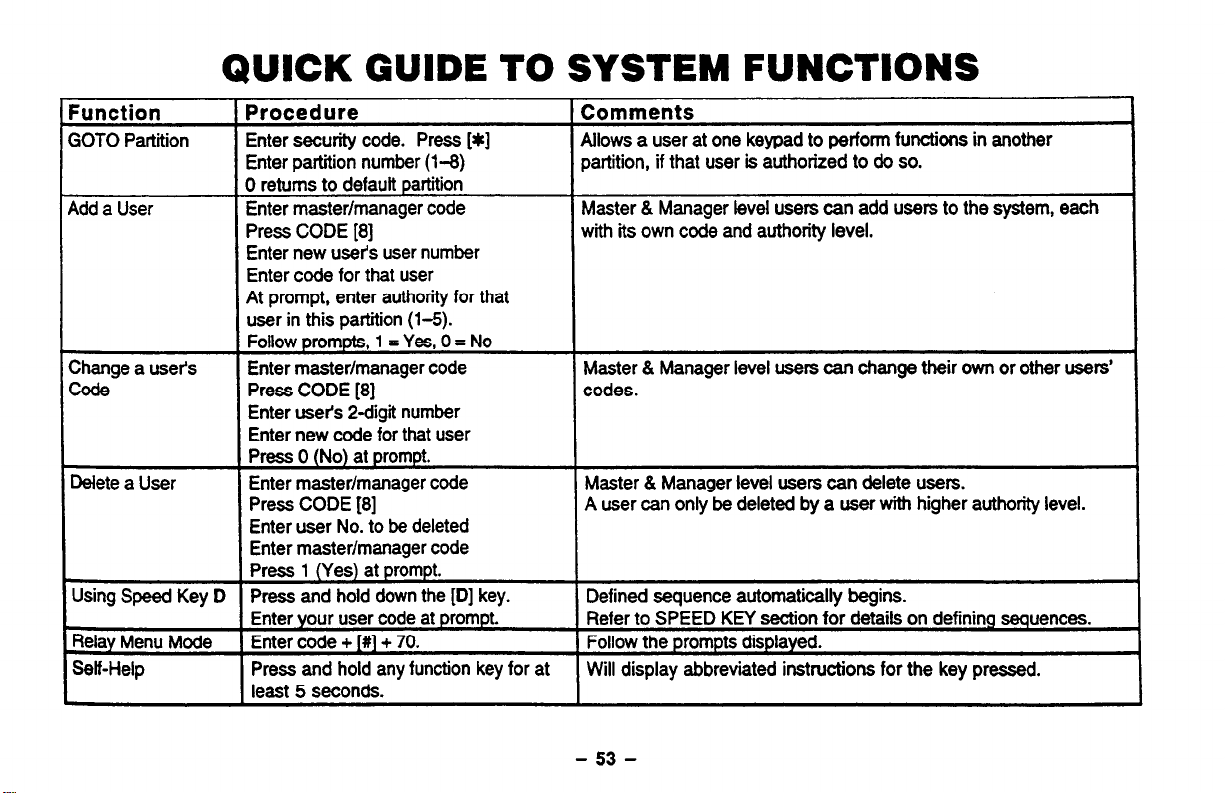

QUICK GUIDE TO SYSTEM FUNCTlONS

Function

GOT0 Partition

Add a User

Change a users

Delete a User

Using Speed Key Relay Menu Mode

Self-Help

Procedure

Enter security code. Press [*I Allows a user at one keypad to perform functions in another Enter partition number (l-8) 0 returns to defautt partition Enter master/manager code Press CODE [8] Enter new users user number Enter code for that user At prompt, enter authority for that user in this partition (l-5).

Follow prompts, 1 = Yes, 0 = No Enter master/manager code

Press CODE (81 Enter user’s 2-digit number Enter new code for that user Press 0 (No) at prompt.

Enter master/manager code Press CODE [8] Enter user No. to be deleted Enter master/manager code Press 1 (Yes) at prompt.

Press and hold down the

Enter your user code at prompt. Enter code + I#] + 70.

Press and hold any function key for at least 5 seconds.

[D]

key.

Comments

partition, if that user is authorized to do so. Master 8 Manager level users can add users to the system, each

with its own code and authority level.

Master 8 Manager level users can change their own or other users’ codes.

Master 8 Manager level users can delete users.

A user can only be deleted by a user wfth higher authority level.

Defined sequence automatically begins. Refer to SPEED KEY section for details on defining sequences.

Follow the prompts displayed. Will display abbreviated instructions for the key pressed.

- 53 -

SUMMARY OF AUDIBLE NOTIFICATIONS

(ALPHA DISPLAY KEYPADS)

,---- _--- --_- ___ ----- --~ -

Sound

LOUD, INTERRUPTED FIRE ALARM FIRE is displayed; descriptor of zone in alarm is displayed. Keypad8 Extamal

LOUD, CONTINUOUS Keypad& External

ONE SHORT BEEP a SYSTEM DISARM

(not repeated) Keypad W

ONE SHORT BEEP (once SYSTEM IS IN TEST MODE

every 15 sets). Keypad only ONE BEEP

Keypad* TWO SHORT BEEPS ARM AWAY OR MAXIMUM Keypadady THREE SHORT BEEPS

KeypadW

RAPID BEEPING Keypadanly

SLOW BEEPING Keypadady

.YL^lli..^^A ---. *_--I--.-2-_

* m Warning my wfdst of three short beeps or sbw continuous beeping, as prqammad by your installer.

“Lossofsystemba~rypowerisnd~~oramunciatedbythekeypad(wamingsareforlossofACpoweronly).

every 60 sets.

I~LR2”DL%.UUaS~XU3IlWl

Cause

BURGLARY/AUDIBLE

EMERGENCY ALARM

b. SYSTEM ARMING AlTEMPT b. The number and descriptor of the open pfx%cth zone is diilayed.

WlTH AN OPEN ZONE.

c. BYPASS VERIFY

LOW BATTERY AT A TRANSMITTER

a ARM STAY OR INSTANT a. ARMED STAY ZONE BYPASSED or ARMED INSTANT ZONE BYPASSED

b. ZONE OPENED WHILE SYSTEM

IS IN CHIME MODE.

c. ENTRY WARNING” c. DISARM SYSTEM OR ALARM WILL OCCUR is displayed.

a TROUBLE

b. AC POWER LOSS ALERT-

c. MEMORY OF ALARM c. FIRE or ALARM

a ENTRY DELAY WARNING”

b. EXlT DELAY WARNING

c Prog=Jnmed)

-er, nre aarm IS pusea ring; curgarymuolue emergency IS sreaay nng.

e-- -I--.-- 1--_1L--~L --I-- ,- A.L.. ~------- .- -*--1 2--

Display

ALARM a. DISARMED/READY TO ARM is displayed.

c. Numbers and descriptors of the bypassed protection zones are displayed (One

Opened Zone identificaths will appear. LO BAT displayed with descripth of transmitter. FIRMED AWAY or ARMED MAXIMUM is displayed. Red ARMED indicator is

b. CgllEp~~ed, descriptor of open protection zone will be displayed if the [*I

a CHECK d&played.

b. AC LOSS displayed (may alternate with other displays that may be present).

a DISARM SYSTEM OR ALARM WILL OCCUR is displayed. Exceeding the

b. \RiED AWAY or ARMED MAXIMUM

is displayed; descriptor of zone in alarm is also displayed.

beep is heard for each zone displayed). SubsequenUy, the fdlowing is diiyad:

DISARMED BYPASS Ready to Arm

is displayed. Red ARMED indicator is iii

Descriptor of buubled protection zone is displayed.

is displayed; dascriptor of zone in alarm is displayed.

delay time wilhout ding causes alarm.

- 54 -

is displayed along with You May ExiI

GLOSSARY

The following terms are used throughout the manual.

ARM/DISARM:

KEYPAD: This is the area on your Keypad containing numbered pushbuttons similar to those on

ZONE: A specific area of protection.

PARTITION: An independent group of zones that can be armed and disarmed without affecting other

BYPASS: To disarm a specific area of burglary protection while leaving other areas operational.

DELAY ZONE: An area of protection containing doors most frequently used to enter or exit (typically, a

DAY/NIGHT ZONE: An area of protection whose violation causes a trouble indication during the disarmed

“Armed” simply means that the burglary portion of your system is turned ON

state of readiness. “Disarmed” means that the burglary system is turned OFF, and

be rearmed to become operational. However, even in a ‘disarmed” state, ‘emergency’

and “fire’ portions of your system are still operational.

telephones or calculators. These keys control the arming or disarming of the system, and

perform other functions which were previously described in this manual.

zones or users.

front door, back door, or door from the garage into the building). The delay zone allows

sufficient time for authorized entry or exit without causing an alarm. Consult your installer

for the entry and exit delay times that have been set for your system during installation

and record them on the separate sheet provided in this manual.

(DAY) mode and an alarm during the armed (NIGHT) mode.

and

is in a

must

- 55 -

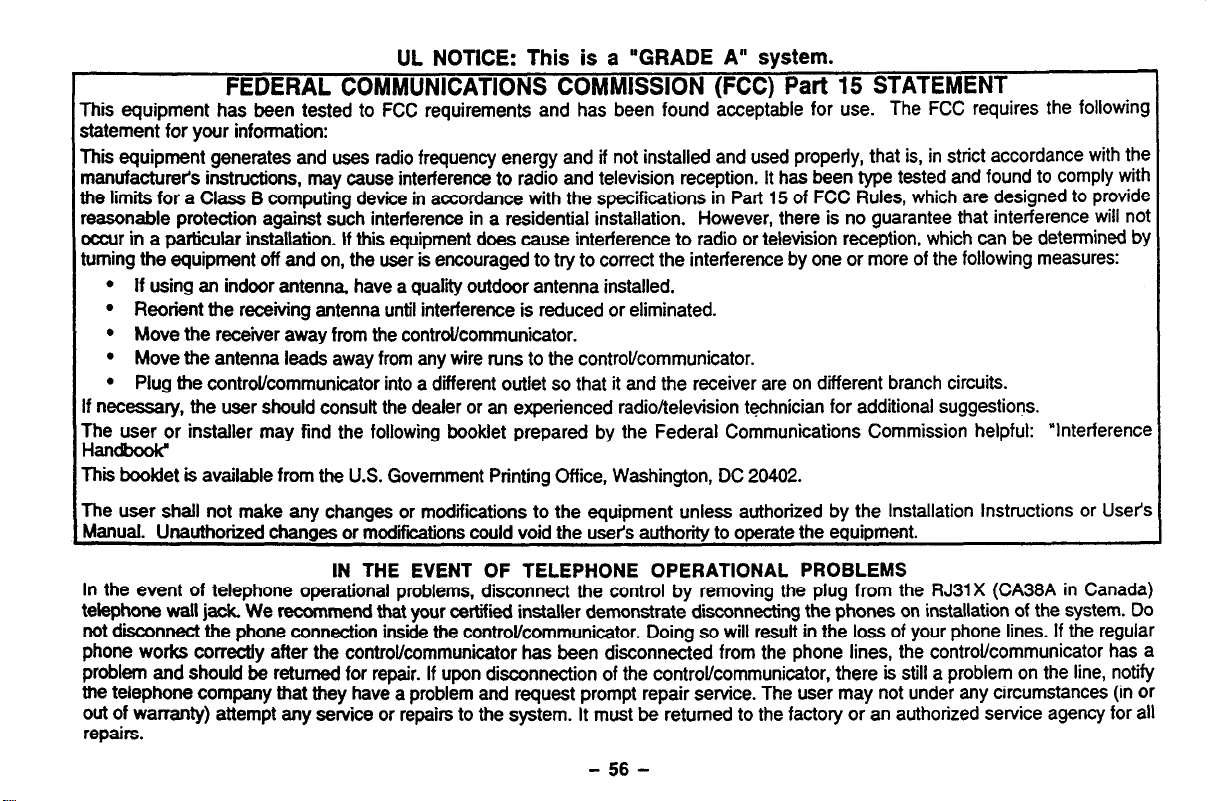

UL NOTICE: This is

a “GRADE A”

svstem.

FEDERAL COMMUNICATIONS COMMISSION (FCC) Part 15 STATEMENT

This equipment has been tested to FCC requirements and has been found acceptable for use. statement for your information:

This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict manufacturer’s instructions, may cause interference to radio and television reception. It has been type tested and found to comply with the limits for a Class B computing device in accordance with the specifications in Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

l If using an indoor antenna, have a quality outdoor antenna installed. l Reorient the receiving antenna until interference is reduced or eliminated.

l Move the receiver away from the contrdlcommunicator. l Move the antenna leads away from any wire runs to the control/communicator. l Plug the contrdlcommunkrator into a different outlet so that it and the receiver are on different branch circuits.

If necessary, the user should consult the deafer or an experienced radio/television technician for additional suggestions.

The user or installer may find the following bookfet prepared by the Federal Communications Commission helpful:

HarIM Thii booktet is available from the U.S. Government Printing Office, Washington, DC

20402.

The user shall not make any changes or modifications to the equipment unless authorized by the Installation Instructions or User’s

Manuaf. Unauthorized changes or modiiitions could void the users authority to operate the equipment.

IN THE EVENT OF TELEPHONE OPERATIONAL PROBLEMS

In the event of telephone operational problems, disconnect the control by removing the plug from the RJ31X (CA38A in Canada)

telephone wall jack. We recommend that your certifii installer demonstrate disconnecting the phones on installation of the system. DO

not disconnect the phone connection inside the control/communicator. Doing so will result in the loss of your phone lines. If the regular phone works correctly after the controt/communicator has been disconnected from the phone lines, the control/communicator has problem and should be returned for repair. If upon disconnection of the control/communicator, there is still a problem on the line, notify

the telephone company that they have a problem and request prompt repair service. The user may not under any circumstances (in or

Out Of Warranty) attempt any service or repairs to the system. It must be returned to the factory or an authorized service agency for all repairs.

The FCC requires the following

accordance with the

“Interference

- 56 -

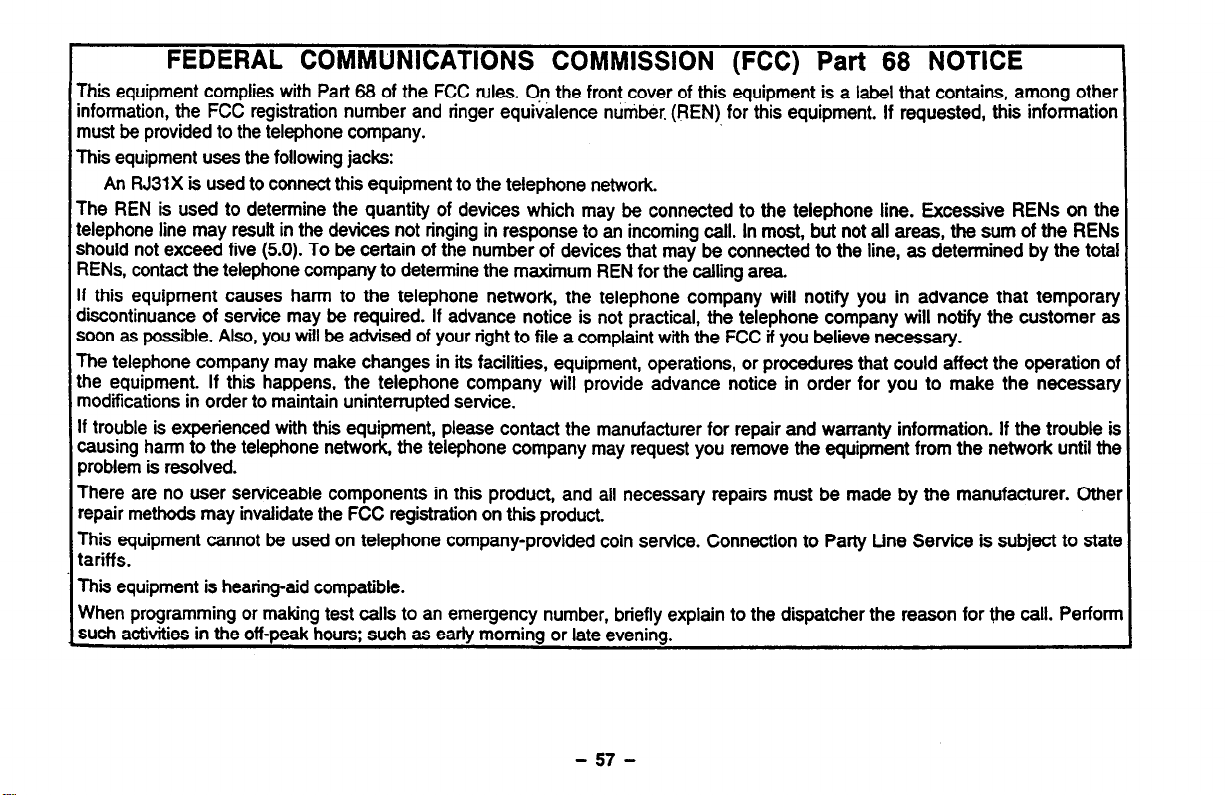

FEDERAL COMMUNICATIONS COMMISSION (FCC) Part 68 NOTICE

This equipment complies with Part 63 of the FCC rules. On the front cover of this equipment is a label that contains, among other information, the FCC registration number and ringer equ&lence number. (REN) for this equipment. If requested, this information must be provided to the telephone company.

This equipment uses the following jacks:

An RJ3lX is used to connect this equipment to the telephone network.

The REN is used to determine the quantity of devices which may be connected to the telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of the RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to the line, as determined by the total

RENs, contact the telephone company to determine the maximum REN for the calling area.

If this equipment causes ham-r to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. If advance notice is not practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe necessary.

The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the operation 01 the equipment. If this happens, the telephone company will provide advance notice in order for you to make the necessary

modifications in order to maintain uninterrupted service.

If trouble is experienced with this equipment, please contact the manufacturer for repair and warranty information. If the trouble is

causing harm to the telephone network, the telephone company may request you remove the equipment from the network until the

problem is resolved. There are no user serviceable components in thii product, and all necessary repairs must be made by the manufacturer. Other

repair methods may invalidate the FCC registration on this product.

This equipment cannot be used on telephone company-provided coin service. Connection to Party tine Service is subject to state

tariffs.

Thii equipment is hearing-aid compatible.

- 57 -

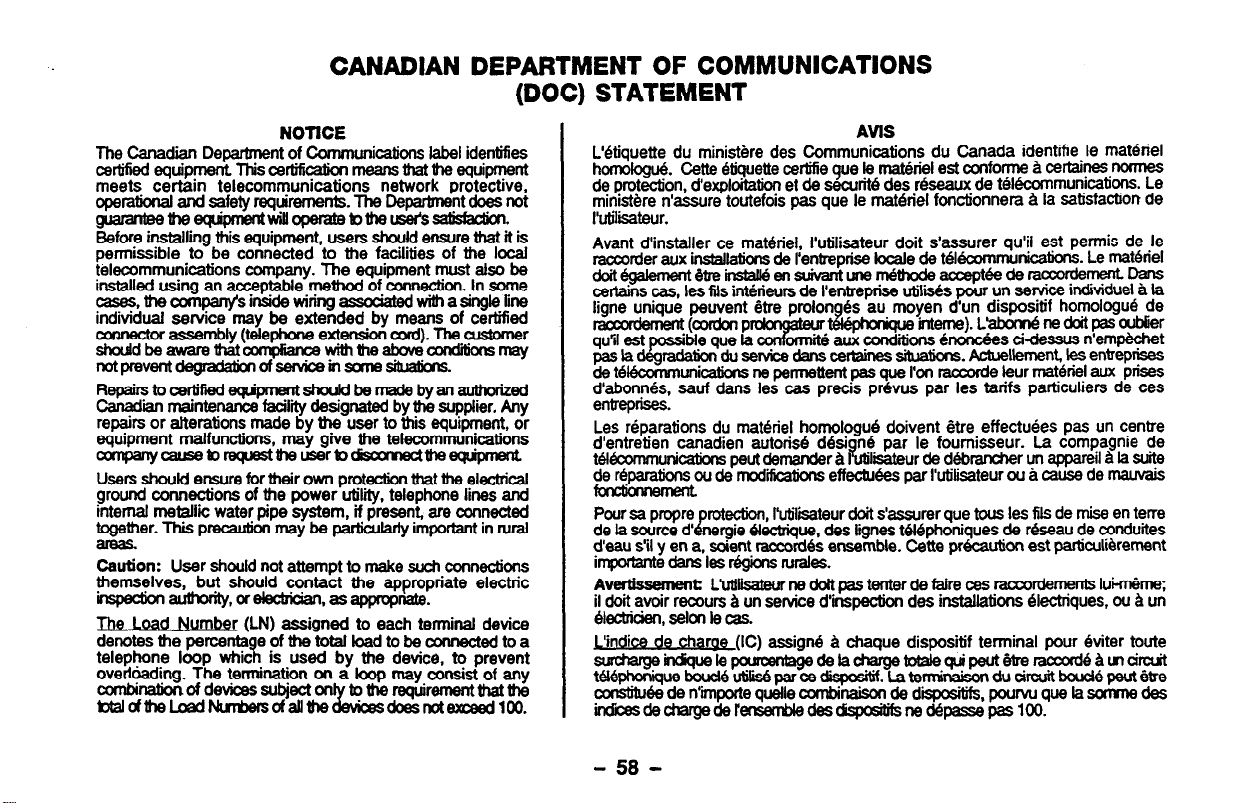

CANADIAN DEPARTMENT OF COMMUNICATIONS

(DOG) STATEMENT

NOTICE

The Canadian Department of Communicakons label identifies 03rtifiedequiprnemThiscertfkcationmeansthattheequipnlent meets certain telecommunications network protective, opeMonal and safety requiremenfs. The Department does not $)uaamelha~winopelatet,thl3~sahsfacbon Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the looal

FiepairstoczertWdequipmentshouldbemadebyan~ Camlii maintenance facilii designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunfcations companycauselomquestfheuserto

Users should ensure for their own protecbon that the electrical ground connections of the power utflii. telephone lines and internal rnetallii water pipe system, if present are connected together. This pmcaubon may be partfcularly important in rural amas.

Caution: User should not attempt to make such connections themselves, but should contact the appropriate electric inspection~,or~.asappropnate.

It&t&ad NumbaL (LN) assigned to each terminal device denotes the percenta e of the total load to be connected to a telephone loop whkr IS used by the device, to prevent overfoadina. The termination on a looo mav consist of anv

combfnat&ofdevicessubject

tJt3lcmalsd-dau~

dscamectthaesupment

AVIS

L’etiquette du ministere des Communications du Canada identifiesle materiel

homoiogu6. Cette etiquette cerMie que le materiel est oonfonne a Cert;Unes~normeS de protection, d’exploitation et de searrite des r&aux de tMcommunicabJns. Le ministere n’assure toutefois pas que le materiel fonctionnera a la satisfaction de IWiiteur.

entreprises.

Les reparations du mat&fel homologue doivent etre effect&es pas un centre d’entretien canadien autorise d&i t4l6communicationspeutclemandera

Pour sa propre de h source d d’eau s’il y en a, soient racoxd& ensemble. Cette pr6caution est particulierement

importante dans les regions rurales.

Avertissement L’uffksateur ne doit pas tenter de faire ces raaxrdernents Iui-rGme;

il doit avoir reoours a un service d’ffpecbon des installations &ctriques, ou a un

Blecbicien, selon le cas. J ‘indice de chame (IC) assign6 a chaque dispositif terminal pour Bviter toute

~indquelapcxlrcentagedf3lachargetofalaquipslJt~mccordealncirait t~~bwdeutiFiseparceclispositif.Late~inaisondudraritboudepeut~~e

cortdtube de nimporte quelle combfnaison de di, pourvu que la sonxne des

de modii effect&es par f’utflisateur cu a cause de mauvais

mtection, I‘utiliiteur doit s&surer qua tous les fils de mise en tene

nergie &ctrfque, des lignes t&l&honiques de reseau de conduites

n6 par le foumisseur. La compagnie de

~liiurded6brancherunappareilBlasuite

it-idbdechargeder-desdspositifs~~~~ioo.

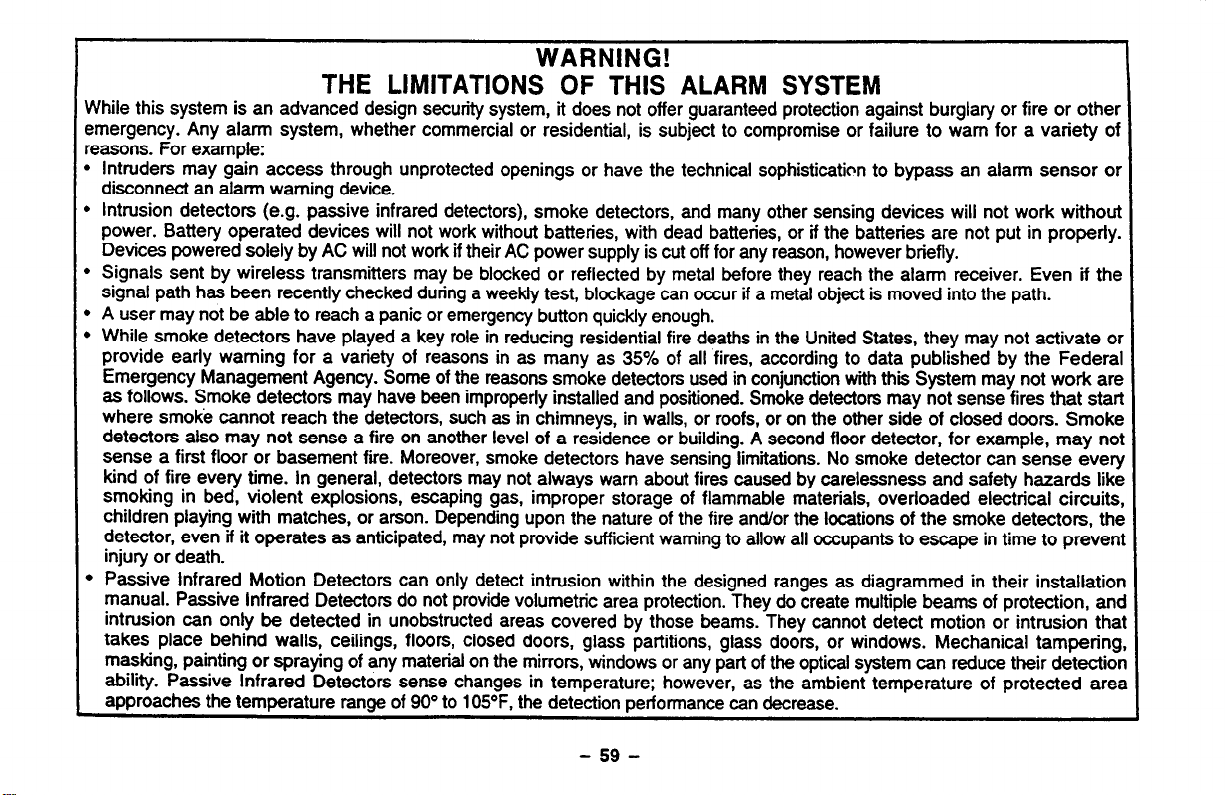

WARNING!

THE LIMITATIONS OF THIS ALARM SYSTEM

While this system is an advanced design security system, it does not offer guaranteed protection against burglary or fire or other emergency. Any alarm system, whether commercial or residential, is subject to compromise or failure to warn for a variety of ‘easons. For example: 1 Intruders may gain access through unprotected openings or have the technical sophistication to bypass an alarm sensor or

disconnect an alarm warning device.

t Intrusion detectors (e.g. passive infrared detectors), smoke detectors, and many other sensing devices will not work without

power. Battery operated devices will not work without batteries, with dead batteries, or if the batteries are not put in properly.

Devices powered solely by AC will not work if their AC power supply is cut off for any reason, however briefly.

’ Signals sent by wireless transmitters may be blocked or reflected by metal before they reach the alarm receiver. Even if the

signal path has been recently checked during a weekly test, blockage can occur if a metal object is moved into the path. ’ A user may not be able to reach a panic or emergency button quickly enough. ) While smoke detectors have played a key role in reducing residential fire deaths in the United States, they may not activate or

provide early warning for a variety of reasons in as many as 35% of all fires, according to data published by the Federal Emergency Management Agency. Some of the reasons smoke detectors used in conjunction with this System may not work are as follows. Smoke detectors may have been improperly installed and positioned. Smoke detectors may not sense fires that stan where smoke cannot reach the detectors, such as in chimneys, in walls, or roofs, or on the other side of closed doors. Smoke detectors also may not sense a fire on another level of a residence or building. A second floor detector, for example, may noi sense a first floor or basement fire. Moreover, smoke detectors have sensing limitations. No smoke detector can sense every

kind of fire every time. In general, detectors may not always warn about fires caused by carelessness and safety hazards like smoking in bed, violent explosions, escaping gas, improper storage of flammable materials, overloaded electrical circuits, children playing with matches, or arson. Depending upon the nature of the fire and/or the locations of the smoke detectors. the

detector, even if it operates as anticipated, may not provide sufficient warning to allow all occupants to escape in time to prevenl

injury or death.

’ Passive Infrared Motion Detectors can only detect intrusion within the designed ranges as diagrammed in their installatior

manual. Passive Infrared Detectors do not provide volumetric area protection. They do create multiple beams of protection, ant

intrusion can only be detected in unobstructed areas covered by those beams. They cannot detect motion or intrusion tha

takes place behind walls, ceilings, floors, closed doors, glass partitions, glass doors, or windows. Mechanical tampering

masking, painting or spraying of any material on the mirrors, windows or any part of the optical system can reduce their detectior ability. Passive Infrared Detectors sense changes in temperature; however, as the ambient temperature of protected are: approaches the temperature range of 90” to 105“F, the detection performance can decrease.

- 59 -

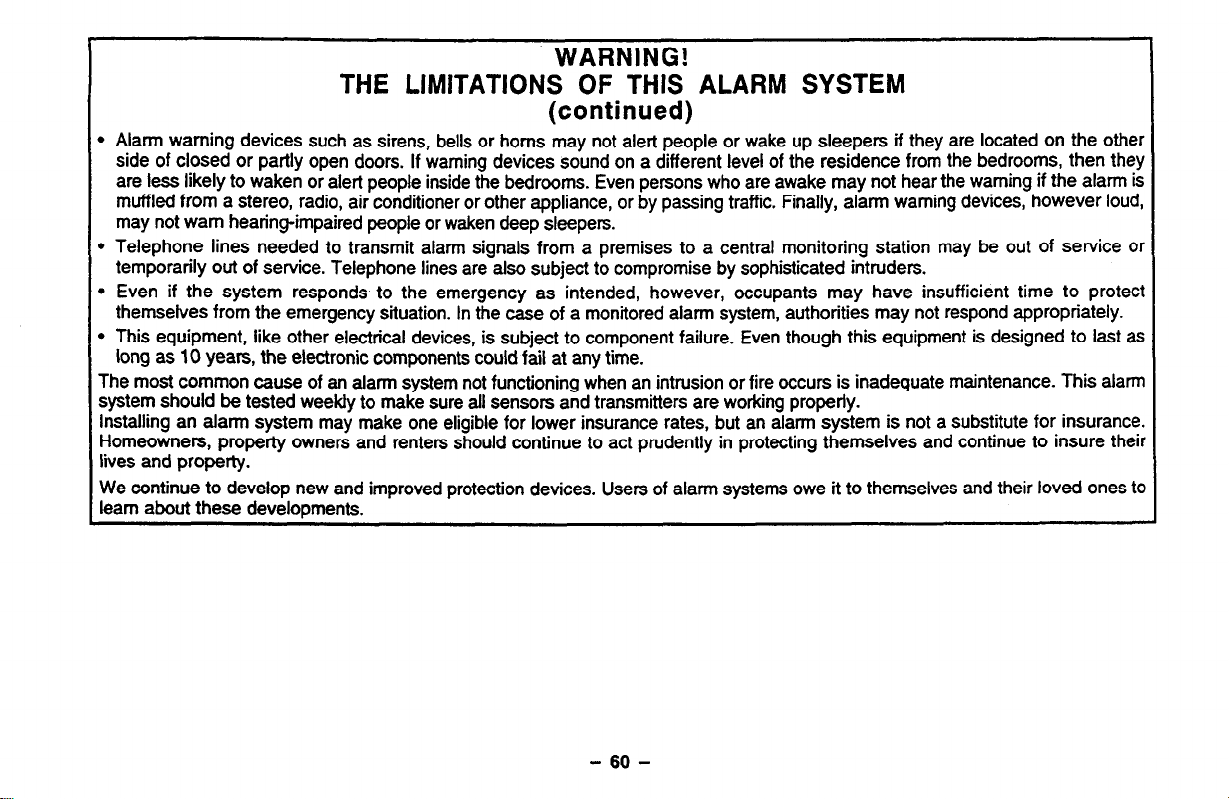

WARNING!

THE LIMITATIONS OF THIS ALARM SYSTEM

(continued)

Alarm warning devices such as sirens, bells or horns may not alert people or wake up sleepers if they are located on the other side of closed or partly open doors. If warning devices sound on a different level of the residence from the bedrooms, then they are less likely to waken or alert people inside the bedrooms. Even persons who are awake may not hear the warning if the alarm is muffled from a stereo, radio, air conditioner or other appliance, or by passing traffic. Finally, alarm warning devices, however loud, may not warn hearing-impaired people or waken deep sleepers.

Telephone lines needed to transmit alarm signals from a premises to a central monitoring station may be out of service or

temporarily out of service. Telephone lines are also subject to compromise by sophisticated intruders.

Even if the system responds to the emergency as intended, however, occupants may have insufficient time to protect themselves from the emergency situation. In the case of a monitored alarm system, authorities may not respond appropriately.

This equipment, like other electrical devices, is subject to component failure. Even though this equipment is designed to last as long as 10 years, the electronic components could fail at any time.

The most common cause of an alarm system not functioning when an intrusion or fire occurs is inadequate maintenance. This alarm system should be tested weekly to make sure all sensors and transmitters are working properly.

Installing an alarm system may make one eligible for lower insurance rates, but an alarm system is not a substitute for insurance. Homeowners, property owners and renters should continue to act prudently in protecting themselves and continue to insure their lies and property.

We continue to develop new and improved protection devices. Users of alarm systems owe it to themselves and their loved ones to learn about these develooments.

- 60 -

OWNER’S INSURANCE PREMIUM CREDIT REQUEST

This form should be completed and forwarded to your homeownet’s insurance taker for possible premium credit.

A. GENERAL INFORMATION:

Insured’s Name and Address:

-convany.

Policy No.:

First Alert Professional’s FAXMOC

Type of Alarm: 0 Burglary

Name

Address

B. NOTIFIES (Insert B = Burglary, F = Fire) Localt3oun&gDevice

Central Station 0 Name:

Address:

Phone:

C. POWERED BY: A.C. With Rechargeable Power Supply

D. TESTING: 0

Quarterly

0 Monthly 0 Weekly

p-Dept

Fire

kontinued on other side)

Other

Serviced by:

- 61 -

Fire Dept.

Other

Both

Name

Address

OWNER’S INSURANCE PREMIUM CREDIT REQUEST

E. SMOKE DETECTOR LOCATIONS

Furnace Room

Basement 0 Living Room

23 F. BURGLARY DETECTING DEVICE LOCATIONS:

Front Door

1st floor Wwlows

3 g All Accessible Openings, Including Skylights, Air Conditioners and Vents

G. ADDlTlONAL PERTINENT INFORMATION:

Kitchen

Basement Door

All windows

Bedrooms

cl 0 Dining Room

Rear Door

Interior locations

Date:

Attic

Hall

All Exterior Doors

(cont.)

- 62 -

- INDEX -

#84 Command.. 2-Digit Phone Access Code..

Abbreviated

pc.. .................................................................

AC Loss ..........................................................

Access Door.. Access Door Control Accessing Another Partition.. Add A Ademco Dealer Alarm Alarms Alpha Descriptor.. Alpha Keypad..

Ammiirm Arming Audible Authority

Away .......

Away Key Away Mode..

Bat .............................................................

Built-In Sounder.. Burglary.. Burglary Bypass..

User.. ......................................................

...............................................................

..............................................................

Modes.. ...................................................

Emergency.. ..........................................

Level

.................................................

..................................................

...............................

-A-

Users Instructions..

...................................................

........................................... 30

.................................................. 46

...............................................

..............................................

....................................................... 55

.............................................

..i ................................................. 5.10

.........................................................

................................................

-B-

................................................

..........................................................

Protection.. ............................................

...........................

...............................

.32

.46

34, 35

18,26

10.46

5, 10,

10 30 31

.25

6 4

9 4 5

Bypass Key.. ................................................

Bypass Zones

Bypassing .....................................................

cc.. ..............................................................

Central Monitoring Station Change A User’s

‘Check ....................................................

‘Check” Displays

Chiie .......................................................

Chime Mode ...................................................

Closing Time..

Code .............................................................

Comm. Failure Customized Message..

D Key.. ...........................................................

[D] Speed Key

Day/Night Zone Defining Macros.. Delay Zone Delaying The Delete A User

Descriptors Device Timer Menu Mode Device Timers..

Disarm .........................................................

Displaying Bypassed Zones

................................................

-c-

..................................

......................................

Code

.............................................

.................................................

.....................................

-D-

(Macros). ...................................

...............................................

............................................

.....................................................

Closing Time..

................................................

....................................................

...........................................

...............................

..................................

..............................

.21

21 21

lo,45

5, 10

23 39 36 45

55 29 55 39

.38

7,43

.20

-63-

Duress.. ..........................................................

Duress code.. ..................................................

-E-

Emergency ........................................................

Emergency Evacuation

Entry Delay.. ......................................................

Entry/Exit Door ...................................................

Executing Macros Exit Delay

Exit User Edii Mode

Fault Display .....................................................

A; ...................................................................

Fire.. ..................................................

Fire Emergency.. ................................................

Fire Protection

Fixed-Word (Non-Alpha)

Faed-Word Keypad ............................................

FmecbWord Keypad Displays

FtigDownCover.. ....

Four-Dii Security code Global Arming

Goto ...........................................................

Goto Command And

Instant Instant Key..

instant Mode.. Interior Motion Detectors

..........................................................

....................................................

.........................................................

..................................................... 17

................................................... 17

......................................

..............................................

...........................................

-F-

4, 10.25, 47

Keypad.. ...........................

............................................................................

.......................................

-G-

Global Arming.. .......................

-I-

.....................................

.34 .33

.49

8 4

.35

46 47

‘i

31.36 31

5, 10

-K-

Lighting.. ...........................

Keypad Display Keypads Keyswitch

LimitedUse User Lo Bat Low Battery

Low Battery Condition Low Battery Message Low Low System Battery

Maintenance Manager ManagerCode

Master Maximum Maximum Key Maximum Mode.. Memory Of MCKkfllComm

NoAC.. ....................................................

Non-Alpha Keypad Displays Not Ready..

Off Key Open Zones Open/Close

.........................................................

...........................................................

Battery

........................................................

..........................................................

........................................................

Back

......................................................

-L-

.............................................

....................................................

......................................

.......................................

Warning

...................................................

........................................

.........................................

-M-

..................................................

................................................

.................................................

............................................. 19

....................................

Alarm

.................................................

-N-

..............................

...............................................

-o-

Schedules.. ...................................

9 9

26 37

50 45 50 51 45

38 34

6,20,26

lo,46

10, 14

.20

40-

-64-

Operator A.. Operator B..

OperatorC .......................................................

Panic Functions Panic Keys

Partition ...........................................................

Partitioned Security System Personal Phone Access.. Plan Of Portable Wireless

Power Failure.. ...................................................

Pm-Designated Words.. Quick Arming..

Quick Bypass.. Ready

Ready Key.. Replacing Batteries

Routine Care

Schedules ....................................................

Security Codes.. Self-Help Sensing Servfcing Information Silencing

Silent Emergency.. .............................................

......................................................

.....................................................

-P-

................................................. 25

......................................................

..................................

Emergency..

..................................................

Escape.. ...............................................

.........................................................

.................................................

.....................................................

Feature.. ..............................................

Devices.. ...............................................

A Fire Alarm..

.........................................

Keypad..

...................................................

..................................................

............................................

..................................

.......................................

-Q-

-R-

............................................ 50

-s-

..........................................

........................................

10, 14 15,23

34 .34 .34

-25

-49

50 46

33 22

6,39

5,33

48 47 25

Smoke And Smoke Detectors Speed Stay..

Stay Key .......................................................

Stay Mode

System Lo Bat ................................................

Temporary Schedules Temporary Test Test limewlndow.. Touch-Tone Trouble Condition

User Edit Mode ...............................................

User Numbers

Using Schedules Using The Ready Key

Voice Module..

Wireless Motion Detectors ................................

Wireless Sensor ..............................................

Wireless Transmitter ........................................

zone.. .......................................................

Zone Bypassed.. Zone Descriptors

Heat Detectors..

............................................

Key (Macros)

.......................................................

................................................

Users..

Key.. .....................................................

Mode.. ....................................................

Phone

.........................................

...........................................

...............................................

...........................................

............................................

.................................................

..............................................

............................................

.............................................

............................

-T-

................................

-u-

.......................................

-v-

-w-

-z-

.40,41

l6,26

.47

5, 10

16 45

.27

.40

45 35

7,32

50 45

4, 55

16 15

- NOTES -

General Information

The system has the ability to record various events in a history log wherein each event is recorded in one of five categories (listed below), with the time and date of its occurrence. The Event Log holds up to 224 events, with the oldest event being replaced by the logging of any new event after the log is full. Using an alpha keypad, the Event Log can be viewed one category at a time, or can display all events, regardless of category (ALL EVENT LOG). The system also allows selection of displaying the COMPLETE log, or only those events occurring since the last installer service (RECENT). In addition, events in the other partitions can be viewed by users authorized to access those partftions. Note that events are displayed in

chronological order, from most recent to oldest.

To Display The

Enter CODE + [#] + [S] + [0]

Select the display mode.

EV8nt

Log

RECENT: Displays only those events occurring since last installer service.

COMPLETE: Displays complete event log (up to 224 events).

Press the desired key, 0 or 1.

-1

Select the partition, O-8.

Enter the partition number for the partition whose events are to be displayed.

Entering 0 (NO) will display all partitions’ events.

Side A - Part of N5943-5

(OVER)

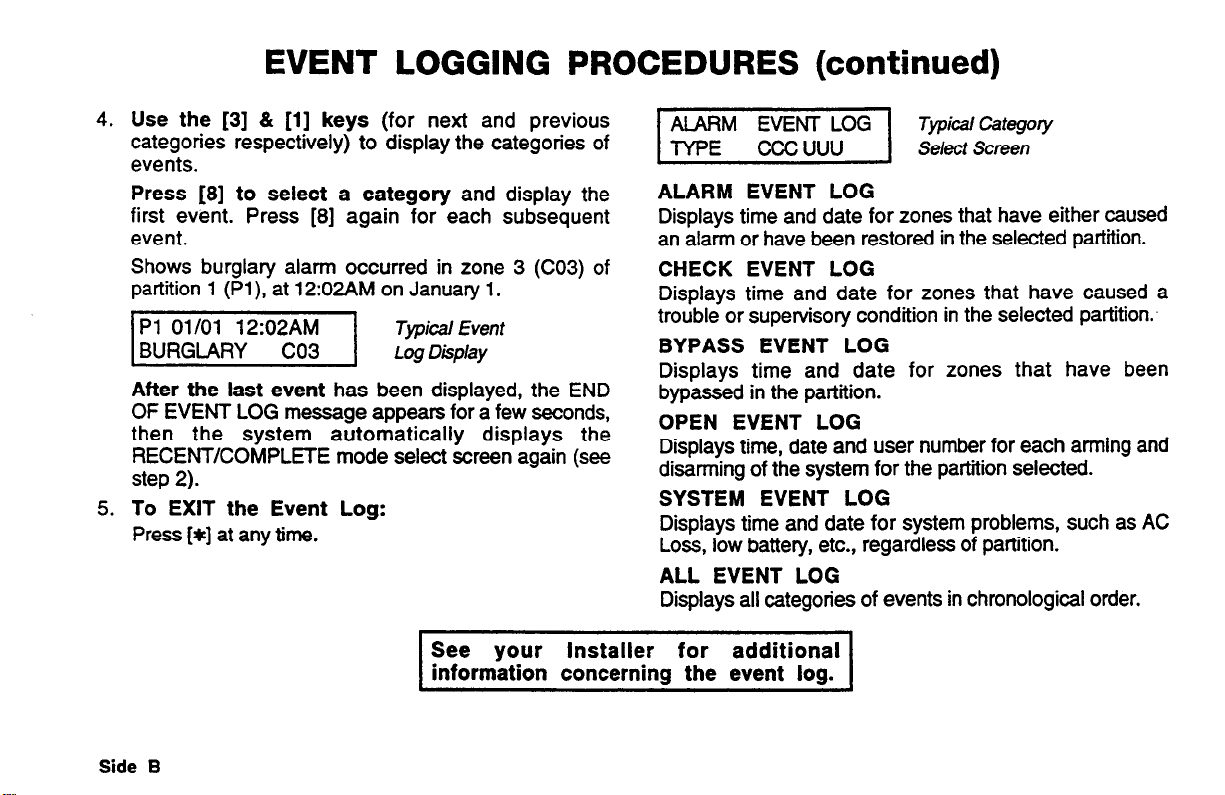

EVENT LOGGING PROCEDURES (continued)

Use the [3] & [l] keys (for next and previous categories respectively) to display the categories of events.

Press [8] to select a category and display the first event. Press [8] again for each subsequent event.

Shows burglary alarm occurred in zone 3 (C03) of

partition 1 (Pl), at 12:02AM on January 1.

After the last event has been displayed, the END

OF EVENT LOG message appears for a few seconds, then the system automatically displays the

RECENT/COMPLETE mode select screen again (see

step 2).

To EXIT the Event Log:

Press [*] at any time.

ALARM EVENT LOG Displays time and date for zones that have either caused an alarm or have been restored in the selected partition.

CHECK EVENT LOG

Displays time and date for zones that have caused a

trouble or supervisory condition in the selected partition.,

BYPASS EVENT LOG Displays time and date for zones that have been

bypassed in the partition.

OPEN EVENT LOG

Displays time, date and user number for each arming and disarming of the system for the partition selected.

SYSTEM EVENT LOG Displays time and date for system problems, such as AC Loss, low battery, etc., regardless of partition.

ALL EVENT LOG

Displays all categories of events in chronological order.

Side B

See your Installer for additional

information concerning the event log.

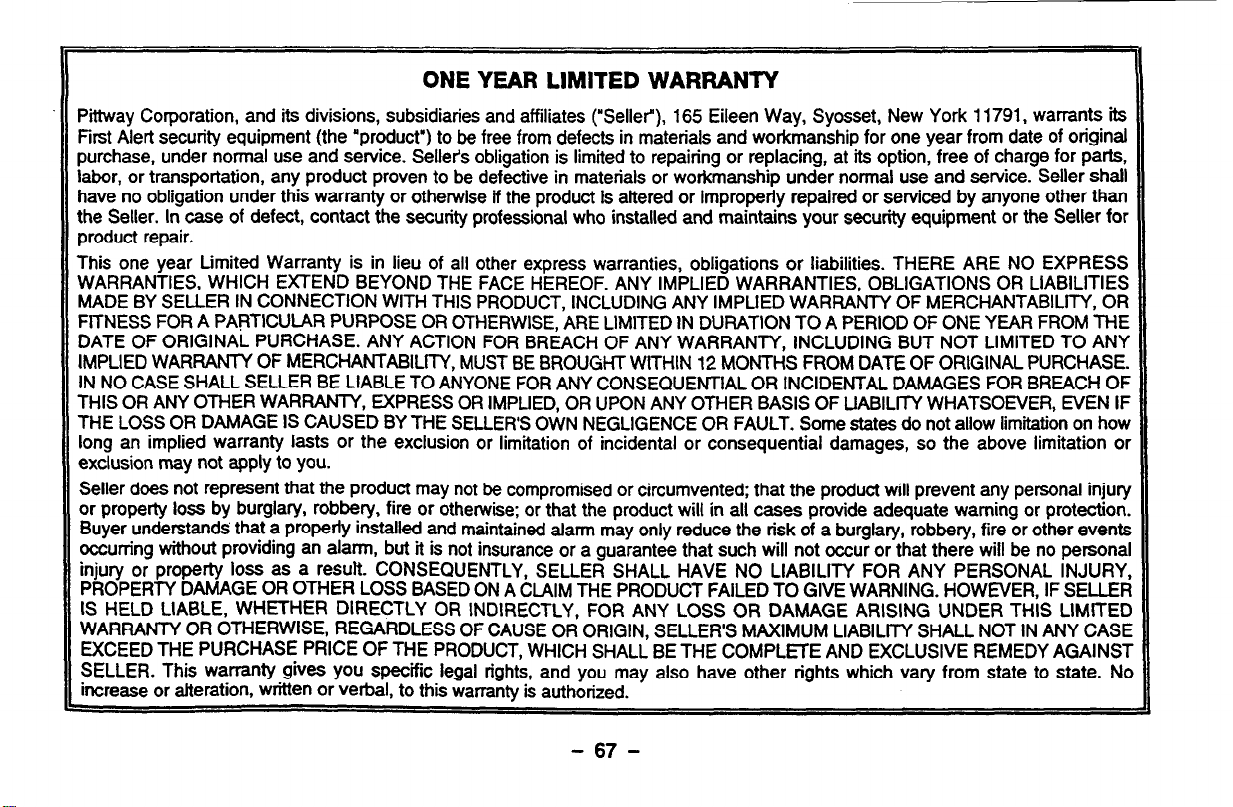

ONE YEAR LIMITED WARRANTY

%tway Corporation, and its divisions, subsidiaries and affiliates (‘Seller”), 165 Eileen Way, Syosset, New York 11791, WarmIts its %st Alert security equipment (the “product”) to be free from defects in materials and workmanship for one year from date of original )urchase, under normal use and service. Seller’s obligation is limited to repairing or replacing, at its option, free of charge for parts,

abor, or transportation, any product proven to be defective in materials or workmanship under normal use and service. Seller shall lave no obligation under this warranty or otherwise if the product is altered or improperly repaired or serviced by anyone other than :he Seller. In case of defect, contact the security professional who installed and maintains your security equipment or the Seller for oroduct repair.

This one year Limited Warranty is in lieu of all other express warranties, obligations or liabilities. THERE ARE NO EXPRESS JVARRANTIES, WHICH EXTEND BEYOND THE FACE HEREOF. ANY IMPLIED WARRANTIES, OBLIGATIONS OR LIABILITIES VlADE BY SELLER IN CONNECTION WITH THIS PRODUCT, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILR-Y, OR RTNESS FOR A PARTICULAR PURPOSE OR OTHERWISE, ARE LIMITED IN DURATION TO A PERIOD OF ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE. ANY ACTION FOR BREACH OF ANY WARRANTY, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY, MUST BE BROUGHT WITHIN 12 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL SELLER BE LIABLE TO ANYONE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPUED, OR UPON ANY OTHER BASIS OF LlABlLfTY WHATSOEVER, EVEN IF THE LOSS OR DAMAGE IS CAUSED BY THE SELLER’S OWN NEGLIGENCE OR FAULT. Some states do not allow limitation on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

Seller does not represent that the product may not be compromised or circumvented; that the product will prevent any personal injury or property loss by burglary, robbery, fire or otherwise; or that the product will in all cases provide adequate warning or protection, Buyer understands that a PrOWfy installed and maintained alarm may only reduce the risk of a burglary, robbery, fire or other events occurring without providing an alarm, but it is not insurance or a guarantee that such will not occur or that there will be no personal injury or property loss as a PROPERTY DAMAGE OR OTHER LOSS BASED ON A CLAIM THE PRODUCT FAILED TO GIVE WARNING. HOWEVER, IF SELLER IS HELD LIABLE, WHETHER DIRECTLY OR INDIRECTLY, FOR ANY LOSS OR DAMAGE ARISING UNDER THIS LIMITEC WARRANTY OR OTHERWISE, REGARDLESS OF CAUSE OR ORIGIN, SELLERS MAXIMUM L1ABfLff-Y SHALL NOT IN ANY CASE EXCEED THE PURCHASE PRICE OF THE PRODUCT, WHICH SHALL BE THE COMPLETE AND EXCLUSIVE REMEDY AGAINSl SELLER. This warranty gives You specific legal rights, and you may also have other rights which vary from state to state. NC

increase or alteration,

reSUk

CONSEQUENTLY, SELLER SHALL HAVE NO LIABILITY FOR ANY PERSONAL INJURY,

Written Or Verbal, to thi.s warranty is author&j.

- 67 -

172 Michael Drive Syosset, New York 11791

Copyighto 1995 PIllWAY CORPORATION

First Alert FA134OC-UL, FAI34OC User Manual
