66HHFFXXUULLWW\\66\\VVWWHHP

READY

D E

M R A

STAY

AWAY

OFF

BYPASS

TEST

MAX

CHIME

CODE

INSTANT

READY

FA260

OFF

ARMED

R E

A D

OFF

AWAY

STAY

A Y

MAX

TEST

BYPASS

INSTANT

CODE

CHIME

READY

FA560

PVV

K0736-1 8/02

VHU·V

XLGH

IMPORTANT!

PROPER INTRUSION PROTECTION

For proper intrusion coverage, sensors should be located at

point of entry

skylights that may be present, and the upper windows in a multi-level building.

In addition, we recommend that radio backup be used in a security system so that alarm signals can still be sent to the Central Monitoring Station in the event that the telephone lines are out of order (alarm signals are normally sent over the phone lines).

to a home or commercial premises. This would include any

every possible

EARLY WARNING FIRE DETECTION

Early warning fire detection is important in a home. Smoke and heat detectors have played a key role in reducing fire deaths in the United States. With regard to the number and placement of smoke/heat detectors, we subscribe to the recommendations contained in the National Fire Protection Association's National Fire Alarm Code (NFPA 72). These recommendations can be found on page 43 of this manual.

$ERXW7KLV0DQXDO

This manual is a step-by-step guide that will acquaint you with the system's features and benefits. It defines the components and their functions, describes their operation, and provides clear step-by-step instructions for normal and emergency procedures. Keep this manual in a convenient place so that you can refer to it as necessary.

– 2 –

7DEOHRI&RQWHQWV

System Overview ....................................................................................................................5

Introduction ..........................................................................................................................5

System Basics ....................................................................................................................... 5

Using the Voice Message Center ......................................................................................... 7

About The Keypads................................................................................................................8

General Information.............................................................................................................8

Functions of the Keypads...................................................................................................10

Entry/Exit Delays .................................................................................................................12

Exit Delay............................................................................................................................ 12

Entry Delay......................................................................................................................... 12

Exit Alarms ......................................................................................................................... 13

Checking For Open Zones ..................................................................................................14

Using the [∗] Key ................................................................................................................ 14

Arming the System...............................................................................................................15

Stay Mode: Arms Perimeter Only, Entry Delay On ......................................................... 15

Night-Stay Mode: Arms Perimeter Only, Plus Selected Zones .......................................15

Instant Mode: Arms Perimeter Only, Entry Delay Off .................................................... 15

Away Mode: Arms Entire System, Entry Delay On ......................................................... 15

Maximum Mode: Arms Entire System, Entry Delay Off ................................................. 15

Arming Commands............................................................................................................. 16

Single Button Arming ........................................................................................................ 17

Step Arming Feature.......................................................................................................... 17

Using the Keyswitch............................................................................................................18

Using the Keyswitch........................................................................................................... 18

Disarming and Silencing Alarms...................................................................................... 19

Using the [OFF] key ........................................................................................................... 19

Bypassing Protection Zones ..............................................................................................20

Using the BYPASS Key...................................................................................................... 20

Quick Bypass ...................................................................................................................... 21

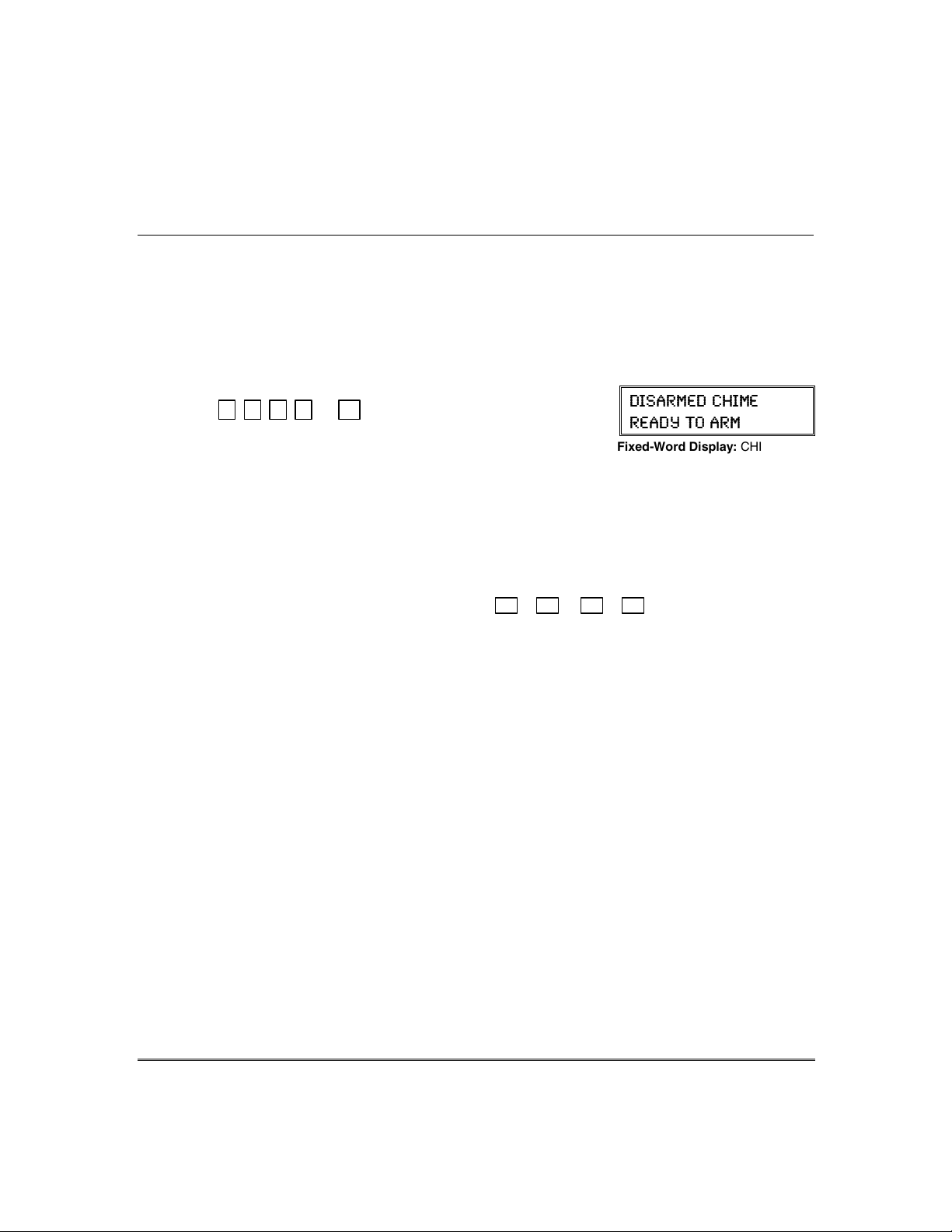

Chime Mode ...........................................................................................................................22

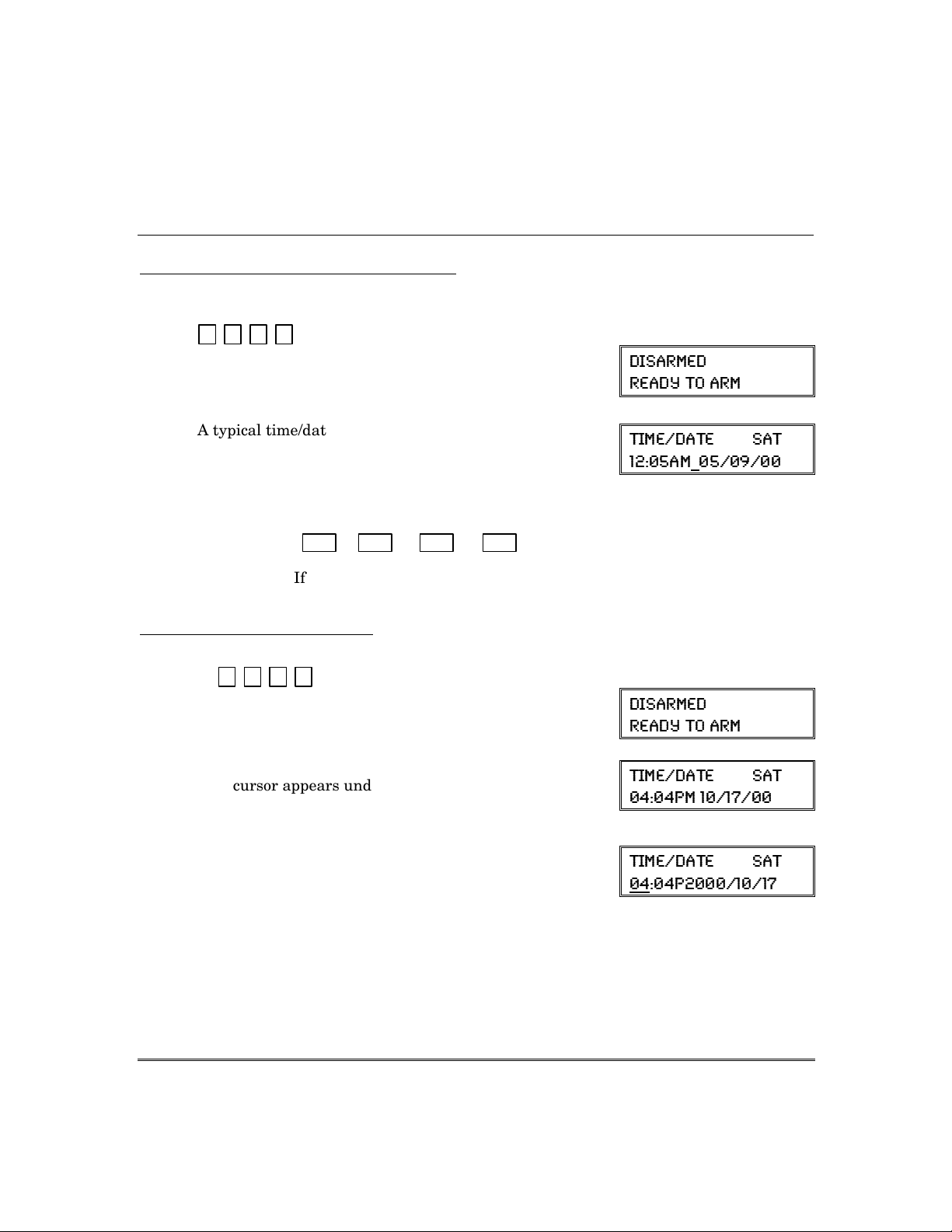

Date and Time .......................................................................................................................23

Viewing the Current Date and Time ................................................................................. 23

Setting the Date and Time.................................................................................................23

– 3 –

7DEOHRI&RQWHQWV

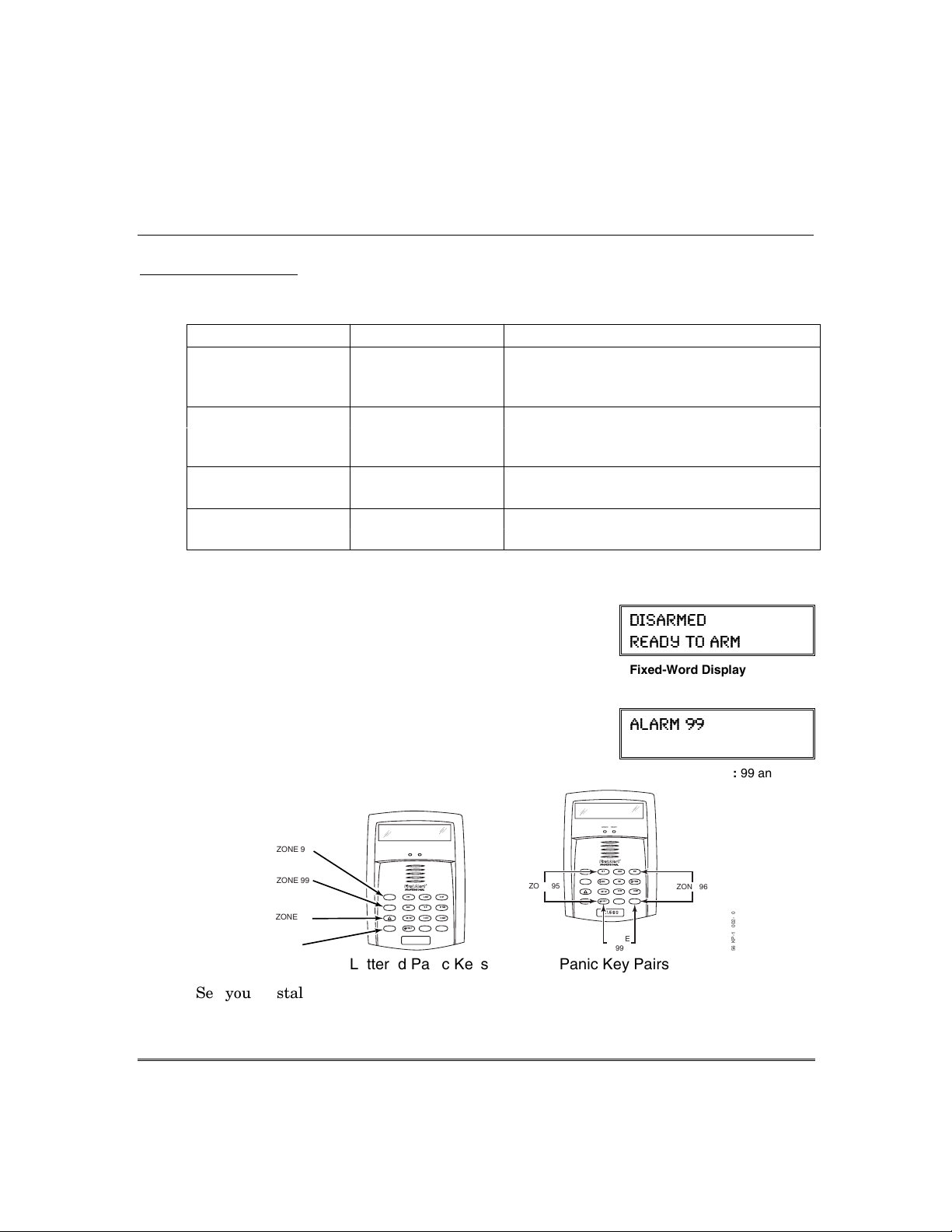

Panic Keys..............................................................................................................................24

Using Panic Keys................................................................................................................24

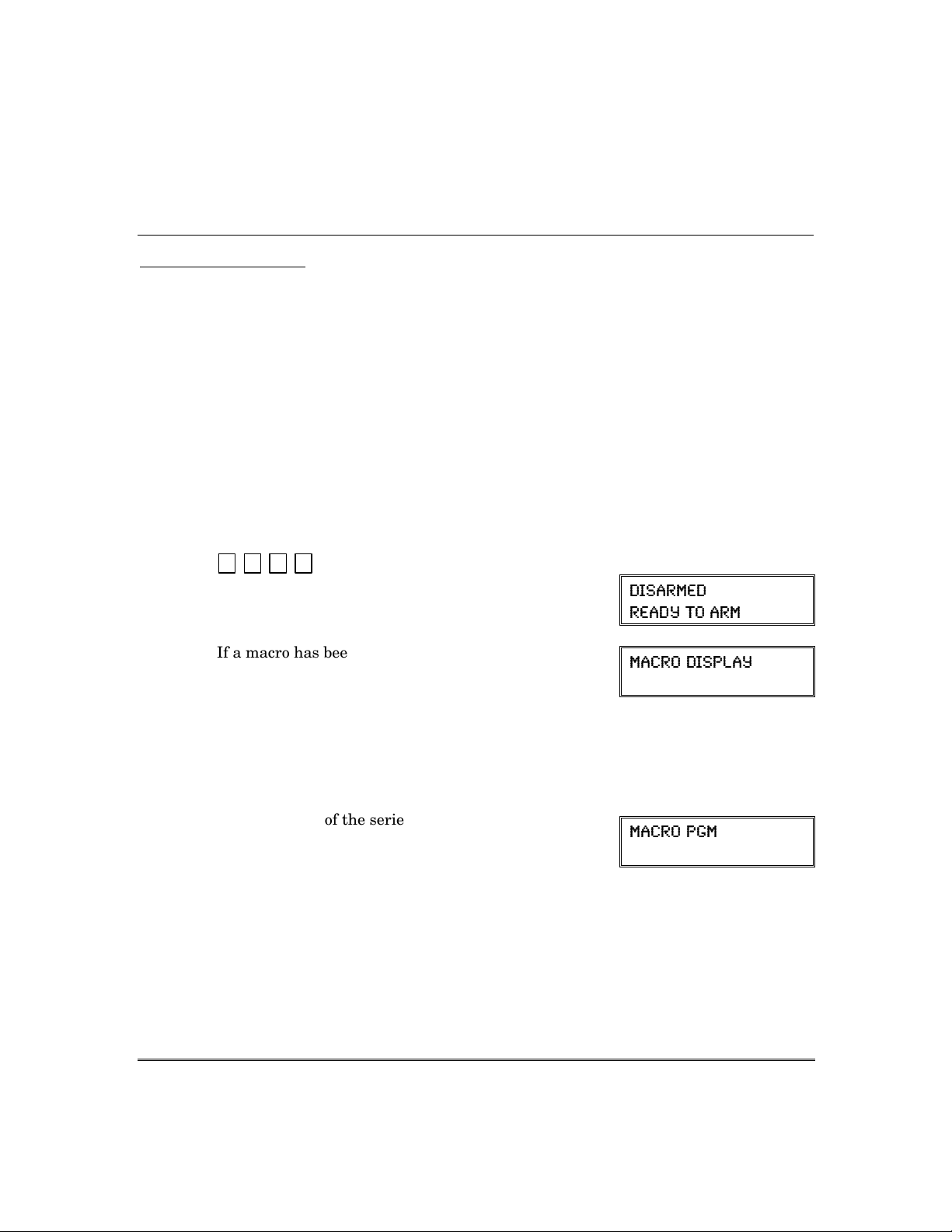

Macro Key Programming & Usage...................................................................................25

About Macro Keys............................................................................................................... 25

Example of Macro Programming ....................................................................................... 26

Using a Programmed Macro Key....................................................................................... 26

Using Device Commands ....................................................................................................27

About Device Commands ................................................................................................... 27

Paging Feature .....................................................................................................................28

About Automatic Paging ....................................................................................................28

Manual Paging.................................................................................................................... 29

Latch Key Paging ............................................................................................................... 29

Security Codes & Authority Levels.................................................................................. 30

About Security Codes .........................................................................................................30

Authority Level Definitions ............................................................................................... 30

How to Assign User Codes and Attributes........................................................................ 31

Scheduling .............................................................................................................................32

About Scheduling................................................................................................................32

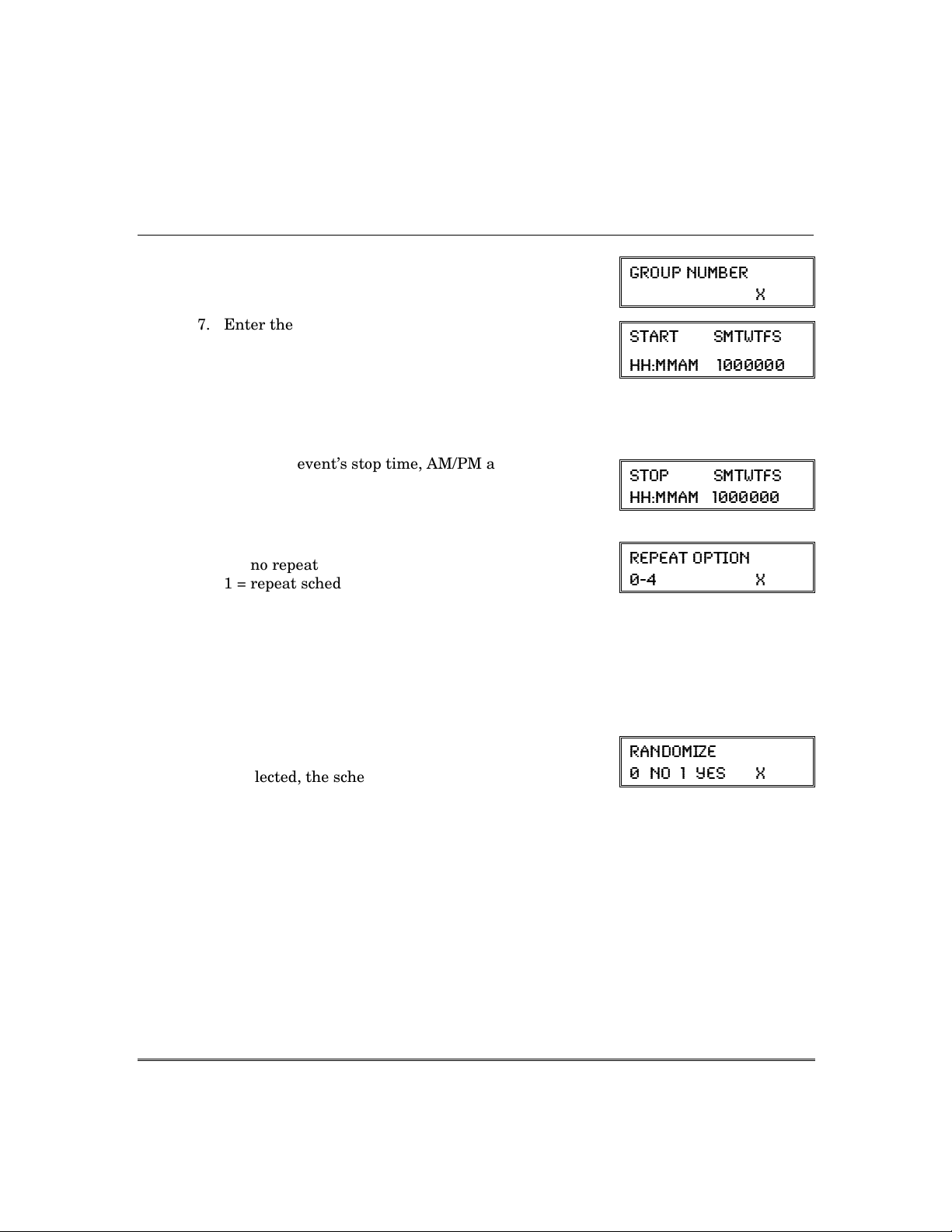

Creating Schedules............................................................................................................. 32

Event Logging Procedures.................................................................................................34

About Event Logging .......................................................................................................... 34

Viewing the Event Log .......................................................................................................34

Table of Event Log Codes................................................................................................... 35

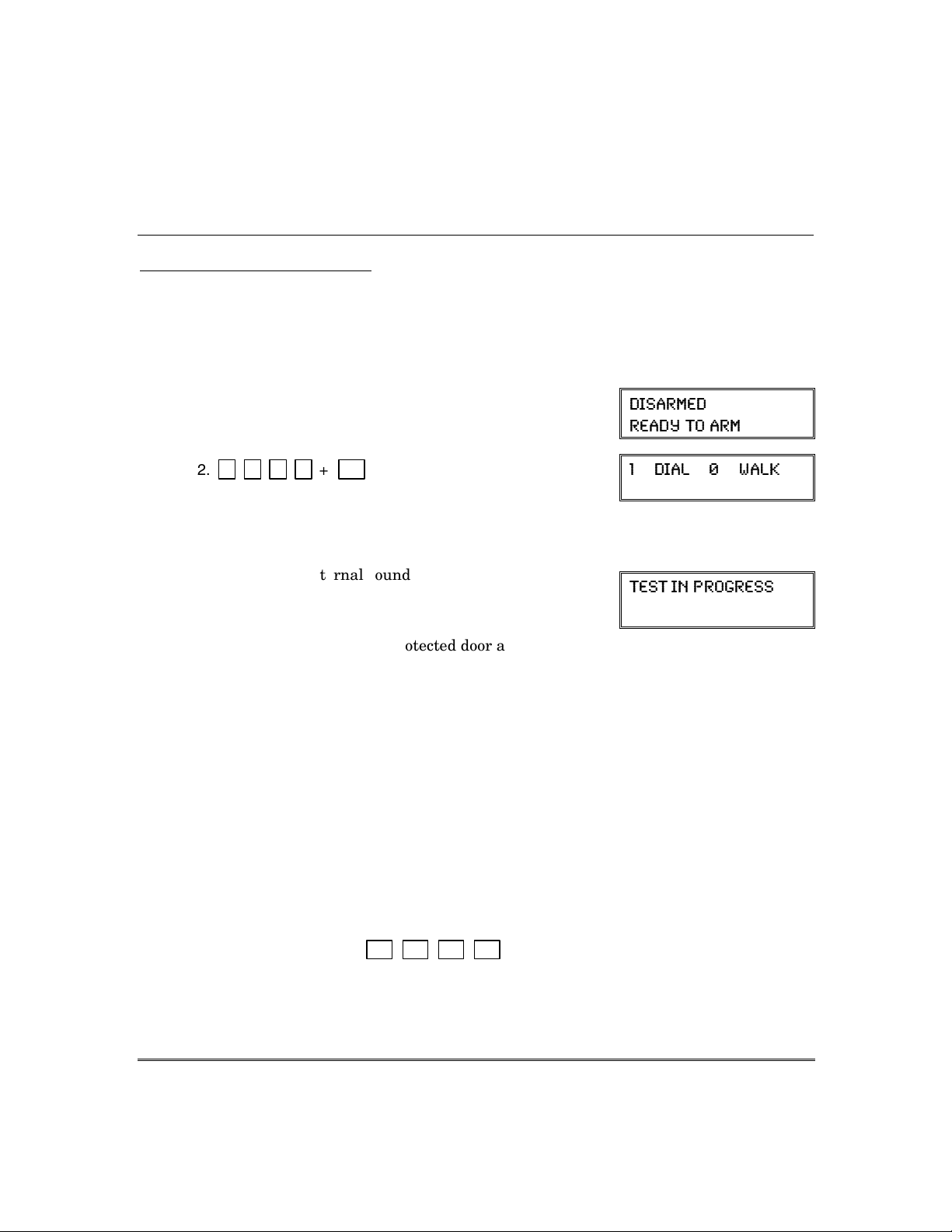

Testing the System (To Be Conducted Weekly) ............................................................36

About Testing the System ..................................................................................................36

Trouble Conditions ..............................................................................................................37

Maintaining Your System................................................................................................... 40

Fire Alarm System (If Installed) .......................................................................................41

Quick Guide to Basic System Functions ........................................................................ 45

Summary of Audible/Visual Notifications......................................................................46

Regulatory Statements and Warnings ............................................................................48

Charts of Your System’s Features ....................................................................................49

– 4 –

,QWURGXFWLRQ

Congratulations on your ownership of the First Alert Professional Security System. You've made a wise decision in choosing it, for it represents the latest in security protection technology today. This system provides:

• Three forms of protection: burglary, fire* and emergency

• At least one keypad which provides control of system and displays system status

• Various sensors for perimeter and interior burglary protection

• Smoke or combustion detectors* designed to provide early warning in case of fire.

Your system may also have been programmed to automatically send alarm or status messages over the phone lines to a Central Monitoring Station.

* Commercial installations and some residential systems may not include fire protection – check with your installer.

6\VWHP%DVLFV

Burglary Protection

• Several modes of burglary protection: Stay, Night-Stay, Away, Instant, Maximum. STAY: arms perimeter zones only and entry delay is on INSTANT: same as STAY, except entry delay is off NIGHT-STAY: arms perimeter zones and selected interior zones; entry delay on AWAY: arms perimeter and all interior zones, entry delay is on MAXIMUM: same as AWAY, except entry delay is off

• You can BYPASS selected zones while leaving the rest of the system armed.

• CHIME mode alerts you to the opening of protected doors and windows while the

system is disarmed.

Fire Protection

• Fire protection is always active (if installed) and an alarm sounds if a fire condition is detected

• If necessary, you can manually initiate a fire alarm using the keypad (if programmed).

• Refer to the Fire Alarm System section for information regarding fire protection, smoke detectors and planning emergency exit routes.

Security Codes

• You were assigned a 4-digit security code during system installation.

• Use your security code when arming and disarming the system, and when

performing other system functions.

• Other users can be assigned different security codes, each with different authority levels, which define the system functions a particular user can perform.

6\VWHP2YHUYLHZ

– 5 –

6\VWHP2YHUYLHZ

Zones

• The system sensing devices have been assigned to various “zones,” which are specific areas of protection (e.g., front door, kitchen window, etc.).

• Zone numbers are displayed at the keypad when an alarm or trouble condition occurs on a sensor.

Arming, Step-Arming and Disarming Burglary Protection

• The system must be armed before the burglary protection can sense intrusions.

• To arm your system, enter your user code followed by the desired arming key.

• If programmed, the [#] key can be pressed instead of entering the security code

when arming the system.

• You can also use the step-arming key, if programmed, to arm the system, which lets you use a function key to arm the system in one of three modes by simply pressing the key repeatedly.

• To disarm the system, enter your user code then press the [OFF] key.

Alarms

• When an alarm occurs, both the keypad and external sounders will sound, and the keypad will display the zone(s) causing the alarm.

• If your system is connected to a Central Monitoring Station, an alarm message will also be sent.

• To stop the alarm sounding, simply disarm the system.

Memory of Alarm

• When an alarm condition occurs, the keypad displays the number(s) of the zone(s) that caused the problem, and displays the type of alarm (e.g., “fire”).

• The message remains displayed even after disarming the system, but can be cleared with another “off” sequence.

Phone Access

• If included, a phone module permits you to access the system via a touch-tone phone, either on-premises or by calling-in when away.

• You can receive synthesized voice messages over the telephone regarding the status of the security system.

• You can arm and disarm the system and perform most function commands remotely via the telephone, with voice confirmation provided after each command entry.

• Complete information regarding the use of this feature is provided in a separate manual entitled “Phone Access User's Guide” that is supplied with the voice module.

&RQWLQXHG

– 6 –

6\VWHP2YHUYLHZ

Paging Feature

• If programmed, the system can automatically send certain system condition messages to a pager.

• The display consists of code numbers that indicate the type of condition that has occurred.

Function Keys

• The “A”, “B”, “C”, and “D” keys on the keypad can be programmed to perform various functions.

• Functions include: activate a Panic alarm; arm the system; provide step arming; switch lights on/off; send a message to a pager; display Time/Date; start a Macro

Scheduling

• Your system can be programmed to automatically perform certain functions (e.g., arm the system) at a predetermined time each day.

8VLQJWKH9RLFH0HVVDJH&HQWHU

The Voice Keypads feature a voice message center that lets you record and playback one message.

• The message can be up to 2.5-minutes long

• The message remains in the keypad’s memory

until a new message is recorded.

• The volume control of the message is adjustable.

• Refer to the procedures below when using the

Message Center functions.

SPEAKER

RECORD

FUNCTION

KEYS

&RQWLQXHG

LEDS

LCD DISPLAY

ARMED MESSAGEREADY

VOLUME

KEY

AWAY1OFF

RECORD

INSTANT

READY

STATUS

FA560

VOLUME

MAX

TEST

CODE

FUNCTION

VOICE

KEY

PLAY KEY AND UP VOLUME

STAY

PLAY

BYPASS

DOWN

CHIME

VOLUME

FUNCTION KEY

Message Center Functions

To… Press these keys… Notes…

record a message

end recording

play a message

adjust the volume

[#] FUNCTION + [0] VOICE + [1] RECORD

[1] RECORD

[#] FUNCTION + [0] VOICE + [3] PLAY

[#] FUNCTION + [0] VOICE + [2] VOLUME keys, then press volume key [3] ↑ (up) or [6] ↓ (down)

The red MESSAGE LED lights. Message remains in memory

until a new message is recorded. The red MESSAGE LED flashes,

indicating message waiting. The recorded message plays and

the red MESSAGE LED turns off. Adjusting message volume also

adjusts status volume. Volume cannot be adjusted while playing.

STATUS

KEY

MICROPHONE

VOICE

KEY

FA560VKP-004-V0

– 7 –

$ERXW7KH.H\SDGV

*HQHUDO,QIRUPDWLRQ

Your keypads allow you to control all system functions. The keypads feature the following:

• A telephone style (digital) keypad

• Liquid Crystal Display (LCD) which shows the nature and location of all

occurrences

• Built-in sounder which will sound during alarms and troubles. The sounder also "beeps" during certain system functions and when depressing any of the keys (to acknowledge the key press).

• Backlighting of the LCD display windows. Backlighting turns on when any key is pressed, and when opening an entry/exit door while the system is armed. This feature is helpful when a keypad is located in a dimly lit area.

IMPORTANT:

that an alarm has occurred during your absence and an intruder may still be on the premises. LEAVE IMMEDIATELY and CONTACT THE POLICE from a nearby safe location.

Your keypads are functionally the same, but may have different types of displays, depending on the type installed with your system.

Alpha Display

Fixed-Word Display

Voice Keypads

If the keypad beeps rapidly upon entering the premises, it indicates

2-line alpha display keypads feature a 2-line, 32-character alphanumeric LCD which can display system messages in friendly English. These keypads can also be programmed with custom zone descriptors.

Fixed-Word display keypads are functionally identical to Alpha display keypads, but the LCD display uses pre-designated words to identify the nature and location of occurrences.

Voice Keypads (if installed), are functionally the same as other keypads, except that these keypads can provide the following:

• Voice announcements of system status (see Checking for Open Zones section)

• Voice chime, which can alert you to the opening of doors and windows while the system is disarmed (see Voice Chime in Chime mode section)

• Message center, which lets you record and playback messages (see Using the Voice Message Center in the System Overview section).

– 8 –

$ERXW7KH.H\SDGV&RQWLQXHG

ALARM CHECK

NIGHTFIRE

NOT READY

STAY INSTANT

BYPASS

NO AC

CHIME

BAT

CANCELED

AWAY

)L[HG:RUG'LVSOD\.H\SDG

AWAY:

STAY:

INSTANT:

BYPASS:

NOT READY:

NO AC:

CHIME:

BAT:

ALARM:

All burglary zones, interior and

perimeter, are armed.

Perimeter burglary zones, such as

protected windows and doors, are armed.

ALARM FIRE

AWAY

BYPASS

STAY

CHECK INSTANT CANCELED

FA260KP

Entry delay is turned off:

Lit with STAY = Instant mode Lit with AWAY = Maximum mode

This appears when one or more

burglary protection zones have been bypassed.

FIXED-WORD DISPLAYS

FA215KP

Appears when burglary portion of the system is not ready for arming (due to open protection zones). The system is ready to arm when this message disappears and the READY indicator light comes on.

Appears when AC power has been cut off. System is operating on

backup battery power.

Appears when AC power is present.

AC:

Appears when the CHIME feature is activated. Low battery condition in a wireless sensor (if zone number displayed)

or low system battery (if no zone number displayed).

Appears when an intrusion has been detected and the system is armed

(also appears during a fire alarm or audible emergency alarm). Accompanied by the protection zone in alarm.

NIGHT NO AC

PHONE TEST

NOT READY

CHIME BAT

6150disp

CHECK:

FIRE

Appears when a malfunction is discovered in the system at any time or

if an open is detected in a FIRE zone at any time or a fault in a DAY/NIGHT burglary zone during a disarmed period. Accompanied by a display of zone number in trouble.

: Appears when a fire alarm is present. Accompanied by a display of the

zone in alarm. A FIRE display also appears when a fire alarm is manually activated,

accompanied by a display of emergency key zone number programmed for fire.

– 9 –

)XQFWLRQVRIWKH.H\SDGV

NOTE:

The functions printed directly on the keys indicate their primary purpose; the functions printed under some of the keys (shown in brackets under the respective key), indicate their alternate or secondary purpose.

DISPLAY WINDOW

Alpha Display Keypads:

Liquid Crystal Display (LCD) keypads that display protection point identification, system status, and messages.

Fixed-Word Display Keypads:

protection zone ID and system status messages using pre-designated words in the LCD display area.

1 OFF

silences alarms and audible trouble indicators, and clears visual display after problem's correction.

[RECORD]

with the FUNCTION and VOICE keys to record up to a 2.5-minute message.

2 AWAY

perimeter and interior.

[VOLUME]

with the FUNCTION and desired volume control keys message or voice system status.

3 STAY

system only. Interior protection is not armed, allowing movement within premises without causing an alarm.

[PLAY]

the FUNCTION and VOICE keys to play the recorded message.

[ ↑ ]

FUNCTION and VOLUME keys to raise the message and voice system status volume.

4 MAXIMUM

perimeter and interior, but without entry delay feature. Entering via an entry/exit door will cause an alarm.

5 TEST

disarmed. Refer to test procedures.

Disarms burglary portion of the

On Voice keypads, used in conjunction

Arms the entire burglary system,

On Voice keypads, used in conjunction

↑

↓

[3] or

On Voice keypads, used in conjunction with the

[6] to adjust the volume of a recorded

Arms perimeter portion of burglary

On Voice keypads, used in conjunction with

Arms the entire burglary system,

Tests the system and alarm sounder if

Testing The System

2-line, 32-character

Display

system,

section for

6 BYPASS

being monitored by the system.

[ ↓ ]

On Voice keypads, used in conjunction with the FUNCTION and VOLUME keys to lower the message and voice system status volume.

7 INSTANT

mode, but without the entry delay feature.

KEYS 0–9:

perform their associated system functions after the security code has been entered.

READY

✱

[STATUS]:

STATUS key annunciates the current system status. Pressing the STATUS key a second time annunciates and displays system and/or zone faults (if they exist).

Removes individual protection zones from

Arms in manner similar to the STAY

Used to enter your security code(s) and to

Used to display all open protection zones.

On Voice keypads, a momentary press of the

[VOICE]

VOLUME and PLAY functions.

the system without use of a security code (if programmed).

[FUNCTION]

voice or volume function.

FUNCTION KEYS:

programmed for a variety of functions, including panic (emergency) functions. For details, see the section.

ARMED LED INDICATOR:

system has been armed.

READY LED INDICATOR:

system is ready to be armed (no faults present). While the system is disarmed, this indicator will go on and off as protection zones are closed and opened.

MESSAGE LED INDICATOR:

keypads, flashes red when message waiting or lights red (steady) when in record mode.

MIC

recordings.

INTERNAL SPEAKER:

the alarm sounder during alarms, and will also "beep" during certain system functions. The speaker also provides voice playback for any recorded messages.

On Voice keypads, enables the RECORD,

his key can be used for "Quick Arming" of

On Voice keypads, enables the desired

Keys A, B, C, D may have been

Function Keys

(RED) Lit when the

(GREEN) Lit when the

(RED) On Voice

On voice keypads, microphone for Message Center

The built-in speaker mimics

– 10 –

)XQFWLRQVRIWKH.H\SDGV&RQWLQXHG

LEDS

LCD DISPLAY

ARMED MESSAGEREADY

SPEAKER

STAY

AWAY

OFF

RECORD

MAX

INSTANT

READY

STATUS

FA560

VOLUME

VOICE

TEST

CODE

PLAY

BYPASS

CHIME

FUNCTION

KEYS

MICROPHONE

FA560VKP-003-V0

Voice-capable 2-line Alpha keypad

IMPORTANT!

When entering codes and commands, sequential key depressions must be made

•

within 4-5 seconds of one another. If 4-5 seconds elapse without a key depression, the entry will be aborted and must be repeated from its beginning. Be sure to observe this precaution when performing any of the procedures in this manual.

• If you make a mistake while entering a security code, stop, press the [

] key, and

✱

then start over. If you stop in the middle while entering a code, and then immediately start the entry over, an erroneous code might be entered.

– 11 –

(QWU\([LW'HOD\V

Your system has preset time delays, known as exit delay and entry delay.

([LW'HOD\

Exit delay gives you time to leave through the designated exit door without setting off an alarm. Exit delay begins immediately after arming your system in any arming mode and Alpha Display keypads display the message “You May Exit Now.” When “You may exit now” disappears, the system is fully armed. If programmed, a slow beeping will sound during the exit delay period until the last 10 seconds, which then changes to fast beeping (alerting you to the end of exit delay). If you cannot leave by this time, you should stop, disarm the system, and start over to avoid a false alarm.

Exit Delay Restart/Reset.

after arming STAY, you can re-start the exit delay at any time – simply press the [✱] key, then let that person in. The system automatically re-arms when exit delay expires, which avoids having to disarm the system and then re-arm it again.

In addition, when the system is armed AWAY, reopening and closing the entry/exit door before exit delay time expires (e.g., reentering to get a forgotten item) will reset the exit delay time.

(QWU\'HOD\

Entry Delays give you time to disarm the system when you re-enter through the designated entrance door. You must disarm the system (simply enter your security code) before the entry delay period ends, or an alarm will occur. The keypad beeps during the entry delay period, reminding you to disarm the system. There are two entry delays (if programmed). The first is for your primary entrance and the second can be used for a secondary entrance, where a longer delay is required to walk to the keypad to disarm the system.

You can also arm the system with no entry delay at all by using the INSTANT or MAXIMUM arming mode. This mode provides greater security while on the premises or while away for extended periods of time.

See your installer for your delay times.

If you wish to open the entry/exit door to let someone in

– 12 –

Exit Delay:

seconds Entry Delay 1: seconds

Entry Delay 2:

seconds

([LW$ODUPV

Whenever you arm the system, the exit delay begins. If an entry/exit door or interior zone is faulted within two minutes after the end of the exit delay (e.g., exit door left open), the system sounds an alarm and starts the entry delay timer. If you disarm the system before the entry delay ends, the alarm sound stops and the message "CANCELED ALARM" or "CA" is displayed on the keypad, along with a zone number indicating the faulted zone. No message is sent to the Central Monitoring Station.

To clear the exit alarm condition, the open zone must be made intact; to clear the display, enter your code plus OFF.

If you do not disarm the system before the entry delay ends, and an entry/exit door or interior zone is still open, the alarm sound continues and an "exit alarm" message is sent to the Central Monitoring Station. The message ""EXIT ALARM" or "EA" is displayed on the keypad, along with a zone number indicating the faulted zone. To stop the alarm, the system must be disarmed (your code plus OFF); to clear the display, enter your code plus OFF a second time.

Your system may have been programmed for this feature to minimize false alarms sent to the Central

Monitoring Station. Ask your installer if "Exit Alarm" is active in your system. If so, check this box.

(QWU\([LW'HOD\V

&RQWLQXHG

– 13 –

&KHFNLQJ)RU2SHQ=RQHV

8VLQJWKH>∗@.H\

Before arming your system, all protected doors, windows and other protection zones must be closed or bypassed, otherwise the keypad will display a "Not Ready" message.

1. Press [∗] READY (do not enter code first) to display faulted zones

2. Secure or bypass the zones displayed.

The keypad’s READY indicator lights when all protection zones have been either closed or bypassed.

4. Arm the system as desired.

Voice Status: Voice Keypads (if installed), can announce system status and faulted zones (up to 3 zone descriptors) if the Voice Status feature is turned on.

Alpha Display:

(-7%61)(  46)77 83 7,3; *%9087

Fixed-Word Display:

Zone no. and “NOT READY”

∗

To turn the Voice Status feature on/off:

(also turns on Voice Chime mode; see

Chime mode

# + 0 + 2 + 4

section)

To announce Status: Press [∗] STATUS key once.

To announce faulted zones: Press the [∗] STATUS key a second time within 5

seconds of the first press.

– 14 –

$UPLQJWKH6\VWHP

6WD\0RGH$UPV3HULPHWHU2QO\(QWU\'HOD\2Q

• Used when you want to arm the system with persons staying inside (or if you have pets that are moving throughout the premises).

• The perimeter sensors are armed, but interior sensors are left disarmed.

• Exit delay begins (you can leave through the entry/exit door, if desired).

• An alarm sounds if any protected window or non-entry/exit door is opened.

• You may otherwise move freely within the premises.

• Persons entering later can enter through an entry/exit door, but they must disarm

the system within the entry delay period to avoid sounding an alarm.

1LJKW6WD\0RGH$UPV3HULPHWHU2QO\3OXV6HOHFWHG=RQHV

• Use Night-Stay mode to provide increased security while staying inside.

• Arms same as Stay mode, but also arms pre-selected interior sensors (programmed

by your installer), while other interior sensors are left disarmed.

• Persons entering later can enter through an entry/exit door but they must disarm the system and must not violate any of the programmed interior zones to avoid sounding an alarm.

IMPORTANT: When Night-Stay mode is on, the selected interior zones are armed and cause an

•

alarm if anyone enters those areas (e.g., waking in the middle of the night). To avoid sounding an alarm, you must disarm the system before any activity takes place in those interior zones.

,QVWDQW0RGH$UPV3HULPHWHU2QO\(QWU\'HOD\2II

• Used when staying inside and do not expect anyone to use an entry/exit door.

• Arms same as Stay mode.

• An alarm sounds immediately if any protected perimeter window or any door is

opened, including entry/exit doors.

IMPORTANT: Arming in this mode greatly increases the chance of false alarms. Use extreme

•

care in selecting this mode of arming.

$ZD\0RGH$UPV(QWLUH6\VWHP(QWU\'HOD\2Q

• Used when nobody will be staying inside (including pets).

• The entire system (interior and perimeter) is armed.

• Exit delay begins letting you leave through the entry/exit door.

• An alarm sounds if a protected window or any door is opened, or if any movement

is detected inside your premises.

• You can reenter through an entry/exit door, but you must disarm the system within the entry delay period to avoid sounding an alarm.

0D[LPXP0RGH$UPV(QWLUH6\VWHP(QWU\'HOD\2II

• Used when leaving the premises for extended periods (e.g., vacation).

• Arms same as Away mode, but entry delay is off.

• An alarm sounds same as Away mode, and sounds upon opening entry/exit doors.

– 15 –

$UPLQJWKH6\VWHP

$UPLQJ&RPPDQGV

Before arming, close all perimeter doors and windows and make sure the Ready to Arm message is displayed.

Modes of Arming

Mode Press these keys… Keypad Confirms By…

Stay security code + [3] (STAY)

Night-Stay security code + [3] + [3]

Instant security code + [7] (INSTANT)

Away security code + [2] (AWAY)

Maximum security code + [4] (MAXIMUM)

•

three beeps

•

armed STAY message displayed

•

red ARMED indicator lights

•

three beeps

•

NIGHT-STAY message displayed

•

red ARMED indicator lights

•

three beeps

•

armed STAY message displayed

•

red ARMED indicator lights

•

also note that entry delay is turned off.

•

two beeps, or, if programmed, beeping for

duration of exit delay

•

armed AWAY message displayed

•

red ARMED indicator lights Leave the premises through an entry/exit door during the exit delay period to avoid causing an alarm. The keypad beeps rapidly during the last 5 seconds of the exit delay to warn you that it is ending.

•

same as Away (described above) Note that entry delay is turned off.

– 16 –

Quick Arming

[#]

If "Quick Arming" was programmed by the installer, the

key can be pressed in place of the security code when arming the system in any of its arming modes. However,

the security code must always be used to disarm the system.

Function Key Arming

For any arming command, a function key may have also been programmed for your system. If so, you can press and hold the appropriate function key for 2 seconds to arm the system. See your installer for the designated functions (see

Arming

section).

Single Button

6LQJOH%XWWRQ$UPLQJ

The “A”, “B”, “C”, and/or “D” keys on your keypad may have been programmed for single-button arming. Note that while it will not be necessary to use a security code for arming, a security code must always be used to disarm the system.

If Single-Button Arming is programmed:

• A function key has been assigned to a specific type of arming: STAY mode, Night-STAY mode, AWAY mode, or STEP-ARMING (see Step-Arming paragraph).

• You DO NOT need to enter your security code before pressing the function key (but you always need your security code to DISARM the system).

Before arming, close all perimeter doors and windows.

Press and hold the assigned function key for 2

seconds (no code is required). Function keys are shown below.

$UPLQJWKH6\VWHP

Alpha Display:

(-7%61)(

6)%(= 83 %61

The keypad begins beeping and displays the armed

message. The red ARMED indicator also lights.

6WHS$UPLQJ)HDWXUH

Single-Button “Step” arming may have been programmed into one of the lettered keys (A, B, C, or D). Check with your installer to see if this has been done in your system.

If Step-Arming is programmed:

• The assigned key provides a choice of three levels of security.

• The selected key can be pressed once, twice, or three times, increasing the level

of security with each press, as follows

Key

A, B, C, D

First Press

Armed-STAY Armed Night-STAY

Second Press

(if programmed)

Fixed-Word Display:

Alpha Display:

%61)(%;%= =39 1%= )<-8 23;

Fixed-Word Display:

Third Press

Armed-AWAY

READY

AWAY

– 17 –

8VLQJWKH.H\VZLWFK

GREEN

RED

8VLQJWKH.H\VZLWFK

Your system may be equipped with a keyswitch for use when arming and disarming. Red and green lights on the keyswitch plate indicate the status of your system as follows: Green Light: Lights when the system is disarmed and ready to be armed (no

open zones). If the system is disarmed and the green light is off, it indicates the system is not ready (one or more zones are open).

Red Light: Lights or flashes when system is armed in AWAY or STAY mode.

See your installer for the meanings of the lit red light: Lit Steady = system armed AWAY or

system armed STAY and exit delay has expired Flashing = system armed STAY and exit delay timer active Rapid flashing = an alarm has occurred (memory of alarm).

Before arming, close all perimeter doors and windows.

To arm in the AWAY mode:

Turn the key to the right for 1/2 second and release. Keypads beep twice and the red indicator lights or flashes.

To arm in the STAY mode:

Turn the key to the right and hold for longer than 1 second, then release. Keypads beep three times and the red indicator lights or flashes.

To disarm the system:

Turn the key to the right and release. The red light turns off

– 18 –

8VLQJWKH>2))@NH\

The OFF key is used to disarm the system, silence alarm and trouble sounds, and clear alarm memories.

'LVDUPLQJDQG6LOHQFLQJ$ODUPV

IMPORTANT: If you return and the main burglary sounder is on, DO NOT ENTER,

CONTACT THE POLICE from a nearby safe location. If you return after an alarm has occurred and the main sounder has shut itself off,

beep rapidly upon your entering, indicating that an alarm has occurred during your absence.

LEAVE AT ONCE, and CONTACT THE POLICE from a nearby safe location.

+ 1

(Security Code)

OFF

The “READY” indicator light will be lit if all zones

Alpha Display:

(-7%61)(

6)%(= 83 %61

the keypad will

but

are secure, and the keypad will emit a single tone to confirm that the system is disarmed.

Fixed-Word Display: READY

NOTE: If entry delay has started (you’ve opened the entry door), you do not need to press the OFF key; simply enter your security code.

To Silence a Burglary Alarm and Clear a Memory of Alarm

Enter your security code. This disarms the system and silences the alarm (or warning tones of a Memory of Alarm).

Note the zone in alarm on the keypad display, and make that zone intact (close door, window, etc.). Now enter the security code plus OFF to clear the keypad’s Memory of Alarm display.

To Silence a Fire Alarm and Clear Memory of Alarm

Simply press the OFF key to silence the alarm. Then enter the security code plus OFF sequence to clear the keypad's Memory of Alarm display. See the Fire Alarm

System section.

– 19 –

%\SDVVLQJ3URWHFWLRQ=RQHV

8VLQJWKH%<3$66.H\

Use t

his key when you want to arm your system with one or more zones intentionally

unprotected.

Vent Zones:

automatically bypassed if left open when arming the system (you do not need to manually bypass them). However, if a vent zone window is closed becomes protected and will cause an alarm if opened again while the system is armed.

When bypassing zones:

•

The system must be disarmed before you can bypass zones.

•

Bypassed zones are unprotected and will not cause an alarm if violated.

•

The system will not allow fire zones to be bypassed.

•

Zones are automatically unbypassed when the system is disarmed.

+ 6 + zone numbers (see below)

(Security Code)

Enter the 2-digit zone number(s) for the zone(s) to be bypassed (e.g., 06, 10, 13, etc.). Single digit zone numbers must be preceded by a zero (e.g. 05, 06).

When finished, the keypad will momentarily display

a "Bypass" message for each bypassed zone number. Wait for all bypassed zones to be displayed.

Arm the system as usual. When armed, the arming message is displayed with “ZONE BYPASSED.”

To display bypassed zones prior to arming, enter your security code and press the [6] BYPASS key.

Your system may have certain windows set as “vent” zones, which are

after

arming, it

Alpha Display:

BYPASS

(-7%61)(  46)77  83 7,3; *%9087

Fixed-Word Display:

Alpha Display:

NOT READY

(-7%61)( &=4%77

6)%(= 83 %61

Fixed-Word Display:

BYPASS

%61)( 78%= >32) &=4%77)(

– 20 –

Typical armed alpha display after bypassing zones.

4XLFN%\SDVV

If programmed, "Quick Bypass" allows you to easily bypass all open (faulted) zones without having to enter zone numbers individually. This feature is useful if, for example, you routinely leave certain windows open when arming at night.

%\SDVVLQJ3URWHFWLRQ=RQHV

+ 6 + [#]

(Security Code)

In a few moments, all open zones will be displayed and automatically bypassed.

zones that you wish to leave unprotected are bypassed, and that there are no other zones unintentionally left open.

Wait for all bypassed zones to be displayed, then arm

the system as desired.

Ask your installer if "Quick Bypass" is active for your system, and if so, check here:

BYPASS

Make sure that only those

Alpha Display:

(-7%61)(  46)77  83 7,3; *%9087

Fixed-Word Display:

NOT READY

(-7%61)( &=4%77

6)%(= 83 %61

Fixed-Word Display: BYPASS

– 21 –

&KLPH0RGH

CHIME mode alerts you to the opening of a perimeter door or window while the system is disarmed. When Chime mode is activated:

• Three tones sound at the keypad whenever a perimeter door or window is opened.

• Interior zones do not produce a tone when they are faulted.

• Pressing the READY key will display the open protection points.

• Chime mode can be used only while the system is disarmed.

To turn Chime Mode on/off

+ 9

(Security Code)

The CHIME message appears when on. Perimeter zones will cause a tone when faulted.

The CHIME message disappears when Chime mode is off.

Voice Chime: You can set the Voice Keypads (if installed) to announce faulted (opened) entry/exit or perimeter zones whenever normal Chime mode is on.

To turn Voice Chime Mode on or off:

(normal Chime mode must be on first)

When Voice Chime is on, faulted zones cause a voice status announcement, chime and display. When off, the sounder still provides chime if normal Chime mode is on.

CHIME

(system must be disarmed)

# + 0 + 2 + 4

(-7%61)( ',-1)

6)%(= 83 %61

Fixed-Word Display:

CHIME

– 22 –

9LHZLQJWKH&XUUHQW'DWHDQG7LPH

The system lets you view its time and date setting on alpha keypad.

'DWHDQG7LPH

+[#] + [6] [3]

(Security Code)

OR, press the function key (A, B, C, or D) for viewing

current date and time, if programmed.

A typical time/date display is shown. The display will remain on for about 30 seconds.

“ A” “ B”“C”“D”

If one of the above keys has been programmed for the date/time display feature, place a check mark in the box beneath that key.

6HWWLQJWKH'DWHDQG7LPH

You can set the time and date by doing the following:

+[#] + [6] [3]

(Security Code)

2. Press [∗] when the time/date is displayed. A cursor appears under the first digit of the hour.

To move cursor ahead, press [

• Enter the 2-digit hour setting.

• Enter the 2-digit minute setting.

• Press [1] for PM or [0] for AM.

• Enter the last two digits of the current year.

• Enter the 2-digit month setting.

• Enter the 2-digit day setting.

3. To exit, press [∗] when cursor is at the last digit, or wait 10 seconds.

∗

]. To go back, press [#].

Alpha Display:

(-7%61)(

6)%(= 83 %61

8-1)(%8) 7%8 %1C

Alpha Display:

(-7%61)(

6)%(= 83 %61

8-1)(%8) 7%8 41 

Current time display

8-1)(%8) 7%8 4

Time/date editing display

– 23 –

3DQLF.H\V

8VLQJ3DQLF.H\V

Your system may have been programmed to use special keys to manually activate emergency (panic) functions as follows:

This Function Sends this signal* With This Sounding…

Silent Alarm silent alarm no audible alarm and no change in

Audible Alarm audible alarm a loud, steady alarm at keypad(s) and at

Personal Emergency auxiliary alarm steady alarm sound at keypad(s), but not

Fire Alarm fire alarm temporal (pulsing) sound at external

*All panic functions send signals to the Central Monitoring Station, if connected.

normal display to indicate that a silent alarm has been initiated.

any external sounders that may be connected.

at external bells or sirens.

bells and sirens.

To activate a Panic Function:

Press and hold down for at least 2 seconds whichever lettered key on the keypad has been programmed for the desired emergency function.

OR Press both keys of the assigned key pair at the same

time.

ZONE 95

ZONE 99

ZONE 96

READY

ARMED

AWAY

STAY

OFF

AWAY

TEST

MAX

INSTANT

READY

FA560

BYPASS

CHIME

CODE

560KP-10-001-V0

STAY

PAGE

ZONE 95

Alpha Display:

(-7%61)(

6)%(= 83 %61

Fixed-Word Display:

Typical Panic Alpha Display:

%0%61 

Fixed-Word Display:

READY

ARMED

PRESS BOTH KEYS

STAY

BYPASS

CHIME

OF DESIRED PAIR AT THE SAME TIME

ZONE 96

AWAY

OFF

AWAY

TEST

MAX

STAY

CODE

INSTANT

READY

PAGE

FA560

ZONE

READY

99 and ALARM

560KP-10-002-V0

Lettered Panic Keys Panic Key Pairs

See your installer and use the chart provided in the Features Programmed in Your System section to note the functions that have been programmed for your system.

– 24 –

$ERXW0DFUR.H\V

The “A”, “B”, “C” or “D” keys can be used to automatically activate a series of commands of up to 16 keystrokes, if programmed for this function. These keystrokes, as a group, are called “macros” and are stored in the system's memory.

• Typical macro functions can include:

- Arming sequences: STAY, Night-STAY, INSTANT, or AWAY

- Bypassing particular zone(s)

- Activating relay(s) for turning on (or off) lights, fans, etc.

• One macro can be assigned.

• Macros can be activated only by users with authority levels authorized to

perform the macro’s function.

NOTE: The installer must activate the desired function key before macros can be assigned. See the chart at the back of this manual for the key(s) assigned for macros.

0DFUR.H\3URJUDPPLQJ8VDJH

+ [#] + [6] + [6]

(Security Code)

If a macro has been previously defined, the keystrokes are shown on the bottom line of the display, otherwise the display is blank.

To exit this mode (and keep the existing macro definition), press any key except the [∗] key. The system returns to normal mode.

To define a macro for the selected key, press [∗] and continue with the next prompt.

2. Enter the first of the series of desired commands, (do not include your user code), then press/hold the “D” key for at least two seconds to complete the first command. This key terminates each command, and appears as an “F” in the keypad display.

Alpha Displays:

(-7%61)(

6)%(= 83 %61

1%'63 (-740%=

1%'63 4+1

– 25 –

0DFUR.H\3URJUDPPLQJ8VDJH

FRQW

The keypad beeps to acknowledge your input and displays the command you entered (followed by “F”).

4. Enter the next command, followed by press/holding the “D” key for at least two seconds. The keypad beeps and displays the keystrokes entered so far.

5. Repeat until the all the desired commands (up to 16 characters including the “F”s) have been entered.

Be sure to check your keystrokes before continuing. If you made a mistake, you must start over.

6. To exit, press/hold the “D” key for at least two seconds. The display returns to system status and indicates system is ready.

([DPSOHRI0DFUR3URJUDPPLQJ

Suppose you want to (1) bypass the two upstairs window zones, then (2) turn on an exterior light, and then (3) arm the security system in the AWAY mode. The procedures in the table that follows show you how you would program this macro:

Function

Bypass zones 02 & 03

Insert terminator. Press the “D” key for at least 2 seconds.

Turn light on

(device 01).

Insert terminator. Press the “D” key for at least 2 seconds.

Arm system AWAY Press

Insert terminator. Press the “D” key for at least 2 seconds.

Keystrokes Required Keypad Display

Press 2-digit zone numbers 02 & 03.

Press [#] and 7 keys for “device ON”, and [01] key for selecting device 1.

BYPASS [6]

AWAY [2]

key.

key, then

Typical Macro Alpha Display:

1%'63 4+1

*#**



* *#

*#* *#*

*#**

8VLQJD3URJUDPPHG0DFUR.H\

(-7%61)(

6)%(= 83 %61

)28)6 97)6 '3() 

– 26 –

Press the Macro key programmed for the desired series of commands for at least 2 seconds. The “Enter User Code” prompt appears. The prompt remains displayed for up to 10 seconds.

Enter your 4-digit user code.

The programmed macro sequence begins automatically after the user code is entered.

$ERXW'HYLFH&RPPDQGV

Your system may be set up so that it can control certain lights or other devices.

• Some devices may be automatically turned on or off by the system.

• You may be able to override automatically controlled devices using the

commands described below.

• Some devices can be manually turned on or off using the commands described below.

• See your installer for a list of devices that may be set up for your system. A list of these devices is provided at the back of this manual for you to fill out.

8VLQJ'HYLFH&RPPDQGV

To Activate Devices:

+ [#] + [7] + 2-digit device number

(Security Code)

Devices associated with that device number activate.

To Deactivate Devices:

+ [#] + [8] + 2-digit device number

(Security Code)

Devices associated with that device number deactivate.

Alpha Display:

(-7%61)(

6)%(= 83 %61

Fixed-Word Display:

READY

– 27 –

3DJLQJ)HDWXUH

$ERXW$XWRPDWLF3DJLQJ

Your system may be set up to automatically send alert messages to a pager as certain conditions occur in your system.

• The following events can be programmed by your installer to be sent to the pagers: arming and disarming arming/disarming from a keypad using a security code; auto-arming/disarming, arming with assigned button, and keyswitch arming do not send pager messages.)

• You can also program the system to send an automatic pager message to alert you in the event that someone has not arrived home (disarmed the system) within a defined period of time (see the Scheduling section for details on “latch key report”).

• Your installer programs the pager phone numbers and reporting events.

• The pager message consists of a 7-digit system status code that indicates the type of

condition that has occurred.

• An optional, predefined 16-digit character string can precede the 7-digit system status code; these characters can consist of a PIN no., subscriber account no., or any additional data that you may wish to have sent to the pager.

• The pager display format is as follows:

Optional 16 digits

A = B = C =

Optional 16-digits for Account numbers, PIN numbers, or any other data; programmed by the installer, if required.

The 3-digit Event Codes (BBB) that can be displayed are:

911 = 811 = 101 = 102 =

Alarms.

The 4-digit number (CCCC) represents the zone number that has caused the alarm.

Examples of typical 7-digit pager displays follow.

Ex. 1.

³

AAAAAAAAAAAAAAAA

A 3-digit code that

describes the event that has occurred in your system (see for event codes table below)

= Alarm (911) on zone 4 (1004)

†

, alarms, and trouble conditions. († reports when

3-digit Event Code

–

A 1-digit partition number plus a 3-digit User or Zone number, depending on the type of event that has occurred, where:

• alarms and troubles display zone number

• arming/disarming (opens/closes) display user number

• single-digit user or zone numbers are preceded by a

Troubles.

The 4-digit number (CCCC) represents the zone number that has caused the trouble.

BBB

CCCC

–

zero.

(system disarmed).

The 4-digit number (CCCC) represents the user number that has disarmed the system.

1-digit partition + 3-digit User or Zone No.

Open

(system armed).

The 4-digit number (CCCC) represents the user number that has armed the system.

– 28 –

Ex. 2.

³

= Closing–system arming (102)– by user 5 (1005)

0DQXDO3DJLQJ

Your system may be set up so you can manually send a message to a pager.

• Your installer programs the paging function key and the pager phone number.

• Pressing the paging keys sends the message

• This message could mean “call home”, “call your office”, or any other prearranged

meaning.

• See the Paging chart at the back of this manual for details of the paging setup for

your system.

3DJLQJ)HDWXUH

999– 9999

to the pager

1. Hold

pager key

Press and hold the programmed Paging Key for at least 2 seconds (wait for beep).

2. The recipient, on seeing the 999–9999 message, will understand the prearranged meaning of this signal.

/DWFK.H\3DJLQJ

You can program a schedule that causes a pager report to be sent if the system is not DISARMED by the scheduled time (see Scheduling section, event “03”). For example, a working parent might want a message to be sent to a pager if their child did not arrive home from school and disarm the system by a certain time.

If programmed, the message that is sent is:

2 seconds.

777– 7777

Alpha Display:

(-7%61)(

6)%(= 83 %61

Fixed-Word Display:



Pager Display

READY

– 29 –

6HFXULW\&RGHV$XWKRULW\/HYHOV

$ERXW6HFXULW\&RGHV

Your installer assigned a master code that is used to perform all system functions. In addition, you can assign up to 15 different security codes for use by other users.

• Only the System Master can assign user codes to users.

• Users are identified by 2-digit user numbers (01-16).

• In addition to a security code, each user is assigned various system attributes.

• User codes can be used interchangeably when performing system functions (a

system armed with one user's code can be disarmed by another user's code), with the exception of the guest code described below.

• User code programming involves these steps:

1. Choose a user number and assign a 4-digit security code.

2. Assign an authority level to that user.

3. Assign other attributes as necessary (see attributes on the next page). NOTE: The factory settings are designed to meet most normal user situations.

Therefore, the only step you usually need to do when adding users is assign a user number and a security code.

$XWKRULW\/HYHO'HILQLWLRQV

Authority levels define the system functions a particular user can/cannot perform.

Level Title Explanation

N/A System Master Reserved for user 02; Can perform all system functions and assign

codes; can change its own code as follows:

Master code + [8] + 02

new master code + new master code again

– 30 –

The default System Master code is 1234.

0 Standard User Can only perform security functions. Cannot perform other system

functions.

1 Arm Only Can only arm the system. Cannot disarm or do other functions. 2 Guest Can arm the system, but cannot disarm the system

system was armed with this code. This code is typically assigned to someone (e.g., babysitter or cleaner) who has a need to arm/disarm the system only at certain times. The user of this code should the “Quick Arming” feature.

3 Duress Code Intended for use when you are forced to disarm or arm the system

under threat. When used, the system will act normally, but can silently notify the Central Monitoring Station of your situation, if that service has been provided.

unless

the

not

use

6HFXULW\&RGHV$XWKRULW\/HYHOV

+RZWR$VVLJQ8VHU&RGHVDQG$WWULEXWHV

The following lists the various command strings for adding user codes and attributes.

Refer to the User Setup chart at the back of this manual for factory

assignments of user attributes and to keep a record of user programming.

&RQW

Add User Code:

Delete User Code:

Authority Level:

Factory Assignments: users 03-16 = 0

Access Group:

Factory Assignments: none

RF User Number:

Factory Assignments: none

Pager On/Off:

Factory Assignments: users 01-16 = 1 (on)

System Master code + [8] + user no.

User 01 = installer User 03-16 = standard users User 02 = master (factory set master code is 1234) The Keypad beeps once to confirm that new user was added.

System Master code + [8] + [user no.] + [#] [0]

The user code and all attributes programmed for this user number, including any associated RF keys, are erased from the system.

System Master code + [8] + [user no.] + [#] [1]+ auth. level

Authority Levels (see definitions on previous page): 0 = standard user 2 = guest 1 = arm only 3 = duress

System Master Code + [8] + [user no.] + [#] [2]+ group (1-8)

You can assign users to a group, then set an access schedule that defines the times this group of users can operate the system. The system ignores these users outside the scheduled times.

System Master Code + [8] + [user no.] + [#] [4]+ zone no.

Use this command to assign a wireless button device (keyfob) to this user (keyfob must be enrolled in system first; see installer). Zone number: enter the zone number assigned to a button on the keyfob that will be used for arming/disarming by this user.

System Master Code + [8] + [user no.] + [#] [5] + 0 or 1

ou can program a user so that a message is sent to a pager

whenever this code is used to arm or disarm the system. Paging On/Off: 1 = allow paging; 0 = no paging for this user

new user’s code

– 31 –

6FKHGXOLQJ

$ERXW6FKHGXOLQJ

The system provides one end-user schedule (programmable by master/installer only), which can control various types of events.

• Each schedule causes a defined event to start and stop (when appropriate) at a specified time.

• Schedules can be set to automatically repeat at various intervals.

• Schedules can be set for random starting, if desired.

&UHDWLQJ6FKHGXOHV

+ [#] + [6] [4]

(Master Code)

Alpha Displays:

 (-7%61)(

6)%(= 83 %61

Enter “01” as the 2-digit schedule number.

Press [∗] to continue.

Enter the desired 2-digit event number from the

following list. 00 = clear the scheduled event 01 = turn a programmed output on or off

(see Using Device Commands section for a list of output device numbers used in your system)

02 = set a user access schedule for one or more users

(see Security Codes section for an explanation of access groups)

03 = send a “latch-key” report to a pager if the system is not disarmed by a specified

time; message sent is “777-7777.” 04 = automatically arm the system in STAY mode at a specified time 05 = automatically arm the system in AWAY mode at a specified time 06 = automatically disarm the system at a specified time 07 = Display the word “REMINDER” at a specified time

Press [∗] to continue.

4. For event number “01,” enter the output number associated with this schedule. Otherwise, this prompt is skipped. Press [∗] to continue to the “Start” prompt below.

)28)6 7',)( 23 =59-8 

)28)6 ):)28

():-') 291&)6

– 32 –

6FKHGXOLQJFRQWLQXHG

5. For event number “02,” enter the access group

number. Otherwise, this prompt is skipped. Press [∗] to continue to the “Start” prompt below.

7. Enter the event’s start time and days of week.

Hour = 00-12; minute = 00-59 AM = 0; PM = 1 Days = Position the cursor under the desired days using the [∗] key to move forward, then press “1” to select the day. Press [∗] to continue.

8. Enter the event’s stop time, AM/PM and days of

week. Refer to step 7 for available entries. Press [∗] to continue.

9. Enter the desired repeat option.

0 = no repeat 1 = repeat schedule weekly 2 = repeat schedule biweekly (every other week) 3 = repeat schedule every third week 4 = repeat schedule every fourth week e.g., To make a schedule that happens everyday you would select all days with a repeat count of 1. To make a schedule that runs for one week then stops, select everyday with a repeat count of 0.

10. Select the randomize option, if desired.

0 = no; 1 = yes If selected, the schedule times will vary within 60 minutes of the “hour” time. For example, if a schedule is set to start at 6:15pm, it will do so the first time 6:15pm arrives, but on subsequent days it will start anytime between 6:00 and 6:59 p.m. Press [∗] to return to first prompt, then enter 00 to quit.

+6394 291&)6

78%68 718;8*7 ,,11%1 

7834 718;8*7 ,,11%1 

6)4)%8 348-32  <

6%2(31->) =23 ==)7 <

– 33 –

(YHQW/RJJLQJ3URFHGXUHV

$ERXW(YHQW/RJJLQJ

The system records various events in a history log, which can be viewed by the master user using an Alpha Display keypad.

• The Event Log holds up to 32 events.

• Events are displayed in chronological order, from most recent to oldest.

• When the log is full, the oldest event is replaced by the logging of any new event.

9LHZLQJWKH(YHQW/RJ

+ [#] + 6 + 0

(Master Code)

2. The system displays the most recent event as follows:

• event number

• type of event, identified by its corresponding code

(see your installer for the meaning of each code)

• zone or user number (depending on type of event)

• time and date of the event’s occurrence.

3. Pressing [∗] displays previous events (back in time). Pressing [#] displays events forward in time.

4. Exit the event log by pressing any key other than [∗] or [#].

Alpha Displays:

(-7%61)(

6)%(= 83 %61

 ) 9 4 %1 

– 34 –

(YHQW/RJJLQJ3URFHGXUHVFRQWLQXHG

7DEOHRI(YHQW/RJ&RGHV

The following table lists the codes that may appear when viewing the Event Log. If the event code is preceded by an “E” (as in the example display on the previous

page), it means that the event is new and ongoing; if preceded by an “R,” it means the event has been restored.

Code Definition

110 Fire Alarm 121 Duress 122 Alarm, 24-hour Silent 123 Alarm, 24-hour Audible

131 Alarm, Perimeter

132 Alarm, Interior

134 Alarm, Entry/Exit

135 Alarm, Day/Night

143 Alarm, Expansion Module 145 ECP Module cover tamper 146 Silent Burglary 150 Alarm, 24-Hour Auxiliary/Monitor

zone 162 Carbon Monoxide 301 AC Power 302 Low System Battery/Battery Test

Fail 305 System Reset (Log only) 309 Battery Test Failure 321 Bell/Siren Trouble 333 Trouble, Expansion Mod.

Supervision 341 Trouble, ECP Cover Tamper 344 RF Receiver Jam 351 Telco Line Fault 353 Long Range Radio Trouble 373 Fire Loop Trouble 374 Exit Error Alarm 380 Global Trouble, Trouble

Day/Night

Code Definition

381 RF Supervision Trouble 382 Supervision Auxiliary Wire Zone 383 RF Sensor Tamper 384 RF Sensor Low-battery 393 Clean Me 401 Disarmed, Armed AWAY,

Armed STAY 403 Schedule Arm/Disarm AWAY 406 Cancel by User 407 Remote Arm/Disarm

(Downloading) 408 Quick Arm AWAY 409 Keyswitch Arm/Disarm AWAY 441 Disarmed/Armed

STAY/INSTANT,

Quick-Arm STAY/INSTANT 442 Keyswitch Arm/Disarm STAY 570 Bypass 601 Manually Triggered Dialer Test 602 Periodic Test 606 AAV to Follow 607 Walk Test Entered/Exited 623 Event Log 80% Full 625 Real-Time Clock was Changed

(log only) 627 Program Mode Entry (log only) 628 Program Mode Exit (log only)

750 -

789

Reserved for Configurable Zone

Type report codes (check with

central station when using these

codes)

– 35 –

7HVWLQJWKH6\VWHP

$ERXW7HVWLQJWKH6\VWHP

Using Test mode allows each protection point to be checked for proper operation.

• The keypad sounds a single beep every 40 seconds as a reminder that the system is in the Test mode.

• Alarm messages are not sent to your Central Station while Test mode is on.

7R%H&RQGXFWHG:HHNO\

Disarm the system and close all protected windows,

doors, etc. The READY indicator light should come on if all zones are intact (i.e., all protected windows, doors, etc. are closed.

+ 5 then [0] (walk)

(Security Code)

The Dial test (option “1”) is intended for the installer and should not be used unless directed to do so by your Security System Representative.

3. Listen. The external sounder should sound for 1 second and then turn off. If the sounder does not sound, CALL FOR SERVICE.

4. Fault zones. Open each protected door and window in turn and listen for three beeps from the keypad. Identification (zone number or zone description) of each faulted protection point should appear on the display. The display clears when the door or window is closed.

5. Walk in front of any interior motion detectors (if used) and listen for three beeps. The identification of the detector should appear on the display when it is activated. The display clears when no motion is detected.

Note that if wireless motion detectors are used, there is a 3-minute delay between activations. This is to conserve battery life.

6. Test all smoke detectors, following the manufacturer's instructions. The identification of each detector should appear on the display when each is activated.

If a problem is experienced with any protection point (no confirming sounds, no display), call for service immediately.

When all protection points have been checked and are intact (closed), there should be no zone identification numbers displayed on the keypad.

TEST

Alpha Displays:

(-7%61)(

6)%(= 83 %61

=(-%0 =;%0/

8)78 -2 463+6)77

– 36 –

7. Exit test mode:

If the test mode is inadvertently left active, it automatically turns off after 4 hours.

+ [1]

(Security Code)

7URXEOH&RQGLWLRQV

"Check" and

"Battery" Displays

* Not all systems

use wireless sensors.

he word

"beeping" at the keypad, indicates a trouble condition in the system.

To silence the beeping for these conditions, press any key.

A display of "CHECK" and one or more zone numbers

indicates that a problem exists with the displayed zone(s) and requires your attention. Determine if the zone(s) displayed are intact and make them so if they are not. If the problem has been corrected, the display can be cleared if you enter the OFF sequence (security code plus OFF key) twice. If the display persists, CALL FOR SERVICE

Note:

indicates that the wiring connection to the external sounder is at fault (opened or shorted), and you should CALL FOR SERVICE. See “BELL FAILURE” on next page. A display of

CHECK 90

operation of wireless sensors* in the system. See “ on next page.

If there are wireless sensors* in your system,

condition may also be caused by some change in the environment that prevents the wireless receiver from receiving messages from a particular sensor. CALL FOR SERVICE if this occurs.

CHECK

A display of

on the keypad's display, accompanied by a

CHECK 70

indicates that RF interference may be impeding the

on Alpha Display keypads

Rcvr Jam

the

CHECK

”

IF YOU CANNOT CORRECT A "CHECK" DISPLAY, CALL FOR SERVICE

TYPICAL "CHECK" DISPLAYS

CHEC

FIXED-WORD DISPLAY KEYPAD

',)'/ &)(6331;-2(3;

ALPHA DISPLAY KEYPAD

– 37 –

7URXEOH&RQGLWLRQV&RQWLQXHG

Words or letters in parentheses ( ) are those that are displayed on Alpha Display keypads.

Other Trouble

Displays

Any “beeping” that accompanies a trouble display can be stopped by depressing any key on the keypad or by entering an OFF sequence (code + OFF)

Not all systems use

wireless sensors.

COMM. FAILURE Indicates that a failure has occurred in (or FC) the telephone communication portion of

your system. CALL FOR SERVICE.

SYSTEM LO BAT Indicates that a low system battery (or BAT with no condition exists. Display is zone No.) accompanied by "beeping"* at the

keypad. If this condition persists for more than one day (with AC present), CALL FOR SERVICE.

LO BAT Indicates that there is a low battery + zone descriptor condition in the wireless transmitter**

(or BAT with number displayed (00 is RF keypad). zone No.) Accompanied by a single "beep"* (about

once every 40 seconds) at the keypad. Either replace the battery yourself, or

CALL FOR SERVICE. If the battery is not replaced within 30 days, a CHECK display may occur.

Rcvr Jam Wireless part of the system is experiencing (or CHECK 90) RF interference which may impede

reception from wireless sensors.**

– 38 –

MODEM COMM

(or CC)

Indicates that the control is on-line with the Central Monitoring Station's remote computer. The control will not operate while on-line. Wait a few minutes — the display should disappear.

BELL FAILURE Indicates that the wiring connection to (or CHECK 70) the external sounder is at fault (open or

shorted). Accompanied by “beeping” at the keypad. CALL FOR SERVICE.

7URXEOH&RQGLWLRQV&RQWLQXHG

Other Trouble

Displays

(Continued

Total Power Failure

AC LOSS The system is operating on battery power (or NO AC)

)

Busy-Standby (or dI)

OPEN CIRCUIT The keypad is not receiving signals from (or OC) the control. CALL FOR SERVICE.

Long Rng Trbl If part of your system, back-up Long (or bF) Range Radio communication has failed.

TELCO FAULT The telephone line has a problem. (or CHECK 94) CALL FOR SERVICE.

If there is no keypad display at all, and the READY indicator is not lit, operating power (from AC and back-up battery) for the system has stopped and the system is inoperative. CALL FOR SERVICE.

only due to an AC power failure. If only some lights are out on the premises, check circuit breakers and fuses and reset or replace as necessary.

If AC power cannot be restored and a “low system battery” message appears (see previous page), CALL FOR SERVICE.

If this message remains displayed for more than 1 minute, system is disabled. CALL FOR SERVICE.

CALL FOR SERVICE.

In The Event Of Telephone Operational Problems

In the event of telephone operational problems, disconnect the control from the phone line by removing the plug from the phone wall jack. We recommend that your installer demonstrate this disconnection on installation of the system. Do not attempt to disconnect the phone connection inside the control. Doing so will result in the loss of your phone lines. If the regular phones work correctly after the control has been disconnected from the phone wall jack, the control has a problem and you should immediately call for service. If upon disconnection of the control, there is still a problem on the phone line, notify the Telephone Company that they have a problem and request prompt phone repair service. The user may not under any circumstances attempt any service or repairs to the security system. Repairs must be made only by authorized service (see the LIMITED WARRANTY statement for information on how to obtain service).

– 39 –

0DLQWDLQLQJ<RXU6\VWHP

Taking Care of

Your System

Silencing Low

Battery Warning

Tones at the

Keypad

Replacing

Batteries in

Wireless Sensors

Wireless sensors may not have been used in your security system

IMPORTANT:

Use only batteries recommended by your installer as replacement.

The components of your security system are designed to be as maintenance-free as possible. However, to make sure that your system is in reliable working condition, do the following:

1. Test your system weekly

2. Test your system after any alarm occurs.

You can silence the keypad’s warning tones by pressing the OFF key, but the keypad's low battery message display will remain on as a reminder that you have a low battery condition in one or more of your wireless sensors. When you replace the weak battery with a fresh one, the sensor sends a "good battery" signal to the control as soon as the sensor is activated (opening/closing of door, window, etc.), causing the low battery display to turn off. If the sensor is not activated, the display will automatically clear within approximately 1 hour.

Each wireless sensor in your system has a 9-volt or 3-volt battery. The system detects a low battery in wireless sensors, including smoke detectors, the personal emergency transmitter, and the portable wireless keypad and displays a low battery message*. (A low battery in a portable wireless keypad is detected as soon as one of its keys is pressed, and displayed as 00.). Battery-operated smoke detectors with a low battery also emit a single "chirp" sound approximately once every 20–30 seconds.

Alkaline batteries provide a minimum of 1 year of operation, and in most units and applications, provide 2–4 years of service. 3-volt lithium batteries provide up to 4 or more years of operation. Actual battery life will depend on the environment in which the sensor is used, the number of signals that the transmitter in the sensor has had to send, and the specific type of sensor. Factors such as humidity, high or low temperatures or large swings in temperature, may all lead to the reduction of actual battery life in an installation.

Routine Care

– 40 –

The low battery message comes on as a warning that battery replacement in indicated sensor(s) is due within 30 days. In the meantime, a sensor causing a low battery indication is still fully operational.

•Treat the components of your security system as you would any other

electrical equipment. Do not slam sensor-protected doors or windows.

•Keep dust from accumulating on the keypad and all protective

sensors, particularly on motion sensors and smoke detectors.

•The keypad and sensors should be cleaned carefully with a dry soft cloth. Do not spray water or any other fluid on the units.

)LUH$ODUP6\VWHP,I,QVWDOOHG

THIS SECTION APPLIES ONLY TO RESIDENTIAL SYSTEMS

General

Silencing

Fire Alarms and

Clearing Memory

of Alarm

Your fire alarm system (if installed) is on 24 hours a day, for continuous protection. In the event of an emergency, the strategically located smoke and heat detectors will sound their alarms and automatically send signals to your system, triggering a loud, interrupted pulsed sound* from the Keypad(s) and any external sounders. A FIRE message will appear at your Keypad and remain on until you silence the alarm (see below for silencing fire alarms).

Temporal pulse sounding is produced for Fire alarms, as follows:

3 pulses–pause–3 pulses–pause–3 pulses–pause. . . , repeated.

TYPICAL FIRE EMERGENCY DISPLAYS

*-6)1%78)6

&)(6331

ALPHA DISPLAY KEYPAD FIXED-WORD KEYPAD

1. You can silence the alarm at any time by pressing the security code is not needed to silence fire alarms). To clear the display, enter your code and press the Memory of Alarm).

2. If the Keypad's FIRE display does not clear after the second OFF sequence, smoke detectors may still be responding to smoke or heat producing objects in their vicinity. Investigate, and should this be the case, eliminate the source of heat or smoke.



ALARM

FIRE

OFF

key again (to clear

OFF

key (the

Smoke Detector

Reset

3. If this does not remedy the problem, there may still be smoke in the detector. Clear it by fanning the detector for about 30 seconds.

When the problem has been corrected, clear the display by entering your code and pressing the

Depending on the type of smoke detectors in your system, it may be necessary to "reset" the smoke detectors after a fire alarm has been turned off. Check with your installer. This "reset" is accomplished at a keypad, as follows:

Enter User Code*, then press the [1] key (* except “arm only” user).

OFF

key.

– 41 –

)LUH$ODUP6\VWHP&RQWLQXHG

THIS SECTION APPLIES ONLY TO RESIDENTIAL SYSTEMS

Manually

Initiating

a Fire Alarm

Using the Panic

Key(s) Assigned

for FIRE

Emergency

1. Should you become aware of a fire emergency before your smoke or heat detectors sense the problem, go to your nearest keypad and manually initiate an alarm by pressing the panic key assigned for FIRE emergency for 2 seconds. If a key pair has been assigned for fire, press both keys at the same time. See the Using the Panic Keys section below for further details.

2. Evacuate all occupants from the premises.

3. If flames and/or smoke are present, leave the premises and notify your local Fire Department immediately.

4. If no flames or smoke are apparent, investigate the cause of the alarm. The zone number(s) of the zone(s) in an alarm condition will be displayed at the keypad.

A key or key pair may have been assigned for manually initiating a FIRE alarm. See the Panic Keys section for key assignments. For convenience, indicate the key or key pair assigned for fire below.

Individual Keys

A BC

Press

the individual key assigned for fire

for 2

seconds.

Key Pairs

OFF

and

∗

READY

and

ress

the key pair assigned

at the same time.

or fire



ALARM FIRE

FIXED-WORD KEYPAD

∗

READY

DISPLAYS FOLLOWING MANUAL INITIATION OF A FIRE ALARM

STAY

*-6)

ALPHA DISPLAY KEYPAD

– 42 –

)LUH$ODUP6\VWHP&RQWLQXHG

THIS SECTION APPLIES ONLY TO RESIDENTIAL SYSTEMS

1DWLRQDO)LUH3URWHFWLRQ$VVRFLDWLRQ

5HFRPPHQGDWLRQVRQ6PRNH'HWHFWRUV

With regard to the number and placement of smoke/heat detectors, we subscribe to the recommendations contained in the National Fire Protection Association's National Fire Alarm Code (NFPA 72) noted below.

Early warning fire detection is best achieved by the installation of fire detection equipment in all rooms and areas of the household as follows: A smoke detector installed outside of each separate sleeping area, in the immediate vicinity of the bedrooms and on each additional story of the family living unit, including basements and excluding crawl spaces and unfinished attics.

In addition, the NFPA recommends that you install heat or smoke detectors in the living room, dining room, bedroom(s), kitchen, hallway(s), attic, furnace room, utility and storage rooms, basements and attached garages.

KITCHEN

✪

DINING

✪

LIVING ROOM

✪

BEDROOM

LVNG RM

BASEMENT

▲

■

BEDROOM

■

TO BR

■

✪

BEDROOM

■

✪

BEDROOM

✪

BEDROOM

▲

KTCHN

■

✪

BEDROOM

CLOSED

DOOR

✪

TV ROOM

BEDROOM

KITCHEN

■

✪✪

▲

DINING

LIVING ROOM

BDRM

■

BDRM

✪

Smoke Detectors for Minimum Protection

■

Smoke Detectors for Additional Protection

✪

Heat-Activated Detectors

▲

GARAGE

✪

– 43 –

)LUH$ODUP6\VWHP&RQWLQXHG

THIS SECTION APPLIES ONLY TO RESIDENTIAL SYSTEMS

(PHUJHQF\(YDFXDWLRQ

Establish and regularly practice a plan of escape in the event of fire. The following steps are recommended by the National Fire Protection Association:

1. Position your detector or your interior and/or exterior sounders so that they can be heard by all occupants.

2. Determine two means of escape from each room.

One path of escape should lead to the door that permits normal exit from the building. The other may be a window, should your path be impassable. Station an escape ladder at such windows if there is a long drop to the ground.

3. Sketch a floor plan of the building. Show windows,

doors, stairs and rooftops that can be used to escape. Indicate escape routes for each room. Keep these routes free from obstruction and post copies of the escape routes in every room.

4. Assure that all bedroom doors are shut while you

are asleep. This will prevent deadly smoke from entering while you escape.

5. Try the door. If the door is hot, check your

alternate escape route. If the door is cool, open it cautiously. Be prepared to slam the door if smoke or heat rushes in.

6. When smoke is present, crawl on the ground. Do

not walk upright, since smoke rises and may overcome you. Clearer air is near the floor.

7. Escape quickly; don't panic.

Establish a common meeting place outdoors, away from your house, where everyone can meet and then take steps to contact the authorities and account for those missing. Choose someone to assure that nobody returns to the house — many die going back

BACK DOOR

CLOSET

PORCH

BEDROOM

KITCHEN

BEDROOM

1 FLOOR

•

BEDROOM

BATH

2 FLOOR

BEDROOM

BATH

•

BACK

•

FRONT

BEDROOM

– 44 –

4XLFN*XLGHWR%DVLF6\VWHP)XQFWLRQV

FUNCTION PROCEDURE COMMENTS Check Zones Press READY key.

Arm System Enter code. Press arming key desired:

(AWAY, STAY, NIGHT-STAY, MAXIMUM, INSTANT)

Quick Arm

(if programmed)

Bypass Zone(s) Enter code. Press BYPASS key.

Quick Bypass

(if programmed)

Silence Sounders

Burglary:

Fire:

"Check":

Disarm System Enter code. Press OFF key.

Clear Alarm Memory

Duress (if active

and connected to Central Station)

Panic Alarms

(as programmed)

Chime Mode

Test Mode To turn ON: Enter code. Press TEST key.

Phone Access

if applicable

Press #. Press arming key desired: (AWAY, STAY, MAXIMUM, INSTANT)

Enter zone number(s) to be bypassed (use 2-digit entries).

Enter code. Press BYPASS key + [#]. Bypasses all faulted zones

Enter code. Press OFF key.

Press OFF key. Press any key.

After disarming, enter code again. Press OFF key again.

Arm or disarm "normally", but use your 4-digit Duress code to do so.

Press key [A], [B], or [C] for at least 2 seconds or press and hold designated key pairs: [1]+[∗], or [∗] + [#], or [3] + [#].

To turn ON or OFF: Enter code. Press CHIME key.

To turn OFF: Enter code. Press OFF key.

Consult Phone Access User's Guide that accompanies the Phone Module.

View faulted zones when system not ready.

Arms system in mode selected.

Arms system in mode selected, quickly and without use of a code.

Bypassed zones are unprotected and will not cause an alarm if violated.

automatically.

Also disarms system. Memory of alarm remains until cleared.

Memory of Alarm remains until cleared. Determine cause.

Also silences sounders. Memory of alarm remains until cleared.

Keypad beeps rapidly on entry if alarm has occurred while absent. Alarm display will remain upon disarming until cleared.

Performs desired action and sends silent alarm to Central Station.

See the Panic Keys section for emergency functions programmed for your system. Note: Keys “A”, “B”, and “C” may have been programmed for other functions.

The keypad will sound if doors or windows are violated while system is disarmed and chime mode is ON.

Tests alarm sounder and allows sensors to be tested.

Permits system access remotely, via Touch-tone phone.

– 45 –

6XPPDU\RI$XGLEOH9LVXDO1RWLILFDWLRQV

)L[HG:RUG'LVSOD\.H\SDGV

SOUND CAUSE DISPLAY

LOUD, INTERRUPTED Keypad & Ext.

LOUD, CONTINUOUS Keypad & Ext.

ONE SHORT BEEP (not repeated) Keypad only

ONE SHORT BEEP (once every 40 secs) Keypad only

TWO SHORT BEEPS Keypad only THREE SHORT

BEEPS Keypad only

RAPID BEEPING Keypad only

SLOW BEEPING Keypad only

FIRE ALARM

BURGLARY/AUDIBLE EMERGENCY ALARM

a. SYSTEM DISARM b. SYSTEM ARMING ATTEMPT

WITH AN OPEN ZONE. c. BYPASS VERIFY

a. SYSTEM IS IN TEST MODE b. LOW BATTERY AT A

TRANSMITTER ARM AWAY or MAXIMUM

a. ARM STAY, NIGHT-STAY, OR

INSTANT

b. ZONE OPENED WITH

SYSTEM IN CHIME MODE.

a. TROUBLE

b. MEMORY OF ALARM

c. SYSTEM LOW BATTERY d. EXT. SOUNDER WIRING FAIL

a. EXIT DELAY WARNING b. ENTRY DELAY WARNING

FIRE

is displayed; zone number of zone in alarm is displayed. If a fire alarm is manually activated, zone number 95 will be displayed.

ALARM

alarm is also displayed.

a. READY indicator light comes on. b. Number of the open protection zone displayed.

c. Zone numbers of the bypassed protection zones are displayed (one beep is heard for each zone displayed). Subsequently,

is displayed.

a. Opened zone numbers will appear.

BAT

b. transmitter.

AWAY

a. ARMED indicator is lit.

b. protection zone will be displayed if the [✱] key is pressed.

a. protection zone is displayed.

b. of zone in alarm is displayed

c. d. a.

b. Exceeding the entry delay time without disarming causes alarm.

displayed with zone number of

is displayed. Red ARMED indicator is lit.

STAY

CHIME

CHECK

FIRE

BAT

displayed with no zone ID number.

CHECK 70 AWAY

is displayed. Zone number of zone in

BYPASS

INSTANT

displayed; zone number of open

displayed. Zone number of troubled

ALARM

is displayed.

is displayed. Red

is displayed; zone number

If a bell is used as external sounder, fire alarm is

– 46 –

pulsed ring;

burglary/audible emergency is

steady ring

6XPPDU\RI$XGLEOH9LVXDO1RWLILFDWLRQV

$OSKD'LVSOD\.H\SDGV

SOUND CAUSE DISPLAY

LOUD, INTERRUPTED* Keypad & Ext.

LOUD, CONTINUOUS* Keypad & Ext.

ONE SHORT BEEP (not repeated) Keypad only

ONE SHORT BEEP (once every 40 secs) Keypad only

TWO SHORT BEEPS Keypad only

THREE SHORT BEEPS Keypad only

RAPID BEEPING Keypad only

FIRE ALARM.

BURGLARY/AUDIBLE EMERGENCY ALARM.

a. SYSTEM DISARM. b . SYSTEM ARMING ATTEMPT

WITH AN OPEN ZONE. c. BYPASS VERIFY.

a. SYSTEM IS IN TEST MODE. b, LOW BATTERY AT A

TRANSMITTER. ARM AWAY or MAXIMUM.

a. ARM STAY, NIGHT-STAY, OR INSTANT.

b. ZONE OPENED WHILE SYSTEM IS DISARMED.

a. TROUBLE.

b. MEMORY OF ALARM.

c. SYSTEM LOW BATTERY. d. EXT. SOUNDER WIRE FAIL.

FIRE

is displayed; descriptor of zone in alarm is displayed. If a fire alarm is manually activated, zone number 95 will be displayed.

ALARM

zone in alarm is also displayed

a. b. Number and descriptor of open protection zone is

displayed. c. Numbers and descriptors of the bypassed zones

are displayed (One beep is heard for each zone displayed). Subsequently, the following is displayed:

a. Opened Zone identifications will appear. b.

ARMED AWAY or MAXIMUM

ARMED indicator lit. a.

b. zone will be displayed if the [✱] key is pressed.

c. d.

displayed. If programmed, descriptor of

DISARMED/READY TO ARM

DISARMED BYPASS /Ready to Arm.

LO BAT

ARMED STAY

Red ARMED indicator lit.

CHIME

CHECK

protection zone is displayed.

FIRE

in alarm is displayed.

SYSTEM LO BAT

BELL FAILURE

displayed with description of transmitter.

displayed, descriptor of open protection

displayed. Descriptor of troubled

ALARM

is displayed.

displayed. Red

ARMED INSTANT

is displayed; descriptor of zone

displayed.

is displayed.

displayed.

SLOW BEEPING Keypad only

* If a bell is used as external sounder, fire alarm is

ring

a. EXIT DELAY WARNING (if programmed).

b. ENTRY DELAY WARNING.

ARMED AWAY OR MAXIMUM

a. along with

. DISARM SYSTEM OR ALARM WILL OCCUR

is disarming causes an alarm.

pulsed ring;

You May Exit Now.

displayed.

Exceeding the delay time without

burglary/audible emergency is

is displayed

steady

– 47 –

5HJXODWRU\6WDWHPHQWVDQG:DUQLQJV

NOTE: This is a “Grade A” Residential System

Federal Communications Commission (FCC) Part 15

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Industry Canada

This Class B digital apparatus complies with Canadian ICES-003. Cet Appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

RADIO FREQUENCY EMISSIONS

FCC Part 68

TELEPHONE/MODEM INTERFACE

This equipment complies with Part 68 of the FCC rules. On the front cover of this equipment is a label that contains the FCC registration number and Ringer Equivalence Number (REN). You must provide this information to the telephone company when requested.

This equipment uses the following USOC jack: RJ31X This equipment may not be used on telephone-company-provided coin service. Connection to party lines is subject to state tariffs. This

equipment is hearing-aid compatible.

Industry Canada

NOTICE:

The Industry Canada Label identifies certified equipment. This certification means that the equipment meets telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). The Department does not guarantee the equipment will operate to the user’s satisfaction.

Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.

Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company to request the user to disconnect the equipment.

Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together, This precaution may be particularly important in rural areas.

CAUTION:

electrician, as appropriate.

Ringer Equivalence Number Notice:

The to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5.

Industrie Canada

AVIS:

protection, d’exploitation et de sécurité des réseaux de télécommunications, comme le prescrivent les documents concernant les exigences techniques relatives au matériel terminal. Le Ministère n’assure toutefois pas que le matériel fonctionnera à la satisfaction de l’utilisateur.

Avant d’installer ce matériel, l’utilisateur doit s’assurer qu’il est permis de le raccorder aux installations de l’enterprise locale de télécommunication. Le matériel doit également être installé en suivant une méthode acceptée da raccordement. L’abonné ne doit pas oublier qu’il est possible que la conformité aux conditions énoncées ci-dessus n’empêche pas la dégradation du service dans certaines situations.

Les réparations de matériel nomologué doivent être coordonnées par un représentant désigné par le fournisseur. L’entreprise de télécommunications peut demander à l’utilisateur da débrancher un appareil à la suite de réparations ou de modifications effectuées par l’utilisateur ou à cause de mauvais fonctionnement.

Pour sa propre protection, l’utilisateur doit s’assurer que tous les fils de mise à la terre de la source d’energie électrique, de lignes téléphoniques et des canalisations d’eau métalliques, s’il y en a, sont raccordés ensemble. Cette précaution est particulièrement importante dans les régions rurales.

Avertissement :

installations électriques, ou à un électricien, selon le cas.

AVIS : L’indice d’équivalence de la sonnerie

peuvent être raccordés à une interface. La terminaison d’une interface téléphonique peut consister en une combinaison de quelques dispositifs, à la seule condition que la somme d’indices d’équivalence de la sonnerie de tous les dispositifs n’excède pas 5.

Users should not attempt to make such connections themselves but should contact appropriate electric inspection authority, or

Ringer Equivalence Number

l’étiquette d’Industrie Canada identifie le matériel homologué. Cette étiquette certifie que le matériel est conforme aux normes de

L’utilisateur ne doit pas tenter de faire ces raccordements lui-même; il doit avoir racours à un service d’inspection des

(REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed

(IES) assigné à chaque dispositif terminal indique le nombre maximal de terminaux qui

– 48 –

&KDUWVRI<RXU6\VWHP·V)HDWXUHV

SERVICING INFORMATION

Your local authorized service representative is the person best qualified to service your alarm system. Arranging some kind of regular service program with him is advisable. Your local service representative is: Name: Address:

Phone:

General Features

Exit Delay Entry Delay 1 Entry Delay 2 Night-Stay Zones Quick Arm Quick Bypass Automatic Paging Keyswitch Arming

(circle type of LED lighting)

Features Comments

Zones: yes no yes no yes no users: Arm AWAY: steady flash Arm STAY: steady flash

Function Keys

Single-Button Arming

•

Step Arming

•

Paging (see Paging chart)

•

Time/Date Display

•

Macro Key

•

Emergency Key

•

Emergency Key

•

Emergency Key

•

Emergency Key

•

Device Activation

•

††

Emergency Keys: A = [1] / [∗]B = [

††

: Personal

††

: Silent Alarm

††

: Audible Alarm

††

: Fire

A B C D Comments

Device:

] / [#] C = [3] / [#]

∗

– 49 –

&KDUWVRI<RXU6\VWHP·V)HDWXUHV

(0)

(0)05(0)

(1)06(0)

(1)07(0)

(1)08(0)

(1)09(0)

(1)10(0)

(1)11(0)

(1)12(0)

(1)13(0)

(1)14(0)

(1)15(0)

(1)16(0)

(1)

User Setup

The following chart will help keep track of system users. To program a user attribute: Enter system master code + [8] + user no. + “#” command listed in column heading…

User

No.

01 installer installer 02 system master master 03 04

User

Name

Security

Code

enter new code

Auth. Level

[#] [1] + level

Access

Group

[#] [2] + group

RF Zone

Number

[#] [4] + zone no.

Pager on/off

[#] [5] + 0/1

Authority Levels: 0 = standard user Paging: 0 = no paging

1 = arm only 1 = allow paging 2 = guest 3 = duress

Paging Setup

Automatically Reports Upon…Pager Phone Number\

Prefix Characters

Pager

Schedules:

master code + [#] + [6] [4].

open/close alarm/trouble zone list Sched. Func. Key

No. Event Device No. Group No. Start Stop Repeat Random

(see list below) for “01” events: for “02” events:

Events: 00 = clear event 03 = latch key report 06 = auto disarm

01 = device on/off 04 = forced STAY arm 07 = display “reminder” 02 = user access 05 = forced AWAY arm

Repeat Options: 0 = none; 1 = repeat weekly; 2 = repeat every other week; 3 = repeat every third week; 4 = repeat every fourth week

(see device list below)

enter 1-8

Time/ Day Time/ Day

(0-4) (yes/no)

List of Output Devices

Device Description Schedule No. Function Key

01 02 03 04

– 50 –

²1RWHV²

– 51 –

²1RWHV²

– 52 –

OWNER’S INSURANCE PREMIUM CREDIT REQUEST

This form should be completed and forwarded to your homeowner’s insurance carrier for possible premium credit.

A. GENERAL INFORMATION:

Insured’s Name and Address:

Insurance Company: Policy No.:

FA130CP

Type of Alarm:

Burglary

Other ______________________________

Fire

Both

Installed by: Serviced by:

Name Name

Address Address

B. NOTIFIES (Insert B = Burglary, F = Fire)

Local Sounding Device Police Dept. Fire Dept.

Central Station

Name:

Address:

Phone:

C. POWERED BY:

D. TESTING:

A.C. With Rechargeable Power Supply

Quarterly

Monthly

continued on other side

Weekly

Other

– 53 –

OWNER’S INSURANCE PREMIUM CREDIT REQUEST

(cont.)

E. SMOKE DETECTOR LOCATIONS

Furnace Room

Kitchen

Bedrooms

Attic

Basement

Living Room

Dining Room

Hall

F. BURGLARY DETECTING DEVICE LOCATIONS:

Front Door

1st Floor Windows

All Accessible Openings, Including Skylights, Air Conditioners and Vents

Basement Door

All windows

Rear Door

nterior locations

All Exterior Doors

G. ADDITIONAL PERTINENT INFORMATION:

Signature: Date:

– 54 –

/,0,7$7,2162)7+,66<67(0

WARNING! THE LIMITATIONS OF THIS ALARM SYSTEM

While this system is an advanced design security system, it does not offer guaranteed protection against burglary or other emergency. Any alarm system, whether commercial or residential, is subject to compromise or failure to warn for a variety of reasons. For example:

• Intruders may gain access through unprotected openings or have the technical sophistication to bypass an alarm sensor or disconnect an alarm warning device.

• Intrusion detectors (e.g. passive infrared detectors), smoke detectors, and many other sensing devices will not work without power. Battery operated devices will not work without batteries, with dead batteries, or if the batteries are not put in properly. Devices powered solely by AC will not work if their AC power supply is cut off for any reason, however briefly.

• Signals sent by wireless transmitters may be blocked or reflected by metal before they reach the alarm receiver. Even if the signal path has been recently checked during a weekly test, blockage can occur if a metal object is moved into the path.

• A user may not be able to reach a panic or emergency button quickly enough.

• While smoke detectors have played a key role in reducing residential fire deaths in the United States, they may not activate or provide early warning for a variety of reasons in as many as 35% of all fires, according to data published by the Federal Emergency Management Agency. Some of the reasons smoke detectors used in conjunction with this System may not work are as follows. Smoke detectors may have been improperly installed and positioned. Smoke detectors may not sense fires that start where smoke cannot reach the detectors, such as in chimneys, in walls, or roofs, or on the other side of closed doors. Smoke detectors also may not sense a fire on another level of a residence or building. A second floor detector, for example, may not sense a first floor or basement fire. Moreover, smoke detectors have sensing limitations. No smoke detector can sense every kind of fire every time. In general, detectors may not always warn about fires caused by carelessness and safety hazards like smoking in bed, violent explosions, escaping gas, improper storage of flammable materials, overloaded electrical circuits, children playing with matches, or arson. Depending upon the nature of the fire and/or the locations of the smoke detectors, the detector, even if it operates as anticipated, may not provide sufficient warning to allow all occupants to escape in time to prevent injury or death.

• Passive Infrared Motion Detectors can only detect intrusion within the designed ranges as diagrammed in their installation manual. Passive Infrared Detectors do not provide volumetric area protection. They do create multiple beams of protection, and intrusion can only be detected in unobstructed areas covered by those beams. They cannot detect motion or intrusion that takes place behind walls, ceilings, floors, closed doors, glass partitions, glass doors, or windows. Mechanical tampering, masking, painting or spraying of any material on the mirrors, windows or any part of the optical system can reduce their detection ability. Passive Infrared Detectors sense changes in temperature; however, as the ambient temperature of protected area approaches the temperature range of 90° to 105°F, the detection performance can decrease.

• Alarm warning devices such as sirens, bells or horns may not alert people or wake up sleepers if they are located on the other side of closed or partly open doors. If warning devices sound on a different level of the residence from the bedrooms, then they are less likely to waken or alert people inside the bedrooms. Even persons who are awake may not hear the warning if the alarm is muffled from a stereo, radio, air conditioner or other appliance, or by passing traffic. Finally, alarm warning devices, however loud, may not warn hearing-impaired people or waken deep sleepers.

• Telephone lines needed to transmit alarm signals from a premises to a central monitoring station may be out of service or temporarily out of service. Telephone lines are also subject to compromise by sophisticated intruders.

• Even if the system responds to the emergency as intended, however, occupants may have insufficient time to protect themselves from the emergency situation. In the case of a monitored alarm system, authorities may not respond appropriately.

• This equipment, like other electrical devices, is subject to component failure. Even though this equipment is designed to last as long as 10 years, the electronic components could fail at any time.

The most common cause of an alarm system not functioning when an intrusion or fire occurs is inadequate maintenance. This alarm system should be tested weekly to make sure all sensors and transmitters are working properly. Installing an alarm system may make one eligible for lower insurance rates, but an alarm system is not a substitute for insurance. Homeowners, property owners and renters should continue to act prudently in protecting themselves and continue to insure their lives and property. We continue to develop new and improved protection devices. Users of alarm systems owe it to themselves and their loved ones to learn about these developments.

– 55 –

ONE YEAR LIMITED WARRANTY

Pittway Corporation, and its divisions, subsidiaries and affiliates ("Seller"), 165 Eileen Way, Syosset, New York 11791, warrants its in materials and workmanship for one year from date of original purchase, under normal use and service. Seller's obligation is limited to repairing or replacing, at its option, free of charge for parts, labor, or transportation, any product proven to be defective in materials or workmanship under normal use and service. Seller shall have no obligation under this warranty or otherwise if the product is altered or improperly repaired or serviced by anyone other than the Seller. In case of defect, contact the security professional who installed and maintains your security equipment or the Seller for product repair.

This one year Limited Warranty is in lieu of all other express warranties, obligations or liabilities. THERE ARE NO EXPRESS WARRANTIES, WHICH EXTEND BEYOND THE FACE HEREOF. ANY IMPLIED WARRANTIES, OBLIGATIONS OR LIABILITIES MADE BY SELLER IN CONNECTION WITH THIS PRODUCT, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, OR FITNESS FOR A PARTICULAR PURPOSE OR OTHERWISE, ARE LIMITED IN DURATION TO A PERIOD OF ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE. ANY ACTION FOR BREACH OF ANY WARRANTY, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY, MUST BE BROUGHT WITHIN 12 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL SELLER BE LIABLE TO ANYONE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, OR UPON ANY OTHER BASIS OF LIABILITY WHATSOEVER, EVEN IF THE LOSS OR DAMAGE IS CAUSED BY THE SELLER'S OWN NEGLIGENCE OR FAULT. Some states do not allow limitation on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

Seller does not represent that the product may not be compromised or circumvented; that the product will prevent any personal injury or property loss by burglary, robbery, fire or otherwise; or that the product will in all cases provide adequate warning or protection. Buyer understands that a properly installed and maintained alarm may only reduce the risk of a burglary, robbery, fire or other events occurring without providing an alarm, but it is not insurance or a guarantee that such will not occur or that there will be no personal injury or property loss as a result. CONSEQUENTLY, SELLER SHALL HAVE NO LIABILITY FOR ANY PERSONAL INJURY, PROPERTY DAMAGE OR OTHER LOSS BASED ON A CLAIM THE PRODUCT FAILED TO GIVE WARNING. HOWEVER, IF SELLER IS HELD LIABLE, WHETHER DIRECTLY OR INDIRECTLY, FOR ANY LOSS OR DAMAGE ARISING UNDER THIS LIMITED WARRANTY OR OTHERWISE, REGARDLESS OF CAUSE OR ORIGIN, SELLER'S MAXIMUM LIABILITY SHALL NOT IN ANY CASE EXCEED THE PURCHASE PRICE OF THE PRODUCT, WHICH SHALL BE THE COMPLETE AND EXCLUSIVE REMEDY AGAINST SELLER. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. No increase or alteration, written or verbal, to this warranty is authorized.

First Alert Professional

security equipment (the "product") to be free from defects

¬.l

K0736-1 8/02

149 Eileen Way Syosset, New York 11791

First Alert FA130CP User Manual 2

Specifications and Main Features

Frequently Asked Questions

User Manual
