First Alert DW-700, DW-702 User Manual

Indoor/Outdoor Digital Wireless

Camera with 7" LCD Monitor

Model DW-700/702

USER'S MANUAL

©2010 Lehigh Consumer Products, LLC

All rights reserved. Distributed by Lehigh Consumer Products, LLC, Macungie, PA 18062. Due to

continuing product development, the product inside the packaging may look slightly different than

the one on the package.

Lehigh Consumer Products, LLC is a subsidiary of Jarden Corporation (NYSE: JAH). To obtain

warranty service, contact the Consumer Affairs Division at 1-800-323-9005, Monday through

Friday, 7:30 a.m. - 5 p.m., Central Standard Time.

Made in China

M08-0242-000

Table of Contents

Safety ...............................................................................................................................1

Safety Precautions ........................................................................................................................... 1

FCC Compliance ............................................................................................................................. 1

Getting to Know Your DW-700/702 Security System....................................................2

Check Package Contents.................................................................................................................. 2

Digital Wireless Camera.................................................................................................................. 3

Digital Wireless Receiver ................................................................................................................ 4

Remote Control................................................................................................................................ 5

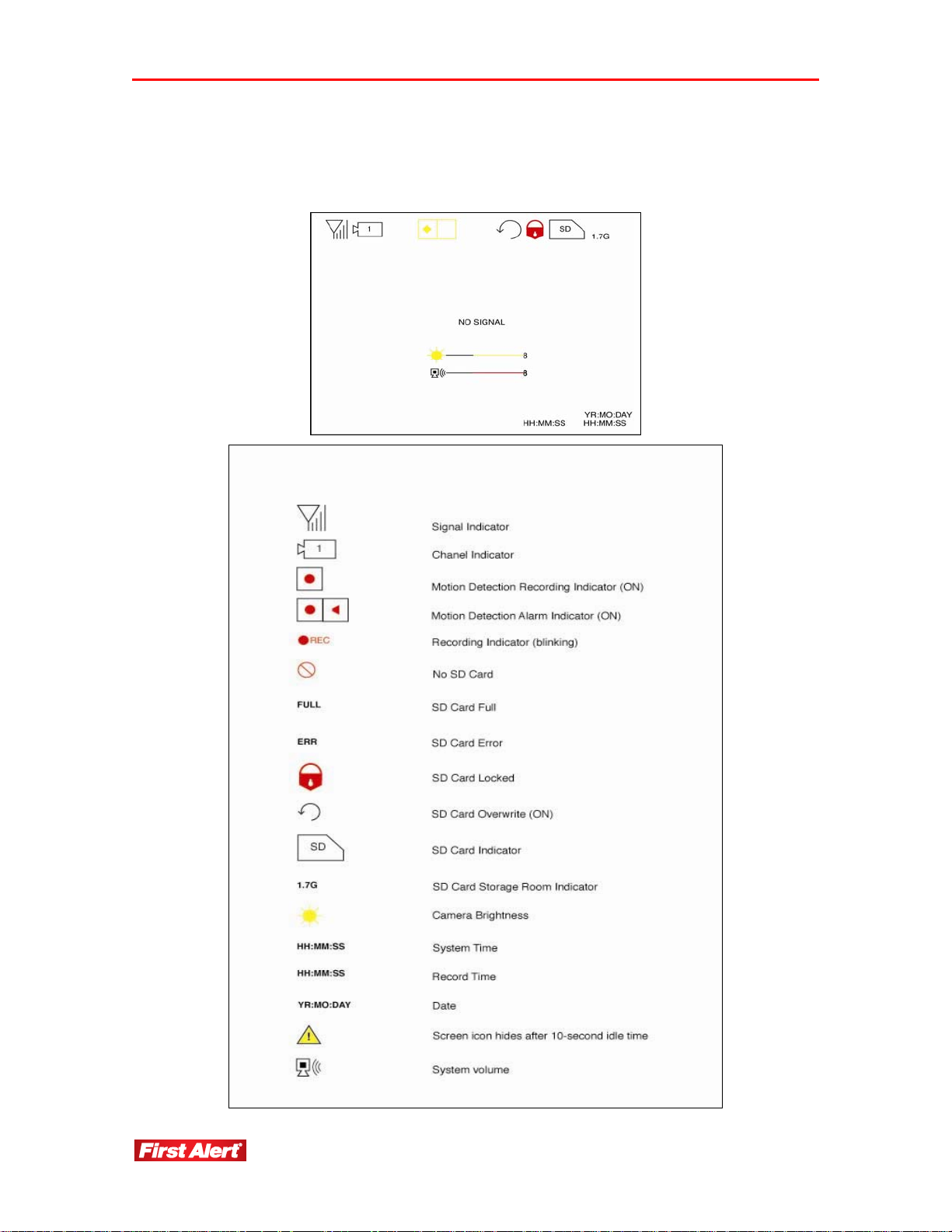

Display Screen Icons ....................................................................................................................... 6

Setting Up Your DW-700/702 Security System.............................................................7

General Precautions ......................................................................................................................... 7

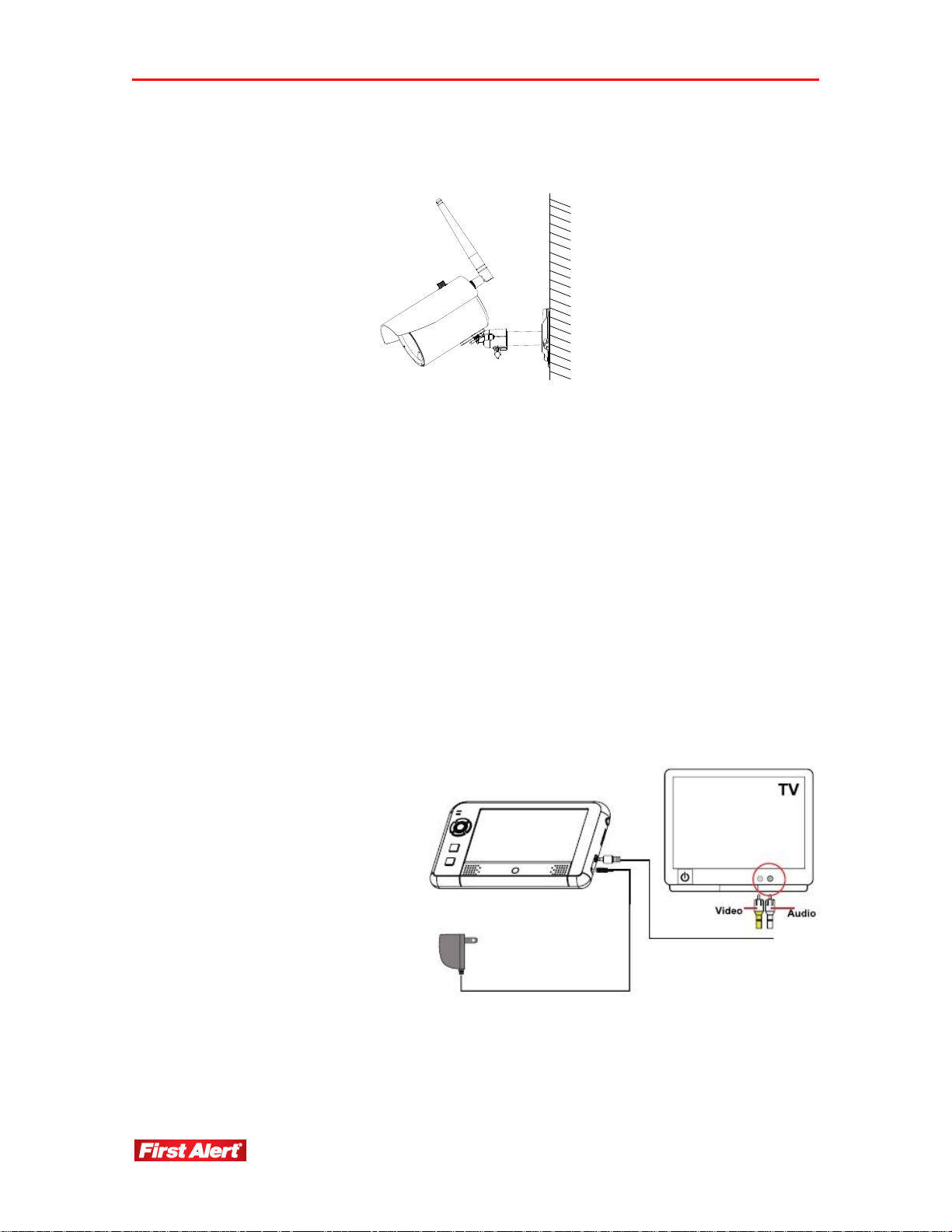

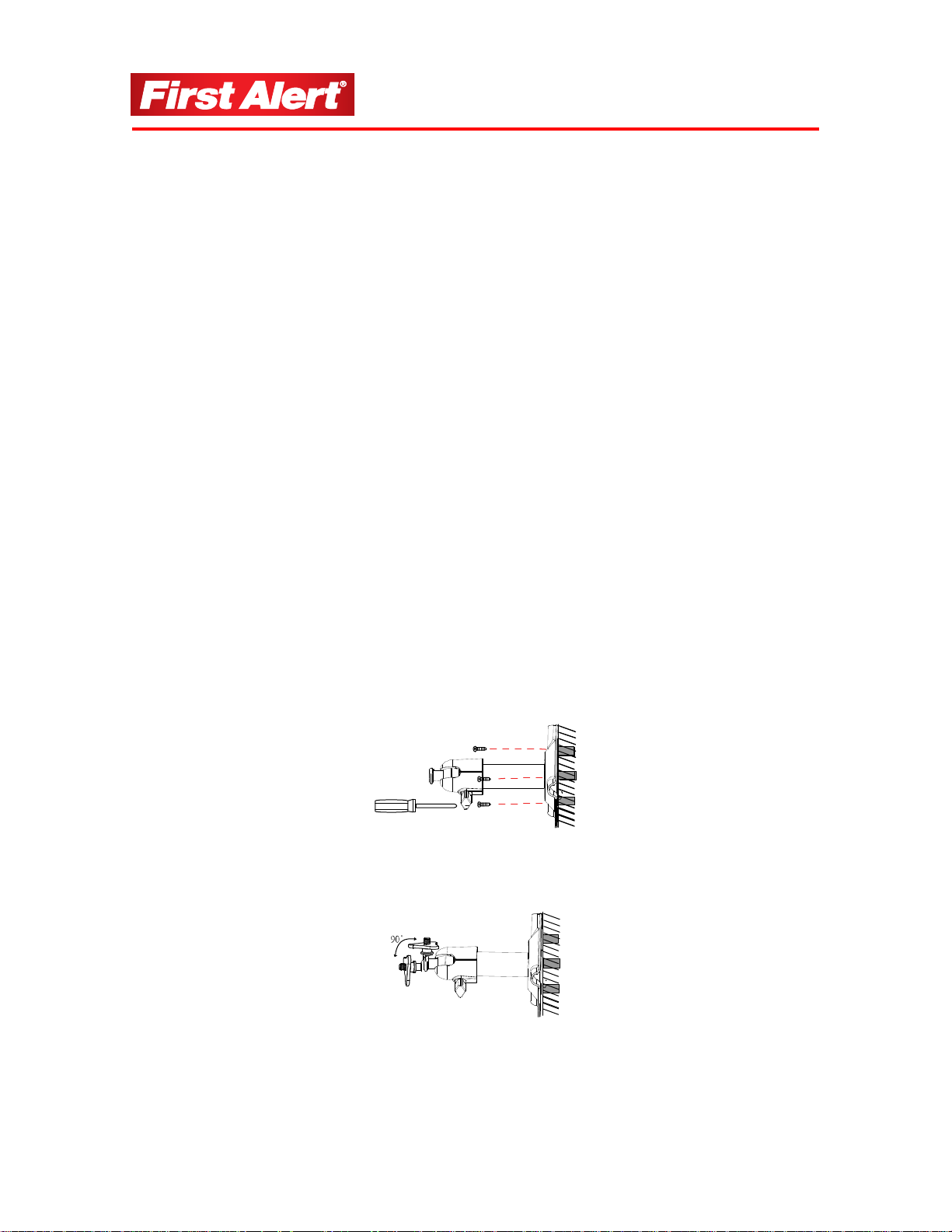

Installing the Camera....................................................................................................................... 7

Installing the Receiver ..................................................................................................................... 8

Operating Menus.............................................................................................................9

Main Menu Operation...................................................................................................................... 9

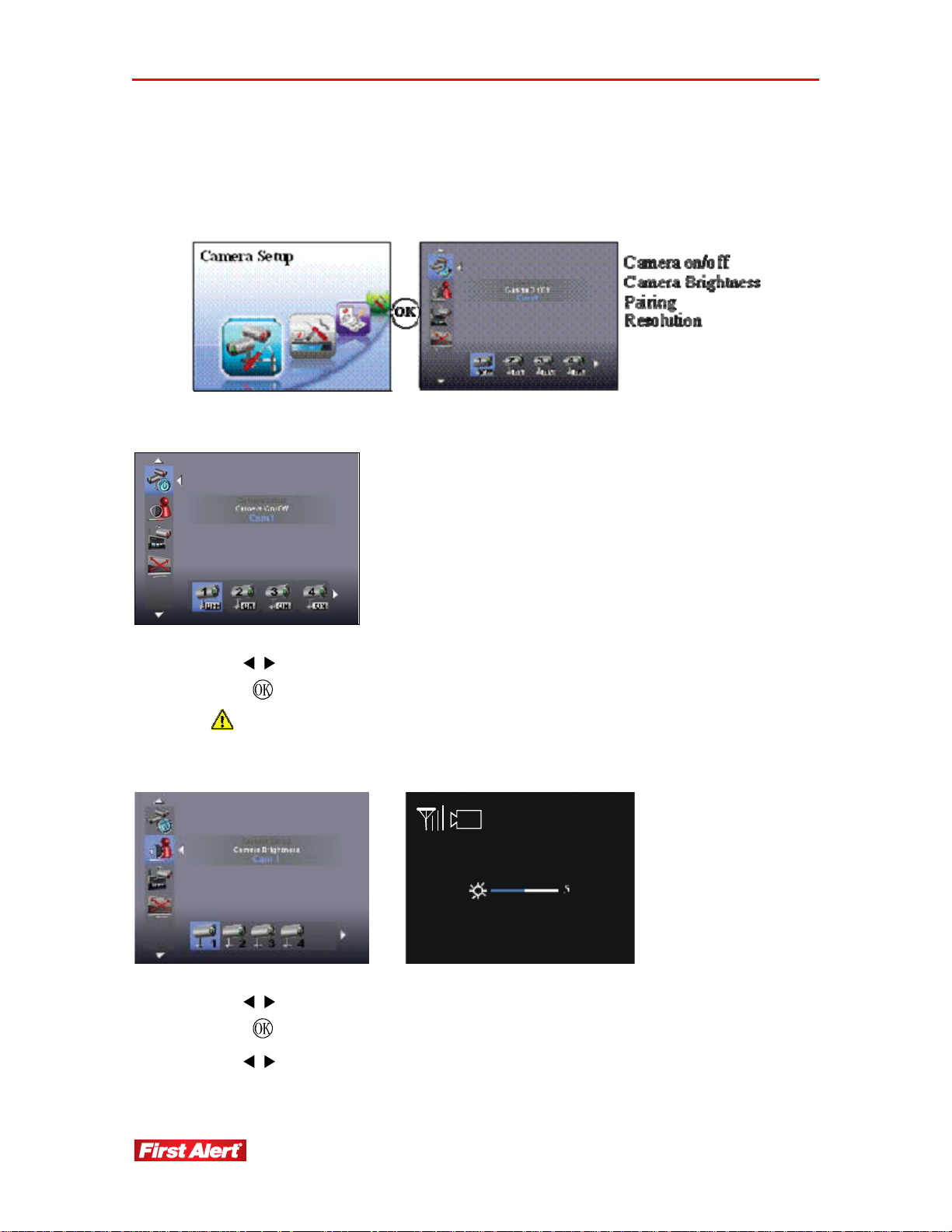

Camera Setup................................................................................................................................. 10

Camera ON/OFF.................................................................................................................... 10

Camera Brightness................................................................................................................. 10

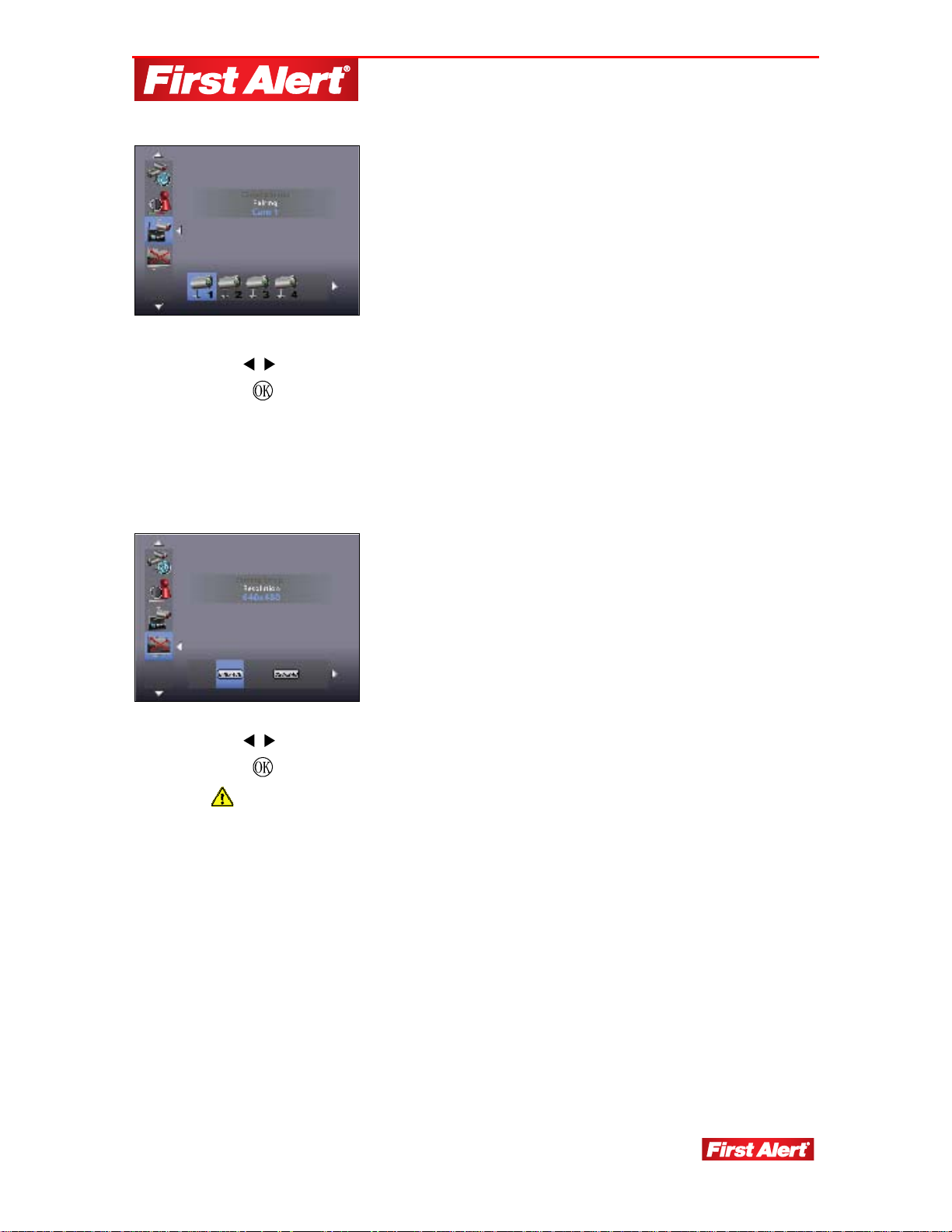

Pairing.................................................................................................................................... 11

Resolution .............................................................................................................................. 11

Recorder Setup............................................................................................................................... 12

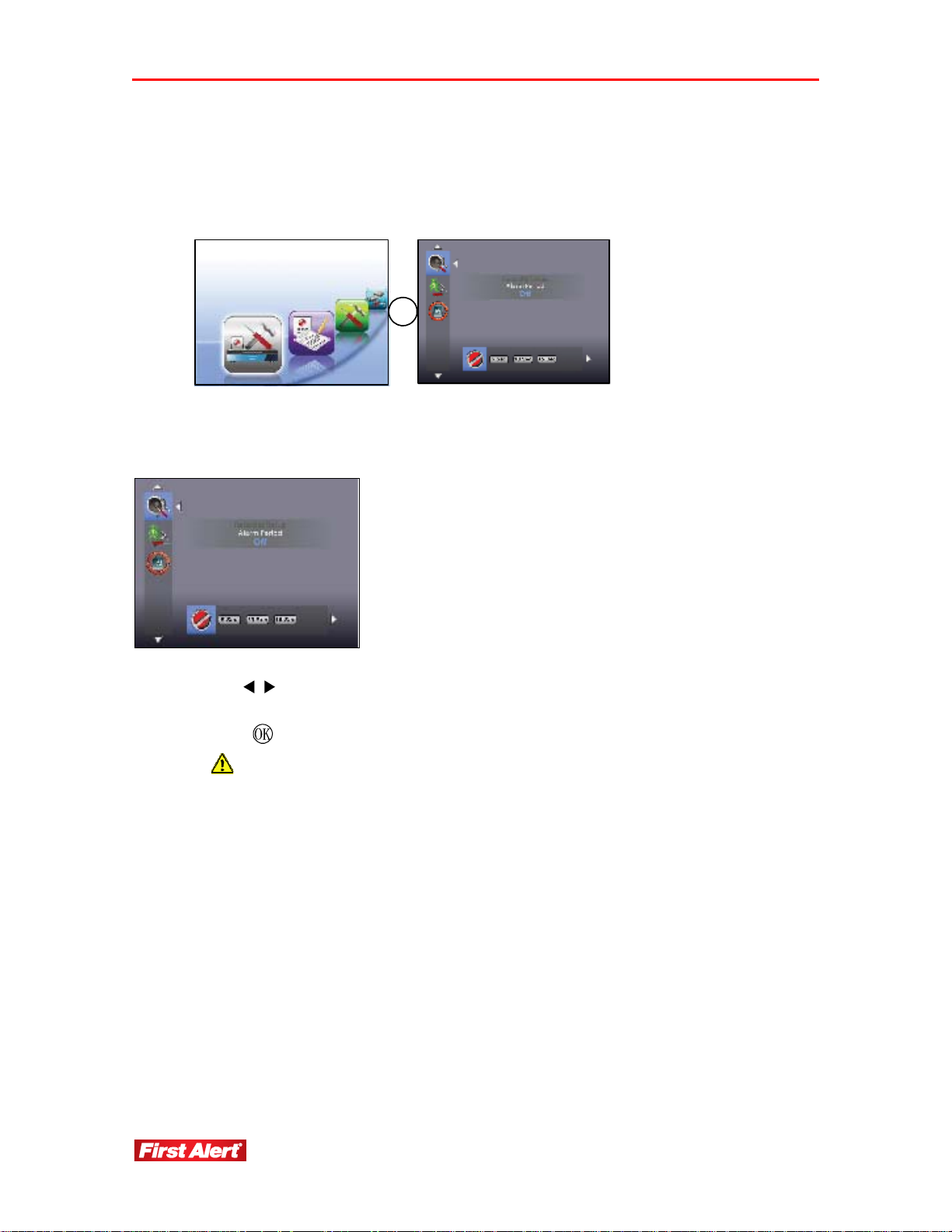

Alarm Period.......................................................................................................................... 12

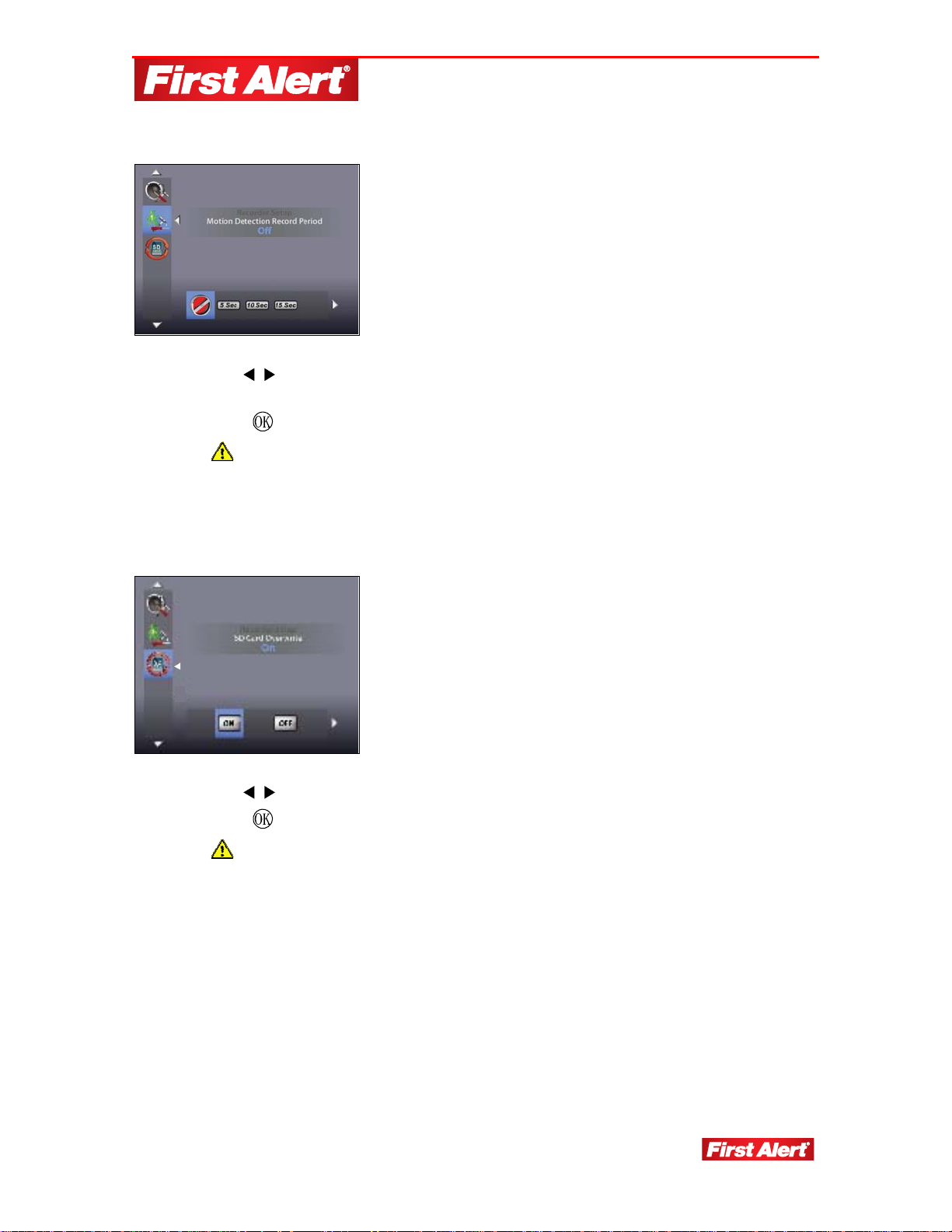

Motion Detection Record Period ........................................................................................... 13

SD Card Overwrite ................................................................................................................ 13

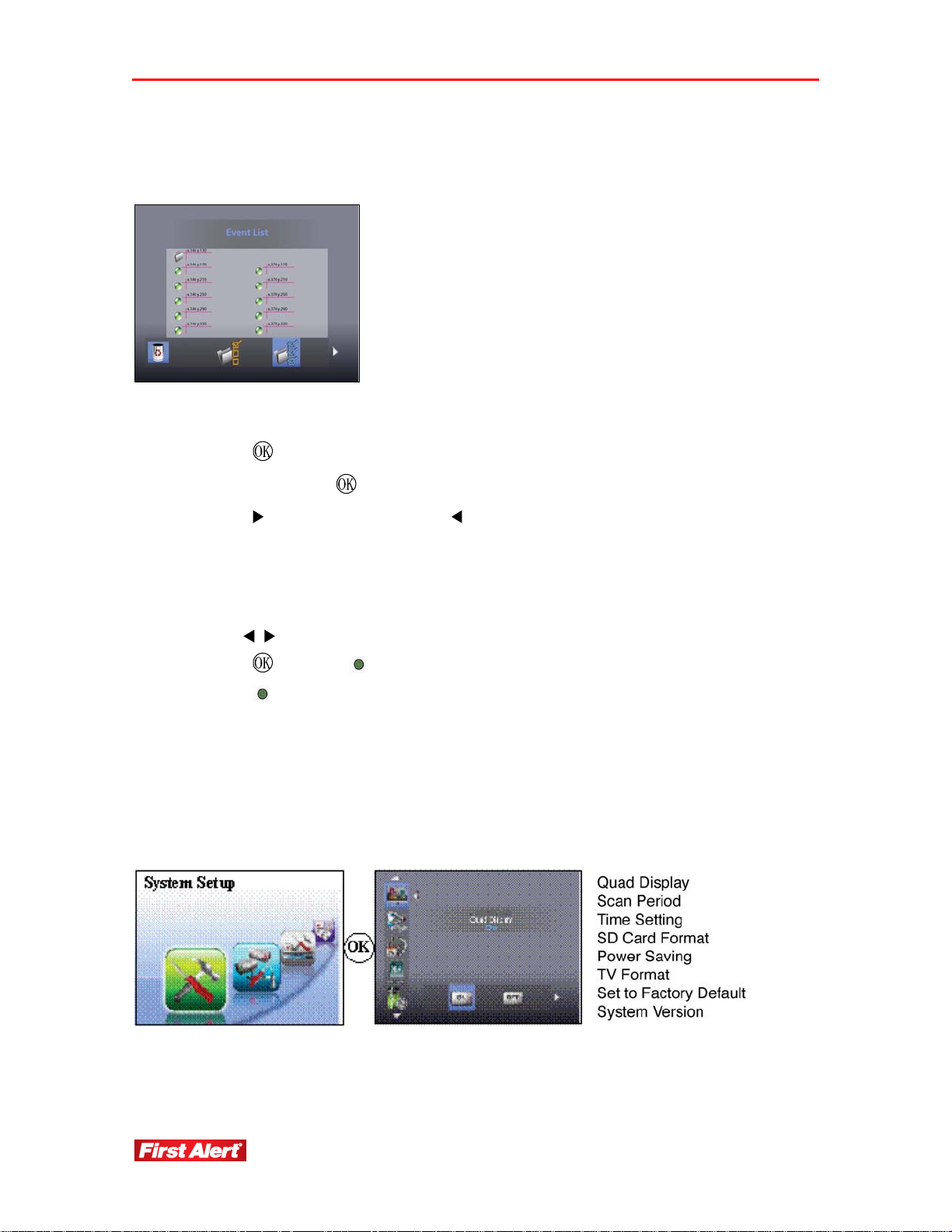

Event List....................................................................................................................................... 14

System Setup ................................................................................................................................. 14

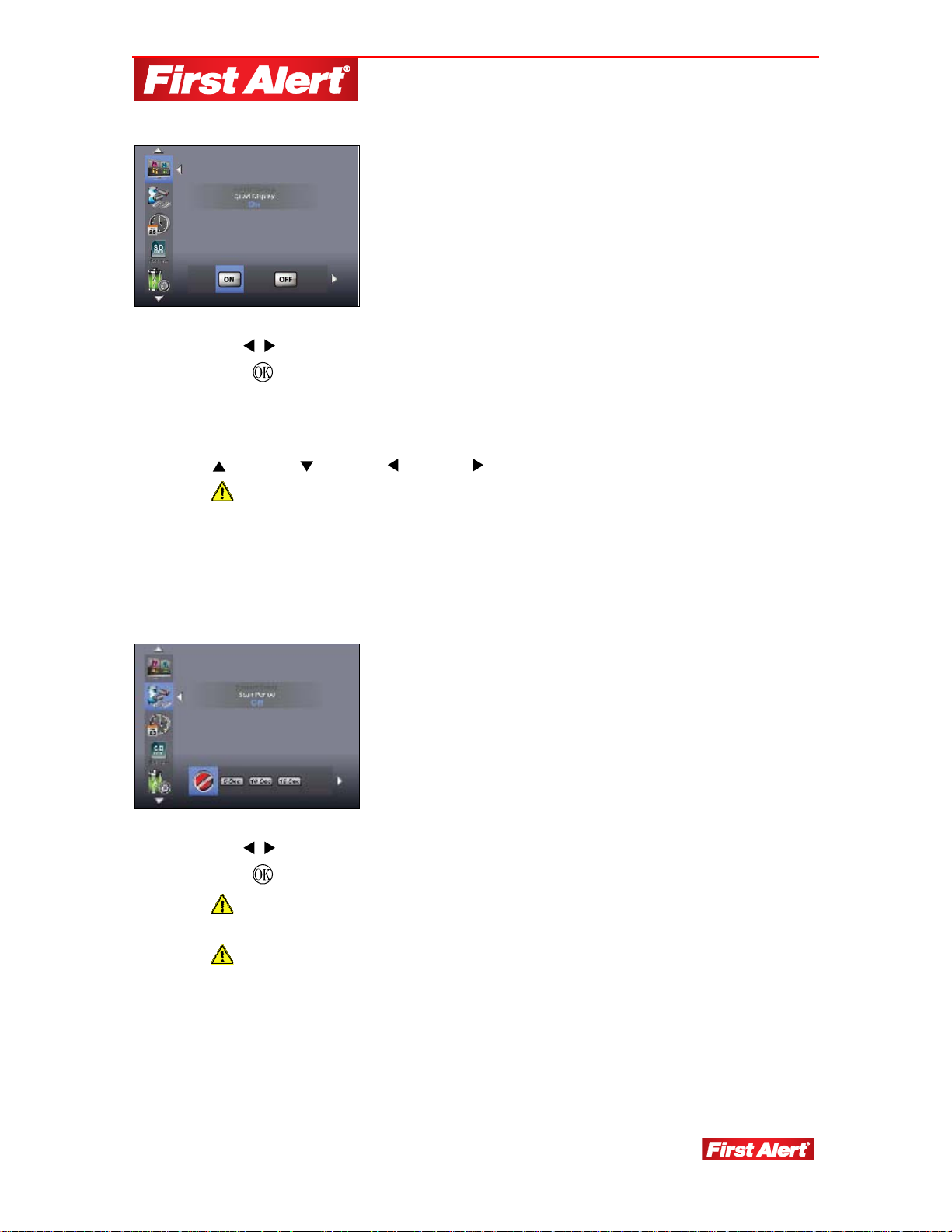

Quad Display ......................................................................................................................... 15

Scan Period ............................................................................................................................ 15

Timing Setting ....................................................................................................................... 16

SD Card Format ..................................................................................................................... 16

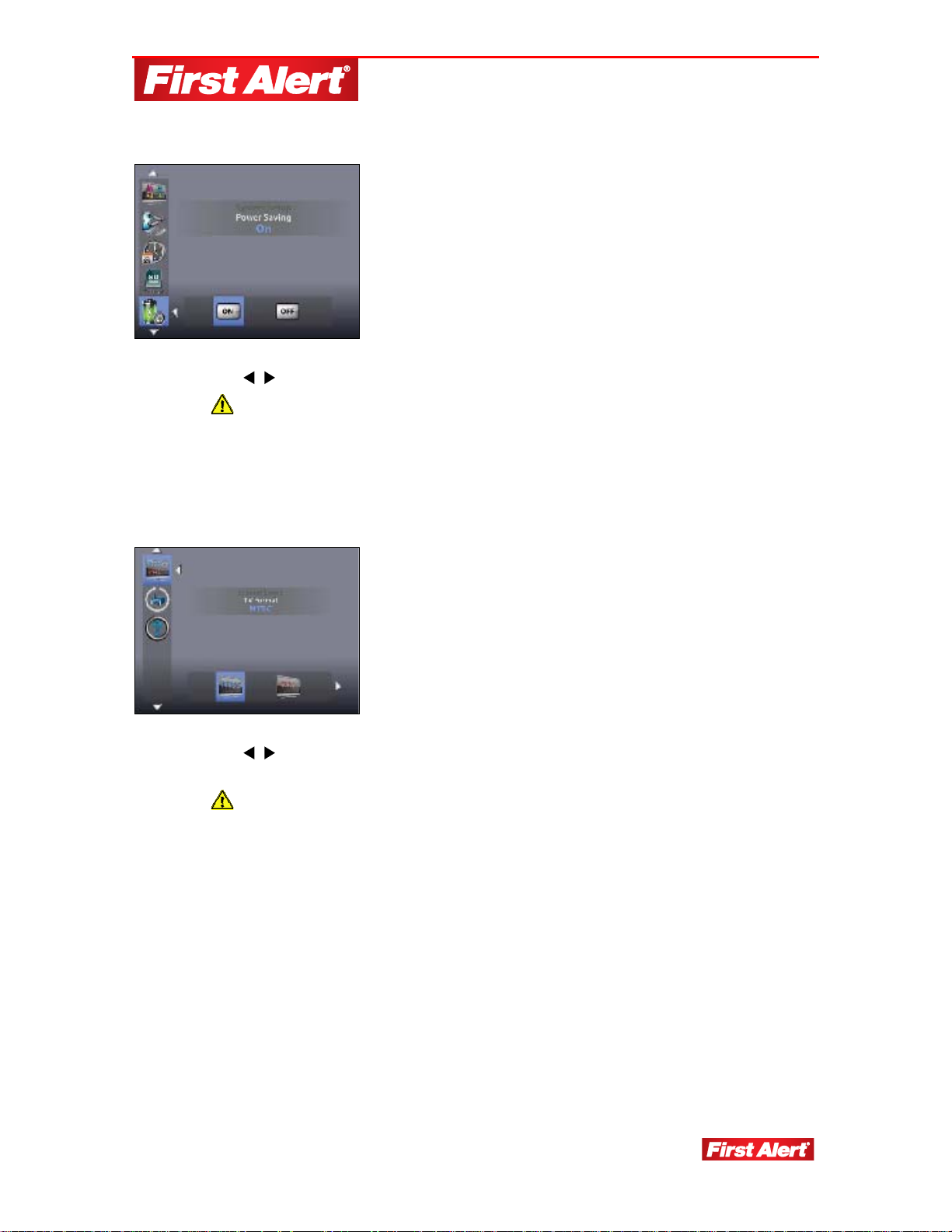

Power Saving ......................................................................................................................... 17

TV Format.............................................................................................................................. 17

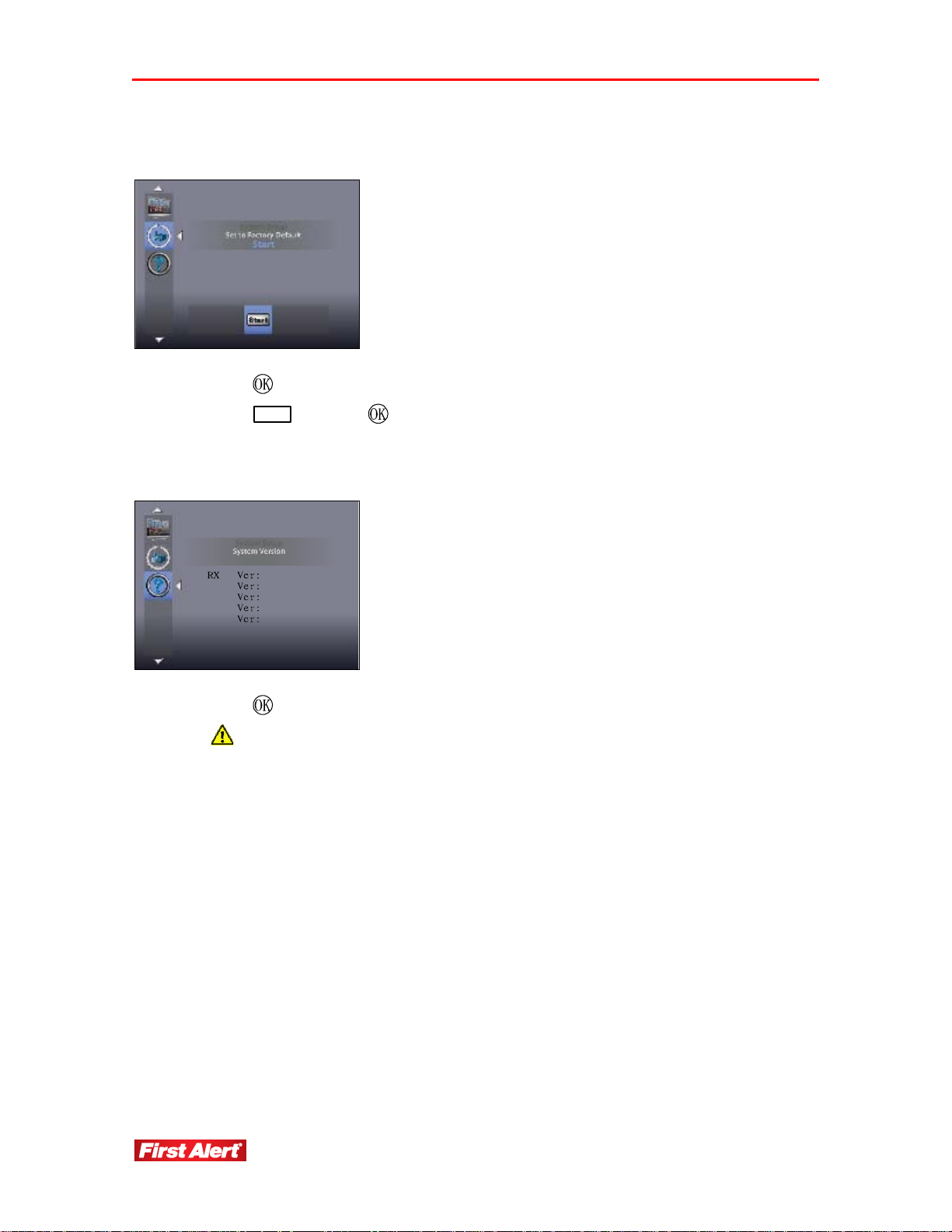

Set to Factory Default ............................................................................................................ 18

System Version .............................................................................................................................. 18

Troubleshooting............................................................................................................19

Technical Information...................................................................................................21

General........................................................................................................................................... 21

Camera........................................................................................................................................... 21

Wireless ......................................................................................................................................... 21

Recording....................................................................................................................................... 21

Storage Data Management ………………………………………………………………………22

Warranty.........................................................................................................................23

Product Limited Warranty.............................................................................................................. 23

Warranty Exclusions...................................................................................................................... 23

Obtaining Service .......................................................................................................................... 24

SAFETY PRECAUTIONS

 Do not drop, puncture, or disassemble the camera.

 Never tug on the power adapter. Use the plug to remove it from the wall.

 Use the device with care. Avoid pressing hard on the camera or receiver body.

 Do not expose the camera to high temperatures.

 For your own safety, avoid using the camera when there is a storm or lightning.

 Use the device with care. Avoid pressing hard on the camera body.

 Do not crush or damage the power cable.

FCC COMPLIANCE

Safety

This device complies with Part 15 of the FCC Rules. Operation is subjected to the
following two conditions: (1) this device may cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.

This equipment has been tested and found to comply with limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in residential installations. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications.

However, there is no guarantee that interference will not occur with a particular
installation. If this equipment does cause interference to radio or television equipment
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and the receiver.

 Connect the equipment into an outlet on a circuit different from that to which the

received is connected.

 Consult the dealer or an experience radio/TV technician for help.

Notice: Changes or modifications to the product could void the user's

authority to operate the product.

1

Getting to Know Your

DW-700/702 Security System

Congratulations on purchasing your First Alert Security Camera product. First Alert has
been helping families and businesses stay safe for over 50 years. By having a First Alert
Security Camera, you’re taking the first step in protecting your home or business from
damage or theft. We’re watching, even when you’re not.

CHECK PACKAGE CONTENTS

Model DW-700 is a one-camera security system and Model DW-702 is a two-camera
security system. The technical specifications, installation, and operation of each model are
identical.

After unpacking the carton, check the contents for damage. Contact your supplier or dealer
immediately if any part is missing or damaged.

DW-700 DW-702

 Digital Wireless Camera (1)  Digital Wireless Camera (2)

 7” LCD Digital Wireless Receiver (1)  7” LCD Digital Wireless Receiver (1)

 Camera Stand (1)  Camera Stand (2)

 Mounting Kit (1)  Mounting Kit (2)

 Remote Control (1)  Remote Control (1)

 Power Supply (2)  Power Supply (3)

 AV Cable (1)

 2GB SD Card

 User’s Manual (1)  User’s Manual (1)

 AV Cable (1)

 2GB SD Card (1)

2

Getting to Know Your DW-700/702 Security System

Model DW-700/702 User's Manual

DIGITAL WIRELESS CAMERA

1 Antenna 7 IR LED
2 EDS 8 Camera Stand
3 Power LED 9 Pairing Key
4 Camera Lens 10 Power Jack
5 Link LED 11 Microphone
6 PIR 12 Power Supply

3

Getting to Know Your DW-700/702 Security System

Model DW-700/702 User's Manual

DIGITAL WIRELESS RECEIVER

11

12

10

13

15 14

Link indicator Steady light when camera is operating; Flashing light when camera is

1

Power indicator Lights when receiver is powered on

2
3
4
5

6
7

8

OK

MENU
ESC

REC

9

DEL

recording

Cursor up in Menu mode; Switch channel in View mode

Cursor left in Menu mode; Volume down in View mode

Cursor right in Menu mode; Volume up in View mode

Cursor down in Menu mode; Switch channel in View mode

Confirm the settings/changes in Menu mode: Enter Event List in View
mode

Back in Menu mode;
Enter/exit Menu mode in View mode

Record in Menu mode;
Start/stop recording View mode

10

Power

11

IR Sensor

12

Speakers

13

SD Card Slot

14

AV Out Jack

15

DC In Jack

4

Getting to Know Your DW-700/702 Security System

Model DW-700/702 User's Manual

REMOTE CONTROL

12

3

5

8
9

4

6

7

8

7

1

2

3

4

Start/Stop manual recording (SD card must be installed)

Enter Event List directly;
Press button to play/pause the video files

Press to delete video files you selected

In view mode, display up to four images cameras at one
time (audio is unavailable in QUAD Mode)

5

Enter/exit a menu

6

Press to turn on the Motion Detection

7

In Menu Mode, move between the selections
In View Mode, switch channel
In QUAD Mode, [Hot key CH1/CH2]

8

In Menu Mode, move between selections
In View Mode, audio volume down/up
In Play Mode, rewind/fast forward
In QUAD Mode, [Hot key CH3/CH4]

OK

9

Press to confirm the selections and changes

5
