Owner’s Manual
PPK - PPK/S
2100 Roosevelt Avenue • Springfield, MA 01104
1-800-372-6454 • Fax: 413-747-3682
www.waltheramerica.com
®
Distributed in the United States by
READ THESE INSTRUCTIONS
AND WARNINGS CAREFULLY. BE
SURE YOU UNDERSTAND THESE
INSTRUCTIONS AND WARNINGS
BEFORE USING THIS FIREARM.
FAILURE TO READ THESE
INSTRUCTIONS AND TO FOLLOW
THESE WARNINGS MAY RESULT
IN SERIOUS INJURY OR DEATH
TO YOU AND OTHERS
This SAFETY, INSTRUCTION
and PARTS MANUAL should
always accompany this firearm
and be transferred with it upon
change of ownership or when
presented to another person.
A copy of the SAFETY, INSTRUCTION, & PARTS MANUAL is avail-
able FREE upon request from:
WALTHER
CUSTOMER SUPPORT CENTER
2100 ROOSEVELT AVENUE
SPRINGFIELD, MA 01104
TEL.: 1-800-372-6454
E-mail:
customerservice@waltheramerica.com
WARNING
2
3
YOUR SAFETY
RESPONSIBILITIES
SAFETY IS YOUR NUMBER ONE
RESPONSIBILITY!!!!
At home, in the field, at the range, or anywhere, the first
concern of every firearm owner should be safety. Apply the following safety rules in every situation, with any kind of firearm.
W
ARNING: YOU MUST FOLLOW ALL
OF THESE SAFETY RULES TO ENSURE
THE SAFE USE OF YOUR FIREARM
• SAFE GUN HANDLING IS
Y
OUR PERSONAL
RESPONSIBILITY at all times. Firearms are
dangerous and can cause serious injury or death if
they are misused or used inappropriately. Safety must
be the prime consideration of anyone who owns or
handles firearms.
YOUR SAFETY RESPONSIBILITIES.................................................3-7
SAFE STORAGE AND TRANSPORTATION .........................................7-8
NOMENCLATURE........................................................................9
PREPARATION FOR FIRING........................................................9-10
AMMUNITION ......................................................................10-12
MODEL NUMBER IDENTIFICATION..................................................12
INSPECTING YOUR HANDGUN ..................................................13-14
LOADING............................................................................14-16
LOADED CHAMBER INDICATOR .................................................16-17
FIRING ..................................................................................17
MANUAL COCKING ....................................................................18
DECOCKING ............................................................................18
CLEARING MISFIRES .................................................................18
PRODUCT WARNING..................................................................19
UNLOADING ............................................................................19
FIELD STRIPPING DISASSEMBLY ...................................................20
FIELD STRIPPING REASSEMBLY ....................................................21
SIGHT ADJUSTMENT..................................................................21
MAGAZINE DISASSEMBLY ...........................................................22
MAGAZINE ASSEMBLY................................................................22
CLEANING AND MAINTENANCE .................................................23-24
SERVICE, SHIPPING AND PARTS ...............................................24-26
WARRANTY.............................................................................26
WARNING STATEMENT ...............................................................27
4
•Y
OU ARE RESPONSIBLE FOR THE FIREARM AT
ALL TIMES. In owning a firearm, you must under
take full-time responsibility for your firearm’s safety
and security. You must protect yourself and all
others against injury or death from misuse of the
firearm.
• SAFE ST
ORAGE IS YOUR RESPONSIBILITY.
In particular, you must secure firearms safely from
children and unauthorized users. A lock has been
provided for your use with this firearm. Never
assume that the use of this lock is sufficient to safely
secure your firearm. You must always evaluate your
personal situation and employ the security system(s)
that meets your needs and prevents children and
unauthorized users from gaining access to your
firearm.
• Accidents are the result of violating the rules of
safe gun handling and common sense.
• For your safety and the safety of others, NEVER
RELY ON MECHANICAL FEATURES ALONE.
Only your safe gun-handling habits will ensure the
safe use of your firearm. This is your responsibility.
• NEVER KEEP AMMUNITION IN
THE SAME
LOCATION AS THE HANDGUN. Store in a
separate and secure place.
•DO NO
T ALTER, MODIFY OR REPLACE ANY OF
THE PARTS OF YOUR FIREARM unless this work
is performed by a qualified gunsmith using genuine
Walther parts. If you do otherwise, improper
functioning may occur and serious injury may result.
• NEVER MANIPULA
TE, ADJUST OR CHANGE ANY
OF THE INTERNAL COMPONENTS OF YOUR
FIREARM including the firing pin, sear, or drawbar.
Improper manipulation of any internal component
may affect the safety and reliability of your firearm
and may cause serious injury.
• READ AND UNDERST
AND THESE
INSTRUCTIONS BEFORE USING
YOUR FIREARM.
WARNING: THE FAILURE TO FOLLOW
THESE BASIC FIREARM SAFETY RULES
MAY RESULT IN AN UNINTENDED DISCHARGE WHICH COULD CAUSE
SERIOUS PERSONAL INJURY OR DEATH
TO YOU OR OTHERS.
YOUR SAFETY RESPONSIBILITIES CONT’D.
5
• BEFORE HANDLING ANY FIREARM,
UNDERSTAND ITS OPERATION. Not all firearms
are the same. Familiarize yourself with the mechanical
features of any firearm you intend to use. If you feel
uncertain about any operational aspects of your handgun,
please contact Walther at 1-800-372-6454 before proceeding
with its operation.
• ALWAYS SAFELY STORE AND SECURE YOUR
FIREARM. Safe and secure storage of your firearm
is one of the most important responsibilities of
firearms ownership. It is a full-time responsibility.
You must always secure your firearm and
ammunition separately so that they are not
accessible to children or other unauthorized persons.
(See Safe Storage Instructions.)
• ALWAYS TREAT EVERY FIREARM AS IF IT IS
LOADED AND WILL FIRE IF THE TRIGGER
IS PULLED. Do not take anyone’s word that the
firearm is unloaded – always check for yourself.
Never pass your firearm to another person until the
cylinder or action is open and you visually check that it
is unloaded. Keep your firearm unloaded and safely stored
when not in use.
• ALWAYS KEEP YOUR FIREARM POINTED IN A
SAFE DIRECTION. Never point a firearm at anyone
or anything you do not intend to shoot whether or not
it is loaded. This is particularly important when
loading, unloading, or field stripping the gun. ALWAYS
control the direction of the firearm.
• NEVER PLACE YOUR FINGER ON THE TRIGGER
INSIDE THE TRIGGER GUARD UNLESS YOU INTEND
TO FIRE. Ensure that other objects do not touch the trigger.
• ALWAYS BE SURE OF YOUR TARGET AND WHAT
IS BEYOND IT. Always be sure of where the bullet
will strike and shoot only where there is a safe
backstop free of obstructions, water or other
surfaces which can cause ricochets. Do not fire into
the sky.
• NEVER DISASSEMBLE
YOUR HANDGUN OR
MANIPULATE
THE INTERNAL COMPONENTS OF YOUR
HANDGUN BEY
OND
the field stripping procedure outlined in
this manual. Improper disassembly or manipulation of your
handgun may be dangerous and can lead to serious injury or
death.
•
NEVER CARRY OR STORE A FIREARM
with the hammer
or striker in the cocked position.
YOUR SAFETY RESPONSIBILITIES CONT’D.
6
YOUR SAFETY RESPONSIBILITIES CONT’D.
• NEVER ALLOW A FIREARM TO BE USED BY
INDIVIDUALS WHO HAVE NOT READ THESE FIREARMS
SAFETY RULES and do not understand its safe operation
and the rules of safe gun-handling.
• BE SURE ALL A
CCESSORIES, SUCH AS HOLSTERS
AND GRIPS, ARE COMPATIBLE with the handgun and that
the accessories do not interfere with safe operation.
•ALWAYS USE
THE CORRECT AMMUNITION FOR YOUR
PARTICULAR FIREARM as indicated by the marking on the
barrel. Never use non-standard, reloaded, or “handloaded”
ammunition which has not been subjected to internal
ballistic pressure testing.
•AL
WAYS HAVE ADEQUATE VENTILATION.
Discharging firearms in poorly ventilated areas,
cleaning firearms, or handling ammunition may result
in exposure to lead and other substances known to
cause birth defects, reproductive harm, and other
serious physical injury. Review the warnings and
labels for all ammunition and cleaning products
carefully. Wash hands thoroughly after exposure.
• NEVER USE ALCOHOL OR DR
UGS BEFORE OR WHILE
SHOOTING. Do not use your firearm if you are on any
medication which impairs, even slightly, your mental or
physical ability.
•AL
WAYS WEAR EYE AND HEARING PROTECTION
SPECIFIED FOR FIREARM USE every time you discharge
your firearm. Make sure others in the vicinity of where you
will be shooting do so as well.
• NEVER ALLO
W ANY ALTERATION OR REPLACEMENT
OF PAR
TS IN YOUR WALTHER FIREARM UNLESS
PERFORMED BY A QUALIFIED GUNSMITH
using genuine Walther parts. If you do otherwise,
improper functioning of your firearm may occur and serious
injury or death may result.
• NEVER CR
OSS OBSTACLES SUCH AS FENCES OR
STREAMS WITH A LOADED FIREARM.
• Firearm safety training is available. Contact your dealer,
law enforcement agency, local sportsman’s club, etc. for
availability.
• APPROPRIATE USE FOR YOUR FIREARM MEANS
USING YOUR FIREARM FOR LEGAL PURPOSES. For
example - target shooting and lawful resistance of deadly
criminal force.
7
WARNING: SAFE AND SECURE STORAGE OF YOUR
FIREARM IS ONE OF THE MOST IMPORTANT RULES
OF FIREARM SAFETY. YOUR FAILURE TO FOLLOW
THESE RULES MAY RESULT IN SERIOUS INJURY OR DEATH TO
YOUOROTHERS.
• You must always secure your firearm and ammunition
separately so that they are not accessible to children or other
unauthorized persons.
• Safe and secure storage and transportation of your firearm
are your responsibility. It is a full-time responsibility.
• Y
OU SHOULD ALWAYS SECURE YOUR FIREARM IN A
MANNER THAT WILL PREVENT UNAUTHORIZED ACCESS.
ALWAYS STORE YOUR FIREARM UNLOADED.
Your firearm and ammunition should be stored in separate
places and in a manner inaccessible to children and
unauthorized persons.
• AL
WAYS MAKE CERTAIN THAT YOUR FIREARM IS
SAFEL
Y SECURED IN A MANNER SO AS TO PREVENT
UNAUTHORIZED A
CCESS T
O THE FIREARM. WALTHER
HAS PROVIDED A LOCK FOR THIS PURPOSE.
Please read and follow the instructions packaged separately for
the use of this lock. There are other alternative locks and safe
storage containers available in the marketplace which may be
appropriate for your particular needs. Consult your local gun
shop, hardware store, or local police department for guidance
on the variety of other safe storage devices or practices which
may be appropriate for your particular needs. By purchasing
this firearm you have taken on the responsibility of safely
securing the firearm at all times and preventing its unauthorized
use. Never assume that the use of this lock is sufficient to
safely secure your firearm. It is your personal responsibility to
select and use whatever measures or practices that will enable
you to be absolutely certain that your firearm is secure at all
times.
SAFE STORAGE &
TRANSPORTATION
YOUR SAFETY RESPONSIBILITIES CONT’D.
WARNING: SAFE USE OF A FIREARM IS YOUR
PERSONAL RESPONSIBILITY AND THE FAILURE TO
FOLLOW ALL OF THESE BASIC SAFETY RULES MAY
RESULT IN SEVERE PERSONAL INJURY OR DEATH TO YOU
OR OTHERS. YOU ARE THE MOST IMPORTANT SAFETY
DEVICE WHEN IT COMES TO THE USE OF YOUR FIREARM
AND WALTHER WILL NOT BE RESPONSIBLE FOR ANY PERSONAL INJURY, DEATH OR PROPERTY DAMAGE THAT
RESULTS FROM: (1) THE CRIMINAL OR NEGLIGENT USE
OF THIS HANDGUN; (2) A DISREGARD OF THESE SAFETY
INSTRUCTIONS AND WARNINGS; (3) IMPROPER OR CARELESS HANDLING OF THIS FIREARM; (4) THE USE OF NONSTANDARD, DEFECTIVE, IMPROPER OR RELOADED AMMUNITION; OR (5) IMPROPER OR NEGLIGENT MODIFICATIONS
OR REPAIRS TO THE HANDGUN.
8
SAFE STORAGE & TRANSPORTATION CONT’D.
Only you can determine what devices or practices are
appropriate for the safe storage of your firearm and
your ammunition.
WARNING: DO NOT LOCK A LOADED HANDGUN AND
NEVER LOAD A LOCKED HANDGUN!!
• NEVER ASSUME
THAT A “HIDING” PLACE IS A
SECURE STORAGE METHOD. Others may be aware of
your storage location or come upon it by chance. It is your
personal responsibility to use common sense when storing
and securing your firearm and ammunition and to always
make sure that it is not accessible to children or other
unauthorized persons.
• AL
WAYS FOLLOW THE LAW!! You must be familiar with all
local, state, and federal laws regarding the safe storage and
transportation of your firearm. Failure to know and follow
the law may result in unauthorized access or use of your
firearm by another. Obey all laws relating to the storage
and transportation of firearms.
• NEVER
TRANSPORT A LOADED FIREARM.
When transporting your firearm, be sure it is unloaded
and that the cylinder or action is open.
• Your local police department or gunshop will furnish you
with available information on storing and/or transporting a
firearm legally.
• Y
OUR FIREARM IS YOUR RESPONSIBILITY.
Protect your firearm from theft or misuse by untrained or
unqualified individuals.
MAINTENANCE BEFORE ST
ORA
GE
When storing, do not encase your firearm in anything that will attract or
hold moisture, for example, leather or heavy cloth. Also, do not store
guns with a plug inserted in the barrel for this can be a contributing
factor to moisture accumulation. If your firearm is to be stored for an
extended period, the bore, chambers and internal working mechanism
should be oiled with acid-free lubricating oil or preservative, and the
external working mechanisms, frame, cylinder and barrel should be
coated with an anti-rust oil. Before using your firearm again, be sure to
clean it. Every time you clean your firearm, check it for signs of wear.
If wear is noted, do not use the firearm. Return it to Walther for service
or have it checked by a qualified gunsmith.
MAINTENANCE BEFORE USE
Before using your firearm, it should be cleaned. (See Cleaning
Instructions) Your firearm has been treated with either a preservative
or oil to protect it against corrosion. Before using it, all excess oil
should be wiped from the bore, chambers (charge holes), and exposed
areas using a clean swab or patch. A light coat of high quality gun oil
should be applied to the outside surfaces and mechanism. Care
should be taken not to oil the mechanism to the degree that dirt and
powder residue may be trapped by the oil. There are further instructions in the cleaning section of this manual.
9
NOMENCLATURE
Walther handguns are reliable and safe to use when the
firearm safety rules are followed. There are a number of
internal safety mechanisms within the lockwork of the
handgun which ensure that the firearm will not discharge
unless the trigger of the handgun is pulled. That is one
reason why it is important to never modify or alter your
firearm. Before you use your handgun, you should be fully
familiar with its operation.
Here is a list of basic firearms terminology.
AMMUNITION - CENTERFIRE
-Ammunition which
contains the primer in the center of the base of the case. Among
the most common centerfire handgun cartridges are the .32,
.38 Special, .380, 9mm, .357 Magnum®, .40 S&W®, .45 ACP
and the .44 Magnum®.
AMMUNITION - RIMFIRE
-Ammunition which contains the
primer material in the rim. Among the most common rimfire
handgun cartridges are the .22 Long, .22 Short, .22 LR, .22CB,
.22BB, and .22 Magnum.
CALIBER
- The diameter of a bullet, designated in
hundredths or thousandths of an inch (.357) or in
millimeters (9mm).
DECOCK
- The process by which the hammer or striker is
safely lowered.
DOUBLE ACTION -A firing action where the hammer or striker
is drawn back, released, and the gun fired by a single pull of the
trigger.
DOUBLE A
CTION ONLY -A firearm designed so that it can only
be fired in double action.
PIST
OL -A handgun that contains multiple cartridges in a
magazine.
REVOLVER -A handgun that contains multiple cartridges in a
cylinder that revolves at the rear of the barrel.
SINGLE A
CTION -A firing action where the hammer or striker is
released from the cocked position by pulling the trigger.
The operation of your handgun will be explained in greater detail
in the pages that follow, as well as a greater description of key
component parts.
PREPARATION FOR
FIRING
WARNING:THE FAILURE TO FOLLOW THESE
FIREARM SAFETY REQUIREMENTS WILL CAUSE
SERIOUS PERSONAL INJURY OR DEATH TO YOU
OR OTHERS.
10
PREPARATION FOR FIRING CONT’D.
• ALWAYS WEAR ADEQUATE AND PROPER EAR
PROTECTION SPECIFIED FOR FIREARM USE to prevent
permanent damage to your hearing. Make sure others who
are nearby are wearing ear protection as well.
• ALWAYS WEAR SAFETY GLASSES SPECIFIED FOR
FIREARM USE, whether indoors or out. Safety glasses
should protect your eyes from the firing flash and particles
associated with the discharge of ammunition. Failure to do
so creates a risk of personal injury from particle or debris
spitting or ricochets.
• NEVER SHOOT AT HARD SURFACES, WATER OR UP
INTO THE SKY. Always select a place to shoot that has a
safe backstop and is free from obstructions and water
surfaces which cause ricochets.
• AL
WAYS BE AWARE OF OTHER PEOPLE so that persons
cannot accidentally walk into the line of fire.
• AL
WAYS POSITION THE SHOOTER AND ALL OTHERS
SO THAT THEY ARE OUT OF THE LINE OF FIRE and are
not within an area where they may be struck by ricochets,
particles spitting from a revolver, or by ejected cases from
other types of firearms.
• ALWAYS KEEP FINGERS AND OTHER PARTS OF YOUR
BODY AWAY FROM THE MUZZLE, AWAY FROM THE GAP
BETWEEN THE REVOLVER BARREL AND CYLINDER,
AND AWAY FROM THE PISTOL SLIDE AND EJECTION
PORT.
• ALWAYS BE ALERT AND ALWAYS FOLLOW THE
SAFETY INSTRUCTIONS OF THE RANGE OFFICER.
• AL
WAYS BE SURE THAT ALL CYLINDERS AND
ACTIONS OF FIREARMS ARE OPEN,
THAT CHAMBERS
ARE CLEAR OF CARTRIDGES, MAGAZINES ARE
REMOVED, AND THAT FIREARMS ARE POINTING IN A
SAFE DIRECTION.
• ALWAYS BE ALERT. Never shoot if you are tired, cold or
impaired in any way.
• AL
WAYS TREAT YOUR FIREARM AS IF IT WERE
LOADED.
• NEVER USE ALCOHOL OR DRUGS BEFORE OR WHILE
SHOO
TING.
AMMUNITION
A.
GENERAL PRINCIPLES
• A firearm and ammunition are a system and must work
together. Their performance is closely related. There are
different types of ammunition for different types of firearms.
Your firearm has been designed for ammunition of a
specific type and a specific caliber. It is important to select
the proper ammunition for your firearm.
FIGURE 1
11
WARNING: NEVER USE AMMUNITION NOT SPECIFICALLY DESIGNATED FOR USE IN YOUR FIREARM.
FAILURE TO USE THE CORRECT TYPE OR CALIBER
OF AMMUNITION MAY CAUSE THE FIREARM TO JAM,
FAIL TO FIRE OR EVEN GENERATE EXCESSIVE PRESSURE
WHICH CAN DAMAGE OR EVEN RUPTURE YOUR FIREARM,
CAUSING PERSONAL INJURY, DEATH OR PROPERTY DAMAGE.
• You are responsible for selecting ammunition that meets
industry standards and is appropriate in type and caliber for
this firearm.
• Locate the caliber
designation marked on the
handgun. This information
indicates the ammunition
caliber that should be used
in this firearm.
(See figure #1).
B.
HANDLOADED OR RELOADED AMMUNITION
WARNING: NEVER USE NON-STANDARD,
RELOADED OR “HANDLOADED” AMMUNITION
WHICH HAS NOT BEEN SUBJECTED TO INTERNAL
BALLISTIC PRESSURE TESTING. RELOADED OR
HANDLOADED AMMUNITION, MAY HAVE MANY MANUFACTURING AND QUALITY VARIABLES (SUCH AS THE TYPE
AND AMOUNT OF GUN POWDER). ANY AMMUNITION THAT
IS IMPROPERLY MANUFACTURED, EVEN IN THE SLIGHTEST
DEGREE, MAY FAIL TO FIRE OR MAY GENERATE EXCESSIVE INTERNAL PRESSURES WHICH CAN DAMAGE OR
EVEN RUPTURE THE FIREARM, CAUSING PERSONAL
INJURY OR DEATH TO THE SHOOTER OR THOSE IN THE
IMMEDIATE VICINITY.
• Use only commercially manufactured ammunition with
internal ballistic pressures which are in strict accordance
with the specifications of the Sporting Arms and
Ammunition Manufacturers’ Institute (SAAMI). If you are
uncertain, contact your ammunition supplier for verification.
C.
AMMUNITION SPECIFICS
• Use only ammunition specifically recommended by
Walther for your firearm.
• Never mix ammunition.
• Never use a cartridge not specifically designated for use in
your firearm. Pressure from the wrong type of ammunition
may exceed the capability of your firearm and may damage
or even rupture your firearm.
• In some cases, a round of ammunition not specified on your
handgun may fit into the chamber or cylinder. Firing
ammunition not specified on your handgun may cause it to
rupture and cause serious injury or death to you or
others.
FIGURE 2a
Rear Sight
Ejection Port
Extractor
Hammer
Loaded Chamber
Indicator
12
MODEL NUMBER
IDENTIFICATION
MODEL INDICATION
FIGURE 2
SERIAL NUMBER
AMMUNITION CONT’D.
• “Plus-P” (+P) ammunition generates pressures in excess of
the pressures associated with standard ammunition. Such
pressures may affect the wear characteristics or exceed the
margin of safety built into some handguns and could
therefore be DANGEROUS.
• “Plus-P-Plus (+P+) ammunition is not recommended for
use in Walther firearms. This marking on the ammunition
designates that it exceeds established industry standards,
but the designation does not represent defined pressure
limits and therefore such ammunition may vary significantly
as to the pressures generated.
13
FIGURE 2b
Trigger Guard
Trigger
Grip
Magazine
Magazine
Release
Front Sight
Frame
Slide
Rear Sight
Decocking
Safety
Lever
Barrel
Hammer
INSPECTING YOUR
HANDGUN
When you inspect your pistol, you should first check for yourself
to ensure that it is unloaded. To do this, grasp the pistol with
your finger off the trigger and outside the trigger guard, point the
pistol in a safe direction, depress the magazine release, and
remove the magazine.

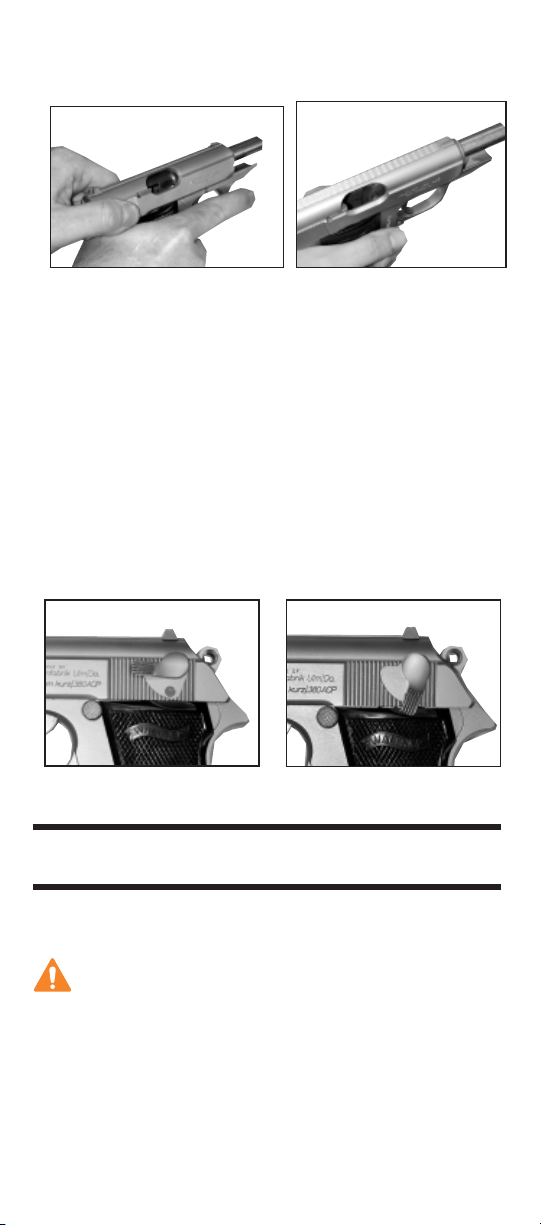

With the pistol still pointing in a safe direction, grasp the
serrated sides of the slide from the rear with the thumb and
fingers as shown in Figure 3, and briskly draw the slide fully
rearward in order to extract any cartridge from the barrel
chamber and clear it from the pistol. Do not obstruct the ejection
port because doing so can interfere with ejection of a cartridge
and thereby creates the risk of exploding an unchambered
cartridge and possible injury. To lock the slide open, insert an
empty magazine into the pistol. Pull the slide fully back and
release. Remove the magazine. You are now able to safely
check the barrel chamber and magazine well (opening) visually
for any obstructions (Figure 4). You must follow this procedure
every time your firearm is inspected, cleaned, handed to another
person, transported or stored. To unload a loaded magazine,
hold it with the bullet end of the cartridge pointing away from you
and others and press each cartridge forward and out of the
magazine.
To close the slide on an unloaded pistol, first remove the
magazine and then pull the slide fully back and release it.
FIGURE 3
FIGURE 4
14
LOADING
• Do not load your pistol until you have read and
understand the Basic Firearms Safety Rules.
Familiarize yourself with the safety decocking lever on your pistol. When the safety decocking lever is fully up (parallel to the
top of the slide) as shown in figure 5, it is in the “fire” position;
when the safety decocking lever is fully down (figure 6), it is in
the “safe” position. Notice how the safety decocking lever looks
and feels in each of the two positions of its extreme travel - fully
up for “fire” and fully down for “safe”. Your pistol may have a red
dot which is totally visible when the safety decocking lever is in
the “fire” position; however, do not rely on your inability to see a
red dot as the only indication that the safety decocking lever is
engaged.
Please be advised that other model or brand pistols may
have a safety decocking lever that operates differently.
FIGURE 5
FIGURE 6
WARNING: WALTHER PPK AND PPK/S PISTOLS ARE
DESIGNED SO THAT THEY ARE ABLE TO FIRE WHEN
THE MAGAZINE IS REMOVED. THEREFORE, IF THE MAGAZINE IS REMOVED FROM THE PISTOL AND THERE IS A
LOADED ROUND IN THE CHAMBER, IT WILL FIRE IF THE
TRIGGER IS PULLED. AFTER INSERTING A MAGAZINE,
ALWAYS TEST TO MAKE SURE IT IS LOCKED IN PLACE BY
APPLYING SOME REMOVAL PRESSURE TO THE EXPOSED
PORTION OF THE MAGAZINE BUTT PLATE.
INSPECTING YOUR HANDGUN CONT’D.
FIRE SAFE
15
• Use only Walther magazines specifically manufactured for
your particular model of pistol. Do not interchange
magazines from one model pistol into another model pistol.
• Walther has provided you with a magazine designed
to operate in your specific model of pistol. While your
magazine may be able to be inserted into another model
pistol, it will only function properly in the specific model for
which it was designed.
• Follow the instructions in this manual and any other specific
instructions which may be marked onto, or accompany, a
magazine. Failure to use the particular type of Walther
magazine specified for your model and caliber of pistol may
result in a malfunction.
• Load the magazine by pressing a cartridge head (rear of
cartridge) downward on the forward portion of the
magazine follower (or downward
on the case of the previously
loaded cartridge) and sliding the
cartridge fully under the lips of the
magazine until the cartridge head
is against the rear wall of the
magazine. Repeat the
procedure for the number of
cartridges you wish to load, up to
the magazine capacity. Do not
attempt to load your magazine with more than the specified
number of cartridges because doing so can cause a feeding
failure. (Figure 7)
• Inspect your pistol as previously described in the
“Inspecting Your Pistol” section. Hold the pistol in one hand
while pointing it in a safe direction and with your finger off
the trigger and outside the trigger guard. Insert the loaded
magazine into the magazine well (opening) with enough
force to ensure that it is locked in place.
WARNING: DO NOT USE EXCESSIVE UPWARD FORCE
WHEN INSERTING A LOADED MAGAZINE INTO THE PISTOL. EXCESSIVE UPWARD FORCE COULD CAUSE THE
SLIDE TO MOVE FORWARD, CHAMBERING A ROUND AND
MAKING THE PISTOL READY TO FIRE.
LOADING CONT’D.
FIGURE 7
• To make sure that the magazine is fully and securely
inserted, apply some removal pressure to the exposed
portion of the magazine butt plate.
• Pull the slide firmly to the rear and release it completely
allowing it to carry fully forward. This strips a cartridge from
the magazine and seats it in the chamber of the barrel.
• Ta ke this opportunity to look at the loaded chamber
indicator. If the loading procedure has been properly
followed, you will observe the loaded chamber indicator pin
protruding fromthe back of the slide.
WARNING: THE PISTOL CAN NOW BE FIRED BY
PULLING THE TRIGGER TO THE REAR.
• Rotate the safety decocking lever to the down “safe” position.
• If you wish to restore the magazine in your pistol to its full
capacity, depress the magazine release and remove the
magazine from the pistol. Remember that there is a round in
the chamber; therefore, the weapon should be holstered or
safely secured during this process and the trigger should
never be moved. Load one cartridge into the magazine to
replace the one which was chambered when you allowed the
slide to carry forward.
• Re-insert the loaded magazine into the magazine well of the
pistol until it is locked in place. To make sure that the
magazine is again fully and securely inserted, apply some
removal pressure to the exposed portion of the magazine
butt plate.
• Your pistol is now fully loaded and may be holstered and
carried safely.. Remember to keep your pistol pointed in a
safe direction under all conditions and always keep your
finger or any other object off the trigger and outside the
trigger guard until you have made the commitment to fire the
handgun. Never leave a loaded firearm unattended.
LOADING CONT’D.
16
LOADED CHAMBER
INDICATOR
WARNING: WHEN VIEWING THE LOADED CHAMBER
INDICATOR,YOU MUST ALWAYS REMEMBER TO KEEP
THE FIREARM POINTED IN A SAFE DIRECTION WITH
YOUR FINGER OFF THE TRIGGER AND OUT OF THE
TRIGGER GUARD.
• Currently manufactured Walther PPK and PPK/S pistols come
with a loaded chamber indicator. This indicator can be observed
by looking at the rear of the slide just above the hammer (Figure 8)
noting a small hole. If the firearm’s chamber is loaded, you will
observe a silver pin protruding from this hole. (Figure 8a)
• Rotate the safety decocking lever fully up into the “fire”
position. The first shot from this uncocked centerfire pistol
will be fired in the double-action mode. As the trigger is
drawn fully to the rear, the hammer moves rearward and is
released to strike the firing pin. Upon firing, the slide moves
rearward thereby extracting and ejecting the spent cartridge
case.
• The slide then returns forward feeding the next cartridge from
the magazine to the barrel chamber.
• The hammer remains in the cocked position and the trigger
is in the rearward position so that subsequent shots will be
fired in single action mode. This sequence can be repeated
until the last round has been fired at which time the magazine
follower exerts upward pressure on the slide stop causing it to
engage the slide and hold it in the “open” position.
WARNING: SINGLE ACTION FIRING REQUIRES
SIGNIFICANTLY LESS PRESSURE ON THE TRIGGER
AND REDUCED TRIGGER TRAVEL THAN DOUBLE
ACTION FIRING.
17
FIRING
WARNING: DURING FIRING ALWAYS KEEP THE
BARREL POINTED IN A SAFE DIRECTION.
FIGURE 8
LOADED CHAMBER INDICATOR CONT’D.
WARNING: UPON FIRING THE PISTOL OR RELEASING
THE SLIDE FROM THE SLIDE STOP, THE SLIDE MOVES
REARWARD OR FORWARD WITH SIGNIFICANT FORCE
AND SPEED. TO AVOID INJURY, BE SURE NO PART
OF YOUR BODY INTERFERES WITH THE SLIDE MOVEMENT OR EJECTION OF THE FIRED CASE.
FIGURE 8a
WARNING: WEAR EYE AND EAR PROTECTION
SPECIFIED FOR FIREARM USE EVERY TIME YOU
DISCHARGE YOUR FIREARM. MAKE SURE OTHERS
IN THE VICINITY OF WHERE YOU WILL BE SHOOTING
DO SO AS WELL.
CLEARING MISFIRES
If during firing, a cartridge fails to fire, the pistol will remain in the
double action mode. If the situation permits, the trigger may be
pulled once or twice more. If ignition still fails, the chamber must
be manually cleared. While keeping the muzzle pointed in a safe
direction, wait 10 seconds and then rotate the safety decocking
lever fully down into the safe position. Depress the magazine
release button and release the magazine from the pistol. Grasp
the serrated sides of the slide from the rear and briskly pull the
slide rearward to eject the misfired round. Do not obstruct the
ejection port, and do not attempt to catch the round by placing
your hand over the ejection port. (Figure 9)
18
MANUAL COCKING
The first shot may be fired in the single action mode when so
desired. You can prepare your pistol for single action firing by
pointing the muzzle in a safe direction, ensuring your finger
remains off of the trigger, rotating the safety decocking lever fully
up into the “fire” position, and pull the hammer spur rearward until
it locks into the fully-cocked position.
DECOCKING
If you decide not to fire after you have manually cocked the hammer or if you decide to suspend firing, keep the pistol pointed in a
safe direction. Remove your finger from within the trigger guard
and rotate the safety decocking lever fully down into the “safe”
position. This action will decock the hammer allowing it to fall
against the decocking safety body and will release the trigger to
its forward position. The pistol may now be holstered and carried
safely.
FIGURE 9
WARNING: IF YOUR HANDGUN GIVE ANY INDICATION
THAT IT IS NOT PERFORMING PROPERLY, OR THE
OPERATION OF YOUR HANDGUN HAS CHANGED “THE
WAY IT FEELS OR SOUNDS”, STOP FIRING. MAKE
SURE THE FIREARM IS POINTED IN A SAFE DIRECTION, UNLOAD THE FIREARM AND HAVE IT INSPECTED AND TEST FIRED BY A GUNSMITH QUALIFIED TO
PERFORM SERVICE ON WALTHER PISTOLS.
UNLOADING
19
PRODUCT WARNING
All Walther handguns capable of double action firing !
• It has come to our attention that some users of Walther
pistols capable of firing in double action may stage the
trigger in anticipation of firing a shot in the double-action
mode. Staging is the act of pulling the trigger rearward
toward – but just short of – the point where the hammer
falls and the pistol fires. Such manipulation of the trigger
can reduce the user’s control of the handgun and can result
in an unintentional discharge. Furthermore, if the user
decides not to fire, release of the trigger from a position
close to the firing point in the staging process could result in
a discharge.
• Obviously “staging” the trigger violates a basic rule of
firearm safety which warns you to keep your finger off the
trigger and outside of the trigger guard until you are ready to
fire.
• We warn all users of our pistols capable of firing in double
action to refrain from “staging” the trigger.
•Place the decocking safety lever into the down “safe” position.
•Point the pistol in a safe direction and press the magazine
release button and remove the magazine.
•Grasp the serrated sides of the slide from the rear with the
thumb and fingers as shown in figure 3, briskly draw the
slide fully rearward in order to extract any cartridge from the
barrel chamber and clear it from the pistol.
•Unload the magazine by holding it with the bullet end of the
cartridge pointing away from you and others and pressing
each cartridge forward and out of the magazine.
•After double checking that the magazine is empty, place this
unloaded magazine into the gun.
WARNING: WHEN VIEWING THE LOADED CHAMBER
INDICATOR,YOU MUST ALWAYS REMEMBER TO KEEP
THE FIREARM POINTED IN A SAFE DIRECTION WITH
YOUR FINGER OFF THE TRIGGER AND OUT OF THE
TRIGGER GUARD. (FIGURE 8 & 8A)
•Grasp the serrated sides of the slide from the rear with the
thumb and fingers as shown in figure 3, briskly draw the
slide fully rearward and release. The slide should remain
open. Visually check to the barrel chamber and bore for any
obstructions.
•You must follow this procedure every time your firearm is
inspected, cleaned, handed to another person, transported
or stored.
20
FIELD STRIPPING
DISASSEMBLY
WARNING: SAFETY GLASSES SHOULD BE WORN
DURING THIS PROCESS.
WARNING: ALWAYS POINT THE PISTOL IN A SAFE
DIRECTION AND BE SURE TO KEEP YOUR FINGER
OUTSIDE THE TRIGGER
GUARD. BE SURE YOUR
PISTOL IS UNLOADED
BEFORE
DISASSEMBLY.
• Remove the magazine by
depressing the magazine
release button, clear the
chamber and verify it is empty.
• With the pistol unloaded, hold
the grip firmly in one hand and
put your index finger along the
side of the trigger guard. WIth
your other hand, pull down the
front of the trigger guard.
(Figure 10) When the front
of the trigger guard comes out
of the frame, press it sideways
with your index finger to keep
it from springing back up into
the frame. (Figure 11)
• With your free hand, grab the
slide by its grooves and pull it
all the way back until you can
lift the back end up, clear off
the frame. (Figure 12)
Ease the slide forward and off
the pistol. Be careful not to let
go of the slide while you can
still feel the spring tension, or it
could fly off of the pistol and
be damaged or cause injury.
Pull the recoil spring off the front of the
barrel. No further disassembly is required. (Figure 13)
FIGURE 11
FIGURE 10
FIGURE 12
FIGURE 13
21
SIGHT ADJUSTMENT
ENSURE YOUR FIREARM IS UNLOADED BEFORE
ADJUSTING YOUR SIGHTS. AT ALL TIMES FOLLOW THE
BASIC RULES OF SAFE GUN HANDLING.
WIND
AGE
To adjust the strike of the bullet left or right on the target, move the
rear sight in the same direction you want the bullets to move. The
sight is drift adjustable in a dovetail slot. Use a brass punch or drift
and a mallet, and adjust it carefully in small moves, test
firing the pistol for group placement after each adjustment. If you
use a steel punch or hammer directly on your pistol you will mar,
deform and damage it.
• To move the point of impact LEFT, move the rear sight LEFT.
• To move the point of impact RIGHT, move the rear sight RIGHT.
ELEV
ATION
There is no elevation adjustment on the model PPK or PPK/S
pistols.
FIELD STRIPPING
REASSEMBLY
WARNING: ALWAYS FOLLOW THE FIELD STRIPPING
INSTRUCTIONS EXACTLY. NEVER DO ANYTHING
BEYOND WHAT YOU ARE SPECIFICALLY INSTRUCTED TO DO
IN THIS MANUAL. NEVER ALTER OR MODIFY THE PARTS IN
YOUR PISTOL.
WARNING: ALWAYS POINT THE PISTOL IN A SAFE
DIRECTION AND BE SURE TO KEEP YOUR FINGER
OUTSIDE THE TRIGGER GUARD. BE SURE YOUR PISTOL
IS UNLOADED BEFORE REASSEMBLY.
WARNING: SAFETY GLASSES SHOULD BE WORN DUR-
ING THIS PROCESS.
• Put the recoil spring, small end first, on the barrel as shown in
figure 13. (If you put it on the large end first, it can fall off when
you point it down.) Cock the
hammer. Pull the trigger
guard down out of the frame
as in the Disassembly section.
• Put the slide over the forward
end of the recoil spring and
pull the slide back onto the
barrel all the way until it stops
(Figure 14). Then push the rear of the slide down until the
grooves inside the slide line up with the rails on the frame.
When properly aligned, ease the slide forward all the way.
Then let go of the trigger guard so it goes up into the frame.
• Before you load the pistol, check for proper assembly. Look at
the breech face and in the chamber and barrel, slide the slide
back and forth, put an empty magazine in, be sure the slide
locks open and so on. Be sure the pistol is unloaded and
pointing in a safe direction when you test its functions.
FIGURE 14
22
MAGAZINE
DISASSEMBLY
• Refer to Figure 15 for magazine disassembly and reassembly.
• Using a drift punch, depress the floorplate catch(4) through the
hole in the magazine floorplate (5).
• Slide the magazine floorplate (5) off of the magazine tube (1)
while holding the floorplate catch (4) in the magazine tube.(1)
• Remove the floorplate catch (4) and magazine spring (3) out
through the bottom of the magazine tube (1).
• Tu rn the magazine tube (1) right side up and remove the
magazine follower (2) through the bottom of the magazine
tube (1).
MAGAZINE
REASSEMBLY
• Install magazine follower (2) in the bottom of the magazine
tube (1) with the notched edges of the magazine follower (2)
toward the round side of the magazine tube (1).
• Install the magazine spring (3) and floorplate catch (4) in the
magazine tube (1).
• While holding the floorplate catch (4) in the magazine tube (1),
slide the magazine floorplate (5) onto the magazine tube (1) so
that the round projection of the floorplate catch (4) engages the
magazine floorplate (5).
FIGURE 15
1
2
3
5
4
WARNING: ENSURE YOUR FIREARM IS UNLOADED
BEFORE BEGINNING TO CLEAN IT (SEE
UNLOADING SECTION). ALWAYS FOLLOW THE
RULES OF SAFE GUN HANDLING.
Your firearm is a precision instrument. To insure reliable
function it is necessary to follow a routine maintenance
procedure. After firing your handgun, be sure to unload it
following the procedure outlined in the section entitled
“Unloading” before performing any cleaning or maintenance
procedure.
Your handgun should be cleaned by brushing the barrel bore
and chamber (charge holes) with a good powder-removing
solvent and bore brush. Wipe the areas clean with patches or a
swab.
Using a small brush dipped in solvent, remove all deposits from
around the breech of the barrel, chamber (charge holes), extractor and adjacent areas which have been subjected to the action
of powder or primer residue. Remove any residue on the frame
with light brushing and a solvent. After cleaning the entire gun,
use a cloth to apply a light film of high quality gun oil to all external metal surfaces and wipe clean.
CAUTION:
Always follow the instructions provided with your gun cleaner and
gun lubricant.
CAUTION:
Some cleaners can cause damage to your handguns. You should
avoid prolonged solvent immersion and prolonged ultrasonic
cleaning of your firearm. Choice of solvent should be restricted
to those products specifically developed for firearms maintenance. Damage to a firearm’s finish may occur if these cautions
are ignored. Ammoniated solvents or other strong alkaline solvents, should not be used on any Walther firearm. As a rule of
thumb, if you would be comfortable applying the solvent of your
choice to the finish of your automobile, it will probably be safe for
use on your firearm.
After the initial cleaning, there is usually some residue in both
the barrel and cylinder that works out and becomes apparent
within 24-48 hours. This can be removed with a bristle brush
and a light re-application of powder removing solvent after which
the oil film should be re-established on all surfaces.
WARNING: FOR ANY MAINTENANCE OR SERVICE
NOT SPECIFIED IN THIS MANUAL, YOU MUST USE A
GUNSMITH QUALIFIED TO PERFORM SERVICE ON
WALTHER PISTOLS.
23
CLEANING AND
MAINTENANCE
24
WARNING: NEVER MODIFY OR PERMIT YOUR HANDGUN TO BE MODIFIED UNLESS SPECIFICALLY
DIRECTED TO DO SO IN THIS MANUAL.
WARNING: DO NOT MANIPULATE OR ADJUST ANY
PA RT OF YOUR FIREARM UNLESS SPECIFICALLY
DIRECTED TO DO SO IN THIS MANUAL.
If your firearm will be used or stored in a cold climate, be sure to
use an oil of an appropriate weight for that climate.
Cleaning is essential to ensure the proper functioning of your
handgun.
Additional maintenance must be performed by a qualified gunsmith. Please refer to the section entitled “Service”.
CLEANING AND MAINTENANCE CONT’D.
SERVICE,
SHIPPING & PARTS
For Owners Within The United States
SERVICE
Should your Walther firearm require service, it should be
returned to the Walther factory or to a Walther Warranty Center
in its original case or in a similarly secure container. It is not
necessary to take the gun to a dealer for shipment. However,
before shipping your firearm, call or e-mail our Customer Service
Dept. for authorization and shipping instructions.
Before shipping your handgun, ensure that the firearm is
unloaded and packaged securely. DO NOT SHIP ANY
AMMUNITION. The package must NOT bear any markings
which indicate the identity of the contents. Enclose a letter which
includes your full name and address (no P.O. Boxes, please),
daytime telephone number, e-mail address, the serial number of
the firearm, and details of the problem experienced (stating the
brand and type of ammunition used when the problem occurred)
or work desired. Record the serial number before shipping, in
case you wish to check on the repair status of your firearm.
Customer Service
19 Aviation Drive
Houlton, ME 04730
Te l: 800-331-0852 • 413-781-8300 ext. 2905
E-mail: qa@smith-wesson.com
25
SERVICE, SHIPPING AND PARTS CONT’D.
SHIPPING
When shipping a firearm, it is most important that you comply
with federal, state, and local laws and regulations. The following
guidelines are meant to help, but you must seek assistance from
the appropriate authorities if necessary.
• Check magazines and chambers to ensure that they
are unloaded. Do not ship ammunition.
• Do not attempt to ship a handgun via US Postal Service;
only federally licensed dealers may ship a firearm by
US Postal Service.
• If your firearm must be replaced, it may be necessary to ship
the replacement to a dealer rather than directly to you. You
will be requested to furnish a signed FFL (Federal Firearms
License) from your dealer in such an instance.
• When returning a pistol, please include all magazines
ensuring they are unloaded; they are important to the
proper function of the handgun.
Ship ALL PPK/S pistols to:
Customer Service, 19 Aviation Drive, Houlton, ME 04730
Please call the above telephone number or e-mail the above
address before shipping!!
Since we cannot assume responsibility for custom parts and
accessories, such as stocks, special sights, or holsters, please
remove these items before returning your firearm.
Warranty repair work will begin upon receipt and examination of
the firearm. In the case of repairs or work not covered by the
warranty, a quotation covering the cost of the work plus round trip
transportation charges will be sent to you. Repairs or
modification will begin upon receipt of payment.
A
CCESSORIES & PARTS
Replacement parts and accessories for your Walther firearm are
available from your local Walther Stocking Dealer, or directly from
the Walther Parts Department.
When ordering parts directly from the factory, please provide the
following information:
•Model Number
•Dash Number
• Serial Number
• Approximate date of purchase
•Complete Return Address
•VISA/Discover/MasterCard Number and
Expiration Date
•For Foreign Orders Only, Fax Number or E-mail
Address
Please call 1-800-331-0852, ext. 2905 for any questions you
have.
WARNING: YOU MAY PURCHASE SOME PARTS FOR
YOUR WALTHER FIREARM. YOU MUST HAVE THESE
PA RTS INSTALLED BY A GUNSMITH QUALIFIED TO
PERFORM SERVICE ON WALTHER PISTOLS.YOU
MUST NEVER ATTEMPT TO MODIFY YOUR FIREARM OR
INSTALL REPLACEMENT PARTS IN YOUR FIREARM.
ALWAYS USE A QUALIFIED WALTHER GUNSMITH EVEN IF
THE REPAIR SEEMS TO BE SIMPLE.
SERVICE, SHIPPING, & PARTS CONT’D.
WARRANTY STATEMENT
Due to the many different requirements imposed by federal and
state laws on consumer warranties, NO EXPRESS WARRANTY,
EITHER “FULL” OR “LIMITED” IS OFFERED WITH THIS PRODUCT. IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO ONE
YEAR FROM DATE OF FIRST RETAIL PURCHASE. SOME
STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS, SO THIS LIMITATION MAY NOT
APPLY TO YOU.
Walther wishes, nonetheless, to assure our customers of our continued interest in their satisfaction with all our products. This
firearm will be serviced at no charge to the customer for any
problem which we, in our sole discretion, find to be due to defective material or workmanship, for a period of ONE YEAR FROM
DATE OF FIRST RETAIL PURCHASE. Please retain your sales
receipt as proof of purchase date.
26
This handgun is not equipped with a
device that fully blocks use by
unauthorized users. More than 200,000
firearms like this one are stolen from their
owners every year in the United States. In
addition, there are more than a thousand
suicides each year by younger children
and teenagers who get access to firearms.
Hundreds more die from accidental discharge. It is likely that many more children sustain serious wounds or inflict such
wounds accidentally on others. In order to
limit the chance of such misuse, it is
imperative that you keep this weapon
locked in a secure place and take other
steps necessary to limit the possibility of
theft or accident. Failure to take reasonable preventative steps may result in innocent lives being lost, and in some circumstances may result in your liability for
these deaths.
The certification below is required only for handguns sold in the
United States with a barrel length shorter than 3”.
Walther hereby certifies average accuracy test results for all new handguns with a barrel shorter than 3” as follows:
7 yards 14 yards 21 yards
1.7” 3.9” 6.3”
This certification is based on tests conducted by Walther using a fixed
handgun, rest and firing ammunition manufactured by a member of the
Shooting Arms and Ammunition Manufacturers Institute (SAAMI) as
defined in ANSI/SAAMI Z299.3-1993.
This certification represents actual tests based on several handguns,
selected at random. Your particular handgun may have accuracy better
than the results stated in this certification.
27
W_PPK_032803A
2100 Roosevelt Avenue • Springfield, MA 01104
www.waltheramerica.com
