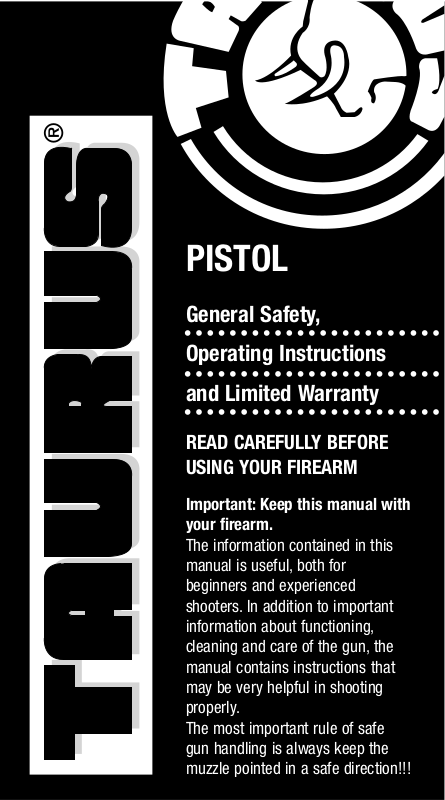

PISTOL
General Safety,
Operating Instructions
and Limited Warranty
READ CAREFULLY BEFORE
USING YOUR FIREARM
Important: Keep this manual with
your firearm.
The information contained in this
manual is useful, both for
beginners and experienced
shooters. In addition to important
information about functioning,
cleaning and care of the gun, the
manual contains instructions that
may be very helpful in shooting
properly.
The most important rule of safe
gun handling is always keep the
muzzle pointed in a safe direction!!!
2
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
TAURUS SECURITY SYSTEM™
Engagement (Secure)
PT58 S-D, PT92 C-D, PT92 AF-D, PT99 AF-D,
PT908, PT100 AF-D, PT101 AF-D, PT911,
PT938, PT940, PT945 and PT957
Insert the key into the mechanism and turn
clockwise until a click is felt or heard. The
mechanism now partially protrudes
above the surface of the backstrap of
the grip. The action is locked in place
and cannot function.
Disengagement (Ready-to-
Fire)
PT58 S-D, PT92 C-D, PT92 AF-
D, PT99 AF-D, PT908, PT100 AF-D,
PT101 AF-D, PT911, PT938,
PT940, PT945 and PT957
To place the pistol in a firing
condition, insert the key into the
mechanism and turn it counterclockwise. The mechanism is now
virtually flush with the backstrap of the
grip. The pistol can now be fired.
CAUTION:
Never engage the Taurus Security System on your Taurus Pistol with the
slide in the open (rearward) position. This will result in permanent damage to
your firearm.
WARNING:
Securing your firearm may inhibit access to it in a defense situation and
result in injury or death.
WARNING:
Failure to properly secure a firearm may result in injury or death.
Engagement (Secure)
PT111, PT111TI,
PT132, PT138, PT14O, PT145 & PT145Ti
Insert the key into the mechanism and turn
clockwise until a click is felt or heard. The
mechanism now partially protrudes above the
surface of the slide. The action is locked in place
and cannot function.
Disengagement (Ready-to-Fire)
PT111, PT111TI, PT132, PT138, PT14O,
PT145 & PT145Ti
To place the pistol in a firing condition, insert the
key into the mechanism and turn it counterclockwise. The mechanism is now virtually flush with the slide on the PT111,
PT132, PT138, PT140, PT145). The pistol can now be fired.
SAFETY WARNINGS
NOT JUST FOR BEGINNERS
Regardless of your familiarity or experience with firearms, you need to study
this manual.
The safe handling of firearms requires specialized training, discipline
and caution. Firearms, by their nature and intended function, are deadly
instruments. Accidental death or serious injury can result if they are handled
improperly or carelessly.
Firearms rarely cause accidents. Firearms accidents almost always are
caused by a failure to obey the basic rules of gun safety. Unfortunately,
experienced shooters seem to violate these rules as frequently as beginners.
Thus the basics of safe firearms handling cannot be repeated too often.
Read, re-read and practice the basic principles of firearms safety until they
become second nature: habits that you don’t forget.
If you have any question about your knowledge or ability to use this or
any other firearm with complete safety you should seek supervised
instruction. Personalized instruction is often available from firearms dealers,
gun clubs, state hunter safety programs or police departments in the United
States. If none of these sources is accessible, write to the National Rifle
Association, 11250 Waples Mill Road, Fairfax, VA22030
. THEY WILL ASSIST YOU.
A person with a firearm in his possession has a full-time responsibility.
He must KNOW how to keep and use his firearm safely, and then must
always TAKE the precautions necessary -all of them. He cannot guess; he
cannot forget. This responsibility is his alone. It cannot be passed off to
someone else.
Remember: no firearm can be made accident-proof. Afirearm is just a
machine, with no judgement of its own. It responds to your actions, whether
wise or foolish. The only truly effective safety device is the mind of a cautious
shooter who never forgets that a moment’s carelessness can produce
permanent tragedy.
THIS BOOKLET
The safety warnings in this booklet are important. By understanding the
dangers inherent in the use of any firearm, and by taking the precautions
described herein, you can enjoy complete safety in the use of your Taurus
revolver or pistol. Failure to heed any of these warnings may result in serious
injury to you or others, as well as severe damage to the firearm or other
property.
DANGEROUS WEAPONS
REVOLVERS and PISTOLS are classified as FIREARMS or DANGEROUS
WEAPONS and are sold by us with the specific understanding that we are
not responsible in any manner whatsoever for their improper or negligent
handling or resale under local laws and regulations.
TAURUS shall not be responsible in any manner whatsoever for
malfunctioning of the firearm, or for physical injury or property damage,
resulting in whole or in part from (1) criminal or negligent discharge, (2)
improper or careless handling, (3) unauthorized modifications, (4) defective,
improper hand-loaded, or reloaded ammunition, (5) neglect, or (6) other
influences beyond our direct and immediate control. This limitation applies
regardless of whether liability is asserted on the basis of contract, negligence
or strict liability (including any failure to warn). Under no circumstance shall
Taurus be liable for incidental or consequential damages, such as loss of use
of property, commercial loss and loss of earnings or profits.
3
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
FIREARMS ARE NOT ALL ALIKE
Many makes and models of firearms might LOOK nearly the same. However,
they differ widely in design and operation, and in the location and function of
various controls.
Study this manual thoroughly. Educate yourself on the characteristics
and operation of your particular firearm before attempting to handle it. Do not
permit others to handle it - unless they also have done so.
You should have an instruction manual for every firearm you own. If
you do not, write the manufacturer and obtain one. Most manufacturers will
gladly send you one free. If for any reason a manual is not available, visit
your public library. Many books have been published which contain detailed
information on obsolete or discontinued firearms.
Your knowledge can prevent injuries.
Taurus firearms are designed and made to offer maximum
safety when correctly used. However, as with any other
weapon, it is not foolproof, and may become very dangerous if
the following basic recommendations are not RIGIDLY
observed:
ATTENTION
1. DANGER: Never, never-ever point any firearm, loaded or unloaded, at
anything you do not intend to shoot.
2. WARNING: Always treat every firearm as if it were loaded.
3. NOTICE: Get instruction from a competent firearms instructor before
using any firearm.
4. SAFETY FIRST: The safety is only a mechanical device, not a substitute
for common sense.
5. WARNING: Keep your finger off the trigger until you are actually aiming
at the target ready to shoot.
6. WARNING: Be certain the firearm is unloaded before cleaning.
7. WARNING: Always empty firearms before entering a place where there
are people.
8. SAFETY FIRST: Never leave a loaded firearm unattended.
9. SAFETY FIRST: Store firearms and ammunition separately beyond the
reach of children.
10. WARNING: Don’t test the safety by pulling the trigger while the safety is
on unless you are absolutely sure the firearm is empty and you are
pointing away from everyone.
11. SAFETY FIRST: Be sure of your target and backstop before you shoot.
12. SAFETY FIRST: Firearms and alcohol or drugs don’t mix.
13. WARNING: Never pull a firearm towards you by the muzzle. Don’t climb
a tree or cross a fence with a loaded firearm.
4
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
14. DANGER: Load and unload with the muzzle pointed in a safe direction.
15. SAFETY FIRST: If a firearm fails to fire when the trigger is pulled, keep
it pointed at the target for at least 30 seconds. Sometimes slow primer
ignition will cause a “hang” fire and the cartridge will go off after a short
pause.
16. SAFETY FIRST: Never shoot at hard flat surfaces or water.., bullet may
ricochet.
17. DANGER: When receiving a firearm always check that it is unloaded
(Pistols: Remove magazine and open slide to check if chamber is
empty. Revolvers: Open cylinder to check if it is empty), even if you saw
it done previously.
18. DANGER: Never put your hand over the muzzle of a firearm.
19. DANGER: Check ammunition to be sure it is the right size and caliber,
and that it is not dented.
20. SAFETY FIRST: Use a proper holster and draw only if you intend to
shoot.
21. NOTICE: Never cock the firearm until you are ready to shoot.
22. SAFETY FIRST: Dry firing is bad for this firearm, whether the hammer
block is engaged or not.
23. DANGER: WHILE HANDLING ANY FIREARM, NEVER ALLOW IT TO
POINT ATANY PART OF YOUR BODY OR AT ANOTHER PERSON.
NO HARM SHOULD RESULT IF YOU OBEY THIS RULE, EVEN IF AN
ACCIDENTALDISCHARGE OCCURS.
24. CAUTION: If there is any reason to suspect that a bullet is obstructing
the barrel, immediately unload the firearm and look through the bore. It
is not sufficient to merely look in the chamber.
25. SAFETY FIRST: Treat this firearm as a precision instrument.
26. WARNING: Old or reloaded ammunition may be dangerous. We
recommend against using it.
27. WARNING: Never carry any handgun in your pocket, purse or waist-
band. Use a pistol case or proper holster with safety flap or strap.
28. DANGER: Don’t try to change your firearm’s trigger pull, because
alteration of trigger pull usually affects sear engagement and may cause
accidental discharge.
29. SAFETY FIRST: Write to us concerning any items or circumstances
which might relate to your safety and the operation of our products.
30. DANGER: Never engage a gun lock on a loaded firearm.
5
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
WARNING
Taurus pistols were manufactured to perform properly with the original parts
as designed. It is your duty to make sure any parts you buy are installed
correctly and that neither replacements nor originals are altered or changed.
Your firearm is a simple tool but it has many parts that must relate correctly
to other parts. Putting a firearm together wrong or with modified parts can
result in a damaged firearm, danger and injury or death to you and others
through malfunction.
Always have a qualified gunsmith work on your firearm.
DANGER: PROTECT YOUR EYES AND EARS
Always wear adequate shooting glasses and ear plugs or “ear muff” type
protectors whenever you are shooting. Always make certain that persons
close to you are similarly protected. Unprotected eyes may be injured by
powder, gas, carbon residue, lubricant, metallic particles or similar debris
which may emanate occasionally from any firearm in normal use. Without ear
protection, repeated exposure to shooting noise may lead to cumulative,
permanent hearing loss.
DANGER:
This pistol will fire with the magazine removed. Injury or death may result.
Never point a loaded pistol at anyone or anything you do not intend to shoot.
WARNING:
To prevent injury or death, it is imperative that you must keep your firearm
unloaded, uncocked and securely locked, with ammunition in a separate
location. In addition, take any other reasonable steps to limit the possibility of
theft, crime, accident or suicide.
6
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
7
FOR TAURUS PISTOLS WITHOUT A MAGAZINE DISCONNECTOR:
WARNING:
This pistol will fire with the magazine removed. Injury or death
may result. Never point a loaded pistol at anyone or anything you do not
intend to shoot.
FOR TAURUS PISTOLS WITH A MAGAZINE DISCONNECTOR:
WARNING:
This pistol is equipped with a magazine disconnector. It is
intended but not warranted or promised that the pistol will not fire with the
magazine removed, however,
(i) The magazine disconnector is not a safety and should not be relied on as
such to prevent injury or death.
(ii) The magazine disconnector can be accidentally bypassed through
abnormal handling. If so, the pistol will fire and may result in injury or death.
(iii) The magazine disconnector may break and allow the pistol to fire with the
magazine removed, resulting in injury or death.
(iv) Do not attempt to remove, alter or modify the magazine disconnector.
Injury or death may result.
(v) If you purchase this product “used” check the operation of the magazine
disconnector as follows: Verify that the magazine is out and visually confirm
that the chamber is empty by pulling the slide back with your finger well clear
of the trigger. Close the slide, and point the muzzle in a safe direction and
attempt to pull the trigger. If the trigger pull is complete and a loud clicking is
heard, then the disconnector may be broken and the firearm should be
returned to Taurus customer service for inspection and, if necessary, repair.
Failure to do so may result in injury or death.
(vi) If you are unclear about the purpose, function or proper procedures for
performing the test, please return the product to Taurus in accordance with
your warranty for a free inspection.
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
8
WARNING: AMMUNITION
1. Use only high quality, original, factory-manufactured ammunition. Do not
use cartridges that are dirty, wet, corroded, bent or damaged. Do not oil
cartridges. Do not spray aerosol-type lubricants, preservatives, or cleaners
directly onto cartridges or where excess spray may flow into contact with
cartridges. Lubricant or other foreign matter on cartridges can cause
potentially dangerous ammunition malfunctions. Use only ammunition of the
caliber for which your firearm is chambered. The proper caliber is
permanently engraved on your firearm; never attempt to use ammunition of
any other caliber.
2. The use of reloaded, “remanufactured”, hand-loaded, or other nonstandard ammunition voids all warranties. Improperly loaded ammunition
voids all warranties. Improperly loaded ammunition can be extremely
dangerous. Severe damage to the firearm and serious injury to the shooter
or to others may result. Always use ammunition that complies with the
industry performance standards established by the Sporting Arms and
Ammunition Manufacturers Institute, Inc., of the United States, (SAAMI) or
the equivalent from other countries.
3. Firearms may be severely damaged and serious injury to the shooter or to
others may result from any condition causing excessive pressure inside the
chamber or barrel during firing. Excessive pressure can be caused by
obstructions in the barrel, propellant powder overloads, or by the use of
incorrect cartridges or defectively assembled cartridges. In addition, the use
of a dirty, corroded, or damaged cartridge can lead to a burst cartridge case
and consequent damage to the firearm and personal injury from the sudden
escape of high-pressure propellant gas within the firearm’s mechanism.
4. Immediately stop shooting and check the barrel for a possible obstruction
whenever:
• You have difficulty in, or feel unusual resistance in, chambering a
cartridge, or
• Acartridge misfires (does not go off), or
• The mechanism fails to extract a fired cartridge case, or
• Unburned grains of propellant powder are discovered spilled in
mechanism, or
• Ashot sounds weak or abnormal.
In such cases it is possible that a bullet is lodged part way down the barrel.
Firing a subsequent bullet into the obstructed barrel can wreck the firearm
and cause serious injury to the shooter or to bystanders.
5.Bullets can become lodged in the barrel.
• If the cartridge has been improperly loaded without propellant powder, or if
the powder fails to ignite (Ignition of the cartridge primer alone will push the
bullet out the cartridge case, but usually does not generate sufficient
energy to expel the bullet completely from the barrel).
• If the bullet is not properly seated tightly in the cartridge case.
When such a cartridge is extracted from the chamber without being fired, the
bullet may be left behind in the bore at the point where the rifling begins.
Subsequent chambering of another cartridge may push the first bullet further
into the bore.
6. If there is any reason to suspect that a bullet is obstructing the barrel,
immediately unload the firearm and look through the bore. It is not sufficient
to merely look in the chamber. A bullet may be lodged some distance down
the barrel where it can not easily be seen.
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
IF ABULLET IS IN THE BORE, DO NOT ATTEMPT TO SHOOT IT OUT BY
USING ANOTHER CARTRIDGE, OR BY BLOWING IT OUT WITH A BLANK
OR ONE FROM WHICH THE BULLET HAS BEEN REMOVED. SUCH
TECHNIQUES CAN GENERATE EXCESSIVE PRESSURE, WRECK THE
FIREARM AND CAUSE SERIOUS PERSONAL INJURY.
If the bullet can be removed with a cleaning rod, clean any unburned powder
grains from the bore, chamber, and mechanism before resuming shooting. If
the bullet cannot be dislodged by tapping it with a cleaning rod, take the
firearm to a gunsmith.
7. Dirt, corrosion, or other foreign matter on a cartridge can impede complete
chambering and may cause the cartridge case to burst upon firing. The same
is true of cartridges which are damaged or deformed.
8. Do not oil cartridges, and be sure to wipe the chamber clean of any oil or
preservative before commencing to shoot. Oil interferes with the friction
between cartridge case and chamber wall that is necessary for safe
functioning, and subjects the firearm to stress similar to that imposed by
excessive pressure.
9. Use lubricants sparingly on the moving parts of your firearm. Avoid
excessive spraying of any aerosol firearm care product, especially where it
may get on ammunition. All lubricants and aerosol spray lubricants in
particular, can penetrate cartridge primers and cause misfires. Some highly
penetrative lubricants can also migrate inside cartridge cases and cause
deterioration of the propellant powder; on firing, the powder may not ignite. If
only the primer ignites, there is danger that the bullet may become lodged in
the barrel.
Taurus pistols were designed to use cartridges loaded to the limits shown
below. Other cartridges of various types or bullet weights may or may not
function acceptably; such ammunition should be thoroughly tested by the
user before relying on it. Because of the widely differing specifications of
such other ammunition, Taurus cannot be responsible for malfunctions
resulting from its use.
BULLET MUZZLE
CALIBER WEIGHT VELOCITY
.32 ACP.................................................... 71 GR FMP 905 FPS
.380 ACP.................................................. 95 GR FMJ 1000 FPS
9MMPARA. ..............................................124 GR FMJ 1225 FPS
.357 SIG ..................................................125 GR FMJ 1350 FPS
.40 S&W ..................................................180 GR FMJ 985 FPS
.45 ACP....................................................225 GR FMJ 900 FPS
GR = grains
FMJ = Full metal jacketed bullet
FPS = Feet per second
“Plus-P’, “PIus-P-Plus” or other ultra or high velocity ammunition generates
pressures significantly in excess of the pressures associated with standard
ammunition. Such pressures may affect the useful life of the firearm or
exceed the margin of safety built into many pistols and could therefore be
DANGEROUS.
CAUTION
Discharging firearms in poorly ventilated areas, cleaning firearms, or handling
ammunition may result in exposure to lead and other substances known to
cause birth defects, reproductive harm, and other serious physical injury. Have
adequate ventilation at all times. Wash hands thoroughly after exposure.
9
POSITION FOR TARGET SHOOTING
Take such stance that your body faces the target at a 90 degree angle. Keep
your feet 1 ft. to 1-1/2 ft. apart. Raise your arm so that it lines up naturally
with the target. Your head should be turned as needed, so to have a good
sight picture. When you are in a correct position, aim the firearm and
squeeze the trigger.
AIMING
Align the rear and front sights carefully. The top of the front sight must be
leveled with the top of the rear sight and set in the middle of the rear sight
notch. The bullseye should rest on the top of the sights.
SQUEEZE OF THE TRIGGER
Squeeze the trigger very carefully with index-finger, keeping sight aligned
with the target. If the trigger is jerked, the target will possibly be missed due
to the movement of the firearm. The pressure should be applied between the
tip and the first joint of the finger. Press slowly and carefully. More speed will
be gained with practice.
ADJUSTING THE SIGHTS
Adjustable Sight Models Only
To raise the rear sight, turn the elevation adjusting screw counterclockwise.
To lower the rear sight turn the screw clockwise. When raising the sight the
point of impact rises. Lowering the sight, the point is lowered. The rear sight
can also be adjusted for windage. Turn the windage adjusting screw
clockwise to move the notch to right side, and counter-clockwise to move the
notch to left side.
10
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
CARE AND MAINTENANCE
A. The firearm may be cleaned and lubricated under normal conditions
without the need of any disassembly.
B. In special conditions, such as repairs, when disassembling is necessary, it
is recommended the firearm be returned to the factory or sent to a competent
gunsmith or to the importer.
C. In order to keep a firearm in perfect condition it must be kept clean and
covered with a slight film of good quality oil to prevent corrosion. This is
especially necessary after use.
D. For normal cleaning of handgun not used or kept in storage for some time,
it is necessary to rub it with a lightly oiled cloth. In the same way proceed
with the bore of the barrel. The excess of oil must be removed, but a thin
protecting film should remain. Also the dust should be removed from all
crevices with a small, clean brush.
E. For cleaning after shooting, it is of special importance that all residues of
powder be removed from barrel and other adjacent areas subject to such
deposits, using an appropriate brush. If particles of lead are detected in
barrel they must be scrubbed with a brass brush, drenched with oil. Once
cleaned, lubrication should be done as above described. When shooting
more than 200 shots in a row, your firearm should be cleaned.
F. Do not keep handguns in contact with materials that attract moisture or
possess a certain degree of acidity, or in environments with great variation of
temperature or of humidity. Avoid the use of holsters of cloth or of any other
material except natural leather appropriately cured.
G. If the weapon is to be stored for a long period of time, extreme care
should be taken with metal surfaces, in order to protect them against
corrosion.
H. If magazine becomes dirty, which usually happens after 200 shots, it
should be disassembled and thoroughly cleaned. To do so, use a punch to
press in on magazine spring seat where it protrudes into the hole in the
magazine floorplate. Slide the magazine floorplate toward the front of the
magazine, taking care to prevent the forcible ejection of the magazine spring
seat and compressed magazine spring. Withdraw magazine spring plate and
magazine spring from magazine body. Turn magazine upside down and
remove magazine follower.
Reassemble in reverse order.
WARNING: Damaged or improperly assembled magazines should not be
used. They can cause the pistol to malfunction.
11
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
TAURUS LIMITED WARRANTY
What Does This Warranty Cover?
This warranty covers any service and repair needed by any product
manufactured by Forjas Taurus SA., and imported by Taurus International
Manufacturing, Inc. or manufactured in the United States by Taurus
International Manufacturing, Inc.
How Long Does Coverage Last?
This warranty is of unlimited duration.
What Will We Do?
Taurus will service and/or repair all covered products free of charge.
What Does This Warranty Not Cover?
This warranty does not cover grips, sights, accessories, cosmetic defects
after one year, or damage caused by customer abuse at any time. This
express limited warranty is the only warranty on this product. This product is
sold “as is” and has no implied warranties of merchantability or fitness for a
particular purpose. There are no warranties which extend beyond the
description on the face hereof.
How Do I Get Service?
To simplify repair and service Forjas Taurus and Taurus International products
are serviced and repaired by Taurus International. Questions regarding the
products of either company can be directed to Taurus International in Miami,
Florida at 1-305-624-1115 or in writing to:
16175 NW. 49th Avenue
Miami, Florida 33014
in care of the Consumer Affairs Department.
12
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
In order to obtain warranty service or repair you must first complete and
return the enclosed warranty registration card within 10 days of the date of
purchase. Then, if a problem should arise, describe the problem in writing
and send the firearm to Taurus International at the above address, insured
and pre-paid with the written description of the problem enclosed. Within 4
business days of our receipt of your firearm our Customer Service
Department will contact you in writing advising you of when to expect your
firearm back. We will ship guns serviced because of defect in materials or
workmanship insured and pre-paid. We will ship guns repaired out of
warranty COD. There will, of course, be no charge for parts or labor if the
repair work performed is covered by this express warranty.
How Does State Law Apply?
This warranty gives you specific legal rights and you may also have other
rights which vary from state to state.
13
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
LOADING
1. DANGER: Always make sure the muzzle is pointed in a safe direction.
2. SAFETY FIRST: Never attempt to load or unload any firearm inside a
vehicle, building or other confined space (except a properly constructed
shooting range). Enclosed areas frequently do not offer a completely safe
direction to point the firearm; if an accidental discharge occurs, there is a
great risk of injury or property damage.
3.
SAFETY FIRST: Before loading, always clean all grease and oil from the
bore and chamber, and check to be certain that no obstruction is in the
barrel. Any foreign matter in the barrel could result in a bulged or burst barrel
or other damage to the firearm, and could cause serious injury to the shooter
or to others.
14
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
FIRING
1. DANGER: Keep the muzzle pointed in a safe direction and your finger
away from the trigger when cocking any firearm.
2. WARNING: Never carry, handle or leave unattended any firearm which is
cocked and ready to fire. When cocked, it will fire from slight pressure on the
trigger. An accidental discharge could easily result if you fall or drop the
firearm, or if the firearm is struck or disturbed by someone or something.
3.
WARNING: Never fire any semi-automatic firearm with your finger, hand,
face, or other part of your body over or adjacent to the ejection port, or in any
position where you may be struck by reciprocating movement of the slide (or
bolt). Both the ejection of empty cartridge cases and the movement of the
slide (or bolt) are part of the normal operating cycle of semi-automatic
firearms, and pose no safety hazard to the shooter if the firearm is held in a
normal grip and fired at arm’s length (in the case of a handgun) as intended
by its design.
4.
CAUTION: Never allow other persons to stand beside you where they
might be struck by an ejected cartridge case. The case is hot, and may be
ejected with sufficient force to cause a burn or cut or injury to an unprotected
eye. Make certain there is a clear, unobstructed path for safe ejection of the
fired case. Remember, the case may bounce off a hard object nearby and
strike you or someone else.
5.
DANGER: If while shooting, your firearm develops ANY mechanical
malfunction or binding, or “spits” powder, gas, or if a cartridge primer is
punctured or a cartridge case is bulged or ruptured, or if the report on firing
does not sound quite right, STOP SHOOTING IMMEDIATELY. It may be
dangerous to continue. UNLOAD THE FIREARM. DO NOT try “one more
shot”. Take the firearm and ammunition to a gunsmith for examination.
6.
SAFETY FIRST: While shooting any semi-automatic firearm, an unfired
cartridge case may occasionally become jammed between the slide (or bolt)
and the barrel. Clear the jam as follows, WHILE KEEPING THE MUZZLE
POINTED IN ASAFE DIRECTION: remove the magazine, then pull back the
slide (or bolt) and hold or lock it to the rear. The jammed cartridge or case
now can be removed by shaking it out or by picking it out.
15
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
SEMI-AUTOMATIC PISTOLS
1. SAFETY FIRST: Risk of an accident is greatly increased when any semi-
automatic pistol, no matter how safely designed, is carried with a cartridge in
the chamber. THIS PRACTICE IS NOT RECOMMENDED AND MAY BE
JUSTIFIED ONLY IN CIRCUMSTANCE OF CLEAR AND PRESENT
DANGER WHEN THE PISTOL MAY IMMEDIATELY HAVE TO BE USED IN
SELF-DEFENSE. By far the safest procedure when carrying a loaded pistol
is to leave the chamber empty.
2.
SAFETY FIRST: If you MUST carry a Taurus semi-automatic pistol with a
cartridge in the chamber, always lower the hammer to the uncocked position.
In addition, if your pistol is equipped with a manual safety, never carry the
pistol with a cartridge in the chamber unless the safe is “on” until you are
ready to shoot and the firearm is pointed at the target.
3.
SAFETY FIRST: When uncocking the hammer, always EASE the hammer
down, NEVER LET IT SNAP DOWN, AS THIS MAY CAUSE THE PISTOL TO
FIRE ACCIDENTALLY.
4. On some semi-automatic pistols it is possible to lower the hammer to a
“half-cock” position. This position is the intercept notch.
WARNING: DO NOT USE THIS INTERCEPT NOTCH OR HALF COCK
POSITION AS ASAFETY DEVICE. DO NOT CARRY THE FIREARM AT
ANYTIME IN THE HALF COCK POSITION. It is not designed or suitable
for that purpose. The “half cock” or intercept notch serves only to prevent
unintended firing in case of internal malfunction or in case your thumb
slips off the hammer during manual cocking or decocking.
WARNING: TO PREVENT ACCIDENTAL DISCHARGE, it is absolutely
essential to USE THE MANUAL SAFETY. NEVER CARRY THE PISTOL
IN THE COCKED OR HALF COCKED POSITION AT ANYTIME.
5. SAFETY FIRST: Always point the muzzle in a safe direction when
manually operating the slide to load the first cartridge from the magazine into
the chamber. Malfunctions which allow the pistol to fire without the trigger
being pulled when the slide snaps closed are rare but can happen. Always
grip the slide so that your fingers, hand, elbow, and other parts of your body
are BEHIND the pistol and your finger is off of the trigger.
16
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
TAURUS PISTOLS OPERATION
(PT58 S-D, PT92 C-D, PT92 AF-D, PT99 AF-D, PT908, PT100 AF-D, PT101
AF-D, PT911, PT938, PT940, PT945 and PT957)
1. To remove the magazine press the
MAGAZINE RELEASE BUTTON,
located near the TRIGGER GUARD,
with your thumb.
2. Hold the MAGAZINE with one of
your hands and with the other one
insert the cartridges one at a time,
pressing them down and to the rear.
Insert the MAGAZINE into the pistol
until it is held by the MAGAZINE
CATCH.
3. Hold the pistol with one hand
keeping your finger away from the
TRIGGER. With the other hand pull
the SLIDE to its limit and release it.
You may depress the SLIDE CATCH,
and the SLIDE will go forward under
RECOIL SPRING pressure and will
insert one cartridge in the chamber.
4. The pistol is now cocked and
ready to fire by pulling the TRIGGER.
After firing, the SLIDE will recoil from
gas pressure and will eject the empty
cartridge case and feed another
cartridge into the chamber. The pistol
will be ready to fire again. After the
last round, the SLIDE will remain in
the open position held by the SLIDE
CATCH. In order to make it return to
its rest position, press the SLIDE
CATCH just above the LEFT GRIP.
5. If you want to stop shooting before
firing the last cartridge of a
magazine, decock the firearm
immediately by moving the safety
downward and push the safety lever
in the up (on) position.
WARNING: These Taurus pistols do not have a magazine disconnect
(safety). They will fire the round in the chamber with the magazine
removed.
17
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
OPERATION OF TAURUS PT111, PT111TI, PT132, PT138, PT14O,
PT145 & PT145Ti
1. To remove the magazine press the
MAGAZINE RELEASE BUTTON,
located near the TRIGGER GUARD,
with your thumb.
2. Hold the MAGAZINE with one of
your hands and with the other one
insert the cartridges one at a time,
pressing them down and to the rear.
Insert the MAGAZINE into the pistol
until it is held by the MAGAZINE
CATCH. For PT145 and PT145Ti
models, use the magazine loader to
insert the cartridges (see
instructions).
3. Hold the pistol with one hand
keeping your finger away from the
TRIGGER. With the other hand pull
the SLIDE to its limit and release it.
You may depress the SLIDE CATCH,
and the SLIDE will go forward under
RECOIL SPRING pressure and will
insert one cartridge in the chamber.
4. The pistol is now ready to fire by
pulling the TRIGGER. After firing, the
SLIDE will recoil from gas pressure
and will eject the empty cartridge
case and feed another cartridge into
the chamber. The pistol will be ready
to fire again. After the last round, the
SLIDE will remain in the open
position held by the SLIDE CATCH.
In order to make it return to its rest
position, press the SLIDE CATCH
downward just above the LEFT
GRIP. On the PT145 and PT145Ti,
the slide will not close with an empty
magazine in place. To return the
slide to its rest position, release the
empty magazine by pushing the
magazine catch button with your
thumb.
5. If you want to stop shooting before
firing the last cartridge of a
magazine, push the safety lever in the up (on) position.
WARNING: These Taurus pistols do not have a magazine disconnect
(safety). They will fire the round in the chamber with the magazine
removed.
18
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
SAFETY AGAINST ACCIDENTAL FIRING FROM DROPPING
Like any other precision instrument of small size, this pistol can be damaged
or broken by unusual abuse, such as by severe impact on a hard surface. If
dropped from a height at which the pistol is normally used, the manual safety
and automatic safety together provide double strong resistance against
accidental firing caused by such impact, BUT THE MANUAL SAFETY MUST
BE “ON” TO FULFILL ITS FUNCTION. A user who neglects to apply the
manual safety runs a greater risk of accidental firing.
It is important to recognize that it is impossible to make any small firearm
absolutely foolproof against drop firing under all circumstances, so long as a
cartridge is loaded in the chamber.
The risk is virtually eliminated by the simple precaution of leaving the
chamber empty until you are ready to shoot. In the event of a severe drop,
the pistol should be checked by a competent gunsmith to ensure that no
internal damage has occurred which may impair its safety or reliability.
DANGER:
USE OF SAFETY
1. Your firearm comes equipped with an effective, well designed safety
device. HOWEVER, NEVER RELY COMPLETELY ON ANY SAFETY
MECHANISM. The best safety mechanism is your own common sense: USE
IT! Always handle your firearm as though you expect the safety NOT to work.
2. While handling any firearm, never allow it to point at any part of your body
or at another person. No harm will result if you obey this rule, even if an
accidental discharge occurs.
3. Leave the safety “on” until you are ready to shoot and the firearm is
pointed at the target.
4. Always keep your finger off the trigger and point the muzzle in a safe
direction when turning the safety “on” or “off”.
5. When applying the safety, be certain to move it fully into position. On some
firearms a red warning dot is located beside the safety; when the safety is
fully “on”, the red dot should be completely covered. Always remember, “Half-
safe” is NOT SAFE.
6. Never
carry any firearm with a cartridge in the chamber without placing the
safety “on”. (The only exceptions are double-action revolvers and some
double-action pistols which have automatic internal safeties and which are
not equipped with manual safeties.)
7. For maximum safety never carry a firearm with a cartridge in the chamber.
19
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
8. Most TAURUS pistols are equipped with the following:
THE AMBIDEXTROUS MANUAL SAFETY - levers on the left and right side
of the slide. It is “ON” when the lever is turned fully up to cover the RED dot.
When turned on, the safety lever will disengage the hammer and sear
simultaneously.
AMBIDEXTROUS MANUAL HAMMER DROP SAFETY. Mechanism that
allows the hammer to be lowered safely, when one of the safety levers is
turned fully down. Hammer and firing pin are kept apart, and pistol is now in
double action condition.
AUTOMATIC FIRING PIN BLOCK SAFETY built-in safety that blocks the
firing pin from movement until the trigger is pulled completely to the rear as
part of the firing sequence.
LOADED CHAMBER INDICATOR is in the extractor which protrudes on the
right side of the slide, near the ejection port. When there is a round in the
chamber, a red line is visible in daylight or may be felt in poor light
9. PT111, PT111Ti, PT132, PT138,
PT140, PT145 and PT145Ti SAFETY
FEATURES - The PT111, PT111Ti,
PT132, PT138, PT140, PT145 and
PT145Ti pistols are equipped with the
following safety features:
A. Manual safety lever on the left side
of the frame above the left-hand grip.
When turned ON (up), the Safety Lever
will prevent the trigger from being pulled to the rear.
B. Automatic firing pin block safety is built in and blocks the firing pin from
forward movement until the trigger is pulled completely to the rear.
WARNING
NEVER RELY COMPLETELY ON ANY SAFETY MECHANISM. It is NOT a
substitute for cautious firearm handling. NO safety, however positive or welldesigned, should be totally trusted. Like all mechanical devices, the safety is
subject to breakage or malfunction and can be adversely affected by wear,
abuse, dirt, corrosion, incorrect assembly, improper adjustment or repair, or
lack of maintenance. Moreover, there is no such thing as a safety which is
“childproof” or which can completely prevent accidental discharge from
improper usage, carelessness, or “horseplay”. The automatic safety can
provide only partial protection against mishaps. By itself it is not a complete
safety system. To prevent accidents, it is absolutely essential to consistently
and correctly use the manual safety lever also. If water, sand, or other foreign
matter enters the internal mechanism, the firearm should be dismantled for
complete and thorough cleaning. Failure to keep your firearm clean and in
proper working order can lead to a potentially dangerous condition.
20
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
SAFETY DEVICES
(PT58 S-D, PT92 C-D, PT92 AF-D, PT99 AF-D, PT100 AF-D,
PT101 AF-D, PT908, PT911, PT938, PT940, PT945 and PT957)
1. The FIRING PIN BLOCK (4) is permanently locked preventing the FIRING
PIN (5) from going forward which could cause accidental discharge should
the pistol be dropped.
The FIRING PIN BLOCK (4) is only released at the TRIGGER (1) final stage
position, allowing the FIRING PIN (5) to advance as soon as it receives the
HAMMER (6) impact energy. The release is done through the following
movement series: TRIGGER (1), TRIGGER BAR (2), FIRING PIN BLOCK
LEVER (3) and FIRING PIN BLOCK(4).
2.By moving the SAFETY upward you will disengage the hammer and sear
simultaneously. The SAFETY was designed to allow AMBIDEXTROUS use
and it enables a rapid change from safe to fire position.
3. When a cartridge is loaded in the chamber the EXTRACTOR end
protrudes and its red colored surface can be easily seen or felt without the
need of moving back the SLIDE.
CAUTION - Taurus Models PT111, PT140, PT911, PT938, PT940 and
PT957 manufactured before July, 2000 do NOT contain a loaded
chamber indicator.
To determine if chamber is loaded, make sure your
finger is not on the trigger or inside the trigger guard and pull slide to rear
and visually inspect the chamber. In any case, always inspect the chamber
visually by pulling the slide back slowly and looking into the chamber while
keeping your finger well clear of the trigger and trigger guard and keeping the
muzzle pointed in a safe direction.
DANGER: CLEARING THE CHAMBER
To clear the chamber of a Taurus Pistol, first make sure the muzzle is pointed
in a safe directon. Remove magazine and set aside. While keeping your
finger well away from the trigger and trigger guard, disengage the manual
safety, and pull the slide smartly to the rear. The cartridge will eject. Lock the
slide open and visually inspect the chamber to make sure the pistol in
unloaded. You may then close the slide and secure your firearm.
21
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
PT58, 92, 92C, 99, 100, 101, 908, 911, 938, 940, 945, 957.
4. By moving safety (3) downward you will lower the hammer (5) and
disengage the trigger bar (2) so that the connection between trigger (1) and
sear (4) will be interrupted. The hammer (5) forward motion will be stopped
by the hammer catch (6).
FIELD STRIPPING
(PT58 S-D, PT92 C-D, PT92 AF-D, PT99 AF-D, PT100 AF-D, PT101 AF-D,
PT908, PT911, PT938, PT940, PT945,and PT957)
22
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
PT58, 92, 92C, 99, 100, 101, 908, 911, 938, 940, 945, 957.
1. Remove the MAGAZINE by
pressing the MAGAZINE RELEASE
BUTTON; be sure that the chamber
is EMPTY.
3. Pull forward the SLIDE-BARREL
assembly.
2. With the left forefinger press the
DISASSEMBLY LATCH RELEASE
and with the left thumb rotate the
DISASSEMBLY LATCH clockwise
until it stops.
4. Slightly press the RECOIL
SPRING GUIDE. Lift and remove it
carefully.
On Models 58, 111,132, 138,140, 145, 908, 911, 938, 940, 945 and 957 there
is no locking block. Remove spring and guide and then barrel from slide.
ATTENTION: No further disassembly is recommended unless done by a
skilled gunsmith.
FIELD STRIPPING PT111, PT111Ti, PT132, PT138, PT14O,
PT145 & PT145Ti
NOTICE:
Some newer model pistols feature a takedown pin rather than a
disassembly latch. Instructions for the pin, where these instructions differ, are in
blue.
1. Remove the MAGAZINE by pressing
the MAGAZINE RELEASE BUTTON;
be sure that the chamber is EMPTY.
2. Pull SLIDE fully to the rear and push
up the SLIDE CATCH LEVER.
3. With left thumb, rotate SLIDE
DISASSEMBLY LATCH clockwise until
it stops.
Use the key for your Taurus Security
System to gently push the pin from the
right side of the pistol.
23
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
5. Press LOCKING BLOCK
PLUNGER (PT-92 C-D, PT-92AF-D,
PT-99 AF-D, PT-100 AF-D AND PT101 AF-D)
6. Remove the BARREL from the
SLIDE.
4. With left hand, pull SLIDE
DISASSEMBLY LATCH or TAKE-
DOWN PIN out of frame.
5. Carefully release SLIDE CATCH,
and with SLIDE under full control, pull
SLIDE forward off of frame.
6. Carefully remove SLIDE SPRING
and GUIDE from its position on the
bottom of the BARREL. SPRING is
under compression so it must be kept
under control until removed.
7. Remove BARREL from SLIDE by
pulling to the rear and up.
ATTENTION: No further disassembly is
recommended unless done by a skilled
gunsmith.
24
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
If the slide sticks on the frame, be sure the
chamber is empty and firmly pull the trigger
fully to the rear while pulling the slide forward
off the frame.
If the slide does not move because the barrel
remains to the rear and tilted upward, be sure
the chamber is empty and push the muzzle
against the palm of one hand while pushing
the slide forward with the other.
ASSEMBLY
(PT58 S-D, PT92 C-D, PT92 AF-D, PT99 AF-D, PT100 AF-D, PT1O1 AF-D
PT908, PT911, PT938, PT940, PT945 and PT957)
On
PT938 pistols it is necessary to press slightly down on the barrel while
assembling the slide on the frame.
ASSEMBLY FOR LEFT HAND USE
TAURUS pistols (except models PT22, PT25, PT111, PT111Ti, PT132,
PT138, PT140, PT145, PT145Ti, PT908 and PT945) can be adjusted to be
used by left handed people by following the instructions below:
25
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
1. The FIRING PIN BLOCK LEVER
must be lowered while assembling
the SLIDE in the FRAME.
2. Before turning the
DISASSEMBLY LATCH or
reinserting the TAKE-DOWN PIN
the SLIDE must be perfectly
aligned to the rear of the FRAME.
1. Using a pin punch press in the
MAGAZINE RELEASE BUTTON
unscrewing the MAGAZINE
RELEASE BUTTON at the same
time.
2. Reassemble with MAGAZINE
RELEASE BUTTON at the right
side of the firearm.
ASSEMBLY OF PT111, PT111Ti, PT132, PT138, PT14O, PT145
AND PT145Ti
In order to reassemble the pistol, proceed by reversing the disassembling
procedure while observing the following details:
1. Replace the barrel in the slide
pushing it to the rearward position.
Mount the spring on the guide rod.
Insert the spring/guide rod subassembly into the slide over the barrel,
compressing the spring slightly to get it
into posiiton. The SLIDE should be
mounted on the frame and pulled fully
to the rear and the SLIDE CATCH must
be moved upward to hold the SLIDE to
the rear.
2. When reinstalling the SLIDE
DISASSEMBLY LATCH, it is inserted
into the frame with the lever pointing
rearward and the horizontal round
portion of the latch must engage the
mating surface on the bottom of the
BARREL.
Insert the take-down pin once the slide
is in position to line up the barrel with
the hole, and gently push in. Aclick will
indicate the pin is secured in place.
3. The SLIDE CATCH then can be
depressed which allows the SLIDE to
go forward.
4. You should cycle the SLIDE several
times, with no magazine inserted and
no rounds in the chamber, to insure
that the barrel/slide/frame relationship
is correct.
26
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
The slide may stick on the frame before going fully
to the rear, or the barrel may ride with it to the rear.
Begin again and
press down with the
finger onto that rear
portion of the barrel
accessible through the ejection port.
When the barrel depresses and locks to the
frame, continue moving the slide fully to the
rear and engage the slide catch lever.
1
2
3
4
SAFETY FIRST: PARTS
All firearms require periodic maintenance and inspection which may reveal a
need for adjustment or repair. Have your firearm checked by a competent
gunsmith annually, even if it seems to be working well, since breakage,
improper functioning, undue wear, or corrosion of some components may not
be apparent from external examination. If you notice ANY mechanical
malfunction, do NOT continue to use the firearm. UNLOAD the firearm and
take it to a competent gunsmith immediately.
Our Service Department maintains a full complement of replacement
parts for our firearms of current manufacture. Even though most gunsmiths
have the knowledge, training and ability to make the necessary repairs to
your firearm, the skill and workmanship of any particular gunsmith is totally
beyond our control. Should your firearm ever require service, we strongly
recommend that you return it to Taurus. Follow the instructions outlined
below. Remember, unauthorized adjustments or parts replacement can void
your warranty.
It is the responsibility of the purchaser to be absolutely certain that any
parts ordered from Taurus are of the correct type and are properly fitted and
installed by a competent person.
THIS FIREARM IS APRECISION MECHANISM AND THE IMPROPER
FITTING OF PARTS OR IMPROPER MECHANICAL ADJUSTMENT MAY
RESULT IN ADANGEROUS MALFUNCTION, DAMAGE TO THE FIREARM,
AND POSSIBLE SERIOUS INJURY TO THE SHOOTER OR TO OTHERS.
Therefore, the purchaser and/or installer of parts must accept full
responsibility for the correct adjustment of and function of the firearm after
such installation has been made or attempted.
27
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
TAURUS SERVICE POLICY
Before shipment, your firearm was carefully inspected and test fired in order
to ensure that it conformed to our specifications and standards. Should your
firearm require adjustment or repair, we strongly recommend that you return
it to Taurus for factory service.
If there is any question regarding the performance of your firearm, please
write to our Service Department fully describing all circumstances and
conditions involved. If our Service Department makes the determination that
your firearm requires factory service, you will be so advised and will be given
instructions for the most expeditious handling of your shipment.
Our Service Department will give your firearm a complete inspection, and
evaluate the problem(s) specified in your letter. If the work required is not
covered under the terms of our Warranty (when applicable) you will receive
an actual cost quotation, not an estimate. Any repair work must be authorized
by you, and no work will be done without your expressed approval.
Please follow these suggestions to expedite service in the United States of
America to return any firearm to us for adjustment or repair.
1. Federal law permits you to return your firearm to the manufacturer for
service via common carriers. However, state and local firearms laws vary
greatly; you should consult your local prosecuting attorney regarding any
restrictive laws in your jurisdiction regarding your shipment or receipt of
firearms. With the above in mind, it is strongly recommended that any
firearm sent to us for repair be sent through a Federally licensed dealer.
2. All firearms must be shipped to us prepaid. WE WILL NOT ACCEPT
COLLECT SHIPMENTS.
3. Be sure to enclose a letter stating your name, address and telephone
number, serial number, caliber and barrel length of your firearm. Also state
nature of trouble experienced or work required. Merely stating “defective”
or “repair as necessary” is inadequate information. Be specific and
enclose copies of any previous correspondence. Work (other than
warranty repair) will bear minimum labor charge of $ 10.00.
4. FIREARMS MUST BE SHIPPED UNLOADED. Double check the
chamber of your firearm before shipping. If firearms are sent to Taurus in
a loaded condition, we are required by law to notify the Federal
authorities.
5. DO NOT include telescopic sights; custom grips, holsters, or other
accessories with any firearm shipped to us.
28
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
EXPLODED VIEW OF MODELS PT92 C-D, PT92 AF-D,
PT99 AF-D, PT100 AF-D AND PT101 AF-D.
29
PT92 C-D PT92 AF-D PT99 AF-D PT100 AF-D PT101 AF-D
Caliber 9 mm PARA. 9 mm PARA. 9 mm PARA. .40 S&W .40 S&W
Number 10+1 10+1 10+1 10+1 10+1
of shots
Barrel 4 1/4” 5” 5” 5” 5”
Total 8” 8 1/2” 8 1/2” 8 1/2” 8 1/2”
Length
Weight 32 oz. 33 1/2 oz. 33 1/2 oz. 34 oz. 34 oz.
Front Square, Integral with slide
Sight
Rear Square Notch, Micrometer Square Micrometer
Sight dovetailed click, notch, click,
to slide adjustable for dovetailed adjustable for
windage and to slide windage and
elevation elevation
Grips Rubber
Finish Blue or Stainless
Parts List on
Page 32
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
30
PT58 S-D
Caliber 9 mm PARA.
Number 10+
of shots
Barrel 4 1/4”
Total 8”
Length
Weight 32 oz.
Front Square, Integral with slide
Sight
Rear Square Notch, dovetailed
to slide
Sight
Grips Rubber
Finish Blue or Stainless
EXPLODED VIEW OF MODEL PT 58 S-D
Parts List on
Page 32
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
31
PT911 PT938 PT940 PT945 PT957
Caliber 9 mm PARA. .380 ACP .40 S&W .45 ACP .357 SIG
Number 10+1 10+1 10+1 8+1 10+1
of shots
Barrel 3.86” 3.7” 3.88” 4.25” 3.88”
Total 7.12” 6.7” 7.12” 7.45” 7.12”
Length
Weight 28 oz. 26.8 oz. 30 oz. 30 oz. 30 oz.
Front Square, dovetailed to slide
Sight
Rear Square Notch, dovetailed
to slide
Sight
Grips Santoprene
Finish Blue or Stainless
EXPLODED VIEW OF MODEL PT911, PT938,
PT940, PT945 AND PT957
Parts List on
Page 32
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
ITEM NAME
01 Barrel
02 Locking block
03 Locking block plunger
04 Locking block plunger pin
05 Slide
06 Recoil spring
07 Recoil spring guide
08 Extractor
09 Extractor pin
10 Extractor spring
11 Rear sight
12 Firing pin
13 Firing pin spring
14 Frame
15 Disassembly latch
16 Disassembly latch release
17 Disassembly latch release
spring
18 Slide catch
19 Slide catch spring
20 Trigger
21 Trigger pin
22 Trigger spring
23 Trigger bar
24 Trigger bar spring
25 Safety
26 Safety elastic pin
27 Safety plunger
28 Safety plunger spring
29 Ejector
30 Ejector pin
31 Hammer bushing
32 Hammer
33 Right safety latch
34 Hammer spring guide
35 Hammer spring
36 Hammer spring support
37 Hammer spring support
pin
ITEM NAME
38 Sear pin
39 Sear spring
40 Sear
41 Magazine release
42 Magazine release spring
43 Magazine release button
44 Magazine release case
45 Grip bushing
46 Grip screw
47 Left grip
48 Right grip
49 Magazine box
50 Magazine follower
51 Magazine spring
52 Magazine plate
53 Magazine bottom
54 Firing pin block lever
55 Firing pin block
56 Firing pin block spring
57 Firing pin block pin
58 Magazine release case pin
59 Rear sight assembly
60 Rear sight pin
61 Left grip upper bushing
62 Hammer catch
63 Hammer catch plunger
64 Hammer catch plunger
spring
65 Front sight
66 Central support
67 Magazine release pin
68 Safety spring
32
PT92 C-D, PT92 AF-D, PT99 AF-D, PT100 AF-D, PT101 AF-D,
PT 58 S-D, PT911, PT938, PT940, PT945 AND PT957
PART LIST
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
33
ITEM NAME
01 SLIDE ASSEMBLY
(Include parts #2 to #16)
02 SLIDE
03 FRONT SIGHT
04 EXTRACTOR PIN
05 EXTRACTOR
06 EXTRACTOR SPRING
07 REAR SIGHT SCREW
08 INTERNAL RECOIL
SPRING
09 REAR SIGHT
10 FIRING PIN SPRING
STOP
11 FIRING PIN
12 FIRING PIN SPRING
13 FIRING PIN SPRING
GUIDE
14 TRIGGER BAR RAMP
15 TRIGGER BAR RAMP PIN
16 FIRING PIN RETAINER
17 INTERNAL RECOIL
SPRING GUIDE
18 EJECTOR
19 TRIGGER BAR
20 SLIDE CATCH SPRING
21 TRIGGER PIN
22 DISASSEMBLING LATCH
23 SLIDE CATCH
24 TRIGGER BAR PIN
25 TRIGGER SPRING
26 TRIGGER
27 EJECTOR PIN
28 SAFETY
29 FRAME
30 BARREL
31 RECOIL SPRING
32 MAGAZINE RELEASE
SPRING
33 RECOIL SPRING GUIDE
ITEM NAME
34 GRIP
35 GRIP PIN
36 MAGAZINE RELEASE
37 GRIP BOTTOM
38 MAGAZINE ASSEMBLY
(Include parts #39 to #43)
39 FOLLOWER
40 MAGAZINE SPRING
41 MAGAZINE SPRING
PLATE
42 MAGAZINE BOTTOM
43 MAGAZINE BODY
44 SAFETY SPRING
45 SAFETY SPRING BALL
46 SLIDE RETAINER
47 SLIDE RETAINER
SPRING
48 FIRING PIN SAFETY
49 FIRING PIN SAFETY PIN
50 FIRING PIN SAFETY
SPRING
51 FIRING PIN SAFETY
PLATE
52 FIRING PIN SAFETY
SCREW
53 FIRING PIN SPRING
RETURN
PT111, PT111Ti, PT132 PT138, PT140, PT145 & PT145Ti
PART LIST
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
PT111 PT132 PT138 PT140 PT145
PT111Ti PT145Ti
Caliber 9 mm .32 ACP .380 ACP .40 .45 ACP
Number 10+1 10+1 10+1 10+1 10+1
of shots
Barrel 3.30” 3.30” 3.30” 3.30” 3.30”
Total 6.00” 6.00” 6.00” 6.00” 6.10”
Length
Weight 19 oz. 19 oz. 19 oz. 21 oz. 22 oz.
16 oz. 19 oz.
Front Square, dovetailed to slide
Sight
Rear
Square notch, dovetailed
to slide
Sight
Grips Polymer
Finish Blue, Stainless or
Titanium Shadow Gray (PT111Ti & PT145 Ti only)
EXPLODED VIEW OF MODELS
PT111, PT111Ti, PT132 PT138, PT140, PT145 & PT145Ti
34
10/01
Parts List on
Page 33
35
ALWAYS KEEP THE MUZZLE POINTED IN A SAFE DIRECTION.
This trademark, forged for over 60 years of hard and
dedicated work, became a symbol of quality in handguns for
civilian, police and military use. This outstanding quality is the
result of constant technological evolution and from the
devoted work of expert gunsmiths and highly specialized
professionals, which makes TAURUS a respected name in
more than 75 countries all over the world.
A WORD TO THE WISE
MOST FIREARM ACCIDENTS HAPPEN
BECAUSE THE SHOOTER CARELESSLY
VIOLATES THE SINGLE MOST
IMPORTANT RULE OF SAFE FIREARM
HANDLING:
ALWAYS KEEP THE MUZZLE POINTED
IN A SAFE DIRECTION!
IMPORTANT:
DO NOT DISCARD
KEEP THIS MANUAL WITH YOUR
FIREARM. UPON CHANGE OF
OWNERSHIP, TRANSFER THIS
MANUAL WITH THE FIREARM.
Forjas Taurus, S.A
Av. do Forte, 511 - Cx. Postal 44 - Telegr.: “Forja”
Fone: (051)3347.4000 - Fax: (051)3347.3075
91360-000 - Porto Alegre - RS - Brasil
Taurus International Manufacturung, Inc.
16175 NW 49 Avenue
Miami, Florida 33014
Telephone: (305)624.1115 - Fax: (305)624.1126
