Finlux 32F7020-T User Manual
Contents
Environmental Information ..................................... 2
Accessories included .............................................. 3
TV - Features ......................................................... 3
Safety Precautions and Important Information ....... 3
Viewing the TV ...................................................... 4
TV Control Buttons & Operation ............................. 4
Operation with the Buttons on the TV ..................... 4
Operation with the Remote Control ........................ 4
Remote Control ..................................................... 5
Inserting the Batteries into the Remote Control...... 7
Connect Power & Antenna ..................................... 7
Switching On/Off ..................................................... 7
First Time Installation.............................................. 7
Media Playback via USB Input ............................... 8
Quick Menu ............................................................ 9
Changing Image Size: Picture Formats .................. 9
Using the Channel List ........................................... 9
Menu Features and Functions .............................. 10
Electronic Programme Guide (EPG) .................... 13
Recording a Programme ...................................... 13
Timeshift Recording ............................................. 14
Instant Recording ................................................. 14
Watching Recorded Programmes ....................... 14
Recording Conguration ....................................... 14
Product Safety ............................................... 14
(Input Signal Types) .............................................. 20
Appendix D: Supported File Formats for USB Media
Browser ................................................................ 21
Appendix E: Supported DVI Resolutions .............. 22
SKY Remote Control Code ................................... 22
Specications ....................................................... 22
Consigne importante ............................................ 23
Health Warning! - 3D Mode ........................... 15
Using the 3D Mode ....................................... 15
Setting up 3D Mode for PS3 ................................. 16
Setting up 3D Mode for Sky HD ........................... 16
3D Settings ........................................................... 16
3D Viewing Information ........................................ 17
Digital Teletext ...................................................... 18
Software Upgrade................................................. 18
Troubleshooting & Tips ......................................... 18
Licence Notications............................................. 19
Transmission Standards: ...................................... 19
Appendix B: PC Input Typical Display Modes ...... 20
Appendix C: AV and HDMI Signal Compatibility
English - 1 -

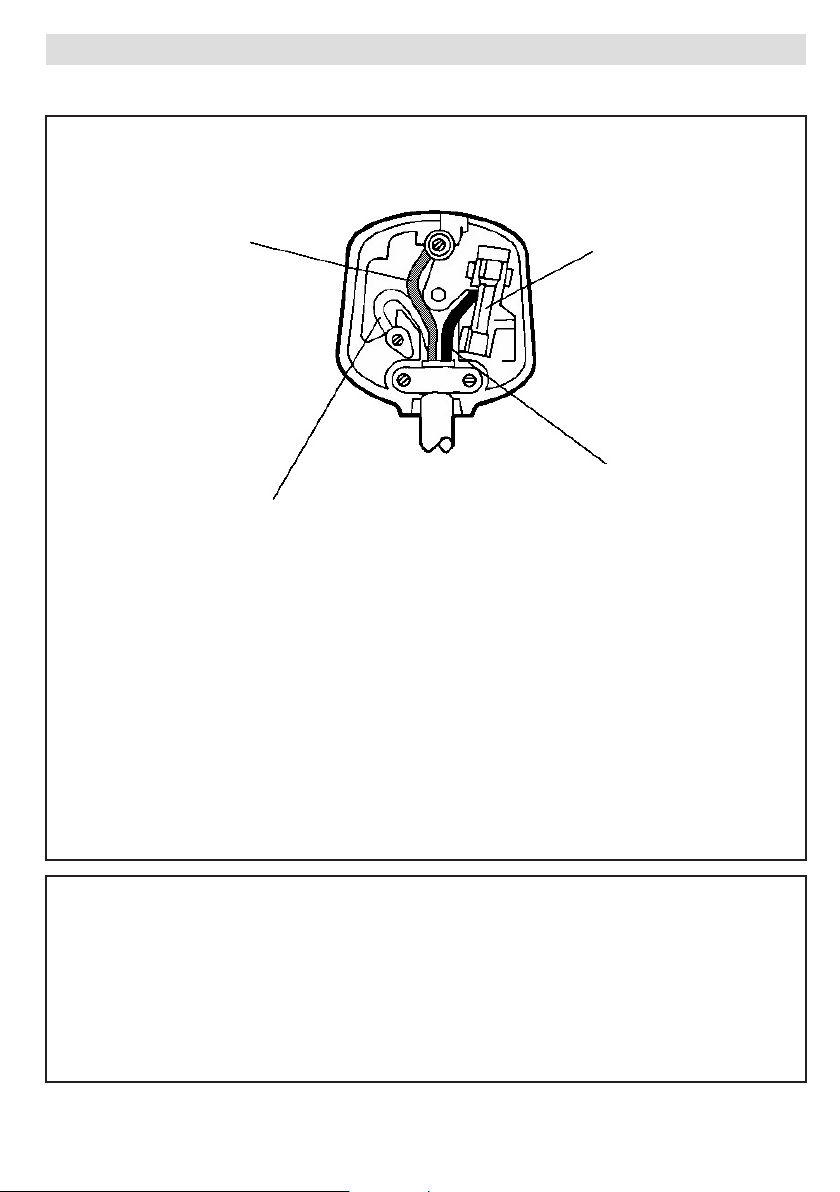

Power cord and plug
• The power cord plug should be easily accessible. If
there is lightning or storms, or if the TV is not going
to be used for a while (e.g. if going away on holiday),
disconnect the TV set from the mains.
•Do not place the TV, furniture, etc. on the power
cord or pinch the cord.
• Handle the power cord by the plug, do not unplug
the TV by pulling the power cord.
• Never touch the power cord/plug with wet hands
as this could cause a short circuit or electric shock.
• Never make a knot in the power cord or tie it with
other cords.
• Power cords should be placed in such a way that
they are not likely to be stepped on or provide a
trip hazard.
• A damaged power cord/plug can cause re or give
you an electric shock. When damaged it must be
replaced, this should only be done by qualied
personnel.
Moisture and Water
•Do not use this TV in a humid or damp place (avoid
using in the bathroom or near the kitchen sink)
•Do not expose this TV to rain or water, as this may
be dangerous.
• If any solid object or liquid falls into the cabinet,
unplug the TV and have it checked by qualied
personnel before operating it any further.
Ventilation
• The slots and openings on the TV set are intended
for ventilation and to ensure reliable operation.
• To prevent overheating, these openings must not be
blocked or covered in any way.
Heat sources and Flames
• Do not expose the TV to direct sunlight or other
heat sources.
• The TV should not be placed near open ames or
sources of intense heat such as an electric heater.
• Ensure that no open ame sources, such as lit
candles, are placed on top of the TV.
Headphone Volume
• Excessive sound pressure from earphones and
headphones can cause hearing loss, please take
care.
Wall Mounting (optional)
• To prevent injury, this TV must be securely attached
to the wall in accordance with the installation
instructions.
Screen
• Occasionally, a few non-active pixels may appear
on the screen as a xed blue, green or red point.
Please note that this does not affect the performance
of your product.
• Take care not to scratch the screen with ngernails
or other hard objects.
Cleaning
• Before cleaning, unplug the TV from the wall socket.
•Do not use liquid or aerosol cleaners. Only use a
soft, dry cloth.
Environmental Information
This television is designed to consume less energy to
help save the environment. You can not only help to
save the environment but you can also save money
by reducing your electricity bills thanks to the energy
efficiency features of this TV. To reduce energy
consumption, you should take the following steps:
You can use the Power Save Mode setting, located
in the Picture menu. If you set the Power Save Mode
as Eco, the TV will switch to energy-saving mode
and the luminance level of TV set will be decreased
to the optimum level. Note that some picture settings
will be unavailable to be changed when the TV is in
Power Save Mode.
If Picture Off is selected, “Screen will be off in 15
seconds.” message will be displayed on the screen.
Select PROCEED and press OK to continue. The
screen will be off in 15 seconds.
When the TV is not in use, please switch off or
disconnect the TV from the mains plug. This will also
reduce energy consumption.
It is highly recommended that you activate the Power
Save Mode setting to reduce your annual power
consumption.
1) If the TV does not receive any input signal (e.g.
from an aerial or HDMI source) for 5 minutes, the TV
will go into standby. When you next switch-on, the
following message will be displayed:
“Standby Cause No Signal”
Press OK to continue.
2) If the TV has been left on and not been operated for
4 hours, the TV will go into standby. When you next
switch-on, the following message will be displayed.
“Standby Cause No Operation”
Press OK to continue.
English - 2 -
Accessories included
Remote Control
Batteries: 2 x AAA
Instruction Book
Side AV Connection Cable
3D Glasses x 8
TV - Features
• 3D Viewing: This product supports the viewing of
3D content from devices such as a High Denition
Satellite Receiver or Blu-ray Player via the HDMI
input.
• Remote controlled colour LED TV
• Fully integrated digital tuner
• DVB-T2 Compliant
• HDMI Inputs are for connecting a device that has
a HDMI socket
• USB input
• 10000 programmes
• OSD menu system
• Scart socket for external devices (such as DVD
Players, PVR, video games, etc.)
• Stereo sound system
• Teletext
• Headphone connection
• Automatic programming system
• Manual tuning
• Automatic power down after up to six hours
• Sleep timer
• Child lock
• Automatic sound mute when no transmission
• NTSC playback
• AVL (Automatic Volume Limiting)
• PLL (Frequency Search)
• PC input
• Plug&Play for Windows 98, ME, 2000, XP, Vista,
Windows 7
• Game Mode (optional)
Safety Precautions and Important
Information
Please read these instructions fully
before installing or operating.
Preparation
Place the device on a solid even surface. For
ventilation purposes, leave a free space of at least
10 cm all around the set. Do not place any objects on
top of the set. Use this device in moderate climates.
Operation temperature and operation humidity:
5ºC up to 45ºC, 85% humidity max. Note: Don’t block
ventilation holes.
Intended Use
This device is used to receive and display TV
programmmes. The different connection options
expand the reception and display sources possible
(various external devices). This device is only
suitable for operation in dry interiors. This appliance
is intended solely for private domestic use and
may not be used for industrial and commercial
purposes. We exclude liability in principle, if the
device is not used as intended, or unauthorized
modications have been made. To operate your TV
in extreme ambient conditions may cause damage
to the device.
WARNING: Never let people (including
children) with reduced physical, sensory or
mental capabilities or lack of experience and / or
knowledge use electrical devices unsupervised.
Children may not recognize the dangers of
incorrect use. The swallowing of batteries can
be fatal. Keep batteries out of reach of small
children. If a battery is swallowed, immediately
seek medical attention. Keep the packaging
lmsoutofreachofchildrentopreventtherisk
of suffocation.
Power source
• The TV should be operated only from a 220-240 V
AC, 50 Hz outlet.
Positioning the TV
• For ventilation, please leave a clear space of at least
10cm all around the TV.
•Do not block the ventilation openings.
•Do not place the TV on sloping or unstable surfaces,
the TV may tip over.
• To prevent damage to the TV, do not place any
objects on top of the TV.
English - 3 -
Viewing the TV
TV Control Buttons & Operation
1. Standby/On button
2. TV/AV button
3. Programme Up/Down buttons
4. Volume Up/Down buttons
Operation with the Buttons on the TV
Press button to decrease the volume or
button to increase the volume, so a volume level scale
(slider) will be displayed on the screen. Press P/CH +
button to select the next programme or P/CH - button
to select the previous programme.
Press the or button at the same time
to view the main menu. In the Main menu select a
sub-menu using TV/AV button and set the sub-menu
using or buttons. To see what options
are available via the menu, refer to the menu system
section of this manual. Press the TV/AV button in the
control panel on the TV to switch between AV modes
Operation with the Remote Control
Press the MENU button on your remote control to
display the main menu screen. Use the “ ” or “
” buttons to select a menu tab and press the OK
button to select option. Use the “ ” / “ ” or “ ” /
“ ” buttons to select or set an item. Press BACK
or EXIT or MENU button to quit a menu screen.
Input Selection
Once you have connected external systems to your
TV, you can switch to different input sources. Press the
“ - (SOURCE)” button on your remote control
consecutively to select the different inputs.
Changing Channels and Volume
You can change the channel and adjust the volume
using the V+/- and P+/- buttons on the remote.
English - 4 -
Remote Control
1. Standby / On
2. Channel list
3. Volume up-down
4. Menu on/off
5. OK / Channel list / Conrm
6. Return / Back
7. No function
8. My button 1 (*)
9. My button 2 (**)
10. Coloured buttons (Red, Green, Yellow, Blue)
11. Mono-Stereo Dual I-II / Current language
12. Fast rewind (in media browser mode)
13. Pause (in media browser mode) / Timeshift
recording
14. Programme recording
15. Play (in media browser mode)
16. Stop (in media browser mode)
17. Fast forward (in media browser mode)
18. Subtitle on-off / Subtitle (in media browser
mode)
19. Image size
20. Teletext - Mix
21. Media Browser
22. Electronic programme guide
23. Exit
24. Navigation buttons
25. Quick menu
26. Info / Reveal (in TXT mode)
27. Programme up/down
28. Mute
29. Previous programme / Now (in EPG mode)
30. Numeric buttons
31. AV / Source
TV
NOTE: The Remote Control range is approximately 7m
/ 23ft.
Using My button 1 (*)
Press MY BUTTON 1 for ve seconds when on a desired
source, channel or link, until the “MY BUTTON IS SET”
message is displayed on the screen. This conrms that
the selected MY BUTTON is now associated with the
selected function.
English - 5 -
Using My Button 2 (**)
Press MY BUTTON 2 for ve seconds when on a desired
source, channel or link, until the “MY BUTTON IS SET”
message is displayed on the screen. This conrms that
the selected MY BUTTON is now associated with the
selected function.
Connections
AV Connection
Cable (supplied)
Scart
Connection
(back)
VGA
Connection
(back)
PC/YPbPr Audio
Connection
(back)
HDMI
Connection
(back & side)
S/PDIF Optical Out
(back)
S/PDIF
Side AV
Connection
(side)
Headphone
Connection
(side)
USB
Connection
(side)
Connector Type Cables Device
Y BPRP
AUDIO L&R
SIDE AV
HEADPHONE
YPbPr Video
Connection
(back)
CI
Connection
(side)
CAM
module
Subwoofer
Connection
(back)
NOTE: When connecting a device via the YPbPr or Side AV input, you must use the supplied connection cables to
enable connection. See the illustrations above. | To enable PC audio, you will need to use the PC/YPBPR CONNECTION
cable’s WHITE & RED inputs. | If an external device is connected via the SCART socket, the TV will automatically switch to
AV mode.| When receiving DTV channels (Mpeg4 H.264) or while in Media Browser mode, output will not be available via
the scart socket. | When using the wall mounting kit (optional), we recommend that you plug all your cables into the back of
the TV before mounting on the wall. | Insert or remove the CI module only when the TV is SWITCHED OFF. You should refer
to the module instruction manual for details of the settings.
English - 6 -
Inserting the Batteries into the Remote Control
HDMI 1
HDMI 1
1. Lift the cover on the back of the remote upward
gently.
2. Install two AAA batteries. Make sure to match
the + and - ends of the batteries in the battery
compartment (observe the correct polarity).
3. Replace the cover.
Connect Power & Antenna
IMPORTANT: The TV set is designed to operate on
220-240V AC, 50 Hz socket. After unpacking, allow the
TV set to reach the ambient room temperature before
you connect the set to the mains. Plug the aerial cable
into the ANT socket on your TV.
Switching On/Off
To Switch the TV On
Connect the power cord to the 220-240V AC, 50 Hz.
To switch on the TV from standby mode either:
Press the “ ” button, P+ / P- or a numeric button on the
remote control or press the “ ” touch button on the TV.
To Switch the TV Off
Press the “ ” button on the remote control or press
the “ ” touch button on the TV. The TV will now switch
to standby mode.
To power down the TV completely, unplug the power
cord from the mains socket.
Note: When the TV is switched to standby mode, the standby
LED can blink to indicate that features such as Standby
Search, Over Air Download or Timer is active. The LED can
also blink when you switch on the TV from standby mode.
First Time Installation
When turned on for the rst time, the “language
selection” menu appears. The message “Welcome
please select your language!” is displayed and all
language options are listed alphabetically.
Press the “ ” or “ ” button to highlight the required
language, press OK button to select. “First Time
Installation” appears. Use “ ” or “ ” button to set the
required country, and press “ ” button to select Search
Type. Use “ ” or “ ” to set the desired search type.
Available search types are digital and analog, digital only
and analog only. When set, press “ ” to select Teletext
Language. Use “ ” or “ ” button to set the “Teletext
Language” and select “Scan Encrypted” using “ ” or “
” button. You can set Scan Encrypted as Yes if you
want to scan coded stations.
Press OK button on the remote control to continue and the
following message will be displayed on the screen.
You can activate Store mode option by using “
” or “ ” button. If Store Mode is selected, Store
mode option will be available in other settings menu
and your TV’s features will be illustrated on the
top of the screen. A confirmation screen will be
English - 7 -
displayed after selecting the Store Mode. Select
YES to proceed.
If Home Mode is selected, Store mode will not be
available after the First Time Installation. Press OK
button on the remote control to continue and the
following message will be displayed on the screen.
You must select YES to search and store broadcasts.
The television will search for digital terrestrial TV
broadcasts.
Media Playback via USB Input
You can connect a USB hard disk drive or USB
memory stick to your TV by using the USB inputs of
the TV. This feature allows you to play les stored in
a USB drive. 2.5” and 3.5” inch (hdd with external
power supply) external hard disk drives are supported.
IMPORTANT! You should back up your les before
making any connections to the TV set in order to avoid
any possible data loss. The Manufacturer will not be
responsible for any le damage or data loss. It is
possible that certain types of USB devices (e.g. MP3
Players) or USB hard disk drives/memory sticks may
not be compatible with this TV. The TV supports FAT32
and NTFS disk formatting but recording will not be
available with NTFS formatted disks. Note: While
formatting a USB hard disk that has 1TB (Tera Byte)
or more le capacity, you can experience problems
with the formatting process.
Quickly plugging and unplugging USB devices is a
very hazardous operation. This may cause physical
damage to the USB player and the USB device itself.
Do not pull out the USB module while playing a le.
Media Browser Menu
You can play photo, music, and movie les stored
on a USB disk by connecting it to your TV. Connect
a USB disk to one of the USB inputs located on the
side of the TV.
NOTE: You can press MENU button to cancel.
After all the available stations are stored, the Channel
List will be displayed on the screen. If you are satised
with the order of channels press the OK button to quit
the channel list and watch TV.
English - 8 -
The USB selection OSD will be displayed on the screen.
Press the MENU button and select the Media Browser
tab by using the Left/Right and OK buttons. The Main
media browser screen will be displayed. You can display
the approprite content by selecting the Video, Music or
Picture tab. Follow the button indications under each on
screen menu for media playback features.
Pressing the MENU button while in the Media Browser
mode will access the Picture, Sound and Settings menu
options. Pressing the MENU button again will exit from
this screen.
Loading...
