Finlux 32F702 User Manual

happy Finnish

32in Passive 3D TV

32F702

Owner’s manual

Contents

Package Contents .................................................. 2

Preparation ............................................................. 3

Safety Precautions ................................................. 3

3D Mode and 3D Images........................................ 4

CAUTION ........................................................ 4

Health Warning! .............................................. 5

Electrical devices not in the hands of children .... 6

Environmental Information ..................................... 6

Repair Information .............................................. 6

Remote Control Buttons ......................................... 7

TV and Operating Buttons ...................................... 8

Viewing the Connections - Back Connectors ......... 8

Viewing the Connections - Side Connectors .......... 9

Aerial Connection ................................................... 9

Power Connection .............................................. 9

Connecting the TV to a PC ....................................11

Using Side AV Connectors ....................................11

Remote Control Handset ...................................... 12

Inserting Batteries ............................................. 12

Switching On/Off ................................................... 12

To Switch the TV On ......................................... 12

To Switch the TV Off ......................................... 12

Basic Operations .................................................. 12

Operation with the Buttons on the TV ............... 12

Volume Setting .............................................. 12

Programme Selection ................................... 12

Viewing Main Menu ....................................... 12

AV Mode ....................................................... 12

Operation with the Remote Control .................. 12

First Time Installation............................................ 13

Viewing Electronic Programme Guide (EPG) ....... 14

EPG Timeline Schedule .................................... 14

EPG Channel Schedule .................................... 14

EPG Now and Next........................................... 15

Recording via EPG Screen ............................... 15

Programme Options.......................................... 15

Installation ............................................................ 15

Auto Channel Scan (Retune) Menu Operation . 15

Manual Tuning ..................................................... 16

Digital Manual Search....................................... 16

Analogue Manual Search ................................. 16

Analogue Fine Tune.......................................... 16

Managing Stations: Channel List .......................... 16

Managing Stations: Sorting the Channel List ....... 17

On-Screen Information ......................................... 18

Media Playback Using Media Browser ................. 18

Viewing Videos via USB .................................. 18

Viewing Photos via USB ................................... 19

Slideshow Options ............................................ 19

Playing Music via USB ..................................... 19

Recordings Library............................................ 20

Media Browser Settings .................................... 20

Using the 3D Mode ............................................... 20

3D Mode ........................................................... 21

3D Settings ................................................... 21

Mode ............................................................. 21

2D Only ......................................................... 21

Supported 3D Content Resolutions .............. 21

Timeshift Recording ............................................. 21

Instant Recording ................................................. 22

Changing Image Size: Picture Formats ................ 23

Operating Picture Settings Menu Items ............ 24

Picture Settings Menu Items ............................. 24

PC Picture Settings........................................... 24

Conguring Sound Settings .................................. 25

Operating Sound Settings Menu Items ............. 25

Sound Settings Menu Items.............................. 25

Conguring Your TV’s Settings ............................. 25

Operating Settings Menu Items ........................ 26

Settings Menu Items ......................................... 26

Using a Conditional Access Module (not

included) ............................................................... 26

Viewing Conditional Access Menu (*) ............... 26

Language Settings ............................................ 27

Parental Control.................................................... 27

Parental Settings Menu Operation ................... 27

Timers ................................................................... 28

Setting Sleep Timer .......................................... 28

Setting Programme Timers ............................... 28

Adding a Timer .............................................. 28

Editing a Timer .............................................. 28

Deleting a Timer ............................................ 28

Recording Conguration ....................................... 28

Conguring Date/Time Settings ............................ 29

Conguring Other Settings ................................... 29

Operation .......................................................... 29

Teletext ................................................................. 30

Tips ....................................................................... 31

Appendix A: PC Input Typical Display Modes ....... 32

Appendix B: AV and HDMI Signal Compatibility

(Input Signal Types) .............................................. 32

Appendix C: Supported DVI Resolutions.............. 33

Appendix E : Supported File Formats for USB

Mode..................................................................... 34

Appendix F: Supported 3D Content Resolutions .. 35

3D Glasses ........................................................... 35

3D Viewing Information ........................................ 36

Horizontal Viewing Angle .................................. 36

Specications ....................................................... 37

Important Instruction ............................................. 38

- 1 -

Package Contents

TV

LCD TV

Instruction Book

Remote Control

Batteries: 2 X AAA

Passive 3D glasses: 4x

Note: You should check the contents after opening
your purchase and make sure that every item is
included.

Features

• 3D Viewing: This product supports the 3D viewing
function via an available broadcast or via HDMI, PC,

YPBPR source.

• Remote controlLCD colour LCD TV.

• Fully integrated Terrestrial digital TV (DVB-T

MPEG2).

• HDMI connectors for digital video and audio.

• USB input.

• Programme recording

• Programme timeshifting

• 1000 programmes (analogue+digital).

• On Screen Display (OSD) menu system.

• Integrated tuner DVB-T, MPEG2 compatible.

• Scart socket for external devices.

• Stereo sound system. (Nicam)

• Teletext, fastext, TOP text.

• Headphone connection.

• Automatic programming system.

• Forward or backward manual tuning.

• Sleep timer / Child lock.

• Automatic sound mute when no transmission.

• NTSC playback.

• AVL (Automatic Volume Limiting).

• Auto power down.

• PLL (Frequency Search).

• PC input.

• Plug&Play for Windows 98, ME, 2000, XP, Vista,

Windows 7.

• Game Mode

Note: The HDMI connection between PC and TV
may cause radio interference in which case it is
recommended to use VGA(DSUB-15) connection.

If you need additional pairs of 3D Glasses, please
purchase them from your dealer.

- 2 -

Introduction

Thank you for choosing this product. This manual
will guide you through the proper operation of your
TV. Before operating the TV, please read this manual
thoroughly. Please keep this manual in a safe place
for future reference.

This device is intended to receive and display TV
programmes. The different connection options make
an additional expansion of the reception and display
sources possible (receiver, DVD player, DVD recorder,
VCR, PC etc.).

This device is only suitable for dry indoor use. This
appliance is intended solely for private domestic use
and may not be used for industrial and commercial
purposes. We exclude liability in principle, if the device

is not used as intended, or unauthorized modications

have been made. To operate your LCD TV in extreme
ambient conditions may cause the damage of the
device.

Preparation

For ventilation, leave a free space of at least 10 cm
all around the set. To prevent any fault and unsafe
situations, please do not place any objects on top of
the set. Use this device in moderate climates.

10 cm

10 cm

10 cm

Safety Precautions

Read the following recommended safety
precautions carefully.

Power Source

The TV set should be operated only from a 220-240V
AC, 50 Hz outlet. Ensure that you select the correct
voltage setting for your convenience.

Power Cord

Do not place the set, a piece of furniture, etc. on the
power cord or pinch the cord. Handle the power cord
by the plug. Do not unplug the appliance by pulling from
the power cord and never touch the power cord with wet
hands as this could cause a short circuit or electric shock.
Never make a knot in the cord or tie it with other cords.
The power cord should be placed in such a way that they
are not likely to be stepped on. A damaged power cord

can cause re or give you an electric shock. When it is

damaged and needs to be replaced, it should be done

by qualied personnel.

Moisture and Water

Do not use this device in a humid and
damp place (avoid using the TV in the
bathroom or near the Kitchen sink etc).
Do not expose this device to rain or
water, as this may be dangerous and

do not place objects lled with liquids,
such as ower vases, on top.

If any solid object or liquid falls into the cabinet, unplug

the TV and have it checked by qualied personnel

before operating it any further.

Cleaning

Before cleaning, unplug the TV set
from the wall outlet. Do not use liquid or
aerosol cleaners. Use a soft, dry cloth.

Ventilation

The slots and openings on the TV set
are intended for ventilation and to ensure reliable
operation. To prevent overheating, these openings
must not be blocked or covered in anyway.

Heat and Flames

The set should not be placed near to

open ames or sources of intense heat

such as an electric heater. Ensure that

no open ame sources, such as candles,

are placed on top of the TV. Batteries should not be

exposed to excessive heat such as sunshine, re or

the like.

Lightning

In case of storm and lightning or when
going on holiday, disconnect the power
cord from the wall outlet.

Replacement Parts

When replacement parts are required, make sure that
the service technician has used replacement parts,

which are specied by the manufacturer or have the
same specications as the original one. Unauthorized
substitutions may result in re, electrical shock or

other hazards.

Servicing

Please refer all servicing to qualied

personnel. Do not remove the cover
yourself as this may result in an electric
shock.

Waste Disposal

Instructions for waste disposal:

• Packaging and packaging aids are recyclable

and should principally be recycled. Packaging
materials, such as a foil bag, must be kept away
from children.

- 3 -

• Batteries, including those which are heavy metal-

free, should not be disposed of with household
waste. Please dispose of used batteries in an
environmentally friendly manner. Find out about the
legal regulations which apply in your area.

• Do not try to recharge batteries, there is a danger
of explosion. Replace batteries only with the same
or equivalent type.

This symbol on the product or on its packaging means
that your electrical device should be
disposed at the end of its service life
separately from your household wastes.
There are separate collection systems for
recycling in the EU. For more information,
please contact the local authority or the
dealer where you purchased the
product.

Disconnecting the Device

The mains plug is used to disconnect the TV set
from the mains and therefore it must remain readily
operable.

Headphone Volume

Excessive sound pressure from earphones
and headphones can cause hearing loss.

3D Mode and 3D Images

Read and understand the following safety
precautions carefully for your safety before using
the 3D function.

• You may experience discomfort, headaches

or dizziness while watching 3D images. If you
experience such symptoms, you should remove 3D
glasses and stop watching 3D mode.

• Take regular breaks while watching 3D images. The
length and frequency of breaks may change from

person to person. You must decide what works best

for you. If you experience discomforts such as eye
strain or nausea while watching 3D images for a
long time, remove 3D glasses, stop watching 3D

mode and rest. You should consult a doctor if you

believe it is necessary.

• It is recommended that an adult should check
on children if the children are using 3D function.
If they experience symptoms such as dizziness,
headaches or eye strain, you should have the
children stop watching 3D TV and you should have
the children rest.

• Do not use the 3D Glasses for other purposes such
as sunglasses or general eyeglasses.

• Do not use the 3D mode or wear 3D Glasses while
you are moving around. Using the 3D mode or 3D
Glasses while moving may lead to injuries due to
running into objects, and falling.

• Use only the supplied 3D glasses.

• If you experience screen ickering when watching

3D images in poor light conditions, you should turn
the lamp off or dim the light.

• When using headphones, you should adjust the
volume so as to avoid excessive levels, since
hearing damage may result.

CAUTION

• Please read these safety instructions carefully
to ensure your personal safety and to prevent
damage.

• If you experience difculty while viewing 3D images

with the 3D glasses, you may have some problems
with your eyesight.

• You may experience headaches or fatigue when

viewing 3D images through the glasses for too
long.

• If you experience headaches, fatigue, or dizziness,
stop watching immediately.

• Do not drop objects onto the product or import
force to the product. This may result in electric

shock or re.

• Do not use your product near a humider or kitchen
counter. This may result in electric shock or re.

• Do not disassemble, repair or modify the product or

its parts. Failing to do so may result in damage to
the product or a malfunction.

• The following people should not use this product:

• Pregnant women, inform persons, persons with heart

issues, as well as persons that become nauseous
easily. People with these conditions should not use
this product.

• When watching 3D video, do not place anything
nearby that can be easily broken. You may mistake

a 3D image for an actual object and move your
body, causing you to break nearby objects and hurt
yourself.

• Use this product for watching 3D video only. Do not
use it for any other purpose.

• Do not use the 3D Glasses as sunglasses or reading
glasses.

• Do not spray cleaner directly onto the surface of the
product.This may result in discoloration and cracks
and may cause the screen display to peel off.

• Do not let water come into contact with the product
when cleaning it. Ensure that water does not enter
the product. This may result in electric shock or

re.

• Since the lens of the product is easily scratched,

make sure to clean the product with a soft cloth. As
the product may be scratched if there is any foreign

- 4 -

material on the cloth, make sure to shake off any
dust before using it.

• Do not scratch the surface of the Liquid crystal
shutters with a sharp tool and do not clean it using
chemicals. This may degrade the screen quality.

• Do not apply force to the liquid crystal.

• Do not drop or bend the product.

• If the receiving range is out of the specied range,

the screen may not be viewable as 3D video.

• Flickering may be generated by the 3D glasses (60
Hz) when watching the 3D screen when a magnetic

uorescent lamp (50 Hz) is on.

• If you encounter this symptom, please turn off the

light and continue watching.

Health Warning!

• When watching 3D images, you should leave a
distance of at least twice the screen width, and you
should keep the screen at eye level.

• If you watch the 3D imaging too closely or for a long
period of time, it is possible that it may harm your
eyesight. Watching the TV or playing video games
that incorporate 3D imaging with the 3D glasses
for a long period of time can cause drowsiness,
headaches or fatigue to you and/or your eyes. If
you have a headache, or otherwise feel fatigued
or drowsy, stop watching the TV and take a rest.
Pregnant woman, seniors, persons with heart
problems or persons who experience frequent
drowsiness should refrain from watching 3D. Some
3D imaging may cause you to duck or dodge the
image displayed in the video. Therefore, it is best if
you do not watch 3D TV near fragile objects or near
any objects that can be knocked over easily. Please
prevent children under the age of 5 from watching
3D. It may affect their vision development.

Warning for photosensitization seizure

• If you or a member of your family has a history of
epilepsy or seizure, please consult with your doctor
before watching 3D TV. It is possible that some
viewers may experience a seizure or epilepsy when

exposed to certain conditions, including ashing

lights or images in TV or video games.

• Sometimes certain symptoms can occur in
unspecied conditions even if you do not have any

previous history. In such a case, if you experience
any of the following symptoms, immediately stop
watching the 3D TV and consult a doctor:

• altered vision, visual or facial instability, such as eye
or muscle twitching, dizziness or light-headedness,
visual transition or unconscious action, convulsion,
loss of conscience, confusion or disorientation, loss
of directional sense, cramps, or nausea.

• When watching 3D TV, monitor your children,
including teenagers because they may be more
sensitive to the effects of watching 3D such as
these symptoms.

• You can reduce the risk of photosensitization seizure

by taking the following actions:

• While watching the 3D TV, do take frequent breaks.
If you have vision that is different in each eye, you
should watch the TV after taking vision correction
measures.

• When watching the TV, ensure that your eyes are
on the same level with the screen and do not sit
too closely to the TV. Do not watch the 3D TB when
you are tired or sick. Avoid watching the 3D TV for
a long period of time.

• Wear the 3D glasses only for viewing 3D imaging
on the TV. Do not use for other purposes.

• Some viewers may feel disoriented aer watching

3D. Therefore, after you watch 3D, take a moment to
regain awareness of your situation before moving.

Installation

To prevent injury, this device must be securely
attached to the wall in accordance with the installation
instructions when mounted to the wall (if the option
is available).

LCD Screen

The LC D panel is a very high technology product with

about a million thin lm transistors, giving you ne

picture details. Occasionally, a few non-active pixels

may appear on the screen as a xed blue, green or

red point. Please note that this does not affect the
performance of your product.

Warning! Do not leave your TV in standby or operating
mode when you leave your house.

- 5 -

Connection to a Television Distribution
System (Cable TV etc.) from Tuner

Devices connected to the protective earthing of the
building installation through the mains connection or
through other apparatus with a connection to protective
earthing-and to a television distribution system using
a coaxial cable, may in some circumstances create

a re hazard.

Connection to a cable distribution system has
therefore to be provided through a device providing
electrical isolation below a certain frequency range
(galvanic isolator, see EN 60728-11).

Electrical devices not in the hands of
children

Never let children use electrical devices unsupervised.
Children cannot always recognize properly any
possible danger. Batteries / accumulators can be life
threatening when swallowed. Store batteries out of
the reach of small children. In case of swallowing a
battery, medical aid has to be sought immediately.
Also keep the packaging away from children as there
is danger of suffocation.

The Standby button does not fully switch off this
product. Moreover, the device continues to consume
power in standby mode. In order to separate the
device completely from mains, the mains plug has to
be pulled from the mains socket. Because of that the
device should be set up in a way, that an unobstructed
access to the mains socket is guaranteed, so that
in case of emergency the mains plug can be pulled
immediately. During periods of prolonged non-use,
the TV should be disconnected from the mains power
supply.

Environmental Information

• This television is designed to consume less energy
to save the environment.

You not only help to save the environment but you

can also save money by reducing electricity bills

thanks to the energy efciency features of this TV.

To reduce energy consumption, you should take the
following steps:

• You can use the Power Save Mode setting, located

in the Other settings menu. If you set the Power
Save Mode as On, the TV will switch to energy­saving mode and the luminance level of the TV set
will be decreased to optimum level. Note that some
picture settings will be unavailable when the TV is
in Power Save Mode.

• When the TV is not in use, please switch off or
disconnect the TV from the mains plug. This will
also reduce energy consumption.

• Note that annually, using the TV set in Power Save
Mode has more power efciency than disconnecting

the TV from the mains plug instead of keeping
stand-by mode. Therefore it is highly recommended
to activate Power Save Mode setting to reduce
your annual power consumption. And also it is
recommended to disconnect the TV from the mains
plug to save energy more when you do not use.

• Please help us to save environment by following

these steps.

Repair Information

Please refer all servicing to qualied personnel. Only
qualied personnel must repair the TV. Please contact

your local dealer, where you purchased this TV for
further information.

TRADEMARK ACKNOWLEDGMENT

“Dolby” and the double-D symbol are trademarks of
Dolby Laboratories.

Licence Notication (Optional)

Manufactured under license from Dolby
Laboratories.

- 6 -

Remote Control Buttons

TV

1. Standby / On

2. Channel list

3. Volume up-down

4. Menu on/off

5. OK / Conrm

6. Return / Back

7. No function

8. No function

9. No function

10. Coloured buttons (Red, Green, Yellow, Blue)

11. Mono-Stereo Dual I-II / Current language

12. Fast rewind (in media browser mode)

13. Timeshift recording / Pause (in media browser

mode)

14. Programme recording

15. Play (in media browser mode)

16. Stop (in media browser mode)

17. Fast forward (in media browser mode)

18. Subtitle on-off / Subtitle (in media browser

mode)

19. Image size

20. Teletext - Mix

21. Media Browser

22. Electronic programme guide

23. Exit

24. Navigation buttons

25. Quick Menü

26. Info / Reveal (in TXT mode)

27. Programme up/down

28. Mute

29. Previous programme / Now (in EPG mode)

30. Numeric buttons

31. AV / Source

- 7 -

TV and Operating Buttons

FRONT and REAR VIEW Control switch VIEW Control Switch

1. Standby button

2. TV/AV button

3. Programme Up/Down buttons

4. Volume Up/Down buttons

Note: Press “ ” / “ ”
buttons at the same time to view
main menu.

Viewing the Connections - Back Connectors

D I H M 1

D I H M 2

SPDIF

Coax.OUT

1. HDMI 2: HDMI Input

2. HDMI 1: HDMI Input
HDMI Inputs are for connecting a device that has a HDMI socket. Your TV is capable of displaying high

denition pictures from devices such as a High Denition Satellite Receiver or Blu-ray Player. Please

see Appendix B for further details.

3. RF Input connects to an aerial antenna system.
Note: If you use a decoder or a media recorder, you should connect the aerial cable through the device to

the television with an appropriate antenna cable, as shown in the illustration in the following pages.

4. SCART input or output for external devices. Connect the SCART cable between the SCART socket on the
TV and the SCART socket on your external device (such as a decoder, a VCR or a DVD player).

Note: If an external device is connected via the SCART socket, the TV will automatically switch to AV mode.
Note: S-VHS signal is supported via the scart socket(optional).

- 8 -

5. VGA Input is for connecting a personal computer to the TV set.
Connect the PC cable between the PC INPUT on the TV and the PC output on your PC.

6. SPDIF Out outputs audio signals of the currently watched source.
Use an SPDIF cable to trasfer audio signals to a device that has SPDIF input.

Viewing the Connections - Side Connectors

1. The CI Slot is used for inserting a CI card. A CI card allows you to view all the

channels that you subscribe to. For more information, see “Conditional Access”
section.

2. Side USB input.

Note: That programme recording feature is available via this USB input. You can
connect external hard disk drives to this input.

3. Video Input is used for connecting video signals of external devices.Connect the
video cable between the VIDEO IN socket on the TV and the VIDEO OUT jack on
your device.

4. Audio Inputs are used for connecting audio signals of external devices. Connect the
audio cable between the AUDIO INPUTS on the TV and the AUDIO OUTPUT jacks on
your device.

Note: If you connect a device to the TV via the VIDEO INPUT, you should also connect
your device with an audio cable to the AUDIO INPUTS of the TV to enable audio.

5. The headphone jack is used for connecting an external headphone to the system.
Connect to the HEADPHONE jack to listen to the TV from headphones.

Aerial Connection

• Connect the aerial to the AERIAL INPUT (ANT) socket located at the rear of the TV.

D I H M 1

D I H M 2

SPDIF

Coax.OUT

Power Connection

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz.

• After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the

mains.

- 9 -

Using USB Media

USB Connection

• You can connect a USB hard disk drive or USB

memory stick to your TV by using the USB inputs

of the TV. This feature allows you to play les stored

in a USB drive or record programmes.

• 2.5” and 3.5” inch (hdd with external power supply)
external hard disk drives are supported.

• To record a programme, you should rst connect

a USB disk to your TV while the TV is switched

off. You should then switch on the TV to enable

recording feature. Otherwise, recording feature will
not be available.

IMPORTANT !

• You may back up your les before making any

connections to the TV set in order to avoid any
possible data loss. Note that manufacturer will not

be responsible for any le damage or dataloss.

• It is possible that certain types of USB devices (e.g.

MP3 Players) or USB hard disk drives/memory sticks
may not be compatible with this TV.

IMPORTANT: The TV supports only FAT32 disk
formatting. NTFS format is not supported. If you
connect a USB disk with NTFS format, the TV will ask
you to format the content. See the section, “Format
Disk” in the following pages for more information on
disk formatting.

Note that ALL the data stored on the USB disk will
be lost and then the disk format will be converted to
FAT32 in such a case.

USB Disk Connection

• Plug your USB device to the USB input of the TV.

Note: Plug or unplug your USB disk while the TV is
switched off.

Note: If you are going to connect a USB hard disk drive
to the TV set, USB connection cable used between
the disk drive and the TV should have a USB logo
and should be as short as possible.

Note: While formatting a USB hard disk that has 1TB

(Tera Byte) or more le capacity, you can experience

problems with the formatting process. In such a
case, you should format the disk with your personal
computer and the formatted disk type should be

FAT32.

SIDE VIEW USB MEMORY

USB

5Vdc

Max:500mA

CAUTION !

• Quickly plugging and unplugging USB devices,
is a very hazardous operation. Especially, do not
repeatedly quickly plug and unplug the drive. This
may cause physical damage to the USB player and
especially the USB device itself.

• Do not pull out USB module while playing or
recording a le.

Programme Recording

To record a programme, you should rst connect a

USB disk to your TV while the TV is switched off.

You should then switch on the TV to enable recording

feature.

IMPORTANT: When using a new USB hard disk drive,

it is recommended that you rst format the disk using

your TV’s “Format Disk” option.

• For using recording function, you should connect a
USB disk or an external hard disk drive to the TV
and connected USB disk should have at least 1 GB
capacity and should have 2.0 speed compatibility.
If the connected USB device does not support 2.0
speed, an error message will be displayed.

Note: Recorded programmes are saved into the
connected USB disk. If desired, you can store/copy

recordings on a computer; however, these les will

not be available to be played on a computer. You can
play the recordings only via your TV.

• For more information on recording programmes,
see sections “Instant Recording”, “Timeshifting”,
“Electronic Programme Guide”, “Recordings Library”
or “Recording Timers” in the following parts.

• Recorded programmes are split into 4GB
partitions.

• Recorded programmes are stored in the following
directory of the connected USB disk: \DVR\RECS.
All recordings are indicated with a number. A text

(txt) le is created for each recording. This text

file includes information such as broadcaster,
programme, and recording time.

• Timeshifting may be stopped according to USB
device write speed. If the USB device speed is not
enough for video stream bitrate, timeshifting may
be stopped and recording may fail. If HD service
bitrate is greater than 13 Mbp/sec. some freeze can
be seen during timeshifting on both USB disk and
on external HDD.

• Recordings of HD programmes can occupy bigger
size on the USB disk depending on the broadcast’s

resolution. For this reason it is recommended
to use USB hard disk drives for recording HD
programmes.

• Do not plug out the USB/HDD during the recording.
This may harm the connected USB/HDD.

- 10 -

• Multipartiton support is available. Maximum two
different partitions are supported. If the disk have
more than two partitions, crash may occur. First
partition of the usb disk is used for PVR ready
features. It also must be formatted as primary
partition to be used for PVR ready features.

• Some stream packets may not be recorded because
of signal problems, so sometimes video may freezes
during playback.

• Record, Play, Pause, Display (for PlayListDialog)
keys could not be used when teletext is ON. If a
recording starts from timer when teletext is ON,
teletext is automatically turned off. Also teletext
usage is disabled when there is ongoing recording
or playback.

• Radio record is not supported.

• The Tv can record programmes up to ten hours.

Connecting the TV to a PC

For displaying your computer’s screen image on your

TV, you can connect your computer to the TV set.
Power off both computer and display before making
any connections. Use a 15-pin D-sub display cable
to connect a PC to the TV. Use a PC audio cable
between the audio output of your PC and the audio
input of the TV to enable the playback of sound
through your TV. When the connection is made, switch
to PC source. See the Input selection section. Set
the resolution that suits your viewing requirements.
Resolution information can be found in the appendix.

Audio inputs of the TV

PC input of the TV

Connecting to a DVD Player

If you want to connect a DVD player to your LCD
TV, you can use connectors of the TV set. DVD
players may have different connectors. Please refer

to your DVD player’s instruction book for additional

information. Power off both the TV and the device
before making any connections.

Note: Cables shown in the illustration are not
supplied.

• If your DVD player has an HDMI socket, you can
connect via HDMI. When you connect to DVD player
as illustrated below, switch to HDMI source. See,
“Input Selection” section.

• Most DVD players are connected through
COMPONENT SOCKETS. Use a component video
cable to connect video input. For enabling audio,
use a component audio cable as illustrated below.

When the connection is made, switch to YPbPr

source. See, “Input selection” section.

• You may also connect through the SCART. Use a

SCART cable as shown below.

Note: These three methods of connection perform the
same function but in different levels of quality. It is not
necessary to connect by all three methods.

Video Connection

PC audio cable

(not supplied)

Audio output of the PC

PC VGA cable

(not supplied)

Monitor output of the PC

Note: If you connect a PC to the TV using HDMI
connection, radio interference may occur. Therefore
this type of connection is not recommended. You
should use VGA connection instead.

Scart socket

YPbPr to PC

cable (optional)

DVD player

HDMI

inputs

Using Side AV Connectors

You can connect a range of optional equipment to

your LCD TV..

• For connecting a camcorder, connect to the VIDEO
IN socket and the AUDIO SOCKETS. Do not connect
the camcoder to VIDEO IN socket at the same time
since it can cause noise in the picture. For selecting
the related source, see the section “Input selection”
in the following parts.

• To listen the TV sound from headphones, connect
to the HEADPHONE jack of theTV.

- 11 -

Remote Control Handset

Inserting Batteries

• Remove the battery cover located on the back of
the handset by gently pulling backwards from the
indicated part.

• Insert two AAA/R3 or equivalent type batteries
inside. Observe the correct polarity (+/-) when
inserting batteries and replace the battery cover.

Note: Remove the batteries from the remote control
handset when it is not to be used for a long period.
Otherwise it can be damaged due to any leakage of
batteries. Remote range is approximately 7m/23ft.

Switching On/Off

To Switch the TV On

• Connect the power cord to the 220-240V AC, 50 Hz.
Then the standby LCD lights up (The LCD will blink
during the standby On/Off).

• To switch the TV on from standby mode either:

• Press the “ ” button, P+ or P- or a numeric button

on the remote control.

.Press the P+/P- or “ ” touch buttons on the TV.

Note: If you switch on your TV via P+ or P- buttons on
the remote control or on the TV set, the programme
that you were watching last will be reselected.

To Switch the TV Off

• Press the button on the remote control or the
touch button on the TV. The TV will then switch into
standby mode

• To power down the TV completely, unplug the power
cord from the mains socket.

Note: When the TV is switched to standby mode, the
standby LCD can blink to indicate that features such
as Standby Search, Over Air Download or Timer is
active

Input Selection

Once you have connected external systems to your
TV, you can switch to different input sources. Press “

” button on your remote control consecutively

for directly changing sources.

(optional)

Note: YPbPr mode can be used only when you
connect a device that has a YPbPr output through the
PC input with YPbPr to PC cable (not supplied).

Basic Operations

You can operate your TV using both the remote
control and onset buttons.

Operation with the Buttons on the TV

Volume Setting

• Press “ ” button to decrease volume or “
” button to increase volume, so a volume level scale
(slider) will be displayed on the screen.

Programme Selection

• Press “P/CH +” button to select the next programme or
“P/CH -” button to select the previous programme.

Viewing Main Menu

• Press “ ” / “ ” buttons at the same time
to view main menu. In the Main menu select sub­menu using “P/CH -” or “P/CH +” buttons and enter
the sub-menu using “ ” or “ ” buttons.
To learn the usage of the menus, refer to the menu
system sections.

AV Mode

• Press the “TV/AV” button in the control panel on the
TV to switch between AV modes.

Operation with the Remote Control

• The remote control of your TV is designed to control
all the functions of the model you selected. The
functions will be described in accordance with the
menu system of your TV.

- 12 -

• Functions of the menu system are described in the
following sections.

Volume Setting

• Press V+ button to increase the volume. Press V-
button to decrease the volume. A volume level scale
(slider) will be displayed on the screen.

Programme Selection (Previous or Next
Programme)

• Press P- button to select the previous programme.

• Press P+ button to select the next programme.

Programme Selection (Direct Access)

• Press the numeric buttons on the remote control to
select programmes between 0 and 9. The TV will
switch to the selected programme.

First Time Installation

IMPORTANT: Ensure that the aerial is connected
and a Common Interface module is not inserted
before switching on the TV for the first time
installation.

• When the TV is operated for the rst time, the

installation wizard will guide you through the
process. First, the language selection screen will
be displayed:

• By pressing “ ” or “ ” button, select the country
you want to set and press “ ” button to highlight
Search Type option. Use “ ” or “ ” to set the
desired search type. Available search types are
digital only, analog TV only and full.

• When set, press “ ” to select Teletext Language.
Use “ ” or “ ” to select the desired Teletext
Language.

•

• Press OK button on the remote control to continue

and the following message will be displayed on the
screen:

• Use “ ” or “ ” buttons to select your language
and press OK button to set the selected language
and continue.

• After selecting the language, “Welcome!” screen will
be displayed, requiring you to set Country, Search

Type, Teletext Language and Scan Encrypted

options.

To select the “Yes” or “No” option, highlight the item by

using “ ” or “ ” buttons and press OK button.

Afterwards the following OSD will be displayed on
the screen and the TV will search for both digital and
analogue TV broadcasts.

Note: You can press “MENU” button to cancel.

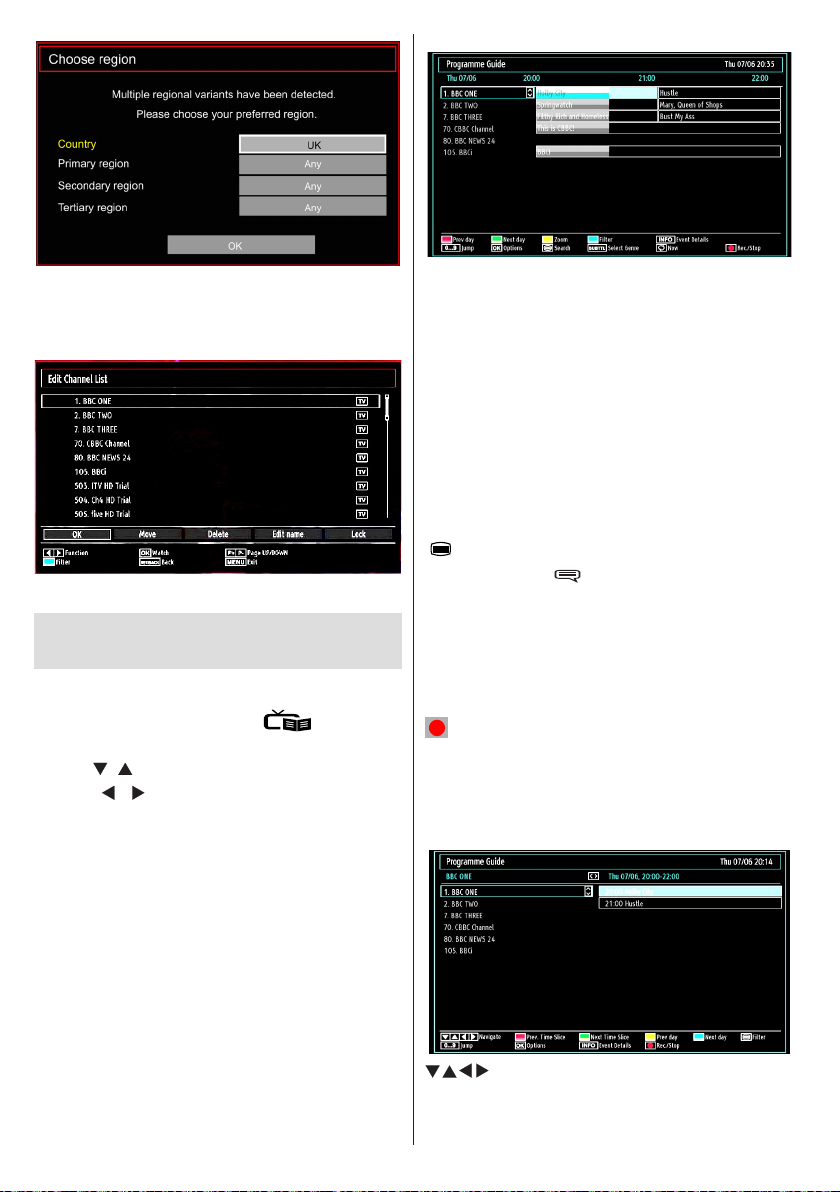

End of the search process, “Choose Region” osd will
be displayed on the screen (if any multiple region
variants are detected).Please select country and
region choice then press OK to continue.

- 13 -

EPG Timeline Schedule

• After all the available stations are stored, Channel
List will be displayed on the screen. If you like the
sort channels, according to the LCN, please select

“Yes” and than press “OK”.

• Press OK button to quit channel list and watch TV

Viewing Electronic Programme
Guide (EPG)

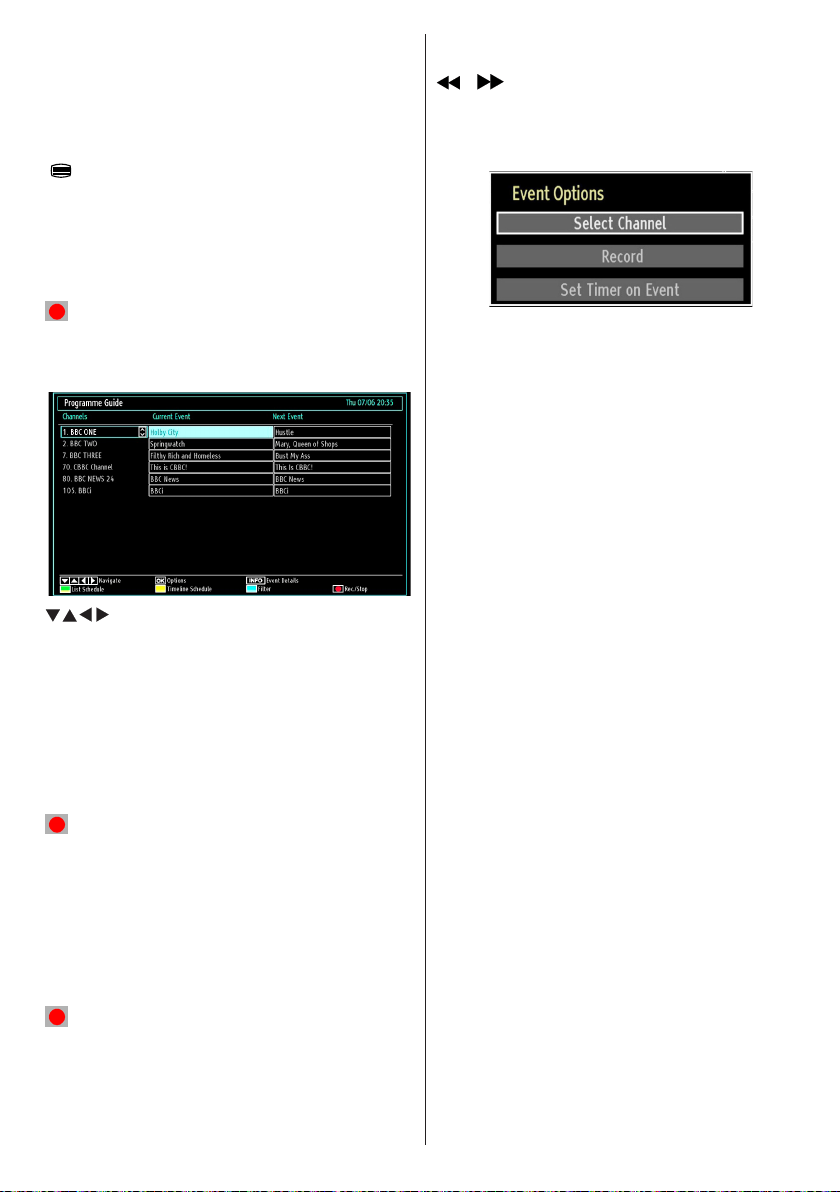

You can view the electronic programme guide (EPG)

to see information about available programmes.To

view the EPG menu please press button on the
remote control.

• Press “ ”/“ ” buttons to navigate through channels.

• Press “ ”/“ ” buttons to navigate through the

programme list.

• Please note that event information is updated
automatically. If there is no event information data
available for channels, the EPG will be displayed
with blanks.

Red button (Prev Day): Displays the programmes
of previous day.

Green button (Next day): Displays the programmes
of the next day.

Yellow button (Zoom): Expands programme
information.

Blue button (Filter): Views ltering options.

Numeric buttons (Jump): Jumps to the preferred

channel directly via numeric buttons.

INFO (Details): Displays the programmes in detail.

OK (Options): Views/records or sets timer for future

programmes.

“ ”(Search): Displays “Guide Search” menu.

SUBTTL: Press button to view Select Genre
menu. Using this feature, you can search the
programme guide database in accordance with the
genre. Info available in the programme guide will
be searched and results matching your criteria will
be listed.

SWAP(Now) : Shows the current programme.

(RECORD): the TV will start to record the

selected programme. You can press again to stop

the recording.

EPG Channel Schedule

/ / / : Navigate

Red button (Prev Time Slice): Displays the
programmes of previous time slice.

- 14 -

Green button (Next Time Slice): Displays the
programmes of the next time slice.

Yellow button (Prev Day): Displays the programmes
of previous day.

Blue button (Next day): Displays the programmes
of the next day.

“ ” button (Filter): Views ltering options.

Numeric buttons (Jump): Jumps to the preferred
channel directly via numeric buttons.

OK (Options): Views/records or sets timer for future
programmes.

INFO (Details): Displays the programmes in detail.

(RECORD): the TV will start to record the

selected programme. You can press again to stop

the recording.

EPG Now and Next

/ / / : Navigate

OK (Options): Views/records or sets timer for future
programmes.

Blue button (Filter): Views ltering options.

INFO (Event Details): Displays the programmes in

detail.

Green button: Programme schedule will be listed

Yellow button: Display EPG data in accordane with

timeline schedule

(RECORD): the TV will start to record the

selected programme. You can press again to stop

the recording.

Recording via EPG Screen

IMPORTANT: To record a programme, you should

rst connect a USB disk to your TV while the TV is

switched off. You should then switch on the TV to
enable recording feature. Otherwise, recording feature
will not be available.

(RECORD): the TV will start to record the

selected progamme. You can press again to stop

the recording.

Note: Switching to a different broadcast or source is
not available during the recording.

/ : Page left / Page right.

Programme Options

In EPG menu, press the OK button to enter the “Event
Options” menu.

Select Channel

In EPG menu, using this option, you can switch to the
selected channel.

Record / Delete Record Timer

IMPORTANT: To record a programme, you should

rst connect a USB disk to your TV while the TV is

switched off. You should then switch on the TV to
enable recording feature. Otherwise, recording feature
will not be available.

• After you have selected a programme in EPG menu,
press the OK button and and Options screen will
be displayed. Select “Record” option and press the
OK button. After this operation, a recording becomes
set to the selected programme.

• To cancel an already set recording, highlight that
programme and press the OK button and select
the option “Delete Rec. Timer”. The recording will
be cancelled.

Note: You cannot switch to any other channel or
source while there is an active recording on the
current channel.

Set Timer / Delete Timer

After you have selected a programme in EPG menu,
press the OK button and and Options screen will
be displayed. Select “Set Timer on Event” option
and press OK button. You can set a timer for future
programmes.

To cancel an already set reminder, highlight that
programme and press the OK button. Then select
“Delete Timer” option. The timer will be cancelled.

Note: It is not possible to record or set timer for two
or more individual events at the same time interval.

- 15 -

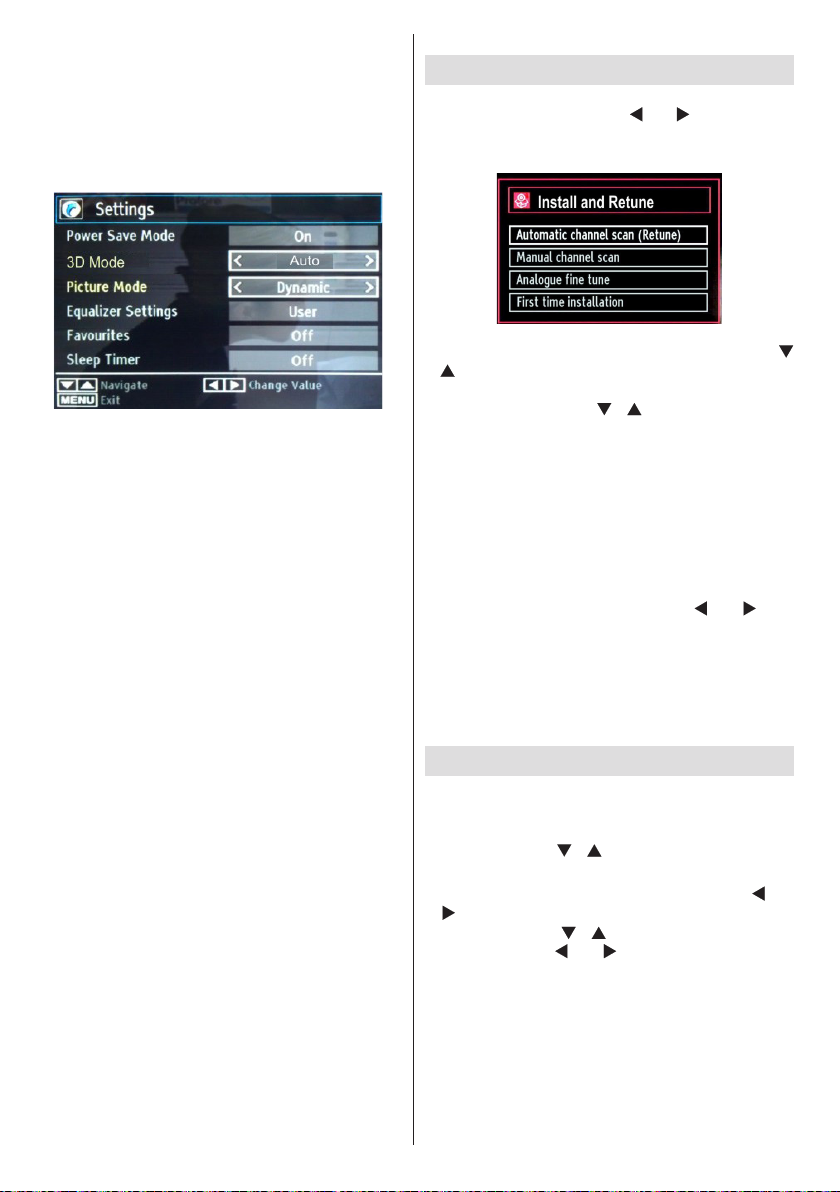

Quick Menu

Quick Settings menu allows you to access some
options quickly. This menu includes Power Save
Mode, 3D Mode, Picture Mode, Equalizer Settings,
Favourites and Sleep Timer options. Press Q.MENU
button on the remote control to view quick menu.
See the following chapters for the details of the listed
features.

Installation

Press MENU button on the remote control and
select Installation by using “ ” or “ ” button. Press
OK button and the following menu screen will be
displayed.

Select Automatic Channel Scan (Retune) by using “
”/“ ” button and press OK button. Automatic Channel
Scan (Retune) options will be displayed. You can
select options by using “ ”/“ ” and OK buttons.

Auto Channel Scan (Retune) Menu
Operation

Analogue: Searches and stores analogue stations.

Digital & Analogue: Searches and stores both

analogue and aerial DVB stations.

• Whenever you select an automatic search type and
press OK button, a conrmation screen will appear
on the screen. To start installation process, select

Yes, to cancel select No by using .“ ” or “ ” and
OK button.

• After the auto channel scan type is set and selected
and conrmed, the installation process will start and

the progress bar will move along. Press “MENU”
button to cancel process. Located channels are not
stored if the process is cancelled.

Manual Tuning

HINT: This feature can be used for direct broadcast
entry.

• Select Manual Channel Scan from the Installation
menu by using “ ”/“ ” and OK buttons. Manual
Scan options screen will be displayed.

• Select the desired Search Type using “ ” or
“ ” button. Manual search options will change
accordingly. Use “ ”/“ ” button to highlight an item
and then press “ ” or “ ” button to set an option.
You can press “MENU” button to cancel.

- 16 -

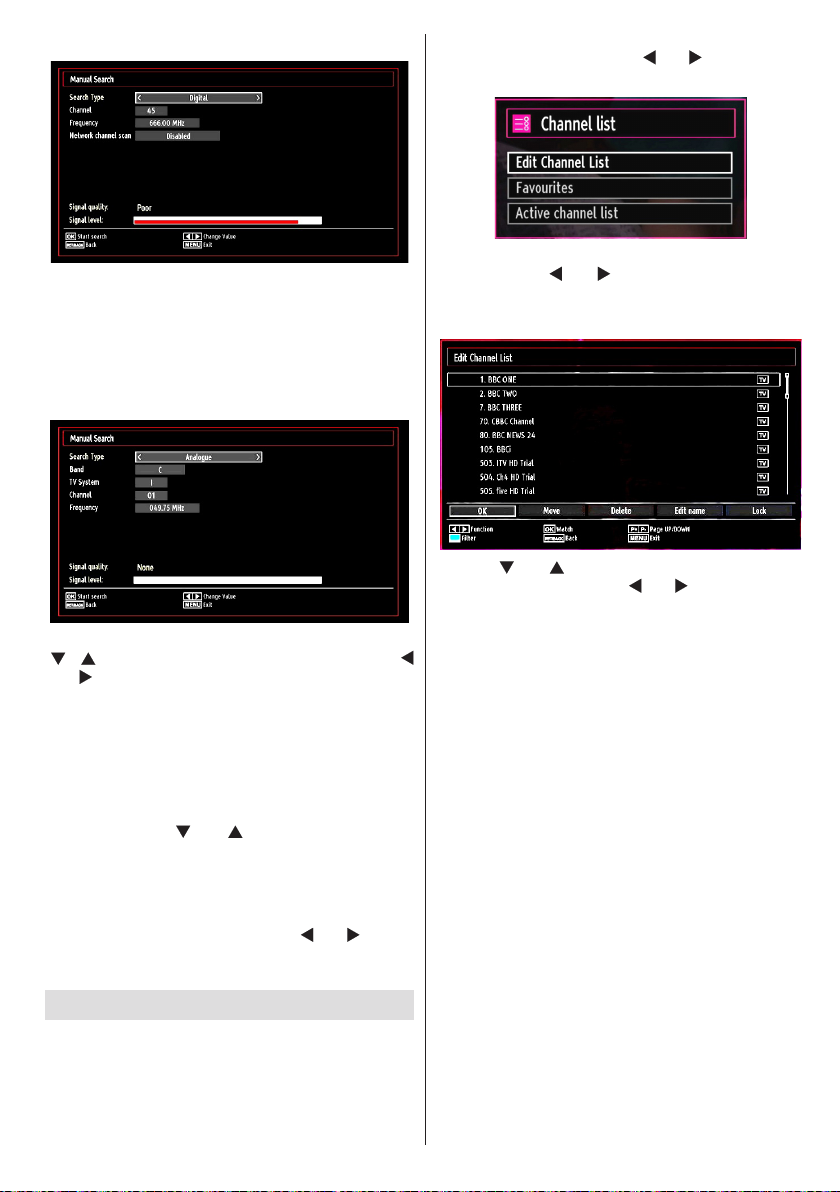

Digital Manual Search

In manual channel scan, the number of the multiplex
or frequency are entered manually and only that
multiplex or frequency are searched for the channels.
After selecting search type as Digital, you can enter
the multiplex or frequency number using the numeric
buttons and press OK button to search.

Analogue Manual Search

After selecting search type as analogue, you can use
“ ”/“ ” button to highlight an item and then press “
” or “ ” button to set an option.

Enter the channel number or frequency using the
numeric buttons. You can then press OK button
to search. When the channel is located, any new
channels that are not on the list will be stored.

Analogue Fine Tune

• Select Analogue Fine Tune from the Installation
menu by using “ ” or “ ” and OK buttons. The

analogue ne tune screen will be displayed. The

Analogue Fine Tune feature will not be available if
there are no analogue channels, digital channels

and external sources stored.

• Press OK button to proceed. Use “ ” or “ ” button
to set Fine Tune. When nished, press OK button

again.

Managing Stations: Channel List

The TV sorts all stored stations in the Channel List.
You can edit this channel list, set favourites or set
active stations to be listed by using the Channel List
options.

• Press MENU button to view main menu. Select the
Channel List item by using “ ” or “ ” button. Press
OK to view menu contents.

Select Edit Channel List to manage all stored
channels. Use “ ” or “ ” and OK buttons to select
Edit Channel List.

Operating the Channel List

• Press “ ” or “ ” button to select the channel that
will be processed. Press “ ” or “ ” button to select
a function on Channel List menu.

• Use P+ or P- buttons to move page up or down.

• Press BLUE button to view ltering options.

• Press MENU button to exit.

Moving a Channel

• First select the desired channel. Select Move option
in the channel list and press the OK button.

• Edit Number screen will be displayed. Enter the
desired channel number by using the numeric
buttons on the remote control. If there is a previously
stored channel on that number, a warning screen

will be displayed. Select Yes if you want to move the

channel and press OK.

• Press the OK button to process. Selected channel
is now moved.

Deleting a Channel

You can press GREEN button to tag/untag all
channels; YELLOW button to tag/untag channel.

• Select the channel that you want to delete and select

Delete option. Press the OK button to continue.

• A warning screen will appear. Select YES t o
delete, select No to cancel. Press the OK button
to continue.

- 17 -

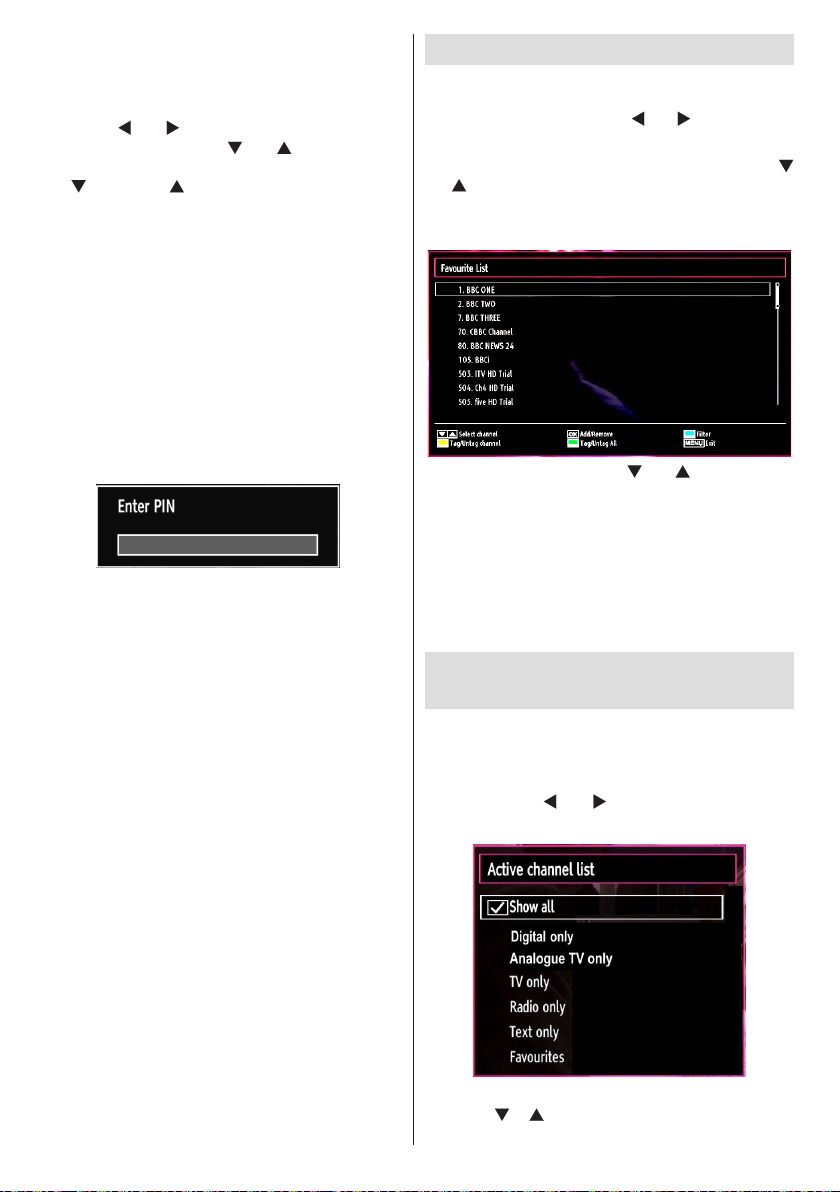

Renaming a Channel

• Select the channel that you want to rename and
select Edit Name option. Press OK button to
continue.

• Pressing “ ” or “ ” button moves to the previous/
next character. Pressing “ ” or “ ” button toggles

the current character, i.e., ‘b’ character becomes ‘a’
by “ ” and ‘c’ by “ ”. Pressing the numeric buttons
‘0...9’ replaces the highlighted character with the

characters printed above the button one by one as
the button is pressed.

• When nished, press the OK button to save. Press
MENU to cancel.

Locking a Channel

You can press GREEN button to tag/untag all
channels; YELLOW button to tag/untag a single
channel.

• Select the channel that you want to lock and select

Lock option. Press OK button to continue.

• You will be asked to enter parental control PIN.

Default PIN is set as 0000. Enter the PIN number.

• Press OK button when the desired channel is
highlighted to lock/unlock the channel. The Lock
symbol will be displayed next to the selected
channel.

Managing Stations: Favourites

You can create a list of favourite programmes.

• Press MENU button to view the main menu. Select

Channel List item by using “ ” or “ ” button. Press
OK to view menu contents.

• Select Favourites to manage favourite list. Use “
”/“ ” and OK buttons to select Favourites.

• You can set various channels as favourites so that

only the favourite channels are navigated.

• Select a channel by using “ ” or “ ” button. Press
OK button to add selected channel to favourites list.
Press OK button again to remove.

Button Functions

• OK: Add/remove a station.

• YELLOW: Tag/untag a channel.

• GREEN: Tag/untag all channels.

• BLUE: Displays ltering options.

Managing Stations: Sorting the
Channel List

You can select broadcasts to be listed in the channel

list. To display specic types of broadcast, you should

use the Active channel list setting.

Select Active channel list from the Channel list
menu by using “ ” or “ ” button. Press OK button
to continue.

You can select a broadcast type option from the list

by using “ ” /“ ” and OK buttons.

- 18 -

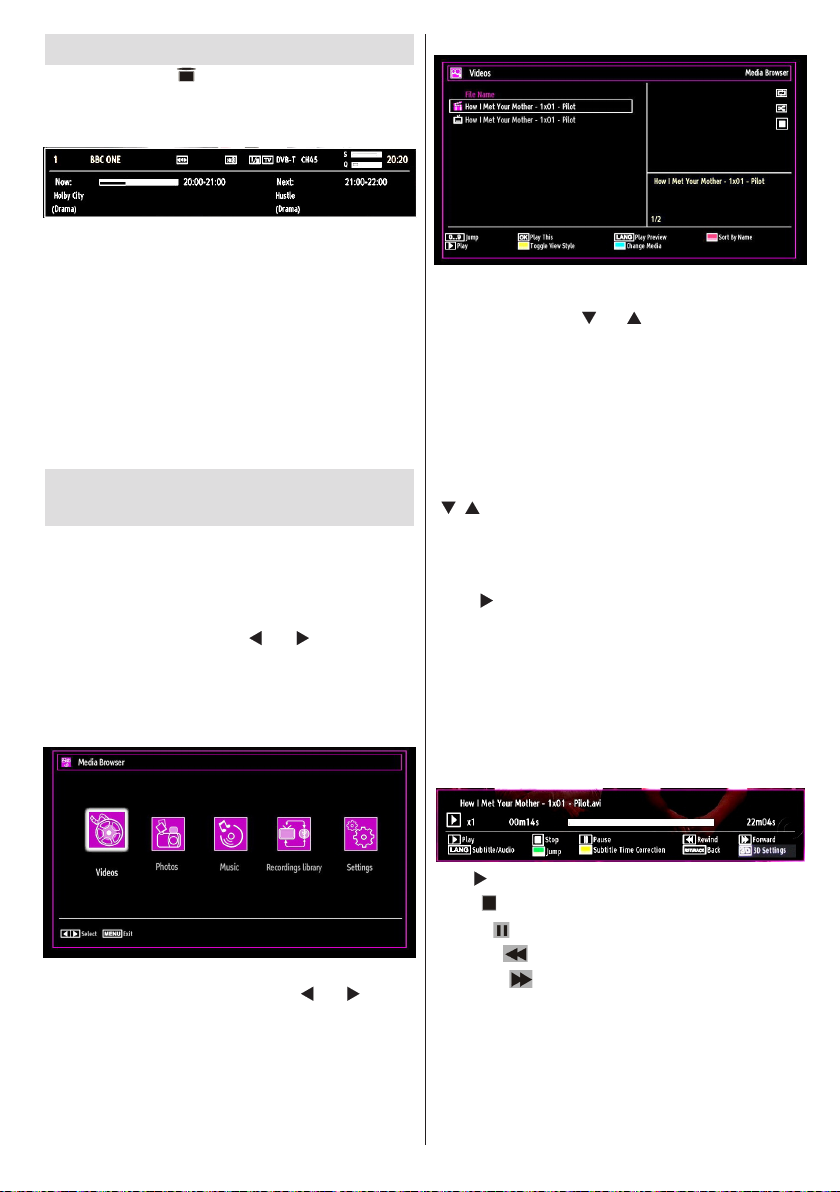

On-Screen Information

You can press “ ”button to display on-screen
information. Details of the station and current
programme will be displayed on the information
banner.

The information banner gives information on the
channel selected and the programmes on it. The name
of the channel is displayed, along with its channel
list number.

Hint: Not all channels broadcast the programme
data. If the name and time of the programme are
not available, then the information banner will be
displayed with blanks.

If the selected channel is locked, you must enter the
correct four-digit numeric code to view the channel
(default code is 0000). “Enter PIN” will be displayed
on the screen.

Media Playback Using Media
Browser

If the USB stick is not recognized after power off/on or
First Time Installation, unplug the USB device, turn the
TV off and on again and re-insert the USB device.

To display the Media Browser window, press either
“MENU” button on the remote control and then select
Media Browser by pressing “ ” or “ ” button. Press
OK button to continue. Media Browser menu options
will be displayed.

Also, when you insert USB devices, the media
browser screen will be displayed automatically:

Viewing Videos via USB

When you select Videos from the main options,

available video les will be ltered and listed on this
screen. You can use “ ” or “ ” button to select a video
le and press OK button to play a video. If you select
a subtitle le and press OK button, you can select or
deselect that subtitle le. The following menu will be
displayed while playing a video le:

Jump (Numeric buttons):The TV will jump to the

le starting with the letter you input via the numeric

buttons on your remote control.

Play This (OK button) : Plays the selected le.

/ : Navigate menu

Lang (Play Preview): Displays selected le in a small

preview screen.

RED: Sorts les by name.

Play ( button) : Plays all media les starting with

the selected one.

Yellow Button: Change viewing style

Loop/Shufe (GREEN button): Press once to disable

Loop. Press again to disable both Loop and Shufe.
Press once more to enable only Shufe. Press again
to enable all. You can follow the disabLCD functions

with the change of the icons.

BLUE: Changes media options.

You can play music, picture and video les from the

connected USB memory stick. Use “ ” or “ ” button
to select Videos, Photos, Music, Recordings library
or Settings.

Play button): Starts the video playback.

Stop ( button): Stops the video playback.

Pause ( button): Pause the video playback.

Rewind ( button): Goes backward.

Forward ( button): Goes forward.

3D: Press to view 3D Settings.

Subtitle/Audio (LANG. button): Sets subtitle/Audio.

Jump (GREEN button): Jumps to time. Use numeric

buttons to type the desired time and press GREEN
button again to proceed.

- 19 -

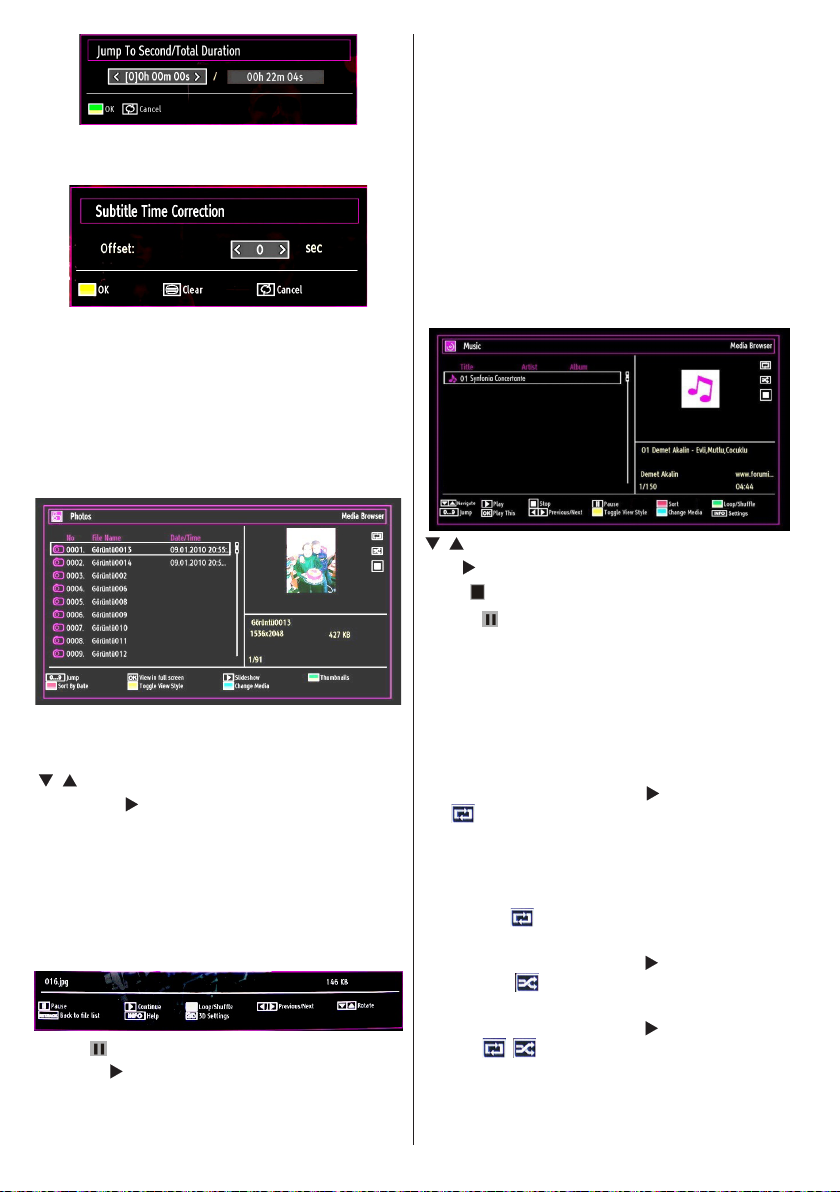

Yellow: Opens subtitle time correction menu.

Ret/Back: Back to previous menu.

Press OK to conm

Press BLUE button for clear

Press SWAP (Exit) button to switch back to previous
menu.

Viewing Photos via USB

When you select Photos from the main options,

available image les will be ltered and listed on this

screen.

Jump (Numeric buttons):Jump to selected le using

the numeric buttons.

OK: Views the selected picture in full screen.

/ : Navigate menu

Slideshow ( button): Starts the slideshow using
all images.

GREEN button: Views images in thumbnails.

RED button: Sorts les by date.

Yellow Button: Change viewing style

BLUE: Changes media options.

Slideshow Options

Pause ( button) : Pauses the slideshow.

Continue ( button) : Continues the slideshow.

Loop/Shufe (GREEN button): Press once to disable

Loop. Press again to disable both Loop and Shufe.
Press once more to enable only Shufe. Press again

to enable all. You can follow the disabLCD functions

with the change of the icons.

Previous/Next (Left/Right buttons): Jumps to

previous or next le on slideshow.

Rotate (Up/Down buttons): Rotates the image using
up/down buttons.

RETURN (Exit): Back to le list.

INFO: Displays help screen.

3D: Press to view 3D Settings.

Playing Music via USB

When you select Music from the main options,

available audio les will be ltered and listed on this

screen.

/ : Navigate menu

Play button): Starts the playback.

Stop ( button) : Stops playback.

Pause ( button) : Pauses the selected playback.

RED button: Sorts les by Title,Artist or Album.

Loop/Shufe (GREEN button): Press once to disable

Loop. Press again to disable both Loop and Shufe.
Press once more to enable only Shufe. Press again
to enable all. You can follow the disabLCD functions

with the change of the icons.

Note:

If you start the playback with the button and activate
the symbol, the TV will play the next music/video

le. The playback will proceed accordingly and when

the end of the list is reached, it will be played again
from the beginning (loop function).

If you start the playback with the OK button and
activate the symbol, the same music or video le

will be played in a loop (repeat function).

If you start the playback with or OK button and
activate the symbol, music or video le will be

played in a shufe.

If you start the playback with or OK button and
activate , symbols, music or video le playback

will continue randomly and the random playback will
continue.

- 20 -

0..9 (Numeric buttons): The TV will jump to the

le starting with the letter you input via the numeric

buttons on your remote control.

Play This (OK button) : Plays the selected le.

Previous/Next (Left/Right buttons) : Jumps to

previous or next le to play.

Yellow Button: Change viewing style

BLUE: Changes media options.

Note: If the Viewing Style is set to Folder in Media
Browser Settings, Music folder will be displayed as

sorted and there is no need to sort les again by

pressing FAV button.

INFO: Displays settings.

Recordings Library

IMPORTANT: To view recordings library, you should

rst connect a USB disk to your TV while the TV is

switched off. You should then switch on the TV to
enable recording feature. Otherwise, recording feature
will not be available.

To view the list of recordings, select “Recordings
Library” and press the OK button. Recordings Library

will then be displayed with available recordings.

All the recordings are kept in a list in the recordings
library.

RED button (Delete) :Erases the selected
recording.

GREEN button (Edit): Makes changes on the
selected recording.

BLUE button (Sort): Changes the order of the

recordings. You can select from a wide range of

sorting options.

OK button: Activates play options menu:

• Play from start: Plays the recording from the

beginning.

• Resume: Recommences the recordings.

• Play from offset: Species a playing point.

Note: Viewing main menu and menu items will not ve
available during the playback.

(Resume): Recommences the recordings.

INFO (Details): Displays the short extended
programmes in detail.

Media Browser Settings

You can set your Media Browser preferences by

using the Settings dialog. Press “ ” or “ ” button to
highlight an item and use “ ” or “ ” button to set.

View Style: Sets default browsing mode.

Slide Show Interval: Sets slide show interval time.

Show Subtitle: Sets subtitle enabling preference.

Subtitle Language: Sets the preferred subtitle

language for video les.

Subtitle Position: Sets subtitle position as up or
down.

Subtitle Font Size: Sets subtitle font size (max.
54pt).

Using the 3D Mode

IMPORTANT!

Read and understand the 3D mode safety
precautions carefully for your safety before using
the 3D function. Read and understand “3D Mode
and 3D Images” precautions section on page 4.

• You must use 3D glasses parallel to your TV. The

picture may not be visible or may look dark if you
do not stay within the viewing angle.

• Use 3D glasses only when watching 3D picture

with the correct angle. Remove the glasses in any
other case. The picture may not be visible or may be
dark if you look down or if you lie on your side while
watching 3D picture using 3D glasses.

• 3D picture may not be visible or become distorted

when watching under dense light conditions.

• You can enjoy viewing 3D images on your TV by

wearing the supplied 3D Glasses. Note that this TV’s
3D feature works only with its specic 3D glasses.

- 21 -

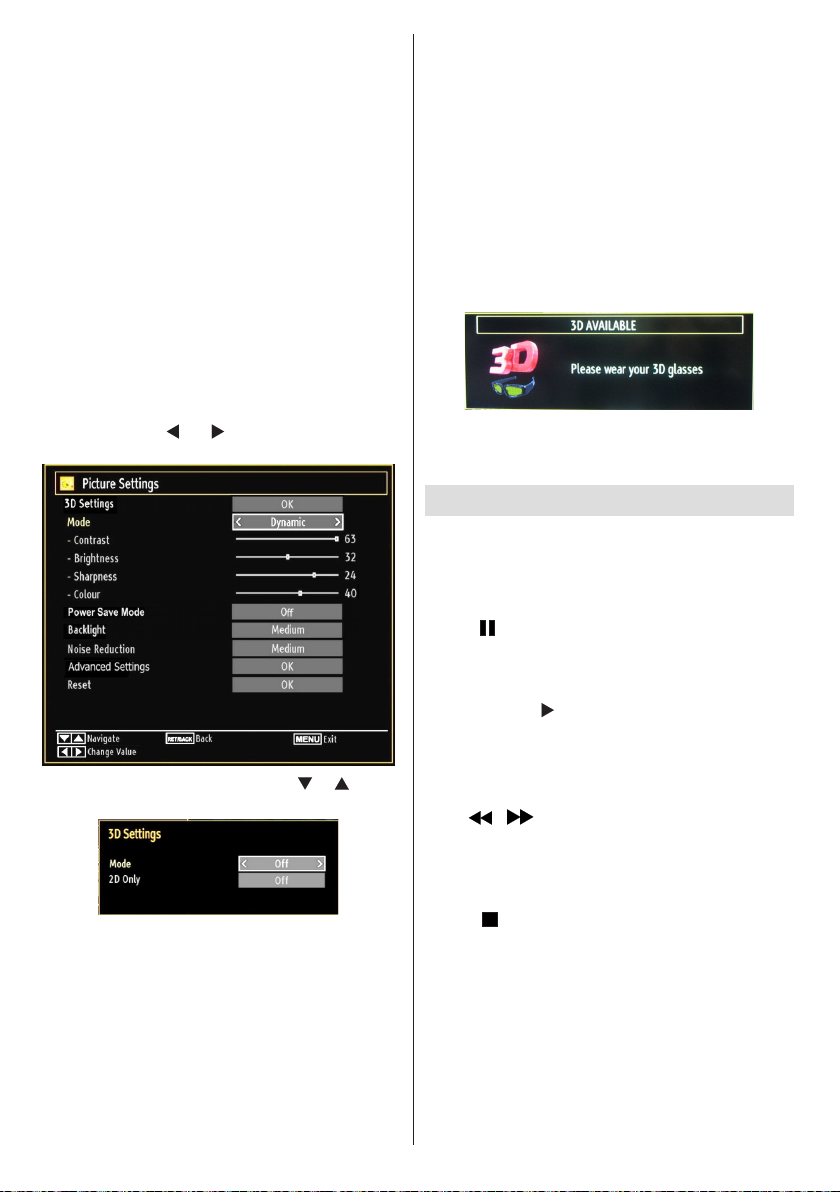

• Connect a 3D compatible player via an HDMI cable
and play the 3D content. Refer to the manual of the
player for the settings of the player.

• Press SOURCE button and select the connected
input.

• You should select suitable 3D Mode before

viewing.

• To view 3D contents or programmes in 3D mode
(3-Dimensional) you must wear the supplied 3D
Glasses.

3D Mode

Press 3D button to view 3D Settings menu
directly.

• 3D feature enables you to view 3D content using
the supplied 3D glasses.

• To enable and customize 3D mode on the TV,
perform the following:

• Press MENU button on the remote control and select
Picture by using “ ” or “ ” button. Press OK button
to view Picture Settings.

• Select 3D Settings option by using “ ” / “ ” button
and press OK.

3D Settings

Mode

You can customize 3D mode settings to provide best

viewing experience. Select one of these modes to
experience 3D image viewing:

Auto: Automatically switches to 3D mode if 3D

information available in HDMI source.

Side by Side: Displays 3D content which is originally
in a form of side by side.

Top bottom: Displays 3D content which is originally
in a form of top and bottom.

Off: 3D function mode is turned off.

2D Only

If content is 3D but you want to watch it in 2D, you can
switch to 2D only mode. There are 2 options (LEFT
and RIGHT) to select which side of the content you
want to watch in 2D.

Note: This item is available when TV is in 3D mode.

Note: If you select 3D modes, wear the supplied
3D glasses when this message is displayed on
the screen:

Supported 3D Content Resolutions

See Appendix F for supported 3D Content
resolutions.

Timeshift Recording

IMPORTANT: To record a programme, you should

rst connect a USB disk to your TV while the TV is

switched off. You should then switch on the TV to
enable recording feature. Otherwise, recording feature
will not be available.

• Press (PAUSE) button while watching a broadcast
for switching to timeshifting mode.

• In timeshifting mode, the programme is paused and
simultaneously recorded to the connected USB
disk (*). Press (PLAY) button again to watch the
paused programme from the stopped moment.

• This playback is performed in x1 playback speed.
You will see the timeshift gap between the real and

the timeshifted programme in the info bar.

• Use / (PREVIOUS/NEXT) buttons to move
forward or backward on timeshift playback. When
the timeshift is reached, timeshifting mode will be
quitted and you will switch back to watching normal
broadcast.

• Press (STOP) button to quit timeshifting mode.

(*) Similtaneous timeshifting recording’s duration
depends on your connected USB disk’s file size
and defined Max. Timeshift in the Recordings

Conguration menu. See the section, “Recordings”

for more information on setting Max. Timeshift.

Note: Switching to a different broadcast or source;
and viewing main menu are not available during the
timeshifting.

• Lip Sync delay may occur during the timeshifting.

- 22 -

Instant Recording

IMPORTANT: To record a programme, you should

rst connect a USB disk to your TV while the TV is

switched off. You should then switch on the TV to
enable recording feature. Otherwise, recording feature
will not be available.

• Press (RECORD) button to start recording an
event instantly while watching a programme. The
following OSD appears on the screen:

• Record OSD will then be displayed for a short time
and the current event will be recorded.

• You can press (RECORD) button on the remote
control again to record the next event on the EPG. In
this case, OSD will display the programmed events
for recording.

Watching Recorded
Programmes

In the main menu, use “ ” or “ ” buttons to select
Media Browser. Highlight Recordings Library item by
using “ ” or “ ” button and press OK button to enter.

Recordings Library will then be displayed.

IMPORTANT: To view recordings library, you should

rst connect a USB disk to your TV while the TV is

switched off. You should then switch on the TV to
enable recording feature. Otherwise, recording feature
will not be available.

Select a recorded item from the list (if previously
recorded) by using “ ” / “ ” button. Press OK button
to view Play Options. Select an option by using “ ”
/ “ ” or OK buttons.

Press (STOP) button to cancel instant recording.
The following OSD will be displayed:

Select Yes by using “ ” or “ ” / OK buttons to cancel
instant recording.

Note: Switching to a different broadcast or source;
and viewing Media Browser are not available during
the recording.

Available playback options:

• Play from start: Plays the recording from the
beginning.

• Resume: Recommences the recordings.

• Play from offset: Species a playing point.

Note: Viewing main menu and menu items will not be
available during the playback.

Press (STOP) button to stop a playback and return
to return to Recordings Library.

Slow Forward

If you press (PAUSE) button while watching
recorded programmes, slow forward feature will be
available. You can use button to slow forward.
Pressing button consecutively will change slow
forwarding speed.

- 23 -

Changing Image Size: Picture
Formats

• You can change the aspect ratio (image size) of

the TV for viewing the picture in different zoom
modes.

• Press the “ ”button repeatedly to change the
image size. Available zoom modes are listed below.

Auto

When AUTO is selected, the aspect ratio of the screen
is adjusted by the information provided by the selected
source(if available)

Note: Auto mode only will be available in HDMI, YPbPr
and DTV sources.

16:9

This uniformly stretches the left and right sides of a

normal picture (4:3 aspect ratio) to ll the wide TV

screen.

• For 16:9 aspect ratio pictures that have been
squeezed into a normal picture (4:3 aspect ratio),
use the 16:9 mode to restore the picture to its
original shape.

Subtitle

This zooms up the wide picture (16:9 aspect ratio)
with subtitles to the full screen.

14:9 Zoom

This option zooms to the 14:9 picture.

4:3

Use to view a normal picture (4:3 aspect ratio) as this
is its original size.

Cinema

This zooms up the wide picture (16:9 aspect ratio) to
the full screen.

Note: You can shift to screen up or down by pressing
“ ” / “ ” buttons while picture zoom is selected as,
14:9 Zoom, Cinema or Subtitle.

14:9

This zooms up the wide picture (14:9 aspect ratio) to
the upper and lower limits of the screen.

- 24 -

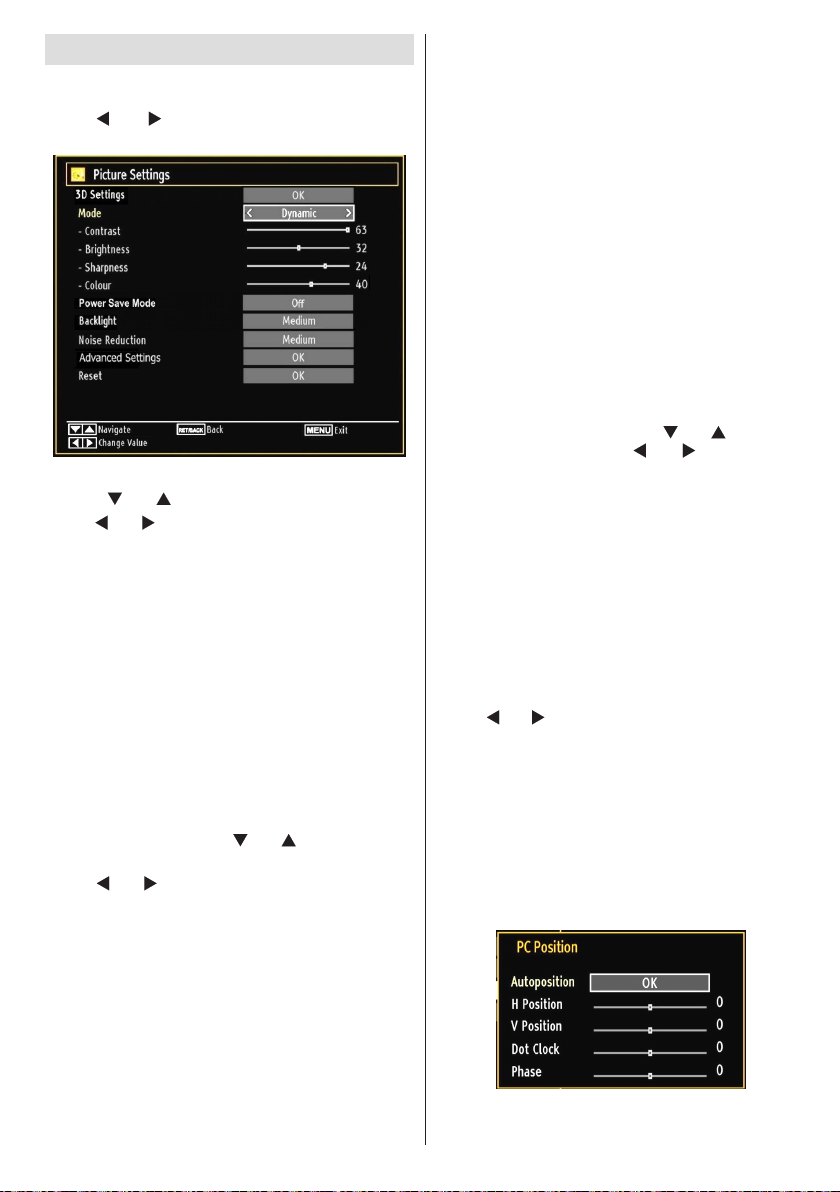

Conguring Picture Settings

You can use different picture settings in detail.

Press MENU button and select the Picture icon by
using “ ” or “ ” button. Press OK button to view
Picture Settings menu.

Operating Picture Settings Menu Items

• Press “ ” or “ ” button to highlight a menu item.

• Use “ ” or “ ” button to set an item.

• Press MENU button to exit.

Picture Settings Menu Items

Mode: For your viewing requirements, you can set

various screen modes. The Picture mode can be set
to one of these options: Cinema,Game,Dynamic
and Natural.

Contrast: Sets the lightness and darkness values
of the screen.

Brightness: Sets the brightness value for the
screen.

Sharpness: Sets the sharpness value for the objects
displayed on the screen.

Colour: Sets the colour value, adjusting the colors.

Power Save Mode : Use “ ” or “ ” button to select

Power Save Mode.

Press “ ” or “ ” button to set Power Save Mode as
On or Off.

See the section, “Environmental Information” in
this manual for further information on Power Save
Mode.

Note : The backlight function will be inactive if Power
Save Mode is set to on.

Backlight : This setting controls the backlight level
and it can be set to Auto, Maximum, Minimum, Medium
and Eco Mode (optional).

Note: Backlight can not be activate in VGA or Media
Browser mode or while picture mode is set as Game.

Noise Reduction: If the broadcast signal is weak and
the picture is noisy, use Noise Reduction setting to
reduce the noise amount. Noise Reduction can be set
to one of these options: Low, Medium, High or Off.

Advanced Settings

• Colour Temp: Sets the desired colour tone.Setting
Cool option gives white colours a slight blue

stress.For normal colours, select Normal option.
Setting Warm option gives white colours a slight
red stress.

• Picture Zoom:Sets the picture size to Auto,16:9,
Subtitle,14:9, 14:9 Zoom, 4:3 or Cinema.

• HDMI True Black: While watching from HDMI
source, this feature will be visible in the Picture

Settings menu. You can use this feature to enhance
blackness in the picture. You can set this feature as

“On” for activating HDMI True Black mode.

• Film Mode (optional): Films are recorded at a
different number of frames per second to normal
television programmes.Press “ ” or “ ” buttons to
select Film mode. Press “ ” or “ ” buttons to set
this feature Auto or Off. Turn this feature to Auto

when you are watching lms to see the fast motion

scenes clearly.

• Colour Shift: Adjust the desired colour tone.

Reset: Resets the picture settings to factory default

settings.

While in VGA (PC) mode, some items in Picture menu
will be unavailable. Instead, VGA mode settings will be
added to the Picture Settings while in PC mode.

PC Picture Settings

For adjusting PC picture items, do the following:

Press “ ” or “ ” button to select Picture icon. Picture
menu appears on the screen.

Contrast, Brightness, Colour, Colour Temp and
Picture Zoom settings in this menu are identical

to settings dened in TV picture menu under “Main

Menu System”.

Sound,Settings and Source settings are identical to
the settings explained in main menu system.

PC Position: Select this to display PC position menu
items.

Autoposition: Automatically optimizes the display.
Press OK to optimize.

- 25 -

H Position: This item shifts the image horizontally to
right hand side or left hand side of the screen.

V Position: This item shifts the image vertically
towards the top or bottom of the screen.

Dot Clock: Dot Clock adjustments correct the
interference that appear as vertical banding in
dot intensive presentations like spreadsheets or
paragraphs or text in smaller fonts.

Phase: Depending on the resolution and scan
frequency that you input to the TV set, you may see
a hazy or noisy picture on the screen. In such a case
you can use this item to get a clear picture by trial
and error.

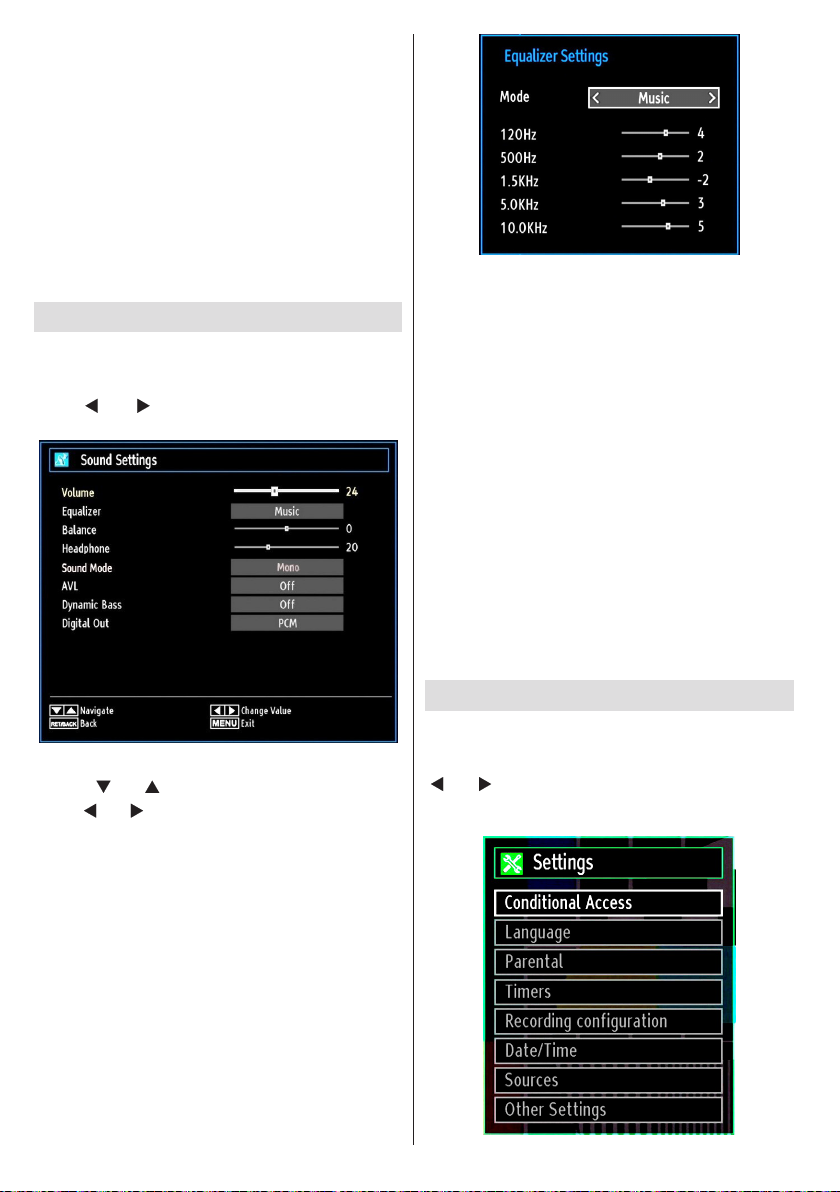

Conguring Sound Settings

Sound settings can be congured according to your

personal preferences.

Press MENU button and select the Sound icon by
using “ ” or “ ” button. Press OK button to view
Sound Settings menu.

Operating Sound Settings Menu Items

• Press “ ” or “ ” button to highlight a menu item.

• Use “ ” or “ ” button to set an item.

• Press MENU button to exit.

Sound Settings Menu Items

Volume: Adjusts volume level.

Equalizer: Press OK button to view equalizer sub-

menu.

In the equalizer menu, the preset can be changed
to Music, Movie, Speech, Flat, Classic and User.
Press the MENU button to return to the previous
menu.

Note: Equalizer menu settings can be changed
manually only when the Equalizer Mode is in User.

Balance: This setting is used for emphasizing left or
right speaker balance.

Headphone: Sets headphone volume.

Sound Mode: You can select Mono, Stereo, Dual I

or Dual II mode, only if the selected channel supports
that mode.

AVL : Automatic Volume Limiting (AVL) function sets the

sound to obtain xed output level between programmes

(For instance, volume level of advertisements tend to
be louder than programmes).

Dynamic Bass: Dynamic Bass is used to increase
bass effect of the TV set.

Digital Out: Sets digital out audio type.

Conguring Your TV’s Settings

Detailed settings can be configured to suit your
personal preferences.

Press MENU button and select Settings icon by using
“ ” or “ ” button. Press OK button to view Settings
menu.

- 26 -

Operating Settings Menu Items

• Press “ ” or “ ” button to highlight a menu item.

• Press OK button to select an item.

• Press MENU button to exit.

Settings Menu Items

Conditional Access: Controls conditional access

modules when available.

Language: Congures language settings.

Parental: Congures parental settings.

Timers: Sets timers for selected programmes.

Date/Time: Sets date and time.

Sources: Enables or disables selected source

options.

Other Settings: Displays other setting options of
the TV set.

Using a Conditional Access
Module (not included)

IMPORTANT: Insert or remove the CI module only
when the TV is SWITCHED OFF.

• In order to watch certain digital channels, a conditional
access module (CAM) may be necessary. This module
must be inserted in the CI slot of your TV.

• Obtain the Conditional Access Module (CAM) and
the viewing card by subscribing to a pay channel
company, then insert those to the TV using the
following procedure.

• Insert the CAM and then the viewing card to the
slot that is located in the terminal cover at the rear
side of the TV.

• The CAM should be correctly inserted, it is
impossible to insert fully if reversed. The CAM or
the TV terminal may be damaged if the CAM is
forcefully inserted.

Connect the TV to the mains supply, switch on
and then wait for few moments until the card is
activated.

• When no module is inserted, “No Common
Interface module detected” message appears on

the screen.

• Refer to the module instruction manual for details
of the settings.

Viewing Conditional Access Menu (*)

(*) These menu settings may change depending on
the service provider.

Press MENU button and select the icon by using
“ ” or “ ” button. Press OK button to view Settings
menu. Use “ ” or “ ” button to highlight Conditional
Access and press OK to view menu items.

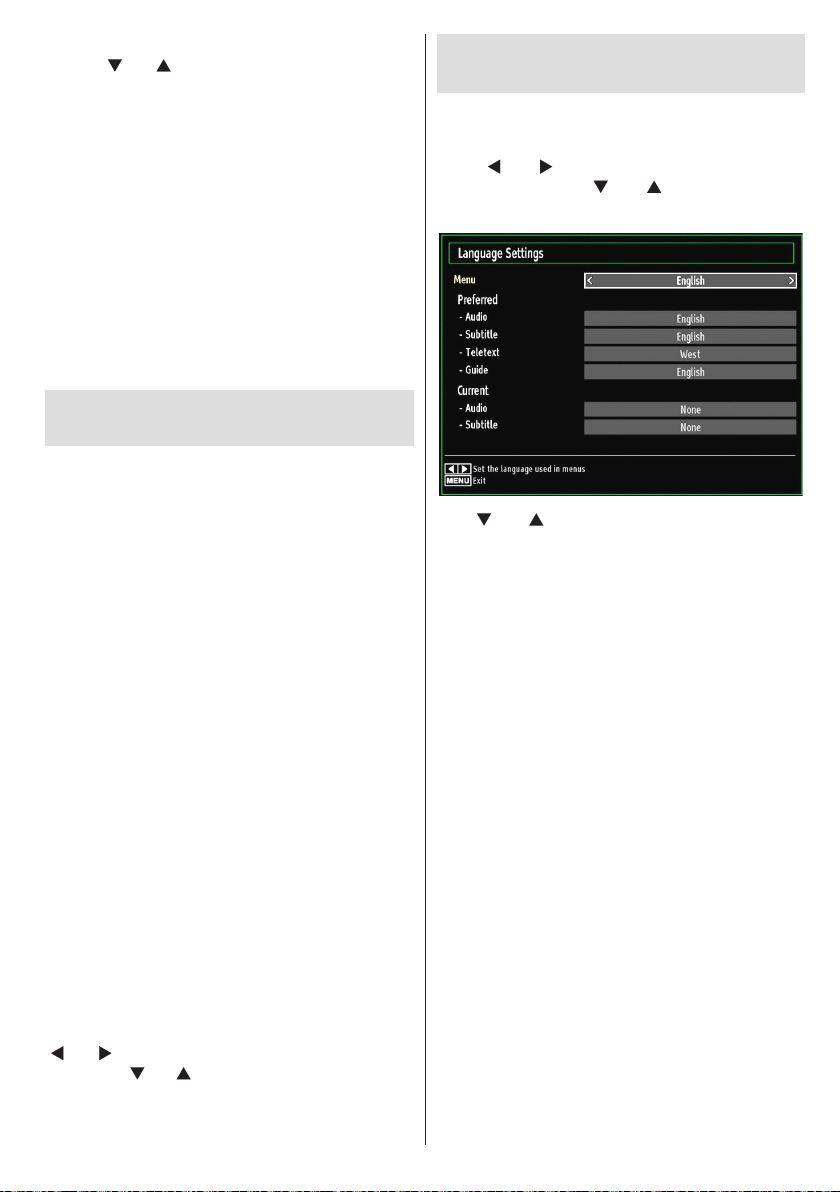

Conguring Language

Preferences

You can operate the TV’s language settings using
this menu.

Press MENU button and select the Settings icon by
using “ ” or “ ” button. Press OK button to view
Settings menu. Use “ ” or “ ” button to highlight
Language and press OK to continue:

Use “ ” or “ ” button to set an item. Settings are
stored automatically.

Menu: displays the system language.

Preferred

These settings will be used if available. Otherwise the
current settings will be used.

• Audio: Sets the preferred audio language.

• Subtitle: Sets the subtitle language. Selected

language will be seen in subtitles.

• Teletext: Sets teletext language.

• Guide: Sets the preferred Guide language.

- 27 -

Current (*)

(*) These settings can be changed if only the
broadcaster supports. Otherwise, settings will not be
available to be changed.

• Audio: Changes the audio language for the current
channel.

• Subtitle: Sets the subtitle language for the current
channel.

Note: If the Country option is set to Denmark, Sweden,
Norway or Finland, the Language Settings menu will
function as described below:

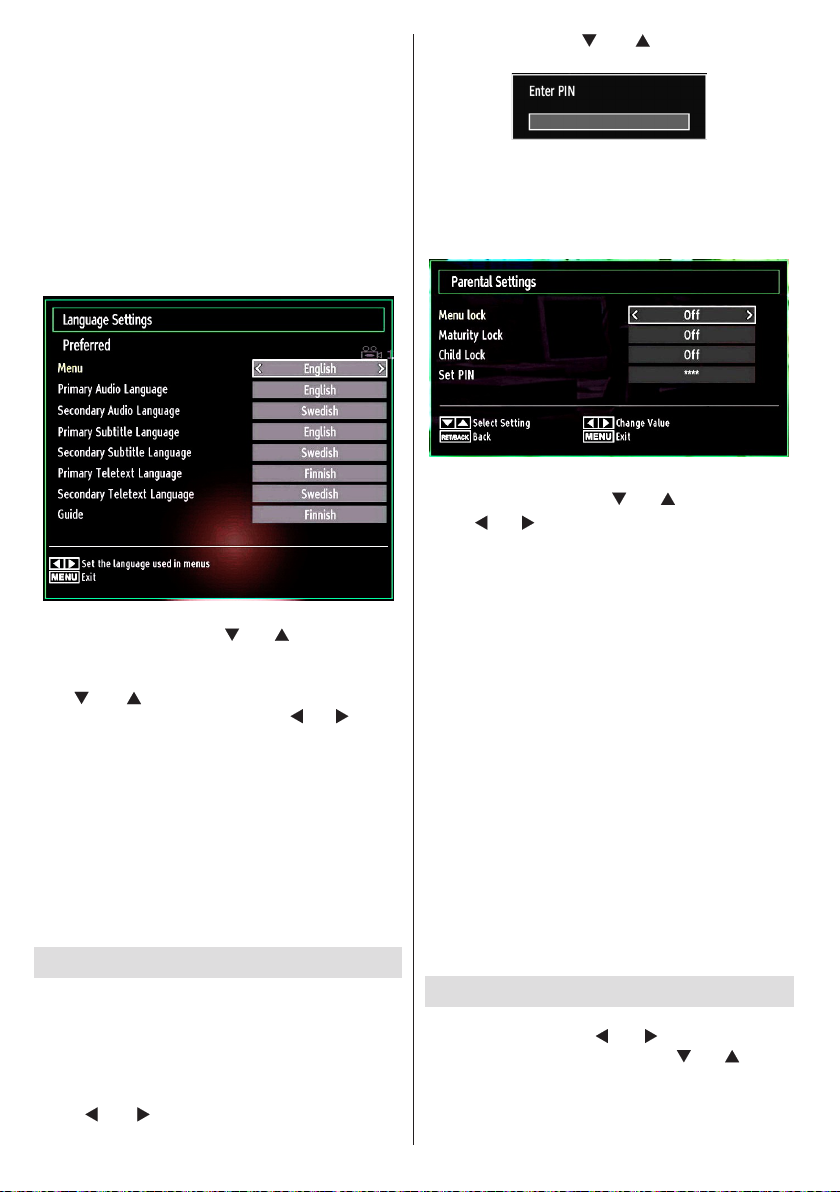

Language Settings

In the conguration menu, highlight the Language

Settings item by pressing “ ” or “ ” buttons. Press
OK and Language Settings submenu will be displayed
on the screen:

Use “ ” or “ ” buttons to highlight the menu item
that will be adjusted and then press “ ” or “ ” button
to set.

Notes:

• System Language determines the on-screen menu
language.

• Audio Language is used for selecting the soundtrack
of a channels.

• Primary settings are the rst priority when multiple

choices are available on a broadcast. Secondary

settings are the alternatives when the rst options

are not available.

Parental Control

To prohibit viewing of certain programmes, channels
and menus can be locked by using the parental
control system.

This function enables or disables the menu protection
system and allows the PIN code to be changed.

Press MENU button and select the Settings icon by
using “ ” or “ ” button. Press OK button to view

Settings menu. Use “ ” or “ ” button to highlight
Parental and press OK to continue:

To display parental lock menu options, the PIN number
should be entered. The factory default PIN number
is 0000.

After coding the correct PIN number, parental settings
menu will be displayed:

Parental Settings Menu Operation

• Select an item by using “ ” or “ ” button.

• Use “ ” or “ ” button to set an item.

• Press OK button to view more options.

Menu Lock (optional): Menu lock setting enables or

disables the menu access. You can disable access to

the installation menu or the whole menu system.

Maturity Lock (optional): When set, this option
gets the maturity information from the broadcast and
if this maturity level is disabled, disables access to
the broadcast.

Child Lock (optional): When Child Lock is set, the TV
can only be controlled by the remote control. In this
case the control panel buttons will not work. Hence,
if one of those buttons is pressed, Child Lock Is On
will be displayed on the screen when the menu screen
is not visible.

Set PIN: Denes a new PIN number. Use numeric
buttons to enter a new pin number. You will need
to enter your new pin a second time for verication

purposes.

IMPORTANT: The factory default pin number is 0000,
if you change the pin number make sure you write it
down and keep it safe.

Timers

To view Timers menu, press MENU button and select
Settings icon by using “ ” or “ ” button. Press OK
button to view Settings menu. Use “ ” or “ ” button
to highlight Timers and press OK to continue:

- 28 -

Setting Sleep Timer

This setting is used for setting the TV to turn off after
a certain time.

• Highlight Sleep Timer by using “ ” or “ ” button.

• Use “ ” or “ ” button to set. The timer can be

programmed between Off and 2.00 hours (120
minutes) in steps of 30 minutes.

Setting Programme Timers

You can set programme timers for a particular
programme using this feature.

Press “ ” button to set timers on an event. Programme
timer function buttons will be displayed on the
screen.

Adding a Timer

• Press YELLOW button on the remote control to

add a timer. The following menu appears on the
screen:

Channel: Changes network type by using “ ” or “ ”.

Timer Type: You can select timer type as Record

or Timer.

Date: Enter a date using the numeric buttons.

Start: Enter a starting time using the numeric

buttons.

End: Enter an ending time using the numeric
buttons.

Duration: Displays duration between the starting and
ending time.

Repeat: Sets a timer to be repeated as Once, Daily or
Weekly. Use “ ” or “ ” buttons to select an option.

Change/Delete: Sets the change/delete
permission.

Playback: Sets the playback permission and parental
settings.

• Press GREEN button to save the timer. Press RED

button to cancel.

Change/Delete:Controls parental settings on timers.

Editing a Timer

• Select the timer you want to edit by pressing “ ”

or “ ” button.

• Press GREEN button. Edit Timer menu screen will

be displayed.

• When nished with editing, press GREEN button to

save. You can press MENU button to cancel.

Deleting a Timer

• Select the timer you want to delete by pressing “

” or “ ” button.

• Press RED button.

• Select YES by using “ ” or “ ” buttons to delete the

timer. Select NO to cancel.

- 29 -

Recording Conguration

Select Recording Conguration item in the Settings
menu to congure recording settings. The following
menu is displayed for recording conguration.

(optional)

The following options are available for adjustments:

Start Early (*)

You set recording timer’s starting time to start earlier

by using this setting.

(*) Available only for EU country options.

End Late (*)

You set recording timer ’s end time to end later by

using this settings.

(*) Available only for EU country options.

Max Timeshift

This setting allows you to set the maximum time
allowed for timeshifting. Duration options are
approximate and can change accordingly, depending
on the broadcast received.

Format Disk

IMPORTANT: Note that ALL the data stored on the
USB disk will be lost and then the disk format will be
converted to FAT32 if you activate this feature.

•If you want to delete all les on the connected USB

hard disk drive or memory stick, you can use Format
Disk option.

• Also, if your USB disk malfunctions, you can try

formatting the USB disk. In most cases formatting
the USB disk will restore normal operation; however,
ALL the data stored on the USB disk will be lost in
such a case.

• Press OK button while the Format Disk option
is highlighted. A menu will appear on the screen,
requiring you to enter a pin number. If you have not
changed the pin number, the factory default is 0000.
After you enter the pin, a pop-up menu appears on
the screen to ensure that the hard disk should be

formatted, select “YES” and press OK to format the

hard disk. Select “NO” and press OK to cancel. Ensure
you back up important recordings before you format
the USB disk unit.

Hard Disk Info

To view the details about the USB disk, highlight Hard
Disk Info by using “ ” or “ ” key and press OK. USB
disk information will be displayed:

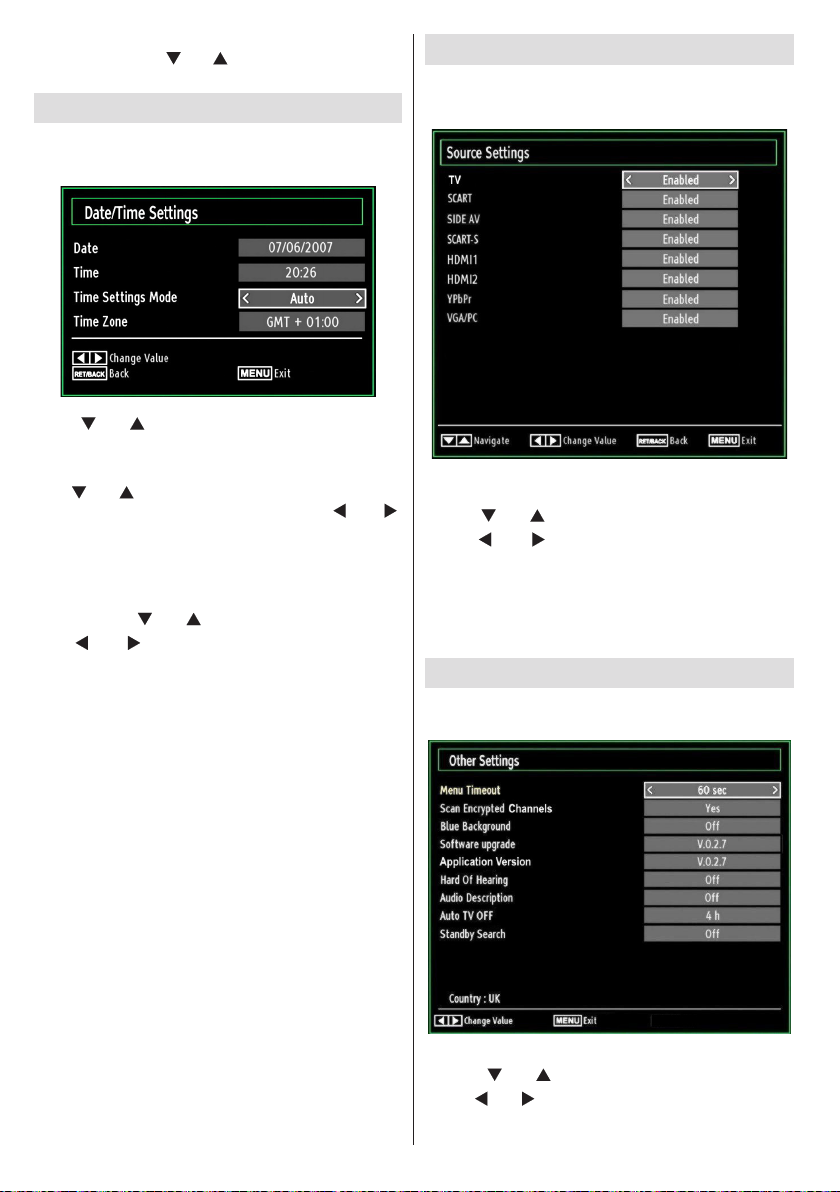

Conguring Date/Time Settings

Select Date/Time in the Settings menu to congure
Date/Time settings. Press OK button.

• Use “ ” or “ ” buttons to highlight Date/Time.

Date,Time,Time Settings Mode and Time Zone Setting
will be available.

Use “ ” or “ ” buttons to highlight the Time Settings
Mode. Time Settings Mode is set using “ ” or “ ”
buttons. It can be set to AUTO or MANUAL.

When AUTO is selected, Date/Time and Time Zone
options will not be available to be set. If MANUAL
option is selected as the Time Zone can be altered:

• By pressing “ ” or “ ” buttons select Time Zone.

Use “ ” or “ ” buttons to change the Time Zone
between GMT-12 or GMT+12. Date/Time on the top
of the menu list will then change according to the
selected Time Zone.

• Changes are automatically stored. Press MENU to
exit.

Conguring Source Settings

You can enables or disable selected source options. The
TV will not switch to the disabled source options when
SOURCE button is pressed.

• Select Sources in the Settings menu and press OK
button.

• Press“ ” or “ ” buttons to select a source.

• Use “ ” or “ ” button to enable or disable the

selected source. Changes are automatically
stored.

Note : YPbPr mode can be used only when you
connect a device that has a YPbPr output through the
PC input with YPbPr to PC cable (not supplied).

Conguring Other Settings

To view general conguration preferences, select Other
Settings in the Settings menu and press OK button.

Operation

• Press “ ” or “ ” buttons to select an item.

• Use “ ” or “ ” button to set an option.

• Press OK button to view a sub-menu.

- 30 -

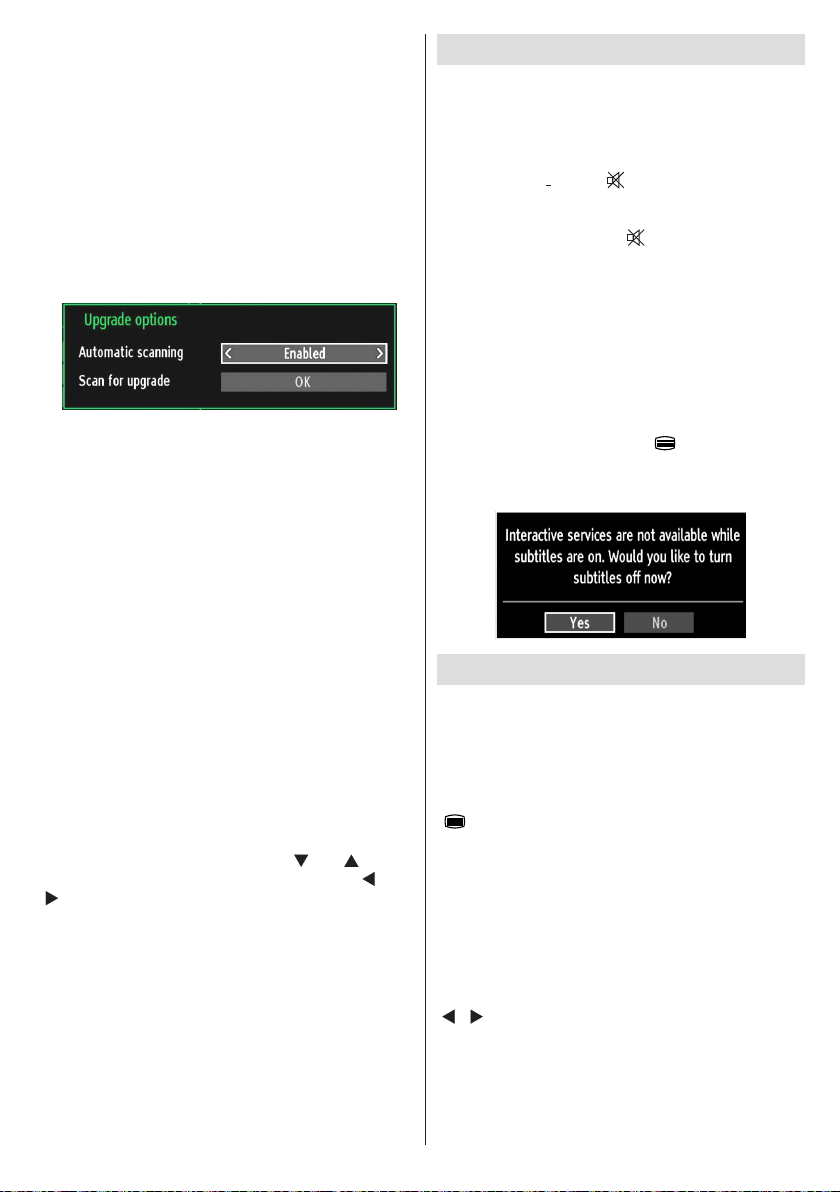

Menu Timeout: Changes timeout duration for menu
screens.

Scan Encrypted Channels: When this setting is on,
search process will locate the encrypted channels as
well. If it is set as Off, encrypted channels will not be
located in automatic search or manual search.

Blue Background (Optional): Activates or deactivates
blue background system when the signal is weak or
absent.

Software Upgrade: To ensure that your TV always
has the most update information, you can use this
setting. In order for the proper operation, please
ensure that the TV is set to standby mode.

You can enable or disable automatic upgrade by

setting Automatic Scanning option.

You can manually search for new software by

selecting Scan for upgrade.

Application version: Displays the current application

version.

Hard of Hearing: If the broadcaster enables any
special signal concerning the audio, you can set this
setting as On to receive such signals.

Audio Description: Audio description refers to
an additional narration track for blind and visually
impaired viewers of visual media, including television
and movies. The description narrator talks through
the presentation, describing what is happening on the
screen during the natural pauses in the audio (and
sometimes during dialogue, if deemed necessary).

You can use this feature, only if the broadcaster

supports that additional narration track.

Auto TV Off: You can set the timeout value of auto off
feature.After the timeout value is reached and the TV
is not operated for selected time, the TV will go off.

Standby Search (optional): Use “ ” or “ ” button
to select Standby Search and then press “ ” or “

” button to set this setting as On or Off. If you
change Standby Search to Off, this function will be
unavailable.To use Standby search please make sure
that you select Standby Search as On.

Other Features

Displaying TV Information: Programme Number,

Programme Name, Sound Indicator, time, teletext,
channel type and resolution information is displayed
on the screen when a new programme is entered or
“INFO” button is pressed.

Mute Function: Press “ ” button to disable sound.
Mute indicator will be displayed in the upper side of
the screen. To cancel mute, there are two alternatives;
the rst one is pressing the “ ” button and the second
one is increasing the volume level.

Picture Mode Selection: By pressing PRESETS
button, you can change Picture Mode settings in
accordance with your viewing requirements. Available
options are Dynamic, Natural, Cinema and Game.

Displaying Subtitles: You can enable subtitles by

pressing the SUBTITLE button of the remote control.
Press SUBTITLE button again to disable subtitle
function.

If “Subtitle” is On, pressing the “ ” button causes the
following warning message display on the screen (**
for UK only)

Teletext

The teletext system transmits information such as
news, sports and weather on your TV. Note that if the
signal degrades, for example in poor/adverse weather
conditions, some text errors may occur or the teletext
mode may be aborted.

Teletext function buttons are listed below:

“ ” Teletext / Mix : Activates teletext mode when

pressed once. Press again to place the teletext screen
over the programme (mix).Pressing again will quit the
teletext mode.

“RETURN” Index: Selects the teletext index page.

“INFO”Reveal: Shows hidden information (e.g.

solutions of games).

“OK” Hold: Holds a text page when convenient. Press
again to resume.

“ ”/“ ” Subcode Pages : Selects subcode pages if
available when the teletext is activated.

P+ or P- and numbers (0-9): Press to select a page.

Note: Most TV stations use code 100 for their index
pages.

- 31 -

Coloured Buttons (RED/GREEN/YELLOW/
BLUE)

Your TV supports both FASTEXT and TOP text
systems. When these systems are available, the
pages are divided into groups or topics. When
FASTEXT system is available, sections in a teletext
page will become colour-coded and can be selected
by pressing the coloured buttons. Press a coloured
button that corresponds to with your needs. The
coloured writings will appear, showing you which
coloured buttons to use when TOP text transmission
is present. Pressing “ ” or “ ” commands will request
the next or previous page respec tively.

Digital Teletext

• Press the “ ” button.

• The digital teletext information appears.

• Operate it with the coloured buttons, cursor buttons

and OK button.

The operation method may differ depending on the
contents of the digital teletext.

Follow the instructions displayed on the digital teletext
screen.

• When the “ ” button is pressed, the TV returns to
television broadcasting.

• The aspect ratio (picture shape) when watching
a channel with just digital teletext broadcasting is
the same as the aspect ratio of the picture viewed
previously.

Tips

Screen Care: Clean the screen with a slightly damp,

soft cloth. Do not use abrasive solvents as they may
damage the coating layer of the TV screen. For your
safety, unplug the mains plug when cleaning the set.
When moving the TV, hold it properly from the bottom
of the unit.

Image Persistence: Please note that ghosting may
occur while displaying a persistent image. On LCD

TVs’ image persistence may disappear after a short

time. Try turning the TV off for a while.

To avoid this, do not leave the screen in still picture
for extended periods.

No Power: If your TV system has no power, please
check the main power cable and connection to the
mains socket outlet.

Poor Picture: Have you selected the correct TV
system? Is your TV set or house aerial located too close
to a non-earthed audio equipment or neon lights, etc.?
Mountains or high buildings can cause double pictures
or ghost images. Sometimes you can improve the
picture quality by changing the direction of the aerial.
Is the picture or teletext unrecognisable? Check if you
have entered the correct frequency. Please retune the

channels. The picture quality may degrade when two
peripherals are connected to the TV at the same time.
In such a case, disconnect one of the peripherals.

No Picture: Is the aerial connected properly? Are the
plugs connected tightly to the aerial socket? Is the
aerial cable damaged? Are suitable plugs used to
connect the aerial? If you are in doubt, consult your
dealer. No Picture means that your TV is not receiving
a transmission. Have you selected the correct button
on the remote control? Try once more. Also make sure
the correct input source has been selected.

Sound: If you cannot hear any sound, check to see if
the “ ” button has been pressed. If sound is coming
from only one speaker, check if the audio balance has
been set to one extreme.

Remote Control: Your TV no longer responds to the

remote control. Perhaps the batteries are exhausted.
If so you can still use the local buttons on the TV.

Input Sources: If you cannot select an input source,
it is possible that no device is connected. Check
the AV cables and connections if you have tried to
connect a device

Recording Unavailable: To record a programme, you

should rst connect a USB disk to your TV while the
TV is switched off. You should then switch on the TV to

enable recording feature. Otherwise, recording feature
will not be available. If you cannot perform recording,
try switching off the TV and then re-inserting the USB
device while the TV is switched off.

USB Is too Slow: If “USB is too slow” message is
displayed on the screen while starting a recording,
try restarting the recording. If you still get the same
error, it is possible that your USB disk does not meet
the speed requirements. Try connecting another
USB disk.

- 32 -

Appendix A: PC Input Typical

Index

Resolution

Frequency

2

5

9

10

11

12

13

14

15

17

18

20

21

23

Display Modes

The display has a maximum resolution of 1920 x 1200.
The following table is an illustration of some of the

typical video display modes. Your TV may not support

different resolutions. Supported resolution modes are
listed below. If you switch your PC to an unsupported
mode, a warning OSD will appear on the screen.

1

3

4

6

7

8

16

19

22

640x350 85 Hz

640x400 70 Hz

640x480

800x600

832x624 75 Hz

1024x768

1152x864

1280x768 60 HzA

1280x768 60 HzB

1280x768 75Hz-85Hz

1280x960

1280x1024

1360x768 60 Hz

1400x1050 60 HzA

1400x1050 60 HzB

1400x1050

1400x900

1600x1200 60 Hz

1680x1050 60 Hz

1920x1080 60 HzA

1920x1080 60 HzB

1920x1200 60HzA

1920x1200 60Hz

60Hz-66Hz-72Hz

-75Hz-85Hz

56Hz-60Hz-70Hz-72Hz

-75Hz-85Hz

60Hz-66Hz-70Hz-72Hz

-75Hz

60Hz-70Hz-75Hz

-85 Hz

60Hz-75Hz-85Hz

60Hz-75Hz-85Hz

75Hz-85Hz

65Hz-75Hz

Appendix B: AV and HDMI Signal
Compatibility (Input Signal Types)

Source Supported Signals Available

PAL 50/60 O

EXT

(SCART)

Side AV

YPbPr

HDMI1
HDMI2

(X: Not Available, O: Available)

In some cases a signal on the LCD TV may not
be displayed properly. The problem may be an
inconsistency with standards from the source
equipment (DVD, Set-top box, etc. ). If you do
experience such a problem please contact your dealer
and also the manufacturer of the source equipment.

NTSC 60 O

RGB 50 O

RGB 60 O

PAL 50/60 O

NTSC 60 O

480I 60Hz O

480P 60Hz O

576I 50Hz O

576P 50Hz O

720P 50Hz O

720P 60Hz O

1080I 50Hz O

1080I 60Hz O

1080P 50Hz O

1080P 60Hz O

480I 60Hz O

480P 60Hz O

576I 50Hz O

576P 50Hz O

720P 50Hz O

720P 60Hz O

1080I 50Hz O

1080I 60Hz O

1080P 24Hz O

1080P 25Hz O

1080P 30Hz O

1080P 50Hz O

1080P 60Hz O

- 33 -

Appendix C: Supported DVI

1

4

7

8

9

10

11

12

13

15

16

18

19

Resolutions

When connecting devices to your TV’s connectors by

using DVI to HDMI cables (not supplied), you can refer
to the following resolution information.

Index Resolution Frequency

14

17

20

640x400

2

3

5

6

640x480

800x600

832x624

1024x768

1152x864

1152x870

1280x768

1280x768

1280x960

1280x1024

1360x768

1400x1050

1400x1050

1400x900

1600x1200

1680x1050

1920x1080

480i-480p

576i-576p

70Hz

60Hz-66Hz-72Hz

-75Hz

56Hz-60Hz-70Hz-

72Hz -75Hz

75 Hz

60Hz-66Hz-70Hz-

72Hz -75Hz

60Hz-70Hz-75Hz

75Hz

60 Hz

75Hz

60Hz-75Hz

60Hz-75Hz

60 Hz

60 Hz

75Hz

65Hz-75Hz

60 Hz

60 Hz

60 Hz

60Hz

50Hz

Appendix D: Software Upgrade

• Your TV is capable of nding and updating new

software upgrades over broadcast channels.

• For broadcast channels search, the TV looks at the

available channels stored in your settings. So before
the software upgrade search, it is advised to auto
search and update all available channels.

1) Software upgrade search via user interface

• It is possible to manually to check if there is a new

software upgrade for your TV set.

• Simply navigate on your main menu. Choose

Settings and select Other Settings menu. In Other
Settings menu navigate on to the Software Upgrade

item and press OK button to open Upgrade Options
menu.

• In Upgrade Options menu select Scan for upgrade
and press OK button.

• If a new upgrade is found, it starts to download

the upgrade. A progress bar indicates the remaining
download progress. When the download completes
successfully a message is displayed for reboot to
activate new software. Press OK to continue with the
reboot operation.

2) 3.AM search and upgrade mode

• If Automatic scanning in Upgrade Options menu is
enabled, the TV wakes up at 03:00 and searches the
broadcast channels for new software upgrade. If new
software is found and downloaded successfully, with
the next power up the TV opens with new software
version.

Note on reboot operation: Reboot is the last step
in software upgrade operation if download of new

software is nished successfully. During reboot TV
makes nal initializations. In the reboot sequence

panel power is closed and front led indicates the
activity with blinking. Around 5 minutes later TV
restarts with new software activated.

• If your TV fails to restart in 10 minutes, unplug power

for 10 minutes and re-plug again. TV should open with
new software safely. If you still can not get TV working,
please kindly repeat unplug and plug sequence a few
times more. If your set still can not operate, please call

the service personnel to x the problem for you.

Caution: While the LCD is blinking during reboot
do not unplug your TV’s power. Doing this may
cause your TV not to re-start again and can only

be xed by service personnel.

- 34 -

Appendix E : Supported File Formats for USB Mode

File

Extension

Format

Remarks

Video

Audio

(Maximum resolution/Bit rate etc.)

Media

.mpg, .mpeg MPEG1, 2 MPEG Layer 1/2/3

.dat MPEG1, 2

.vob MPEG2

Movie

.avi

Music .mp3 -


Subtitle

.jpg .jpeg

.bmp - max WxH = 9600x6400 3840000bytes

.sub

.srt

MPEG2 PCM/MP3

Xvid 1.00, Xvid 1.01,
Xvid 1.02, Xvid 1.03,

Xvid 1.10-beta1/2

MPEG2

PCM

MPEG 1 Layer 1 / 2

(MP3)

Baseline JPEG max WxH = 15360x8640 4147200bytes

Progressive JPEG max WxH = 1024x768 6291456bytes

- -

MAX 1920x1080 @ 30P 20Mbit/sec

MAX 1920x1080 @ 30P 20Mbit/sec

32Kbps ~ 320Kbps(Bit rate)

32KHz ~ 48KHz(Sampling rate)

Battery

Products

Information for Users on Disposal of old Equipment and
Batteries

[European Union only]

These symbols indicate that equipment with these symbols should not
be disposed of as general household waste. If you want to dispose
of the product or battery, please consider the collection systems or
facilities for appropriate recycling.

Notice: The sign Pb below the symbol for batteries indicates that

this battery contains lead.

- 35 -

Appendix F: Supported 3D Content Resolutions

FP

FP

HDMI MBV MBP DTV ATV OTHER

1080p@24

720p@50

FP

720p@60

1080p FC SBS, TB SBS, TB SBS, TB SBS, TB

720p FC SBS, TB SBS, TB SBS, TB SBS, TB

1080i FC SBS SBS SBS SBS

OTHER

Please note that if you apply 720p FC TB input; the picture will be scaled smaller than the original
size in the middle of the screen.

SBS: Side By Side

TB: Top Bottom

MBP: Media Browser Picture

MBV: Media Browser Video

FC: Frame Compatible

FP: Frame Pack

in MBP: Supported only when, the image’s height is multiples of 2 and the image’s width is multiples of 16

and if the image width is equal to the panel width or wider.

in DTV: Supported only when, the image’s height is between 1700 and 1900 and the image’s width is equal
to 1280 or 720.

(*): Not supported if the image provides 1080i resolution.

Supported

Supported

Supported

Not

Supported

Not

Supported

Not

Supported

Not

Supported

Not

Supported

Not

Supported

Not

Supported

Not

Supported

(*) (*)

Not

Supported

Not

Supported

Not

Supported

Not

Supported

Not

Supported

Not

Supported

Not

Supported

Not

Supported

Not

Supported

Not

Supported

Not

Supported

Not

Supported

Not

Supported

SBS, TB

SBS, TB

SBS

Not

Supported

3D Glasses

Frame Material: ABS Frame Type: Foldable Weights: 21g

Polarization Film Type: Circular Light Penetration Rate: 40%

Polarization Efficiency: 99.9% Lens Thickness: 0.28mm Len s Tre atmen t: Hard ­coated

- 36 -

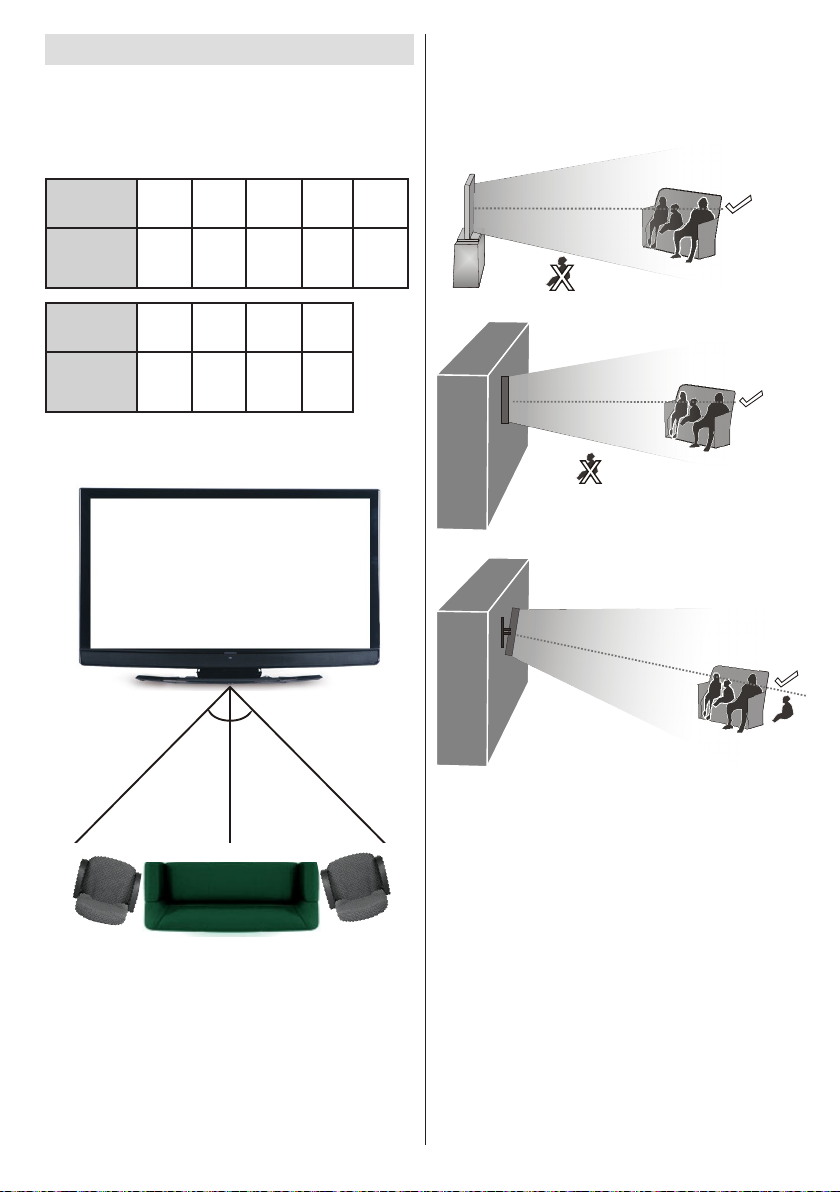

3D Viewing Information

Your 3D Viewing experience can be affected by the

location of the viewer and the TV set. To maximise
your enjoyment we recommend you follow the
guidelines below:

Viewing Distance

Size

(inch)

Viewing

distance

(m)

22 26 32 37 40

1,30 1,50 1,90 2,20 2,40

Vertical Viewing Angle

It is always recommended to place a TV at the correct
seated eye height of the viewer. If the TV must be
placed higher or lower it should be tilted accordingly
in its stand or wall mount.

Eye Line

Size

(inch)

Viewing

distance

(m)

42 46 47 55

2,50 2,75 2,80 3,25

Horizontal Viewing Angle

45

45

Eye Line

Eye Line

- 37 -

Specications

TV BROADCASTING

PAL/SECAM B/G D/K K’ I/I’ L/L’

RECEIVING CHANNELS

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

NUMBER OF PRESET CHANNELS

1000

CHANNEL INDICATOR

On Screen Display

RF AERIAL INPUT

75 Ohm (unbalanced)

OPERATING VOLTAGE

220-240V AC, 50 Hz

AUDIO

German + Nicam Stereo

AUDIO OUTPUT POWER (W

2 x 6

POWER CONSUMPTION (W)

150 W (max)

PANEL

16:9 display, 32” Screen Size

DIMENSIONS (mm)

DxLxH (With foot): 187 x 783 x 556

Weight (Kg): 10,50

DxLxH (Without foot): 94,5 x 783 x 513,5

Weight (Kg): 9,50

) (10% THD)

RMS.

Digital

Reception

DVB-T

MHEG-5 ENGINE compliant with ISO/IEC 13522-5 UK engine Prole 1

for UKObject carousel support compliant with ISO/IEC 135818-6 and UK DTT prole

Frequency range: 474-850 MHz for UK models

170-862 MHz for EU models

Transmission standard: DVB-T. MPEG-2

Demodulation: COFDM with 2K/8K FFT mode

FEC: all DVB modes

Video: MP@ML, PAL, 4:3/16:9

Audio: MPEG Layer I&II 32/44.148kHz.

- 38 -

Important Instruction

For your own safety read following instruction carefully before attempting to connect this unit to the mains
supply.

MAINS (AC) OPERATION

The wires in the mains lead are coloured in accordance with the following code :

GREEN

&

FUSE

YELLOW

(Earth)

(if there is earth cable)

BROWN

BLUE

(Live)

(Neutral)

IMPORTANT

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured green and yellow must be connected to the terminal which is marked with
the letter E, or by the earth symbol, or coloured green or green and yellow.

The wire which is coloured blue or black must be connected to the terminal which is marked with the
letter N or coloured Black.

The wire which is coloured brown or red must be connected to the terminal which is marked with the
letter L or coloured Red.

For continued protection against risk of re, replace only with same type and rating of fuse (ASTA

approved 5A 250VAC fuse).

CAUTION

TO PREVENT ELECTRIC SHOCK DISCONNECT FROM THE MAINS BEFORE REMOVING
COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.

SAFETY PRECAUTION

THIS EQUIPMENT MUST BE DISCONNECTED FROM THE MAINS WHEN NOT IN USE. DO NOT
ALLOW THIS UNIT TO BE EXPOSED TO RAIN OR MOISTURE.

- 39 -

To Program Your SKY Remote For Your TV

1. Make sure your SKY box is connected to your TV

2. Turn your TV and SKY box on

3. Press TV on your SKY remote control handset

4. Hold down SELECT and the RED button together for about two seconds,

until the red light on the SKY remote blinks twice.

5. Key in 065 on your SKY remote. The light on the SKY remote should blink

twice

6. Press the STANDBY button on your SKY remote control. Your TV should

now switch off.

7. Press SELECT again. The light on your SKY remote control should now

blink twice

You should now be able to control some basic functions on your TV from your
SKY remote control (e.g. volume up/down, programme up/down).

- 40 -

To Enable 3D Playback from a SKY box*

Make sure your SKY box is connected to your TV

Select a SKY 3D channel

Press the ‘Menu’ button on your TV remote control

Select ‘Picture’

Select ‘3D Menu’

Change the setting to 3D side by side

Once setup, 3D channels will now be available in 3D.

Note: You will need to de-select this mode when returning back to 2D channels.

*Requires subscription to SKY 3D channels and the appropriate hardware

To Enable 3D Playback on PS3

Make sure your PS3 console is connected to your TV

Turn your TV and PS3 console off

Turn on the TV and wait for it to power up

Hold down the power button on the console until you hear a beep

The PS3 will then identify the 3DTV and ask for the screen resolution information and the screen size

Once setup, the PS3 will now have the ability to play both games and Blu-ray 3D discs in 3D on your 3D TV

- 41 -

www.finluxdirect.com

Customer helpline: 0845 459 5282

3
5
6
4
3
2
0
5
