Finlux 32F6030 User Manual
32F6030
colour television
owner’s manual
Contents
Package Contents .................................................. 2
Features ................................................................. 2
Introduction ............................................................. 2
Preparation ............................................................. 3
Safety Precautions ................................................. 3
Information for users in EU Countries .................... 4
Environmental Information ..................................... 5
Repair Information .............................................. 5
Remote Control Handset ........................................ 5
Inserting Batteries ............................................... 5
Remote Control Buttons ......................................... 6
TV and Operating Buttons ...................................... 7
Viewing the Connections – Back Connectors ......... 7
Viewing the Connections - Side Connectors .......... 8
Aerial Connection ................................................... 8
Power Connection .............................................. 8
Switching On/Off ..................................................... 9
To Switch the TV On ........................................... 9
To Switch the TV Off ........................................... 9
First Time Installation.............................................. 9
Using Side AV Connectors ................................... 10
Connecting to a DVD Player................................. 10
Using USB Inputs ..................................................11

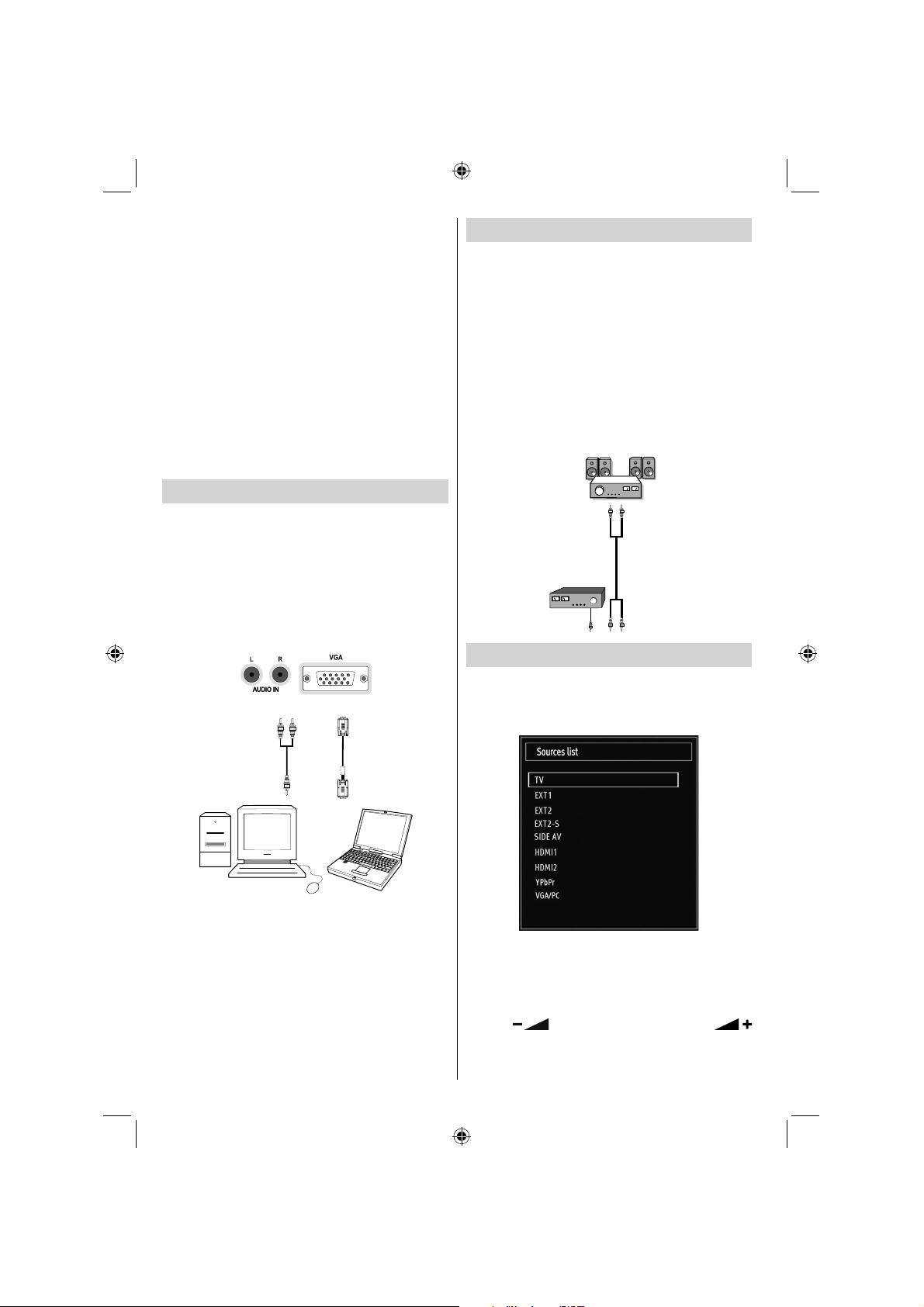

Connecting the TV to a PC ................................... 12
Using Other Connectors ....................................... 12
Input Selection ...................................................... 12
Operation with the Buttons on the TV ............... 12
Volume Setting .............................................. 12
Programme Selection ................................... 13
Viewing Main Menu ....................................... 13
AV Mode ....................................................... 13
Operation with the Remote Control .................. 13
Volume Setting .............................................. 13
Programme Selection (Previous or Next
Programme) .................................................. 13
Programme Selection (Direct Access) .......... 13

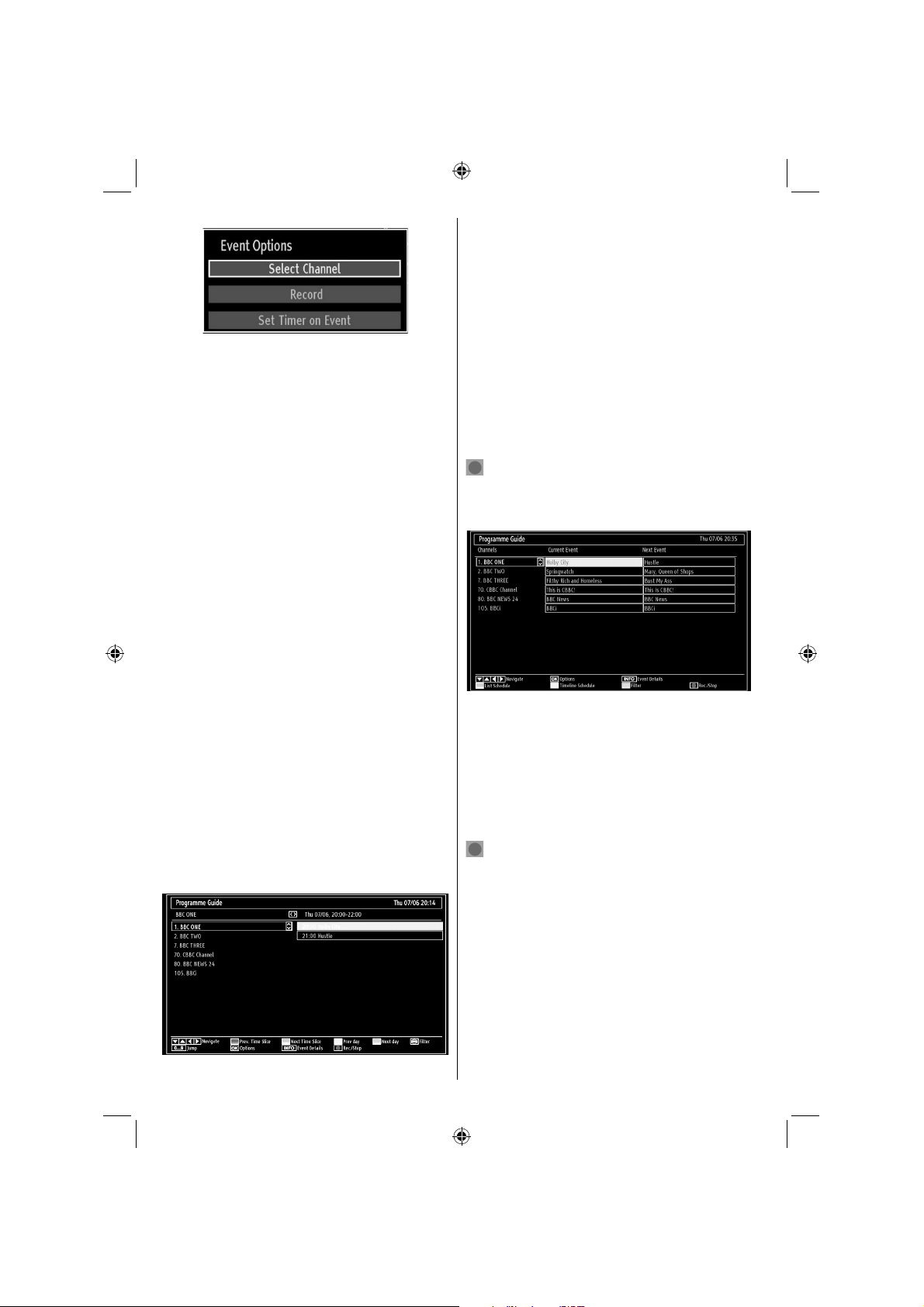

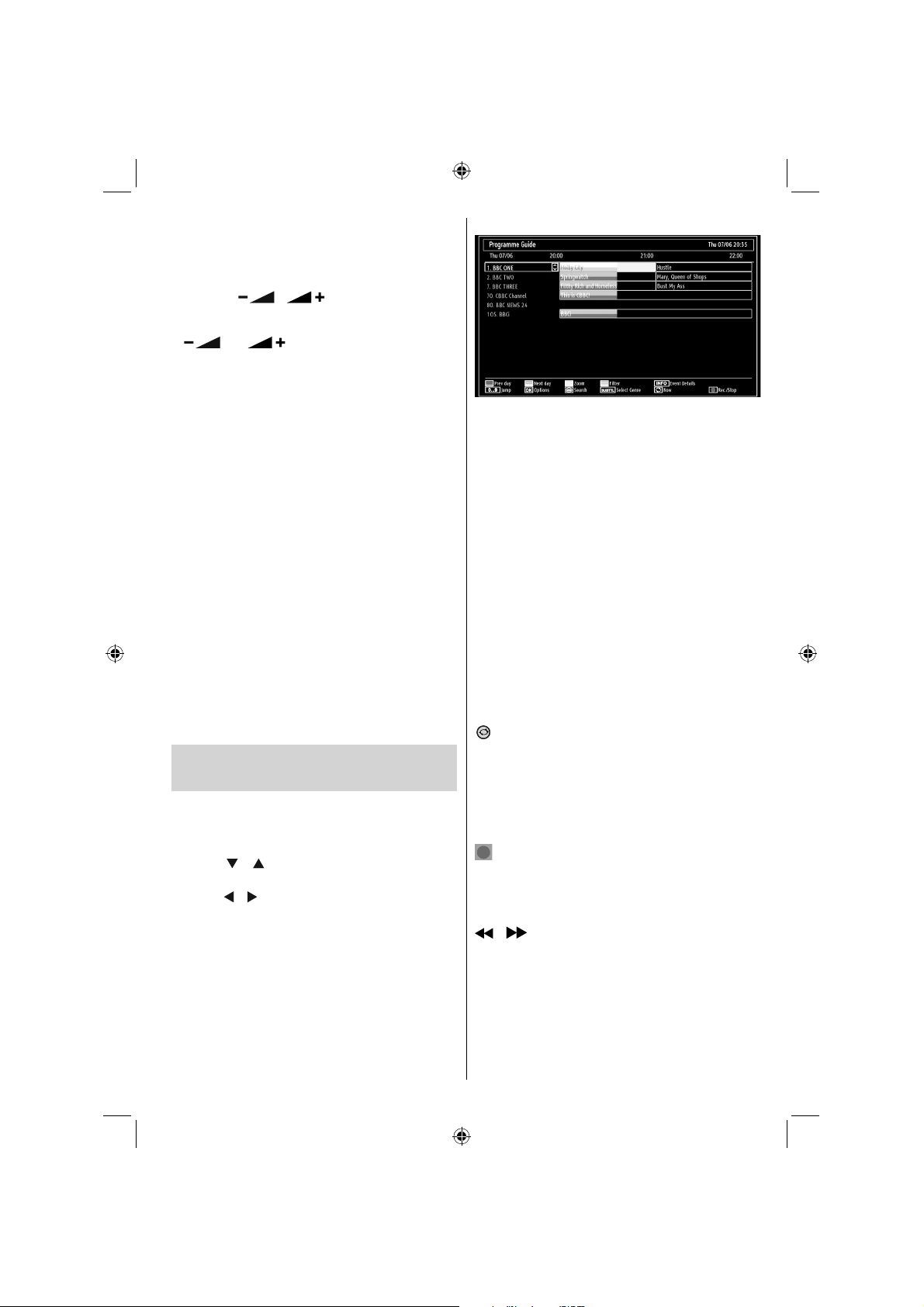

EPG Timeline Schedule .................................... 13
Recording via EPG Screen ............................... 13
Programme Options.......................................... 13
EPG Channel Schedule .................................... 14
EPG Now and Next........................................... 14
Installation ............................................................ 15

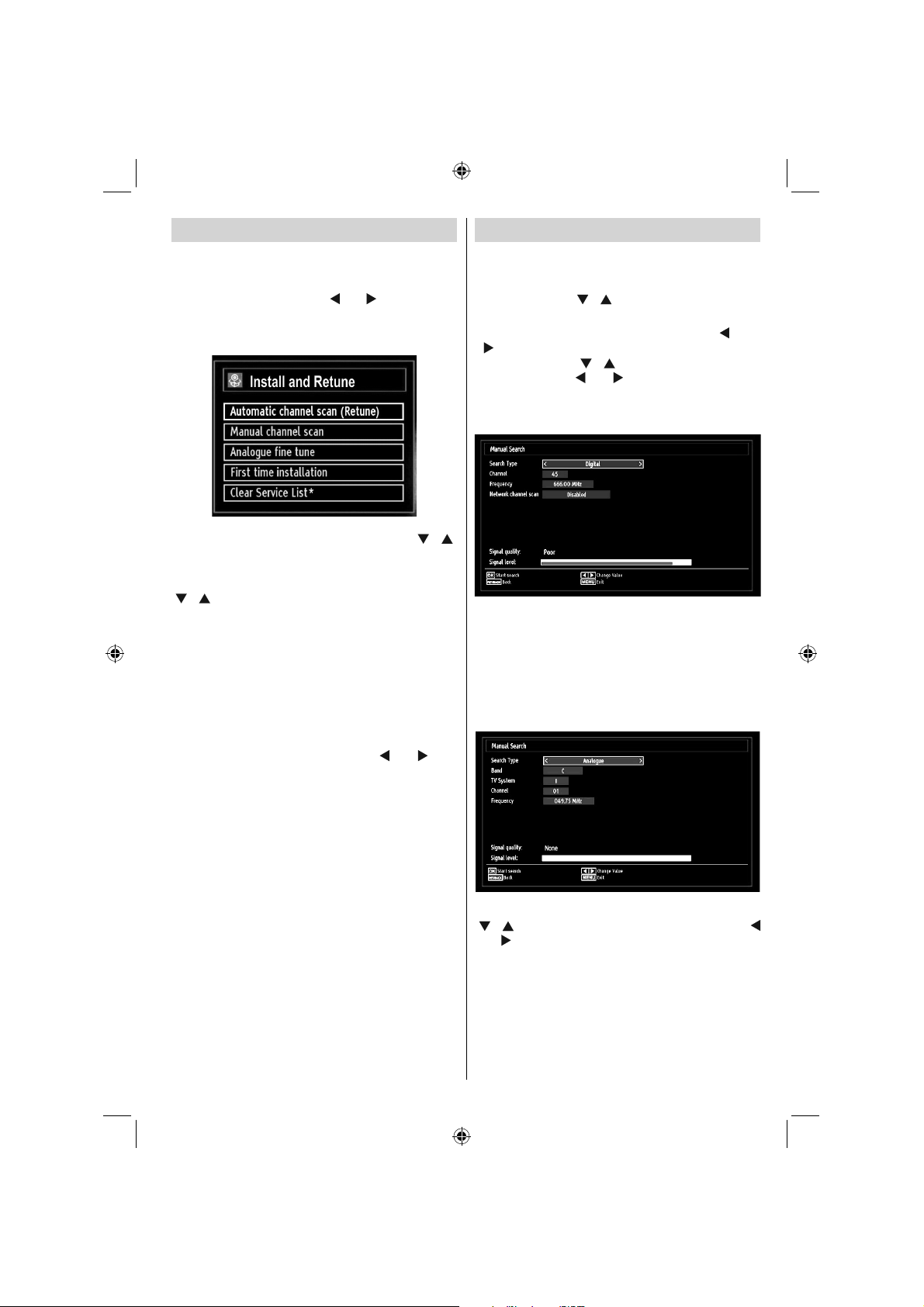

Auto Channel Scan Menu Operation ................ 15
Manual Tuning ..................................................... 15
Digital Manual Search....................................... 15
Analogue Manual Search ................................. 15
Analogue Fine Tune ............................................. 16

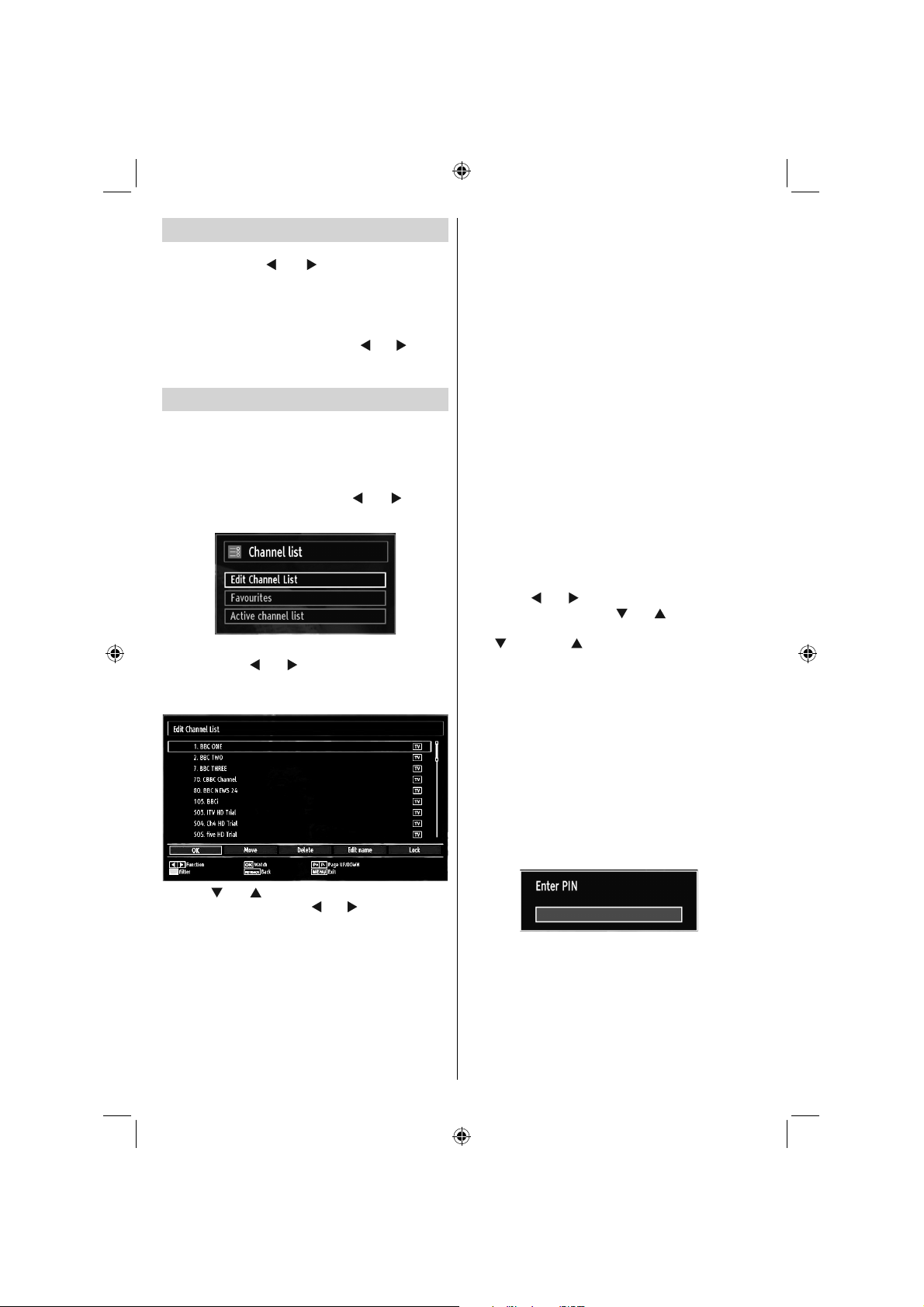

Managing Stations: Channel List .......................... 16
Operating the Channel List ............................... 16
Moving a Channel ............................................. 16
Deleting a Channel ........................................... 16
Renaming a Channel ........................................ 16
Locking a Channel ............................................ 16

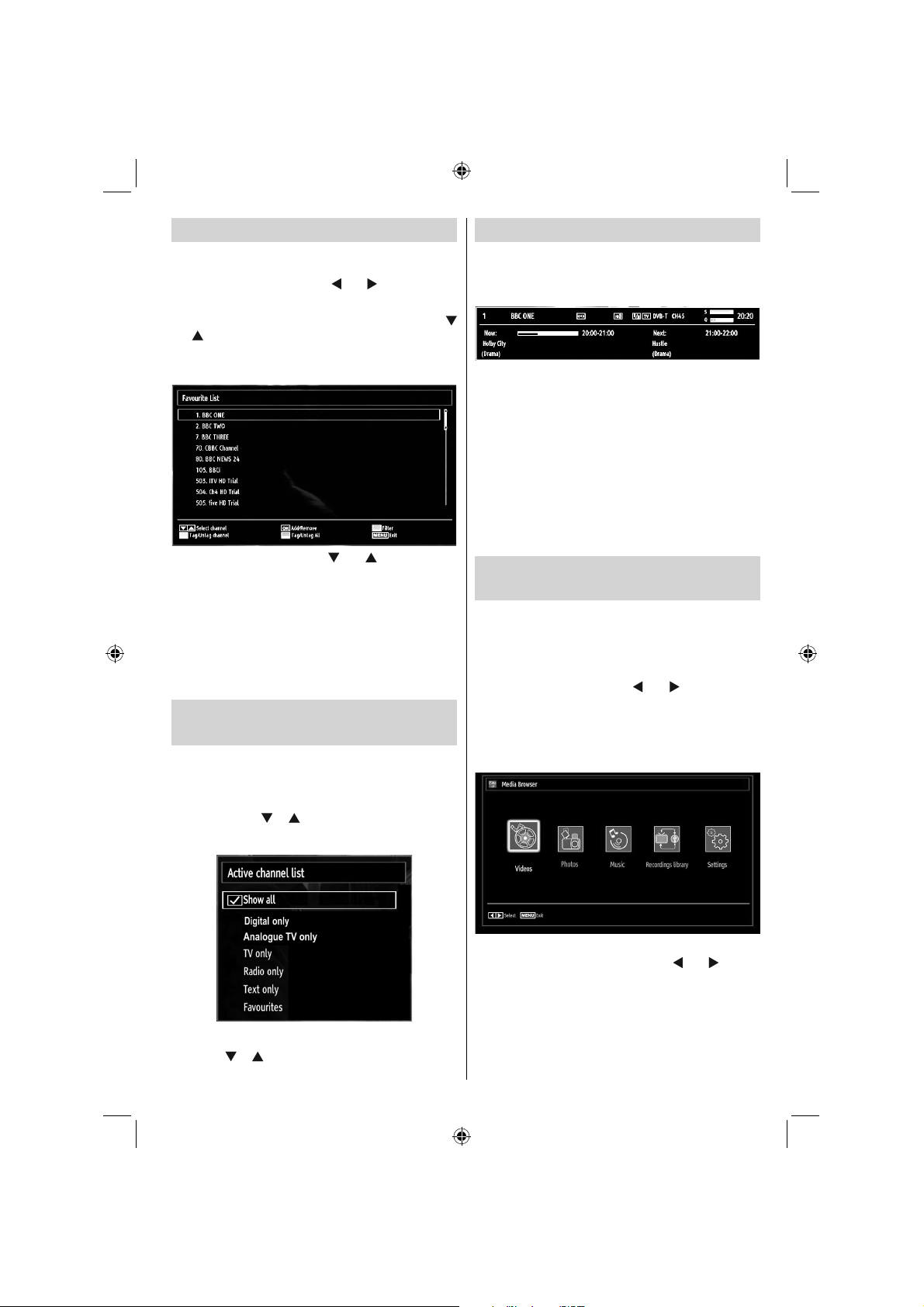

Managing Stations: Favourites ............................. 17
Button Functions ............................................... 17
Managing Stations: Sorting the Channel List ....... 17
On-Screen Information ......................................... 17
Media Playback Using Media Browser ................. 17

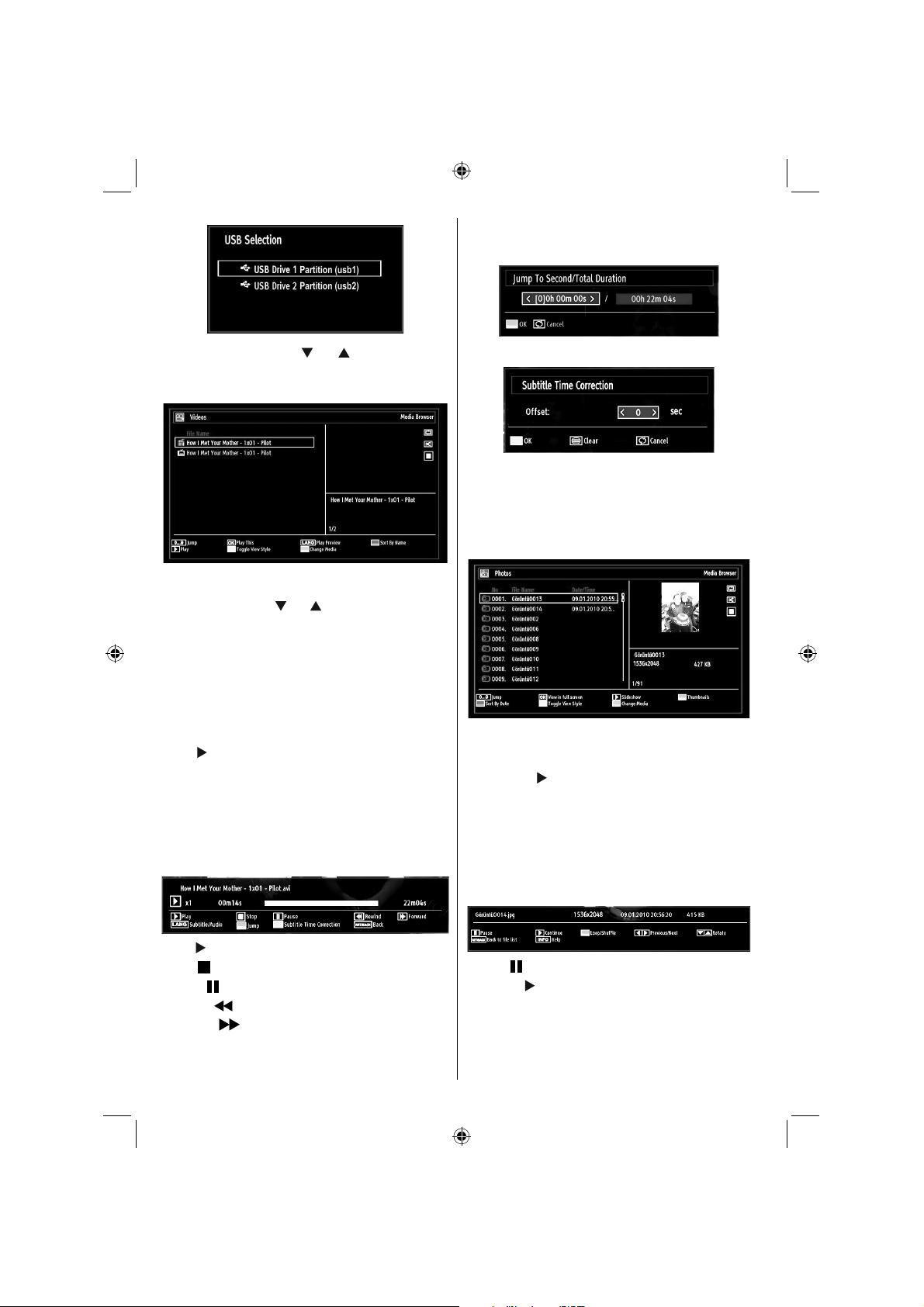

Viewing Photos via USB ................................... 18

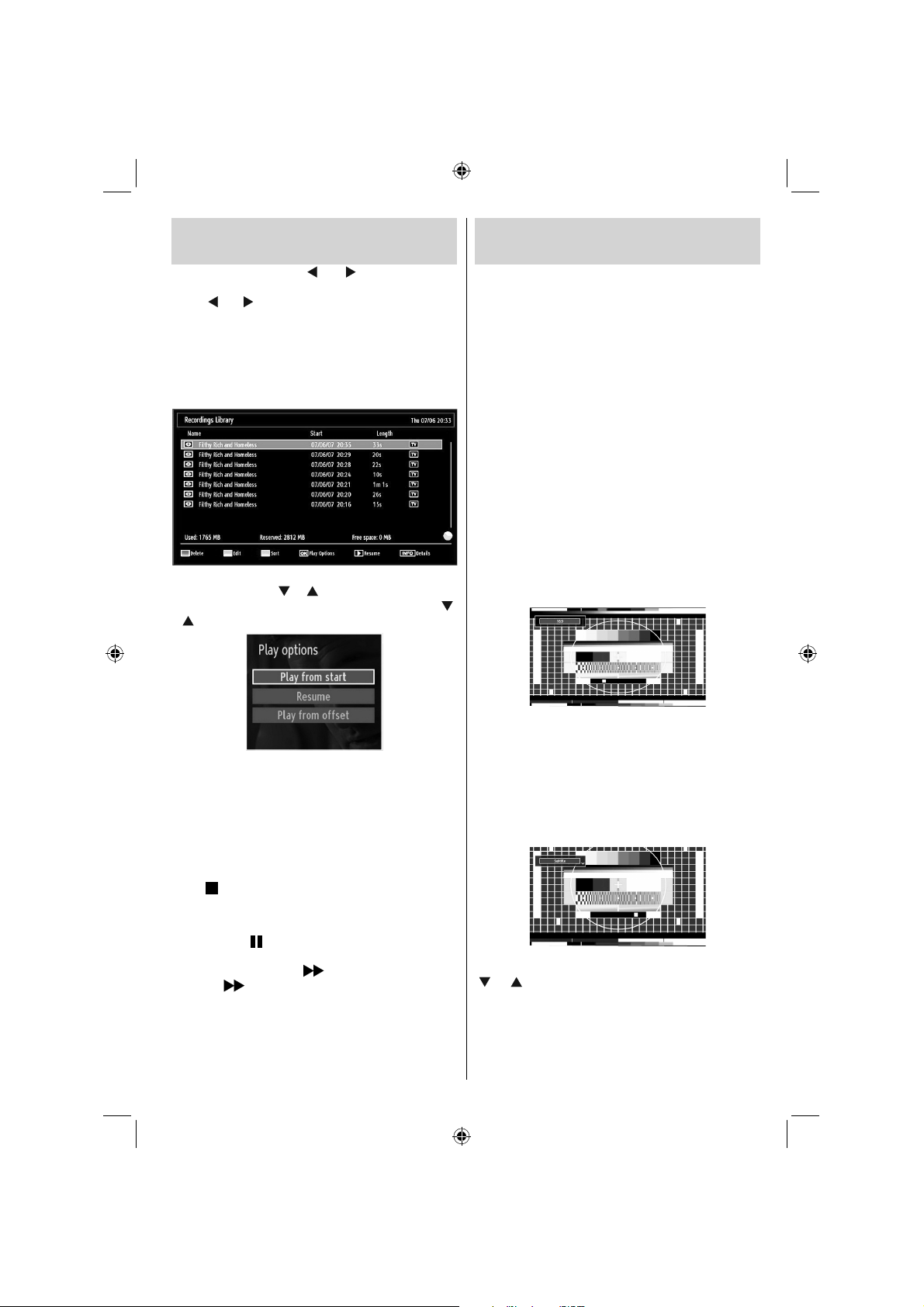

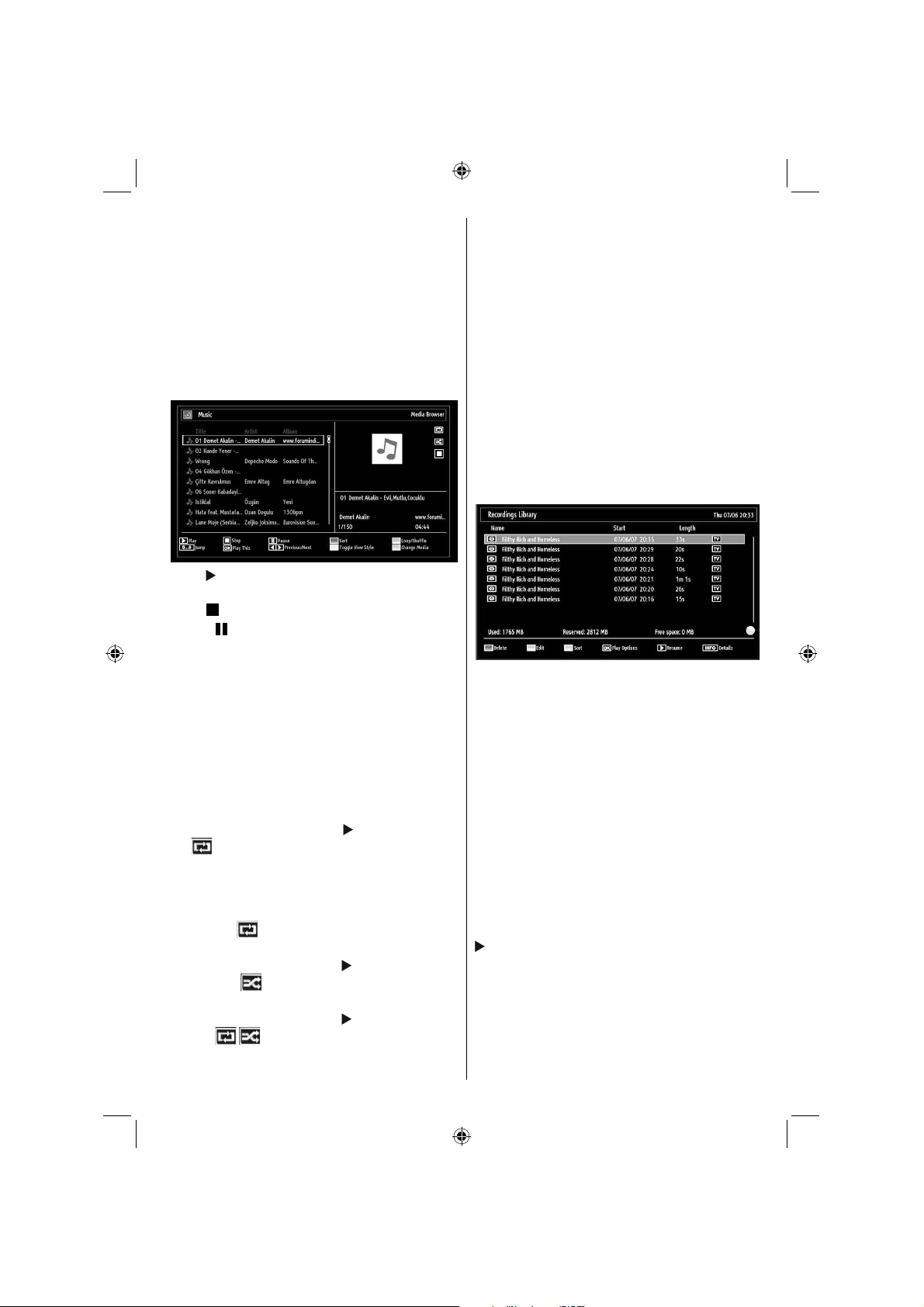

Recordings Library............................................ 19
Media Browser Settings .................................... 20

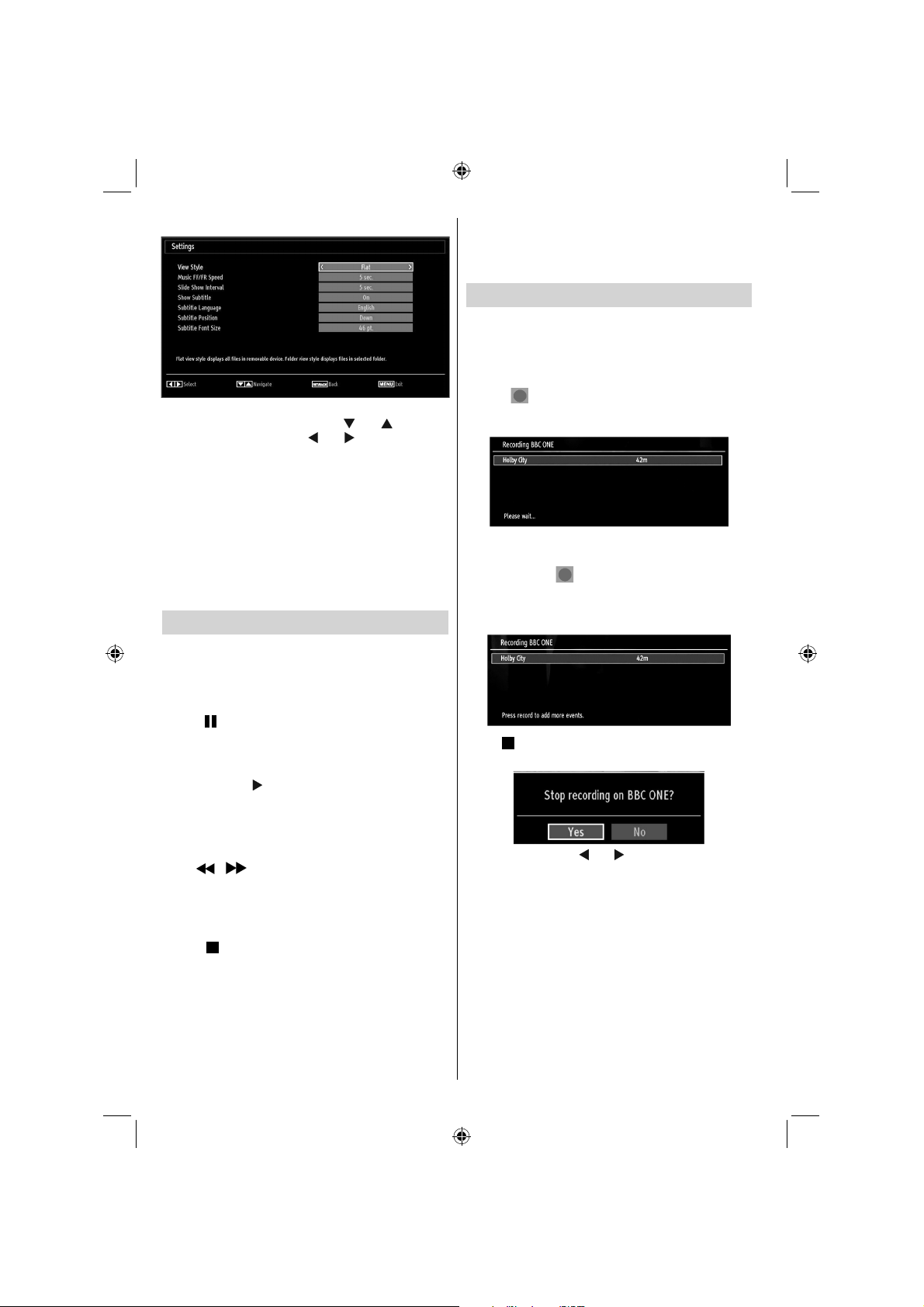

Timeshift Recording ............................................. 20
Instant Recording ................................................. 20
Watching Recorded Programmes ....................... 21

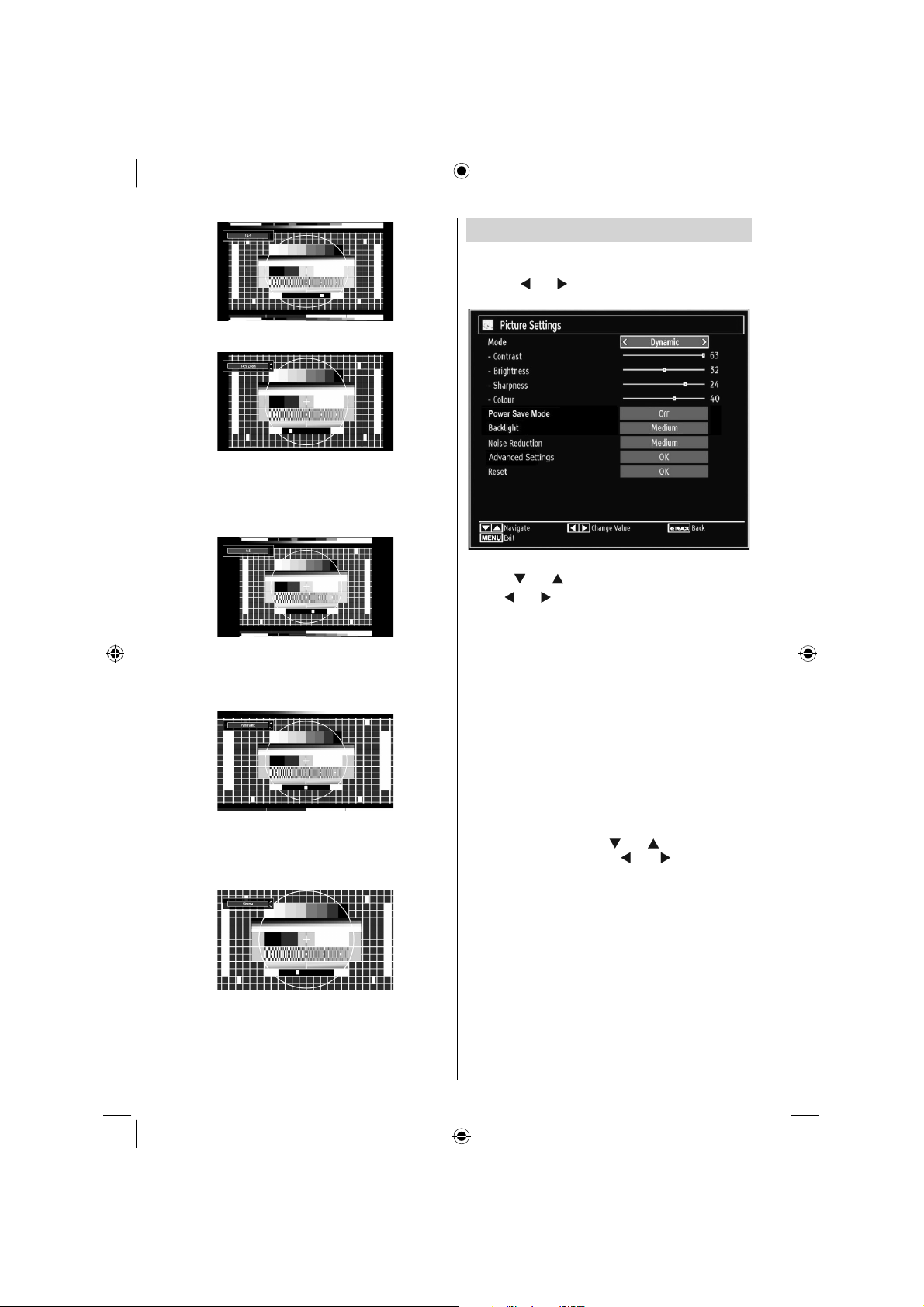

Changing Image Size: Picture Formats ................ 21
Confi guring Picture Settings ................................. 22
Operating Picture Settings Menu Items ............ 22
Picture Settings Menu Items ............................. 22

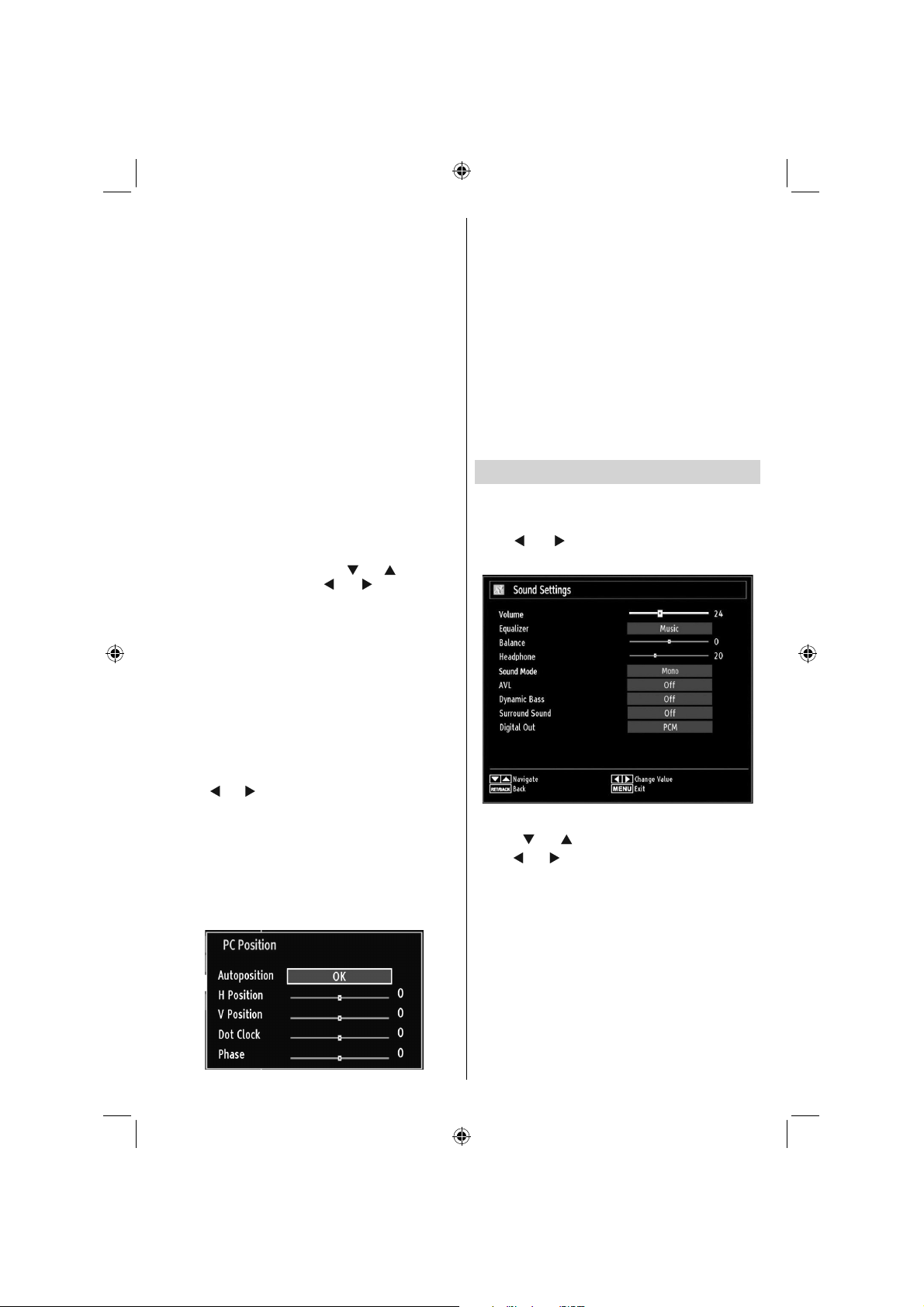

PC Picture Settings Operation .......................... 23
Confi guring Sound Settings .................................. 23
Operating Sound Settings Menu Items ............. 23

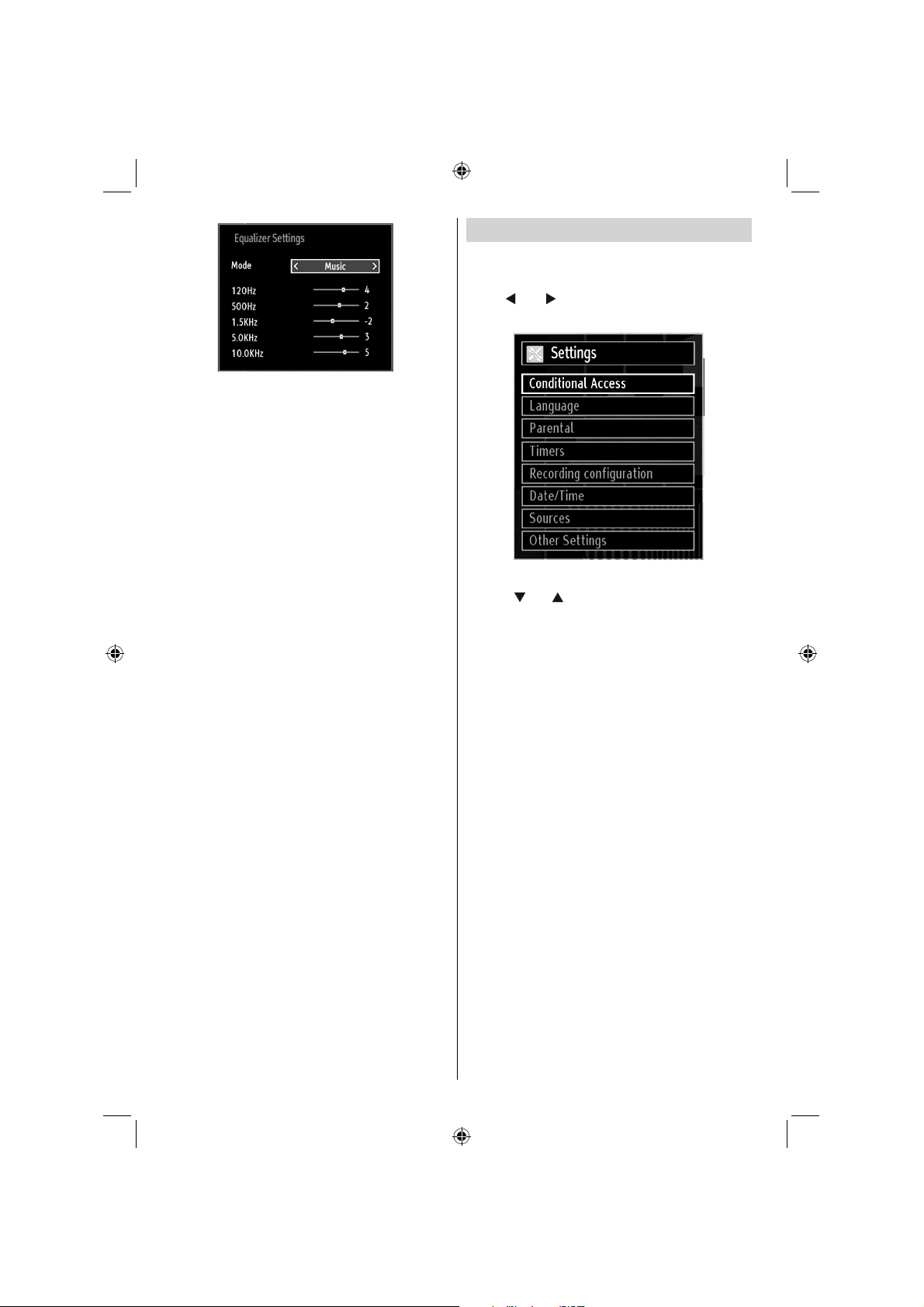

Sound Settings Menu Items.............................. 23
Confi guring Your TV’s Settings ............................. 24
Operating Settings Menu Items ........................ 24
Settings Menu Items ......................................... 24
Using a Conditional Access Module (not
included) ............................................................... 25
Viewing Conditional Access Menu (*) ............... 25
Confi guring Language Preferences ...................... 25

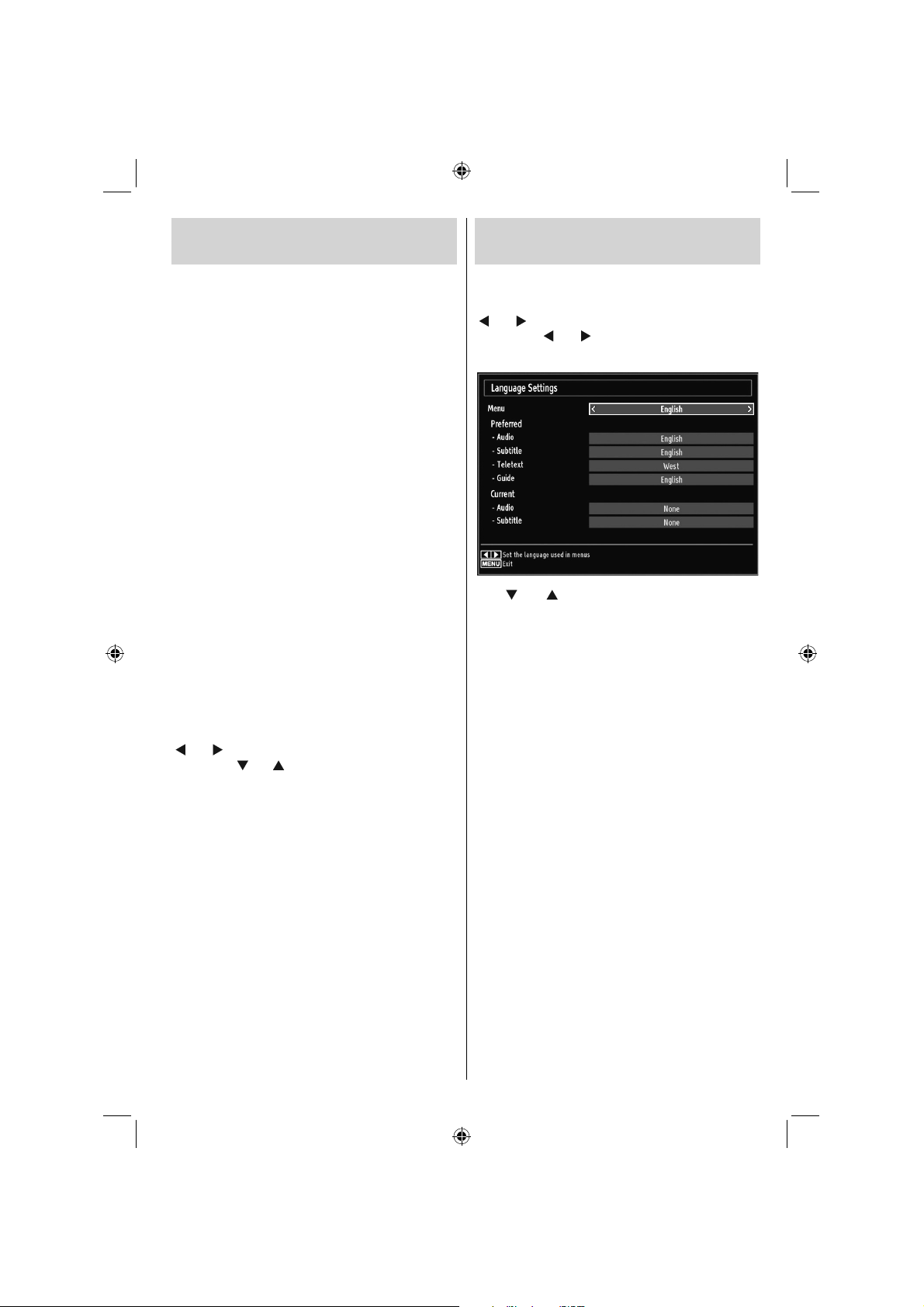

Language Settings ............................................ 26
Parental Control.................................................... 26
Parental Settings Menu Operation (*) ............... 26
Timers ................................................................... 27
Setting Sleep Timer .......................................... 27

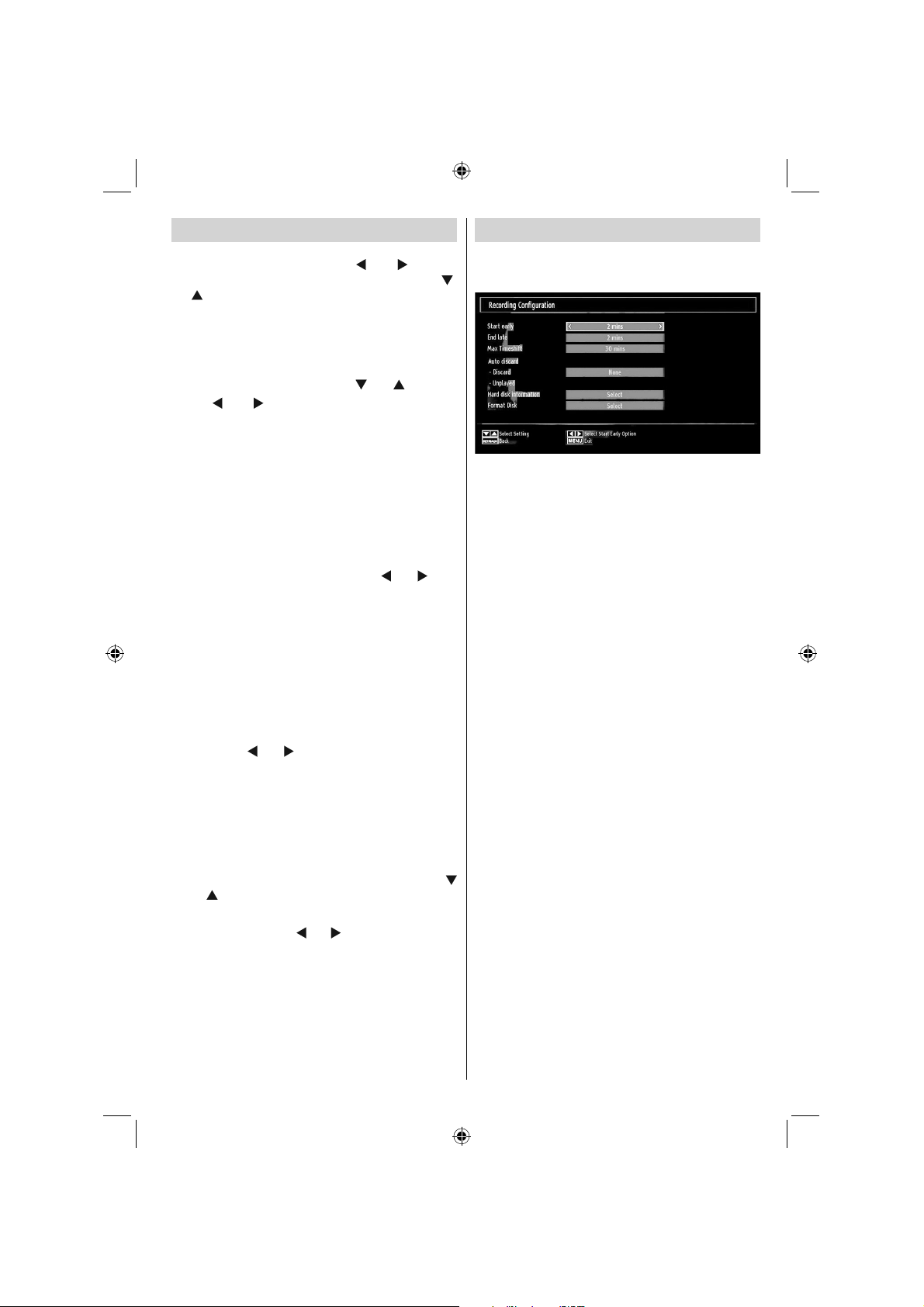

Recording Confi guration ....................................... 27

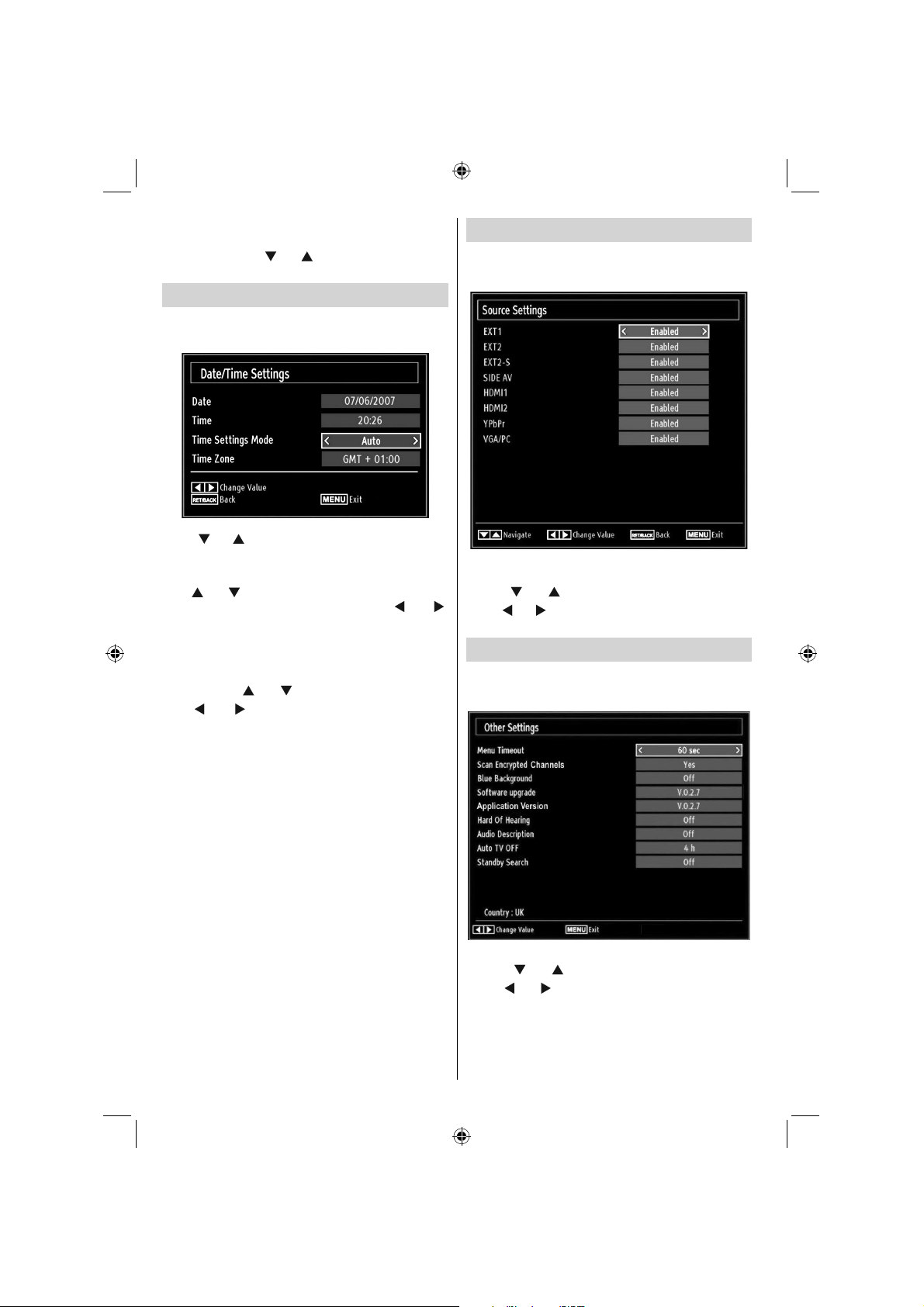

Confi guring Date/Time Settings ............................ 28
Confi guring Source Settings ................................. 28
Confi guring Other Settings ................................... 28
Operation .......................................................... 28
Other Features ..................................................... 29
Teletext ................................................................. 29
Digital Teletext .................................................. 30
Analogue Teletext ............................................. 30
Tips ....................................................................... 30
Appendix A: PC Input Typical Display Modes ....... 31
Appendix B: AV and HDMI Signal Compatibility
(Input Signal Types) .............................................. 31
Appendix C: Supported DVI Resolutions.............. 32
Appendix D: Supported File Formats for USB
Mode..................................................................... 33

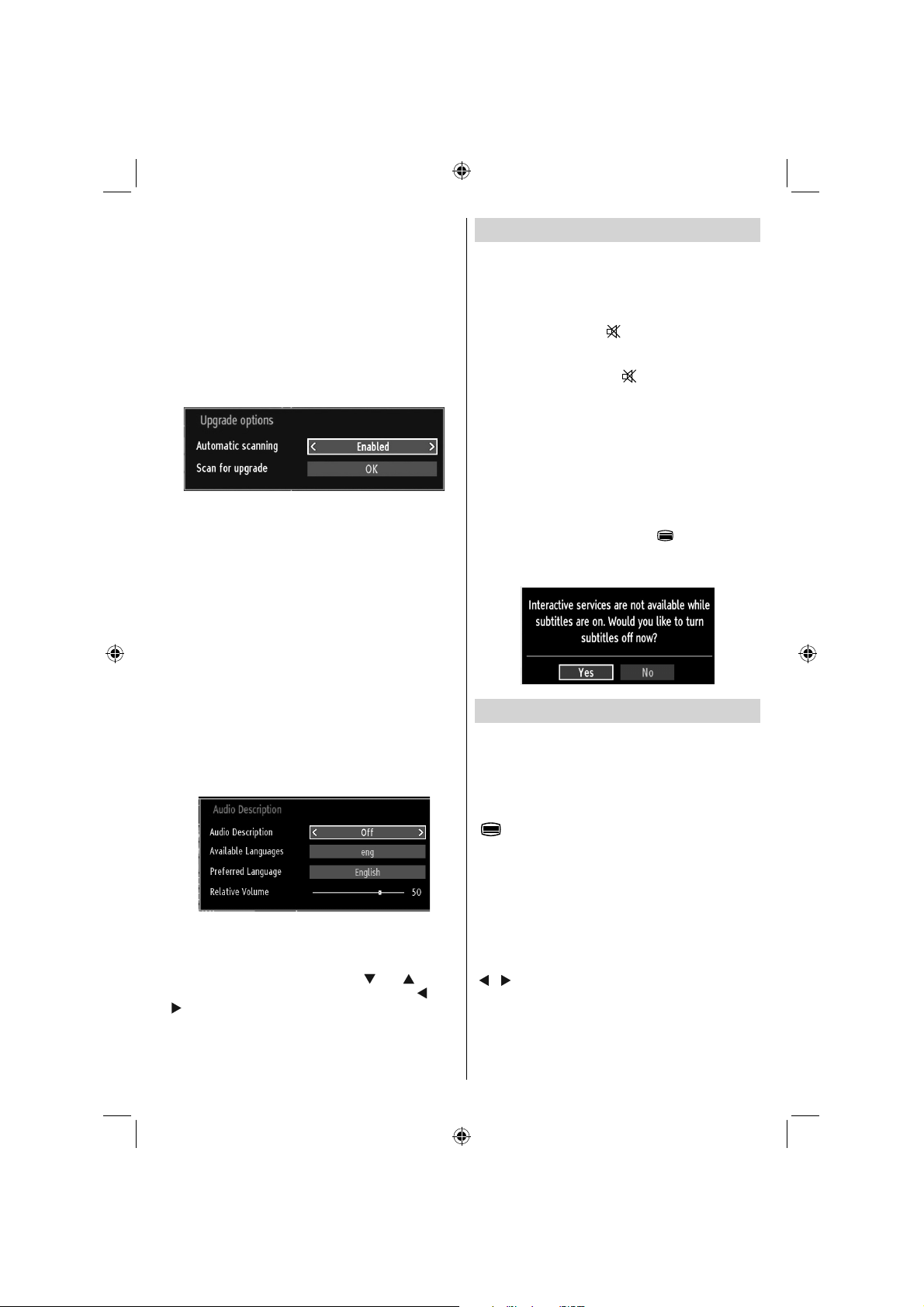

Appendix E: Software Upgrade ............................ 34
Specifi
cations ....................................................... 35

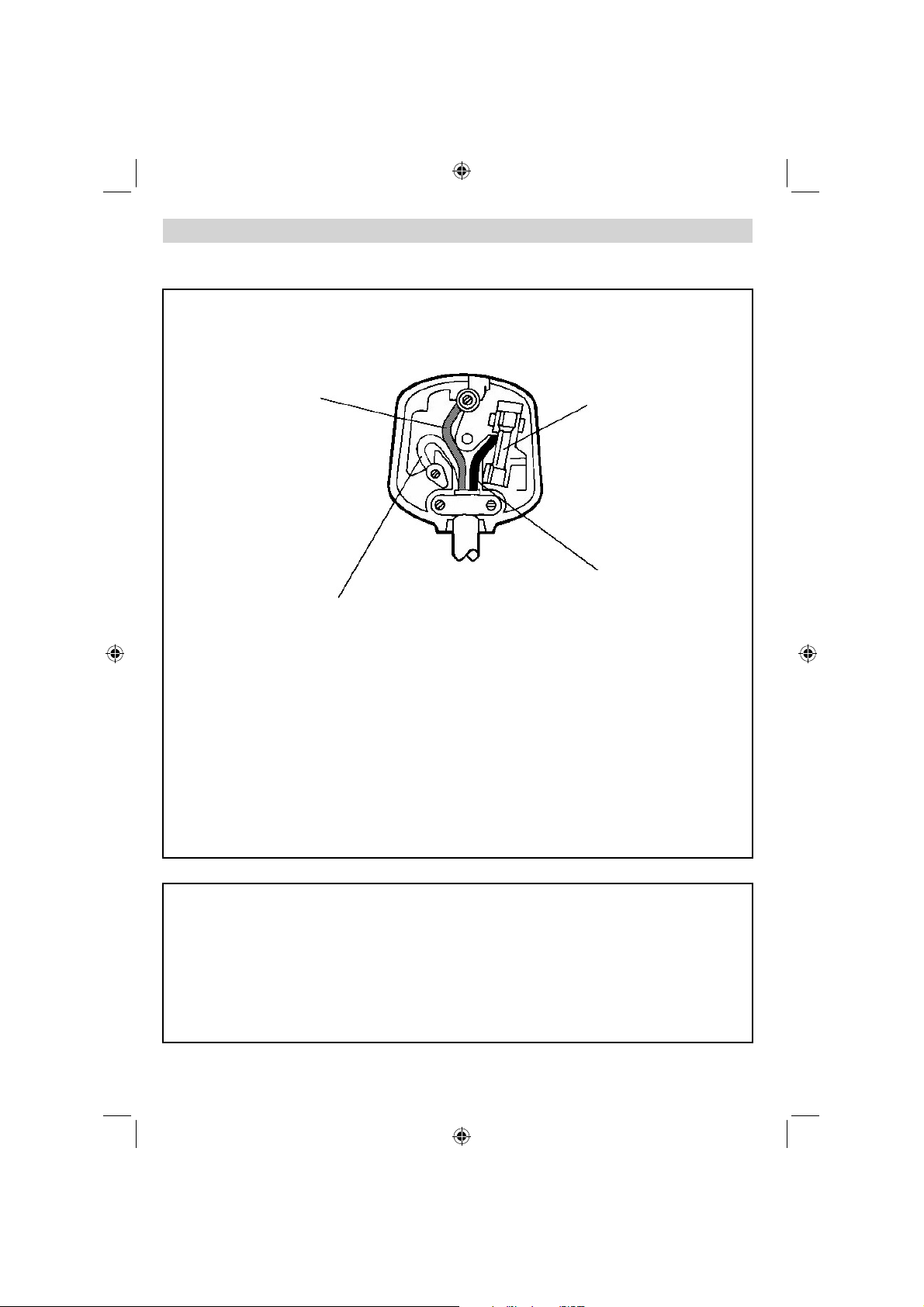

Important Instruction ............................................. 36
- 1 -
01_MB65_[GB]_IDTV_PVR_BRONZE18_5110UK_32965LED_10077098_50209126.indd 101_MB65_[GB]_IDTV_PVR_BRONZE18_5110UK_32965LED_10077098_50209126.indd 1 12.12.2011 14:30:2312.12.2011 14:30:23
Package Contents
LANG SUBTITLE
SCREEN
ZOOM
ROOT
REPEAT
TITLE
1
3
2
4
6
5
789
0
TEXT
SWAP
SOURCE
INFO
P+
OK
P-V+V-
MENU
RETURN
FAV SLEEP EPG
SEARCH
DISPLAY
PRESETS
MODE
Remote Control
1 X Video & Audio Connection Cable
Batteries: 2 X AAA
Instruction Book
LED TV
Features
Remote controlled colour LED TV.•
Fully integrated Terrestrial digital TV (DVB-T - •
MPEG2).
HDMI connectors for digital video and audio. This •
connection is also designed to accept high defi nition
signals.
USB input.•
Programme recording•
Programme timeshifting•
1000 programmes (analogue+digital).•
On Screen Display (OSD) menu system.•
Integrated tuner DVB-T MPEG2 compatible.•
Scart socket for external devices (such as video, •
video games, audio set, etc.).
Stereo sound system. (German+Nicam)•
Teletext, fastext, TOP text.•
Headphone connection.•
Automatic programming system.•
Forward or backward manual tuning.•
Sleep timer / Child lock.•
Automatic sound mute when no transmission.•
NTSC playback.•
AVL (Automatic Volume Limiting).•
Auto power down.•
PLL (Frequency Search).•
PC input.•
Plug&Play for Windows 98, ME, 2000, XP, Vista •
Windows 7.
Game Mode.•
Note: You should check the contents after opening
your product. Make sure that every item is included
Introduction
Thank you for choosing this product. This manual will
guide you for the proper operation of your TV.
Note: The HDMI connection between PC and TV
may cause radio interference in which case it is
recommended to use VGA(DSUB-15) connection.
Before operating the TV, please read this
manual thoroughly. Please keep this manual
in a safe place for future references.
This device is intended to receive and display TV
programs. The different connection options make
an additional expansion of the reception and display
sources possible (receiver, DVD player, DVD recorder,
VCR, PC etc.).
This device is only suitable for dry indoor use. This
appliance is intended solely for private domestic use and
may not be used for industrial and commercial purposes.
We exclude liability in principle, if the device is not used
as intended, or unauthorized modifi cations have been
made. To operate your LED TV in extreme ambient
conditions may cause the damage of the device.
- 2 -
01_MB65_[GB]_IDTV_PVR_BRONZE18_5110UK_32965LED_10077098_50209126.indd 201_MB65_[GB]_IDTV_PVR_BRONZE18_5110UK_32965LED_10077098_50209126.indd 2 12.12.2011 14:30:2312.12.2011 14:30:23
Preparation
For ventilation, leave a free space of at least 10 cm
all around the set. To prevent any fault and unsafe
situation, please do not place any objects on top of
the set. Use this device in moderate climates.
10 cm
10 cm
10 cm
Safety Precautions
Read the following recommended safety
precautions carefully.
Power Source
The TV set should be operated only from a 220-240V
AC, 50 Hz outlet. Ensure that you select the correct
voltage setting for your convenience.
Power Cord
Do not place the set, a piece of furniture, etc. on the
power cord or pinch the cord. Handle the power cord
by the plug. Do not unplug the appliance by pulling from
the power cord and never touch the power cord with wet
hands as this could cause a short circuit or electric shock.
Never make a knot in the cord or tie it with other cords.
The power cord should be placed in such a way that they
are not likely to be stepped on. A damaged power cord
can cause fi re or give you an electric shock. When it is
damaged and needs to be replaced, it should be done
by qualifi ed personnel.
Moisture and Water
Do not use this device in a humid and
damp place (avoid the bathroom, the
sink in the kitchen, etc). Do not expose
this device to rain or water, as this may
be dangerous and do not place objects
fi lled with liquids, such as fl ower vases,
on top.
If any solid object or liquid falls into the cabinet, unplug
the TV and have it checked by qualifi ed personnel
before operating it any further.
Cleaning
Before cleaning, unplug the TV set
from the wall outlet. Do not use liquid
or aerosol cleaners. Use a soft and
dry cloth.
Ventilation
The slots and openings on the TV set are intended for
ventilation and to ensure reliable operation. To prevent
overheating, these openings must not be blocked or
covered in anyway.
Heat and Flames
The set should not be placed near to
open fl ames or sources of intense heat
such as an electric heater. Ensure that
no open fl ame sources, such as candles,
are placed on top of the TV. Batteries should not be
exposed to excessive heat such as sunshine, fi re or
the like.
Lightning
In case of storm and lightning or when
going on holiday, disconnect the power
cord from the wall outlet.
Replacement Parts
When replacement parts are required, make sure that
the service technician has used replacement parts,
which are specifi ed by the manufacturer or have the
same specifi cations as the original one. Unauthorized
substitutions may result in fi re, electrical shock or
other hazards.
Servicing
Please refer all servicing to qualifi ed
personnel. Do not remove the cover
yourself as this may result in an electric
shock.
Waste Disposal
Packaging and packaging aids are recyclable •
and should principally be recycled. Packaging
materials, such as a foil bag should be kept away
from children
Batteries, including those which are heavy metal •
free, should not be disposed of with household
waste. Please dispose of used batteries in an
environmentally friendly manner. Find out about the
legal regulations which apply in your area.
Do not try to recharge batteries, there is a danger •
of explosion. Replace batteries only with the same
or equivalent type.
- 3 -
01_MB65_[GB]_IDTV_PVR_BRONZE18_5110UK_32965LED_10077098_50209126.indd 301_MB65_[GB]_IDTV_PVR_BRONZE18_5110UK_32965LED_10077098_50209126.indd 3 12.12.2011 14:30:2412.12.2011 14:30:24
Information for users in EU
Countries
This symbol on the product or on its packaging means
that your electrical device should be
disposed at the end of its service life
separately from your household wastes.
There are separate collection systems for
recycling in the EU. For more information,
please contact the local authority or the
dealer where you purchased the
product.
Disconnecting the Device
The mains plug is used to disconnect the TV set
from the mains and therefore it must remain readily
operable.
Headphone Volume
Excessive sound pressure from earphones
and headphones can cause hearing loss.
Installation
To prevent injury, this device must be securely
attached to the wall in accordance with the installation
instructions when mounted to the wall (if the option
is available).
LCD Screen
The LCD panel is a very high technology product with
about a million thin fi lm transistors, giving you fi ne
picture details. Occasionally, a few non-active pixels
may appear on the screen as a fi xed blue, green or
red point. Please note that this does not affect the
performance of your product.
Warning! Do not leave your TV in standby or operating
mode when you leave your house.
Electrical device not in the hands of children
Never let children use any electrical device
unsupervised. Children cannot always recognise
possible dangers. Batteries / accumulators can be
life threatening when swallowed. Store batteries out
of the reach of small children. In case of swallowing
a battery medical aid has to be sought immediately.
Also keep the packaging foils away from children as
there is danger of suffocation.
Licence Notifi cation (optional)
Manufactured under license from Dolby
Laboratories.
TRADEMARK ACKNOWLEDGMENT
“Dolby” and the double-D symbol are trademarks of
Dolby Laboratories.
Connection to a Television Distribution
System (Cable TV etc.) from Tuner
Devices connected to the protective earthing of the
building installation through the mains connection or
through other apparatus with a connection to protective
earthing-and to a television distribution system using
a coaxial cable, may in some circumstances create
a fi re hazard.
Connection to a cable distribution system has
therefore to be provided through a device providing
electrical isolation below a certain frequency range
(galvanic isolator, see EN 60728-11).
The Standby / On button does not fully switch off this
product. Moreover the device continues to consume
power in standby mode. In order to separate the
device completely from mains, the mains plug has to
be pulled from the mains socket. Because of that the
device should be set up in a way, that an unobstructed
access to the mains socket is guaranteed, so that
in case of emergency the mains plug can be pulled
immediately. During periods of prolonged non-use,
the TV should be disconnected from the mains power
supply.
- 4 -
01_MB65_[GB]_IDTV_PVR_BRONZE18_5110UK_32965LED_10077098_50209126.indd 401_MB65_[GB]_IDTV_PVR_BRONZE18_5110UK_32965LED_10077098_50209126.indd 4 12.12.2011 14:30:2512.12.2011 14:30:25
Environmental Information
This television is designed to consume less energy to help save the environment. You not only help to save •
the environment but also you can save money by reducing electricity bills thanks to the energy effi ciency
feauture of this TV. To reduce energy consumption, you should take the following steps:
You can use Power Save Mode setting, located in the Feature menu. If you set Power Save Mode as On, •
the TV will switch to energy-saving mode and luminance level of TV set will be decreased to optimum level.
Note that some picture settings will be unavailable to be changed when the TV is in Power Save Mode.
When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce •
energy consumption.
Disconnect the TV from the mains socket when it will not be used for prolonged periods.•
Note that annually, using the TV set in Power Save Mode has more power effi ciency than disconnecting •
the TV from the mains plug instead of keeping stand-by mode. Therefore disconnect the TV from the mains
plug to save energy when you do not use. However it is highly recommended to activate Power Save Mode
setting to reduce your annual power consumption.
Please helps us to save environment by following these steps.•
Repair Information
Please refer all servicing to qualifi ed personnel. Only qualifi ed personnel must repair the TV. Please contact
your local dealer, where you have purchased this TV for further information.
Remote Control Handset
Inserting Batteries
Remove the battery cover located on the back of the handset by gently pulling backwards from the indicated •
part.
Insert two • AAA/R3 or equivalent type batteries inside. Observe the correct polarity (+/-) when inserting
batteries and replace the battery cover.
Note: Remove the batteries from the remote control handset when it will not be used for a long period. Otherwise
it can be damaged due to any leakage of batteries. Remote range is approximately 7m/23ft.
- 5 -
01_MB65_[GB]_IDTV_PVR_BRONZE18_5110UK_32965LED_10077098_50209126.indd 501_MB65_[GB]_IDTV_PVR_BRONZE18_5110UK_32965LED_10077098_50209126.indd 5 12.12.2011 14:30:2612.12.2011 14:30:26
Remote Control Buttons
No function1.
Play (in Media Browser mode) 2.
Programme recording3.
Rapid reverse (in Media Browser mode)4.
No function5.
Mono/Stereo - Dual I-II / Current Language (*) / 6.
Play preview (in Media Browser mode)
Image size / Zooms Photos (in Media Browser 7.
video mode)
Green button / List Schedule(in EPG) / Tag/8.
Untag All (in favourite list)
Red button9.
Numeric buttons10.
Teletext / Mix 11.
Info / Reveal (in TXT mode)12.
Programme Down - Page up / Programme Up - 13.
Page down
Mute14.
Favourite mode selection15.
Exit (in DTV mode) / Return / Index page (in 16.
TXT mode)
No function (*)17.
No function18.
Recordings Library19.
Picture mode selecion / Changes picture mode 20.
(in Media Browser video mode)
Electronic Programme Guide21.
Sleep timer22.
Menu on/off23.
OK / Select / Hold (in TXT mode) / Channel List24.
Volume up / down25.
Navigation buttons26.
AV / Source27.
Previous programme / Now (in EPG mode)28.
Blue button29.
Yellow button / Timeline Schedule (in EPG)t30.
No function (**)31.
Subtitle on-off / TXT subtitle (analogue TV 32.
mode) / Subtitle (in Media Browser mode).
No function33.
Rapid advance (in Media Browser mode)34.
Stop (in Media Browser mode)35.
Pause / Timeshift recording36.
Standby37.
Operation LED light38.
LANG SUBTITLE
SCREEN
ZOOM
4
7
TEXT
P+
P-
RETURN
REPEAT
1
INFO
FAV SLEEP EPG
SEARCH
MODE
ROOT
TITLE
3
2
6
5
8
9
0
SWAP
SOURCE
V+
OK
V-
MENU
DISPLAY
PRESETS
These buttons change according to the model:
/ Media Browser (optional) (*) or Angle / No
function (*)
/ Web Browser (optional) (**) or Pip / Pip function
(optional) (**)
- 6 -
01_MB65_[GB]_IDTV_PVR_BRONZE18_5110UK_32965LED_10077098_50209126.indd 601_MB65_[GB]_IDTV_PVR_BRONZE18_5110UK_32965LED_10077098_50209126.indd 6 12.12.2011 14:30:2612.12.2011 14:30:26
TV and Operating Buttons
FRONT and REAR VIEW Control buttons VIEW Control Buttons
1. Standby/On button
2. TV/AV button
3. Programme Up/Down buttons
4. Volume Up/Down buttons
Note: Press “
buttons at the same time to view
main menu.
” and
Viewing the Connections – Back Connectors
SCART 21. inputs or outputs for external devices.
SCART 1 2. input or output for external devices. Connect the SCART cable between SCART socket on
TV and SCART socket on your external device (such as a decoder, a VCR or a DVD player).
Note: If an external device is connected via the SCART socket, the TV will automatically switch to AV
mode.
Component Video Inputs (YPbPr)3. are used for connecting component video.
You can connect the component video and audio sockets with a device that has component output.
Connect the component video cables between the COMPONENT VIDEO INPUTS on the TV and the
component video outputs of your device. While connecting, be sure that the letters on your TV, “Y”,
“Pb”, “Pr” correspond with your device’s connectors.
PC/YPbPr Audio Inputs4. are used for connecting audio signals of a PC or a device that connects to the
TV via YPbPr. Connect the PC audio cable between the AUDIO INPUTS on the TV and audio output
of your PC to enable PC audio. Connect the audio cable between AUDIO INPUTS on the TV and audio
outputs of your device to enable component audio.
Subwoofer Out5. is for connecting an external, active subwoofer to the TV to give a much deeper bass
effect. Use an appropriate RCA cable to connect the TV set to a subwoofer unit.
- 7 -
01_MB65_[GB]_IDTV_PVR_BRONZE18_5110UK_32965LED_10077098_50209126.indd 701_MB65_[GB]_IDTV_PVR_BRONZE18_5110UK_32965LED_10077098_50209126.indd 7 12.12.2011 14:30:2612.12.2011 14:30:26
S/PDIF Coaxial Out6. outputs digital audio signals of the currently watched source.
Use an SPDIF coaxial cable to transfer audio signals to a device that has S/PDIF input
RF Input7. connects to an aerial antenna system.
Note: that if you use a decoder or a media recorder, you should connect the aerial cable through the device
to the television with an appropriate antenna cable, as shown in the illustration in the following pages.
PC Input8. is for connecting a personal computer to the TV set.
Connect the PC cable between the PC INPUT on the TV and the PC output on your PC
HDMI Inputs9. are for connecting a device that has an HDMI socket. Your LED TV is capable of
displaying High Defi nition pictures from devices such as a High Defi nition Satellite Receiver or DVD
Player. These devices must be connected via the HDMI sockets or Component Socket. These sockets
can accept either 720p or 1080p signals. No sound connection is needed for an HDMI to HDMI
connection.
Viewing the Connections - Side Connectors
CI Slot is used for inserting a CI card. A CI card allows you to view all the channels that 1.
you subscribe to. For more information, see “Conditional Access” section.
USB Inputs. 2.
Note that programme recording feature is available via these USB inputs. You can
connect external hard disk drives to this input.
Headphone jack is used for connecting an external headphone to the system. Connect 3.
to the HEADPHONE jack to listen to the TV from headphones (optional).
Side audio-video connection input is used for connecting video and audio signals of 4.
external devices. To make a video connection, you must use the supplied AV connection
cable for enabling connection. First, plug singular jack of the cable to the TV’s Side AV
socket. Afterwards, insert your video cable’s (not supplied) connector into the YELLOW
input of the supplied AV connection cable. Colours of the connected jacks should match.
To enable audio connection, you must use RED and WHITE inputs of the side AV
connection cable. Afterwards, insert your device’s audio cable’s connectors into
the RED and WHITE jack of the supplied side AV connection cable. Colours of the
connected jacks should match.
Note: You should use audio inputs of side AV connection cable (RED & WHITE) to
enable sound connection when connecting a device to your TV by using PC or COMPONENT VIDEO
input.
Aerial Connection
Connect the aerial to the AERIAL INPUT socket located at the rear of the TV.•
Power Connection
IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz.
After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the •
mains. Plug the power cable to the mains socket outlet.
- 8 -
01_MB65_[GB]_IDTV_PVR_BRONZE18_5110UK_32965LED_10077098_50209126.indd 801_MB65_[GB]_IDTV_PVR_BRONZE18_5110UK_32965LED_10077098_50209126.indd 8 12.12.2011 14:30:3212.12.2011 14:30:32
Switching On/Off
To Switch the TV On
Connect the power cord to the 220-240V AC, 50 •
Hz.
Press STANDBY touch button. Then the standby •
LED lights up.
To switch the TV on from standby mode either:•
Press the “•
on the remote control.
Press the • -P/CH or P/CH+ touch button on the TV.
The TV will then switch on.
Note: If you switch on your TV via PROGRAMME
UP/DOWN buttons on the remote control or on the
TV set, the programme that you were watching last
will be reselected.
Note: The standby light will blink while the TV is
powering up from Standby mode.
” button, P+ / P- or a numeric button
To Switch the TV Off
Press the “• ” button on the remote control or press
the STANDBY touch button on the TV, so the TV will
switch to standby mode.
To power down the TV completely, unplug the power •
cord from the mains socket.
Note: When the TV is switched to standby mode,
standby LED can blink to indicate that features such
as Standby Search, Over Air Download or Timer is
active. The LED can also blink when you switch on
the TV from standby mode.
First Time Installation
IMPORTANT: Ensure that the aerial is connected
and a Common Interface module is not inserted
before switching on the TV for the first time
installation.
When the TV is operated for the fi rst time, the •
installation wizard will guide you through the
process. First, the language selection screen will
be displayed:
After selecting the language, “• Welcome!” screen will
be displayed, requiring you to set Country, Teletext
Language and Scan Encrypted options.
By pressing “• ” or “ ” button, select the country
you want to set and press “ ” button to highlight
Teletext Language option. Use “ ” or “ ” button
to select desired Teletext Language.
Press “•
option. Scan Encrypted will be then highlighted.
You can set Scan Encrypted as Yes if you want to
scan coded stations. Afterwards select the desired
Teletext Language.
Press • OK button on the remote control to continue
and the following message will be displayed on the
screen:
To select the “Yes” or “No” option, highlight the item by
using “ ” or “ ” buttons and press OK button.
Afterwards, the following OSD will be displayed on
the screen and the television will search for digital
and analogue TV broadcasts.
” button after setting Teletext Language
Note: You can press “MENU” button to cancel.
Use “• ” or “ ” buttons to select your language
and press OK button to set selected language and
continue.
- 9 -
01_MB65_[GB]_IDTV_PVR_BRONZE18_5110UK_32965LED_10077098_50209126.indd 901_MB65_[GB]_IDTV_PVR_BRONZE18_5110UK_32965LED_10077098_50209126.indd 9 12.12.2011 14:30:3312.12.2011 14:30:33
At the end of the search process, the Choose Region
menu screen will be displayed (if any multiple region
variants are detected). Please select country and
region choice then press OK to continue.
After all the available stations are stored, the •
Channel List will be displayed on the screen. If you
like the order of the channels, please select “Yes”
and then press OK.
Connecting to a DVD Player
If you want to connect a DVD player to your LED
TV, you can use connectors of the TV set. DVD
players may have different connectors. Please refer
to your DVD player’s instruction book for additional
information. Power off both the TV and the device
before making any connections.
Note: Cables shown in the illustration are not
supplied.
If your DVD player has an HDMI socket, you can •
connect via HDMI. When you connect to DVD player
as illustrated below, switch to HDMI source. See,
“Input Selection” section.
Most DVD players are connected through •
COMPONENT SOCKETS. Use a component video
cable to connect video input. For enabling audio,
use a component audio cable as illustrated below.
When the connection is made, switch to YPbPr
source. See, “Input selection” section.
You may also connect through the SCART 1 or •
SCART 2. Use a SCART cable as shown below.
Note: These three methods of connection perform the
same function but in different levels of quality. It is not
necessary to connect by all three methods.
HDMI
Press • OK button to quit channel list and watch TV.
Using Side AV Connectors
You can connect a range of optional equipment to your
LED TV using side connectors of the TV.
For connecting a camcorder or camera , you should •
use AV socket (side). To do this, you must use the
supplied video/audio connection cable. First, plug
single jack of the cable to the TV’s AV I N socket
Scart sockets
Component
(side). Afterwards, insert your camera cable’s (not
supplied) connectors into the plural part of the video/
audio connection cable. Colours of the connected
jacks should match. See illustration below.
Afterwards, you should switch to • Side AV source. See
the section Input selection in the following sections
for more information.
SIDE AV
AVConnection
Cable (supplied)
Headphone
AVCable
(not supplied)
Camera
To listen the TV sound from headphones, you •
should connect headphones to your TV by using the
HEADPHONE jack as illustrated above.
- 10 -
01_MB65_[GB]_IDTV_PVR_BRONZE18_5110UK_32965LED_10077098_50209126.indd 1001_MB65_[GB]_IDTV_PVR_BRONZE18_5110UK_32965LED_10077098_50209126.indd 10 12.12.2011 14:30:3312.12.2011 14:30:33
video
inputs
Component
audio
inputs
DVD Player
HDMI
inputs
Using USB Inputs
USB Connection
You can connect a USB hard disk drive or USB •
memory stick to your TV by using the USB inputs
of the TV. This feature allows you to play fi les stored
in a USB drive or record programmes.
2.5” and 3.5” inch (hdd with external power supply) •
external hard disk drives are supported.
To record a programme, you should fi rst connect •
a USB disk to your TV while the TV is switched
off. You should then switch on the TV to enable
recording feature. Otherwise, recording feature will
not be available.
IMPORTANT !
You should back up your fi les before making any •
connections to the TV set in order to avoid any
possible data loss. Note that the manufacturer
will not be responsible for any file damage or
dataloss.
It is possible that certain types of USB devices (e.g. •
MP3 Players) or USB hard disk drives/memory sticks
may not be compatible with this TV.
IMPORTANT: The TV supports only FAT32 and
NTFS disk formatting. However, NTFS format is not
supported for recording features. For recording, if you
connect a USB disk with NTFS format, the TV will ask
you to format the content. See the section, “Format
Disk” in the following pages for more information on
disk formatting.
Note that ALL the data stored on the USB disk will
be lost and then the disk format will be converted to
FAT32 in such a case.
USB Disk Connection
• Plug your USB device to the USB input of the TV.
Note: Plug or unplug your USB disk while the TV is
switched off.
Note: If you are going to connect a USB hard disk drive
to the TV set, USB connection cable used between
the disk drive and the TV should have a USB logo
and should be as short as possible.
Note: While formatting a USB hard disk that has 1TB
(Tera Byte) or more fi le capacity, you can experience
problems with the formatting process. In such a
case, you should format the disk with your personal
computer and the formatted disk type should be
FAT32.
SIDE VIEW USB MEMORY
USB
5Vdc
Max:500mA
CAUTION !
Quickly plugging and unplugging USB devices, is a •
very hazardous operation. Do not repeatedly quickly
plug and unplug the drive. This may cause physical
damage to the USB player and especially the USB
device itself.
Do not pull out USB module while playing or •
recording a fi le.
Programme Recording
To record a programme, you should fi rst connect a
USB disk to your TV while the TV is switched off.
You should then switch on the TV to enable recording
feature.
IMPORTANT: When using a new USB hard disk drive,
it is recommended that you fi rst format the disk using
your TV’s “Format Disk” option.
For using recording function, you should connect a •
USB disk or an external hard disk drive to the TV
and connected USB disk should have at least 1 GB
capacity and should have 2.0 speed compatibility.
If the connected USB device does not support 2.0
speed, an error message will be displayed.
Note: Recorded programmes are saved into the
connected USB disk. If desired, you can store/copy
recordings on a computer; however, these fi les will
not be available to be played on a computer. You can
play the recordings only via your TV.
For more information on recording programmes, •
see sections “Instant Recording”, “Timeshifting”,
“Electronic Programme Guide”, “Recordings Library”
or “Recording Timers” in the following parts.
Recorded programmes are split into 4GB •
partitions.
Recorded programmes are stored in the following •
directory of the connected USB disk: \DVR\RECS.
All recordings are indicated with a number. A text
(txt) fi le is created for each recording. This text
file includes information such as broadcaster,
programme, and recording time.
Timeshifting may be stopped according to USB •
device write speed. If the USB device speed is not
enough for video stream bitrate, timeshifting may
be stopped and recording may fail. If HD service
bitrate is greater than 13 Mbp/sec. some freeze can
be seen during timeshifting on both USB disk and
on external HDD.
Recordings of HD programmes can occupy bigger •
size on the USB disk depending on the broadcast’s
resolution. For this reason it is recommended
to use USB hard disk drives for recording HD
programmes.
Multipartiton support is available. Maximum 2 •
different partitions are supported. If disk have more
then 2 partition, crash may occur. First partition of
- 11 -
01_MB65_[GB]_IDTV_PVR_BRONZE18_5110UK_32965LED_10077098_50209126.indd 1101_MB65_[GB]_IDTV_PVR_BRONZE18_5110UK_32965LED_10077098_50209126.indd 11 12.12.2011 14:30:3412.12.2011 14:30:34
Loading...
