Page 1
SECTION PAGE
SAFETY GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2
RADIO MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3
MEDIA MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
4
UCONNECT® PHONE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
5
MORE MAIN MENU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
6
NAVIGATION — IF EQUIPPED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
7
UCONNECT® VOICE COMMAND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
8

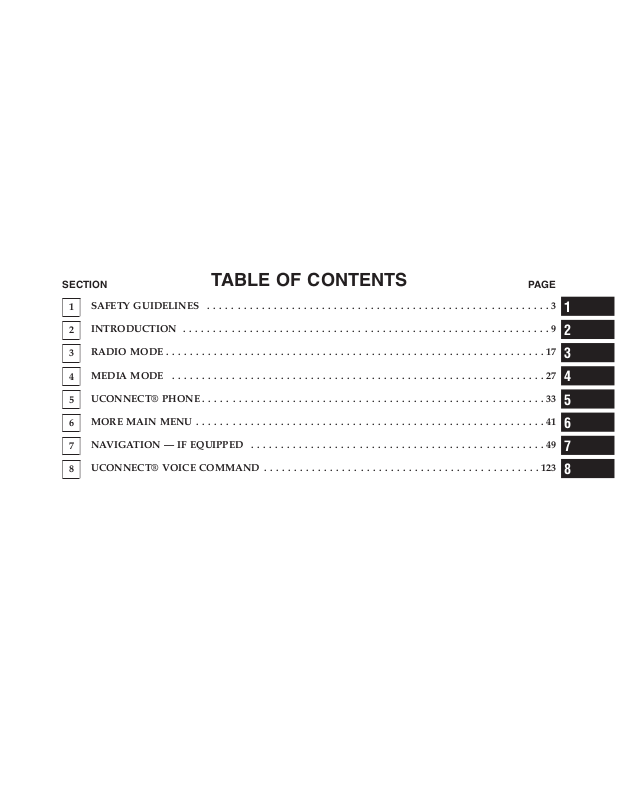

TABLE OF CONTENTS
1
2
3
4
5
6
7
8
Page 2
Page 3
SAFETY GUIDELINES
CONTENTS
m SAFETY GUIDELINES . . . . . . . . . . . . . . . . . . . . .4
1
▫ Disc Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
▫ Safe Usage Of The Uconnect® System . . . . . . . .4
▫ Touchscreen . . . . . . . . . . . . . . . . . . . . . . . . . . .5
▫ FCC Declaration . . . . . . . . . . . . . . . . . . . . . . . .5
▫ Safety Information . . . . . . . . . . . . . . . . . . . . . .6
Page 4
4 SAFETY GUIDELINES
SAFETY GUIDELINES
WARNING!
ALWAYS drive safely with your hands on the
steering wheel. You have full responsibility and
assume all risks related to the use of the
Uconnect® features and applications in this vehicle. Only use Uconnect® when it is safe to do so.
Failure to do so may result in an accident involving serious injury or death.
Ensure all persons read this manual carefully before
using the system. It contains instructions on how to use
the system in a safe and effective manner.
Do NOT attach any object to the touchscreen, doing so
can result in damage to the touchscreen.
Please read and follow these safety precautions. Failure
to do so may result in injury or property damage.
• Glance at screen only when safe to do so. If prolonged
viewing of the screen is required, park in a safe
location and set the parking brake
• Stop use immediately if a problem occurs. Failure to
do so may cause injury or damage to the product.
Return it to your authorized dealer to repair.
• Ensure the volume level of the system is set to a level
that still allows you to hear outside traffic and emergency vehicles.
Safe Usage Of The Uconnect® System
• Read all instructions in this manual carefully before
using your system to ensure proper usage!
• Your system is a sophisticated electronic device. Do
not let young children use your system.
Page 5
• Permanent hearing loss may occur if you play your
music or the system at loud volumes. Exercise caution
when setting the volume on your system.
• Keep drinks, rain and other sources of moisture away
from your system. Besides damage to your system,
moisture can cause electric shocks as with any electronic device.
NOTE: Many features of this system are speed dependent. For your own safety, it is not possible to use some
of the touchscreen features while the vehicle is in motion.
Touchscreen
• Do not press the touchscreen with any hard or sharp
objects (pen, USB stick, jewelry, etc.) which could
scratch the touchscreen surface!
• Do not spray any liquid or caustic chemicals directly
on the screen! Use a clean and dry micro fiber lens
cleaning cloth in order to clean the touchscreen.
SAFETY GUIDELINES 5
• If necessary, use a lint-free cloth dampened with a
cleaning solution, such as isopropyl alcohol or an
isopropyl alcohol and water solution ratio of 50:50. Be
sure to follow the solvent manufacturer’s precautions
and directions.
Disc Drive
• Do not insert any damaged, warped, scratched or dirty
Discs into the Disc Player.
• Discs that have been modified with an adhesive label
should not be used in the Disc Player.
• Do not insert more than one Disc at a time into the
drive slot.
FCC Declaration
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1
Page 6
6 SAFETY GUIDELINES
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the
following measures:
• Increase the separation between the equipment and
receiver.
• Consult the dealer or an experienced radio technician
for help.
Safety Information
Exposure To Radio Frequency Radiation
The radiated output power of the this internal wireless
radio is far below the FCC radio frequency exposure
limits. Nevertheless, the wireless radio shall be used in
such a manner that the radio is 20 cm (200 mm) or further
from the human body.
Page 7
The internal wireless radio operates within guidelines
found in radio frequency safety standards and recommendations, which reflect the consensus of the scientific
community.
The radio manufacturer believes the internal wireless
radio is safe for use by consumers. The level of energy
emitted is far less than the electromagnetic energy emitted by wireless devices such as mobile phones. However,
the use of wireless radios may be restricted in some
situations or environments, such as aboard airplanes. If
you are unsure of restrictions, you are encouraged to ask
for authorization before turning on the wireless radio.
SAFETY GUIDELINES 7
1
Page 8
Page 9
INTRODUCTION
CONTENTS
m Uconnect® 5.0 SYSTEM . . . . . . . . . . . . . . . . . . .10
m Uconnect® 5.0N SYSTEM . . . . . . . . . . . . . . . . . .13
2
Page 10
10 INTRODUCTION
Uconnect® 5.0 SYSTEM
Page 11
1 — EJECT
Push the EJECT button to eject the disc.
2 — DISPLAY ON/OFF
Push the DISPLAY ON/OFF button located on the faceplate to turn the display ON or OFF.
3 — BACK
Push the BACK button to return to a previous menu or
screen.
4 — ENTER/BROWSE & TUNE/SCROLL
Push the ENTER/BROWSE button to accept a highlighted selection on the screen. Rotate the TUNE/
SCROLL rotary knob to scroll through a list or tune a
radio station.
INTRODUCTION 11
Push the MORE button located on the faceplate to access
additional options such as: ECODrive, Trip, Settings and
Clock.
6 — PHONE
Push the PHONE button to access the Uconnect® Phone
feature.
7 — COMPASS
Push the COMPASS button located on the faceplate to
display the current direction of the vehicle.
8 — MEDIA
Pushing the MEDIA button will allow you to switch to
Media mode (CD, USB/iPOD®, AUX, Bluetooth®).
9 — RADIO
2
5 — MORE
Push the RADIO button located on the faceplate to enter
Radio Mode. The different tuner modes; AM, FM and
Page 12
12 INTRODUCTION
SXM – If Equipped can be selected by pushing the
corresponding buttons in the Radio Mode.
10 — ON/VOLUME
Rotate the rotary knob to adjust the Volume. Push the
ON/VOLUME button to turn on the system. Push the
ON/VOLUME button a second time to turn off the
system.
11 — MUTE
Push the MUTE button for activation/deactivation of the
volume.
Page 13
Uconnect® 5.0N SYSTEM
INTRODUCTION 13
2
Page 14
14 INTRODUCTION
1 — EJECT
Push the EJECT button to eject the disc.
2 — DISPLAY ON/OFF
Push the DISPLAY ON/OFF button located on the faceplate to turn the display ON or OFF.
3 — BACK
Push the BACK button to return to a previous menu or
screen.
4 — ENTER/BROWSE & TUNE/SCROLL
Push the ENTER/BROWSE button to accept a highlighted selection on the screen. Rotate the TUNE/
SCROLL rotary knob to scroll through a list or tune a
radio station.
Push the MORE button located on the faceplate to access
additional options such as: ECODrive, Trip, Settings and
Clock and Compass.
6 — PHONE
Push the PHONE button to access the Uconnect® Phone
feature.
7 — NAV
Push the NAV button located on the faceplate to access
the navigation menu.
8 — MEDIA
Pushing the MEDIA button will allow you to switch to
Media mode (CD, USB/iPOD®, AUX, Bluetooth®).
9 — RADIO
5 — MORE
Push the RADIO button located on the faceplate to enter
Radio Mode. The different tuner modes; AM, FM and
Page 15
SXM – If Equipped can be selected by pushing the
corresponding buttons in the Radio Mode.
10 — ON/VOLUME
Rotate the rotary knob to adjust the Volume. Push the
ON/VOLUME button to turn on the system. Push the
ON/VOLUME button a second time to turn off the
system.
11 — MUTE
Push the MUTE button for activation/deactivation of the
volume.
INTRODUCTION 15
2
Page 16
Page 17
RADIO MODE
CONTENTS
m RADIO MODE. . . . . . . . . . . . . . . . . . . . . . . . . .18
▫ Volume & Mute . . . . . . . . . . . . . . . . . . . . . . .18
▫ Setting Presets. . . . . . . . . . . . . . . . . . . . . . . . .20
▫ SiriusXM Satellite Radio Mode . . . . . . . . . . . . .21
3
▫ Enter/Browse & Tune/Scroll Control . . . . . . . .18
▫ Seek Functions . . . . . . . . . . . . . . . . . . . . . . . .19
▫ Direct Tune. . . . . . . . . . . . . . . . . . . . . . . . . . .19
▫ SiriusXM Premier . . . . . . . . . . . . . . . . . . . . . .21
▫ Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
▫ Clock Setting . . . . . . . . . . . . . . . . . . . . . . . . .25
Page 18
18 RADIO MODE
RADIO MODE
Push the RADIO button to enter Radio Mode. The
different tuner modes; AM, FM, and SXM, can then be
selected by pressing the corresponding buttons in Radio
mode.
Volume & Mute
Rotate the rotary knob to adjust the Volume. When the
audio system is turned on, the sound will be set at the
same volume level as last played.
Push the MUTE button to mute the system. Push the
MUTE button again to unmute the system.
Enter/Browse & Tune/Scroll Control
The radio is equipped with the following modes:
• AM
• FM
• SXM SiriusXM Satellite Radio (if equipped)
Turn the rotary TUNE/SCROLL control knob clockwise
to increase or counterclockwise to decrease the radio
station frequency. Push the ENTER/BROWSE button to
choose a selection.
Page 19
Seek Functions
Seek Up
Press and release the “Seek Up” button to tune the
radio to the next listenable station or channel.
During a Seek Up function, if the radio reaches the
starting station after passing through the entire band two
times, the radio will stop at the station where it began.
Fast Seek Up
Press and hold the “Seek Up” button to advance the
radio through the available stations or channels at a
faster rate, the radio stops at the next available station or
channel when the button is released.
Seek Down
Press and release the “Seek Down” button to tune the
radio to the next listenable station or channel.
RADIO MODE 19
During a Seek Down function, if the radio reaches the
starting station after passing through the entire band two
times, the radio will stop at the station where it began.
Fast Seek Down
Press and hold the “Seek Down” button to advance
the radio through the available stations or channel at a
faster rate, the radio stops at the next available station or
channel when the button is released.
Direct Tune
3
Page 20
20 RADIO MODE
The Direct Tune button screen is available in AM, FM,
and SAT radio modes and can be used to direct tune the
radio to a desired station or channel. Press the “Tune”
button located at the bottom of the radio screen.
Press the available number button to begin selecting a
desired station. Once a number has been entered, any
numbers that are no longer possible (stations that cannot
be reached) will become deactivated/grayed out.
If you accidently entered the wrong station number, Press
the “CLR” button to clear the radio station numbers and
reenter the correct station number.
Once the last digit of a station has been entered, the
Direct Tune screen will close and the system will automatically tune to that station. The selected Station or
Channel number is displayed in the Direct Tune text box.
Setting Presets
Page 21
The Presets are available for all Radio Modes, and are
activated by pressing any of the four Preset buttons,
located at the top of the screen.
When you are receiving a station that you wish to
commit into memory, press and hold the desired numbered button for more then two seconds or until you hear
a confirmation beep.
RADIO MODE 21
The Radio stores up to 12 presets in each of the Radio
modes. Four presets are visible at the top of the radio
screen.
Pressing the “All” button on the radio home screen will
display all of the preset stations for that mode.
3
SiriusXM Satellite Radio Mode
SiriusXM Satellite Radio uses direct satellite-to-receiver
broadcasting technology to provide clear, coast to coast
radio content. SiriusXM is a subscription based service.
SiriusXM Premier
Page 22
22 RADIO MODE
Get over 160 channels on your satellite radio, and enjoy
all you want, all in one place. Hear commercial-free
music plus sports, news, talk and entertainment. Get all
the premium programming, including Howard Stern,
every NFL game, Oprah Radio®, every MLB® and
NHL® game, every NASCAR® race, Martha Stewart and
more. And get 20+ extra channels, including SiriusXM
Latino, offering 20 channels of commercial free music,
news, talk, comedy, sports and more dedicated to Spanish language programming.
SiriusXM services require subscriptions, sold separately
after the 12-month trial included with the new vehicle
purchase. If you decide to continue your service at the
end of your trial subscription, the plan you choose will
automatically renew and bill at then-current rates until
you call SiriusXM at 1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at www.siriusxm.com. All fees and programming subject to
change. Our satellite service is available only to those at
least 18 and older in the 48 contiguous USAand D.C. Our
Sirius satellite service is also available in PR (with
coverage limitations). Our Internet radio service is available throughout our satellite service area and in AK and
HI. © 2014 SiriusXM Radio Inc. Sirius, XM and all related
marks and logos are trademarks of SiriusXM Radio Inc.
Service available in Canada; see www.siriuscanada.ca.
Page 23
This functionality is only available for radios equipped
with a Satellite receiver. In order to receive satellite radio,
the vehicle needs to be outside with a clear view to the
sky.
RADIO MODE 23
If the screen shows Acquiring Signal, you might have to
change the vehicle’s position in order to receive a signal.
In most cases, the satellite radio does not receive a signal
in underground parking garages or tunnels.
Audio
3
1. Push the MORE button on the right side of the unit
and then the “Settings” button.
2. Then scroll down and press the “Audio” button to get
to the Audio menu.
3. The Audio Menu shows the following options for you
to customize your audio settings.
Page 24
24 RADIO MODE
Equalizer
Press the “Balance/Fade” button to adjust the sound
from the speakers. Use the “arrow” button to adjust the
sound level from the front and rear or right and left side
speakers. Press the Center “C” button to reset the balance
and fade to the factory setting. Press the “Done” button
when done.
Speed Adjustable
Press the “Speed Adjusted Volume” button to select
between OFF, 1, 2 or 3. This will decrease the radio
volume relative to a decrease in vehicle speed. Press the
“Done” button when complete.
Press the “Equalizer” button to adjust the Bass, Mid and
Treble. Use the “+” or “–” button to adjust the equalizer
to your desired settings. Press the “Done” button when
completed.
Balance/Fade
Loudness
Press the “Loudness” button to select the Loudness
feature. When this feature is activated it improves sound
quality at lower volumes. Press the “Done” button when
complete.
Auto On Radio
Page 25
Press the “Auto On Radio” button to set how the radio
behaves when the Ignition is switched to ON. The
options are: Radio On, Radio Off or Reset to the last
turned to stop condition. Press the “Done” button when
complete.
Radio Off Delay
Press the “Radio Off Delay” to keep the radio On for a
preset amount of time after the Ignition is switched OFF.
Press the “Done” button when complete.
RADIO MODE 25
Clock Setting
1. To start the clock setting procedure, perform either of
the following:
• Push the MORE button on the right side of the
display, press the “Time” button and then press the
“Set” button.
• Push the MORE button on the right side of the
display, press the “Settings” button, then “Clock and
Date” button, and then the “Set Time and Date”
button. Select the “Up or Down” arrows as appropriate. Select “Done” when complete.
NOTE: In the Clock Setting Menu you can also select
Display Clock. Display Clock turns the clock display in
the status bar on or off.
2. Press the “Up” or “Down” arrows to adjust the hours
or minutes, next select the “AM” or “PM” button. You
can also select 12hr or 24hr format by pressing the
desired button.
3
Page 26
26 RADIO MODE
3. Once the time is set press the “Done” button to exit the
time screen.
Page 27
MEDIA MODE
CONTENTS
m MEDIA MODE . . . . . . . . . . . . . . . . . . . . . . . . .28
▫ USB/iPod® Mode . . . . . . . . . . . . . . . . . . . . . .30
▫ Common Media Functions . . . . . . . . . . . . . . . .28
▫ Disc Mode . . . . . . . . . . . . . . . . . . . . . . . . . . .30
▫ AUX Mode . . . . . . . . . . . . . . . . . . . . . . . . . . .31
4
▫ Bluetooth® Mode . . . . . . . . . . . . . . . . . . . . . .32
Page 28
28 MEDIA MODE
MEDIA MODE
• Albums
• Playlists
WARNING!
ALWAYS drive safely with your hands on the
steering wheel. You have full responsibility and
assume all risks related to the use of the
Uconnect® features and applications in this vehicle. Only use Uconnect® when it is safe to do so.
Failure to do so may result in an accident involving serious injury or death.
Media Mode is entered by pushing the MEDIA button
located on the faceplate. Once in MEDIA mode, press the
“Source” button and the desired mode button. Disc, USB,
AUX and Bluetooth® are the Media sources available.
You can select the “Browse” button to be given these
options:
• Now Playing • Artists
• Genres
• Folders
• Songs
You can select the “Source” button, “Pause/Play” button
or the “Info” button for artist information on current
song playing.
Common Media Functions
Seek Up /Down
Press and release the “Right Arrow” button for the
next selection. Press and release the “Left Arrow” button
to return to the beginning of the current selection, or
return to the beginning of the previous selection if the
Disc, USB, AUX and Bluetooth® is within the first eight
seconds (less time for some devices) of the current
selection.
Fast Seek Up
Page 29
Press and hold the “Right Arrow” button and the
desired mode will begin to fast forward through the
current track until the button is released.
Seek Down
Press and release the “Seek Down” button on the
touchscreen to tune the radio to the next listenable station
or channel.
Fast Seek Down
MEDIA MODE 29
Info
Press the “Info” button to display the current track
information. Press the “X” button to cancel this feature.
Shuffle
Press the “Shuffle” button to play the selections on the
USB/iPod® or Bluetooth® (if supported) device in random order to provide an interesting change of pace. Press
the button a second time to turn this feature off.
4
Press and hold the “Left Arrow” button and the
desired mode will begin to rewind through the current
track until the button is released.
Source
Press the “Source” button to select the desired audio
source, Disc, AUX, USB/iPod® or Bluetooth®. This
screen will time out after a few seconds and return to the
main radio screen if no selection is made.
Repeat
Press the 9Repeat9 button to replay the selection on the
USB/iPod® or Bluetooth® (if supported) device. Press
the button a second time to turn this feature off.
Audio
Refer to Operating Instructions – Radio Mode for adjusting the audio settings.
Page 30
30 MEDIA MODE
Disc Mode
Disc Mode is entered by either inserting a CD/Disc into
the Disc player above the display or by pushing the
MEDIA button located on the side of the display. Once in
MEDIA mode, press the “Source” button and select Disc.
Inserting Compact Disc
Gently insert one Disc into the Disc player following the
illustration indicated on the player. The Disc will automatically be pulled into the Disc player and the Disc icon
will illuminate on the radio display. If a Disc does not go
into the slot more than 1.0 in (2.5 cm), a disc may already
be loaded and must be ejected before a new Disc can be
loaded.
If you insert a Disc with the ignition ON and the radio
ON, the unit will switch to Disc mode and begin to play
when you insert the Disc. The display will show the track
number, and index time in minutes and seconds. Play
will begin at the start of track 1.
Browse
Press the “Browse” button to scroll through and select a
desired track on the Disc. Press the “Exit” button if you
wish to cancel the browse function.
Eject Button — Ejecting A Disc
Push the EJECT button to eject the Disc. If you have
ejected a Disc and have not removed it within 20 seconds,
it will be reloaded. If the Disc is not removed, the radio
will reinsert the Disc but will not play it.
A Disc can be ejected with the radio and ignition OFF.
USB/iPod® Mode
USB/iPod® Mode is entered by either inserting a USB
Jump Drive or iPod® cable into the USB port or by
Page 31
pushing the MEDIA button located left of the display.
Once in MEDIA mode, press the “Source” button and
select USB/iPod®.
Inserting USB/iPod® Device
Gently insert the USB/iPod® device into the USB Port. If
you insert a USB/iPod® device with the ignition ON, the
unit will switch to USB/iPod® mode and begin to play
when you insert the device. The display will show the
Artist and Title name, and index time in minutes and
seconds.
Browse
Press the “Browse” button to select Artist, Albums,
Genres, Songs, Playlists or Folders from the USB device
only. Once the desired selection is made you can choose
from the available media by pressing the button. Press
the “Exit” button if you want to cancel the browse
function.
MEDIA MODE 31
AUX Mode
AUX Mode is entered by inserting a AUX device using a
cable with a 3.5 mm stereo audio jack into the AUX port
or by pushing the MEDIA mode button located below the
display. Once in MEDIA mode, press the “Source” button
and select AUX.
4
Inserting Auxiliary Device
Page 32
32 MEDIA MODE
Gently insert the Auxiliary device cable into the AUX
Port. If you insert a Auxiliary device with the ignition
ON, the unit will switch to AUX mode and begin to play
when you insert the device cable.
Controlling The Auxiliary Device
The control of the auxiliary device (e.g., selecting playlists, play, fast forward, etc.) cannot be provided by the
radio; use the device controls instead. Adjust the volume
with the VOLUME rotary knob, or with the volume of the
attached device.
NOTE: The vehicle radio unit is acting as the amplifier
for audio output from the Auxiliary device. Therefore if
the volume control on the Auxiliary device is set too low,
there will be insufficient audio signal for the radio unit to
play the music on the device.
Bluetooth® Mode
Bluetooth® Streaming Audio (BTSA) or Bluetooth®
Mode is entered by pairing a Bluetooth® compatible
device containing music, to the Uconnect® system.
Before proceeding, the Bluetooth® device needs to be
paired through Uconnect® Phone to communicate with
the Uconnect® System.
NOTE: See the pairing procedure in this manual for
further details.
Once the Bluetooth® device is paired to the Uconnect®
System, push the MEDIA button. Once in MEDIA mode,
press the “Source” button and select Bluetooth®.
Page 33
Uconnect® PHONE
CONTENTS
m Uconnect® PHONE . . . . . . . . . . . . . . . . . . . . . .34
▫ Mute (Or Unmute) Microphone During Call . . .37
▫ Pairing A Phone . . . . . . . . . . . . . . . . . . . . . . .34
▫ Start Pairing Procedure . . . . . . . . . . . . . . . . . .35
▫ Phonebook Download — Phonebook Transfer
From Mobile Phone . . . . . . . . . . . . . . . . . . . . .36
▫ Making A Phone Call . . . . . . . . . . . . . . . . . . .37
▫ Receiving A Call — Accept (And End) . . . . . . .37
▫ Transfer Ongoing Call Between Handset And
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
▫ SMS Message Reader. . . . . . . . . . . . . . . . . . . .38
▫ SMS Message Reader Activation/Deactivation . .38
▫ SMS Message Options . . . . . . . . . . . . . . . . . . .38
▫ Changing The Volume . . . . . . . . . . . . . . . . . . .39
5
Page 34
34 Uconnect® PHONE
Uconnect® PHONE
WARNING!
ALWAYS drive safely with your hands on the
steering wheel. You have full responsibility and
assume all risks related to the use of the
Uconnect® features and applications in this vehicle. Only use Uconnect® when it is safe to do so.
Failure to do so may result in an accident involving serious injury or death.
The Uconnect® is a voice-activated, hands-free, invehicle communications system with Voice Command
Capability (see Voice Command section).
NOTE:
• The Uconnect® requires a mobile phone equipped
with the Bluetooth® Hands-Free Profile, Version 1.0 or
higher. For Uconnect® customer support:
• U.S. residents - visit
UconnectPhone.com
or call
1–877–855–8400
• Canadian residents - visit
UconnectPhone.com
or
call 1–800–465–2001 (English) or 1–800–387–9983
(French)
• Prior to starting the pairing procedure, ensure all
additional Bluetooth® devices or phones within the
vehicle have their Bluetooth® disabled.
Pairing A Phone
The Uconnect® allows you to dial a phone number with
your mobile phone using simple voice commands.
To use the Uconnect® feature, you must first pair your
Bluetooth® phone with the Uconnect® system. Refer to
UconnectPhone.com
for pairing procedure unique to
your phone.
Page 35
Start Pairing Procedure
1. Activate the Bluetooth® on your mobile phone.
2. Push the “PHONE” button on the radio faceplate.
3. If there are not any mobile phones paired with the
system, the display shows a dedicated screen.
4. Press the “Yes” button to start the pairing procedure
search for the Uconnect® device on the mobile phone
(if No is selected, the Phone main screen is displayed).
5. When prompted by the mobile phone, use its keyboard to enter the PIN code shown on the system
display, or confirm on the mobile phone the PIN
displayed.
6. From the Phone screen you can always pair a mobile
phone by pushing the “Settings” button, then press
the “Add Device” button and proceed as described
above.
Uconnect® PHONE 35
7. During the pairing stage, a screen is displayed indicating the progress of the operation.
8. If the pairing procedure is completed successfully, a
screen is displayed. Press “Yes” to the question to pair
the mobile phone as favorite (the mobile phone will
have priority on all other mobile phones that will be
paired later on). If no other devices are paired, the
system will consider the first associated device as
favorite.
NOTE:
• The priority is determined according to the order of
connection for mobile phones which are not set as
favorite. The last phone connected will have the highest priority.
• For assistance in pairing your phone, contact
Uconnect® customer support:
5
Page 36
36 Uconnect® PHONE
• U.S. residents - visit
UconnectPhone.com
for phone
compatibility, pairing instructions and details or call
1–877–855–8400
• Canadian residents - visit
UconnectPhone.com
for
phone compatibility, pairing instructions and details
or call 1–800–465–2001 (English) or 1–800–387–9983
(French)
Phonebook Download — Phonebook Transfer From Mobile Phone
If equipped and specifically supported by your phone,
Uconnect® will ask you if you want to download names
(text names) and number entries from your mobile
phone’s phonebook. Press the “book icon” to begin the
phonebook data download process. Specific Bluetooth®
Phones with Phone Book Access Profile may support this
feature. See
UconnectPhone.com
for supported phones.
Download and update, if supported, begins as soon as
the Bluetooth® phone connection is made to the
Uconnect®, for example, after you start the vehicle.
NOTE:
• A message on the screen may ask for permission to
initiate the phonebook download.
• A maximum of 2000 entries per phone will be downloaded and updated every time a phone is connected
to the Uconnect®.
• Depending on the maximum number of entries downloaded, there may be a short delay before the latest
downloaded names can be used. Until then, if available, the previously downloaded phonebook is available for use.
• Only the phonebook of the currently connected mobile
phone is accessible.
Page 37
• Both the SIM card and the mobile phone’s phonebook
is downloaded. SIM card phonebook is not part of the
Mobile phonebook. It is possible that the SIM card
phonebook may not be downloaded depending on the
mobile phone and the phone’s software.
• This downloaded phonebook cannot be edited or
deleted on the Uconnect®. These can only be edited on
the mobile phone. The changes are transferred and
updated to Uconnect® Phone on the next phone
connection.
Making A Phone Call
Push the “Phone Pick-up” button on the steering
wheel.
After the BEEP, say “dial” a number (or “call” a name).
Uconnect® PHONE 37
Receiving A Call — Accept (And End)
When an incoming call rings, or is announced on
Uconnect®, push the “Phone Pick-up” button.
To end a call, push the “Phone Hang-up” button on the
steering wheel or the “Answer” button on the radio
touchscreen.
Mute (Or Unmute) Microphone During Call
During a call, push the “Voice Command” button
on the steering wheel.
After the BEEP, say “mute” to mute the microphone (or
“mute off” to un-mute the microphone).
Transfer Ongoing Call Between Handset And Vehicle
During a call, push the “Voice Command” button.
After the BEEP, say “transfer call.”
5
Page 38
38 Uconnect® PHONE
SMS Message Reader
SMS Message Reader Activation/Deactivation
The system can read the messages received by the mobile
phone.
To use this function the mobile phone must be support
the SMS exchange function via Bluetooth®
If this function is not supported by the phone, the
corresponding
button is deactivated (greyed out).
When a text message is received, the display will show a
screen where the options “Listen,” “Call” or “Ignore” can
be selected.
Press the
button to access the list of SMS messages
received by the mobile phone (the list displays a maximum of 60 messages received).
The SMS message automatic reading function can be
activated/deactivated by pressing the corresponding
button on the display, which is shown after pressing the
phone selection button.
NOTE: On some mobile phones, to make the SMS voice
reading function available, the SMS notification option
on the phone must be enabled: this option is usually
available on the phone, in the Bluetooth® connections
menu for a device registered as Uconnect®. After enabling this function on the mobile phone, it must be
disconnected and reconnected with the system to make it
effective.
SMS Message Options
Pre-set SMS messages are stored in the system and can be
sent to answer a received message or as a new message.
Page 39
When an SMS is received, the system also allows the
message itself to be forwarded.
Changing The Volume
During a phone call, use the radio VOLUME rotary knob
to adjust the volume to a comfortable level while the
Uconnect® system is speaking. Please note the volume
setting for Uconnect® is different than the audio system.
Uconnect® PHONE 39
5
Page 40
Page 41
MORE MAIN MENU
CONTENTS
m MORE MAIN MENU . . . . . . . . . . . . . . . . . . . . .42
▫ Phone/Bluetooth® . . . . . . . . . . . . . . . . . . . . .45
▫ Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
▫ Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
▫ Clock & Date . . . . . . . . . . . . . . . . . . . . . . . . .43
▫ Safety/Assistance — If Equipped . . . . . . . . . . .44
▫ Lights — If Equipped . . . . . . . . . . . . . . . . . . .44
▫ Doors & Locks . . . . . . . . . . . . . . . . . . . . . . . .45
▫ Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
▫ Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
▫ Restore Default Settings . . . . . . . . . . . . . . . . . .45
▫ eco:Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
▫ Trip Computer . . . . . . . . . . . . . . . . . . . . . . . .48
▫ Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
▫ Compass (w/Navigation Only). . . . . . . . . . . . .48
6
Page 42
42 MORE MAIN MENU
MORE MAIN MENU
Push the MORE button to display the following options:
Settings
Select “Brightness” and press the “+” or “–” buttons to
adjust the display brightness with the headlights on or
off (the setting not corresponding to the active headlight
condition is greyed out).
Display Mode
Press the “Display Mode” button to set the display
brightness according to Day, Night or Auto condition. In
Auto mode the display brightness is aligned to that of the
instrument panel.
Language
Press the “Language” button to select one of the languages available.
Units
Display
Brightness (This Setting Is Not Available When The
Display Mode Is Set To Automatic)
Press the “Units” button to select the correct unit for
Temperature (°C or °F), Distance (mi or km) and Fuel
Page 43
Consumption. If the distance is in mi (miles), miles per
gallon (mpg) are set automatically. If the distance is
in km, km/l or l/100km can be selected.
Voice Resp. Length
Press the “Relevant” button to set the detail level of the
voice messages supplied by the system and the suggestions displayed.
Touchscreen Beep
Press the “Relevant” button to activate/deactivate the
acoustic signal when the buttons on the displayed are
pressed.
Display Trip B
Press the “Relevant” button to activate/deactivate the
displaying of the Trip B on the instrument panel display.
MORE MAIN MENU 43
Clock & Date
Use this function to set the clock.
Time Setting
Press the “Settings” buttons on the front panel then select
Clock & Date.
Select “Set Time” and press the “Up or Down” buttons to
adjust hours and minutes.
6
Page 44
44 MORE MAIN MENU
Press the “12h or 24h” buttons to select the time.
The AM and PM are available in 12h mode.
In the Clock menu, Show Time Status can be selected to
activate/deactivate the displaying of the clock at the top
of the display (if equipped).
To set the date proceed as for the time setting: select Set
Date to adjust day, month and year.
Safety/Assistance — If Equipped
Use this function to make the following adjustments:
ParkView® Backup Camera — If Equipped
ParkView® Backup Camera can be activated/
deactivated to display while in reverse.
Lights — If Equipped
Use this function to carry out the following:
Twilight Sensor — If Equipped
Adjustment of headlight switching on sensitivity
Daytime Lights (DRL) — If Equipped
Activation/Deactivation of daytime lights
Date Setting
Cornering Lights — If Equipped
Page 45
Activation/Deactivation of cornering lights.
MORE MAIN MENU 45
Restore Default Settings
Doors & Locks
Use this function to activate/deactivate the automatic
door locking when the car is moving (Autoclose function).
Audio
See the Audio section for more information.
Phone/Bluetooth®
See the description in the paragraph Phone Mode.
Radio
Use this function to configure the following options:
SiriusXM Setup
Subscription Info
Use this function to restore the settings for display, time,
date, audio and radio to the default values set by the
manufacturer.
eco:Drive
The eco:Drive application allows the driver to monitor
their driving style to achieve an efficient driving style in
terms of fuel economy and emissions reduction.
Monitoring appears on the display in real time; it is
however possible to access detailed overall information
by consulting the eco:Drive site (see Data transfer).
The assessment of driving style is indicated by four
indices which are assessed as optimal when the ecodriving style criteria below are complied with:
Acceleration/Deceleration
6
Page 46
46 MORE MAIN MENU
Avoid abrupt acceleration/deceleration, favouring
gradual increases/decreases in speed.
Gearbox
Use the gear most suited to the road conditions, to
optimize fuel consumption (on vehicles with automatic
transmissions, using “Auto” mode, this parameter is not
displayed).
Speed
Adopt a driving style which maintains, above all on
traffic-free roads, the most appropriate constant driving
speed, anticipating any deceleration due to uneven road
surfaces or traffic conditions.
NOTE:
• The values measured are not directly connected to
instant fuel consumption but are intended to suggest
how the driver can alter their driving style to reduce
consumption.
• Different journeys may have different values even
though the driver maintains the same driving style,
since they are affected by factors such as traffic conditions, length of journey and cold starting.
• An eco:Drive is a more fluid drive, even if traffic
conditions often inhibit this. A more aggressive drive,
on the other hand, implies frequent acceleration/
deceleration with resulting increased fuel consumption and harmful emissions.
Activation
1. Press the eco:Drive button to interact with the func-
tion.
Page 47
2. To activate the function press the eco:Drive ON button.
3. A screen will be displayed showing the four indices
previously described.
These indexes are grey until the system has sufficient
data to evaluate the driving style or in the event of long
stops.
Once sufficient data are available, the indexes will have
four colors depending on the evaluation: green (very
good), yellow, orange and red (very bad).
With reference to the Current index refers to the overall
average value of the indices described calculated in real
time, indicating the eco-sustainability of the driving style,
from 0 (low) to 100 (high).
MORE MAIN MENU 47
To check the data average of previous trips (the trip starts
when the ignition key is turned to the ON position and
stops when it is turned to the OFF position), select the
Previous Trip button.
Deactivation
Press the eco:Drive Off button to deactivate the function.
Data Transfer
The trip data is saved in the system’s memory. By
correctly configuring a USB drive and going to the
eco:Drive site, the history of trips can be achieved in a
personal profile and the overall analysis of the trip data
and driving style can be consulted.
Do not remove the USB stick until the system has
downloaded the data since they might be lost completely
or partially.
6
Page 48
48 MORE MAIN MENU
During the transfer of data to the USB drive, messages
may appear on the display to guide the user correctly
through the operation.
These messages are only displayed with the ignition key
in the OFF position and system off delay longer than 0
minutes.
NOTE:
Trip Computer
Press the Trip button to display the trip information of
the car.
This function allows you to display the consumption
levels and define two separate trips called Trip A and Trip
B for monitoring the car’s complete journey in a reciprocally independent manner.
• Warning messages will be displayed when the USB
storage device is full.
• When the eco:Drive data is not transferred to USB
storage device for a long time, the internal memory of
the Uconnect® system may be exhausted.
• Warning messages will also be displayed in case of
eco:Drive internal memory full: To not lose saved data,
it will be required to connect the USB storage device
configures fro eco:Drive.
Both functions can be reset (reset – start of a new
journey): to reset the desired Trip hold down the Trip A
or Trip B buttons.
Clock
Show the Clock setting in full screen mode.
Compass (w/Navigation Only)
Indicates the current direction vehicle is travelling.
Page 49
NAVIGATION — If Equipped
CONTENTS
m Read Me First . . . . . . . . . . . . . . . . . . . . . . . . . .51
▫ Advanced Lane Guidance . . . . . . . . . . . . . . . .70
▫ Switching On . . . . . . . . . . . . . . . . . . . . . . . . .51
▫ Setting Up . . . . . . . . . . . . . . . . . . . . . . . . . . .51
▫ GPS Reception . . . . . . . . . . . . . . . . . . . . . . . .51
▫ The Update Portal . . . . . . . . . . . . . . . . . . . . . .51
▫ Safety Settings . . . . . . . . . . . . . . . . . . . . . . . .51
▫ Getting Help To Use Your Navigation System . .52
▫ Planning A Route . . . . . . . . . . . . . . . . . . . . . .52
▫ Voice Control . . . . . . . . . . . . . . . . . . . . . . . . .67
▫ The Driving View . . . . . . . . . . . . . . . . . . . . . .68
▫ Changing Your Route . . . . . . . . . . . . . . . . . . .72
▫ View Map . . . . . . . . . . . . . . . . . . . . . . . . . . .79
▫ Sounds And Voices . . . . . . . . . . . . . . . . . . . . .80
▫ Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
▫ Points Of Interest . . . . . . . . . . . . . . . . . . . . . .98
▫ Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103
▫ Favorites. . . . . . . . . . . . . . . . . . . . . . . . . . . .107
▫ Map Update . . . . . . . . . . . . . . . . . . . . . . . . .109
▫ Important Safety Notices And Warnings . . . . .120
7
Page 50
50 NAVIGATION — If Equipped
▫ Copyright Notices . . . . . . . . . . . . . . . . . . . . .121
Page 51
Read Me First
NAVIGATION — If Equipped 51
The Update Portal
Switching On
To switch on navigation, push the “NAV” button.
Setting Up
When you first switch on navigation, you have to answer
a few set-up questions. Answer the questions by pressing
the touchscreen.
GPS Reception
When you first start TomTom navigation, the system may
need a few minutes to determine your GPS position and
show your current position on the map. In future, your
position will be found much faster, usually within a few
seconds.
Large objects such as tall buildings can sometimes interfere with GPS reception.
The Update Portal will be used for updating the content
of your navigation system, such as the map.
Please refer to your dealer for more information on the
content update procedure.
Safety Settings
We recommend using the safety settings to make your
driving as safe as possible.
These are some of the options included in the safety
settings:
• Show safety reminders.
• Warn when driving faster than allowed.
You can also drive more safely by using voice commands
to control navigation.
7
Page 52
52 NAVIGATION — If Equipped
Getting Help To Use Your Navigation System
You can get further help by going to tomtom.com/
support.
Planning A Route
CAUTION!
Always drive safely and only use the navigation
features in this vehicle when it is safe to do so.
To plan a route, do the following:
1. Press the touchscreen to open the Main Menu.
2. Press the “Drive to” button on the touchscreen.
3. Press the “Address” button.
You can change the country or state setting by pressing the state icon in the upper right corner of the
screen.
4. Enter the town or city name, or the ZIP code.
Page 53
Towns with similar names are shown in the list while
you type.
NOTE: Press the “Arrow” button to the right of the list to
expand the list of suggested towns.
When the correct city or town appears in the list, press
the name to select the destination.
NAVIGATION — If Equipped 53
5. Enter the street name.
Streets with similar names are shown in the list while
you type.
When the correct street name appears in the list, press
the name to select the destination.
7
6. Enter the house number, then press the “OK” button.
Page 54
54 NAVIGATION — If Equipped
7. The location is shown on the map. Press the “Select”
button to continue or press the “Back” button to enter
another address.
NOTE: If you want your final destination to be a parking
lot, press the “Parking lot” button and select a location
from the list of parking lots close to your general destination.
8. When the new route is shown, press the “Done”
button.
For more information about the route, press the “Details” buttons.
Page 55
To change your route, for example, to travel via a
particular location or to select a new destination, press
the “Change route” button.
You are guided to your destination using spoken
instructions and on-screen directions.
NAVIGATION — If Equipped 55
Safety Mode
The navigation SW will switch to “Safety Mode,” with a
dedicated menu structure, when driving above a threshold speed of 5 mph. In this mode, only that functionality
is available that can be used safely when driving. The
main menu in Safety mode is displayed.
7
Page 56
56 NAVIGATION — If Equipped
In Safety mode, you can enter a destination (without the
use of typewriter, see below), go into map display, and
toggle three settings. The “Navigate to” submenu in
Safety Mode has reduced functionality:
In Safety Mode, it is only possible to enter destinations
that do not require the use of the typewriter.
Route Summary
The route summary shows an overview of your route, the
remaining distance to your destination and the remaining estimated journey time.
To view the route summary, push the right-hand panel on
the status bar in the Driving view or press the “View
route” button in the Main Menu and then press the
“Show route summary” button.
Page 57
NAVIGATION — If Equipped 57
Selecting A Route Type
Every time you plan a route, you can choose to be asked
about the type of route you want to plan.
To do this, push the “Settings” button followed by the
“Route planning,” then “Route types.” Press “Ask me
every time I plan.”
The types of route you can choose from are as follows:
• Every Time I Plan — Will ask you the type of route
you want to plan.
• Fastest Route — Route which takes the least time.
• Eco route — Most fuel-efficient route for your journey.
7
Page 58
58 NAVIGATION — If Equipped
• Shortest route — Shortest distance between the loca-
tions you set. This may not be the quickest route,
especially if the shortest route is through a town or
city.
• Avoid motorways — Route which avoids motorways.
Using Arrival Times
You can set your navigation system to ask you if you
need to arrive at a particular time when you plan a route.
Push the “Status bar” button in the
Settings menu, to enable or disable
arrival time notifications.
Select how the status bar should be
displayed, then press next.
To enable arrival time notifications,
select “Leeway,” then press “Done.”
After entering a destination, press the “YES” button
when asked about an arrival time to enter a preferred
arrival time.
The navigation system calculates your arrival time and
shows you whether you will arrive on time.
You can also use this information to work out when you
need to leave. If route planning shows that you will
arrive 30 minutes early, you can wait and leave in 30
minutes time, rather than arrive early.
Your arrival time is constantly recalculated during your
journey. The status bar shows whether you will arrive on
time or if you are going to be late, as shown below:
Page 59
You will arrive 55 minutes before the arrival time you entered.
If the estimated arrival time is more than five minutes before the time you entered, it is
shown in green.
You will arrive 3 minutes before the arrival time you entered.
If the estimated arrival time is less than 5 minutes before the time you entered, it is shown
in yellow.
You will arrive 19 minutes late. If the estimated arrival time is later than the time you
entered, it is shown in red.
Navigation Menu Options
NAVIGATION — If Equipped 59
When you press the “Drive to” button you can set your
destination in many ways, not just by entering the
address. The other options are listed below:
7
Page 60
60 NAVIGATION — If Equipped
Home
Press this button to navigate to your Home location.
You will probably use this button more than any other.
Favorites
Press this button to select a Favorite as your destination.
Page 61
NAVIGATION — If Equipped 61
Address
Press this button to enter an address as your destination.
Recent Destination
Press this button to select your destination from a list of places you have recently used as
destinations.
7
Page 62
62 NAVIGATION — If Equipped
Point Of Interest
Press this button to navigate to a Point of Interest (POI).
Latitude Longitude
Press this button to enter a destination using latitude and longitude values.
Page 63
NAVIGATION — If Equipped 63
Position Of Last Stop
Press this button to select your last recorded position as your destination.
Planning A Route In Advance
You can use your navigation system to plan a route in
advance, selecting your starting point and your destination.
Here are more reasons to plan a route in advance:
• Find out how long a journey is going to take before
you start.
• You can also compare journey times for the same route
at different times of the day or on different days of the
week. Navigation uses IQ Routes when planning a
route. IQ Routes calculates routes based on the real
average speeds measured on roads.
• Study the route of a journey you are planning.
• Check a route for someone who is coming to visit you
and then explain the route to them in detail.
To plan a route in advance, follow these steps:
1. Press the touchscreen to bring up the Main menu.
7
Page 64
64 NAVIGATION — If Equipped
2. Press the “Plan route” button.
This button is shown when no route
has been planned.
3. Select the starting point for your
journey in the same way that you
would select your destination.
4. Set the destination for your journey.
5. If Route planning settings are set to “Ask me every
time I plan”, select the type of route you want to plan:
• Fastest route — Route which takes the least time.
• Eco route — Most fuel-efficient route for your jour-
ney.
• Shortest route — Shortest distance between the
locations you set. This may not be the quickest route,
especially if the shortest route is through a town or
city.
• Avoid motorways — Route which avoids motor-
ways.
6. Choose the date and time that you will make the
journey you are planning.
Navigation uses IQ Routes to work out the best
possible route at that time. This is useful to see how
long a journey takes at different times of the day or on
different days of the week.
Page 65
Your navigation system plans the route between the
two locations you selected.
Viewing Route Information
You can access these options for the route you last
planned by pressing the “View route” button in the Main
Menu or the “Details” button on the route summary
screen.
Show Instructions
Press this button for a list of all the turn instructions on the route.
This is very useful if you need to explain a route to someone else.
NAVIGATION — If Equipped 65
You can then select from the following options:
7
Page 66
66 NAVIGATION — If Equipped
Show Map Of Route
Press this button to see an overview of the route using the map browser.
Show Route Demo
Press this button to watch a demo of the journey.
You can interrupt the demo at any time by pressing the screen.
Page 67
NAVIGATION — If Equipped 67
Show Route Summary
Press this button to open the route summary screen.
Show Destination
Press this button to see a preview of your destination.
You can navigate to a parking lot near your destination, and view any available information
about your destination, for example, the phone number.
Voice Control
About Voice control
Instead of pressing the touchscreen to control your
navigation system, you can use your voice to control
navigation.
For example, to switch to 2D view, you can say “2D
7
view.”
To view a list of available commands, press the “Help”
button in the Main menu and then press “What can I
say?”
Page 68
68 NAVIGATION — If Equipped
Using Voice Control
The following example shows how to use voice control to
plan a journey to your Home address:
1. Push the “Voice Recognition” button on the steering
wheel to turn on the microphone.
You see a screen with examples of commands you can say.
NOTE: Press the “Help” button in the Main
menu then press “What can I say?” to see a full list of
commands you can say.
2. When you hear a beep, say a command of your choice.
For example, you can say “Navigate home.”
For some phrases, you are asked for confirmation.
NOTE: For the best recognition of what you say, speak
normally without trying to articulate words in an unnatural way. If there is excessive road noise, for example,
you may need to speak in the direction of the microphone.
3. If the command is correct, say “Yes.”
If the command is incorrect, say “No” and repeat the
command after you hear the prompt and tone again.
Your navigation system plans a route from your
current location to your destination.
NOTE: To stop your navigation system from listening
out for further commands, say “Cancel.”
The Driving View
Page 69
About The Driving View
When your TomTom navigation system starts for the first
time, you are shown the Driving View along with detailed information about your current position.
NAVIGATION — If Equipped 69
The Driving View
1. Zoom button
Press the magnifying glass to show buttons for zooming in and out.
7
Press the center of the touchscreen, at any time, to open
the Main Menu.
2. Your current position
3. Road sign information or the next street name
Page 70
70 NAVIGATION — If Equipped
4. Remaining journey time, the remaining distance and
your estimated arrival time
Press this part of the status bar to open the Route
Summary screen.
To change the information shown in the status bar,
press the “Status bar” button in the Settings menu.
5. Speed limit, if known
To see the difference between your preferred arrival
time and your estimated arrival time, check the Leeway checkbox in the Status bar settings.
Press this part of the status bar to switch between a 3D
map and a 2D map.
6. Name of the street you are on
7. Navigation instruction for the road ahead and the
distance to next instruction
If the second instruction is less than 150m after the
first instruction, you see it shown immediately instead
of the distance.
Press this part of the status bar to repeat the last voice
instruction.
Driving View Symbols
Navigation instructions muted
This symbol is shown when the navigation
instructions have been muted.
To hear navigation instructions again, push the middle
panel in the status bar.
Advanced Lane Guidance
About Lane Guidance
NOTE: Lane guidance is not available for all junctions or
in all countries.
Page 71
Your navigation system helps you prepare for motorway
exits and junctions by showing the correct driving lane
for your planned route.
As you approach an exit or junction, the lane you need is
shown on the screen.
Using Lane Guidance
There are two types of lane guidance:
1. Lane images
NAVIGATION — If Equipped 71
To turn lane images off, push the “Settings” button in
the Main menu, then press “Advanced settings.” Clear
the checkbox for Show lane images.
NOTE: Press anywhere on the touchscreen to return to
the Driving View.
2. Instructions in the status bar
7
Page 72
72 NAVIGATION — If Equipped
NOTE: If no lane guidance is shown in the status bar and
all lanes are highlighted, you can use any lane.
Changing Your Route
Making Changes To Your Route
After you plan a route, you may want to change the route
or even the destination. There are various ways to change
your route without the need to completely replan the
entire journey.
To change the current route, press the “Change route”
button in the Main menu:
Page 73
Change Route
Press this button to change the current route.
This button is only shown while there is a planned route.
Change Route Menu
To change the current route or your destination, press one
of the following buttons:
Change Destination
Press this button to change the current destination.
When you change the destination, you are shown the same options and asked to enter the
new address in the same way as when you plan a new route.
NAVIGATION — If Equipped 73
7
Page 74
74 NAVIGATION — If Equipped
Avoid Roadblock
Press this button while driving on a planned route, to avoid a roadblock or traffic congestion
on the road ahead.
Your navigation system will suggest a new route which avoids the roads on your current
route for the selected distance.
Calculate Alternative
Press this button to find an alternative to the current route.
This button is only shown while there is a planned route.
This is a simple way to search for a different route to your current destination.
Your navigation system calculates a new route from your current location, to reach your
destination using completely different roads.
The new route is shown next to the original route so that you can select the route you want
to use.
Page 75
NAVIGATION — If Equipped 75
Travel Via
Press this button to change your route by selecting a location you want to travel past, maybe
so you can meet someone on the way.
When you select a location to travel past, you are shown the same options and asked to enter
the new address in the same way as when you plan a new route.
Your navigation system calculates the route to your destination via the selected location.
The selected location is shown on the map using a marker.
You receive a warning when you reach your destination and when you travel past a marked
location.
Avoid Part Of Route
Press this button to avoid part of the current route.
You are shown a list of the street names on your route.
When you press one of the street names, your navigation system calculates a detour to avoid
the selected street.
The route summary shows both the new route and your original route.
Press the panel on the right to select one of the routes and then press “Done.”
If you do not want to use either of the routes shown in the route summary, press “Change
route” to find another way to change your route.
7
Page 76
76 NAVIGATION — If Equipped
CAUTION!
Be aware that when a new route is calculated, you
may be asked to turn off the current road.
About Waypoints
You can choose to use waypoints for any of the following
reasons:
• You want to travel along a certain road or through a
certain area on the way to your destination.
• You want to make stops before reaching your final
destination.
When you enter a city center as a waypoint, the route
planner will plan a route via the area around this city, not
via the location of the city center. The route planner may
fail to find a route via a city center that has an awkward
location w.r.t. the current route.
Adding The First Waypoint To Your Route
To add the first waypoint to your route, do the following:
1. Press the touchscreen to bring up the Main menu.
2. Press the “Change route” button.
3. Press the “Travel via” button.
NOTE: You can also use Voice control to add Waypoints.
4. Choose the location for your waypoint from a choice
of Home, Favorite, Address, Recent destination, POI,
longitude/latitude, or position of last stop.
On the route summary screen, a message confirms that
the route is being recalculated to include the waypoint. In the Change route menu, the Travel via button
changes to show that you now have one waypoint on
your current route.
NOTE: The maximum number of waypoints you can add
is three.
Page 77
Adding Further Waypoints To Your Route
To add more waypoints to your route after the first one
has been added, do the following:
1. Press the touchscreen to bring up the Main menu.
2. Press the “Change route” button.
3. Press the “Travel via” button.
NOTE: You can also use Voice control to add waypoints.
4. Press the “Add” button.
5. Choose the location for your waypoint from a choice
of Home, Favorite, Address, Recent destination, POI,
latitude/longitude or position of last stop.
A message tells you where in the list of waypoints the
new one has been inserted.
6. Press the “Done” button.
On the route summary screen, a message confirms that
NAVIGATION — If Equipped 77
the route is being recalculated to include your waypoints.
7. Repeat to add more waypoints.
On the Change route menu, the Travel via button
changes to show that you now have several Waypoints
on your current route.
Changing The Order Of Waypoints
Waypoints are automatically added in an optimized
order but you can still change the order manually if you
need to. To change the order of waypoints, do the
following:
1. Press the touchscreen to bring up the Main menu.
2. Press the “Change route” button.
3. Press the “Travel via” button.
4. Press the waypoint you want to move up or down.
7
Page 78
78 NAVIGATION — If Equipped
You will see a touchscreen with the name of your
waypoint at the top.
5. Press the “Move up” or “Move down” buttons.
Your Waypoint changes its position in the list and you
are immediately returned to your list of waypoints.
NOTE: You cannot move an unvisited waypoint into a
list of already visited waypoints.
Deleting A Waypoint
To delete a waypoint, do the following:
1. Press the touchscreen to bring up the Main Menu.
2. Press the “Change route” button.
3. Press the “Travel via” button.
4. Press the waypoint you want to delete.
You will see a touchscreen with the name of your
waypoint at the top.
5. Press the “Delete” button.
Your waypoint is deleted and you are immediately
returned to your list of waypoints.
Reactivating A Waypoint
NOTE: You can only reactivate a waypoint that has
already been visited. Visited waypoints are greyed out.
To reactivate a waypoint, do the following:
1. Press the touchscreen to bring up the Main menu.
2. Press the “Change route” button.
3. Press the “Travel via” button.
4. Press the visited waypoint that you want to reactivate.
You will see a touchscreen with the name of your
waypoint at the top.
5. Press the “Reactivate” button.
Page 79
The waypoint is deleted and reinserted into the list of
waypoints that haven’t yet been visited.
View Map
About Viewing The Map
You can view the map in the same way as you might look
at a traditional paper map. The map shows your current
location and many other locations such as Favorites and
POIs.
To view the map in this way, press “View map” or “View
route”, then “Show map of route” in the Main menu.
You view different locations on the map by moving the
map across the screen. To move the map, press the
touchscreen and drag your finger across the screen.
View Map
NAVIGATION — If Equipped 79
1. Options button
Press this button to show options on the maps such as
points of interest (POIs), favorites, or names.
2. Find button
Press this button to find specific addresses, favorites or
Points of Interest.
7
Page 80
80 NAVIGATION — If Equipped
3. Zoom bar
Zoom in and out by moving the slider.
Options
Press the “Options” button to set the information shown
on the map and show the following information:
• Names — Select this option to show street and city
names on the map.
• Points of interest — Select this option to show POIs on
the map. Press “Choose POIs” to choose which POI
categories are shown on the map.
• Favorites — Select this option to show your Favorites
on the map.
Sounds And Voices
About Sounds And Voices
Your TomTom navigation system uses sound for some or
all of the following:
• Driving directions
• Warnings that you set
There are two types of voice available when navigating:
1. Computer voices — Computer voices are generated
by your navigation system. They read traffic and voice
command responses.
2. Human voices — These are recorded by an actor and
only provide route instructions.
Changing The Volume Level
You can change the volume for your navigation system
on the main unit.
Page 81
You can turn navigation instructions on/off by doing the
following:
• In the Driving view — Press the central panel on the
status bar to hear navigation instructions again, if they
were previously muted.
• In the Settings menu — Press the “Settings” button in
the Main menu, then press “Turn on/off voice guidance.”
Use Night Colors
Press this button to display the map in darker colors.
NOTE: Your navigation system can switch between day and night colors depending on
the time of day. To automatically switch between night and day colors, press the “Map
colors” button in the Settings menu and select “Switch to night colors when dark.”
NAVIGATION — If Equipped 81
Settings
About Settings
You can change the way your navigation system looks
and behaves. Most of the settings on your system can be
accessed by pressing the “Settings” button in the Main
Menu.
7
Page 82
82 NAVIGATION — If Equipped
Use Day Colors
Press this button to display the map in brighter colors.
Turn Off Voice Guidance
Press this button to switch off voice guidance. You will no longer hear spoken route
instructions but you will still hear information such as traffic information and warnings.
Voice guidance is also switched off when the main unit volume is muted.
Page 83
NAVIGATION — If Equipped 83
Turn On Voice Guidance
Press this button to switch on voice guidance and hear spoken route instructions.
Voice Settings
Press this button to set the type of spoken directions and other route instructions that your
navigation system will read aloud.
7
Page 84
84 NAVIGATION — If Equipped
Make Your Own Menu
Press this button to add up to six buttons to your own personalized menu.
If there are only one or two buttons in your menu, both buttons are shown in the Driving
view.
If you have three or more buttons in your menu, then a single button is shown in the Driving
view which opens your menu when pressed.
Favorites
Press this button to add, rename or delete Favorites.
Favorites provide an easy way to select a location without the need to enter the address.
They do not need to be favorite places, they can simply be seen as a collection of useful
addresses.
To create a new Favorite, press the “Add” button then
enter the location address in the same way that you enter
an address when you plan a route.
Page 85
To view or change an existing Favorite, press one of the
items in the list. To see more Favorites on the map, press
the “left or right” buttons.
NAVIGATION — If Equipped 85
7
Page 86
86 NAVIGATION — If Equipped
Home Location
Press this button to set or change your Home location. You enter the address in the same way
as you do when you plan a route.
Your Home location provides an easy way to plan a route to an important location.
For most people, your Home location will be your home address. However, you might prefer
to set the location to another regular destination, such as your workplace.
Route Planning
Press the “Route planning” button to set the way your navigation system calculates the
routes that you plan.
Press the button for each option to change the settings.
Route Types
Set the type of route you want your navigation system to
calculate.
Toll roads, Ferries, Carpool lanes and Unpaved roads
settings
Set how your navigation system should manage each of
these road features when the system calculates a route.
Page 87
Carpool lanes are sometimes known as High Occupancy
Vehicle Lanes and are not present in every country. To
travel on these lanes, you may need to have more than
one person in the car, for example, or the car may need to
use environmentally-friendly fuel.
Route Summary
Set whether you want the route summary screen to close
automatically after you plan a route. If you select No,
Car Symbol
Press this button to select the car symbol that shows your current location in the Driving
view.
NAVIGATION — If Equipped 87
then you will need to press Done to close the route
summary screen every time you plan a route.
7
Page 88
88 NAVIGATION — If Equipped
Status Bar
Press this button to select the information you want to see on the status bar:
• Horizontal — Show the status bar at the bottom of the Driving view.
• Vertical — Show the status bar on the right-hand side of the Driving view.
• Maximum speed
• Remaining distance — The distance to your destination.
• Leeway — Tour navigation system shows how late or early you will arrive, com-
pared with your preferred arrival time that was set when you planned the route.
CAUTION!
• If you drive faster than the speed limit, you may
see a warning indicator in the status bar, for example the status bar pane turns red.
CAUTION! (Continued)
• Information about speed limits is not available for
all roads.
Page 89
NAVIGATION — If Equipped 89
Safety Settings
Press this button to select the safety features you want applied to your navigation.
Map Colors
Press this button to select the color schemes for day and night map colors for 2D and 3D
mode.
Press the “Search” button to search for a color scheme by typing the name.
7
Page 90
90 NAVIGATION — If Equipped
2D/3D Settings
Press this button to set the default view of the map. To switch between 2D and 3D views
while driving, press the left side of the status bar in Driving View.
It is sometimes easier to view the map from above, such as when navigating a complex road
network.
The 2D view shows a two dimensional view of the map as though viewed from above.
The 3D view shows a three dimensional view of the map as though you are driving through
the landscape.
The following buttons are available:
• In 2D view: rotate map in direction of travel — Press this button so the map is
rotated automatically with the direction you are travelling always at the top.
• Switch to 3D view when following a route — Press this button to show the map
automatically in 3D view when you are following a route.
Page 91
NAVIGATION — If Equipped 91
Switch Map
Press this button to select the map you want to use for route planning and navigation.
Although you can store more than one map on the navigation system, you can only use one
map at a time for planning and navigation.
To switch from the current map to plan a route in another country or region, simply press this
button.
Show POI On Map
Press this button to select the types of Point of Interest (POI) you want to see on the map.
Press the “Show POI” button on the map in the Settings menu.
Select the POI categories you want to be shown on the map.
Press “Search” button and use the keyboard to search for a category name.
Select whether you want POIs to be shown in 2D or 3D views of the map.
Press the “Done” button.
Point of Interest locations are shown on the map as symbols.
7
Page 92
92 NAVIGATION — If Equipped
Manage POIs
Press this button to manage your own Point of Interest (POI) categories and locations.
You can set your navigation system to let you know when you are near to selected POI
locations. For example, you could set the navigation system to let you know when you are
approaching a gas station.
You can create your own POI categories and add your own POI locations to these categories.
You can, for example, create a new POI category called Friends. You could then add all your
friends’ addresses as POIs in this new category.
Press the following buttons to create and maintain your own POIs:
• Add POI — Press this button to add a location to one of your own POI categories.
• Warn when near POI — Press this button to set your system to warn you when
you are near selected POIs.
• Delete POI — Press this button to delete a POI.
• Add POI category — Press this button to create a new POI category.
• Delete POI category — Press this button to delete one of your own POI catego-
ries.
Page 93
NAVIGATION — If Equipped 93
Units
Press this button to set the units used for navigation features such as route planning.
Keyboard
Press this button to select the keyboards that will be available for your use and the layout of
the Latin keyboard.
You use the keyboard to enter names and addresses, such as when you plan a route or search
for the name of a town or a local restaurant.
7
Page 94
94 NAVIGATION — If Equipped
GPS Status
Press this button to see the current status of GPS reception on your navigation system.
Page 95
NAVIGATION — If Equipped 95
Advanced Settings
Press this button to select the following advanced settings:
• Show house number before street name — When this setting is selected, ad-
dresses are shown with the house number followed by the street name, such as 10
Downing Street.
• Show street names — When this setting is selected, street names are shown on the
map in the Driving View.
• Show next street name — When this setting is selected, the name of the next
street on your route is shown at the top of the Driving view.
• Show current street name on map — When this setting is selected, the name of
the street you are on is shown at the bottom of the Driving view.
• Show location preview — When this setting is selected, a graphical preview of
your destination is shown during route planning.
• Enable automatic zooming in 2D view
• Enable automatic zooming in 3D view
7
Page 96
96 NAVIGATION — If Equipped
Advanced Settings
Press this button to select the following advanced settings:
• Show lane images — When this setting is selected, a graphical view of the road
ahead shows which lane you need when you approach a junction or motorway
exit. This feature is not available for all roads.
• Show tips — This setting switches tips on and off.
Me And My Navigation
Press this button to find technical information about your navigation system and to select
whether you want to share information with TomTom.
A menu opens with the following options:
Page 97
NAVIGATION — If Equipped 97
Reset Factory Settings
Press this button to delete all your personal navigation settings and restore the standard
factory settings to your navigation system.
This is not a software update and will not affect the version of the software application
installed on your system.
This feature deletes all your personal settings! — If you want to keep your personal
information and settings, you should perform a full back up before you reset the navigation
system. You can then restore all your personal information and settings after the reset. This
includes items such as your Home and Favorite locations, your personal menu and your POI
categories and POI locations.
Start-Up
Press this button to change whether or not the consent info question should be asked at every
start-up.
7
Page 98
98 NAVIGATION — If Equipped
Navigation Updates
Press this button when you want to prepare a USB device for map updates. This is further
explained in the chapter “Map updates.”
Points Of Interest
About Points Of Interest
Points of Interest or POIs are useful places on the map.
Here are some examples:
• Restaurants
• Hotels
• Museums
• Parking lots
• Gas stations
Creating POIs
1. Press the touchscreen to open the Main menu.
2. Press the “Settings” button.
3. Press the “Manage POIs” button.
Page 99
4. If there are no POI categories or the one you want to
use does not exist, Press the “Add POI” category and
create a new category.
Every POI must be assigned to a
POI category. This means you need
to have created at least one POI
category before you can create your
first POI.
You can only add POIs to POI cat-
egories you have created.
For more information on creating POI categories, read
“Managing POIs.”
5. Press the “Add POI” button.
6. Select the POI category you want to use for the new
POI.
7. Press a button to enter the POI address in the same
way that you plan a route.
NAVIGATION — If Equipped 99
8. The POI is created and saved in the selected category.
Using POIs To Plan Route
When you plan a route, you can use a POI for the
destination or as a waypoint.
The following example shows how to plan a route to a
parking lot in a city:
1. Press the “Drive to” button.
2. Press the “Point of Interest” button.
3. Press the “POI in city” button.
NOTE: The last POI you viewed on your navigation
system is also shown in the menu.
4. Enter the name of the town or city and select it when
it is shown in the list.
5. Press the arrow button to expand the list of POI
categories.
7
Page 100
100 NAVIGATION — If Equipped
NOTE: If you already know the name of the POI you
want to use, you can press the “Search by name” button
to enter the name and select this location.
6. Scroll down the list and press the “Parking lot” button.
7. The parking lot closest to the city center is shown at
the top of the list.
8. The following list explains the distances shown next to
each POI. How the distance is measured varies depending on how you initially searched for the POI:
• POI near you — Distance from your current loca-
tion.
• POI in city — Distance from the city center.
• POI near Home — Distance from your Home loca-
tion.
• POI along route — Distance from your current
location.
• POI near destination — Distance from your desti-
nation.
9. Press the name of the parking lot you want to use and
press the “Done” button when the route has been
calculated.
Your navigation system starts to guide you to the
parking lot.
Loading...
