* Shown with #D041 Airpot Dispenser (sold separately)

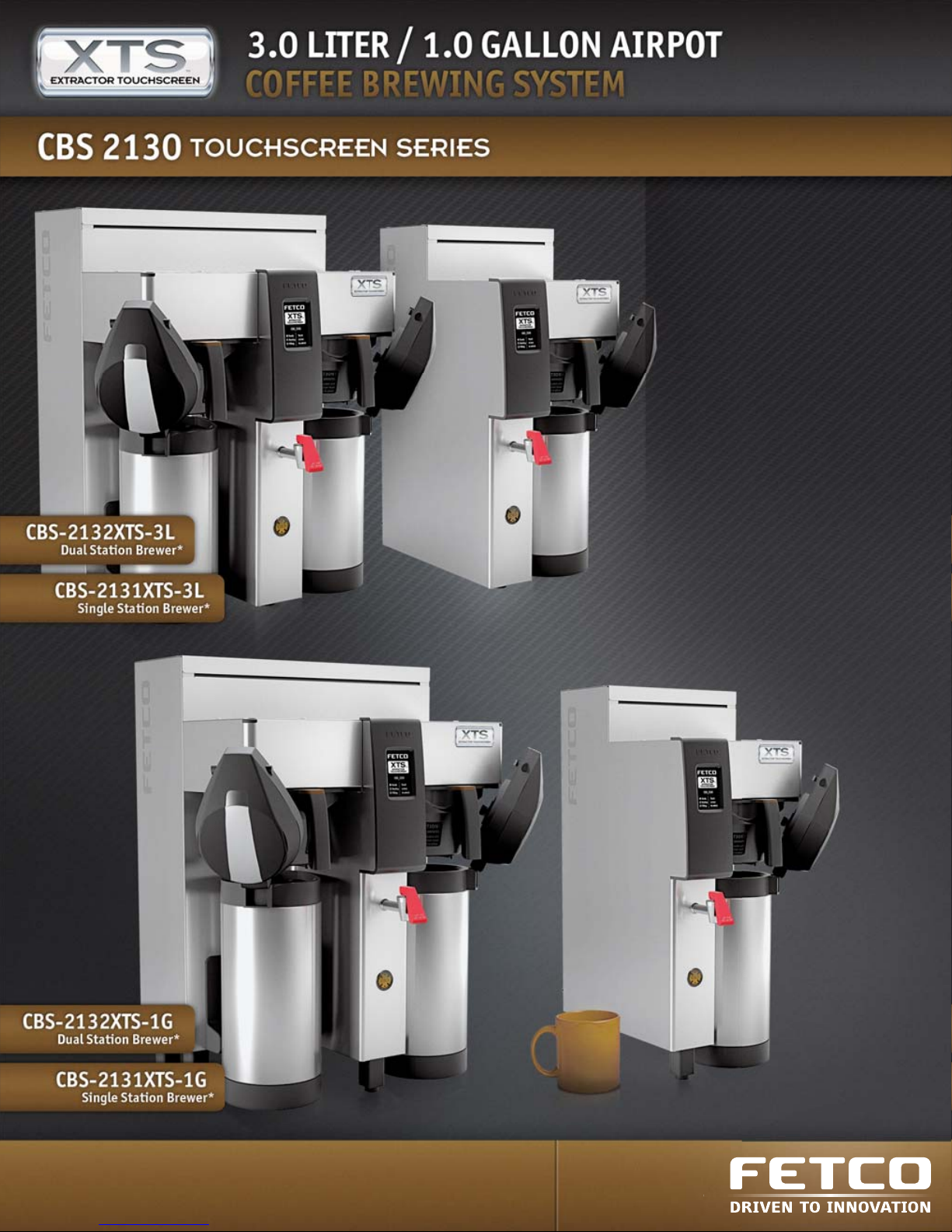

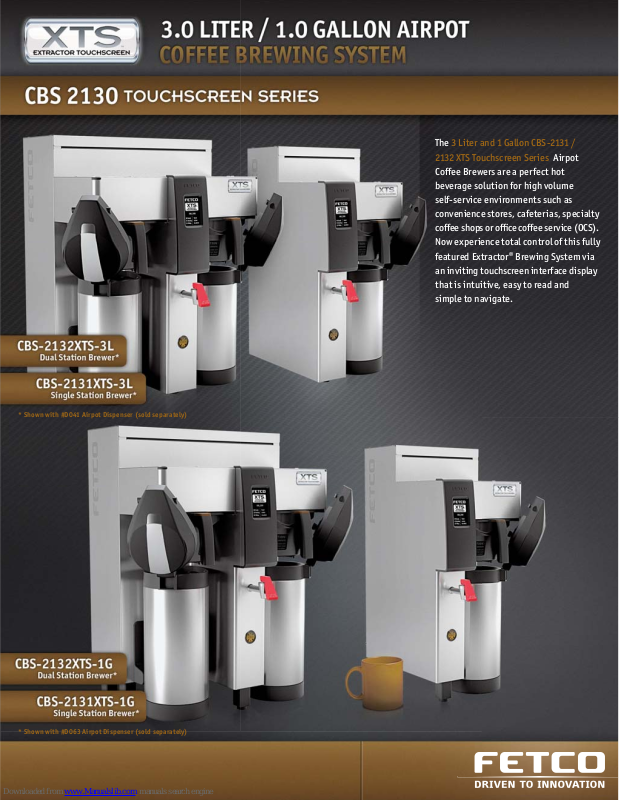

The 3 Liter and 1 Gallon CBS-2131 /
2132 XTS Touchscreen Series Airpot
Coffee Brewers are a perfect hot
beverage solution for high volume
self-service environments such as
convenience stores, cafeterias, specialty
coffee shops or offi ce coffee service (OCS).
Now experience total control of this fully
featured Extractor® Brewing System via
an inviting touchscreen interface display
that is intuitive, easy to read and
simple to navigate.
* Shown with #D063 Airpot Dispenser (sold separately)
Page 2
Perfect taste begins with a simple touch...

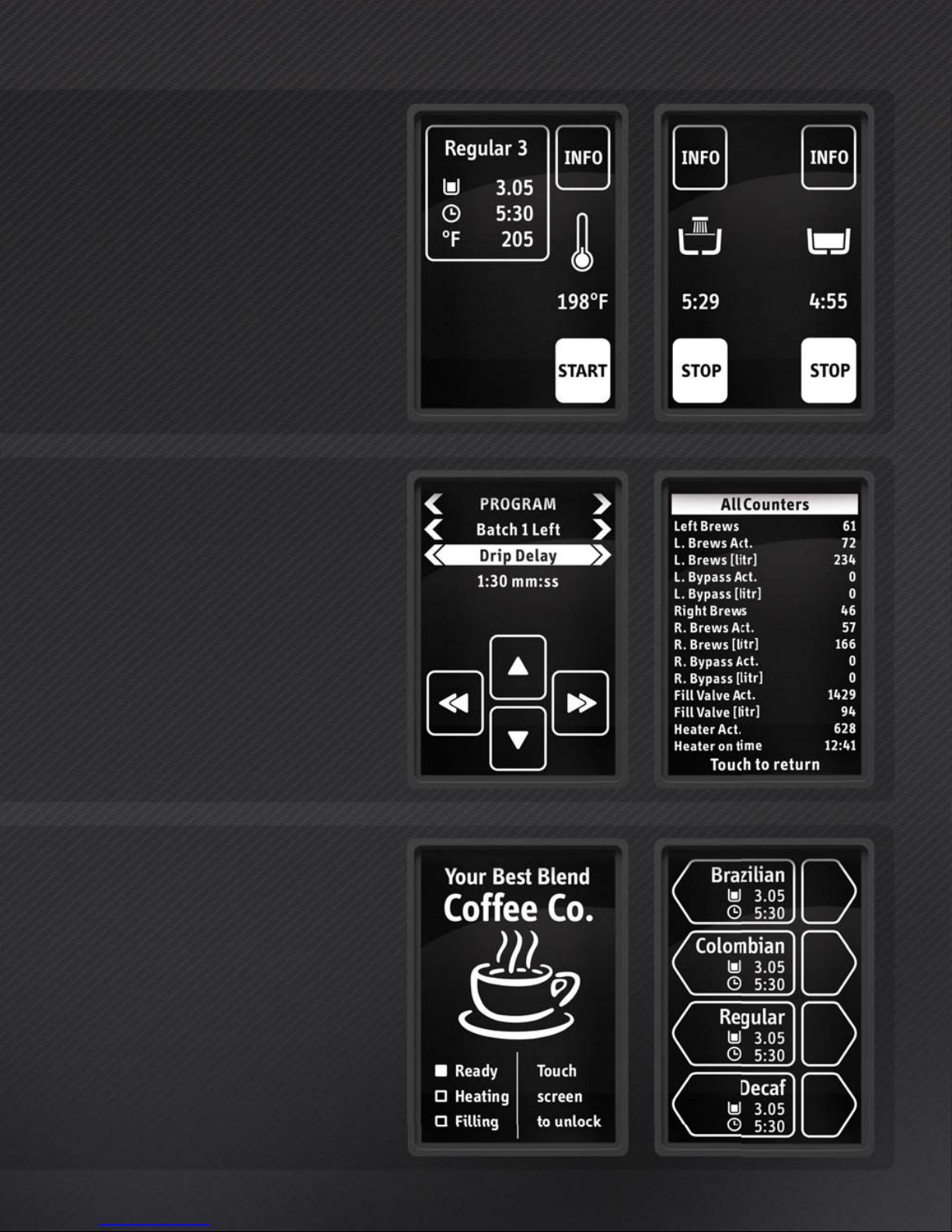

User Friendly Touchscreen
Access all controls via an inviting touchscreen
interface display that blends intuitive icons with
dynamic time and volume data to provide instant
visual feedback at any point during programming,
diagnostics or the brew cycle.
Streamlined Programming,
Diagnostics and Metrics
The Extractor® Touchscreen Operating System
(ETOS) was engineered for quick and effi cient
navigation through set-up, programming,
diagnostics and daily operational brewing modes.
Customizable Screens
Customize the start screen to tie your equipment
and product offerings into a consistent brand
message. You can also create and display
individual recipe names for quick and easy
access to your most used coffee blends.
Page 3
XTS™ Series
Cascading Spray Dome
™
Driven by a user friendly touchscreen interface and intuitive
software, the XTS series represents the next step in the
evolution of FETCO’s renown EXTRACTOR brewing technology.
Legendary Extractor® Control
Although designed specifi cally for smaller batch airpot
dispensing, these high quality brewers possess the legendary
features and reliable performance you’ve come to expect from
Extractor® branded products.
Hot tank water fl ows over clog-free channels built
into the dome and virtually eliminates spray head scale
buildup – a leading reason for service calls.
Contemporary Design
Sleek European cabinet design is attractive and fi ts well in
any front-of-house decor found in cafes, lounges, OCS or
corporate breakrooms.
Y
A
L
E
D
P
I
R
D
B
R
E
W
V
O
L
U
M
E
P
R
E
-
W
E
T
E
M
I
T
W
E
R
B
Modern Convenience
Duplicate profi les and parameters to and from any of the
batch buttons on a single machine or copy the information
to an unlimited number of brewers via a removable SD card
(Sold separately).
Airpot Dispensing
Designed for fl exibility and
portability, vacuum lined pump
lever airpots quickly turn virtually
any remote location into a hot and
fresh beverage service station.
Vaccum Lined
Stainless Steel Airpot
Page 4
Water Connection Inlet
1
/
4” Male Flare Fitting
Minimum Flow Rate
1
/
1
2 gpm [5.7 lpm]
Water Pressure
20-75 psig [138-517 kPa]
Plastic Brew Basket
Configuration Code
E213153
E213154
E213151
E213157
UNIVERSAL VOLTAGE OPTIONS
E213171
Optional
(2)
E213172
Optional
(2)
E213173
Optional
(1) Based on standard factor y settings: 5.5 minute brew time; 0% prewet; 200°F water. 3 liters per batch.
(2) Sold with factory cord & plug for 120 Volt confi guration. Optional user connection to a terminal block requiring L1, L2, N and ground to 120/208-240 VAC.
Height
25
[66 cm]
(2)
No airpot locator for this group . User selectable for optional , dual in-series heater confi guration.
Width
3
/
4”
11
3
/
[31 cm]
SIDE VIEW BACK VIEW
Stainless Steel
Brew Basket
Configuration Code
E213153M
E213154M
E213151M
E213157M
E213171M
Optional
E213172M
Optional
E213173M
Optional
Depth
4”
20
[52 cm]
Heater
Voltage
Phase
Wires
KW
Configuration
1 x 1.5 kW
1 x 1.7 kW
1 x 2.3 kW
1 x 3.0 kW
(2)
(2)
(2)
1 x 1.5 kW
2 x 1.5 kW
1 x 1.7 kW
2 x 1.7 kW
1 x 2.3 kW
2 x 2.3 kW
Empty Weight
3
/
8”
29 lbs
[13 kg]
100-120
100-120
100-120
200-240
120
120/208-240
120
120/208-240
120
120/208-240
Filled Weight
55 lbs
[25 kg]
Combined Filled Weight
66 lbs [34 kg]
BREWER + 1 FILLED D041 DISPENSER
1
1
1
1
1
1
1
1
1
1
2+G
2+G
2+G
2+G
2+G
3+G
2+G
3+G
2+G
3+G
1.1-1.6
1.3-1.8
1.7-2.4
2.2-3.1
1.6
3.1
1.8
3.5
2.4
4.7
Hot Water Tank Cap.
3.3 gal
[12.4 l]
FRONT VIEW
Electrical
Connection
NEMA 5-15P
NEMA 5-15P
NEMA 5-20P
NEMA 6-15P
NEMA 5-15P
L1 / L2 / N+G
NEMA 5-15P
L1 / L2 / N+G
NEMA 5-20P
L1 / L2 / N+G
NEMA PLUGS
CONFIGURATIONS
G
W
25-3/4”
[65.4 cm]
NEMA
5-15P
Max Amp Draw
10.9-13.0
12.3-14.7
16.5-19.7
10.9-13.0
13.0
13.0
14.7
14.7
19.7
19.7
Shipping Weight:
41 lbs
[18 kg]
SYMBOLS
G
W
NEMA
5-20P
Gallon [Liter] /
Hour
3.9 [14.8]
4.4 [16.7]
5.8 [22.0]
9.7 [36.7]
3.9 [14.8]
5.8 [22.0]
4.4 [16.7]
8.7 [33.0]
5.8 [22.0]
11.0 [41.6]
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
Shipping Dimensions:
16” x 23” x 29”
[41 x 59 x 74 cm]
Electrical Connector
On / Off Switch
Tank Drain
Water Inlet
9-7/16”
24.0 cm]
20-5/16”
[51.6 cm]
#D041
8oz.
123
3.0L Thermal Pump
Lever Airpot
12oz.
82
Product DIMS:
Height: 14
16oz.
62
Width: 7” [17.8 cm]
Depth: 9” [22.9 cm]
Weight:
20oz.
* Approximate based on maximum power setting.
49
Empty: 4.6 lbs [2.1 kg]
Filled: 11.1 lbs [5.1 kg]
1
/
2”[36.8 cm]
11-3/4”
[29.8 cm]
12-3/4”
[32.4 cm]
4-13/16”
[12.2 cm]
#F002
13” x 5”
Paper Coffee Filter
7-1/2”
[19.1 cm]
3-3/16”
[8.1 cm]
1-1/32”
[2.6 cm]
#B012218B1
13” x 5”
Stainless Steel
#B014218BN2
13” x 5”
Plastic w/ Brown Insert
Designs, materials, specifi cations, physical dimensions, fi rmware and sof tware protocol for equipment or replacement parts are subject to review and change by FETCO without notice.
