Ferguson FBOX 4K User Manual

User manual

English

REMEMBER

1. In order to use an external USB memory, the
memory must support the USB 2.0 standard. To
ensure stable recording and playback, you must use
a memory with a recording speed of 9.0 MB/s or
greater. Slower hard disk drives and flash memories
may not function properly, have problems with
recording or playing (image jitter), or not function at
all.

2. Only disks with one basic NTFS or FAT32 partition
(we recommend using the NTFS format) will function
properly. If you do not have such a format, prepare
the disk on your computer before connecting it to
the Ferguson FBOX4K.

3. Highly fragmented or used memories may also
not operate smoothly or correctly.

CAUTION

1. Under no circumstances should you disconnect
the USB device from the Ferguson FBOX4K during
recording or playback. Disconnecting during
operation may cause damage to the Ferguson
FBOX4K and/or flash memory, and to the recorded
data.

2. Do not touch the working device (and in particular
the USB connector) with wet hands. Risk of electric
shock and permanent damage to the Ferguson
FBOX4K!

2

GNU/GPL LICENSING INFORMATION

Please consult the legal information available on
your device under Settings > About FBOX4K or visit
http://source.android.com/source/licenses.html for
more information.

DOWNLOADABLE SOFTWARE

Ferguson has taken every effort to provide users
with software updates in order to ensure that the
parameters of the Ferguson FBOX4K are up to date.
Ferguson reserves itself the right to amend, change
or modify the software used in the Ferguson FBOX4K
as it shall choose and without prior notification. The
latest version of the software is available on the
website http://www.ferguson-digital.eu

Android is a trademark of Google Inc.

Google and the Google logo are registered
trademarks of Google Inc.

Please keep in mind that new software may
change the functionality of the Ferguson
FBOX4K. Photographs and descriptions

included in the instruction manual are for
informational purposes only. If you notice an error,
please report it – we shall make every effort to have
it rectified.

3

SAFETY MEASURES

We request that you read the instruction manual and
recommendations set forward therein. Also
remember to connect suitable power supply!

In order to avoid an electric shock,
never open the housing. Damage to
the warranty seal shall void the
warranty.

Disconnect the device from the
mains during thunderstorms or when
it is not to be used for an extended

period of time. Please remember that
the warranty does not cover damage to the
equipment caused by a lightning strike.

Do not expose the device to direct

sunlight. Place it away from sources

of heat and humidity. Do not cover

ventilation ducts, in order to ensure
the correct circulation of air.

Place the device horizontally on a

flat, even and stable surface.

If you move the device from a room

that is warm to one that is cold (or

vice versa), wait at min. 1 hour

before connecting it to the mains.
Otherwise, problems may arise.

4

The device should be placed away

from vases, bottles, aquariums and

other water containers in order to

avoid damage. Do not touch the
mains plug with your bare hands.

Do not place any objects on the

housing of the device. This may

cause overheating and reception

problems.

Before commencing maintenance or installation
work, disconnect the Ferguson FBOX4K from the
mains. Do not clean the Ferguson FBOX4K with
alcohol or liquids containing ammonia. If necessary,
clean it with a soft, lint-free cloth wetted with a
gentle solution of water and soap.

• Do not connect any cables when the mains
plug is in the socket.

• Check the condition of your cables.
Damaged cables may cause a fire.

• Please disconnect the Ferguson FBOX4K
from the mains before connecting any
cables.

5

MARKINGS AND SIGNS APPLIED TO THE
Ferguson FBOX4K

When this crossed-out wheeled bin
symbol is attached to a product it means
that the product is covered by the
European Directive 2002/96/EC. Please
inform yourself about the local

separate collection system for electrical
and electronic products.

Please act according to your local rules
and do not dispose of your old products
with your normal household waste.

Correct disposal of your old product helps
to prevent potential negative
consequences for the environment and
human health.

Your product contains batteries covered
by the European Directive 2006/66/EC,
which cannot be disposed with normal
household waste. Please inform yourself
about the local rules on separate
collection of batteries because correct
disposal helps to prevent negative
consequences for the environmental and
human health.

6

Your product is designed and
manufactured with high quality materials
and components, which can be recycled
and reused.

CE logo.

The logo informs that the Ferguson
FBOX4K conforms to the terms and
conditions of Directive 2004/108/EC
concerning observance by Member States
of provisions regulating electromagnetic
compatibility, and to the terms and
conditions of Directives 2006/95/EC
concerning observance by Member States
of provisions regulating low voltage
electricity and safety with relation to the
handling and operation of electrical
equipment.

R&TTE Hereby Ferguson Sp. z o.o., declares

that the device is in compliance with

the essential requirements and other
relevant provisions of Directive
1999/5/EC. You can find the Declaration
of Conformity on

www.deklaracje.ferguson.pl

7

This product has been designed, tested
and manufactured according the
European R&TTE directive 1999/5/EC.

Double insulation logo.

This logo informs that the Ferguson
FBOX4K is an electrically safe device,
provided that it is used in accordance
with the recommendations set forward in
the chapter concerning safety.

Hot surface mark

CAUTION: HOT SURFACE. DO NOT
TOUCH. The top surface over the internal
heat sink may become hot when
operating this product continuously. Do
not touch hot areas, especially around
the “Hot surface mark” and the top
panel.

When this logo is attached to a product,
it means a financial contribution has been
paid to the associated national recovery
and recycling system.

8

Connection

9

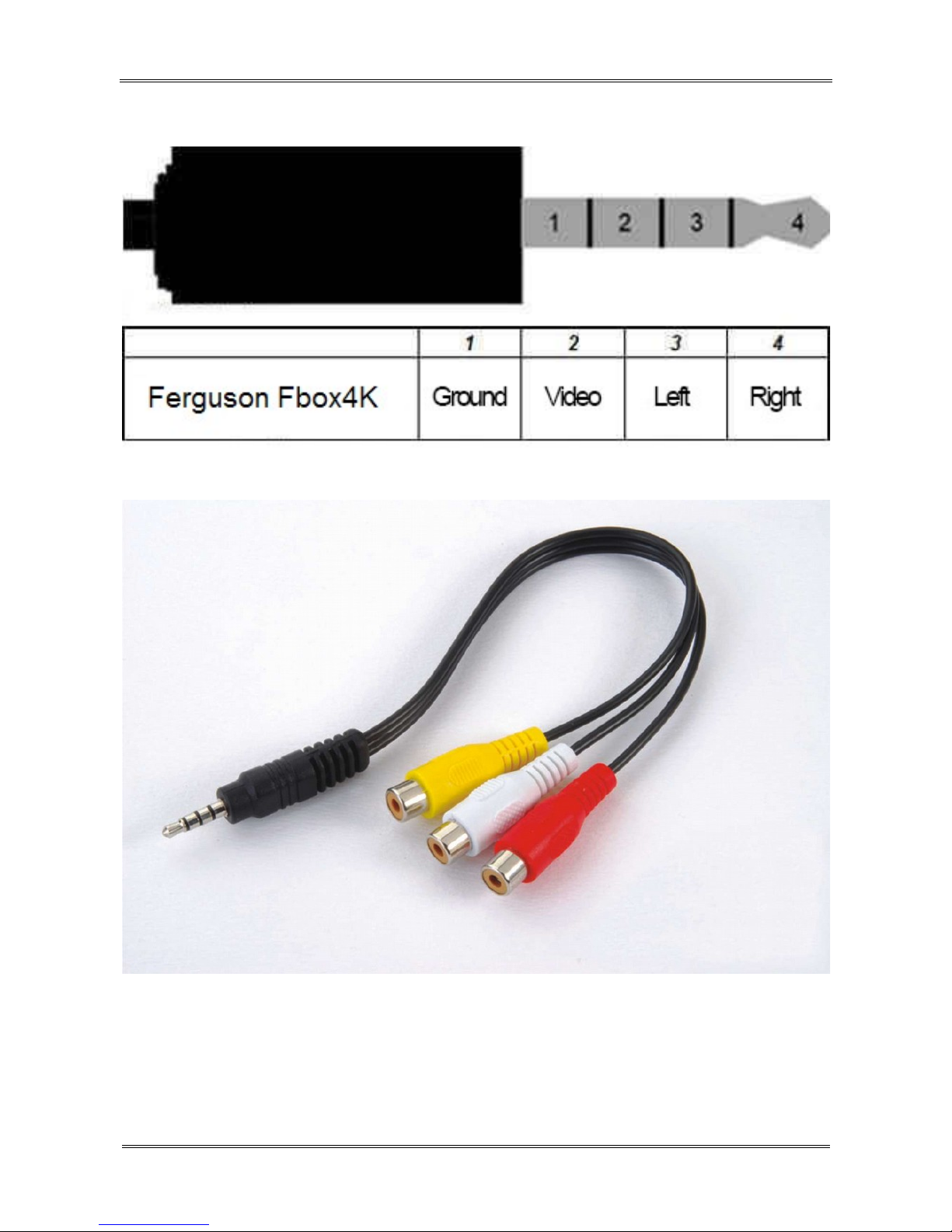

AC Cabel

10

Remote control

Due to the standardization of Ferguson equipment,
the majority of these devices use the same remote
control unit. This means that not all keys are used
by this equipment model!

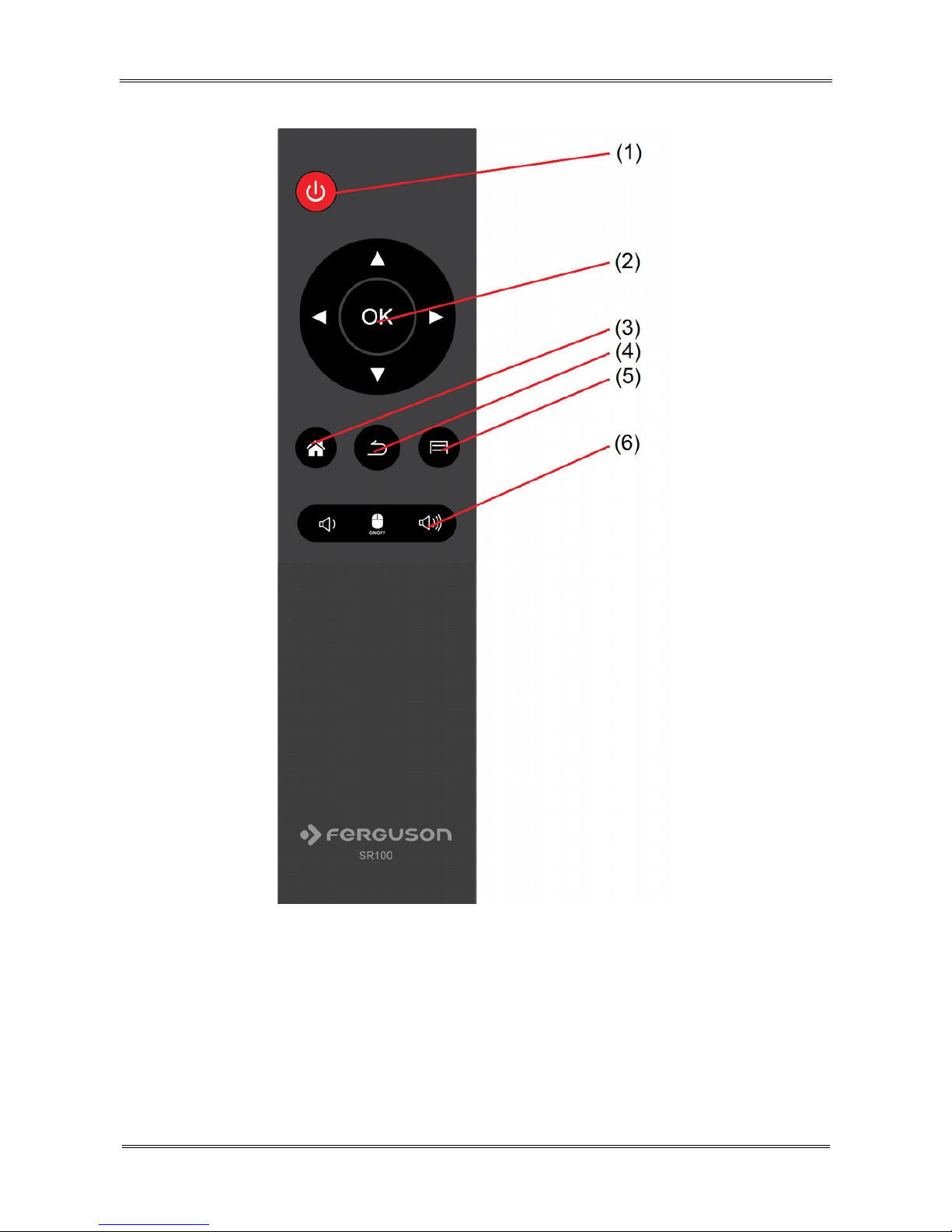

SR100's Signal Indicator Instructions

(1) Power - to switch the FBOX standby/power on

(2) Move the highlight or cursor up/down/left/right;
OK: to carry out the selection or enter the menu.

(3) Show main menu.

(4) Back to previous or upper interface/menu.

(5) Show hidden menu.

(6) VOL+/- adjust the sound volume up or down;
Switch to mouse control state.

11

12

Create a Google Wallet account

You can pay for the items you purchase from Google
Play market with a Google Wallet account. You can
set one up the first time you purchase an item or
ahead of time in a web browser.

Click the Google Play icon on the Home screen.
When you open Google Play store for the first time,
you must read and accept the terms of service to
continue.

In a web browser, go to http://wallet.google.com to
establish a Google Wallet account. OR The first time
you use your Box to buy an item from Google Play
market, when you’re prompted to enter your billing
information, you can set up a Google Wallet account.

Warning! When you’ve used Google Wallet once

to purchase an application from Android Market,
the FBOX4K remembers your password, so you don’t
need to enter it the next time. For this reason, you
should secure your FBOX4K to prevent others from
using and buying without your permission.

13

Download and install an application

1. Find an application you want and open its details
screen

2. In the application’s details screen, you can read
more about the application including its cost, rating
and user comments, and information about the
developer.

3. Click to download and install the application. (If
it’s a paid application, the button is labeled with the
price).

Browse for applications

You can browse applications by category and sort
them in different ways.

1. On the Google Play home page, Click a top-level
category, such as Apps or Games. Click a
subcategory to view its list of applications.

2. Scroll to view subcategories and Click the one you
want to explore. Click to view top paid, top free, or
the most recent applications in this subcategory.
Click an application to open its details screen.

14

Multitasking & Closing application

Press and hold longer HOME button – to see all open
application on your device. Choose any you want to
switch too or press the up or down key to close
them one by one.

Uninstall an application

You can uninstall applications you downloaded from
Market using Market. You can also uninstall
applications you downloaded from Market and from
other locations in the Settings application’s Manage
Applications screen

1.On the Android Market home screen, press Menu
and Click My apps.

2.Click the application to uninstall.

3.Click Uninstall.

4.Click OK in the confirmation dialog.

5.Click the explanation that best matches why
you’re uninstalling and Click OK.

6.The application is uninstalled. You can install the
application again at any time, without charge if it
was a paid application.

15

SPECIFICATION

Chipset Amlogic S905-B

Multi-core CPU

Quad Core ARM® Cortex™ A53

4 x [email protected]

Multi-core GPU Quad Core Mali-450 @600MHz

Graphics OpenGL, ES1.1/2.0

Display Resolution 4K 1080p/i 720p 576i 480p

RAM DDR3 1GB

Flash eMMC 8GB

Wi-Fi

Built-in 802.11 b/g/n

2.4G/5G dual band

Ethernet 100M Ethernet RJ-45

Operating System Android 5.1 Lollipop

HDMI 2.0

4k@60fps, 2 video streams (Dual
View), 3D over HDMI, 32
channel audio, 4 audio streams,
1536 kHz total audio,

Video Decoder

Multi-format H.264/AVC,
H.265/HEVC 4K UHD up to 60fps

16

Video Rendering ~ up to 10 bit depth

Video File Format

*.mkv, *.wmv, *.mpg, *.mpeg,
*.dat, *avi, *.mov, *.iso, *.mp4,

Aspect Ratio Auto Full screen

Video resolution Up to 4096 × 2160

Audio Decoding

MP3, WMA, WMA, AAC, OGG,
OGA, FLAC, ALAC...

File System Support NTFS, FAT32,

DC Input Range 5V/2.0A

Power Consumption Maximum 10W

Temperature 0-40°C

Humidity <95%

Size in mm 80*80*22 mm

Weight 104g

*Pre-installed OS and apps takes around 3,5GB
