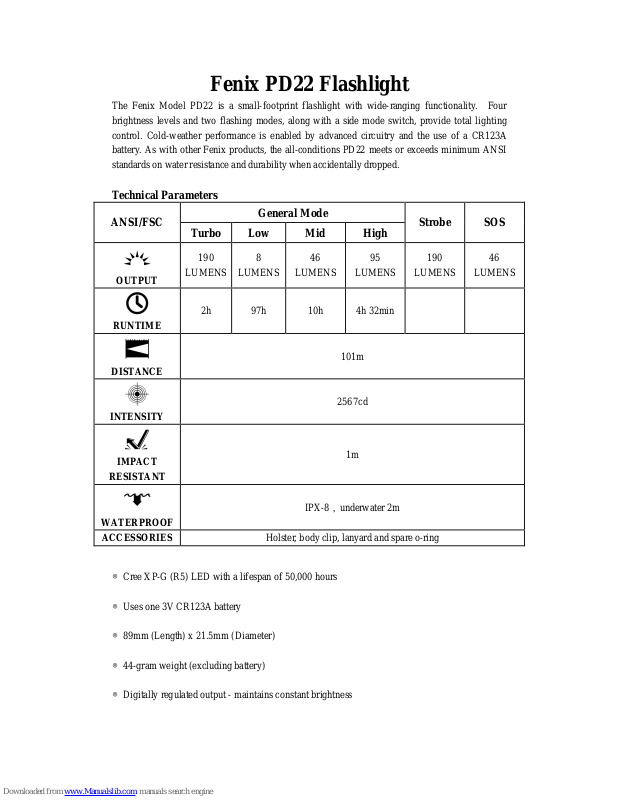

Fenix PD22 Flashlight

The Fenix Model PD22 is a small-footprint flashlight with wide-ranging functionality. Four
brightness levels and two flashing modes, along with a side mode switch, provide total lighting
control. Cold-weather performance is enabled by advanced circuitry and the use of a CR123A
battery. As with other Fenix products, the all-conditions PD22 meets or exceeds minimum ANSI
standards on water resistance and durability when accidentally dropped.

Technical Parameters

General Mode

ANSI/FSC

Turbo Low Mid High

Strobe SOS

OUTPUT

190

LUMENS

8

LUMENS

46

LUMENS

95

LUMENS

190

LUMENS

46

LUMENS

RUNTIME

2h 97h 10h 4h 32min

DISTANCE

101m

INTENSITY

2567cd

IMPACT

RESISTANT

1m

WATERPROOF

IPX-8，underwater 2m

ACCESSORIES

Holster, body clip, lanyard and spare o-ring

◎ Cree XP-G (R5) LED with a lifespan of 50,000 hours

◎ Uses one 3V CR123A battery

◎ 89mm (Length) x 21.5mm (Diameter)

◎ 44-gram weight (excluding battery)

◎ Digitally regulated output - maintains constant brightness

◎ Reverse polarity protection, to protect from improper battery installation

◎ Anti-roll, slip-resistant body design

◎ Tactical tail cap switch with momentary-on function, press once for strobe

◎ Side mode switch button in the front, press once for brightness level selection

◎ Made of durable aircraft-grade aluminum

◎ Premium Type III hard-anodized anti-abrasive finish

◎ Toughened ultra-clear glass lens with anti-reflective coating

Notice: The above-mentioned parameters (tested in lab using quality CR123A primary lithium
batteries) are approximate and may vary between flashlights, batteries and environments.

Operation Instruction

Turning on/off
Press the tail cap switch lightly to activate the flashlight momentarily. Press the tail cap switch
completely to turn on the flashlight and lock it. Another press can turn it off.
Mode selection

A single press on the side mode switch button can select in the cycle of Turbo→Low→Mid→High→
brightness level;

Press and hold the side mode switch button for about one second to enter into the Strobe.
Press and hold the side mode switch button for about three seconds to enter into the SOS.
Under the condition of Strobe or SOS, a single press on the side mode switch button can return to
the general mode.
The flashlight can memorize the brightness levels in the general mode except for the mode. When
turn it on, it will begin to work in the general mode.

Battery Specifications

Type

Dimensions

Nominal

voltage

Usability

Non-rechargeable Battery

(Lithium)

CR123A 3V Recommended

√

Rechargeable Battery

（Li-ion）

16340 3.7V Banned

×

Rechargeable Lithium Iron Phosphate

Battery (16340)

16340 3.2V Banned

×

Note: When using the banned battery, it will probably cause damages to the flashlight.
