FD30

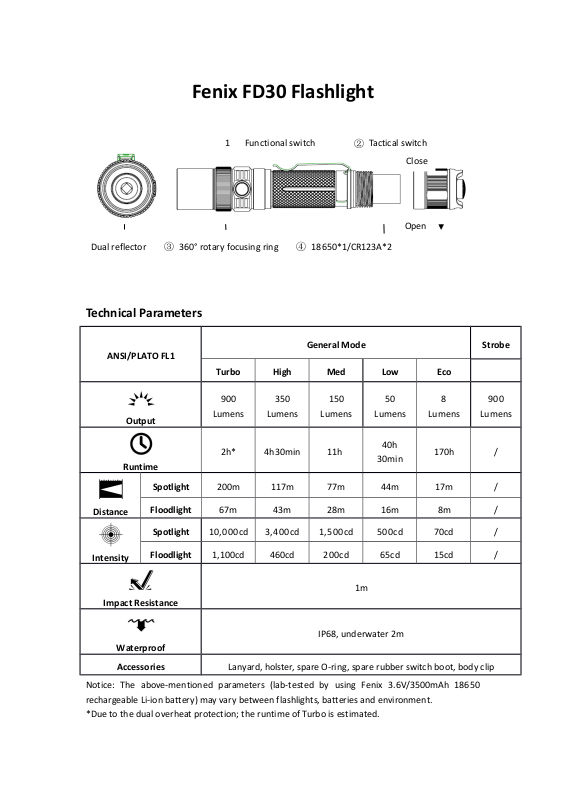

Fenix FD30 Flashlight
1 Functional switch
②
Tactical switch
Dual reflector
③
360° rotary focusing ring
④
18650*1/CR123A*2
Technical Parameters
ANSI/PLATO FL1
General Mode Strobe
Turbo High Med Low Eco
Output
900
Lumens
350
Lumens
150
Lumens
50
Lumens
8
Lumens
900
Lumens
Runtime
2h* 4h30min 11h
40h
30min
170h /
Distance
Spotlight 200m 117m 77m 44m 17m /
Floodlight 67m 43m 28m 16m 8m /
Intensity
Spotlight 10,000cd 3,400cd 1,500cd 500cd 70cd /
Floodlight 1,100cd 460cd 200cd 65cd 15cd /
Impact Resistance
1m
Waterproof
IP68, underwater 2m
Accessories Lanyard, holster, spare O-ring, spare rubber switch boot, body clip
Notice: The above-mentioned parameters (lab-tested by using Fenix 3.6V/3500mAh 18650
rechargeable Li-ion battery) may vary between flashlights, batteries and environment.
*Due to the dual overheat protection; the runtime of Turbo is estimated.
Open
Close
Uses Cree XP-L HI LED with a lifespan of 50,000 hours
Powered by one 18650 rechargeable Li-ion battery or two CR123A batteries
140.5mm Length x 23mm Body Diameter x 25.4mm Head Diameter
96 grams (excluding battery)
Dual reflector optical system
360°rotary focusing technology
Digitally regulated output maintains constant brightness
Reverse polarity protection, to protect from improper battery insertion
Intelligent overheat protection to avoid high surface temperature
Tactical tail switch for momentary on and constant activation
Functional side switch for output selection
Made of durable aircraft-grade aluminum
Premium type
Ⅲ
hard-anodized anti-abrasive finish
Operation Instruction
The tail cap switch is the tactical switch, and the side button switch is the functional switch.
①
ON/OFF
Tap the tactical switch to turn on the light momentarily, release it and the light will go out.
Click the tactical switch to turn on the light constantly, click once again to switch off the light.
②
Output Selection
With the light on, by single clicking the functional switch continually, the light will cycle through
Turbo→Eco→Low→Med→High.
Strobe
With the light on, press and hold the functional switch for 0.5 seconds to activate Strobe; with
another single click the light will return to previously used General brightness level.
③
Spotlight and Floodlight Adjustment
The factory default will be total floodlight. Rotate the focusing ring to regulate the dual reflector,
thus changing between spotlight and floodlight.
Intelligent Memory Circuit
The flashlight memorizes the last brightness level used in the General mode. The next time it is
turned on, it will recall the previously used General brightness level.
Intelligent Overheat Protection
The light will accumulate a lot of heat when Turbo output level is repeatedly selected for
extended periods. If the light reaches a temperature of 65 , it will automatically downshift to℃
