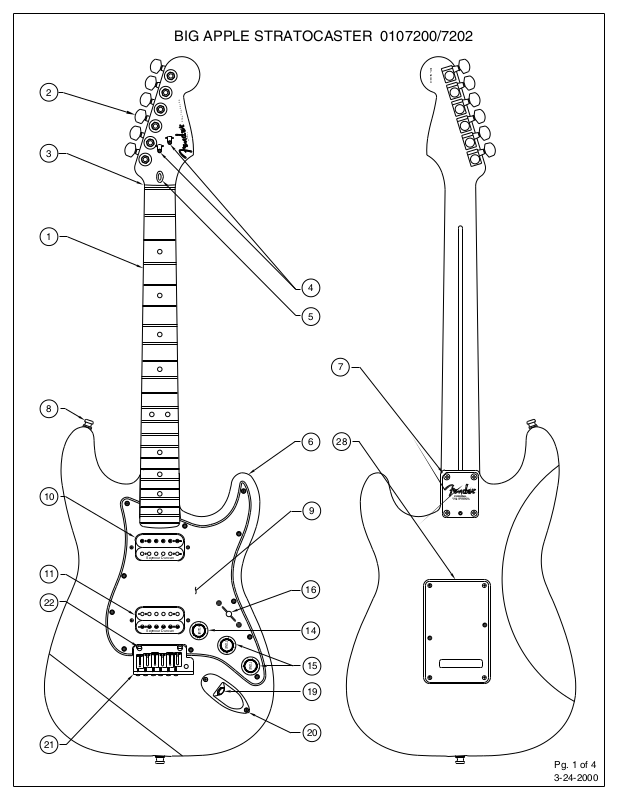

BIG APPLE STRATOCASTER 0107200/7202
SERIAL
NUMBER
N500001
2
S T R A T O C A S T E R
R
MADE IN U.S.A.
3
1
4
5
8
10
11
22
Seymour Duncan
Seymour Duncan
1
0
1
9
VOLUME
2
7
28
6
R
CORONA,
CORONA,
CALIFORNIA
CALIFORNIA
9
16
8
7
6
5
8
9
4
3
7
1
0
TONE
6
5
1
4
2
3
8
9
7
1
0
TONE
6
5
1
4
2
3
14
15
21
19
20
Pg. 1 of 4
3-24-2000
BIG APPLE STRATOCASTER 0107200/7202
PICKGUARD ASSEMBLY
.022uf
BLACK WIRE TO
SPRING CLAW
12
18
BLACK WIRE FROM
OUTPUT JACK
WHITE WIRE FROM
OUTPUT JACK
SEE SWITCH
DETAIL
WHITE WIRE FROM NECK PICKUP
WHITE WIRE TO VOLUME POT TERMINAL
BLACK WIRE FROM BRIDGE PICKUP
WHITE WIRE TO BRIDGE TONE POT TERMINAL
BLACK WIRE TO BACK NECK TONE POT
WHITE WIRE TO NECK TONE POT TERMINAL
WHITE WIRE FROM BRIDGE PICKUP
RED WIRE FROM BRIDGE PICKUP
BLACK WIRE FROM NECK PICKUP
GREEN WIRE FROM NECK PICKUP
1712
13
BRIDGE ASSEMBLY
SWITCH WIRING DETAIL
N.T.S.
23 24
25
26
27
Pg. 2 of 4
3-24-2000
BIG APPLE STRATOCASTER 0107200/7202
REF.# P/N
1 0028155000 Neck, American Standard Stratocaster, M/N
0028154000 Neck, American Standard Stratocaster, R/W
2 0021374000 Tuning Key, (1) Set
3 0083675000 Bone Nut
4 0021537000 String Retainer
0021405000 Mounting Screw
5 0020810000 Truss Rod Adjustment Nut
0023811000 Truss Rod Adjusting Wrench
6 0026092xxx Body, Am. Std. Strat., Solid Paint
0054014xxx Body, Am. Std. Strat., Sunburst
0054015xxx Body, Am. Std. Deluxe Strat., Ash
7 0054038000 Neck Mounting Plate
0021424000 Mounting Screw
0031571000 Tilt Adjustment Screw
0023811000 Tilt Adjusting Wrench
8 0021453000 Strap Button
0021422000 Mounting Screw
0019056000 Felt Washer, Black
0020491000 Felt Washer, White
9 0053045000 Pickguard, Big Apple Strat., Shell
0053044000 Pickguard, Big Apple Strat., Pearl
0021407000 Mounting Screw
10 0053054000 Pickup, Neck, Seymour Duncan
0050166000 Mounting Screw
0050167000 Spring, Humbucker
11 0050165000 Pickup, Bridge, Seymour Duncan
0050166000 Mounting Screw
0050167000 Spring, Humbucker
12 0038950000 Control, 500K, (2) Taper
0016352000 Mounting Hex Nut
0016436000 Lock Washer, Intl
13 0013446000 Control, 250K, Taper
0016352000 Mounting Hex Nut
0022384000 Lock Washer, Intl
14 0056149000 Knob, Volume, White
15 0056148000 Knob, Tone, White, (2)
16 0050610000 Switch, Lever 5-Position
0021417000 Mounting Screw
0019554000 Knob, White
17 0024832000 Capacitor, .022uf
18 0012869000 Solder Lug
0015116000 Mounting Screw
19 0021956000 Output Jack
0016352000 Mounting Hex Nut
0016436000 Lock Washer, Intl
20 0010280090 Ferrule, Jack
0021407000 Mounting Screw
21 0026095000 Bridge Assembly, '86 Am. Std. Strat
0026103000 Arm, Tremolo
0019463000 Knob, Tremolo Arm, White
0010272100 Claw, Tremolo
0015636000 Mounting Screw
0018671000 Spring, Tremolo
0026098000 Block, Bridge
0019656000 Mounting Screw
22 0028957000 Pivot Screw
0028958000 Insert, Pivot Screw
23 0026097000 Bridge Plate
DESCRIPTION
REF.#
24 0026099000 Bridge Section, (6)
25 0017031000 Intonation Screw, (6)
0019395000 Intonation Spring, 5&6
0019394000 Intonation Spring, 1-4
26 0026779000 Height Adjustment Screw, 1&6
0026780000 Height Adjustment Screw, 2-5
0018531000 Adjusting Wrench, Saddle Height
27 0012180000 Spring, Tremolo Arm
28 0038964000 Back Plate, Tremolo, Pearl
0049683000 Back Plate, Tremolo, Brown Shell
0021407000 Mounting Screw
P/N DESCRIPTION
Body Part Number
0054015522 Sunset Orange Transparent
0054014500 3 Color Sunburst
0026092505 Olympic White
0026092506 Black
0026092509 Candy Apple Red
0026092544 Shoreline Gold Metallic
0026092545 Teal Green Metallic
Pg. 3 of 4
3-24-2000
BIG APPLE STRATOCASTER 0107200/7202
SWITCH & CONTROL FUNCTION
5 WAY SWITCH POSITION
5
4
3
1
T2T1 T1&T22T1&T2T1
5 WAY SWITCH
POSITION
TONE CONTROL
NECK PICKUP
BRIDGE PICKUP
PICKUP IS OFF
PICKUP IS ON
NECK PICKUP
BRIDGE PICKUP
Seymour Duncan
Seymour Duncan
1
0
1
9
VOLUME
2
3
MASTER VOLUME CONTROL
5
4
8
7
6
5
8
9
4
7
1
0
TONE
6
5
1
4
2
3
8
9
7
1
0
TONE
6
5
1
4
2
3
SEE 5 WAY SWITCH DIAGRAM
TONE CONTROL (T1)
TONE CONTROL (T2)
3
2
1
Pg. 4 of 4
3-24-2000
