Fbt PSR 230 Specifications

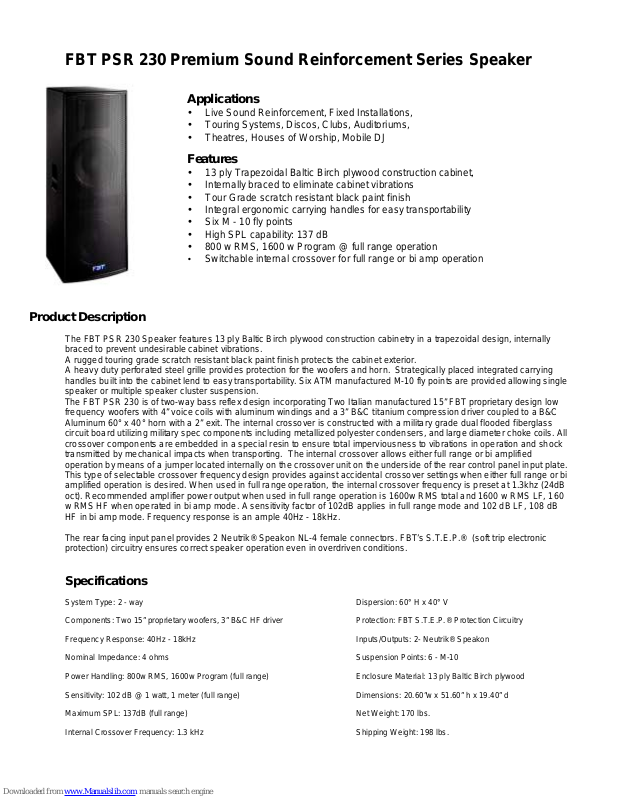

FBT PSR 230 Premium Sound Reinforcement Series Speaker

Applications

• Live Sound Reinforcement, Fixed Installations,

• Touring Systems, Discos, Clubs, Auditoriums,

Features

Product Description

The FBT PSR 230 Speaker features 13 ply Baltic Birch plywood construction cabinetry in a trapezoidal design, internally
braced to prevent undesirable cabinet vibrations.
A rugged touring grade scratch resistant black paint finish protects the cabinet exterior.
A heavy duty perforated steel grille provides protection for the woofers and horn. Strategically placed integrated carrying
handles built into the cabinet lend to easy transportability. Six ATM manufactured M-10 fly points are provided allow ing single
speaker or multiple speaker cluster suspension.
The FBT PSR 230 is of two-way bass reflex design incorporating Two Italian manufactured 15” FBT proprietary design low
frequency woofers with 4” voice coils with aluminum windings and a 3” B&C titanium compression driver coupled to a B&C
Aluminum 60° x 40° horn with a 2” exit. The internal crossover is constructed with a military grade dual flooded fiberglass
circuit board utilizing military spec components including metallized polyester condensers, and large diameter choke coils. All
crossover components are embedded in a special resin to ensure total imperviousness to vibrations in operation and shock
transmitted by mechanical impacts when transporting. The internal crossover allows either full range or bi amplified
operation by means of a jumper located internally on the crossover unit on the underside of the rear control panel input plate.
This type of selectable crossover frequency design provides against accidental crossover settings when either full range or bi
amplified operation is desired. When used in full range operation, the internal crossover frequency is preset at 1.3khz (24dB
oct). Recommended amplifier power output when used in full range operation is 1600w RMS total and 1600 w RMS LF, 160
w RMS HF when operated in bi amp mode. A sensitivity factor of 102dB applies in full range mode and 102 dB LF, 108 dB
HF in bi amp mode. Frequency response is an ample 40Hz - 18kHz.

The rear facing input panel provides 2 Neutrik® Speakon NL-4 female connectors. FBT’s S.T.E.P.® (soft trip electronic
protection) circuitry ensures correct speaker operation even in overdriven conditions.

Specifications

System Type: 2 - way Dispersion: 60° H x 40° V

Components: Two 15” proprietary woofers, 3” B&C HF driver Prot ection: FBT S.T.E.P .® Protection Circuitry

Frequency Response: 40Hz - 18kHz Inputs/Outputs: 2- Neutrik® Speakon

Nominal Impedance: 4 ohms Suspension Points: 6 - M-10
Power Handling: 800w RMS, 1600w Program (full range) Enclosure Material: 13 ply Bal tic Birch plywood
Sensi tivity: 102 dB @ 1 watt, 1 meter (full range) Dim ensions: 20.60”w x 51.60” h x 19.40” d
Maximum SPL: 137dB (full range) Net Weight: 170 lbs.
Internal Crossover Frequency: 1.3 kHz Shipping Weight: 198 lbs.

• Theatres, Houses of Worship, Mobile DJ

• 13 ply Trapezoidal Baltic Birch plywood construction cabinet,

• Internally braced to eliminate cabinet vibrations

• Tour Grade scratch resistant black paint finish

• Integral ergonomic carrying handles for easy transportability

• Six M - 10 fly points

• High SPL capability: 137 dB

• 800 w RMS, 1600 w Program @ full range operation

• Switchable internal crossover for full range or bi amp operation

FBT PSR 230 Premium Sound Reinforcement Series Speaker
