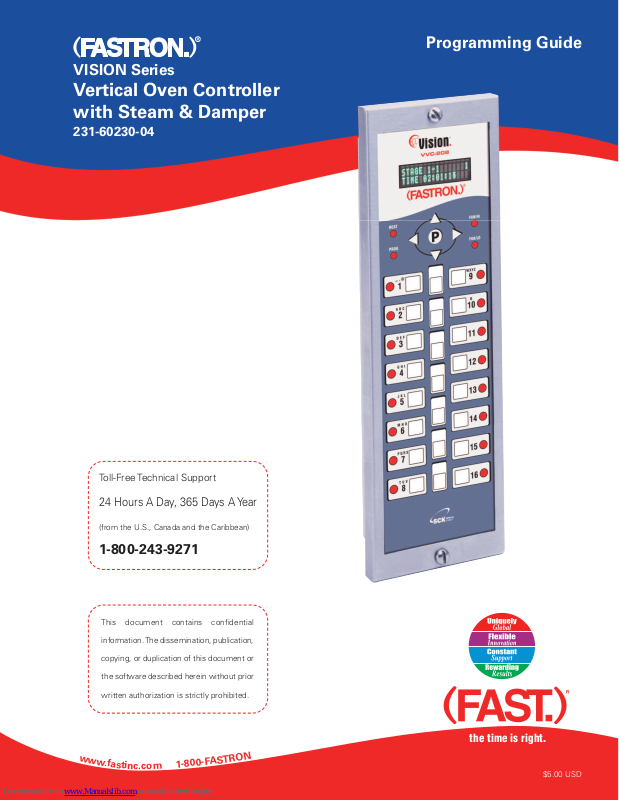

FASTRON. VISION Series Programming Manual

VISION Series

Vertical Oven Controller
with Steam & Damper

231-60230-04

Programming Guide

Toll-Free Technical Support

24 Hours A Day, 365 Days A Year

(from the U.S., Canada and the Caribbean)

1-800-243-9271

This document contains confidential

information. The dissemination, publication,

copying, or duplication of this document or

the software described herein without prior

written authorization is strictly prohibited.

w

w

w

.

f

a

s

t

i

n

c

m

.

o

c

F

-

0

0

8

-

1

the time is right.

N

O

R

T

S

A

$5.00 USD

Important Notices

FAST is not liable for any use

of product not in accordance
with its installation and operating
instructions.

Before using this equipment, or
for any questions on the opera­tion of the appliance, consult and
follow all instructions and safety
warnings found in the appliance
operator’s manual supplied from
the manufacturer of the appli­ance.

Not all features are available on
some models.

Controller Operating Environment

Cleaning the Controller

Using a clean damp cloth, wipe down your
controller daily.

Do not allow oil to build up on any part of the
controller.

NEVER use chemical or abrasive cleaners
on your controller. The controller’s overlay
may be damaged.

The solid state components in this controller are
designed to operate reliably in a temperature range
up to 158°F/ 70°C. Before installing this controller,
it should be verified that the ambient temperature
at the mounting location does not exceed 158°F/
70°C.

This document contains confidential information. The dissemination, publication, copying, or duplication of this document or the software described herein without prior written authorization is strictly prohibited.

2

Vision Vertical Oven Controller

www.fastinc.com 1-800-243-9271

229-51414C © 2008-2010 FAST

Programming the Controller

Recipe Programming—1724

Entering Programming and Changing
Recipes

Press and hold the “P” for 3 seconds.

Product Cnt will be displayed. Press the down
arrow.

Programming will be displayed, then press the “P”
key.

ENTER CODE will be displayed.

From ENTER CODE, type in 1724, then press the “P”
key.

Display will show RECIPE. Press the “P” key and all
product LEDs will light up and the display will

read Select Product To Program.

Press the Product key you would like to program.

NOTE: Some controls have different options
than what are listed.

ALL will be displayed.

NOTE: Depending on the model of the unit,
you can either press the “P” key to change

all of the programmable settings or you can
scroll using the arrow Up or Down keys to any of
the specific options.

Stage X Timing will be displayed, then either
STRAIGHT, FLEX or SENSITIVITY. Use the left or right

arrow keys to change between the 3 settings.
Then press the “P” key.

If SENSITIVITY is selected:
Stage X Sens will be displayed with the current
sensitivity setting 0-9. To change the sensitivity

setting, type in your new setting. Then press the
“P” key.

Stage X Fan Spd will be displayed, then either HIGH
or LOW. Use the left or right arrow keys to change

between the 2 settings. Then press the “P” key.

Stage X Fan Cyc will be displayed, then either FULL,
HEAT, or PULSE. Use the left or right arrow keys to

change between the 3 settings. Then press the
“P” key.

If PULSE is selected:
Stage X Fan ON will be displayed with the current
time XX:XX. To change the Fan ON time, type in a

new time. Then press the “P” key.

Stage X Fan OFF will be displayed with the current
time XX:XX. To change the Fan OFF time, type in a

new time. Then press the “P” key.

stage x steam will be displayed followed by either
ON or OFF. Use the left or right arrow keys to

change between the two settings. Press the “P”
key.

From ALL being displayed press the “P” key.

Product Name will be displayed. To scroll through
the Library, use the arrow Up or Down keys or
you can use the letters on each key to start a
word from the Library. Once you have chosen
your word, press the “P” key.

Stage X Time will be displayed with the current set
time XX:XX. To change, type in a new time, then

press the “P” key.

Stage X Temp will be displayed with the current set
temp XXXF. To change temperature, type in your

new temperature. Then press the “P” key.

This document contains confidential information. The dissemination, publication, copying, or duplication of this document or the software described herein without prior written authorization is strictly prohibited.

Vision Vertical Oven Controller

NOTE: Each product key can be

programmed with up to 10 stages. If no
additional stages are required, set the time to
zero, and press the “P” key to continue to Alarm
Time.

Alarm X Time will be displayed with the current
time XX:XX. To change the alarm time, type in a

new time. Then press the “P” key.

Alarm X Name will be displayed with the current
name. To scroll through the Library, use the arrow
Up or Down keys or you can use the letters on
each key to start a word from the Library. Once
you have chosen your word, press the “P” key.

www.fastinc.com 1-800-243-9271

229-51414C © 2008-2010 FAST

3

Programming the Controller

Alarm X Done will be displayed along with either
AUTOMATIC or MANUAL. Use the left or right arrow

keys to change between the 2 settings. Then
press the “P” key.

Alarm X Tone will be displayed with either SHORT,
MEDIUM, LONG, DOUBLE, LONG/SHORT, or NONE. Use the

left or right arrow keys to change between the 6
settings. Then press the “P” key.

NOTE: You can set up to 3 alarms per key.
Follow the above directions if 3 are needed.

Hold Time will be displayed with the current time
XX:XX. To change, type in a new hold time. Then

press the “P” key.

Hold Temp will be displayed with the current hold
temperature XXXF. To change, type in a new hold

temperature. Then press the “P” key.

Hold Done will be displayed along with either
AUTOMATIC or MANUAL. Use the left or right arrow

keys to change between the 2 settings. Then
press the “P” key.

Hold Fan Speed will be displayed then either HIGH or
LOW. Use the left or right arrow keys to change

between the 2 settings. Then press the “P” key.

Exit Programming

From All being displayed Scroll up to Exit and
press the “P” key. Recipe will be displayed. Scroll
down to Exit and press the “P” key.

System Programming—3228

Entering System Programming and
Changing System Settings

Press and hold the “P” for 3 seconds.

Product Cnt will be displayed. Press the down
arrow key.

Programming will be displayed. Press the “P” key.

ENTER CODE will be displayed.

From ENTER CODE, type in 3228, then press the “P”
key.

Display will show System. Press the “P” key.

Appliance Type will be displayed then either ELECTRIC
FULL, ELECTRIC HALF, GAS HALF, GAS FULL. To change be-

tween the 4 settings, use the left and right arrow
keys. Then press the “P” key.

Language will be displayed, then either ENGLISH or
OTHER. Use the left or right arrow keys to change

between the 2 settings. Then press the “P” key.

Tone Volume will be displayed, then either 1-4 or
NONE. Use the left or right arrow keys to change

between the 5 settings. Then press the “P” key.

Temperature will be displayed, then either F or C.
Use the left or right arrow keys to change be­tween the 2 settings. Then press the “P” key.

Hold Time will be displayed with the current time
XX:XX. To change the hold time, type in your new

time. Then press the “P” key.

Hold Temp will be displayed with the current hold
temp XXXF. To change the hold temp, type in your
new temperature. Then press the “P” key.

Hold Done will be displayed along with either AUTO-
MATIC or MANUAL. Use the left or right arrow keys to

change between the 2 settings. Then press the “P”
key.

This document contains confidential information. The dissemination, publication, copying, or duplication of this document or the software described herein without prior written authorization is strictly prohibited.

4

Vision Vertical Oven Controller

www.fastinc.com 1-800-243-9271 229-51414C © 2008-2010 FAST

Programming the Controller

Hold Fan Speed will be displayed, then either HIGH or
LOW. Use the left or right arrow keys to change be-

tween the 2 settings. Then press the “P” key.

Setback Time will be displayed, then XX:XX. To change
the Setback time, type in your new time. Then
press the “P” key.

Setback Temp will be displayed with the current set­back temp XXXF. To change the setback tempera­ture, type in your new temperature. Then press
the “P” key.

Preheat Time will be displayed then XX:XX. To change
the preheat time, type in your new time. Then
press the “P” key.

Factory Programming—3228

Entering Factory Programming and
Changing Factory Settings

Press and hold the “P” key for 3 seconds.

Product Cnt will be displayed. Press the down
arrow.

Programming will be displayed. Press the “P” key.

ENTER CODE will be displayed.

From ENTER CODE type in 3228, then press the “P”
key.

Display will show System.

Press the down arrow key to Factory, then press
the “P” key.

Max Prog Temp will be displayed, then either 550F or
500F. Use the left or right arrow keys to change

between the 2 settings. Then press the “P” key.

Fan Speed Type will be displayed, then either 1 SPEED
or 2 SPEED. Use the left or right arrow keys to
change between the 2 settings. Then press the “P”
key.

If you change the default setting, the controller
will prompt (Are you sure? Existing recipes fan
speed will be reset!). Choose YES or NO, then press
the “P” key.

Exit System Programming

System will be displayed. Press the arrow up key
and Exit will be displayed. Then press the “P” key.

This document contains confidential information. The dissemination, publication, copying, or duplication of this document or the software described herein without prior written authorization is strictly prohibited.

Vision Vertical Oven Controller

www.fastinc.com 1-800-243-9271 229-51414C © 2008-2010 FAST

5

Programming the Controller

Adding Product and Pre-alarm
Names—3228

Programming a Custom Product and
Pre-alarm Name

Press and hold the “P” for 3 seconds.

Product Cnt will be displayed. Press the down
arrow.

Programming will be displayed, then press the “P”
key.

ENTER CODE will be displayed.

From ENTER CODE type in 3228 then press the “P”
key.

Display will show System. Press the down arrow
key until either ProdName Lib or Alarm Lib is

displayed.

Press the “P” key and a flashing dash will be
displayed.

Press the SCAN key and use the number keys to
spell the new word using the right arrow key to
go to the position of the word. Once the word is

spelled press the “P” key and Save Library ADD
will be displayed.

If you press the “P” key again the word you
spelled will be saved. If you don’t want the word
or need to modify it, press the left or right arrow
key to CANCEL or MODIFY and press the “P”.

NOTE: To delete the word and start over press
the TOGGLE/CLEAR key.

To Exit Library Mode

Either ProdName Lib or the Alarm Lib will be
displayed. Press the arrow up or down key until
the display reads Exit. Press the “P” key.

This document contains confidential information. The dissemination, publication, copying, or duplication of this document or the software described herein without prior written authorization is strictly prohibited.

6

Vision Vertical Oven Controller

www.fastinc.com 1-800-243-9271 229-51414C © 2008-2010 FAST

Notes

This document contains confidential information. The dissemination, publication, copying, or duplication of this document or the software described herein without prior written authorization is strictly prohibited.

Vision Vertical Oven Controller

www.fastinc.com 1-800-243-9271 229-51414C © 2008-2010 FAST

7

Want to learn more about
FAST products?

Visit our Web site:

www.fastinc.com

Customer Service and Technical Assistance

Our customer service department is available for orders and questions
Monday through Friday between the hours of 8 AM and 5 PM EST. Call us
toll-free at 1-800-FASTRON (1-800-327-8766) if you’re in the US, Canada or
the Caribbean, or at 203-378-6860 if you’re outside of these areas.

Toll-free technical assistance is available 24 hours a day, 365 days a year by
calling 1-800-243-9271 (from the U.S., Canada and the Caribbean) when
help is needed immediately.

You can also send an instant email message to a FAST technician, Monday
through Friday, 8am-5pm EST, by going to www.fastinc.com, selecting the
‘Support’ link at the top of the page, and clicking on ‘Contact Tech Support.’

Free Program for Service Exchanges

FAST provides an Exchange Program, at no extra cost, if a unit should fail.
In the event of failure, you have the option of (1) receiving a replacement
product from our factory, freight prepaid; (2) exchanging the failed product
for a replacement product at one of our authorized local service centers; or
(3) selecting on-site repair or replacement of the failed unit by one of our
authorized local service centers.

To take advantage of this program, simply call our toll-free customer service
number, 1-800-243-9271. If you elect to receive an exchange unit from the
factory, a replacement unit will be sent immediately. Upon receipt of the
replacement unit, simply return the failed unit to the factory, freight prepaid,
using the same carton and packing material in which the replacement unit
was shipped. The unit will be replaced free of charge, if still under warranty,
and if the product shows no evidence of abuse or alteration. If the unit is
not under warranty, you will pay repair charges and shipping costs to and
from the factory.

Food Automation - Service Techniques, Inc.

905 Honeyspot Road
Stratford, CT 06615-7147 USA

Phone: [phone]
Sales: 1-800-FASTRON
Fax: [phone]
International Callers: [phone]

www.fastinc.com

Toll-free technical support 24/7 from the U.S.,
Canada, and Caribbean: 1-800-243-9271

This document contains confidential information. The
dissemination, publication, copying, or duplication of this
document without prior written authorization is strictly
prohibited.

Specifications subject to change without notice.

Any minor adjustment or calibration and any labor costs for the
replacement of probes will be made at your expense.

The FAST Exchange Program is available to any FAST Domestic Customer
whose account is current, and applies to all FAST Timers, Computers and
Controllers.

International offices are located in the
United Kingdom, China and Singapore:

Europe, Middle East, Africa, South Asia

FAST INTERNATIONAL
31 Saffron Court
Southfields Business Park
Basildon, Essex SS15 6SS ENGLAND
Phone: [phone]

Asia Pacific

1803, 18F, No 922 Hengshan Rd
Shanghai 200030, CHINA
Phone: [phone]

15-101, Block 290G, Bukit Batok St. 24
SINGAPORE 65629
Phone: [phone]

SCK Link® is a registered trademark of Technology Licensing
Corporation and use is subject to the appropriate license
agreement.

WARRANTY

FAST warrants all new timers, computers, and controllers
for 1 year from the date of purchase including computers,
controllers, and timers. FAST warrants all other items for a
period of 90 days unless otherwise stated at the time of
purchase.

PATENTS

The products manufactured by FAST are protected under
one or more of the following U.S. Patents:
5,331,575 5,539,671 5,711,606 5,723,846
5,726,424 5,875,430 6,142,666 6,339,930
6,401,467 6,505,546 6,581,391 7,015,433
7,650,833
Plus foreign patents and patents pending. Plus licensed
patent 5,973,297

229-51414 Rev C

© 2008-2010 FAST Printed in the U.S.A. |

20MAY2010
