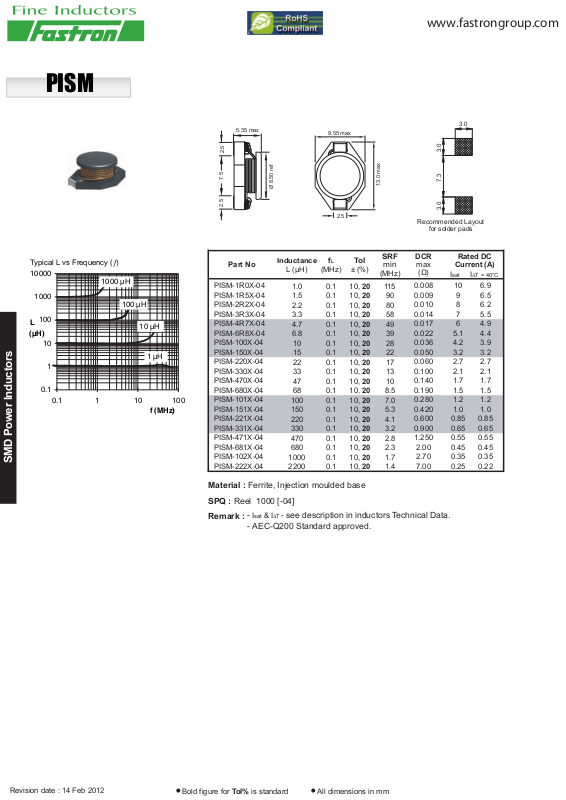

Page 1
PISM
www.fastrongroup.com
Typical L vs Frequency (ƒ)
10000
1000
100
L
(µH)
10
1
0.1
0.1 1 10 100
SMD Power Inductors
1000 µH
100 µH
10 µH
1 µH
f (MHz)
5.35 max
2.5
2.5 7.5
Part No
PISM-1R0X-04
PISM-1R5X-04
PISM-2R2X-04
PISM-3R3X-04
PISM-4R7X-04
PISM-6R8X-04
PISM-100X-04
PISM-150X-04
PISM-220X-04
PISM-330X-04
PISM-470X-04
PISM-680X-04
PISM-101X-04
PISM-151X-04
PISM-221X-04
PISM-331X-04
PISM-471X-04
PISM-681X-04
PISM-102X-04
PISM-222X-04
Ø 8.50 ref
Inductance
L (µH)
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
1000
2200
9.55 max
fL
(MHz)
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
2.5
Tol
± (%)
10, 20
10, 20
10, 20
10, 20
10, 20
10, 20
10, 20
10, 20
10, 20
10, 20
10, 20
10, 20
10, 20
10, 20
10, 20
10, 20
10, 20
10, 20
10, 20
10, 20
13.0 max
SRF
min
(MHz)
115
90
80
58
49
39
28
22
17
13
10
8.5
7.0
5.3
4.1
3.2
2.8
2.3
1.7
1.4
3.0
3.0 3.07.3
Recommended Layout
for solder pads
DCR
max
(Ω)
0.008
0.009
0.010
0.014
0.017
0.022
0.036
0.050
0.060
0.100
0.140
0.190
0.280
0.420
0.600
0.900
1.250
2.00
2.70
7.00
Rated DC
Current (A)
Isat
I∆T = 40°C
10
9
8
7
6
5.1
4.2
3.2
2.7
2.1
1.7
1.5
1.2
1.0
0.85
0.65
0.55
0.45
0.35
0.25
6.9
6.5
6.2
5.5
4.9
4.4
3.9
3.2
2.7
2.1
1.7
1.5
1.2
1.0
0.85
0.65
0.55
0.45
0.35
0.22
Material : Ferrite, Injection moulded base
SPQ : Reel 1000 [-04]
- I
& I∆T - see description in inductors Technical Data.
Remark :
sat
- AEC-Q200 Standard approved.
Revision date : 14 Feb 2012
• • Bold figure for Tol% is standard •• All dimensions in mm
