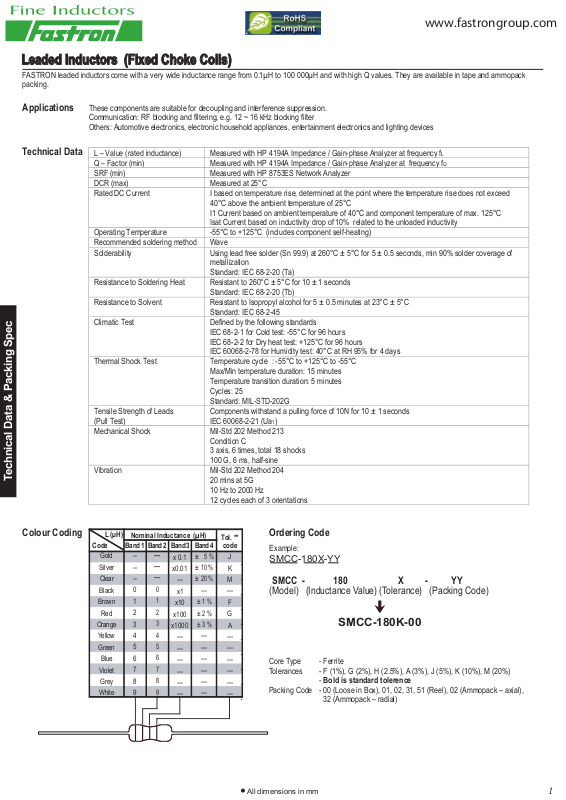

L – Value (rated inductance)
Measured with HP 4194A Impedance / Gain-phase Analyzer at frequency fL
Q – Factor (min)
Measured with HP 4194A Impedance / Gain-phase Analyzer at frequency fQ
SRF (min)
Measured with HP 8753ES Network Analyzer
DCR (max)
Measured at 25°C
Rated DC Current
I based on temperature rise, determined at the point where the temperature rise does not exceed
40°C above the ambient temperature of 25°C
I1 Current based on ambient temperature of 40°C and component temperature of max. 125°C
Isat Current based on inductivity drop of 10% related to the unloaded inductivity
Operating Temperature
-55°C to +125°C (includes component self-heating)
Recommended soldering method
Wave
Solderability
Using lead free solder (Sn 99.9) at 260°C ± 5°C for 5 ± 0.5 seconds, min 90% solder coverage of
metallization
Standard: IEC 68-2-20 (Ta)
Resistance to Soldering Heat
Resistant to 260°C ± 5°C for 10 ± 1 seconds
Standard: IEC 68-2-20 (Tb)
Resistance to Solvent
Resistant to Isopropyl alcohol for 5 ± 0.5 minutes at 23°C ± 5°C
Standard: IEC 68-2-45
Climatic Test
Defined by the following standards
IEC 68-2-1 for Cold test: -55°C for 96 hours
IEC 68-2-2 for Dry heat test: +125°C for 96 hours
IEC 60068-2-78 for Humidity test: 40°C at RH 95% for 4 days
Thermal Shock Test
Temperature cycle : -55°C to +125°C to -55°C
Max/Min temperature duration: 15 minutes
Temperature transition duration: 5 minutes
Cycles: 25
Standard: MIL-STD-202G
Tensile Strength of Leads
(Pull Test)
Components withstand a pulling force of 10N for 10 ± 1 seconds
IEC 60068-2-21 (Ua1)
Mechanical Shock
Mil-Std 202 Method 213
Condition C
3 axis, 6 times, total 18 shocks
100 G, 6 ms, half-sine
Vibration
Mil-Std 202 Method 204
20 mins at 5G
10 Hz to 2000 Hz
12 cycles each of 3 orientations
Leaded Inductors (Fixed Choke Coils)Leaded Inductors (Fixed Choke Coils)
FASTRON leaded inductors come with a very wide inductance range from 0.1µH to 100 000µH and with high Q values. They are available in tape and ammopack
packing.
Applications
Technical Data
These components are suitable for decoupling and interference suppression.
Communication: RF blocking and filtering, e.g. 12 ~ 16 kHz blocking filter
Others: Automotive electronics, electronic household appliances, entertainment electronics and lighting devices
Technical Data & Packing Spec
Colour Coding
Code
Gold
Silver
Clear
Black
Brown
Red
Orange
Yellow
Green
Blue
Violet
Grey
White
L (µH)
Nominal Inductance (µH)
Band 1
--
--
--
0
1
2
3
4
5
6
7
8
9
Band 2 Band 3 Band 4
---
---
---
0
1
2
3
4
5
6
7
8
9
x 0.1
x0.01
---
x1
x10
x100
x1000
---
---
---
---
---
---
± 5 %
± 10 %
± 20 %
---
± 1 %
± 2 %
± 3 %
---
---
---
---
---
---
Tol. **
code
J
K
M
---
F
G
A
---
---
---
---
---
---
Ordering Code
Example:
SMCC-180X-YY
SMCC - 180 X - YY
(Model) (Inductance Value) (Tolerance) (Packing Code)
SMCC-180K-00
Core Type - Ferrite
Tolerances - F (1%), G (2%), H (2.5%), A (3%), J (5%), K (10%), M (20%)
Packing Code - 00 (Loose in Box), 01, 02, 31, 51 (Reel), 02 (Ammopack – axial),
32 (Ammopack – radial)
Bold is standard tolerence
•• All dimensions in mm
1
Page 2
www.fastrongroup.com

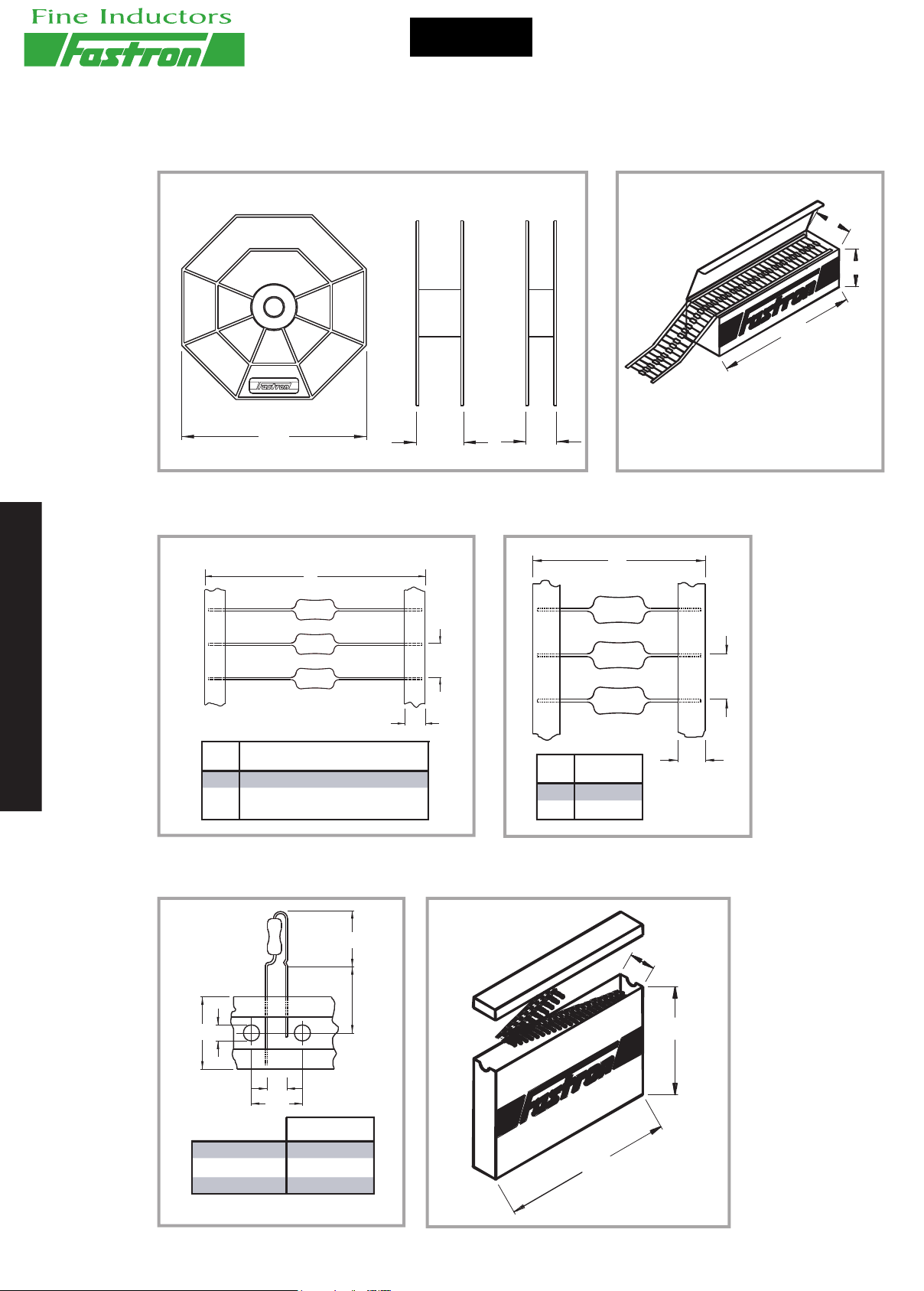

Packing
Specification
Fig. 1: On Reel (Plastic)
Packing code : 01, 31, 51
300
Fig. 3: Axial Standard Taping (65mm)
Packing code : 01, 02
65
axial
77
Fig. 2: Ammopack, axial
Packing code : 02
radial
71
71
260
50
Fig. 4: Axial Narrow Taping (38mm)
Packing code : 11, 12
38
A
A
6
Packing Specification
Fig. 5: Radial Taping
Packing code : 31, 32
A
(mm)
standard
5
optional; standard HBCC, HCCC,
10
VHBCC, XHBCC
4
18
12.7
without insulation
MICC, MICCS
SMCC
HBCC
5
H max. (mm)
Types
12.5
16
16
H
16.5 max
A
(mm)
5
10
Fig. 6: Ammopack, radial
Packing code : 32
Types
standard
optional
330
6
50
210
Radial Taping for Avisert available on request
•• All dimensions in mm
2
Page 3
www.fastrongroup.com

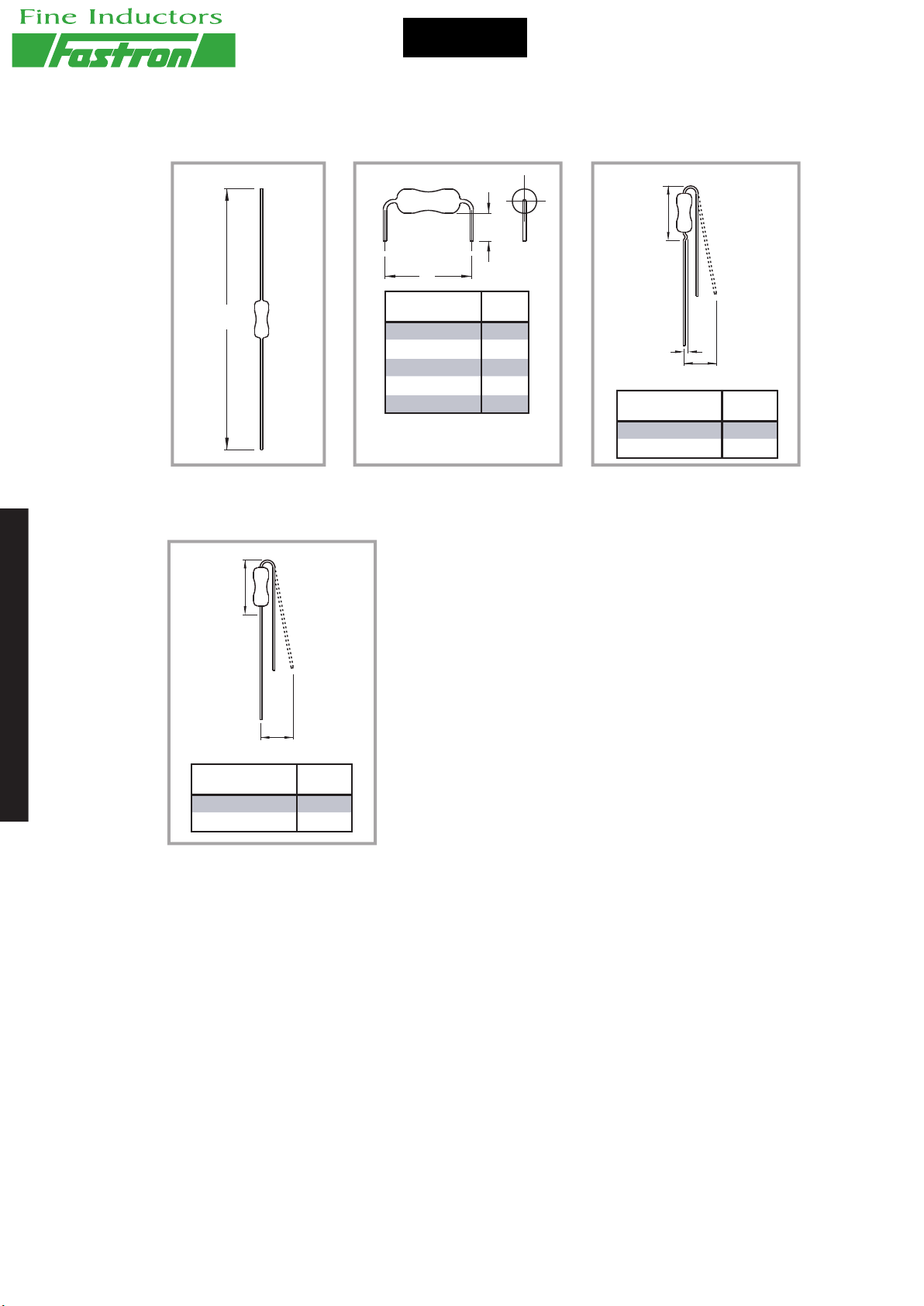

64
Packing
Specification
Fig. 7: Axial, loose form
Packing code : 00
Fig. 10: Radial, (
Packing code : 50
without kink
Fig. 8: Axial preformed
Packing code : 20
P
Dimensions
MICC,MICC/N
MICCS
SMCC,SMCC/N
MECC
LACC
Other pitch available on
request
) loose form
4
(mm)
10.0
10.0
12.5
15.0
17.5
Fig. 9: Radial, (
Packing code : 40
P
Dimensions
MICC, MICC/N
SMCC, SMCC/N
M
1.5
2.5 ... 7.5
with kink
) loose form
M max
(mm)
13.0
15.5
N
Packing Specification
MICC, MICC/N
SMCC, SMCC/N
2.5 ... 7.5
Dimensions
N max
(mm)
10.0
12.5
•• All dimensions in mm
3
