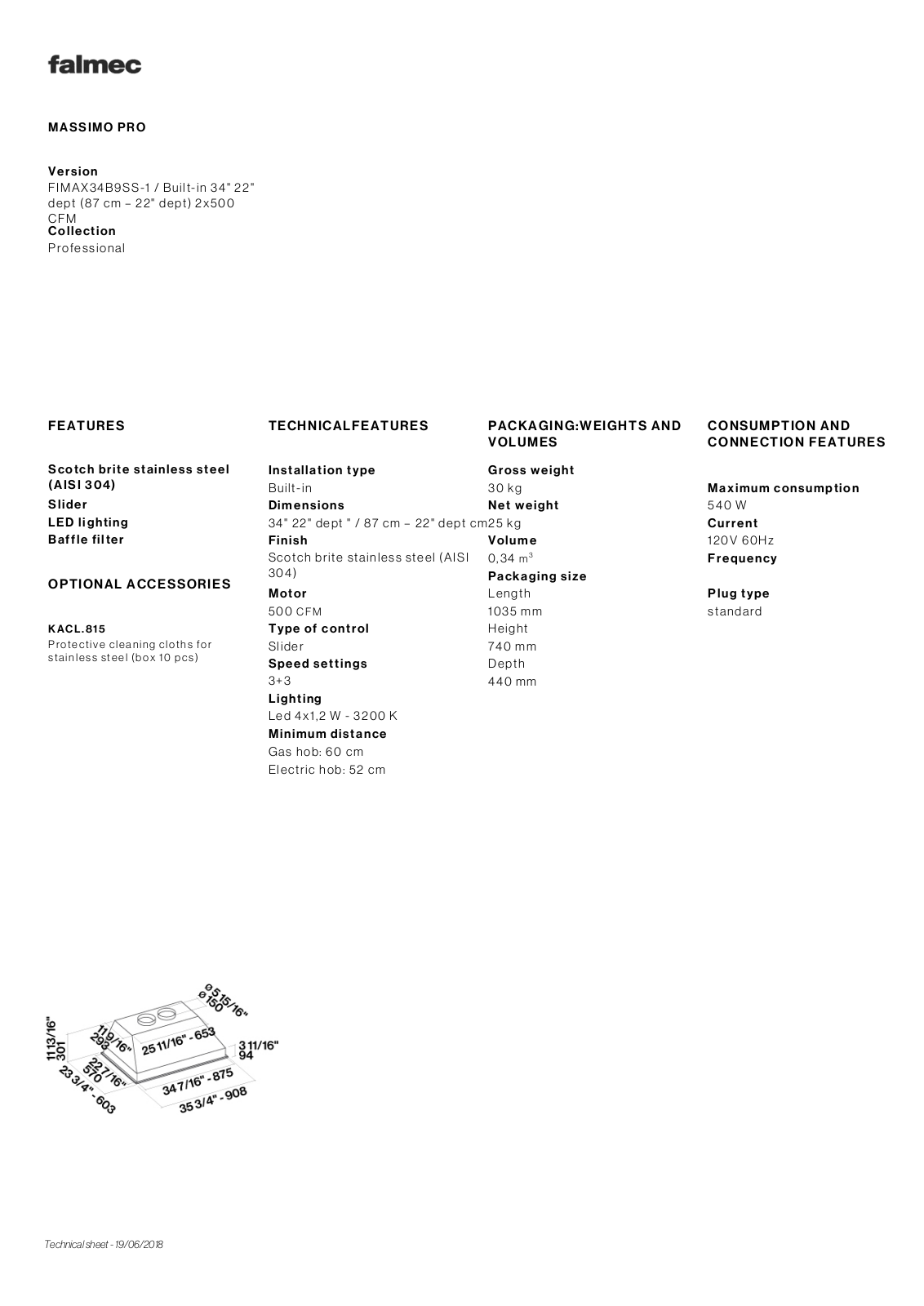

Falmec FIMAX34B9SS1 Specifications

MASSIMO PRO

Version

FIMAX34B9SS-1 / Built-in 34" 22"
dept (87 cm – 22" dept) 2x500
CFM

Collection

Professional

FEATURES TECHNICALFEATURES PACKAGING:WEIGHTS AND

VOLUMES

Scotch brite stainless steel
(AISI 304)

Slider
LED lighting
Baffle filter

OPTIONAL ACCESSORIES

KACL.815

Protective cleaning cloths for
stainless steel (box 10 pcs)

Installation type

Built-in

Dimensions

34" 22" dept " / 87 cm – 22" dept cm

Finish

Scotch brite stainless steel (AISI

304)

Motor

500

CFM

Type of control

Slider

Speed settings

3+3

Gross weight

30 kg

Net weight

25 kg

Volume

3

0,34

m

Packaging size

Length
1035 mm
Height
740 mm
Depth
440 mm

Lighting

Led 4x1,2 W - 3200 K

Minimum distance

Gas hob: 60 cm
Electric hob: 52 cm

CONSUMPTION AND
CONNECTION FEATURES

Maximum consumption

540 W

Current

120V 60Hz

Frequency

Plug type

standard

Technical sheet - 19/06/2018
