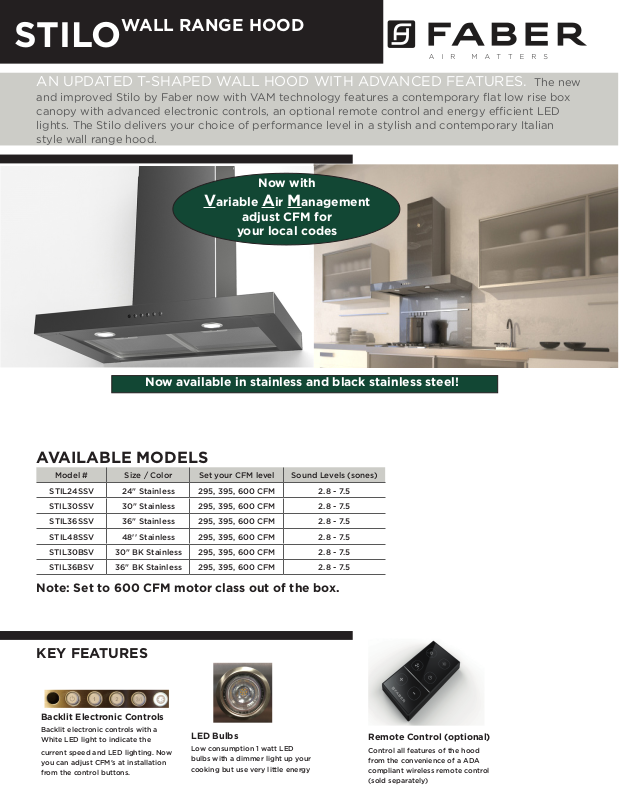

Faber STIL36BSV, STIL48SSV Specifications

WALL RANGE HOOD

STILO

AN UPDATED T-SHAPED WALL HOOD WITH ADVANCED FEATURES. The new

and improved Stilo by Faber now with VAM technology features a contemporary flat low rise box
canopy with advanced electronic controls, an optional remote control and energy ecient LED
lights. The Stilo delivers your choice of performance level in a stylish and contemporary Italian
style wall range hood.

Now with

Variable Air Management

adjust CFM for

your local codes

Now available in stainless and black stainless steel!

AVAILABLE MODELS

Model # Size / Color Set your CFM level Sound Levels (sones)

STIL24SSV 24" Stainless 295, 395, 600 CFM 2.8 - 7.5

STIL30SSV 30" Stainless 295, 395, 600 CFM 2.8 - 7.5

STIL36SSV 36" Stainless 295, 395, 600 CFM 2.8 - 7.5

STIL48SSV 48'' Stainless 295, 395, 600 CFM 2.8 - 7.5

STIL30BSV 30" BK Stainless 295, 395, 600 CFM 2.8 - 7.5

STIL36BSV 36" BK Stainless 295, 395, 600 CFM 2.8 - 7.5

Note: Set to 600 CFM motor class out of the box.

KEY FEATURES

Backlit Electronic Controls

Backlit electronic controls with a
White LED light to indicate the

current speed and LED lighting. Now
you can adjust CFM's at installation
from the control buttons.

LED Bulbs

Low consumption 1 watt LED
bulbs with a dimmer light up your
cooking but use very little energy

Remote Control (optional)

Control all features of the hood
from the convenience of a ADA
compliant wireless remote control
(sold separately)

STILO

WALL RANGE HOOD

SPECIFICATIONS

min. / max. ceiling height 8'2 11/16" - 9' 3/4"
convertible to ductless /

recirculating
canopy depth / height 18 1/2" d / 2 3/8" h

high ceiling kit yes - reaches up to 11' 3/8" ceilings

controls 4 speed electronic w/ white led

Variable Air Management Yes (set to 295, 395, 600 CFM)

lighting 2 x 1 (w) LED

ducting top 6" round

grease filters dishwasher safe mesh

10 minute intensive speed yes

15 minute auto shut o yes

ADA compliant yes (with remote control purchase)

power cord included yes

AC power 320 watts / 2.7 amps

PERFORMANCE

SPEED 1 2 3 BOOST

CFM 150 295 395 560

Sones 2.8 4.3 6.0 7.5

yes – with DUCT4

DIMENSIONS

Front

ACCESSORIES

# FILTER2 –

Charcoal Filter Kit

High quality charcoal filter for use
when recirculating the air back
into the kitchen. Filters out odor
and should be replaced every 6
months.

# HIGH3 –

High Ceiling Kit

High ceiling kit replaces both the
upper & lower chimney with 2
taller.

# DUCT4 –

Ductless Conversion Kit

To convert the Stilo to ductless,
this kit includes charcoal filters
and a diverter to send the air
thru the side grates on the upper
chimney.

# HIGH3BS–

High Ceiling Kit

High ceiling kit Black Stainless
(For STILBSV Only)/ (Up to 11'')

Rev :4/19

2 Cabot Road Hudson, MA 01749 • TEL: [phone] • E-Mail: [e-mail] www.faberonline.com

# REMCTRL2 –

Remote Control

Control all features of the hood
from the convenience of a
wireless remote control.

# WIREBOX –

Fixed Wiring Box

Replace the power cord with a
hard wired box to power the range
hood

# MUDAMPER6 / MUDAMPER8

Universal Make-Up Air Damper

Satisfies make-up air requirements, this
kit uses an air switch to activate the
make-up air damper to open and bring
fresh air into the home when the hood
fan is on. It then closes tightly when the
hood is o. The CFM level is not reduced
with this accessory.

Side

WARNING! Product specifications are subject to
change without notification. Consult the installation
instructions before you begin installing this range
hood. * Check local make up air codes for
guidelines.

Imagined in Italy
