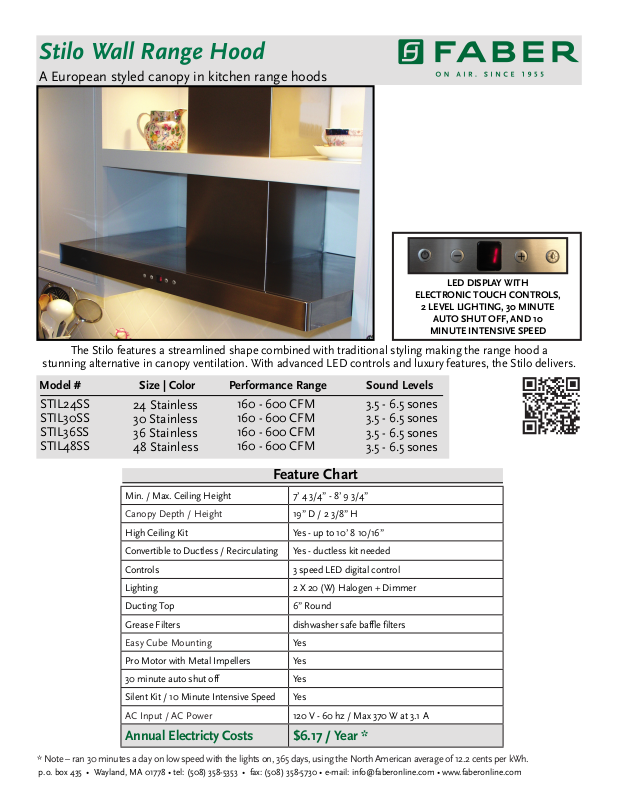

Stilo Wall Range Hood

A European styled canopy in kitchen range hoods

LED DISPLAY WITH

ELECTRONIC TOUCH CONTROLS,

2 LEVEL LIGHTING, 30 MINUTE

AUTO SHUT OFF, AND 10

MINUTE INTENSIVE SPEED

The Stilo features a streamlined shape combined with traditional styling making the range hood a

stunning alternative in canopy ventilation. With advanced LED controls and luxury features, the Stilo delivers.

Model # Size | Color Performance Range Sound Levels

STIL24SS
STIL30SS
STIL36SS
STIL48SS

24 Stainless
30 Stainless
36 Stainless
48 Stainless

160 - 600 CFM
160 - 600 CFM
160 - 600 CFM
160 - 600 CFM

3.5 - 6.5 sones

3.5 - 6.5 sones

3.5 - 6.5 sones

3.5 - 6.5 sones

Feature Chart

Min. / Max. Ceiling Height 7’ 4 3/4” - 8’ 9 3/4”

Canopy Depth / Height 19” D / 2 3/8” H

High Ceiling Kit Yes - up to 10’ 8 10/16”

Convertible to Ductless / Recirculating Yes - ductless kit needed

Controls 3 speed LED digital control

Lighting 2 X 20 (W) Halogen + Dimmer

Ducting Top 6” Round

Grease Filters dishwasher safe baffle filters

Easy Cube Mounting Ye s

Pro Motor with Metal Impellers Ye s

30 minute auto shut off Ye s

Silent Kit / 10 Minute Intensive Speed Ye s

AC Input / AC Power 120 V - 60 hz / Max 370 W at 3.1 A

Annual Electricty Costs $6.17 / Year *

* Note – ran 30 minutes a day on low speed with the lights on, 365 days, using the North American average of 12.2 cents per kWh.

p.o. box 435 • Wayland, MA 01778 • tel: [phone] • fax: [phone] • e-mail: [e-mail] • www.faberonline.com

Dimensional Diagrams

37 3/8”

(see installation instructions for more information)

ducted

ducted

x = 24"

min

7' 4 3/4"

max

8' 3 3/4"

ductless

min & max ceiling height examples

x = range hood height above cook top

ductless

x = 30"

min

7' 10 3/4"

max

8' 9 3/4"

x = 24"

min

7' 9 5/8"

max

8’ 3 3/4”

x = 30"

min

8' 3 5/8"

max

8’ 9 3/4”

For shorter ceilings, have the chimney
cover(s) cut at a sheet metal shop. For
higher ceiling installations, the High Ceiling
Chimney Kit includes a new 39” upper
chimney which would replace the 16 1/8”

upper chimney that came with the hood.

ACCESSORIES

High Ceiling Chimney Kit

One 39” upper chimney to replace 16 1/8”

upper chimney that came with hood

Ductless Conversion Kit # DUCT1

Includes: • Lower Chimney with holes
for ducting • Ductless Diverter Assembly

• Vent Grates • Charcoal Filter

WARNING! Product specifications are subject to change without notification. Consult the installation instructions before you begin installing this rangehood.

# HIGH1

# CFMREDCFM Reducer Kit

For use in make up air environments

where an under 300 cfm hood is required.

This kit reduces the ducting to 5” round

and reduces the cfm to under 300

Replacement Charcoal Filter # FILTER2

For ductless installations, high

quality, heavy duty filters ensure
the removal of smoke and odors
from the kitchen.
