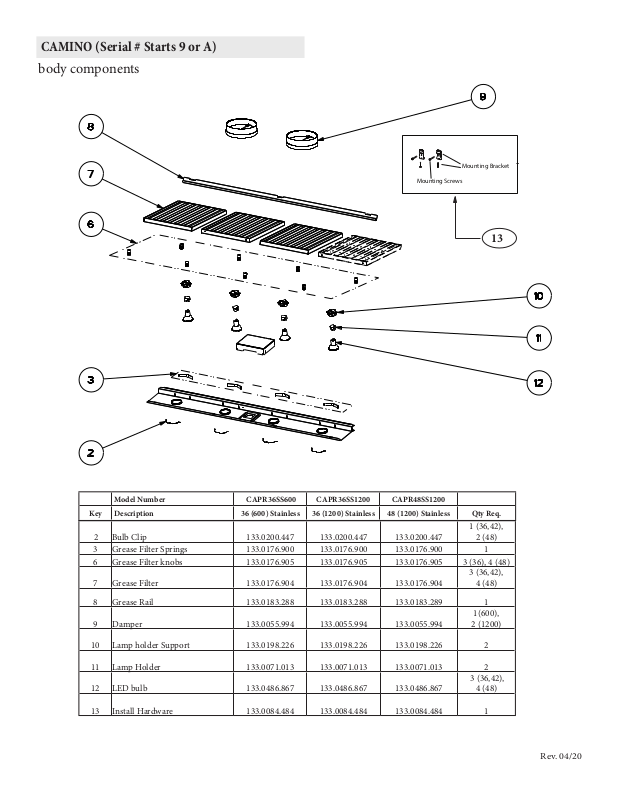

Page 1
CAMINO (Serial # Starts 9 or A)
body components
Mounting Bracket
Mounting Screws
13
Model Number CAPR36SS600 CAPR36SS1200 CAPR48SS1200
Key Description 36 (600) Stainless 36 (1200) Stainless 48 (1200) Stainless Qty Req.
1 (36,42),
2 Bulb Clip 133.0200.447 133.0200.447 133.0200.447
3 Grease Filter Springs 133.0176.900 133.0176.900 133.0176.900 1
6 Grease Filter knobs 133.0176.905 133.0176.905 133.0176.905 3 (36), 4 (48)
7 Grease Filter 133.0176.904 133.0176.904 133.0176.904
8 Grease Rail 133.0183.288 133.0183.288 133.0183.289 1
9 Damper 133.0055.994 133.0055.994 133.0055.994
10 Lamp holder Support 133.0198.226 133.0198.226 133.0198.226 2
11 Lamp Holder 133.0071.013 133.0071.013 133.0071.013 2
12 LED bulb 133.0486.867 133.0486.867 133.0486.867
13 Install Hardware 133.0084.484 133.0084.484 133.0084.484 1
2 (48)
3 (36,42),
4 (48)
1(600),
2 (1200)
3 (36,42),
4 (48)
Rev. 04/20
Page 2
CAMINO (Serial # Starts 9 or A)
control/electrical components
4
5
1
Model Number CAPR36SS600 CAPR36SS1200 CAPR48SS1200
Key Description 36 (600) Stainless 36 (1200) Stainless 48 (1200) Stainless Qty Req.
1 Light Disk 133.0473.153 133.0473.153 133.0473.153 1
4 Control Knob 133.0473.152 133.0473.152 133.0473.152 1
5 Control Switch Kit 133.0473.154 133.0473.154 133.0473.154 1
451 Control Board 133.0574.377 133.0574.377 133.0574.377 1
Rev. 04/20
Page 3
CAMINO (Serial # Starts 9 or A)
motor components
Model Number CAPR36SS600 CAPR36SS1200 CAPR48SS1200
Key Description 36 (600) Stainless 36 (1200) Stainless 48 (1200) Stainless Qty Req.
1 (600), 2
302 Impeller 133.0151.809 133.0151.809 133.0151.809
303 Capacitor 133.0060.648 133.0060.648 133.0060.648
305 Motor Rubber Mount 133.0151.811 133.0151.811 133.0151.811
399 Motor Kit 133.0574.374 133.0574.374 133.0574.374
(1200)
1 (600), 2
(1200)
1 (600), 2
(1200)
1 (600), 2
(1200)
Rev. 04/20
